Application of Chitosan@Fe3O4 Nanoparticle-Modified Screen-Printed Graphene-Based Electrode for Simultaneous Analysis of Nitrite and Ascorbic Acid in Hydroponics and Fruit Juice

,
,
and
1
Department of Chemistry, Faculty of Science, Burapha University, Chonburi 20130, Thailand
2
National Nanotechnology Center (NANOTEC), National Science and Technology Development Agency (NSTDA), Pathum Thani 12120, Thailand
*
Author to whom correspondence should be addressed.
Sensors2025, 25(5), 1431;https://doi.org/10.3390/s25051431
This article belongs to the Section Chemical Sensors
Version Notes
Order Reprints

Abstract

In this work, the development of screen-printed electrodes modified with chitosan-coated magnetite nanoparticles (CTS@Fe3O4/SPGNE) for the simultaneous determination of nitrite (NO2−) and ascorbic acid (AA−) is presented. The study investigated various ratios of graphene to chitosan-coated magnetite nanoparticles (CTS@Fe3O4), as well as the optimal pH. These factors were examined due to their impact on the selectivity and sensitivity of the analysis. The results indicated that a graphene paste to CTS@Fe3O4 ratio of 16:1.0 g and a pH of 4 were optimal for the analysis of both NO2− and AA−. Additionally, the behavior of the proposed electrode, its analytical performance, and interference studies were thoroughly examined. Furthermore, the CTS@Fe3O4/SPGNE electrode shows potential for the simultaneous determination of NO2− and AA− in hydroponics and fruit juice samples.

1. Introduction

In the present, maintaining a healthy body is crucial, particularly in the context of the increasing prevalence of various diseases. Vitamins are widely recognized as essential nutrients that play an important role in disease prevention. Among these, ascorbic acid (AA−), commonly referred to as vitamin C, is vital for supporting the immune system’s normal functioning, thereby enhancing the body’s ability to combat illnesses. Notably, the human body cannot synthesize AA− endogenously and must rely on dietary sources to meet its requirements. However, adequate AA− is obtained from the diet; therefore, additional supplementation is unnecessary and may even pose potential side effects. As already known, vegetables and fruits are primary sources of AA−, with fruits offering a particularly high content of this essential nutrient. However, fruit consumption also introduces a considerable amount of sugar, which may pose challenges for individuals managing their sugar intake. Consequently, vegetables are a preferable alternative, as they provide adequate AA− with lower sugar content while also contributing dietary fiber that supports healthy digestion. It is important to note that AA− is an unstable compound, and its content can be significantly diminished during the cooking process. Currently, the Institute of Medicine in USA recommends a daily intake of AA− of 75 mg per day for women and 90 mg per day for men [1], while the Institute of Medicine in Thailand recommends 85 mg per day for women and 100 mg per day for men [2]. A deficiency in AA− can lead to a variety of health issues, including scurvy, increased susceptibility to colds, and recurrent infections. Furthermore, prolonged AA deficiency may result in fragile capillaries, easy bruising, muscle weakness, and bone pain [3,4,5]. Consequently, the consumption of fresh vegetables is an effective means of ensuring adequate vitamin C intake, especially for diabetic people.
The consumption of fresh vegetables has gained increasing popularity, including those grown using soil-based and soilless systems, such as hydroponics. Recently, hydroponic vegetable cultivation has attracted significant attention due to its efficient use of limited cultivation space, simplified management of weeds and pests, and high market value. In hydroponic farming, plants receive nutrients in the form of nutrient solutions, which must be sufficiently concentrated to support plant growth. These nutrients are directly absorbed by the plants. For fresh vegetable consumption, nitrogen (N) is typically supplied to promote growth, enhance leaf size, and produce a dark green, appealing appearance. This nitrogen is often provided in the form of urea fertilizer solution. The application of urea solutions involves key chemical processes, including ammonification, which converts urea into ammonia, and nitrification, which further converts ammonia into nitrite and nitrate. Thus, the direct absorption of nutrient solutions in hydroponics can increase the accumulation of chemical residues, particularly nitrite (NO2−), in various plant parts. In nature, the reversibility of NO2− and NO3− can occur in living organisms. For plant NO2− transport, it has been reported that the cytosol is the first cellular compartment to encounter NO3− in the root, where it is converted to NO2− as cytosolic NO2−. This product can then be transported across the membrane, allowing NO2− to be detected in plants [6]. Additionally, NO2− can be used as an additive in fruit juice. Therefore, NO2− was selected as the analyte for this study. As known, NO2− is a potent oxidizing agent that inhibits hemoglobin from transporting oxygen to body tissues, leading to conditions such as fatigue, cyanosis—commonly known as blue baby syndrome—infections, diabetes, cancer, and cerebrovascular diseases [7,8,9,10,11]. The Ministry of Public Health in Thailand has set the standard for NO2− levels in food to not exceed 80 mg·kg−1, and the amount consumed by the body should not exceed 0.07 mg·kg−1 of body weight per day [12]. Therefore, the simultaneous analysis of NO2− and AA− content in hydroponic vegetables and fruit juice has garnered considerable interest, with both used as samples in this work. Various techniques, such as UV–Visible spectrophotometry, High-Performance Liquid Chromatography (HPLC), and Gas Chromatography (GC), have been used to analyze NO2− and AA−. However, research on their simultaneous analysis using these methods is limited. Only a few studies have focused on electrochemical methods for the simultaneous detection of these compounds [13,14,15,16,17,18,19,20].
To exploit the advantages of screen-printed electrodes (SPEs) and build on our research group’s previous work on CTS@Fe3O4 particles [21,22,23] and graphene-based screen-printing ink [24], this study aims to fabricate a novel CTS@Fe3O4/SPGNE. The aim is to enhance specificity and sensitivity for the simultaneous determination of NO2− and AA− in hydroponic vegetables and fruit juice samples, ensuring the food quality meets the established safety standards.

2. Materials and Methods

2.1. Apparatus

All electrochemical experiments in this work were performed using the potentiostat (Autolab PGSTAT204, Metrohm, The Netherlands) and operated via Nova version 1.11 software). A ball-mill machine (Ball milling Emax, Rutsch, UK) was used to screen the three-electrode system. A screen printer (Dek, version 03ix, UK) was employed to screen-print the conductive inks on individual PET substrates. The three-system screen-printed electrode was produced by mixed CTS@Fe3O4 and graphene paste used as the working and auxiliary electrodes, while the silver/silver chloride paste (Ag/AgCl) was screened and used as a reference electrode. A specord 210 plus UV–Visible spectrophotometer (Analytica Jana/Germany) was used for the determination of the analytes used as the standard method. A scanning electron microscope (SEM) and energy-dispersive X-ray spectrophotometer (EDX) (LEO 1450 VP; Carl Zeiss) were employed to observe the surface morphologies and elemental analysis of graphene and CTS@Fe3O4/graphene. Additionally, the FT-IR spectra of graphene and CTS@Fe3O4/graphene were obtained by using an FT-IR spectrophotometer (Perkin Elemer, Spectrum System 2000).

2.2. Synthesis of Magnetite Nanoparticles and Coated Chitosan on Magnetite Nanoparticles

Fe3O4 nanoparticles were prepared by the co-precipitation method of ferric and ferrous ions using ammonium hydroxide, as described by Sanchayanukun and Muncharoen (2020) [22]. Briefly, it involves mixing 2.0 M ferrous chloride tetrahydrate (Panreac QuÍmica S.A., Spain) and 1.0 M ferric chloride anhydrous (Loba Chemie, India) with a 1:2 ratio in a round-bottomed bottle. While the mixed solution was stirred, 0.7 M ammonium hydroxide (Loba Chemie, India) was dropped for 2 h, after which dark-brown magnetite nanoparticles appeared. After that, the particles were repeatedly rinsed and dried at 120 °C. Then, the Fe3O4 nanoparticles were cooled at room temperature and stored in desiccator. For CTS@Fe3O4 nanoparticles’ synthesis, the reverse-phase suspension crosslink method was used. Weigh the Fe3O4 nanoparticles 0.100× g in a small vial and wash with ethanol. After that, paraffin (Fisher Scientific, USA), Span-80 (Sigma-Aldrich, Germany), and 4% w/v chitosan (Sigma-Aldrich, Iceland) were added, respectively. The mixture was sonicated for 30 min. Next, 25% glutaraldehyde (Loba Chemie, India) was added and shaken using a shaker (DLAB, China) for 4 h. At the end of time, the CTS@Fe3O4 nanoparticles were obtained. The synthesized CTS@Fe3O4 nanoparticles were separated from the unreacted chitosan solution under magnetic field. Subsequently, the CTS@Fe3O4 nanoparticles were repeatedly washed with distilled water and ethanol before being filtered. The synthesized particles were dried in the oven at 50 °C for 12 h. Later, the CTS@Fe3O4 nanoparticles were stored in a desiccator before use.

2.3. Preparation of CTS@Fe3O4 Nanoparticles Modified Screen-Printed Graphene-Based Electrode (CTS@Fe3O4/SPGNE)

Firstly, graphite rods (1/400 dia, Electron Microscopy Science) were used as the starting material for graphene synthesis. Graphene powder was synthesized by one-step electrolytic exfoliation in a PSS solution, based on similar procedures reported previously [24] using the electrolytic exfoliation method. A commercial polystyrene sulfonic acid (PSS) solution (Clevios P Jet N from HC Starck, USA) was employed as an electrolyte for electrolytic exfoliation. A constant voltage of 8 V was applied between two graphite rods placed in an electrolysis cell with the PSS electrolyte for 24 h. The graphene powder was then extracted from the solution by washing ethanol and deionized water several times and drying at 80 °C for 1 h. The graphene powder was obtained.
Secondly, to prepare the graphene paste, 10% graphene powder was carefully blended with a commercial carbon paste using a ball-mill machine for 1 h to ensure a homogeneous mixture.
Lastly, the CTS@Fe3O4/SPGNE conductive ink was prepared by mixing the prepared graphene paste and the synthesized CTS@Fe3O4 nanoparticles in a weight ratio of 16:1 by using a ball mill at 800 rpm for 1 h. The CTS@Fe3O4/SPGNE conductive ink was then screened on a polyvinyl chloride (PVC) substrate to produce working and counter electrodes. The printed substrate was then dried at 60 °C for 5 min. This was followed by the screen printing of Ag/AgCl ink as the reference electrode. Finally, polyurethane ink was screened over the three electrodes to define the sensing area.

2.4. Square-Wave Voltametric Method

The optimum conditions for square-wave voltammetry (SWV) were carried out in a 0.1 M phosphate-buffer solution containing pH 4. A pre-concentration step at potential −0.5 V for 15 s, scan potential −0.5 to 1.2 V, frequency 25 Hz, amplitude 25 mV s−1, and step potential 10 mV s−1 were used as the optimum voltametric parameters. The results of the study of the optimum conditions for SWV parameters were shown in Supplementary Figure S1.

2.5. Sample Preparation

At a local market in Bang Saen, Chonburi, Thailand, fruit juice and hydroponic vegetable samples were chosen and acquired for use in this study. The preparation method for the fruit juice samples was adopted from Pisoschi et al. (2011) [25]. The fruit juice samples were filtered using no. 1 filter paper. Following this, the resulting solution underwent centrifugation at 10,000 rpm for 5 min. Afterward, the sample solutions were stored in a refrigerator at 4 °C. The hydroponic vegetable samples were prepared following the guidelines of the international standard methods (International Standard ISO 6335, 1984) [26] and Stachniuk et al. (2018) [27]. Following the weighing of the 10 g sample, successive rinses with tap water and deionized water were conducted, after which the sample underwent coarse and fine grinding using a blender. After the addition of sodium tetraborate and warm water, the finely ground sample was boiled for 15 min. Following this step, potassium hexacyanoferrate and zinc acetate were introduced. The solution was then filtered using no.1 filter paper and centrifuged at 10,000 rpm for 5 min. These samples were ultimately examined using the optimal conditions for both methods: UV–Visible spectrophotometry as the standard method, and the developed method utilizing electrochemistry.

3. Results and Discussion

3.1. Characterization

To characterize the materials, CTS@Fe3O4 mixed with graphene was used as the material for the proposed electrode. Therefore, SEM/EDX was employed for morphology and elemental analysis, while the FT-IR technique was used to identify the materials. Additionally, electrochemical impedance spectroscopy (EIS) was used to evaluate the material’s conductivity performance.

3.1.1. SEM/EDX

The results, depicted in Figure 1, show that the %wt of the elements in graphene and CTS@Fe3O4/graphene were slightly different. However, when considering the %wt of nitrogen (N), the %wt of N in CTS@Fe3O4/graphene (33.59 %wt) was higher than that in graphene (30.30 %wt). To further validate the hypothesis, the FT-IR technique was employed for further analysis.

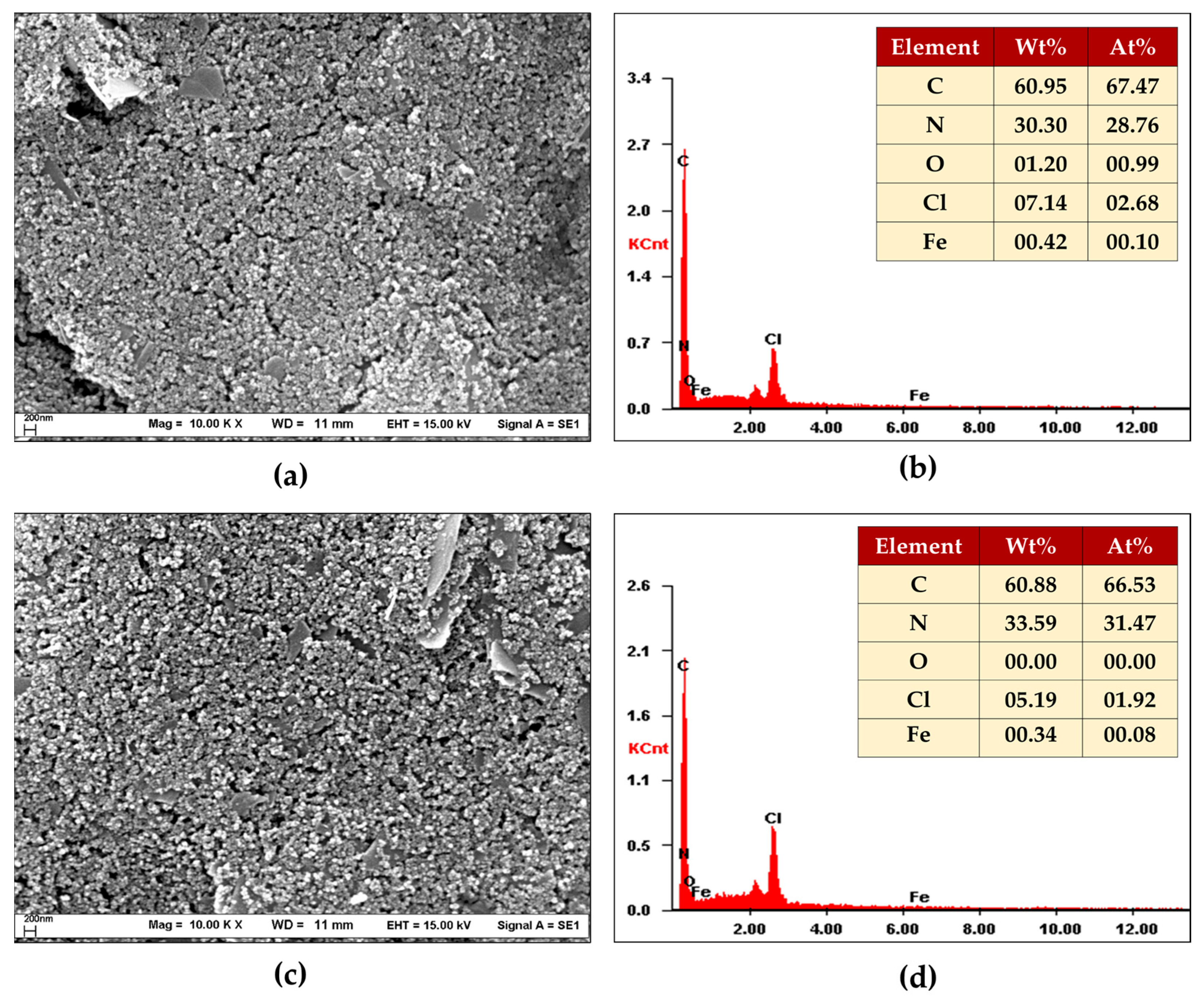

Figure 1. Scanning electron microscopy (SEM) images study of (a) graphene and (c) CTS@Fe3O4/graphene at 10,000× magnification; and EDX composition study of (b) graphene and (d) CTS@Fe3O4/graphene.

3.1.2. FT-IR

The composition of graphene and CTS@Fe3O4/graphene was analyzed using FT-IR spectroscopy to confirm the successful incorporation of CTS@Fe3O4 into graphene as the proposed electrode material. Figure 2 represents the FT-IR spectrum of these materials. In the case of CTS@Fe3O4/graphene, the peak at 3452 cm−1 is attributed to the O-H and N-H stretching vibrations, while the peak at 2927 cm−1 corresponds to C-H stretching vibrations. Additionally, the peak at 1062 cm−1 is associated with C-O stretching vibrations in chitosan [28]. The peak at 1466 cm−1 also corresponds to the -NH2 group resulting from the crosslinking reaction between chitosan and glutaraldehyde, as reported by Bin Li et al. [29]. For bare graphene, no FT-IR peaks were observed. Thus, the proposed electrode confirmed successful fabrication using a mixture of CTS@Fe3O4 and graphene paste.

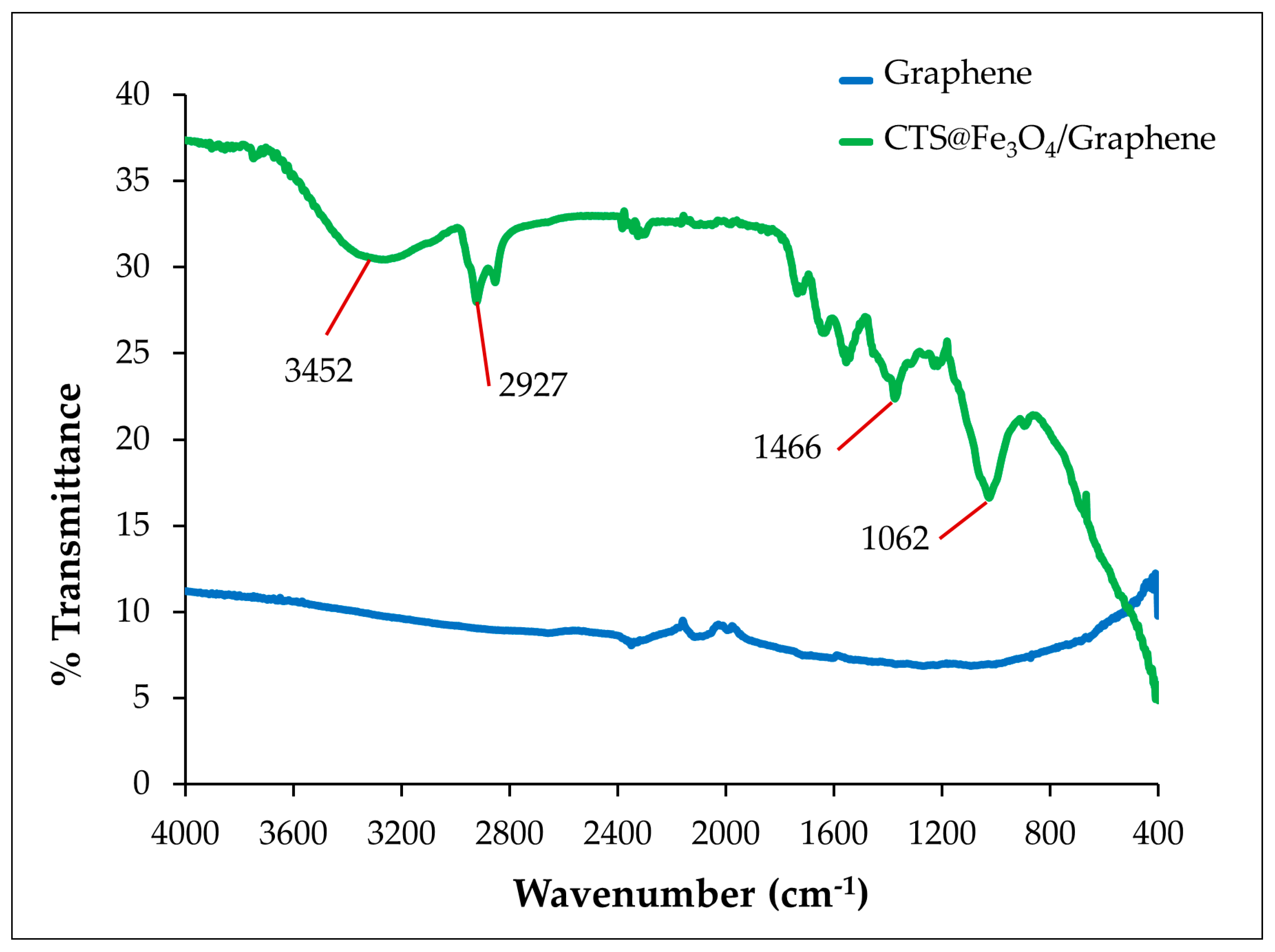

Figure 2. FT-IR spectra of graphene (blue line) and CTS@Fe3O4/graphene (green line).

3.1.3. Electrochemical Impedance Spectroscopy (EIS)

The electrical conductivity of the SPGNE and CTS@Fe3O4/SPGNE were studied using EIS technique. The Nyquist diagram usually consists of two parts: a semicircle illustrating an electrode’s electrical conductivity. The narrower hemisphere denotes strong conductivity or low resistance. Additionally, there is a straight line depicting the electrode’s diffusion process. In Figure 3, the Nyquist diagrams illustrate the analysis of K4Fe(CN)6 using these electrodes. The outcomes revealed that the SPGNE (red line) exhibited superior electrical conductivity, attributed to the inherent conductivity of graphene. Subsequently, CTS@Fe3O4/SPGNE (purple line) demonstrated lower conductivity, attributed to the non-conductive polymer chitosan coating the surface of the magnetite nanoparticles. This coating, as observed in studies by Marroquin et al. and Abedi et al. [30,31], obscures the conductivity of graphene, resulting in lower conductive nature of this electrode type. Nevertheless, the sensitivity observed in the analysis of NO2− and AA− using CTS@Fe3O4/SPGNE surpassed that of SPGNE. This could potentially be attributed to the magnetite nanoparticles coated with chitosan, enhancing adsorption at the newly developed electrode surface, as indicated in the findings reported by Sanchayanukun and Muncharoen (2020) [22]. Thus, CTS@Fe3O4/SPGNE was chosen and subsequently utilized for further analysis and description.

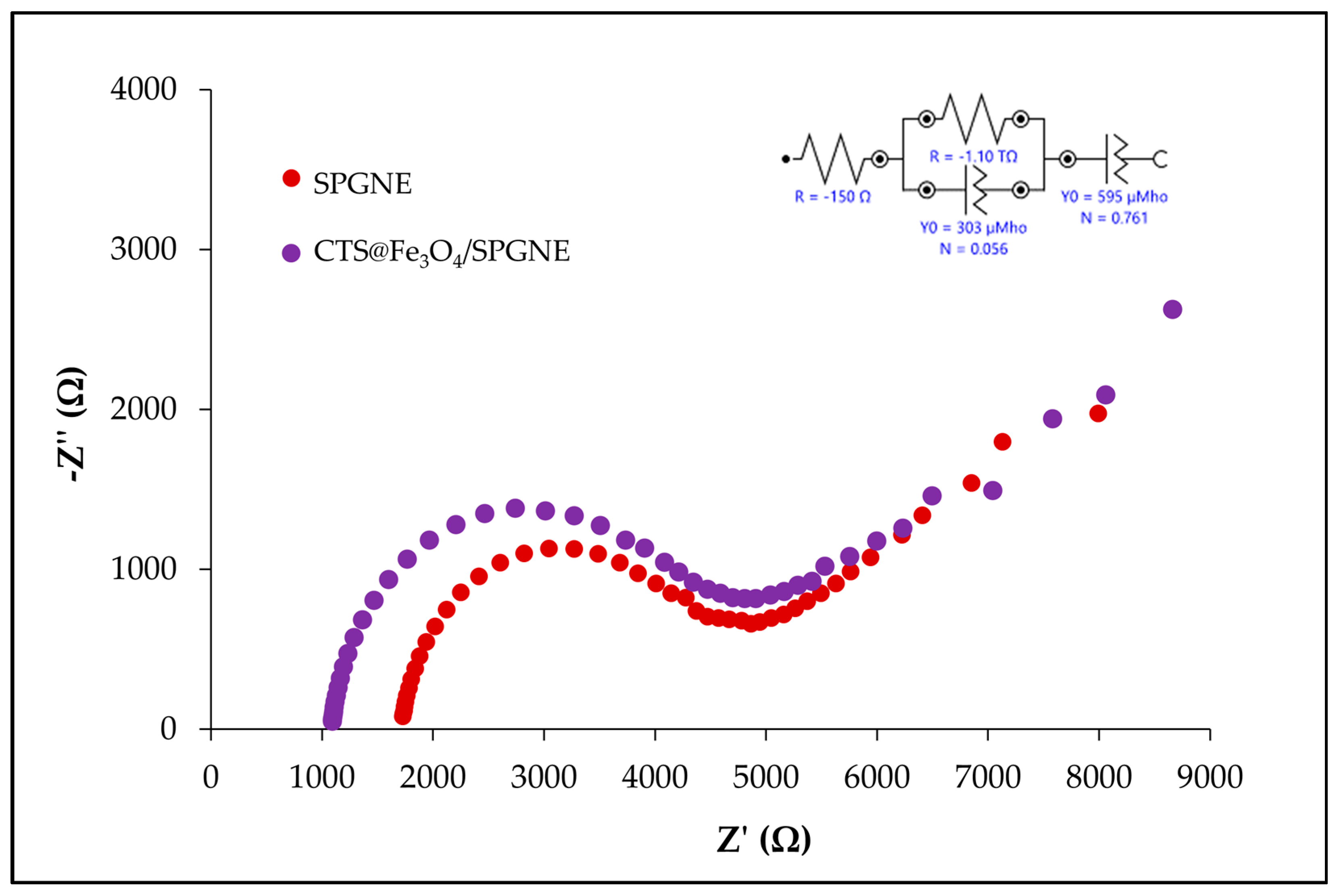

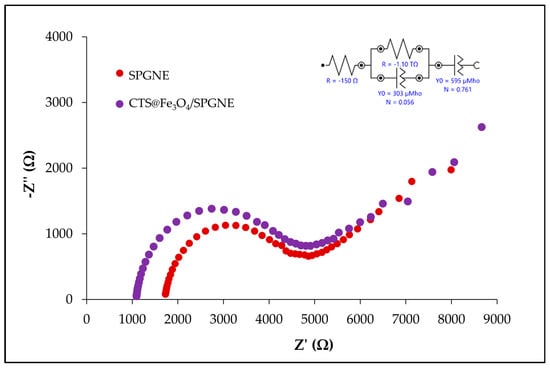

Figure 3. Nyquist diagrams of SPGNE (red line) and CTS@Fe3O4/SPGNE (purple line) for K4Fe(CN)6 analysis.

3.2. Preliminary Investigations for Nitrite (NO2−) and Ascorbic Acid (AA−) Analysis

Various electrode types—screen-printed graphite electrodes (SPCE), screen—printed graphene electrodes (SPGNE), and CTS@Fe3O4/SPGNE—were used for the simultaneous analysis of NO2− and AA− in this study. The relation plot between current (peak height) and electrode types is shown in Figure 4a. It was observed that the oxidation currents of NO2− and AA− detected by CTS@Fe3O4/SPGNE gave the highest compared to those detected by SPCE and SPGNE. The oxidation reactions of NO2− and AA− were shown in Supplementary Figure S2. Additionally, it was also found that the potential of NO2− (at 0.65 V) and AA− (at 0.08 V) detected by CTS@Fe3O4/SPGNE was slightly lower than the potential of NO2− (at 0.70 V) and AA− (at 0.14 V) detected by SPGNE (Figure 4b). This could be attributed to the robust electrical conductivity and catalytic properties exhibited by Fe3O4 nanoparticles, along with the attraction between the positive charge of amine in chitosan and the analytes (NO2− and AA−). This aligns with findings from prior research by Mo et al. [32] and Sanchayanukun and Muncharoen (2020) [22]. Consequently, CTS@Fe3O4/SPGNE was selected as the suitable electrode for further experiments. The cyclic voltammograms of NO2− and AA− compared to a blank signal were shown in Figure 4b. Additionally, the cyclic voltammograms of phosphate buffer (pH 4) recorded using SPGNE exhibited a higher background current, as shown in Figure S2 (Supplementary Figure S2). Furthermore, the simultaneous analysis of NO2− and AA− using the SWV technique with the SPGNE and CTS@Fe3O4/SPGNE was investigated. The SWV voltammograms obtained using CTS@Fe3O4/SPGNE exhibited suitable response signals, as illustrated in Figure S2 (Supplementary Figure S2). The surface areas of the modified (CTS@Fe3O4/SPGNE) and unmodified (bare SPGNE) electrodes were calculated using the Randles–Ševčík equation [33]. The electroactive surface areas were determined to be 0.2921 mm2 for bare SPGNE and 0.3424 mm2 for CTS@Fe3O4/SPGNE, respectively. Thus, the CTS@Fe3O4/SPGNE was chosen as the three-electrode system for this work.

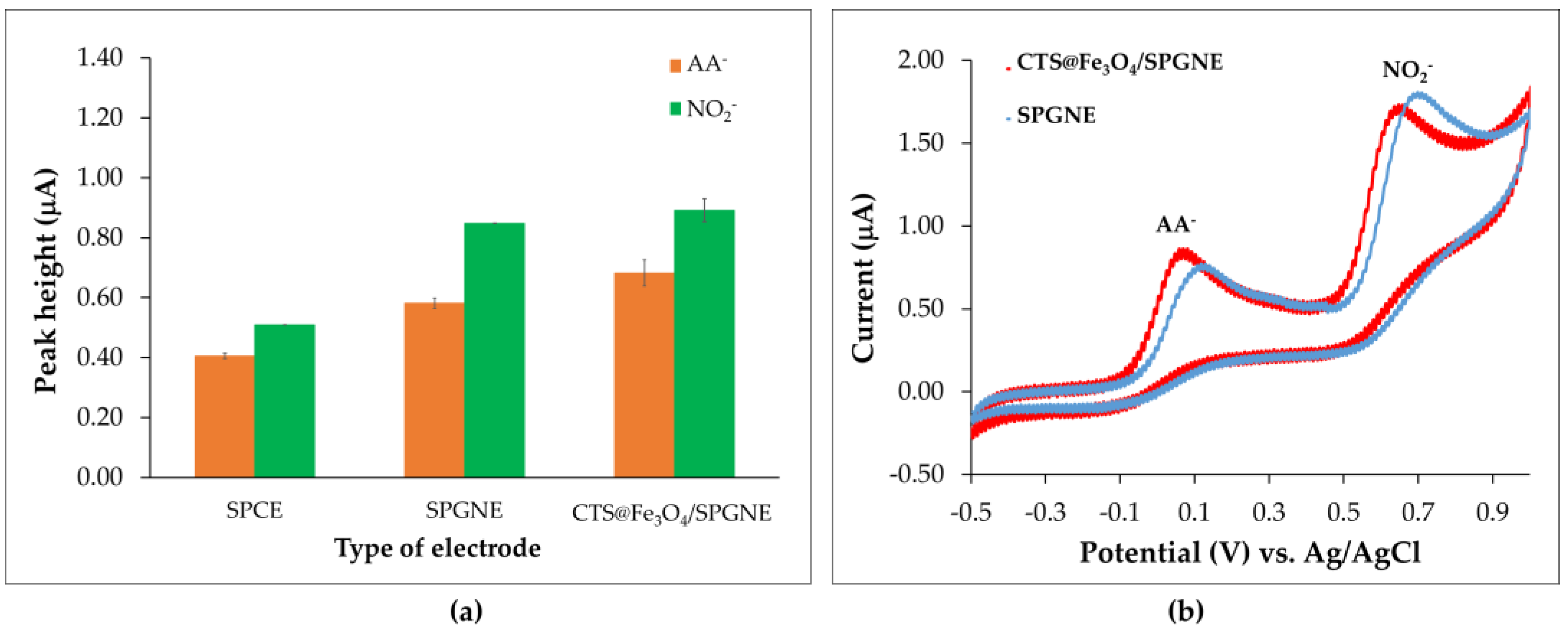

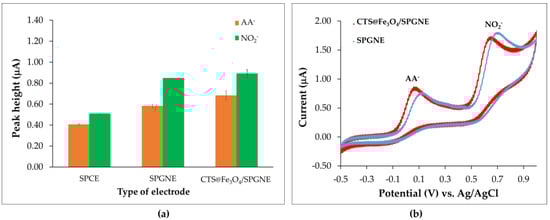

Figure 4. (a) The relation plot between peak height (current) and various material electrode types and (b) cyclic voltammograms for the analysis of nitrite (NO2−) 0.05 mM and ascorbic acid (AA−) 0.1 mM in phosphate-buffer solution (pH 4) detected by CTS@Fe3O4/SPGNE (red line) and SPGNE (blue line).

3.3. Ratio of Graphene and Chitosan-Coated Magnetite Nanoparticles (CTS@Fe3O4)

The various weight ratios of graphene paste and CTS@Fe3O4, such as 16:0.1, 16:0.5, 16:0.7, 16:1.0, and 16:1.5 for NO2− and AA− analysis were investigated in this study. The results showed that CTS@Fe3O4/SPGNE could not be prepared at a weight ratio of 16:1.5, as it did not form a paste. Therefore, this ratio was unsuitable for electrode fabrication. For others, the observed oxidation currents of NO2− were a bit different. However, it was discovered through the analysis of AA− that the optimum weight ratio between graphene paste and CTS@Fe3O4 was 16:1.0 (Figure 5). Therefore, the proposed electrode fabricated using the ratio of graphene paste and CTS@Fe3O4 at 16:1.0 g was selected for the determination of NO2− and AA−. The scheme of CTS@Fe3O4/SPGNE was shown in Figure 5b.

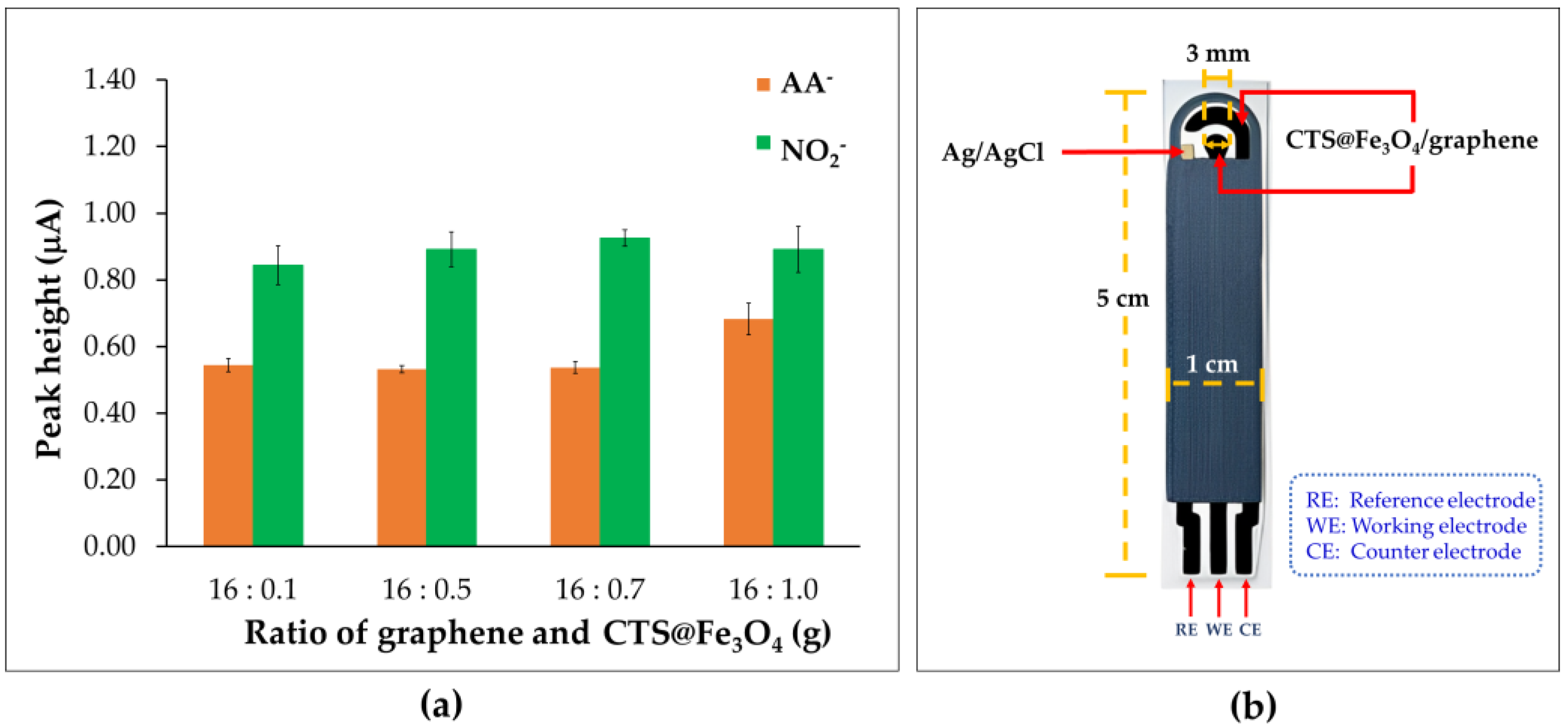

Figure 5. (a) The relation plot between peak height (current) and the various CTS@Fe3O4/SPGNE using different weight ratios of graphene paste and CTS@Fe3O4 for NO2− and AA− analysis and (b) the scheme of CTS@Fe3O4/SPGNE.

3.4. Behavior Study of the CTS@Fe3O4/SPGNE

The behavior of the developed screen-printed electrode (CTS@Fe3O4/SPGNE) was studied using the CV technique at a scan rate ranging from 20 to 70 mV. Figure 6a illustrates that the acquired signal rises proportionally with the scan-rate increment. Here, an examination was carried out to explore the adsorption and diffusion behavior through an investigation into the electrode’s oxidation current. Referring to Figure 6b, the linearity range slopes for NO2− and AA− determine the electrode behavior. When the slope measures below 0.5, the electrode behavior signifies a diffusion process; if it falls between 0.5 and 1.0, it indicates a mixed diffusion and adsorption process. Slopes exceeding 1.0 imply an adsorption process [34]. The obtained results revealed slopes of 0.6006 for NO2− and 0.5794 for AA−, indicating that the electrode behavior provides both diffusion and adsorption for both analytes. Additionally, the peak current changed linearly with the scan rate (Figure 6c), indicating an adsorption effect on the mechanism, consistent with the report by Asangil, D. et al. [34]. Furthermore, the peak current also showed a linear relationship with the square root of the scan rate (Figure 6d), which may suggest a diffusion effect. These results indicate that the proposed electrodes exhibit a mixed diffusion and adsorption behavior.

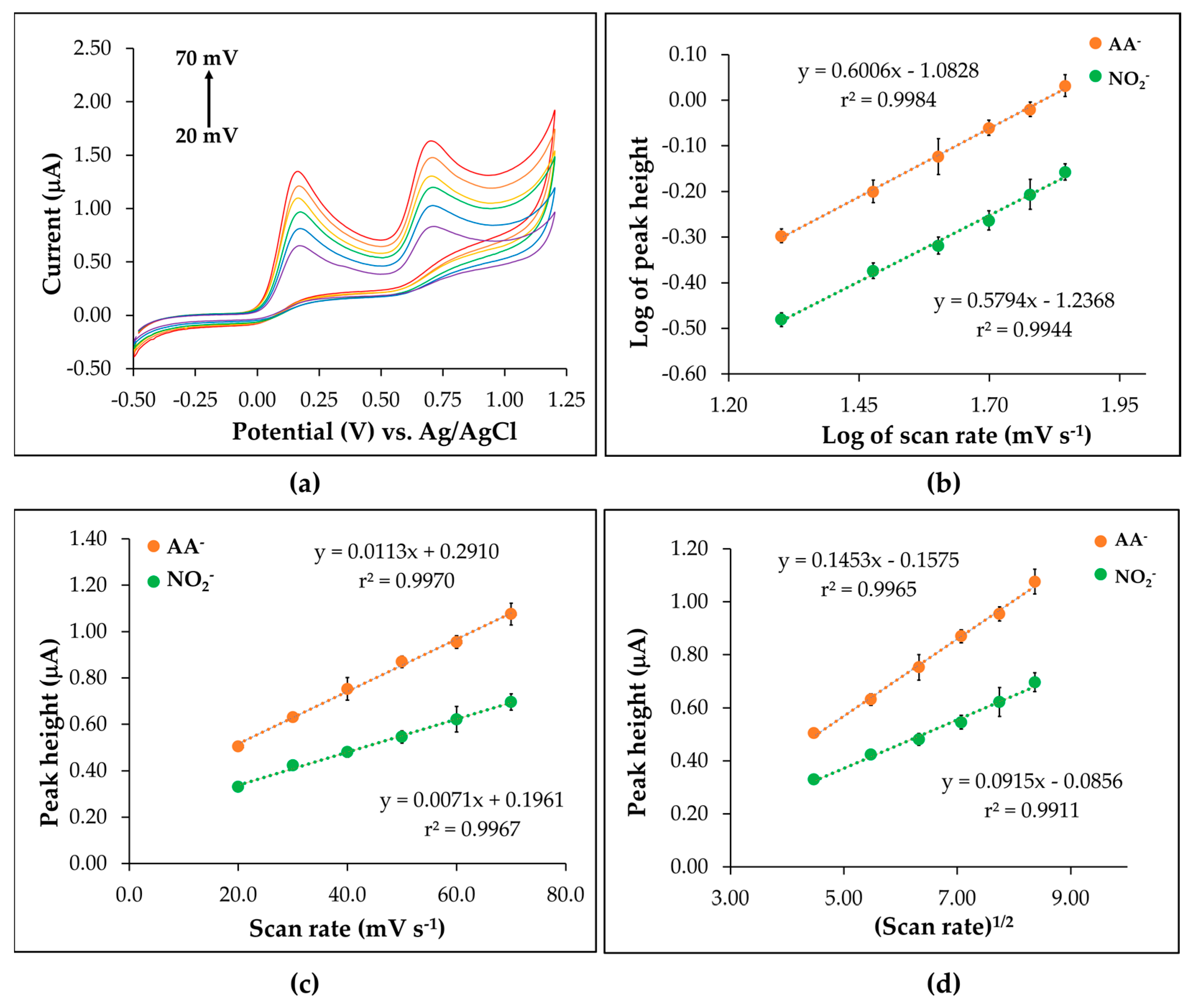

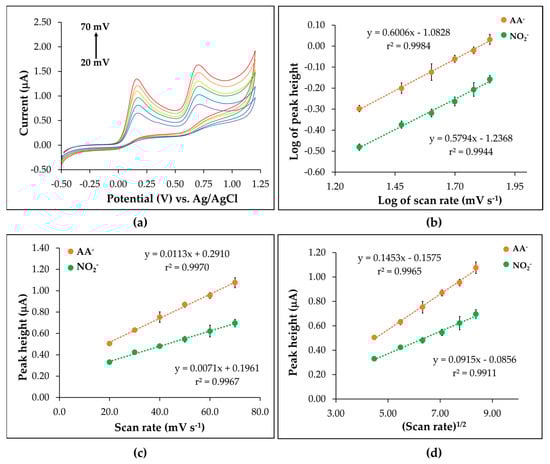

Figure 6. (a) Cyclic voltammograms of AA− and NO2−, (b) plots of log peak height and log scan rate, (c) plots of peak height and scan rate, and (d) plots of peak height and (scan rate)1/2. Orange lines represent AA−, and green lines represent NO2− (b–d).

3.5. pH Effect

The electrolyte chosen for the determination of NO2− and AA− using the proposed electrode was a phosphate buffer. The results revealed the highest nitrite oxidation current at pH 4 and pH 5. Notably, the standard deviation (s.d.) at pH 4 was lower than that at pH 5. Additionally, pH 4 for AA− provided the highest current response, as shown in Figure 7. The observed effect, corresponding to Sanchayanukun and Muncharoen (2020) and Pitakrut et al. (2023) [22,23], could potentially be explained by the attraction between the positively charged protons originating from the amine functional group (-NH2) of chitosan on the nano-magnetite surface and the negatively charged NO2− and AA− ions in acidic solutions, leading to the high current. Subsequently, pH 4 was chosen as the suitable electrolyte solution for further NO2− and AA− measurement.

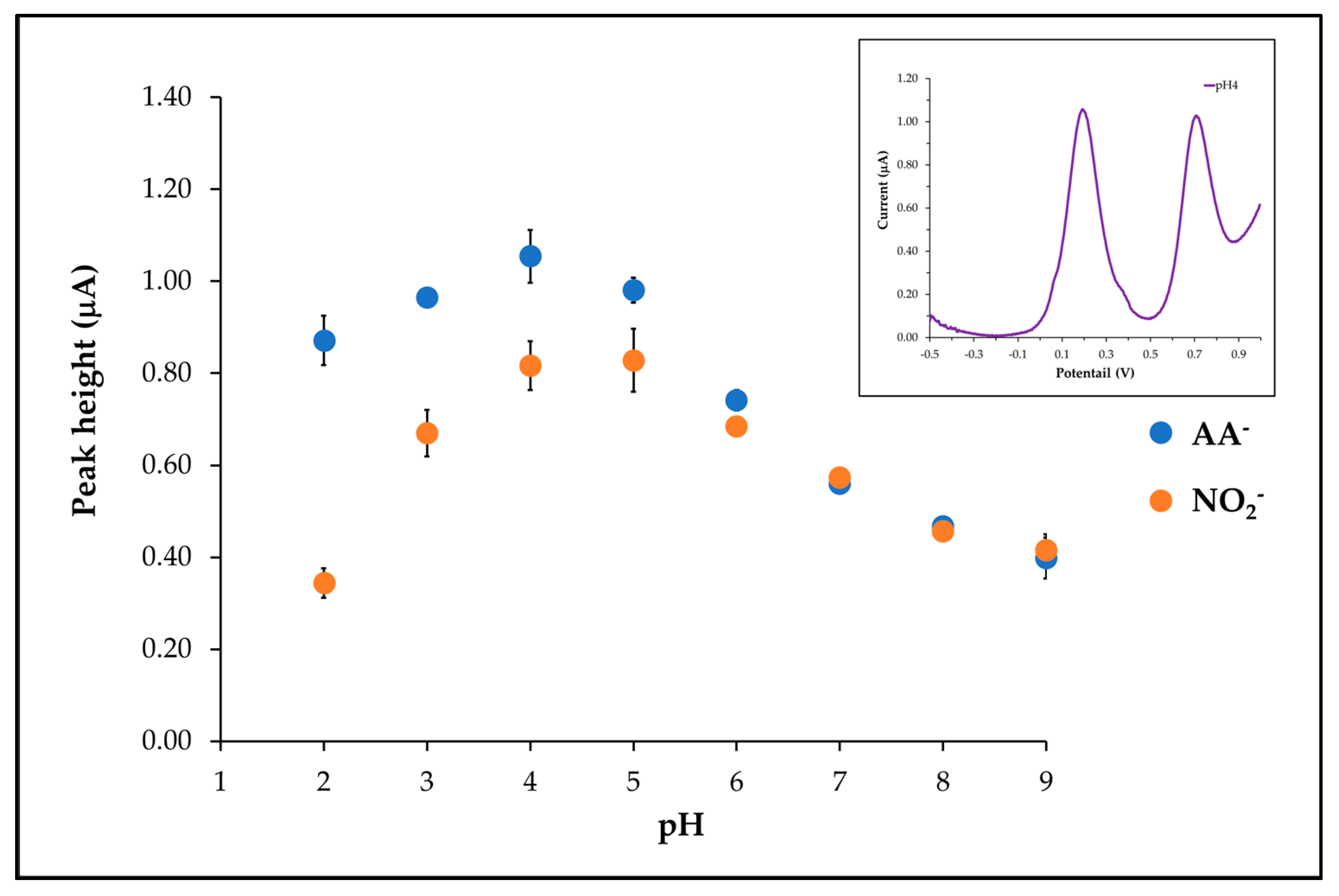

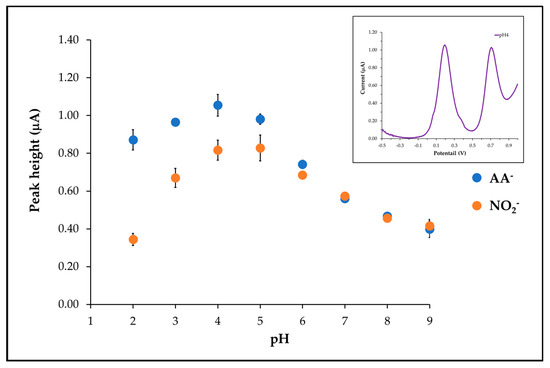

Figure 7. The relation plot between peak height currents of AA− and NO2− and various pH of the solutions and (inset) SWV voltammogram of AA− and NO2− in phosphate buffer (pH 4).

3.6. Analytical Performance

3.6.1. Linear Range

NO2− and AA− at various concentrations were analyzed by the proposed electrode. Under optimum conditions, the linearity of the NO2− was 3.00–200.00 µM (y = 0.0192x + 0.0612) with the correlation coefficient (r2) of 0.9991 and the linearity of the AA− was 5.00–200.00 µM (y = 0.0142x + 0.1168) with a correlation coefficient (r2) of 0.9996. The calibration curves are shown in Figure 8. Additionally, the calibration of NO2− was investigated at a fixed concentration of AA−. The results showed that the AA− signals were not affected by the increasing concentration of NO2−. Conversely, the calibration for AA− at a fixed concentration of NO2− was also studied. The responses observed that the NO2− signals were not influenced by an increasing concentration of AA−, as shown in Figure S3 (Supplementary Figure S3).

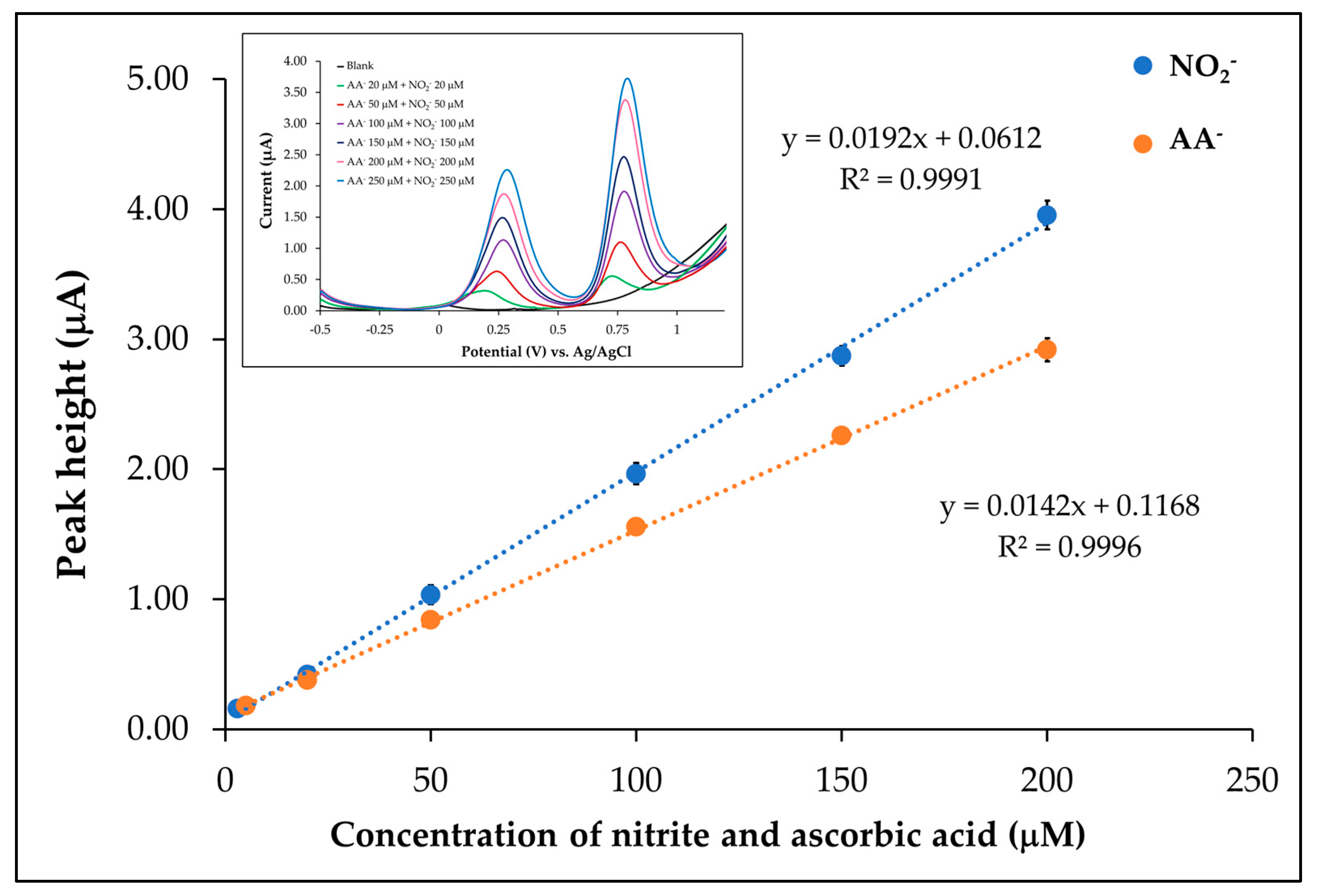

Figure 8. Calibration plots under the optimum conditions for simultaneous determination of AA− (orange line) and NO2− (blue line), with inserts displaying square-wave voltammograms.

3.6.2. Limit of Detection (LOD) and Limit of Quantitation (LOQ)

The LOD and LOQ were calculated using 3 s.d./slope and 10 s.d./slope, respectively. For NO2−, the LOD and LOQ were 2.84 and 9.47 μM, while for AA−, the values were determined as 3.39 and 11.30 μM, respectively. These results demonstrate that the proposed method offers high sensitivity and can be applied for the determination of NO2− and AA− in real samples, as shown in Table 1.
Table 1. Analytical performance for determination of NO2− and AA− under optimal conditions.

3.6.3. Repeatability and Reproducibility

In studying the stability of the produced electrodes, two categories were explored. Initially, repeated measurements within the same electrode were conducted, performing five repetitions to acquire the currents for NO2− and AA− using CTS@Fe3O4/SPGNE. The %RSD values were 5.45 for NO2− and 4.80 for AA− (n = 5). The second aspect concentrated on reproducibility across 10 different electrodes, yielding %RSD values of 4.73 for AA− and 4.00 for NO2−, detailed in Table 1.

3.6.4. %Recovery

The accuracy of this method was confirmed by assessing %recovery through the analysis of NO2− and AA− in food samples. The %recovery values obtained were 80–114% for NO2− and 86–115% for AA−, as presented in Table 2. These results gave the acceptable criteria, outlined in the AOAC standard [35].
Table 2. %Recovery for the determination of NO2− and AA− in real samples using the developed method.

3.6.5. Selectivity

The developed method aimed to analyze NO2− and AA− in food products susceptible to contamination by substances like glucose, zinc, urea, nitrate, citric acid, or carbonate. Thus, the interference (IF) was investigated herein. Considered within the limit of tolerance, the signals obtained after adding analyses of these compounds to a solution of NO2− and AA− at a concentration of 50.00 M did not exceed 5%, as per Pardakhty et al. (2016) and Ma et al. (2019) [36,37]. As for the results, glucose as the IF exhibited a maximum resistance of 5% at NO2−:AA−:IF ratio of 1:1:500, while for other interfering factors like zinc, urea, and nitrate, the NO2−:AA−:IF ratio was 1:1:50. Furthermore, citric acid and carbonate interferences showed ratios of 1:1:20 and 1:1:5, respectively, as detailed in Table 3. These findings suggest that these interferences do not significantly impact the analysis of NO2− and AA−.
Table 3. %Tolerance for signals of NO2− and AA− under various disturbances.

3.7. Application for Food Products

The developed electrodes were utilized for the simultaneous analysis of NO2− and AA− in various food samples, including strawberry juice, guava juice, green oak, basil, and laboratory-synthesized samples. The standard addition method was used for all samples. The response signals for NO2− and AA− obtained through the proposed method were compared to those from the standard method (UV–Visible spectrophotometric method) as shown in Table 4. It was found that the two methods were not significantly different at the 95% confidence level (tstat = 0.59, tcrit = 2.20 NO2−; tstat = 1.01, tcrit = 2.20 AA−).
Table 4. NO2− and AA− contents in food samples detected by the developed method and the standard method.

3.8. Comparison with Previous Research Work

Table 5 presents a comparison of the proposed method using CTS@Fe3O4/SPGNE with several studies from the literature. These studies employed various voltametric techniques and different types of working electrodes. It was found that most nanoparticle-modified electrodes exhibited high sensitivity, including the method presented in this work [32,38,39,40,41,42,43,44,45]. However, few studies have investigated the simultaneous analysis of AA− and NO2−. For fruit juice, the results of this study demonstrated a broader linearity range for the simultaneous determination of the analytes compared to the report by Bartolome, J.P. et al. [45]. Furthermore, this study reveals an appropriate linearity range and sensitivity for the concurrent determination of AA− and NO2− in both fruit juice and hydroponic vegetable samples.
Table 5. A comparison of the electrochemical performance of the proposed electrode (CTS@Fe3O4/SPGNE) with previous studies to analyze AA− and NO2−.

4. Conclusions

The proposed electrode (CTS@Fe3O4/SPGNE) demonstrated high performance for the simultaneous determination of NO2− and AA−. Additionally, mixed behavior (diffusion and adsorption) was observed. Under optimal conditions, the linearity ranges for NO2− and AA− were 3.00–200.00 µM and 5.00–200.00 µM, respectively, with limits of detection (LOD) of 2.84 µM and 3.39 µM. The reproducibility of the proposed electrode was confirmed by its precision, showing a relative standard deviation (RSD) of 4.00% for NO2− and 4.73% for AA− (n = 10). Furthermore, the developed method was successfully applied to the analysis of NO2− and AA− in food samples, particularly fruit juice and hydroponic vegetables, demonstrating consistency with the standard method.

5. Patents

Patent Application Pending 2303003313 (2023) [46].

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/s25051431/s1, Figure S1 [47,48,49]. The optimum conditions for SWV parameters: (a) deposition time for a pre-preconcentration step, (b) frequency, (c) amplitude, and (d) step potential. Figure S2. (a) The cyclic voltammograms for analysis of phosphate buffer (pH 5) using the SPGNE (blue line) and the CTS@Fe3O4/SPGNE (red line) and (b) the SWV voltammograms for AA− and NO2− analysis in phosphate buffer (pH 5) using the SPGNE (blue line) and the CTS@Fe3O4/SPGNE (red line). Figure S3. Calibration plots under optimum conditions for (a) ascorbic acid (AA−) at a fixed 50 μM NO2− and (b) nitrite (NO2−) at a fixed 50 μM AA−.

Author Contributions

Conceptualization, S.M.; methodology, S.P., P.S. and C.K.; validation, S.P., P.S. and C.K.; formal analysis, S.P. and S.M.; investigation, S.P. and P.S.; resources, S.P. and P.S.; data curation, S.P.; writing—original draft preparation, P.S. and S.M.; writing—review and editing, S.M. All authors have read and agreed to the published version of the manuscript.

Funding

The research presented in this paper was performed with the Research and Innovation Administration Division, Burapha University (Grant no. SDG 02/2567) and master’s degree students (M.Sc. Program) by Department of Chemistry, Faculty of Science, Burapha University.

Institutional Review Board Statement

Not applicable.

Data Availability Statement

Data are contained within the article and Supplementary Materials.

Acknowledgments

This work was supported as research funding from Research and Innovation Administration Division, Burapha University (Grant no. SDG 02/2567) and master’s degree students (M.Sc. Program) by Department of Chemistry, Faculty of Science, Burapha University.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Knight, J.; Madduma-Liyanage, K.; Mobley, J.A.; Assimos, D.G.; Holmes, R.P. Ascorbic acid intake and oxalate synthesis. Urolithiasis 2016, 44, 289–297. [Google Scholar] [CrossRef] [PubMed]
  2. Bureau of Nutrition, Department of Health, Ministry of Public Health. Dietary Reference Intake Tables for This 2020, 1st ed.; A.V. Progressive Limited Partnership: Bangkok, Thailand, 2022. [Google Scholar]
  3. Duan, W.; Ren, J.; Li, Y.; Liu, T.; Song, X.; Chen, Z.; Huang, Z.; Hou, X.; Li, Y. Conservation and Expression Patterns Divergence of Ascorbic Acid d-mannose/l-galactose Pathway Genes in Brassica rapa. Front. Plant Sci. 2016, 7, 778. [Google Scholar] [CrossRef] [PubMed]
  4. El-Malla, S.F.; Elattar, R.H.; Kamal, A.H.; Mansour, F.R. A highly sensitive switch-on spectrofluorometric method for determination of ascorbic acid using a selective eco-friendly approach. Spectrochim. Acta A Mol. Biomol. Spectrosc. 2022, 270, 120802. [Google Scholar] [CrossRef] [PubMed]
  5. Hemila, H. Vitamin C and Infections. Nutrients 2017, 9, 339. [Google Scholar] [CrossRef]
  6. Zayed, O.; Hewedy, O.A.; Abdelmoteleb, A.; Ali, M.; Youssef, M.S.; Roumia, A.F.; Seymour, D.; Yuan, Z.C. Nitrogen Journey in Plants: From Uptake to Metabolism, Stress Response, and Microbe Interaction. Biomolecules 2023, 13, 1443. [Google Scholar] [CrossRef]
  7. Huang, G.; Zhang, J.; Zhao, D. Cobalt Monoxide Nanoparticles Modified Glassy Carbon Electrodes as a Sensor for Determination of Nitrite. Adv. Mater. Res. 2015, 1120–1121, 291–298. [Google Scholar] [CrossRef]
  8. Jinming, H.; Samuel, P.; Mackenzie, W. A Simple Electrochemical Method for Nitrate Determination in Leafy Vegetables. J. Hum. Nutr. 2019, 3, 67–71. [Google Scholar] [CrossRef]
  9. Oliveira, R.T.S.; Garbellini, G.S.; Salazar-Banda, G.R.; Avaca, L.A. The Use of Ultrasound for the Analytical Determination of Nitrite on Diamond Electrodes by Square Wave Voltammetry. Anal. Lett. 2007, 40, 2673–2682. [Google Scholar] [CrossRef]
  10. Pang, D.; Ma, C.; Chen, D.; Shen, Y.; Zhu, W.; Gao, J.; Song, H.; Zhang, X.; Zhang, S. Silver nanoparticle-functionalized poly (3, 4-ethylenedioxythiophene): Polystyrene film on glass substrate for electrochemical determination of nitrite. Org. Electron. 2019, 75, 105374. [Google Scholar] [CrossRef]
  11. Zhang, K.; Li, S.; Liu, C.; Wang, Q.; Wang, Y.; Fan, J. A hydrophobic deep eutectic solvent-based vortex-assisted dispersive liquid-liquid microextraction combined with HPLC for the determination of nitrite in water and biological samples. J. Sep. Sci. 2019, 42, 574–581. [Google Scholar] [CrossRef]
  12. Ministry of Public Health. Notification No. 281, B.E. 2547, Regarding Food Additives; Ministry of Public Health: Bangkok, Thailand, 2004; Volume 121, pp. 1–4. [Google Scholar]
  13. Ajebe, E.G.; Bahiru, T.B. Spectrophotometric Determination of Nitrite and Nitrate in Some Selected Vegetables Cultivated in Adami Tulu Judo Kombolicha District Farms, Ethiopia. J. Anal. Bioanal. Tech. 2018, 9, 1000410. [Google Scholar] [CrossRef]
  14. Bazel, Y.; Riabukhina, T.; Tirpák, J. Spectrophotometric determination of ascorbic acid in foods with the use of vortex-assisted liquid-liquid microextraction. Microchem. J. 2018, 143, 160–165. [Google Scholar] [CrossRef]
  15. Thipwimonmas, Y.; Jaidam, J.; Samoson, K.; Khunseeraksa, V.; Phonchai, A.; Thiangchanya, A.; Chang, K.H.; Abdullah, A.F.L.; Limbut, W. A Simple and Rapid Spectrophotometric Method for Nitrite Detection in Small Sample Volumes. Chemosensors 2021, 9, 161. [Google Scholar] [CrossRef]
  16. Tatarczak-Michalewska, M.; Flieger, J.; Kawka, J.; Plazinski, W.; Flieger, W.; Blicharska, E.; Majerek, D. HPLC-DAD Determination of Nitrite and Nitrate in Human Saliva Utilizing a Phosphatidylcholine Column. Molecules 2019, 24, 1754. [Google Scholar] [CrossRef] [PubMed]
  17. Zappielo, C.; Nicácio, A.; Manin, L.; Maldaner, L.; Visentainer, J. Determination of L-Ascorbic Acid in Milk by Ultra-High-Performance Liquid Chromatography Coupled to Tandem Mass Spectrometry Analysis. J. Braz. Chem. Soc. 2019, 30, 1130–1137. [Google Scholar] [CrossRef]
  18. Ping, J.; Wu, J.; Wang, Y.; Ying, Y. Simultaneous determination of ascorbic acid, dopamine and uric acid using high-performance screen-printed graphene electrode. Biosens. Bioelectron. 2012, 34, 70–76. [Google Scholar] [CrossRef]
  19. Su, C.H.; Sun, C.L.; Liao, Y.C. Printed Combinatorial Sensors for Simultaneous Detection of Ascorbic Acid, Uric Acid, Dopamine, and Nitrite. ACS Omega 2017, 2, 4245–4252. [Google Scholar] [CrossRef]
  20. Sun, L.; Li, H.; Li, M.; Li, C.; Li, P.; Yang, B. Simultaneous determination of ascorbic acid, dopamine, uric acid, tryptophan, and nitrite on a novel carbon electrode. J. Electroanal. Chem. 2016, 783, 167–175. [Google Scholar] [CrossRef]
  21. Sanchayanukun, P.; Muncharoen, S. Elimination of Cr (VI) in Laboratory Wastewater Using Chitosan Coated Magnetite Nanoparticles (chitosan@ Fe3O4). EnvironmentAsia 2019, 12, 32–48. [Google Scholar] [CrossRef]
  22. Sanchayanukun, P.; Muncharoen, S. Chitosan coated magnetite nanoparticle as a working electrode for determination of Cr(VI) using square wave adsorptive cathodic stripping voltammetry. Talanta 2020, 217, 121027. [Google Scholar] [CrossRef]
  23. Pitakrut, S.; Sanchayanukun, P.; Muncharoen, S. Determination of salicylic acid content in pharmaceuticals using chitosan@Fe3O4/CPE electrode detected by SWV technique. ADMET DMPK 2023, 11, 175–184. [Google Scholar] [CrossRef] [PubMed]
  24. Karuwan, C.; Wisitsoraat, A.; Phokharatkul, D.; Sriprachuabwong, C.; Lomas, T.; Nacapricha, D.; Tuantranont, A. A disposable screen printed graphene–carbon paste electrode and its application in electrochemical sensing. RSC Adv. 2013, 3, 25792–25799. [Google Scholar] [CrossRef]
  25. Pisoschi, A.M.; Pop, A.; Negulescu, G.P.; Pisoschi, A. Determination of ascorbic acid content of some fruit juices and wine by voltammetry performed at pt and carbon paste electrodes. Molecules 2011, 16, 1349–1365. [Google Scholar] [CrossRef]
  26. ISO 6635:1984(en); Fruits, Vegetables and Derived Products—Determination of Nitrite and Nitrate Content—Molecular Absorption Spectrometric Method. International Organization for Standardization: Geneva, Switzerland, 1984.
  27. Stachniuk, A.; Szmagara, A.; Stefaniak, E.A. Spectrophotometric Assessment of the Differences Between Total Nitrate/Nitrite Contents in Peel and Flesh of Cucumbers. Food Anal. Methods 2018, 11, 2969–2977. [Google Scholar] [CrossRef]
  28. Kwon, W.; Jeong, E. Detoxification Properties of Guanidinylated Chitosan Against Chemical Warfare Agents and Its Application to Military Protective Clothing. Polymers 2020, 12, 1461. [Google Scholar] [CrossRef]
  29. Li, B.; Shan, C.L.; Zhou, Q.; Fang, Y.; Wang, Y.L.; Xu, F.; Han, L.R.; Ibrahim, M.; Guo, L.B.; Xie, G.L.; et al. Synthesis, characterization, and antibacterial activity of cross-linked chitosan-glutaraldehyde. Mar. Drugs 2013, 11, 1534–1552. [Google Scholar] [CrossRef]
  30. Marroquin, J.B.; Rhee, K.Y.; Park, S.J. Chitosan nanocomposite films: Enhanced electrical conductivity, thermal stability, and mechanical properties. Carbohydr. Polym. 2013, 92, 1783–1791. [Google Scholar] [CrossRef]
  31. Abedi, A.; Hasanzadeh, M.; Tayebi, L. Conductive nanofibrous Chitosan/PEDOT:PSS tissue engineering scaffolds. Mater. Chem. Phys. 2019, 237, 121882. [Google Scholar] [CrossRef]
  32. Mo, R.; Wang, X.; Yuan, Q.; Yan, X.; Su, T.; Feng, Y.; Lv, L.; Zhou, C.; Hong, P.; Sun, S.; et al. Electrochemical Determination of Nitrite by Au Nanoparticle/Graphene-Chitosan Modified Electrode. Sensors 2018, 18, 1986. [Google Scholar] [CrossRef]
  33. Garcia-Miranda Ferrari, A.; Foster, C.W.; Kelly, P.J.; Brownson, D.A.C.; Banks, C.E. Determination of the Electrochemical Area of Screen-Printed Electrochemical Sensing Platforms. Biosensors 2018, 8, 53. [Google Scholar] [CrossRef]
  34. Asangil, D.; Hudai Tasdemir, I.; Kilic, E. Adsorptive stripping voltammetric methods for determination of aripiprazole. J. Pharm. Anal. 2012, 2, 193–199. [Google Scholar] [CrossRef] [PubMed]
  35. Horwitz, W. AOAC Guidelines for Single Laboratory Validation of Chemical Methods for Dietary Supplements and Botanicals; AOAC International: Gaithersburg, MD, USA, 2020; pp. 12–19. [Google Scholar]
  36. Pardakhty, A.; Ahmadzadeh, S.; Avazpour, S.; Gupta, V.K. Highly sensitive and efficient voltammetric determination of ascorbic acid in food and pharmaceutical samples from aqueous solutions based on nanostructure carbon paste electrode as a sensor. J. Mol. Liq. 2016, 216, 387–391. [Google Scholar] [CrossRef]
  37. Ma, X.; Gao, F.; Liu, G.; Xie, Y.; Tu, X.; Li, Y.; Dai, R.; Qu, F.; Wang, W.; Lu, L. Sensitive determination of nitrite by using an electrode modified with hierarchical three-dimensional tungsten disulfide and reduced graphene oxide aerogel. Mikrochim. Acta 2019, 186, 291. [Google Scholar] [CrossRef] [PubMed]
  38. Rajab, N.; Ibrahim, H.; Hassan, R.Y.A.; Youssef, A.F.A. Selective determination of nitrite in water and food samples using zirconium oxide (ZrO2)@MWCNTs modified screen printed electrode. RSC Adv. 2023, 13, 21259–21270. [Google Scholar] [CrossRef]
  39. El Anzi, L.; García, M.S.; Laborda, E.; Ruiz, A.; Ortuño, J.Á. Low-Cost Electrochemical Determination of L-Ascorbic Acid Using Screen-Printed Electrodes and Development of an Electronic Tongue for Juice Analysis. Chemosensors 2024, 12, 237. [Google Scholar] [CrossRef]
  40. Blažević, J.; Stanković Ex Šter, A.; Šafranko, S.; Jokic, S.; Velić, D.; Medvidović-Kosanović, M. Electrochemical Detection of Vitamin C in Real Samples. Food Health Dis. Sci.-Prof. J. Nutr. Diet. 2020, 9, 1–8. [Google Scholar]
  41. Guo, X.; Fan, Y. Determination of nitrite in food specimens using electrochemical sensor based on polyneutral red modified reduced graphene oxide paste electrode. Int. J. Electrochem. Sci. 2023, 18, 100290. [Google Scholar] [CrossRef]
  42. Zhao, X.; Zhou, G.; Qin, S.; Zhang, J.; Wang, G.; Gao, J.; Suo, H.; Zhao, C. In Situ Preparation of Metallic Copper Nanosheets/Carbon Paper Sensitive Electrodes for Low-Potential Electrochemical Detection of Nitrite. Sensors 2024, 24, 4247. [Google Scholar] [CrossRef]
  43. Parkook, F.; Shahvandi, S.K.; Ghaedi, M.; Javadian, H.; Parkook, A. Determination of ascorbic acid in biological samples using an electrochemical sensor modified with Au-Cu2O/MWCNTs nanocomposite. Diam. Relat. Mater. 2024, 144, 110954. [Google Scholar] [CrossRef]
  44. Feng, X.Z.; Ferranco, A.; Su, X.; Chen, Z.; Jiang, Z.; Han, G.C. A Facile Electrochemical Sensor Labeled by Ferrocenoyl Cysteine Conjugate for the Detection of Nitrite in Pickle Juice. Sensors 2019, 19, 268. [Google Scholar] [CrossRef]
  45. Bartolome, J.P.; Fragoso, A. Electrochemical detection of nitrite and ascorbic acid at glassy carbon electrodes modified with carbon nano-onions bearing electroactive moieties. Inorganica Chim. Acta 2017, 468, 223–231. [Google Scholar] [CrossRef]
  46. Muncharoen, S.; Pitakrut, S.; Sanchayanukun, P.; Karuwan, C. Method for Preparing Magnetite Nanoparticles Coated with Chitosan for Use as a Component in the Fabrication of Screen-Printed Modified Graphene Electrodes Patent Application Number 2303003313, 13 November 2023.
  47. Pak, J.S.; Jang, P.H.; Pak, K.M.; Yang, W.C. Electrochemical Detection of Nitrite on PANI-TiO(2)/Pt Nanocomposite-Modified Carbon Paste Electrodes Using TOPSIS and Taguchi Methods. ACS Omega 2024, 9, 30583–30593. [Google Scholar] [CrossRef] [PubMed]
  48. Faisal, M.; Alam, M.M.; Ahmed, J.; Asiri, A.M.; Algethami, J.S.; Altholami, R.H.; Harraz, F.A.; Rahman, M.M. Efficient nitrite determination by electrochemical approach in liquid phase with ultrasonically prepared gold-nanoparticle-conjugated conducting polymer nanocomposites. Front. Chem. 2024, 12, 1358353. [Google Scholar] [CrossRef] [PubMed]
  49. Amare, M. Electrochemical Determination of Ascorbic Acid in Pharmaceutical Tablets using Carbon Paste Electrode. Org. Med. Chem. Int. J. 2019, 8, 555749. [Google Scholar] [CrossRef]
