Article

A Novel Time Domain Reflectometry (TDR) System for Water Content Estimation in Soils: Development and Application

by
Alessandro Comegna
1,*,
Simone Di Prima
1,
Shawcat Basel Mostafa Hassan
1 and
Antonio Coppola
2
1
Department of Agricultural Forestry Food and Environmental Sciences (DAFE), University of Basilicata, 85100 Potenza, Italy
2
Department of Chemical and Geological Sciences, University of Cagliari, 09124 Cagliari, Italy
*
Author to whom correspondence should be addressed.
Sensors 2025, 25(4), 1099; https://doi.org/10.3390/s25041099
Submission received: 18 January 2025 / Revised: 7 February 2025 / Accepted: 11 February 2025 / Published: 12 February 2025
(This article belongs to the Special Issue Sensors in Smart Irrigation Systems)

Abstract

:

Highlights

A compact, affordable time domain reflectometry (TDR) device was designed for hydrological applications. The proposed device demonstrated reliable performance across different soil textures. Laboratory experiments validated the accuracy of the system for soil moisture estimation. The device is suitable for real-time monitoring in precision agriculture and environmental studies. The device offers a viable alternative to expensive commercial TDR systems without compromising measurement accuracy.
What are the main findings?
  • Development of a low-cost TDR.
  • Consistent and reliable performance.
What is the implication of the main finding?
  • Possibility to build the device on one’s own.
  • It makes TDR suitable for monitoring soil water status with acceptable accuracy

Abstract

Nowadays, there is a particular need to estimate soil water content accurately over space and time scales in various applications. For example, precision agriculture, as well as the fields of geology, ecology, and hydrology, necessitate rapid, onsite water content measurements. The time domain reflectometry (TDR) technique is a geophysical method that allows, in a time-varying electric field, the determination of dielectric permittivity and electrical conductivity for a wide class of porous materials. Measuring the volumetric water content in soils is the most frequent application of TDR in soil science and soil hydrology. TDR has grown in popularity over the last 40 years because it is a practical and non-destructive technique that provides laboratory and field-scale measurements. However, a significant limitation of this technique is the relatively high cost of TDR devices, despite the availability of a range of commercial systems with varying prices. This paper aimed to design and implement a low-cost, compact TDR device tailored for classical hydrological applications. A series of laboratory experiments were carried out on soils of different textures to calibrate and validate the proposed measuring system. The results show that the device can be used to obtain predictions for monitoring soil water status with acceptable accuracy (R2 = 0.95).

1. Introduction

Time Domain Reflectometry (TDR) is a proven measurement principle for evaluating the frequency-dependent dielectric properties of various materials, including soils [1,2,3]. TDR operates by propagating and reflecting electromagnetic waves along a transmission line [4,5,6]. When a TDR instrument transmits a fast-rising voltage pulse through a coaxial cable or waveguide embedded in a medium, the wave interacts with the material’s dielectric properties. Discontinuities, such as impedance variations caused by changes in the medium, generate reflected signals that are captured and analyzed. This process yields detailed insights into the material’s physical and chemical characteristics [7,8].
The ability of TDR to assess both the dielectric permittivity and electrical conductivity of soils has made it an indispensable tool for hydrological studies [9,10,11]. Dielectric permittivity, which is strongly influenced by water content, enables the precise estimation of soil moisture.
In agricultural and environmental monitoring, TDR is widely employed to evaluate water availability, irrigation efficiency, and groundwater recharge. This versatility makes it a fundamental tool for sustainable water resource management [12,13,14,15,16]. The use of TDR offers several significant advantages over traditional soil moisture measurement techniques. One of its key benefits is the ability to perform real-time, in-situ measurements, enabling the non-destructive and continuous monitoring of soil moisture [17,18], among others. This capability is particularly valuable for studying dynamic soil processes, such as water infiltration, evapotranspiration, and drainage, across various agricultural and environmental contexts [19,20,21,22].
Another key advantage of TDR is its precision and accuracy. TDR devices can provide highly accurate soil water content measurements (typically within 2–3%) across a wide range of soil types and moisture conditions [23,24]. This precision makes TDR an indispensable tool for soil scientists, agronomists, hydrologists, and engineers who require reliable data for their research and applications [25,26,27].
In addition, the TDR technique offers a high degree of spatial and temporal resolution. TDR probes can be installed at various depths and orientations, enabling detailed profiling of soil moisture throughout the soil profile. This capability facilitates large-scale data collection and improves the accuracy of hydrological models [28,29,30]. Furthermore, TDR measurements are rapid, allowing the monitoring of soil moisture fluctuations over short time scales. This enables valuable insights into transient water movement, root zone behavior, and other critical soil–water interactions [31,32].
Although TDR has revolutionized soil hydrology studies, the high cost of commercial TDR systems has limited its widespread adoption, particularly in resource-constrained settings. Standard systems are often prohibitively expensive, making them inaccessible to small-scale farmers, community-based environmental monitoring programs, and educational institutions, especially in developing countries.
The growing demand for affordable alternatives has driven innovation in designing low-cost TDR systems. Such systems capitalize on advancements in electronics, microcontrollers, and open-source technologies to substantially reduce costs without compromising performance. For example, Arduino-based TDR systems have emerged as a practical and cost-effective solution for researchers and practitioners operating on limited budgets, even though systems strictly based on this technology may exhibit low accuracy due to low temporal resolution, the lack of advanced signal conditioning circuits (TDR signals require specialized hardware for generating and detecting high-frequency pulses), noise, and interference [15,33,34,35].
Moreover, the integration of low-cost TDR systems with wireless communication technologies, remote sensing, and IoT platforms is transforming soil hydrology into a data-rich discipline. Real-time data collected from multiple locations can be aggregated and analyzed remotely, offering actionable insights for policymakers, water managers, and farmers [36,37,38].
After briefly recalling the main theoretical principles of the TDR technique, this paper provides details on designing and implementing the proposed TDR device. In summary of the research, several laboratory-controlled tests were carried out to calibrate and validate the proposed measuring system, using four selected soils with different textures.

2. TDR Technique: Theoretical Background and Measurement Principles

A schematic representation of a TDR measurement system is shown in Figure 1a. The system consists of a TDR device, comprising an oscilloscope, a pulse generator, a sampling unit, and a TDR probe of length L. The probe is connected to the TDR device via a coaxial cable with a nominal impedance of Z0 = 50 Ω. The entire system can be controlled through a computer.
The principle of the TDR technique is based on measuring the propagation velocity of a step voltage pulse along a TDR probe embedded in the soil [39]. The probe is installed such that its metal rods are fully surrounded by the soil material. The TDR device generates short electromagnetic pulses, typically in the frequency range between 20 kHz and 1.5 GHz, which propagate along the coaxial cable and then along the rods of the TDR probe [40].
As the electromagnetic energy travels, part of it is reflected at points where abrupt changes in relative permittivity occur. Initially, the signal reaches point A, where the voltage step V0 is detected and displayed on the oscilloscope (Figure 1b). The signal then enters the coaxial line connecting the probe to the TDR equipment. At the head of the TDR probe (point B, corresponding to the cable–probe interface), the signal encounters a change in impedance (ZPROBE) at the base of the probe [6]. This impedance mismatch causes a portion of the electromagnetic energy to reflect back toward the source (i.e., the generator). The reflected energy may interfere in-phase or out-of-phase with the newly generated signal [25].
The remaining energy propagates through the soil along the metal rods, which act as a waveguide, until it reaches point C. At this point, the signal is fully reflected due to the open-ended design of the probe, which presents an infinite impedance [23,25,41,42,43].
As the signal travels, the reflections cause variations in the measured voltages (i.e., V1, V2,…,Vn, …, Vf). By analyzing the signal response, it is possible to determine the dielectric properties of the material through which the electromagnetic pulse propagates.
In particular, determining the travel time of the signal along the TDR rods through the soil requires identification of two significant reflections: the first occurs at the head of the TDR probe (commonly referred to as the first peak) and the second occurs at the end of the rods (commonly referred to as the reflection point). These key reflections are illustrated in Figure 2.
From these two characteristic points, the two-way travel time of the electromagnetic signal through the soil can be determined. Using this information, the composite or bulk dielectric permittivity of the material surrounding the probe rods can be calculated as:
ε b = c t 2 L 2
where c (ms−1) is the velocity of an electromagnetic wave in free space, L is the probe length, and t is the effective time (i.e., travel time) the TDR signal takes to travel along the probe rods.
The travel time t can be determined using the tangent line method [44], which involves calculating the first derivative of the TDR signal (not shown in Figure 2). The reference points for t calculation are identified by selecting the highest derivative values, corresponding to the impedance changes at the probe head and at the end of the rods.
The soil volumetric water content (θ) can be determined from the measured permittivity using Topp’s equation [23], as follows:
θ = 5.3 · 10 2 + 2.92 · 10 2 ε b 5.5 · 10 4 ε b 2 + 4.3 · 10 6   ε b 3
which is a third-order polynomial equation.

3. Materials and Methods

3.1. Hardware Description

In this project, we developed a low-cost TDR system, referred to as PoKetTDR (PKTDR). For proper operation, the PKTDR device must be connected to a digital storage oscilloscope (DSO) and a PC. The PC provides 5-volt power and facilitates the visualization, acquisition, and storage of TDR signals. The selected DSO is the Hantek 6254BD, a four-channel oscilloscope with a total bandwidth of 250 MHz, a real-time sampling rate of 1 GSa/s, and a data storage capacity of 4096 data points.
The PKTDR system incorporates a pulse generator with a rise time of approximately 3 ns, resulting in a maximum effective frequency of nearly 120 MHz.
Figure 3a,b present the wiring diagram and printed circuit board (PCB) layout of the proposed TDR device.

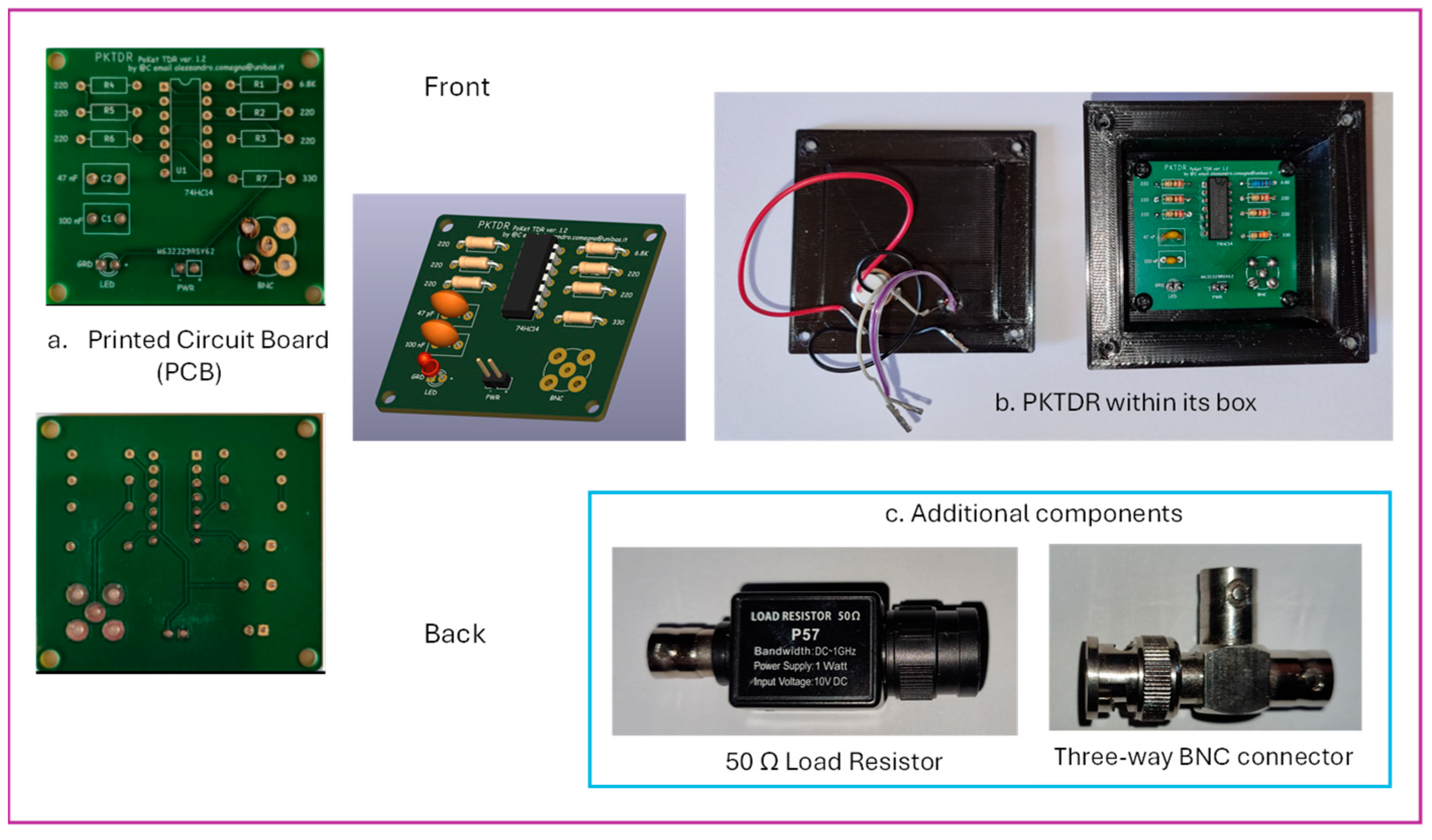

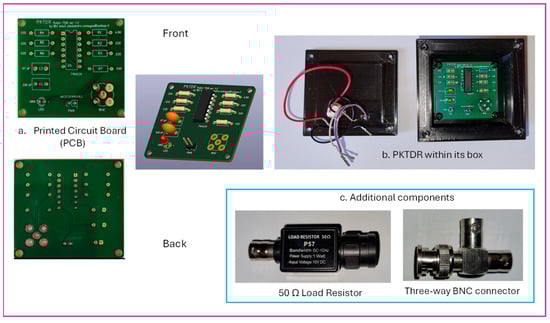

Figure 4a–c display the hardware components required for assembling the PKTDR device. The printed circuit board (PCB) shown in Figure 4a was designed using KiCad software (accessed on 20 December 2024 https://www.kicad.org/), resulting in a board size of 46 mm × 50.5 mm. Figure 4b illustrates the PKTDR housed within a 3D-printed enclosure, whereas Figure 4c presents the additional components required for assembly.
Table 1 provides the Bill of Materials (BoMs) required for assembling the TDR system. Additional details regarding the assembly of the PKTDR device, its implementation costs, and all the required building materials are provided in Appendix A.

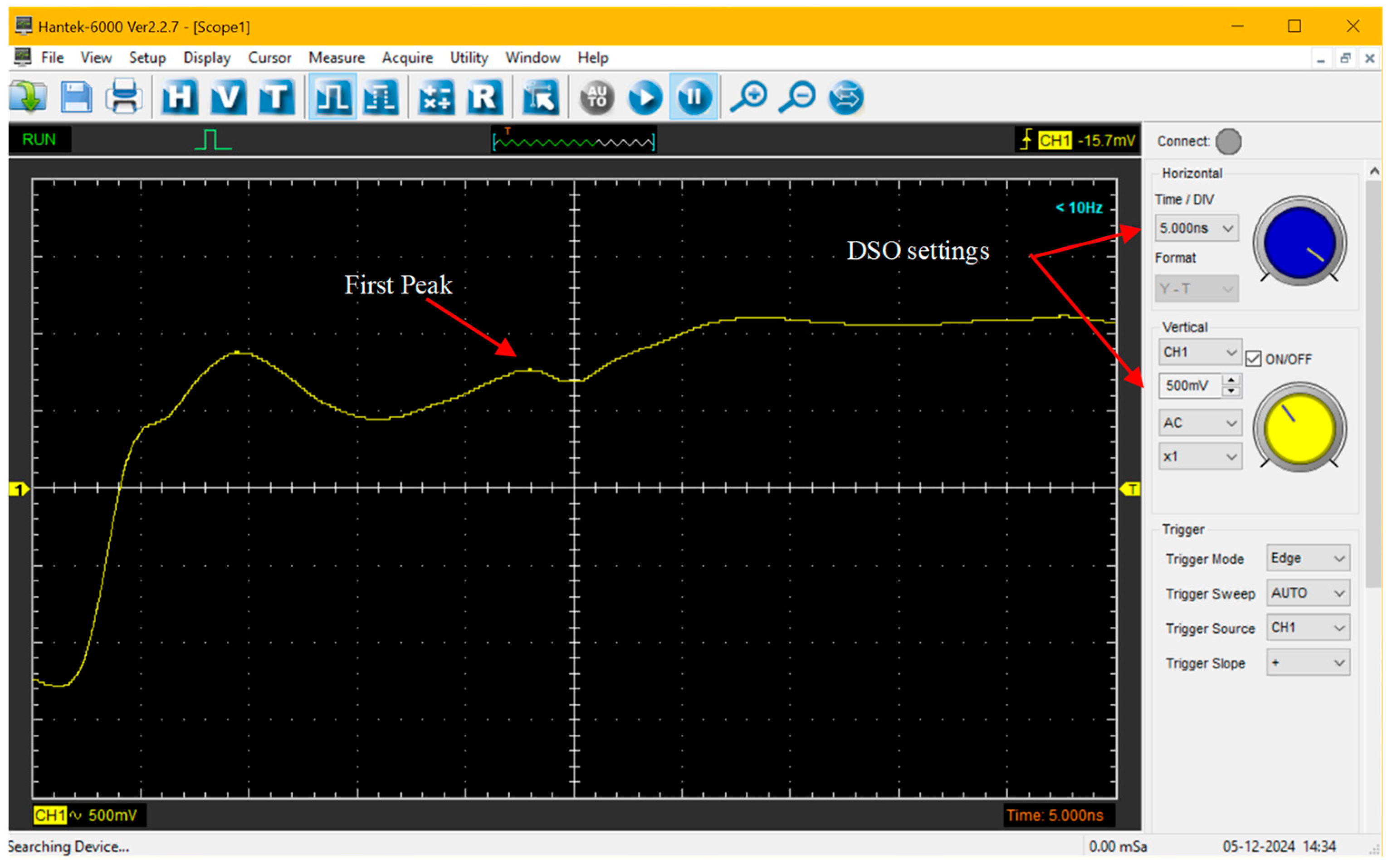

Figure 5 illustrates an example of a TDR signal acquired using PKTDR + DSO as acquired from the Hantek 6000 software (version 2.2.7) included with the Hantek 6254BD. The DSO parameters for accurate TDR signal acquisition are displayed on the right. Specifically, the Time/div setting was fixed at 5 ns and the vertical DSO scale (i.e., voltage) was set to 500 mV.
Finally, we would like to emphasize that, in its current stage of development, the PKTDR is limited to measuring bulk dielectric permittivity. Future studies will aim to enhance its capabilities, focusing on the potential to also estimate soil bulk electrical conductivity.

3.2. Soil Characterization and Experimental Setup

A series of laboratory experiments were conducted to calibrate and validate the PKTDR apparatus, using repacked soil samples collected from the Ap horizon of four soil sites. We selected a sandy loam soil (hereinafter referred to as SALO), a silty loam soil (SILO), a loam soil (LOAM), and a sand soil (SAND), classified according to the IUSS Working Group WRB [45]. Table 2 presents the main physical properties of the selected soils.
Soil texture was determined using the method proposed by [46]. Soil bulk density (ρb) and pH were measured using the methods described in [47,48], respectively.
The experimental setup included a PKTDR device (comprising a DSO and TDR unit), a commercial TDR 100 apparatus (Campbell Scientific, Logan, UT, USA), and a three-wire TDR probe with 14.5 cm long guides, connected to the tester via a 2 m long RG58 coaxial cable. The TDR signals were collected using a PC-based data acquisition system.
MATLAB code, version 2024a, (refer to the User’s Guide of the MATPKTDR code in the available Supplementary Material) was developed for post-processing the acquired TDR waveforms. In particular, the MATPKTDR code was specifically developed for the PKTDR device connected to the Hantek 6254BD oscilloscope. The code is also compatible with commonly used commercial TDR devices, such as the Tektronix 1500 series and the TDR100. The MATPKTDR code requires the acquired TDR signal to be provided as an ASCII file and a set of input parameters to be configured for proper operation.

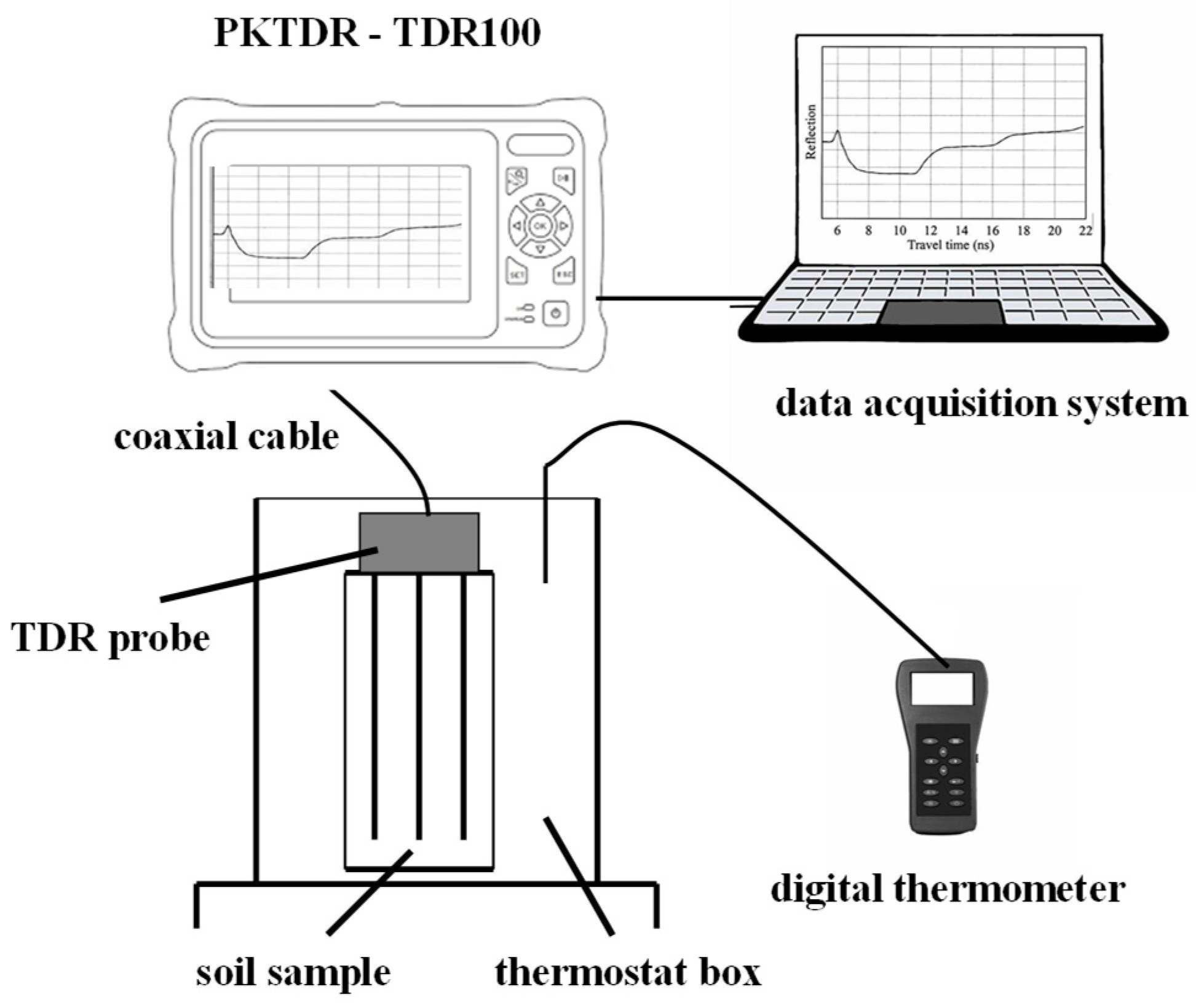

Figure 6 illustrates the dielectric measurement system used in the experiments.
During the experiments, the PKTDR system was tested to estimate the volumetric water content of soil samples across a range of θ values from 0 to 0.40. In detail, for each soil, samples were initially oven-dried at 105 °C and sieved at 2 mm. Known amounts of soil and water were then mixed, shaken, and stored in sealed plastic bags for 24 h to ensure uniform water distribution. Following this preliminary phase, the soil samples were placed in cylindrical PVC containers (9.5 cm in diameter and 15 cm in height). During packing, the soil was carefully compacted in multiple steps to achieve the desired bulk density, which was kept constant throughout all tests. A nylon gauze was used to secure the bottom of each sample and prevent soil loss.
After repacking, θ measurements were taken at specific water content levels (θ = 0, 0.10, 0.15, 0.20, 0.30, and 0.40) using the PKTDR device. For comparison, measurements were also performed using the TDR 100 device. Additionally, as a standard reference, θ values were determined using the thermo-gravimetric method [24].
To eliminate potential discrepancies due to probe geometry, all measurements were conducted with the same TDR probe. Since TDR readings can be influenced by temperature [44], soil samples were tested within a temperature range of 20–30 °C, with 1 °C increments. In all, 300 measurements (6 soil samples × 10 temperature levels × 5 replicates for each soil) were collected. Each measurement is the average of 10 replicates. Separate datasets were prepared for each soil, as performed during the calibration phase, to be used for model validation.

3.3. Statistical Indices for Sensor Performance Evaluation

The performance of the proposed TDR apparatus was assessed using different statistical indices: (i) the mean bias error (MBE), (ii) the maximum absolute percentage error (ME), and (iii) the mean absolute percentage error (MAE), computed based on the following formulas [49,50]:
M B E = i = 1 N E i O i N
M E % = m a x E i O i 100
M A E % = E i O i N 100
where O i is the true value (i.e., obtained using the thermo-gravimetric method), E i is the prediction (i.e., TDR estimation), O ¯ is the mean of the observed data, and N is the number of observations.

4. Results and Discussion

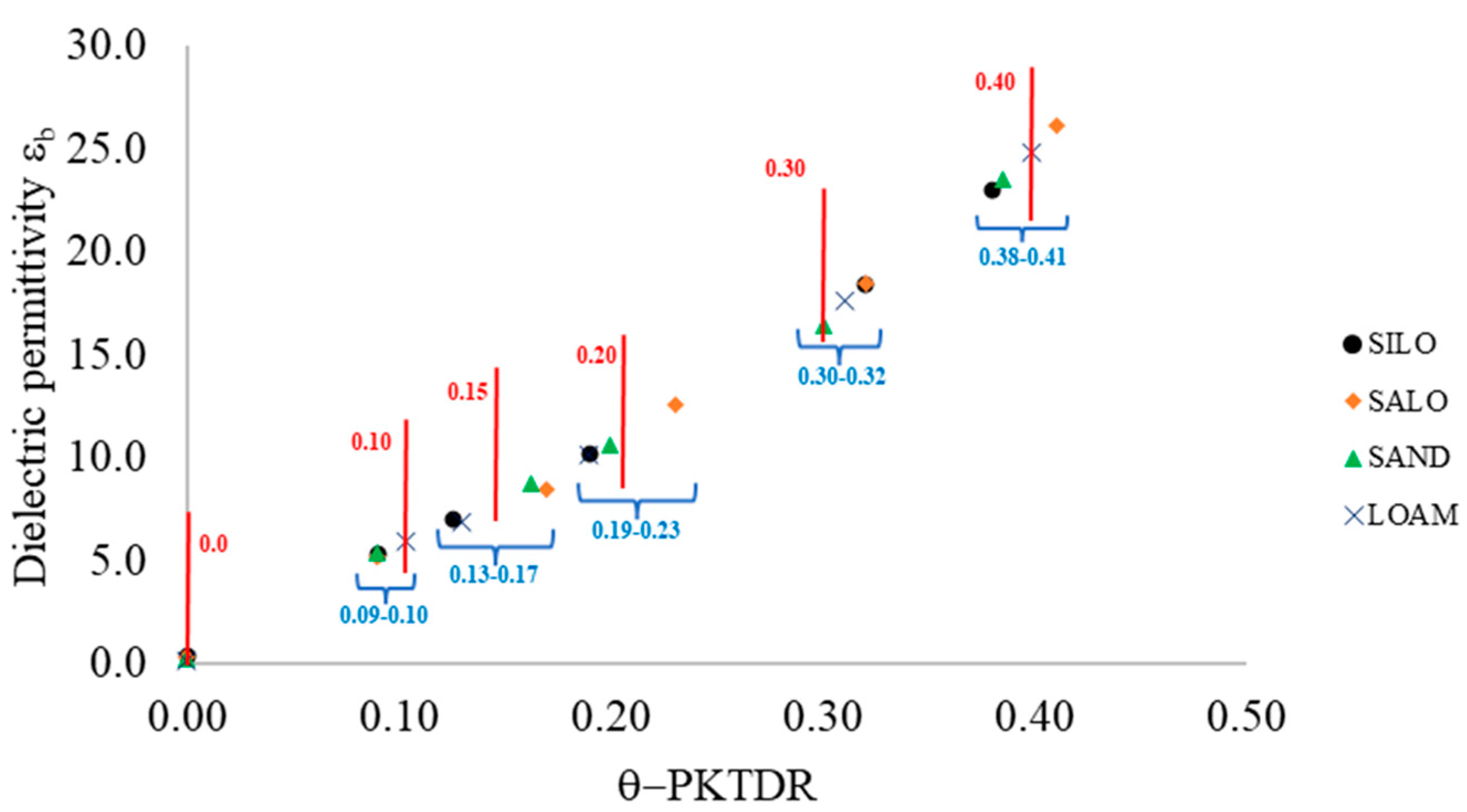

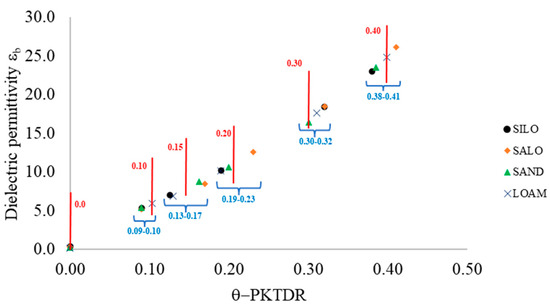

Figure 7 shows the results of the experiments conducted on the four selected soils. For each soil, the figure presents the estimated bulk dielectric permittivity values, obtained using the PKTDR device, plotted against the θ values calculated using Equation (2). The figure also includes the expected θ values (i.e., those obtained using the thermo-gravimetric method, represented by vertical red lines) and the range of variability of the estimated θ values across the soils (indicated by curly brackets and blue text).
In the observed θ domain, ε b values rise with increasing volumetric water content, in accordance with the theoretical principles of the TDR technique. For a given expected θ value, variations in the observed bulk dielectric permittivity values (and consequently in θ) can primarily be attributed to mineralogical differences among the soils, as well as to experimental procedures [51,52,53].

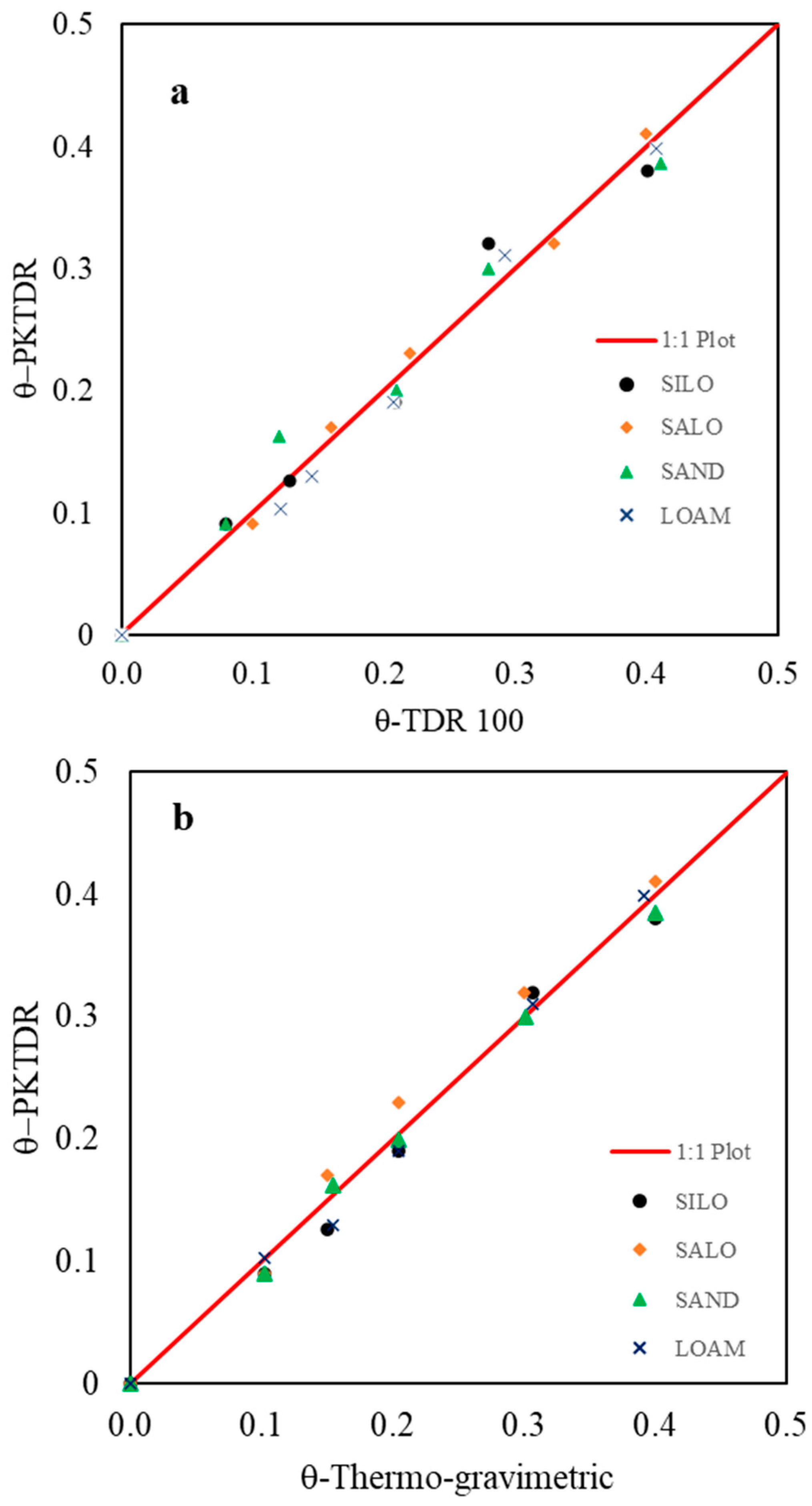

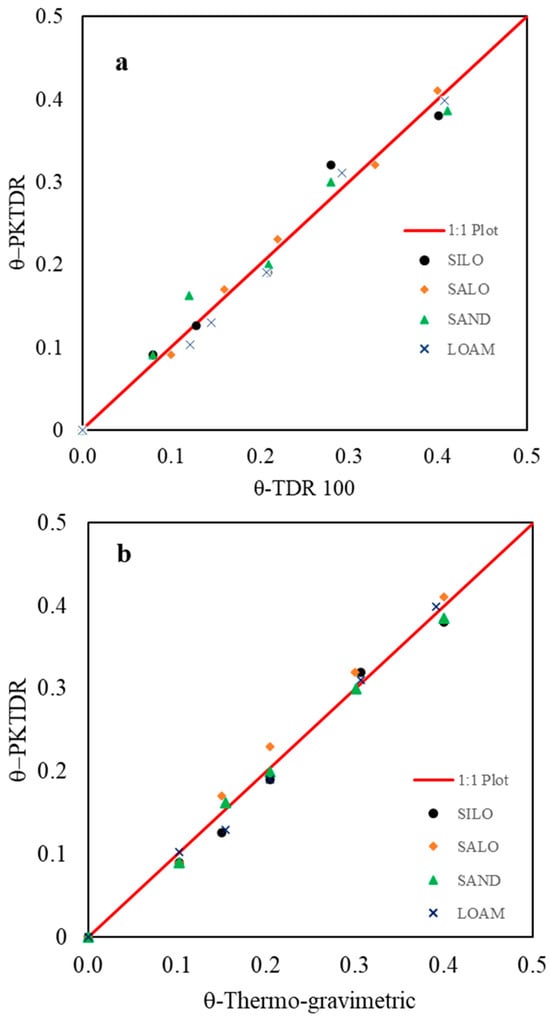

In Figure 8a, the θ values derived from the PKTDR device are compared with those obtained using the commercial TDR100 device. Among the soils, the dielectric responses of the two TDR devices are generally similar and closely align with the 1:1 line, indicating that the PKTDR provides performance comparable to that of the TDR100.
Finally, Figure 8b presents a comparison between the θ values estimated using the PKTDR device and those obtained using the thermo-gravimetric method. The 1:1 trend line has a coefficient of determination of R2 = 0.94, indicating that the proposed TDR device demonstrates high accuracy in predicting θ values compared to the standard method.
For a comprehensive evaluation, Table 3 summarizes the statistical indices (MBE, ME, and MAE) that assess the goodness of fit between measured (thermo-gravimetric method) and estimated θ values (PKTDR and TDR100 devices). The table also reports the standard deviation of the εb values obtained across different soil temperatures.
In general, both devices exhibited low values for the selected statistical indices across the different soils, indicating a good response of the two compared TDR systems. The MAE values for PKTDR are consistently below 2%, confirming its high accuracy for all tested soil types. The maximum error is also minimal, ranging from 0.69 (for LOAM soil) to 2.52 (for SALO soil). Furthermore, analysis of the standard deviation of εb values (σε) across different temperature ranges shows that PKTDR maintains good thermal stability, with values differing only slightly among soils. These results underscore PKTDR’s robustness and precision under varied environmental conditions.

5. Conclusions

In the present study, based on several full factorial laboratory experiments, we assessed the performance of a low-cost TDR device across four soils with different textural characteristics.
This study demonstrated the accuracy and robustness of the PKTDR device, showing a strong correlation between measured and actual soil water contents, from saturated to dry soil conditions. The economic accessibility of the proposed TDR device should encourage widespread adoption, particularly in resource-limited settings, such as those found in developing countries and among small-scale farming communities, as well as for extensive (i.e., open-field) applications.
Emerging trends in TDR research include the integration of TDR systems with remote sensing technologies, such as unmanned aerial vehicles (UAVs) and satellites, to enable the large-scale monitoring of soil moisture across vast landscapes. This integration has the potential to revolutionize agricultural and environmental monitoring by providing real-time, high-resolution data over large spatial areas. For these reasons, to extend the potential of the proposed TDR system, future perspectives will focus on the possibility of integrating the proposed system with IoT technologies. Finally, in the upcoming phases, extensive field-scale tests will be conducted to assess sensor performance under open-field conditions.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/s25041099/s1.

Author Contributions

A.C. (Alessandro Comegna): conceptualization, methodology, investigation, data curation, formal analysis, validation, visualization, writing—original draft, and writing review and editing. S.D.P.: writing—review and editing. A.C. (Antonio Coppola): writing—review and editing. S.B.M.H.: writing—review and editing. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Informed Consent Statement

Not applicable.

Data Availability Statement

The original contributions presented in this study are included in the article/Supplementary Material. Further inquiries can be directed to the corresponding author.

Conflicts of Interest

The authors declare no conflicts of interest.

Appendix A. Supplementary Information

This section provides supplementary information essential for assembling the PKTDR device. All the essential files, including PCB fabrication files, 3D printing files, etc., for building the proposed device are available as supplementary material accompanying this paper. The supplementary material folder is organized as follows:

Appendix A.1. Board Fabrication Files Folder

(a)
The Gerber files (PKTDR.kicad_pcb.zip);
(b)
The Centroid files (PKTDR-bottom-pos.cvs, PKTDR-top-pos.csv);
(c)
The Bill of Materials (BoMs: PKTDR_BoM.xls).
All the electronic components can be acquired in different electronics stores (e.g., JLCPCB, Mouser, Digikey, RSOnline, etc.).

Appendix A.2. MATPKTDR Software Folder

(a)
mainMATPKTDR: the primary MATLAB file (the source code) dedicated to calculating bulk dielectric permittivity and volumetric water content (specifically developed for the PKTDR + Hantek 6254BD system);
(b)
User guide: a practical guide for using the MATPKTDR Code;
(c)
General Trace Information Library folder: a repository with templates for input files (useful when using commercial TDR devices or PKTDR);
(d)
TDRExample file: a .csv file containing an example of the TDR probe (to be used with the General Trace Information 4096 file);
(e)
The TDROUT file: a .txt file that records the time and date of the TDR analysis along with the estimated εb and θ values;
(f)
The Plot file: a .png file, which contains the graphical output of the TDR trace analysis.

Appendix A.3. 3D Printing Materials Folder

(a)
PKTDR Box Folder: .stl files for printing the external box for the PKTDR device.
The 3D printing model (Figure A1) was developed using Fusion 360 software (accessed on 20 December 2024 https://www.autodesk.com).
For building the PKTDR device, it is advisable to utilize a specialized electronics manufacturing service capable of producing low-cost printed circuit boards (PCBs). This option requires the Gerber and BoM files (refer to the Board Fabrication Files folder in the Supplementary Material). Fabrication costs are around $5 USD for printing 10 PCBs, excluding shipping. The estimated cost of electronic materials is approximately $3–5 USD.

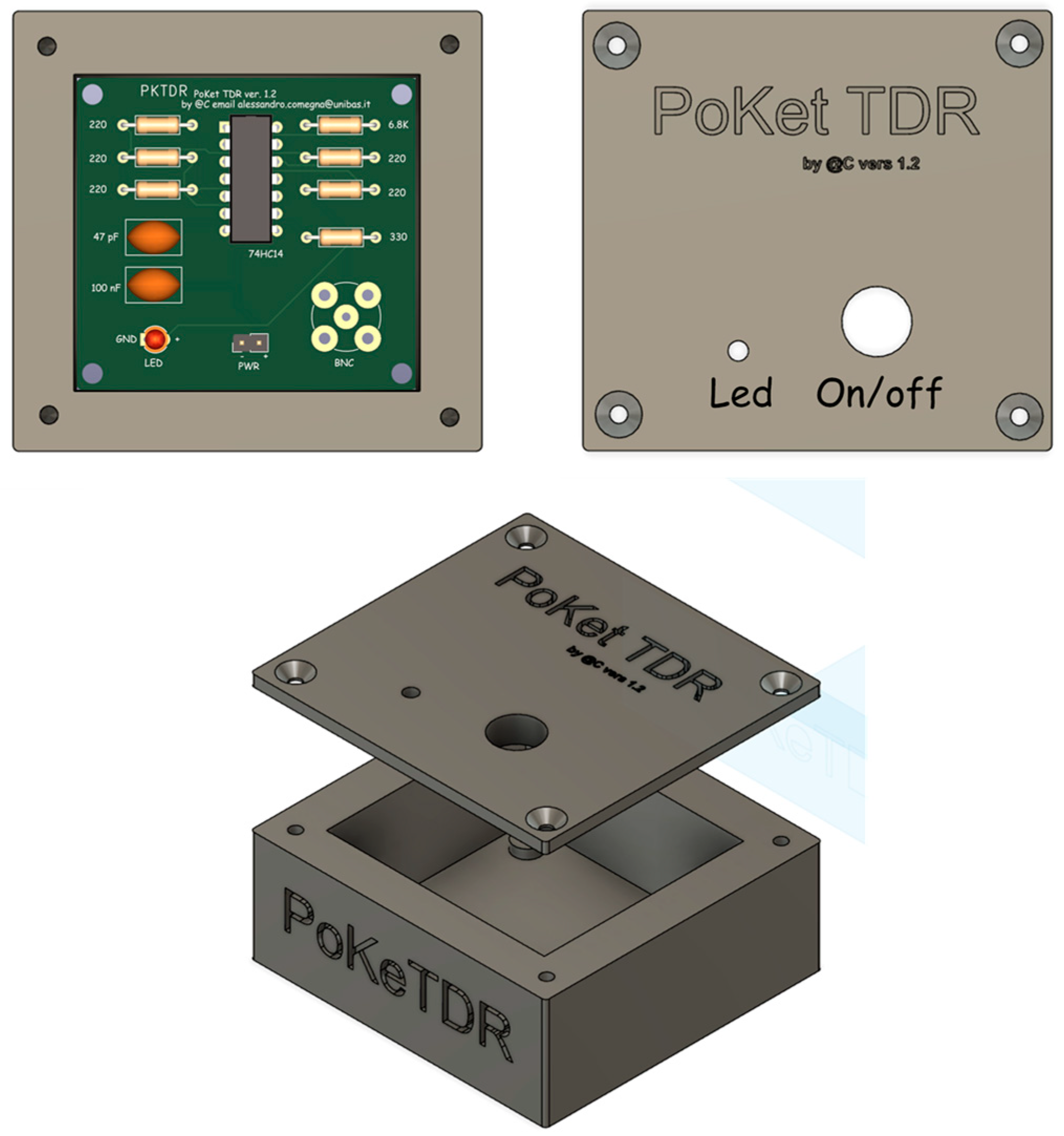

Figure A1. The PKTDR prototype.
Figure A1. The PKTDR prototype.
Sensors 25 01099 g0a1

Appendix A.4. How to Assemble the PKTDR System

The PKTDR system requires additional components to function properly. In addition to a DSO, the system needs a load resistor (e.g., the P57 model) to ensure a stable 50-ohm output signal. A three-way BNC connector is also necessary to facilitate connections between the PKTDR, the TDR probe, and the DSO. The P57 load resistor should be placed between this connection and the DSO. Both the DSO and the PKTDR need to be powered (at 5 volts) and connected to a PC. For this, USB-C cables are required. Figure A2 shows a scheme of the required components and connections.

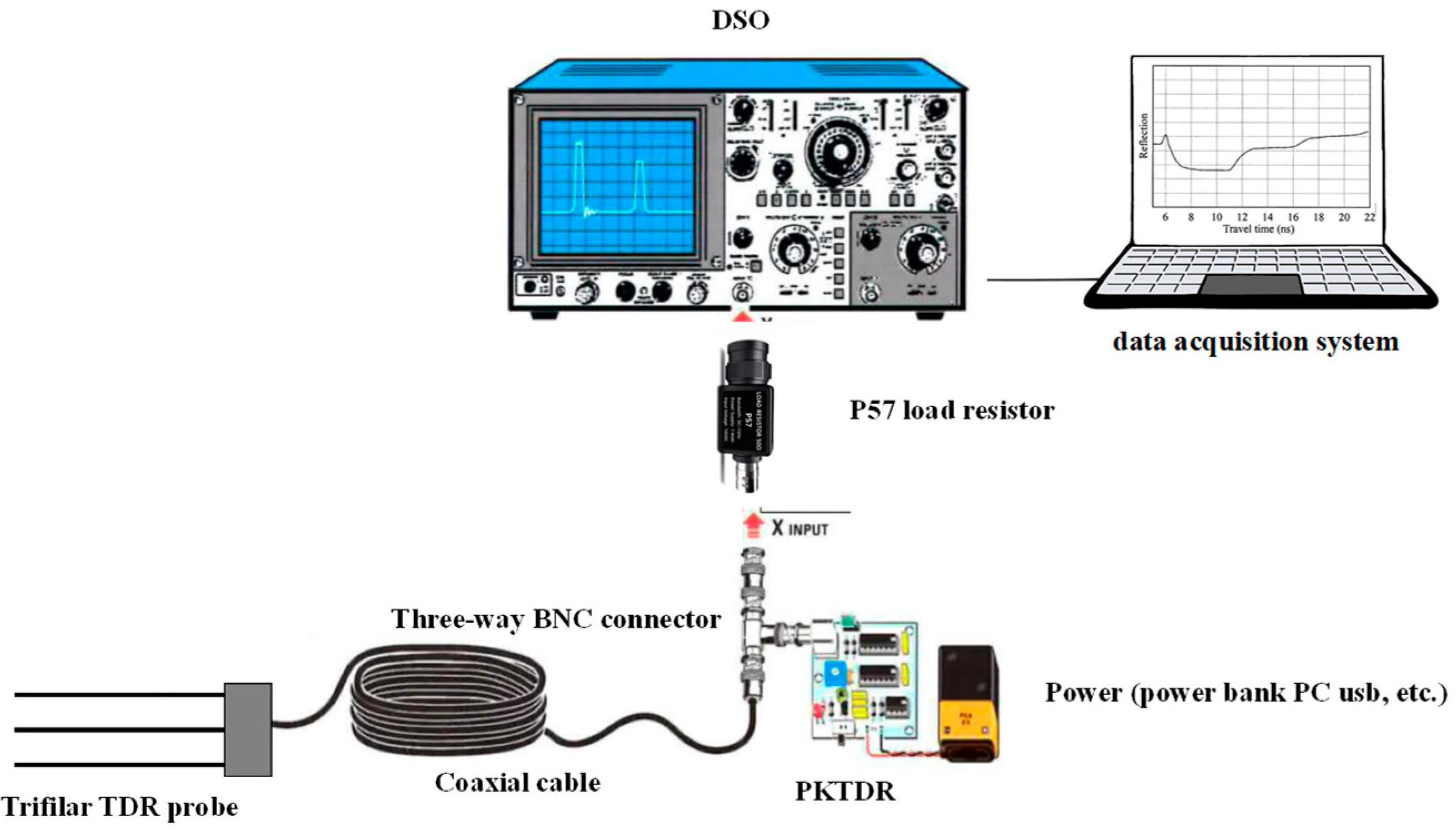

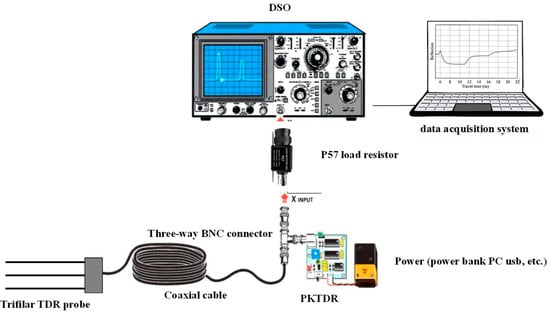

Figure A2. Scheme of the required components and connections for the PKTDR system.
Figure A2. Scheme of the required components and connections for the PKTDR system.
Sensors 25 01099 g0a2

References

  1. Comegna, V.; Coppola, A.; Basile, A.; Comegna, A. A Review of Approaches for Measuring Soil Hydraulic Properties and Assessing the Impacts of Spatial Dependence on the Results. In Hydrogeology—A Global Perspective; InTech: Shanghai, China, 2012. [Google Scholar] [CrossRef]
  2. Villoro, A.; Latorre, B.; Tormo, J.; Jiménez, J.J.; López, M.V.; Nicolau, J.M.; Vicente, J.; Gracia, R.; Moret-Fernández, D. A TDR wireless device for volumetric water content sensing. Comput. Electron. Agric. 2021, 181, 105939. [Google Scholar] [CrossRef]
  3. Comegna, A.; Dragonetti, G.; Kodesova, R.; Coppola, A. Impact of olive mill wastewater (OMW) on the soil hydraulic and solute transport properties. Int. J. Environ. Sci. Technol. 2022, 19, 7079–7092. [Google Scholar] [CrossRef]
  4. Comegna, A.; Coppola, A.; Dragonetti, G.; Sommella, A. Estimating non-aqueous phase liquid (NAPL) content in variable saturated soils using time domain reflectometry (TDR). Vadose Zone J. 2016, 15, 1–11. [Google Scholar] [CrossRef]
  5. Prajapati, T.A.; Helambe, S.N. Low Frequency TDR for Measurement of Cable Length. In Proceedings of the International Conference on Emanations in Modern Technology and Engineering (ICEMTE-2017), Rajasthan, India, 4–5 March 2017; Volume 5. ISSN 2321-8169. [Google Scholar]
  6. Comegna, A.; Severino, G.; Coppola, A. A review of new TDR applications for measuring non-aqueous phase liquids (NAPLs) in soils. Environ. Adv. 2022, 9, 100296. [Google Scholar] [CrossRef]
  7. Moret-Fernandez, D.; Lera, F.; Latorre, B.; Tormo, J.; Revilla, J. Testing of a commercial vector network analyzer as low-cost TDR device to measure soil moisture and electrical conductivity. Catena 2022, 218, 106540. [Google Scholar] [CrossRef]
  8. Pérez, M.; Mendez, D.; Avellaneda, D.; Fajardo, A.; Páez-Rueda, C.I. Time-domain transmission sensor system for on-site dielectric permittivity measurements in soil: A compact, low-cost and stand-alone solution. HardwareX 2023, 13, e00398. [Google Scholar] [CrossRef]
  9. Lin, C.P.; Tang, S.H.; Lin, C.H.; Chung, C.C. An improved modeling of TDR signal propagation for measuring complex dielectric permittivity. J. Earth Sci. 2015, 26, 827–834. [Google Scholar] [CrossRef]
  10. Coppola, A.; Chaali, N.; Dragonetti, G.; Lamaddalena, N.; Comegna, A. Root uptake under non-uniform root-zone salinity. Ecohydrology 2015, 8, 1363–1379. [Google Scholar] [CrossRef]
  11. Saeed, A.; Comegna, A.; Dragonetti, G.; Lamaddalena, N.; Sommella, A.; Coppola, A. Soil electrical conductivity estimated by time domain reflectometry and electromagnetic induction sensors: Accounting for the different sensor observation volumes. J. Agric. Eng. 2017, 48, 223–234, ISSN 1974-7071. [Google Scholar] [CrossRef]
  12. Coppola, A.; Comegna, A.; Dragonetti, G.; Dyck, M.; Basile, A.; Lamaddalena, N.; Comegna, V. Solute transport scales in an unsaturated stony soil. Adv. Water Resour. 2011, 34, 747–759. [Google Scholar] [CrossRef]
  13. Coppola, A.; Dragonetti, G.; Comegna, A.; Lamaddalena, N.; Caushi, B.; Haikal, M.A.; Basile, A. Measuring and modeling water content in stony soils. Soil Tillage Res. 2013, 128, 9–22. [Google Scholar] [CrossRef]
  14. Severino, G.; Scarfato, M.; Comegna, A. Stochastic analysis of unsaturated steady flows above the water table. Water Resour. Res. 2017, 53, 6687–6708. [Google Scholar] [CrossRef]
  15. García, L.; Parra, L.; Jimenez, J.M.; Lloret, J.; Lorenz, P. IoT-Based Smart Irrigation Systems: An Overview on the Recent Trends on Sensors and IoT Systems for Irrigation in Precision Agriculture. Sensors 2020, 20, 1042. [Google Scholar] [CrossRef]
  16. Satriani, A.; Belviso, C.; Lovelli, S.; di Prima, S.; Coppola, A.; Hassan, S.B.M.; Rivelli, A.R.; Comegna, A. Impact of a synthetic zeolite mixed with soils of different pedological characteristics on soil physical quality indices. Geoderma 2024, 451, 117084. [Google Scholar] [CrossRef]
  17. Dragonetti, G.; Comegna, A.; Ajeel, A.; Deidda, G.; Lamaddalena, N.; Rodriguez, G.; Vignoli, G.; Coppola, A. Calibrating electromagnetic induction conductivities with time-domain reflectometry measurements. Hydrol. Earth Syst. Sci. 2018, 22, 1509–1523. [Google Scholar] [CrossRef]
  18. Saeed, I.A.; Wang, M.; Ren, Y.; Shi, Q.; Malik, M.H.; Tao, S.; Cai, Q.; Gao, W. Performance analysis of dielectric soil moisture sensor. Soil Water Res. 2019, 14, 195–199. [Google Scholar] [CrossRef]
  19. Corwin, D.L.; Scudiero, E. Review of soil salinity assessment for agriculture across multiple scales using proximal and/or remote sensors. In Advances in Agronomy; Sparks, D.L., Ed.; Academic Press: Cambridge, MA, USA, 2019. [Google Scholar]
  20. Belviso, C.; Satriani, A.; Lovelli, S.; Comegna, A.; Coppola, A.; Dragonetti, G.; Cavalcante, F.; Rivelli, A.R. Impact of Zeolite from Coal Fly Ash on Soil Hydrophysical Properties and Plant 285 Growth. Agriculture 2022, 12, 356. [Google Scholar] [CrossRef]
  21. Castronuovo, D.; Satriani, A.; Rivelli, A.R.; Comegna, A.; Belviso, C.; Coppola, A.; Di Prima, S.; Cavalcante, F.; Lovelli, S. Effects of Zeolite and Deficit Irrigation on Sweet Pepper Growth. Horticulturae 2023, 9, 1230. [Google Scholar] [CrossRef]
  22. Comegna, A.; Belviso, C.; Rivelli, A.R.; Coppola, A.; Dragonetti, G.; Sobhani, A.; Di Prima, S.; Satriani, A.; Cavalcante, F.; Lovelli, S. Analysis of critical water flow and solute transport parameters in different soils mixed with a synthetic zeolite. Catena 2023, 228, 107150. [Google Scholar] [CrossRef]
  23. Topp, G.C.; Davis, J.L.; Annan, A.P. Electromagnetic determination of soil water content: Measurements in coaxial transmission lines. Water Resour. Res. 1980, 16, 574–582. [Google Scholar] [CrossRef]
  24. Topp, G.C.; Ferré, P.A. Water content. In Methods of Soil Analysis, Part 4, Physical Methods; Dane, J.H., Topp, G.C., Eds.; Soil Science Society of America, Inc.: Madison, WI, USA, 2002; pp. 417–446. [Google Scholar]
  25. Mohamed, A.M.O. Principles and applications of time domain electrometry in geoenvironmental engineering. In Developments in Arid Region Research; Taylor and Francis: Oxfordshire, UK, 2006; Volume 5. [Google Scholar]
  26. Comegna, A.; Coppola, A.; Dragonetti, G.; Sommella, A. A soil non-aqueous phase liquid (NAPL) flushing laboratory experiment based on measuring the dielectric properties of soil-organic mixtures via time domain reflectometry (TDR). Hydrol. Earth Syst. Sci. 2019, 23, 3593–3602, ISSN 1027-5606. [Google Scholar] [CrossRef]
  27. Kuncham, N.V. Sensors for managing water resources in agriculture. J. Electron. Commun. Eng. 2014, 9, 145–163. [Google Scholar] [CrossRef]
  28. Coppola, A.; Dragonetti, G.; Sengouga, A.; Lamaddalena, N.; Comegna, A.; Basile, A.; Noviello, N.; Nardella, L. Identifying Optimal Irrigation Water Needs at District Scale by Using a Physically Based Agro-Hydrological Model. Water 2019, 11, 841. [Google Scholar] [CrossRef]
  29. Sasot, A.S. Study of the Development of an IoT-Based Sensor Platform for E-Agriculture. Master’s Thesis, Universitat Politecnica de Catalunya, Department of Engineering Electronics, Barcelona, Spain, 2020. [Google Scholar]
  30. Placidi, P.; Villani Delle Vergini, C.; Papini, N.; Cecconi, M.; Mezzanotte, P.; Scorzoni, A. Low-Cost and Low-Frequency Impedance Meter for Soil Water Content Measurement in the Precision Agriculture Scenario. IEEE Trans. Instrum. Meas. 2013, 72, 9511613. [Google Scholar] [CrossRef]
  31. Wang, X.; Gui, J.Q.; Pan, Y.; Hu, R.; Zhang, Y.; Tedeschi, A.; Basile, A.; Comegna, A.; Coppola, A.; de Mascellis, R. Comparison of hydraulic behaviour of unvegetated and vegetation-stabilized sand dunes in arid desert ecosystems. Ecohydrology 2013, 6, 264–274, ISSN 1936-0584. [Google Scholar] [CrossRef]
  32. Di Prima, S.; Fernandes, G.; Marras, E.; Giadrossich, F.; Stewart, R.D.; Abou Najm, M.R.; Winiarski, T.; Mourier, B.; Angulo-Jaramillo, R.; Comegna, A.; et al. Evaluating subsurface flow connectivity in a pine-covered hillslope with stemflow infiltration and ground-penetrating radar surveys. J. Hydrol. 2023, 620, 129527. [Google Scholar] [CrossRef]
  33. Zhen, X.; Changjun, S.; Hua, Y.; Shirui, Z. Research and design of soil water content sensor based on high frequency capacitive. Sens. Transducers 2018, 26, 56–60. [Google Scholar]
  34. Peddinti, S.R.; Hopmans, J.W.; Abou Najm, M.; Kisekka, I. Assessing Effects of Salinity on the Performance of a Low-Cost Wireless Soil Water Sensor. Sensors 2020, 20, 7041. [Google Scholar] [CrossRef] [PubMed]
  35. Comegna, A.; Hassan, S.B.M.; Coppola, A. Development and Application of an IoT-Based System for Soil Water Status Monitoring in a Soil Profile. Sensors 2024, 24, 2725. [Google Scholar] [CrossRef] [PubMed]
  36. Visconti, P.; de Fazio, R.; Primiceri, P.; Cafagna, D.; Strazzella, S.; Giannoccaro, N.L. A Solar-Powered Fertigation System Based on Low-Cost Wireless Sensor Network Remotely Controlled by Farmer for Irrigation Cycles and Crops Growth Optimization. Int. J. Electron. Telecommun. 2016, 66, 59–68. [Google Scholar] [CrossRef]
  37. Chowdhury, S.; Sen, S.; Janardhanan, S. Comparative Analysis and Calibration of Low Cost Resistive and Capacitive Soil Moisture Sensor. arXiv 2022, arXiv:2210.03019v1. [Google Scholar]
  38. Hassan, S.B.M.; Dragonetti, G.; Comegna, A.; Lamaddalena, N.; Coppola, A. Analyzing the role of soil and vegetation spatial variability in modelling hydrological processes for irrigation optimization at large scale. Irrig. Sci. 2023, 42, 249–267. [Google Scholar] [CrossRef]
  39. Robinson, D.A.; Friedman, S.P. The effective permittivity of dense packing of glass beads, quartz sand and their mixtures immersed in different dielectric backgrounds. J. Non-Cryst. Solids 2002, 305, 261–267. [Google Scholar] [CrossRef]
  40. Ferré, P.A.; Rudolph, D.L.; Kachaniski, R.G. Spatial averaging of water content by time domain reflectometry: Implications for twin rod probes with and without dielectric coatings. Water Resour. Res. 1996, 32, 271–279. [Google Scholar] [CrossRef]
  41. Lin, C.P.; Chung, C.C.; Tang, S.H. Accurate TDR measurement of electrical conductivity accounting for cable resistance and recording time. Soil Sci. Soc. Am. J. 2007, 71, 1278–1287. [Google Scholar] [CrossRef]
  42. Comegna, A.; Coppola, A.; Dragonetti, G.; Severino, G.; Sommella, A. Interpreting TDR signal propagation through soils with distinct layers of nonaqueous-phase liquid and water content. Vadose Zone J. 2017, 16, 1–11, ISSN 1539-1663. [Google Scholar] [CrossRef]
  43. Comegna, A.; Coppola, A.; Dragonetti, G. Time domain reflectometry for dielectric characterization of olive mill wastewater contaminated soils. J. Agric. Eng. 2020, 51, 248–254, ISSN 1974-7071. [Google Scholar] [CrossRef]
  44. Or, D.; Jones, S.B.; Van Shaar, J.R.; Humphries, S.; Koberstein, L. WINTDR Soil Analysis Software: User’s Guide; Utah State University: Logan, UT, USA, 2004. [Google Scholar]
  45. IUSS Working Group WRB. World Reference Base for Soil Resources 2006. A Framework for International Classification, Correlation and Communication, 2nd ed.; World Soil Resources Reports; FAO: Rome, Italy, 2006; Volume 103. [Google Scholar]
  46. Day, P.R. Particle fractionation and particle-size analysis. In Methods of Soil Analysis, Part 1; Black, C.A., Ed.; American Society of Agronomy: Madison, WI, USA, 1965; pp. 545–567. [Google Scholar]
  47. Blake, G.R.; Hartge, K.H. Particle density. In Methods of Soil Analysis, Part 1, 2nd ed.; Klute, A., Ed.; American Society of Agronomy: Madison, WI, USA, 1986; pp. 377–381. [Google Scholar]
  48. Eckert, D.J. Soil pH. In Recommended Chemical Soil Test Procedures for the North Central Region; Dahnke, W.C., Ed.; Fargo: North Dakota Agricultural Experiment Station Bulletin No. 221 (Revised); University of Missouri: Columbia, MO, USA, 1988; pp. 6–8. [Google Scholar]
  49. Legates, D.R.; McCabe, G.J., Jr. Evaluating the use of “goodness-of-fit” measures in hydrologic and hydroclimatic model validation. Water Resour. Res. 1999, 35, 233–241. [Google Scholar] [CrossRef]
  50. Goovaerts, P.; AvRuskin, G.; Meliker, J.; Slotnick, M.; Jacquez, G.; Nriagu, J. Geostatistical modeling of the spatial variability of arsenic in groundwater of southeast Michigan. Water Resour. Res. 2005, 41, W07013. [Google Scholar] [CrossRef]
  51. Jung, S.; Drnevich, V.P.; Abou Najm, M.R. New methodology for density and water content by time domain reflectometry. J. Geotech. Geoenviron. Eng. 2013, 139, 659–670. [Google Scholar] [CrossRef]
  52. Comegna, A.; Coppola, A.; Dragonetti, G.; Chaali, N.; Sommella, A. Time domain reflectometry-measuring dielectric permittivity to detect soil non-acqeous phase liquids contamination-decontamination processes. J. Agric. Eng. 2013, 44, 833–838, ISSN 1974-7071. [Google Scholar] [CrossRef]
  53. Comegna, A.; Coppola, A.; Dragonetti, G.; Severino, G.; Sommella, A.; Basile, A. Dielectric properties of a tilled sandy volcanic vesuvian soil with moderate andic features. Soil Tillage Res. 2013, 133, 93–100. [Google Scholar] [CrossRef]

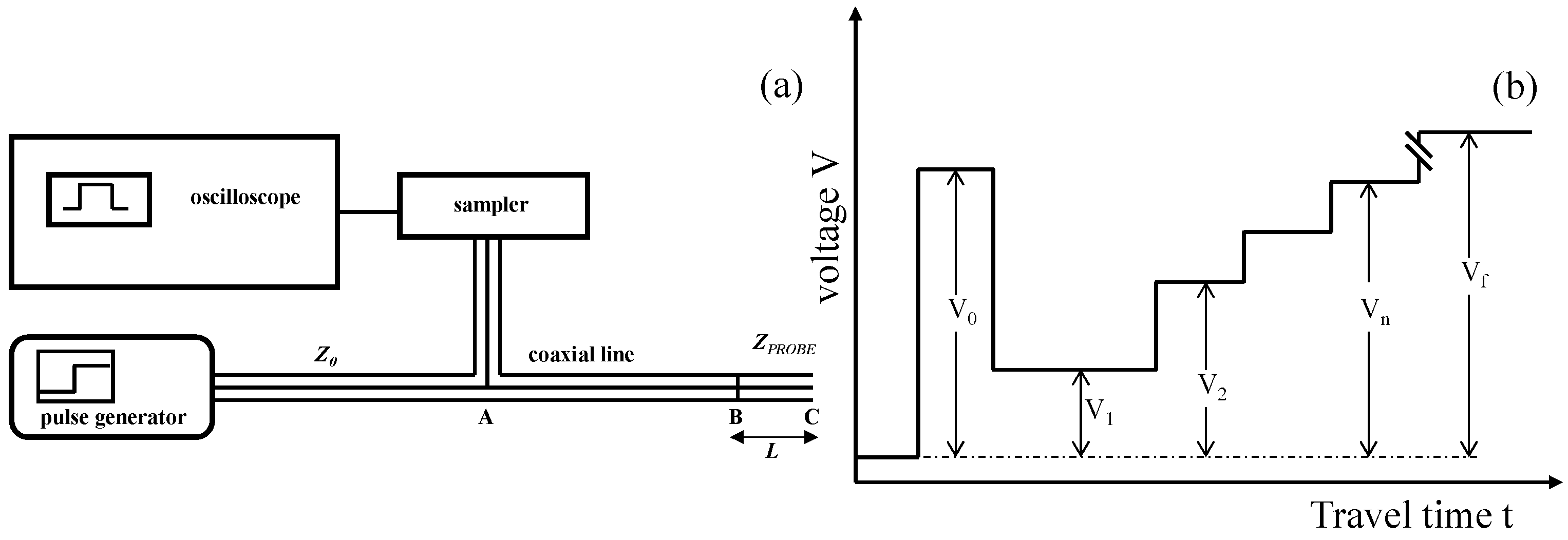

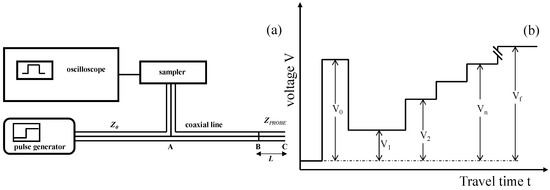

Figure 1. (a) Time Domain Reflectometry (TDR) hardware setup; (b) voltage versus travel time for an idealized TDR waveform, highlighting distinctive signal characteristics resulting from multiple reflections (adapted from [6]).
Figure 1. (a) Time Domain Reflectometry (TDR) hardware setup; (b) voltage versus travel time for an idealized TDR waveform, highlighting distinctive signal characteristics resulting from multiple reflections (adapted from [6]).
Sensors 25 01099 g001

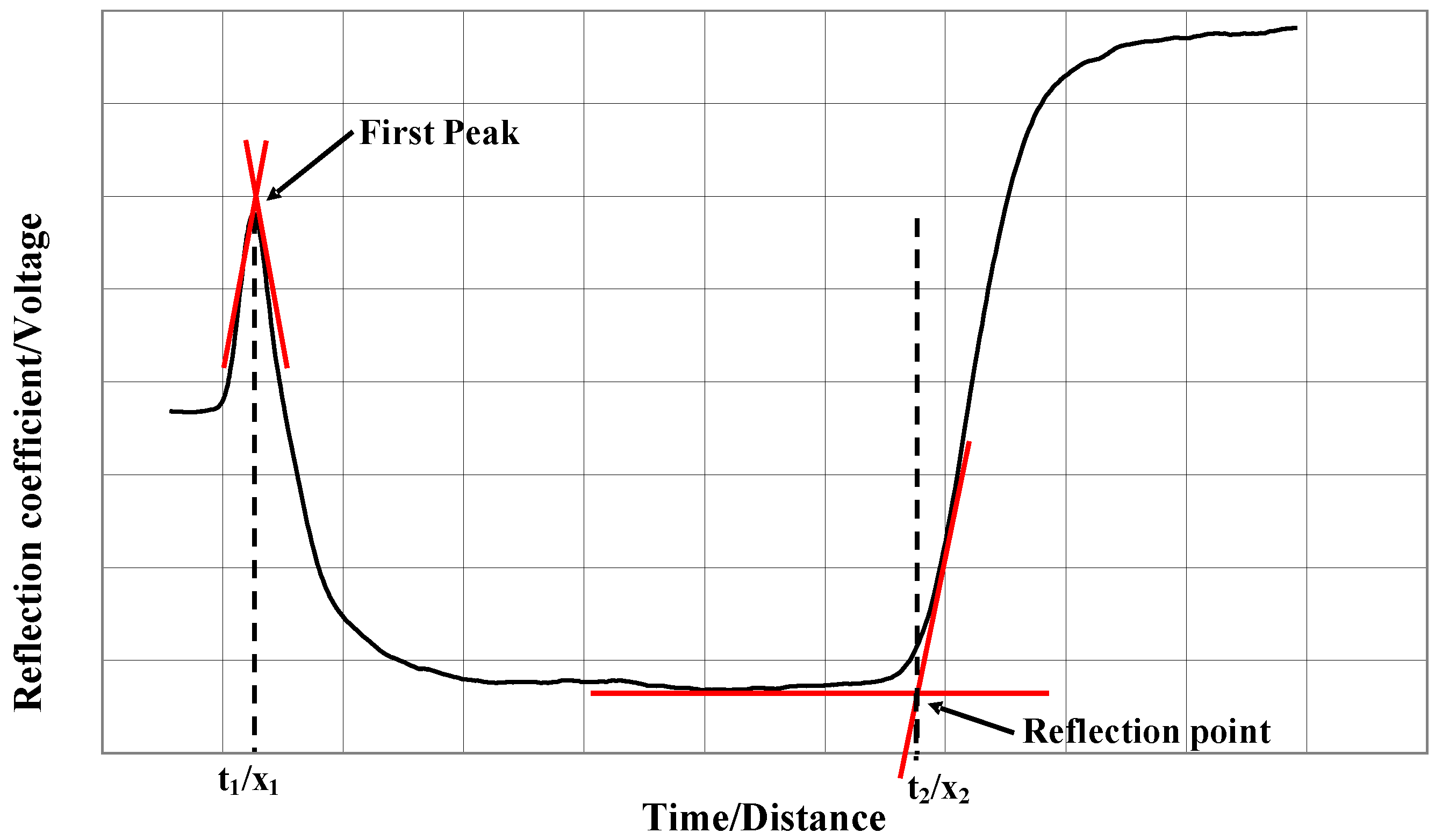

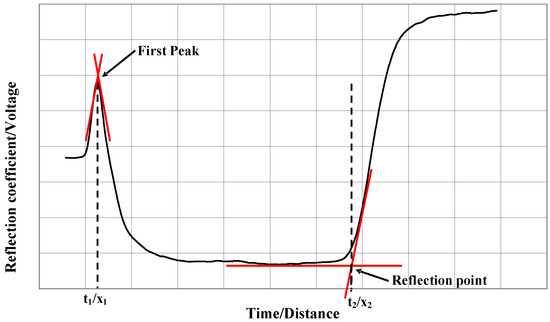

Figure 2. Example of a TDR output waveform, showing (i) the first peak, (ii) the reflection point, and (iii) tangent lines required for the determination of these two points.
Figure 2. Example of a TDR output waveform, showing (i) the first peak, (ii) the reflection point, and (iii) tangent lines required for the determination of these two points.
Sensors 25 01099 g002

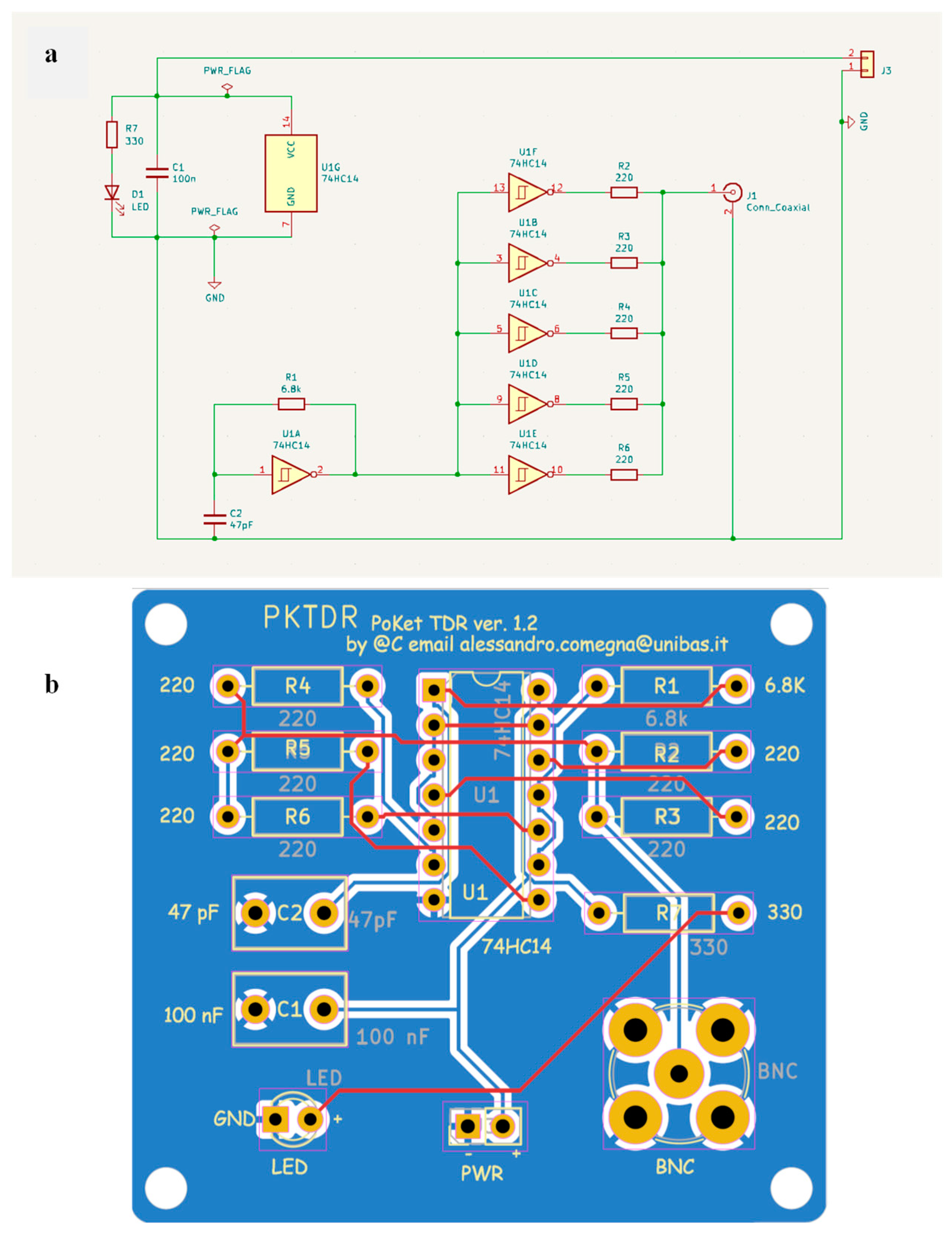

Figure 3. (a) Electrical circuit diagram of the PKTDR device and (b) the printed circuit board (PCB) layout generated using KiCad software (version 7.0).
Figure 3. (a) Electrical circuit diagram of the PKTDR device and (b) the printed circuit board (PCB) layout generated using KiCad software (version 7.0).
Sensors 25 01099 g003
Figure 4. (a) The printed circuit board (PCB) of the PKTDR device, (b) PKTDR housed within its PLA enclosure, and (c) the additional components needed to complete the assembly.
Figure 4. (a) The printed circuit board (PCB) of the PKTDR device, (b) PKTDR housed within its PLA enclosure, and (c) the additional components needed to complete the assembly.
Sensors 25 01099 g004
Figure 5. Example of a TDR signal acquired using PKTDR with the Hantek 6254BD DSO.
Figure 5. Example of a TDR signal acquired using PKTDR with the Hantek 6254BD DSO.
Sensors 25 01099 g005
Figure 6. Laboratory apparatus for calibration and validation of the PKTDR device (adapted from [4]).
Figure 6. Laboratory apparatus for calibration and validation of the PKTDR device (adapted from [4]).
Sensors 25 01099 g006
Figure 7. Bulk dielectric permittivity (εb) values measured using the PKTDR device plotted against the estimated θ values, calculated using Equation (2) for the four investigated soils. The red lines and red text represent θ values determined using the thermo-gravimetric method. The graphic also highlights the range of θ variability among the soils in blue text.
Figure 7. Bulk dielectric permittivity (εb) values measured using the PKTDR device plotted against the estimated θ values, calculated using Equation (2) for the four investigated soils. The red lines and red text represent θ values determined using the thermo-gravimetric method. The graphic also highlights the range of θ variability among the soils in blue text.
Sensors 25 01099 g007
Figure 8. (a) Comparison of θ values estimated using the PKTDR device and the commercial TDR100 device and (b) θ-PKTDR estimated values vs. known θ values, with reference to the four investigated soils.
Figure 8. (a) Comparison of θ values estimated using the PKTDR device and the commercial TDR100 device and (b) θ-PKTDR estimated values vs. known θ values, with reference to the four investigated soils.
Sensors 25 01099 g008
Table 1. List of electronic components (BoMs) required for assembling the PKTDR system.
Table 1. List of electronic components (BoMs) required for assembling the PKTDR system.
Footprint AssignmentDesignatorQuantity Footprint Specification (Kikad)Mounting Type
C1Capacitor 100 nF1THT:C_Disc_D8.0 mm_W5.0 mm_P5.00 mmTHT *
C2Capacitor 47 pF1THT:C_Disc_D8.0 mm_W5.0 mm_P5.00 mmTHT
D1Led (3 mm)1LED_THT:LED_D3.0 mmTHT
J1BNC Connector 1BNC_TEConnectivity_1478204_VerticalTHT
J3Connector1PinHeader_2.54 mm:PinHeader_1 x02_P2.54 mm_VerticalTHT
R1Resistor 6.8 kΩ1THT:R_Axial_DIN0207_L6.3 mm_D2.5 mm_P10.16 mm_HorizontalTHT
R2-R6Resistor 220 Ω5THT:R_Axial_DIN0207_L6.3 mm_D2.5 mm_P10.16 mm_HorizontalTHT
U1Inverter 74 HC141Package_DIP:DIP-14_W7.62 mmTHT
* THT: Through-Hole Technology Mounting.
Table 2. Main physical and chemical properties of the four selected soils.
Table 2. Main physical and chemical properties of the four selected soils.
Soil IDDepth
(cm)
Soil Texture and Classification (USDA)ρb
(g/cm3)
pH
TextureSand
(%)
Silt
(%)
Clay (%)
SALO0–20sandy loam57.4331.9510.621.027.7
SILO0–20silty loam1572.711.6 1.028.4
LOAM0–20loam27.546.126.41.027.2
SAND0–20sand981.50.51.027.9
Table 3. The mean bias error (MBE), maximum absolute percentage error (ME), and mean absolute percentage error (MAE) statistical indices and the standard deviation σε of bulk dielectric permittivity (determined in the 20–30 °C range), referring to the PKTDR and TDR100 measured and calculated (thermo-gravimetric method) θ values, with reference to the four selected soils.
Table 3. The mean bias error (MBE), maximum absolute percentage error (ME), and mean absolute percentage error (MAE) statistical indices and the standard deviation σε of bulk dielectric permittivity (determined in the 20–30 °C range), referring to the PKTDR and TDR100 measured and calculated (thermo-gravimetric method) θ values, with reference to the four selected soils.
SoilPKTDRTDR100PKTDRTDR100PKTDRTDR100PKTDRTDR100
MBEME (%)MAE (%)σε
SALO0.01040.00872.523.01.450.950.01580.0140
SAND−0.0043−0.01030.781.090.691.570.01310.0126
LOAM−0.00480.00230.691.910.821.030.01490.0139
SILO−0.0099−0.01121.280.401.421.270.01640.0150
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Comegna, A.; Di Prima, S.; Hassan, S.B.M.; Coppola, A. A Novel Time Domain Reflectometry (TDR) System for Water Content Estimation in Soils: Development and Application. Sensors 2025, 25, 1099. https://doi.org/10.3390/s25041099

AMA Style

Comegna A, Di Prima S, Hassan SBM, Coppola A. A Novel Time Domain Reflectometry (TDR) System for Water Content Estimation in Soils: Development and Application. Sensors. 2025; 25(4):1099. https://doi.org/10.3390/s25041099

Chicago/Turabian Style

Comegna, Alessandro, Simone Di Prima, Shawcat Basel Mostafa Hassan, and Antonio Coppola. 2025. "A Novel Time Domain Reflectometry (TDR) System for Water Content Estimation in Soils: Development and Application" Sensors 25, no. 4: 1099. https://doi.org/10.3390/s25041099

APA Style

Comegna, A., Di Prima, S., Hassan, S. B. M., & Coppola, A. (2025). A Novel Time Domain Reflectometry (TDR) System for Water Content Estimation in Soils: Development and Application. Sensors, 25(4), 1099. https://doi.org/10.3390/s25041099

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
