Laser Pulse-Driven Multi-Sensor Time Synchronization Method for LiDAR Systems

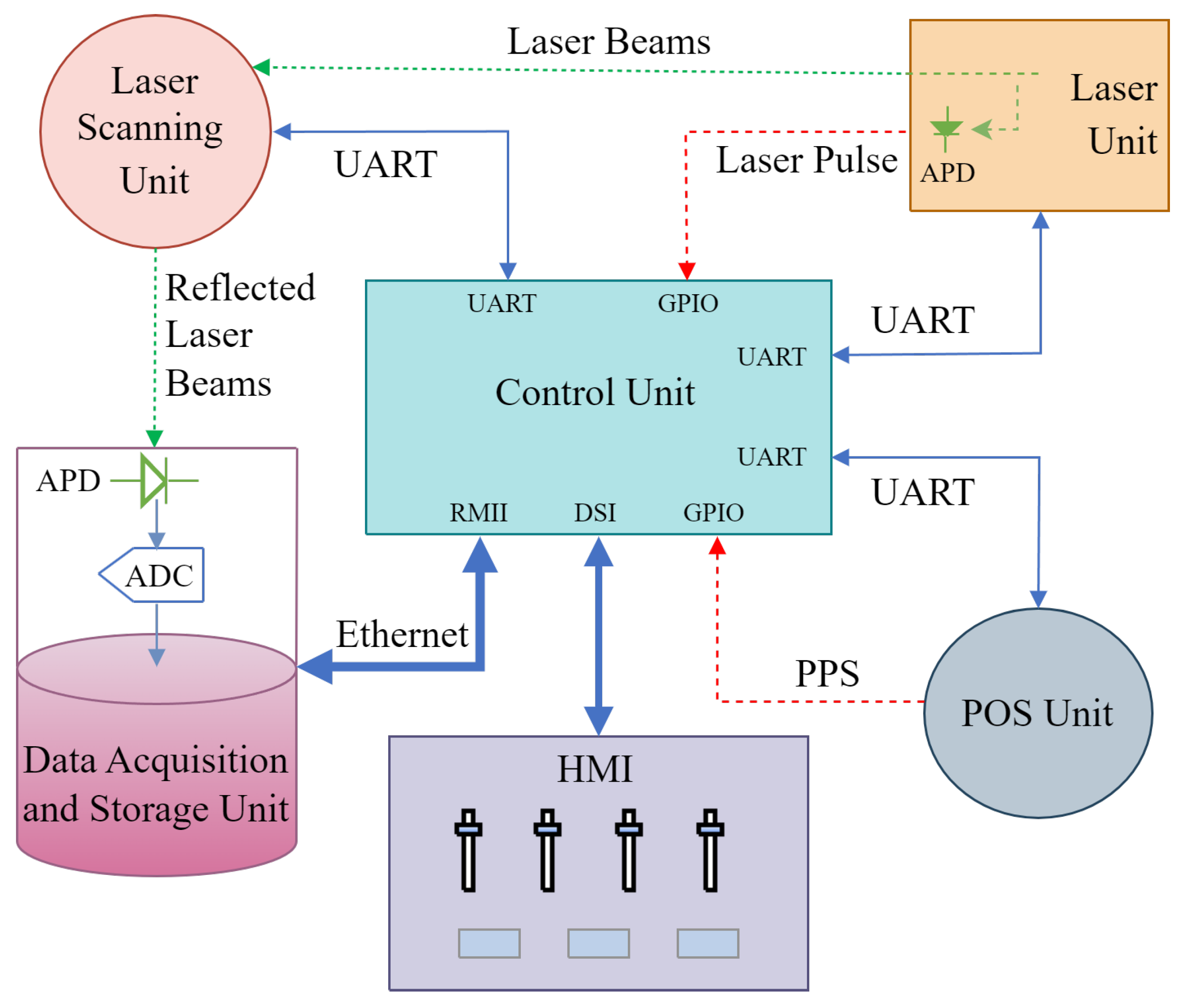

Multi-sensor systems require precise time synchronization for accurate data fusion. However, currently prevalent software time synchronization methods often rely on clocks provided by the Global Navigation Satellite System (GNSS), which may not offer high accuracy and can be easily affected by issues with GNSS signals. To address this limitation, this study introduces a novel laser pulse-driven time synchronization (LPTS) method in our custom-developed Light Detecting and Ranging (LiDAR) system. The LPTS method uses electrical pulses, synchronized with laser beams as the time synchronization source, driving the Micro-Controller Unit (MCU) timer within the control system to count with a timing accuracy of 0.1 $\mathsf{\mu }$s and to timestamp the data from the Positioning and Orientation System (POS) unit or laser scanner unit. By employing interpolation techniques, the POS and laser scanner data are precisely synchronized with laser pulses, ensuring strict correlation through their timestamps. In this article, the working principles and experimental methods of both traditional time synchronization (TRTS) and LPTS methods are discussed. We have implemented both methods on experimental platforms, and the results demonstrate that the LPTS method circumvents the dependency on external time references for inter-sensor alignment and minimizes the impact of laser jitter stemming from third-party time references, without requiring additional hardware. Moreover, it elevates the internal time synchronization resolution to 0.1 $\mathsf{\mu }$s and significantly improves relative timing precision.
