An Area-Efficient Readout Circuit for a High-SNR Triple-Gain LOFIC CMOS Image Sensor †
Abstract
1. Introduction
- To mitigate the SNR drop, we propose the triple-gain LOFIC CIS without enlarging the pixel area or degrading motion artifacts.
- We propose a readout circuit that is area-efficient for the triple-gain LOFIC CIS.

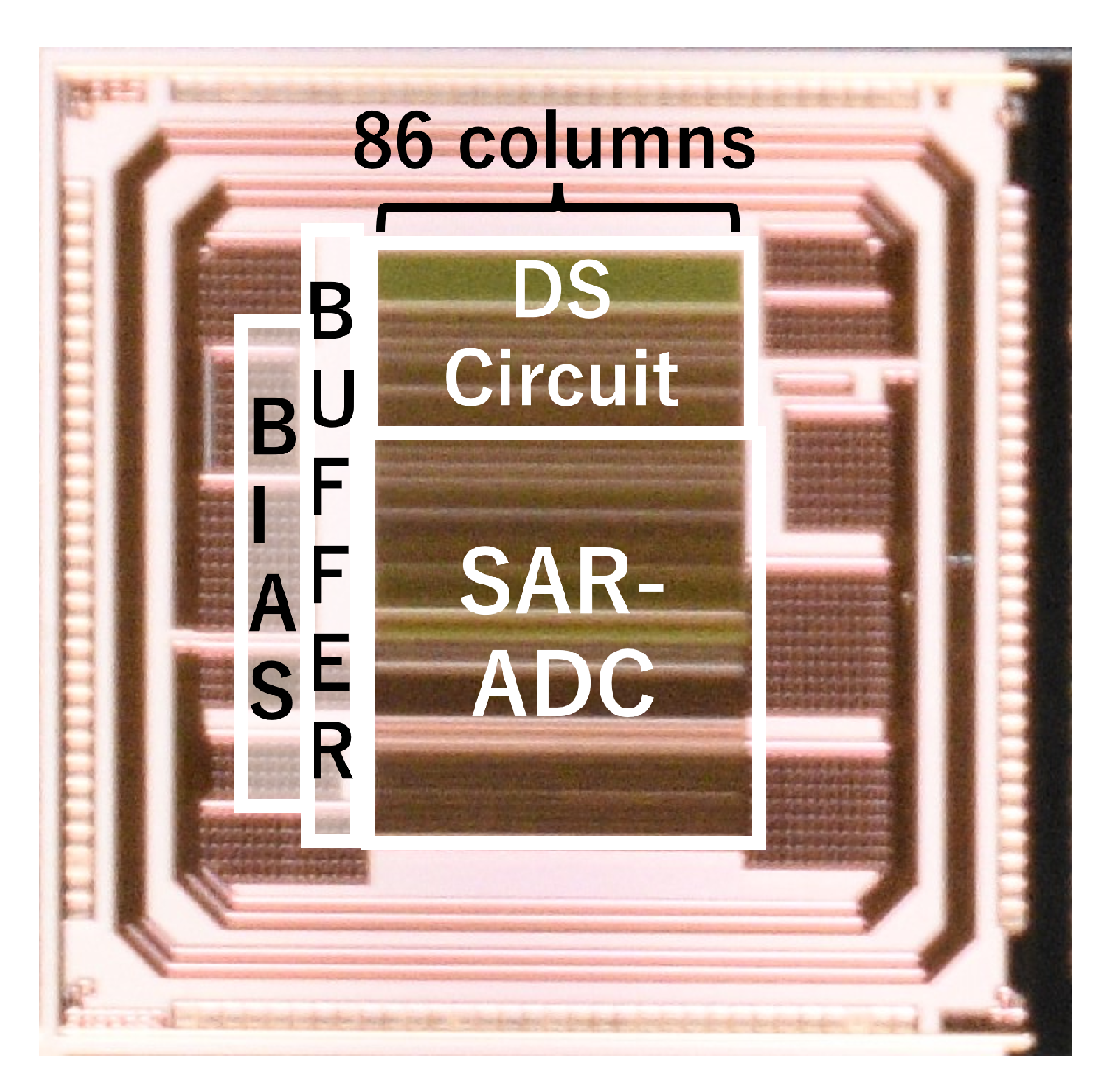

- We evaluate a fabricated test chip and estimate the SNR.
Updates from the Conference Proceeding

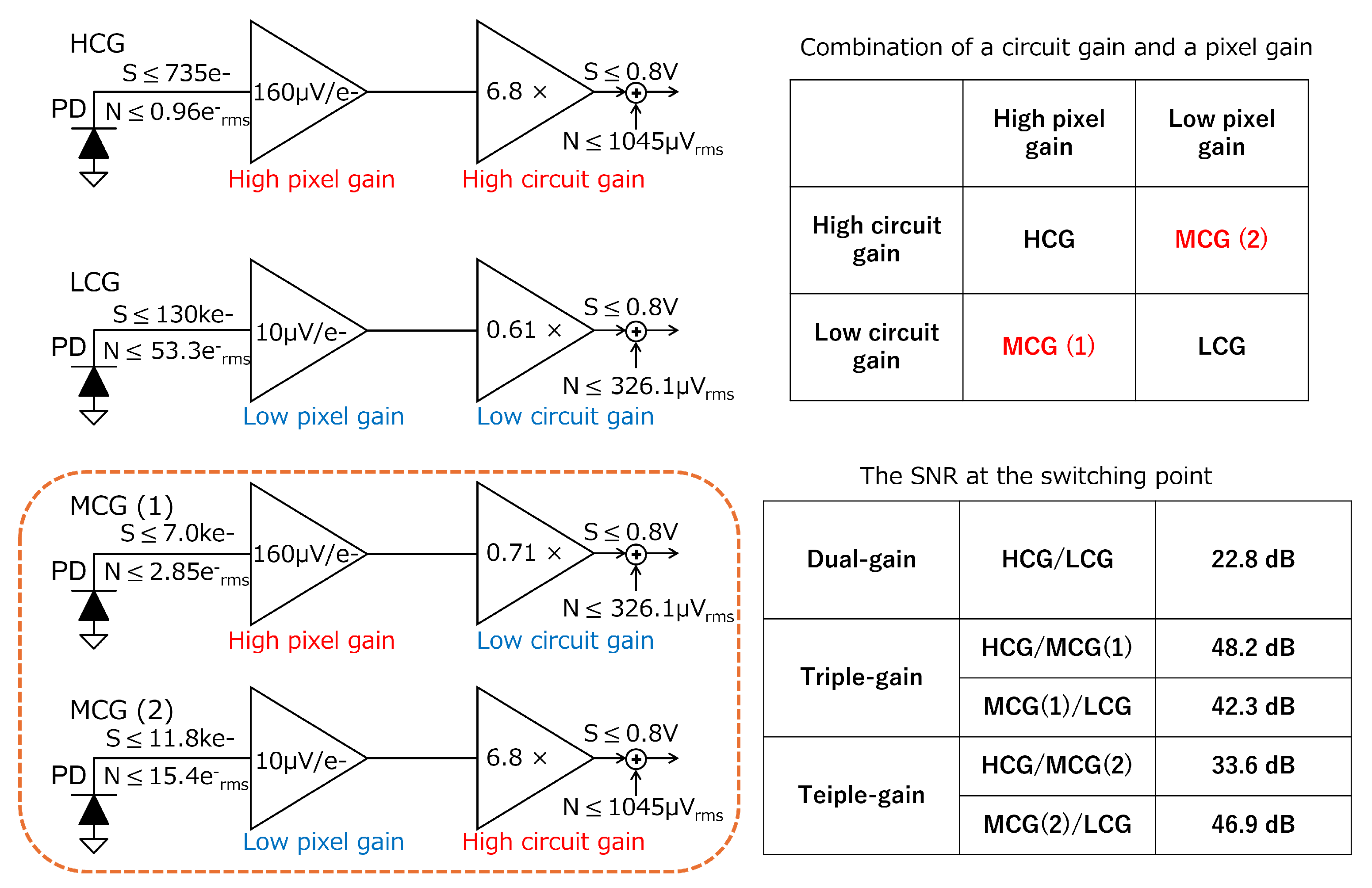

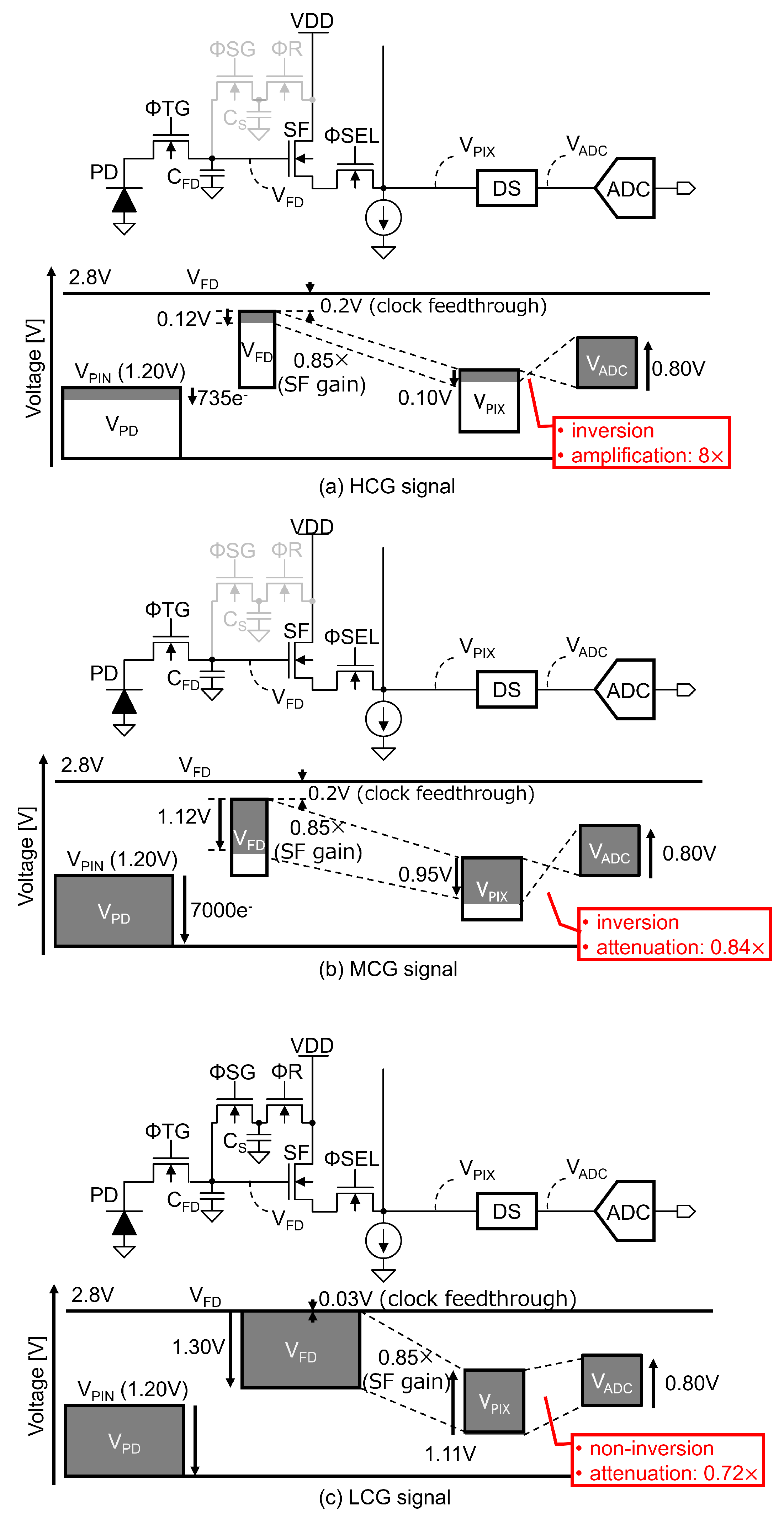

- Pixel- and circuit-gain combination for the MCG signal (Section 2.1, Figure 1).

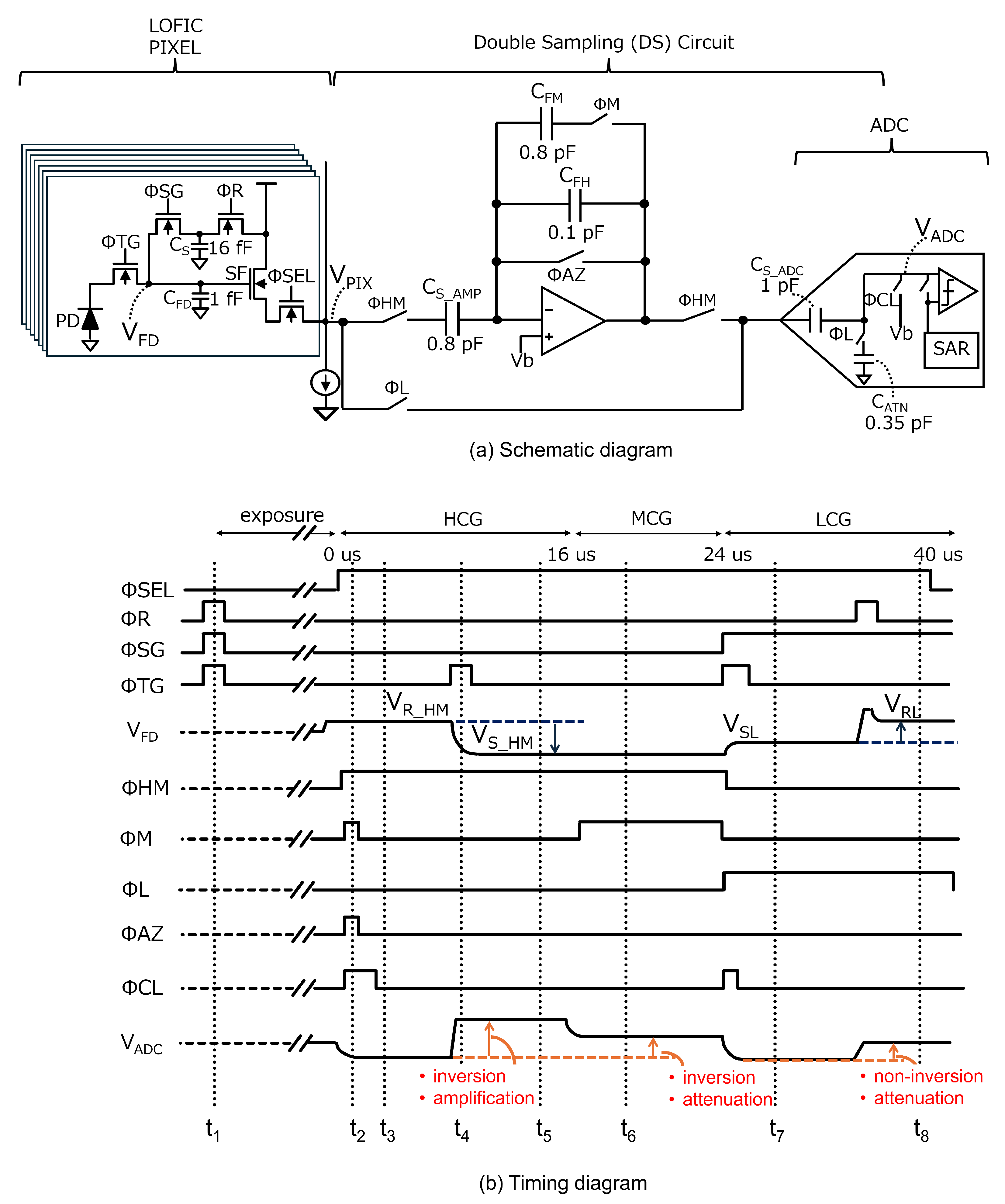

- Details of the baseline circuit and comparison with the proposed readout circuit (Section 3.1, Figure 3).

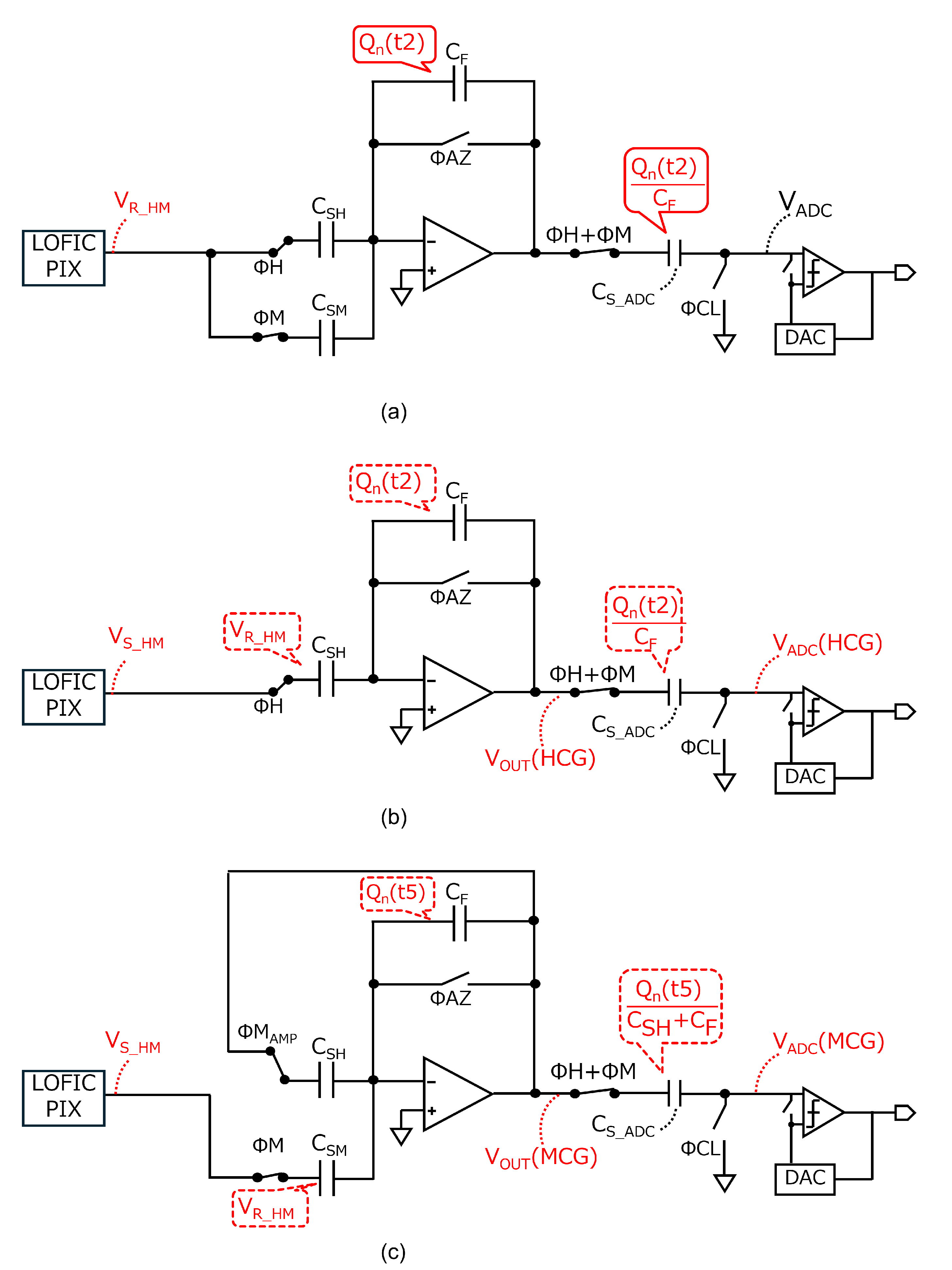

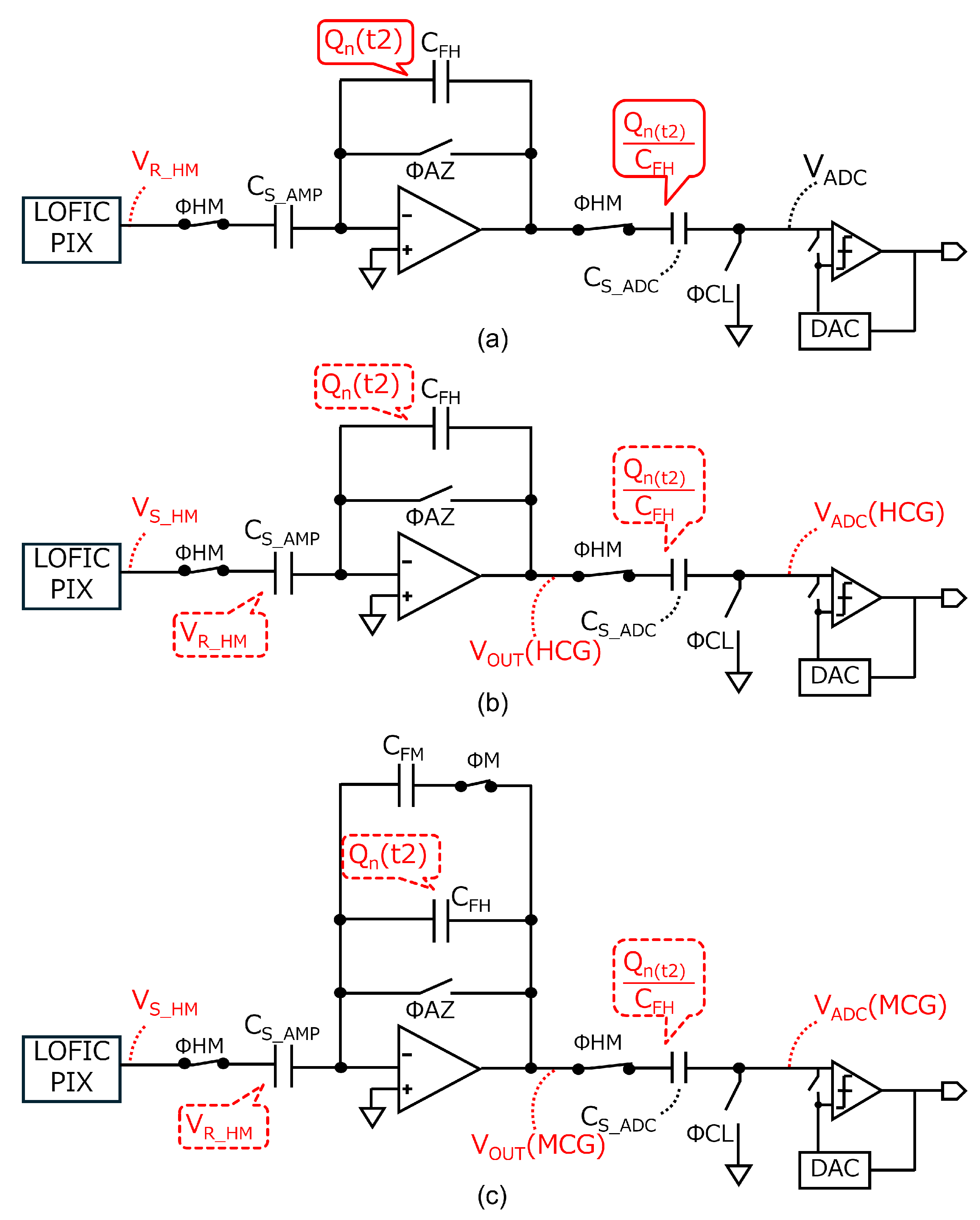

- Noise analysis of baseline circuit and proposed readout circuit (Figure 4 and Figure 6).
- A discussion of this study and a comparison with other works (Section 4).
