1. Introduction
Ocean exploration and maritime trade activities are increasingly frequent, and accidents involving ships, submarines, underwater robots, and other marine targets may result in sinking. Accidents at sea not only lead to property damage but also cause many casualties. Therefore, it is essential to search for sunken targets in the ocean. However, the difficulty of maritime search and rescue operations is greater than on land, mainly due to the uncertainty of the location of the accident, the large search area, limitations in search technology, harsh underwater survival conditions, weather changes, and seawater movements. This further highlights the importance of search technology. After an accident, the last known position coordinates of the target become the key to the search. The three-dimensional positioning of underwater targets is a crucial technology, including estimating three parameters, angle, distance, and depth, to determine the precise location and direction of the underwater target. Beamforming is a signal processing technique that enhances signals from a specific direction and suppresses noise from other directions by applying specific weights on a sensor array to form a beam pointed in that direction. Common methods include conventional beamforming (CBF) [
1] and Minimum Variance Distortionless Response (MVDR) [
2]. Direction of Arrival (DOA) estimation is based on beamforming results to accurately estimate the direction, distance, and depth of the signal source. Distance and depth parameters can be estimated using the Matched Field Processing (MFP), with common methods including the Conventional Matched Field Processing (CMFP) [
3] and the Adaptive Matched Field Processing (AMFP) [
4]. These technologies are crucial for improving the accuracy and efficiency of underwater search and rescue positioning, enabling search and rescue teams to quickly locate sunken ships, aircraft wreckage, or other important targets in the vast ocean environment.
In underwater DOA estimation, the Uniform Linear Array (ULA) is widely used for one-dimensional DOA estimation due to its simple structure and relatively small computational load. However, the ULA has the disadvantage of potential ambiguity in azimuth estimation and resolution that is limited by the element spacing and wavelength, leading to an inability to distinguish adjacent signal sources accurately in some cases. In contrast, the uniform circular array (UCA) can provide 360° full-coverage and unambiguous azimuth estimation, offering approximately the same resolution in all directions. The UCA can simultaneously estimate two-dimensional angles for both azimuth and elevation angles, offering greater superiority and practical value. However, in the field of array signal processing, UCA is difficult to apply conventional methods directly due to its complex steering vector, which is different from the Vandermonde structure of ULA. Various innovative methods have been proposed in the paper to address this challenge. The paper [
5] first introduced the concept of paper pattern space transformation, laying the foundation for subsequent research by constructing a specific transformation matrix to convert the UCA into a virtual ULA with a Vandermonde structure. Building on this, the paper [
6] developed the UCA-RB-MUSIC and UCA-ESPRIT algorithms, which use real-valued beamforming transformation matrices to estimate the two-dimensional angle information of signals using the MUSIC and ESPRIT algorithms. However, these methods have limitations in handling coherent signals. To overcome this limitation, the paper [
7] adopted strategies of array translation and subarray partitioning to solve the coherence problem and performed signal angle estimation through a two-dimensional spectral peak search, which has a large computational load and is difficult to meet the needs of real-time processing. The paper [
8] improved resolution and real-time performance through Toeplitzization and matrix reconstruction techniques, although it can only provide one-dimensional angle information. Further research, such as the paper [
9], used a sparse reconstruction model-based method to estimate the two-dimensional direction of coherent signals, considering that the objective function requires sparsity in the spatial dimension but not in the temporal dimension and used second-order cone programming to solve the convex optimisation problem and obtain the two-dimensional spatial spectrum, employing singular value decomposition to reduce computational complexity. Although this method is highly accurate and insensitive to coherent signals, it involves complex mathematical optimisation problems, and the solution process is quite challenging.
In terms of range and depth measurement, the appearance of MFP technology has improved the accuracy of underwater positioning. Fizell et al. [
10] first utilised the MFP method for long-distance localisation of sound sources in the Arctic Ocean and achieved good results, thereby gradually making MFP technology a hot topic in underwater acoustic signal processing research. Lei et al. [
11] located the position of the sound source by matching the cross-correlation function output of signals received by two hydrophones. However, this method requires a large spacing between the two synchronised hydrophones. Combining the characteristics of sound intensity being very sensitive to changes in the depth and frequency of the sound source, Yang et al. proposed a method for estimating the depth and distance of the sound source in the deep sea using an unsynchronised vertical array [
12]. Experimental results from the Western Pacific have shown that this method can locate fixed sound sources using an unsynchronised vertical array. To reduce the impact of reference sound speed on DOA estimation errors, a DOA estimation method independent of the reference sound speed is proposed [
13]. In the field of matched field localisation, the design of arrays for matched field localisation and the positioning challenges in shallow water with non-uniform horizontal environments have been thoroughly examined [
14]. Prof. Tang [
15] proposed a distributed cooperative underwater node position Algorithm aided by factor graph weighted particles. The Algorithm uses factor graph sum and product Algorithm to decompose the global optimisation into the product of several local optimisation functions, and combines Gaussian parameters to construct weighted particles and realise belief transfer, which is suitable for underwater networks with limited energy and communication distance. Prof. Zhang [
16] proposed a Gaussian parameterised information-aided distributed cooperative position Algorithm for underwater environments, considering the large signal propagation attenuation and the limited load of underwater nodes in the existing underwater position technology. The Algorithm used the Taylor model to linearly approximate the Euclidean distance. Then, combined with the factor mapping theory, the distributed cooperative position of underwater nodes was obtained. By combining the sum-product theory and parameterised Gaussian information passing, the communication computation is reduced.
Despite the extensive research on MFP methods, there are still many challenges in practical applications. For example, bathymetric maps provide the depth of the seafloor, but sunken targets, such as containers and debris, may rest on the seafloor due to partial burial or suspension. Their effective acoustic reflection depth is different from the seafloor depth, and direct depth estimation is required for accurate positioning. The most prominent issue is that the ocean channel is time-variant and space-variant, which leads to the simulated sound field and the measured sound field not being completely consistent, thereby affecting the performance of the matched field localisation Algorithm. Furthermore, errors in DOA estimation can affect the distance and depth assessment. In this paper, based on the summary of the above literature, we believe that the key point of maritime search and rescue localisation is underwater target localisation, which is essentially a three-dimensional localisation problem. We discuss the ability of a horizontal UCA to jointly estimate through beamforming technology and matching field localisation in three-dimensional localisation of underwater targets. Therefore, in this paper, we first analyse the basic principles of DOA estimation and matching field localisation Algorithm; a joint Algorithm based on MVDR combined with MFP based on pre-Kalman filtering (KF-MVDR-MF) is proposed by using UCA array, the MVDR beamforming method of Kalman filter, and the matching field Algorithm to obtain range and depth estimation to determine the 3D position of the sound source, which is used for the search and localisation of sunk targets in the ocean.
The rest of this paper is arranged as follows.
Section 2 presents the mathematical model of ocean search and rescue system, analyses the basic principle of DOA estimation in

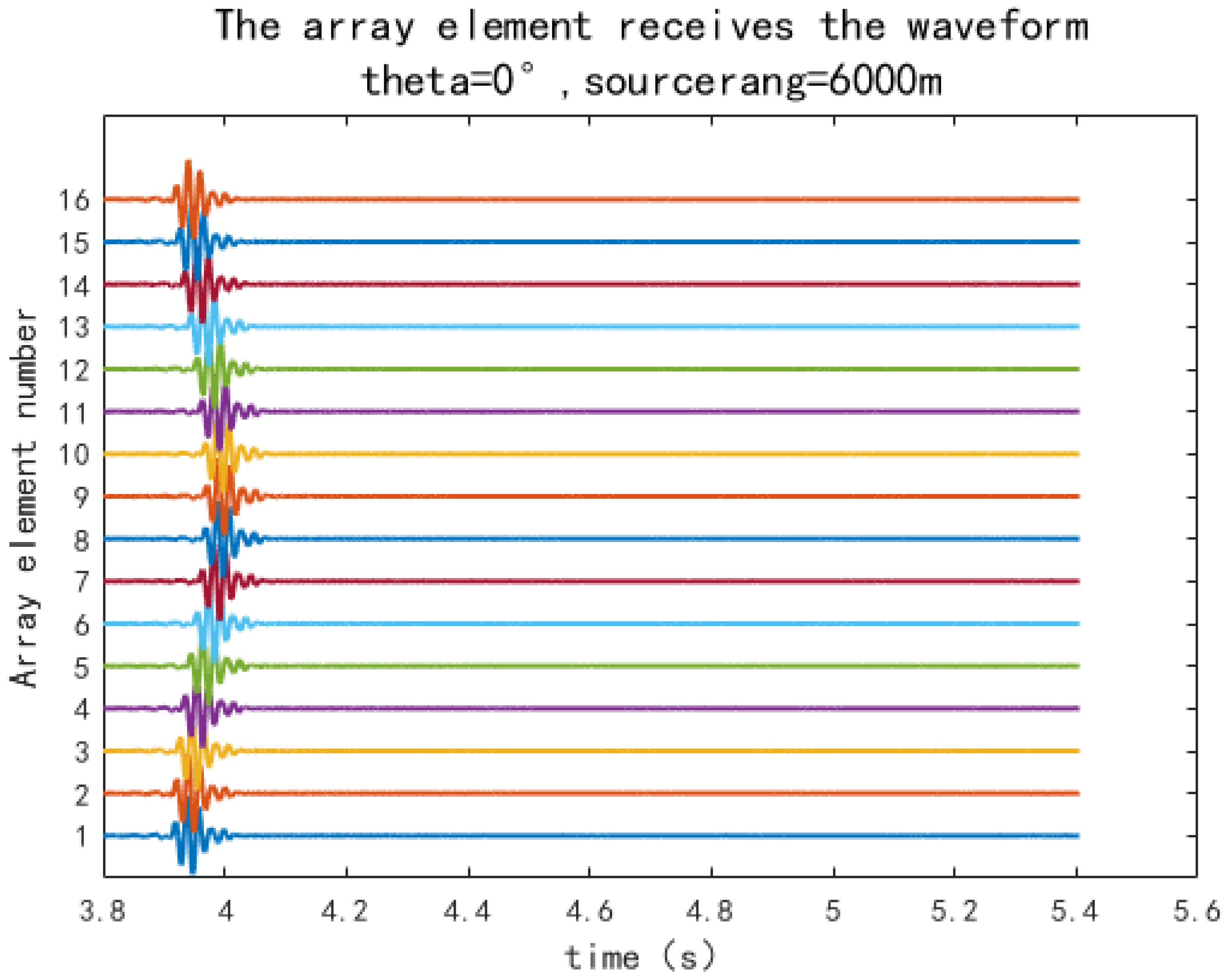

Section 3, introduces some necessary background knowledge of matching field, and gives the signal waveform received by the AMFP Algorithm in the search and rescue scene in
Section 4. We derive the 3D position joint beamforming Algorithm KF-MVDR-MF for underwater search and rescue position.
Section 5 presents simulation results comparing our KF-MVDR-MF-based implementation with its original implementation. Finally, conclusions are drawn in
Section 6.
2. System Model
We consider a search and rescue scenario where a large container ship has containers falling into the sea due to bad weather, resulting in
M containers in the water. The accident site is located in the deep sea, requiring rescue and salvage departments to go to the incident area for positioning and salvage. The scenario described in this paper is shown in

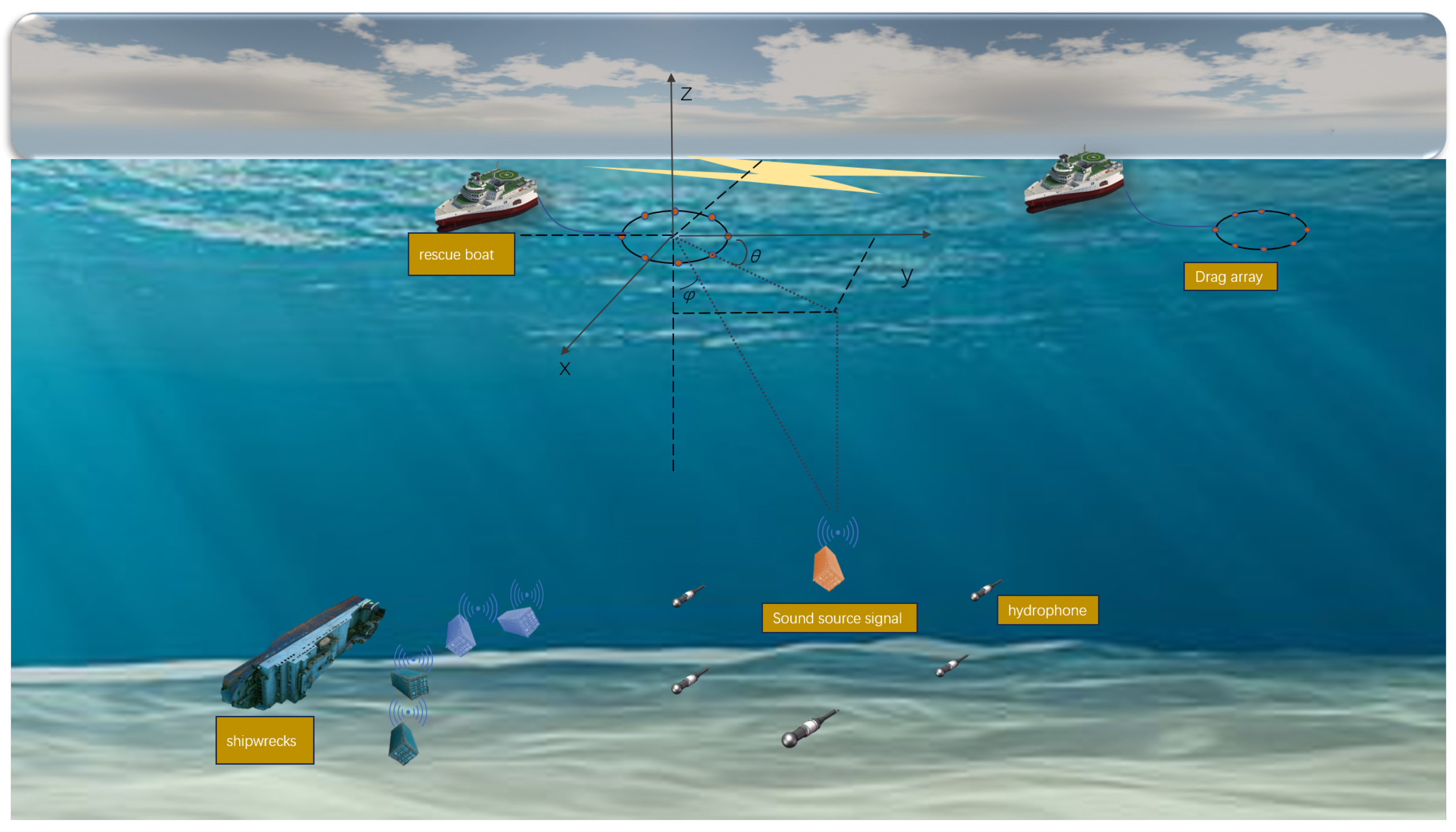

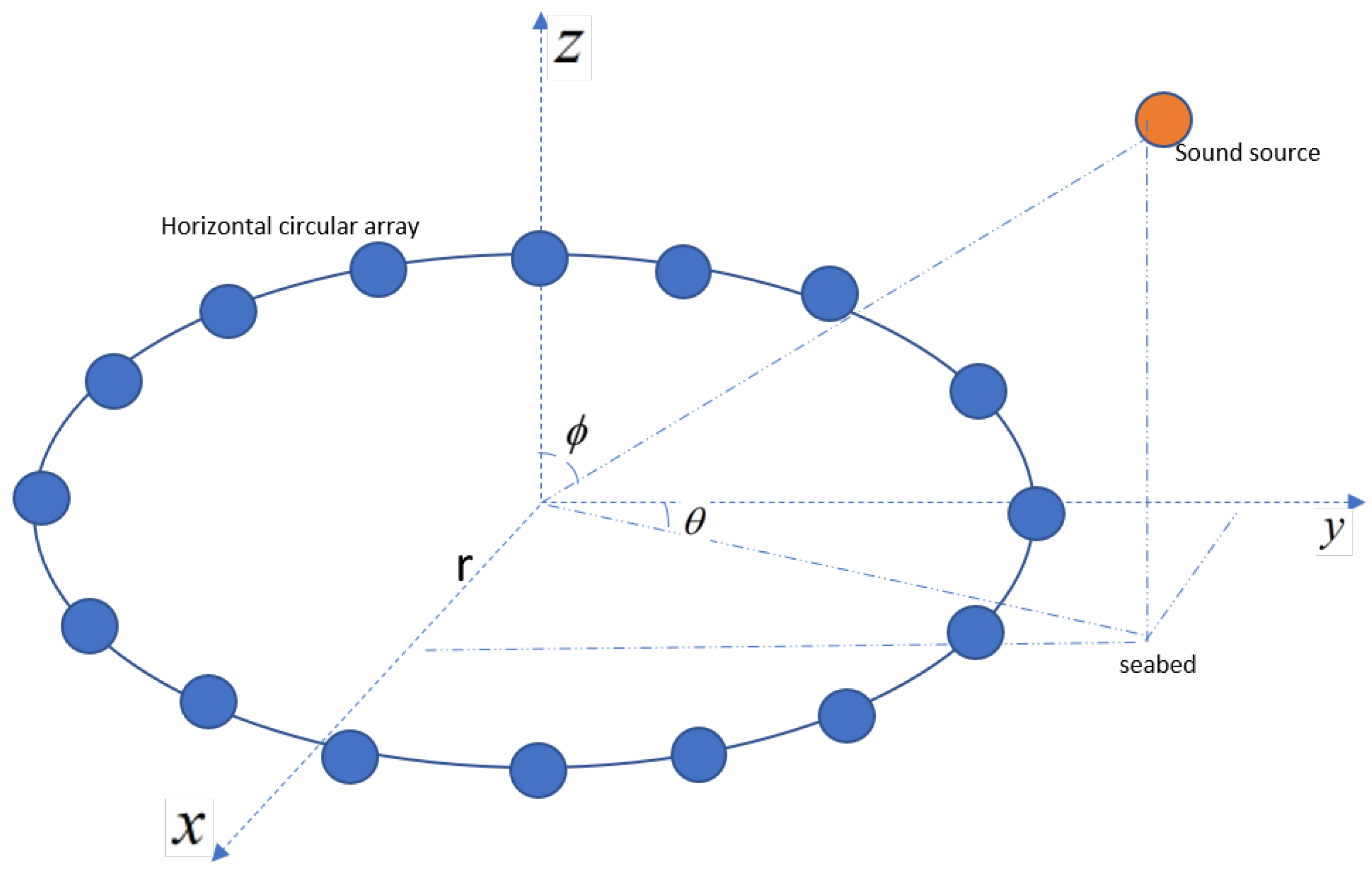

Figure 1. Azimuth angle
denotes horizontal bearing; elevation angle
defines vertical inclination.
It is assumed that each container is equipped with an underwater positioning beacon emitting a narrowband signal, with the beacon operating at 37.5 kHz. The search and rescue ship tows a uniform circular array with
N elements to the incident area for search and rescue operations. The input of each element in the array is the sum of
M signals and additive noise. After the boxes fall into the water, a delay water level switch is activated, and the signals received by the
N elements can be arranged into a column vector to form a narrowband far-field signal direction estimation (DOA) mathematical model. The model can be represented as follows:
where
is the snapshot data vector of the array,
is the noise data vector,
is the spatial signal vector, and
is the
dimensional steering matrix of the spatial array, composed of steering vectors
. Each steering vector corresponds to the direction of a signal and can be represented as follows:
Assuming the existence of multiple narrowband signals, represented by plane waves, each signal has a specific amplitude
and frequency
, as well as incidence angles
. The signal output of the
q-th element at a specific moment can be expressed as follows:
where
is the spatial delay of element
q relative to the reference element
Due to the equal azimuth angle spacing of the elements,
can be expressed as follows:
The unit vector
in the Cartesian coordinate system represents the incidence direction of the
m-th signal, where
,
, and
are the unit vectors of the Cartesian coordinate system. The position vector of the
q-th element can be expressed as follows:
When the signal propagates from the source to the array, due to the different positions of the elements relative to the signal source, there will be slight differences in the time the signal arrives at different elements, resulting in phase differences. We reflect this phase difference using the dot product of the signal direction and the element position vector, which can be used to determine the direction of the signal’s arrival. It can be expressed as follows:
For
M signal sources, the amplitude
and frequency
of each signal source can be integrated into a signal model. The steering matrix
of the circular array can be expressed as follows:
where
.
is the elevation angle of the
m-th signal source,
is the azimuth angle of the
m-th signal source, and
is the radius of the circle. We assume
,
,
. All angles in this paper use degrees (°) for consistency. Trigonometric functions implicitly convert to radians via
.
4. Underwater 3D Source Localisation Based on KF-MVDR-MF Algorithm
In this section, we use a joint Algorithm of DOA estimation and Linear Matched Beamforming Processing methods to locate the three-dimensional coordinates of the target sound source. The marine environment is considered a horizontally uniform and vertically stratified environment. Under such conditions, the normal mode theory [
19] has the advantages of fast computation speed and high accuracy. Hence, the normal mode model calculates the ocean acoustic field. The most critical component of the simple normal wave Algorithm involves determining the modulus depth function. Researchers can derive the corresponding acoustic field expression by substituting this function into the established relationship with the sound pressure field. When the seabed parameters are known, the propagation characteristics of the acoustic signal in the seawater can be derived in a simplified way.
The Kalman filter Algorithm is a recursive minimum mean square error estimator, through the recursive prediction and update process, combined with the system dynamic model and real-time observation data to estimate the optimal method of dynamic system state. Its core is to balance the uncertainty between the model prediction and the observed data and gradually approach the true state. Its work is divided into two stages. One is the prediction stage, and the other is the correction stage. The sum of signals and additive noise received by the 16-element hydrophone is first sampled and framed, and then the model parameters of the beacon signal and noise are obtained by parameter estimation, and then the parameters are replaced into the Kalman filter. The enhanced beacon signal of each frame is obtained by Kalman filtering and smoothing, and the final frame is restored. The signal is filtered by Kalman filter to improve the signal-to-noise ratio, and then adaptive beamforming is performed.
AMFP uses conventional beamforming technology to convert data field data and copy field data into beam domain data. It then matches and correlates them in the beam domain to realise the function of sound source localisation. Therefore, matched beam processing is equivalent to matching field processing of the signal in the beam domain. For the vertical linear array, the beam data of the data field
and the copy field
are obtained from the corresponding acoustic pressure field as follows:
Among them,
represents the acoustic field expression of the copy-field model at depth
z and distance
r.
represents the acoustic field expression of the actual observed data.
is the depth of the
j-th hydrophone,
z and
r are the depth of the copy-field sound source and the distance from the vertical array,
k is the wave number, and
represents the grazing angle of the sound wave. The objective function of AMFP is defined as follows:
In this formula, is the objective function used to evaluate the matching degree between the copy-field model and the actual observed data at a given depth z and distance r. denotes the range of integration over the angles.
We use Kraken [
20] to calculate the ocean sound field. Kraken is a programme within the acoustic toolkit that utilises the normal mode model to compute the ocean sound field. The steps to calculate the time domain signal received by the array are as follows: first, use Kraken to calculate the narrowband frequency domain sound field; then, connect multiple narrowband sound fields to form a wideband sound field; next, use the inverse Fourier transform to obtain the time domain wideband system function; and finally, according to the principle that multiplication in the frequency domain equals convolution in the time domain, convolve the transmitted signal with the system function to obtain the array received signal. The flow chart with Kraken calculating the time domain signal received by the array is shown in

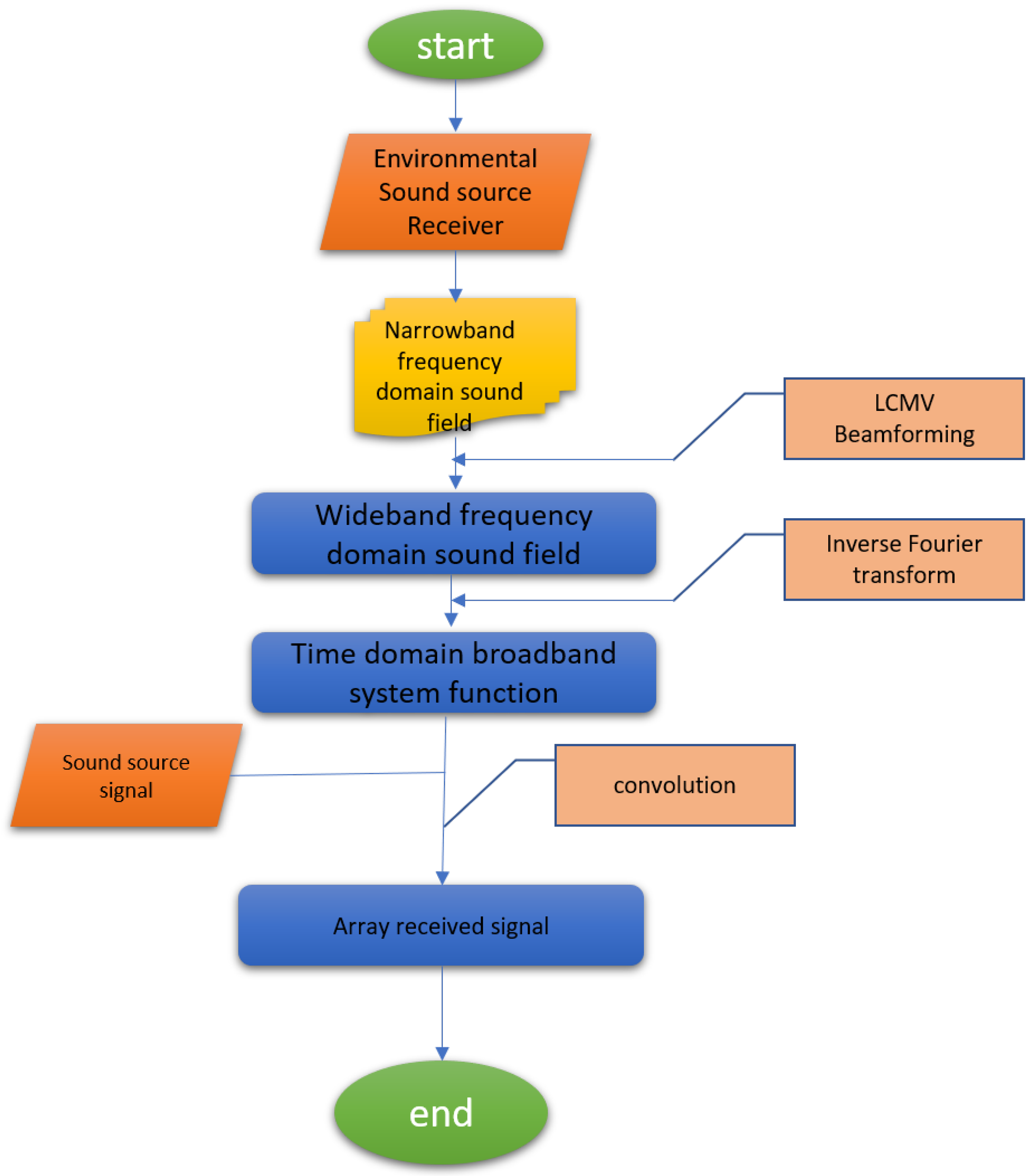

Figure 3.
The three-dimensional model of the sound field environment is shown in
Figure 4. A horizontally uniform circular array with a radius of
and 16 elements is set up, with the geometric centre of the array at (0, 0, 42). The sound source level is set to 200 dB; the source frequency is
, and the source position is
.
The seafloor depth is
, the sound speed is
, the density is
, and the seafloor attenuation coefficient is
, where

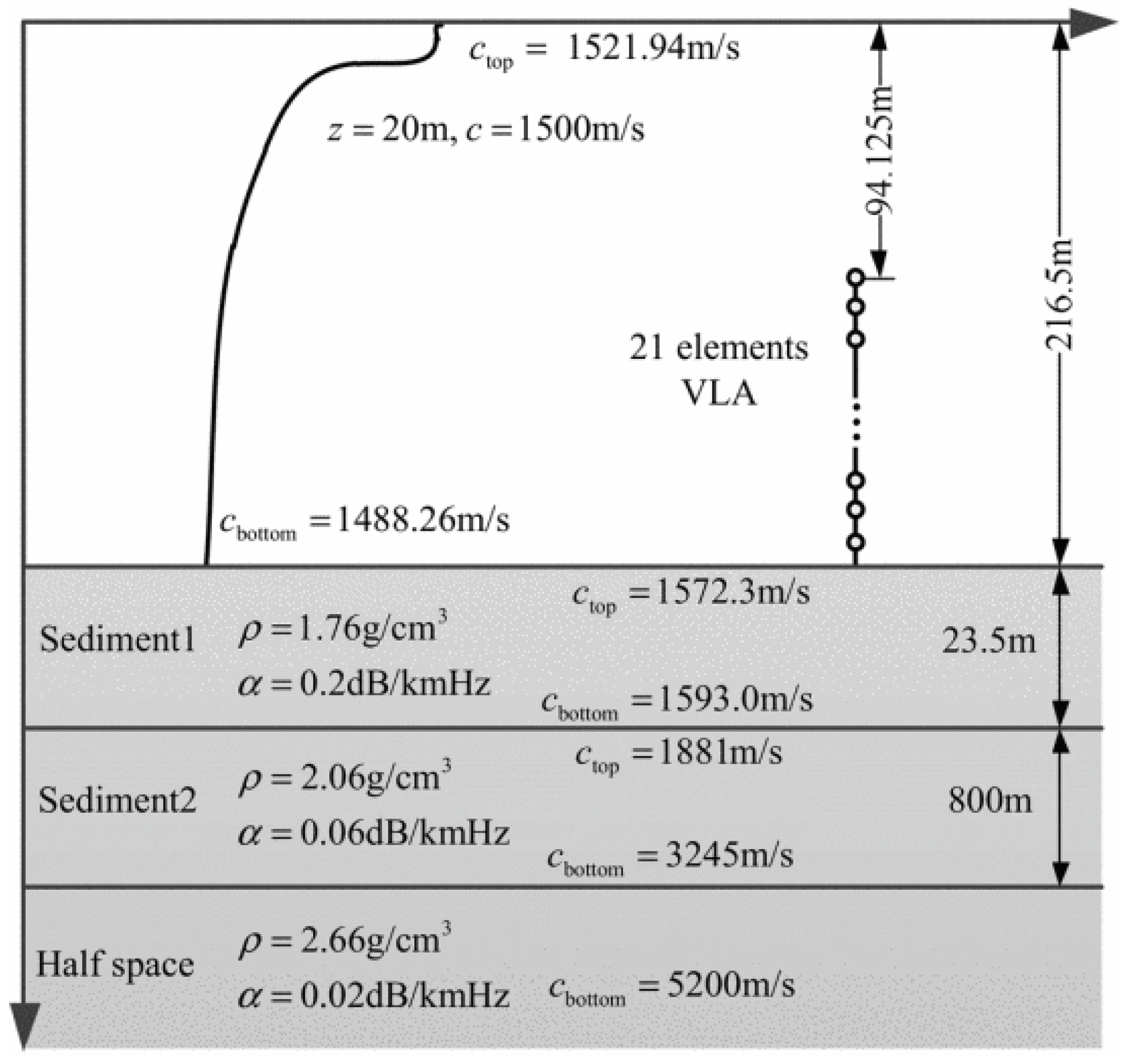

is the wavelength of the incident wave. The sound speed profile of seawater is shown in
Table 1, with a density of
and an attenuation coefficient of
.
The environmental parameters are consistent as follows. The sound source is set at a horizontal distance of 6 km from the origin, with the directional angle varying within the range
, and the signal is set to be a broadband swept-frequency signal with
. The details of the KF-MVDR-MF Algorithm are illustrated in Algorithm 1.
Algorithm 1: KF-MVDR-MF algorithm for underwater localisation estimation. |
Input: True source position and system parameters, raw acoustic data Output: Estimated source location 1 Set the true position of the sound source and parameters; 2 Acquire and read simulation data; 3 Truncate the signal and perform segmented processing; 4 Calculate the number of Fourier-transform points and segmented-processing parameters; 5 Compute the narrowband covariance matrix for the truncated signal; 6 Calculate the energy weighting: 7 Estimate the covariance matrix: 8 Compute the sound-field replica vector and the KF-MVDR-MF weight vector: 9 Convert results to decibel units: 10 Plot KF-MVDR-MF results and output the estimated sound-source location; |
In Algorihm 1 above, represents the number of segments, represents the Fourier transform of the signal, represents the covariance matrix of the nth segment, represents the sound field, represents the density of the medium, represents the mode shape function, k represents the wave number, and represent the conventional beamforming and beamforming weight vectors, respectively.
5. Analysis of Simulation Results
When the sound source distance
km and the incident horizontal direction angle is
, DOA azimuth spectrum estimation is performed on the signal with a set SNR of 10 dB, resulting in the bearing spectra for CBF and KF-MVDR as shown in

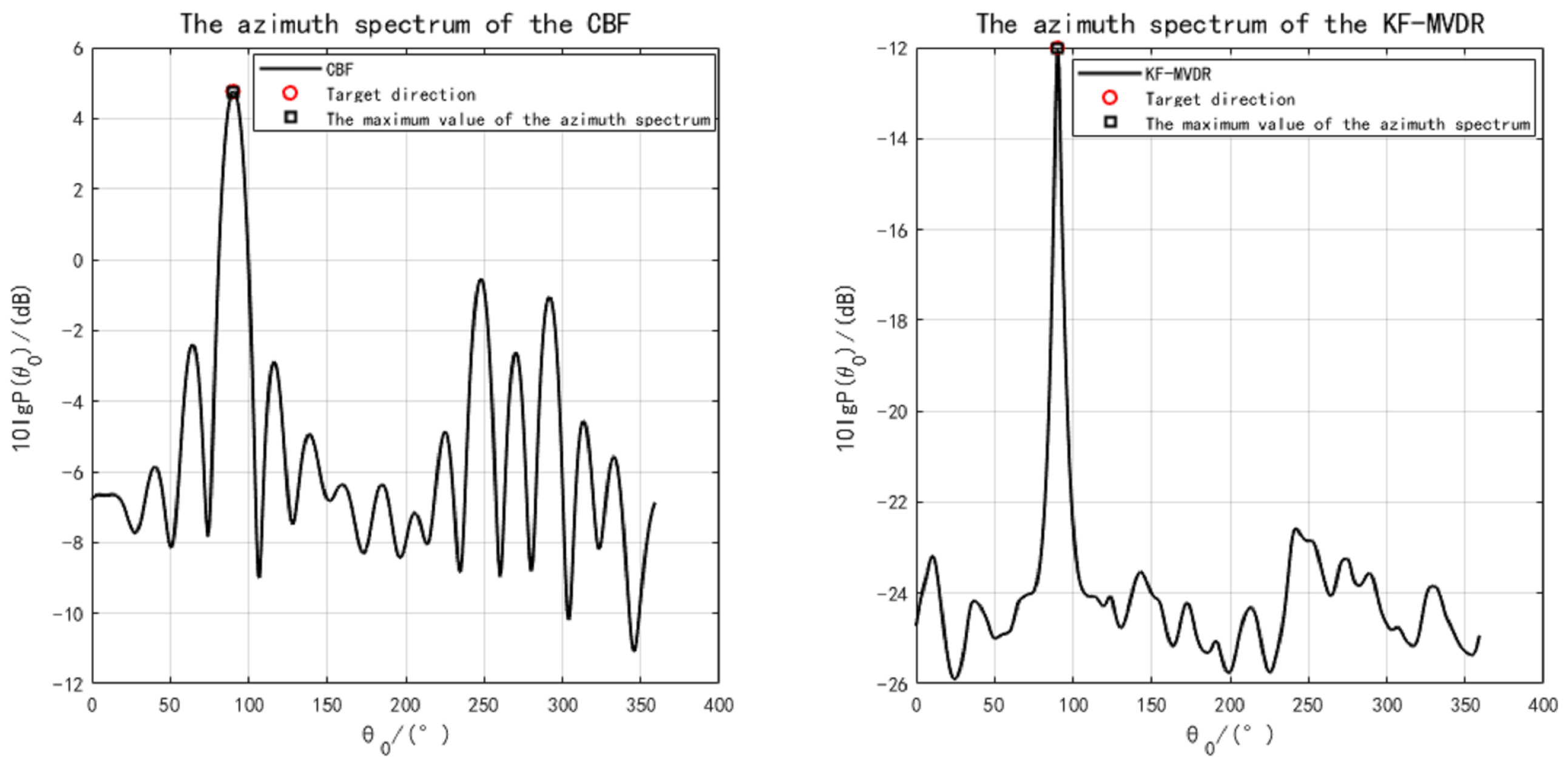

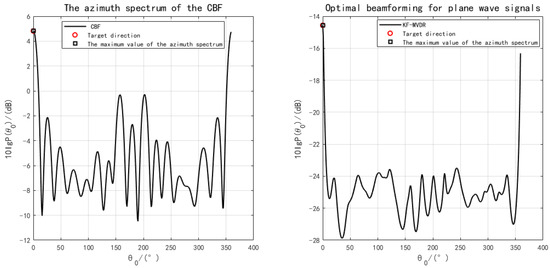

Figure 5. It can be observed that the maximum values of the bearing spectra for both CBF and KF-MVDR are close to the true incident angle, indicating that both methods provide relatively accurate directional estimation. The side lobes of CBF are relatively higher compared to the KF-MVDR method, and the main lobe is wider, suggesting that the Proposed Algorithm has better directional resolution capability. It is worth noting that when the azimuth spectrum scanning angle is
, the amplitude of the CBF azimuth spectrum is around 5 dB, while the amplitude of KF-MVDR is only around −12 dB, which is a difference of 17 dB. This discrepancy arises because conventional beamforming (CBF) is a relatively simplistic approach, exhibiting limited capability in suppressing interference signals. It will carry out in-phase weighting processing of interference signals and target signals together, resulting in a high response in the azimuth spectrum in the target direction, and there may also be a certain response in other directions, so that the signals in the target direction can interfere with each other. The KF-MVDR method is an adaptive beamforming method which tries to minimise the output power while ensuring the undistorted response to the target signal, so as to suppress the interference signal.
With the sound source directional angle set to
and SNR =
dB, and no errors in the array element positions, the DOA estimation results are shown in

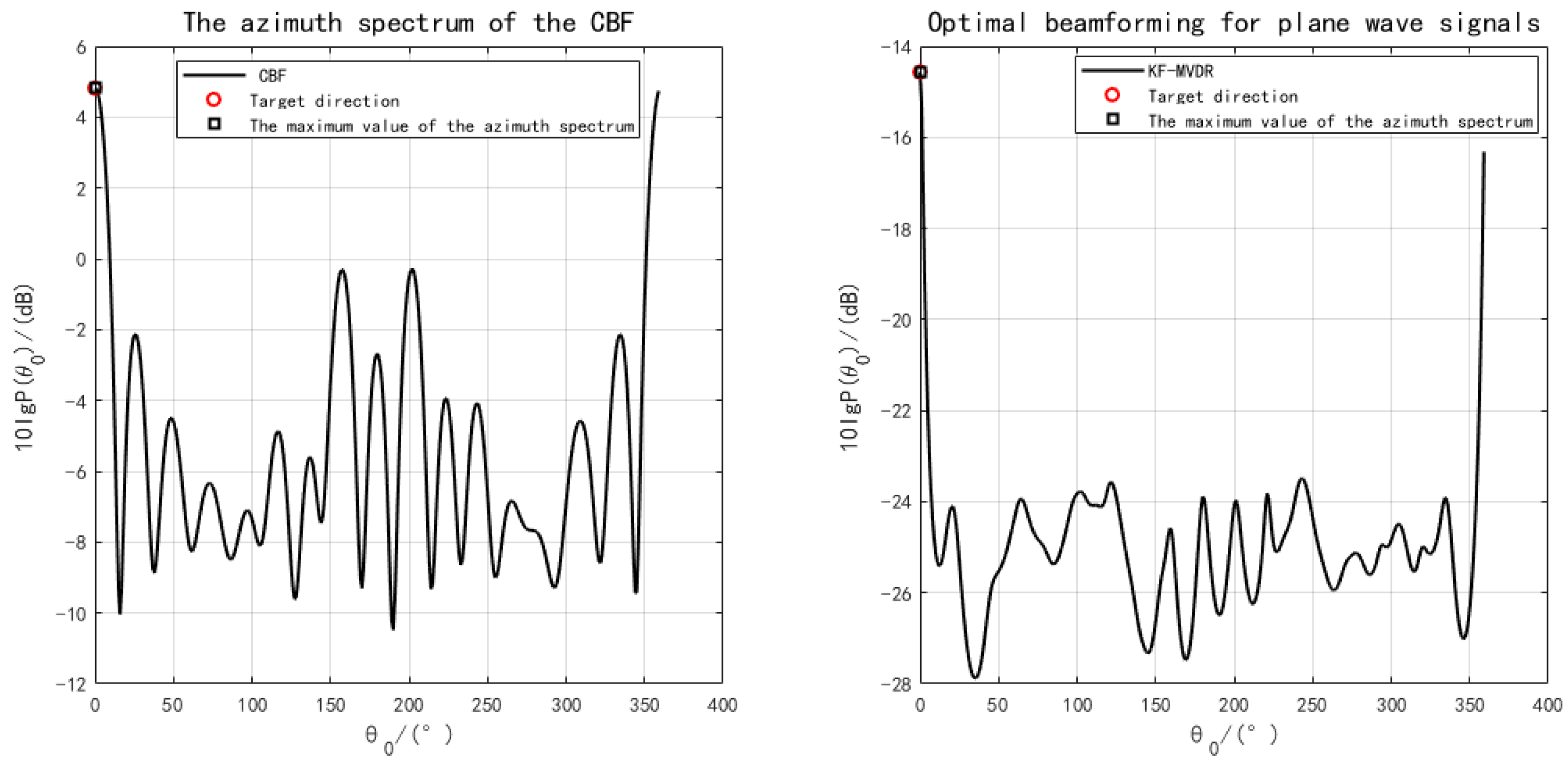

Figure 6. As observed, both CBF and MVDR can accurately estimate the direction of the sound source. The simulation parameters satisfy the uniform circular array sampling theorem
, where
r is the array radius and
is the wavelength corresponding to the signal’s centre frequency. From the simulation figures, it can be seen that the azimuth spectra of both CBF and KF-MVDR methods are significantly affected by noise. The main maximum intensity of CBF method is lower, and the secondary maximum is more obvious. However, the KF-MVDR method has lower side lobe and performs better in noise suppression.
The environment parameters are set to be consistent with the above simulation, and then the DOA results are input into the MFP method to generate the fuzzy maps of CMFP and AMFP, where the DOA parameters of CMFP are generated by CBF, and the DOA parameters of AMFP are generated by KF-MVDR. The simulation results under different SNR show the performance difference between the two algorithms. This is shown in

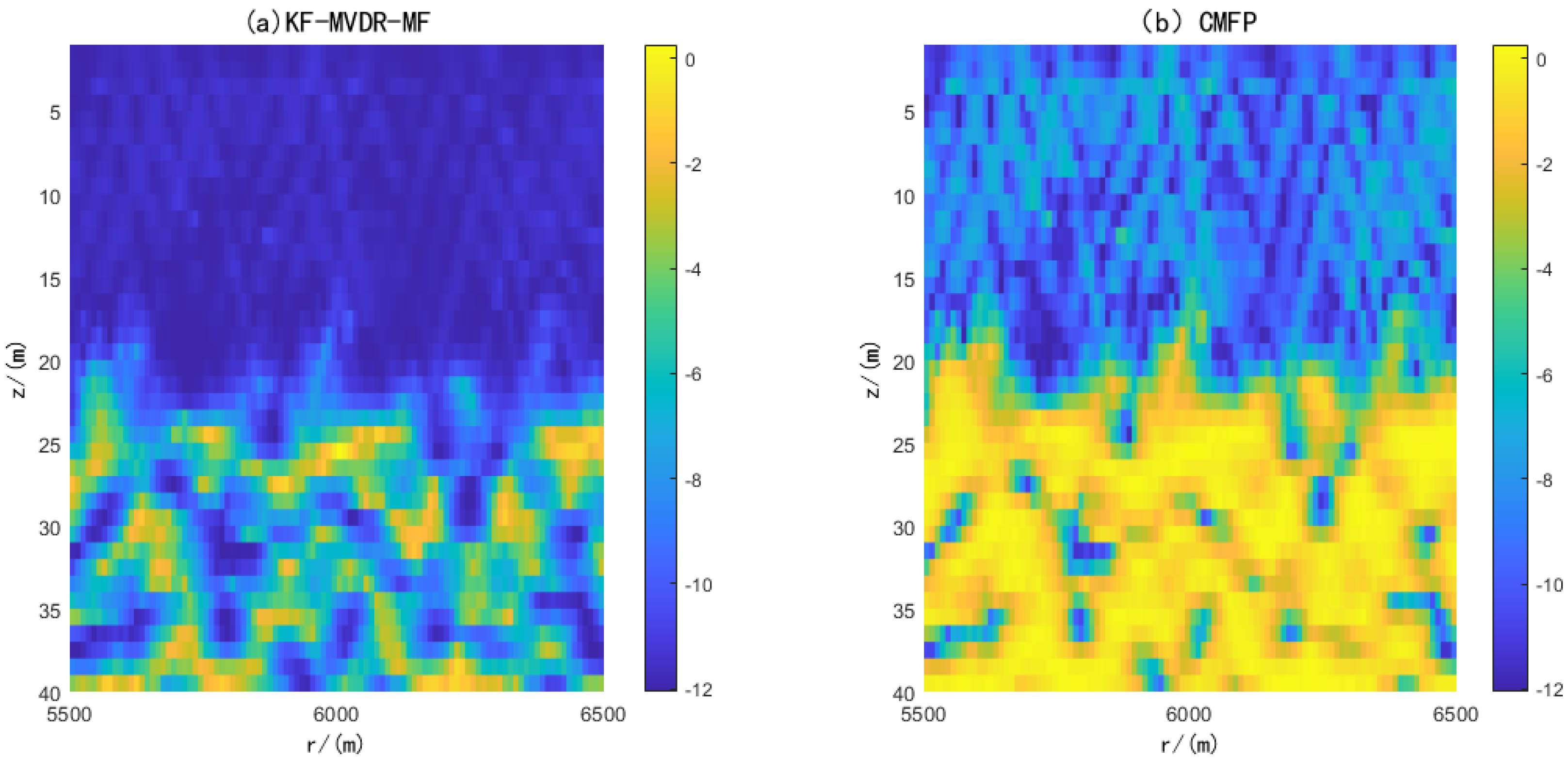

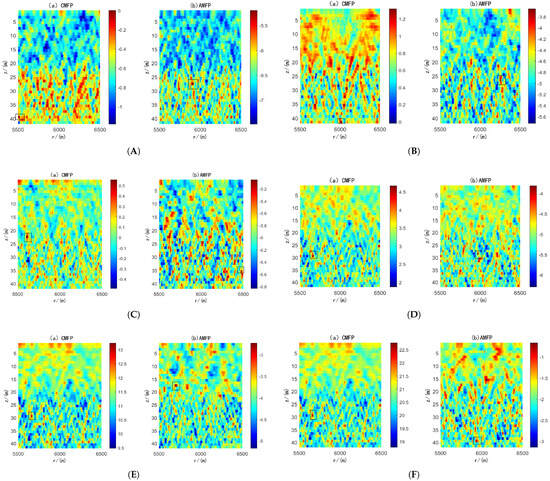

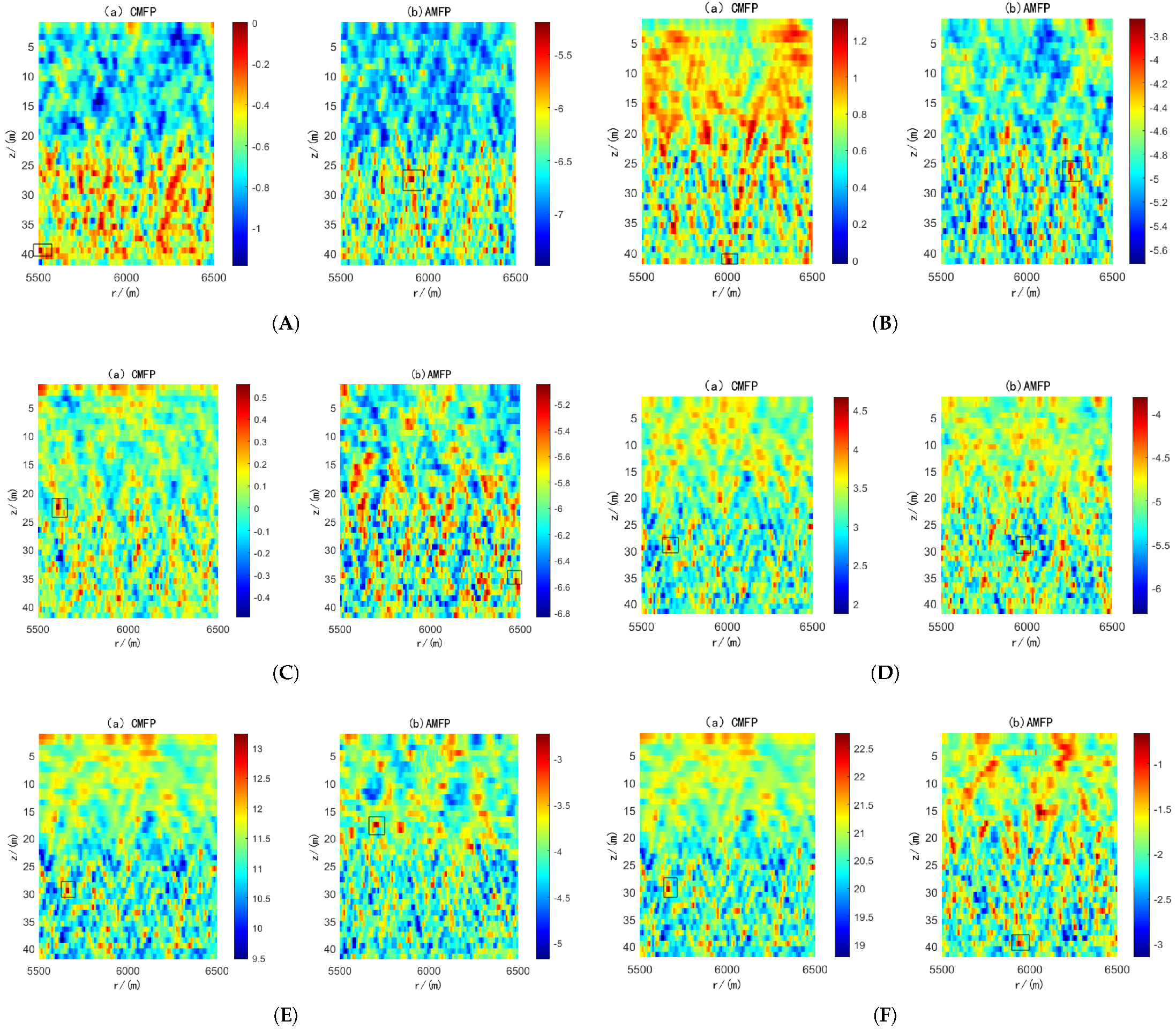

Figure 7. It can be seen that the estimation results of depth and range are strongly correlated with the estimation accuracy of DOA, and both CMFP and AMFP can accurately estimate depth and range under the premise of accurate DOA estimation. For both CMFP and AMFP methods, the positioning accuracy of the target area shows a gradual improvement trend with the increase in SNR. However, when SNR < −20 dB, the AMFP method can identify the target area more clearly than the CMFP method. The AMFP method has more distinct target region contours and less noise interference, and these results verify the robustness of AMFP in underwater position under challenging noise conditions.
Next, the RMSE of the joint Algorithm concerning angle estimation, positioning distance, and positioning depth was discussed as a function of SNR. One hundred Monte Carlo simulations were performed assuming SNR
, sound source orientation angle
, and no error in array position. The resulting Root mean square error (RMSE) curves for the DOA estimation angle, source depth, and distance as a function of SNR are shown in

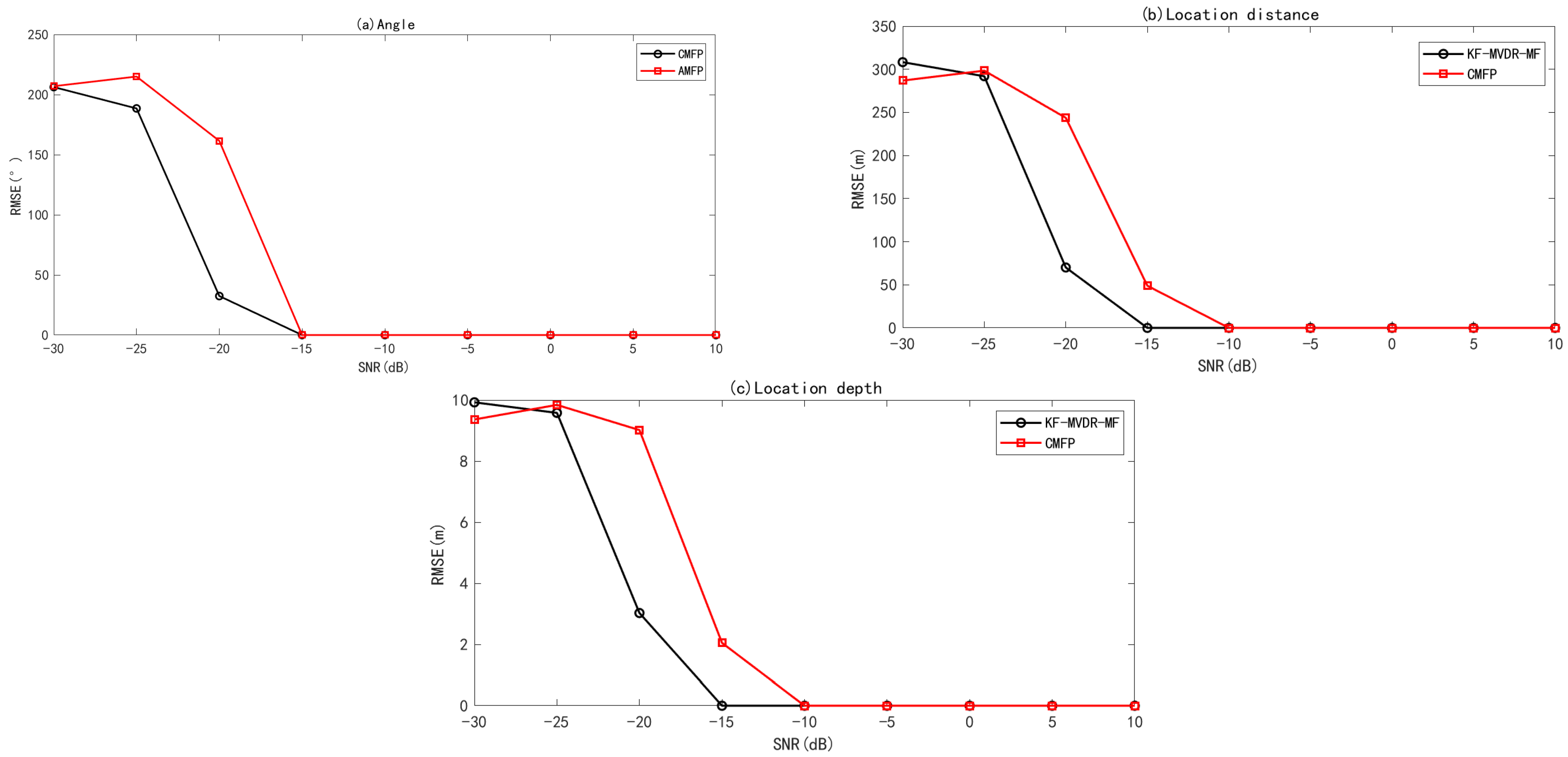

Figure 8. We can observe that when snr = −10 dB, the RMSE of angle, source depth, and distance approaches 0 for both algorithms, which can achieve perfect 3D position. When the SNR falls below −15 dB, the adaptive joint Algorithm KF-MVDR-MF maintains an RMSE of 0 for angle, source depth, and distance estimation, enabling accurate 3D position of underwater targets even under low-SNR conditions. However, under this SNR condition, the RMSE of the adaptive joint Algorithm KF-MVDR-MF is still 0. The RMSE of angle, source depth, and distance of the linear joint Algorithm CBF-CMFP is larger than that of the adaptive joint Algorithm KF-MVDR-MF. When the SNR is −25 dB, the RMSE of angle, source depth, and distance of the two algorithms reaches the same level again, and neither Algorithm can achieve underwater position well.
The RMSE of the joint Algorithm concerning DOA angle estimation, position distance, and position depth as a function of
is discussed next. The SNR was set to 0 dB, the direction angle of the source was changed within
, and there was no array position error. Monte Carlo simulation was performed 100 times. The RMSE curves of the DOA estimation angle, source depth, and distance as a function of the source direction angle are shown in

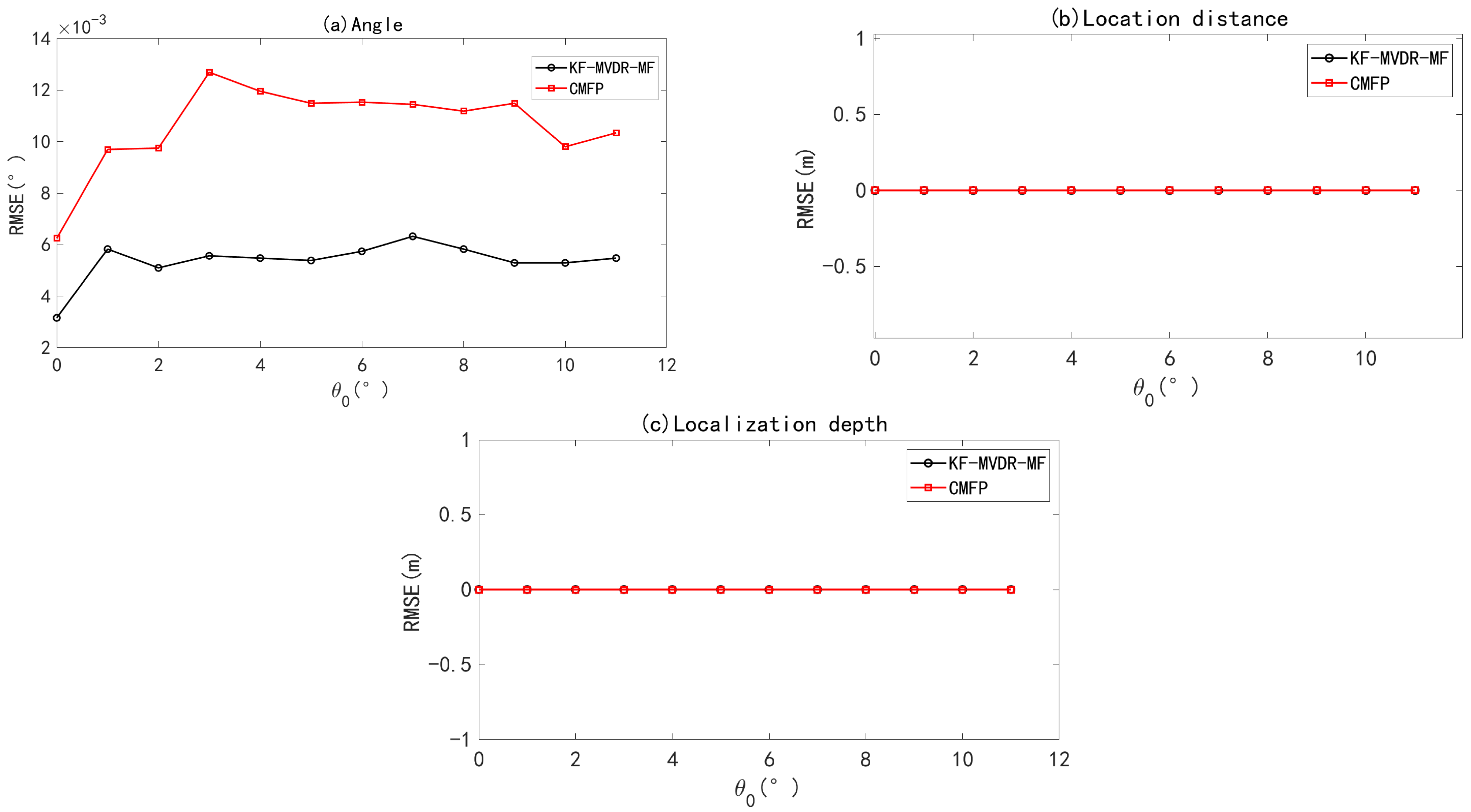

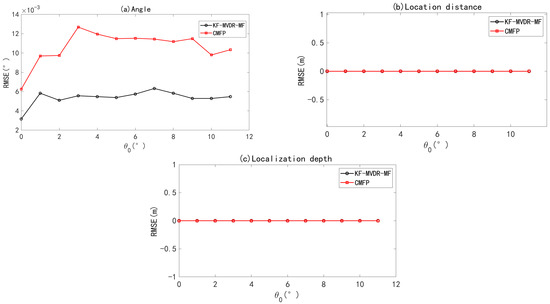

Figure 9. As can be seen from
Figure 9a, KF-MVDR-MF shows a more stable RMSE of the DOA estimation angle, staying below
. However, the RMSE curve of CBF-CMFP fluctuates more and maintains at
. Further, from
Figure 9b,c, it can be seen that there is no error in the positioning distance and positioning depth between the KF-MVDR-MF and CBF-CMFP Algorithm within the range set by the sound source direction angle.
In the actual underwater environment, the hydrophone installation error is usually between
m and
m, affected by the flow disturbance and accuracy limitation. The sensor coordinate error is usually regarded as a random error. It is assumed that the error follows a Gaussian distribution, and the standard deviation can intuitively represent the distribution of the sensor coordinate error. By setting a reasonable standard deviation, the influence of the sensor coordinate error can be simulated, and then its influence on the position accuracy of the sound source can be evaluated. Under Monte Carlo simulations with an incidence angle of 5 and SNR of 0 dB and 100, the RMSE curves for DOA estimation, source depth, and range against hydrophone coordinate error are shown in

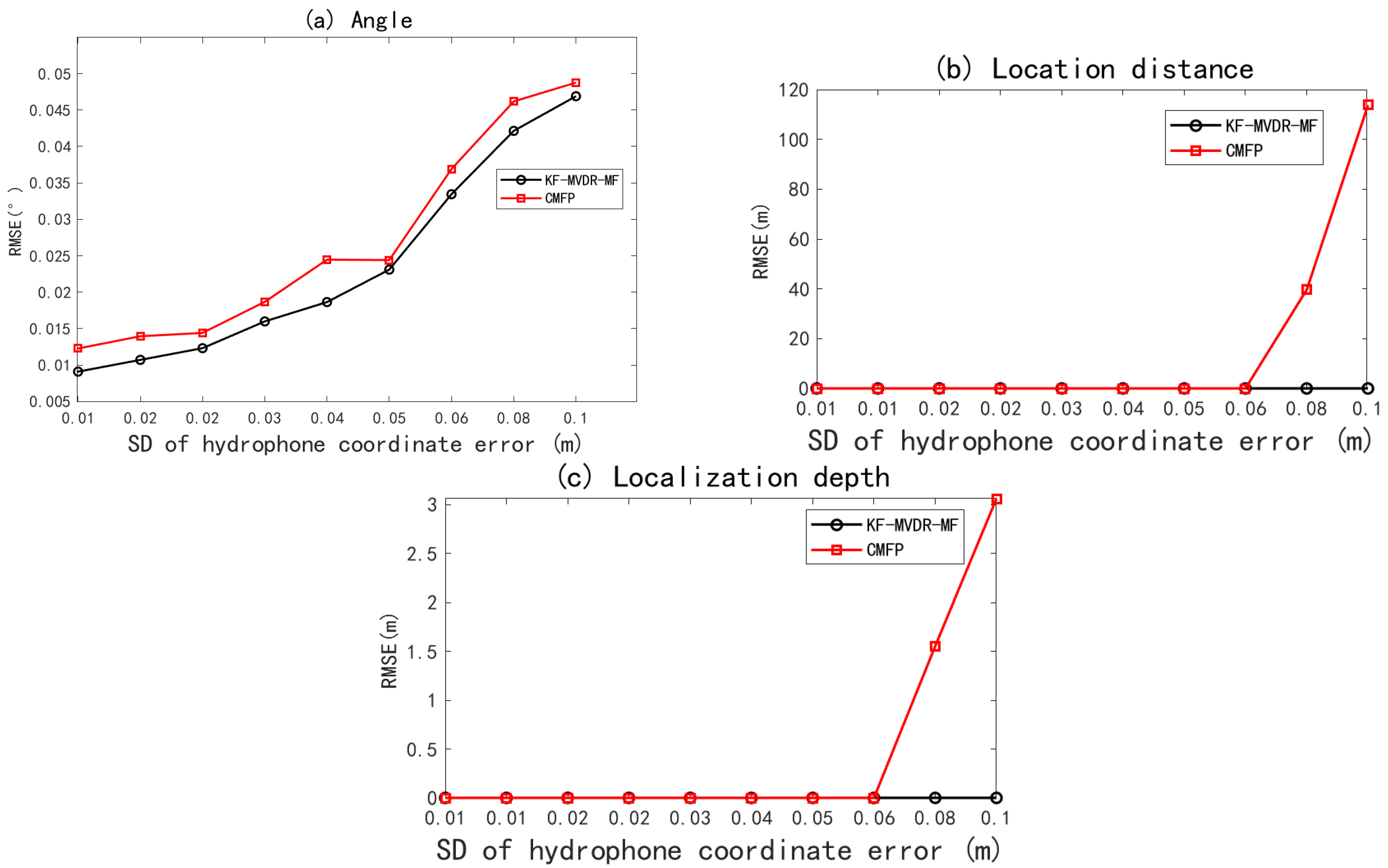

Figure 10. From
Figure 10a, it can be seen that the RMSE of DOA estimation gradually increases with the increase in the array element coordinate error. From
Figure 10c, it can be seen that when the standard deviation of the array element coordinate error increases from 0.01 to 0.06, the RMSE of distance and depth of CMFP and KF-MVDR-MF are both 0. As the array element coordinate error continues to increase, the RMSE of distance and depth of CMFP continues to increase, but the RMSE of distance and depth of KF-MVDR-MF is still 0, because KF-MVDR can adaptively adjust the filter gain. The problem of poor resolution in MVDR beamforming system when the array element coordinate error increases is improved by adding a pre-Kalman filter.
