Article

Assessing Gross Motor and Gait Function Using Hip–Knee Cyclograms in Ambulatory Children with Spastic Cerebral Palsy

by
Jehyun Yoo
1,2,
Juntaek Hong
2,
Jeuhee Lee
2,
Yebin Cho
2,
Taekyung Lee
2 and
Dong-wook Rha
2,*
1
Department of Rehabilitation Medicine, Gachon University Gil Medical Center, College of Medicine, Gachon University, Incheon 21565, Republic of Korea
2
Department and Research Institute of Rehabilitation Medicine, College of Medicine, Yonsei University, Seoul 03722, Republic of Korea
*
Author to whom correspondence should be addressed.
Sensors 2025, 25(14), 4485; https://doi.org/10.3390/s25144485
Submission received: 2 June 2025 / Revised: 14 July 2025 / Accepted: 17 July 2025 / Published: 18 July 2025
(This article belongs to the Section Physical Sensors)
Browse Figures
Review Reports Versions Notes

Abstract

Highlights

Children with cerebral palsy (CP) often experience weakness, spasticity, and muscle shortening, leading to deficits in gross motor, gait, and selective motor functions. GMFM-66, gait analysis, and the SCALE are commonly used in this regard, but are limited by time and space constraints in hospital settings. This study aims to identify digital biomarkers to assess gross motor, gait, and selective motor functions in children with CP, using simple kinematic data for hip–knee cyclogram-based analysis.
What are the main findings?
  • The parameters of the hip–knee cyclogram showed moderately strong correlations with GMFM-66, gait speed, GDI, and the sagittal plane subscore of the GPS for the hip and knee, while the principal component ratio correlated with the SCALE.
  • In particular, the swing phase area showed the strongest correlation and was used to build regression models to estimate the GMFM-66 and gait speed, while the principal component ratio was used to assess the SCALE.
What are the implications of the main finding?
  • Cyclogram metrics showed potential as digital biomarkers for assessing gross motor, gait, and selective motor functions in children with cerebral palsy.

Abstract

Weakness, spasticity, and muscle shortening are common in children with cerebral palsy (CP), leading to deficits in gross motor, gait, and selective motor functions. While traditional assessments, such as the Gross Motor Function Measure (GMFM-66), instrumented gait analysis, and the Selective Control Assessment of the Lower Extremity (SCALE), are widely used, they are often limited by the resource-intensive nature of hospital-based evaluations. We employed cyclogram-based analysis, utilizing simple hip and knee joint kinematics to assess clinical measures, including GMFM-66, normalized gait speed, the gait deviation index (GDI), and the gait profile score (GPS). Principal component analysis was used to quantify the cyclogram shape characteristics. A total of 144 children with ambulatory spastic CP were included in the study. All the cyclogram parameters were significantly correlated with GMFM-66, gait speed, the GDI, and the sagittal plane subscore of the GPS for the hip and knee, with the swing phase area showing the strongest correlation. Regression models based on the swing phase area were used to estimate the GMFM-66 (R2 = 0.301) and gait speed (R2 = 0.484). The PC1/PC2 ratio showed a moderate correlation with selective motor control, as measured by the SCALE (R2 = 0.320). These findings highlight the potential of hip–knee cyclogram parameters to be used as accessible digital biomarkers for evaluating motor control and gait function in children with bilateral spastic CP. Further prospective studies using wearable sensors, such as inertial measurement units, are warranted to validate and build upon these results.

1. Introduction

Weakness and spasticity are common in children with cerebral palsy (CP) and often affect gross motor development, leading to gait disturbances [1]. Muscle shortening in the hip, knee, and ankle flexors also contributes to gait abnormalities in children with spastic bilateral CP [2,3]. The Gross Motor Function Measure (GMFM)-66 is a valuable tool for assessing gross motor function in children with CP. It evaluates motor skills across five dimensions, namely lying and rolling, sitting, crawling and kneeling, standing, and walking/running/jumping, providing a reliable summary score of overall gross motor ability. Gait analysis using marker-based motion capture systems can identify gait disturbances caused by bony deformities, muscle contractures, and spasticity, helping guide treatments, such as botulinum toxin injections or surgery [4,5]. Based on kinematic data obtained during gait events, the gait deviation index (GDI) quantifies gait quality by comparing 15 gait features to those of typically developing children [6]. It is widely used to assess gait in children with CP [7,8,9,10]. Similarly, the gait profile score (GPS) quantifies gait by summing the deviations between a patient’s kinematic data and normative data [11], and has been shown to represent gross motor and gait functions in individuals with CP [12,13].
However, both the GMFM-66 and instrumented gait analysis require trained professionals, expensive equipment, and ample space. Additionally, patients tend to show better performance when tested in a hospital setting compared to their gait function in real-life conditions [7,14]. Therefore, hospital-based evaluations cannot fully capture a patient’s gross motor and gait functions. To overcome these challenges, researchers are exploring digital biomarkers using simple methods, such as 2D video or wearable sensors, like inertial measurement units (IMUs) [15], in real-life settings.
The cyclogram concept, introduced by D.W. Grieve in 1968 [16], involves plotting one joint’s angle against another during the gait cycle, creating parametric curves that offer geometric insights, such as in regard to the area and perimeter [17]. Cyclograms are derived solely from kinematic joint data, which can be easily acquired using methods like 2D video or IMUs. Unlike conventional gait analysis, which focuses on individual joint movements, cyclograms enable simultaneous analysis of joint relationships and range of motion (ROM). In children with CP, muscle weakness and spasticity disrupt normal joint interactions, leading to gait patterns like equinus, crouch, and jump knee [18]. This makes cyclogram analysis useful for evaluating gait and gross motor functions in children with CP.
Several studies have demonstrated significant differences in cyclogram parameters, such as the area and perimeter, between individuals with severe and mild gait disturbances, including those with hemiplegic stroke, osteoarthritis, and multiple sclerosis [19,20,21]. Other studies have also used cyclograms to assess gait asymmetry in individuals with hemiplegic stroke [22,23]. However, these studies primarily focused on group differences and did not provide quantitative correlation analyses. To the best of our knowledge, no studies have directly assessed gross motor and gait function using cyclograms in children with CP.
Another aspect of CP is the loss of selective voluntary motor control (SVMC), which manifests as synergistic movements in the lower extremities. This adversely affects walking, reducing step length and gait speed, and lowering the gait profile score [24]. Clinically, SVMC can be evaluated using the Selective Control Assessment of the Lower Extremity (SCALE) [25]. However, the SCALE evaluates the selective movement of each joint in isolation, limiting its effectiveness in assessing dynamic movements. It also requires trained experts for accurate administration. To date, there is no method to quantitatively assess SVMC during gait, especially in an out-of-hospital setting.
We hypothesized that cyclogram-based analysis could be used to assess patients’ gross motor function, including gait and selective motor functions. Before obtaining data from out-of-hospital settings, we conducted a preliminary retrospective analysis to evaluate the correlation between hospital-based assessments and cyclogram parameters. We analyzed the quantitative relationship between hip–knee cyclogram parameters with each of the following: GMFM-66, spatiotemporal gait parameters, the GDI, and the GPS. In addition, we analyzed the correlation between the shape of the cyclogram and SVMC using principal component analysis (PCA). We also built a linear regression model to estimate the GMFM-66, gait speed, and SCALE scores, based on the cyclogram’s parameters and shape.

2. Materials and Methods

This study was retrospectively conducted on 144 children with bilateral spastic CP, who could walk indoors without support for at least 10 m (classified as Gross Motor Function Classification System [GMFCS] levels I, II, and III) [26], aged between 6 and 20 years (Table 1). The children were assessed using the GMFM-66, the SCALE, and instrumented gait analysis, from June 2018 to June 2023. The SCALE was used to assess selective movements of the hip, knee, ankle, subtalar, and first toe joints, with scores assigned as 2 (normal), 1 (impaired), or 0 (unable) [25]. Instrumented gait analysis was conducted using a marker-based motion capture system, using the VICON camera system (VICON MX-T10, Oxford Metrics Inc., Oxford, UK). The markers were placed on the subject using a modified Helen Hayes marker set for lower limbs, consisting of 16 reflective markers placed on the left and right anterior superior iliac spine, posterior superior iliac spine, lateral midshaft femur, lateral knee joint axis, lateral midshaft shank, lateral malleolus, calcaneus, and dorsum of the foot between the second and third metatarsal heads. Prior to data collection, the children were asked to take approximately 20 to 30 steps to allow their gait patterns to stabilize. They were instructed to walk at their most comfortable speed. Gait trials were repeated until minimal variability was observed between the gait cycles, ensuring consistency within the trial. A single representative gait cycle from the middle of the best trial was then selected to extract sagittal plane hip and knee kinematic data, using an inverse kinematics method. The gait speed was normalized according to the average leg length. The GDI and GPS were calculated using kinematic data from patients with a normal gait. This normal gait data was collected in 2003 from 15 male adults, 15 female adults, and 15 children.
The cyclograms were created using hip and knee angles from a single gait cycle, with the area defined as the space enclosed by the cyclogram (Figure 1a). The swing phase area was defined as the region between the toe-off and heel-strike points on the cyclogram (Figure 1b). The perimeter represents the total boundary length (Figure 1c). Figure 2 shows examples of cyclograms for children with GMFCS levels I, II, and III. The cyclogram parameters, including the overall area, swing phase area, and perimeter, were summed up across both legs.
We analyzed the relationships between the cyclogram parameters (overall area, swing phase area, and perimeter) and the clinical measures, including GMFM-66 scores, normalized gait speed, the GDI, and the sagittal plane hip–knee score from the GPS. The Shapiro–Wilk test was used to assess the normality of the data. The GMFM-66, normalized gait speed, GDI, GPS and cyclogram parameters met the normality assumption. Therefore, we employed Pearson’s correlation coefficients to evaluate the significance of these correlations. We built a linear regression model to estimate the GMFM-66 scores and normalized gait speed, based on the swing phase area.
To analyze the shape of the cyclogram, we employed PCA. We derived the covariance matrix of the hip and knee angles from a single gait cycle of the more involved leg, and we derived principal component 1 (PC1) and principal component 2 (PC2) (Figure 1d). Then we calculated the ratio of PC1 to PC2, an index used to evaluate SVMC, and compared it to the SCALE score of the more involved leg. The SCALE and PC1/PC2 did not meet the normality assumption in the Shapiro–Wilk test; therefore, we used the Spearman rank correlation coefficient. Additionally, we built a linear regression model to estimate the SCALE, using the ratio of PC1 to PC2 (Figure 3).
All the analyses were conducted using SPSS (version 27.0, IBM, Chicago, IL, USA), and significance was considered to occur at p < 0.05. Correlation coefficients ≤ 0.3 were considered poor or weak correlations, 0.3 to 0.5 as fair, 0.5 to 0.8 as moderately strong, and ≥0.8 as very strong [27]. This study was approved by the Institutional Review Board at Yonsei University (IRB approval number: 4-2024-0044).

3. Results

The correlations between the cyclogram parameters and the clinical parameters are shown in Table 2. All the parameters showed a correlation with GMFM-66, the normalized gait speed, the GDI, and the sagittal plane of the hip and knee subscore of the GPS. The swing phase area showed a moderately strong positive correlation with GMFM-66 (R = 0.55, p < 0.05) and the normalized gait speed (R = 0.70, p < 0.05), and a fairly positive correlation with the GDI (R = 0.41, p < 0.05) and the sagittal plane of the hip and knee subscore of the GPS (R = 0.48, p < 0.05). The linear regression model for estimating the GMFM-66 and normalized gait speed using the swing phase area is shown in Table 3 (R2 = 0.301 for GMFM-66 and R2 = 0.484 for gait speed).
The results of the subgroup analysis are presented in Table 4. In the multiple comparison test, using the two-sample t-test, the cyclogram parameters showed statistically significant differences across the GMFCS groups. In the correlation analysis, the GMFCS level II group displayed correlations similar to those of the overall patient group, whereas the GMFCS level I group exhibited weaker correlations. For the GMFCS level III group, only the swing phase showed a correlation with GMFM-66 and gait speed.
There was a moderately strong negative correlation between the eigenvalue ratio of the swing phase and the SCALE in Table 2 (ρ = −0.57, p < 0.05). The linear regression model for estimating the SCALE using the eigenvalue ratio of the swing phase is shown in Table 3 (R2 = 0.320). Scatter plots of the cyclogram parameters and clinical parameters are provided in the Supplementary Materials.

4. Discussion

In this study, we found that specific hip–knee cyclogram parameters were significantly correlated with gross motor function, as measured by the GMFM-66, in ambulatory children with CP (GMFCS levels I–III). These parameters also showed meaningful associations with other gait-related measures, including gait speed, the GDI, and the GPS. Moreover, we developed a linear regression model to estimate the GMFM-66 scores using the swing phase area, highlighting the potential of cyclogram-based metrics to be used as predictive markers of gross motor function. In addition, we found that the variable quantifying the shape of the cyclogram using PCA was significantly correlated with the SCALE score, which assesses selective motor control in patients. A previous study found that spatiotemporal parameters were correlated with gross motor function [28]. However, spatiotemporal parameters, including gait speed, primarily reflect locomotor ability, and do not capture gait quality, which requires consideration of hip and knee kinematics. In contrast, cyclogram-based analysis can provide detailed information on hip and knee kinematics and functional ROM during gait events. Gait disturbances in patients with spastic bilateral CP are often caused by shortened and spastic lower extremity muscles, leading to decreased ROM in the hip and knee joints. Previous studies have shown that children with CP typically have decreased joint ROM compared to children without CP [29], and spasticity and weakness of the hip muscles cause a reduction in ROM of the hip joint [30]. Similarly, spasticity in the knee joint muscles reduces the angular velocity of both knee flexion and extension, further limiting knee ROM [31]. Several studies have demonstrated a correlation between the degree of limited ROM on physical examination and the severity of gross motor function in children with CP [29,32]. This diminished ROM in the hip and knee joints contributes to the reduced area and perimeter of the cyclogram observed in patients with CP. Therefore, it may serve as a useful indicator for identifying reductions in functional range of motion during gait events caused by spasticity or muscle shortening, and for determining the need for therapeutic interventions, such as botulinum toxin injections or surgical procedures.
Generally, as the gait speed increases, the ROM of the hip and knee joints also increases [31]. Therefore, it seems natural that the cyclogram parameters would increase as the gait speed increases. However, during the gait analysis, we instructed the children to walk at a comfortable pace. A study found that comfortable gait speed is a useful indicator of gait function in individuals with neurological disorders [33]. This suggests that the normalized gait speed could represent the overall gait function, and the cyclogram could serve as a useful metric for assessing gait function.
We also found a correlation between the cyclogram parameters with the GDI and the sagittal plane subscores of the hip and knee joints from the GPS. The GDI and GPS focus on deviations from normal gait, and, as previously mentioned, a decreased ROM can lead to reduced cyclogram parameters, resulting in greater deviations from typical gait patterns. Previous studies have shown a correlation between the degree of gait deviation and the weakness, spasticity, and joint contracture of children with CP [34,35]. Both the GDI and GPS showed moderate correlations, with the GPS demonstrating a slightly stronger association than the GDI. While the GDI is derived from various gait kinematic features in three-dimensional space, the GPS in this study was limited to the sagittal plane of the hip and knee, which may explain the stronger correlation. The fact that the cyclogram parameters were correlated with both the GDI and GPS suggests their potential utility in assessing gait quality, not only reflecting the gait speed, but also the degree of deviation from normal gait kinematics. This implies that cyclogram parameters could support clinical decision-making when aiming to normalize gait patterns through interventions such as botulinum toxin injections or surgical procedures. Furthermore, they may be useful in evaluating treatment effects by comparing gait patterns before and after an intervention.
Although the GDI and GPS showed statistically significant correlations, their significance was lower compared to GMFM-66 and the normalized gait speed. This may suggest that achieving a high GDI score may not be an appropriate goal for children with spastic CP, who have impairments, such as bone deformities, muscle weakness, and spasticity [36]. These pathological conditions result in reduced gait efficiency compared to typically developing children [37]. In such cases, aiming for normal gait kinematics may not be an achievable or appropriate goal for children with CP. Some studies have shown that while the GDI improved after surgical treatment, the gross motor function, gait speed, and energy efficiency did not improve in all patients [10,38]. On the other hand, the cyclogram parameters represent the ROM during gait events, which can improve through muscle strengthening or cardiopulmonary fitness, not just surgery. However, such improvements may not always bring joint kinematics closer to the normal range.
Among the hip–knee cyclogram parameters, the swing phase area showed the strongest correlation with gross motor function and gait speed compared to other parameters. Impairments in motor coordination of the hip and knee joints are common in spastic bilateral CP, and these difficulties are more pronounced during the swing phase compared to the stance phase [39]. During the swing phase, spasticity and shortening of the medial hamstring muscles restrict full knee extension. A previous study showed that children with spastic CP who have poor SVMC exhibit limited knee extension during the swing phase [40]. Another study found that children with CP who have spastic hamstrings and quadriceps show slower knee angular velocities during the swing phase [31]. However, during the stance phase, ground reaction forces can influence joint ROM. For example, equinus gait caused by spastic paralysis results in genu recurvatum, due to the coupling between ankle plantar flexors and knee extensors, which is influenced by the direction of ground reaction forces [41,42]. This suggests that the swing phase area may more directly reflect gross motor function and gait speed than the overall area of the cyclogram.
The perimeter showed a weaker correlation with the clinical parameters than the overall area and swing phase area. In cases where patients have good gross motor function, an increased ROM leads to an increase in the perimeter. However, if children lose the ability to control joint movements smoothly within the same ROM, the cyclogram path exhibits irregular and more extensive excursions, increasing the perimeter despite a reduction in area. This could explain the weak correlation of the perimeter with the clinical parameters.
In the subgroup analysis, there is a statistically significant difference between the GMFCS levels. In the correlation analysis for the GMFCS level I group, the cyclogram parameters showed weaker correlations with GMFM-66 and the normalized gait speed, likely due to a ceiling effect, as most children could walk independently and had near-perfect GMFM-66 scores. In the GMFCS level III group, a statistically non-significant weak correlation was observed between the cyclogram parameters and the clinical values. GMFCS level III is defined as children who can walk indoors with assistive devices. Notably, some children in this group can walk up to 10 m indoors without assistance, and we included these children in this study. However, these children tend to show greater variability in their abilities compared to those in the GMFCS level I or II groups. The limited sample size of 17 GMFCS level III children may have contributed to this weak correlation.
Although CP often affects the distal ankle joint more than the hip or knee, this study focused on the hip and knee joints. This decision was made because hip–ankle and knee–ankle cyclograms have not been validated in previous studies, whereas parameters such as the area and perimeter have been examined for hip–knee cyclograms [19,20,21]. Moreover, hip–ankle and knee–ankle cyclograms typically form a figure-eight shape, making area and perimeter calculations more complex. Additionally, we plan to conduct a prospective study using wearable sensors, such as IMUs, and attaching these sensors to the distal ankle joint is more challenging compared to the larger hip and knee joints.
SVMC is also an essential factor, despite its limited exploration in relation to gross motor function [43]. The SCALE score, which evaluates SVMC, has been shown to correlate with impaired gait ability [24]. This is because spasticity, weakness, synergistic movements, and incoordination, often resulting from corticospinal tract damage, can reduce movement control complexity [44]. These non-selective movements are more pronounced in children with CP, who have more significant functional limitations, as assessed by the GMFCS levels [45]. The hip and knee joints exhibit pathological, non-dissociative movement, where the knee cannot fully extend, while the hip flexes during the swing phase, due to spasticity and shortening of the medial hamstring muscles. This non-dissociative movement causes the hip and knee joints to flex simultaneously during mid-swing and extend during a terminal stance. A previous study found that the loss of SVMC disrupts the relative phase between the hip and knee joints, as the knee cannot fully extend during hip flexion at terminal swing, leading to an elongation of the cyclogram’s shape [39]. Using PCA, we quantified the elongation of the hip–knee cyclogram by calculating the ratio of the two principal components (PC1 to PC2) from the hip and knee angle data. The eigenvalue ratio correlated with the SCALE score, indicating a link to SVMC and the potential to estimate the SCALE using a linear regression model.
When assessing gross motor function and gait speed in children with bilateral spastic CP, the cyclogram parameters for both legs were averaged since both legs are critical to these assessments. However, for the SVMC assessment, summing up or averaging the function of both legs would not provide an accurate representation. Although all participants had bilateral CP, each child typically had one side that was more affected than the other. Therefore, we focused on analyzing the more affected side, as indicated by the SCALE score.
Conventional assessments of gross motor function and SVMC in children with CP require hospital visits and costly equipment, like instrumented gait analysis, which may not fully capture a child’s abilities in daily environments. In contrast, cyclogram parameters derived from simple kinematic data, such as hip and knee angles, offer a cost-effective alternative. These data can be collected using wearable sensors like IMUs [46] or through 2D video analysis, involving keypoint detection algorithms. This approach enables motor function assessment outside clinical settings, providing real-world insights into children’s abilities during everyday activities.

5. Study Limitations

This study has several limitations. First, it was a retrospective study, and most patients underwent gait analysis to evaluate their gait patterns prior to orthopedic surgery for bone deformities or muscle spasticity/shortening. As a result, a large proportion of the participants were classified as GMFCS level II, which may have contributed to selection bias. Another important limitation of this study is that the analysis was based on a single time-point assessment of the cyclogram and its correlation with gross motor and gait functions. Therefore, it remains unclear whether cyclogram parameters are sensitive to functional changes following therapeutic interventions or clinical events. Further longitudinal studies are needed to determine whether cyclograms can effectively capture dynamic changes in gait and motor function in response to interventions or disease progression.
Although the study focused on children with bilateral spastic CP, the degree of involvement between the two limbs can vary. However, when calculating cyclogram parameters, such as the area, swing phase area, and perimeter, we used the average values of both limbs. If it had been possible to quantify the more involved side and apply greater weight to it during parameter calculation, a more realistic assessment could have been achieved. The retrospective nature of the study limited our ability to reflect the functional variation between limbs.
Lastly, while this study highlighted that the main advantage of cyclograms lies in their reliance solely on kinematic data, which does not require hospital-based instrumented gait analysis, we used data obtained through instrumented gait analysis in a laboratory setting. Nevertheless, this study was conducted to explore the potential of cyclograms as digital biomarkers using simple kinematic data, as a preliminary step before conducting prospective studies. Future prospective studies using wearable sensors are warranted to validate these findings in real-world environments.

6. Conclusions

Hip–knee cyclogram parameters, particularly the swing phase area, which can be easily obtained from simple kinematic data of the sagittal plane, could serve as potential digital biomarkers for assessing gross motor and gait functions in children with bilateral spastic CP. The PC1/PC2 of the cyclogram, derived through the use of PCA, could also be a useful metric for assessing SVMC during gait events, providing an alternative to traditional hospital-based evaluations.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/s25144485/s1, Figure S1: Scatter plot of cyclogram parameters vs. GMFM-66; Figure S2: Scatter plot of cyclogram parameters vs. normalized gait speed; Figure S3: Scatter plot of cyclogram parameters vs. GDI; Figure S4: Scatter plot of cyclogram parameters vs. GPS (hip fl/ex, knee fl/ex); Figure S5: Scatter plot of PC1/PC2 of more invilved side vs. SCALE.

Author Contributions

Conceptualization, J.Y. and D.-w.R.; methodology, J.Y.; validation, J.H., J.L. and Y.C.; resources, J.H., J.L., Y.C. and T.L.; writing—original draft preparation, J.Y.; writing—review and editing, D.-w.R.; supervision, D.-w.R.; funding acquisition, D.-w.R. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by a grant (RS-2023-00215713) from Ministry of Food and Drug Safety in 2025.

Institutional Review Board Statement

This study was approved by the Institutional Review Board at Yonsei University (IRB approval number: 4-2024-0044).

Informed Consent Statement

Patient consent was waived due to the retrospective nature of the study.

Data Availability Statement

The datasets presented in this article are not readily available because of hospital policy restricting the external sharing of patient data.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

The following abbreviations are used in this manuscript:
CPcerebral palsy
GMFCSGross Motor Function Classification System
GMFM-66Gross Motor Function Measure-66
ROMrange of motion
SCALESelective Control Assessment of the Lower Extremity
GDIgait deviation index
GPSgait profile score
PCAprincipal component analysis
SVMCselective voluntary motor control

References

  1. Crenna, P. Spasticity andspastic’gait in children with cerebral palsy. Neurosci. Biobehav. Rev. 1998, 22, 571–578. [Google Scholar] [CrossRef] [PubMed]
  2. Deluca, P.A. Gait analysis in the treatment of the ambulatory child with cerebral palsy. Clin. Orthop. Relat. Res. 1991, 264, 65–75. [Google Scholar] [CrossRef]
  3. Shin, H.I.; Sung, K.H.; Chung, C.Y.; Lee, K.M.; Lee, S.Y.; Lee, I.H.; Park, M.S. Relationships between isometric muscle strength, gait parameters, and gross motor function measure in patients with cerebral palsy. Yonsei Med. J. 2016, 57, 217. [Google Scholar] [CrossRef] [PubMed]
  4. Armand, S.; Decoulon, G.; Bonnefoy-Mazure, A. Gait analysis in children with cerebral palsy. EFORT Open Rev. 2016, 1, 448. [Google Scholar] [CrossRef] [PubMed]
  5. Choi, J.Y.; Jung, S.; Rha, D.W.; Park, E.S. Botulinum toxin type A injection for spastic equinovarus foot in children with spastic cerebral palsy: Effects on gait and foot pressure distribution. Yonsei Med. J. 2016, 57, 496. [Google Scholar] [CrossRef] [PubMed]
  6. Schwartz, M.H.; Rozumalski, A. The Gait Deviation Index: A new comprehensive index of gait pathology. Gait Posture 2008, 28, 351–357. [Google Scholar] [CrossRef] [PubMed]
  7. Massaad, A.; Assi, A.; Skalli, W.; Ghanem, I. Repeatability and validation of gait deviation index in children: Typically developing and cerebral palsy. Gait Posture 2014, 39, 354–358. [Google Scholar] [CrossRef] [PubMed]
  8. Malt, M.A.; Aarli, Å.; Bogen, B.; Fevang, J.M. Correlation between the Gait Deviation Index and gross motor function (GMFCS level) in children with cerebral palsy. J. Child. Orthop. 2016, 10, 261–266. [Google Scholar] [CrossRef] [PubMed]
  9. Wilson, N.C.; Signal, N.; Naude, Y.; Taylor, D.; Stott, N.S. Gait deviation index correlates with daily step activity in children with cerebral palsy. Arch. Phys. Med. Rehabil. 2015, 96, 1924–1927. [Google Scholar] [CrossRef] [PubMed]
  10. Nicholson, K.; Lennon, N.; Church, C.; Miller, F. Gait analysis parameters and walking activity pre-and postoperatively in children with cerebral palsy. Pediatr. Phys. Ther. 2018, 30, 203–207. [Google Scholar] [CrossRef] [PubMed]
  11. Baker, R.; McGinley, J.L.; Schwartz, M.H.; Beynon, S.; Rozumalski, A.; Graham, H.K.; Tirosh, O. The gait profile score and movement analysis profile. Gait Posture 2009, 30, 265–269. [Google Scholar] [CrossRef] [PubMed]
  12. Boulard, C.; Tavoosi, S.; Ravel, A.; Dohin, B. Quantification of gait impairment using the gait profile and variable score in children with cerebral palsy. Clin. Biomech. 2025, 125, 106528. [Google Scholar] [CrossRef] [PubMed]
  13. Rasmussen, H.M.; Nielsen, D.B.; Pedersen, N.W.; Overgaard, S.; Holsgaard-Larsen, A. Gait Deviation Index, Gait Profile Score and Gait Variable Score in children with spastic cerebral palsy: Intra-rater reliability and agreement across two repeated sessions. Gait Posture 2015, 42, 133–137. [Google Scholar] [CrossRef] [PubMed]
  14. Carcreff, L.; Gerber, C.N.; Paraschiv-Ionescu, A.; De Coulon, G.; Newman, C.J.; Aminian, K.; Armand, S. Comparison of gait characteristics between clinical and daily life settings in children with cerebral palsy. Sci. Rep. 2020, 10, 2091. [Google Scholar] [CrossRef] [PubMed]
  15. Park, Y.; Go, T.-H.; Hong, S.H.; Kim, S.H.; Han, J.H.; Kang, Y.; Kang, D.R. Digital biomarkers in living labs for vulnerable and susceptible individuals: An integrative literature review. Yonsei Med. J. 2022, 63, S43. [Google Scholar] [CrossRef] [PubMed]
  16. Grieve, D. The assessment of gait. Physiotherapy 1969, 55, 452–460. [Google Scholar] [PubMed]
  17. Goswami, A. A new gait parameterization technique by means of cyclogram moments: Application to human slope walking. Gait Posture 1998, 8, 15–36. [Google Scholar] [CrossRef] [PubMed]
  18. Winters, T.; Gage, J.; Hicks, R. Gait patterns in spastic hemiplegia in children and young adults. J. Bone Jt. Surg. Am. 1987, 69, 437–441. [Google Scholar]
  19. Park, J.H.; Lee, H.; Cho, J.S.; Kim, I.; Lee, J.; Jang, S.H. Effects of knee osteoarthritis severity on inter-joint coordination and gait variability as measured by hip-knee cyclograms. Sci. Rep. 2021, 11, 1789. [Google Scholar] [CrossRef] [PubMed]
  20. Pau, M.; Leban, B.; Porta, M.; Frau, J.; Coghe, G.; Cocco, E. Cyclograms reveal alteration of inter-joint coordination during gait in people with multiple sclerosis minimally disabled. Biomechanics 2022, 2, 331–341. [Google Scholar] [CrossRef]
  21. Lee, H.S.; Ryu, H.; Lee, S.U.; Cho, J.S.; You, S.; Park, J.H.; Jang, S.H. Analysis of gait characteristics using hip-knee cyclograms in patients with hemiplegic stroke. Sensors 2021, 21, 7685. [Google Scholar] [CrossRef] [PubMed]
  22. Marrone, F.; Pau, M.; Vismara, L.; Porta, M.; Bigoni, M.; Leban, B.; Cerfoglio, S.; Galli, M.; Mauro, A.; Cimolin, V. Synchronized cyclograms to assess inter-limb symmetry during gait in post-stroke patients. Symmetry 2022, 14, 1560. [Google Scholar] [CrossRef]
  23. Pilkar, R.; Ramanujam, A.; Chervin, K.; Forrest, G.F.; Nolan, K.J. Cyclogram-based joint symmetry assessment after utilization of a foot drop stimulator during post-stroke hemiplegic gait. J. Biomech. Eng. 2018, 140, 121005. [Google Scholar] [CrossRef] [PubMed]
  24. Chruscikowski, E.; Fry, N.R.; Noble, J.J.; Gough, M.; Shortland, A.P. Selective motor control correlates with gait abnormality in children with cerebral palsy. Gait Posture 2017, 52, 107–109. [Google Scholar] [CrossRef] [PubMed]
  25. Fowler, E.G.; Staudt, L.A.; Greenberg, M.B.; Oppenheim, W.L. Selective Control Assessment of the Lower Extremity (SCALE): Development, validation, and interrater reliability of a clinical tool for patients with cerebral palsy. Dev. Med. Child Neurol. 2009, 51, 607–614. [Google Scholar] [CrossRef] [PubMed]
  26. Palisano, R.J.; Kang, L.J.; Chiarello, L.A.; Orlin, M.; Oeffinger, D.; Maggs, J. Social and community participation of children and youth with cerebral palsy is associated with age and gross motor function classification. Phys. Ther. 2009, 89, 1304–1314. [Google Scholar] [CrossRef] [PubMed]
  27. Chan, Y. Biostatistics 104: Correlational analysis. Singap. Med. J. 2003, 44, 614–619. [Google Scholar]
  28. Drouin, L.M.; Malouin, F.; Richards, C.L.; Marcoux, S. Correction between the gross motor function measure scores and gait spatiotemporal measures in children with neurological impairments. Dev. Med. Child Neurol. 1996, 38, 1007–1019. [Google Scholar] [CrossRef] [PubMed]
  29. McDowell, B.C.; Salazar-Torres, J.J.; Kerr, C.; Cosgrove, A.P. Passive range of motion in a population-based sample of children with spastic cerebral palsy who walk. Phys. Occup. Ther. Pediatr. 2012, 32, 139–150. [Google Scholar] [CrossRef] [PubMed]
  30. Engsberg, J.R.; Ross, S.A.; Hollander, K.W.; Park, T. Hip spasticity and strength in children with spastic diplegia cerebral palsy. J. Appl. Biomech. 2000, 16, 221–233. [Google Scholar] [CrossRef]
  31. Damiano, D.L.; Laws, E.; Carmines, D.V.; Abel, M.F. Relationship of spasticity to knee angular velocity and motion during gait in cerebral palsy. Gait Posture 2006, 23, 1–8. [Google Scholar] [CrossRef] [PubMed]
  32. Lowes, L.P.; Westcott, S.L.; Palisano, R.J.; Effgen, S.K.; Orlin, M.N. Muscle force and range of motion as predictors of standing balance in children with cerebral palsy. Phys. Occup. Ther. Pediatr. 2004, 24, 57–77. [Google Scholar] [CrossRef] [PubMed]
  33. Andriacchi, T.; Ogle, J.; Galante, J. Walking speed as a basis for normal and abnormal gait measurements. J. Biomech. 1977, 10, 261–268. [Google Scholar] [CrossRef] [PubMed]
  34. Papageorgiou, E.; Simon-Martinez, C.; Molenaers, G.; Ortibus, E.; Van Campenhout, A.; Desloovere, K. Are spasticity, weakness, selectivity, and passive range of motion related to gait deviations in children with spastic cerebral palsy? A statistical parametric mapping study. PLoS ONE 2019, 14, e0223363. [Google Scholar] [CrossRef] [PubMed]
  35. Holmes, S.J.; Mudge, A.J.; Wojciechowski, E.A.; Axt, M.W.; Burns, J. Impact of multilevel joint contractures of the hips, knees and ankles on the Gait Profile score in children with cerebral palsy. Clin. Biomech. 2018, 59, 8–14. [Google Scholar] [CrossRef] [PubMed]
  36. Kerr, C.; McDowell, B.C.; Parkes, J.; Stevenson, M.; Cosgrove, A.P. Age-related changes in energy efficiency of gait, activity, and participation in children with cerebral palsy. Dev. Med. Child Neurol. 2011, 53, 61–67. [Google Scholar] [CrossRef] [PubMed]
  37. Ries, A.J.; Schwartz, M.H. Low gait efficiency is the primary reason for the increased metabolic demand during gait in children with cerebral palsy. Hum. Mov. Sci. 2018, 57, 426–433. [Google Scholar] [CrossRef] [PubMed]
  38. McMulkin, M.L.; Gordon, A.B.; Caskey, P.M.; Tompkins, B.J.; Baird, G.O. Outcomes of orthopaedic surgery with and without an external femoral derotational osteotomy in children with cerebral palsy. J. Pediatr. Orthop. 2016, 36, 382–386. [Google Scholar] [CrossRef] [PubMed]
  39. Fowler, E.G.; Goldberg, E.J. The effect of lower extremity selective voluntary motor control on interjoint coordination during gait in children with spastic diplegic cerebral palsy. Gait Posture 2009, 29, 102–107. [Google Scholar] [CrossRef] [PubMed]
  40. Goldberg, E.J.; Requejo, P.S.; Fowler, E.G. Joint moment contributions to swing knee extension acceleration during gait in individuals with spastic diplegic cerebral palsy. Gait Posture 2011, 33, 66–70. [Google Scholar] [CrossRef] [PubMed]
  41. Švehlík, M.; Zwick, E.B.; Steinwender, G.; Saraph, V.; Linhart, W.E. Genu recurvatum in cerebral palsy–part A: Influence of dynamic and fixed equinus deformity on the timing of knee recurvatum in children with cerebral palsy. J. Pediatr. Orthop. B 2010, 19, 366–372. [Google Scholar] [CrossRef] [PubMed]
  42. Simon, S.; Deutsch, S.; Nuzzo, R.; Mansour, M.; Jackson, J.; Koskinen, M.; Rosenthal, R. Genu recurvatum in spastic cerebral palsy. Report on findings by gait analysis. JBJS 1978, 60, 882–894. [Google Scholar] [CrossRef]
  43. Vos, R.C.; Becher, J.G.; Voorman, J.M.; Gorter, J.W.; van Eck, M.; van Meeteren, J.; Smits, D.-W.; Twisk, J.W.; Dallmeijer, A.J.; van Schie, P. Longitudinal association between gross motor capacity and neuromusculoskeletal function in children and youth with cerebral palsy. Arch. Phys. Med. Rehabil. 2016, 97, 1329–1337. [Google Scholar] [CrossRef] [PubMed]
  44. Steele, K.M.; Rozumalski, A.; Schwartz, M.H. Muscle synergies and complexity of neuromuscular control during gait in cerebral palsy. Dev. Med. Child Neurol. 2015, 57, 1176–1182. [Google Scholar] [CrossRef] [PubMed]
  45. Yu, Y.; Chen, X.; Cao, S.; Wu, D.; Zhang, X.; Chen, X. Gait synergetic neuromuscular control in children with cerebral palsy at different gross motor function classification system levels. J. Neurophysiol. 2019, 121, 1680–1691. [Google Scholar] [CrossRef] [PubMed]
  46. Son, E.J.; Kim, J.H.; Noh, H.E.; Kim, I.; Lim, J.A.; Han, S.H. Comparison of Gait Parameters during Forward Walking under Different Visual Conditions Using Inertial Motion Sensors. Yonsei Med. J. 2022, 63, 82. [Google Scholar] [CrossRef] [PubMed]
Sensors 25 04485 g001

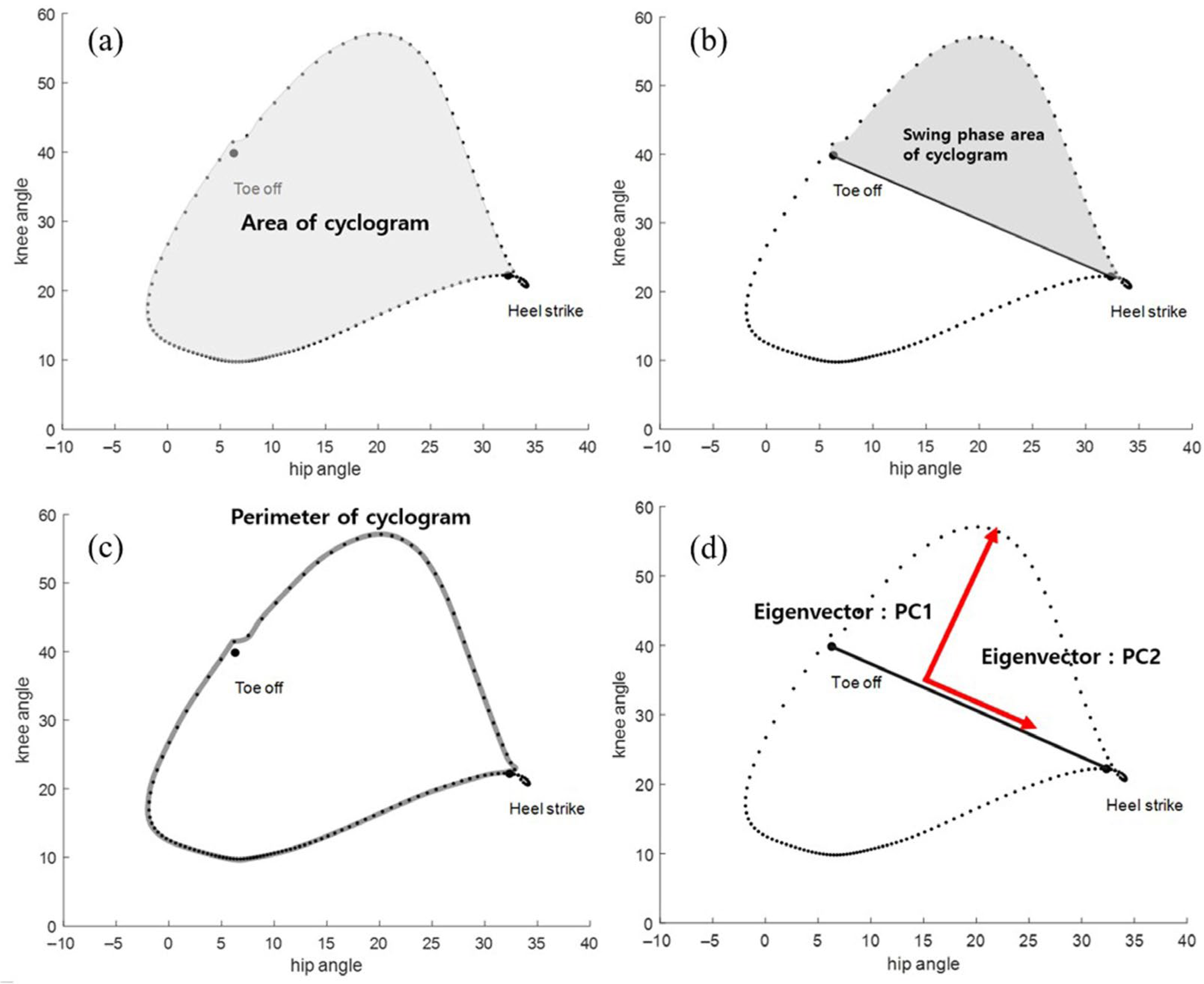

Figure 1. Definition of parameters of cyclograms. (a) Cyclogram parameter: area. (b) Cyclogram parameter: swing phase area. (c) Cyclogram parameter: perimeter. (d) Cyclogram parameter: PC1/PC2 (PC1: principal component 1, PC2: principal component 2).
Figure 1. Definition of parameters of cyclograms. (a) Cyclogram parameter: area. (b) Cyclogram parameter: swing phase area. (c) Cyclogram parameter: perimeter. (d) Cyclogram parameter: PC1/PC2 (PC1: principal component 1, PC2: principal component 2).
Sensors 25 04485 g001
Sensors 25 04485 g002
Figure 2. Examples of cyclograms from children with CP: (a) GMFCS I; (b) GMFCS II; and (c) GMFCS III (GMFCS: Gross Motor Function Classification System).
Figure 2. Examples of cyclograms from children with CP: (a) GMFCS I; (b) GMFCS II; and (c) GMFCS III (GMFCS: Gross Motor Function Classification System).
Sensors 25 04485 g002
Sensors 25 04485 g003

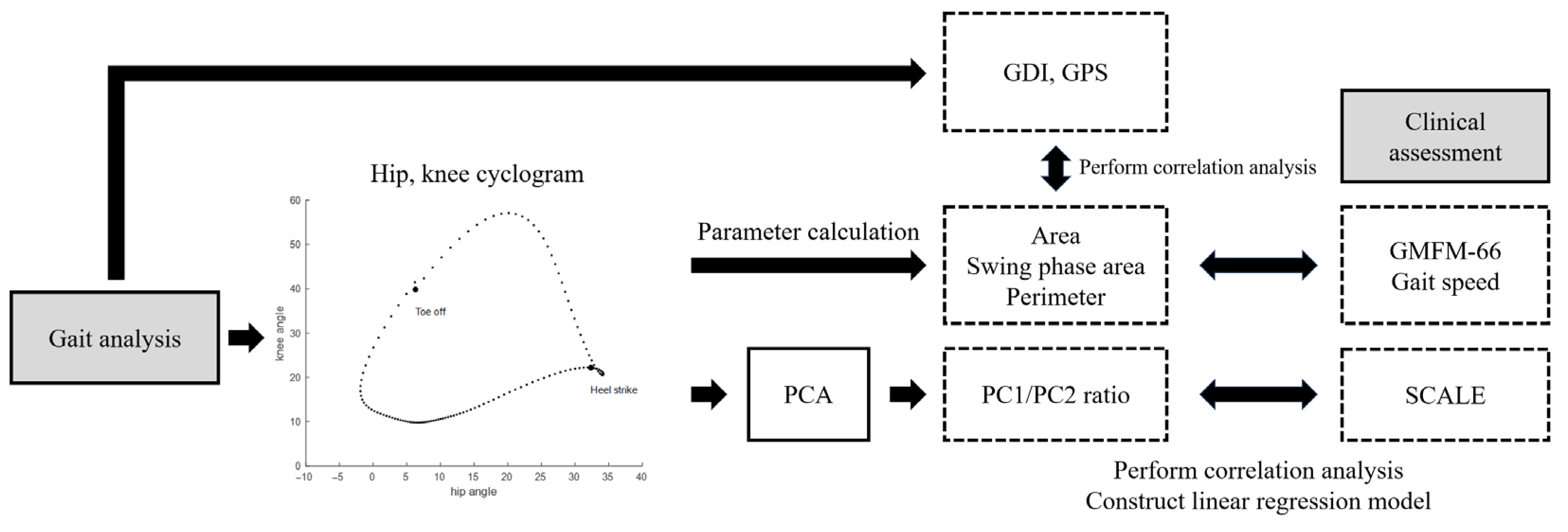

Figure 3. Overview of the study workflow (GMFM-66: Gross Motor Function Measure-66, PCA: principal component analysis, PC1: principal component 1, PC2: principal component 2, SCALE: Selective Control Assessment of the Lower Extremity, GDI: gait deviation index; GPS: gait profile score. Gait speed was normalized according to the average leg length.
Figure 3. Overview of the study workflow (GMFM-66: Gross Motor Function Measure-66, PCA: principal component analysis, PC1: principal component 1, PC2: principal component 2, SCALE: Selective Control Assessment of the Lower Extremity, GDI: gait deviation index; GPS: gait profile score. Gait speed was normalized according to the average leg length.
Sensors 25 04485 g003
Table 1. Demographic information (n = 144).
Table 1. Demographic information (n = 144).
Demographic VariableNo. (%)
Sex
   Male 82 (56.94%)
   Female62 (43.06%)
GMFCS
   I36 (25.00%)
   II91 (63.19%)
   III17 (11.80%)
Age (years)
   Range6–20
   Average13 years
   Mean13 years 8 months
   Standard deviation3 years 6 months
GMFCS: Gross Motor Function Classification System.
Table 2. Correlation between cyclogram parameters (area, swing phase area, perimeter) and GMFM-66, normalized gait speed, GDI, and correlation between PC1/PC2 and SCALE.
Table 2. Correlation between cyclogram parameters (area, swing phase area, perimeter) and GMFM-66, normalized gait speed, GDI, and correlation between PC1/PC2 and SCALE.
AreaSwing Phase AreaPerimeterPC1/PC2
GMFM-660.48 *0.55 *0.41 *
Normalized gait speed0.60 *0.70 *0.66 *
GDI0.48 *0.41 *0.34 *
GPS
(hip fl/ex, knee fl/ex)		−0.51 *−0.48 *−0.41 *
SCALE −0.57 *
GMFM-66: Gross Motor Function Measure-66, PC1: principal component 1, PC2: principal component 2, SCALE: Selective Control Assessment of the Lower Extremity, GDI: gait deviation index, GPS: gait profile score, fl: flexion, ex: extension, * p < 0.05.
Table 3. Univariate linear regression analysis between swing phase area and GMFM-66, normalized gait speed, SCALE, and PC1/PC2.
Table 3. Univariate linear regression analysis between swing phase area and GMFM-66, normalized gait speed, SCALE, and PC1/PC2.
GMFM-66B*β (95% CI)pR2
 Constant54.779 0.301
 Swing phase area0.0100.549<0.001
Normalized gait speedB*β (95% CI)pR2
 Constant0.672 0.484
 Swing phase area0.00040.695<0.001
 SCALEB*β (95% CI)pR2
Constant6.413 0.320
PC1/PC2−0.211−0.566<0.001
GMFM-66: Gross Motor Function Measure-66, PC1: principal component 1, PC2: principal component 2, SCALE: Selective Control Assessment of the Lower Extremity. B*: Standardized Coefficient of linear regression model.
Table 4. (a) Mean and standard deviation of cyclogram parameters by subgroup and comparative analysis across GMFCS levels using two-sample t-tests. (b) Pearson correlation of cyclogram parameters with GMFM-66 and comfortable normalized gait speed in the subgroup analysis, based on GMFCS levels.
Table 4. (a) Mean and standard deviation of cyclogram parameters by subgroup and comparative analysis across GMFCS levels using two-sample t-tests. (b) Pearson correlation of cyclogram parameters with GMFM-66 and comfortable normalized gait speed in the subgroup analysis, based on GMFCS levels.
(a)
GMFCS I
(n = 36)		GMFCS II
(n = 91)		GMFCS III
(n = 17)		Multiple comparisons
I vs. III vs. IIIII vs. III
Area1270.7 ± 334.41002.6 ± 409.4557.9 ± 174.1<0.001<0.001<0.001
Swing phase area762.5 ± 247.9530.2 ± 282.5238.7 ± 115.8<0.001<0.001<0.001
Perimeter158.5 ± 18.4142.9 ± 29.3118.4 ± 21.8<0.001<0.001<0.001
(b)
GMFCS IGMFCS IIGMFCS III
GMFM-66Gait speedGMFM-66Gait speedGMFM-66Gait speed
Area0.200.49 *0.33 *0.56 *0.380.01
Swing phase area0.290.56 *0.39 *0.67 *0.49 *0.61 *
Perimeter0.300.60 *0.23 *0.63 *0.420.37
GMFCS: Gross Motor Function Classification System, GMFM-66: Gross Motor Function Measure-66, * p < 0.05; gait speed was normalized according to the average leg length.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Yoo, J.; Hong, J.; Lee, J.; Cho, Y.; Lee, T.; Rha, D.-w. Assessing Gross Motor and Gait Function Using Hip–Knee Cyclograms in Ambulatory Children with Spastic Cerebral Palsy. Sensors 2025, 25, 4485. https://doi.org/10.3390/s25144485

AMA Style

Yoo J, Hong J, Lee J, Cho Y, Lee T, Rha D-w. Assessing Gross Motor and Gait Function Using Hip–Knee Cyclograms in Ambulatory Children with Spastic Cerebral Palsy. Sensors. 2025; 25(14):4485. https://doi.org/10.3390/s25144485

Chicago/Turabian Style

Yoo, Jehyun, Juntaek Hong, Jeuhee Lee, Yebin Cho, Taekyung Lee, and Dong-wook Rha. 2025. "Assessing Gross Motor and Gait Function Using Hip–Knee Cyclograms in Ambulatory Children with Spastic Cerebral Palsy" Sensors 25, no. 14: 4485. https://doi.org/10.3390/s25144485

APA Style

Yoo, J., Hong, J., Lee, J., Cho, Y., Lee, T., & Rha, D.-w. (2025). Assessing Gross Motor and Gait Function Using Hip–Knee Cyclograms in Ambulatory Children with Spastic Cerebral Palsy. Sensors, 25(14), 4485. https://doi.org/10.3390/s25144485

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
