A Magnetron Plasma Arc Fusion Identification Study Based on GPCC-CNN-SVM Multi-Source Signal Fusion

,
,
,
,
and
1
School of Mechanical Engineering and Mechanics, Xiangtan University, Xiangtan 411105, China
2
School of Mechanical Engineering, Hunan University of Science and Technology, Xiangtan 411100, China
3
Engineering Research Center of Complex Track Processing Technology & Equipment, Ministry of Education, Xiangtan University, Xiangtan 411105, China
*
Authors to whom correspondence should be addressed.
This article belongs to the Section Physical Sensors

Abstract

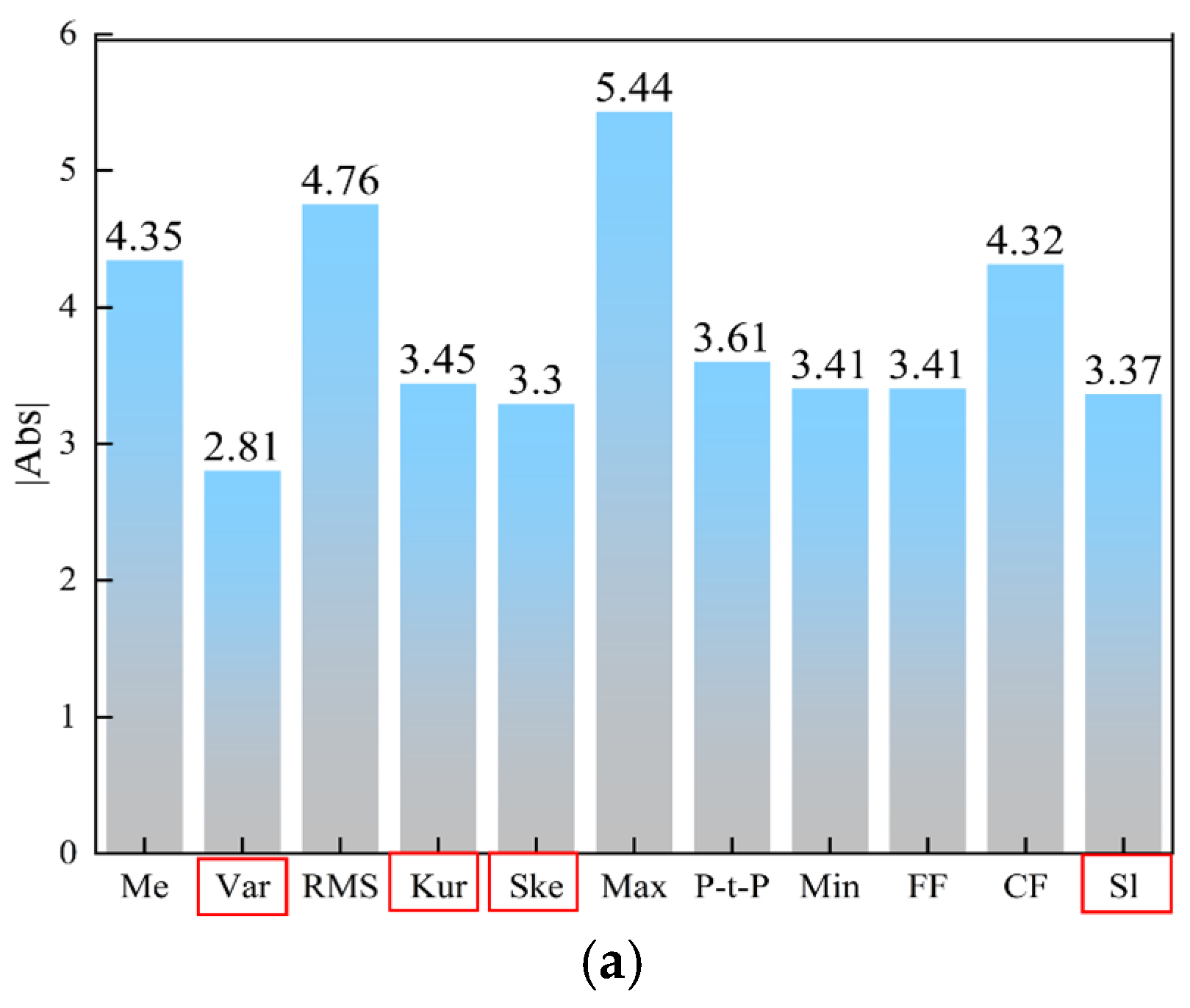

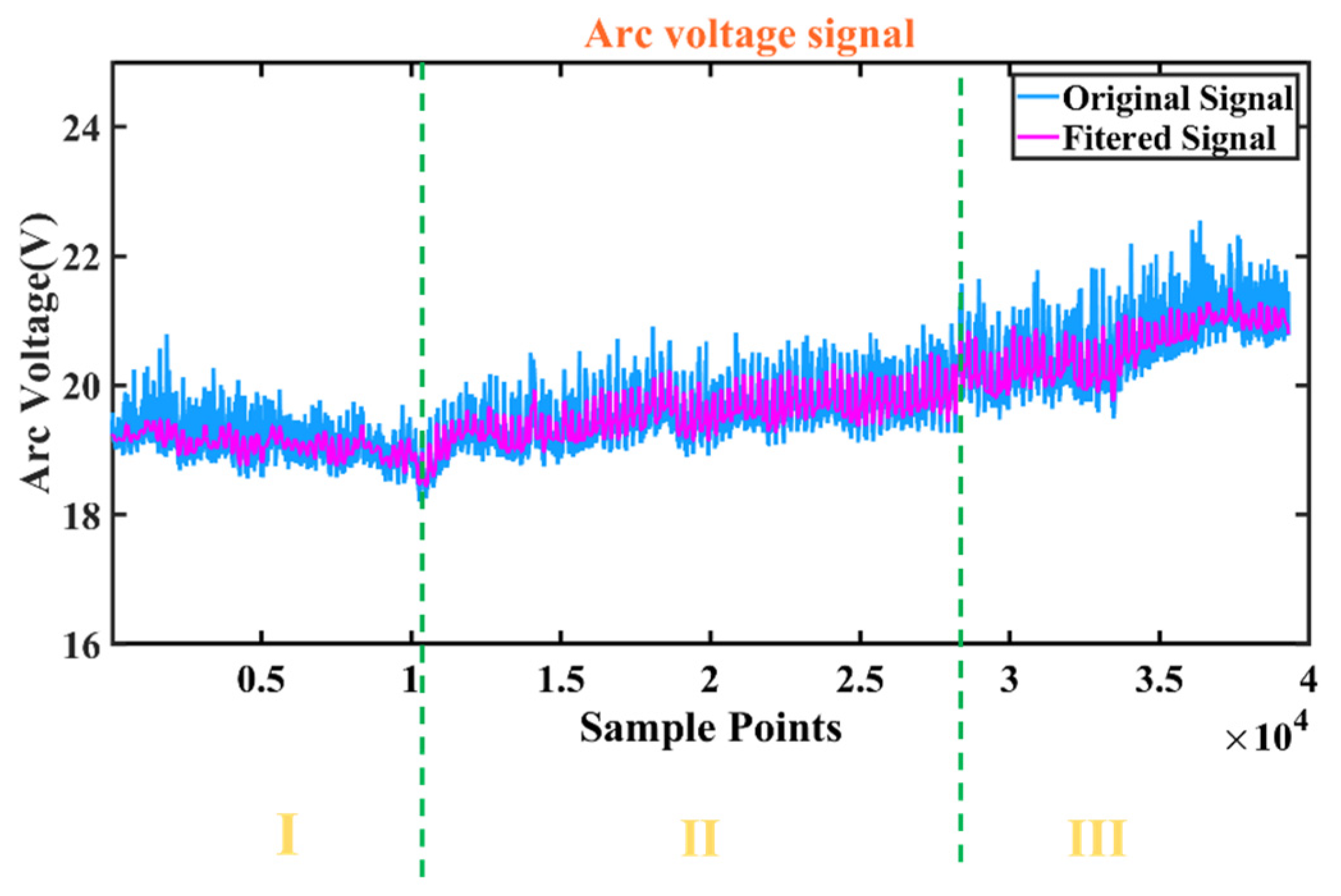

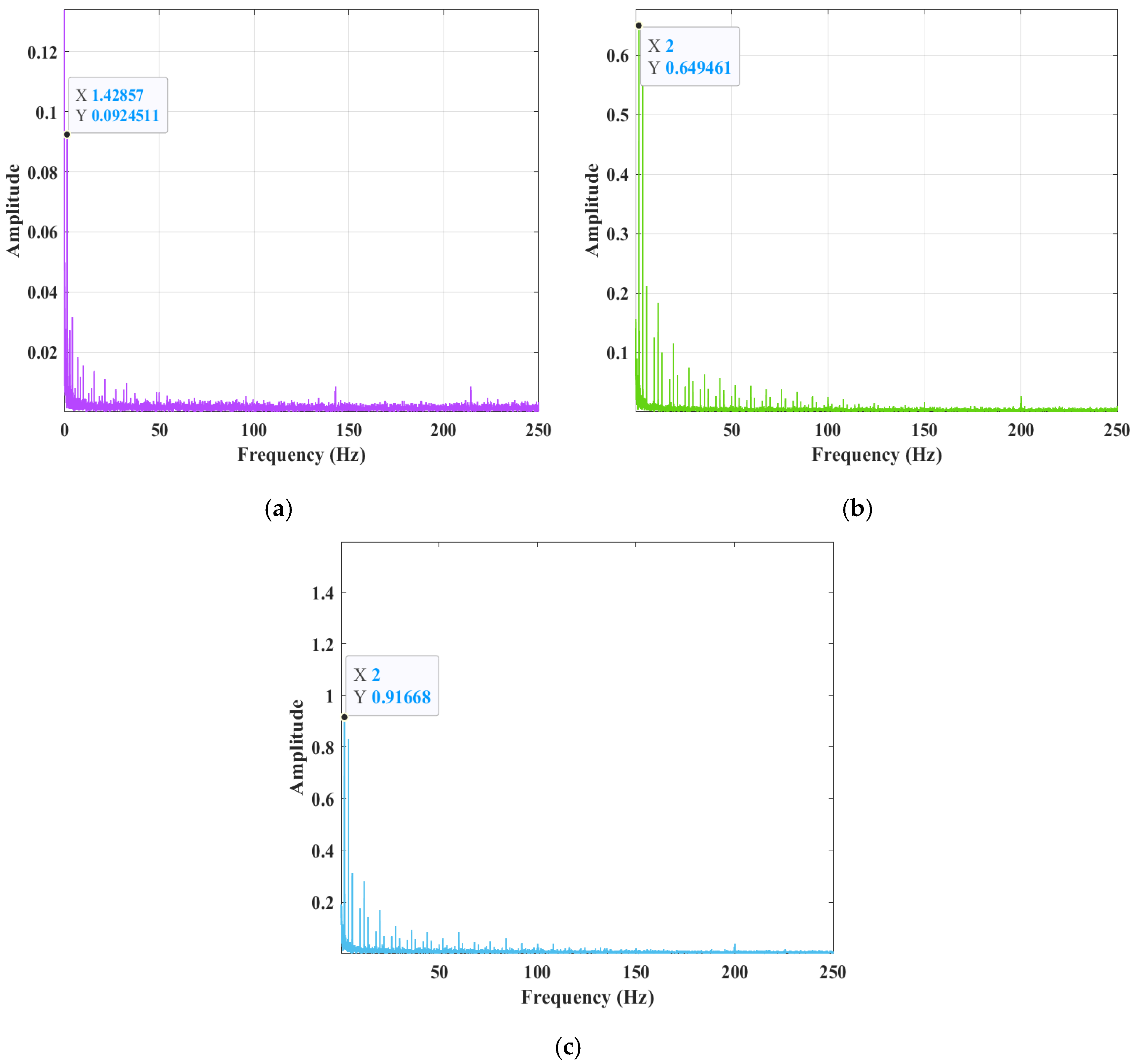

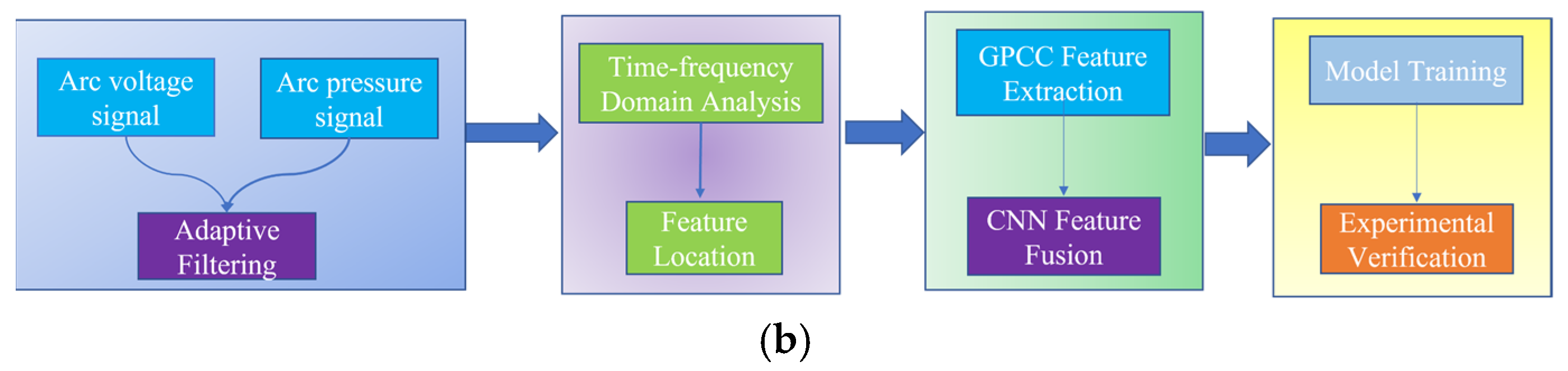

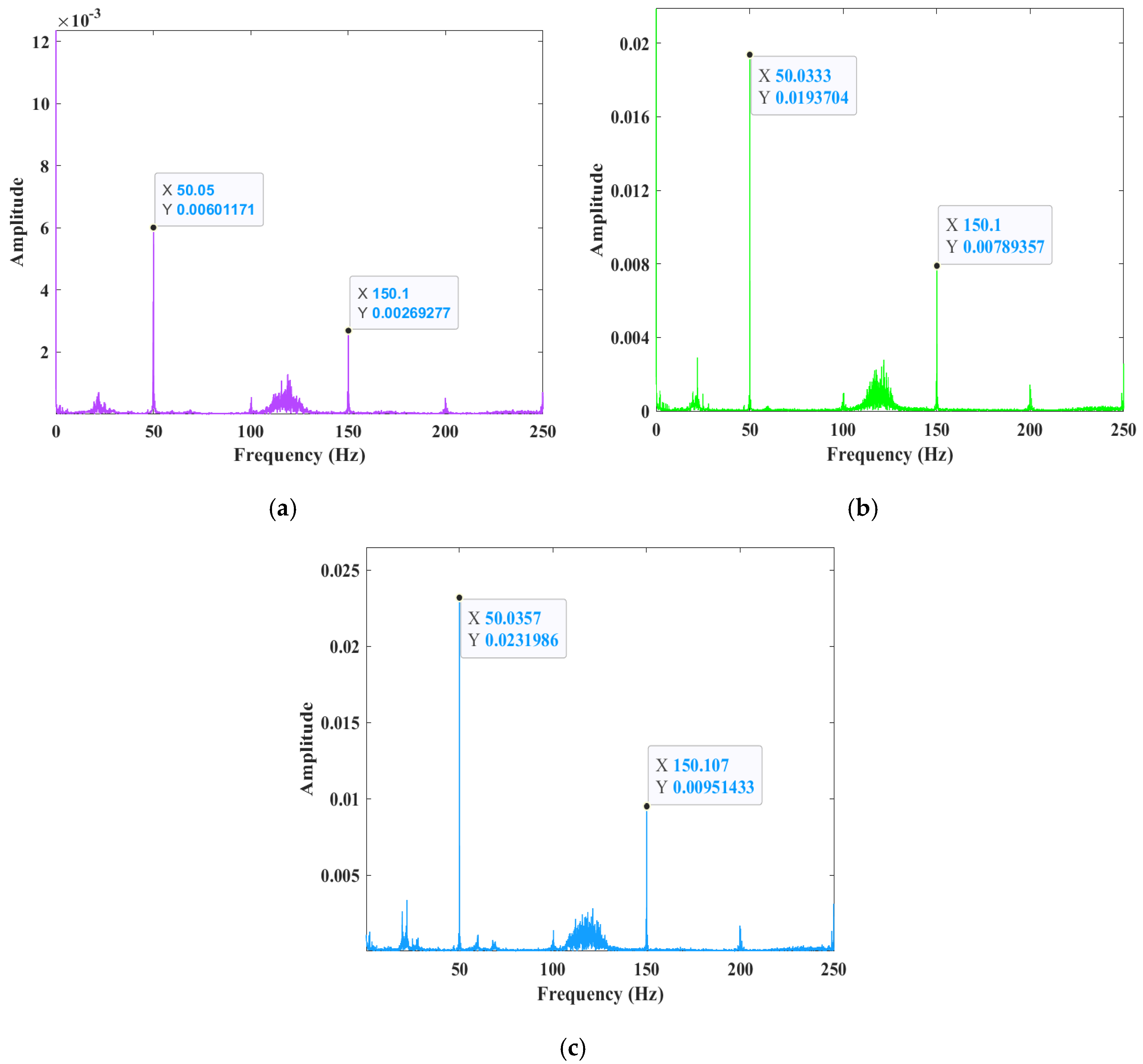

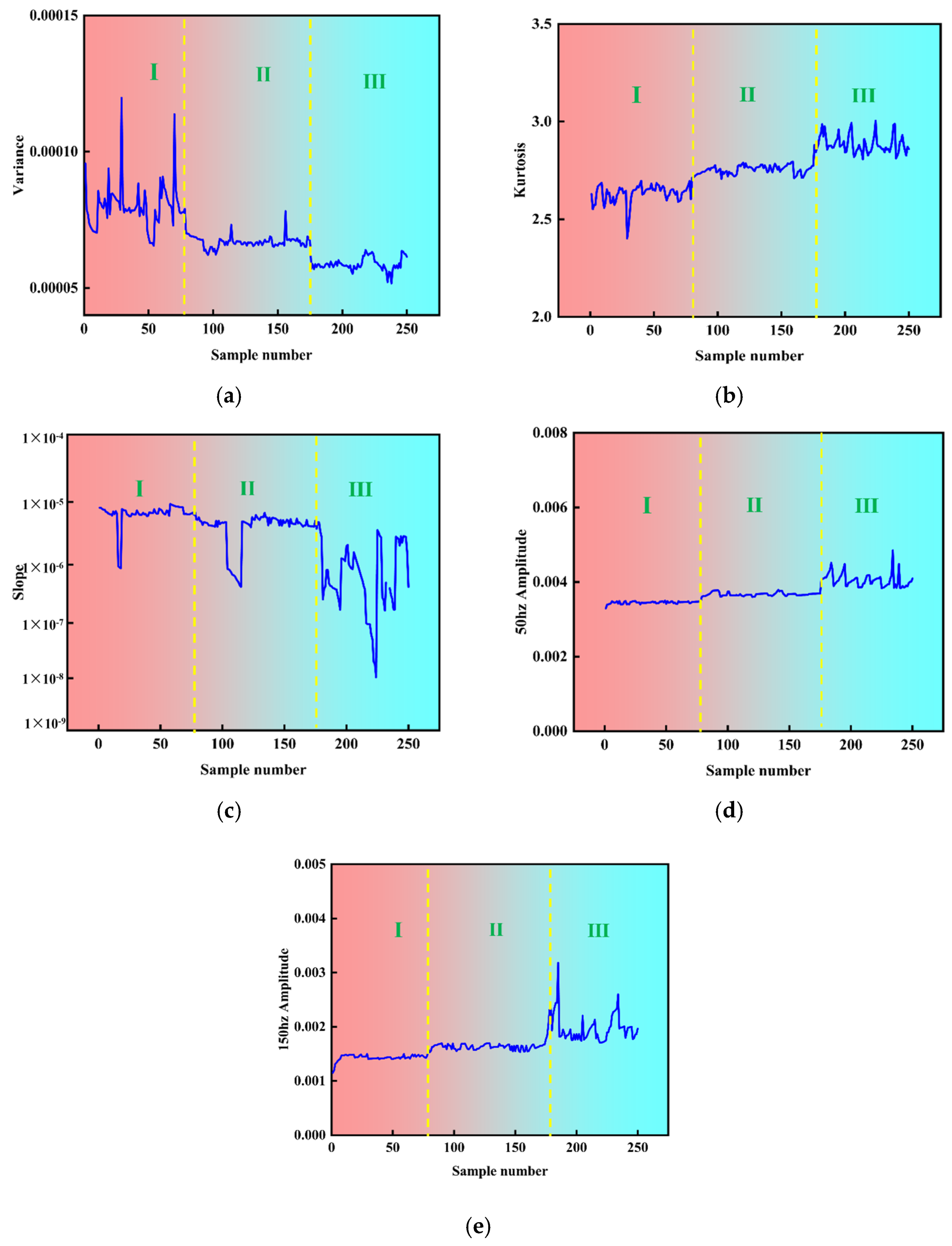

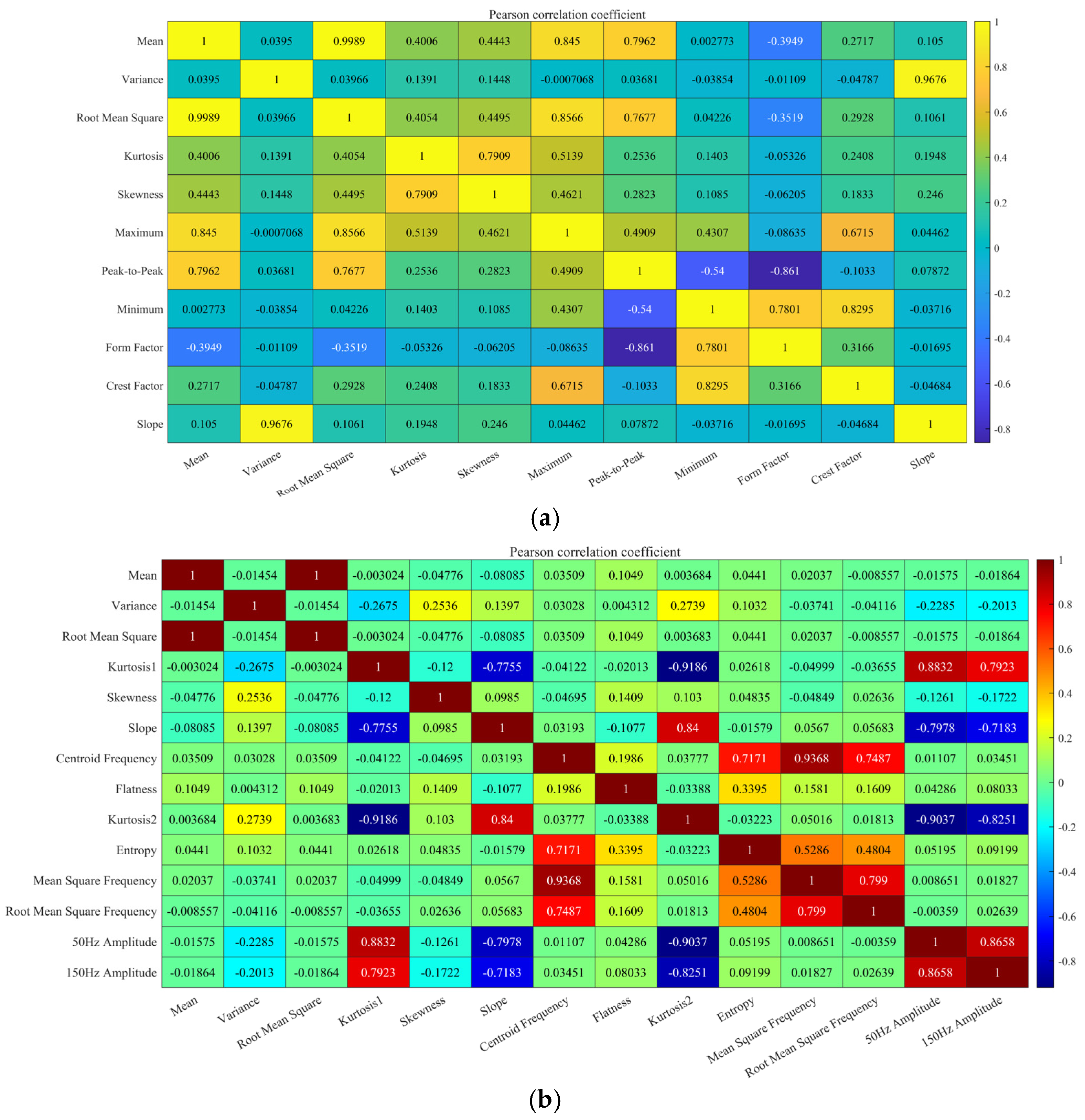

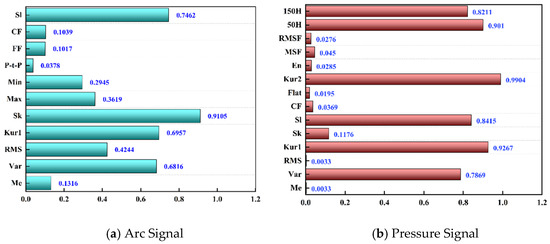

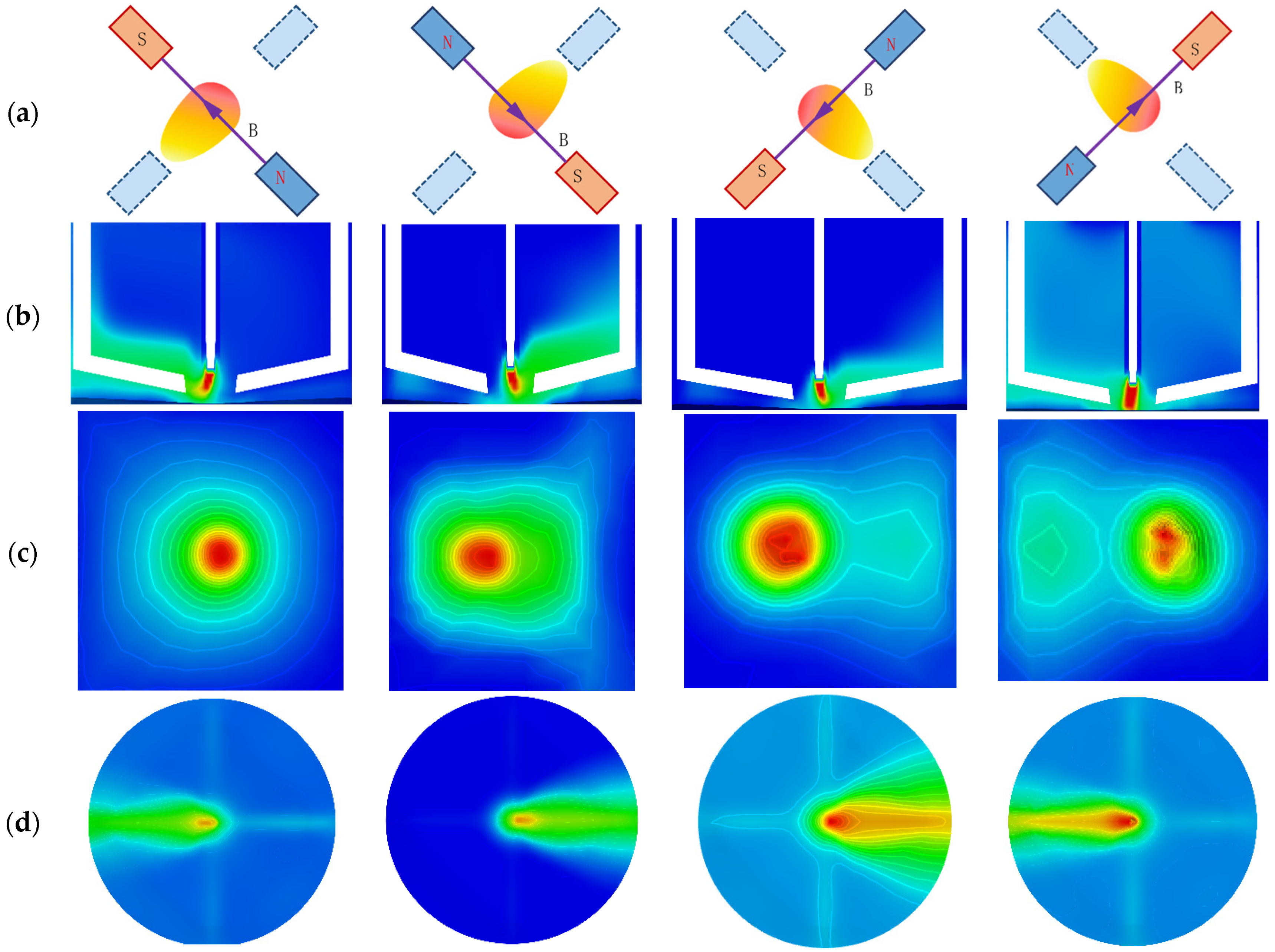

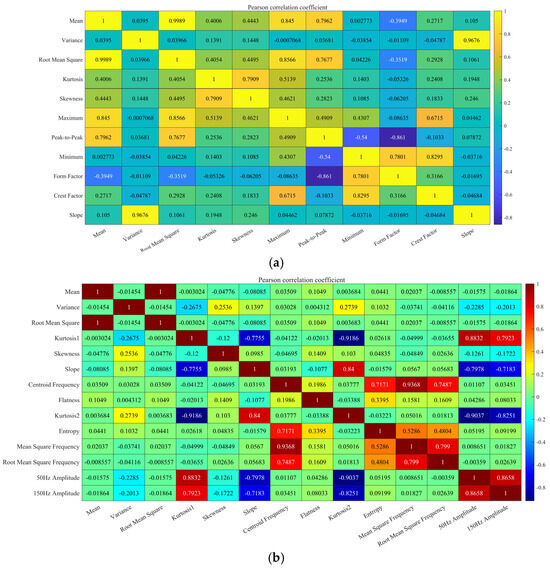

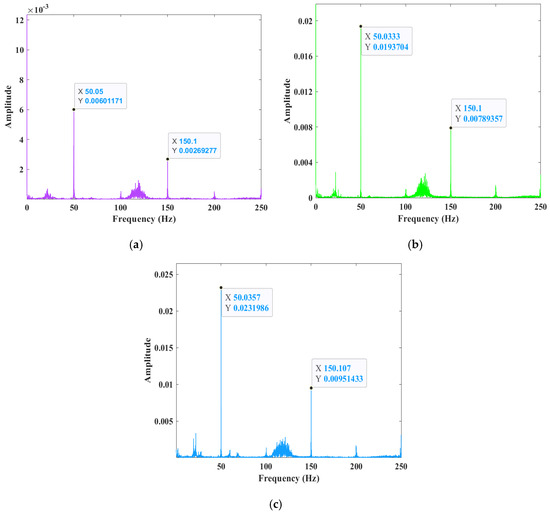

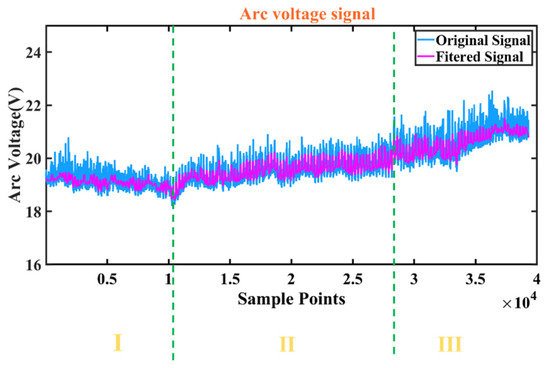

Plasma arc welding (PAW) is commonly employed for welding medium and thick plates due to its capability of single-side welding and double-side forming. Ensuring welding quality necessitates real-time precise identification of the melting state. However, the intricate interaction between the plasma arc and the molten pool, along with substantial signal noise, poses a significant technical hurdle for achieving accurate real-time melting state identification. This study introduces a magnetically controlled method for identifying plasma arc melt-through, which integrates arc voltage and arc pool pressure. The application of an alternating transverse magnetic field induces regular oscillations in the melt pool by the plasma arc. The frequency characteristics of the arc voltage and pressure signals during these oscillations exhibit distinct mapping relationships with various fusion states. A hybrid feature extraction model combining gray correlation analysis (GRA) and the Pearson correlation coefficient (PCC) is devised to disentangle the nonlinear, non-smooth, and high-dimensional repetitive features of the signals. This model extracts features highly correlated with the fusion state to construct a feature vector. Subsequently, this vector serves as input for the fusion classification model, CNN-SVM, facilitating fusion state identification. The experimental results of melt-through under various welding speeds demonstrate the robustness of the proposed method for identifying melt-through through magnetic field-assisted melt pool oscillation, achieving an accuracy of 96%. This method holds promise for integration into the closed-loop quality control system of plasma arc welding, enabling real-time monitoring and control of melt pool quality.
