Driving Attention State Detection Based on GRU-EEGNet
Abstract
:1. Introduction
2. Materials and Methods
2.1. Experiments
2.1.1. Subjects
2.1.2. Experimental Device

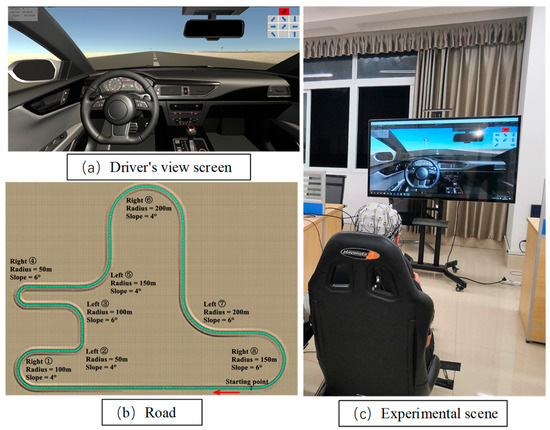

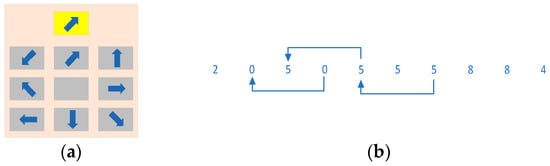

2.1.3. Experimental Paradigm
2.2. Data Acquisition and Preprocessing
2.3. Driving Attention State EEG Power Spectrum Feature Extraction
2.3.1. Power Spectrum Calculation Method

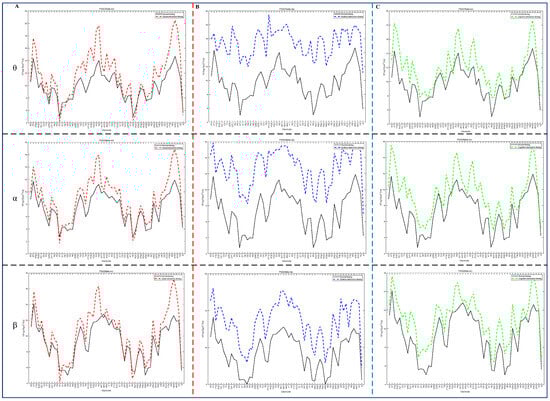

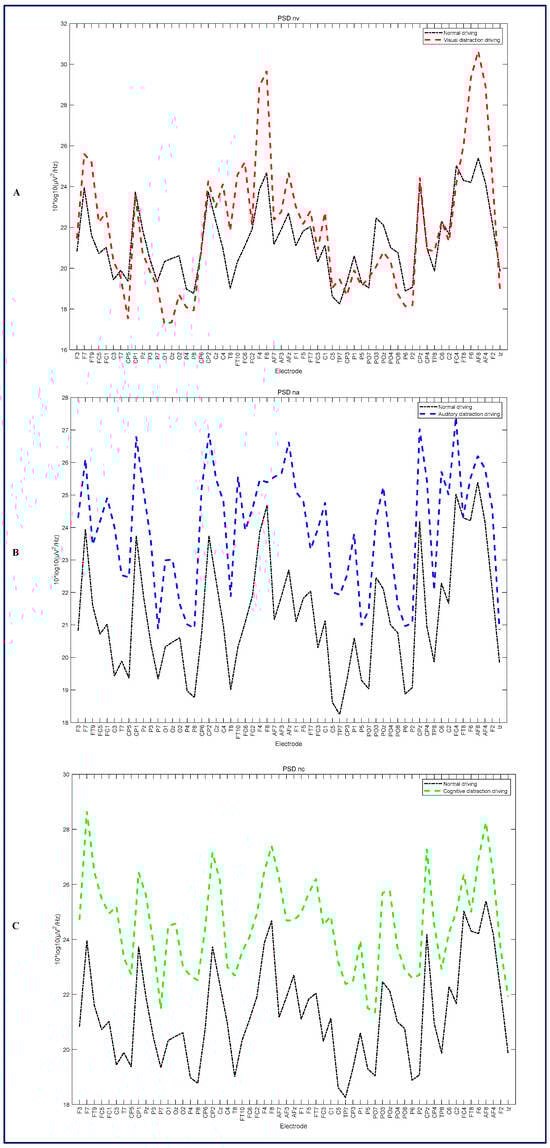

2.3.2. EEG Power Spectrum Analysis of Driving Attention States Based on Welch’s Method
2.4. GRU-EEGNet Basic Architecture

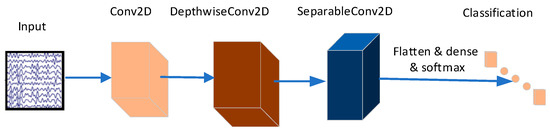

2.4.1. EEGNet Network Architecture

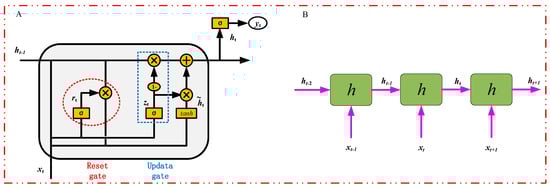

2.4.2. Gated Recurrent Unit

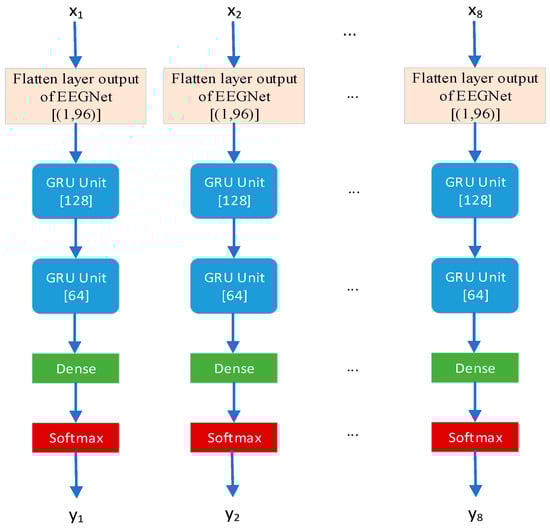

2.4.3. GRU-EEGNet
3. Results
3.1. Driving Attention State Detection Based on EEG Power Spectrum Features

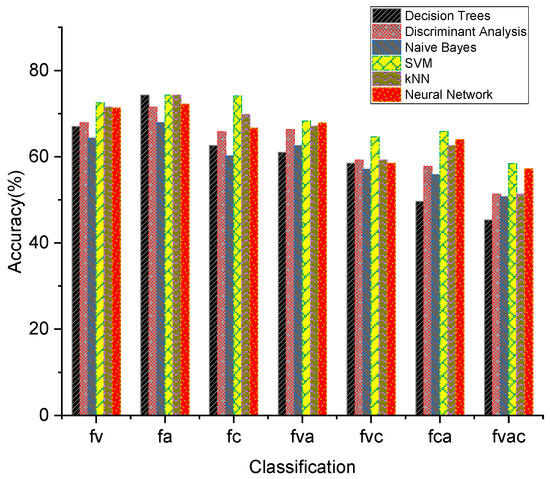

3.1.1. Performance Comparison of Common Classification Methods

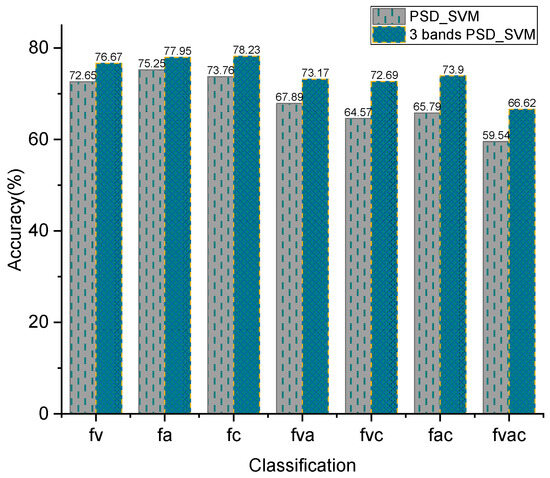

3.1.2. SVM-Based Driving Attention State Detection

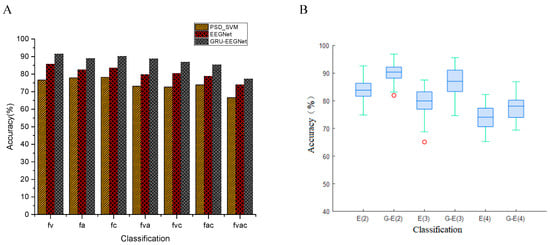

3.2. EEGNet and GRU-EEGNet Classification Results
3.3. Online Detection System of Driving Attention State Based on EEG
3.3.1. System Structure and Function

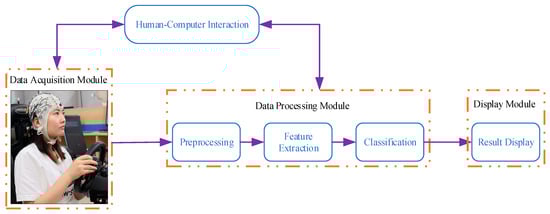

3.3.2. System Module Realization
- (1)

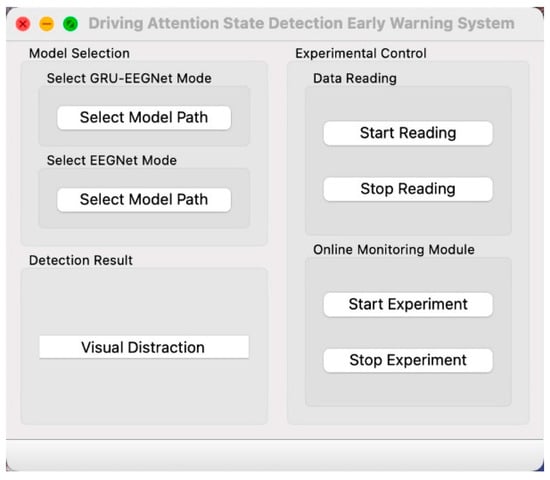

- The human–computer interface was designed by QT Designer. The left side of the interface is for model selection, while the right side is for experimental control and test result display. This is illustrated in Figure 13. The model selection is realized by QFileDialog control, whereby the path of the model can be selected through the file selection dialog box. The experimental control section is implemented using a push-button control, which modifies the trigger signal via the button and calls the associated slot function to execute the corresponding function. The test result display function is a LineEdit text box, which transforms the predicted value transmitted from the data processing module into the corresponding driver state and displays it in the text box.
- (2)
- The EEG data acquisition module facilitates the real-time transmission of EEG signals to a computer terminal via the remote data transmission RDA (Remote Data Access) interface provided by Pycorder software (https://brainlatam.com/manufacturers/brain-products/pycorder-127, accessed on 8 August 2022). This is achieved through the transmission of the EEG signal based on the TCP, with the signal acquisition module triggering a transmit signal to send the data to the data processing module after acquiring the data for the specified length of time (here, 1 s).
- (3)
- The data processing module is described here. The EEG data captured by ActiCHamp in real time is of a list type without channel information. The EEG data are converted to a RawArray type using Python’s MNE toolkit, and then preprocessed sequentially with channel selection, re-referencing, filtering, and downsampling. The online preprocessing is consistent with the offline preprocessing, including the selection of the same channels (59 channels or 10 channels), re-reference electrodes (TP9, TP10), filtering parameters (0.1–45 Hz), and downsampling rate (100 Hz). The preprocessed data are directly fed into the trained GRU-EEGNet model for feature extraction and classification.
- (4)
- The display module is responsible for converting the predicted values generated by the data processing module into the corresponding driver states and displaying them in a text box.
3.3.3. Online Experiment and Effect
4. Discussions
5. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
