A Compact Wearable Textile Antenna for NB-IoT and ISM Band Patient Tracking Applications

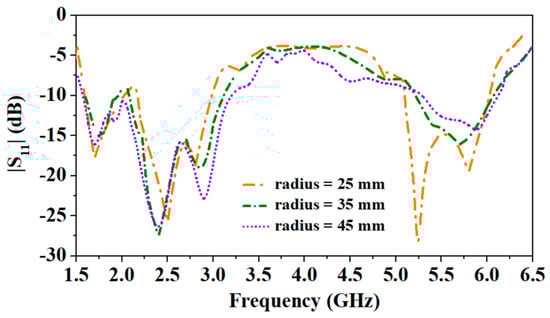

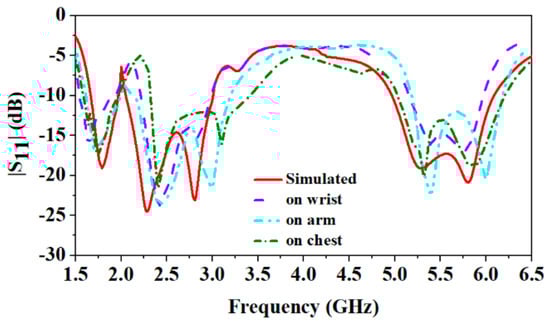

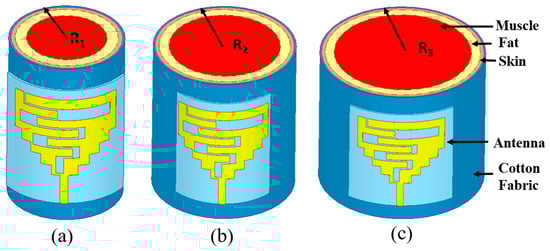

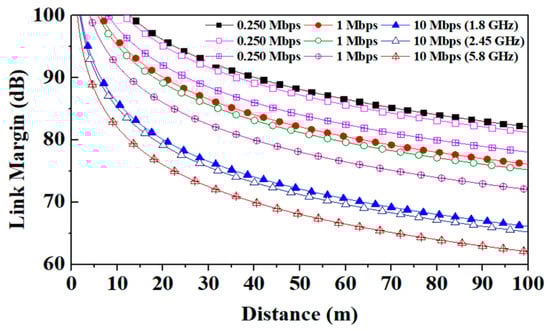

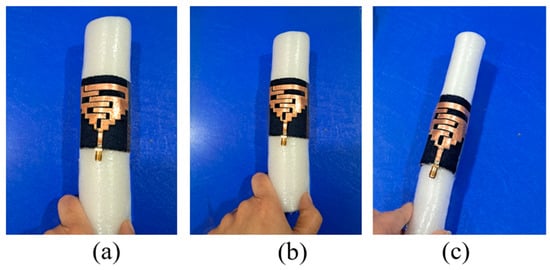

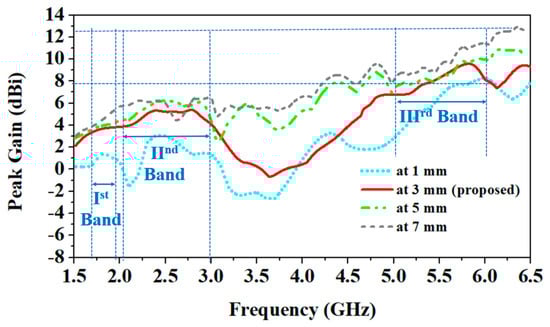

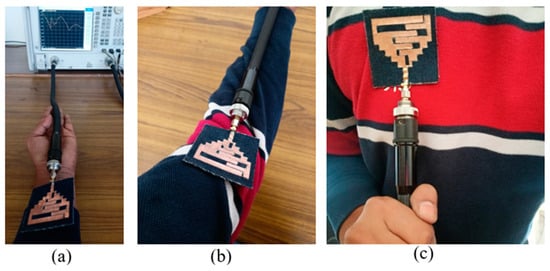

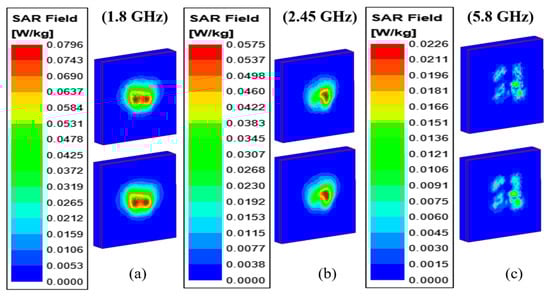

This paper proposes a novel multi-band textile monopole antenna for patient tracking applications. The designed antenna has compact footprints (0.13λ₀²) and works in the narrow band-internet of things (NB-IoT) 1.8 GHz, radio frequency identification (RFID), and industrial, scientific, and medical (ISM) 2.45 GHz and 5.8 GHz bands. The impedance bandwidths and gain of the antenna at 1.8 GHz, 2.45 GHz, and 5.8 GHz are 310 MHz, 960 MHz, and 1140 MHz; 3.7 dBi, 5.3 dBi, and 9.6 dBi, respectively. Also, the antenna’s behavior is checked on different body parts of the human body in various bending scenarios. As per the evaluated link budget, the designed antenna can easily communicate up to 100 m of distance. The specific absorption rate values of the designed antenna are also within acceptable limits as per the (FCC/ICNIRP) standards at the reported frequency bands. Unlike traditional rigid antennas, the proposed textile antenna is non-intrusive, enhancing user safety and comfort. The denim material makes it comfortable for extended wear, reducing the risk of skin irritation. It can also withstand regular wear and tear, including stretching and bending. The presented denim-based antenna can be seamlessly integrated into clothing and accessories, making it less obtrusive and more aesthetically pleasing.
