Article

Self-Assembled TiN-Metal Nanocomposites Integrated on Flexible Mica Substrates towards Flexible Devices

by
Juncheng Liu
1,
Yizhi Zhang
1,
Hongyi Dou
1,
Benson Kunhung Tsai
1,
Abhijeet Choudhury
1 and
Haiyan Wang
1,2,*
1
School of Materials Engineering, Purdue University, West Lafayette, IN 47907, USA
2
School of Electrical and Computer Engineering, Purdue University, West Lafayette, IN 47907, USA
*
Author to whom correspondence should be addressed.
Sensors 2024, 24(15), 4863; https://doi.org/10.3390/s24154863
Submission received: 13 May 2024 / Revised: 13 July 2024 / Accepted: 16 July 2024 / Published: 26 July 2024
(This article belongs to the Special Issue Functional Nanomaterials in Sensing)

Abstract

:
The integration of nanocomposite thin films with combined multifunctionalities on flexible substrates is desired for flexible device design and applications. For example, combined plasmonic and magnetic properties could lead to unique optical switchable magnetic devices and sensors. In this work, a multiphase TiN-Au-Ni nanocomposite system with core–shell-like Au-Ni nanopillars embedded in a TiN matrix has been demonstrated on flexible mica substrates. The three-phase nanocomposite film has been compared with its single metal nanocomposite counterparts, i.e., TiN-Au and TiN-Ni. Magnetic measurement results suggest that both TiN-Au-Ni/mica and TiN-Ni/mica present room-temperature ferromagnetic property. Tunable plasmonic property has been achieved by varying the metallic component of the nanocomposite films. The cyclic bending test was performed to verify the property reliability of the flexible nanocomposite thin films upon bending. This work opens a new path for integrating complex nitride-based nanocomposite designs on mica towards multifunctional flexible nanodevice applications.

1. Introduction

Metamaterials with plasmonic nanostructures have gained great interest for various applications including biosensors, surface-enhanced Raman spectroscopy (SERS), and surface-enhanced infrared absorption spectroscopy (SEIRA) [1,2,3,4,5,6,7]. Noble metals, including Au and Ag, have been proven to be excellent candidates for such nanostructure designs due to their strong surface-enhanced plasmonic resonance from the visible to near-infrared range [8,9,10,11]. Various nanostructures have been developed, including nanopillars, nanoparticles, and nanoholes for high-resolution imaging [12,13,14,15,16]. Work on creating new nanostructure designs and optimizing the existing ones is crucial for SERS- and SEIRA-based sensors. Meanwhile, reducing optical loss and enhancing structural stability could further improve efficiency [15]. As alternative plasmonic candidates, transition metal nitrides, such as TiN, have been broadly studied for their plasmonic properties and potentials as nanostructured metamaterials with reduced optical losses [17,18,19]. Integrating optical metamaterials with other magnetic-based materials not only opens new platforms towards probabilistic computing and other combined device functionalities, but also improves the sensitivity and reproducibility for SERS [17,20,21,22].
In recent years, researchers have been focusing on finding pathways for the fabrication of wearable sensors for health monitoring. Currently, most medical diagnostic tools require drawing blood and traditional bench-top assay methods [23]. The use of flexible, non-invasive, and wearable biosensors for detecting biomolecules in biofluids can provide crucial insights into humans’ physiological condition, leading them to receive considerable attention from the personal healthcare industry [24]. Due to its non-invasive nature and sensitivity, SERS is a promising detection method to detect analyte in biofluids such as sweat [25,26,27]. This gives it an edge over the conventional electrochemical method [25,28]. Currently, for SERS application, most studies focus on various plasmonic nanomaterials. Magnetoplasmonic materials involve a combination of both magnetic and plasmonic properties of the materials [29]. As such, the use of such materials can provide an alternative solution to enhance the Raman signal under a magnetic field, thereby increasing the sensitivity of the sensor. The sensor architecture also needs to be designed for wearable systems, which necessitates the substrate to be robust enough to withstand multiple bending cycles.
Most plasmonic nanostructures and metamaterials have been fabricated using either top-down approaches, including e-beam lithography and the focused ion beam (FIB) method, or bottom-up methods, such as anodized alumina template and e-beam/FIB direct writing [30,31,32,33,34]. As a newly developed alternative, self-assembled nanocomposite thin films have been demonstrated for nanoscale metamaterial designs and processing [35,36]. A unique nanocomposite type in a pillar-in-matrix form, also called vertically aligned nanocomposites (VANs), provides opportunities in achieving strong anisotropy in physical properties, easy tuning of physical properties as well as combined functionalities. Considering phase compositions, oxide–oxide-based VAN systems have been widely studied [37,38,39,40,41], and oxide–metal VAN systems have been recently developed [35,42,43,44,45,46,47,48]. Nitride-based VAN systems are even more scarce [47,49,50,51,52]. Interestingly, most of the VAN demonstrations have been two-phase systems, with limited demonstrations in three phase systems [53,54,55] and alloyed metal pillars [56,57,58]. This is largely due to the narrow processing windows allowed for the three-phase co-deposition and epitaxial growth of three phases.
Among the previous reports of nitride-based VAN systems, one of the first demonstrations showed a novel two-phase Au-TiN-based nanostructure with tunable Au pillar density, leading to adjustable optical properties [49]. Another successful demonstration showed tailorable Ag nanopillar tilting in a TiN matrix to achieve anisotropic optical properties [50]. Co-deposition of a three-phase system consisting of a NiO core encased in a plasmonic Au shell within a TiN matrix capable of strong magneto-optical coupling has also been reported [53]. Other reports include ferromagnetic CoFe2 and Au–CoFe2 core–shell nanopillars embedded in a TiN matrix as multifunctional hybrid metamaterials [59,60]. However, other such TiN-based systems need to be explored and studied for the incorporation of these interesting systems in practical applications.
From the substrate selection point of view, most of the prior metamaterial demonstrations have focused on rigid substrates, such as Si, sapphire, MgO, and other single crystalline oxide substrates. Integrating plasmonic metamaterials on flexible substrates could be very interesting considering the needs on multifunctional materials for flexible electronics and photonics [28,61,62,63,64]. In general, three major classes of flexible substrates have been used for flexible device fabrication. Polymers such as polyethylene terephthalate (PET), polydimethylsiloxane (PDMS), and polyimide (PI) are the most widely used type due to their excellent elasticity and flexibility as well as low cost. However, the poor thermal stability of polymers limits their usage in the epitaxy growth of thin films. Wafer transfer could be a viable solution, while multiple steps are usually required, which will increase the fabrication cost [65]. Metal foils, including Ni and Al, are alternative choices to polymers, since they are highly thermally stable with a crystallized structure, which is ideal for thin film epitaxy growth [66,67,68]. However, metal foils typically require a very thick diffusion barrier layer to prevent metal diffusion during high-temperature growth. Layered materials, such as mica, have been developed as flexible substrates for thin film integration [69,70]. Mica is thermally stable, inexpensive, and biocompatible, with good flexibility and mechanical properties, which makes mica capable of epitaxy growth for thin films using most deposition techniques. Multiple oxide materials have been integrated on mica for different functionalities [71,72,73,74,75,76]. Hu et. al. demonstrated that the plasmon resonance on their mica heterostructures remained constant despite several bending cycles. These make mica an excellent substrate candidate for photonic devices such as wearable sensors. Recently, nanocomposite integration on mica has also been realized, including several oxide–oxide and oxide–metal nanocomposites [77,78,79,80]. Up to now, no prior study on transition metal nitride-based nanocomposite thin films on mica substrates has been demonstrated.
In this work, three nitride–metal nanocomposite thin films, i.e., TiN-Ni, TiN-Au, and TiN-Au-Ni, have been integrated on mica substrates using PLD, as illustrated in Figure 1. TiN is selected considering its high thermal/chemical stability, plasmonic properties, and low-loss nature to serve as a matrix material for the nanocomposite, with Ni as a typical ferromagnetic metal and Au as a plasmonic noble metal. The combined plasmonic and ferromagnetic properties are desired in the newly designed TiN-Ni and TiN-Au-Ni nanocomposite systems, with the goal also being to explore the growth capability and mechanism of complex three-phase nanocomposites on mica. Structural characterization was conducted to understand the microstructure of all the composite films. Optical and magnetic properties were measured and compared. The bending test was performed to verify the stability of the integrated VAN films upon cyclic bending.

2. Results and Discussion

Pulsed laser deposition with a KrF laser (Lambda Physik Compex Pro 205, λ = 248 nm) (Coherent Corp.—Global, Saxonburg, PA, USA) was used to deposit the nanocomposite films on the mica (001) substrate. A commercial TiN target with Au and Ni strips was used for the deposition. The substrate temperature was 600 °C during deposition. To investigate the crystallinity information of the nanocomposites, an X-ray diffraction (XRD) θ-2θ scan was carried out for all three films. XRD was performed using a Panalytical X’Pert X-ray diffractometer (Malvern Panalytical, Malvern, UK). As shown in Figure 2, for TiN-Ni/mica film, TiN (111) and (222) peaks can be identified, while Ni also grows in the (111) direction. For the TiN-Au/mica film, both TiN (111) and (200) peaks are observable, with (111) as the dominate growth orientation for TiN. Au (111) growth can also be found in the TiN-Au/mica film, with partial overlap with the TiN (111) peak. The (111) growth of the matrix and the metals in the TiN-Au/mica and TiN-Ni/mica films is coherent with the three-fold symmetry of mica (001). Interestingly, for the co-growth TiN-Au-Ni/mica film, only the TiN (200) peak can be seen as the dominant growth orientation for TiN. The Au (200) and Ni (111) peaks could potentially overlap with the mica (001) peak. Overall, all three films show the high crystallinity of the film phases.
To understand the overall microstructures and morphology of the nanocomposite films, scanning transmission electron microscopy (STEM) was conducted on the TiN-Au/mica and TiN-Ni/mica films. The TEM, STEM, and EDX were conducted on FEI TALOS F200X (Thermo Fisher Scientific, Waltham, MA, USA). The deposited film was taken for TEM sample preparation, achieved by conducting hand polishing and grinding manually, until a desired thickness. Later, the sample was then taken for dimpling and polishing in diamond paste. Finally, the sample was kept for ion milling to obtain a thin area for TEM. As shown in Figure 3a, a clear VAN structure can be found for the TiN-Au/mica film, and Au grow as pillars within the TiN matrix. The average diameter of the Au pillars is ~ 4 nm. For the TiN-Ni/mica film, as shown in Figure 3b, a pillar-in-matrix structure can also be seen, and Ni grow as pillars embedded in the TiN matrix. The diameter of the Ni pillars is around 2 nm. Interestingly, both Au and Ni pillars in both films are slightly tilted (~10° for the TiN-Au system and ~25° for the TiN-Ni system), which could be related to the texture of (111) and the tendency to expose the low-surface-energy facets of (111) by tilting the (111) oriented pillars.
The microstructure analysis was also performed on the TiN-Au-Ni/mica film, as summarized in Figure 4. It is interesting that the co-growth of the three phases results in a vertical pillar growth in the matrix, with the Au and Ni phases forming a core–shell-like pillar structure, i.e., an Au-core and Ni-shell, embedded in the TiN matrix, as suggested by both the cross-sectional and plan-view STEM images as well as the corresponding EDS mappings. More specifically, based on the composition EDS mapping in Figure 4m, Au prefers to grow in the inner part of the pillars, while Ni shows a higher distribution at the shell of the pillar. It is possible that there is a transition layer at the shell of the pillars with Au and Ni alloyed together. The co-growth of the two metals shows more vertical pillars, which are related to the preferred (002) texture of Au based on XRD (Figure 2) and TEM plan-view (Figure 4h), and this is also typical for other Au-alloyed metal pillar growths in VANs [50].
Considering the ferromagnetic nature of Ni, magnetic property measurement was conducted on the TiN-Ni/mica and TiN-Au-Ni/mica films. A MPMS-3 SQUID Magnetometer (Quantum Design, San Diego, U.S.) was used for this characterization. Both the in-plane (IP) and out-of-plane (OP) measurement results for both films are plotted in Figure 5a,b. It is clear that both films show a soft ferromagnetic response to the applied magnetic field. For the TiN-Ni/mica film, the coercive fields for the IP and OP are 77.0 Oe and 45.8 Oe, with corresponding saturation moments of 96.7 emu/cm3 and 84.8 emu/cm3. For the TiN-Au-Ni/mica film, the coercive fields and saturation moments for the IP and OP are 102.5 Oe, 5.8 emu/cm3, and 144.3 Oe, 5.4 emu/cm3. The low coercive field of the TiN-Ni/mica film is owing to the very small diameter of the Ni nanopillars. The TiN-Au-Ni/mica film shows a higher coercive field in the OP, with a similar saturation moment in both directions. The out-of-plane-dominated anisotropic magnetic property of the TiN-Au-Ni/mica film is mainly due to the structural anisotropy. The overall soft saturation moment of the TiN-Au-Ni/mica films is mainly due to the very thin shell structure of Ni in the system. Note that the volume used to calculate the moment was the entire film volume. The actual magnetization of Ni regions could be much higher.
Since the films were fabricated on flexible substrates, the stability of the film’s physical properties was verified against the bending test. Magnetic property measurement was also conducted on the TiN-Au-Ni/mica film when bent concavely, convexly, and after cyclic bending in both IP and OP directions. A stable magnetic response could be found in both directions, as shown in Figure 5c,d. The coercive fields stayed around 102.5 Oe and 144.3 Oe for IP and OP, and the saturation moments stayed around 5.8 emu/cm3 and 5.4 emu/cm3 at the different bending statuses and after 1000th bending. The robustness of the magnetic property suggests the high stability of the nitride-based nanocomposite films.
Optical measurements were also conducted to characterize the optical properties of the nitride nanocomposite films. Ellipsometry measurement was first performed to attain the permittivity of the films by fitting the ellipsometry parameters. A RC2 ellipsometer (J.A. Woollam, Lincoln, U.S.) was used for the ellipsometry measurement. The uniaxial B-spline mode was used for the fitting. As shown in Figure 6a,b, all films showed similar trends in both IP and OP directions, with the TiN-Ni/mica behaving as even more metallic. A transmittance measurement was also conducted, with the result plotted in Figure 6c. The transmittance measurement was performed on a UV–vis–NIR spectrophotometer (Perkin Elmer Lambda 1050). The typical plasmonic resonance ranges for TiN, Ni, and Au are 375 nm, 400–500 nm, and 500–600 nm, respectively, and the size of the nanostructure also impacts the plasmonic resonance wavelength. From the results, a red shift can be observed by varying the metallic component of the nanocomposite from Ni to Ni-Au and Au, which is due to the higher Au contribution to the overall plasmonic response of the film. Two major plasmonic peaks at around 470 nm and 515 nm could be observed in the TiN-Ni/mica and TiN-Au-Ni/mica film, with a higher absorption in the TiN-Au-Ni/mica film. The peaks become less obvious in the TiN-Au/mica film, probably due to a stronger plasmonic response near 485 nm from Au. The transmittance result of the TiN-Au/mica film is also consistent with a previous report of the same system demonstrated on an MgO substrate. The transmittance measurement was also performed for the TiN-Au-Ni/mica film when bent concavely and convexly, as shown in Figure 6d. However, the tilting of pillars might cause a minor shift in the transmittance peaks. The consistent film transmittance at different bending statuses indicates the reliability and robustness of the nanocomposite film. Note that the absolute value of transmittance difference between the films is mainly from their substrate thickness difference. From the Raman measurement in Figure S1, the intensity of the TiN-Au-Ni film is higher than the TiN-Au and TiN-Ni films. The Raman shift for the films at approximately 215 cm−1, 305 cm−1, and 580 cm−1 are related to the transverse acoustic, longitudinal acoustic, and transverse optical modes of TiN.
Overall, all three films possess a pillar-in-matrix microstructure. Both the TiN-Au-Ni/mica and TiN-Ni/mica film show a room-temperature ferromagnetic nature, with tunable plasmonic response observed in all three films. Compared to previous oxide-based VAN integrations on mica, the TiN-based VANs provide more opportunity for optical-related device applications due to their intrinsic plasmonic nature and high temperature stability. The mechanical flexibility of the films as well as the robust physical properties of the films are crucial for the design and application of future flexible SERS-based sensors. Using the above properties, a novel SERS-based sensor can be created. The use of mica allows for use of the sensors in more aggressive environments due to its high thermal and chemical stability. The use of a TiN matrix allows for use in more extreme environments and provides better protection to the core shell VANs as a matrix. Thus, a novel sensor structure has been proposed in Figure 7, consisting of TiN Au-Ni VANs as an active sensing layer on the flexible mica substrates, along with a power supply unit and a communication unit, all encased in an encapsulation layer.
For future directions, the magneto-optical coupling effect of the systems is worth exploring further, considering the plasmonic matrix and magnetic Ni pillars. Meanwhile, other transition metal nitride-based nanocomposites with different metal components, including Co, Au, Ag, and Fe, could also be explored on a mica substrate towards unique magneto-optical coupling demonstrations in nitride-based VAN systems. Adding the magnetic material to an optical metamaterial as a new platform for SERS could potentially increase the sensitivity.

3. Conclusions

Three different types of nitride–metal nanocomposite thin films, including TiN-Ni, TiN-Au, and TiN-Au-Ni systems, have been integrated on mica substrates. All the films present a pillar-in-matrix microstructure, with Au and Ni forming a unique core–shell-like pillar for the TiN-Au-Ni/mica film. A room-temperature ferromagnetic property was confirmed for both the TiN-Au-Ni/mica and TiN-Ni/mica films. A tunable transmittance property was realized by varying the metallic component of the nanocomposite film. The TiN-Au-Ni/mica film showed a higher absorption than the other two films by showing major plasmonic peaks at 470 nm and 515 nm. For the TiN-Au-Ni/mica film, the coercive fields and saturation moments for in-plane (IP) and out-of-plane (OP) configurations were 102.5 Oe, 5.8 emu/cm³, and 144.3 Oe, 5.4 emu/cm³, respectively. These values remained consistent, with coercive fields around 102.5 Oe for IP and 144.3 Oe for OP, and saturation moments around 5.8 emu/cm³ for IP and 5.4 emu/cm³ for OP, under various bending conditions and even after 1000 bending cycles. The physical properties were proven to be stable against the cyclic bending test. This work opens an avenue towards complex nitride-based nanocomposite designs for multifunctional flexible devices and sensor applications. Thus, this demonstration of a magneto-optical system on a robust mica substrate, which retains its properties despite undergoing several bending cycles, could provide a pathway for the development of future SERS-based wearable based sensors.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/s24154863/s1, Figure S1: Raman measurement of the TiN-Au, TiN-Ni and TiN-Au-Ni film.

Author Contributions

Conceptualization, J.L. and H.W.; Methodology, J.L. and H.W.; Validation, J.L.; Formal analysis, J.L.; Investigation, J.L., Y.Z. and H.D.; Resources, H.W.; Writing—original draft, J.L., B.K.T. and A.C.; Writing—review & editing, H.W.; Supervision, H.W.; Project administration, H.W.; Funding acquisition, H.W. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the U.S. National Science Foundation (DMREF-2323752). Y.Z., H.D., and H.W. acknowledge the support from the U.S. National Science Foundation for the high-resolution microscopy effort (DMR-2016453 and DMR-1809520). J.L. and H.W. acknowledge the support from U.S. Department of Energy, Office of Science, Basic Energy Sciences (DE-SC0020077) for the optical and magnetic testing effort. This paper describes objective technical results and analysis. Any subjective views or opinions that might be expressed in the paper do not necessarily represent the views of the U.S. Department of Energy or the United States Government.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data is contained within the article.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Qian, X.; Peng, X.-H.; Ansari, D.O.; Yin-Goen, Q.; Chen, G.Z.; Shin, D.M.; Yang, L.; Young, A.N.; Wang, M.D.; Nie, S. In vivo tumor targeting and spectroscopic detection with surface-enhanced Raman nanoparticle tags. Nat. Biotechnol. 2007, 26, 83–90. [Google Scholar] [CrossRef]
  2. Atwater, H.A.; Polman, A. Plasmonics for improved photovoltaic devices. In Materials for Sustainable Energy; Co-Published with Macmillan Publishers Ltd.: Basingstoke, UK, 2010; pp. 1–11. [Google Scholar] [CrossRef]
  3. Linic, S.; Christopher, P.; Ingram, D.B. Plasmonic-metal nanostructures for efficient conversion of solar to chemical energy. Nat. Mater. 2011, 10, 911–921. [Google Scholar] [CrossRef]
  4. Lu, L.; Luo, Z.; Xu, T.; Yu, L. Cooperative Plasmonic Effect of Ag and Au Nanoparticles on Enhancing Performance of Polymer Solar Cells. Nano Lett. 2012, 13, 59–64. [Google Scholar] [CrossRef] [PubMed]
  5. Kim, Y.; Smith, J.G.; Jain, P.K. Harvesting multiple electron–hole pairs generated through plasmonic excitation of Au nanoparticles. Nat. Chem. 2018, 10, 763–769. [Google Scholar] [CrossRef] [PubMed]
  6. Qian, X.M.; Nie, S.M. Single-molecule and single-nanoparticle SERS: From fundamental mechanisms to biomedical applications. Chem. Soc. Rev. 2008, 37, 912. [Google Scholar] [CrossRef]
  7. Neubrech, F.; Huck, C.; Weber, K.; Pucci, A.; Giessen, H. Surface-Enhanced Infrared Spectroscopy Using Resonant Nanoantennas. Chem. Rev. 2017, 117, 5110–5145. [Google Scholar] [CrossRef]
  8. Halas, N.J.; Lal, S.; Chang, W.-S.; Link, S.; Nordlander, P. Plasmons in Strongly Coupled Metallic Nanostructures. Chem. Rev. 2011, 111, 3913–3961. [Google Scholar] [CrossRef]
  9. Poddubny, A.; Iorsh, I.; Belov, P.; Kivshar, Y. Hyperbolic metamaterials. Nat. Photonics 2013, 7, 948–957. [Google Scholar] [CrossRef]
  10. Lee, K.-S.; El-Sayed, M.A. Gold and Silver Nanoparticles in Sensing and Imaging:  Sensitivity of Plasmon Response to Size, Shape, and Metal Composition. J. Phys. Chem. B 2006, 110, 19220–19225. [Google Scholar] [CrossRef] [PubMed]
  11. Boltasseva, A.; Atwater, H.A. Low-Loss Plasmonic Metamaterials. Science 2011, 331, 290–291. [Google Scholar] [CrossRef]
  12. Casse, B.D.F.; Lu, W.T.; Huang, Y.J.; Gultepe, E.; Menon, L.; Sridhar, S. Super-resolution imaging using a three-dimensional metamaterials nanolens. Appl. Phys. Lett. 2010, 96, 023114. [Google Scholar] [CrossRef]
  13. Liu, Z.; Lee, H.; Xiong, Y.; Sun, C.; Zhang, X. Far-Field Optical Hyperlens Magnifying Sub-Diffraction-Limited Objects. Science 2007, 315, 1686. [Google Scholar] [CrossRef] [PubMed]
  14. Barnes, W.L.; Dereux, A.; Ebbesen, T.W. Surface plasmon subwavelength optics. Nature 2003, 424, 824–830. [Google Scholar] [CrossRef]
  15. Zhou, Z.-K.; Peng, X.-N.; Yang, Z.-J.; Zhang, Z.-S.; Li, M.; Su, X.-R.; Zhang, Q.; Shan, X.; Wang, Q.-Q.; Zhang, Z. Tuning Gold Nanorod-Nanoparticle Hybrids into Plasmonic Fano Resonance for Dramatically Enhanced Light Emission and Transmission. Nano Lett. 2010, 11, 49–55. [Google Scholar] [CrossRef] [PubMed]
  16. Wang, X.; Ma, X.; Shi, E.; Lu, P.; Dou, L.; Zhang, X.; Wang, H. Large-Scale Plasmonic Hybrid Framework with Built-In Nanohole Array as Multifunctional Optical Sensing Platforms. Small 2020, 16, 1906459. [Google Scholar] [CrossRef] [PubMed]
  17. Nemati, A.; Wang, Q.; Hong, M.; Teng, J. Tunable and reconfigurable metasurfaces and metadevices. Opto-Electron. Adv. 2018, 1, 18000901–18000925. [Google Scholar] [CrossRef]
  18. Patsalas, P.; Kalfagiannis, N.; Kassavetis, S. Optical Properties and Plasmonic Performance of Titanium Nitride. Materials 2015, 8, 3128–3154. [Google Scholar] [CrossRef]
  19. Kaur, M.; Ishii, S.; Shinde, S.L.; Nagao, T. All-Ceramic Microfibrous Solar Steam Generator: TiN Plasmonic Nanoparticle-Loaded Transparent Microfibers. ACS Sustain. Chem. Eng. 2017, 5, 8523–8528. [Google Scholar] [CrossRef]
  20. Torrejon, J.; Riou, M.; Araujo, F.A.; Tsunegi, S.; Khalsa, G.; Querlioz, D.; Bortolotti, P.; Cros, V.; Yakushiji, K.; Fukushima, A.; et al. Neuromorphic computing with nanoscale spintronic oscillators. Nature 2017, 547, 428–431. [Google Scholar] [CrossRef]
  21. Zheludev, N.I.; Kivshar, Y.S. From metamaterials to metadevices. Nat. Mater. 2012, 11, 917–924. [Google Scholar] [CrossRef]
  22. Berganza, L.B.; Litti, L.; Meneghetti, M.; Lanceros-Méndez, S.; Reguera, J. Enhancement of Magnetic Surface-Enhanced Raman Scattering Detection by Tailoring Fe3O4@Au Nanorod Shell Thickness and Its Application in the on-site Detection of Antibiotics in Water. ACS Omega 2022, 7, 45493–45503. [Google Scholar] [CrossRef] [PubMed]
  23. Heikenfeld, J.; Jajack, A.; Rogers, J.; Gutruf, P.; Tian, L.; Pan, T.; Li, R.; Khine, M.; Kim, J.; Wang, J.; et al. Wearable sensors: Modalities, challenges, and prospects. Lab Chip 2018, 18, 217–248. [Google Scholar] [CrossRef]
  24. Bariya, M.; Nyein, H.Y.Y.; Javey, A. Wearable sweat sensors. Nat. Electron. 2018, 1, 160–171. [Google Scholar] [CrossRef]
  25. Xiao, J.; Wang, J.; Luo, Y.; Xu, T.; Zhang, X. Wearable Plasmonic Sweat Biosensor for Acetaminophen Drug Monitoring. ACS Sens. 2023, 8, 1766–1773. [Google Scholar] [CrossRef] [PubMed]
  26. He, X.; Fan, C.; Luo, Y.; Xu, T.; Zhang, X. Flexible microfluidic nanoplasmonic sensors for refreshable and portable recognition of sweat biochemical fingerprint. npj Flex. Electron. 2022, 6, 60. [Google Scholar] [CrossRef]
  27. Wang, Y.; Zhao, C.; Wang, J.; Luo, X.; Xie, L.; Zhan, S.; Kim, J.; Wang, X.; Liu, X.; Ying, Y. Wearable plasmonic-metasurface sensor for noninvasive and universal molecular fingerprint detection on biointerfaces. Sci. Adv. 2021, 7, eabe4553. [Google Scholar] [CrossRef]
  28. Gao, W.; Emaminejad, S.; Nyein, H.Y.Y.; Challa, S.; Chen, K.; Peck, A.; Fahad, H.M.; Ota, H.; Shiraki, H.; Kiriya, D.; et al. Fully integrated wearable sensor arrays for multiplexed in situ perspiration analysis. Nature 2016, 529, 509–514. [Google Scholar] [CrossRef] [PubMed]
  29. Lin, C.-W.; Chen, L.-Y.; Huang, Y.-C.; Kumar, P.; Guo, Y.-Z.; Wu, C.-H.; Wang, L.-M.; Chen, K.-L. Improving Sensitivity and Reproducibility of Surface-Enhanced Raman Scattering Biochips Utilizing Magnetoplasmonic Nanoparticles and Statistical Methods. ACS Sens. 2024, 9, 305–314. [Google Scholar] [CrossRef]
  30. Liu, N.; Guo, H.; Fu, L.; Kaiser, S.; Schweizer, H.; Giessen, H. Three-dimensional photonic metamaterials at optical frequencies. Nat. Mater. 2007, 7, 31–37. [Google Scholar] [CrossRef]
  31. Zilio, P.; Malerba, M.; Toma, A.; Zaccaria, R.P.; Jacassi, A.; De Angelis, F. Hybridization in Three Dimensions: A Novel Route toward Plasmonic Metamolecules. Nano Lett. 2015, 15, 5200–5207. [Google Scholar] [CrossRef]
  32. Masuda, H.; Fukuda, K. Ordered Metal Nanohole Arrays Made by a Two-Step Replication of Honeycomb Structures of Anodic Alumina. Science 1995, 268, 1466–1468. [Google Scholar] [CrossRef]
  33. Yao, J.; Liu, Z.; Liu, Y.; Wang, Y.; Sun, C.; Bartal, G.; Stacy, A.M.; Zhang, X. Optical Negative Refraction in Bulk Metamaterials of Nanowires. Science 2008, 321, 930. [Google Scholar] [CrossRef]
  34. Dickson, W.; Wurtz, G.A.; Evans, P.; O’Connor, D.; Atkinson, R.; Pollard, R.; Zayats, A.V. Dielectric-loaded plasmonic nanoantenna arrays: A metamaterial with tuneable optical properties. Phys. Rev. B 2007, 76, 115411. [Google Scholar] [CrossRef]
  35. Li, L.; Sun, L.; Gomez-Diaz, J.S.; Hogan, N.L.; Lu, P.; Khatkhatay, F.; Zhang, W.; Jian, J.; Huang, J.; Su, Q.; et al. Self-Assembled Epitaxial Au–Oxide Vertically Aligned Nanocomposites for Nanoscale Metamaterials. Nano Lett. 2016, 16, 3936–3943. [Google Scholar] [CrossRef]
  36. Gao, J.; Wu, X.; Li, Q.; Du, S.; Huang, F.; Liang, L.; Zhang, H.; Zhuge, F.; Cao, H.; Song, Y. Template-Free Growth of Well-Ordered Silver Nano Forest/Ceramic Metamaterial Films with Tunable Optical Responses. Adv. Mater. 2017, 29, 1605324. [Google Scholar] [CrossRef]
  37. Zheng, H.; Wang, J.; Lofland, S.E.; Ma, Z.; Mohaddes-Ardabili, L.; Zhao, T.; Salamanca-Riba, L.; Shinde, S.R.; Ogale, S.B.; Bai, F.; et al. Multiferroic BaTiO3-CoFe2O4 Nanostructures. Science 2004, 303, 661–663. [Google Scholar] [CrossRef]
  38. Chen, A.; Bi, Z.; Jia, Q.; MacManus-Driscoll, J.L.; Wang, H. Microstructure, vertical strain control and tunable functionalities in self-assembled, vertically aligned nanocomposite thin films. Acta Mater. 2013, 61, 2783–2792. [Google Scholar] [CrossRef]
  39. Zhang, W.; Ramesh, R.; MacManus-Driscoll, J.L.; Wang, H. Multifunctional, self-assembled oxide nanocomposite thin films and devices. MRS Bull. 2015, 40, 736–745. [Google Scholar] [CrossRef]
  40. Li, L.; Misra, S.; Gao, X.; Liu, J.; Wang, H.; Huang, J.; Zhang, B.; Lu, P.; Wang, H. Novel vertically aligned nanocomposite of Bi2WO6-Co3O4 with room-temperature multiferroic and anisotropic optical response. Nano Res. 2021, 14, 4789–4794. [Google Scholar] [CrossRef]
  41. Huang, J.; Zhang, D.; Liu, J.; Dou, H.; Wang, H. Double-Exchange Bias Modulation under Horizontal and Perpendicular Field Directions by 3D Nanocomposite Design. ACS Appl. Mater. Interfaces 2021, 13, 50141–50148. [Google Scholar] [CrossRef]
  42. Huang, J.; Li, L.; Lu, P.; Qi, Z.; Sun, X.; Zhang, X.; Wang, H. Self-assembled Co–BaZrO3 nanocomposite thin films with ultra-fine vertically aligned Co nanopillars. Nanoscale 2017, 9, 7970–7976. [Google Scholar] [CrossRef]
  43. Wang, X.; Choi, J.; Liu, J.; Malis, O.; Li, X.; Bermel, P.; Zhang, X.; Wang, H. 3D Hybrid Trilayer Heterostructure: Tunable Au Nanorods and Optical Properties. ACS Appl. Mater. Interfaces 2020, 12, 45015–45022. [Google Scholar] [CrossRef]
  44. Wang, X.; Qi, Z.; Liu, J.; Wang, H.; Xu, X.; Zhang, X.; Wang, H. Strong Interfacial Coupling of Tunable Ni–NiO Nanocomposite Thin Films Formed by Self-Decomposition. ACS Appl. Mater. Interfaces 2021, 13, 39730–39737. [Google Scholar] [CrossRef] [PubMed]
  45. Zhang, D.; Lu, P.; Misra, S.; Wissel, A.; He, Z.; Qi, Z.; Gao, X.; Sun, X.; Liu, J.; Lu, J.; et al. Design of 3D Oxide–Metal Hybrid Metamaterial for Tailorable Light–Matter Interactions in Visible and Near-Infrared Region. Adv. Opt. Mater. 2020, 9, 2001154. [Google Scholar] [CrossRef]
  46. Lu, J.; Paldi, R.L.; Pachaury, Y.; Zhang, D.; Wang, H.; Kalaswad, M.; Sun, X.; Liu, J.; Phuah, X.L.; Zhang, X.; et al. Ordered hybrid metamaterial of La0.7Sr0.3MnO3–Au vertically aligned nanocomposites achieved on templated SrTiO3 substrate. Mater. Today Nano 2021, 15, 100121. [Google Scholar] [CrossRef]
  47. Wang, X.; Wang, H.; Jian, J.; Rutherford, B.X.; Gao, X.; Xu, X.; Zhang, X.; Wang, H. Metal-Free Oxide-Nitride Heterostructure as a Tunable Hyperbolic Metamaterial Platform. Nano Lett. 2020, 20, 6614–6622. [Google Scholar] [CrossRef]
  48. Tsai, B.K.; Song, J.; Liu, J.; Shen, J.; Zhang, Y.; Zhang, X.; Wang, H. Au nanopillar array prepared by selective etching of Au-Sr3Al2O6 vertically aligned nanocomposite thin films. Next Nanotechnol. 2024, 6, 100071. [Google Scholar] [CrossRef]
  49. Wang, X.; Jian, J.; Diaz-Amaya, S.; Kumah, C.E.; Lu, P.; Huang, J.; Lim, D.G.; Pol, V.G.; Youngblood, J.P.; Boltasseva, A.; et al. Hybrid plasmonic Au-TiN vertically aligned nanocomposites: A nanoscale platform towards tunable optical sensing. Nanoscale Adv. 2018, 1, 1045–1054. [Google Scholar] [CrossRef]
  50. Wang, X.; Jian, J.; Zhou, Z.; Fan, C.; Dai, Y.; Li, L.; Huang, J.; Sun, J.; Donohue, A.; Bermel, P.; et al. Self-Assembled Ag–TiN Hybrid Plasmonic Metamaterial: Tailorable Tilted Nanopillar and Optical Properties. Adv. Opt. Mater. 2018, 7, 1801180. [Google Scholar] [CrossRef]
  51. Kalaswad, M.; Zhang, D.; Rutherford, B.X.; Lu, J.; Barnard, J.P.; He, Z.; Liu, J.; Wang, H.; Xu, X.; Wang, H. TiN–Fe Vertically Aligned Nanocomposites Integrated on Silicon as a Multifunctional Platform toward Device Applications. Crystals 2022, 12, 849. [Google Scholar] [CrossRef]
  52. Huang, J.; Wang, X.; Hogan, N.L.; Wu, S.; Lu, P.; Fan, Z.; Dai, Y.; Zeng, B.; Starko-Bowes, R.; Jian, J.; et al. Nanoscale Artificial Plasmonic Lattice in Self-Assembled Vertically Aligned Nitride-Metal Hybrid Metamaterials. Adv. Sci. 2018, 5, 1800416. [Google Scholar] [CrossRef]
  53. Wang, X.; Jian, J.; Wang, H.; Liu, J.; Pachaury, Y.; Lu, P.; Rutherford, B.X.; Gao, X.; Xu, X.; El-Azab, A.; et al. Nitride-Oxide-Metal Heterostructure with Self-Assembled Core–Shell Nanopillar Arrays: Effect of Ordering on Magneto-Optical Properties. Small 2021, 17, 2007222. [Google Scholar] [CrossRef]
  54. Rutherford, B.X.; Zhang, B.; Kalaswad, M.; He, Z.; Zhang, D.; Wang, X.; Liu, J.; Wang, H. Tunable Three-Phase Co–CeO2–BaTiO3 Hybrid Metamaterials with Nano-Mushroom-Like Structure for Tailorable Multifunctionalities. ACS Appl. Nano Mater. 2022, 5, 6297–6304. [Google Scholar] [CrossRef]
  55. Misra, S.; Li, L.; Zhang, D.; Jian, J.; Qi, Z.; Fan, M.; Chen, H.T.; Zhang, X.; Wang, H. Self-Assembled Ordered Three-Phase Au–BaTiO3–ZnO Vertically Aligned Nanocomposites Achieved by a Templating Method. Adv. Mater. 2018, 31, 1806529. [Google Scholar] [CrossRef]
  56. Zhang, D.; Misra, S.; Jian, J.; Lu, P.; Li, L.; Wissel, A.; Zhang, X.; Wang, H. Self-Assembled BaTiO3–AuxAg1−x Low-Loss Hybrid Plasmonic Metamaterials with an Ordered “Nano-Domino-like” Microstructure. ACS Appl. Mater. Interfaces 2021, 13, 5390–5398. [Google Scholar] [CrossRef]
  57. Huang, J.; Phuah, X.L.; McClintock, L.M.; Padmanabhan, P.; Vikrant, K.S.N.; Wang, H.; Zhang, D.; Wang, H.; Lu, P.; Gao, X.; et al. Core-shell metallic alloy nanopillars-in-dielectric hybrid metamaterials with magneto-plasmonic coupling. Mater. Today 2021, 51, 39–47. [Google Scholar] [CrossRef]
  58. Paldi, R.L.; Wang, X.; Sun, X.; He, Z.; Qi, Z.; Zhang, X.; Wang, H. Vertically Aligned AgxAu1−x Alloyed Nanopillars Embedded in ZnO as Nanoengineered Low-Loss Hybrid Plasmonic Metamaterials. Nano Lett. 2020, 20, 3778–3785. [Google Scholar] [CrossRef]
  59. Song, J.; Zhang, D.; Lu, P.; Zhang, Y.; Wang, H.; Dou, H.; Xu, X.; Deitz, J.; Zhang, X.; Wang, H. Self-Assembled Complex Three-Phase Core–Shell Nanostructure of Au–CoFe2–TiN with a Magneto-Optical Coupling Effect. ACS Appl. Mater. Interfaces 2023, 15, 37810–37817. [Google Scholar] [CrossRef]
  60. Song, J.; Zhang, D.; Lu, P.; Wang, H.; Xu, X.; Meyerson, M.L.; Rosenberg, S.G.; Deitz, J.; Liu, J.; Wang, X.; et al. Anisotropic optical and magnetic response in self-assembled TiN–CoFe2 nanocomposites. Mater. Today Nano 2023, 22, 100316. [Google Scholar] [CrossRef]
  61. Yamamoto, Y.; Harada, S.; Yamamoto, D.; Honda, W.; Arie, T.; Akita, S.; Takei, K. Printed multifunctional flexible device with an integrated motion sensor for health care monitoring. Sci. Adv. 2016, 2, e1601473. [Google Scholar] [CrossRef]
  62. Rogers, J.A.; Someya, T.; Huang, Y. Materials and Mechanics for Stretchable Electronics. Science 2010, 327, 1603–1607. [Google Scholar] [CrossRef]
  63. Bao, Z.; Chen, X. Flexible and Stretchable Devices. Adv. Mater. 2016, 28, 4177–4179. [Google Scholar] [CrossRef]
  64. Son, D.; Lee, J.; Qiao, S.; Ghaffari, R.; Kim, J.; Lee, J.E.; Song, C.; Kim, S.J.; Lee, D.J.; Jun, S.W.; et al. Multifunctional wearable devices for diagnosis and therapy of movement disorders. Nat. Nanotechnol. 2014, 9, 397–404. [Google Scholar] [CrossRef]
  65. Huang, J.; Zhang, D.; Liu, J.; Wang, H. Freestanding La0.7Sr0.3MnO3:NiO vertically aligned nanocomposite thin films for flexible perpendicular interfacial exchange coupling. Mater. Res. Lett. 2022, 10, 287–294. [Google Scholar] [CrossRef]
  66. Wee, S.H.; Huang, P.-S.; Lee, J.-K.; Goyal, A. Heteroepitaxial Cu2O thin film solar cell on metallic substrates. Sci. Rep. 2015, 5, 16272. [Google Scholar] [CrossRef]
  67. Dutta, P.; Rathi, M.; Zheng, N.; Gao, Y.; Yao, Y.; Martinez, J.; Ahrenkiel, P.; Selvamanickam, V. High mobility single-crystalline-like GaAs thin films on inexpensive flexible metal substrates by metal-organic chemical vapor deposition. Appl. Phys. Lett. 2014, 105, 092104. [Google Scholar] [CrossRef]
  68. Huang, J.; Chen, L.; Jian, J.; Khatkhatay, F.; Jacob, C.; Wang, H. A simplified superconducting coated conductor design with Fe-based superconductors on glass and flexible metallic substrates. J. Alloys Compd. 2015, 647, 380–385. [Google Scholar] [CrossRef]
  69. Bitla, Y.; Chu, Y.-H. MICAtronics: A new platform for flexible X-tronics. FlatChem 2017, 3, 26–42. [Google Scholar] [CrossRef]
  70. Chu, Y.-H. Van der Waals oxide heteroepitaxy. npj Quantum Mater. 2017, 2, 67. [Google Scholar] [CrossRef]
  71. Huang, J.; Wang, H.; Qi, Z.; Lu, P.; Zhang, D.; Zhang, B.; He, Z.; Wang, H. Multifunctional Metal–Oxide Nanocomposite Thin Film with Plasmonic Au Nanopillars Embedded in Magnetic La0.67Sr0.33MnO3 Matrix. Nano Lett. 2021, 21, 1032–1039. [Google Scholar] [CrossRef]
  72. Ma, C.-H.; Lin, J.-C.; Liu, H.-J.; Do, T.H.; Zhu, Y.-M.; Ha, T.D.; Zhan, Q.; Juang, J.-Y.; He, Q.; Arenholz, E.; et al. Van der Waals epitaxy of functional MoO2 film on mica for flexible electronics. Appl. Phys. Lett. 2016, 108, 253104. [Google Scholar] [CrossRef]
  73. Liu, H.-J.; Wang, C.-K.; Su, D.; Amrillah, T.; Hsieh, Y.-H.; Wu, K.-H.; Chen, Y.-C.; Juang, J.-Y.; Eng, L.M.; Jen, S.-U.; et al. Flexible Heteroepitaxy of CoFe2O4/Muscovite Bimorph with Large Magnetostriction. ACS Appl. Mater. Interfaces 2017, 9, 7297–7304. [Google Scholar] [CrossRef]
  74. Jiang, J.; Bitla, Y.; Huang, C.-W.; Do, T.H.; Liu, H.-J.; Hsieh, Y.-H.; Ma, C.-H.; Jang, C.-Y.; Lai, Y.-H.; Chiu, P.-W.; et al. Flexible ferroelectric element based on van der Waals heteroepitaxy. Sci. Adv. 2017, 3, e1700121. [Google Scholar] [CrossRef] [PubMed]
  75. Li, C.-I.; Lin, J.-C.; Liu, H.-J.; Chu, M.-W.; Chen, H.-W.; Ma, C.-H.; Tsai, C.-Y.; Huang, H.-W.; Lin, H.-J.; Liu, H.-L.; et al. van der Waal Epitaxy of Flexible and Transparent VO2 Film on Muscovite. Chem. Mater. 2016, 28, 3914–3919. [Google Scholar] [CrossRef]
  76. Xu, R.; Zhang, X.; Zhang, D.; Liu, J.; Lu, J.; Zhao, R.; Ji, Y.; Qian, F.; Wang, H.; Fan, J.; et al. High stability of flexible perovskite transparent conductive oxide film via van der Waals heteroepitaxy. J. Alloys Compd. 2022, 890, 161897. [Google Scholar] [CrossRef]
  77. Amrillah, T.; Bitla, Y.; Shin, K.; Yang, T.; Hsieh, Y.-H.; Chiou, Y.-Y.; Liu, H.-J.; Do, T.H.; Su, D.; Chen, Y.-C.; et al. Flexible Multiferroic Bulk Heterojunction with Giant Magnetoelectric Coupling via van der Waals Epitaxy. ACS Nano 2017, 11, 6122–6130. [Google Scholar] [CrossRef]
  78. Huang, J.; Wang, H.; Wang, X.; Gao, X.; Liu, J.; Wang, H. Exchange Bias in a La0.67Sr0.33MnO3/NiO Heterointerface Integrated on a Flexible Mica Substrate. ACS Appl. Mater. Interfaces 2020, 12, 39920–39925. [Google Scholar] [CrossRef] [PubMed]
  79. Liu, J.; Wang, X.; Gao, X.; Wang, H.; Jian, J.; Huang, J.; Sun, X.; Qi, Z.; Misra, S.; He, Z.; et al. Multifunctional self-assembled BaTiO3-Au nanocomposite thin films on flexible mica substrates with tunable optical properties. Appl. Mater. Today 2020, 21, 100856. [Google Scholar] [CrossRef]
  80. Liu, J.; Wang, X.; Gao, X.; Wang, H.; Zhang, B.; Zhang, D.; Kalaswad, M.; Huang, J.; Wang, H. Integration of Self-Assembled BaZrO3-Co Vertically Aligned Nanocomposites on Mica Substrates toward Flexible Spintronics. Cryst. Growth Des. 2021, 22, 718–725. [Google Scholar] [CrossRef]

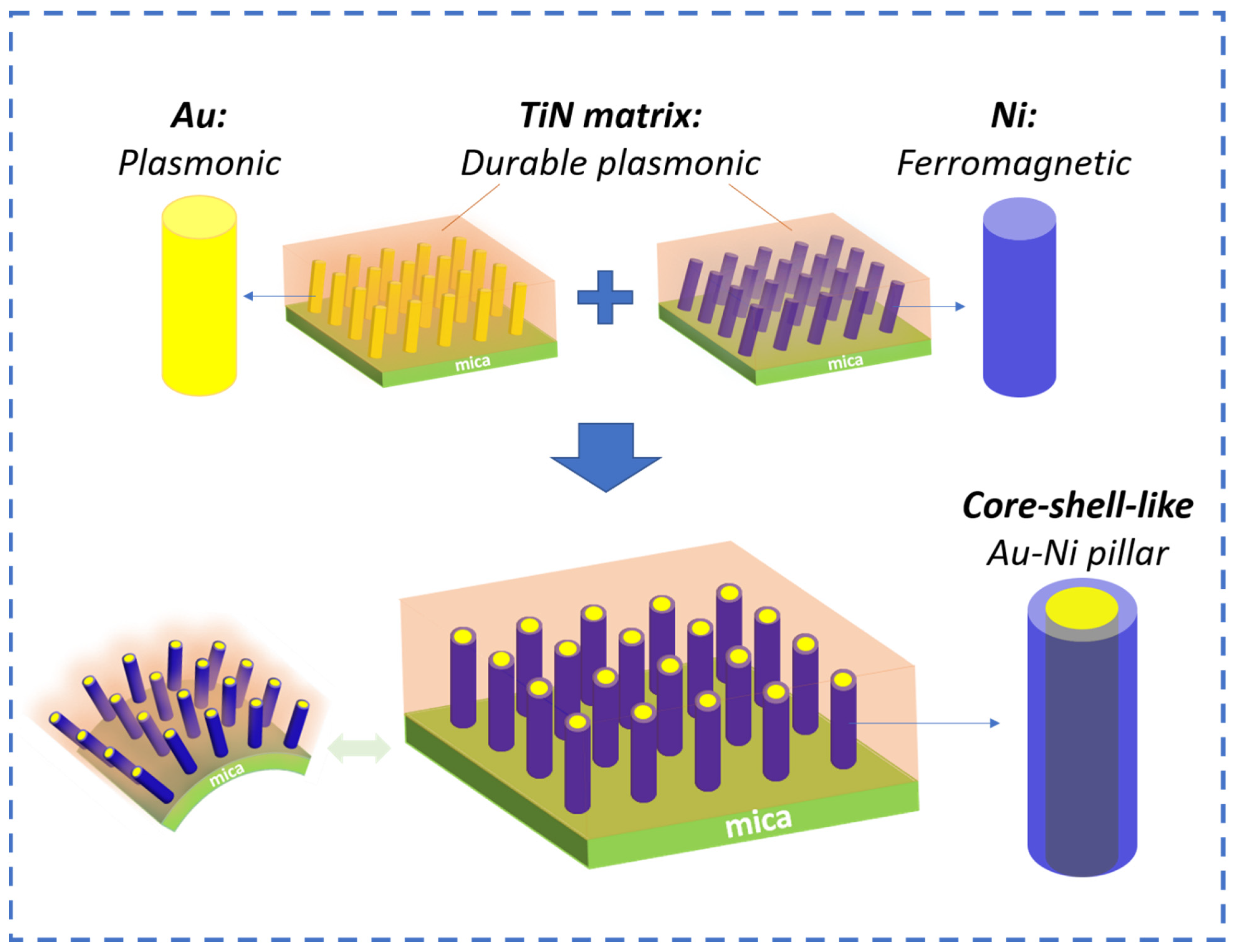

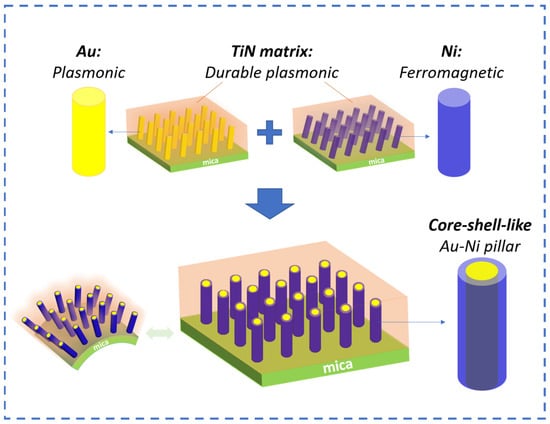

Figure 1. Conceptual drawing of the design of the work. TiN-based nanocomposite films with plasmonic Au pillars and ferromagnetic Ni pillars as well as core–shell-like pillars demonstrated on flexible mica substrates.
Figure 1. Conceptual drawing of the design of the work. TiN-based nanocomposite films with plasmonic Au pillars and ferromagnetic Ni pillars as well as core–shell-like pillars demonstrated on flexible mica substrates.
Sensors 24 04863 g001

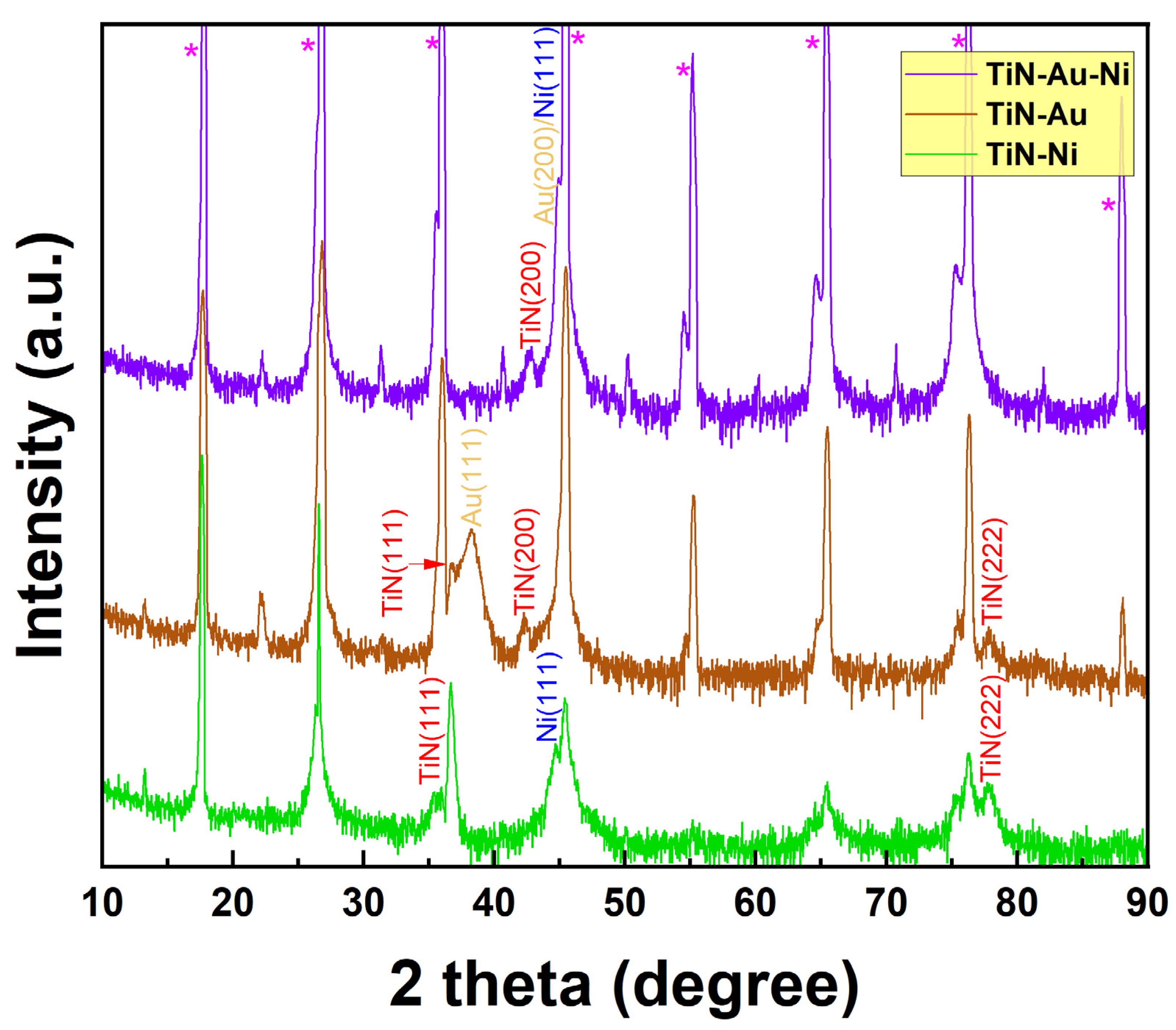

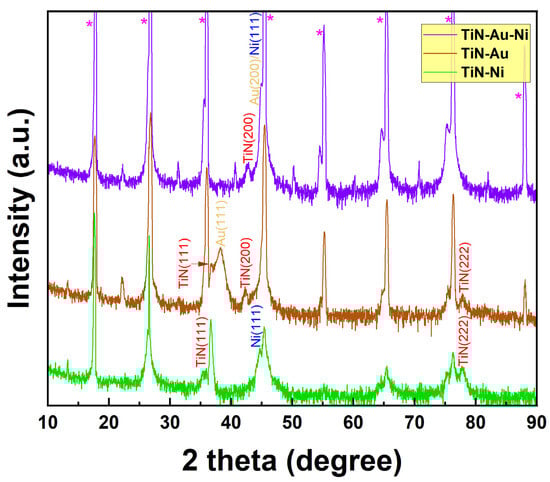

Figure 2. XRD results of the TiN-Ni/mica, TiN-Au/mica, and TiN-Au-Ni/mica films. * stands for mica (001) peaks.
Figure 2. XRD results of the TiN-Ni/mica, TiN-Au/mica, and TiN-Au-Ni/mica films. * stands for mica (001) peaks.
Sensors 24 04863 g002

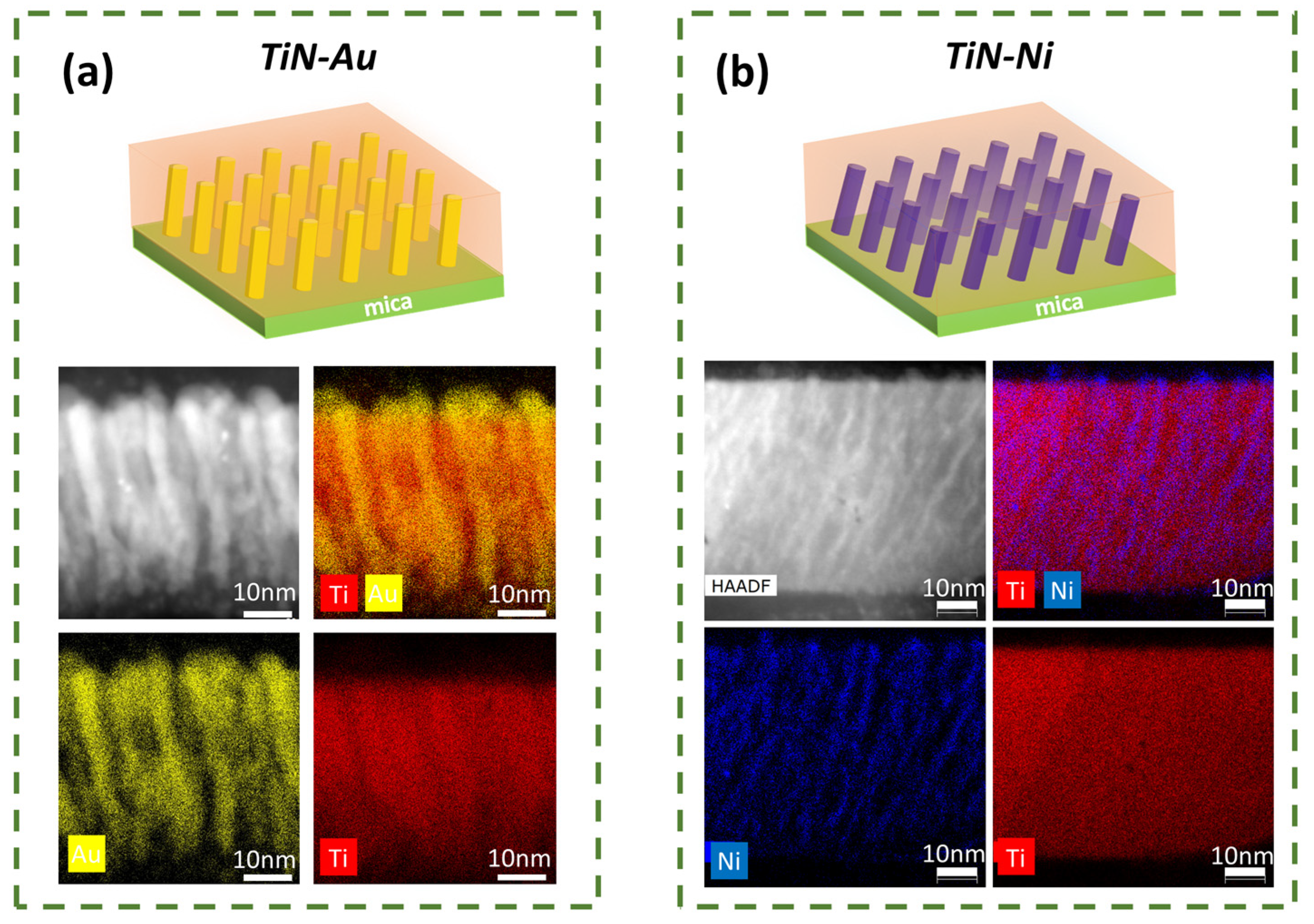

Figure 3. Schematic drawings and cross-sectional STEM image as well as the corresponding EDS mappings for (a) TiN-Au/mica and (b) TiN-Ni/mica films.
Figure 3. Schematic drawings and cross-sectional STEM image as well as the corresponding EDS mappings for (a) TiN-Au/mica and (b) TiN-Ni/mica films.
Sensors 24 04863 g003

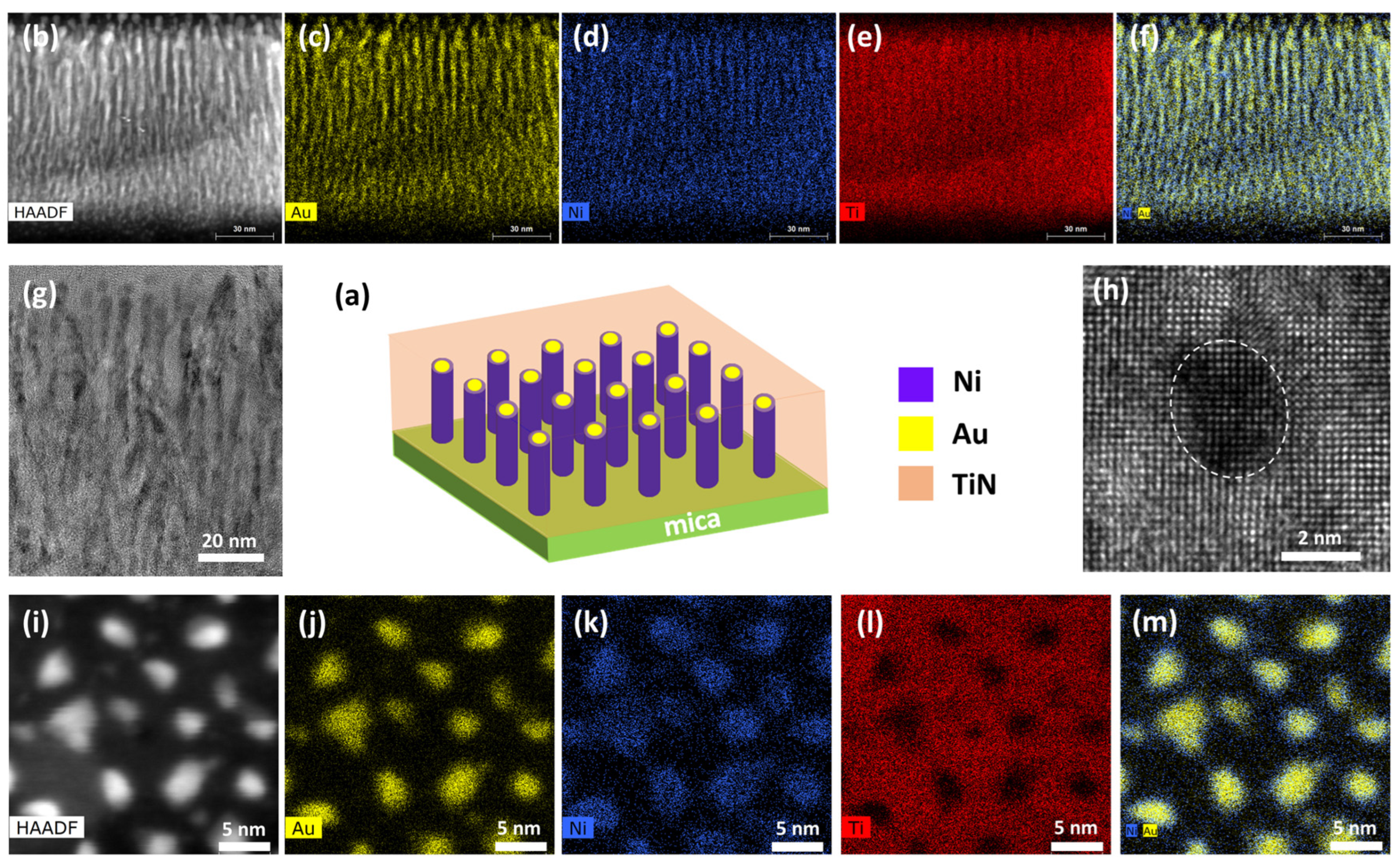

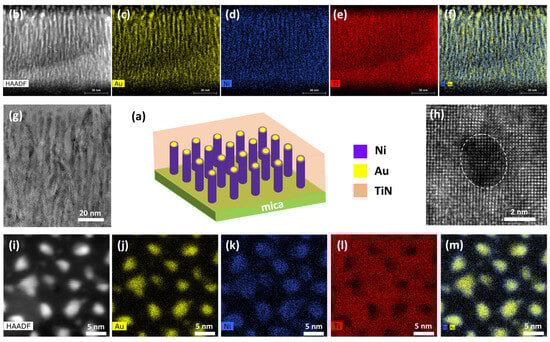

Figure 4. (a) Schematic drawing of TiN-Au-Ni/mica film. (b) Cross-sectional STEM image with (cf) corresponding EDS mappings. (g) Cross-sectional TEM image. (h) Plan-view TEM image. (i) Plan-view STEM image, with (jm) corresponding EDS mappings.
Figure 4. (a) Schematic drawing of TiN-Au-Ni/mica film. (b) Cross-sectional STEM image with (cf) corresponding EDS mappings. (g) Cross-sectional TEM image. (h) Plan-view TEM image. (i) Plan-view STEM image, with (jm) corresponding EDS mappings.
Sensors 24 04863 g004

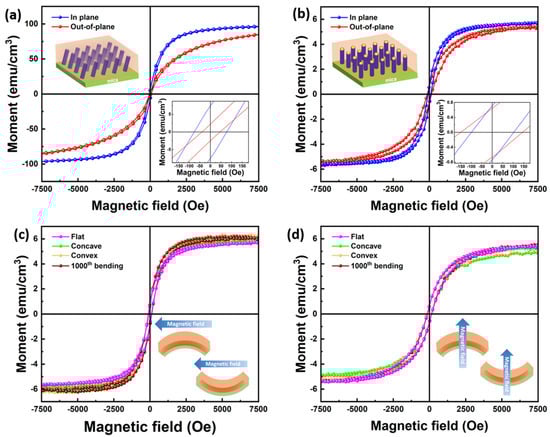

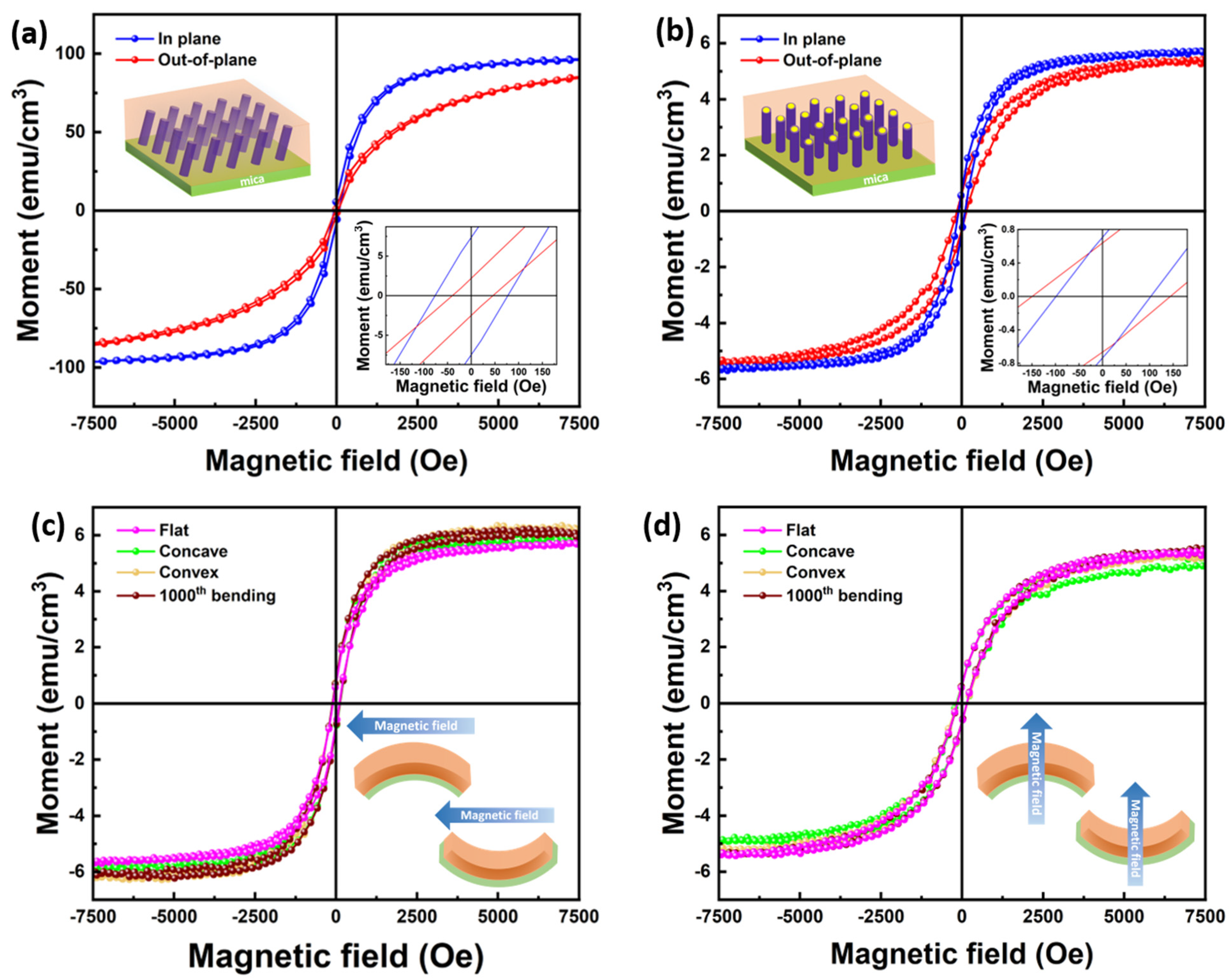

Figure 5. IP and OP M-H curves for the (a) TiN-Au-Ni/mica and (b) TiN-Ni/mica film. (c) IP and (d) OP M-H curves for the TiN-Au-Ni/mica film after the bending test.
Figure 5. IP and OP M-H curves for the (a) TiN-Au-Ni/mica and (b) TiN-Ni/mica film. (c) IP and (d) OP M-H curves for the TiN-Au-Ni/mica film after the bending test.
Sensors 24 04863 g005

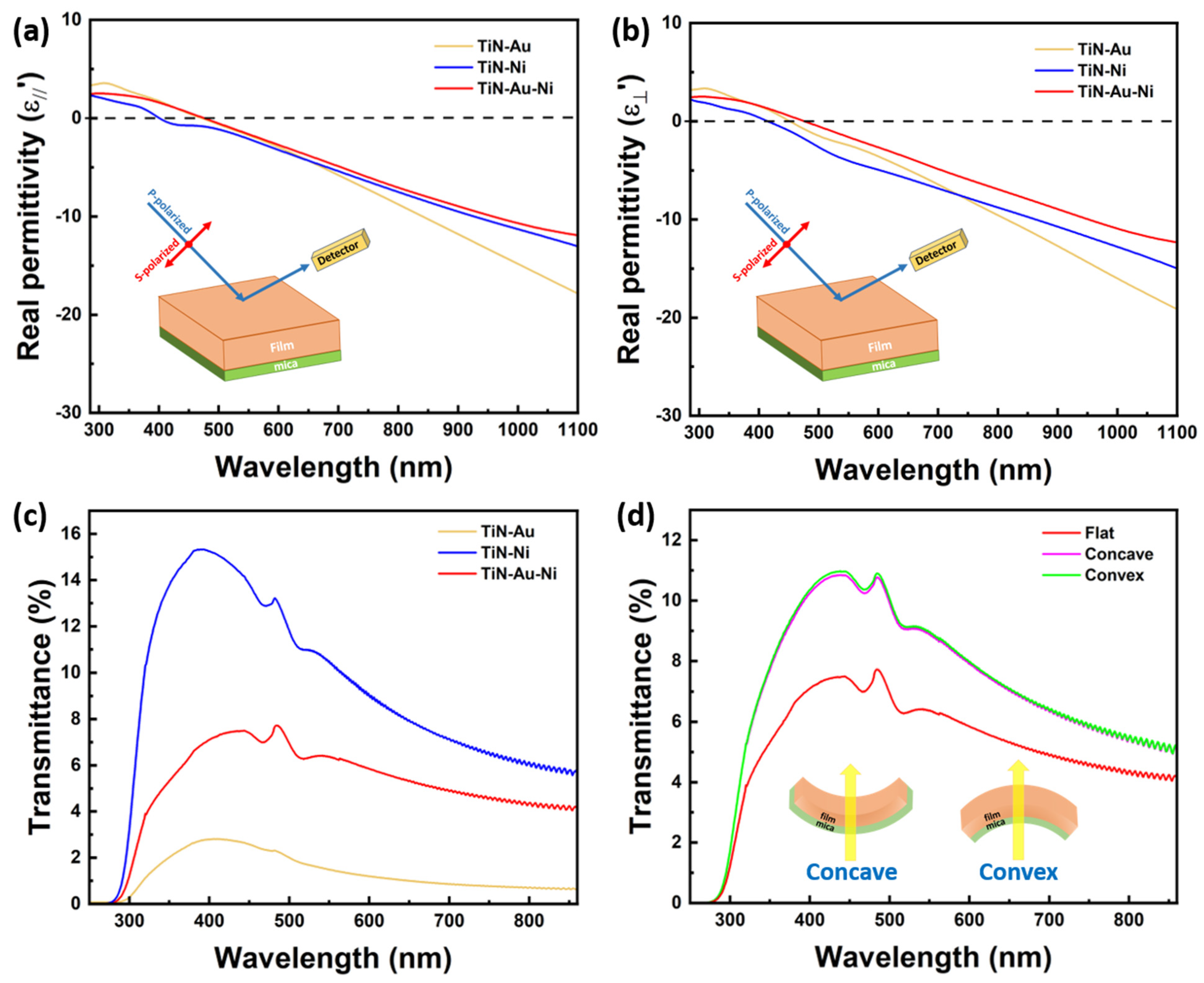

Figure 6. (a) IP and (b) OP real permittivity of the TiN-Au/mica, TiN-Ni/mica, and TiN-Au-Ni/mica films. (c) Transmittance of the three films. (d) Transmittance of the TiN-Au-Ni/mica film at different bending statuses.
Figure 6. (a) IP and (b) OP real permittivity of the TiN-Au/mica, TiN-Ni/mica, and TiN-Au-Ni/mica films. (c) Transmittance of the three films. (d) Transmittance of the TiN-Au-Ni/mica film at different bending statuses.
Sensors 24 04863 g006

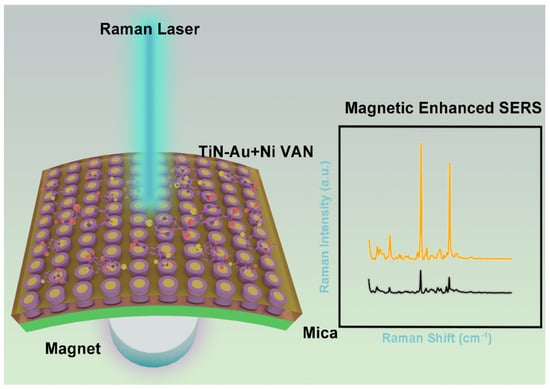

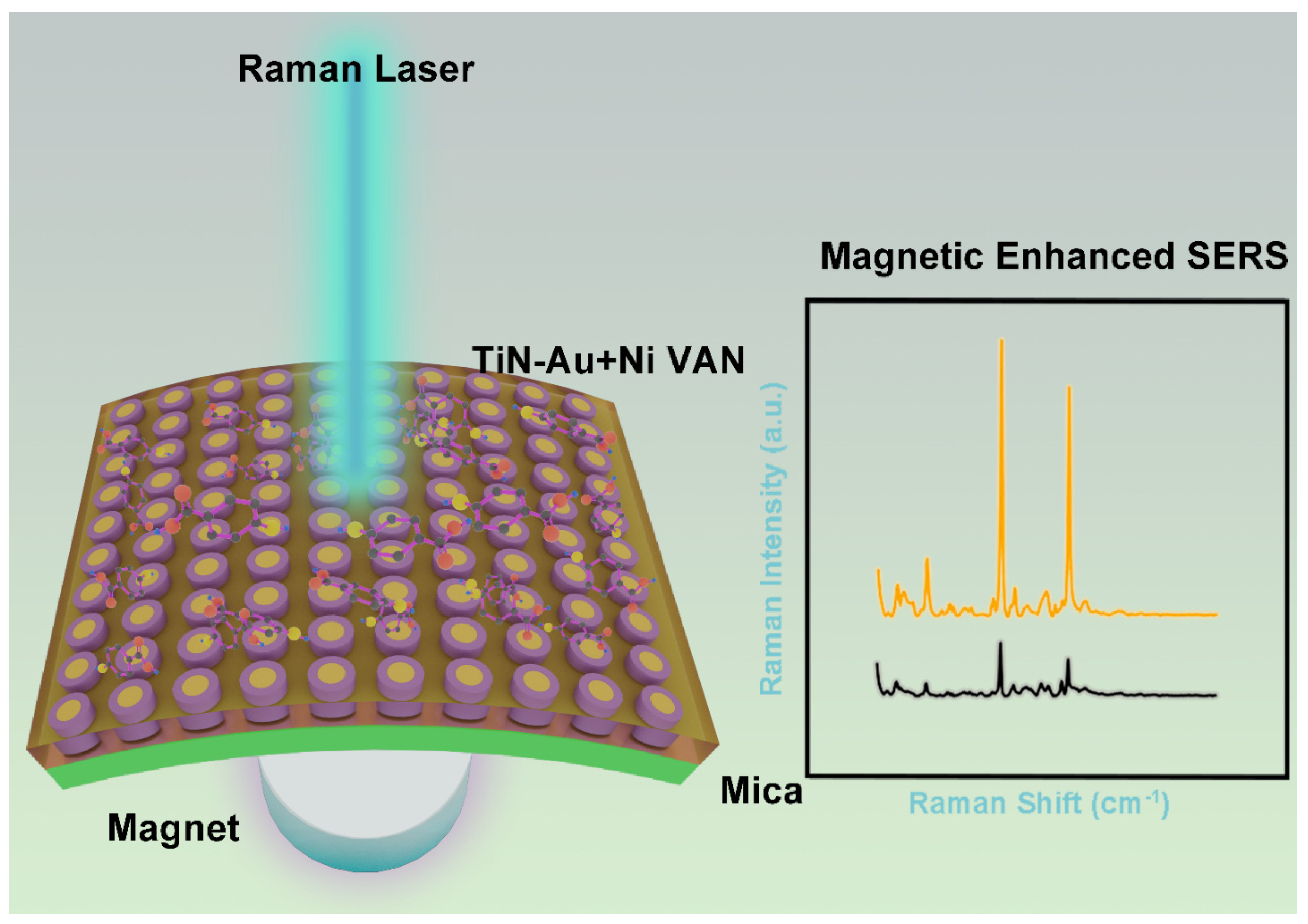

Figure 7. Proposed device on a magnetic field enhancing the Raman signal using the TiN-Au-Ni VANs on mica.
