Analysis of 5G and LTE Signals for Opportunistic Navigation and Time Holdover

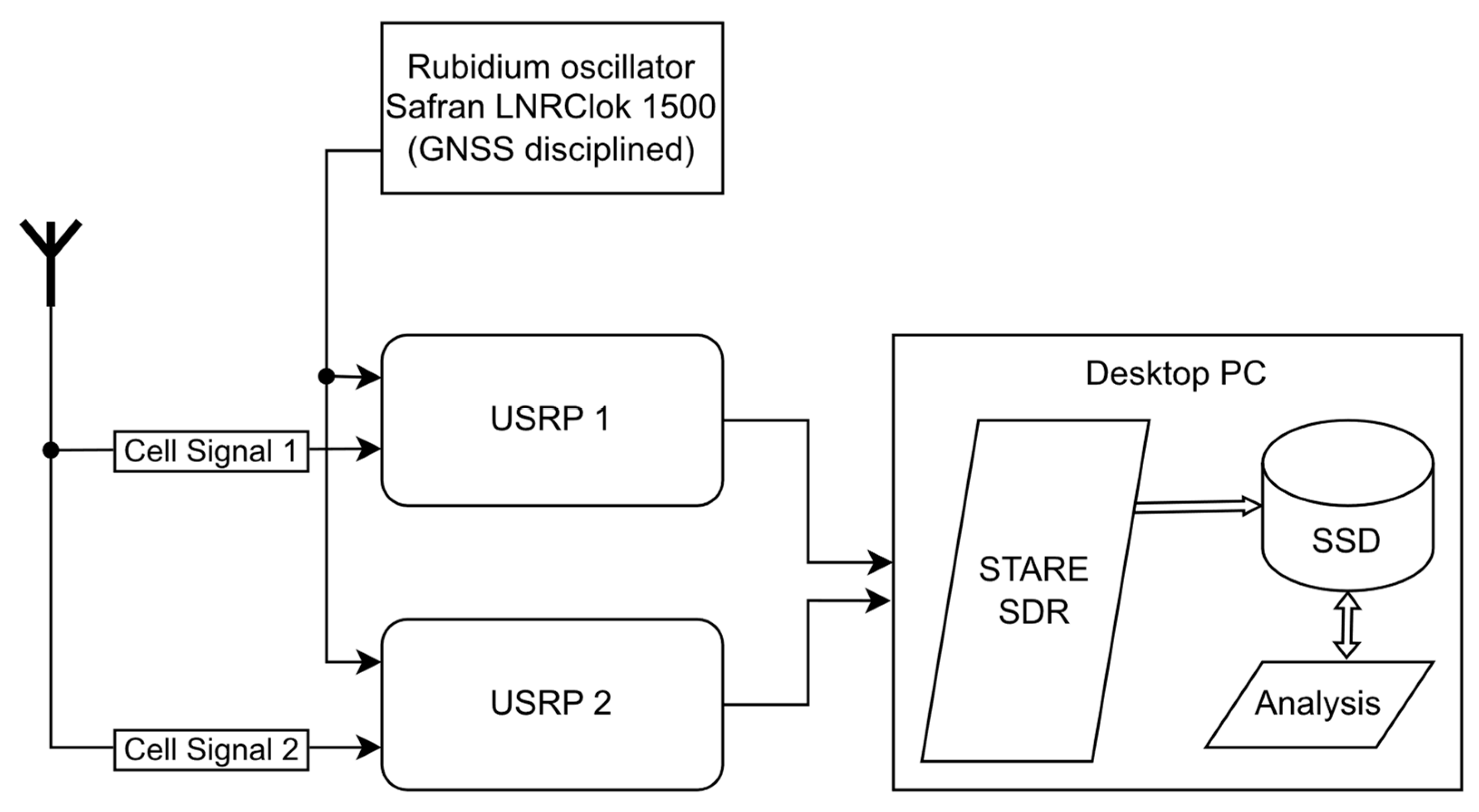

The purpose of this study was to evaluate the stability and therefore suitability of available fifth generation (5G) and long-term evolution (LTE) signals for positioning navigation and timing (PNT) purposes with particular focus on answering questions around the time-scale-dependent stability of these sources, which, to our knowledge, has not been addressed in the context of the numerous publications within the PNT community to date. The methodology used directly measured the over-the-air signal phase stability to one or more of the cellular signal sources that were visible from the lab environment simultaneously while using a local atomic clock or differential measurements to isolate the time stability of the observable cellular downlink signals. This approach was taken since it does not require subscription or association with the networks under test. Instead, it exploits a ‘signal of opportunity’ (SoP) approach to signal use for PNT purposes. The somewhat surprising result is that the time domain instability of the sources was highly variable, dependent on the implementation choices of the operator, and that the stability of even the modernized towers was generally best at interrogation intervals of approximately 0.01 s, which indicates that the existing exploitation of these signals within the PNT community has substantial room for improvement through simple changes to the selected update rate used.
