Multi-Core Time-Triggered OCBP-Based Scheduling for Mixed Criticality Periodic Task Systems
- The extension of a mixed criticality uniprocessor table-driven scheduling algorithm to a mixed criticality algorithm for periodic tasks on a multiprocessor platform (Section 4.1, Section 4.2 and Section 4.6). The original method has been modified to employ a periodic mixed criticality job model (Section 4.4 and Section 4.5).
- The proposal of a task partitioning heuristic for the multiprocessor mixed criticality system (Section 4.3).
- The comparison of the newly developed algorithm in terms of success ratio with two state-of-the-art methods (Section 5).
- This current paper aims to demonstrate the efficiency of algorithm  through:
- More experiments and comparisons.
- Additional details about the algorithm implementation.
2. Related Work
2.1. Event-Driven Scheduling Algorithms
2.2. Time-Triggered Scheduling Algorithms
3. Model and Problem Statement
- An MCS executes in either of two modes: Hi-criticality mode or Lo-criticality mode.
- Each mixed-criticality task τi is characterized by a set of parameters [7,14]:
- A task consists of a series of jobs that inherit some of the parameters of the task (Ti,Di,Li). Furthermore, each job adds its own parameters, which means that the k-th job of task i is characterized by the following:
- ai,k represents the arrival time of job k, with ai,k+1 − ai,k ≥ Ti.
- di,k is the absolute deadline of job k and can be obtained using di,k = ai,k + Di.
- ci,k expresses the execution time and depends on the criticality mode of the system (e.g., for L = Lo, ci,k = Ci,Lo).
- si,k offers the absolute execution start time corresponding to job k and, similar to ci,k, also depends on the criticality mode of the system.

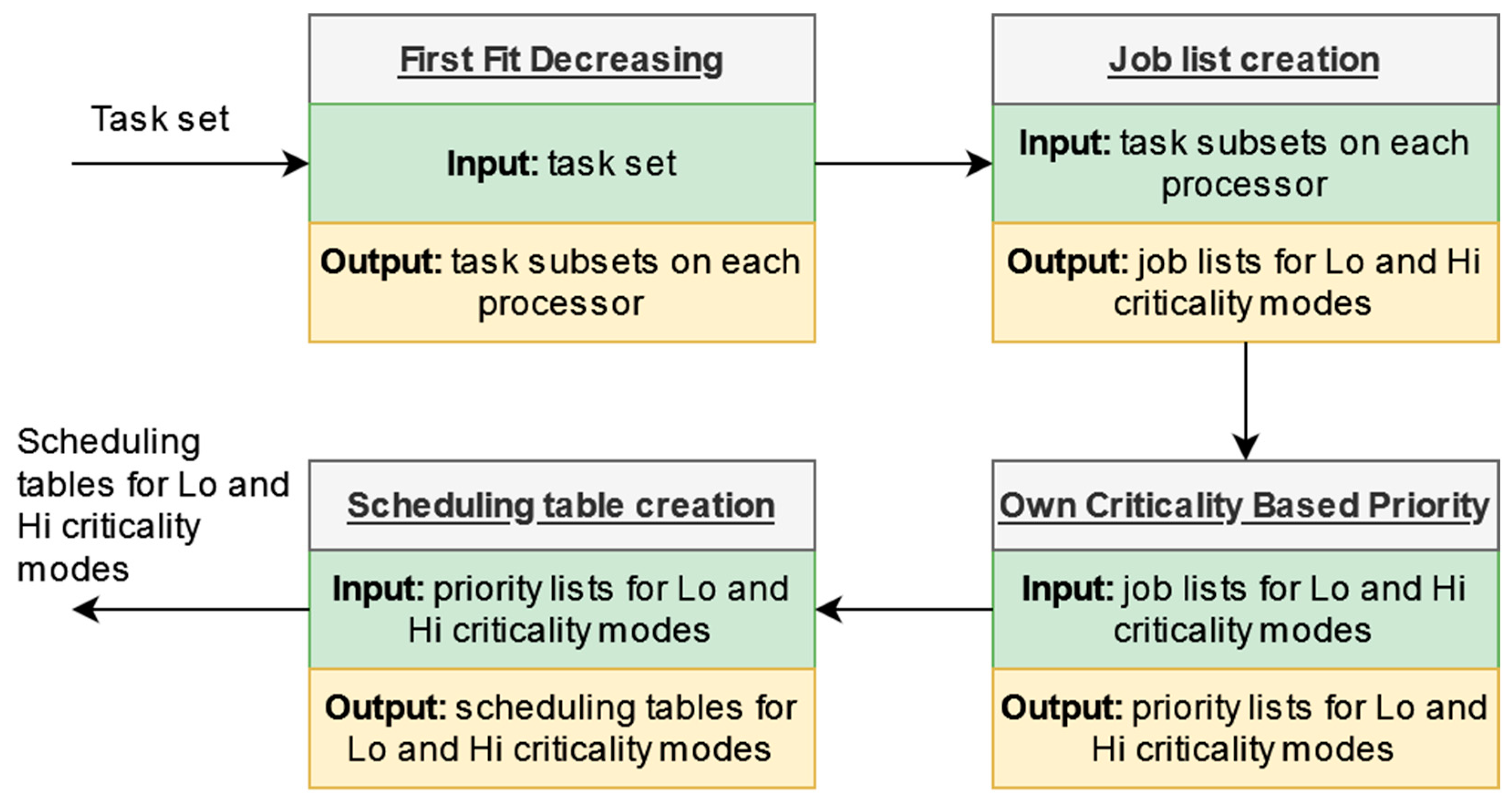

4. Algorithm P-TT-OCBP
4.1. Original Algorithm
|Algorithm 1: Own Criticality Based Priority.|
|Input: (the job list for processor )|
|Output: (the priority list for processor )|
|sort in non-decreasing order by |
| for do|
if and then
if and and then
4.2. Working Hypothesis
- A dual criticality system is defined to execute in one of two modes: Lo-criticality mode and Hi-criticality mode.
- Each job is characterized by the set of parameters described in (2), with C(Lo) ≤ C(Hi).
- The system starts in Lo-criticality mode and does not change as long as jobs execute within their Lo-criticality WCETs.
- If any job overruns its Lo-criticality WCET, then a criticality mode change occurs.
- As the system instantly moves to Hi-criticality mode, all Lo-criticality jobs are dropped (they are no longer executed). Hi-criticality jobs are allowed to run according to their Hi-criticality WCETs.
- The system remains in Hi-criticality mode.
- In this paper, we only consider the mode change from Lo-criticality to Hi-criticality.
4.3. Partitioning Tasks to Processors
- The utilization of each task is computed based on the criticality level (3): for Hi-criticality tasks there will be two utilizations (one for each criticality level).
- Tasks are selected one by one from the task set and added into each processor where a test is performed.
- Two conditions must be verified (4):
- The current total processor utilization in Lo-criticality mode must not exceed 1.
- The current total processor utilization in Hi-criticality mode must not exceed 1.
- If the above two conditions are met, the task will be assigned to Pq and the total processor utilizations are updated.
- If one of the two conditions returns failure, the task is removed from Pq and added into the next processor, where the same test is performed
4.4. Constructing the List of Jobs at the Processor Level
4.5. Scheduling at the Processor Level
- The job list to be prioritized must be parsed in non-decreasing order of deadlines di,k.
- The criticality level of the first job k from the list is verified:
- If the criticality level is Lo we compute the sum of the Lo-criticality WCETs (sum(Lo)) for the rest of the jobs.
- If the criticality level is Hi we compute two sums, one for Lo-criticality WCETs (sum(Lo)) and one for Hi-criticality WCETs (sum(Hi)) for the rest of the jobs.
- Next, the algorithm checks if job k can be added in the priority list, depending on its criticality level:
- For a Lo-criticality level:
- For a Hi-criticality level, two conditions must be met:
- If these conditions are met, job k is moved from the list of jobs to the priority list. Otherwise, the next job k + 1 in the list is taken, until the entire list of jobs is verified.
- If jobs are still in the list after the list of jobs is parsed at least once, the same algorithm is computed again, until no more jobs are left.
- If at least two jobs remain in the list of jobs which cannot be prioritized, the set of tasks is deemed not schedulable.
- The resulting priority list is sorted in non-decreasing order of deadlines. The schedule is constructed based on the priority list as follows:
- The first job is extracted from the priority list, with si,k = 0.
- We then compute the completion time (cti,k) of the job:
- For the next k − 1 jobs, we compare the arrival time with the previous job completion time: if the completion time is greater than the arrival time, then the start time will take on the value of the previous job completion time; otherwise, the start time will be equal to the current job arrival time. The completion time is computed using Equation (9).
4.6. System Execution
5.1. Task Set Generation
- Period: Ti is drawn using a uniform distribution on [10, 50].
- Deadline: Di = Ti.
- Criticality level: Li = Hi with a given probability PHi; otherwise, Li = Lo.
- Utilization: Ui,Lj (see Equation (3)), is a vector of size l, where l is the number of criticality levels. The utilizations are generated using five input parameters :
- [UL,UU]: The range of the task utilization, with 0 ≤ UL ≤ UU ≤ 1.
- [ZL,ZU]: The range of the ratio between Hi-criticality utilization of a task and Lo-criticality utilization, where 0 ≤ ZL ≤ ZU.
- WCET: (a) for Lo-criticality level: and (b) for Hi-criticality level: if Li = Hi, otherwise .
- Start time:

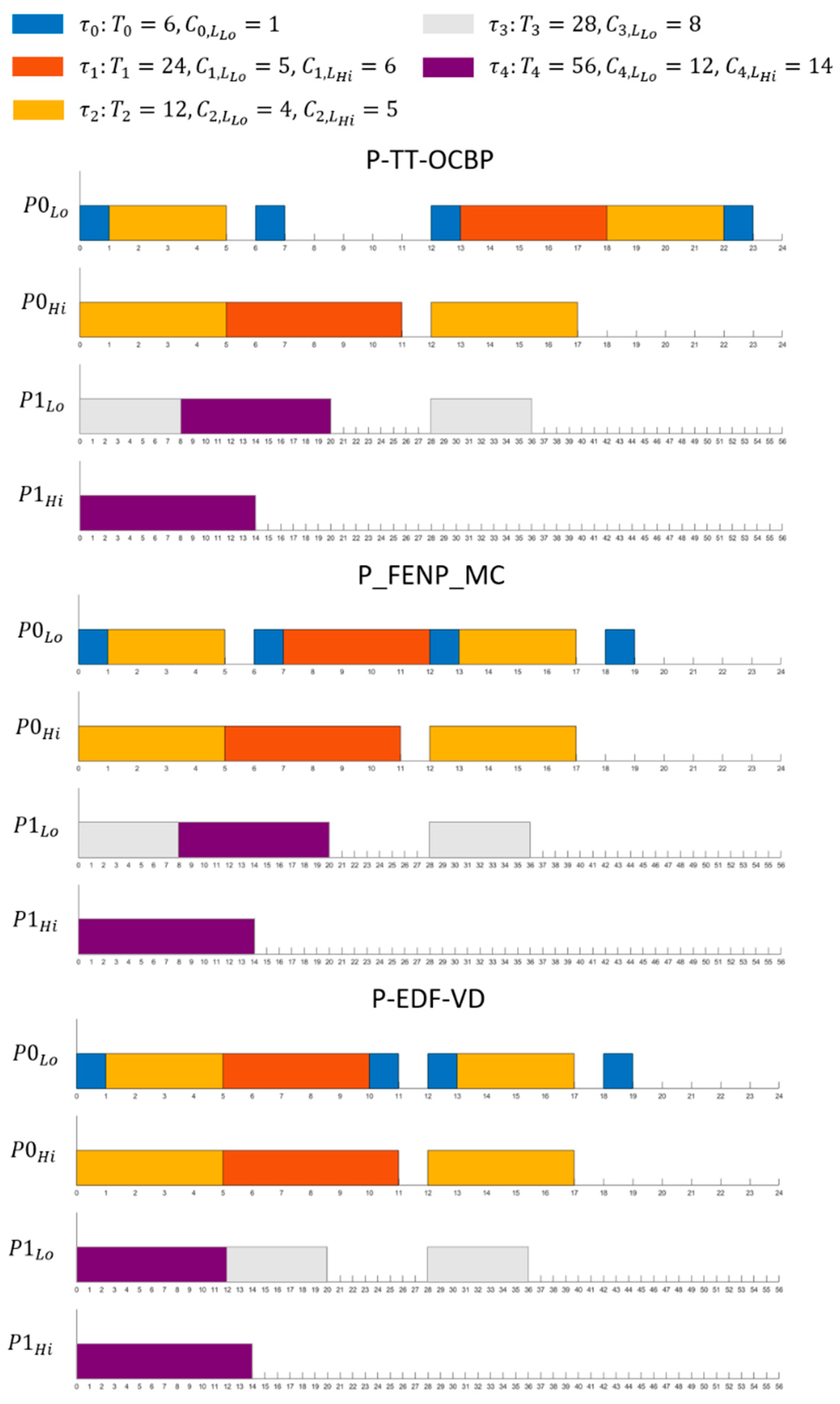

5.2. Execution Example and Comparison

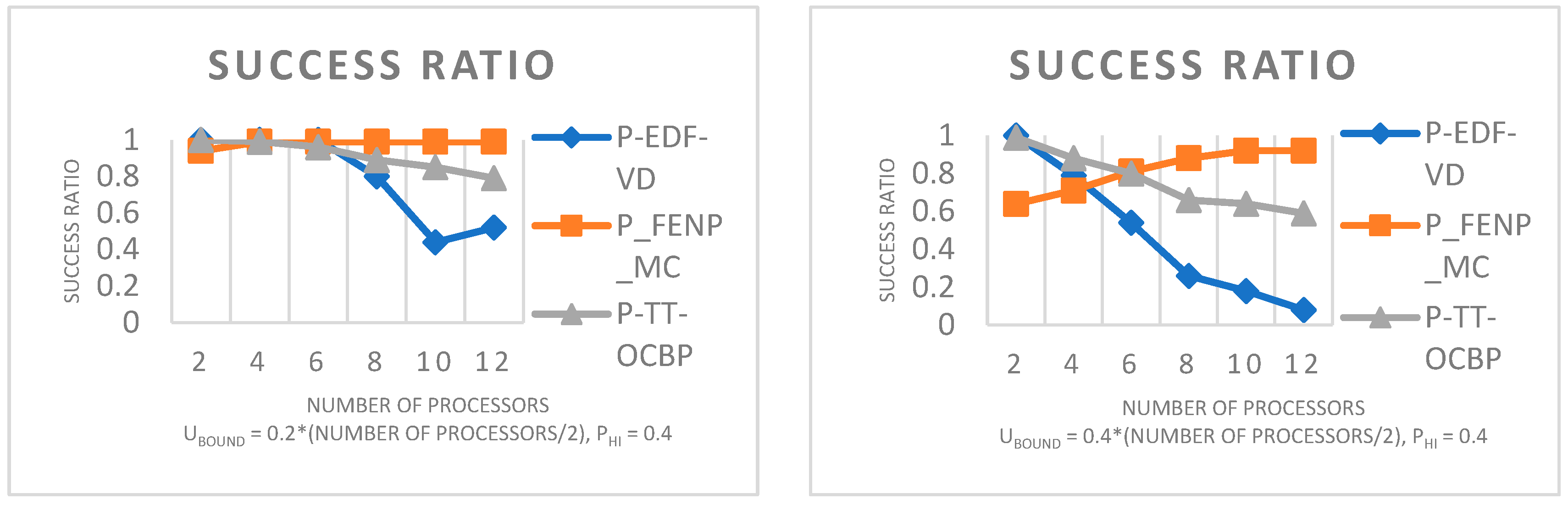

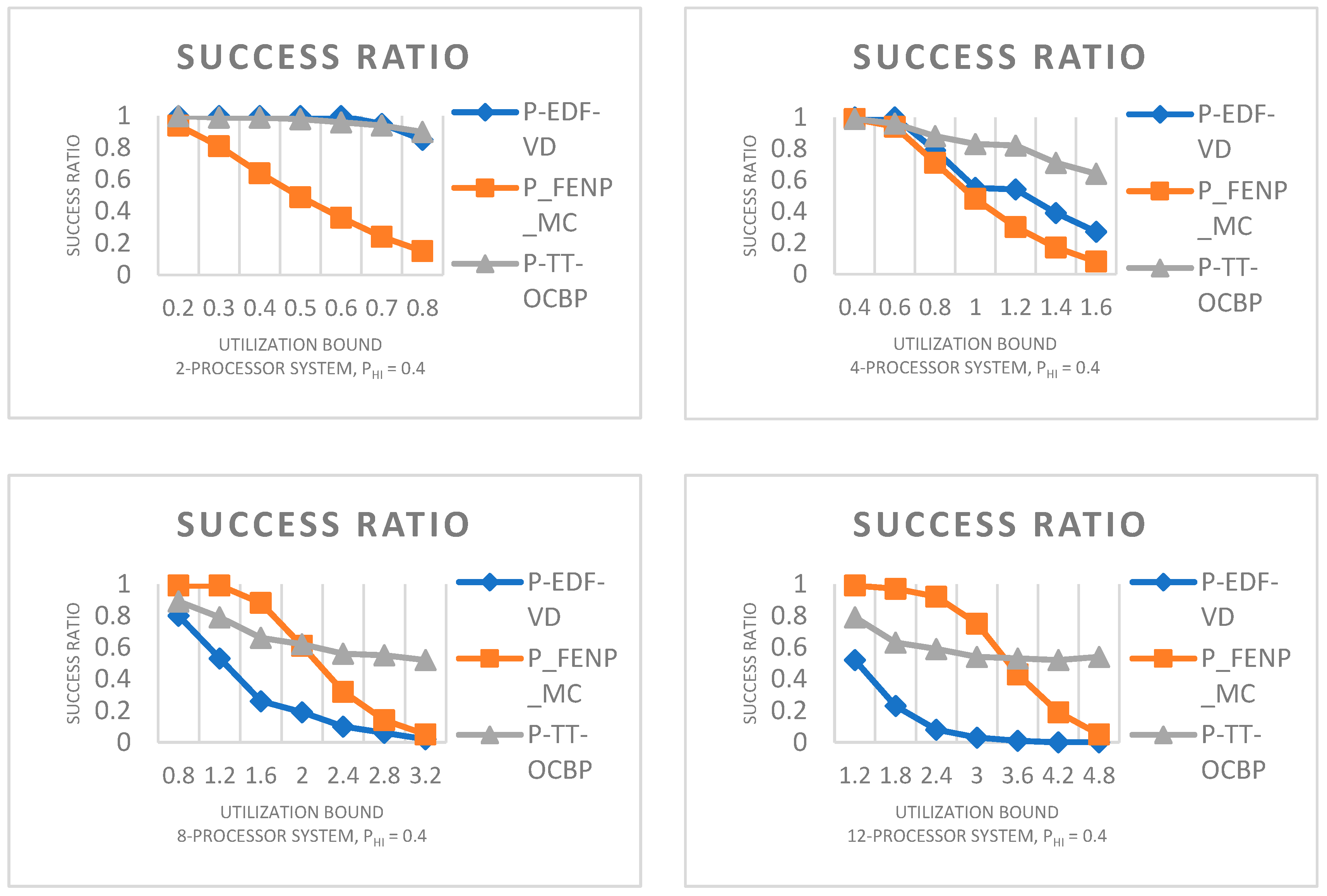

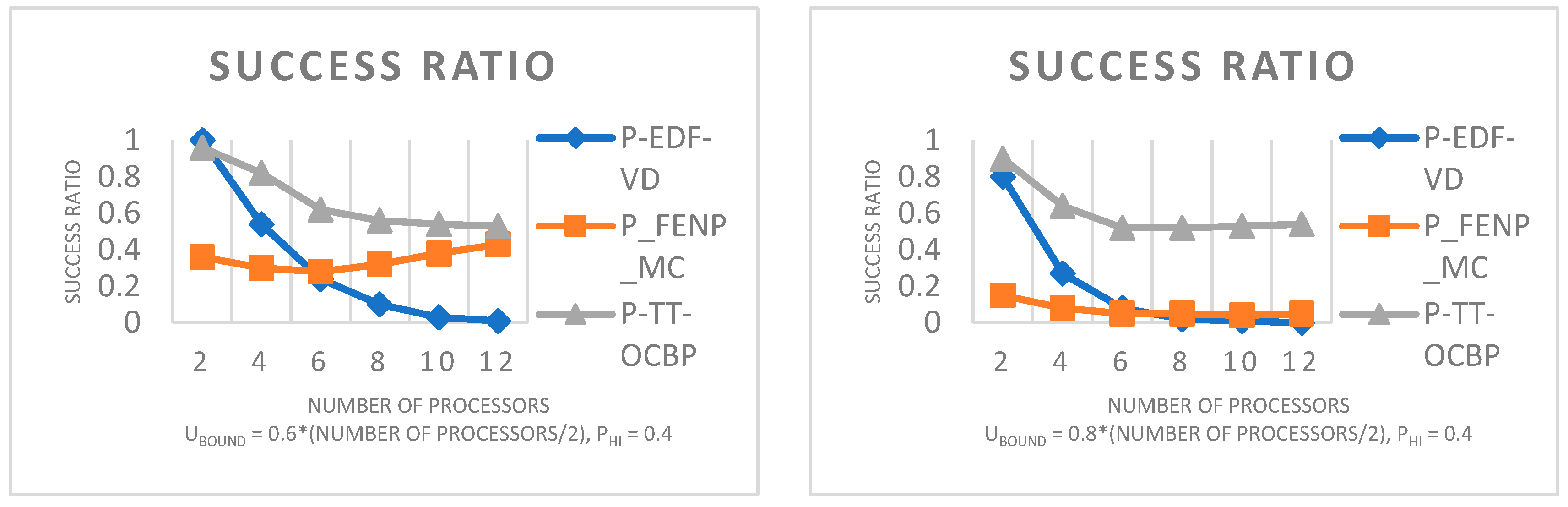

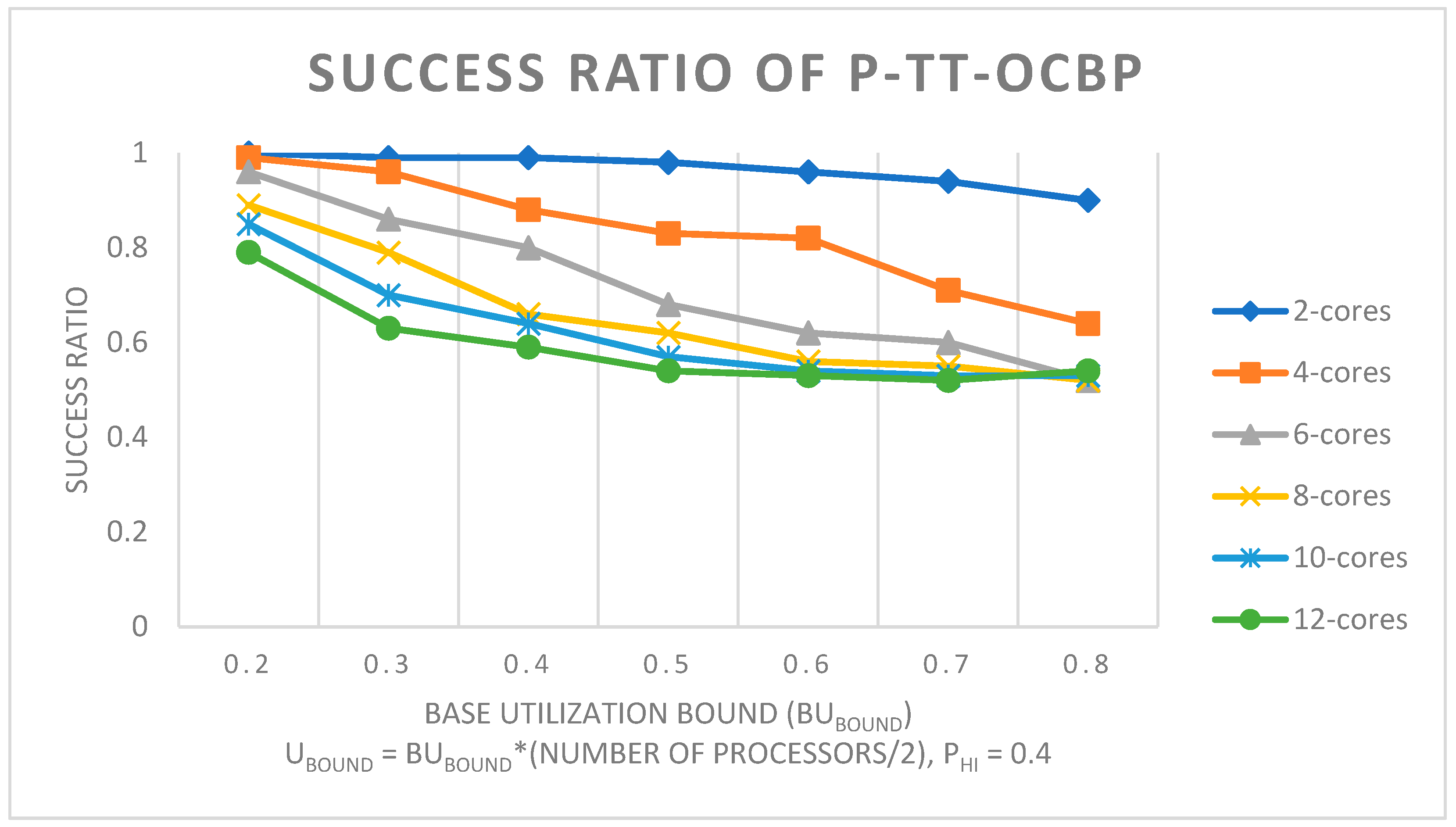

5.3. Success Ratio
Conflicts of Interest
