Machine Learning Models for the Automatic Detection of Exercise Thresholds in Cardiopulmonary Exercising Tests: From Regression to Generation to Explanation

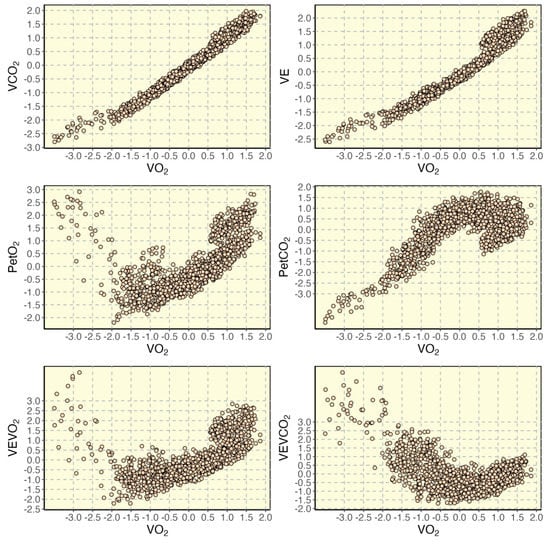

- Pattern 1 (moderate intensity domain) is characterized by: (a) increasing VO2 and VCO2; (b) increasing VE; (c) decreasing ventilatory equivalents (i.e., VEVO2 and VEVCO2, computed as VE/VO2 and VE/VCO2); (d) decreasing PetO2 and increasing PetCO2.
- Pattern 2 (heavy intensity domain) is characterized by: (a) increasing VO2 and VCO2; (b) increasing PetO2 and steady PetCO2; (c) increasing VEVO2 and steady VEVCO2; (d) increasing VE (with a slope greater than in Pattern 1).
- Pattern 3 (severe intensity domain) is characterized by: (a) increasing VO2 and VCO2; (b) increasing PetO2 (with a slope greater than in Pattern 2) and decreasing PetCO2; (c) increasing VEVO2 (with a slope greater than in Pattern 2) and VEVCO2; (d) increasing VE (with a slope greater than in Pattern 2).
- The estimated lactate threshold θL (or VT1 in this manuscript, i.e., the transition from Pattern 1 to 2): identifies the highest metabolic rate not associated with acidosis or metabolic homeostasis, and it corresponds to: (a) an increase in VCO2 relative to VO2 (an increase in blood lactate concentration is associated with the increase of H+, which combines with HCO3- to give an additional source of CO2); (b) the first disproportionate increase in VE (VE is regulated by the CO2 delivery to the lungs to minimize CO2 accumulation); (c) an increase in VEVO2 with no increase in VEVO2 (a consequence of the previous two points); (d) an increase in PetO2 with no consequent fall in PetCO2 (onset of the isocapnic period).
- The respiratory compensation point RCP (or VT2 in this manuscript, i.e., the transition from Pattern 2 to 3): identifies the highest metabolic rate at which homeostasis can be maintained despite a metabolic acidosis, and it corresponds to: (a) the second disproportionate increase in VE (hyperventilation relative to both VO2 and VCO2); (b) the first systematic increase in VEVCO2 relative to VO2 (a direct consequence of the previous point); (c) the first systematic decrease in PetCO2 (end of the isocapnic buffering period).
- First, applications that consider the statistics between tests. Hearn et al.  developed a feed-forward neural network (NN) for the prediction of clinical deterioration in patients with heart failure. They included the time dependence of the CPET variables by extracting features with an unsupervised classification algorithm . Inbar et al.  adopted a support vector machine (SVM) to identify chronic heart failure and chronic obstructive pulmonary disease from CPET. Sharma et al.  encoded CPET and processed the output images with a convolutional neural network (CNN) for the classification of heart failure and metabolic syndrome.
- Second, applications that focus on the data within each test. Baralis et al. , for example, implemented both an SVM and a NN with a rolling window technique which considered multiple CPET variables at a time. One of their goals was the online forecast of the VO2 values.

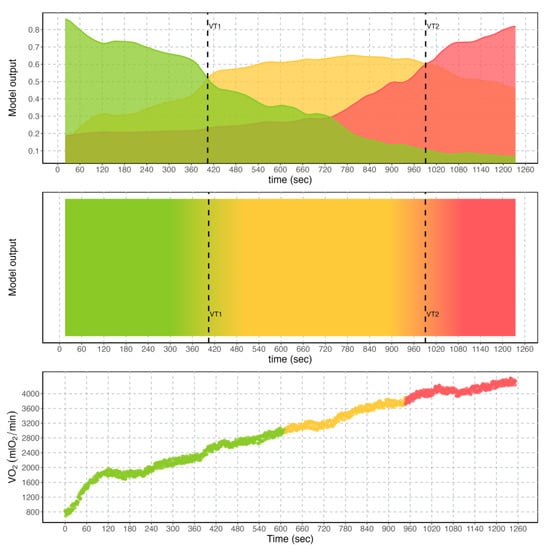

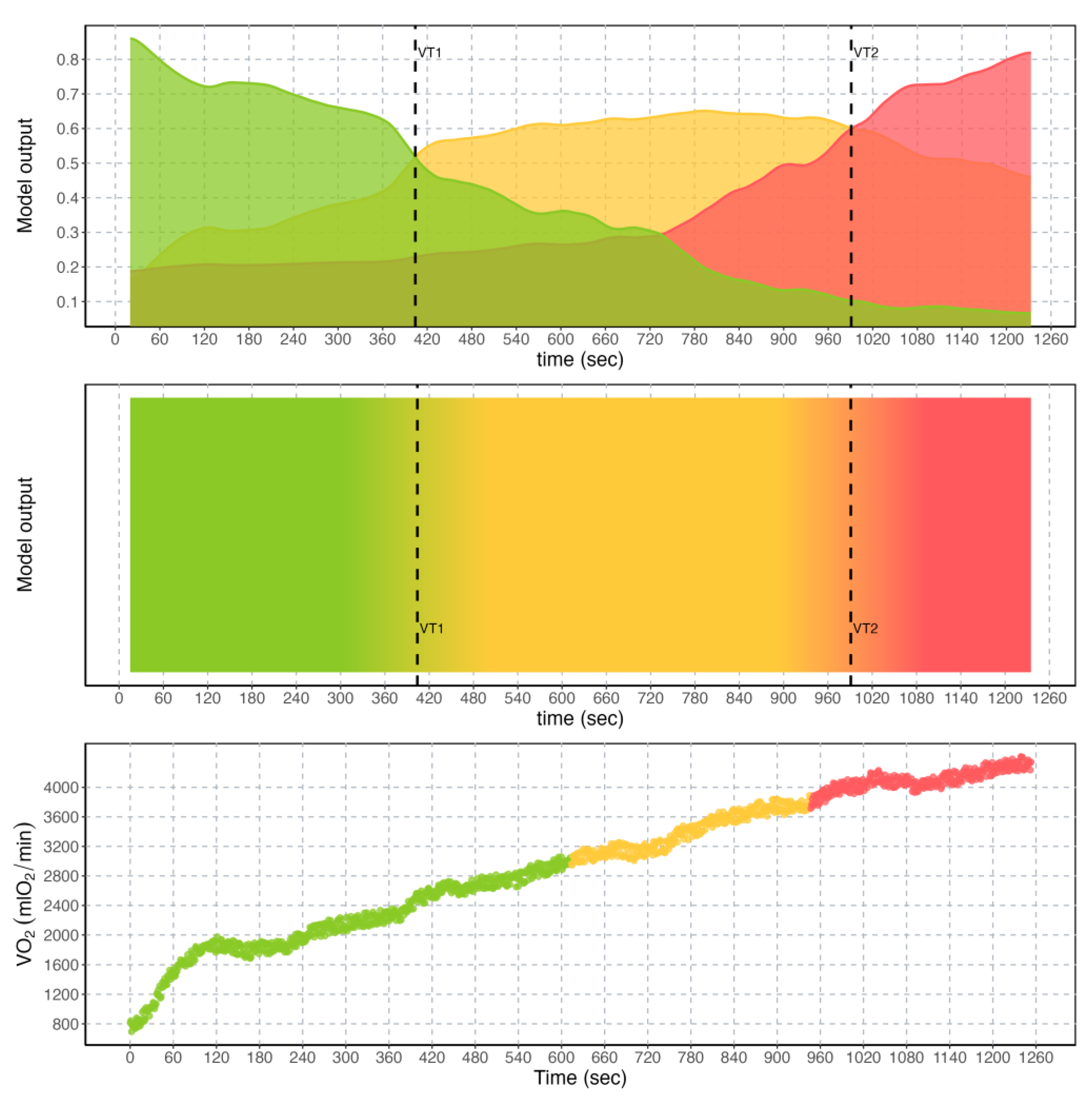

- First, the regression (or classification, or imputation) of an exercise intensity domain from the CPET variables. This challenge has already been taken by Zignoli et al., who developed a recurrent neural network (RNN)  and a CNN  to classify exercise intensity domains from a rolling window of CPET variables.
- Second, the generation of fake-but-realistic examples of CPET while maintaining the possibility to set the exercise thresholds a priori. To the best of the author’s knowledge, CPET data generation counts only one example in the scientific literature. Zignoli et al.  developed a conditional generative adversarial neural network (cGAN) to re-create a window of pre-selected CPET variables corresponding to an intensity-specific pattern.

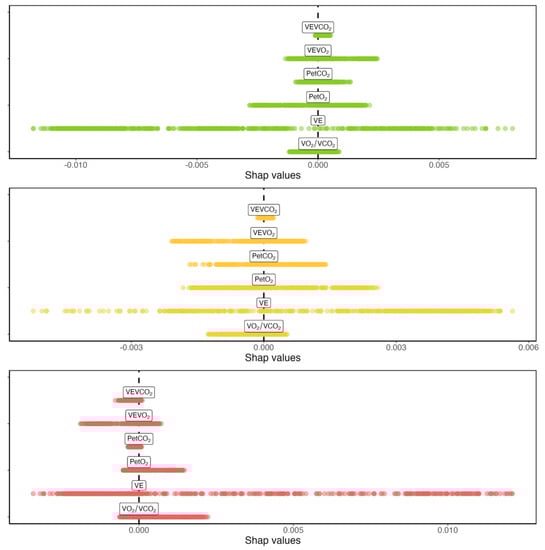

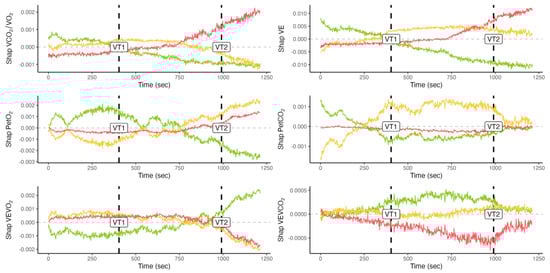

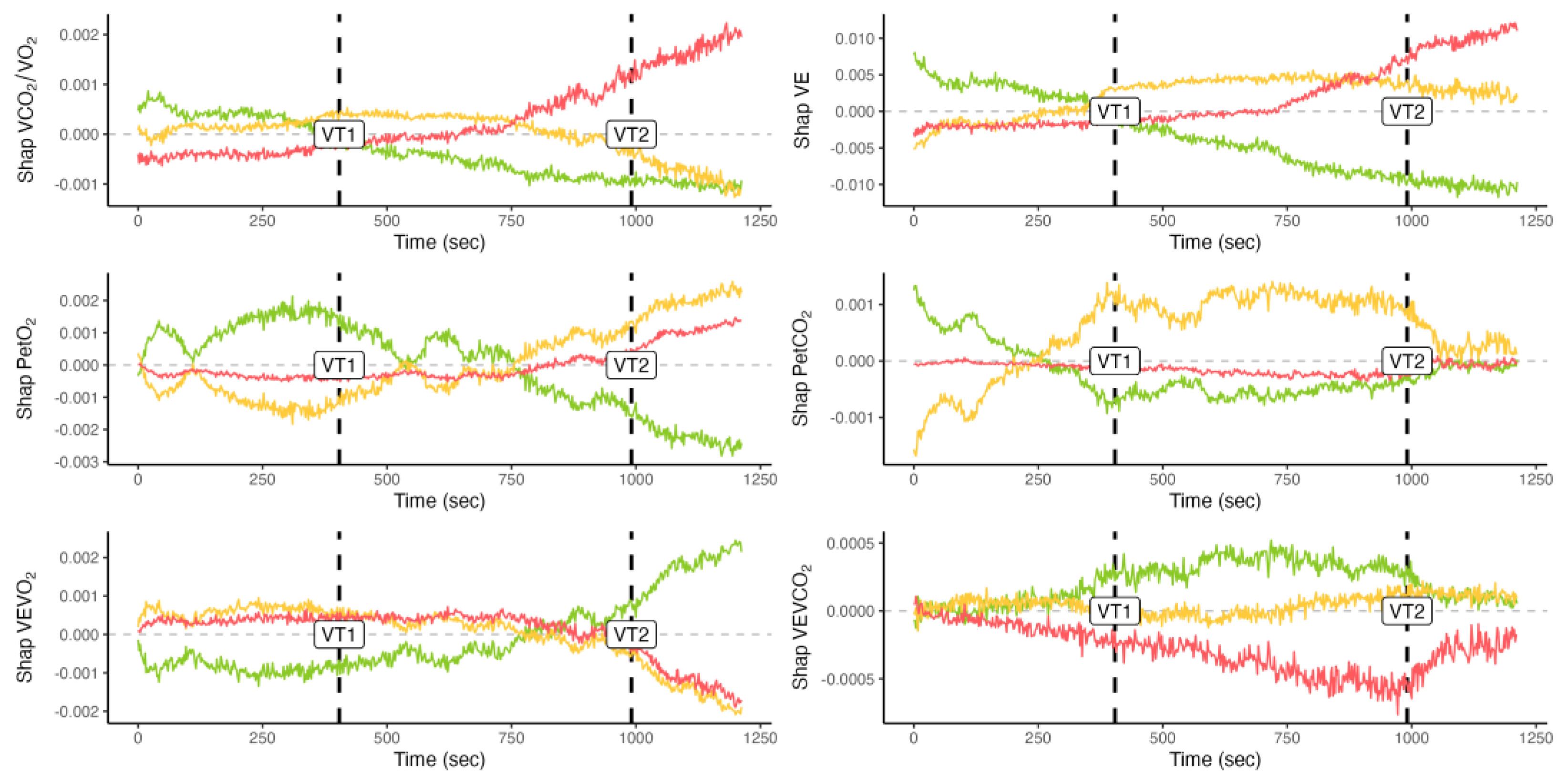

- Third, the explanation of the why behind the detection of an exercise threshold. On one hand, simple regression models such as the V-slope  and the modified V-slope  can provide the expert with the physiological reason behind the disproportionate increase in VCO2 vs. VO2 and in VE vs. VCO2 at the exercise thresholds. However, their explanatory power comes at the expense of accuracy. On the other hand, the lack of explanatory power is a serious limitation of the use of machine learning models in the medical decision support [20,21]. Therefore, methods that could facilitate the explanation of the output of the machine learning algorithms are mostly needed .

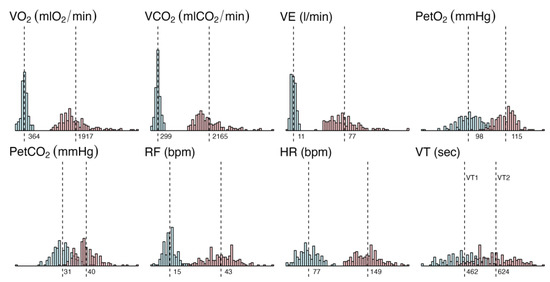

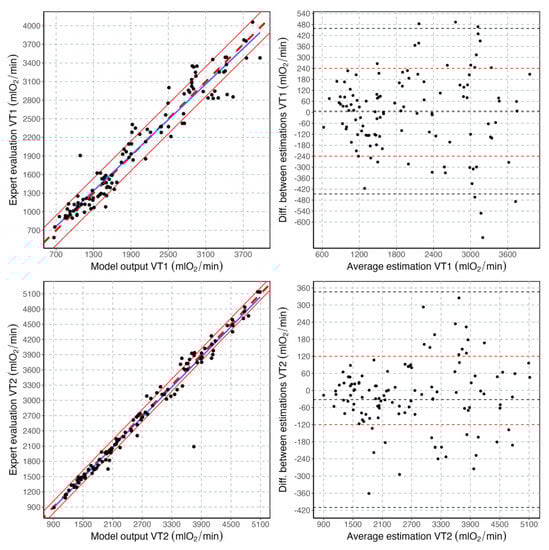

2. Materials and Methods
4.4. Practical Applications
4.5. Final Considerations
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
