A Parameter Estimation of Photovoltaic Models Using a Boosting Flower Pollination Algorithm
Abstract
:1. Introduction
- A Boosting Flower Pollination Algorithm (BFPA) combining three novel strategies is designed to estimate unknown parameters of different photovoltaic cell/module models.
- The proposed method is used to identify unknown parameters of three PV cell/module models and the manufacturer’s PV module model.
- Compared to existing popular methods, comprehensive experiments on BFPA were conducted in a variety of different environments. The research results verified that BFPA can provide more excellent results, indicating the significant competitive advantage of the proposed method in PV systems.
2. Materials and Methods

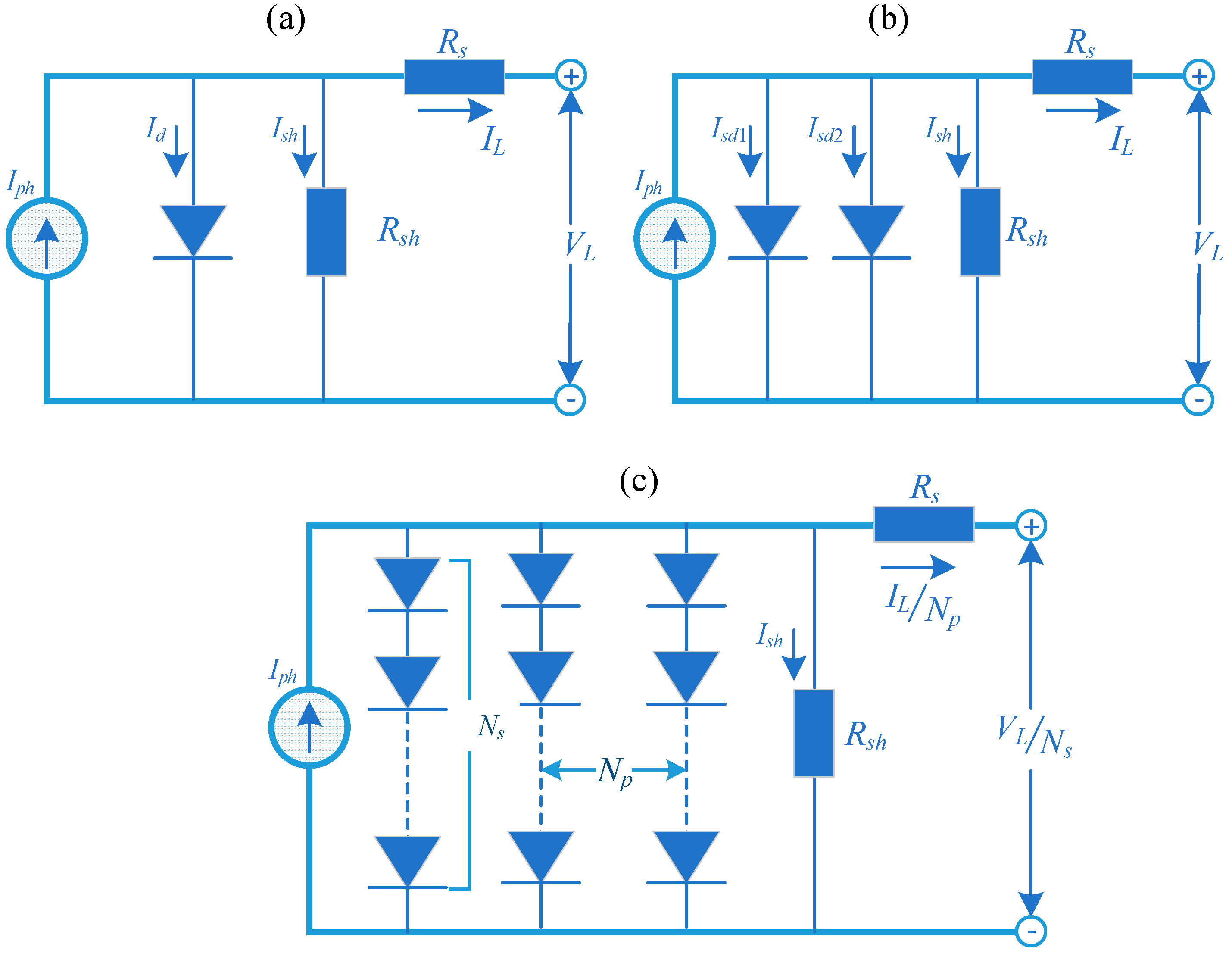

2.1. Mathematical Models of Photovoltaic Systems
2.1.1. Single Diode Model (SDM)
2.1.2. Double Diode Model (DDM)
2.1.3. PV Module Model (PMM)
2.2. Problem Formulation
2.3. Boosting Flower Pollination Algorithm (BFPA)

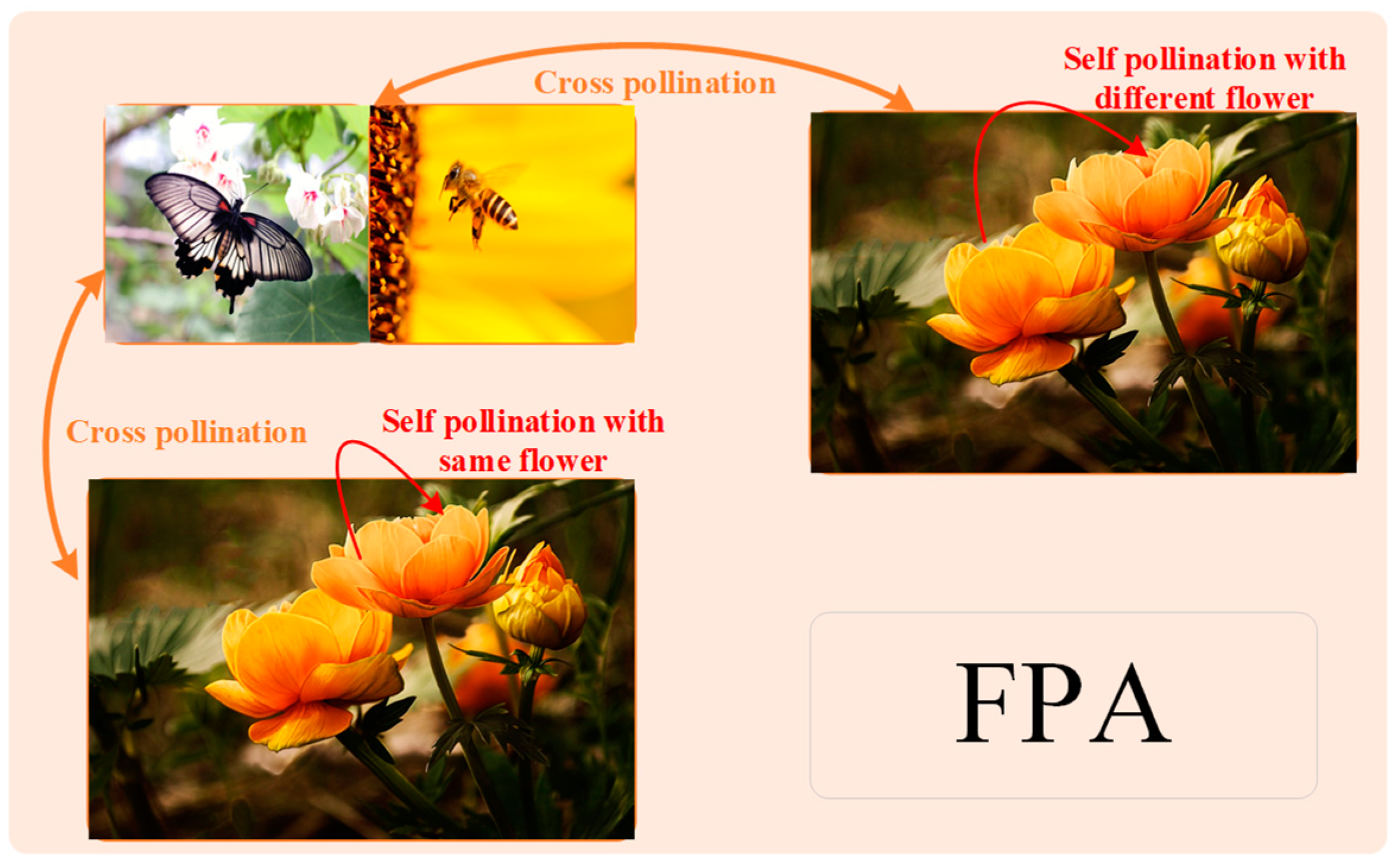

2.3.1. Summary of FPA
- (1)
- Biological pollination and cross-pollination carry out the global pollination processes through the Lévy flight behavior.
- (2)
- Abiotic and self-pollination perform local pollination process via their own characteristics.
- (3)
- Flower constancy, also known as reproductive rate, can be considered to be related to the similarity between two flowers.
- (4)
- Local pollination and global pollination can be switched freely and controlled by probability p ∈ [0, 1].
2.3.2. The Proposed Algorithm of BFPA
Gaussian Distribution Global Pollination Strategy

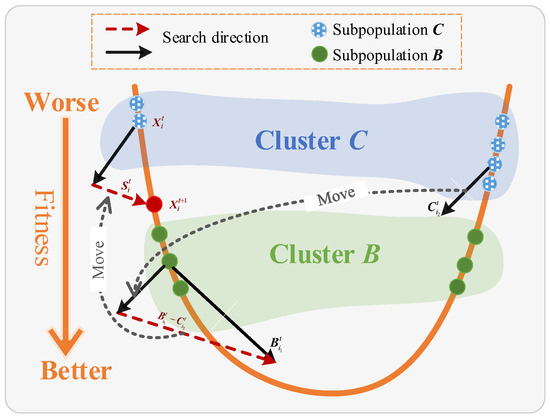

The Clustering Strategy of Population
Algorithm 1: Pseudo code of clustering strategy of population. |
|
The Chaotic Elite-Guided Learning Strategy
Algorithm 2: Pseudo code of chaotic elite-guided learning strategy |
|
Adaptive Boundary Handling Strategy
Algorithm 3: Pseudo code of adaptive boundary handling strategy |
|

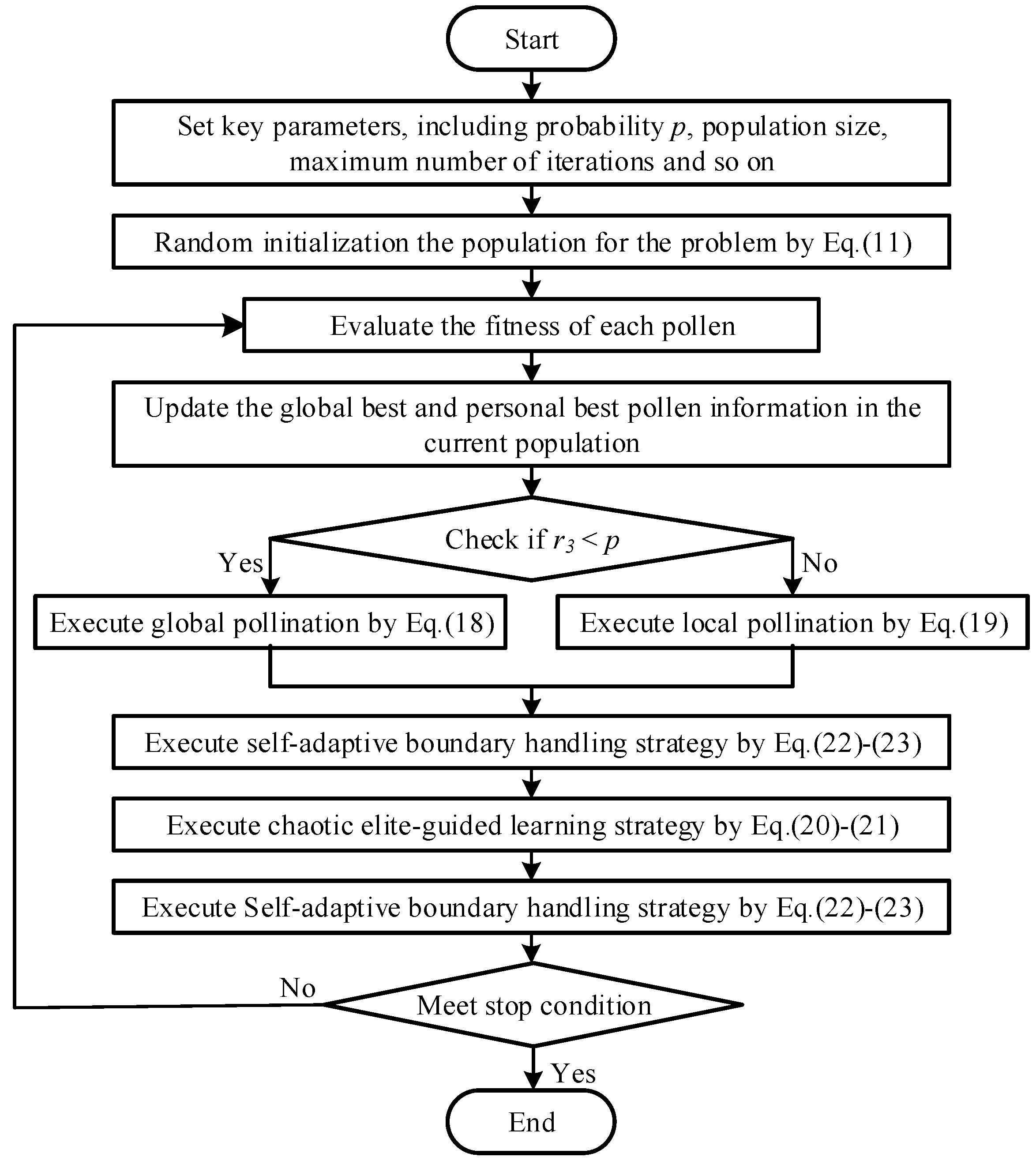

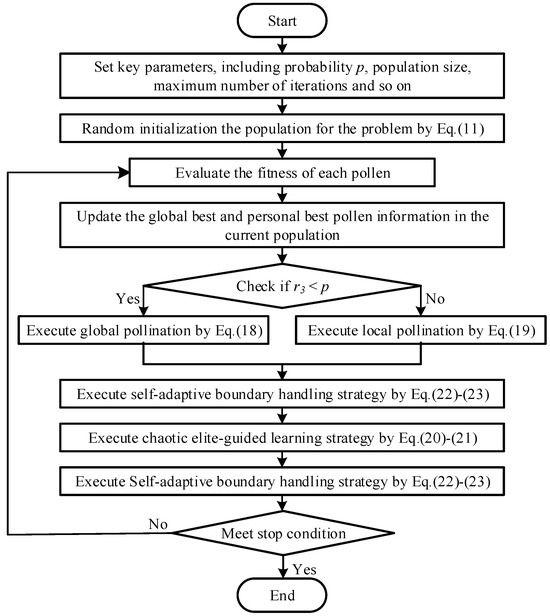

The Framework of BFPA
3. Simulation Results
3.1. Results of PV Cell and Module Model

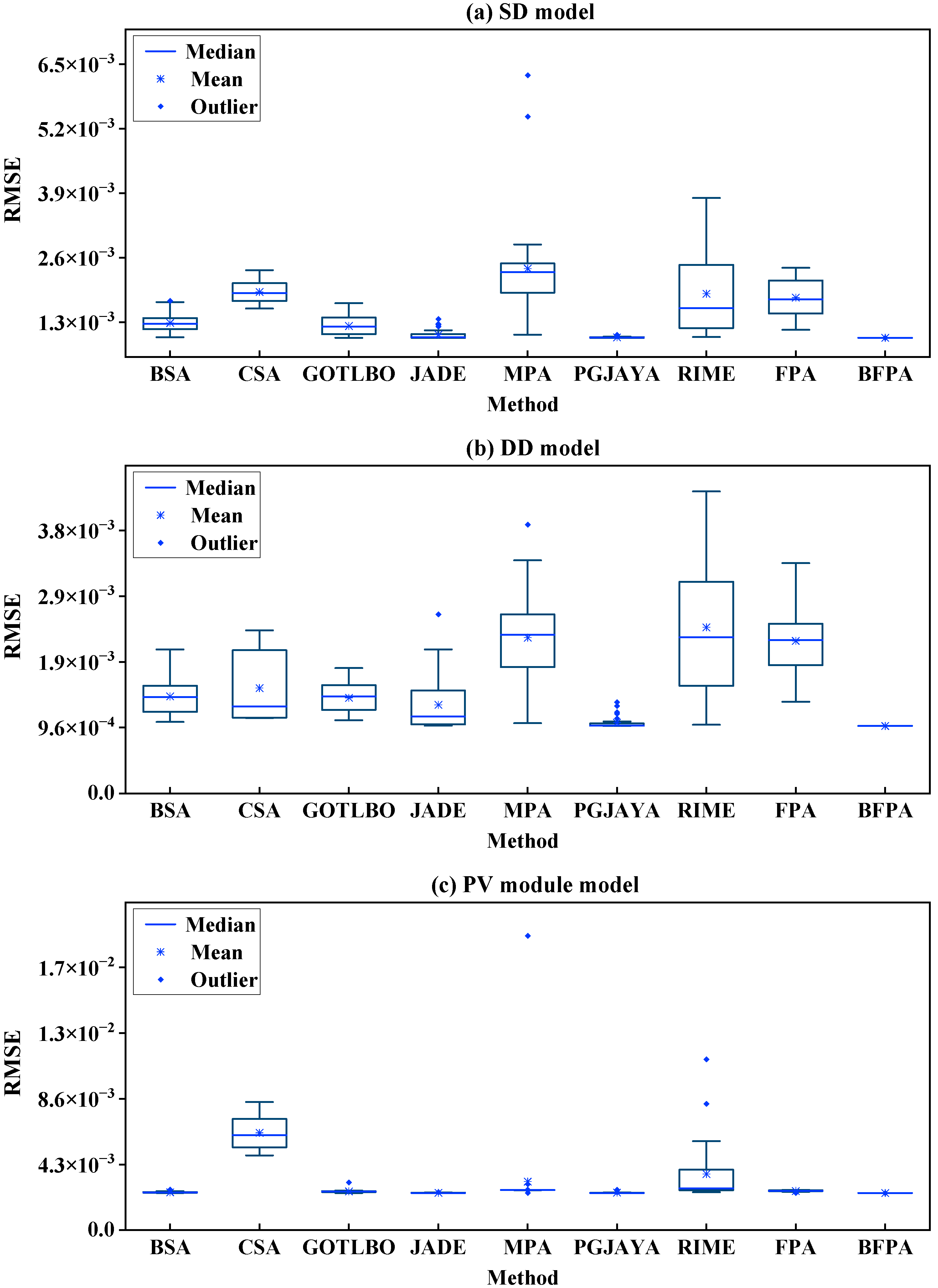

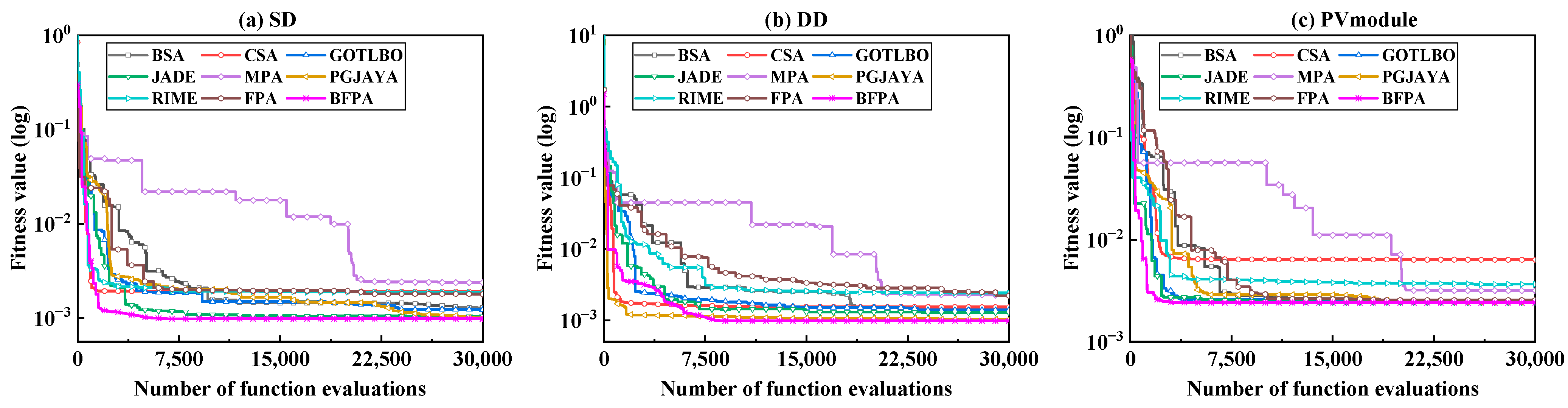

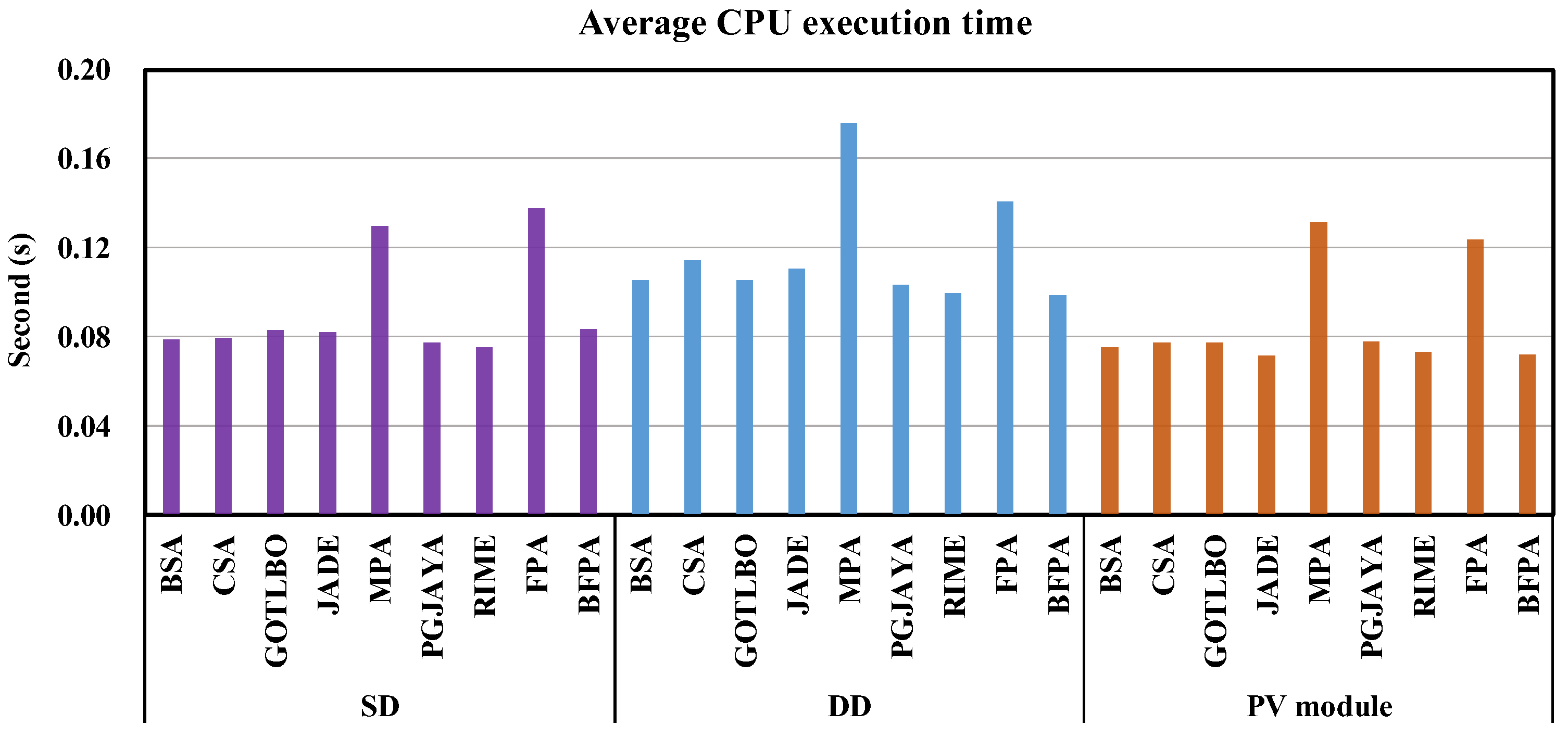

3.1.1. Statistical Results Analysis on Different PV Models

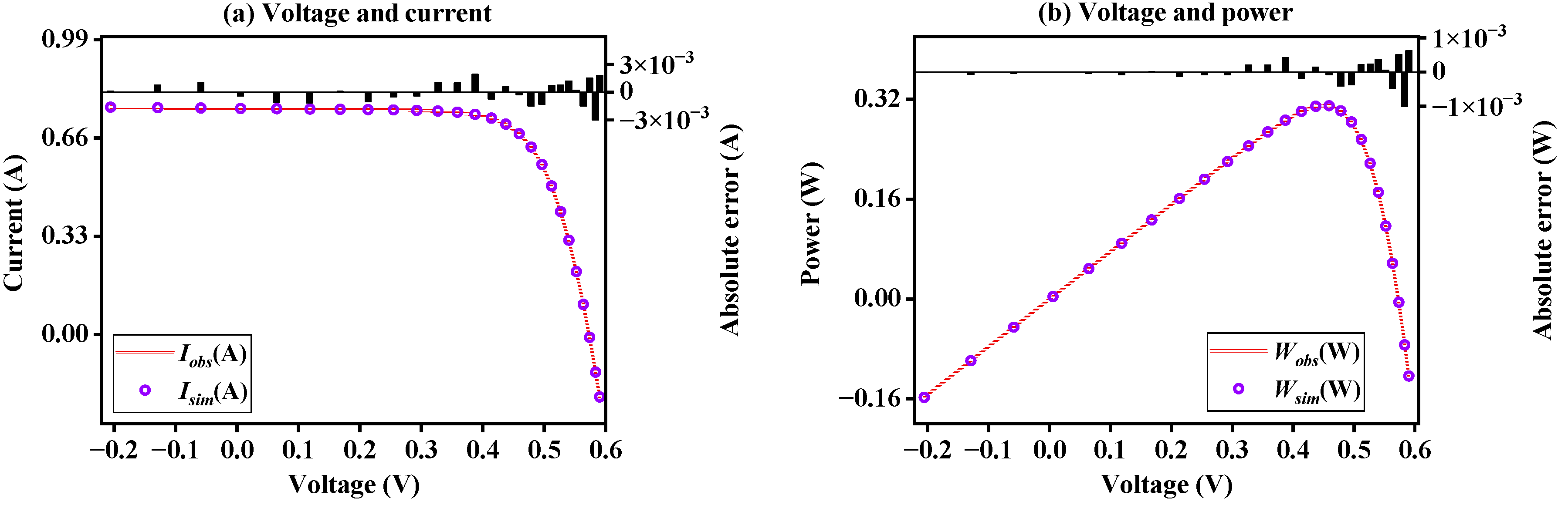

3.1.2. Result on Single Diode Model

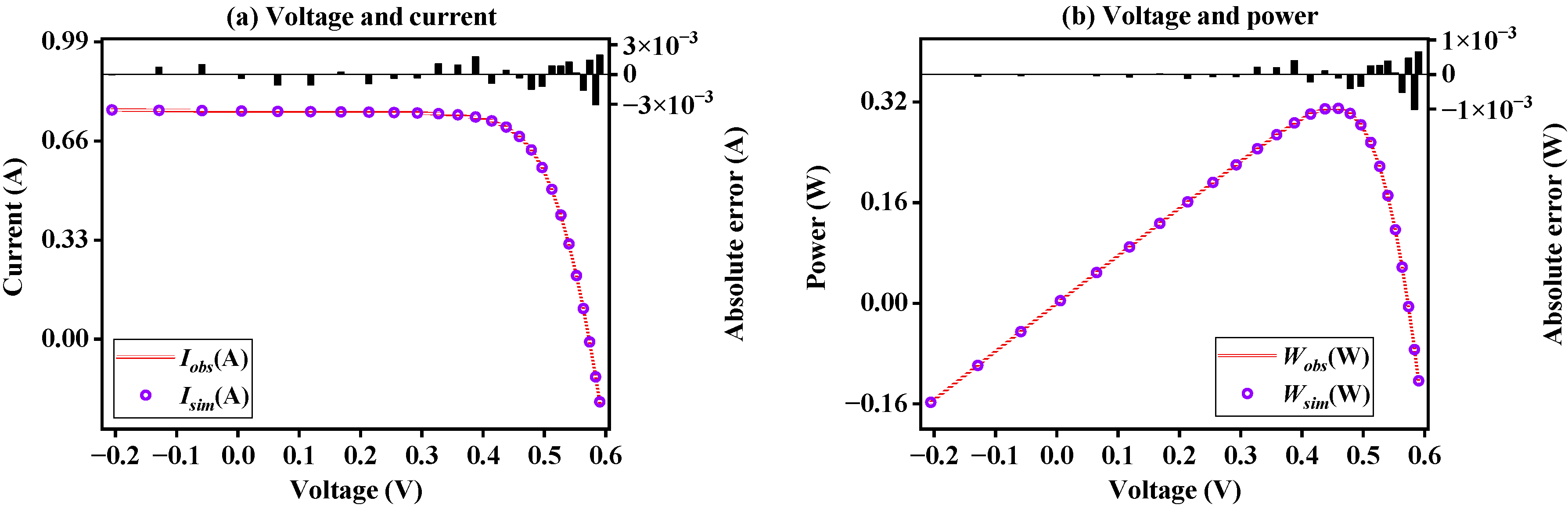

3.1.3. Result on Double Diode Model

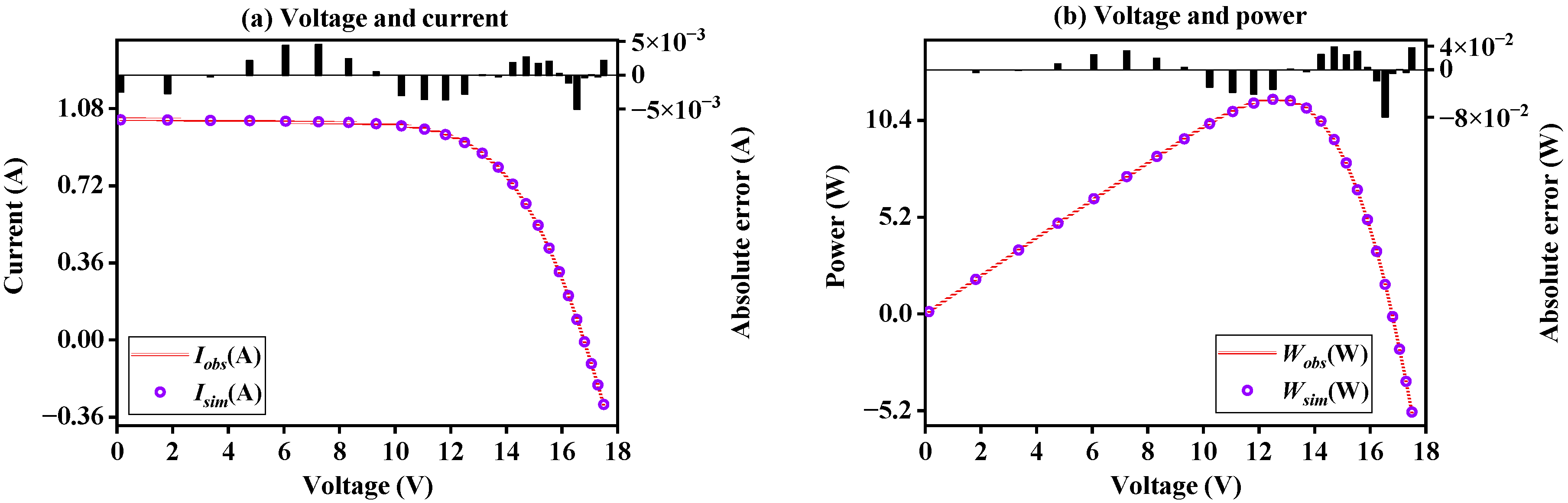

3.1.4. Result on Photovoltaic Module Model

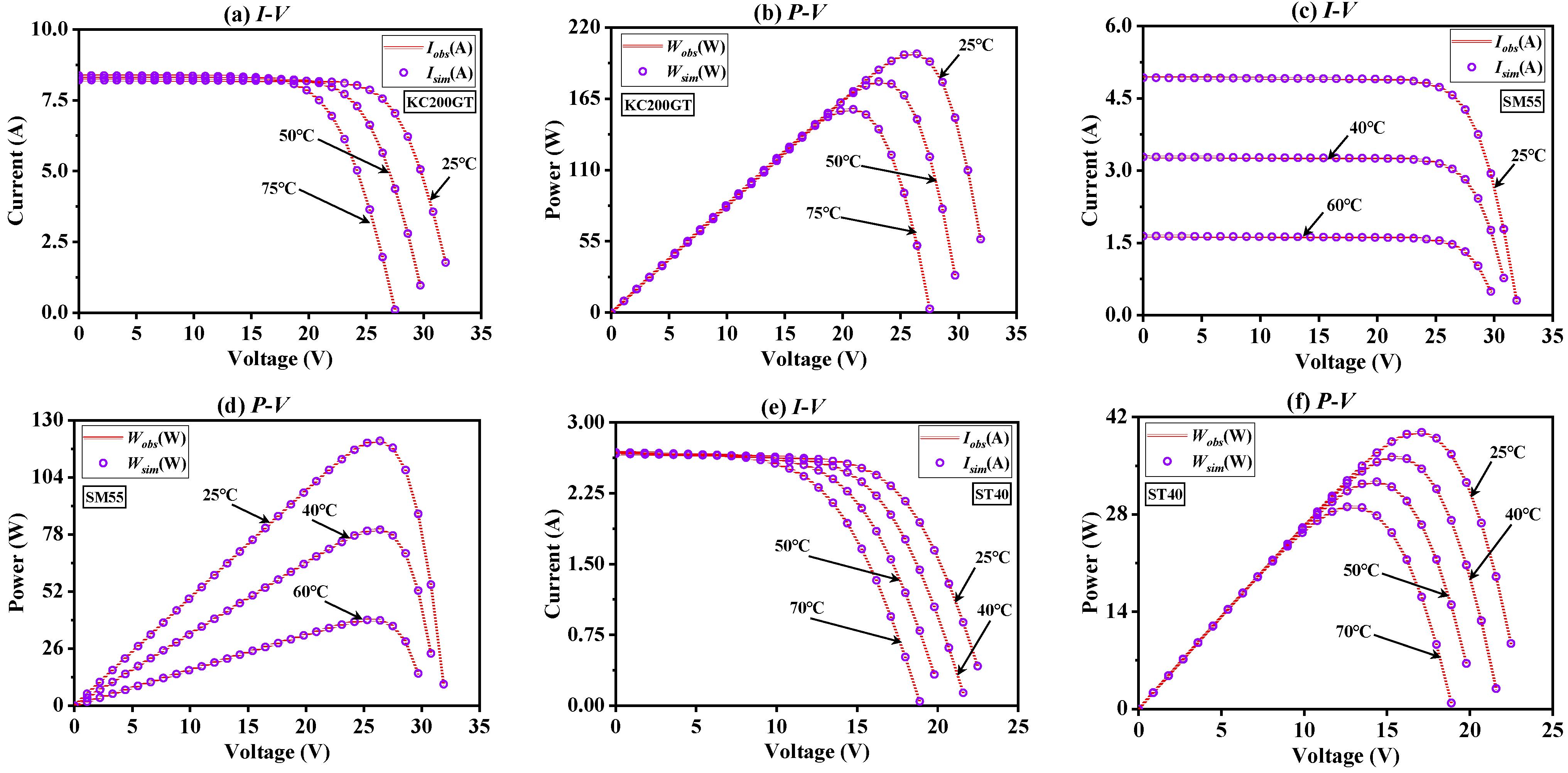

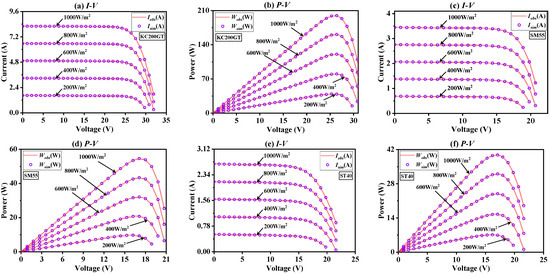

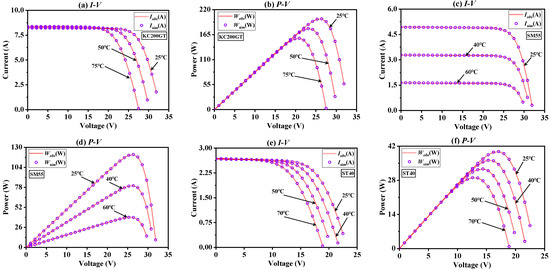

3.2. The Result of Datasheets from Different Manufacturers
4. Discussions
5. Conclusions and Future Works
Supplementary Materials
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
Nomenclature
BFPA | Boosting flower pollination algorithm | Rsh | Shunt resistor |
FPA | Flower Pollination Algorithm | Np/Ns | Number of solar cells in parallel/series |
PV | Photovoltaic | X | Unknown variable of the problem |
I-V | Current-voltage | K | Number of the observed current-voltage data |
SDM | Single diode model | RMSE | Root mean square error |
DDM | Double diode model | Γ(λ) | Gamma function |
PMM | Photovoltaic module model | sin(·) | Sine function |
Iph | Photocurrent | Gauss(0, α) | Gaussian distribution function |
Id | Current through the diode | Levy(s, λ) | Step size of Lévy flight |
Ish | Current through the shunt resistor | N | Number of pollens |
Isd, Isd1, Isd2 | Currents of diode | D | Number of variables |
q | Elementary charge | B, C | Subpopulation |
VL | Output voltage | KC200GT | Multi-crystalline PV module |
Rs | Series resistor | SM55 | Mono-crystalline PV module |
n, n1, n2 | Diode ideality factors | ST40 | Thin-film PV module |
k | Boltzmann constant | IAe | Absolute error |
T | Kelvin temperature | IRe | Relative error |
