Active SLAM: A Review on Last Decade
Abstract
:1. Introduction
2. Introduction to Active SLAM (A-SLAM)
2.1. A-SLAM Formulation

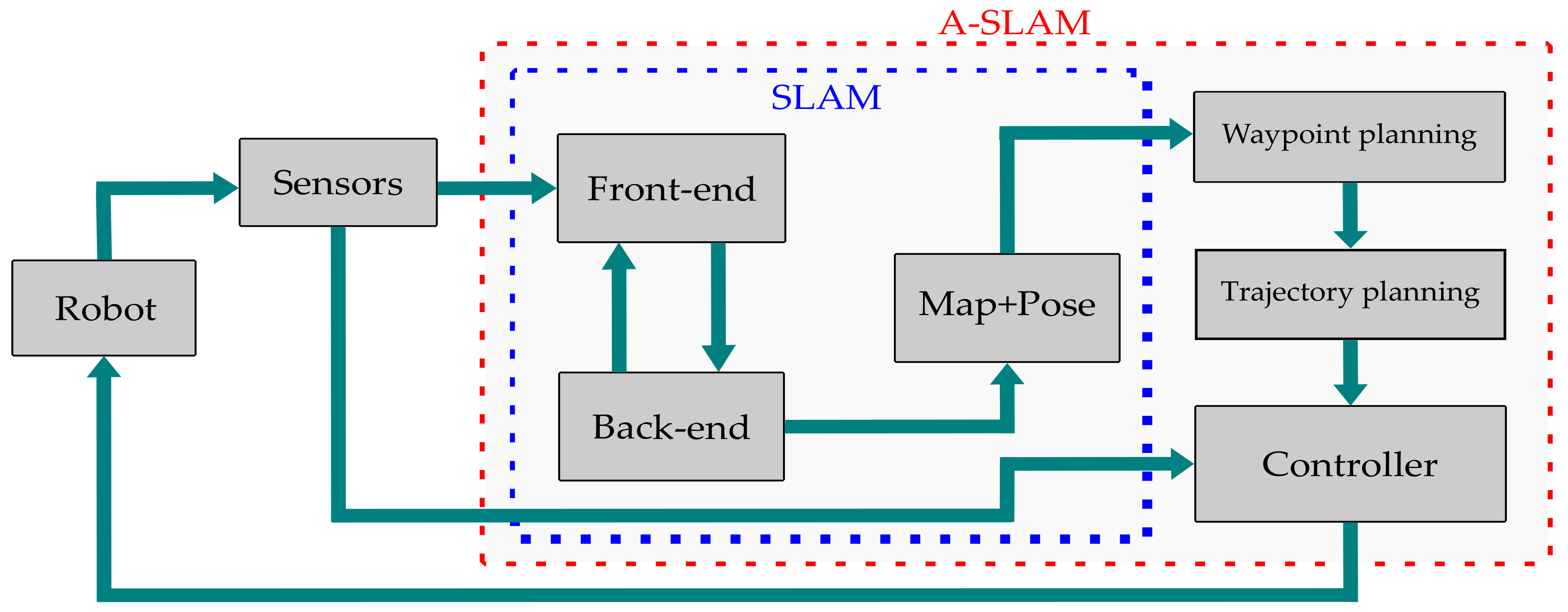

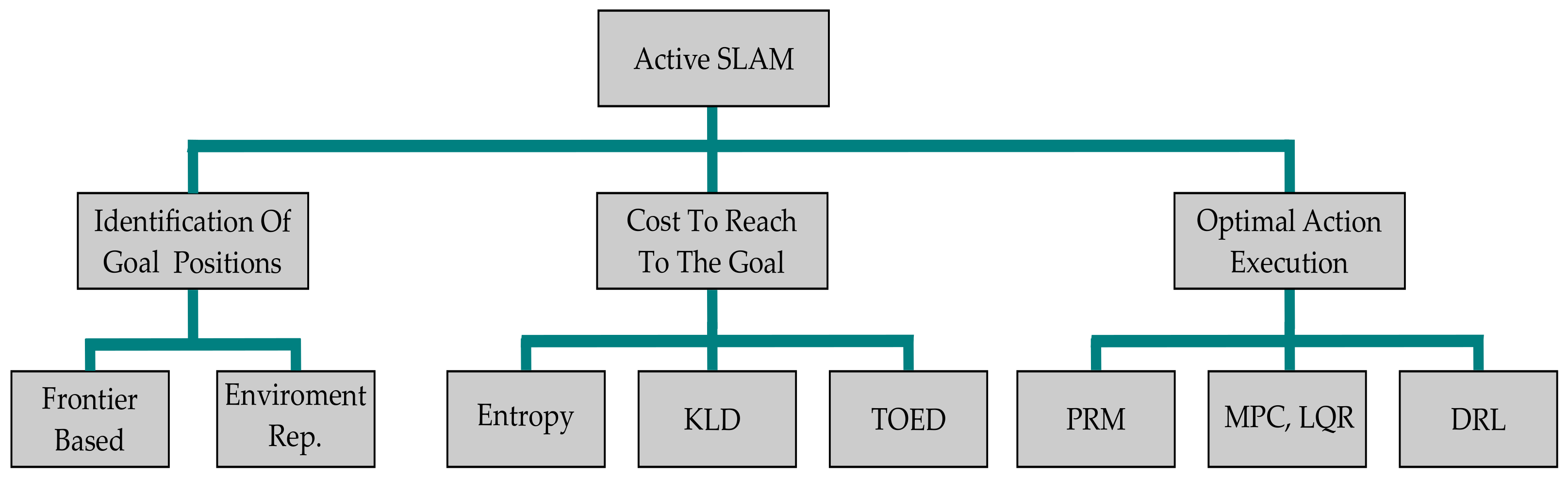

2.2. A-SLAM Components
- Probabilistic Road Map (PRM) approaches discretize the environment representation and formulate a network graph representing the possible paths for the robot to select to reach the goal position. These approaches work in a heuristic manner and may not give the optimal path; additionally, the robot model is not incorporated in the planning phase, which may result in unexpected movements. Rapidly exploring Random Trees (RRT) [31], D* [32], and A* [33] are the widely used PRM methods. We identify these methods as geometric approaches, and in Section 2.3, we discuss the application of these methods.
- Linear Quadratic Regulator (LQR) and Model Predictive Control (MPC) formulate the robot path-planning problem as an Optimal Control Problem (OCP) and are used to compute the robot trajectory over a finite time horizon in a continuous-planning domain. Consider a robot with the state-transition equation given by , where x, u, and k are the state, control, and time, respectively. The MPC controller finds the optimal control action for a finite horizon N, as shown in Equation (12), which minimizes the relative error between the desired state and desired control effort , weighted by matrices Q and P for the penalization of state and control errors, respectively, as shown in Equation (13). The MPC is formulated as minimizing the objective function as defined in (14), which takes into account the costs related to control effort and robot state evolution over the entire prediction horizon. MPC provides an optimal trajectory incorporating the robot state model and control and state constraints, making it suitable for path planning in dynamic environments:
- Reinforcement Learning (RL) is modeled as a Markov Decision Process (MDP) where an agent at state s interacts with the environment by performing an action a and receiving a reward r. The objective is to find a good policy which maximizes the aggregation of the rewards in the long run following a value function , as shown in Equation (15), that maximizes the expected reward attained by the agent, weighted by the discount factor . In the case of visual A-SLAM, the policy may be to move the robot to more feature-rich positions to maximize the reward (observed features). Deep Reinforcement Learning (DRL) replaces the agent with a deep neural network that parameterizes the policy with some weighting parameter and is given as to maximize the future rewards of each state–action pair during the evolution of the robot trajectory. We will further discuss the application of these approaches in Section 2.4:
2.3. Geometric Approaches
2.3.1. IT-Based Approaches
- Joint entropy: The information gained at the target is evaluated by using the entropy of both the robot trajectory and map carried by each particle weighted by each trajectory’s importance weight. The best exploration target is selected, which maximizes the joint-entropy reduction and hence corresponds to higher information gain.
- Expected Map Mean: An expected mean can be defined as the mathematical expectation of the map hypotheses of a particle set. The expected map mean can be applied to detect already-traversed loops on the map. Since the computation of the gain is developing, the complexity of this method increases.
- Expected information from a policy: Kullback–Leibler divergence [36] is used to drive an upper bound on the divergence between the true posterior and the approximated pose belief. Apart from the information consistency of the particle filter, this method also considers the information loss due to inconsistent mapping.

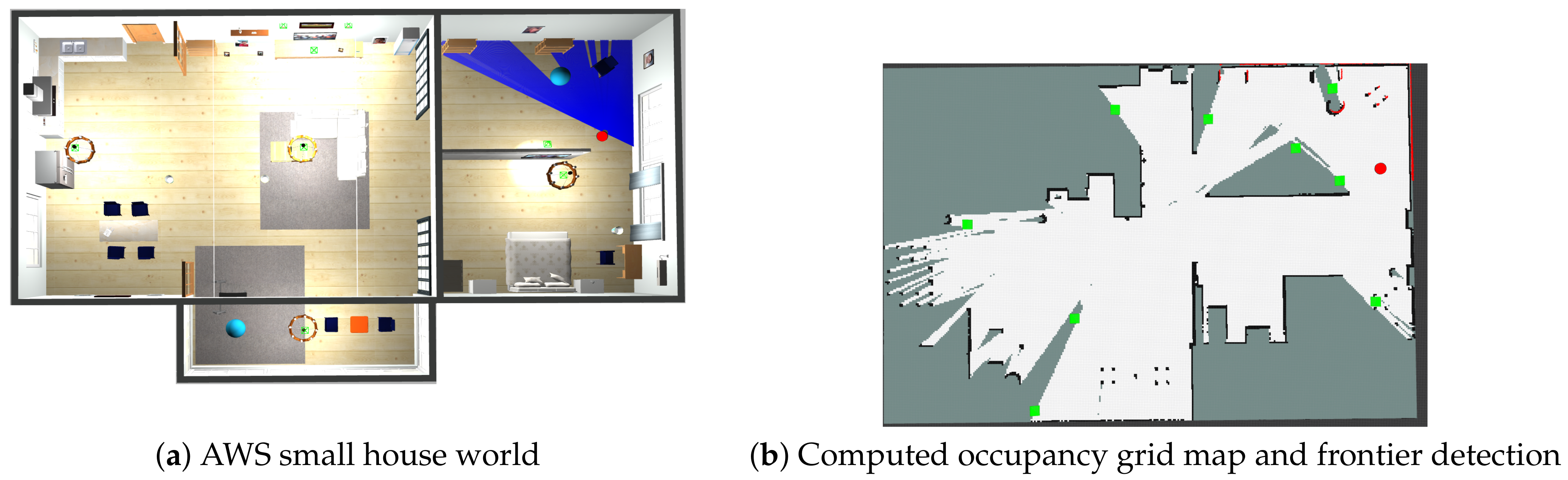

2.3.2. Frontier-Based Exploration
2.3.3. Path-Planning Optimization
2.3.4. Optimization in Robot Trajectory
2.3.5. Optimal Policy Selection
2.4. Dynamic Approaches
2.5. Hybrid Approaches
2.6. Reasoning over Spectral Graph Connectivity

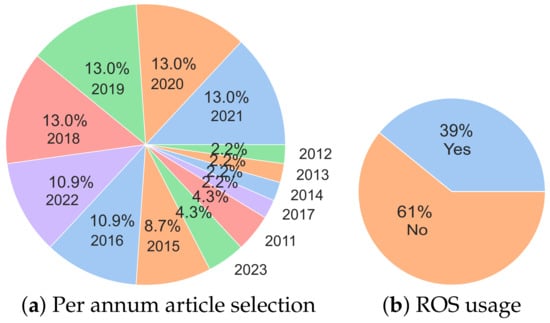

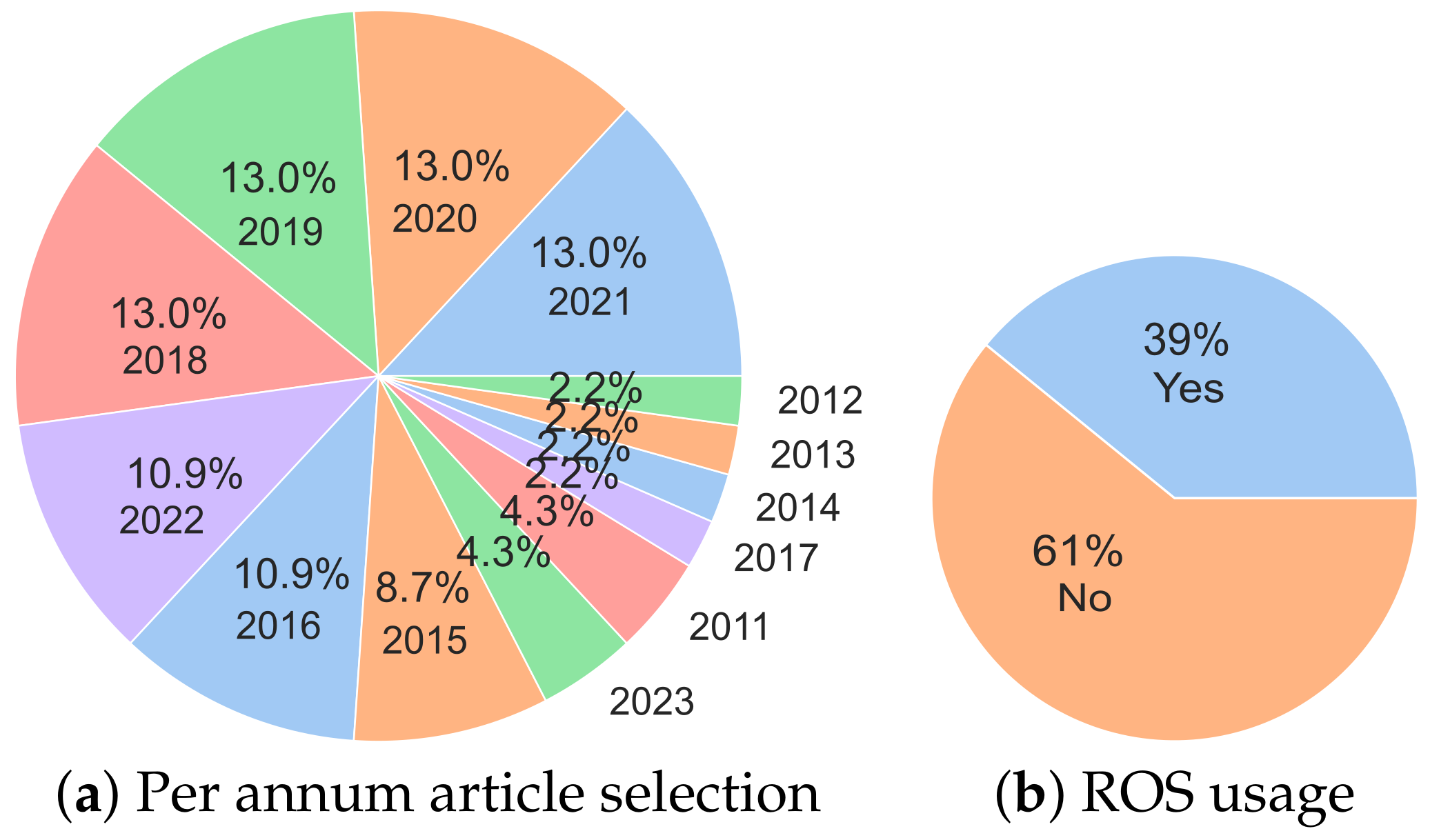

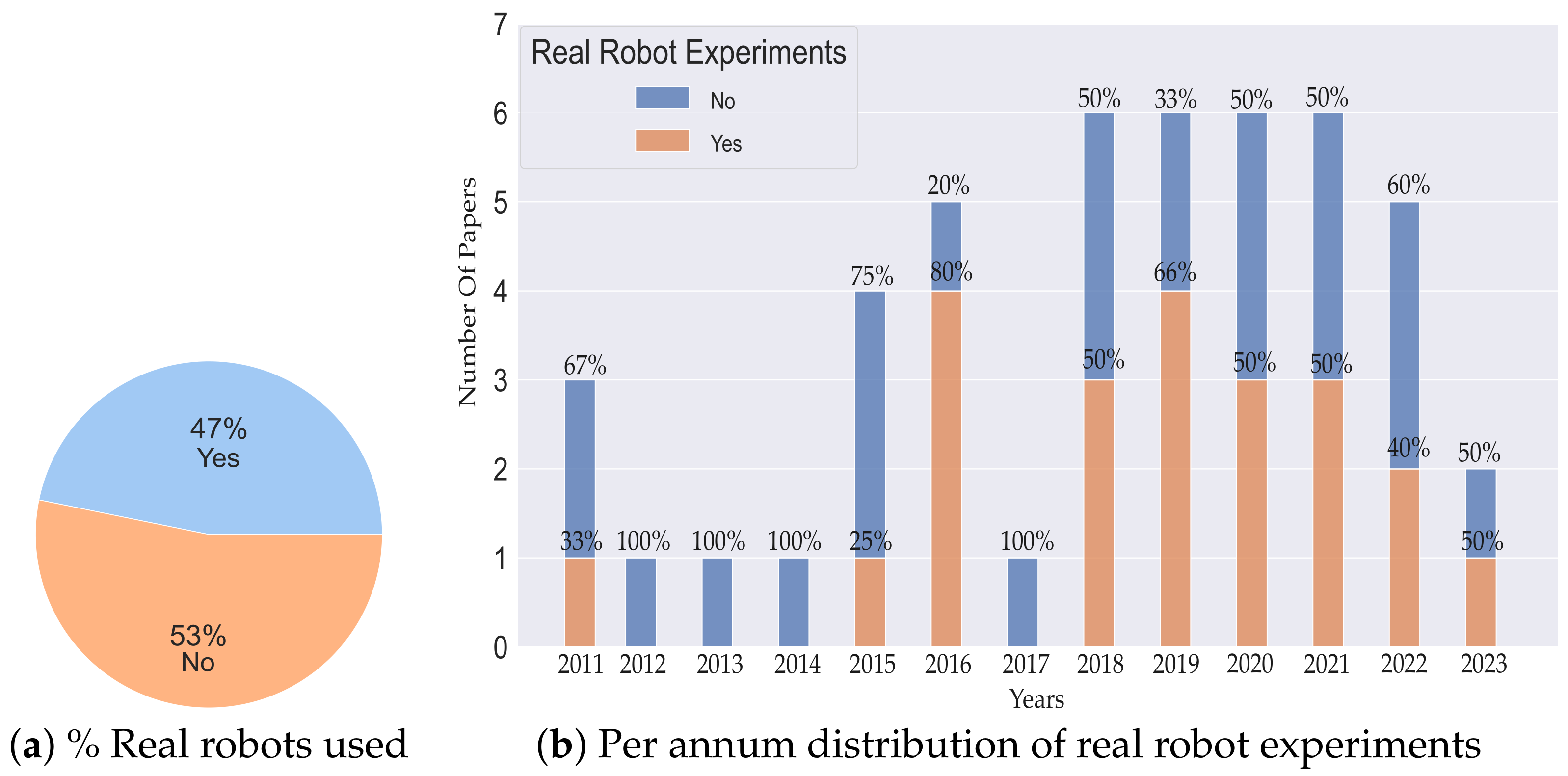

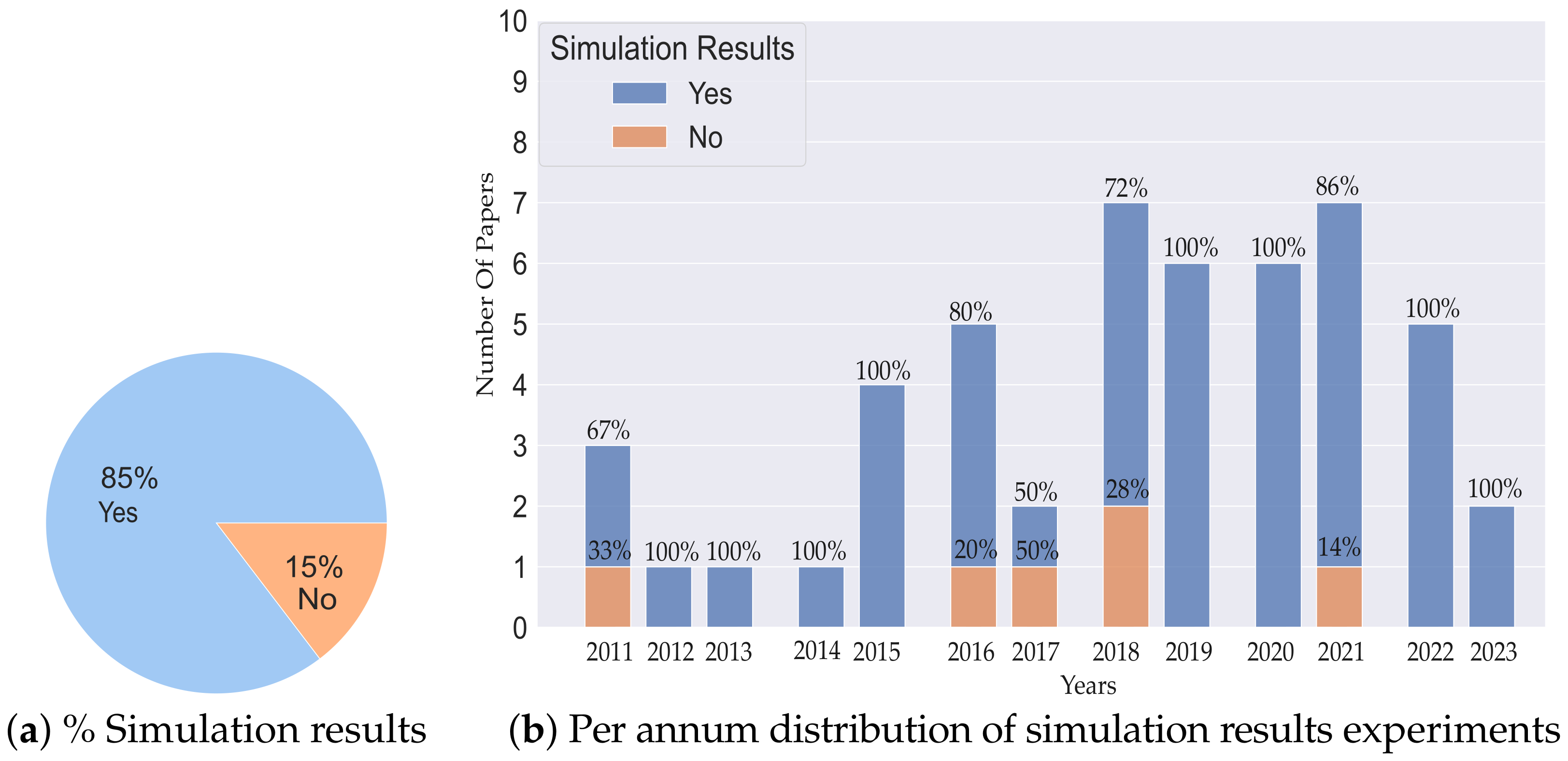

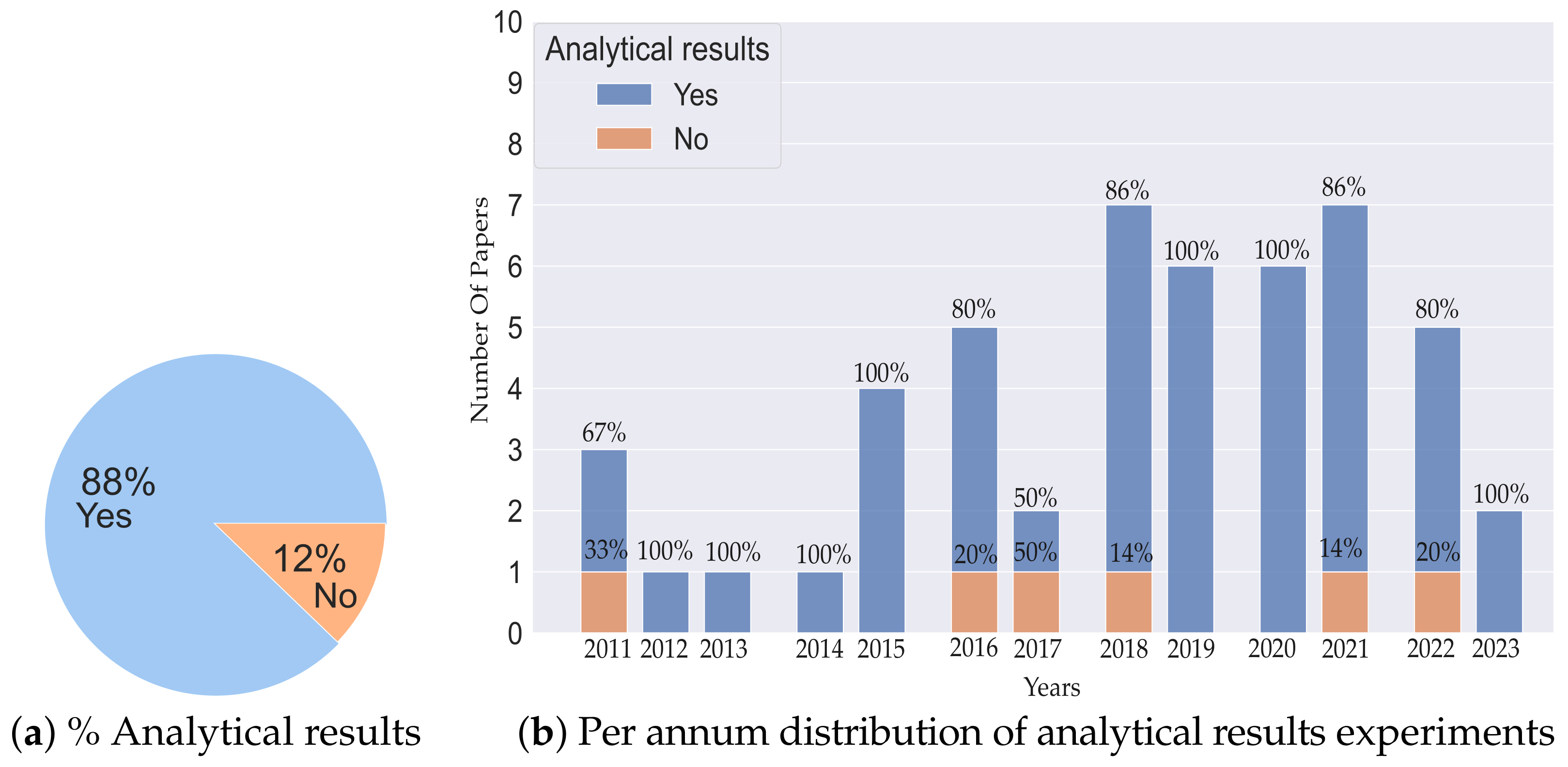

2.7. Statistical Analysis on A-SLAM
3. Active Collaborative SLAM (AC-SLAM)

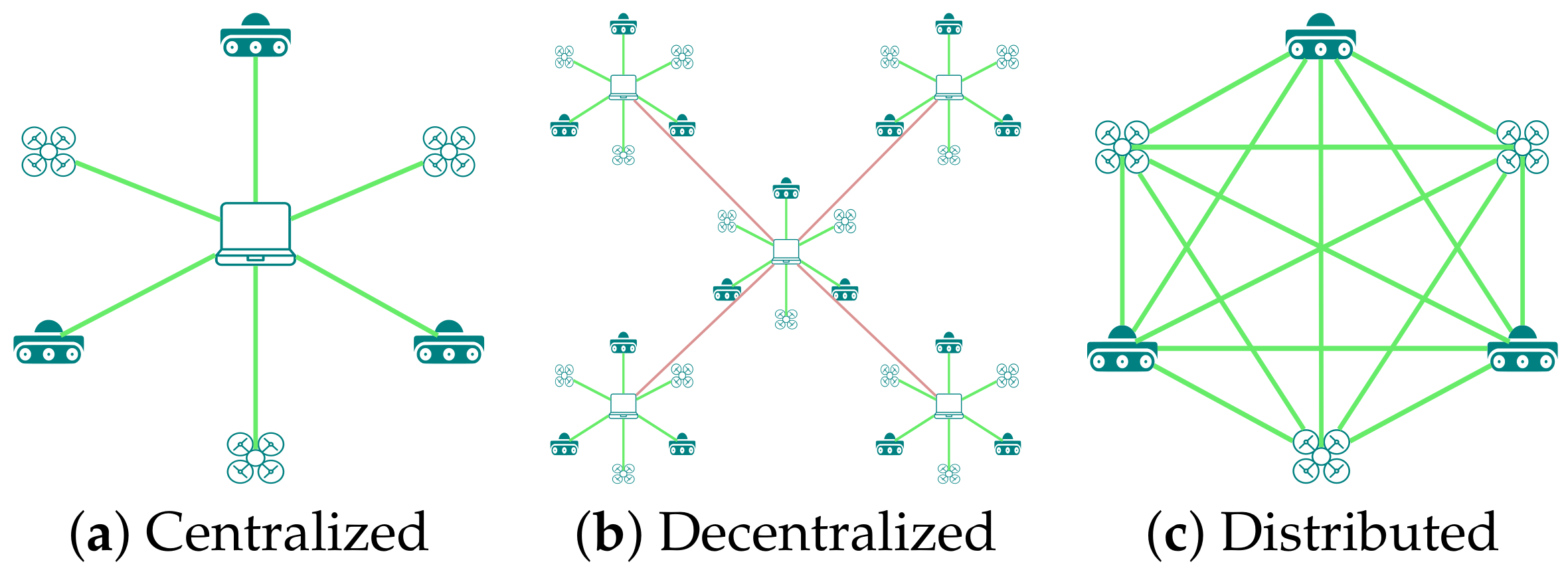

3.1. Network Topology of AC-SLAM
3.2. Collaborative Localization
3.3. Exploration and Exploitation Tasks
3.4. Trajectory Planning
3.5. Statistical Analysis on AC-SLAM
4. Discussion and Future Directions
4.1. General Limitations
- Stopping criteria: Since A-SLAM is computationally expensive especially when the utility function is computed over the entire mapped area (e.g., map entropy) or in the case of TOED, the mapping of the full information matrix is required. The quantification of uncertainties from TOED may be used as an interesting stopping criterion, as discussed by [19]. The interesting approach proposed by [106] shows the qualification of uncertainty, e.g., D-optimality and the amount of explored area to stop autonomous exploration and mapping.
- Robust data associations: Contrary to SLAM where an internal controller is responsible for robot action and the data association (the association between measurements and corresponding landmarks) has less impact on robot actions, in A-SLAM, a robust data association guides the controller to select feature-rich positions. The qualification of these good feature/landmark positions may be difficult, especially beyond line-of-sight measurements.
- Dynamic environments: In A-SLAM, the nature of the environment (static or dynamic) and the characteristics of obstacles (static or dynamic) significantly influence the utility function used to plan future actions. While the majority of the A-SLAM literature primarily addresses static environments and obstacles, this focus may not align well with the complexities of real-world scenarios marked by dynamic elements. This article advocates for a broader exploration of A-SLAM in dynamic contexts, highlighting the need for adaptable and responsive robotic systems capable of thriving in real-world conditions.
- Simulation environment: When considering DRL-based approaches, the model training is constrained to a simulated environment, and contrary to Deep Learning approaches, an offline dataset cannot be used. The trained model may not perform optimally in real-world scenarios with high uncertainty.
4.2. Limitations of Existing Methods
- Limited consideration of dynamic obstacles: As mentioned earlier in Section 2.2, A-SLAM involves decision and planning in unknown environments. These environments may have dynamic obstacles, as in real-world scenarios. In such a case, the SLAM algorithm must be able to detect dynamic obstacles and recompute its utility and path. In [41], the authors employed a novel approach that leverages D* [32] with negative edge weights for adaptive path planning in the presence of dynamic obstacles. Keeping into consideration the robot localization uncertainty, this method takes into account the obstacle Euclidean distance and updates the D* planner weights. The approach in [9] detects dynamic obstacles in a crowded environment, and the utility function takes into account the change in Shannon’s entropy [59] upon the detection of dynamic obstacles.
- High computational complexity: A-SLAM is computationally expensive, as mentioned in Section 2.1 and Section 2.2. We find only a few approaches that tackle this issue. The authors of [38] present a scenario with multiple prior topometric subgraphs, and a novel approach is introduced. It alternates between active localization and mapping and uses maximum likelihood estimation to streamline the method’s computational complexity. In an interesting approach using the methods in Section 2.3, the authors of [34] tackle the joint-entropy minimization exploration problem by introducing two versions of RRT* [31], which use distance and entropy change per distance traveled in the utility function, hence lowering the computational complexity. In AC-SLAM, the authors of [94] introduce a novel method for strengthening weak connections in the target robot’s pose graphs by the host robot. Weak connections are identified when the covariance surpasses a predefined threshold and is resolved through communication, addressing the 1-ESP problem [63]. The methods explained in Section 2.6 provide a good basis for the development of less computationally expensive A-SLAM algorithms.
- Real robot deployment: A-SLAM is necessary for real robot deployment because it enables robots to make decisions about where and how to select informative goal positions, adapt to changing environments, and operate effectively and autonomously in complex and dynamic environments. From the results of Section 2.7 and Section 3.5, we recall that real robots are used only in 67% and 37% of A-SLAM and AC-SLAM methods, respectively.
- Limited implementation of loop closure: Loop closure [107] is important in SLAM to ensure map consistency and integrity, minimize localization errors and drift, assist with global map alignment, and optimize map accuracy. It is essential for the reliable and accurate mapping and localization required in various robotic applications. In Section 2.7 and Section 3.5, we recall that loop closure is implemented in only 51% and 62.5% of A-SLAM and AC-SLAM methods, respectively. This limited use is justified by the fact that it involves the heavy computation of minimizing the localization error and exploitation (revisiting already-traversed areas of the environment), which may not be suitable for A-SLAM, which is already computationally expensive (Section 2.1 and Section 2.2).
- Reasoning over graph connectivity: As mentioned in Section 2.6, new methods are available to reduce the A-SLAM computational complexity, whereby debates over the SLAM pose-graph connectivity metrics and new methods for uncertainty quantification have occurred. The authors of [66] treat the underlying graph as an estimation-over-graph (EoG) [62] SLAM problem and propose a new method of computing the D-optimality criterion over the reduced weighted graph Laplacian matrix. In an AC-SLAM approach, the method presented in [94] also exploits the graph connectivity to find weak edges in the target robot pose graph and guides the host robot to localize it.
- Limited ROS implementation: ROS [22] is an open-source framework for robotics research. It provides a collection of libraries for sensor integration, perception, navigation, control, visualization, and analysis for many robotics platforms [108]. From Section 2.7 and Section 3.5, we can infer that ROS usage has been limited to only 45% and 31.2% of articles on A-SLAM and AC-SLAM, respectively. This limited ROS usage is related to the increased computational overhead on the A-SLAM algorithm, which decreases the real-time and performance requirements.
- Less usage of dynamic approaches: As discussed in Section 2.4, these approaches treat path planning in A-SLAM as an Optimal Control Problem and work on continuous planning and action spaces. They have the advantage of incorporating the robot kinematic and dynamic models into the cost function, resulting in a smooth trajectory [109] with dynamic obstacle detection. Our analysis in Section 2.7 signifies that only 11% of A-SLAM methods use this approach, mainly due to the associated computational overhead.
- Lack of usage of heterogeneous robots: Utilizing heterogeneous robots in AC-SLAM can enhance the mapping accuracy, improve the system robustness, increase coverage, enable multiperspective mapping, and support efficient exploration by leveraging complementary sensor modalities and capabilities among the robots. Section 2.7 shows that 66.6% of approaches use UGV and UAV collaboration for collaborative mapping [89,93,95] and information gathering [101].
- Managing robust communication: Robust communication implies the ability of a network to function smoothly when one or many robots/servers fail. In the case of A-SLAM, it is deduced to be a system that is immune to failure when any agent loses localization or gets out of the communication range. Most of the AC-SLAM approaches in Section 3 fail to address this issue. An interesting approach by the authors of [96] proposes a rendezvous method to manage the limited communication bandwidth by relocating robots to predefined positions when they move beyond the communication range.
- Communication bandwidth management: Communication bandwidth management is vital in AC-SLAM for ensuring real-time collaboration, minimizing latency, conserving resources, and optimizing cost efficiency. From the analysis in Section 3, we can infer that no AC-SLAM implementation addresses communication bandwidth management. The approach presented in [110] proposes many different visual and visual–inertial information-sharing schemes for SLAM and loop closure, which are bandwidth friendly and can be applied in AC-SLAM.
4.3. Future Prospects
- Detection and avoidance of dynamic obstacles: Dynamic obstacle detection and avoidance are crucial for autonomous robot navigation in unfamiliar or partially known environments. The effective management of both static and dynamic obstacle avoidance directly impacts uncertainty propagation and system entropy. In [111], the authors introduce a perception-aware Next-Best Viewpoint Planner (NBVP) [112] designed for dynamic obstacles incorporating active-loop closure. This planner employs a keypoint filtration and selection method based on the yaw angle, the number of previously detected keypoints, and the UAV’s distance to choose optimal loop-closure keypoints. Additionally, in a computationally efficient approach by [113], the authors combine multiple obstacle detectors and utilize a Kalman filter for efficient dynamic obstacle detection and tracking. For Lidar measurements, [114] proposes a method involving dynamic object segmentation and classification based on kd-nearest neighborhood search [115].
- Lowering computational complexity for real-time applications: As discussed earlier, the utility criterion in TOED and relative entropy computation are both computationally extensive tasks, thus limiting the real-time performance of A-SLAM. Machine learning approaches like CNNs can be used to reduce the computational overhead of loop closure in SLAM, as proposed by the authors of [116]. Leveraging the advantages of edge-cloud computing [117], the robot pose and local/global map can be estimated by utilizing the edge-cloud processing capabilities, as used by the authors of [118].
- Application of DRL methods: As mentioned in Section 2.4, DRL methods have the capacity to handle complex decision-making processes in continuous states and action spaces. They enable adaptive exploration–exploitation trade-offs, making them well suited for the challenges encountered in real-world A-SLAM scenarios. Deep Q networks (DQN) and double dueling (D3QN) are applications of such DRL approaches used by [13,55]. A memory-efficient solution as compared to traditional DRL approaches is presented by the authors of [119] where the robot already has a partial map of the environment inside the external memory and uses a neural-network-based navigation strategy for autonomous exploration. The method in [120] presents an interesting DRL A-SLAM method that improves exploration by incorporating the robot pose uncertainty in the reward function to favor loop closure.
- Advanced simulators: The use of advanced simulators is crucial for A-SLAM due to their realistic modeling, cost efficiency, and support for diverse scenarios. Commercially available simulators like AirSim [121], Carla [122], and Webots [123] provide realistic modeling of urban environments for UGV, UAV, and cars. For multirobots, MvSim [124], and for SLAM, the Virtual Reality (VR)-supported simulator proposed in [125], can be used.
- Multisensor fusion: Multisensor fusion enhances perception, adaptability, obstacle detection, reliability, loop closure, tracking, and localization in real-world A-SLAM. Sensor fusion is a very mature topic, and interested readers are directed to [126,127] for review articles. When using Deep Learning (DL) approaches is concerned, the authors of [128] present an actor–critic self-adopting agent for the weighing-sensors (camera, Lidar, IMU, GPS) SLAM method. An interesting method for fusing light and Lidar measurements to map and localize agents by using an Extended Kalman Filter (EKF) is presented by the authors of [129].
- Graph connectivity metrics: As explained in Section 2.6, a novel approach for assessing A-SLAM uncertainty is presented. This approach involves quantifying the reliability of SLAM through measures such as algebraic, degree, and tree connectivity within the pose graph. It is noteworthy that this method, as demonstrated in [64,65,66], provides a computationally efficient alternative to A-SLAM.
- Advance embedded design: Advanced embedded design methods are essential for real-time processing, low latency, sensor integration, robustness, real-world testing, and the overall optimized performance of A-SLAM. Referring to Table 3 and Table 6, we can infer that most approaches use commercially available robots with limited embedded processing capabilities. The authors of [130] propose an efficient Field Programmable Gate Arrays (FPGA)-based vision system for obstacle detection in real time at 30 Frames Per Second (FPS). To improve the computational capabilities for navigation tasks, the authors of [131] propose a method to add an external embedded board to the Khepra IV [132] robot.
- Internet of Things (IoT) and cloud computing: IoT and cloud computing offer scalable data processing, remote access, data fusion, and machine learning capabilities. The approach adopted by the authors of [133] proposes a Deep Learning (DL) model incorporated with cloud computing and IoT technologies and works with wearable glucose-level-monitoring equipment for the efficient future prediction of blood glucose levels.
5. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
