OTE-SLAM: An Object Tracking Enhanced Visual SLAM System for Dynamic Environments
Abstract
:1. Introduction
- The YOLOv5-seg-based dynamic object detection method, which detects the dynamic objects in the image and provides segmentation masks of the objects.
- The ByteTrack-based object tracking method which tracks the dynamic objects and provides data association between segmented instances in consecutive frames.
- An object position estimation method, which computes the initial position of the dynamic objects based on the camera pose and object tracking.
- A novel object-aware and tightly coupled bundle adjustment (BA) framework, which jointly optimizes the poses of the camera and the dynamic objects, and the 3D map points positions.
- A visual SLAM system for dynamic environments, which can operate robustly in dynamic environments with the ability to track the motion of dynamic objects.
2. Related Work
2.1. Dynamic Features Removal
2.2. SLAM with Moving Object Tracking
3. System Overview

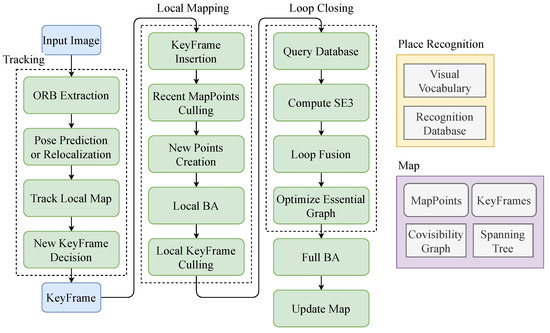

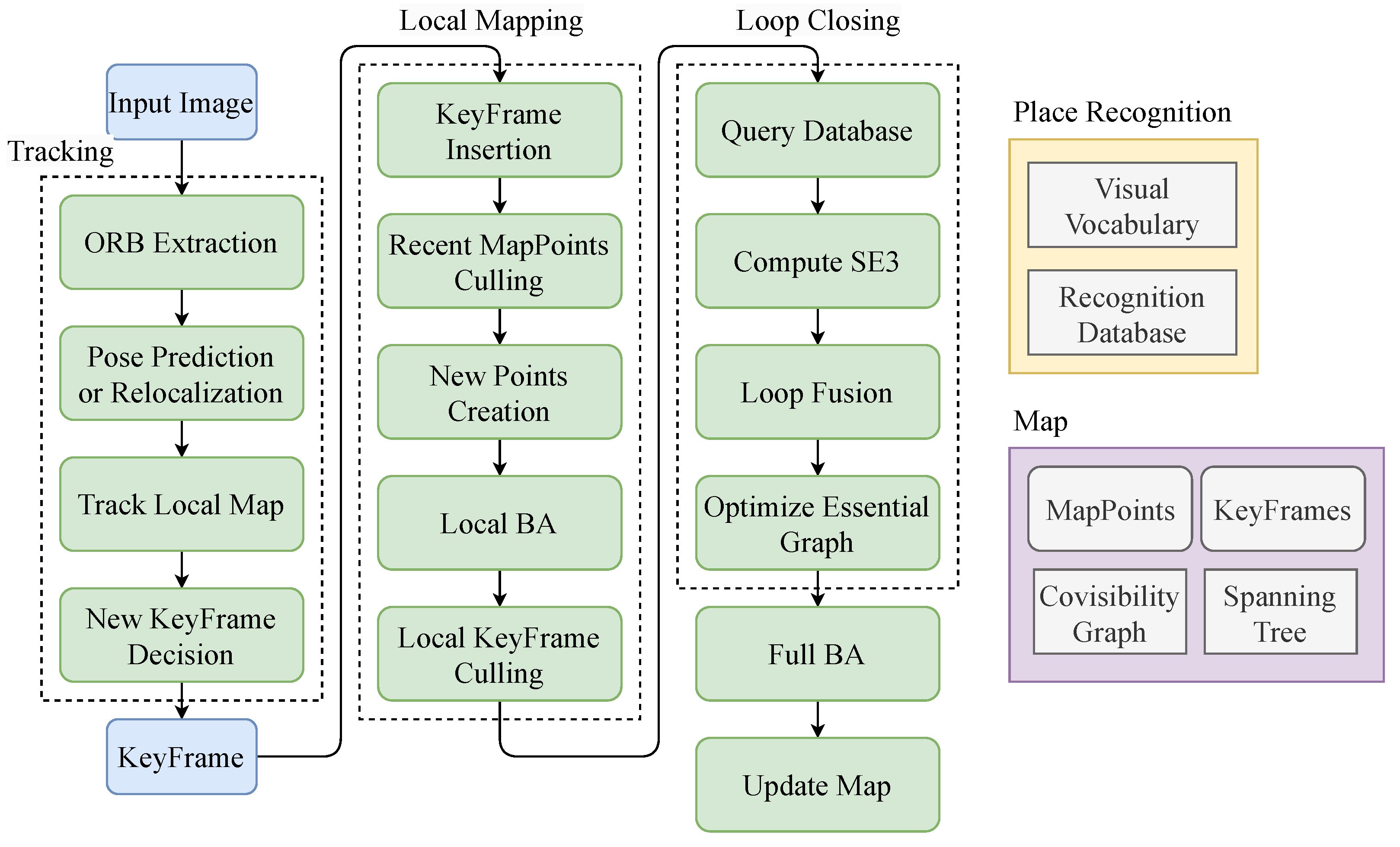

3.1. ORB-SLAM2 Framework

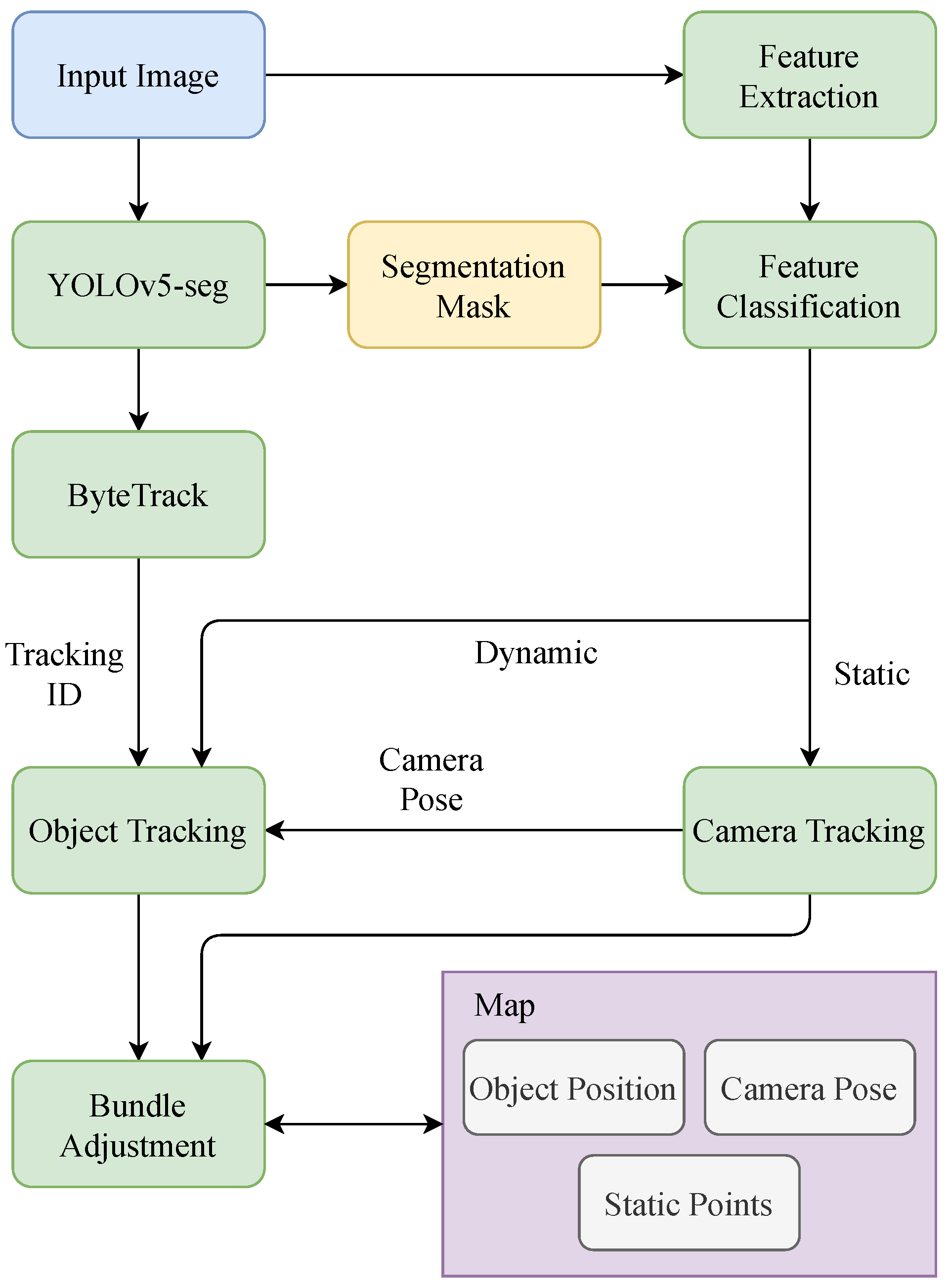

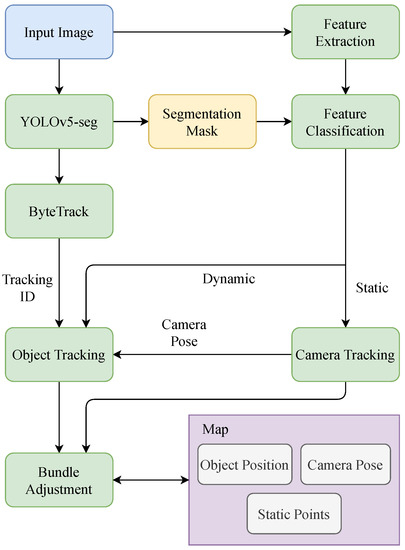

3.2. OTE-SLAM Overview
4. Methodology

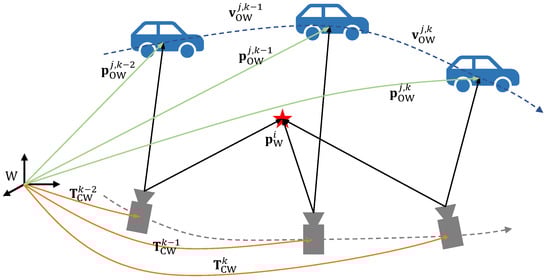

4.1. Notations
- , , represent the world, camera, and object coordinate systems, respectively.
- i, j, k are the indices of the static map points, objects, and frames, respectively.
- represents the camera pose at the k-th frame, which is a rigid body transformation that transforms points from the world coordinate system to the camera coordinate system.
- represents the position of the j-th object at the k-th frame in the world coordinate system or camera coordinate system.
- represents a 3D static point in the world or camera coordinate system.
- represents the linear velocity of the j-th object at the k-th frame in the world coordinate system.
4.2. YOLOv5-Seg Network

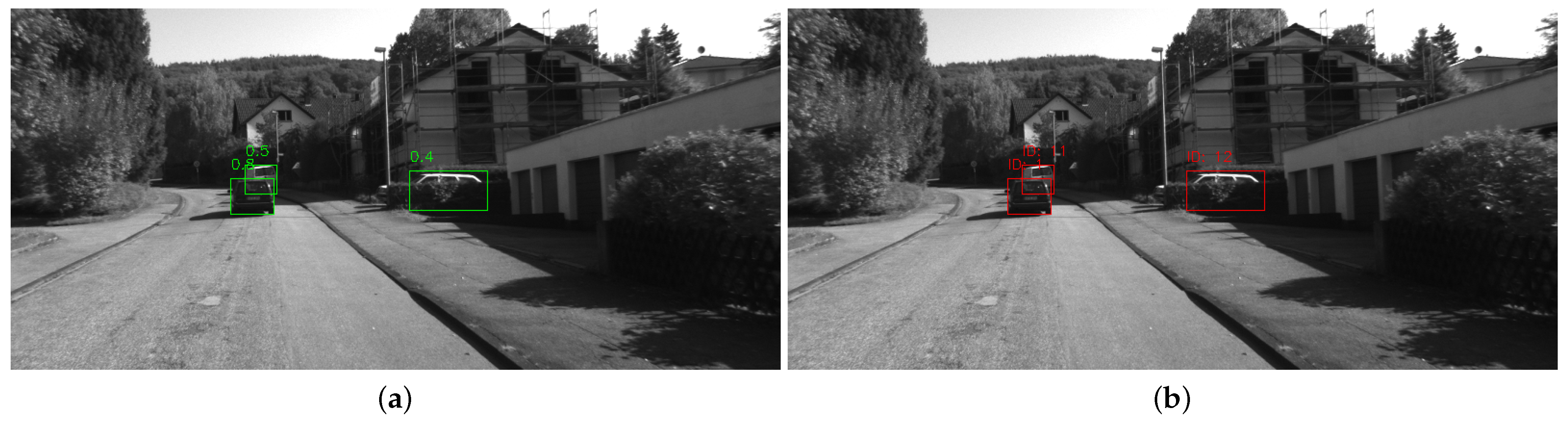

4.3. ByteTrack Multi Object Tracking

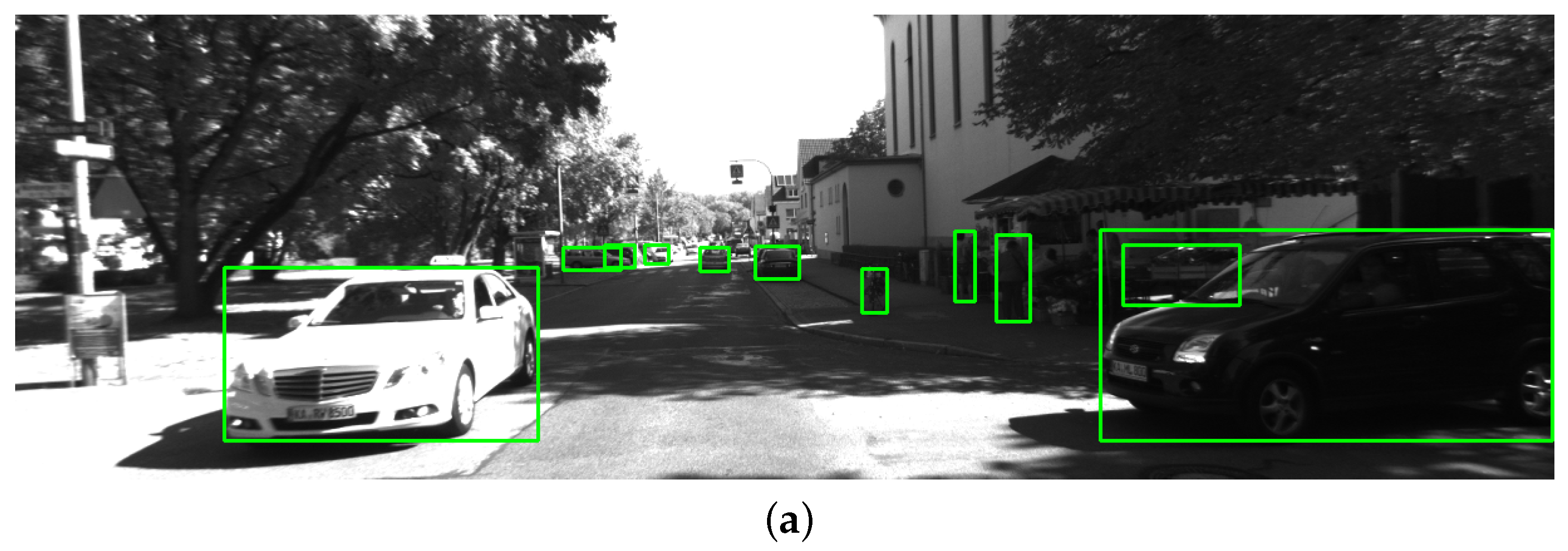

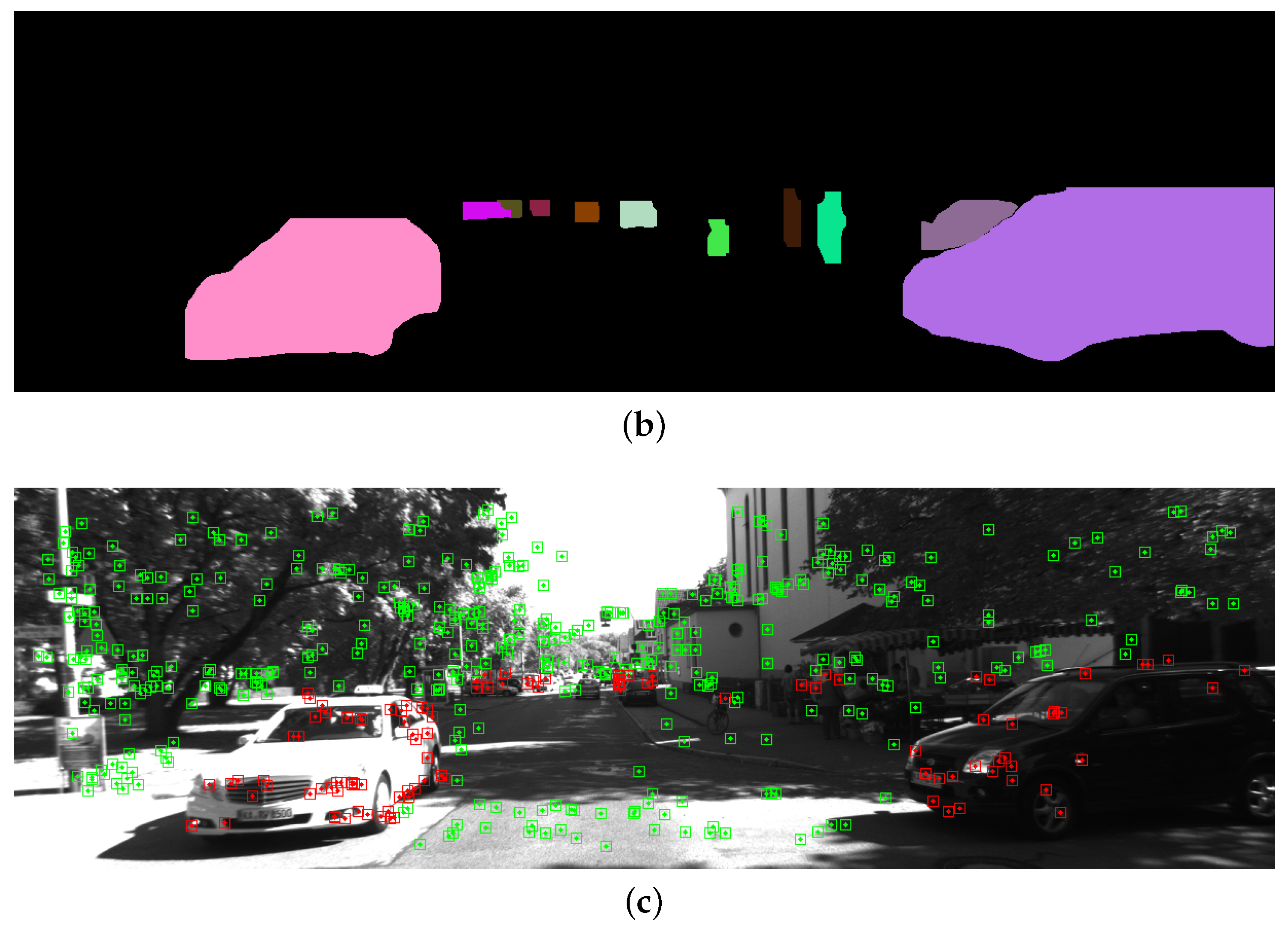

4.4. Feature Classification
Algorithm 1 Feature Classification |
|
4.5. Object Position Estimation
Algorithm 2 Object position initialization and tracking strategy |
|

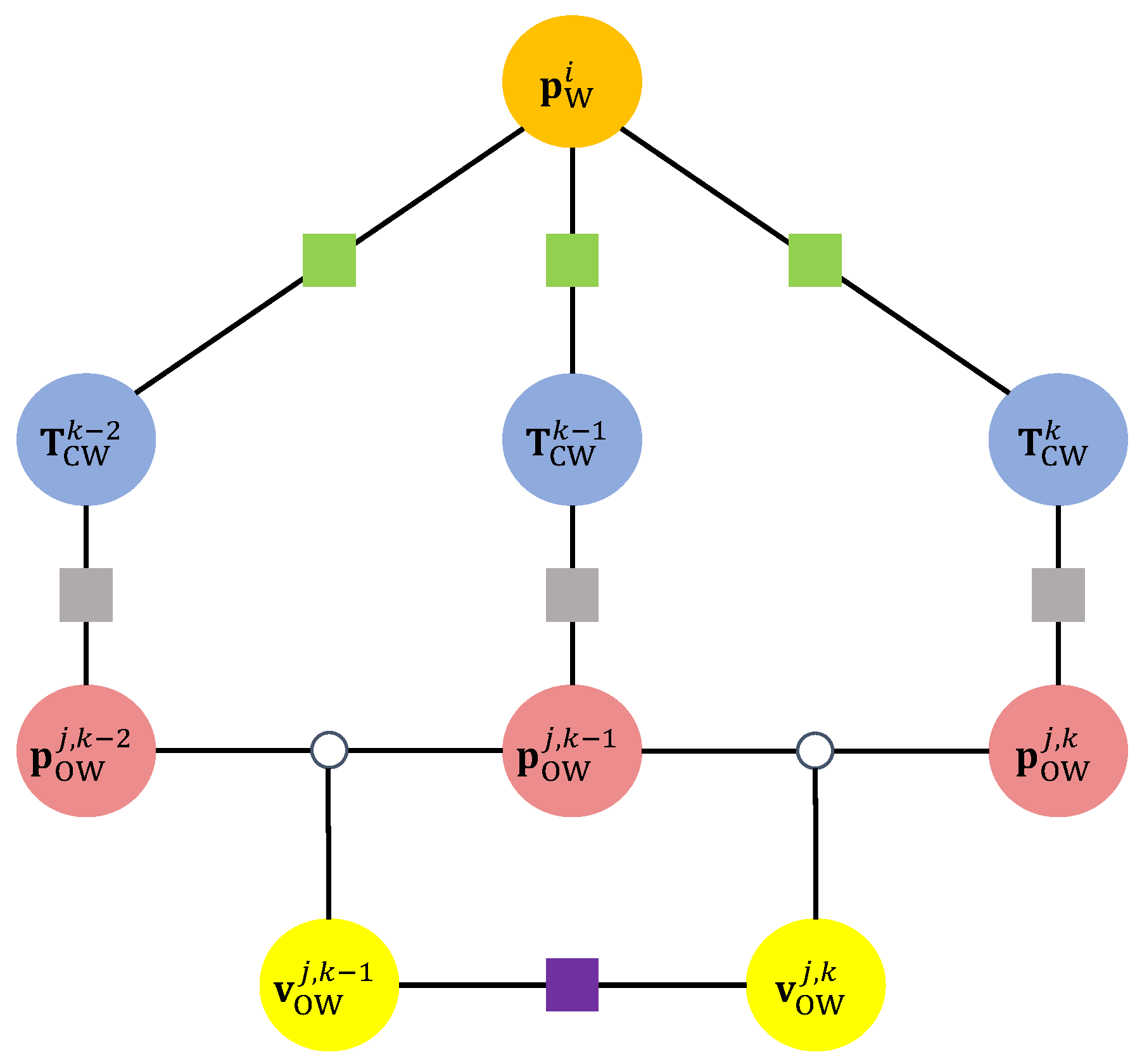

4.6. Joint Optimization
4.6.1. Static Points Re-Projection Error
4.6.2. Dynamic Objects Re-Projection Error
4.6.3. Object Motion Smoothness Regularization

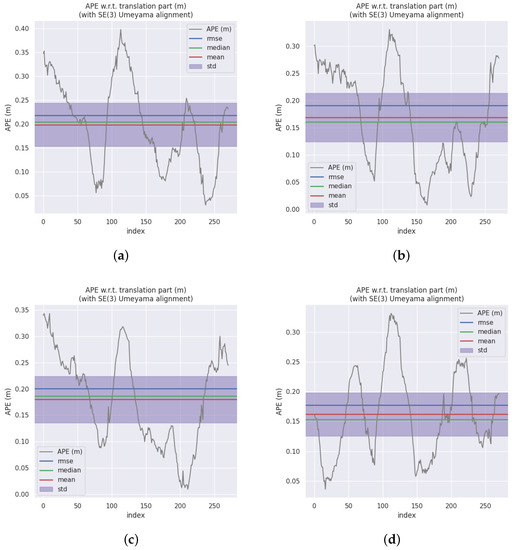

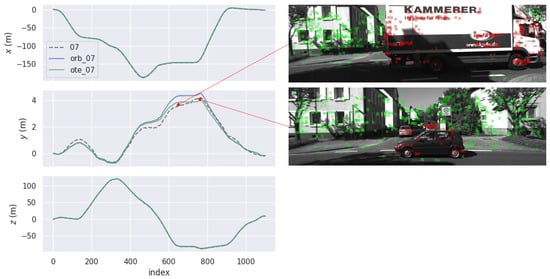

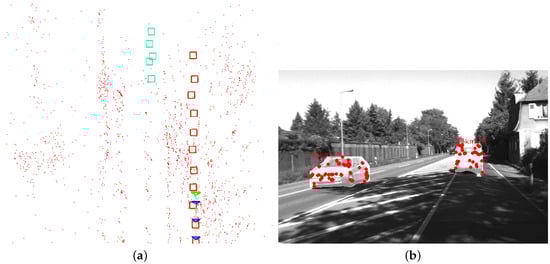

5. Experiments
6. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
Abbreviations
SLAM | Simultaneous localization and mapping |
MOT | Multi-object tracking |
RANSAC | Random sample consensus |
ORB | Oriented FAST and Rotated BRIEF |
YOLO | You Only Look Once |
MSE | Mean squared error |
MAE | Mean absolute error |
APE | Absolute pose error |
RPE | Relative pose error |
RMSE | Root mean square error |
STD | Standard deviation |
References
