# Characterizing Periodic Variations of Atomic Frequency Standards via Their Frequency Stability Estimates

^{1}

^{2}

^{3}

^{4}

^{*}

^{†}

## Abstract

**:**

## 1. Introduction

- Satellite clock bias includes both deterministic and random signals: while the spectra of deterministic signals are estimated from its direct Fourier transform, the spectra of stochastic processes are calculated from the Karhunen–Loeve transform of its covariance [25]. On the other hand, Dong et al. show that the Karhunen–Loeve transform of covariance can distort the spectral response of deterministic signals [26].
- Additionally, Zhou et al. reported that there is no uniform method based on least squares for detecting, fitting, and removing periodic variations in Beidou satellite system (BDS) inclined geosynchronous orbit (IGSO), geostationary earth orbit (GEO), and medium earth orbit (MEO) satellite clock periodic variations [27].

## 2. Methods

#### 2.1. Allan and Hadamard Variances of Periodic Variations

**Theorem**

**1.**

**Theorem**

**2.**

#### 2.2. Characterizing Periodic Variations Using Frequency Stability Estimates

## 3. Results

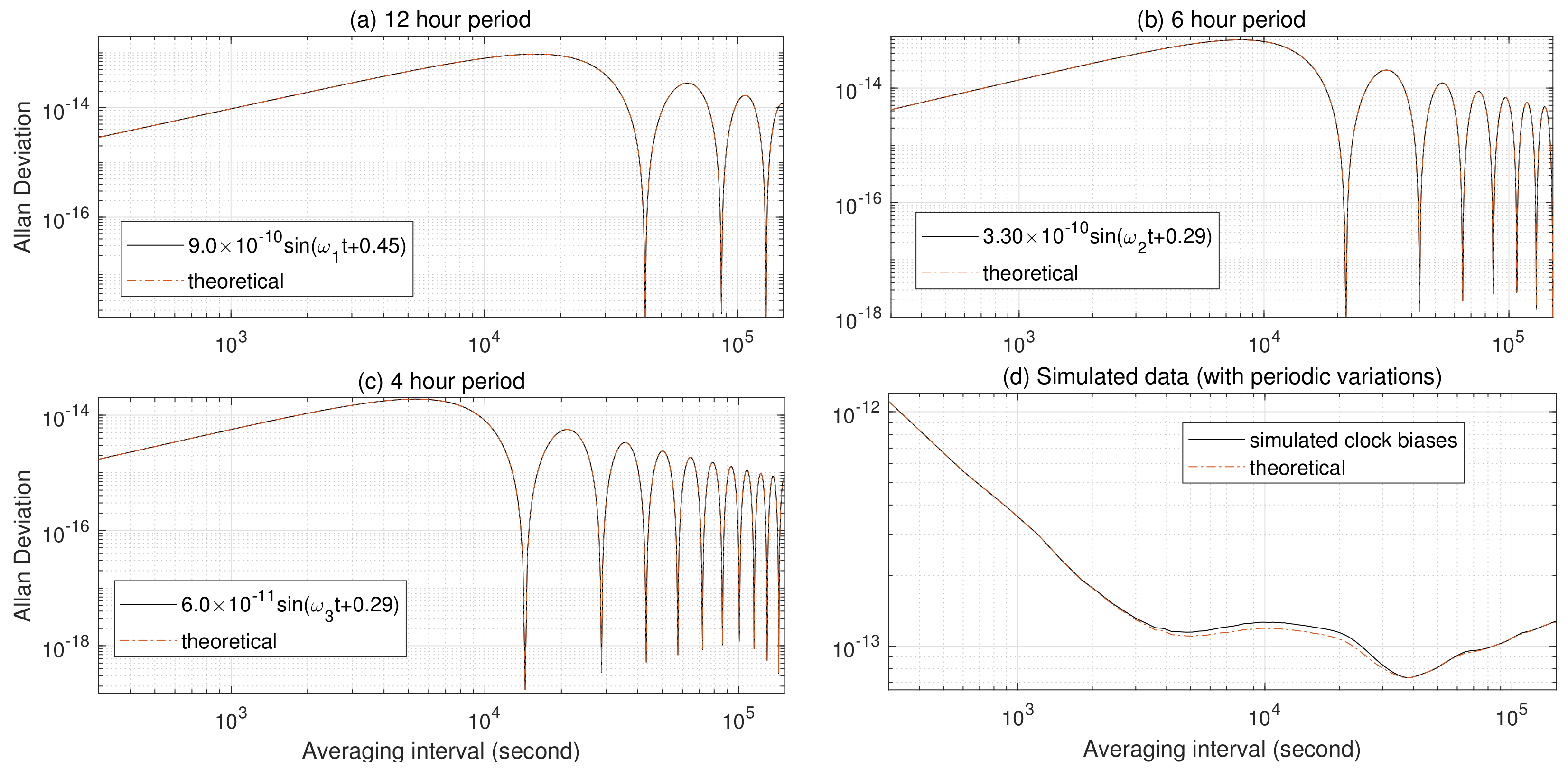

#### 3.1. Simulated Data

#### 3.2. GPS SVN63 Clock Data

#### 3.3. Other GPS Clock Data

- For more than half of the satellites, the sigma–tau plot of the AVAR computed from clock bias with periodic variations removed using Equation (9) is closer to the standard sigma–tau plot of AVARs than the least squares method.
- “Lumps” of AVARs estimated from PRN01, PRN02, PRN05, PRN07, PRN11, PRN12, PRN13, PRN14 (SVN41), PRN15, PRN16, PRN17, PRN18 (SVN54), PRN20, PRN21, PRN22, PRN23 (SVN76), PRN25, PRN28, PRN30, PRN31, PRN32 (SVN23), and PRN32 (SVN70) clock bias with periodic variations removed using Equation (9) at an averaging time around $4\times {10}^{4}$ s suggest underestimation of 24-hour periodic variations.
- “Lumps” of AVARs estimated from PRN01, PRN02, PRN03, PRN04 (SVN34), PRN04 (SVN74), PRN05, PRN06, PRN09, PRN12, PRN14 (SVN77), PRN18 (SVN75), PRN19, PRN23 (SVN60), PRN23 (SVN76), PRN24, PRN26, PRN27, PRN30, and PRN32 (SVN23) clock bias with periodic variations removed using Equation (9) at an averaging time around $2\times {10}^{4}$ s suggest underestimation of 12-hour periodic variations.
- “Lumps” of AVARs estimated from PRN04 (SVN34), PRN04 (SVN74), PRN05, PRN07, PRN10, PRN11, PRN12, PRN14 (SVN41), PRN17, PRN18 (SVN75), PRN20, PRN21, PRN22, PRN24, PRN25, PRN27, PRN29, and PRN32 (SVN70) clock bias with periodic variations removed using Equation (9) at an averaging time around ${10}^{4}$ s suggest underestimation of 6-hour periodic variations.
- “Lumps” of AVARs estimated from PRN02, PRN04 (SVN34), PRN05, PRN06, PRN07, PRN08, PRN09, PRN11, PRN13, PRN14 (SVN41), PRN15, PRN16, PRN18 (SVN75), PRN19, PRN22, PRN23 (SVN60), PRN25, PRN32 (SVN23), and PRN32 (SVN70) clock bias with periodic variations removed using Equation (9) at an averaging time around $5\times {10}^{3}$ s suggest underestimation of 4-hour periodic variations.
- “Lumps” of AVARs estimated from PRN09, PRN11, PRN13, PRN18 (SVN54), PRN18 (SVN75), PRN22, PRN24, PRN27, PRN29, PRN31, PRN32 (SVN23), and PRN32 (SVN70) clock bias with periodic variations removed using Equation (9) at an averaging time around $3\times {10}^{3}$ suggest underestimation of 3-hour periodic variations.

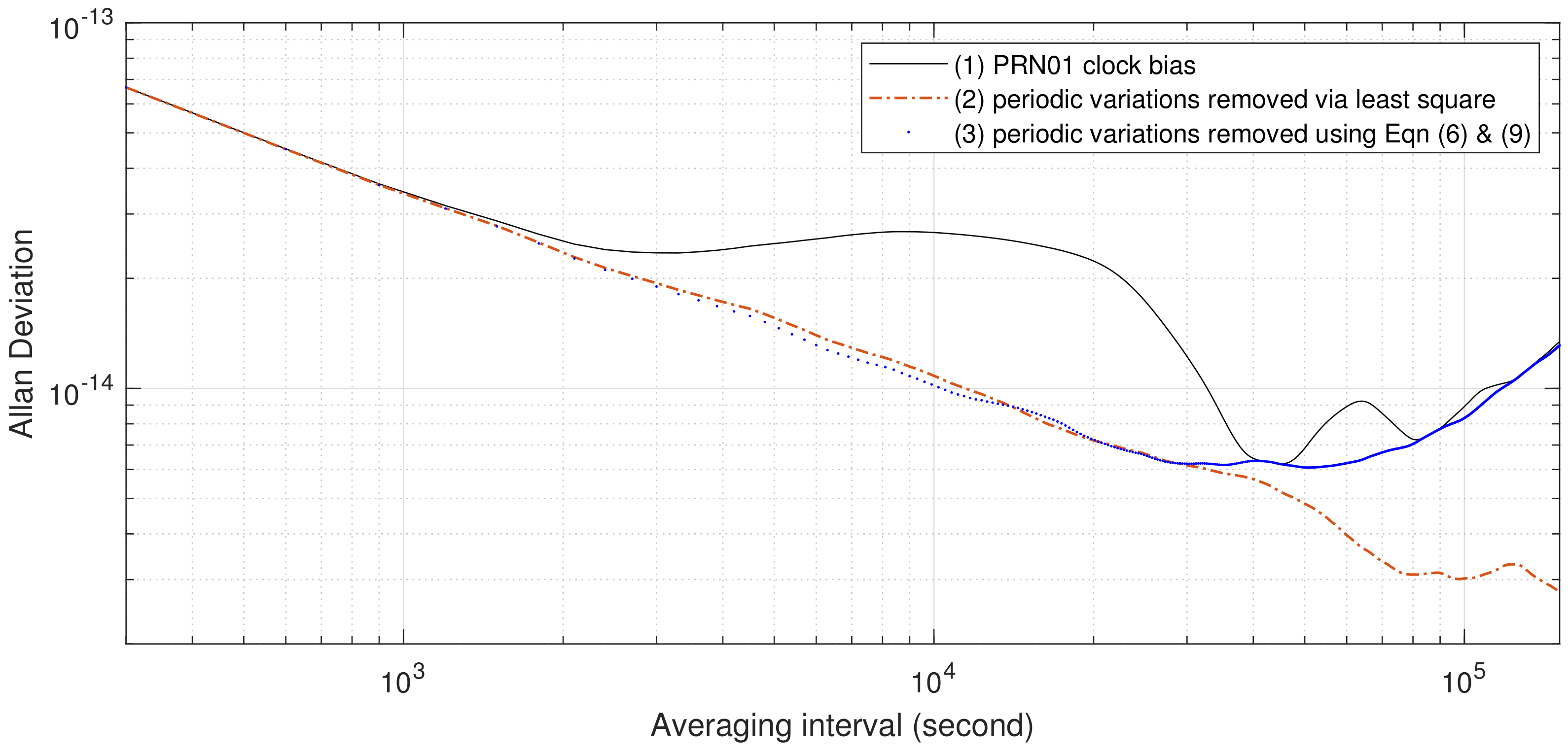

- The gap between the AVAR estimated from PRN01 clock bias with periodic variations fitted and removed using the least squares method and the AVAR computed from PRN01 clock bias enlarges with increasing averaging interval. Since the tail of AVAR estimated from PRN01 clock bias with periodic variations removed using the least squares method has a similar shape to the AVARs of 12-hour sinusoidal variations, and the AVAR computed from PRN01 clock bias with periodic variations fitted and removed using Equation (9) suggests strong frequency noise, the discrepancies between the AVAR estimated from PRN01 clock bias with periodic variations fitted and removed using the least squares method and the AVAR computed from PRN01 clock bias is caused by overfitting the periodic variations by taking a portion of frequency noises as 12-hour variation.
- The AVAR estimated from PRN22 clock bias with periodic variations fitted and removed using least squares method is greater than the AVAR computed from IGS final combined PRN22 clock bias around averaging time $2\times {10}^{4}$ s. Since AVARs computed from the three PRN22 clock biases increase with the averaging interval for $\tau \ge 2\times {10}^{4}$ s, PRN22 AFS is influenced by strong FM noise processes. It seems that the least squares method overfits the periodic variations of PRN22 by taking a portion of frequency noises as 12-hour variation.

- Overfitting of periodic variations can reduce the clock residuals caused by power–law noise processes. When periodic variations are removed, the interaction between random clock behaviors and periodic variations is suppressed, leading to an increase in clock residuals and prediction RMS.
- Only high-variability estimates (HVAR) are used in solving Equations (6) and (9), which may not capture all the periodic variations present in the data. The maximum averaging time of HVARs estimated from two-day GPS clock bias is $1.44\times {10}^{4}$ s, while the first local minimum of Equation (5) appears at averaging interval $\tau =2\times {10}^{4}$ s. This means that some periodic variations may not be captured by HVAR estimates and could contribute to an increase in the RMS prediction when removed.

## 4. Conclusions and Discussion

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## Abbreviations

AFS | atomic frequency standards |

BDS | Beidou Satellite System |

BIPM | Bureau International des Poids et Mesures |

CCTF | Consultative Committee for Time and Frequency |

CGPM | General Conference on Weights and Measures |

CLS | Collecte Localisation Satellites |

cpd | cycles per day |

EAL | échelle atomique libre (or Free atomic time scale) |

GNSS | Global Navigation Satellite System |

GPS | US Global Positioning System |

HVAR | Hadamard variance |

IGS | International GNSS Service |

IGST | International GNSS Service Timescale |

JAXA | Japan Aerospace Exploration Agency |

MGEX | Multi-GNSS Experiment |

PRN | Pseudorandom Noise |

RAFS | Rubidium Atomic Frequency Standard |

RMS | root mean square |

PLN | power–law noise |

PSD | power spectral distribution |

SVN | Satellite Vehicle Number |

TAI | International Atomic Time |

TT | Terrestrial Time |

UTC | Coordinated Universal Time |

## References

- Hauschild, A.; Montenbruck, O.; Steigenberger, P. Short-term analysis of GNSS clocks. GPS Solut.
**2013**, 17, 295–307. [Google Scholar] [CrossRef] - Fan, L.; Shi, C.; Li, M.; Wang, C.; Zheng, F.; Jing, G.; Zhang, J. GPS satellite inter-frequency clock bias estimation using triple-frequency raw observations. J. Geod.
**2019**, 93, 2465–2479. [Google Scholar] [CrossRef] - Cernigliaro, A.; Valloreia, S.; Galleani, L.; Tavella, P. GNSS space clocks: Performance analysis. In Proceedings of the International Conference on Localization and GNSS (ICL-GNSS), IEEE, Torino, Italy, 25–27 June 2013. [Google Scholar]
- Brown, K.R., Jr. The Theory of the GPS Composite Clock. In Proceedings of the 4th International Technical Meeting of the Satellite Division of The Institute of Navigation (ION GPS 1991), Albuquerque, NM, USA, 11–13 September 1991; pp. 223–242. [Google Scholar]
- Senior, K.; Ray, J.; Beard, R. Characterization of periodic variations in the GPS satellite clocks. GPS Solut.
**2008**, 12, 211–225. [Google Scholar] [CrossRef] - Howe, D.; Beard, R.; Greenhall, C.; Vernotte, F.; Riley, W.; Peppler, T. Enhancements to GPS Operations and Clock Evaluations Using a “Total” Hadamard Deviation. IEEE Trans. Ultrason. Ferroelectr. Freq. Control
**2005**, 52, 1253–1261. [Google Scholar] [CrossRef] - Kouba, J. Improved relativistic transformations in GPS. GPS Solut.
**2004**, 8, 170–180. [Google Scholar] [CrossRef] - Beutler, G.; Brockmann, E.; Gurtner, W.; Hugentobler, U.; Mervart, L.; Rothacher, M.; Verdun, A. Extended orbit modeling techniques at the CODE processing center of the international GPS service for geodynamics (IGS): Theory and initial results. Manuscripta Geod.
**1994**, 19, 367–387. [Google Scholar] - Montenbruck, O.; Hugentobler, U.; Dach, R.; Steigenberger, P.; Hauschild, A. Apparent clock variations of the Block IIF-1 (SVN62) GPS satellite. GPS Solut.
**2011**, 16, 303–313. [Google Scholar] [CrossRef] - Wang, G.; Liu, L.; Xu, A.; Pan, F.; Cai, Z.; Xiao, S.; Tu, Y.; Li, Z. On the capabilities of the inaction method for extracting the periodic components from GPS clock data. GPS Solut.
**2018**, 22, 92. [Google Scholar] [CrossRef] [Green Version] - Thomas, C. Real-time Restitution of GPS Time Through a Kalman Estimation. Metrologia
**1993**, 29, 397–414. [Google Scholar] [CrossRef] - Bogdanov, P.P.; Druzhin, A.V.; Tiuliakov, A.E.; Feoktistov, A.Y. GLONASS time and UTC(SU). In Proceedings of the 2014 XXXIth URSI General Assembly and Scientific Symposium (URSI GASS), Beijing, China, 16–23 August 2014; pp. 1–3. [Google Scholar]
- Dong, S.; Wu, H.; Li, X.; Guo, S.; Yang, Q. The Compass and its time reference system. Metrologia
**2008**, 45, S47–S50. [Google Scholar] [CrossRef] - Bedrick, S.; Bauch, A.; Moudrak, A.; Schäfe, W. Design of the precise time facility for GALILEO. Proceedins of the 36th Annual Precise Time and Time Interval (PTTI) Meeting, Washington, DC, USA, 7–9 December 2004; pp. 339–354. [Google Scholar]
- Panfilo, G.; Arias, F. The Coordinated Universal Time (UTC). Metrologia
**2019**, 56, 042001. [Google Scholar] [CrossRef] - Senior, K.; Koppang, P.; Matsakis, D. Developing an IGS time scale. In Proceedings of the 2001 IEEE International Frequncy Control Symposium and PDA Exhibition, Seattle, WA, USA, 8 June 2001. [Google Scholar]
- Yao, J.; Parker, E.; Arias, F. JY1 time scale: A new Kalman-filter time scale designed at NIST. Meas. Sci. Technol.
**2017**, 28, 115004. [Google Scholar] [CrossRef] [Green Version] - Ray, J.; Senior, K. IGS/BIPM pilot project: GPS carrier phase for time/frequency transfer and timescale formation. Metrologia
**2003**, 40, 205. [Google Scholar] [CrossRef] - Lin, B.J.; Li, S.Q.; Dong, R.C.; Liu, Y.C.; Gong, W.B. On-orbit evaluation of influence of magnetic-induced frequency shift on space borne atomic clock. Sci. Sin.-Phys. Mech. Astron.
**2021**, 51, 019514. (In Chinese) [Google Scholar] [CrossRef] - Brewer, S.; Chen, J.-S.; Hankin, A.; Clements, E.; Chou, C.-W.; Beloy, K.; McGrew, W.; Zhang, X.; Fasano, R.; Nicolodi, D.; et al. Measurements of
^{25}Mg^{+}and^{27}Al^{+}magnetic constants for improved ion clock accuracy. Phys. Rev. A**2019**, 100, 013409. [Google Scholar] [CrossRef] [Green Version] - Shidong, Y.; Hanhua, W.; Songbai, K.; Ganghua, M.; Chen, W.; Da, Z.; Feng, Z.; Li, W.; Gang, M.; Feng, Q.; et al. Characteristics of the space-borne rubidium atomic clocks for the BeiDou III navigation satellite system. Sci. Sin. Phys. Mech. Astron.
**2021**, 51, 019512. (In Chinese) [Google Scholar] - Baranov, A.; Ermak, S.; Lozov, R.; Semenov, V. Comparison of Gravitational and Light Frequency Shifts in Rubidium Atomic Clock. Universe
**2020**, 7, 3. [Google Scholar] [CrossRef] - Lin, S.F.; Li, K.; Jiang, G.Z.; Wu, J.; Ma, E.R. Method of temperature control and its validation for atomic clock cabin on navigation satellite. Chin. J. Space Sci.
**2019**, 39, 381–387. (In Chinese) [Google Scholar] - Agnew, D.C.; Larson, K.M. Finding the repeat times of the GPS constellation. GPS Solut.
**2007**, 11, 71–76. [Google Scholar] [CrossRef] - Kobayashi, H.; Mark, B.L.; Turin, W. Probability, Random Processes, and Statistical Analysis; Cambridge University Press: Cambridge, MA, USA, 2011. [Google Scholar]
- Dong, D.; Fang, P.; Bock, Y.; Webb, F.; Prawirodirdjo, L.; Kedar, S.; Jamason, P. Spatiotemporal filtering using principal component analysis and Karhunen-Loeve expansion approaches for regional GPS network analysis. J. Geophys. Res.
**2021**, 111, B03405. [Google Scholar] [CrossRef] [Green Version] - Zhou, P.; Du, L.; Lu, Y.; Fang, S.; Zhang, Z.; Yang, L. Periodic variations of Beidou satellite clock offsets derived from multi-satellite orbit determination. J. Geod. Geoinf. Sci.
**2015**, 44, 1299–1306. [Google Scholar] - Cheng, W.; Nie, G.; Wang, L.; Zhang, C.; Gao, Y. Predicting Long-Term Frequency Stability: Stochastic Oscillator Noise Analysis. IEEE Trans. Ultrason. Ferroelect. Freq. Control
**2019**, 66, 804–815. [Google Scholar] [CrossRef] [PubMed] - Cheng, W.; Nie, G. Predicting Long-Term Stability of Precise Oscillators under Influence of Frequency Drift. Sensors
**2018**, 18, 502. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Montenbruck, O.; Steigenberger, P.; Khachikyan, R.; Weber, G.; Langley, R.B.; Mervart, L.; Hugentobler, U. IGS-MGEX: Preparing the Ground for Multi-Constellation GNSS Science. In Proceedings of the 4th International Colloquium on Scientific and Fundamental Aspects of the Galileo System, Prague, Czech Republic, 4–6 December 2013. [Google Scholar]
- Villiger, A.; Dach, R. International GNSS Service Technical Report 2020 (IGS Annual Report), IGS Central Bureau and University of Bern. 2021. Available online: https://files.igs.org/pub/resource/pubs/2020_techreport.pdf (accessed on 27 December 2021).
- Yao, J.; Levine, J. GPS carrier-phase time transfer boundary discontinuity investigation. In Proceedings of the 44th Annual Precise Time and Time Interval Systems and Applications (PTTI) Meeting, Reston, VA, USA, 26–29 November 2012; pp. 317–326. [Google Scholar]

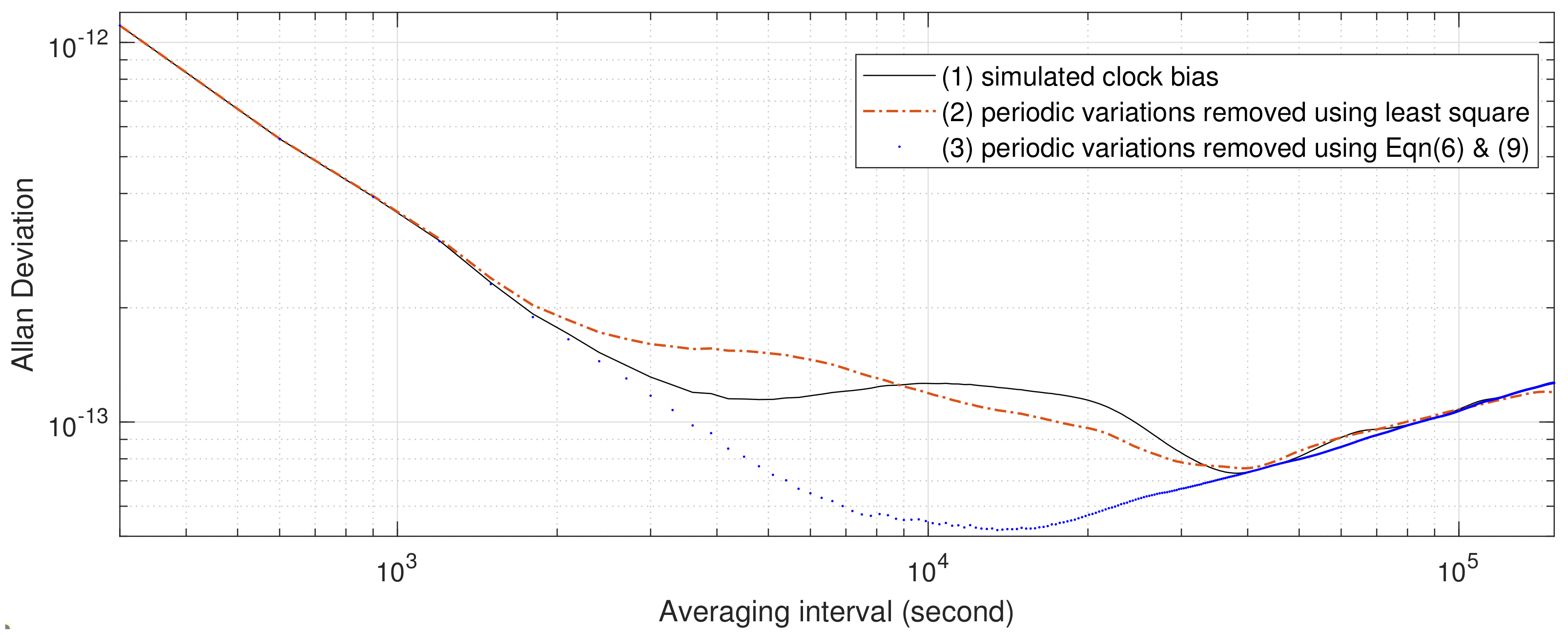

**Figure 2.**AVARs of simulated clock data 12-, 6-, 4-, and 3-hour periodic variations fitted and removed by least squares and by Equation (9), respectively.

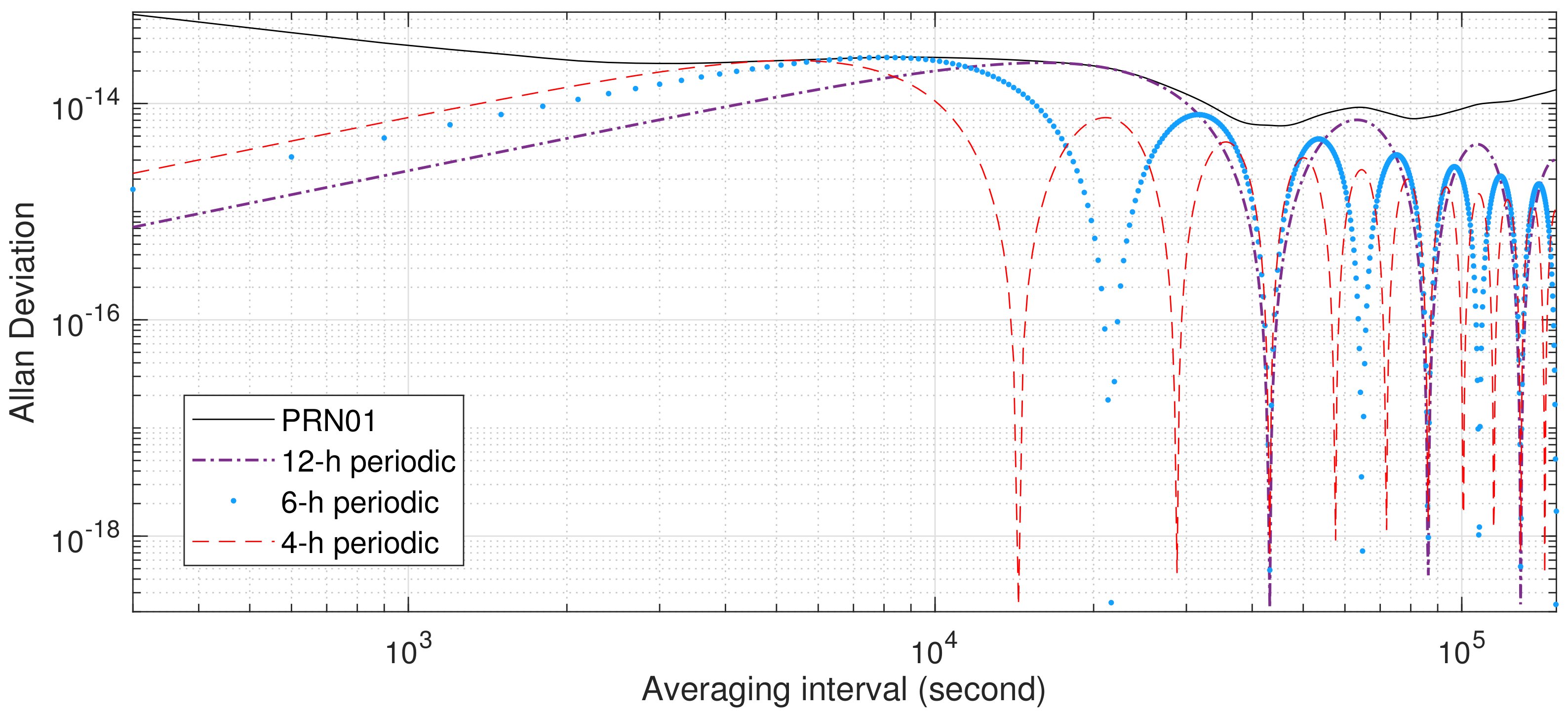

**Figure 3.**AVARs of GPS SVN63 onboard rubidium clock bias from MJD 56,739.0 to MJD 56,745.9965 12-, 6-, 4-, and 3-hour sinusoidal signals. AVARs of 12-, 6-, 4-, and 3-hour sinusoidal signals are magnified to be tangent to AVARs estimated from SVN63 clock bias at their maxima.

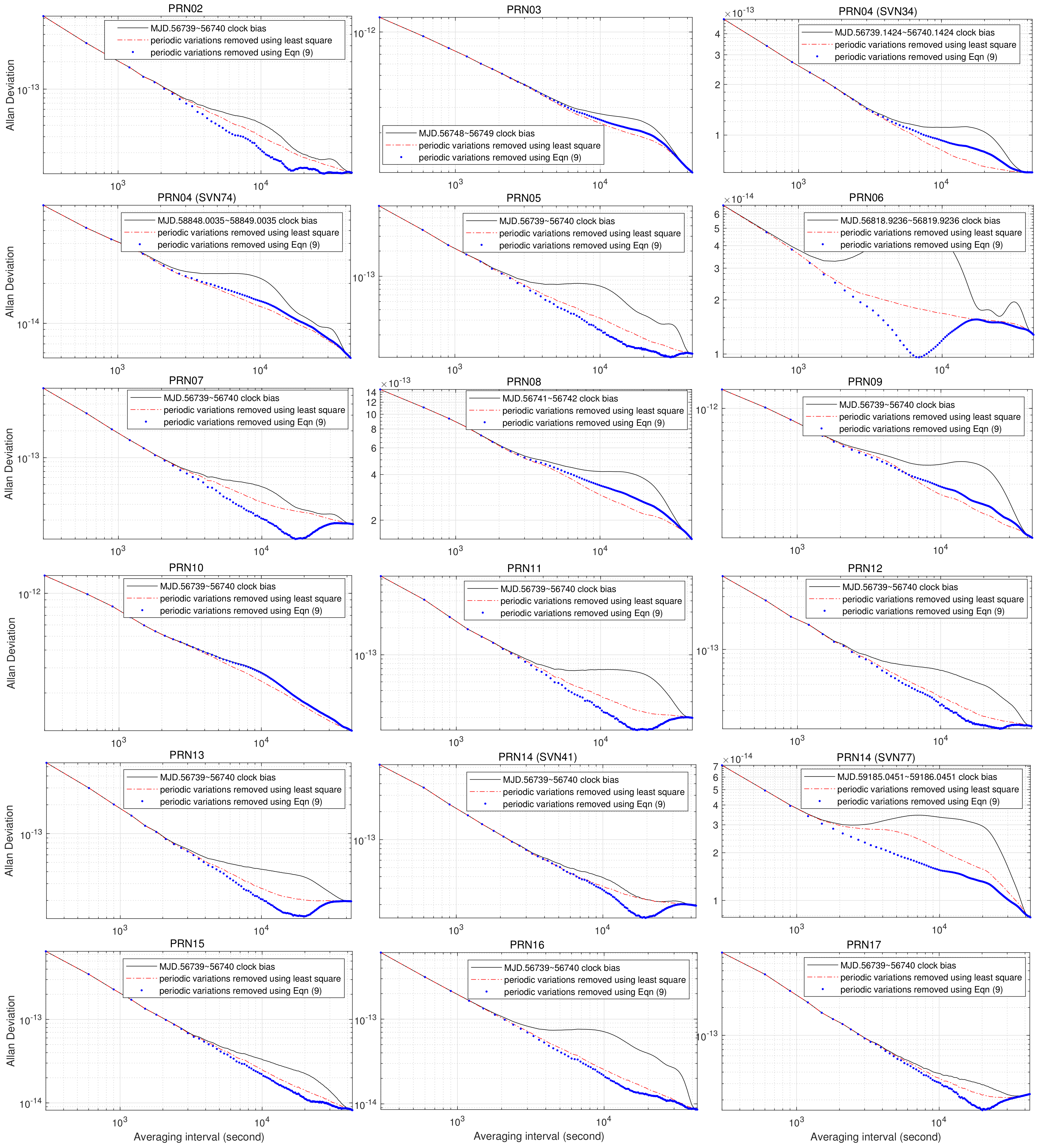

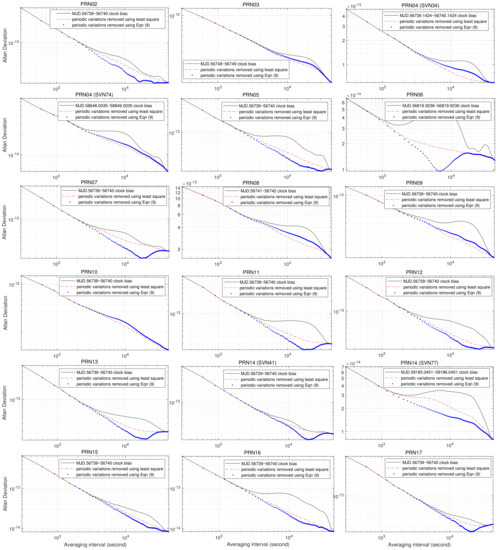

**Figure 5.**AVARs of GPS PRN02∼17 onboard clock bias 12-, 6-, 4-, and 3-hour sinusoidals fitted and removed using least squares method and Equation (9), respectively.

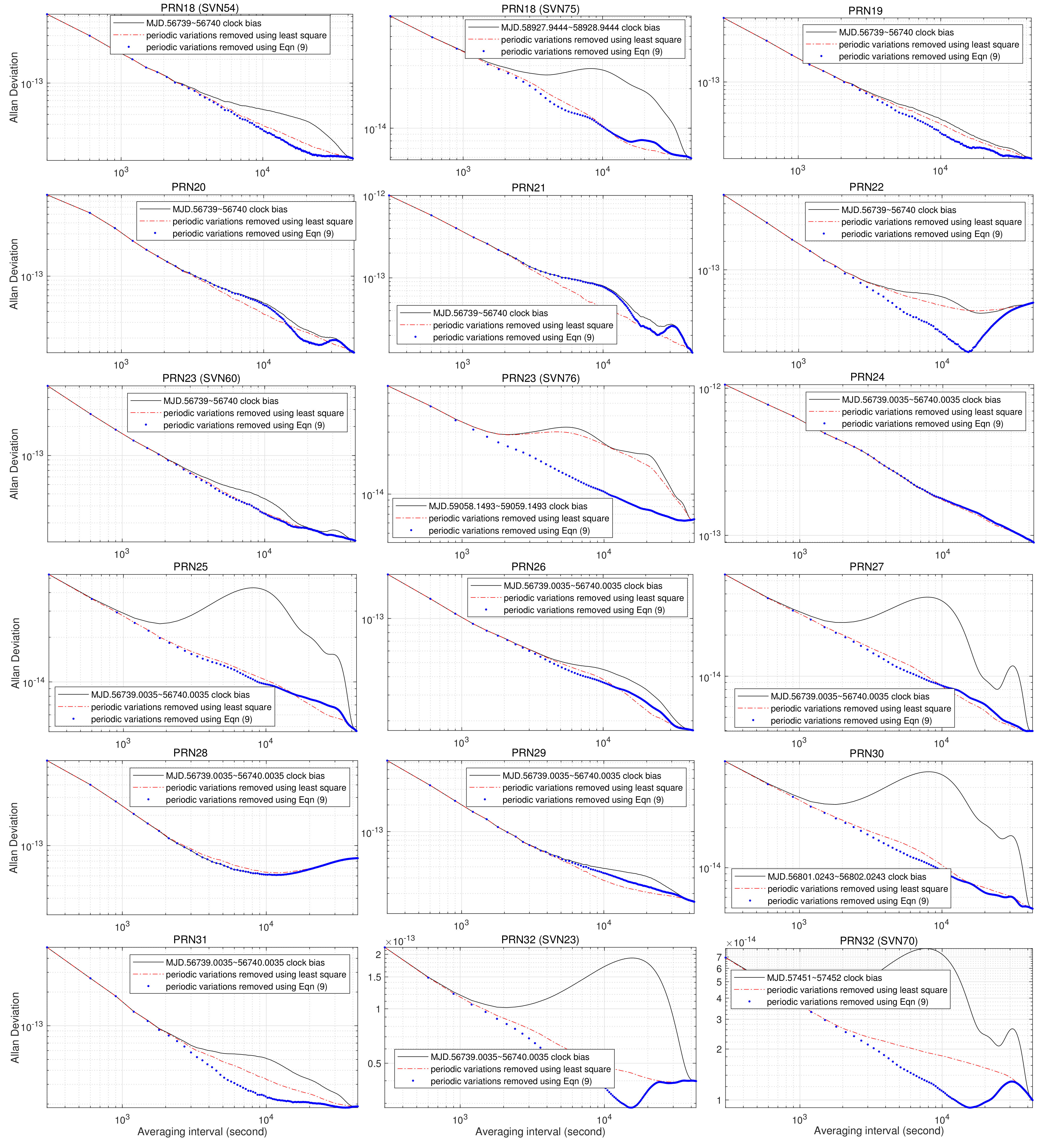

**Figure 6.**AVARs of GPS PRN18∼32 onboard clock bias 12-, 6-, 4-, and 3-hour sinusoidals fitted and removed using least squares method and Equation (9), respectively.

**Table 1.**Amplitudes of simulated periodic variations estimated by least squares method and solving Equation (6).

Frequency (cpa) | Input | Equations (6) and (9) | Least Squares |
---|---|---|---|

$2.0029$ | $9.00\times {10}^{-10}$ | $8.92\times {10}^{-10}$ | $1.62\times {10}^{-9}$ |

$2\times 2.0029$ | $3.30\times {10}^{-10}$ | $3.40\times {10}^{-10}$ | $3.83\times {10}^{-10}$ |

$3\times 2.0029$ | $6.00\times {10}^{-11}$ | $1.35\times {10}^{-10}$ | $3.09\times {10}^{-10}$ |

$4\times 2.0029$ | 0 | 0 | $3.53\times {10}^{-10}$ |

PRN | With Periodics | Equations (6) and (9) | Least Square | Time-Span |
---|---|---|---|---|

G01 | 0.52 | 0.65 | 0.42 | 03-23-14∼12-27-20 |

G02 | 0.72 | 1.64 | 0.72 | 03-23-14∼12-27-20 |

G03 | 0.82 | 0.94 | 0.78 | 03-23-14∼12-27-20 |

G04 | 1.61 | 1.61 | 1.58 | 03-23-14∼12-27-20 |

G05 | 0.71 | 0.80 | 0.62 | 03-23-14∼12-27-20 |

G06 | 0.53 | 0.64 | 0.50 | 03-23-14∼12-27-20 |

G07 | 1.13 | 1.93 | 1.11 | 03-23-14∼12-23-20 |

G08 | 3.39 | 3.61 | 3.36 | 03-23-14∼12-27-20 |

G09 | 0.66 | 0.77 | 0.61 | 03-23-14∼12-27-20 |

G10 | 1.39 | 1.48 | 1.38 | 03-23-14∼12-27-20 |

G11 | 1.34 | 1.85 | 1.31 | 03-23-14∼12-27-20 |

G12 | 0.62 | 5.73 | 0.52 | 03-23-14∼12-27-20 |

G13 | 1.07 | 1.24 | 1.05 | 03-23-14∼12-27-20 |

G14 | 0.73 | 1.00 | 0.73 | 03-23-14∼12-25-20 |

G15 | 0.47 | 0.52 | 0.42 | 03-23-14∼12-27-20 |

G16 | 0.62 | 0.62 | 0.49 | 03-23-14∼12-27-20 |

G17 | 1.56 | 1.70 | 1.53 | 03-23-14∼12-27-20 |

G18 | 0.92 | 1.86 | 0.88 | 03-23-14∼12-27-20 |

G19 | 0.58 | 0.65 | 0.57 | 03-23-14∼12-27-20 |

G20 | 0.62 | 0.95 | 0.61 | 03-23-14∼12-27-20 |

G21 | 0.76 | 1.42 | 0.72 | 03-23-14∼12-26-20 |

G22 | 1.09 | 1.64 | 1.06 | 03-23-14∼12-27-20 |

G23 | 0.53 | 1.04 | 0.53 | 03-23-14∼12-27-20 |

G24 | 4.18 | 4.57 | 4.24 | 03-23-14∼12-27-20 |

G25 | 0.42 | 0.42 | 0.36 | 03-23-14∼12-26-20 |

G26 | 0.63 | 0.76 | 0.59 | 03-23-14∼12-27-20 |

G27 | 0.48 | 0.59 | 0.42 | 03-23-14∼12-27-20 |

G28 | 3.71 | 3.73 | 3.71 | 03-23-14∼12-27-20 |

G29 | 1.26 | 1.47 | 1.22 | 03-23-14∼12-27-20 |

G30 | 0.56 | 0.67 | 0.51 | 03-23-14∼12-27-20 |

G31 | 1.15 | 1.81 | 1.14 | 03-23-14∼12-27-20 |

G32 | 0.87 | 0.94 | 0.77 | 03-23-14∼12-27-20 |
