Demonstration Laboratory of Industry 4.0 Retrofitting and Operator 4.0 Solutions: Education towards Industry 5.0
Abstract
:1. Introduction
- The paper provides an overview of how students should learn advanced IoT sensor technology. According to this, firstly, we provide a review of how the Industry 4.0 and Operator 4.0 retrofitting solutions relate to different aspects of the IoT concept (see Section 2.1);
- The paper also presents how the IoT concept should be taught and what should be included in the curriculum of the graduate and post-graduate students (see Section 2.2);
- Subjects and Industry 4.0 instructional materials are defined according to the IoT layers and the ISA-95 standard (see Section 2.3);
- We propose an education framework that can demonstrate smart retrofitting solutions according to the goals of Industry 5.0;
- The concept of intelligent space is presented as a key element of monitoring operator activities (see Section 3);
- We highlight how the education of data science should be fit to the teaching of IoT technology;
- Based on this concept, a laboratory has been developed that is suitable for simulating industrial case studies and generating data for the validation of the related machine learning algorithms (see Section 4);
- The details of an education program that can support building the skills needed for building smart retrofitting, IoT sensors, and data science-based Industry 5.0 solutions are presented. We also present the developed digital twin of the laboratory and the strategy for utilizing it to improve the competencies of students (see Section 5);
- Finally, Section 6 summarizes the main findings and the applicability of the presented framework.

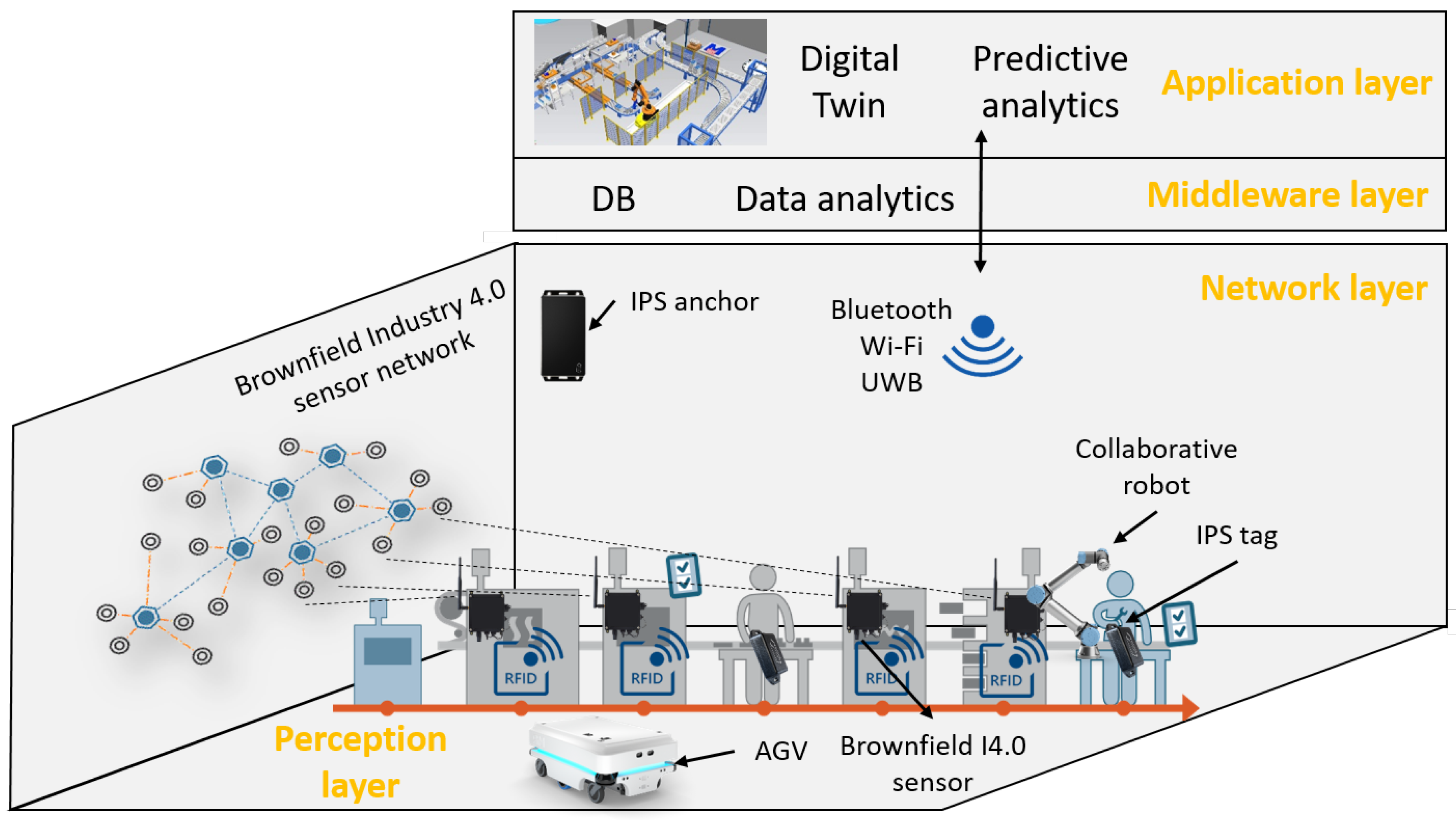

2. IoT Layerwise Presentation of Industry 4.0 and Operator 4.0 Retrofitting Solutions and Education Programs

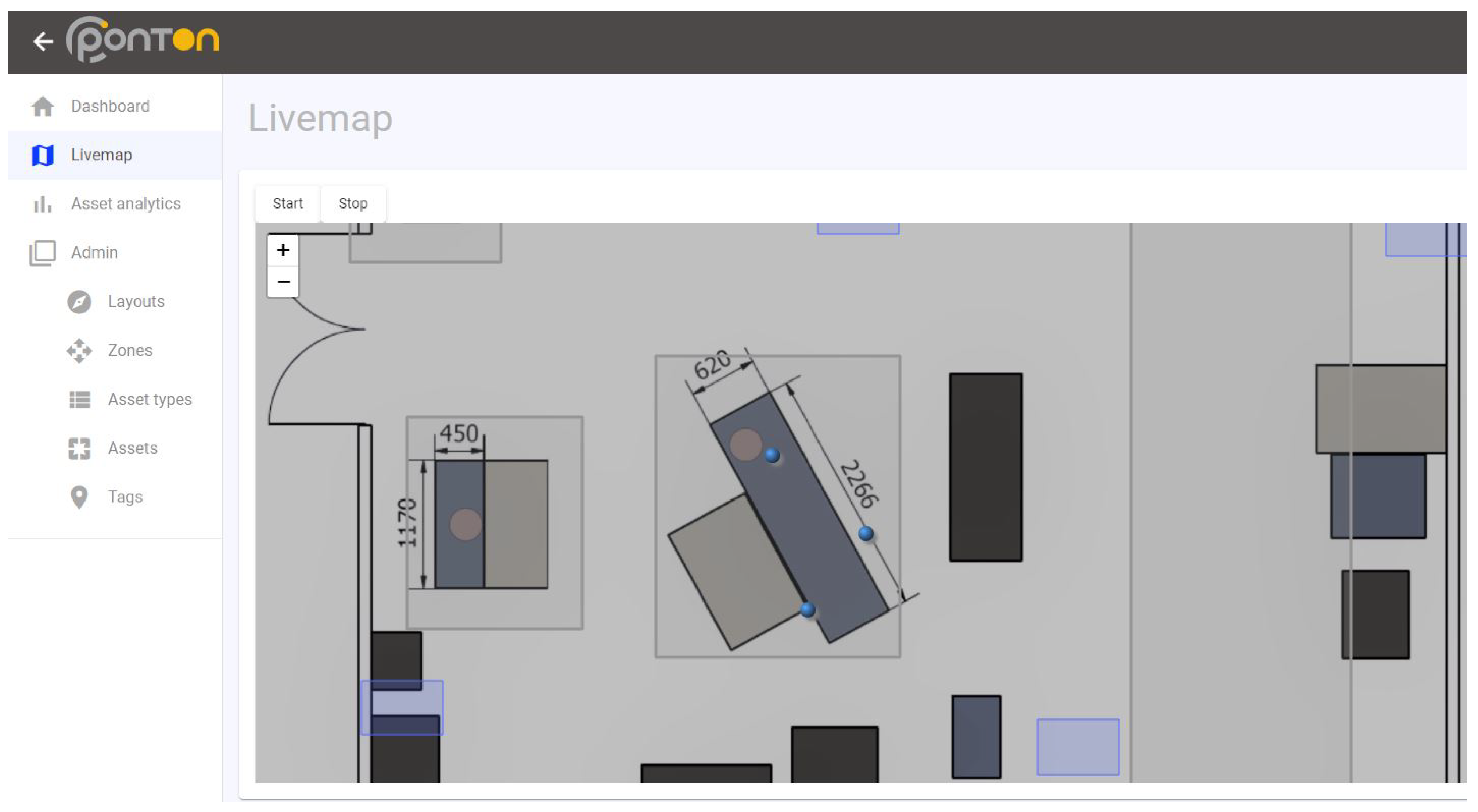

2.1. IoT Layerwise Presentation of Industry 4.0 and Operator 4.0 Retrofitting Solutions
- Andon lights, where the color of the analog andon lights (which are not connected to the industrial network) can be identified with an RGB sensor;
- Accelerometers, where the actual state of the machines can be measured based on their vibrations (idle, changeover, machining);
- Power consumption measurements, where the usage of the machines can be measured directly.
2.2. IoT Education for Industry 4.0
2.2.1. Challenges in IoT Education
2.2.2. Overview of IoT Courses
2.2.3. Frameworks for Curriculum Development
2.2.4. Education Content Summary Based on the Five-Layer IoT Architect
2.2.5. Application-Oriented Educational Approach in IoT, Industry 4.0, and 5.0 Curriculum
2.3. Curriculum for Industry 4.0 and 5.0 Education

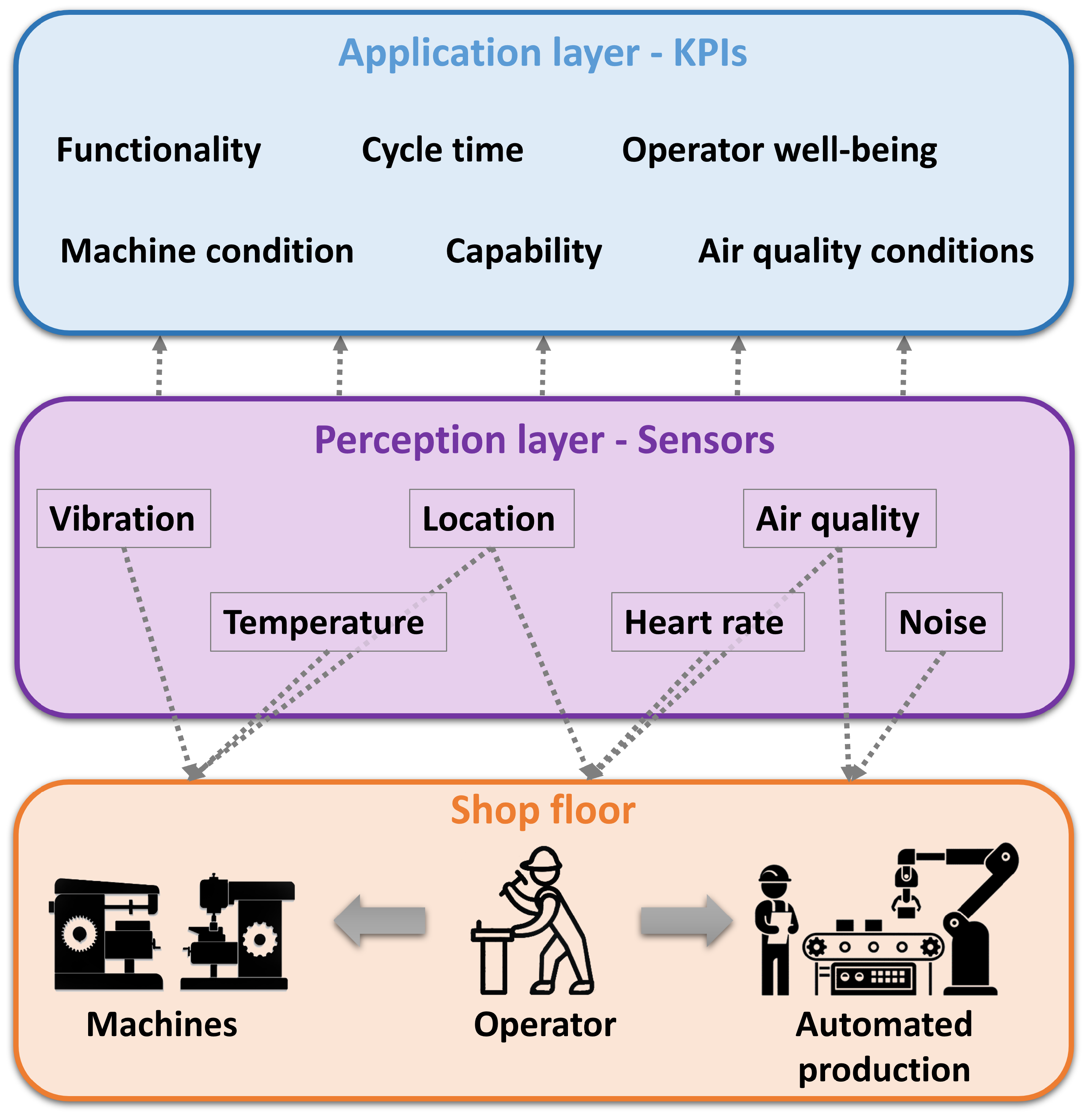

3. Intelligent-Space-Based Education of IoT Tools

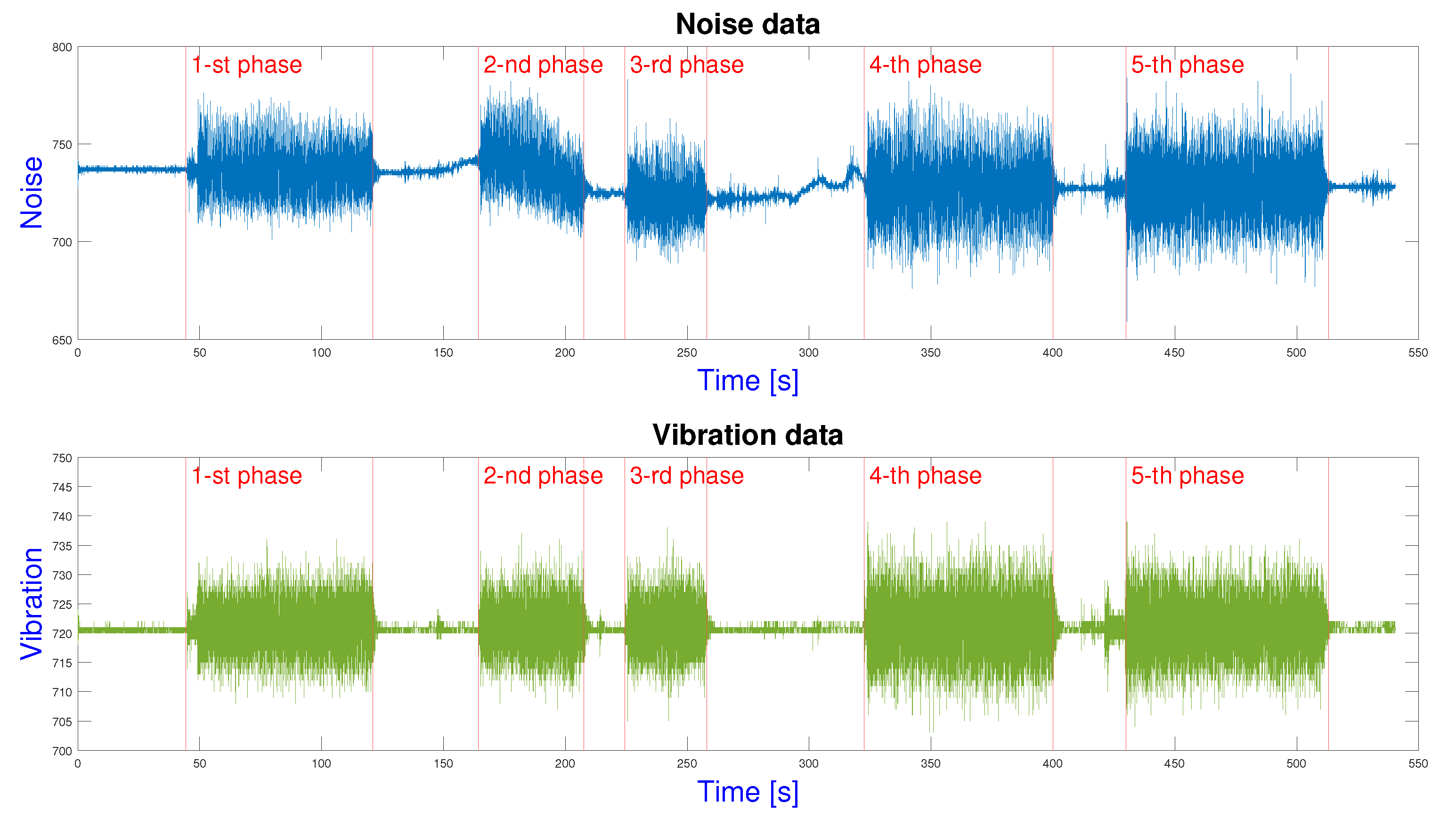

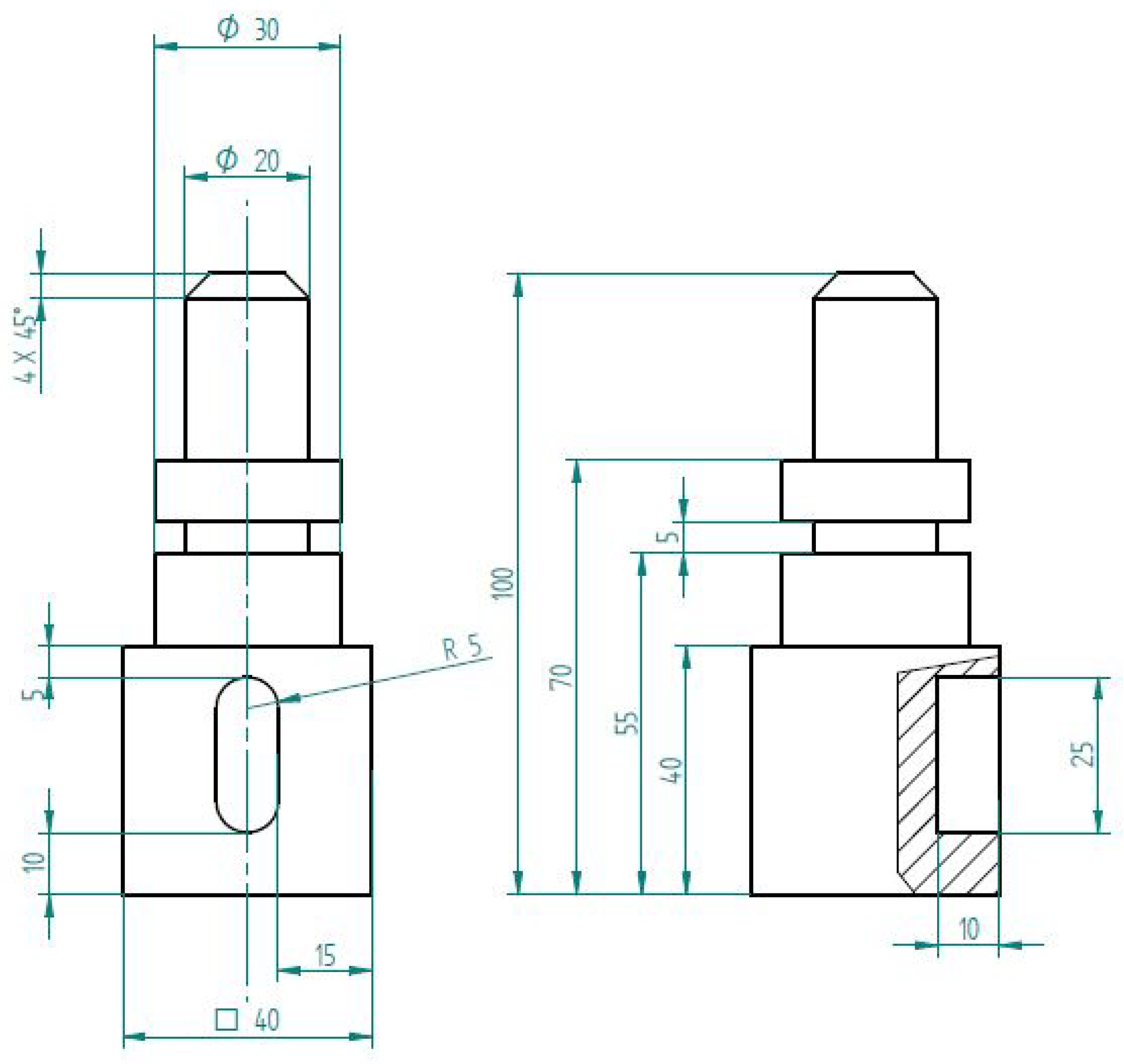

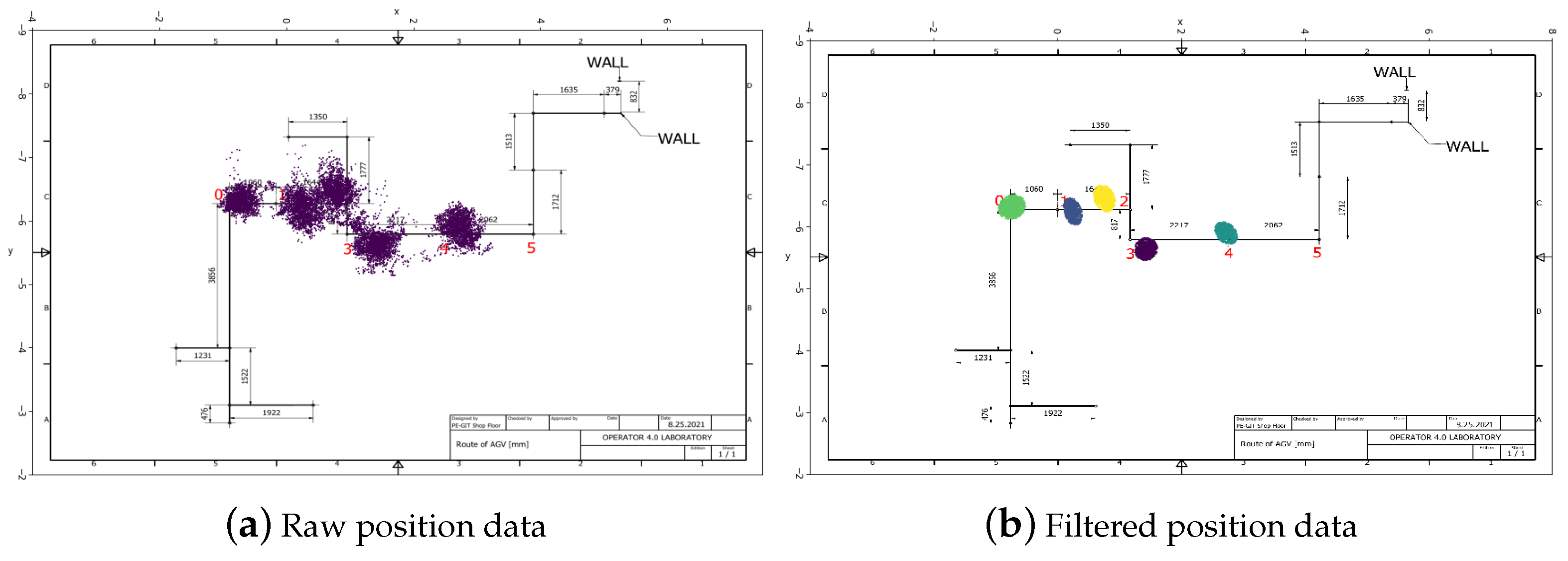

4. Education on the Development of Real-Time Process-Monitoring Solutions

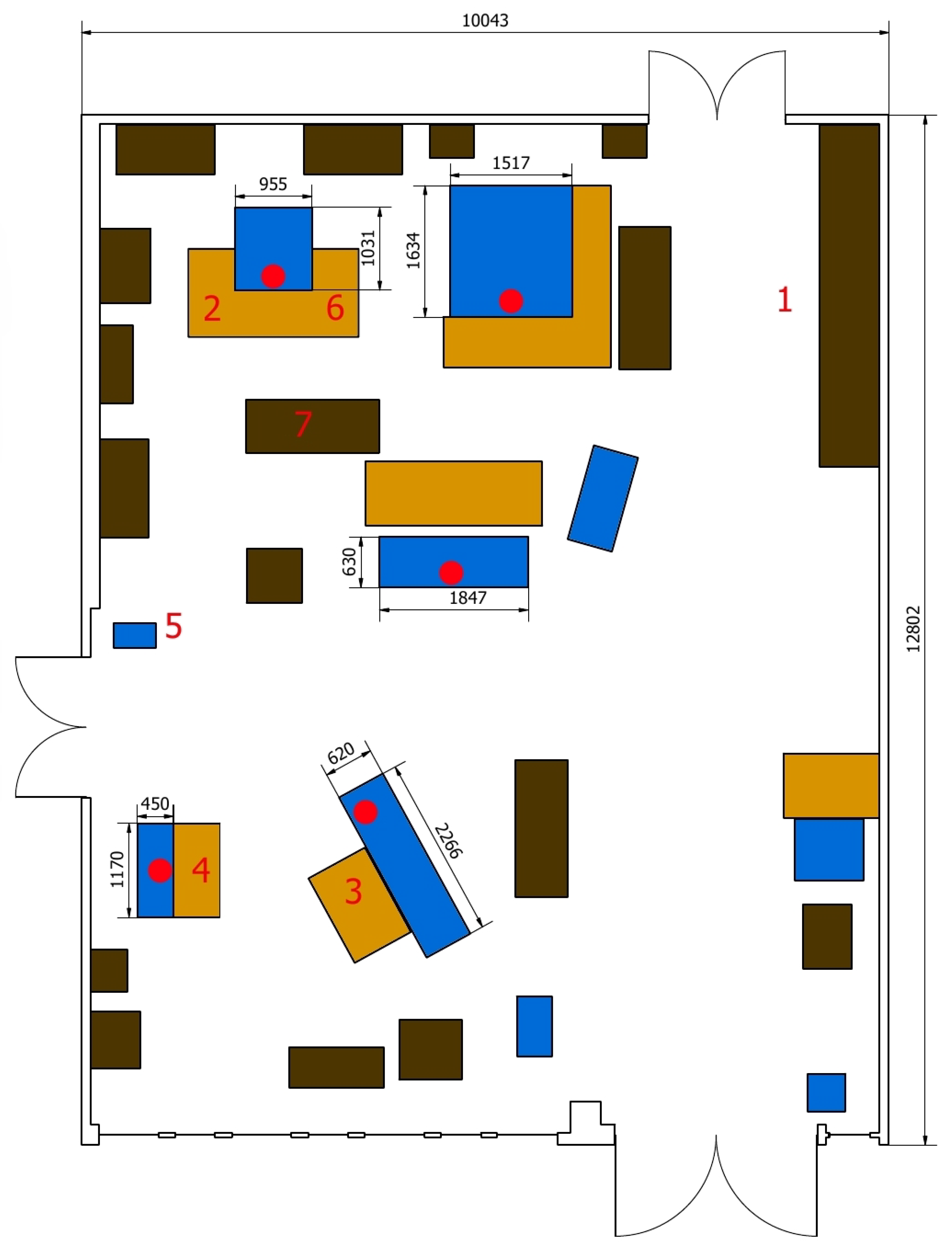

- Material storage;
- Milling of the sides of the material on the cantilever milling machine;
- Rough lathing;
- Smooth lathing;
- Drilling using a pillar drilling machine;
- Notch making on the cantilever milling machine;
- Finalization.

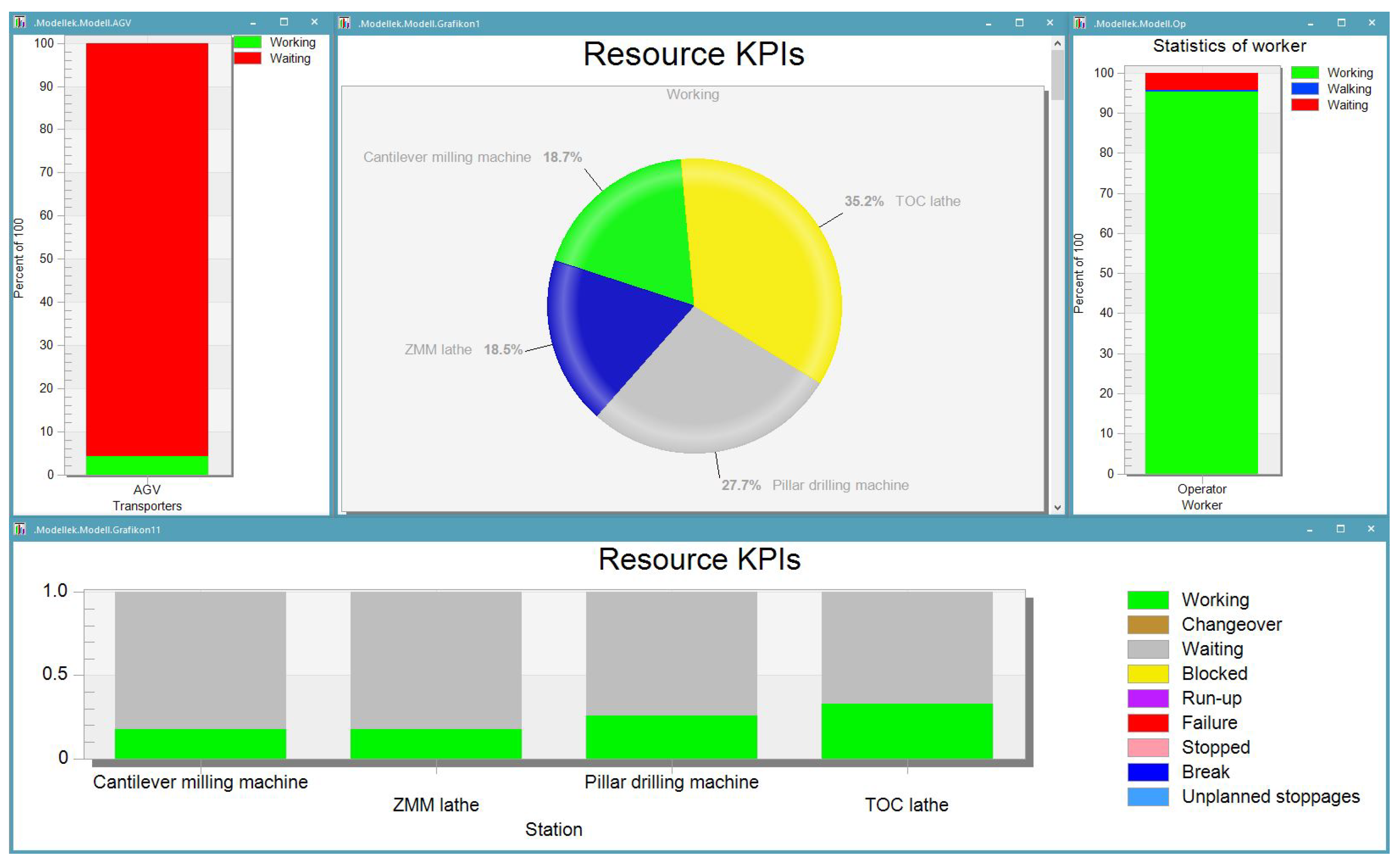

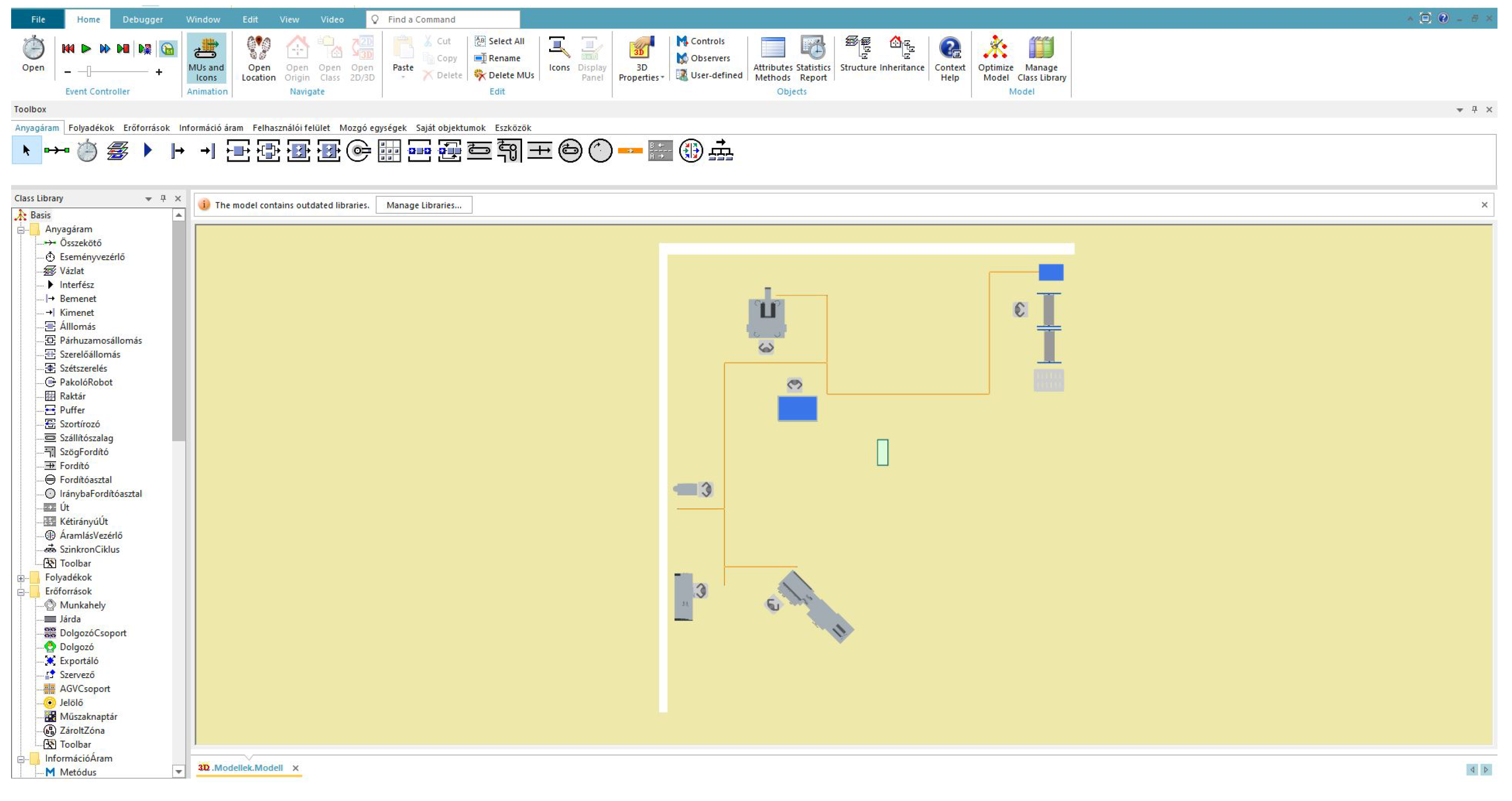

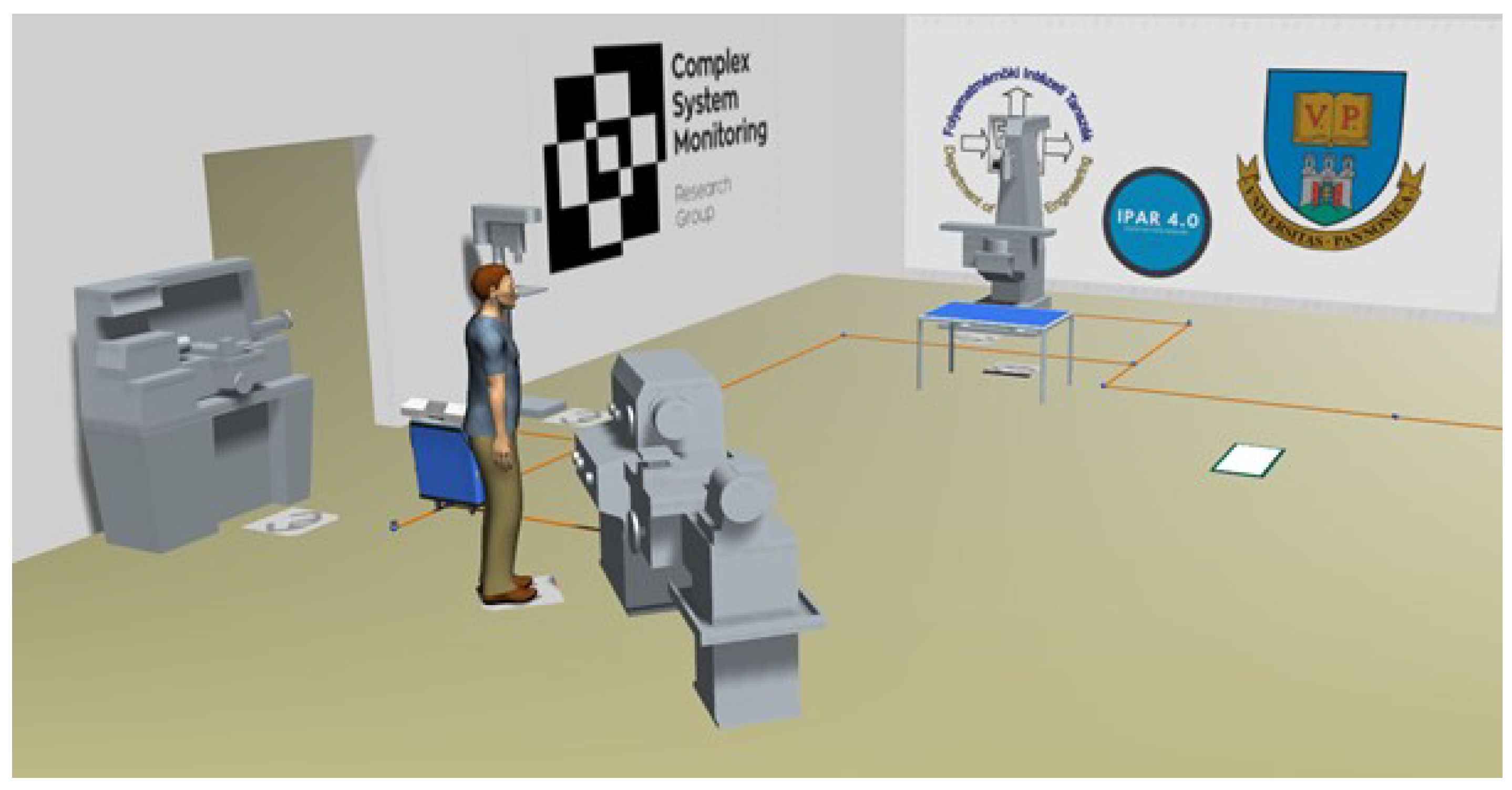

5. Teaching the Development of Digital Twins
- Analytical methods are not available or are too cumbersome to use;
- It would be dangerous and/or time-consuming to experiment in a real environment;
- The system is too complex;
- Experimenting with the real system would result in a loss of production.
6. Conclusions
- The education of the IoT layers;
- The proposed concept of intelligent space;
- The utilization of indoor positioning systems;
- The goal-oriented sensor development/selection;
- Data science to demonstrate how it can be used to process sensor data and calculate KPIs;
- The development of digital twins based on discrete event simulations;
- The concept of Operator 4.0, which puts the human workers into the focus of the production process and forms the bases of the development of Industry 5.0 solutions.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Schumacher, A.; Erol, S.; Sihn, W. A maturity model for assessing Industry 4.0 readiness and maturity of manufacturing enterprises. Procedia Cirp 2016, 52, 161–166. [Google Scholar] [CrossRef]
- Sony, M.; Naik, S. Key ingredients for evaluating Industry 4.0 readiness for organizations: A literature review. Benchmarking Int. J. 2019, 27, 2213–2232. [Google Scholar] [CrossRef]
- Czvetkó, T.; Honti, G.; Abonyi, J. Regional development potentials of Industry 4.0: Open data indicators of the Industry 4.0+ model. PLoS ONE 2021, 16, e0250247. [Google Scholar] [CrossRef] [PubMed]
- Akdil, K.Y.; Ustundag, A.; Cevikcan, E. Maturity and readiness model for Industry 4.0 strategy. In Industry 4.0: Managing the Digital Transformation; Springer: Berlin/Heidelberg, Germany, 2018; pp. 61–94. [Google Scholar]
- Lucke, D.; Einberger, P.; Schel, D.; Luckert, M.; Schneider, M.; Cuk, E.; Bauernhansl, T.; Wieland, M.; Steimle, F.; Mitschang, B. Implementation of the MIALinx integration concept for future manufacturing environments to enable retrofitting of machines. Procedia CIRP 2019, 79, 596–601. [Google Scholar] [CrossRef]
- Niemeyer, C.L.; Gehrke, I.; Müller, K.; Küsters, D.; Gries, T. Getting Small Medium Enterprises started on Industry 4.0 using retrofitting solutions. Procedia Manuf. 2020, 45, 208–214. [Google Scholar] [CrossRef]
- Guerreiro, B.V.; Lins, R.G.; Sun, J.; Schmitt, R. Definition of Smart Retrofitting: First steps for a company to deploy aspects of Industry 4.0. In Advances in Manufacturing; Springer: Berlin/Heidelberg, Germany, 2018; pp. 161–170. [Google Scholar]
- Tran, T.A.; Ruppert, T.; Eigner, G.; Abonyi, J. Retrofitting-Based Development of Brownfield Industry 4.0 and Industry 5.0 Solutions. IEEE Access 2022, 10, 64348–64374. [Google Scholar] [CrossRef]
- Lins, T.; Oliveira, R.A.R.; Correia, L.H.; Silva, J.S. Industry 4.0 Retrofitting. In Proceedings of the 2018 VIII Brazilian Symposium on Computing Systems Engineering (SBESC), Salvador, Brazil, 6–9 November 2018; pp. 8–15. [Google Scholar]
- Etz, D.; Brantner, H.; Kastner, W. Smart manufacturing retrofit for Brownfield systems. Procedia Manuf. 2020, 42, 327–332. [Google Scholar] [CrossRef]
- Yu, Z.; Razzaq, A.; Rehman, A.; Shah, A.; Jameel, K.; Mor, R.S. Disruption in global supply chain and socio-economic shocks: A lesson from COVID-19 for sustainable production and consumption. Oper. Manag. Res. 2021, 15, 1–16. [Google Scholar] [CrossRef]
- Chaudhary, P.; Sharma, K.K. Effects of Covid-19 on De-globalization. In Globalization, Deglobalization, and New Paradigms in Business; Springer: Berlin/Heidelberg, Germany, 2021; pp. 133–153. [Google Scholar]
- Reymen, D.; Gerard, M.; De Beer, P.; Meierkord, A.; Paskov, M.; di Stasio, V.; Donlevy, V.; Atkinson, I.; Makulec, A.; Famira-Mühlberger, U.; et al. Labour Market Shortages in the European Union. WIFO Studies; WIFO: Wien, Austria, 2015. [Google Scholar]
- Romero, D.; Stahre, J.; Wuest, T.; Noran, O.; Bernus, P.; Fast-Berglund, Å.; Gorecky, D. Towards an operator 4.0 typology: A human-centric perspective on the Fourth Industrial Revolution technologies. In Proceedings of the International Conference on Computers and Industrial Engineering (CIE46), Tianjin, China, 29–31 October 2016; pp. 29–31. [Google Scholar]
- Nahavandi, S. Industry 5.0—A Human-Centric Solution. Sustainability 2019, 11, 4371. [Google Scholar] [CrossRef] [Green Version]
- Ruppert, T.; Jaskó, S.; Holczinger, T.; Abonyi, J. Enabling technologies for operator 4.0: A survey. Appl. Sci. 2018, 8, 1650. [Google Scholar] [CrossRef]
- Almusawi, H.A.; Durugbo, C.M.; Bugawa, A.M. Wearable Technology in Education: A Systematic Review. IEEE Trans. Learn. Technol. 2021, 14, 540–554. [Google Scholar] [CrossRef]
- Research and Innovation. Enabling Technologies for Industry 5.0. 2020. Available online: https://ec.europa.eu/info/publications/enabling-technologies-industry-50_en (accessed on 3 November 2022).
- Gürdür Broo, D.; Kaynak, O.; Sait, S.M. Rethinking engineering education at the age of industry 5.0. J. Ind. Inf. Integr. 2022, 25, 100311. [Google Scholar] [CrossRef]
- Gianotti, F. EThe Future of education, according to Experts at Davos. 2018. Available online: https://www.weforum.org/agenda/2018/01/top-quotes-from-davos-on-the-future-of-education/ (accessed on 29 November 2022).
- Xu, X.; Lu, Y.; Vogel-Heuser, B.; Wang, L. Industry 4.0 and Industry 5.0—Inception, conception and perception. J. Manuf. Syst. 2021, 61, 530–535. [Google Scholar] [CrossRef]
- Paschek, D.; Mocan, A.; Draghici, A. Industry 5.0—The expected impact of next industrial revolution. In Thriving on Future Education, Industry, Business, and Society, Proceedings of the MakeLearn and TIIM International Conference, Piran, Slovenia, 15–17 May 2019; ToKnowPress: Bangkok, Thailand; Celje, Slovenia; Lublin, Poland, 2019. [Google Scholar]
- Shelzer, R. What Is Industry 5.0—And How Will It Affect Manufacturers; Global Electronic Services: Buford, GA, USA, 2017. [Google Scholar]
- Guile, D.; Mitchell, J. Fusion Skills and Industry 5.0: Conceptions and Challenges. In Insights into Global Engineering Education after the Birth of Industry 5.0; Intech Open Books; IntechOpen Limited: London, UK, 2022. [Google Scholar]
- Mian, S.H.; Salah, B.; Ameen, W.; Moiduddin, K.; Alkhalefah, H. Adapting universities for sustainability education in industry 4.0: Channel of challenges and opportunities. Sustainability 2020, 12, 6100. [Google Scholar] [CrossRef]
- Rada, M. INDUSTRY 5.0 Definition. 2018. Available online: https://michael-rada.medium.com/industry-5-0-definition-6a2f9922dc48 (accessed on 30 November 2022).
- Abonyi, J.; Miszlivetz, F. At the Intersections of Networks: Societal Challenges of the Fourth Industrial Revolution; OOK-PRESS: Veszprém, Hungary, 2019; pp. 116–118. [Google Scholar]
- Schröder, C. The Challenges of Industry 4.0 for Small and Medium-Sized Enterprises; Friedrich-Ebert-Stiftung: Bonn, Germany, 2016. [Google Scholar]
- Zhong, C.L.; Zhu, Z.; Huang, R.G. Study on the IOT architecture and gateway technology. In Proceedings of the 2015 14th International Symposium on Distributed Computing and Applications for Business Engineering and Science (DCABES), Guiyang, China, 18–24 August 2015; pp. 196–199. [Google Scholar]
- Hu, Y.C.; Patel, M.; Sabella, D.; Sprecher, N.; Young, V. Mobile edge computing—A key technology towards 5G. ETSI White Pap. 2015, 11, 1–16. [Google Scholar]
- Nguyen, P.D.; Kim, L.W. Sensor System: A Survey of Sensor Type, Ad Hoc Network Topology and Energy Harvesting Techniques. Electronics 2021, 10, 219. [Google Scholar] [CrossRef]
- Simões, W.C.; Machado, G.S.; Sales, A.; de Lucena, M.M.; Jazdi, N.; de Lucena, V.F. A review of technologies and techniques for indoor navigation systems for the visually impaired. Sensors 2020, 20, 3935. [Google Scholar] [CrossRef]
- Mazhar, F.; Khan, M.G.; Sällberg, B. Precise indoor positioning using UWB: A review of methods, algorithms and implementations. Wirel. Pers. Commun. 2017, 97, 4467–4491. [Google Scholar] [CrossRef]
- Moreira, A.; Nicolau, M.J.; Meneses, F.; Costa, A. WiFi fingerprinting in the real world-RTLS@ UM at the EvAAL competition. In Proceedings of the 2015 International Conference on Indoor Positioning and Indoor Navigation (IPIN), Banff, AB, Canada, 13–16 October 2015; pp. 1–10. [Google Scholar]
- Nowotarski, P.; Pasławski, J.; Skrzypczak, M.; Krygier, R. RTLS systems as a Lean Management tool for productivity improvement. In Proceedings of the 34rd International Symposium on Automation and Robotics in Construction (ISARC), Taipei, Taiwan, 28 June–1 July 2017; Volume 34, pp. 1037–1044. [Google Scholar] [CrossRef] [Green Version]
- De Leon, V.; Alcazar, Y.; Villa, J.L. Use of edge computing for predictive maintenance of industrial electric motors. In Proceedings of the Workshop on Engineering Applications; Springer: Berlin/Heidelberg, Germany, 2019; pp. 523–533. [Google Scholar]
- Cheng, Y.; Zhou, T. UWB indoor positioning algorithm based on TDOA technology. In Proceedings of the 2019 10th International Conference on Information Technology in Medicine and Education (ITME), Qingdao, China, 23–25 August 2019; pp. 777–782. [Google Scholar]
- Li, J.; Han, G.; Zhu, C.; Sun, G. An indoor ultrasonic positioning system based on TOA for Internet of Things. Mob. Inf. Syst. 2016, 2016, 4502867. [Google Scholar] [CrossRef] [Green Version]
- Rodríguez-Navarro, D.; Lázaro-Galilea, J.L.; De-La-Llana-Calvo, Á.; Bravo-Muñoz, I.; Gardel-Vicente, A.; Tsirigotis, G.; Iglesias-Miguel, J. Indoor positioning system based on a PSD detector, precise positioning of agents in motion using AoA techniques. Sensors 2017, 17, 2124. [Google Scholar] [CrossRef]
- Yang, S.H.; Kim, H.S.; Son, Y.H.; Han, S.K. Three-dimensional visible light indoor localization using AOA and RSS with multiple optical receivers. J. Light. Technol. 2014, 32, 2480–2485. [Google Scholar] [CrossRef]
- Yuan, M.; Alghassi, A.; Zhao, S.F.; Wu, S.W.; Muhammad, A.; Cui, J.; Myo, K.S. Online Overall Equipment Effectiveness (OEE) Improvement Using Data Analytics Techniques for CNC Machines. In Implementing Industry 4.0; Springer: Berlin/Heidelberg, Germany, 2021; pp. 201–227. [Google Scholar]
- Ruppert, T.; Csalodi, R.; Abonyi, J. Estimation of machine setup and changeover times by survival analysis. Comput. Ind. Eng. 2021, 153, 107026. [Google Scholar] [CrossRef]
- Widodo, A.; Yang, B.S. Support vector machine in machine condition monitoring and fault diagnosis. Mech. Syst. Signal Process. 2007, 21, 2560–2574. [Google Scholar] [CrossRef]
- Rácz-Szabó, A.; Ruppert, T.; Bántay, L.; Löcklin, A.; Jakab, L.; Abonyi, J. Real-time locating system in production management. Sensors 2020, 20, 6766. [Google Scholar] [CrossRef]
- Tran, T.A.; Ruppert, T.; Abonyi, J. Indoor Positioning Systems Can Revolutionise Digital Lean. Appl. Sci. 2021, 11, 5291. [Google Scholar] [CrossRef]
- Ejsmont, K.; Gladysz, B.; Corti, D.; Castaño, F.; Mohammed, W.M.; Martinez Lastra, J.L. Towards Lean Industry 4.0 –Current trends and future perspectives. Cogent Bus. Manag. 2020, 7, 1781995. [Google Scholar] [CrossRef]
- Ruppert, T.; Abonyi, J. Integration of real-time locating systems into digital twins. J. Ind. Inf. Integr. 2020, 20, 100174. [Google Scholar] [CrossRef]
- Ruppert, T.; Abonyi, J. Industrial Internet of Things based cycle time control of assembly lines. In Proceedings of the 2018 IEEE International Conference on Future IoT Technologies (Future IoT), Eger, Hungary, 18–19 January 2018; pp. 1–4. [Google Scholar]
- Tran, T.a.; Ruppert, T.; Eigner, G.; Abonyi, J. Real-time locating system and digital twin in Lean 4.0. In Proceedings of the 2021 IEEE 15th International Symposium on Applied Computational Intelligence and Informatics (SACI), Timișoara, Romania, 19–21 May 2021; pp. 000369–000374. [Google Scholar]
- Cheng, M.; Simmons, J. Traceability in manufacturing systems. Int. J. Oper. Prod. Manag. 1994, 14, 4–16. [Google Scholar] [CrossRef]
- Mechefske, C.K. Machine condition monitoring and fault diagnostics. In Vibration and Shock Handbook; CRC Press, Taylor and Francis Group: Boca Raton, FL, USA, 2005; Volume 25, pp. 1–35. [Google Scholar]
- Kirch, M.; Poenicke, O.; Richter, K. RFID in logistics and production–Applications, research and visions for smart logistics zones. Procedia Eng. 2017, 178, 526–533. [Google Scholar] [CrossRef]
- Geiselhart, F.; Otto, M.; Rukzio, E. On the use of multi-depth-camera based motion tracking systems in production planning environments. Procedia Cirp 2016, 41, 759–764. [Google Scholar] [CrossRef]
- Lasi, H.; Fettke, P.; Kemper, H.G.; Feld, T.; Hoffmann, M. Industry 4.0. Bus. Inf. Syst. Eng. 2014, 6, 239–242. [Google Scholar] [CrossRef]
- Khan, I.H.; Javaid, M. Role of Internet of Things (IoT) in adoption of Industry 4.0. J. Ind. Integr. Manag. 2021, 7, 2150006. [Google Scholar] [CrossRef]
- Du, B.; Chai, Y.; Huangfu, W.; Zhou, R.; Ning, H. Undergraduate University Education in Internet of Things Engineering in China: A Survey. Educ. Sci. 2021, 11, 202. [Google Scholar] [CrossRef]
- Chai, Y.; Huangfu, W.; Ning, H.; Zhao, D. A Review of Internet of Things Major Education in China. In Proceedings of the Cyberspace Data and Intelligence, and Cyber-Living, Syndrome, and Health, Beijing, China, 10–12 December 2019; pp. 389–404. [Google Scholar]
- Page, T. Opinions on the Internet of Things in the industrial design curriculum. Des. Technol. Educ. Int. J. 2017, 21, 14–28. [Google Scholar]
- Jeganathan, L.; Khan, A.N.; Raju, J.K.; Narayanasamy, S. On a frame work of curriculum for engineering education 4.0. In Proceedings of the 2018 World Engineering Education Forum-Global Engineering Deans Council (WEEF-GEDC), Albuquerque, NM, USA, 12–16 November 2018; pp. 1–6. [Google Scholar]
- Moore, G.E. Lithography and the future of Moore’s law. In Proceedings of the Integrated Circuit Metrology, Inspection, and Process Control IX, Santa Clara, CA, USA, 20–22 February 1995; SPIE: Bellingham, WA, USA, 1995; Volume 2439, pp. 2–17. [Google Scholar]
- Voas, J.; Laplante, P. Curriculum considerations for the internet of things. Computer 2017, 50, 72–75. [Google Scholar] [CrossRef]
- Burd, B.; Barker, L.; Pérez, F.A.F.; Russell, I.; Siever, B.; Tudor, L.; McCarthy, M.; Pollock, I. The internet of things in undergraduate computer and information science education: Exploring curricula and pedagogy. In Proceedings of the Companion of the 23rd Annual ACM Conference on Innovation and Technology in Computer Science Education, Larnaca, Cyprus, 2–4 July 2018; pp. 200–216. [Google Scholar]
- Burd, B.; Barker, L.; Divitini, M.; Perez, F.A.F.; Russell, I.; Siever, B.; Tudor, L. Courses, content, and tools for Internet of Things in computer science education. In Proceedings of the 2017 ITiCSE Conference on Working Group Reports, Bologna, Italy, 3–5 July 2017; pp. 125–139. [Google Scholar]
- Wermann, J.; Colombo, A.W.; Pechmann, A.; Zarte, M. Using an interdisciplinary demonstration platform for teaching Industry 4.0. Procedia Manuf. 2019, 31, 302–308. [Google Scholar] [CrossRef]
- Maiti, A.; Byrne, T.; Kist, A.A. Teaching internet of things in a collaborative laboratory environment. In Proceedings of the 2019 5th Experiment International Conference (exp. at’19), Funchal, Madeira Island, Portugal, 12–14 June 2019; pp. 193–198. [Google Scholar]
- Ning, H.; Hu, S. Internet of Things: An Emerging Industrial or a New Major? In Proceedings of the 2011 International Conference on Internet of Things and 4th International Conference on Cyber, Physical and Social Computing, Dalian, China, 19–21 October 2011; pp. 178–183. [Google Scholar]
- Qouneh, A.; Magotra, N. Internet of Things in computer engineering curricula: Just do it! In Proceedings of the 2017 IEEE 60th International Midwest Symposium on Circuits and Systems (MWSCAS), Boston, MA, USA, 6–9 August 2017; pp. 1065–1068. [Google Scholar]
- Dickerson, S.J. A comprehensive approach to educating students about the internet-of-things. In Proceedings of the 2017 IEEE Frontiers in Education Conference (FIE), Indianapolis, IN, USA, 18–21 October 2017; pp. 1–7. [Google Scholar]
- Umeda, Y.; Ota, J.; Kojima, F.; Saito, M.; Matsuzawa, H.; Sukekawa, T.; Takeuchi, A.; Makida, K.; Shirafuji, S. Development of an education program for digital manufacturing system engineers based on ‘Digital Triplet’concept. Procedia Manuf. 2019, 31, 363–369. [Google Scholar] [CrossRef]
- Hernandez-de Menendez, M.; Escobar Díaz, C.A.; Morales-Menendez, R. Engineering education for smart 4.0 technology: A review. Int. J. Interact. Des. Manuf. 2020, 14, 789–803. [Google Scholar] [CrossRef]
- Yu, Y.; Wang, J.; Zhou, G. The exploration in the education of professionals in applied internet of things engineering. In Proceedings of the 2010 4th International Conference on Distance Learning and Education, San Juan, PR, USA, 3–5 October 2010; pp. 74–77. [Google Scholar]
- Hernández-de Menéndez, M.; Vallejo Guevara, A.; Morales-Menendez, R. Virtual reality laboratories: A review of experiences. Int. J. Interact. Des. Manuf. 2019, 13, 947–966. [Google Scholar] [CrossRef]
- Scholten, B. The Road to Integration: A Guide to Applying the ISA-95 Standard in Manufacturing; ISA: Singapore, 2007. [Google Scholar]
- Board, T.W.E. The WMF’s Top Ten Skills for the Future of Manufacturing. 2019. Available online: https://worldmanufacturing.org/report/report-2019/ (accessed on 2 December 2022).
- Hashimoto, H. Intelligent space: Interaction and intelligence. Artif. Life Robot. 2003, 7, 79–85. [Google Scholar] [CrossRef]
- Vaščák, J.; Papcun, P.; Zolotová, I.; Puheim, M. Intelligent Space Design for Robotic and IoT Applications. In Proceedings of the 2020 Cybernetics & Informatics (K&I), Velké Karlovice, Czech, 29 January–1 February 2020; pp. 1–6. [Google Scholar]
- Saez, M.; Maturana, F.P.; Barton, K.; Tilbury, D.M. Real-time manufacturing machine and system performance monitoring using Internet of Things. IEEE Trans. Autom. Sci. Eng. 2018, 15, 1735–1748. [Google Scholar] [CrossRef]
- Macagnano, D.; Destino, G.; Abreu, G. Indoor positioning: A key enabling technology for IoT applications. In Proceedings of the 2014 IEEE World Forum on Internet of Things (WF-IoT), Seoul, Republic of Korea, 6–8 March 2014; pp. 117–118. [Google Scholar]
- Mütze, A.; Hingst, L.; Rochow, N.; Miebach, T.; Nyhuis, P. Use Cases of Real-Time Locating Systems for Factory Planning and Production Monitoring. In Proceedings of the Conference on Learning Factories (CLF), Graz, Austria, 1–2 July 2021. [Google Scholar]
- Fox, V.; Hightower, J.; Liao, L.; Schulz, D.; Borriello, G. Bayesian filtering for location estimation. IEEE Pervasive Comput. 2003, 2, 24–33. [Google Scholar] [CrossRef] [Green Version]
- Liljaniemi, A.; Paavilainen, H. Using digital twin technology in engineering education–course concept to explore benefits and barriers. Open Eng. 2020, 10, 377–385. [Google Scholar] [CrossRef]
- Kaarlela, T.; Arnarson, H.; Pitkäaho, T.; Shu, B.; Solvang, B.; Pieskä, S. Common Educational Teleoperation Platform for Robotics Utilizing Digital Twins. Machines 2022, 10, 577. [Google Scholar] [CrossRef]
- Pérez, F.; Irisarri, E.; Orive, D.; Marcos, M.; Estevez, E. A CPPS Architecture approach for Industry 4.0. In Proceedings of the 2015 IEEE 20th Conference on Emerging Technologies & Factory Automation (ETFA), Luxembourg, 8–11 September 2015; pp. 1–4. [Google Scholar]
- Boschert, S.; Heinrich, C.; Rosen, R. Next generation digital twin. In Proceedings of the TMCE, Las Palmas de Gran Canaria, Spain, 7–11 May 2018; Volume 2018, pp. 7–11. [Google Scholar]
- Boschert, S.; Rosen, R. Digital twin—the simulation aspect. In Mechatronic Futures; Springer: Berlin/Heidelberg, Germany, 2016; pp. 59–74. [Google Scholar]
IoT ID | Possible Applications | ||
---|---|---|---|
Machine States (Usage) | Machine Condition | Traceability | |
Production control based on real-time machine states | Preventive maintenance | Process mining-based simulation and real-time digital twin | |
OEE and changeover analyses | Real-time condition monitoring and diagnostics | Spaghetti diagram and location-based KPIs | |
Edge computing | Position calculation and preprocessing | ||
Ad hoc networks based on Bluetooth, WiFi, or other wireless communication channels | Radio-based: UWB, BLE, ZigBee, WiFi | ||
Non-radio-based: sound-based, light-based, vision-based | |||
Andon lights, accelerometer sensors, power consumption measurement | Vibration sensors, consumption monitoring | IPS, RFID, camera system |
IoT Layer IDs | IoT Layers | Layer Description | Proposed Subject |
---|---|---|---|
Business layer | Business models for business planning and strategy | Optimization, operations analysis, and artificial intelligence | |
Digital twin and process simulation | |||
Application layer | Graphical data representation based on ML and AI algorithms | Data science and machine learning | |
Middleware layer | Decision unit and data analytics | Process information systems | |
Network layer | Network technologies and edge computing | Production intelligence | |

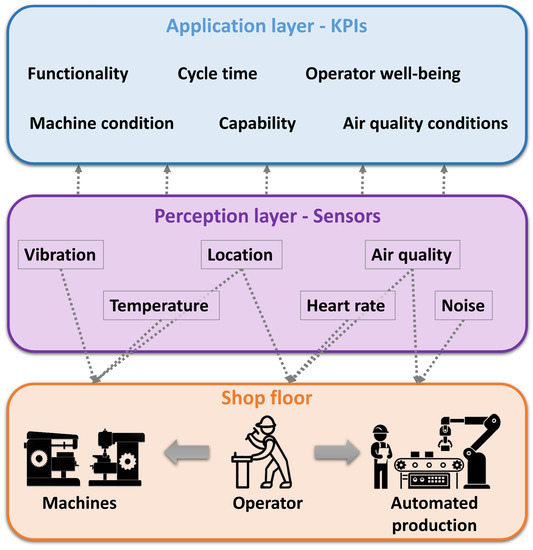

Perception layer | Connect to physical object via sensors and actuators |

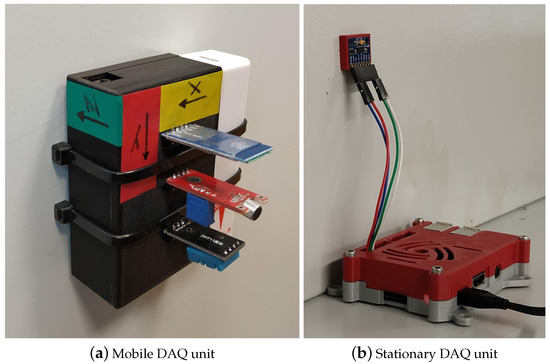

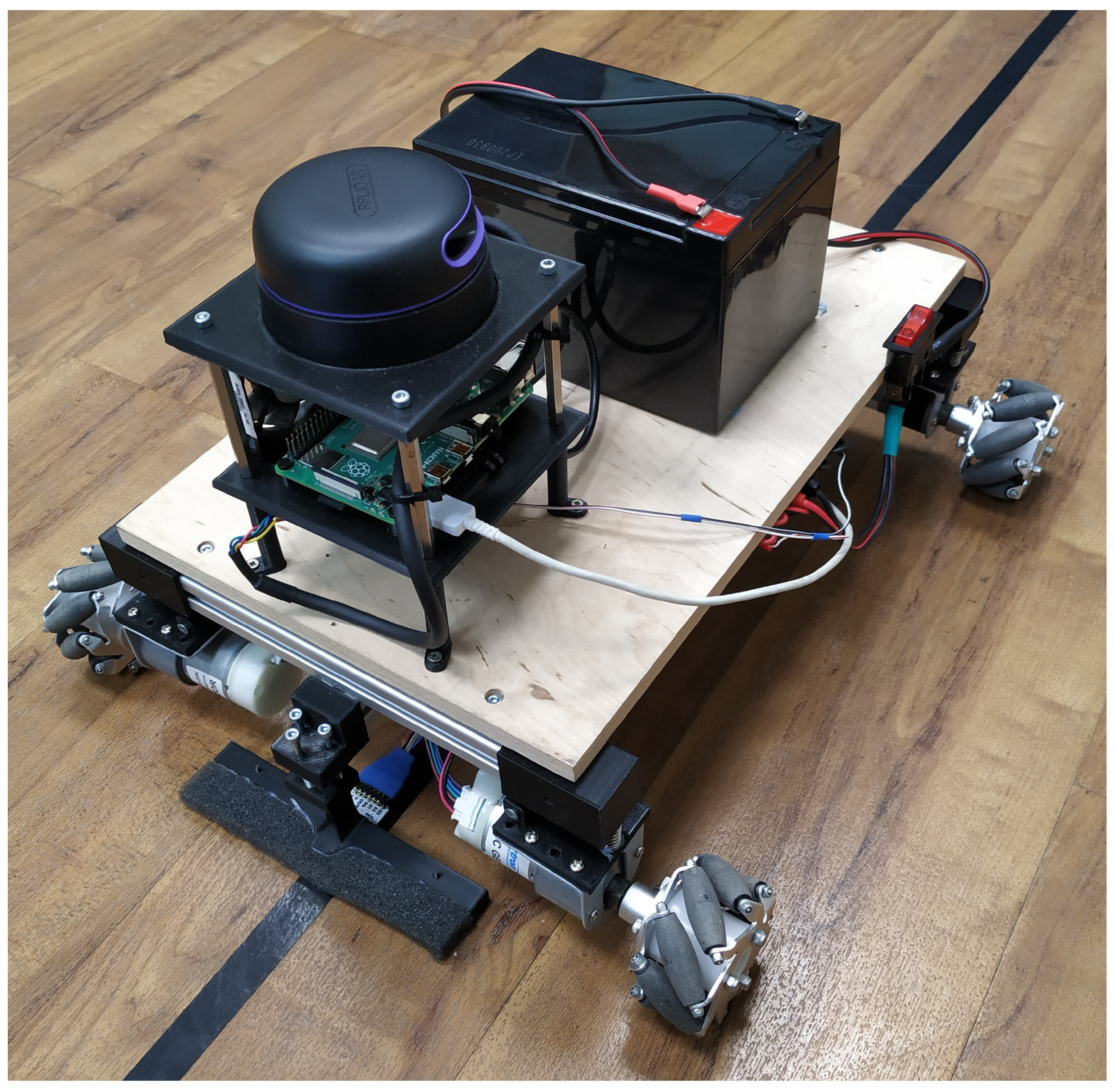

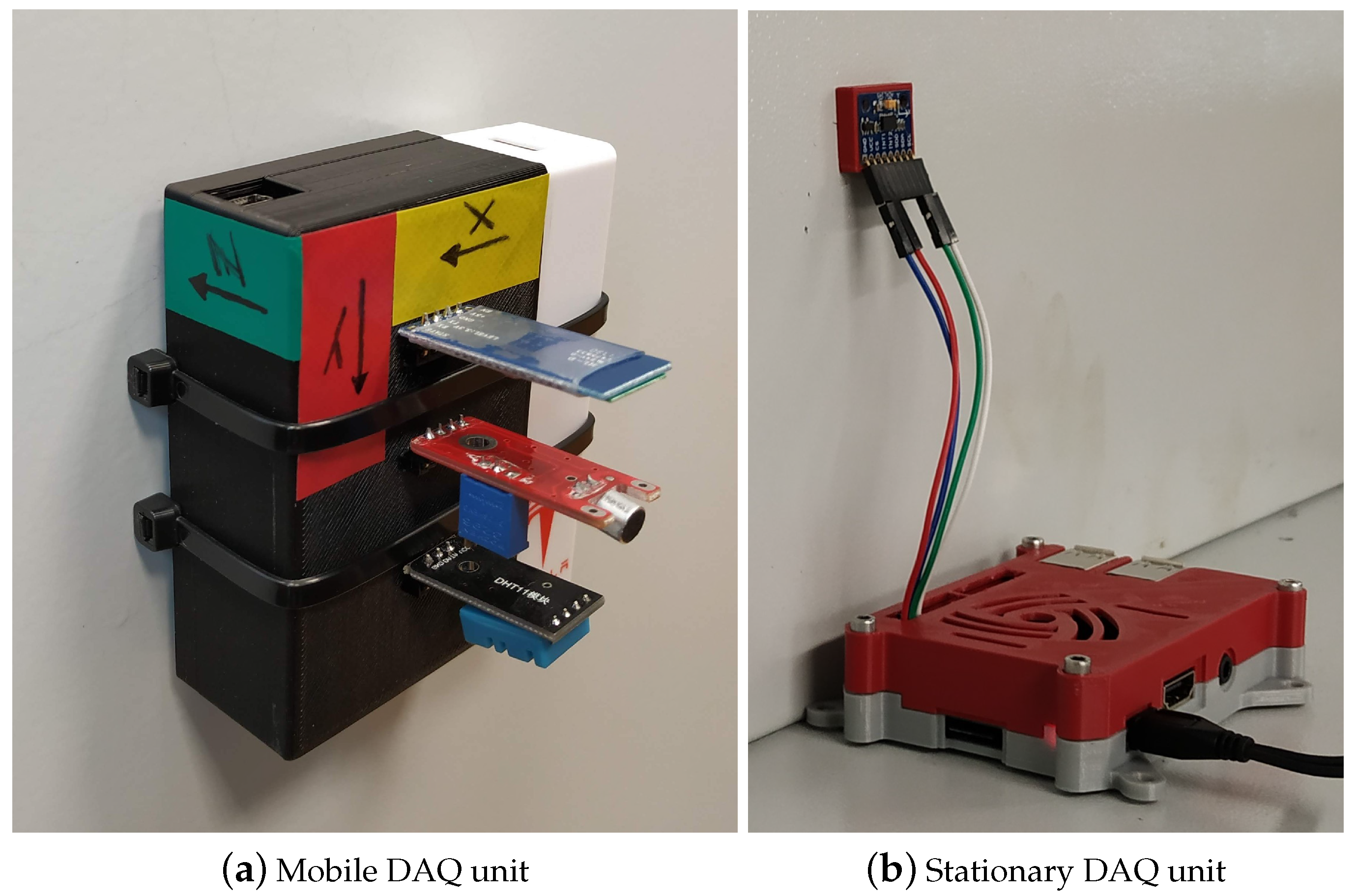

Mobile DAQ | Stationary DAQ | AGV | |
---|---|---|---|
Condition and state monitoring | Vibration Temperature Air quality Noise | Vibration Temperature Andon light state | Self-position (track) Self-position (Lidar) Temperature Air quality Noise |
Perception layer sensors | Accelerometer Thermometer Humidity sensor Dust sensor Microphone | Accelerometer Thermometer RGB sensor | Line-following sensor Motor encoders Lidar Thermometer Humidity sensor Dust sensor Microphone |
Network layer | BLE | WiFi | BLE or WiFi |
Middleware layer | Server | Edge computing on a Raspberry Pi or server | Edge computing on a Raspberry Pi |
Component | Tool | Competence, Knowledge |
---|---|---|
Process model | Siemens Plant Simulation, Simul8, open-source simulation tools | Modeling skills |
Communication protocol | Edge computing, Node-RED | Process informatics |
Data-collector, data logger | Raspberry Pi, Arduino | Sensor and electronics knowledge |
Database | MySQL, PostgreSQL | Database management skills |
