Multihydrophone Fusion Network for Modulation Recognition
Abstract
:1. Introduction
- This study proposes a new network framework, including a feature extraction module and a fusion module, which successfully realizes effective identification in the multihydrophone reception scenarios of 2FSK, 4FSK, 8FSK, BPSK, LFM, and OFDM and other commonly used underwater acoustic communication signals.
- To extract the characteristics of the signals received by multiple hydrophones, this study uses a CNN to extract the characteristics of the signal time-domain sequence.
- To fully utilize different locations to obtain signals of different reception qualities, this study uses a neural network to construct a fusion module that can automatically evaluate the signal quality and assign the optimal weights to different hydrophones.

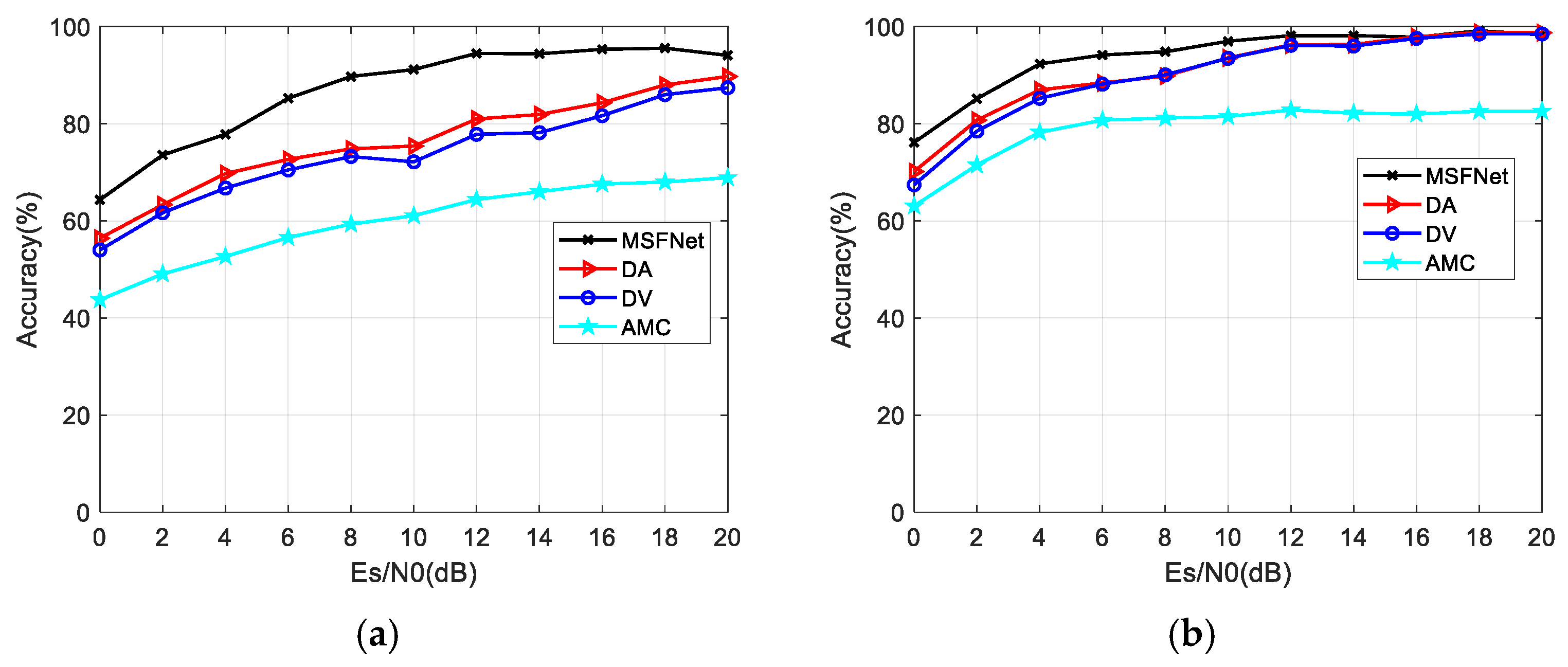

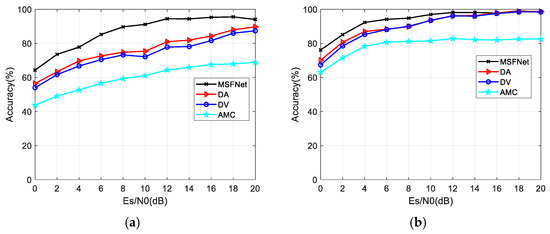

- Experimental results show that the proposed method is better than DV and DA in multiple hydrophone scenarios, showing an improvement of approximately 16% when the symbol signal-to-noise ratio is 10 dB.
2. System Model

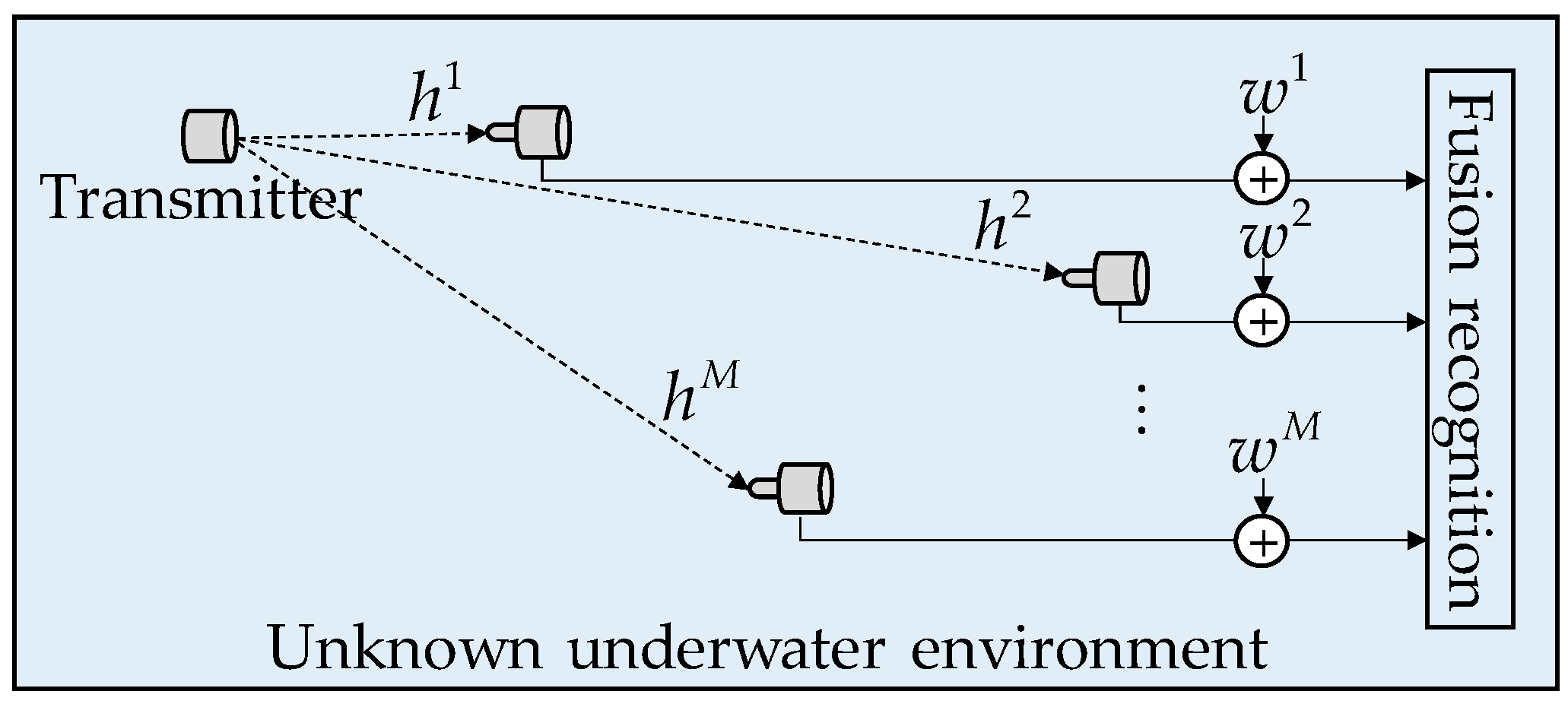

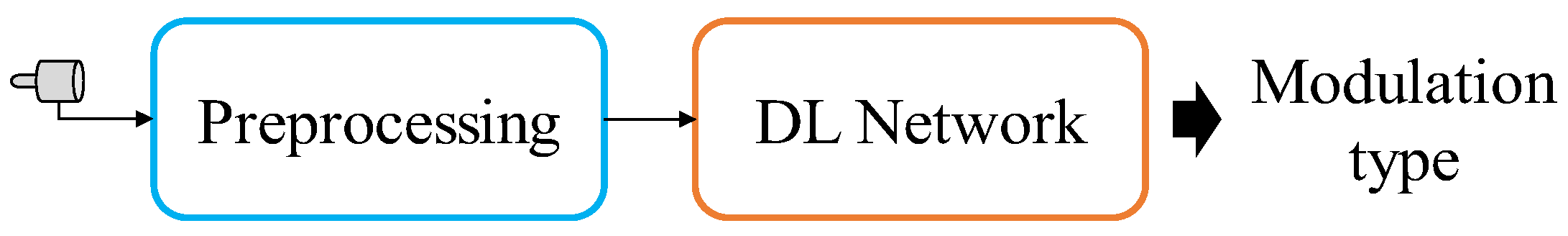

3. Proposed Recognition Approach

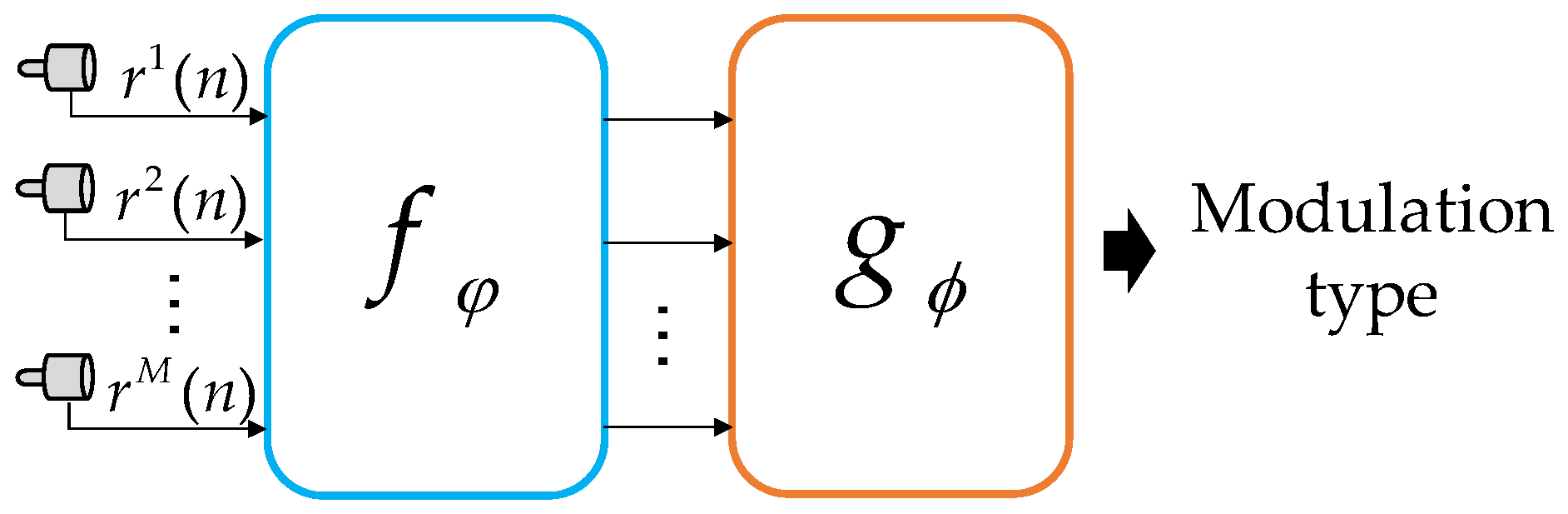

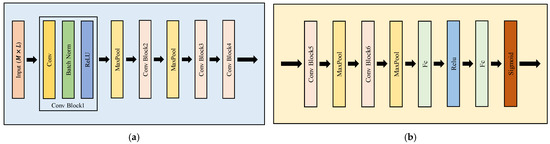

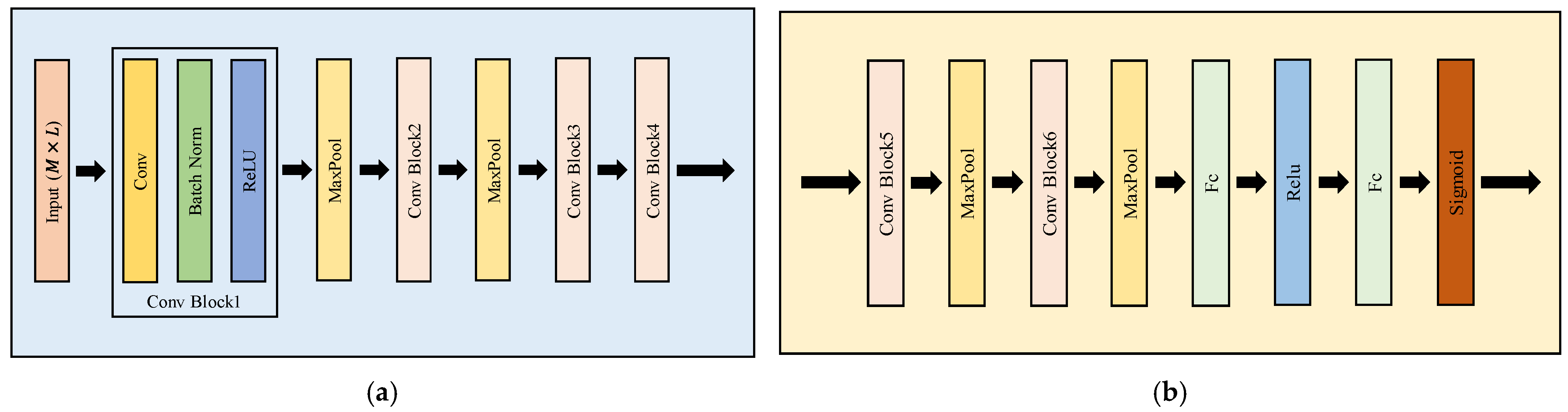

3.1. Feature Extraction Module
3.2. Fusion Module
3.3. Loss Function

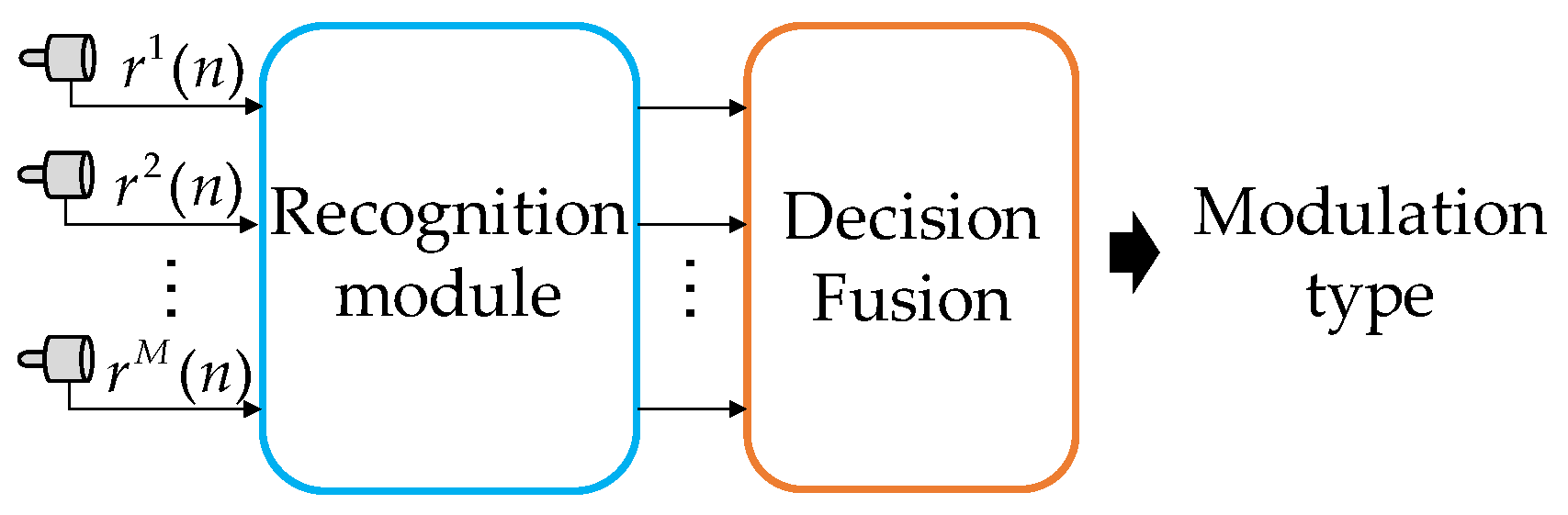

4. Review of the Other Fusion Method
5. Performance Analysis
5.1. Generation of Underwater Acoustic Communication Signals
5.2. Experiment Setting

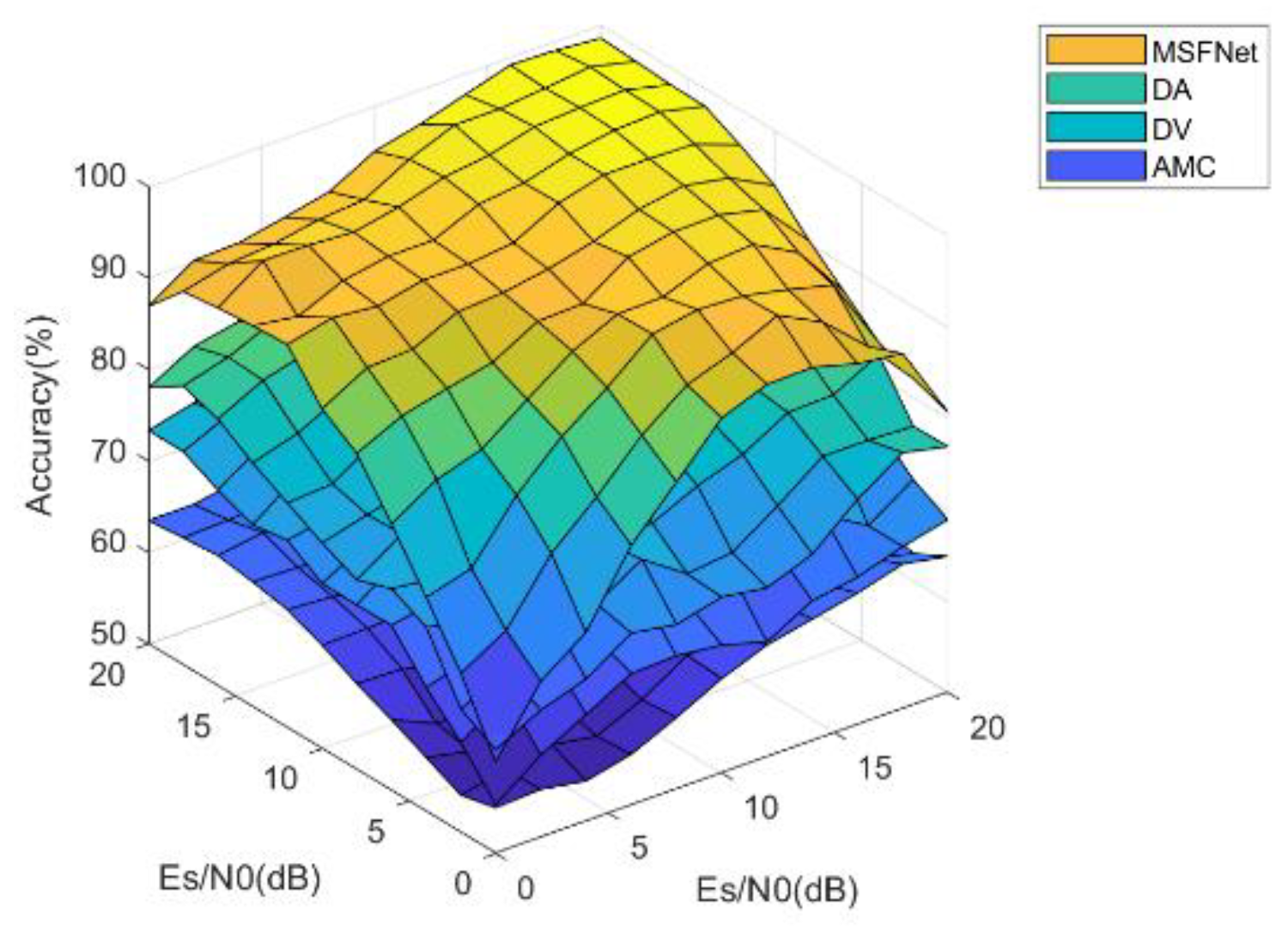

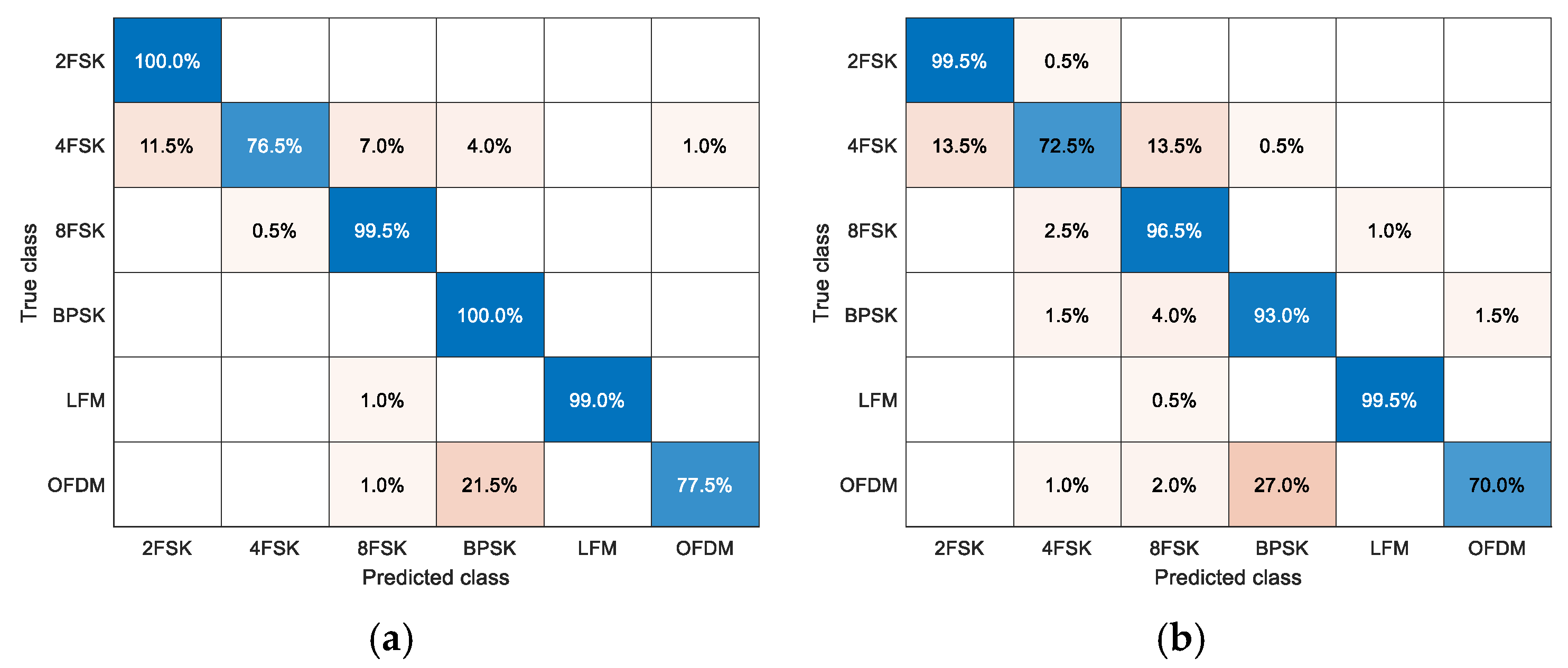

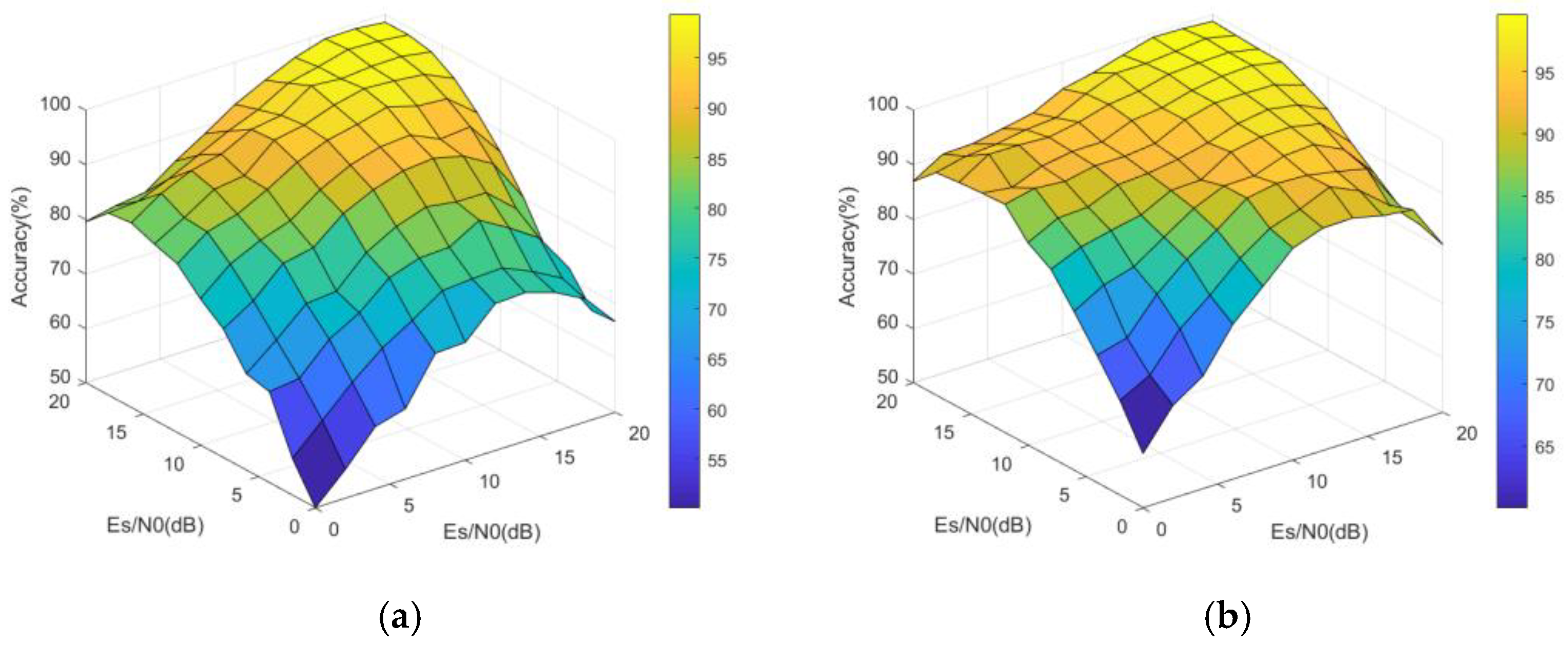

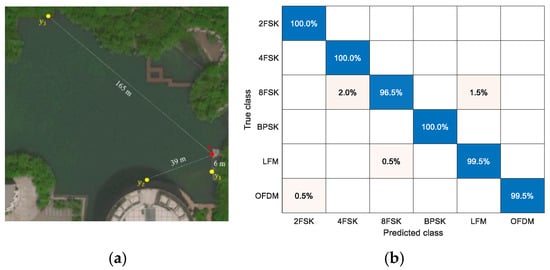

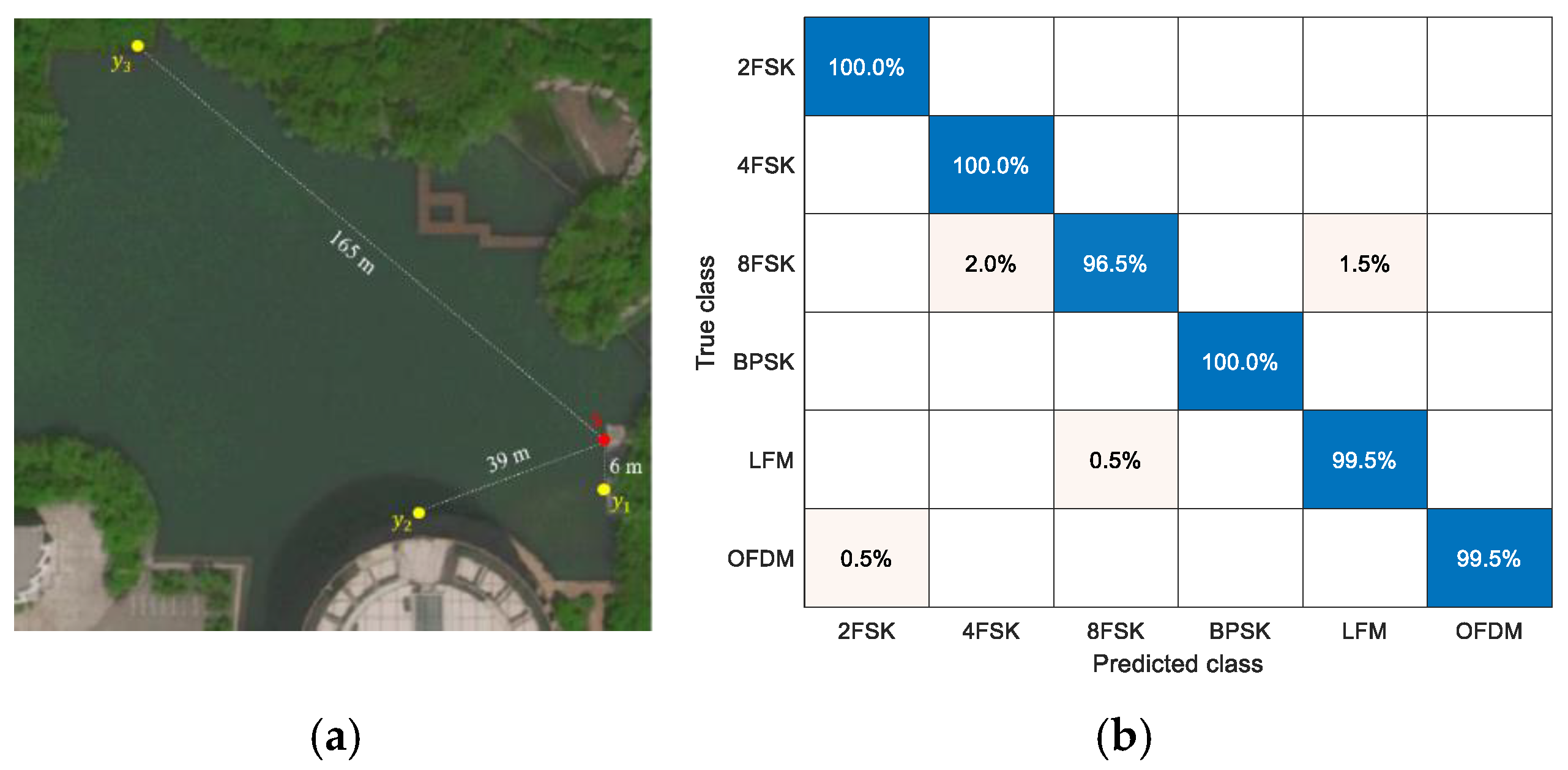

5.3. Result Analysis
