Article

A Comparative Study of Birdcage RF Coil Configurations for Ultra-High Field Magnetic Resonance Imaging

1
Neuroscience Research Institute, Gachon University, Incheon 21988, Korea
2
Department of Biomedical Engineering, Gachon University, Incheon 21936, Korea
3
Department of Neuroscience, College of Medicine, Gachon University, Incheon 21565, Korea
*
Authors to whom correspondence should be addressed.
Sensors 2022, 22(5), 1741; https://doi.org/10.3390/s22051741
Submission received: 4 January 2022 / Revised: 14 February 2022 / Accepted: 21 February 2022 / Published: 23 February 2022
(This article belongs to the Section Environmental Sensing)

Abstract

:
Improvements in transmission and reception sensitivities of radiofrequency (RF) coils used in ultra-high field (UHF) magnetic resonance imaging (MRI) are needed to reduce specific absorption rates (SAR) and RF power deposition, albeit without applying high-power RF. Here, we propose a method to simultaneously improve transmission efficiency and reception sensitivity of a band-pass birdcage RF coil (BP-BC RF coil) by combining a multi-channel wireless RF element (MCWE) with a high permittivity material (HPM) in a 7.0 T MRI. Electromagnetic field (EM-field) simulations, performed using two types of phantoms, viz., a cylindrical phantom filled with oil and a human head model, were used to compare the effects of MCWE and HPM on BP-BC RF coils. EM-fields were calculated using the finite difference time-domain (FDTD) method and analyzed using Matlab software. Next, to improve RF transmission efficiency, we compared two HPM structures, namely, a hollow cylinder shape HPM (hcHPM) and segmented cylinder shape HPM (scHPM). The scHPM and MCWE model comprised 16 elements (16-rad BP-BC RF coil) and this coil configuration demonstrated superior RF transmission efficiency and reception sensitivity along with an acceptable SAR. We expect wider clinical application of this combination in 7.0 T MRIs, which were recently approved by the United States Food and Drug Administration.

1. Introduction

The recent steady increase in the main magnetic field ( B 0 -field) strength in magnetic resonance imaging (MRI) systems has been able to improve the signal-to-noise ratio (SNR), among other advantages. Specifically, the 7.0 T MRI, which has recently been approved by the United States Food and Drug Administration (US FDA), offers multiple clinical benefits over the currently used 3.0T MRI [1,2,3]. As improving the performance of radiofrequency (RF) coils is essential for effectively translating the benefits of ultra-high field (UHF) MRI to clinically relevant data, RF coil configurations have played an important role in acquiring UHF MRI. However, as UHF MRIs began to be used in clinical trials and the B 0 -field strength increased, magnetic flux field ( B 1 -field) sensitivity and the uniformity of RF coils became crucial design factors of RF coils [4,5,6].
Even though the 7.0 T MRI has recently provided limited approval by the US FDA for use in head and extremities (arms and legs) imaging, whole body imaging is not permitted due to safety issues, including tissue heating, which occurs because UHF MRI requires a large amount of RF energy for human imaging [7]. Hence, RF safety studies have evaluated higher specific absorption rates (SAR), which indirectly measure tissue heating upon RF exposure [8,9,10,11,12,13,14,15], and research has focused on signal strength enhancement and SAR safety for RF coils used in 7.0 T MRI approved for clinical use.
The required RF power to excite a spin system increases with the B 0 -field strength. B 1 -field sensitivity is of particular concern in UHF MRI because, as the magnetic field increases, a greater RF frequency is needed to excite the proton (1H) nuclei in the human body using an RF pulse, which is critical for high signal sensitivity of the RF coil [16,17,18,19]. Additionally, an insufficient input RF power level causes RF power deposition [20,21,22,23,24], which leads to problems in the SAR. To address this low RF power issue, RF coils that are more sensitive to RF transmission ( B 1 + -field) and reception ( B 1 -field) are needed. Further, as such high sensitive coils can provide a higher SNR, along with safety in terms of the SAR, they are recognized as a critical factor for maximizing B 1 -field sensitivity, and hence, studies have actively sought to enhance the signal sensitivity of RF coils [25,26,27,28,29,30,31]. Moreover, research is also focused on using various supplementary coils or materials in conventional coils, apart from inductively coupled wireless elements, to obtain additional B 1 -field signal sensitivity [32,33,34,35,36,37] and various high dielectric materials to improve RF transmission efficiency [38,39,40,41,42].
We have previously described a set of electromagnetic field (EM-field) simulations that combine various methods to improve B 1 + -field efficiency and B 1 -field sensitivity and have proposed the use of an optimal combination of a band-pass type bird cage coil (BP-BC RF coil) with a multi-channel wireless RF element (MCWE) [43]. A BP-BC RF coil was the optimal choice because it provided the greatest uniformity and signal sensitivity among the three types of BC RF coils (Low-pass, High-pass, and Band-pass) tested in UHF MRI [44,45,46]. Although the role of MCWE in improving B 1 -field sensitivity has been evaluated in previous studies, no studies have compared MCWE with optimized combinations of RF coils and additional methods of simultaneously improving B 1 + -field efficiency and B 1 -field sensitivity. As the B0-field strength increases, it is necessary to minimize the SAR as much as possible by minimizing the input RF power level and RF power deposition. To improve the insufficient input RF power level and RF power deposition in a BP-BC RF coil and enable stable performance, an MCWE consisting of 16-elements and high-permittivity material (HPM) was used to simultaneously improve RF transmission and reception.
Analyses of RF transmission in RF coils made with HPM, and of RF reception by various types of dedicated-shape RF coils, have been performed independently. Under certain conditions, depending on the shape of the HPM and the attachment positions, the relative permittivity may be too high, resulting in an inhomogeneity in the B 1 + -field. Given these problems, research related to the optimization of HPM pads is also underway [46]. To ensure optimal HPM performance, both thickness and appropriate structure should be considered, which would depend on the HPM width and the direction of RF wave propagation. Furthermore, HPM application methods have been typically used on RF coils with arbitrary shapes, but HPM with symmetric features is yet to be applied to RF coils to obtain a more homogeneous RF field distribution.
Thus, this study aimed to identify and propose the use of an optimal combination by comparing and analyzing combinations of MCWE along with shape-optimized HPM for improving B 1 + -field efficiency. The performance of each RF coil combination was compared using EM-field analysis of | B 1 |-, | B 1 + |-, | B 1 |-, and E-fields and the SAR.

2. Materials and Methods

The dimensions of the MCWE were 280 mm × 150 mm (diameter × length) and it consisted of 16-elements, each of size 40 mm × 150 mm, that were placed between the legs of the BP-BC RF coil. Two types of HPM structures were compared, namely, a hollow cylinder shape (hcHPM) and a segmented cylinder shape (scHPM). The hcHPM consisted of a hollow cylinder with an outer diameter of 315 mm, an inner diameter of 295 mm, and length 150 mm. The dimensions of scHPM were identical to the hcHPM but it was divided into 16-elements of the same size as that of MCWE. The dielectric properties of HPM were as follows: relative permittivity = 300 and loss tangent = 0.05. The width of each RF coil element and the scHPM was set to 40 mm so that the MCWE could be placed between the legs of the BP-BC RF coil. The diameter of the MCWE was set to 280 mm to maximize the strength of the induced coupling signal by placing it as close to the human head as possible. The diameter of the BP-BC RF coil was 330 mm, which was the minimum size required for placing the HPM and acrylic formers between the MCWE and the BP-BC RF coil. HPM thickness was set at 20 mm to ensure the maximum efficiency in the limited space between MCWE and BP-BC RF coils. These structures were modeled to be used in the 7.0 T MRI system and the distance between MCWE, HPM, and BP-BC RF coils was set to 10 mm, based on the thickness of commonly used acrylic frames.
The effects of MCWE were analyzed with HPM, either hcHPM or scHPM, located between BP-BC RF coil and MCWE. Specifically, the three different types of structures, i.e., the loop of BP-BC RF coil for leg current, single element of MCWE, and single element of hcHPM, were aligned in the same direction. For RF transmission and reception (Tx/Rx), the BC RF coil was used as the main RF coil with a band-pass type structural design. The BP-BC RF coil was operated in the transceiver mode and provided uniform RF to the conductor using current sources (1 A) with a sinusoidal RF pulse. The current RF sources were used under conditions that assumed an ideal current distribution and neglect inter element coupling [47,48,49,50,51,52,53,54,55]. The BP-BC RF coil consisted of 16-legs with 48 current RF sources. The MCWE was tuned to 300 MHz using a tuning capacitor (6.26 pF) and was configured to use only passive elements without RF sources.
For simulation under ideal conditions, the BP-BC RF coil and MCWE were made from perfect electric conductor (PEC) materials. The scHPM was located between the legs of the BP-BC and at the same position as the MCWE, which also consisted of 16-elements. The dimensions of scHPM were defined as the size between the legs of the BP-BC RF coil, which is consistent with the size of the MCWE. The B 1 -field distribution of BP-BC RF coil is generated in the vertical direction of the closed loop between the legs. If the dimensions of scHPM exceed the size between the legs of the BP-BC RF coil, RF waves can be distorted in the horizontal direction to reduce signal efficiency, so it has been set to a size that can minimize the RF wave distortion.
For performance evaluation of the BP-BC RF coil, MCWE, and HPM combinations, EM-field simulation models were designed and assessed using xFDTD simulation software (v 6.6) (Remcom, Inc., State College, PA, USA) using the FDTD method based on Yee cells [56]. To evaluate the configurations used in EM-field simulation, we used two types of numerical phantoms: an oil-based cylindrical phantom and a human head model. For relative comparison of EM-field sensitivity and uniformity, we used an oil-based cylindrical phantom with a diameter of 224 mm and a length of 150 mm. For quantitative evaluation of each configuration in the human body, we performed the EM field simulation using a human head model (HIFI head model with 17 tissues properties, provided by Remcom, Inc). The conductivity and relative permittivity of the oil-based cylindrical phantom were 0 S/m and 4, respectively. EM-field simulations were performed with 1 mm3 voxel resolution. The oil-based cylindrical phantom simulation performed FDTD operations for 372 × 372 × 190 cells, totaling 26,292,960 voxels, while that for the human phantom simulation was 522 × 372 × 340 cells, totaling 66,022,560 voxels.
For computational analysis, EM-field distributions were analyzed in terms of SAR and | B 1 |, | B 1 + |, | B 1 |, and |E| fields. To evaluate the effect of HPM and MCWE on EM-fields provided by BP-BC RF coil, EM-field sensitivities were compared for | B 1 |, | B 1 + |, | B 1 |and |E|-fields. The | B 1 + |-field was used to verify the effectiveness of the HPM, and the | B 1 |-field was used to verify the effectiveness of the MCWE. The | B 1 |-field was used to evaluate the effect of using HPM and MCWE at the same time.
The B 1 contains two circularly polarized components, defined as B 1 + and B 1 . Here, B 1 x and B 1 y   are the B 1 components (same as in magnetization) of the x- and y-axes, respectively. B 1 + and B 1 can be defined as follows:
B 1 + = | ( B x + i B y ) 2   | ,     B 1 = | ( B x i B y ) 2   |
A 90° flip-angle with a 3-ms rectangle RF pulse was assumed to be applied to the center of the BP-BC RF coil and the target subject, and the normalized coefficient (Norm-COEF) was calculated based on the assumption that the signal sensitivity of the central voxel in the acquired | B 1 + |-field was 1.95 μT [57,58]. The normalized coefficient was calculated by applying the B 1 + transmission efficiency (1.95 μT) obtained using the Fast Low-Angle Shot (FLASH) sequence in the actual 7.0 T MRI experiment to the calculated | B 1 + |-field. The FLASH B 1 + flip angle mapping sequence used in the actual 7.0 T MRI experiment were TE = 1.83 ms, TR = 5000 ms, resolution = 1.95 × 1.95 × 8 mm3, flip angle = 85°, rectangular pre-saturation pulse duration = 1.5 ms. The calculated Norm-COEF values were applied to the SAR maps for quantitative SAR analysis, which was performed under conditions identical to those of the actual MRI experiment by applying Norm-COEF values to the SAR map. To assess the safety of UHF MRI, the SAR analysis was performed in terms of RF safety. The SAR maps were evaluated using the whole-averaged SAR (mean SAR) and Max SAR values. The whole-averaged SAR value was calculated using the mean value of un-averaged SAR map and Max SAR value was calculated using maximum values of un-averaged SAR map.

3. Results & Discussion

To verify the effect of HPM on EM-fields generated by the BP-BC RF coil, we performed EM-field simulations (Figure 1) using three designs, i.e., a BP-BC RF coil, a BP-BC RF coil with an hcHPM, and a BP-BC RF coil with an scHPM. Next, to evaluate the impact of simultaneous use of an MCWE and HPM, we compared the above configurations of BP-BC with an MCWE (w-MCWE) and without an MCWE (wo-MCWE). Figure 1 depicts the design of the numerical EM-field simulation models. Thus, the EM-field simulation models for the oil-based cylindrical phantom for a wo-MCWE were the BP-BC RF coil alone (BP-BC RF coil alone − wo-MCWE) (Figure 1a), the BP-BC RF coil with an hcHPM (BP-BC RF coil + hcHPM − wo-MCWE) (Figure 1b), and the BP-BC RF coil with an scHPM (BP-BC RF coil + scHPM − wo-MCWE) (Figure 1c), while those for the w-MCWE condition were the BP-BC RF coil alone (BP-BC RF coil alone − w-MCWE) (Figure 1d), the BP-BC RF coil with an hcHPM insertion (BP-BC RF coil + hcHPM − w-MCWE) (Figure 1e), and the BP-BC RF coil with an scHPM insertion (BP-BC RF coil + scHPM − w-MCWE) (Figure 1f). The wo-MCWE and w-MCWE conditions for the human head model were similarly designed as the BP-BC RF coil alone − wo-MCWE (Figure 1g), the BP-BC RF coil + hcHPM − wo-MCWE (Figure 1h), and the BP-BC RF coil + scHPM − wo-MCWE (Figure 1i) for the wo-MCWE condition, and as the BP-BC RF coil alone − w-MCWE (Figure 1j), the BP-BC RF coil + hcHPM − w-MCWE (Figure 1k), and the BP-BC RF coil + scHPM − w-MCWE (Figure 1l) for the w-MCWE condition.
The EM-field was numerically calculated and its value at the center slice in the | B 0 |-direction (along z-axis) of the BP-BC RF coil was used for comparison. The | B 1 |-field results for the various configurations of the BP-BC RF coil were computed for the oil-based cylindrical phantom and a human head model, as shown in Figure 2. For RF transmission and reception, we derived and compared values for the | B 1 |-, | B 1 + |-, and | B 1 |-fields. Detailed values for the | B 1 |-, | B 1 + |-, and | B 1 |-field sensitivity and standard deviation (SD) are listed in Table 1.
The | B 1 |-field results for the various configurations of the BP-BC RF coil (Figure 2) were compared based on signal sensitivity, and | B 1 |-field sensitivity at the center-point of the BP-BC RF coil was used for qualitative comparison. In the oil-based cylindrical phantom, | B 1 d, as shown in Figure 2a,d, and the wo-MCWE condition produced characteristic high signal sensitivity and uniformity. However, higher | B 1 |-field sensitivity was observed in the w-MCWE condition, indicating that the MCWE improves | B 1 |-field sensitivity. To analyze the effects of the two types of HPM, | B 1 |-fields for the hcHPM (Figure 2b,e) and scHPM (Figure 2c,f) were compared in the wo-MCWE and w-MCWE conditions. For the hcHPM in the wo-MCWE and w-MCWE conditions, performance degradation occurred in the | B 1 |-field, characterized by rapid signal reduction in the periphery. Specifically, compared to the BP-BC RF coil alone, | B 1 |-field sensitivity was reduced by approximately 16.217% and 24.415% under the wo-MCWE (Figure 2b) and w-MCWE (Figure 2e) conditions, respectively. However, with the scHPM, higher | B 1 |-field sensitivity than the BP-BC RF coil alone was observed. Next, a combination of the scHPM and wo-MCWE (Figure 2c) improved | B 1 |-field sensitivity by approximately 9.742% compared to the BP-BC RF coil alone. Notably, | B 1 |-field sensitivity dramatically improved by about 32.130% in the scHPM and w-MCWE configuration compared to the BP-BC RF coil alone (Figure 2f).
As demonstrated in Figure 2, the | B 1 |-field simulation results with the human head model showed greater sensitivity, validating the effectiveness of using both an MCWE and HPM. Figure 2g shows the results for the wo-MCWE condition, where the BP-BC RF coil generated a typical | B 1 |-field distribution with high sensitivity and uniformity. As seen in Figure 2j, | B 1 |-field sensitivity was enhanced under w-MCWE conditions (Figure 2g) due to the presence of the MCWE. From an architectural perspective, the | B 1 |-field for the human head phantom with an hcHPM (Figure 2h,k) exhibited performance degradation under both the wo-MCWE and w-MCWE conditions compared to the BP-BC RF coil alone condition, i.e., | B 1 |-field sensitivity was reduced by approximately 14.198% in the wo-MCWE condition (Figure 2h) and by approximately 15.924% in the w-MCWE condition (Figure 2k). In contrast, the | B 1 |-field results using an scHPM showed an improved performance by about 2.542% in the wo-MCWE (Figure 2i) condition and about 22.174% in the w-MCWE condition (Figure 2l) compared to the BP-BC RF coil alone.
As the | B 1 |-fields were computed using the | B 1 + |- and | B 1 |-fields according to the reciprocity theorem, analysis of the | B 1 + |- and | B 1 |-fields was deemed essential for quantitative analysis of the | B 1 |-field results. The signal sensitivities of the | B 1 + |- and | B 1 |-fields were compared using the calculated maximum values. The | B 1 + |-fields obtained with the oil-based cylindrical phantom and human head model are shown in Figure 3, while Figure 3a,d depict the oil-based cylindrical phantom fields with the BP-BC RF coil under wo-MCWE and w-MCWE conditions, respectively. In Figure 3a, the maximum value of the | B 1 + |-field generated by the BP-BC RF coil under the wo-MCWE condition was calculated to be 0.247 × 10−5 μT, whereas that under the w-MCWE condition (Figure 3d) was 0.284 × 10−5 μT. Under the w-MCWE condition (Figure 3d), the | B 1 + |field efficiency was approximately 15.113% better than that under the wo-MCWE condition (Figure 3a). When hcHPM was used for the oil-based cylindrical phantom (Figure 3b,e), the maximum value of the | B 1 + |-field was calculated to be 0.207 × 10−5 μT for the wo-MCWE condition (Figure 3b) and 0.215 × 10−5 μT for the w-MCWE condition (Figure 3e). This corresponds to a 16.207% decrease in the wo-MCWE condition and a 24.392% reduction in the w-MCWE condition as compared with the BP-BC RF coil alone. In contrast, the BP-BC RF coil with an scHPM insertion improved the | B 1 + |-field efficiency with a maximum value of 0.291 × 10−5 μT under the wo-MCWE condition (Figure 3c) and 0.443 × 10−5 μT under the w-MCWE condition (in Figure 3f). Thus, in comparison with the BP-BC RF coil alone, the | B 1 + |-field efficiency improved by approximately 17.868% under the wo-MCWE condition and 55.755% under the w-MCWE condition with an scHPM. Furthermore, in comparison with hcHPM, the | B 1 + |-field efficiency improved by approximately 40.667% under wo-MCWE conditions and 106.006% under w-MCWE conditions.
For the human head model, the maximum value of the | B 1 + |-field using only the BP-BC RF coil was 0.588 × 10−5 μT under the wo-MCWE condition (Figure 3g) and 0.637 × 10−5 μT under the w-MCWE condition (Figure 3j). With an hcHPM (Figure 3h,k), this maximum value was 0.491 × 10−5 μT under the wo-MCWE condition (Figure 3h) and 0.522 × 10−5 μT under the w-MCWE condition (Figure 3k). With an scHPM (Figure 3i,l), the maximum value was 0.609 × 10−5 μT under the wo-MCWE condition (Figure 3i) and 0.781 × 10−5 μT under the w-MCWE condition (Figure 3l).
Next, the use of an hcHPM reduced | B 1 + |-field efficiency compared to the BP-BC RF coil alone, and the reduction was calculated to be approximately 16.527% under wo-MCWE and 18.071% under w-MCWE conditions, respectively. Contrastingly, | B 1 + |-field efficiency improved by 3.604% under wo-MCWE conditions and by 22.593% under w-MCWE conditions compared to the BP-BC RF coil alone on using an scHPM. With an scHPM, | B 1 + |-field efficiency was greater compared to the BP-BC RF coil + hcHPM; specifically, the improvement was calculated to be approximately 24.119% under wo-MCWE and 49.635% under w-MCWE conditions, respectively.
As shown in Figure 4, the signal sensitivity of the | B 1 |-field, which corresponds to the receiving field, should have zero value according to the reciprocity theorem; however, these values are not so due to inhomogeneity of the | B 1 |-field in the UHF MRI systems. Nevertheless, the signal sensitivity at the center of the | B 1 |-field has a value close to zero, and a sharp change in | B 1 |-field sensitivity was identified in the peripheral region of the phantoms used. Therefore, simultaneous analysis of signal sensitivity and SD values for the | B 1 |-field were performed.
As seen in Figure 4a,d, | B 1 |-field results for the BP-BC RF coil with the oil-based cylindrical phantom, under wo-MCWE (Figure 4a) and w-MCWE (Figure 4d) conditions, showed no significant changes in signal sensitivity or uniformity; however, changes in field uniformity were identified at the boundary of the oil-based cylindrical phantom under the w-MCWE condition (Figure 4d). For the BP-BC RF coil + hcHPM (Figure 4b,e) or BP-BC RF coil + scHPM (Figure 4c,f), abnormal | B 1 |-field patterns were identified at closed loop positions between the legs of the BP-BC RF coil. These irregular | B 1 |-field patterns were seen upon HPM and MCWE use as well. In the configuration BP-BC RF coil with MCWE, changes occurred only in | B 1 |-field patterns, while for the BP-BC RF coil with an HPM and MCWE, changes were seen in both sensitivity and | B 1 |-field patterns. Specifically, the combination of an scHPM and w-MCWE (Figure 4f) allowed us to observe extreme changes in | B 1 |-field sensitivity in the periphery of the oil-based cylindrical phantom as it was located close enough to the MCWE and the HPM to yield irregular patterns in the peripheral regions. Similar abnormal | B 1 |-field patterns in the periphery were not observed in the human head model results.
A comparison of | B 1 |-field results for the BP-BC RF coil alone for the oil-based cylindrical phantom (Figure 4a,d) and the human head model (Figure 4g,j) showed that values were approximately 2.254~3.506 times higher under the wo-MCWE condition (in Figure 4g) and 2.376~3.297 times higher under the w-MCWE condition (in Figure 4j) for the human head model. The | B 1 |-field sensitivity and SD values for the BP-BC RF coil + hcHPM for the human head model (Figure 4h,k) were calculated to be relatively low under both wo-MCWE and w-MCWE conditions. On the other hand, | B 1 |-field sensitivity and SD distribution for the human head model with the BP-BC RF coil + scHPM under wo-MCWE conditions (Figure 4i) did not reveal significant differences from the BP-BC RF coil alone (Figure 4g). The highest | B 1 |-field sensitivity and SD values were seen with the human head model for the BP-BC RF coil + scHPM under the w-MCWE condition (in Figure 4l).
As shown in Figure 5 and Table 1, |E|-field maps were analyzed as maximum values and distribution patterns, and the results revealed an |E|-field in the peripheral region of the oil-based cylindrical phantom because this phantom, which was used to control distortion due to EM-field non-uniformity in the UHF, was set to zero conductivity (0 S/m) and a relative permittivity of four. On the other hand, results for the human head model with various dielectric properties show that the |E|-field was at the center, rather than the periphery.
Notably, the oil-based cylindrical phantom results show conflicts between the wo-MCWE and w-MCWE conditions. Specifically, the maximum value of the |E|-field was calculated with the BP-BC RF coil alone − wo-MCWE condition (260.257 V/m; Figure 5a), while the values for the BP-BC RF coil + hcHPM − wo-MCWE (251.539 V/m; Figure 5b) and BP-BC RF coil + scHPM − wo-MCWE (202.869 V/m; Figure 5c) were lower. Under the w-MCWE condition, maximum values for the |E|-field were calculated in the order opposite to that seen in the wo-MCWE condition, i.e., BP-BC RF coil alone − w-MCWE (224.388 V/m; Figure 5d), BP-BC RF coil + hcHPM − w-MCWE (246.670 V/m; Figure 5e), and BP-BC RF coil with scHPM (296.424 V/m; Figure 5f). Under the wo-MCWE condition, |E|-field variance was observed in the periphery due to HPM, but under the w-MCWE condition, |E|-field concentration was observed in the periphery due to both HPM and MCWE.
Unlike that seen with the oil-based cylindrical phantom, the |E|-field was concentrated at the center of the object in the human head model. Under the wo-MCWE condition, the maximum value of the |E|-field was calculated at 727.420 V/m for the BP-BC RF coil alone − wo-MCWE (Figure 5g), at 567.106 V/m for the BP-BC RF coil + hcHPM − wo-MCWE (Figure 5h), and at 711.303 V/m for the BP-BC RF coil + scHPM − wo-MCWE (Figure 5i). Under the w-MCWE condition, the maximum value of the |E|-field was calculated at 740.012 V/m for the BP-BC RF coil alone (Figure 5j), at 586.246 V/m for the BP-BC RF coil alone − w-MCWE (Figure 5k), and at 918.380 V/m for the BP-BC RF coil + hcHPM − w-MCWE (Figure 5l). Thus, the |E|-field results for the oil-based cylindrical phantom and the human head model showed the highest value for the BP-BC RF coil + scHPM − w-MCWE (Figure 5f,l). Further, values for the human head model were 24.103~56.654% higher than those of other configurations.
Unlike EM-field analysis results, such as | B 1 |-, | B 1 + |-, | B 1 |-, and |E|-fields, the SAR map was calculated assuming conditions wherein the coils apply 90° RF, which is similar to real-world MRI. Hence, we used a method to calculate necessary normalized values and then applied the computed values to the SAR map with the | B 1 + |-field subjected to 90° RF. The calculated values were defined by the Norm-COEF, as shown in Table 2, for the BP-BC RF coil alone. The SAR map with the Norm-COEF was calculated and analyzed as shown in Figure 6 and Table 2. The Norm-COEF values under the wo-MCWE condition were calculated to be 0.362 for the BP-BC RF coil alone − wo-MCWE, 0.431 for the BP-BC RF coil + hcHPM − wo-MCWE, and 0.352 for the BP-BC RF coil + scHPM − wo-MCWE. Under the w-MCWE condition, these values were 0.334 for the BP-BC RF coil alone − w-MCWE, 0.406 for the BP-BC RF coil + hcHPM − w-MCWE, and 0.273 for the BP-BC RF coil + scHPM − w-MCWE. Norm-COEF values were calculated to be lower for the BP-BC RF coil + scHPM − w-MCWE than other configurations due to the former’s high signal sensitivity.
The quantitative analysis of SAR maps without Norm-COEF values is not possible under ideal conditions, but qualitative SARs were comparable. For the quantitative analysis of SAR maps, we compared whole-averaged SAR (mean SAR) and maximum SAR values. Under the wo-MCWE condition, the mean SAR values were calculated to be 0.209 W/Kg for the BP-BC RF coil alone − wo-MCWE (Figure 6a), 0.245 W/Kg for the BP-BC RF coil + hcHPM − wo-MCWE (Figure 6b), and 0.215 W/Kg for the BP-BC RF coil + scHPM − wo-MCWE (Figure 6c). Under the w-MCWE condition, mean SAR values were calculated to be 0.216 W/Kg for the BP-BC RF coil alone − w-MCWE (Figure 6d), 0.235 W/Kg for the BP-BC RF coil + hcHPM − w-MCWE (Figure 6e), and 0.211 W/Kg for the BP-BC RF coil + scHPM − w-MCWE (Figure 6f). No drastic changes in mean SAR values were identified, while extreme changes were observed for maximum SAR values with the BP-BC RF coil + hcHPM, which were 19.138~21.358% higher than those for the BP-BC RF coil alone. Significant changes in maximum SAR values were not seen between the BP-BC RF coil + scHPM and the BP-BC RF coil alone under either wo-MCWE or w-MCWE conditions. However, sharp changes in maximum SAR values were seen with the BP-BC RF coil + hcHPM.
EM-field simulation results show that the | B 1 |-field sensitivity of the BP-BC RF coil, combined with MCWE and scHPM, was greater than that of the BP-BC RF coil alone by about 32.130% for the cylindrical phantom and by 22.174% for the human head model. | B 1 + |-field values showed a greater efficiency for the cylindrical phantom (approximately 55.755% improvement) and the human head model (approximately 22.593% improvement). Similarly, the | B 1 |-field results showed a signal sensitivity improvement of about 122.957% for the cylindrical phantom and about 18.662% for the human head model. Thus, we demonstrate an increase in RF transmission efficiency and reception sensitivity, implying an improvement of RF transmission and reception efficiency, which directly affects | B 1 |-field sensitivity.
Meanwhile, |E|-field results showed a relative increase (32.103% for cylindrical phantom and 24.103% for head models) in the |E|-field concentrations for the configuration of the BP-BC RF coil + scHPM − w-MCWE due to the presence of MCWE and scHPM structures. These |E|-field concentration results are expected to have a direct effect on MR images acquired using high-speed RF pulse sequences, such as EPI pulse sequences; however, they did not show significant differences in SAR maps. The combination of MCWE and scHPM provides safety in terms of SAR due to relatively low RF power applied to the BP-BC RF coils. Assuming that actual 90° RF was applied, both the RF transmission and reception efficiency of the BP-BC RF coil + scHPM − w-MCWE were increased, resulting in a relatively low RF output. Therefore, the calculated change in SAR values was below 1.993% for the mean SAR and below 1.527% for the maximum SAR value, which are not expected to have a significant impact on human safety.
Here, we describe the results of the EM-field simulations of the BP-BC RF coils with an MCWE and HPM that were optimized to improve RF transmission and reception efficiency. While the BC RF coil has been widely used in MRI because it provides a highly uniform | B 1 |-field distribution, a decrease in RF frequency length after increasing the main magnetic field strength reduces the | B 1 |-field sensitivity, which acts as a critical weakness for volume coils such as BP-BC RF coils. Thus, to improve limited | B 1 |-field sensitivity due to the reduced RF transceiver efficiency in UHF MRI, an optimized configuration with MCWE for improving RF reception efficiency and an HPM for enhancing RF transmission efficiency can be adopted.
We show that RF transmission and reception efficiency can be improved in 7.0 T MRI by enhancing | B 1 |-field sensitivity using a combination of an HPM and MCWE; specifically, that an scHPM improves | B 1 + |-field efficiency of RF transmission, while an MCWE improves | B 1 |-field sensitivity of RF reception. Further, we show that the shape and arrangement of the HPM are important factors and that the HPM has to be designed in the same direction as the direction of progression of the RF pulse. For example, in the case of the hcHPM, a reverse offset of RF waves within the HPM of the hollow cylinder phantom resulted in reduced Tx efficiency. Although RF waves need to be applied perpendicular to the human body, the hcHPM distorts RF waves in the horizontal direction, which reduces signal efficiency due to a shielding effect. In contrast, with the scHPM, RF wave distortion was minimized as the HPM elements consisted of separate forms, which only further boosted Tx performance.
In fact, the HPM structures have been mainly used in energy storage technologies such as dielectric-based capacitors, and their main role was to increase energy density. In MRI applications, the HPM should be used in the direction of transmission field propagation to increase the energy density of the transmission field. If the HPM is configured to distort the direction of the transmission field propagation, the energy density of the transmission field decreases, resulting in | B 1 + |-field efficiency decreases.
In this study, since the hcHPM structure was configured in a hollow cylinder shape, the transmission field of the BP-BC RF coil was distorted, and the | B 1 + |-field efficiency reduced. On the other hand, the scHPM structure provided the result of improving the | B 1 + |-field efficiency by increasing the energy density without distortion in the direction of the transmission field as HPM structures were configured within the range not exceeding the BP-BC RF coil size.
Furthermore, the synergy between the MCWE and scHPM configurations allowed the | B 1 |-, | B 1 + |- and | B 1 |-fields in the BP-BC RF coil to dramatically heighten the signal efficiency. Compared to the BP-BC RF coil + scHPM − wo-MCWE conditions, the increase in the | B 1 |- and | B 1 + |-field efficiency under w-MCWE conditions was found to be much higher due to the use of the scHPM, and the synergy between the scHPM and MCWE was found to be remarkable. On the SAR maps that were constructed using Norm-COEF values, the BP-BC RF coil + scHPM was not significantly different from the BP-BC RF coil alone, while the BP-BC RF coil + hcHPM showed both a rapid increase and concentration of SAR in the center of the brain. Importantly, we confirm that the MCWE is significantly involved in overall SAR changes. Even though the superiority of the scHPM was verified by comparing the hcHPM and scHPM, only multi-channel forms were considered for wireless coils. Analyzing optimized forms of wireless coils and HPM requires further research on the combination of volumetric wireless coils, such as a birdcage coil and multi-channel RF coil in a phase array, which would function as an RF transceiver. Thus, applying BP-BC RF coils with an MCWE and scHPM to whole-body phantoms takes into account the signal efficiency improvement and SAR reduction, and even though research on other optimized forms of wireless coils and HPM combinations was insufficient, the efficiency of the proposed method is thought to be fully validated.
Our calculations also show that the proposed combination of the BP-BC RF coil with an MCWE and scHPM displays enhanced | B 1 |-field sensitivity and | B 1 + |-field efficiency in the human head model. Importantly, SAR values of the proposed combination indicate its suitability and safety for clinical use in humans.
Our future work aims to evaluate combinations of birdcage-shaped wireless coils and HPM to improve the performance of multi-channel RF coils for the Tx/Rx mode. Further, limited EM-field simulations using a BaTio3 material have been performed to verify the effect on HPM, but further evaluation of HPM with varying permittivity and loss parameters is needed.

4. Conclusions

In this paper, we describe configurations of BP-BC RF coils that yield improved RF signal sensitivity and safety for use in UHF MRI and propose an optimized combination of a wireless RF coil (for better reception efficiency) and HPM with dielectric properties (for better transmission efficiency). EM-field simulations were performed to verify the effects of the proposed configurations. The BP-BC RF coil, combined with MCWE and scHPM structures, were compared with hcHPM configurations, analyzed, and proposed as an optimized configuration based on EM-field simulations. The structure of the scHPM was designed to match the direction of propagation of the RF wave generated by the BP-BC RF coil and the location of both the scHPM and MCWE. Notably, the design and dimensions of both the scHPM and MCWE were such that they could be located between the legs of the BC coil. Further, the optimized structure and the layout of the BP-BC RF coil, combined with the MCWE and scHPM, should be aligned with the direction of the RF field. Both the MCWE and scHPM were designed as a 16-element combination as the RF coil was a 16-leg BP-BC RF coil.
The optimized combination of MCWE and scHPM improved both the transmission and reception signal efficiency and sensitivity of the BP-BC RF coils in UHF MRI, and we expect its use to improve the sensitivity of birdcage coils that are limited by a low RF power and SAR issues when used in UHF MRIs at or above 7.0 T. Importantly, we believe that the proposed RF coil combination can be effectively applied to MRI systems above 7.0 T.
One limitation encountered during this study was that the application of the scHPM and MCWE to actual clinical 7.0 T MRI failed to perform comparative studies with electromagnetic field simulation results. MR image acquisition using unauthorized devices is strictly restricted at clinical sites. Due to strict MRI safety regulations for the human patients, actual scHPM and MCWE experiments could not be performed.
However, the possibility of the scHPM and MCWE has been confirmed through this study. Further research using a more diverse combination of optimized wireless elements and HPM structures is warranted. Therefore, we plan to examine a more optimized combination of ‘multi-channel RF coils compared with a birdcage wireless element (BCWE) and scHPM’ and ‘BP-BC RF coils with MCWE and scHPM’ in future studies.

Author Contributions

In this research work, J.-H.S. designed the EM-field simulation models for RF coil configurations (BP-BC RF coil, HPM, and MCWE) and analyzed EM-field simulation models using FDTD methods. J.-H.S. has also conducted the calculation in the simulation results, and the writing and formatting of this manuscript. Y.H. and J.-Y.C. provided guidance to create this manuscript. Y.H. and J.-Y.C. reviewed and edited this manuscript, and contributed equally as a co-correspondence author. All authors have read and agreed to the published version of the manuscript.

Funding

The Korea Health Technology R&D Project through the Korea Health Industry Development Institute (KHIDI), funded by the Ministry of Health and Welfare of the Republic of Korea (Grant HR14C-0002-010014); the Brain Research Program through the National Research Foundation of Korea (NRF) funded by the Ministry of Science, ICT & Future Planning (NRF-2017M3C7A1047228).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Beisteiner, R.; Robinson, S.; Wurnig, M.; Hilbert, M.; Merksa, K.; Rath, J.; Höllinger, I.; Klinger, N.; Marosi, C.; Trattnig, S.; et al. Clinical fMRI: Evidence for a 7 T benefit over 3 T. NeuroImage 2011, 57, 1015–1021. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Van der Zwaag, W.; Francis, S.; Head, K.; Peters, A.; Gowland, P.; Morris, P.; Bowtell, R. fMRI at 1.5, 3 and 7 T: Characterising BOLD signal changes. NeuroImage 2009, 47, 1425–1434. [Google Scholar] [CrossRef]
  3. Barisano, G.; Sepehrband, F.; Ma, S.; Jann, K.; Cabeen, R.; Wang, D.J.; Toga, A.W.; Law, M. Clinical 7 T MRI: Are we there yet? A review about magnetic resonance imaging at ultra-high field. Br. J. Radiol. 2019, 91, 20180492. [Google Scholar] [CrossRef] [PubMed]
  4. Santarelli, M.F.; Giovannetti, G.; Hartwig, V.; Celi, S.; Positano, V.; Landini, L. The core of medical imaging: State of the art and perspectives on the detectors. Electronics 2021, 10, 1642. [Google Scholar] [CrossRef]
  5. Yoon, J.-S.; Kim, J.-M.; Chung, H.-J.; Jeong, Y.-J.; Jeong, G.-W.; Park, I.; Kim, G.-W.; Oh, C.-H. Development of a proton-frequency-transparent birdcage radiofrequency coil for in vivo 13C MRS/MRSI study in a 3.0 T MRI system. Appl. Sci. 2021, 11, 11445. [Google Scholar] [CrossRef]
  6. Pang, Y.; Xie, Z.; Li, Y.; Xu, D.; Vigneron, D.; Zhang, X. Resonant mode reduction in radiofrequency volume coils for ultrahigh field magnetic resonance imaging. Materials 2011, 4, 1333–1344. [Google Scholar] [CrossRef] [Green Version]
  7. FDA Clears First 7T Magnetic Resonance Imaging Device. 2017. Available online: https://www.fda.gov/NewsEvents/Newsroom/PressAnnouncements/ucm580154.htm (accessed on 27 June 2019).
  8. Röschmann, P. Radiofrequency penetration and absorption in the human body: Limitations to high-field whole-body nuclear magnetic resonance imaging. Med. Phys. 1987, 14, 922–931. [Google Scholar] [CrossRef]
  9. Bottomley, P.A.; Roemer, P.B. Homogeneous tissue model estimates of RF power deposition in human NMR studies. Local elevations predicted in surface coil decoupling. Ann. N. Y. Acad. Sci. 1992, 649, 144–159. [Google Scholar] [CrossRef]
  10. Keltner, J.R.; Carlson, J.W.; Roos, M.S.; Wong, S.T.; Wong, T.L.; Budinger, T.F. Electromagnetic fields of surface coil in vivo NMR at high frequencies. Magn. Reson. Med. 1991, 22, 467–480. [Google Scholar] [CrossRef]
  11. Lattanzi, R.; Sodickson, D.K.; Grant, A.K.; Zhu, Y. Electrodynamic constraints on homogeneity and radiofrequency power deposition in multiple coil excitations. Magn. Reson. Med. 2009, 61, 315–334. [Google Scholar] [CrossRef] [Green Version]
  12. Hoff, M.N.; McKinney, A., 4th; Shellock, F.G.; Rassner, U.; Gilk, T.; Watson, R.E., Jr.; Greenberg, T.D.; Froelich, J.; Kanal, E. Safety considerations of 7-T MRI in clinical practice. Radiology 2019, 292, 509–518. [Google Scholar] [CrossRef] [PubMed]
  13. Woo, M.K.; DelaBarre, L.; Waks, M.; Radder, J.; Choi, U.-S.; Lagore, R.; Ugurbil, K.; Adriany, G. A 16-channel dipole antenna array for human head magnetic resonance imaging at 10.5 tesla. Sensors 2021, 21, 7250. [Google Scholar] [CrossRef] [PubMed]
  14. Hong, S.-E.; Oh, S.; Choi, H.-D. RF exposure assessment for various poses of patient assistant in open MRI environment. Appl. Sci. 2021, 11, 4967. [Google Scholar] [CrossRef]
  15. Puddu, C.; Fanti, A.; Curreli, N.; Mazzarella, G. Challenging the lumped birdcage coil model for high-field MRI. In Proceedings of the IEEE 2014 Loughborough Antennas & Propagation Conference (LAPC), Loughborough, UK, 10–11 November 2014; pp. 308–311. [Google Scholar]
  16. Barberi, E.A.; Gati, J.S.; Rutt, B.K.; Menon, R.S. Transmit-only/receive-only (TORO) RF system for high-field MRI/MRS applications. Magn. Reson. Med. 2000, 43, 284–289. [Google Scholar] [CrossRef]
  17. Apurva, R.; Yadav, R.; Bhuiya, T.; Harsh, R. Development of compact and flexible quadrature hybrid coupler using coaxial cable with capacitive loading for 1.5T indigenous MRI system. Prog. Electromagn. Res. Lett. 2020, 93, 143–151. [Google Scholar] [CrossRef]
  18. Uğurbil, K. Magnetic resonance imaging at ultrahigh fields. IEEE. Trans. Biomed. Eng. 2014, 61, 1364–1379. [Google Scholar] [CrossRef] [Green Version]
  19. Yang, Q.X.; Wang, J.; Zhang, X.; Collins, C.M.; Smith, M.B.; Liu, H.; Zhu, X.-H.; Vaughan, J.T.; Ugurbil, K.; Chen, W. Analysis of wave behavior in lossy dielectric samples at high field. Magn. Reson. Med. 2002, 47, 982–989. [Google Scholar] [CrossRef]
  20. Robitaille, P.M. On RF power and dielectric resonances in UHF MRI. NMR Biomed. 1999, 12, 318–319. [Google Scholar] [CrossRef]
  21. Collins, C.M.; Smith, M.B. Signal-to-noise ratio and absorbed power as functions of main magnetic field strength, and definition of “90 degrees” RF pulse for the head in the birdcage coil. Magn. Reson. Med. 2001, 45, 684–691. [Google Scholar] [CrossRef]
  22. Hoult, D.I.; Phil, D. Sensitivity and power deposition in a high-field imaging experiment. J. Magn. Reson. Imaging. 2000, 12, 46–67. [Google Scholar] [CrossRef]
  23. Bottomley, P.A.; Redington, R.W.; Edelstein, W.A.; Schenck, J.F. Estimating radiofrequency power deposition in body NMR imaging. Magn. Reson. Med. 1985, 2, 336–349. [Google Scholar] [CrossRef] [PubMed]
  24. Chen, C.N.; Sank, V.J.; Cohen, S.M.; Hoult, D.I. The field dependence of NMR imaging. I. Laboratory assessment of signal-to-noise ratio and power deposition. Magn. Reson. Med. 1986, 3, 722–729. [Google Scholar] [CrossRef] [PubMed]
  25. Edelstein, W.A.; Glover, G.H.; Hardy, C.J.; Redington, R.W. The intrinsic signal-to-noise ratio in NMR imaging. Magn. Reson. Med. 1986, 3, 604–618. [Google Scholar] [CrossRef] [PubMed]
  26. De Zwart, J.A.; Ledden, P.J.; Gelderen, P.V.; Bodurka, J.; Chu, R.; Duyn, J.H. Signal-to-noise ratio and parallel imaging performance of a 16-channel receive-only brain coil array at 3.0 Telsa. Magn. Reson. Med. 2004, 51, 22–26. [Google Scholar] [CrossRef]
  27. Kim, K.-N.; Hernandez, D.; Seo, J.-H.; Noh, Y.; Han, Y.; Ryu, Y.; Chung, J.-Y. Quantitative assessment of phased array coils with different numbers of receiving channels in terms of signal-to-noise ratio and spatial noise variation in magnetic resonance imaging. PLoS ONE 2019, 14, e0219407. [Google Scholar] [CrossRef]
  28. Kim, K.-N.; Ryu, Y.; Seo, J.-H.; Kim, Y.-B. Magnetic field sensitivity at 7-T using dual-helmholtz transmit-only coil and 12-channel receive-only bended coil. Scanning 2016, 38, 515–524. [Google Scholar] [CrossRef] [Green Version]
  29. Kim, K.-N.; Seo, J.-H.; Han, S.-D.; Heo, P.; Im, G.H.; Lee, J.H. Development of double-layer coupled coil for improving S/N in 7 T small-animal MRI. Scanning 2015, 37, 361–371. [Google Scholar] [CrossRef]
  30. Hoult, D.I.; Tomanek, B. Use of mutually inductive coupling in probe design. Concepts Magn. Reson. 2002, 15, 262–285. [Google Scholar] [CrossRef]
  31. Giovannetti, G.; Flori, A.; Martini, N.; Francischello, R.; Aquaro, G.D.; Pingitore, A.; Frijia, F. Sodium radiofrequency coils for magnetic resonance: From design to applications. Electronics 2021, 10, 1788. [Google Scholar] [CrossRef]
  32. Seo, J.-H.; Lee, J.J.; Kim, K.-N. Surface coil with an inductively coupled wireless surface and volume coil for improving the magnetic field sensitivity at 400-MHz MRI. J. Magn. 2018, 23, 192–195. [Google Scholar] [CrossRef]
  33. Wang, T.; Ciobanu, L.; Zhang, X.; Webb, A. Inductively coupled RF coil design for simultaneous microimaging of multiple samples. Concepts Magn. Reson. Part B Magn. Reson. Eng. 2008, 33B, 236–243. [Google Scholar] [CrossRef]
  34. Bulumulla, S.B.; Fiveland, E.; Park, K.J.; Foo, T.K.; Hardy, C.J. Inductively coupled wireless RF coil arrays. Magn. Reson. Imaging 2015, 33, 351–357. [Google Scholar] [CrossRef]
  35. Mett, R.R.; Sidabras, J.W.; Hyde, J.S. MRI surface-coil pair with strong inductive coupling. Rev. Sci. Instrum. 2016, 87, 124704. [Google Scholar] [CrossRef] [PubMed]
  36. Kell, R.C.; Greenham, A.C.; Olds, G.C.E. High-permittivity temperature-stable ceramic dielectrics with low microwave loss. Am. Ceram. Soc. 1973, 56, 352–354. [Google Scholar] [CrossRef] [Green Version]
  37. Mahmood, M.F.; Gharghan, S.K.; Mohammed, S.L.; Al-Naji, A.; Chahl, J. Design of powering wireless medical sensor based on spiral-spider coils. Designs 2021, 5, 59. [Google Scholar] [CrossRef]
  38. Dang, Z.-M.; Yuan, J.-K.; Yao, S.-H.; Liao, R.-J. Flexible nanodielectric materials with high permittivity for power energy storage. Adv. Mater. 2013, 25, 6334–6365. [Google Scholar] [CrossRef]
  39. Zivkovic, I.; Teeuwissea, W.; Slobozhanyukb, A.; Nenashevac, E.; Webb, A. High permittivity ceramics improve the transmit field and receive efficiency of a commercial extremity coil at 1.5 Tesla. J. Magn. Reson. 2019, 299, 59–65. [Google Scholar] [CrossRef]
  40. Lee, B.-Y.; Zhu, X.-H.; Rupprecht, S.; Lanagan, M.T.; Yang, Q.X.; Chen, W. Large improvement of RF transmission efficiency and reception sensitivity for human in vivo 31P MRS imaging using ultrahigh dielectric constant materials at 7 T. Magn. Reson. Imaging 2017, 42, 158–163. [Google Scholar] [CrossRef]
  41. Vorobyev, V.; Shchelokova, A.; Zivkovic, I.; Slobozhanyuk, A.; Baena, J.D.; Risco, J.P.; Abdeddaim, R.; Webb, A.; Glybovski, S. An artificial dielectric slab for ultra high-field MRI: Proof of concept. J. Magn. Reson. 2020, 320, 106835. [Google Scholar] [CrossRef]
  42. Byun, J.-D.; Seo, J.-H.; Kang, T.; Ryu, Y.; Kim, K.-N. Birdcage coil with inductively coupled RF coil array for improving |B1|-field sensitivity in 7-T MRI. J. Magn. 2017, 22, 378–381. [Google Scholar] [CrossRef]
  43. Seo, J.-H.; Ryu, Y.; Han, S.-D.; Song, H.; Kim, H.-K.; Kim, K.-N. Influence of biological subject, shielding cage, and resonance frequency on radio wave propagation in a birdcage coil. Electron. Lett. 2016, 52, 801–803. [Google Scholar] [CrossRef]
  44. Ahmad, S.F.; Kim, Y.C.; Choi, I.C.; Kim, H.D. Recent progress in birdcage RF coil technology for MRI system. Diagnostics 2020, 10, 1017. [Google Scholar] [CrossRef]
  45. Kim, Y.C.; Kim, H.D.; Yun, B.-J.; Ahmad, S.F. A simple analytical solution for the designing of the birdcage RF coil used in NMR imaging applications. Appl. Sci. 2020, 10, 2242. [Google Scholar] [CrossRef] [Green Version]
  46. Teeuwisse, W.M.; Brink, W.M.; Haines, K.N.; Webb, A.G. Simulations of high permittivity materials for 7 T neuroimaging and evaluation of a new barium titanate-based dielectric. Magn. Reson. Med. 2012, 67, 912–918. [Google Scholar] [CrossRef]
  47. Alon, L.; Lattanzi, R.; Lakshmanan, K.; Brown, R.; Deniz, C.M.; Sodickson, D.K.; Collins, C.M. Transverse slot antennas for high field MRI. Magn. Reson. Med. 2018, 80, 1233–1242. [Google Scholar] [CrossRef] [Green Version]
  48. Vaidya, M.V.; Deniz, C.M.; Collins, C.M.; Sodickson, D.K.; Lattanzi, R. Manipulating transmit and receive sensitivities of radiofrequency surface coils using shielded and unshielded high-permittivity materials. Magn. Reson. Mater. Phys. Biol. Med. 2018, 31, 355–366. [Google Scholar] [CrossRef]
  49. Vaidya, M.V.; Lazar, M.; Deniz, C.M.; Haemer, G.G.; Chen, G.; Bruno, M.; Sodickson, D.K.; Lattanzi, R.; Collins, C.M. Improved detection of fMRI activation in the cerebellum at 7 T with dielectric pads extending the imaging region of a commercial head coil. J. Magn. Reson. Imaging 2018, 48, 431–440. [Google Scholar] [CrossRef]
  50. Haemer, G.G.; Vaidya, M.; Collins, C.M.; Sodickson, D.K.; Wiggins, G.C.; Lattanzi, R. Approaching ultimate intrinsic specific absorption rate in radiofrequency shimming using high-permittivity materials at 7 Tesla. Magn. Reson. Med. 2018, 80, 391–399. [Google Scholar] [CrossRef]
  51. Liu, W.; Kao, C.-P.; Collins, C.M.; Smith, M.B.; Yang, Q.X. On consideration of radiated power in RF field simulations for MRI. Magn. Reson. Med. 2013, 69, 290–294. [Google Scholar] [CrossRef] [Green Version]
  52. Alon, L.; Deniz, C.M.; Carluccio, G.; Brown, R.; Sodickson, D.K.; Collins, C.M. Effects of anatomical differences on electromagnetic fields, SAR, and temperature change. Concepts Magn. Reson. Part B Magn. Reson. Eng. 2016, 46, 8–18. [Google Scholar] [CrossRef] [Green Version]
  53. Yang, Q.X.; Rupprecht, S.; Luo, W.; Sica, C.; Herse, Z.; Wang, J.; Cao, Z.; Vesek, J.; Lanagan, M.T.; Carluccio, G.; et al. Radiofrequency field enhancement with high dielectric constant (HDC) pads in a receive array coil at 3.0 T. J. Magn. Reson. Imaging 2013, 38, 435–440. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Cao, Z.; Park, J.; Cho, Z.-H.; Collins, C.M. Numerical evaluation of image homogeneity, signal-to-noise ratio, and specific absorption rate for human brain imaging at 1.5, 3, 7, 10.5, and 14 T in an 8-channel transmit/receive array. J. Magn. Reson. Imaging 2015, 41, 1432–1439. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Vaidya, M.V.; Collins, C.M.; Sodickson, D.K.; Brown, R.; Wiggins, G.C.; Lattanzi, R. Dependence of B1+ and B1 field patterns of surface coils on the electrical properties of the sample and the MR operating frequency. Concepts Magn. Reson. Part B Magn. Reson. Eng. 2016, 46, 25–40. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Yee, K.S. Numerical solution of initial boundary value problems involving Maxwell’s equations in isotropic media. IEEE Trans. Antennas Propag. 1996, 14, 302–307. [Google Scholar]
  57. Herrmann, T.; Liebig, T.; Mallow, J.; Bruns, C.; Stadler, J.; Mylius, J.; Brosch, M.; Svedja, J.T.; Chen, Z.; Rennings, A.; et al. Metamaterial-based transmit and receive system for whole-body magnetic resonance imaging at ultra-high magnetic fields. PLoS ONE 2018, 13, e0191719. [Google Scholar] [CrossRef] [Green Version]
  58. Tang, L.; Hue, Y.-K.; Ibrahim, T.S. Studies of RF shimming techniques with minimization of RF power deposition and their associated temperature changes. Concepts Magn. Reson. Part B Magn. Reson. Eng. 2011, 39B, 11–25. [Google Scholar] [CrossRef] [Green Version]

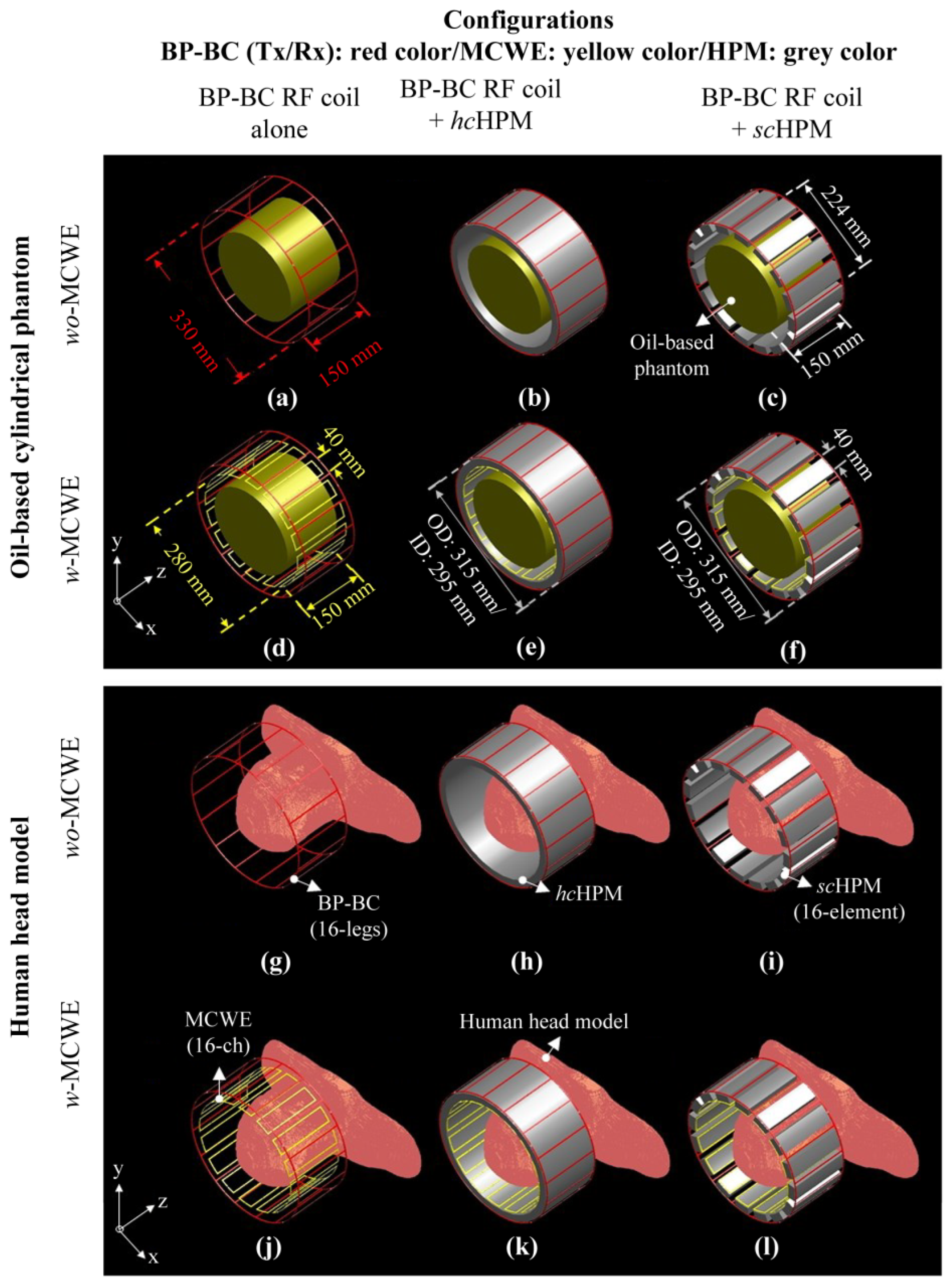

Figure 1. Configurations of BP-BC, MCWE, and HPM for EM-field simulations using oil-based cylindrical phantom (af) or human body model (gl): (a,g) BP-BC RF coil alone − wo-MCWE; (b,h) BP-BC RF coil + hcHPM − wo-MCWE; (c,i) BP-BC RF coil + scHPM − wo-MCWE; (d,j) BP-BC RF coil alone − w-MCWE; (e,k) BP-BC RF coil + hcHPM − w-MCWE; (f,l) BP-BC RF coil + scHPM − w-MCWE.
Figure 1. Configurations of BP-BC, MCWE, and HPM for EM-field simulations using oil-based cylindrical phantom (af) or human body model (gl): (a,g) BP-BC RF coil alone − wo-MCWE; (b,h) BP-BC RF coil + hcHPM − wo-MCWE; (c,i) BP-BC RF coil + scHPM − wo-MCWE; (d,j) BP-BC RF coil alone − w-MCWE; (e,k) BP-BC RF coil + hcHPM − w-MCWE; (f,l) BP-BC RF coil + scHPM − w-MCWE.
Sensors 22 01741 g001

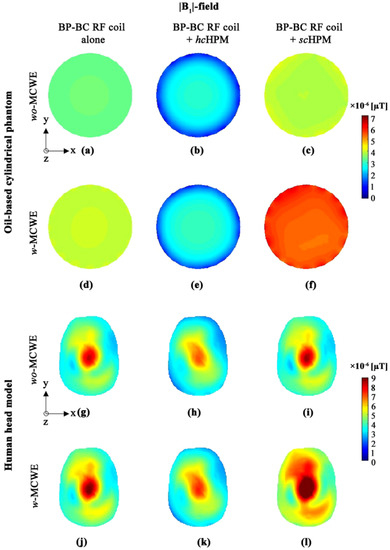

Figure 2. | B 1 |-field distribution in oil-based cylindrical phantom (af) or human body model (gl): (a,g) BP-BC RF coil alone − wo-MCWE; (b,h) BP-BC RF coil + hcHPM − wo-MCWE; (c,i) BP-BC RF coil + scHPM − wo-MCWE; (d,j) BP-BC RF coil alone − w-MCWE; (e,k) BP-BC RF coil + hcHPM − w-MCWE; (f,l) BP-BC RF coil + scHPM − w-MCWE.
Figure 2. | B 1 |-field distribution in oil-based cylindrical phantom (af) or human body model (gl): (a,g) BP-BC RF coil alone − wo-MCWE; (b,h) BP-BC RF coil + hcHPM − wo-MCWE; (c,i) BP-BC RF coil + scHPM − wo-MCWE; (d,j) BP-BC RF coil alone − w-MCWE; (e,k) BP-BC RF coil + hcHPM − w-MCWE; (f,l) BP-BC RF coil + scHPM − w-MCWE.
Sensors 22 01741 g002

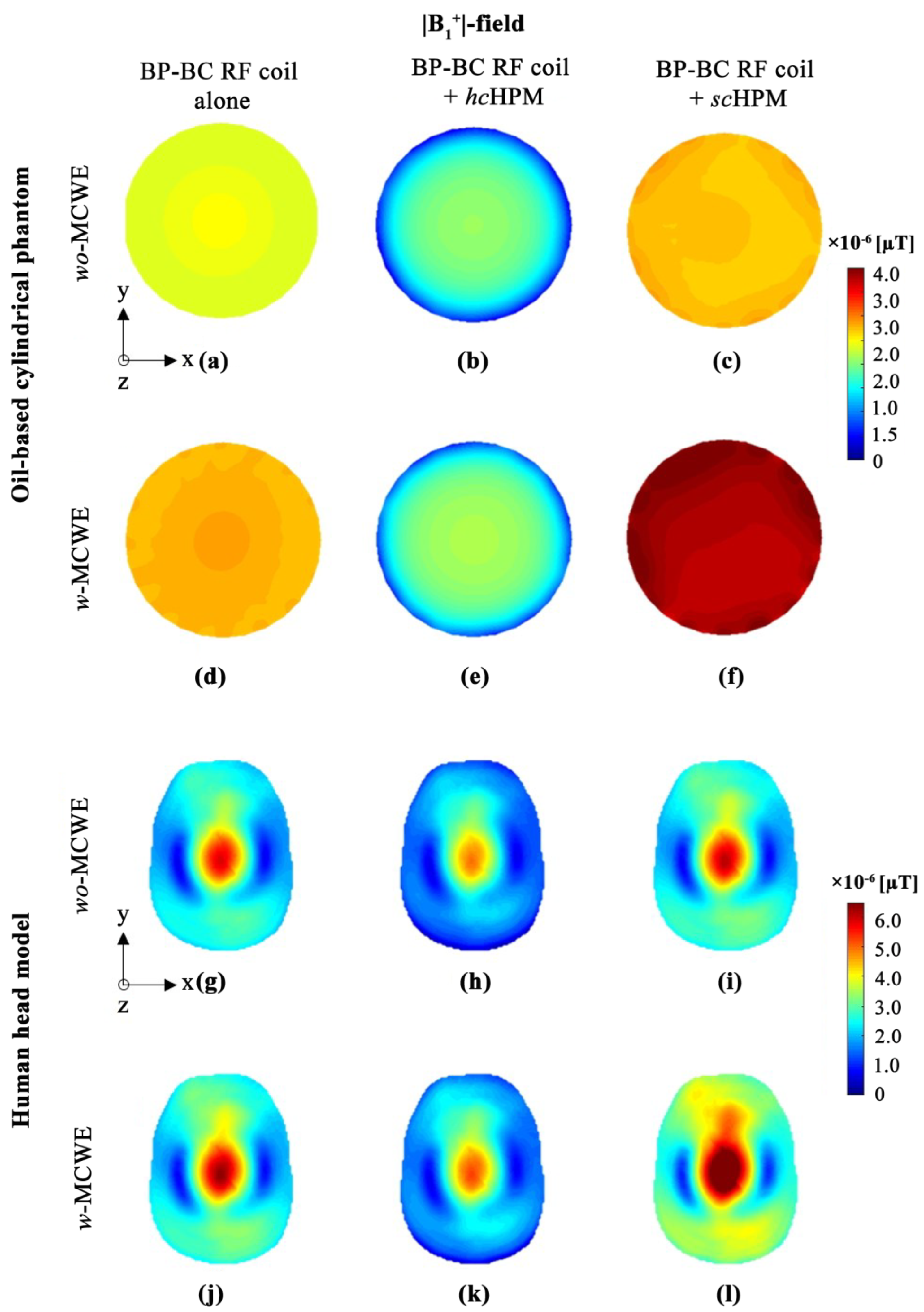

Figure 3. | B 1 + |-field distribution in oil-based cylindrical phantom (af) or human body model (gl): (a,g) BP-BC RF coil alone − wo-MCWE; (b,h) BP-BC RF coil + hcHPM − wo-MCWE; (c,i) BP-BC RF coil + scHPM − wo-MCWE; (d,j) BP-BC RF coil alone − w-MCWE; (e,k) BP-BC RF coil + hcHPM − w-MCWE; (f,l) BP-BC RF coil + scHPM − w-MCWE.
Figure 3. | B 1 + |-field distribution in oil-based cylindrical phantom (af) or human body model (gl): (a,g) BP-BC RF coil alone − wo-MCWE; (b,h) BP-BC RF coil + hcHPM − wo-MCWE; (c,i) BP-BC RF coil + scHPM − wo-MCWE; (d,j) BP-BC RF coil alone − w-MCWE; (e,k) BP-BC RF coil + hcHPM − w-MCWE; (f,l) BP-BC RF coil + scHPM − w-MCWE.
Sensors 22 01741 g003

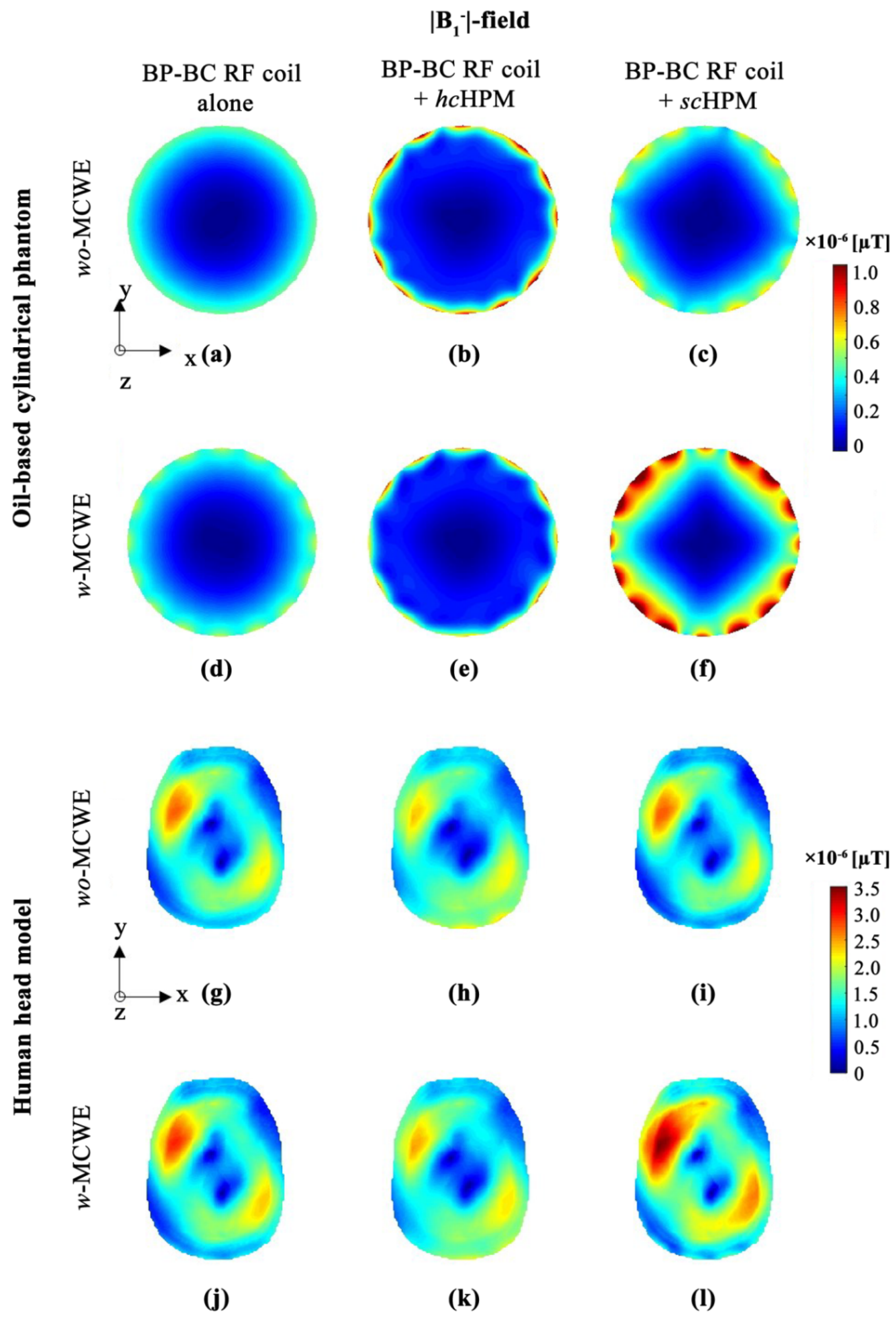

Figure 4. | B 1 |-field distribution in oil-based cylindrical phantom (af) or human body model (gl): (a,g) BP-BC RF coil alone − wo-MCWE; (b,h) BP-BC RF coil + hcHPM − wo-MCWE; (c,i) BP-BC RF coil + scHPM − wo-MCWE; (d,j) BP-BC RF coil alone − w-MCWE; (e,k) BP-BC RF coil + hcHPM − w-MCWE; (f,l) BP-BC RF coil + scHPM − w-MCWE.
Figure 4. | B 1 |-field distribution in oil-based cylindrical phantom (af) or human body model (gl): (a,g) BP-BC RF coil alone − wo-MCWE; (b,h) BP-BC RF coil + hcHPM − wo-MCWE; (c,i) BP-BC RF coil + scHPM − wo-MCWE; (d,j) BP-BC RF coil alone − w-MCWE; (e,k) BP-BC RF coil + hcHPM − w-MCWE; (f,l) BP-BC RF coil + scHPM − w-MCWE.
Sensors 22 01741 g004

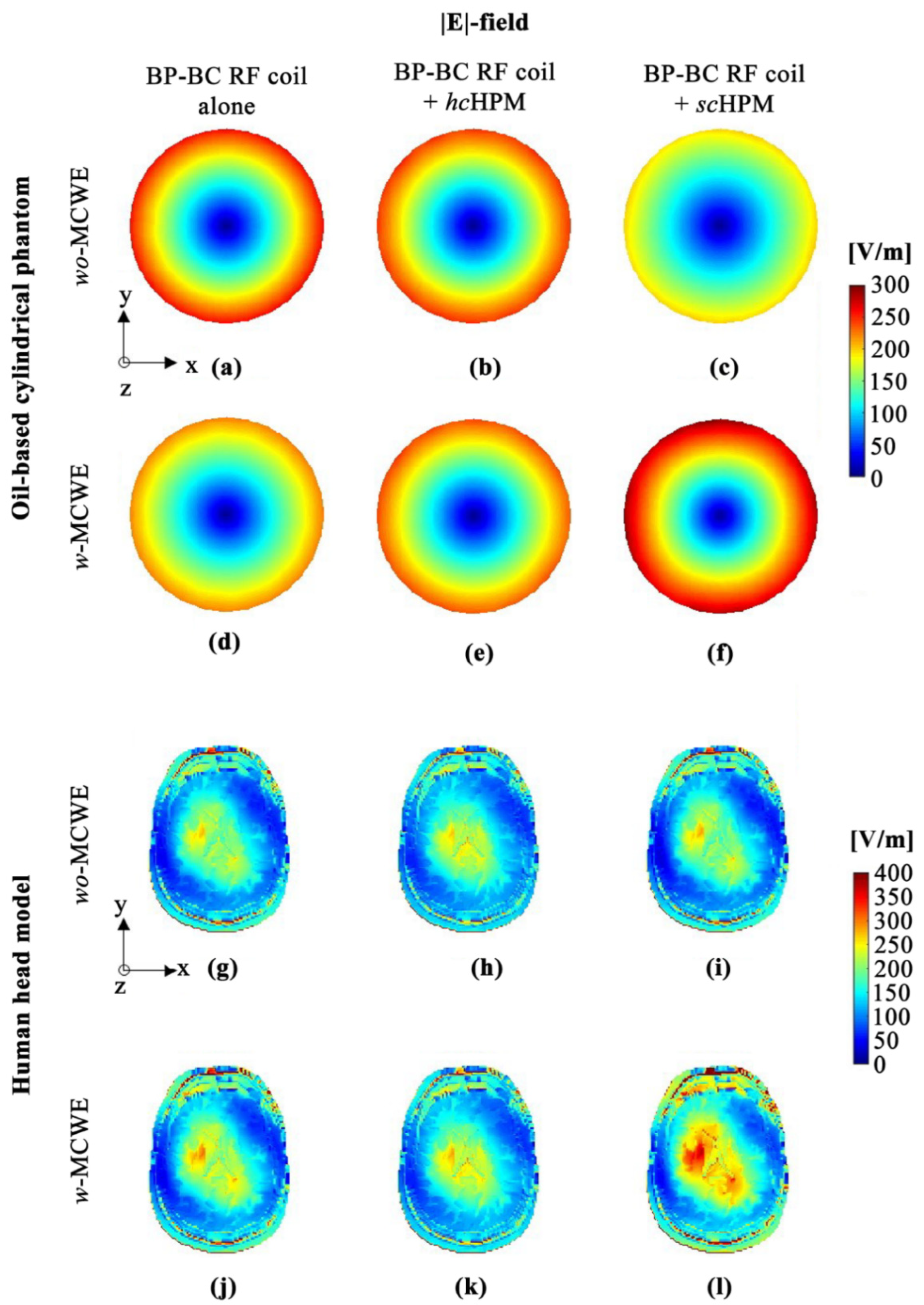

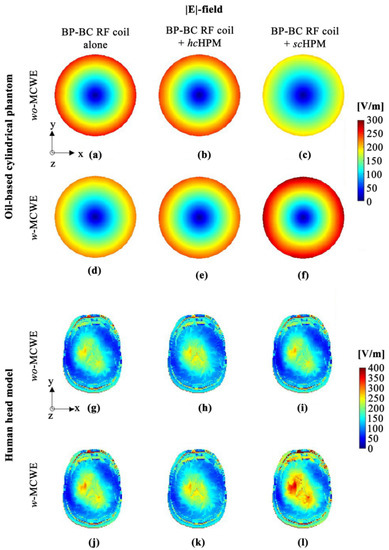

Figure 5. |E|-field distribution in oil-based cylindrical phantom (af) and human body model (gl): (a,g) BP-BC RF coil alone − wo-MCWE; (b,h) BP-BC RF coil + hcHPM − wo-MCWE; (c,i) BP-BC RF coil + scHPM − wo-MCWE; (d,j) BP-BC RF coil alone − w-MCWE; (e,k) BP-BC RF coil + hcHPM − w-MCWE; (f,l) BP-BC RF coil + scHPM − w-MCWE.
Figure 5. |E|-field distribution in oil-based cylindrical phantom (af) and human body model (gl): (a,g) BP-BC RF coil alone − wo-MCWE; (b,h) BP-BC RF coil + hcHPM − wo-MCWE; (c,i) BP-BC RF coil + scHPM − wo-MCWE; (d,j) BP-BC RF coil alone − w-MCWE; (e,k) BP-BC RF coil + hcHPM − w-MCWE; (f,l) BP-BC RF coil + scHPM − w-MCWE.
Sensors 22 01741 g005

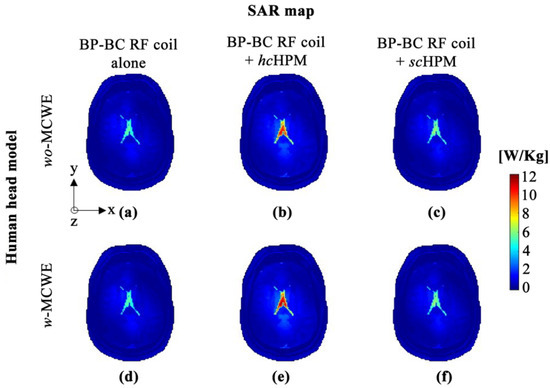

Figure 6. SAR map constructed using Norm-COEF values: (a) BP-BC RF coil alone − wo-MCWE; (b) BP-BC RF coil + hcHPM − wo-MCWE; (c) BP-BC RF coil + scHPM − wo-MCWE; (d) BP-BC RF coil alone − w-MCWE; (e) BP-BC RF coil + hcHPM − w-MCWE; (f) BP-BC RF coil + scHPM − w-MCWE.
Figure 6. SAR map constructed using Norm-COEF values: (a) BP-BC RF coil alone − wo-MCWE; (b) BP-BC RF coil + hcHPM − wo-MCWE; (c) BP-BC RF coil + scHPM − wo-MCWE; (d) BP-BC RF coil alone − w-MCWE; (e) BP-BC RF coil + hcHPM − w-MCWE; (f) BP-BC RF coil + scHPM − w-MCWE.
Sensors 22 01741 g006
Table 1. The maximum values of EM-field simulation results (| B 1 |-, | B 1 + |-, | B 1 |-, and |E|-field) using oil-based cylindrical phantom and human head model.
Table 1. The maximum values of EM-field simulation results (| B 1 |-, | B 1 + |-, | B 1 |-, and |E|-field) using oil-based cylindrical phantom and human head model.
BP-BC RF Coil
Alone
BP-BC RF Coil
+ hcHPM
BP-BC RF Coil
+ scHPM
Center-point values of | B 1 |-field×10−5 [μT]
Oil-based cylindrical phantomwo-MCWE0.3490.2920.383
w-MCWE0.4020.3040.531
Human head modelwo-MCWE0.7870.6750.807
w-MCWE0.8530.7171.042
SD   values   of   | B 1 |-field ×10−5 [μT]
Oil-based cylindrical phantomwo-MCWE0.0040.0540.075
w-MCWE0.0030.0510.019
Human head modelwo-MCWE0.1100.1110.113
w-MCWE0.1210.1160.1477
Max   values   of   | B 1 + |-field×10−5 [μT]
Oil-based cylindrical phantomwo-MCWE0.2470.2070.291
w-MCWE0.2840.2150.443
Human head modelwo-MCWE0.5880.4910.609
w-MCWE0.6370.5220.7808
SD   values   of   | B 1 + |-field×10−5 [μT]
Oil-based cylindrical phantomwo-MCWE0.0040.0440.004
w-MCWE0.0030.0390.011
Human head modelwo-MCWE0.0930.0890.094
w-MCWE0.1000.0920.120
Max   values   of   | B 1 |-field×10−5 [μT]
Oil-based cylindrical phantomwo-MCWE0.0500.1060.071
w-MCWE0.0580.0830.128
Human head modelwo-MCWE0.2710.2370.273
w-MCWE0.2920.2470.346
SD   values   of   | B 1 |-field×10−5 [μT]
Oil-based cylindrical phantomwo-MCWE0.0140.0170.016
w-MCWE0.0140.0120.025
Human head modelwo-MCWE0.0480.0440.049
w-MCWE0.0520.0450.060
Max values of |E|-field[V/m]
Oil-based cylindrical phantomwo-MCWE260.257251.539202.869
w-MCWE224.388246.640296.424
Human head modelwo-MCWE727.420567.106711.303
w-MCWE740.012586.246918.380
Table 2. Norm-COEF (Normalized coefficient), whole average SAR, and max SAR values of EM-field simulation.
Table 2. Norm-COEF (Normalized coefficient), whole average SAR, and max SAR values of EM-field simulation.
BP-BC RF Coil
Alone
BP-BC RF Coil
+ hcHPM
BP-BC RF Coil
+ scHPM
Norm-COEF (Normalized Coefficient)[a.u.]
wo-MCWE0.3620.4310.352
w-MCWE0.3340.4060.273
Whole average SAR (Mean SAR values)[W/Kg]
wo-MCWE0.2090.2450.215
w-MCWE0.2160.2350.211
Max SAR values[W/Kg]
wo-MCWE8.20312.5748.461
w-MCWE8.37611.6628.248
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Seo, J.-H.; Han, Y.; Chung, J.-Y. A Comparative Study of Birdcage RF Coil Configurations for Ultra-High Field Magnetic Resonance Imaging. Sensors 2022, 22, 1741. https://doi.org/10.3390/s22051741

AMA Style

Seo J-H, Han Y, Chung J-Y. A Comparative Study of Birdcage RF Coil Configurations for Ultra-High Field Magnetic Resonance Imaging. Sensors. 2022; 22(5):1741. https://doi.org/10.3390/s22051741

Chicago/Turabian Style

Seo, Jeung-Hoon, Yeji Han, and Jun-Young Chung. 2022. "A Comparative Study of Birdcage RF Coil Configurations for Ultra-High Field Magnetic Resonance Imaging" Sensors 22, no. 5: 1741. https://doi.org/10.3390/s22051741

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
