# Evaluating the Window Size’s Role in Automatic EEG Epilepsy Detection

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Related Work

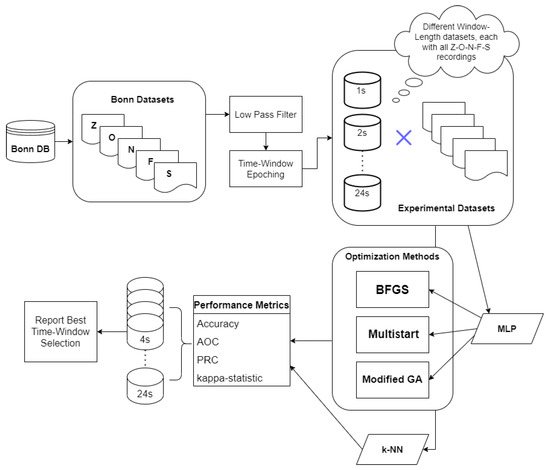

## 3. Materials and Methods

- Alpha band (8–12 Hz)
- Beta band (12–25 Hz)
- Theta band (4–8 Hz)
- Delta band (1–4 Hz)

#### 3.1. The BFGS Method

Algorithm 1: The BFGS Algorithm |

1: Having a starting point ${x}_{0}$ and ${B}_{0}={I}_{n}$. Set the values for $s,\beta ,$ and $\sigma $. |

2: End if $\left(\right)open="\parallel "\; close="\parallel ">g\left({x}_{k+1}\right)$. |

3: Calculate the search direction using Formula (7). |

4: Calculate the difference ${s}_{k}={x}_{k+1}-{x}_{k}$ and ${y}_{k}+{g}_{k+1}-{g}_{k}$. |

5: Update ${B}_{k}$ by (3) in order to obtain ${B}_{k+1}$. |

6: $k=k+1$. |

7: Go to step 2. |

#### 3.2. The Multistart Method

Algorithm 2: The Multistart Algorithm |

1: $i=0$ and ${X}^{*}=$. |

2: Take a random sample x from S. |

3: Start a deterministic local search process at x and conclude at a local minimum ${x}^{*}$. |

4: Check if a new minimum is found. |

5: ${x}^{*}\notin {X}^{*}$ then |

6: $i\leftarrow i+1$. |

7: ${x}_{i}^{*}={x}^{*}$. |

8: ${X}^{*}\leftarrow {X}^{*}\cup \left\{{x}_{i}^{*}\right\}$. |

9: end. |

10: If ending criteria have been met, terminate the process. |

11: Go to step 2. |

#### 3.3. The Modified GA Method

Algorithm 3: The Real-Coded GA |

1: Create N random points in $\mathsf{\Omega}$ from the uniform distribution. |

2: Store the points in set S. |

3: $iter=0$. |

4: Evaluate each chromosome using its function value. |

5: If the termination criteria are achieved, stop the GA. |

6: Select $m\le N$ parents from S. |

7: Create m offspring using the selected parent chromosomes of the previous step. |

8: Mutate the offspring with probability ${p}_{m}$. |

9: Remove the m worst chromosomes and replace them with the offspring. |

10: Create a trial point $\tilde{x}$. If $f\left(\tilde{x}\right)\le f\left({x}_{h}\right)$ where ${x}_{h}$ is the current worst point in S, then replace ${x}_{h}$ with $\tilde{x}$. |

11: $iter=iter+1$. |

12: Go to step 4. |

#### 3.4. The K-NN Classifier

Algorithm 4: The K-NN Algorithm |

1: Classify $(X,Y,x)$. |

2: for $i=1$ to n do |

3: Calculate the Euclidean distance ${d}_{E}({X}_{i},x)$. |

4: end. |

5: Compute set I having the indices for the k smallest distances ${d}_{E}({X}_{i},x)$. |

6: Return majority label for ${Y}_{i}$ where $i\in I$. |

## 4. Results

## 5. Discussion

## 6. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## Abbreviations

EEG | electroencephalogram |

K-NN | k-nearest neighbours |

BFGS | Broyden–Fletcher–Goldfarb–Shanno |

SLNN | single-layer neural network |

GA | genetic algorithm |

BCI | brain–computer interface |

MLP | multilayer perceptron |

t-f | time frequency |

PSD | power spectrum density |

ANNs | artificial neural networks |

CEEMDAN | complete ensemble empirical mode decomposition with adaptive noise |

LPBoost | linear programming boosting |

DWT | discrete wavelet transform |

MODWT | maximal overlap discrete wavelet transform |

PE | permutation entropy |

SVM | support vector machine |

CSI | combined seizure index |

PCA | principal component analysis |

## References

- World Health Organization. Epilepsy; WHO: Geneva, Switzerland, 2020. [Google Scholar]
- Ramsay, R.E.; Rowan, A.J.; Pryor, F.M. Special considerations in treating the elderly patient with epilepsy. Neurology
**2004**, 62, S24–S29. [Google Scholar] [CrossRef] [PubMed] - Acharya, U.R.; Sree, S.V.; Swapna, G.; Martis, R.J.; Suri, J.S. Automated EEG analysis of epilepsy: A review. Knowl.-Based Syst.
**2013**, 45, 147–165. [Google Scholar] [CrossRef] - Tzallas, A.T.; Tsipouras, M.G.; Tsalikakis, D.G.; Karvounis, E.C.; Astrakas, L.; Konitsiotis, S.; Tzaphlidou, M. Automated Epileptic Seizure Detection Methods: A Review Study. In Epilepsy; Stevanovic, D., Ed.; IntechOpen: Rijeka, Croatia, 2012; Chapter 4. [Google Scholar] [CrossRef] [Green Version]
- Cross, D.J.; Cavazos, J.E. The role of sprouting and plasticity in epileptogenesis and behavior. In Behavioral Aspects of Epilepsy; DEMOS: New York, NY, USA, 2007. [Google Scholar]
- Buck, D.; Baker, G.A.; Jacoby, A.; Smith, D.F.; Chadwick, D.W. Patients’ experiences of injury as a result of epilepsy. Epilepsia
**1997**, 38, 439–444. [Google Scholar] [CrossRef] [PubMed] - Iasemidis, L.D.; Shiau, D.S.; Sackellares, J.C.; Pardalos, P.M.; Prasad, A. Dynamical resetting of the human brain at epileptic seizures: Application of nonlinear dynamics and global optimization techniques. IEEE Trans. Biomed. Eng.
**2004**, 51, 493–506. [Google Scholar] [CrossRef] - Soikkeli, R.; Partanen, J.; Soininen, H.; Pääkkönen, A.; Riekkinen Sr, P. Slowing of EEG in Parkinson’s disease. Electroencephalogr. Clin. Neurophysiol.
**1991**, 79, 159–165. [Google Scholar] [CrossRef] - Wieser, H.G.; Schindler, K.; Zumsteg, D. EEG in Creutzfeldt–Jakob disease. Clin. Neurophysiol.
**2006**, 117, 935–951. [Google Scholar] [CrossRef] - Neto, E.; Biessmann, F.; Aurlien, H.; Nordby, H.; Eichele, T. Regularized linear discriminant analysis of EEG features in dementia patients. Front. Aging Neurosci.
**2016**, 8, 273. [Google Scholar] [CrossRef] [Green Version] - Miltiadous, A.; Tzimourta, K.D.; Giannakeas, N.; Tsipouras, M.G.; Afrantou, T.; Ioannidis, P.; Tzallas, A.T. Alzheimer’s Disease and Frontotemporal Dementia: A Robust Classification Method of EEG Signals and a Comparison of Validation Methods. Diagnostics
**2021**, 11, 1437. [Google Scholar] [CrossRef] - Christodoulides, P.; Miltiadous, A.; Tzimourta, K.D.; Peschos, D.; Ntritsos, G.; Zakopoulou, V.; Giannakeas, N.; Astrakas, L.G.; Tsipouras, M.G.; Tsamis, K.I.; et al. Classification of EEG signals from young adults with dyslexia combining a Brain Computer Interface device and an Interactive Linguistic Software Tool. Biomed. Signal Process. Control
**2022**, 76, 103646. [Google Scholar] [CrossRef] - Aspiotis, V.; Miltiadous, A.; Kalafatakis, K.; Tzimourta, K.D.; Giannakeas, N.; Tsipouras, M.G.; Peschos, D.; Glavas, E.; Tzallas, A.T. Assessing Electroencephalography as a Stress Indicator: A VR High-Altitude Scenario Monitored through EEG and ECG. Sensors
**2022**, 22, 5792. [Google Scholar] [CrossRef] - Miltiadous, A.; Aspiotis, V.; Sakkas, K.; Giannakeas, N.; Glavas, E.; Tzallas, A.T. An experimental protocol for exploration of stress in an immersive VR scenario with EEG. In Proceedings of the 2022 7th South-East Europe Design Automation, Computer Engineering, Computer Networks and Social Media Conference (SEEDA-CECNSM), Ioannina, Greece, 23–25 September 2022; pp. 1–5. [Google Scholar] [CrossRef]
- Fix, E.; Hodges, J. Discriminatory Analysis, Nonparametric Discrimination: Consistency Properties; Technical Report, TX, Tech. Rep. 4; USAF School of Aviation Medicine, Randolph Field: Dayton, OH, USA, 1951. [Google Scholar]
- Hery, M.A.; Ibrahim, M.; June, L. BFGS method: A new search direction. Sains Malays.
**2014**, 43, 1591–1597. [Google Scholar] - Lagaris, I.E.; Tsoulos, I.G. Stopping rules for box-constrained stochastic global optimization. Appl. Math. Comput.
**2008**, 197, 622–632. [Google Scholar] [CrossRef] - Tsoulos, I.G. Modifications of real code genetic algorithm for global optimization. Appl. Math. Comput.
**2008**, 203, 598–607. [Google Scholar] [CrossRef] - Andrzejak, R.G.; Lehnertz, K.; Mormann, F.; Rieke, C.; David, P.; Elger, C.E. Indications of nonlinear deterministic and finite-dimensional structures in time series of brain electrical activity: Dependence on recording region and brain state. Phys. Rev. E
**2001**, 64, 061907. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Naghsh-Nilchi, A.R.; Aghashahi, M. Epilepsy seizure detection using eigen-system spectral estimation and Multiple Layer Perceptron neural network. Biomed. Signal Process. Control
**2010**, 5, 147–157. [Google Scholar] [CrossRef] - Tzallas, A.T.; Tsipouras, M.G.; Fotiadis, D.I. Epileptic seizure detection in EEGs using time–frequency analysis. IEEE Trans. Inf. Technol. Biomed.
**2009**, 13, 703–710. [Google Scholar] [CrossRef] - Martinez-del Rincon, J.; Santofimia, M.J.; del Toro, X.; Barba, J.; Romero, F.; Navas, P.; Lopez, J.C. Non-linear classifiers applied to EEG analysis for epilepsy seizure detection. Expert Syst. Appl.
**2017**, 86, 99–112. [Google Scholar] [CrossRef] [Green Version] - Hassan, A.R.; Subasi, A. Automatic identification of epileptic seizures from EEG signals using linear programming boosting. Comput. Methods Programs Biomed.
**2016**, 136, 65–77. [Google Scholar] [CrossRef] - Juarez-Guerra, E.; Alarcon-Aquino, V.; Gomez-Gil, P. Epilepsy seizure detection in EEG signals using wavelet transforms and neural networks. In New Trends in Networking, Computing, E-Learning, Systems Sciences, and Engineering; Springer: Berlin/Heidelberg, Germany, 2015; pp. 261–269. [Google Scholar]
- Hossain, M.S.; Amin, S.U.; Alsulaiman, M.; Muhammad, G. Applying deep learning for epilepsy seizure detection and brain mapping visualization. ACM Trans. Multimed. Comput. Commun. Appl. (TOMM)
**2019**, 15, 1–17. [Google Scholar] [CrossRef] - Shoeb, A.H. Application of Machine Learning to Epileptic Seizure Onset Detection and Treatment. Ph.D. Thesis, Massachusetts Institute of Technology, Boston, MA, USA, 2009. [Google Scholar]
- Nicolaou, N.; Georgiou, J. Detection of epileptic electroencephalogram based on permutation entropy and support vector machines. Expert Syst. Appl.
**2012**, 39, 202–209. [Google Scholar] [CrossRef] - Shoeb, A.H.; Guttag, J.V. Application of machine learning to epileptic seizure detection. In Proceedings of the 27th International Conference on Machine Learning (ICML-10), Haifa, Israel, 21–24 June 2010; pp. 975–982. [Google Scholar]
- Guo, L.; Rivero, D.; Pazos, A. Epileptic seizure detection using multiwavelet transform based approximate entropy and artificial neural networks. J. Neurosci. Methods
**2010**, 193, 156–163. [Google Scholar] [CrossRef] [PubMed] - Subasi, A. Epileptic seizure detection using dynamic wavelet network. Expert Syst. Appl.
**2005**, 29, 343–355. [Google Scholar] [CrossRef] - Ghosh-Dastidar, S.; Adeli, H.; Dadmehr, N. Principal component analysis-enhanced cosine radial basis function neural network for robust epilepsy and seizure detection. IEEE Trans. Biomed. Eng.
**2008**, 55, 512–518. [Google Scholar] [CrossRef] [PubMed] - Adeli, H.; Ghosh-Dastidar, S.; Dadmehr, N. A wavelet-chaos methodology for analysis of EEGs and EEG subbands to detect seizure and epilepsy. IEEE Trans. Biomed. Eng.
**2007**, 54, 205–211. [Google Scholar] [CrossRef] - Ghosh-Dastidar, S.; Adeli, H.; Dadmehr, N. Mixed-band wavelet-chaos-neural network methodology for epilepsy and epileptic seizure detection. IEEE Trans. Biomed. Eng.
**2007**, 54, 1545–1551. [Google Scholar] [CrossRef] - Guo, L.; Rivero, D.; Dorado, J.; Rabunal, J.R.; Pazos, A. Automatic epileptic seizure detection in EEGs based on line length feature and artificial neural networks. J. Neurosci. Methods
**2010**, 191, 101–109. [Google Scholar] [CrossRef] - Hassan, A.R.; Siuly, S.; Zhang, Y. Epileptic seizure detection in EEG signals using tunable-Q factor wavelet transform and bootstrap aggregating. Comput. Methods Programs Biomed.
**2016**, 137, 247–259. [Google Scholar] [CrossRef] - Tsoulos, I.G.; Gavrilis, D.; Glavas, E. Neural network construction using grammatical evolution. In Proceedings of the 5h IEEE International Symposium on Signal Processing and Information Technology, Athens, Greece, 18–21 December 2005; pp. 827–831. [Google Scholar]
- Broyden, C.G. The convergence of a class of double-rank minimization algorithms 1. general considerations. IMA J. Appl. Math.
**1970**, 6, 76–90. [Google Scholar] [CrossRef] [Green Version] - Broyden, C.G. The convergence of a class of double-rank minimization algorithms: 2. The new algorithm. IMA J. Appl. Math.
**1970**, 6, 222–231. [Google Scholar] [CrossRef] - Fletcher, R. A new approach to variable metric algorithms. Comput. J.
**1970**, 13, 317–322. [Google Scholar] [CrossRef] [Green Version] - Goldfarb, D. A family of variable-metric methods derived by variational means. Math. Comput.
**1970**, 24, 23–26. [Google Scholar] [CrossRef] - Shanno, D.F. Conditioning of quasi-Newton methods for function minimization. Math. Comput.
**1970**, 24, 647–656. [Google Scholar] [CrossRef] - Armijo, L. Minimization of functions having Lipschitz continuous first partial derivatives. Pac. J. Math.
**1966**, 16, 1–3. [Google Scholar] [CrossRef] [Green Version] - Wolfe, P. Convergence conditions for ascent methods. SIAM Rev.
**1969**, 11, 226–235. [Google Scholar] [CrossRef] - Wolfe, P. Convergence conditions for ascent methods. II: Some corrections. SIAM Rev.
**1971**, 13, 185–188. [Google Scholar] [CrossRef] - Goldstein, A.A. On steepest descent. J. Soc. Ind. Appl. Math. Ser. Control
**1965**, 3, 147–151. [Google Scholar] [CrossRef] - Powell, M. A tolerant algorithm for linearly constrained optimization calculations. Math. Program.
**1989**, 45, 547–566. [Google Scholar] [CrossRef] - Pardalos, P.M.; Romeijn, H.E.; Tuy, H. Recent developments and trends in global optimization. J. Comput. Appl. Math.
**2000**, 124, 209–228. [Google Scholar] [CrossRef] [Green Version] - Kaelo, P.; Ali, M. Integrated crossover rules in real coded genetic algorithms. Eur. J. Oper. Res.
**2007**, 176, 60–76. [Google Scholar] [CrossRef] - Miller, B.L.; Goldberg, D.E. Genetic algorithms, tournament selection, and the effects of noise. Complex Syst.
**1995**, 9, 193–212. [Google Scholar] - Michalewicz, Z.; Hartley, S.J. Genetic algorithms+data structures=evolution programs. Math. Intell.
**1996**, 18, 71. [Google Scholar] - Wang, J.G.; Neskovic; Cooper. An adaptive nearest neighbor algorithm for classification. In Proceedings of the 2005 International Conference on Machine Learning and Cybernetics, Guangzhou, China, 18–21 August 2005; Volume 5, pp. 3069–3074. [Google Scholar]
- Tay, B.; Hyun, J.K.; Oh, S. A machine learning approach for specification of spinal cord injuries using fractional anisotropy values obtained from diffusion tensor images. Comput. Math. Methods Med.
**2014**, 2014, 276589. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Tzimourta, K.D.; Astrakas, L.G.; Gianni, A.M.; Tzallas, A.T.; Giannakeas, N.; Paliokas, I.; Tsalikakis, D.G.; Tsipouras, M.G. Evaluation of window size in classification of epileptic short-term EEG signals using a Brain Computer Interface software. Eng. Technol. Appl. Sci.
**2018**, 8, 3093–3097. [Google Scholar] [CrossRef] - Thangavel, P.; Thomas, J.; Sinha, N.; Peh, W.Y.; Yuvaraj, R.; Cash, S.S.; Chaudhari, R.; Karia, S.; Jin, J.; Rathakrishnan, R.; et al. Improving automated diagnosis of epilepsy from EEGs beyond IEDs. J. Neural Eng.
**2022**, 19, 066017. [Google Scholar] [CrossRef]

**Table 1.**Experimental Results expressed in classification accuracy for the four algorithms employed regarding time windows ranging from 1 to 24 s. BFGS stands for Broyden–Fletcher–Goldfarb–Shanno algorithm. GA stands for genetic algorithm, K-NN stands for k-nearest neighbours.

Epoch (s) | BFGS | Multistart | GA | K-NN |
---|---|---|---|---|

1 s | 56.86% | 57.68% | 56.91% | 68.9% |

2 s | 65.06% | 65.56% | 65.06% | 75.14% |

3 s | 69.7% | 69.57% | 69.01% | 76.66% |

4 s | 72.62% | 70.53% | 70.06% | 76.99% |

5 s | 75.69% | 73.46% | 71.96% | 77.89% |

6 s | 74.63% | 76.37% | 75.44% | 79.53% |

7 s | 74.76% | 75.84% | 74.43% | 79.1% |

8 s | 76.06% | 75.55% | 74.95% | 78.41% |

9 s | 76.25% | 77.64% | 76.5% | 79.88% |

10 s | 76.96% | 77.12% | 76.38% | 80.05% |

11 s | 76.42% | 79.01% | 77.2% | 79.08% |

12 s | 76.55% | 78.26% | 77.06% | 79.84% |

13 s | 77.04% | 78.04% | 76.05% | 78.56% |

14 s | 77.81% | 78.26% | 77.13% | 79.01% |

15 s | 79.75% | 78.98% | 78.41% | 78.68% |

16 s | 77.35% | 80.98% | 78.59% | 79.52% |

17 s | 77.7% | 78.05% | 77.82% | 79.92% |

18 s | 78.5% | 79.24% | 78.10% | 79.92% |

19 s | 80.7% | 79.71% | 78.47% | 79.49% |

20 s | 80.92% | 81.59% | 80.78% | 80.00% |

21 s | 80.92% | 81.23% | 81.06% | 79.25% |

22 s | 80.04% | 80.88% | 81.00% | 81.17% |

23 s | 80.69% | 80.88% | 80.89% | 78.88% |

24 s | 80.25% | 80.43% | 79.98% | 79.04% |

**Table 2.**Area under the ROC, area under the PRC, and kappa statistic regarding the classification performance of the K-NN algorithm.

Epoch (s) | AOC | PRC | k-Stat |
---|---|---|---|

1 s | 78.91% | 48.6% | 62.21% |

2 s | 79.89% | 50.2% | 68.74% |

3 s | 80.68% | 50.1% | 75.23% |

4 s | 86.44% | 53.3% | 71.95% |

5 s | 85.92% | 56.8% | 74.62% |

6 s | 85.45% | 54.0% | 76.38% |

7 s | 83.21% | 58.1% | 77.55% |

8 s | 87.21% | 60.9% | 77.19% |

9 s | 87.17% | 61.8% | 80.02% |

10 s | 86.57% | 64.3% | 78.84% |

11 s | 90.89% | 64.2% | 83.40% |

12 s | 90.49% | 64.8% | 82.32% |

13 s | 89.04% | 68.1% | 82.14% |

14 s | 88.88% | 68.3% | 82.85% |

15 s | 86.22% | 70.4% | 79.94% |

16 s | 85.45% | 70.1% | 80.15% |

17 s | 85.92% | 73.6% | 82.15% |

18 s | 84.70% | 73.0% | 84.29% |

19 s | 86.07% | 74.7% | 85.42% |

20 s | 92.22% | 78.5% | 85.49% |

21 s | 92.51% | 76.5% | 83.26% |

22 s | 88.70% | 77.3% | 82.44% |

23 s | 82.28% | 75.7% | 83.51% |

24 s | 88.37% | 73.7% | 80.00% |
