Electricity Theft Detection in Smart Grids Using a Hybrid BiGRU–BiLSTM Model with Feature Engineering-Based Preprocessing
2. List of Contributions
- To tackle the imbalance data issue, theft class data are synthesized using six theft variants. Later on, the synthesized data are oversampled using a K-means synthetic minority oversampling technique (SMOTE).
- A Tomek links technique is used to eliminate cross-pairs across the decision boundary.
- To overcome the data leakage problem, a simple stratified approach is opted for.
- Cumulative and distinct features are engineered using stochastic feature engineering, which enables the model to learn data characterization and uniqueness.
- An integrated hybrid model of Bi-Directional Gated Recurrent Units (Bi-GRU) and bi-directional long-term short-term memory (Bi-LSTM) is used to tackle misclassification and high FPR issues.
- Furthermore, to verify the robustness of the proposed model, an unseen variant of the theft data with temperate randomness is analyzed to acknowledge the stability and integrity.
3. Literature Review
3.1. Considering Sequential Data
3.2. Monitoring Morphological Patterning
3.3. Tampering with Smart Meter Readings
3.4. Investigating Neighborhood Area Networks

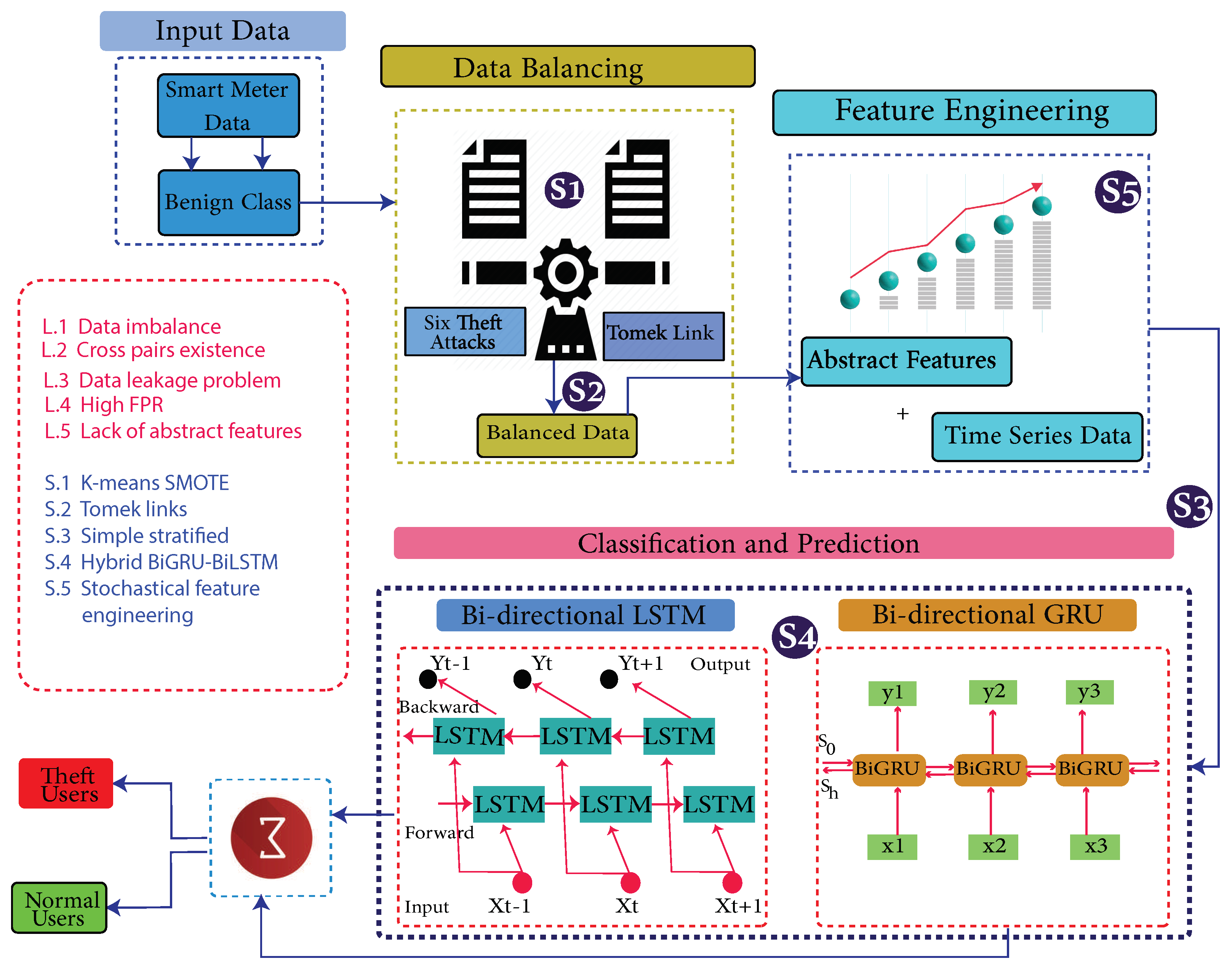

4. Proposed System Model

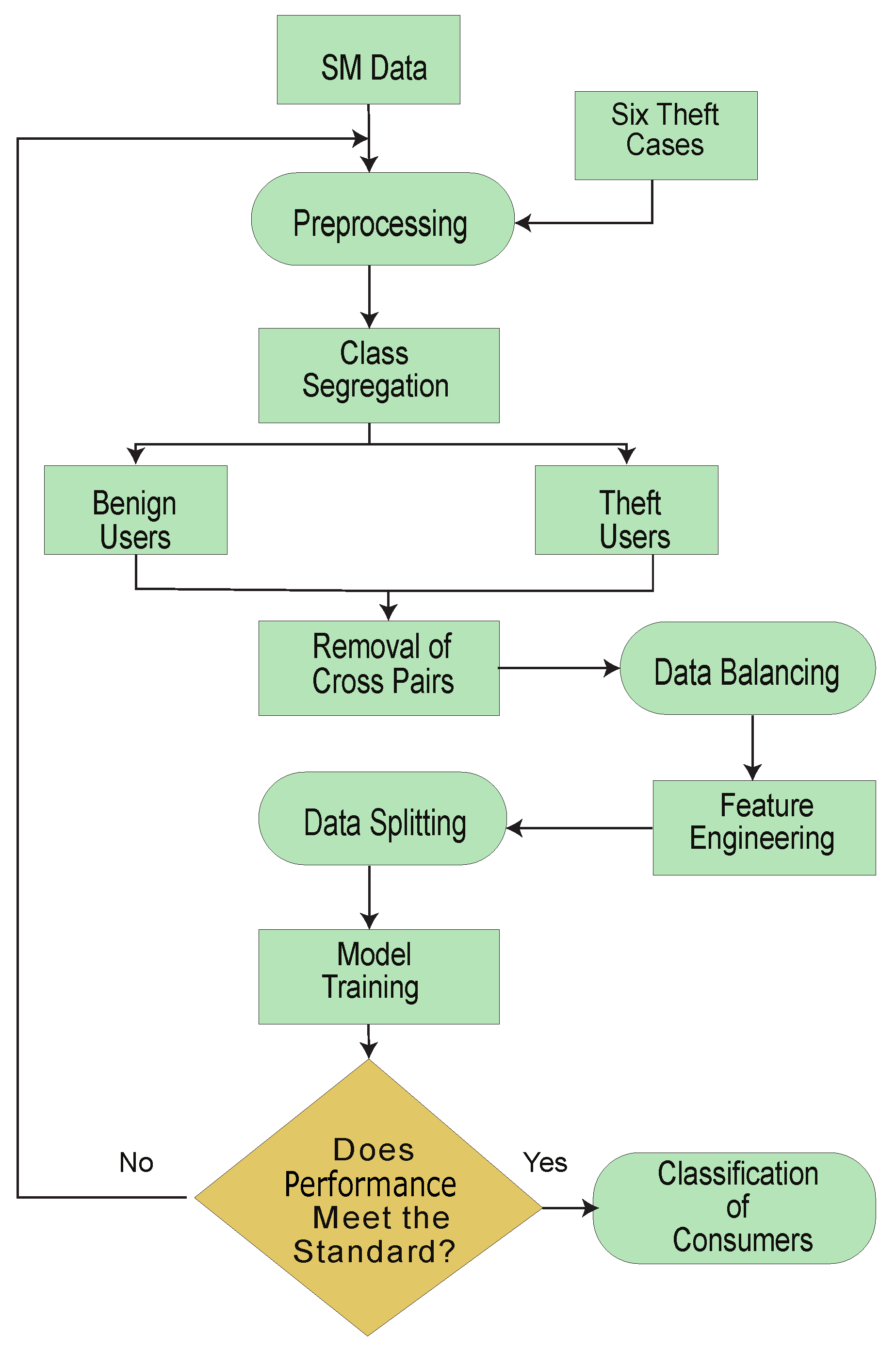

- Step (1) is a data preprocessing step, where missing values are filled using a mean-based strategy and outliers are removed. Filling and removing such values is a necessary step of the data preprocessing, as noisy and ambiguous data affect accuracy and degrade the misclassification scenario. A simple imputer is implemented to fill such values.
- In step (2), the preprocessed data are augmented where benign samples are modified and manipulated due to their rare existence. The problems of skewness and bias are observed if the model is trained on such imbalanced data. Therefore, it is a necessary step to balance the data before the training of the model.
- In step (3), benign class data are manipulated and theft class data are generated.
- In step (4), decision boundaries’ associated cross-pairs are identified and eliminated. As cross-pair is a combination of the opposite class samples. Henceforth, a Tomek links technique is used. The majority class samples are removed, and minority class samples are retained in order to preserve the data integrity.
- In step (5), the data is stratified in order to inhibit the defusion of the data while splitting.
- In step (6), abstract features are engineered based on stochastic feature engineering.
- In step (7), Time-Series Data are inputted to a developed Bi-GRU  and Bi-LSTM . A binary sigmoid function classifies the samples . Bi-LSTM  is featured with the handling of high dimensional data, while Bi-GRU is used to avoid the computational complexity due to its fast operating features.
|Algorithm 1: Bi-GRU- and Bi-LSTM-based Detection Scheme.|
4.2. Data Leakage
4.3. Data Preprocessing
4.4. Data Augmentation and Balancing

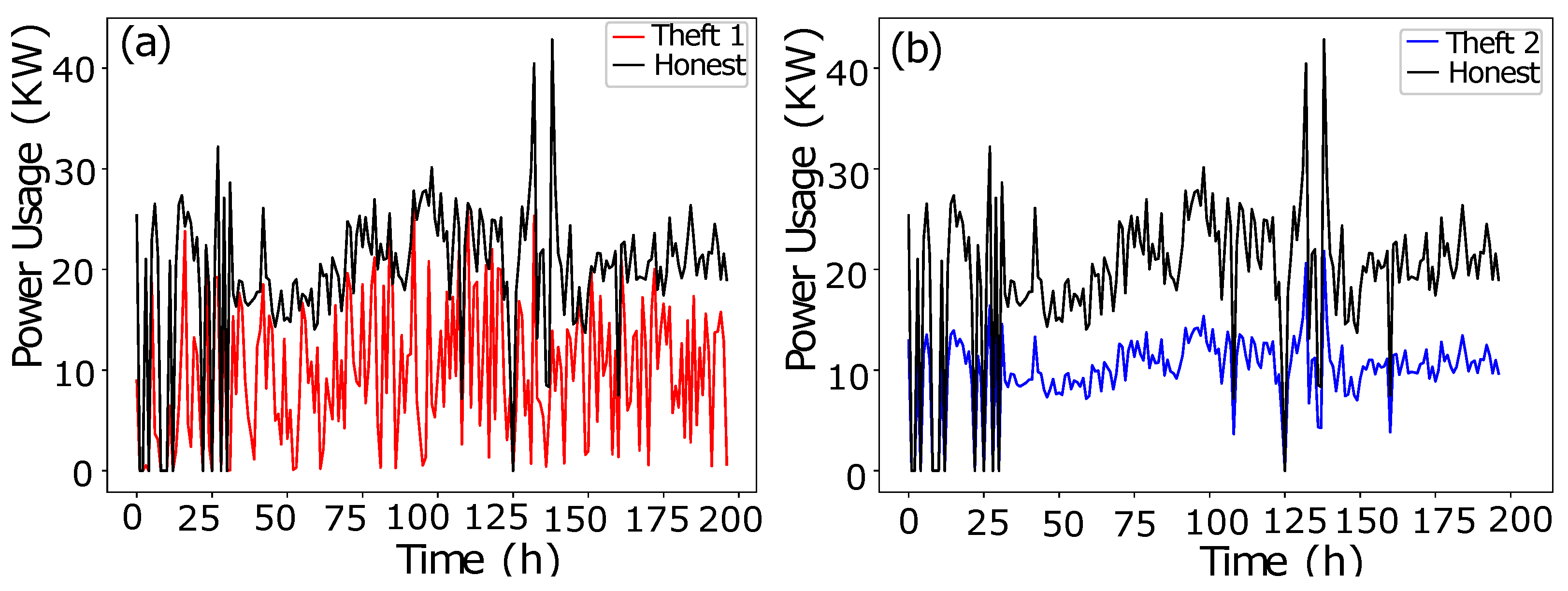

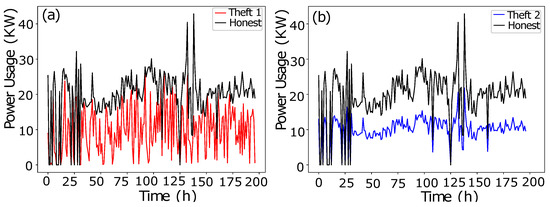

- In data manipulation technique 1, as shown in Figure 2a, a random number is multiplied with benign class Time-Series Data in order to manipulate fair consumption.
- The data manipulating technique 2 is shown in Figure 2b. To capture the consumption’s discontinuity, a random number is multiplied to manipulate the honest consumption’s data. Random number multiplication is a series-based discontinuity in the consumption pattern.

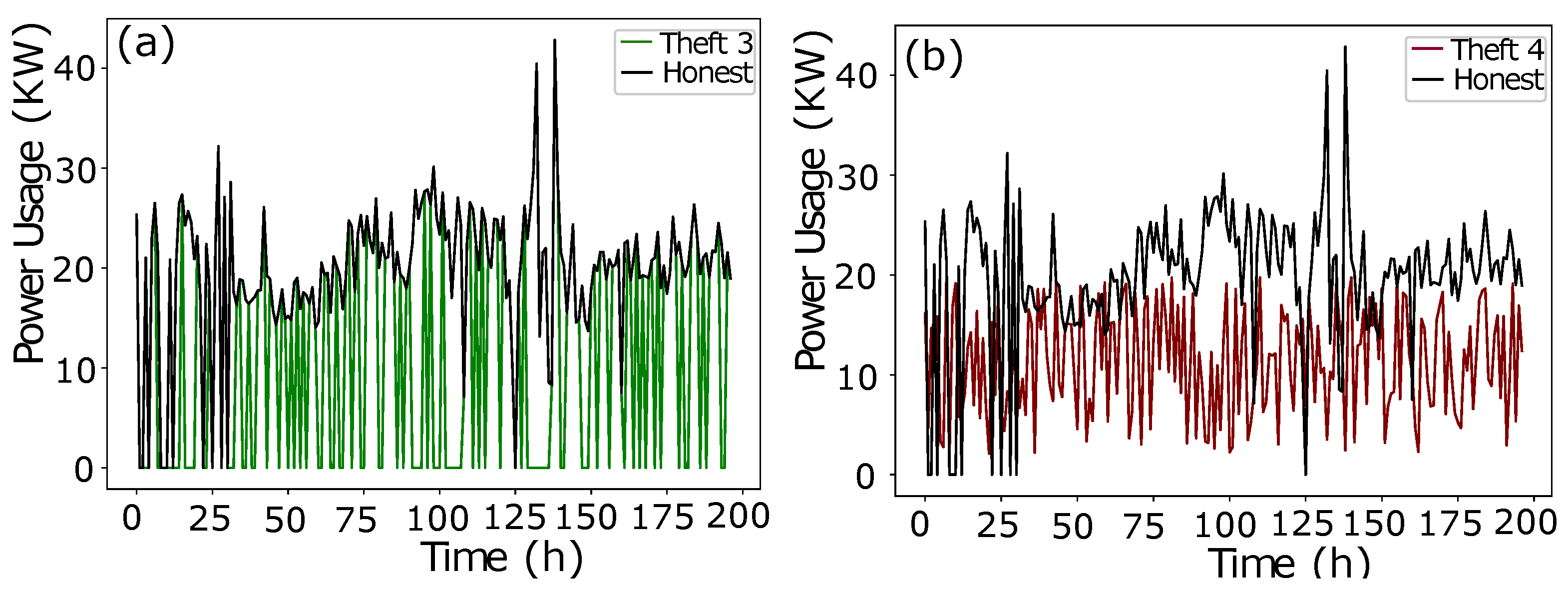

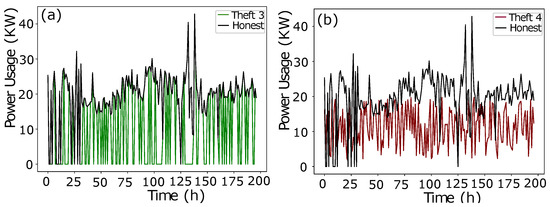

- The data manipulating technique 3 is shown in Figure 3a. A random multiplication of 1 and 0 with Time-Series Data shows either the original consumption or a complete zero consumption. There is no ramping function in between 1 and 0. It is a straightforward switching ON, OFF operation with a complete connected load or the cut off. The multiplication is a mode to copy the historic consumption project, and it is not confined to a continuous Time-Series Data.
- In Theft Case 4, total consumption is aggregated into a mean which is multiplied by a random number in between (0.1, 1.0), as shown in Figure 3b.

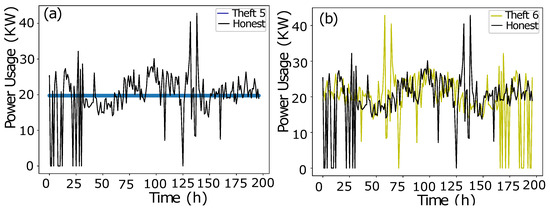

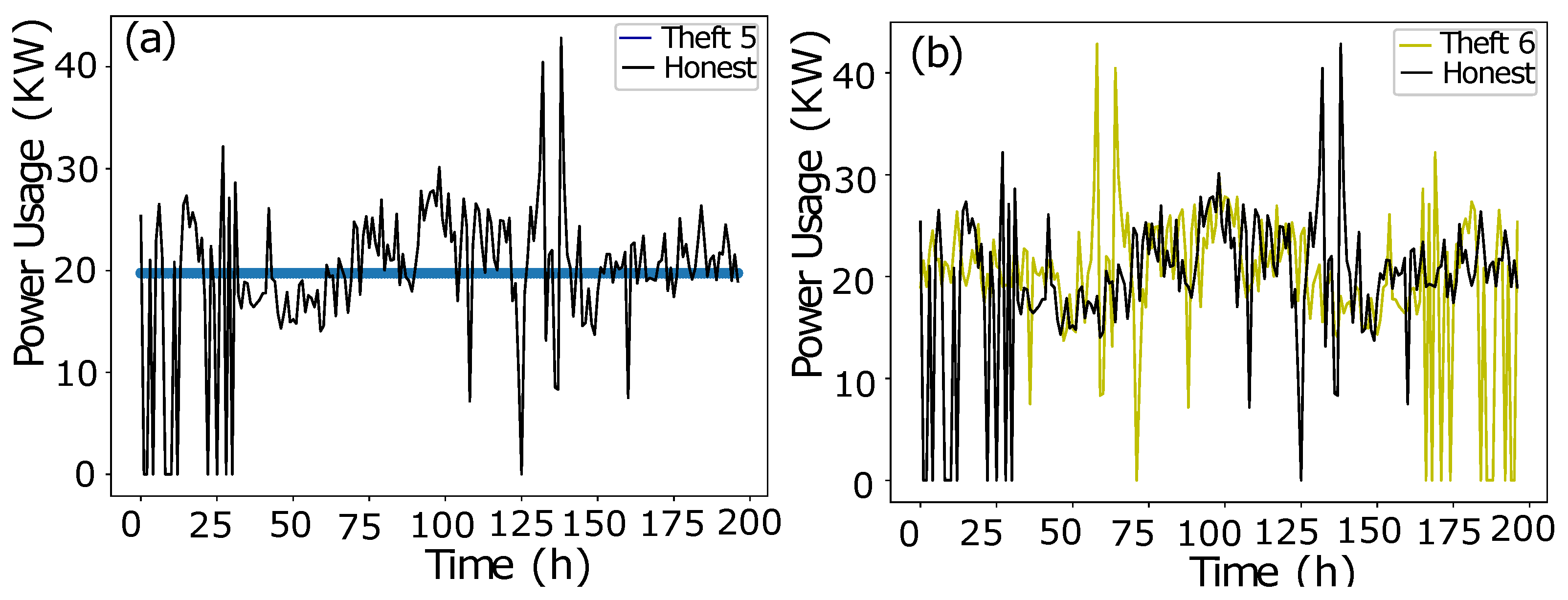

- The data manipulating technique 5 is shown in Figure 4a. The aggregated mean is multiplied with a random number. It is a two-part manipulation. The average value is a centered value of continuous Time-Series Data, where maximum consumption is under-reported. In the second part, the same aggregated value is multiplied with a random number in between (0.1–0.9), where the average value is under-reported as well in an extra exploitation.
- The data manipulating technique 6 is shown in Figure 4b. A continuous swapping of the low consumption and peak consumption hours is practiced, where a couple slabs of consumed energy are shifted from ON-Peak hours to OFF-Peak hours and vice versa. In such manipulating techniques, the consumer pays the charges for the consumed energy, however, the vigilant swapping does not affect the UPs extensively.
4.5. Bi-Directional LSTM
4.6. Feature Engineering
5. Performance Evaluation

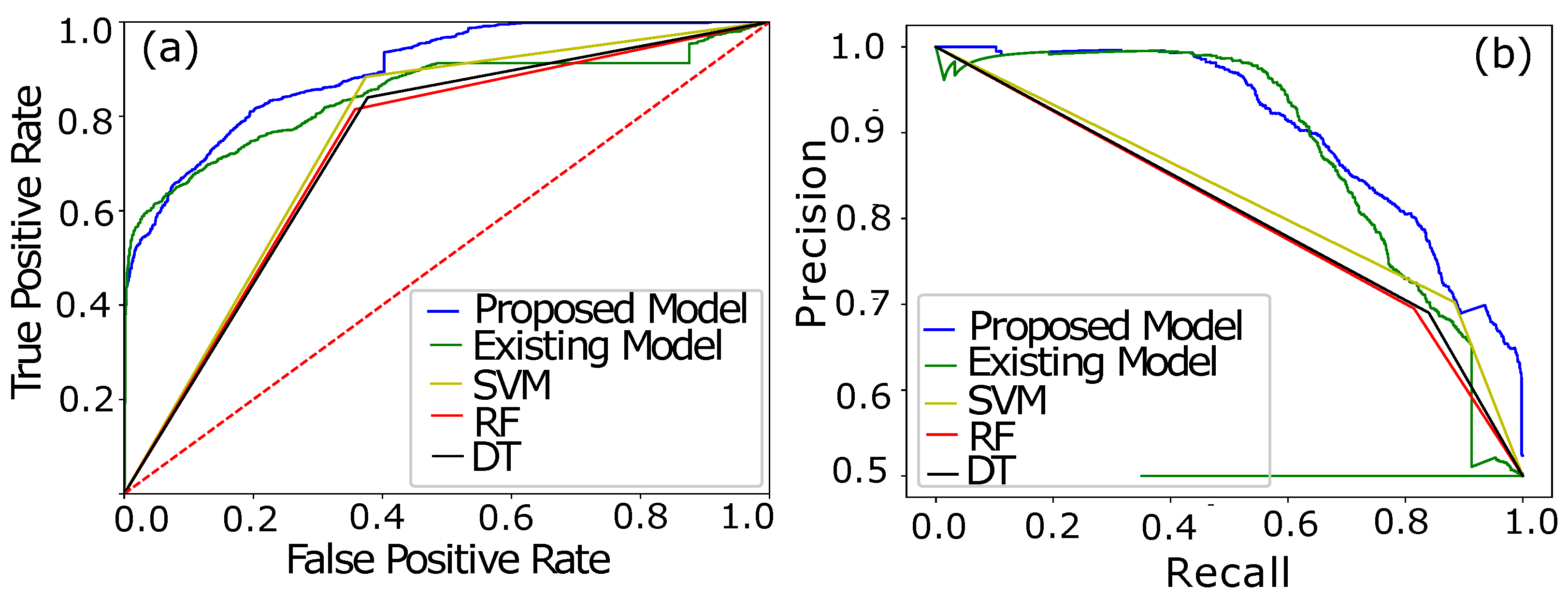

6. Simulation Results
7. Robustness Analysis
8. Computational Complexity

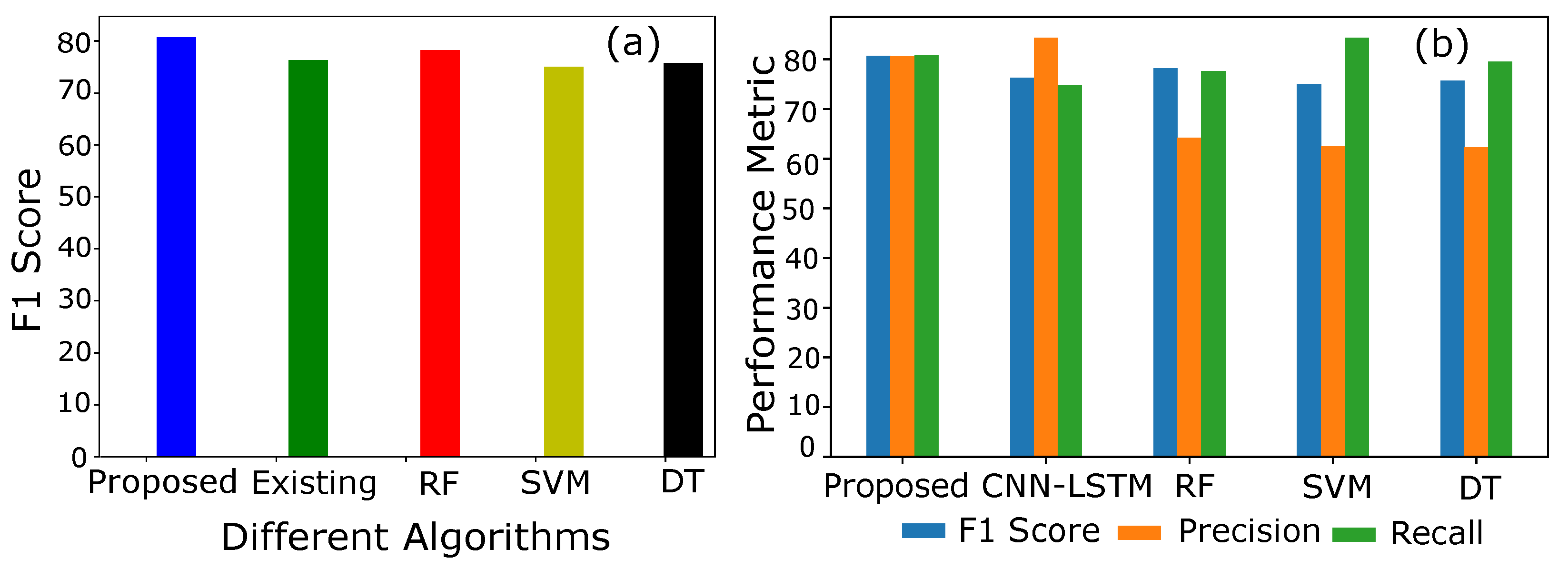

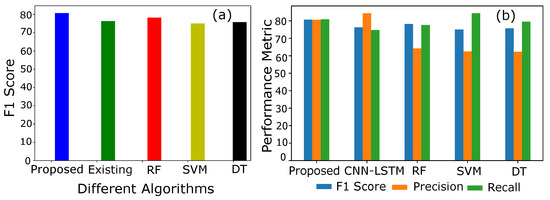

9. Performance Validation
Institutional Review Board Statement
Data Availability Statement
Conflicts of Interest
- The following abbreviations are used in this manuscript:
|AMI||Advanced Metering Infrastructure|
|APD-HT||Anomaly Pattern Detection Hypothesis Testing|
|Bi-GRU||Bi-directional Gated Recurrent Unit|
|AUC||Area Under the Curve|
|Bi-LSTM||Bi-directional Long Short-Term Memory|
|CNN||Convolutional Neural Network|
|DTKSVM||Decision Tree Combined K-Nearest Neighbor and Support Vector Machine|
|EBT||Ensemble Bagged Tree|
|ETD||Electricity Theft Detection|
|XGBoost||Extreme Gradient Boosting|
|GBCs||Gradient Boosting Classifiers|
|LGBoost||Light Gradient Boosting|
|MIC||Maximum Information Coefficient|
|NaN||Not a Number|
|NAN||Neighborhood Area Network|
|PRC||Precision Recall Curve|
|RUSBOOST||Random Under Sampling Boosting|
|SGCC||State Grid Corporation of China|
|SSDAE||Stacked Sparse Denoising Auto-Encoder|
|SCADA||Supervisory Control and Data Acquisition|
|SVM||Support Vector Machine|
|WFI||Weighted Feature Importance|
|C||Sample’s Unique Class|
|p||Population of the Samples|
|S||Number of Samples|
