# 2D Transformations of Energy Signals for Energy Disaggregation

^{1}

^{2}

^{*}

^{†}

## Abstract

**:**

## 1. Introduction

- Six time-series-imaging (two-dimensional representations) techniques were compared on high- and low-frequency data.
- The convergence behavior and the influence on the sampling frequency of the two-dimensional representations were evaluated.
- The robustness to noise for the six evaluated time series imaging approaches was evaluated.

## 2. Time Series Imaging for Energy-Consumption Signals

#### 2.1. VI-Trajectory

- Normalize the waveforms to their absolute maximum values, i.e., ${\tilde{i}}_{agg}^{\tau}=\frac{{i}_{agg}^{\tau}}{max\left(\left(\right),{i}_{agg}\right)}$ and ${\tilde{v}}_{agg}^{\tau}=\frac{{v}_{agg}^{\tau}}{max\left(\left(\right),{v}_{agg}\right)}$.
- Define a uniform grid with grid size $\mathsf{\Delta}i=\frac{max\left(\right|{i}_{agg}\left|\right)}{W/2}$ and $\mathsf{\Delta}v=\frac{max\left(\right|{v}_{agg}\left|\right)}{W/2}$.
- Map the current and voltages samples ${\tilde{i}}_{agg}\left(i\right)$ and ${\tilde{v}}_{agg}\left(j\right)$ with $1\le i,j\le W$ to the $W\times W$ grid cells, obtaining the VI-Trajectory feature vector ${F}_{i,j}^{\tau}\in {\mathbb{R}}^{W\times W}$, where each element in ${F}_{i,j}^{\tau}$ indicates if a combination of current and voltage exists or not.

#### 2.2. Double Fourier Integral Analysis

#### 2.3. PQ Transformation

#### 2.4. Recurrence Plot

#### 2.5. Gramian Angular Field

#### 2.6. Markov Transition Field

## 3. NILM Using Two-Dimensional Signal Representations

## 4. Experimental Setup

#### 4.1. Datasets

#### 4.2. Pre-Processing

#### 4.3. Model Parametrization

#### 4.4. Experimental Protocols

## 5. Experimental Results

## 6. Discussion

#### 6.1. Runtime and Convergence

#### 6.2. Sampling Frequency

#### 6.3. Robustness to Noise

## 7. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## References

- Hart, G.W. Nonintrusive appliance load monitoring. Proc. IEEE
**1992**, 80, 1870–1891. [Google Scholar] [CrossRef] - Froehlich, J.; Larson, E.; Gupta, S.; Cohn, G.; Reynolds, M.; Patel, S. Disaggregated End-Use Energy Sensing for the Smart Grid. IEEE Pervasive Comput.
**2011**, 10, 28–39. [Google Scholar] [CrossRef] - Schirmer, P.A.; Mporas, I. Non-Intrusive Load Monitoring: A Review. IEEE Trans. Smart Grid
**2022**. [Google Scholar] [CrossRef] - Schirmer, P.A.; Mporas, I.; Paraskevas, M. Energy Disaggregation Using Elastic Matching Algorithms. Entropy
**2020**, 22, 71. [Google Scholar] [CrossRef] - He, K.; Stankovic, L.; Liao, J.; Stankovic, V. Non-Intrusive Load Disaggregation using Graph Signal Processing. IEEE Trans. Smart Grid
**2016**, 9, 1739–1747. [Google Scholar] [CrossRef] - Zhao, B.; Stankovic, L.; Stankovic, V. On a Training-Less Solution for Non-Intrusive Appliance Load Monitoring Using Graph Signal Processing. IEEE Access
**2016**, 4, 1784–1799. [Google Scholar] [CrossRef] - Singh, S.; Majumdar, A. Analysis Co-Sparse Coding for Energy Disaggregation. IEEE Trans. Smart Grid
**2017**, 10, 462–470. [Google Scholar] [CrossRef] - Singh, S.; Majumdar, A. Deep Sparse Coding for Non-Intrusive Load Monitoring. IEEE Trans. Smart Grid
**2017**, 9, 4669–4678. [Google Scholar] [CrossRef] - Schirmer, P.A.; Mporas, I. Multivariate Non-Negative Matrix Factorization with Application to Energy Disaggregation. In Proceedings of the ICASSP 2021—2021 IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP), Toronto, ON, Canada, 6–11 June 2021; pp. 3285–3289. [Google Scholar] [CrossRef]
- Makonin, S.; Popowich, F.; Bajic, I.V.; Gill, B.; Bartram, L. Exploiting HMM Sparsity to Perform Online Real-Time Nonintrusive Load Monitoring. IEEE Trans. Smart Grid
**2016**, 7, 2575–2585. [Google Scholar] [CrossRef] - Welikala, S.; Dinesh, C.; Ekanayake, M.P.B.; Godaliyadda, R.I.; Ekanayake, J. Incorporating Appliance Usage Patterns for Non-Intrusive Load Monitoring and Load Forecasting. IEEE Trans. Smart Grid
**2019**, 10, 448–461. [Google Scholar] [CrossRef] - Murray, D.; Stankovic, L.; Stankovic, V.; Lulic, S.; Sladojevic, S. Transferability of Neural Network Approaches for Low-rate Energy Disaggregation. In Proceedings of the ICASSP 2019—2019 IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP), Brighton, UK, 12–17 May 2019; IEEE: Piscataway, NJ, USA, 2019; pp. 8330–8334. [Google Scholar] [CrossRef]
- Du, Y.; Du, L.; Lu, B.; Harley, R.; Habetler, T. A review of identification and monitoring methods for electric loads in commercial and residential buildings. In Proceedings of the IEEE Energy Conversion Congress and Expo: ECCE 2010, Atlanta, GA, USA, 12–16 September 2010; IEEE: Piscataway, NJ, USA, 2010; pp. 4527–4533. [Google Scholar] [CrossRef]
- Kelly, J.; Knottenbelt, W. Does disaggregated electricity feedback reduce domestic electricity consumption? A systematic review of the literature. arXiv
**2016**, arXiv:1605.00962. [Google Scholar] - García-Pérez, D.; Pérez-López, D.; Díaz-Blanco, I.; González-Muñiz, A.; Domínguez-González, M.; Cuadrado Vega, A.A. Fully-Convolutional Denoising Auto-Encoders for NILM in Large Non-Residential Buildings. IEEE Trans. Smart Grid
**2021**, 12, 2722–2731. [Google Scholar] [CrossRef] - Çimen, H.; Çetinkaya, N.; Vasquez, J.C.; Guerrero, J.M. A Microgrid Energy Management System Based on Non-Intrusive Load Monitoring via Multitask Learning. IEEE Trans. Smart Grid
**2021**, 12, 977–987. [Google Scholar] [CrossRef] - Ruano, A.; Hernandez, A.; Ureña, J.; Ruano, M.; Garcia, J. NILM techniques for intelligent home energy management and ambient assisted living: A review. Energies
**2019**, 12, 2203. [Google Scholar] [CrossRef] - Aboulian, A.; Green, D.H.; Switzer, J.F.; Kane, T.J.; Bredariol, G.V.; Lindahl, P.; Donnal, J.S.; Leeb, S.B. NILM Dashboard: A Power System Monitor for Electromechanical Equipment Diagnostics. IEEE Trans. Ind. Inform.
**2019**, 15, 1405–1414. [Google Scholar] [CrossRef] - Rafati, A.; Shaker, H.R.; Ghahghahzadeh, S. Fault Detection and Efficiency Assessment for HVAC Systems Using Non-Intrusive Load Monitoring: A Review. Energies
**2022**, 15, 341. [Google Scholar] [CrossRef] - Hernández, Á.; Ruano, A.; Ureña, J.; Ruano, M.; Garcia, J. Applications of NILM techniques to energy management and assisted living. IFAC-PapersOnLine
**2019**, 52, 164–171. [Google Scholar] [CrossRef] - Schirmer, P.A.; Mporas, I. On the non-intrusive extraction of residents’ privacy-and security-sensitive information from energy smart meters. Neural Comput. Appl.
**2021**, 1–14. [Google Scholar] [CrossRef] - Huber, P.; Calatroni, A.; Rumsch, A.; Paice, A. Review on Deep Neural Networks Applied to Low-Frequency NILM. Energies
**2021**, 14, 2390. [Google Scholar] [CrossRef] - Le, T.-T.-H.; Heo, S.; Kim, H. Toward Load Identification Based on the Hilbert Transform and Sequence to Sequence Long Short-Term Memory. IEEE Trans. Smart Grid
**2021**, 12, 3252–3264. [Google Scholar] [CrossRef] - Harell, A.; Makonin, S.; Bajic, I.V. Wavenilm: A Causal Neural Network for Power Disaggregation from the Complex Power Signal. In Proceedings of the ICASSP 2019—2019 IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP), Brighton, UK, 12–17 May 2019; IEEE: Piscataway, NJ, USA, 2019; pp. 8335–8339. [Google Scholar] [CrossRef]
- Wu, Q.; Wang, F. Concatenate Convolutional Neural Networks for Non-Intrusive Load Monitoring across Complex Background. Energies
**2019**, 12, 1572. [Google Scholar] [CrossRef] - Kaselimi, M.; Doulamis, N.; Doulamis, A.; Voulodimos, A.; Protopapadakis, E. Bayesian-optimized Bidirectional LSTM Regression Model for Non-intrusive Load Monitoring. In Proceedings of the ICASSP 2019—2019 IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP), Brighton, UK, 12–17 May 2019; IEEE: Piscataway, NJ, USA, 2019; pp. 2747–2751. [Google Scholar] [CrossRef]
- Kaselimi, M.; Protopapadakis, E.; Voulodimos, A.; Doulamis, N.; Doulamis, A. Multi-Channel Recurrent Convolutional Neural Networks for Energy Disaggregation. IEEE Access
**2019**, 7, 81047–81056. [Google Scholar] [CrossRef] - Mauch, L.; Yang, B. A new approach for supervised power disaggregation by using a deep recurrent LSTM network. In Proceedings of the 2015 IEEE Global Conference on Signal and Information Processing (GlobalSIP), Orlando, FL, USA, 14–16 December 2015; IEEE: Piscataway, NJ, USA, 2015; pp. 63–67. [Google Scholar] [CrossRef]
- Kaselimi, M.; Voulodimos, A.; Protopapadakis, E.; Doulamis, N.; Doulamis, A. EnerGAN: A GENERATIVE ADVERSARIAL NETWORK FOR ENERGY DISAGGREGATION. In Proceedings of the ICASSP 2020—2020 IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP), Barcelona, Spain, 4–8 May 2020; IEEE: Piscataway, NJ, USA, 2020; pp. 1578–1582. [Google Scholar] [CrossRef]
- Kaselimi, M.; Doulamis, N.; Voulodimos, A.; Doulamis, A.; Protopapadakis, E. EnerGAN++: A Generative Adversarial Gated Recurrent Network for Robust Energy Disaggregation. IEEE Open J. Signal Process.
**2021**, 2, 1–16. [Google Scholar] [CrossRef] - Harell, A.; Jones, R.; Makonin, S.; Bajić, I.V. TraceGAN: Synthesizing Appliance Power Signatures Using Generative Adversarial Networks. IEEE Trans. Smart Grid
**2021**, 12, 4553–4563. [Google Scholar] [CrossRef] - Yue, Z.; Witzig, C.R.; Jorde, D.; Jacobsen, H.A. BERT4NILM: A Bidirectional Transformer Model for Non-Intrusive Load Monitoring. In Proceedings of the 5th International Workshop on Non-Intrusive Load Monitoring, Online, 18 November 2020; pp. 89–93. [Google Scholar]
- Rafiq, H.; Shi, X.; Zhang, H.; Li, H.; Ochani, M.K.; Shah, A.A. Generalizability Improvement of Deep Learning-Based Non-Intrusive Load Monitoring System Using Data Augmentation. IEEE Trans. Smart Grid
**2021**, 12, 3265–3277. [Google Scholar] [CrossRef] - Schirmer, P.A.; Mporas, I.; Sheikh-Akbari, A. Robust energy disaggregation using appliance-specific temporal contextual information. EURASIP J. Adv. Signal Process.
**2020**, 2020, 394. [Google Scholar] [CrossRef] - Schirmer, P.A.; Mporas, I. Device and Time Invariant Features for Transferable Non-Intrusive Load Monitoring. IEEE Open Access J. Power Energy
**2022**, 9, 121–130. [Google Scholar] [CrossRef] - Klemenjak, C.; Faustine, A.; Makonin, S.; Elmenreich, W. On metrics to assess the transferability of machine learning models in non-intrusive load monitoring. arXiv
**2019**, arXiv:1912.06200. [Google Scholar] - Kaselimi, M.; Doulamis, N.; Voulodimos, A.; Protopapadakis, E.; Doulamis, A. Context Aware Energy Disaggregation Using Adaptive Bidirectional LSTM Models. IEEE Trans. Smart Grid
**2020**, 11, 3054–3067. [Google Scholar] [CrossRef] - Pak, M.; Kim, S. A review of deep learning in image recognition. In Proceedings of the 2017 4th International Conference on Computer Applications and Information Processing Technology (CAIPT), Kuta Bali, Indonesia, 8–10 August 2017; IEEE: Piscataway, NJ, USA, 2017; pp. 1–3. [Google Scholar]
- Schirmer, P.A.; Mporas, I. Double Fourier integral analysis based convolutional neural network regression for high-frequency energy disaggregation. IEEE Trans. Emerg. Top. Comput. Intell.
**2021**, 6, 439–449. [Google Scholar] [CrossRef] - Schirmer, P.A.; Mporas, I. Low-Frequency Energy Disaggregation based on Active and Reactive Power Signatures. In Proceedings of the 2021 29th European Signal Processing Conference (EUSIPCO), Dublin, Ireland, 23–27 August 2021; pp. 1426–1430. [Google Scholar] [CrossRef]
- Liu, Y.; Wang, X.; You, W. Non-Intrusive Load Monitoring by Voltage—Current Trajectory Enabled Transfer Learning. IEEE Trans. Smart Grid
**2019**, 10, 5609–5619. [Google Scholar] [CrossRef] - Hassan, T.; Javed, F.; Arshad, N. An Empirical Investigation of V-I Trajectory Based Load Signatures for Non-Intrusive Load Monitoring. IEEE Trans. Smart Grid
**2014**, 5, 870–878. [Google Scholar] [CrossRef] - Bousbiat, H.; Klemenjak, C.; Leitner, G.; Elmenreich, W. Augmenting an Assisted Living Lab with Non-Intrusive Load Monitoring. In Proceedings of the 2020 IEEE International Instrumentation and Measurement Technology Conference (I2MTC), Dubrovnik, Croatia, 25–28 May 2020. [Google Scholar]
- Tito, S.R.; Rehman, A.U.; Kim, Y.; Nieuwoudt, P.; Aslam, S.; Soltic, S.; Lie, T.T.; Pandey, N.; Ahmed, M.D. Image segmentation-based event detection for non-intrusive load monitoring using gramian angular summation field. In Proceedings of the 2021 IEEE Industrial Electronics and Applications Conference (IEACon), Penang, Malaysia, 22–23 November 2021; IEEE: Piscataway, NJ, USA, 2021; pp. 185–190. [Google Scholar]
- Holmes, G.; Lipo, T.A. (Eds.) Pulse Width Modulation for Power Converters: Principles and Practice; Wiley: New York, NY, USA; Chichester, UK, 2002. [Google Scholar]
- Kolter, J.Z.; Johnson, M.J. (Eds.) REDD: A Public Data Set for Energy Disaggregation Research. In Proceedings of the Workshop on Data Mining Applications in Sustainability (SIGKDD), San Diego, CA, USA, 23–27 August 2011. [Google Scholar]
- Makonin, S.; Ellert, B.; Bajić, I.V.; Popowich, F. Electricity, water, and natural gas consumption of a residential house in Canada from 2012 to 2014. Sci. Data
**2016**, 3, 1–12. [Google Scholar] [CrossRef] [PubMed] - Klemenjak, C.; Makonin, S.; Elmenreich, W. Investigating the performance gap between testing on real and denoised aggregates in non-intrusive load monitoring. Energy Inform.
**2021**, 4, 1–15. [Google Scholar] [CrossRef] - Wichakool, W.; Avestruz, A.T.; Cox, R.W.; Leeb, S.B. Modeling and Estimating Current Harmonics of Variable Electronic Loads. IEEE Trans. Power Electron.
**2009**, 24, 2803–2811. [Google Scholar] [CrossRef] - Bouhouras, A.S.; Gkaidatzis, P.A.; Panagiotou, E.; Poulakis, N.; Christoforidis, G.C. A NILM algorithm with enhanced disaggregation scheme under harmonic current vectors. Energy Build.
**2019**, 183, 392–407. [Google Scholar] [CrossRef] - Kolter, J.Z.; Batra, S.; Ng, A.Y. Energy disaggregation via discriminative sparse coding. In Proceedings of the 23rd International Conference on Neural Information Processing Systems, Vancouver, BC, Canada, 6–9 December 2010; Lafferty, J.D., Ed.; ACM: New York, NY, USA, 2010. [Google Scholar]
- Kolter, J.Z.; Jaakkola, T. Approximate Inference in Additive Factorial HMMs with Application to Energy Disaggregation. In Proceedings of the Fifteenth International Conference on Artificial Intelligence and Statistics, La Palma, Spain, 21–23 April 2012; Lawrence, N.D., Girolami, M., Eds.; PMLR: La Palma, Spain, 2012; Volume 22, pp. 1472–1482. [Google Scholar]
- DrIncecco, M.; Squartini, S.; Zhong, M. Transfer Learning for Non-Intrusive Load Monitoring. IEEE Trans. Smart Grid
**2019**, 11, 1419–1429. [Google Scholar] [CrossRef] - Schirmer, P.A.; Mporas, I. Improving Energy Disaggregation Performance Using Appliance-Driven Sampling Rates. In Proceedings of the 2019 27th European Signal Processing Conference (EUSIPCO), A Coruna, Spain, 2–6 September 2019; IEEE: Piscataway, NJ, USA, 2019; pp. 1–5. [Google Scholar] [CrossRef]
- Huchtkoetter, J.; Reinhardt, A. A study on the impact of data sampling rates on load signature event detection. Energy Inform.
**2019**, 2, 1–12. [Google Scholar] [CrossRef] - Wichakool, W.; Remscrim, Z.; Orji, U.A.; Leeb, S.B. Smart Metering of Variable Power Loads. IEEE Trans. Smart Grid
**2015**, 6, 189–198. [Google Scholar] [CrossRef]

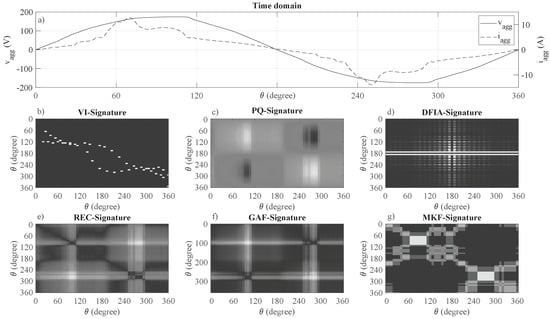

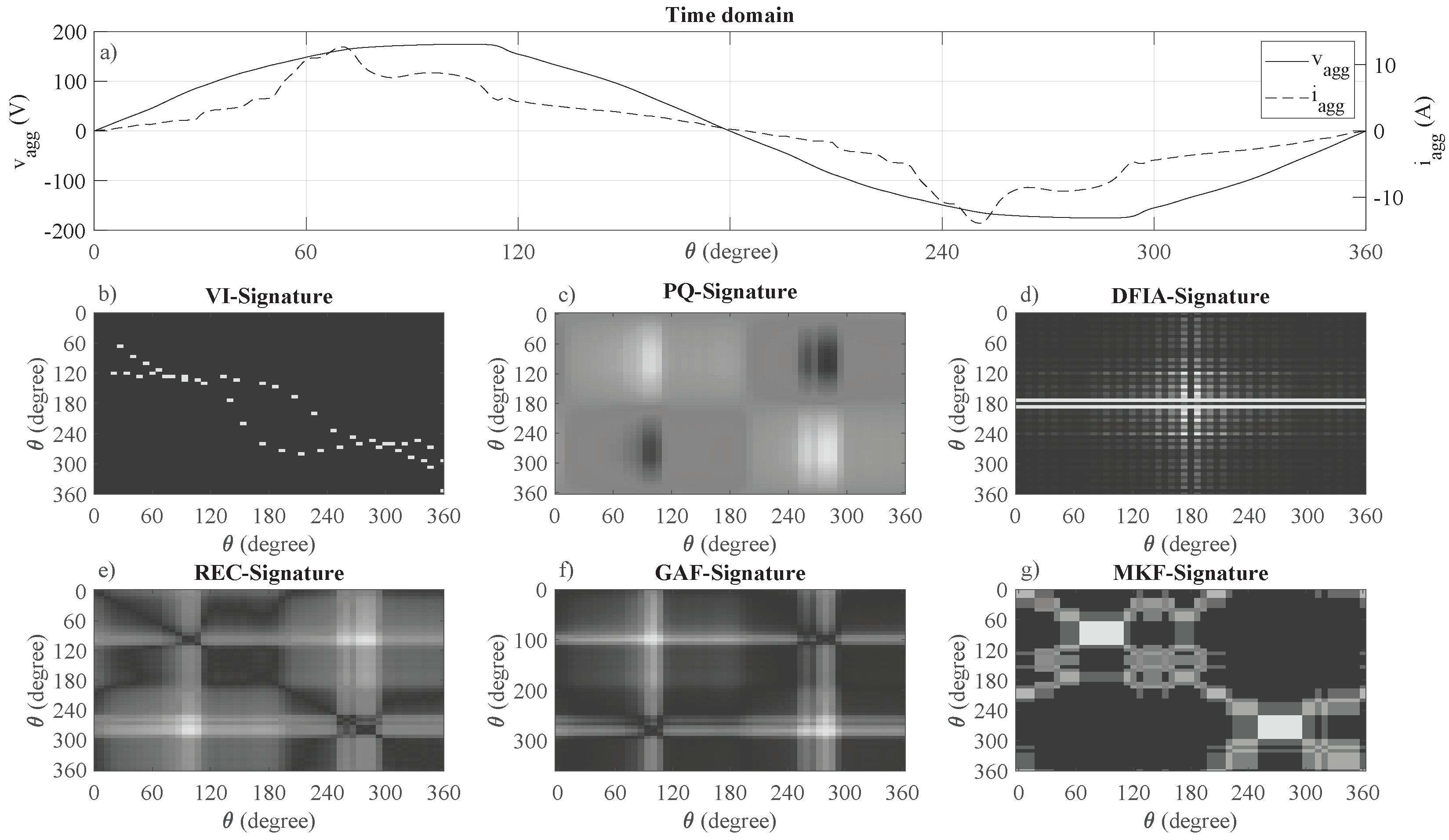

**Figure 1.**One electrical cycle for the aggregated current and voltage (

**a**) as well as the transformed signals as obtained from the time series imaging (

**b**–

**g**).

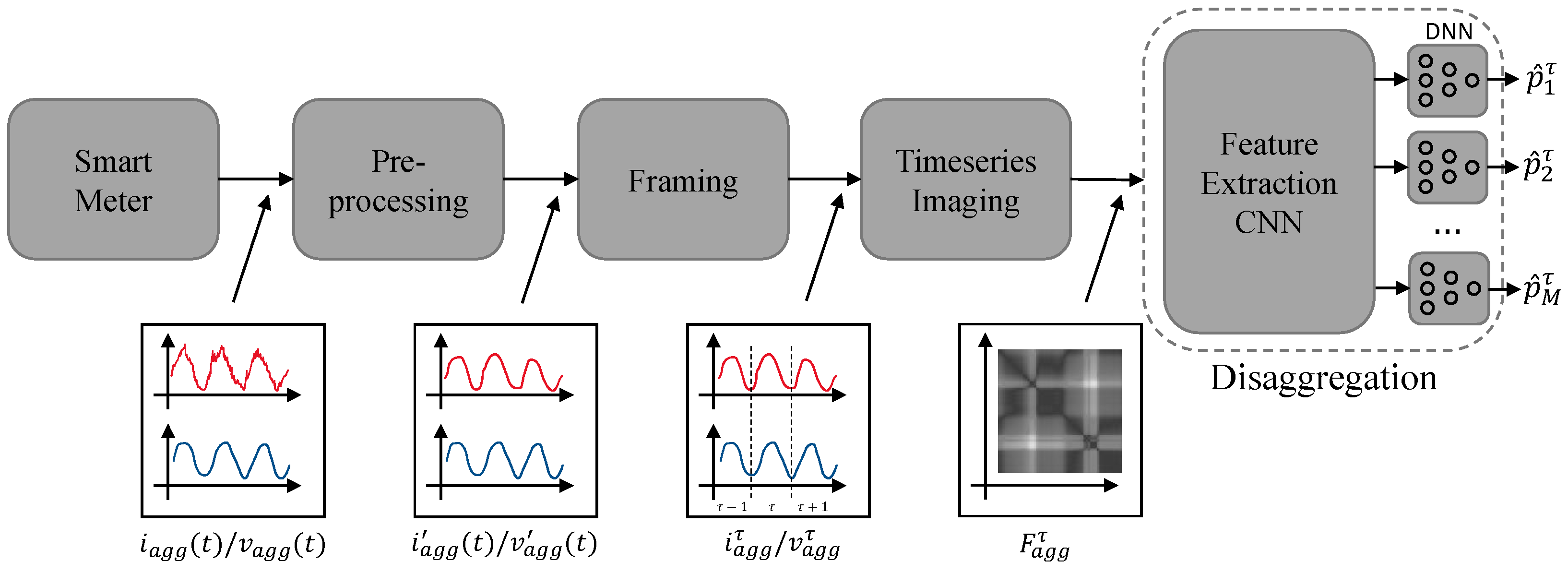

**Figure 2.**Non-Intrusive Load-Monitoring architecture using time series imaging for high-frequency data inputs.

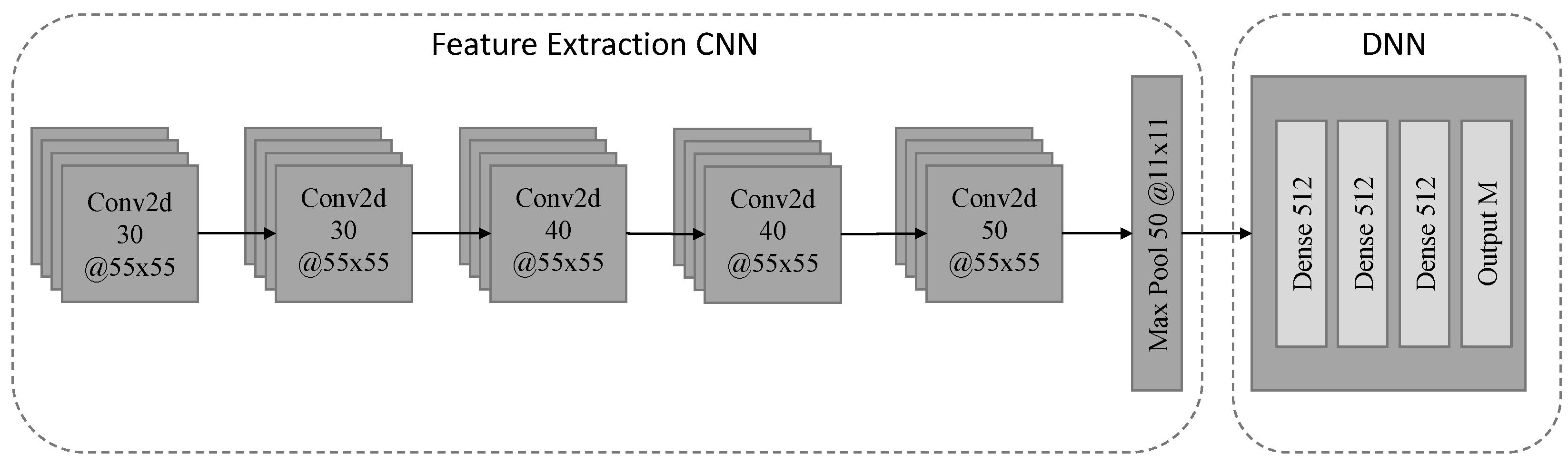

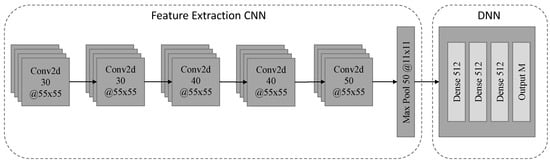

**Figure 3.**Architecture of the evaluated two-stage NILM model utilizing a two-dimensional CNN for feature extraction and a three layer DNN for regression. For each layer, the number of filter/pooling operations (X) and the two-dimensional filter/pooling size ($Y\times Z$) is given as ($X@Y\times Z)$.

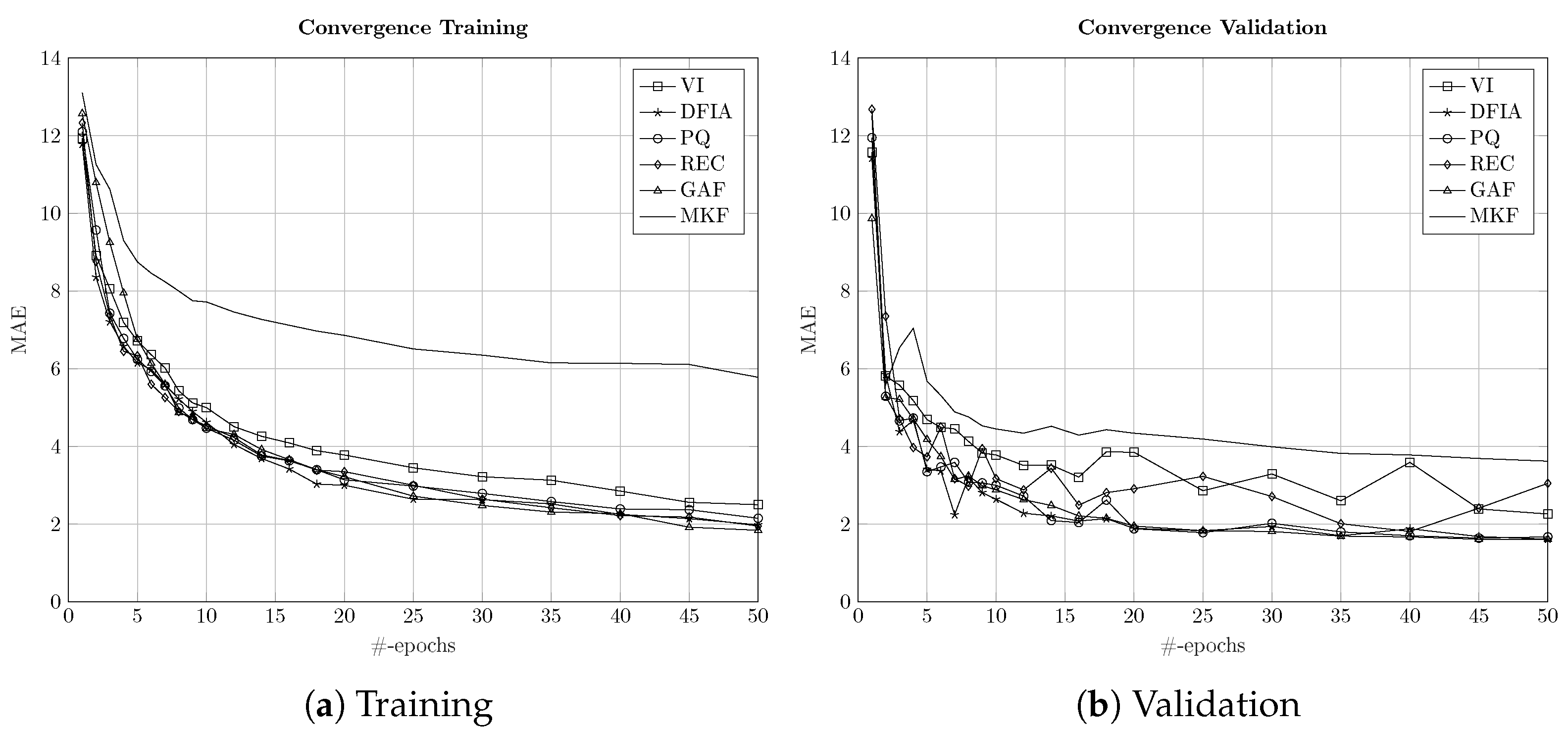

**Figure 4.**Convergence of the six time series 2D representation methods for 50 epochs of training using the REDD database during (

**a**) training and (

**b**) validation.

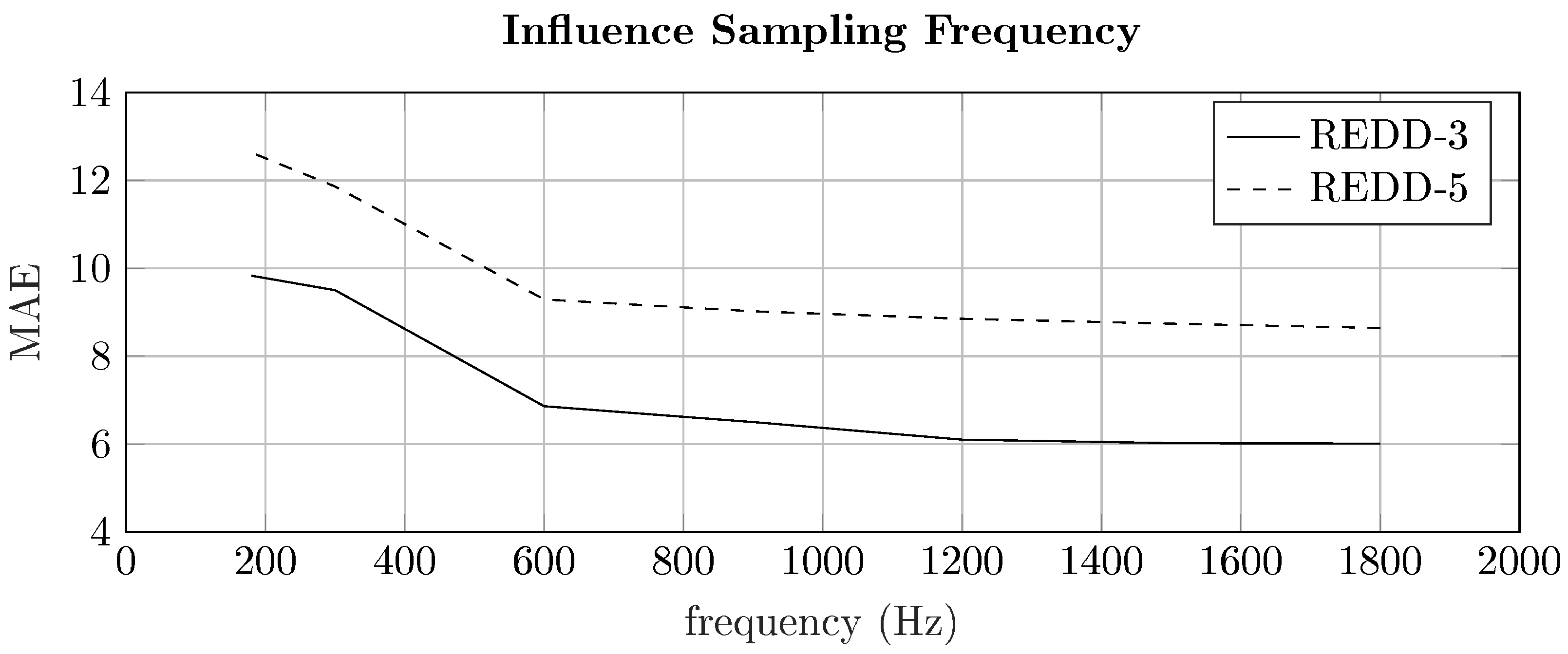

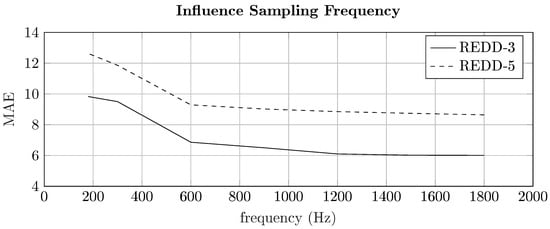

**Figure 5.**Performance for the REDD database for different sampling frequencies using PQ-transformed signals.

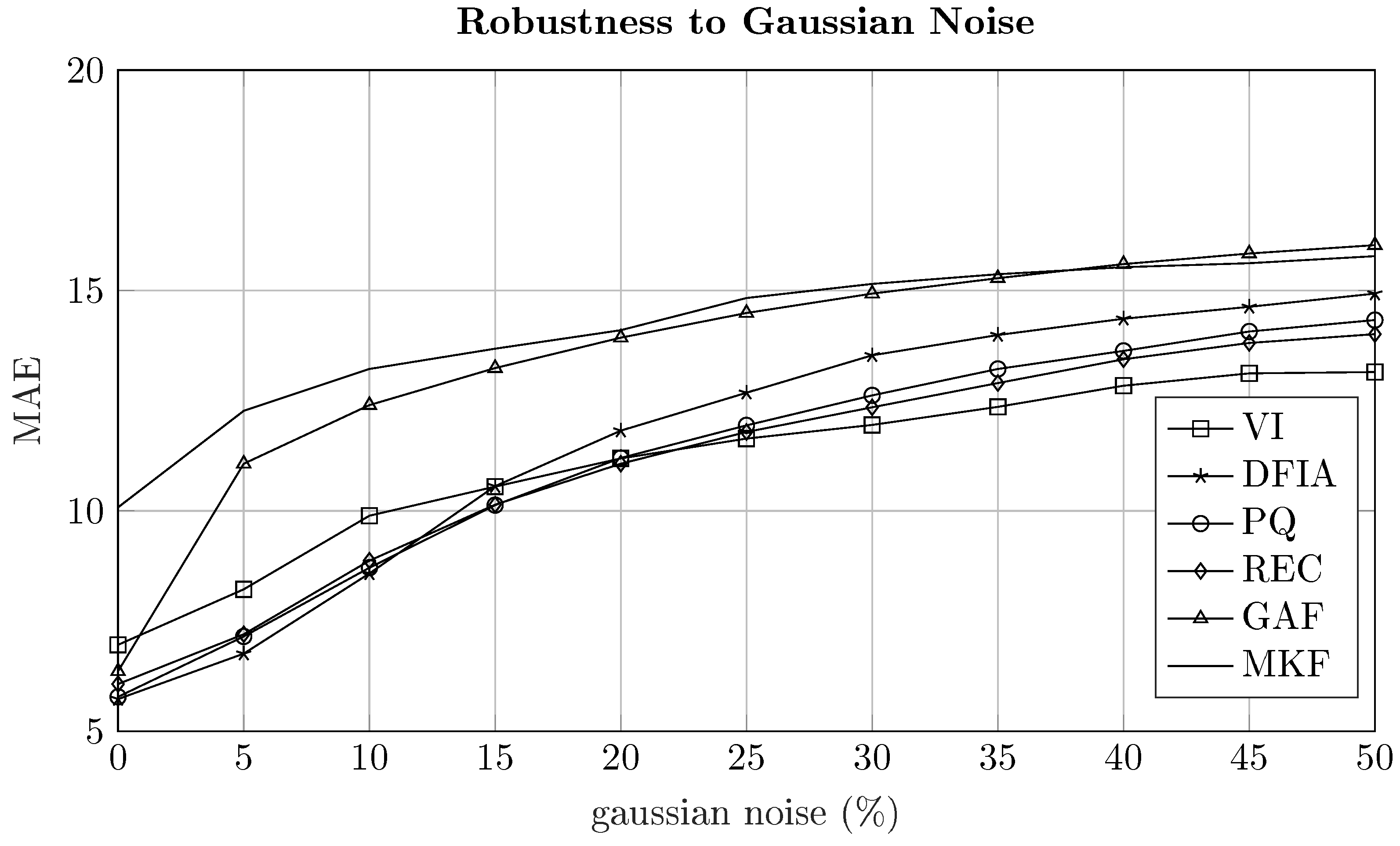

**Figure 6.**Influence of the noise level on the performance of energy disaggregation for different time series imaging methods.
