Sensors 2022, 22(18), 6947;
Received: 14 August 2022 / Revised: 10 September 2022 / Accepted: 12 September 2022 / Published: 14 September 2022
(This article belongs to the Special Issue The Design, Fabrication and Sensor Applications of Nano-Electrodes)


Field-effect transistor (FET) sensors require not only high sensitivity but also excellent regeneration ability before widespread applications are possible. Although some regenerative FETs have been reported, their lowest limit of detection (LoD) barely achieves 1015 mol L1. Here, we develop a graphene FET with a regenerative sensing interface based on dynamic covalent chemistry (DCvC). The LoD down to 5.0 × 1020 mol L1 remains even after 10 regenerative cycles, around 4–5 orders of magnitude lower than existing transistor sensors. Owing to its ultra-sensitivity, regeneration ability, and advantages such as simplicity, low cost, label-free and real-time response, the FET sensor based on DCvC is valuable in applications such as medical diagnosis, environment monitoring, etc.

1. Introduction

Field-effect transistors (FETs) have been developed to satisfy the requirements of modern electronics technology [1,2,3]. Due to their ability to provide low-cost, high sensitivity, real-time, and label-free detection of an analyte, FETs present bright prospects for widespread applications in physical [4], chemical [5], and biological sensing fields [6]. The sensing principle of FETs is rooted in the changes of potential and conductivity in the channel, which are related to physical and/or chemical interactions between probes and analytes at the interface [7,8,9,10]. To enhance the sensitivity, it is required to reinforce the interaction by utilizing a partially neutralized probe [11,12], multiple interactions [13], monoclonal antibodies with high affinity [14], etc., which enables efficient recognition of trace amounts of analytes. However, it typically trades off the regeneration ability of FETs as the toughly bonded analytes block the recognition sites and have low recovery efficiency compared to the unbound states [15]. To improve the regeneration ability, the interaction needs to weakened by using weak affinity interactions [16], decreasing the binding sites [17], exploiting an interlayer [18,19], etc., leading to relatively low sensitivity. Thus, the FET faces an inherent contradiction between sensitivity and regeneration ability. To the best of our knowledge, the limit of detection (LoD) is only at 1015 mol L1 level for regenerative FETs [20]. Considering the requirement in practical applications, it is highly desired to develop a strategy for designing FETs with both ultra-sensitivity and regeneration ability [21].
Dynamic covalent chemistry (DCvC) is generally used in designing self-healing materials [22,23,24]. The DCvC concerns only reversible covalent bonds such as hydrazone bonds, boronate ester bonds, acylhydrazone bonds, and oxime bonds, which can be repeatedly broken and reformed, giving rise to the regeneration ability [25]. The DCvC usually requires the presence of catalysts to facilitate the reversible bond formation to reach a thermodynamic equilibrium in a reasonable time frame [26]. Herein, we develop an ultra-sensitive graphene FET with regeneration ability, which is enabled by reversible covalent reactions at the sensing interface (Figure 1). A dynamically reversible hydrolysis reaction of hydrazone bond catalyzed by copper (II) (Cu2+) is employed as a representative example [27,28]. After modifying the graphene surface with pyrene-1-carboxaldehyde hydrazone (PyCDH), Cu2+ efficiently hydrolyzes PyCDH to pyrene-1-carboxaldehyde (PyCHO), leading to an n-doping effect upon graphene (Figure 1c). The n-doping effect refers to channel conductivity changes induced by the charged analytes, which affects electric structures in graphene and generates a Donnan potential [2,7]. Consequently, the PyCDH/graphene FET detects Cu2+ with a LoD down to 5.0 × 1020 mol L1 even after 10 regenerative cycles. This is among the most sensitive regenerative FET sensors, showing the great potential of the DCvC-based sensing interface in future applications.

2. Materials and Methods

2.1. Materials and Characterization

Copper foil (LOT: I26Z009) was purchased from Alfa Aesar a Johnson Matthey Co., Ltd. (Shanghai, China). 1-Pyrenecarboxaldehyde was purchased from Aladdin Chemistry Co., Ltd. (Shanghai, China). Hydrazine hydrate was purchased from Sinopharm Chemical Reagent Co., Ltd. (Beijing, China). Analytical grade metal salts were procured from Energy Chemical Co., Ltd. (Shanghai, China). The solution of PyCHO (5 mmol L−1) was prepared in DMSO/H2O (4:1 v/v). The ethanol solution of hydrazine hydrate (10 mmol L1) was prepared by dissolving hydrazine hydrate (2 mL, 50% conc.) and HCl (100 μL, 37% conc.) in absolute ethanol. Mono-layer graphene was grown by thermal chemical vapor deposition on high-purity copper foils. After growth, graphene was transferred by a standard procedure using a PMMA temporary substrate by electrochemical delamination (bubbling transfer) method. The samples were measured by Raman (HORIBA XploRA, 532 nm layer), NMR (Bruker, 400 MHz, Brückner Textile Sales & Services (Shanghai) Co., Ltd., Shanghai, China), and laser scanning confocal microscope (Nikon, C2+, Nikon Instruments (Shanghai) Co., Ltd.).

2.2. Device Fabrication

The solution-gated graphene FET chemical sensor was fabricated on a SiO2 (285 nm)/Si wafer via a bilayer lift-off photolithography process, and a polydimethylsiloxane (PDMS) well containing the graphene FET chemical sensor was formed on the substrate to hold the analytical solutions [29]. First, the sacrificial layer (LOR3A) and photo-resistant layer (S1813) was spin-coated on the substrate using a spin coater, respectively. The parallel source and drain electrodes consisting of a Cr/Au structure (5 nm/40 nm) were defined on the SiO2/Si substrate using standard photolithography and metal deposition techniques. Then, the device was kept in Remover PG overnight at room temperature to remove the residual photoresist. The FET had a channel length of 100 μm and a width of 2 mm (W/L = 200). Next, the CVD graphene was transferred onto the substrate by the electrochemical delamination method. Finally, PyCDH was immobilized onto the graphene surface by π-π stacking to fabricate the PyCDH/graphene FET.

2.3. Electrical Measurement

The electrical signal was measured by a semiconductor parameter analyzer (Keysight, B1500A, Keysight Technologies (China) Co., Ltd., Beijing, China) and a probe station (Everbeing, PE-4, EverBeing Int’l Corp, Hsinchu, China) at room temperature. All the aqueous solutions were prepared using deionized water with a resistivity of 18.2 MΩ cm. The Ag/AgCl reference electrode was used as the liquid gate electrode. The gate voltage (Vg) was set lower than ±400 mV (versus Ag/AgCl), and the Vds was set to 25 mV to avoid any electrochemical reaction on the electrodes.

2.4. Regeneration

The graphene FET, which detected 5.0 × 108 mol L1 Cu2+, was washed with deionized water three times after removing the resist solution. Then the ethanol solution of hydrazine hydrate (100 μL) was added to PDMS well to incubate the probe PyCDH at room temperature for 12 h. Finally, the FET was washed with deionized water three times and sealed with deionized water (100 μL) until the next use. The above-mentioned series of processes were regarded as one cycle.

3. Results and Discussion

To fabricate the PyCDH/graphene FET (Figure S1), monolayer graphene was transferred onto a SiO2/Si wafer with photo-lithographically patterned gold electrodes. The Raman spectrum of the graphene (Figure S2) had a G peak at ~1580 cm1 and a 2D peak at ~2700 cm1. The ratio of 2D/G was around 3.0 indicating the monolayer nature, and the absence of D peak was at 1350 cm1 indicating the high quality of graphene [30]. Thereafter, PyCHO was functionalized onto the graphene surface, followed by condensation reactions with hydrazine hydrate to yield PyCDH that serves as the probe for Cu2+ recognitions.
To demonstrate the sensing performance, the transfer characteristics of the device were measured at a drain-source voltage (Vds) of 25 mV (Figure S3 and Figure 2a). The graphene FET showed a typical ambipolar character. The gate voltage (Vg) at minimum drain-source current (Ids) corresponds to the Dirac point (VDirac). The charge transfer between graphene and H2O leads to hole doping [31]; thus, the graphene shows a p-type behavior in the deionized water with a VDirac at 54 mV (Figure 1c). After being functionalized by PyCHO, the VDriac negatively shifts by 18 mV; the VDriac shifts positively by 4 mV after the formation of PyCDH. The different doping effect of PyCHO and PyCDH is caused by the electronic effect of the aldehyde group and hydrazone (C=NNH2). With increasing Cu2+ concentrations from 5.0 × 1018 to 5.0 × 108 mol L1, the VDriac negatively shifted from 92 to 76 mV. Furthermore, the Ids at VDriac gradually increased from 55.97 to 57.18 μA (Figure 2a). The value of the VDriac shift decreases with successively increasing Cu2+ concentration and gradually approaches a saturation value. It is probably attributed to the decreasing amount of PyCDH on the graphene surface.
The real-time response of the PyCDH/graphene FET to increasing Cu2+ concentrations is expressed as |(Ids-Ids,0)/Ids,0| vs. time, where Ids,0 is the drain current at Vg = 0 V (Figure 2b). The limit of detection reaches 5.0 × 10−18 mol L−1 Cu2+ in deionized water, 4–5 orders of magnitude lower than existing transistor sensors. Additionally, the device exhibits an average diagnosis time of 33 s. These results show that the PyCDH/graphene TEF offers excellent detection capability. In contrast, the bare graphene FET sensor shows negligible response upon Cu2+ with a concentration up to 5.0 × 1011 mol L1. The linear detection ranges are either a low concentration range from 5.0 × 1020 to 5.0 × 1017 mol L1 and a high concentration range from 5.0 × 1016 to 5.0 × 108 mol L1, respectively (Figure 2c). The sensitivity obtained through a linear fitting for the low concentration range was five times as the high concentration range, which is probably associated with decreased PyCDH concentration leading to the hydrolysis reaction speed declining sharply on the channel surface. Compared with other sensors reported in the literature summarized in Table 1, the LoD of the graphene FET based on DCvC was roughly 4–5 orders of magnitude lower than the existing detection methods. As such, the device is susceptible to detecting Cu2+ in an aqueous solution.
To demonstrate the selectivity of PyCDH/graphene FET, 5.0 × 108 mol L1 of metal ions (i.e., Zr2+, Co2+, Ni2+, Pb2+, Cr2+, Hg2+, Cd2+, Mn2+, Na+, K+, and Fe3+) were prepared. Moreover, the influence of ions on the transfer characteristics of the device was investigated with a normalized response (Figure 2d) when tested metal ions were added to deionized water, respectively. The PyCDH/graphene FET was found to give the highest VDirac shift caused by Cu2+ among the tested metal ions. The VDirac did not change clearly when Na+ and K+ were introduced into deionized water, while the ΔVDirac caused by Pb2+ was the highest among the interference ions. Interestingly, the ΔVDirac caused by Cu2+ was three times higher than that by Pb2+. On these grounds, the PyCDH/graphene FET confirmed the remarkable selectivity of Cu2+. The mechanism of the device to detect Cu2+ selectively is probably attributed to the efficient catalytic performance [40,41]. The response to Cu2+ rather than the anions presented in the solution was verified by measuring the response of FET on Cl, NO3, and SO42, where the shifts of VDirac remained constant (Figure S4). As such, the possible interference of anions can be excluded.
To confirm that DCvC can reach regeneration as designed on the sensing interface, chemical and physical changes in the PyCDH probe were investigated. The transition from PyCHO to PyCDH was characterized via 1H NMR spectroscopy [22]. The C-10 proton peak of PyCHO at 9.29 ppm was quenched, while the amine proton of PyCDH at 7.21 ppm appeared (Figure 3a), suggesting the formation of PyCDH. When interacting with Cu2+, a signature doublet of PyCHO at 9.29 ppm occurred, and a broad singlet at 7.21 ppm disappeared, evidencing the reverse transition from PyCDH to PyCHO. The reversible DCvC was further investigated using a laser scanning confocal microscope (CLSM). The mean fluorescence intensity of graphene surface functionalized by PyCHO was about 635 arb.unit (a.u.), reaching 1023 a.u. after condensation reaction (Figure S5). When interacting with Cu2+, the mean fluorescence intensity declined to 512 a.u., which was similar to PyCHO. After regeneration by hydrazine hydrate, the mean fluorescence intensity heightened to 1042 a.u. That means the fluorescence phenomena of graphene FET finished a work cycle. The reversible CLSM results provide extra proof of the regeneration ability of the sensing interface. In particular, the regeneration ability of the sensing interface can be achieved by the presence of hydrazine hydrate to facilitate reversible bond formation. From the results observed, we propose a regenerative mechanism for the PyCDH/graphene FET shown in Figure 1c. The chemical probe PyCDH immobilized onto graphene surface by π-π stacking was hydrolyzed to PyCHO after achieving Cu2+ detection and then was regenerated by reacting with hydrazine hydrate to achieve a regenerative cycle.
To prove the mechanism we proposed, and to understand the role of DCvC, the regeneration ability of PyCDH/graphene FET was investigated at the low concentration range from 5.0 × 1020 to 5.0 × 1017 mol L1 Cu2+ (Figure 3b). After 10 regenerative cycles, the sensitivity was roughly halved from 28% to 12% at 5.0 × 1020 mol L1. At the same time, the sensor remained an obvious real-time response of 18.0% for the whole concentration range from 5.0 × 1020 to 5.0 × 108 mol L1 Cu2+ (Figure S6). Therefore, employing DCvC to design FETs is an efficient strategy for fabricating an ultra-sensitive and regenerative device.

4. Conclusions

In conclusion, we report a regenerative testing methodology based on PyCDH/graphene FET sensors for the first time and address an urgent issue of ion testing that faces a trade-off between sensitivity and regeneration ability. Compared with other methods [33,34,36], the PyCDH/graphene FET sensors demonstrate reliable sensitivity and the impressive LoD (5.0 × 1020 mol L1) after 10 regeneration cycles. This technology achieves inspiring sensitivity, selectivity, and regeneration ability because reversible dynamic covalent bonds utilized in DCvC can be easily broken and reassembled to reform bonds. It might be the missing piece of the puzzle that enables ion sensors to be a comprehensive tool for not only sensitive testing but also regenerative applications in environmental monitoring and medical diagnoses.

Supplementary Materials

The following are available online at Figure S1 Schematic diagram of the device fabrication process [42,43], Figure S2. Raman spectrum of graphene, Figure S3. Characteristic transfer curves (Vds = 25 mV) of graphene FET sensor, Figure S4 Characteristic transfer curves of PyCDH/graphene FET sensor before and after different anions, Figure S5. Comparison of the mean fluorescence intensity (MFI) generated by graphene FET, Figure S6. Real-time Ids response upon various concentrations of Cu2+ ions for the regenerated PyCDH/graphene FET sensor.

Author Contributions

Experiments were designed by D.W. and Q.X. Fabrication of FET and testing were performed by B.-P.C. Graphene growth and characterization were performed by C.D. and X.W. The manuscript and figures were prepared by B.-P.C. and C.D. The manuscript was written through the contributions of all authors. D.W. evaluated the results and reviewed the manuscript. All authors have read and agreed to the published version of the manuscript.


This research was funded by the National Key R&D Program of China (No. 2021YFE0201400), the National Natural Science Foundation of China (Nos. 51773041, 61890940, 22066011), the Strategic Priority Research Program of the Chinese Academy of Sciences (No. XDB30000000), the Science Foundation of Jiangxi Province (No. 20192BBHL80017), the Department of Education of Jiangxi Province (No. GJJ211105), and Jiangxi Science & Technology Normal University (No. 2021QNBJRC002), and State Key Laboratory of Molecular Engineering of Polymers.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data is contained within the article or Supplementary Materials.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Zhan, B.; Li, C.; Yang, J.; Jenkins, G.; Huang, W.; Dong, X. Graphene Field-effect Transistor and Its Application for Electronic Sensing. Small 2014, 10, 4042–4065. [Google Scholar] [CrossRef] [PubMed]
  2. Dai, C.; Liu, Y.; Wei, D. Two-Dimensional Field-Effect Transistor Sensors: The Road toward Commercialization. Chem. Rev. 2022, 122, 10319–10392. [Google Scholar] [CrossRef]
  3. Lu, Y.-X.; Lin, C.-T.; Tsai, M.-H.; Lin, K.-C. Review-Hysteresis in Carbon Nano-Structure Field Effect Transistor. Micromachines 2022, 13, 509. [Google Scholar] [CrossRef] [PubMed]
  4. Noyce, S.G.; Doherty, J.L.; Zauscher, S.; Franklin, A.D. Understanding and Mapping Sensitivity in MoS2 Field-Effect-Transistor-Based Sensors. ACS Nano 2020, 14, 11637–11647. [Google Scholar] [CrossRef] [PubMed]
  5. Jun, L.; Chen, Q.; Fu, W.; Yang, Y.; Zhu, W.; Zhang, J. Electrospun Yb-Doped In2O3 Nanofiber Field-Effect Transistors for Highly Sensitive Ethanol Sensors. ACS Appl. Mater. Interfaces 2020, 12, 38425–38434. [Google Scholar] [CrossRef]
  6. Cheung, K.M.; Abendroth, J.M.; Nakatsuka, N.; Zhu, B.; Yang, Y.; Andrews, A.M.; Weiss, P.S. Detecting DNA and RNA and Differentiating Single-Nucleotide Variations via Field-Effect Transistors. Nano Lett. 2020, 20, 5982–5990. [Google Scholar] [CrossRef]
  7. Fu, W.; Jiang, L.; van Geest, E.P.; Lima, L.M.; Schneider, G.F. Sensing at the Surface of Graphene Field-effect Transistors. Adv. Mater. 2017, 29, 1603610. [Google Scholar] [CrossRef]
  8. Haroon Rashid, M.; Koel, A.; Rang, T. First Principles Simulations of Phenol and Methanol Detector Based on Pristine Graphene Nanosheet and Armchair Graphene Nanoribbons. Sensors 2019, 19, 2731. [Google Scholar] [CrossRef]
  9. Rashid, M.H.; Koel, A.; Rang, T.; Ziko, M.H. Simulations of Benzene and Hydrogen-Sulfide Gas Detector Based on Single-Walled Carbon Nanotube over Intrinsic 4H-SiC Substrate. Micromachines 2020, 11, 453. [Google Scholar] [CrossRef]
  10. Luo, Z.; Hu, X.; Tian, X.; Luo, C.; Xu, H.; Li, Q.; Li, Q.; Zhang, J.; Qiao, F.; Wu, X.; et al. Structure-Property Relationships in Graphene-Based Strain and Pressure Sensors for Potential Artificial Intelligence Applications. Sensors 2019, 19, 1250. [Google Scholar] [CrossRef][Green Version]
  11. Hu, W.-P.; Tsai, C.-C.; Yang, Y.-S.; Chan, H.W.-H.; Chen, W.-Y. Synergetic Improvements of Sensitivity and Specificity of Nanowire Field Effect Transistor Gene Chip by Designing Neutralized DNA as Probe. Sci. Rep. 2018, 8, 12598. [Google Scholar] [CrossRef] [PubMed]
  12. Huang, W.; Diallo, A.K.; Dailey, J.L.; Besar, K.; Katz, H.E. Electrochemical Processes and Mechanistic Aspects of Field-Effect Sensors for Biomolecules. J. Mater. Chem. C 2015, 3, 6445–6470. [Google Scholar] [CrossRef] [PubMed]
  13. Kumar, S.; Parekh, S.H. Linking Graphene-Based Material Physicochemical Properties with Molecular Adsorption, Structure and Cell Fate. Commun. Chem. 2020, 3, 8. [Google Scholar] [CrossRef]
  14. Kwon, J.; Lee, Y.; Lee, T.; Ahn, J.-H. Aptamer-Based Field-Effect Transistor for Detection of Avian Influenza Virus in Chicken Serum. Anal. Chem. 2020, 92, 5524–5531. [Google Scholar] [CrossRef]
  15. Zang, Y.; Zhang, F.; Huang, D.; Di, C.; Meng, Q.; Gao, X.; Zhu, D. Specific and Reproducible Gas Sensors Utilizing Gas-phase Chemical Reaction on Organic Transistors. Adv. Mater. 2014, 26, 2862–2867. [Google Scholar] [CrossRef]
  16. Mandenius, C.-F.; Wang, R.; Aldén, A.; Bergström, G.; Thébault, S.; Lutsch, C.; Ohlson, S. Monitoring of Influenza Virus Hemagglutinin in Process Samples Using Weak Affinity Ligands and Surface Plasmon Resonance. Anal. Chim. Acta 2008, 623, 66–75. [Google Scholar] [CrossRef]
  17. Zhu, X.; Sarwar, M.; Zhu, J.-J.; Zhang, C.; Kaushik, A.; Li, C.-Z. Using a Glucose Meter to Quantitatively Detect Disease Biomarkers through a Universal Nanozyme Integrated Lateral Fluidic Sensing Platform. Biosens. Bioelectron. 2019, 126, 690–696. [Google Scholar] [CrossRef]
  18. Thakur, B.; Zhou, G.; Chang, J.; Pu, H.; Jin, B.; Sui, X.; Yuan, X.; Yang, C.-H.; Magruder, M.; Chen, J. Rapid Detection of Single E. Coli Bacteria Using a Graphene-Based Field-Effect Transistor Device. Biosens. Bioelectron. 2018, 110, 16–22. [Google Scholar] [CrossRef]
  19. Wang, Z.; Hao, Z.; Wang, X.; Huang, C.; Lin, Q.; Zhao, X.; Pan, Y. A Flexible and Regenerative Aptameric Graphene–Nafion Biosensor for Cytokine Storm Biomarker Monitoring in Undiluted Biofluids toward Wearable Applications. Adv. Funct. Mater. 2021, 31, 2005958. [Google Scholar] [CrossRef]
  20. Shariati, M.; Vaezjalali, M.; Sadeghi, M. Ultrasensitive and Easily Reproducible Biosensor Based on Novel Doped MoS2 Nanowires Field-Effect Transistor in Label-Free Approach for Detection of Hepatitis B Virus in Blood Serum. Anal. Chim. Acta 2021, 1156, 338360. [Google Scholar] [CrossRef]
  21. Zhang, S.; Zhao, Y.; Du, X.; Chu, Y.; Zhang, S.; Huang, J. Gas Sensors Based on Nano/Microstructured Organic Field-Effect Transistors. Small 2019, 15, 1805196. [Google Scholar] [CrossRef]
  22. Cousins, G.L.; Sanders, J.M. Dynamic Combinatorial Libraries of Pseudo-Peptide Hydrazone Macrocycles. Chem. Commun. 1999, 16, 1575–1576. [Google Scholar] [CrossRef]
  23. Zhang, J.-Y.; Zeng, L.-H.; Feng, J. Dynamic Covalent Gels Assembled from Small Molecules: From Discrete Gelators to Dynamic Covalent Polymers. Chin. Chem. Lett. 2017, 28, 168–183. [Google Scholar] [CrossRef]
  24. Perera, M.M.; Ayres, N. Dynamic Covalent Bonds in Self-Healing, Shape Memory, and Controllable Stiffness Hydrogels. Polym. Chem. 2020, 11, 1410–1423. [Google Scholar] [CrossRef]
  25. Nevejans, S.; Ballard, N.; Fernández, M.; Reck, B.; García, S.J.; Asua, J.M. The Challenges of Obtaining Mechanical Strength in Self-Healing Polymers Containing Dynamic Covalent Bonds. Polymer 2019, 179, 121670. [Google Scholar] [CrossRef]
  26. Jin, Y.; Yu, C.; Denman, R.J.; Zhang, W. Recent Advances in Dynamic Covalent Chemistry. Chem. Soc. Rev. 2013, 42, 6634–6654. [Google Scholar] [CrossRef]
  27. Bist, A.; Cho, S.J.; Ahmed, N. A Simple Pyrene-Based Highly Sensitive Turn-on Fluorescent Chemodosimeter for Hg2+. J. Incl. Phenom. Macrocycl. Chem. 2013, 77, 75–81. [Google Scholar] [CrossRef]
  28. Sarkar, S.; Roy, S.; Sikdar, A.; Saha, R.; Panja, S.S. A Pyrene-Based Simple but Highly Selective Fluorescence Sensor for Cu2+ Ions via a Static Excimer Mechanism. Analyst 2013, 138, 7119–7126. [Google Scholar] [CrossRef]
  29. Dai, C.; Guo, M.; Wu, Y.; Cao, B.-P.; Wang, X.; Wu, Y.; Kang, H.; Kong, D.; Zhu, Z.; Ying, T.; et al. Ultraprecise Antigen 10-in-1 Pool Testing by Multiantibodies Transistor Assay. J. Am. Chem. Soc. 2021, 143, 19794–19801. [Google Scholar] [CrossRef]
  30. Cancado, L.; Pimenta, M.; Neves, B.; Dantas, M.; Jorio, A. Influence of the Atomic Structure on the Raman Spectra of Graphite Edges. Phys. Rev. Lett. 2004, 93, 247401. [Google Scholar] [CrossRef]
  31. Liu, B.; López-González, L.E.; Alamri, M.; Velázquez-Contrera, E.F.; Santacruz-Ortega, H.; Wu, J.Z. Cation–π Interaction Assisted Molecule Attachment and Photocarrier Transfer in Rhodamine/Graphene Heterostructures. Adv. Mater. Interfaces 2020, 7, 2000796. [Google Scholar] [CrossRef]
  32. Wang, J.; Li, J.; Zeng, C.; Qu, Q.; Wang, M.; Qi, W.; Su, R.; He, Z. Sandwich-like Sensor for the Highly Specific and Reproducible Detection of Rhodamine 6G on a Surface-Enhanced Raman Scattering Platform. ACS Appl. Mater. Interfaces 2020, 12, 4699–4706. [Google Scholar] [CrossRef]
  33. Peng, D.; Hu, B.; Kang, M.; Wang, M.; He, L.; Zhang, Z.; Fang, S. Electrochemical Sensors Based on Gold Nanoparticles Modified with Rhodamine B Hydrazide to Sensitively Detect Cu (II). Appl. Surf. Sci. 2016, 390, 422–429. [Google Scholar] [CrossRef]
  34. Fan, Q.; Li, J.; Zhu, Y.; Yang, Z.; Shen, T.; Guo, Y.; Wang, L.; Mei, T.; Wang, J.; Wang, X. Functional Carbon Quantum Dots for Highly Sensitive Graphene Transistors for Cu2+ Ion Detection. ACS Appl. Mater. Interfaces 2020, 12, 4797–4803. [Google Scholar] [CrossRef] [PubMed]
  35. Münzer, A.M.; Seo, W.; Morgan, G.J.; Michael, Z.P.; Zhao, Y.; Melzer, K.; Scarpa, G.; Star, A. Sensing Reversible Protein–Ligand Interactions with Single-Walled Carbon Nanotube Field-Effect Transistors. J. Phys. Chem. C 2014, 118, 17193–17199. [Google Scholar] [CrossRef] [PubMed]
  36. Nguyen, T.; Tran, H.; Vu, T.; Reisberg, S.; Noël, V.; Mattana, G.; Pham, M.; Piro, B. Peptide-Modified Electrolyte-Gated Organic Field Effect Transistor. Application to Cu2+ Detection. Biosens. Bioelectron. 2019, 127, 118–125. [Google Scholar] [CrossRef] [PubMed]
  37. Seshadri, P.; Manoli, K.; Schneiderhan-Marra, N.; Anthes, U.; Wierzchowiec, P.; Bonrad, K.; Di Franco, C.; Torsi, L. Low-Picomolar, Label-Free Procalcitonin Analytical Detection with an Electrolyte-Gated Organic Field-Effect Transistor Based Electronic Immunosensor. Biosens. Bioelectron. 2018, 104, 113–119. [Google Scholar] [CrossRef] [PubMed]
  38. Piccinini, E.; Bliem, C.; Reiner-Rozman, C.; Battaglini, F.; Azzaroni, O.; Knoll, W. Enzyme-Polyelectrolyte Multilayer Assemblies on Reduced Graphene Oxide Field-Effect Transistors for Biosensing Applications. Biosens. Bioelectron. 2017, 92, 661–667. [Google Scholar] [CrossRef]
  39. Alves, A.P.P.; Meireles, L.M.; Ferrari, G.A.; Cunha, T.H.R.; Paraense, M.O.; Campos, L.C.; Lacerda, R.G. Highly Sensitive and Reusable Ion-Sensor Based on Functionalized Graphene. Appl. Phys. Lett. 2020, 117, 33105. [Google Scholar] [CrossRef]
  40. Kim, M.H.; Jang, H.H.; Yi, S.; Chang, S.-K.; Han, M.S. Coumarin-Derivative-Based off–on Catalytic Chemodosimeter for Cu2+ Ions. Chem. Commun. 2009, 32, 4838–4840. [Google Scholar] [CrossRef]
  41. Ye, J.-H.; Xu, J.; Chen, H.; Bai, Y.; Zhang, W.; He, W. A Highly Sensitive and Selective Turn-on Fluorescent Chemodosimeter for Cu2+ Based on BODIPY and Its Application in Bioimaging. RSC Adv. 2014, 4, 6691–6695. [Google Scholar] [CrossRef]
  42. Yang, Y.; Yang, X.; Zou, X.; Wu, S.; Wan, D.; Cao, A.; Liao, L.; Yuan, Q.; Duan, X. Ultrafine graphene nanomesh with large on/off ratio for high-performance flexible biosensors. Adv. Funct. Mater. 2017, 27, 1604096. [Google Scholar] [CrossRef]
  43. De La Rosa, C.J.L.; Sun, J.; Lindvall, N.; Cole, M.T.; Nam, Y.; Löffler, M.; Olsson, E.; Teo, K.B.K.; Yurgens, A. Frame assisted H2O electrolysis induced H2 bubbling transfer of large area graphene grown by chemical vapor deposition on Cu. Appl. Phys. Lett. 2013, 102, 22101. [Google Scholar] [CrossRef][Green Version]

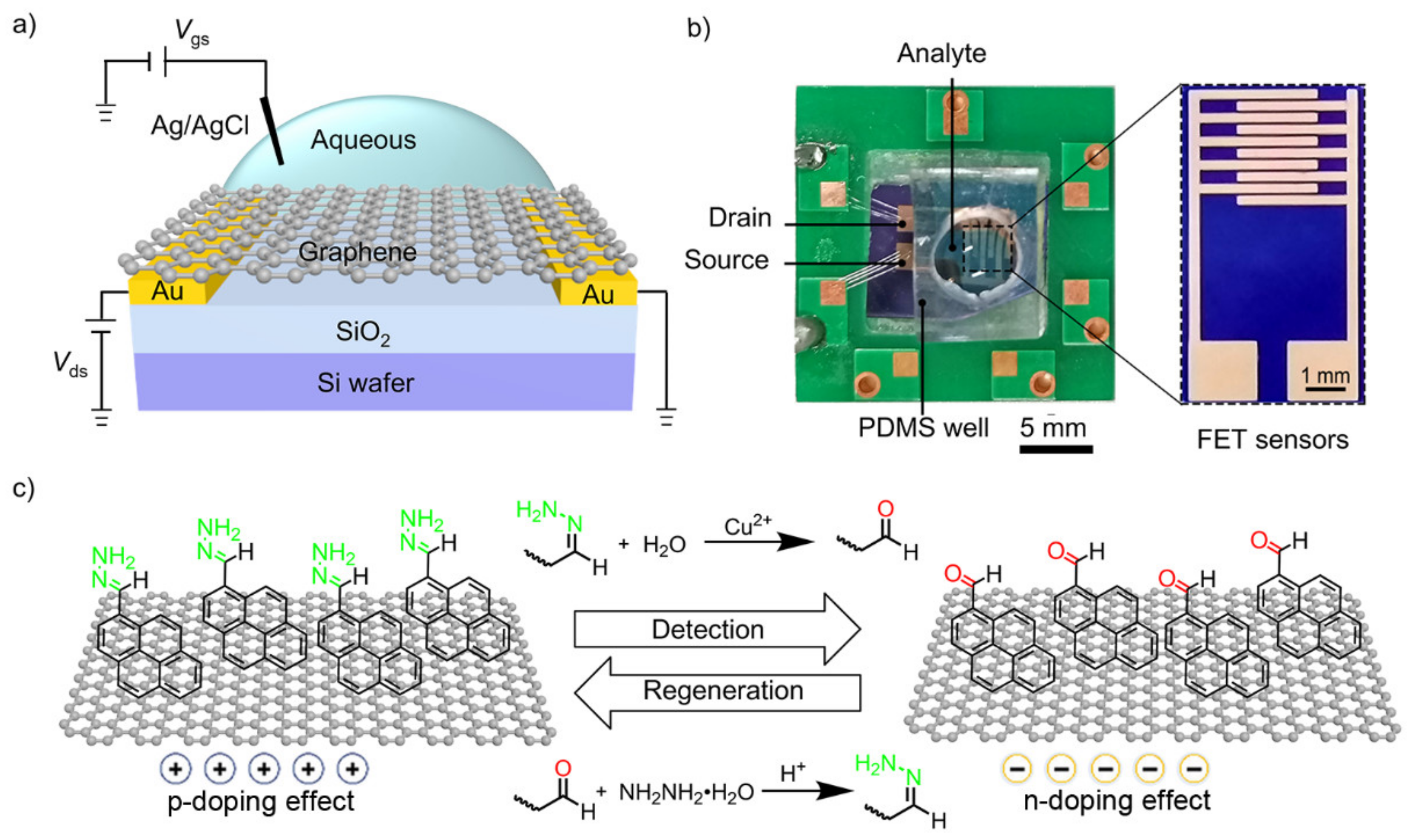

Figure 1. (a) Schematic structure of the PyCDH/graphene FET. (b) Image of the PyCDH/graphene FET and zoomed-in chip. The scale bar is 500 μm and 1 mm in length, respectively. (c) Proposed mechanism for PyCDH/graphene FET-based hydrazone bond.
Figure 1. (a) Schematic structure of the PyCDH/graphene FET. (b) Image of the PyCDH/graphene FET and zoomed-in chip. The scale bar is 500 μm and 1 mm in length, respectively. (c) Proposed mechanism for PyCDH/graphene FET-based hydrazone bond.
Sensors 22 06947 g001

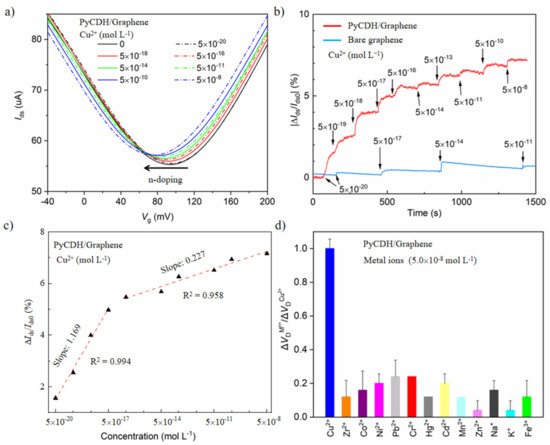

Figure 2. (a) Characteristic transfer curves (Vds = 25 mV) of a PyCDH/graphene FET before and after the addition of Cu2+, when Vg varies from –40 to 200 mV. (b) Real-time Ids response upon various concentrations of Cu2+ for the PyCDH/graphene FET (from 5.0 × 1020 to 5.0 × 108 mol L1, red line), and for bare graphene FET sensors (from 5.0 × 1020 to 5.0 × 1011 mol L−1, blue line). (c) The electrical responses versus the Cu2+ concentration for the PyCDH/graphene FET. (d) The VDirac shift change of the PyCDH/graphene FET in response to various metal ions: Cu2+, Zr2+, Co2+, Ni2+, Pb2+, Cr2+, Hg2+, Cd2+, Mn2+, Na+, K+, and Fe3+ (5.0 × 108 mol L1).
Figure 2. (a) Characteristic transfer curves (Vds = 25 mV) of a PyCDH/graphene FET before and after the addition of Cu2+, when Vg varies from –40 to 200 mV. (b) Real-time Ids response upon various concentrations of Cu2+ for the PyCDH/graphene FET (from 5.0 × 1020 to 5.0 × 108 mol L1, red line), and for bare graphene FET sensors (from 5.0 × 1020 to 5.0 × 1011 mol L−1, blue line). (c) The electrical responses versus the Cu2+ concentration for the PyCDH/graphene FET. (d) The VDirac shift change of the PyCDH/graphene FET in response to various metal ions: Cu2+, Zr2+, Co2+, Ni2+, Pb2+, Cr2+, Hg2+, Cd2+, Mn2+, Na+, K+, and Fe3+ (5.0 × 108 mol L1).
Sensors 22 06947 g002

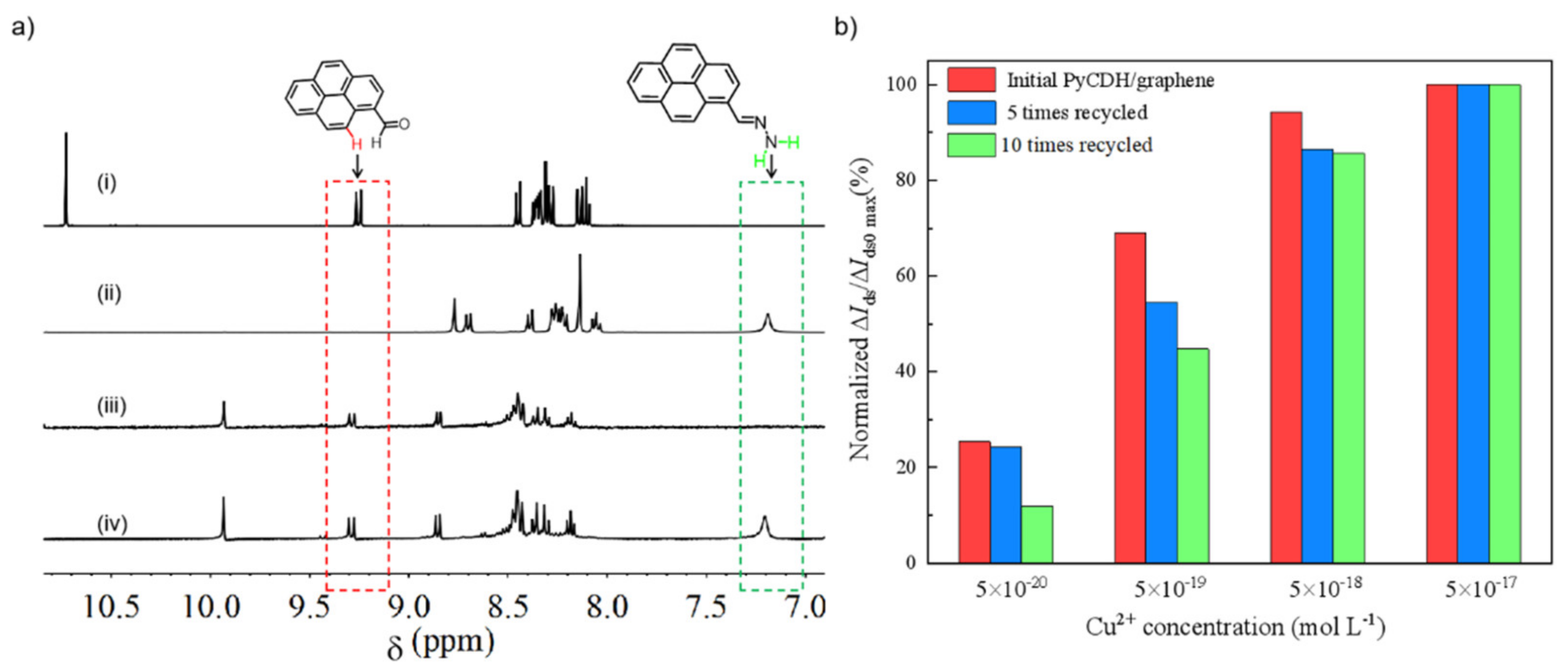

Figure 3. (a) 1H NMR spectra of PyCHO (i), PyCDH (ii), the product after Cu2+ detection (iii), and the product after regeneration (iv). (b) Regeneration ability of PyCDH/graphene FET.
Figure 3. (a) 1H NMR spectra of PyCHO (i), PyCDH (ii), the product after Cu2+ detection (iii), and the product after regeneration (iv). (b) Regeneration ability of PyCDH/graphene FET.
Sensors 22 06947 g003
Table 1. Detection limit, technique, sensor material for analyte detection.
Table 1. Detection limit, technique, sensor material for analyte detection.
AnalyteTechniqueSensor MaterialDetection Limit (mol L1)Recycle Times
(Concentration, mol L1)
Rh 6GSERSpMIP1.0 × 10108 times (1.0 × 104)[32]
Cu2+EC sensorsAuNPs-RBH1.2 × 101410 times (1.0 × 108)[33]
Cu2+Quantum dotsN-CQDs1.0 × 1014Non-renewable[34]
CaptAvidinSWNT FETTA-SWNT5.0 × 1088 times (1.4 × 107)[35]
HVB DNANWs-FETssDNA5.0 × 10155 times (5.0 × 1011)[20]
Cu2+Organic FETGly-Gly-His1.0 × 1012Non-renewable[36]
ProcalcitoninOrganic FETAnti-PCT8.0 × 10131 time (2.2 × 1012)[37]
UreaGraphene FETUrease-PEI1.0 × 1066 times (1.0 × 104)[38]
Cu2+Graphene FETL-Phe1.7 × 10131 time (N.A.)[39]
Cu2+Graphene FETPyCDH5.0 × 102010 times (5.0 × 1020)This work
