Comparative Study of Structural Anomaly Diagnosis Based on ANN Model Using Random Displacement and Acceleration Responses with Incomplete Measurements

by
Zhi-Gang Ruan
and
Zu-Guang Ying
*
Department of Mechanics, School of Aeronautics and Astronautics, Zhejiang University, Hangzhou 310027, China
*
Author to whom correspondence should be addressed.
Sensors 2022, 22(11), 4128; https://doi.org/10.3390/s22114128
Submission received: 4 April 2022 / Revised: 14 May 2022 / Accepted: 27 May 2022 / Published: 29 May 2022
(This article belongs to the Topic Artificial Intelligence in Smart Industrial Diagnostics and Manufacturing)
Browse Figures
Versions Notes

Abstract

:
Structural anomaly diagnosis, such as damage identification, is a continuously interesting issue. Artificial neural networks have an excellent ability to model complex structure dynamics. In this paper, an artificial neural network model is used to describe the relationship between structural responses and anomalies such as stiffness reduction due to damages. Random acceleration and displacement responses as generally measured data are used as the input to the artificial neural network, and the output of the artificial neural network is the anomaly severity. The artificial neural network model is set up by training and then validated using random vibration responses with different structural anomalies. The structural anomaly diagnosis method based on the artificial neural network model using random acceleration and displacement responses is applied to a five-story building structure under random base excitations (seismic loading). Anomalies in the structure are denoted by stiffness reduction. Structural anomaly diagnosis using random acceleration responses is compared with that using random displacement responses. The numerical results show the effects of different random vibration responses used on the accuracy of predicting stiffness reduction. The actual incomplete measurements include intensive noise, finite sampling time length, and limited measurement points. The effects of the incomplete measurements on the accuracy of predicting results are also discussed.

1. Introduction

Structural anomaly diagnosis (SAD) or structural damage identification (SDI) is very significant for reducing catastrophic failures and prolonging the service life of structures. Typical SAD or SDI methods, proposed by analyzing dynamic responses of engineering structures, include the local non-destructive testing-based method and the globe vibration-based method [1,2,3]. The vibration-based SAD/SDI method has not limitations such as certain detection regions and, thus, is increasingly studied. This method is based on the theory that variations in structural physical parameters such as stiffness cause variations in the modal parameters (i.e., modal frequencies, damping, and shapes) and vibration responses, and structural anomalies or damages result in variations in the structural physical parameters. Changes in the modal parameters, including the modal frequency [4,5,6,7,8], modal shape curvatures [9,10,11], modal strain energy [12,13,14,15], and modal flexibility [16], have been used to identify structural damages. However, an SDI method using an individual modal parameter may result in a mistake [17]. With the rapid development of computer technologies, a comprehensive SDI method based on artificial intelligence technology is developing, which has the advantage of using combined modal parameters for damage identification.
As one of the popular methods of artificial intelligence, classical artificial neural networks (ANNs) have been applied to SDI due to their excellent pattern recognition capability [18,19,20]. The basic idea of the ANN-based SDI method is to construct the relationship between structural parameter changes due to damages and modal parameters or vibration responses using the ANN model. The ANN model is set up by training and then used to identify damages as the output to input mode or response data. Many research works have reported using the combinations of modal parameters [21,22,23,24,25,26,27], mode shape differences [28,29], mode shape slope [30], and modal strain energy [31,32] as input to the ANN model to localize and assess damages. Ni et al. [33] pointed out that the input construction has significant influence on the performance and efficiency of an ANN-based SDI method. An integrated neural network framework was also proposed and used to infer system states [34]. These works have confirmed that ANN-based methods are powerful tools for SDI/SAD. However, accurate modal parameters, especially higher modal frequencies and shapes of complex structures, cannot be obtained actually. Actual complex structures cannot be modeled effectively by simplified systems and random excitations cannot be predicted; only structural responses can be obtained for use. Therefore, it has been proposed to extract damage features directly from structural vibration responses instead of modal parameters. That is both the relationship between structural anomaly (or damages) and modal parameters and the relationship between modal parameters and vibration responses are described by the ANN model. As usually measured data, structural acceleration responses have been used as input for the ANN model to identify damages [35,36,37]. Park et al. [38] presented a sequential damage identification method to identify beam damages based on ANN. Khodabandehlou et al. [39] adopted a convolution neural network to localize and assess damages of a bridge based on the ANN model using acceleration responses. Yu et al. [40] adopted a deep convolutional neural network to identify building structure damages using acceleration responses. However, structural vibration responses inevitably contain random components due to environmental and measurement noises. Structural displacement responses have generally less pollution than acceleration responses with derivatives under random excitations or noises with short correlation times. The response statistics of beam displacements have been used to identify damages based on ANN [41,42], but directly using the displacement responses of structures under random excitations to identify structural damages based on ANN needs to be studied further, along with the comparison between ANN-based SDI/SAD methods using displacement and acceleration responses.
In the present work, the SAD method based on the ANN model using random displacement responses is proposed and compared with that using random acceleration responses. The ANN-based method is applied to a five-story building structure under random base excitations for SAD by ANN output of anomaly severity. The effects of different random vibration responses used on the accuracy of predicting anomalies are shown by numerical results. The effects of the actual incomplete measurements, including intensive noise, finite sampling time length, and limited measurement points, are also discussed. Section 2 introduces an ANN model and the SAD method. In Section 3, the ANN-based SAD method is applied to a five-story building structure. Section 4 presents the results and discussions about the performance of the method using random displacement and acceleration responses and the effects of incomplete measurements, respectively. A conclusion is given in Section 5.

2. ANN Model and SAD Method

The ANN model can produce meaningful solutions to complex engineering problems even if the input data have certain noises and incompleteness. Generally, the ANN model is composed of many simple computational units in layers. The classical ANN contains input, hidden, and output layers. The number of hidden layers has a variety of options. Although ANNs with many layers can represent deep circuits, training a deep network has always been somewhat of a challenge. Empirical studies have often found that deep networks generally perform no better, and often worse, than neural networks with one or two hidden layers. An ANN with many hidden layers also has a computational efficiency problem. Thus, the reasonable number of hidden layers may be a small value based on the assigned accuracy or mean square error between the aim and network outputs. Each unit in the input layer is assigned values and each unit in the output layer produces results. Units in the hidden layer are constructed to describe complex relationships by training, and then the input is connected to the output. The number of units in each layer is determined by the described problem and requirements. The number of units in a hidden layer has a variety of options. Some general rules are: (1) the number of hidden layer units is two-thirds of the number of input layers, and if this is insufficient, the number of output layer units can be added later on; (2) the number of hidden layer units should be less than twice that of the number of units in the input layer; (3) the number of hidden layer units is between the numbers of input layers and output layers [43]. An ANN with more units in the hidden layers also has a computational efficiency problem. Thus, the reasonable number of hidden layer units may be a small value based on the assigned accuracy or mean square error between the aim and network outputs under the general rules. Units between adjacent layers are connected by activation functions with certain weights [44,45]. An ANN architecture with two hidden layers is shown in Figure 1, which is used in this study.
A back-propagation algorithm (BPA) can be applied to train networks to form a mature ANN model. The mean square error (MSE), as a BPA performance criterion, is calculated by the difference in the network and aim outputs. The Adam algorithm can be used for the BPA to minimize the MSE [46]. The MSE [47,48] is expressed as
MSE = 1 n ∑ i = 1 n ( V T i − V O i ) 2 ,
where n is the output number, VTi is the aim output, and VOi is the network output.
An ANN model is used to describe the relationship between structural responses and anomalies such as damages due to stiffness reduction. Random displacement and acceleration responses as general measured data are respectively used as the input to the ANN, and the output of the ANN is the anomaly severity. The ANN model is set up by training and then validated using random vibration responses with different structural anomalies. The ANN-based SAD method can directly use responses to assess and localize the anomalies of structures under random excitations. Structural anomaly-sensitive features can be extracted automatically from raw random acceleration and displacement responses in real time.

3. ANN-Based SAD for Building Structure

The SAD method based on the ANN model using random displacement and acceleration responses was applied to identify stiffness reduction due to damages in a building structure under random excitations. In a numerical study, a five-story building structure [36] was considered, as shown in Figure 2. The structure was modeled as a ‘shear building’ with five degrees of freedom (floor translations) and was subjected to random base acceleration excitation x ¨ g . The excitation was a zero-mean random process and its power spectral density is described by [49]
S x ¨ g ( ω ) = 1 + 4 ζ g 2 ( ω / ω g ) 2 [ 1 − ( ω / ω g ) 2 ] 2 + 4 ζ g 2 ( ω / ω g ) 2 S 0 ,
where ω is dimensionless frequency, the dimensionless excitation intensity S0 = 1, the frequency constant ωg = 5π rad/s, and the damping constant ζg = 0.6. The Kanai–Tajimi spectrum (2) is commonly used to represent random earthquake excitations, where constants are determined by ground characteristics. The structural mass, stiffness, and damping coefficients of the i-th story (i = 1,2, …, 5) are mi = 500 kg, ki = 120 kN/m, and ci = 1.0 kN·s/m, respectively. The structural vibration equation can be expressed in the matrix form
M X ¨ + C X ˙ + K X = − M E ⋅ x ¨ g ,
where displacement vector X, mass matrix M, damping matrix C, and stiffness matrix K are
X = { x 1 x 2 x 3 x 4 x 5 } ,   M = [ m 1 0 0 0 0 0 m 2 0 0 0 0 0 m 3 0 0 0 0 0 m 4 0 0 0 0 0 m 5 ] ,   C = [ c 1 − c 1 0 0 0 − c 1 c 1 + c 2 − c 2 0 0 0 − c 2 c 2 + c 3 − c 3 0 0 0 − c 3 c 3 + c 4 − c 4 0 0 0 − c 4 c 4 + c 5 ] , K = [ k 1 − k 1 0 0 0 − k 1 k 1 + k 2 − k 2 0 0 0 − k 2 k 2 + k 3 − k 3 0 0 0 − k 3 k 3 + k 4 − k 4 0 0 0 − k 4 k 4 + k 5 ] .
Unit vector E = [1, 1, 1, 1, 1]T, and xi is the i-th floor displacement relative to the base.
The displacement and acceleration responses of the structure with various stiffness reductions due to damages are obtained by Equation (3), where the random excitation samples are generated based on the power spectral density (2). The structural responses are used as the input and the corresponding relative reductions in stiffness are used as the output to train the ANN model. The relative reduction in structural stiffness is defined as
γ i = 1 − k i , d k i , u ,
where ki,u is the structural stiffness of the i-th story for the normal case and ki,d is the structural stiffness of the i-th story for the anomaly case (i = 1,2, …, 5).
Table 1 lists 26 cases with and without anomalies. The structural responses in these cases were used to train and then test the ANN model for structural anomaly identification, where the anomaly is represented by the relative stiffness reduction. Case 1 is the structural normal scenario. Cases 2–14 are the single structural stiffness reductions at different stories. Cases 15–26 are the multiple structural stiffness reductions at different stories. For each condition scenario, 124 samples of random excitation produced by Equation (2) were used to obtain structural responses. A total of 3224 groups of samples were collected and divided into 124 subgroups. Then, 99 subgroups were used to train the ANN model, and 25 subgroups were used to test the model. The statistics of the output results were used to evaluate the ANN-based method. In addition, Gaussian white noises were added to the structural responses to simulate a noisy measurement. Figure 3a,b shows examples of random acceleration and a displacement responses of the structure in anomaly Case 26 (in Table 1) with a 20 dB signal-to-noise ratio (SNR), respectively. The time interval of the samples is 0.1 s and the total time is 50 s. The ANN output was the relative stiffness reduction of every story γi (i = 1,2, …, 5).
The ANN model was conducted using PyTorch (in Python). Several important parameters, including the number of hidden layer units and the learning rate, were determined in advance. In this study, the number of hidden layer units was chosen as 50, and the learning rate was set as 5 × 10−5 according to the MSE of the training results. The ANN model was trained based on the suitable parameters using the group data, and then the ANN model was used to predict structural anomalies and its performance was evaluated by predicting results.

4. Results of the Incomplete Measurements of Displacement and Acceleration Responses

The results of the performance of the ANN-based SAD method using random displacement and acceleration responses and the effects of incomplete measurements, such as intensive noise, finite sampling time length, and limited measurement points, are shown in Figure 4, Figure 5, Figure 6, Figure 7, Figure 8, Figure 9, Figure 10, Figure 11, Figure 12 and Figure 13.

4.1. Comparison of Results Using Random Acceleration and Displacement Responses

The effects of different random vibration responses (displacement and acceleration) used as the ANN input on SAD results were investigated by comparison. Figure 4 shows the prediction results of the relative reduction in structural stiffness (mean values) for various condition scenarios (Table 1) by the ANN-based SAD method using displacement and acceleration responses. The standard deviations of the relative stiffness reductions for Cases 8 and 25 are shown at the end for observation. It can be seen that the ANN-based method effectively predicted the location and severity of structural anomalies due to stiffness reduction for all cases using acceleration and displacement responses (with a 20 dB SNR) as the input. However, by comparison, the ANN-based method using displacement responses as the input roughly produced more accurate results than using acceleration responses in most cases, including Cases 1, 3, 8, 10–17, 19–22, 24, and 26. The prediction results using displacement responses had more accurate mean values and smaller standard derivations. For example, the mean value and standard derivation of the relative stiffness reduction at the first story for Case 25 were 0.0488 and 0.00418, respectively, and the confidence interval of 95% was [0.0471, 0.0504] using displacement responses, but the corresponding values using acceleration responses were 0.0634, 0.0178, and [0.0564, 0.0704], respectively. For the relative stiffness reduction at the third story of Case 8, the confidence interval of 95% was [0.199, 0.206] using displacement responses and [0.193, 0.198] using acceleration responses.

4.2. Effect of Noise Intensity

The acceleration and displacement responses with different SNRs (representing different noise intensities) were considered as incomplete measurements, and the effect of noise intensity on the accuracy of the ANN-based SAD method was investigated. Figure 5 shows a comparison of the prediction results (mean values of relative stiffness reduction) (Cases 11 and 19) using acceleration responses as the ANN input for different SNRs. It can be observed that the accuracy of the prediction results increased with the SNR from 10 dB to 30 dB. For example, the MSEs of the prediction values are 2.92 × 10−3, 5.93 × 10−5, and 4.94 × 10−6 for SNR = 10, 20, and 30 dB, respectively, for Case 19. Figure 6 shows a comparison of the prediction results (Cases 11 and 19) using displacement responses as the ANN input for different SNRs. It can also be observed that the accuracy of the prediction results increased with the SNR from 10 dB to 30 dB. For example, the MSEs of the prediction values are 4.03 × 10−5, 6.09 × 10−6, and 1.57 × 10−6 for SNR = 10, 20, and 30 dB, respectively, for Case 11. Figure 7 shows the MSEs dependent on the SNR for different response inputs in Cases 11 and 19. The MSE initially decreased and then remained stable as the SNR increased. The accuracy of the prediction results using displacement responses as the ANN input was better than that using acceleration responses for smaller SNRs (e.g., less than 20 dB). Thus, the ANN-based SAD method using displacement responses as the ANN input had better robustness [50].

4.3. Effect of Sampling Time Length

The random vibration responses with diffident finite sampling time lengths were considered and the effect of the sampling time length on the accuracy of the ANN-based SAD method was investigated. Figure 8 shows a comparison of the prediction results (mean values of relative stiffness reduction) (Cases 11 and 19) using acceleration responses with different sampling time lengths as the ANN input (with a 20 dB SNR). It can be observed that the accuracy of the prediction results roughly increased with the sampling time length from 10 s to 50 s. For example, the MSEs of the prediction values are 9.83 × 10−4, 5.44 × 10−4, and 5.93 × 10−5 for the time lengths of 10 s, 30 s, and 50 s, respectively, in Case 19. Figure 9 shows a comparison of the prediction results (mean values of relative stiffness reduction) (Cases 11 and 19) using displacement responses with different sampling time lengths as the ANN input (with a 20 dB SNR). It can be observed that the accuracy of the prediction results also increased with the sampling time length. For example, the MSEs of prediction values are 3.64 × 10−4, 6.95 × 10−5, and 6.09 × 10−6 for the time lengths of 10 s, 30 s, and 50 s, respectively, in Case 11. However, the accuracy of the prediction results using displacement responses as the ANN input was better than that using acceleration responses for times longer than 15 s, as shown in Figure 10.

4.4. Effect of Limited Measurement Points

The effect of the random vibration responses measured from the limited measurement points on the accuracy of the ANN-based SAD method was investigated. Three cases of limited measurement points were considered as follows: (1) the random vibration responses were measured from one measurement point (first floor) (DOF = 1); (2) the random vibration responses were measured from three measurement points (first, third, and fifth floors) (DOF = 3); and (3) the random vibration responses were measured from five measurement points (all floors) (DOF = 5). Figure 11 shows a comparison of the prediction results (mean values of relative stiffness reduction) (Cases 8 and 25) using the acceleration responses measured from different measurement points as the ANN input (with a 20 dB SNR). It can be observed that the accuracy of the prediction results roughly increased with the number of the limited measurement points from 1 DOF to 5 DOF. For example, the MSEs of the prediction values are 2.55 × 10−4, 4.98 × 10−4, and 4.18 × 10−5 for 1, 3, and 5 measurement points, respectively, in Case 8. Figure 12 shows a comparison of the prediction results (mean values of relative stiffness reduction) (Cases 8 and 25) using displacement responses measured from different measurement points as the ANN input (with a 20 dB SNR). It can be observed that the accuracy of the prediction results also increased with the number of limited measurement points from 1 DOF to 5 DOF. For example, the MSEs of the prediction values are 1.01 × 10−4, 2.56 × 10−5, and 2.32 × 10−5 for 1, 3, and 5 measurement points, respectively, in Case 25. The accuracy of the prediction results using displacement responses as the ANN input is better than those using acceleration responses for different numbers of measurement points, as shown in Figure 13.

5. Conclusions

An SAD method based on the ANN model using random displacement responses was proposed and compared with that using random acceleration responses. The ANN-based method was applied to a five-story building structure under random base excitations for SAD. Structural displacement and acceleration responses were used as the input to the ANN model and the output was the anomaly severity represented by the relative stiffness reduction. The effects of different random vibration responses used on the accuracy of the prediction of stiffness reduction are shown by numerical results and compared. The effects of the actual incomplete measurements, including intensive noise, finite sampling time length, and limited measurement points, on the accuracy of the prediction results using the ANN-based SAD method were investigated. Several meaningful results for the ANN-based SAD method were obtained as follows:
(1)
Using raw acceleration or displacement responses as the input to the ANN model was more effective for SAD, and the ANN-based method using random displacement responses as the ANN input was better than that using random acceleration responses;
(2)
The accuracy of the prediction results on structural anomalies increased with the response SNR, e.g., from 10 dB to 30 dB, and the results using random displacement responses as the ANN input were more accurate than those using random acceleration responses for smaller SNR (e.g., less than 20 dB); thus, the ANN-based SAD method using displacement responses as the ANN input had better robustness;
(3)
The accuracy of the prediction results on structural anomalies increased with the sampling time length of random vibration responses (for certain short time lengths), and the results using random displacement responses as the ANN input were more accurate than those using random acceleration responses (e.g., for sampling times longer than 15 s);
(4)
The accuracy of the prediction results on structural anomalies roughly increased with the number of limited measurement points of random vibration responses, and the results using random displacement responses as the ANN input were more accurate than those using random acceleration responses for different numbers of measurement points.
The above results are valuable for utilizing ANN with random vibration responses as the input and anomaly severity as the output to identify structural anomalies. The future work will be to incorporate the deep learning technique for improving the method performance, including robustness and resilience [51], and then to find suitable applications.

Author Contributions

Conceptualization, Z.-G.Y. and Z.-G.R.; methodology, Z.-G.R. and Z.-G.Y.; software, Z.-G.R.; validation, Z.-G.R.; writing—original draft preparation, Z.-G.R.; writing—review and editing, Z.-G.R. and Z.-G.Y.; project administration, Z.-G.Y.; funding acquisition, Z.-G.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China, grant number 12072312.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Doebling, S.W.; Farrar, C.R.; Prime, M.B. A summary review of vibration-based damage identification methods. Shock Vib. Dig. 1998, 30, 91–105. [Google Scholar] [CrossRef] [Green Version]
  2. Worden, K.; Farrar, C.R.; Manson, G.; Park, G. The fundamental axioms of structural health monitoring. P. Roy. Soc. A-Math. Phy. 2007, 463, 1639–1664. [Google Scholar] [CrossRef]
  3. Farrar, C.R.; Doebling, S.W. Vibration-based structural damage identification. Philos. Trans. R. Soc. Lond. 2001, 359, 131–149. [Google Scholar] [CrossRef]
  4. Cawley, P.; Adama, R.D. The location of defects in structures from measurements of natural frequencies. J. Strain Anal. Eng. 1979, 14, 49–57. [Google Scholar] [CrossRef]
  5. Lee, Y.S.; Chung, M.J. A study on crack detection using eigenfrequency test data. Comput. Struct. 2001, 77, 327–342. [Google Scholar] [CrossRef]
  6. Khiem, N.T.; Lien, T.V. Multi-crack detection for beam by the natural frequencies. J. Sound Vib. 2004, 271, 175–184. [Google Scholar] [CrossRef]
  7. Su, W.C.; Huang, C.S.; Hung, S.L.; Chen, L.J.; Lin, W.J. Locating damaged storys in a shear building based on its sub-structural natural frequencies. Eng. Struct. 2012, 39, 126–138. [Google Scholar] [CrossRef]
  8. Khiem, N.T.; Toan, L.K. A novel method for crack detection in beam like structures by measurements of natural frequencies. J. Sound Vib. 2014, 333, 4084–4103. [Google Scholar] [CrossRef]
  9. Pandey, A.K.; Biswas, M.; Samman, M.M. Damage detection from changes in curvature mode shapes. J. Sound Vib. 1991, 145, 321–332. [Google Scholar] [CrossRef]
  10. Zhu, H.; Li, L.; He, X.Q. Damage detection method for shear buildings using the change in first mode shape slopes. Comput. Struct. 2011, 89, 733–743. [Google Scholar] [CrossRef]
  11. Nguyen, K.V. Mode shapes analysis of a cracked beam and its application for crack detection. J. Sound Vib. 2014, 333, 848–872. [Google Scholar] [CrossRef]
  12. Cornwell, P.; Doebling, S.W.; Farrar, C.R. Application of the strain energy damage detection method to plate-like structures. J. Sound Vib. 1999, 224, 359–374. [Google Scholar] [CrossRef]
  13. Alvandi, A.; Cremona, C. Assessment of vibration-based damage identification techniques. J. Sound Vib. 2006, 292, 179–202. [Google Scholar] [CrossRef]
  14. Ooijevaar, T.H.; Loendersloot, R.; Warnet, L.L.; Boer, A.D.; Akkerman, R. Vibration based structural health monitoring of a composite T-beam. Compos. Struct. 2010, 92, 2007–2015. [Google Scholar] [CrossRef]
  15. Wu, S.; Zhou, J.; Rui, S.; Fei, Q. Reformulation of elemental modal strain energy method based on strain modes for structural damage detection. Adv. Struct. Eng. 2016, 20, 896–905. [Google Scholar] [CrossRef]
  16. Koo, K.Y.; Sung, S.H.; Jung, H.J. Damage quantification of shear buildings using deflections obtained by modal flexibility. Smart Mater. Struct. 2011, 20, 045010. [Google Scholar] [CrossRef]
  17. Chen, Y.; Hou, X.B. Applications of different criteria in structural damage identification based on natural frequency and static displacement. Sci. China Technol. Sci. 2016, 59, 1746–1758. [Google Scholar]
  18. Saeed, R.A.; Galybin, A.N.; Popov, V. Crack identification in curvilinear beams by using ANN and ANFIS based on natural frequencies and frequency response functions. Neural Comput. Appl. 2011, 21, 1629–1645. [Google Scholar] [CrossRef]
  19. Geng, X.; Lu, S. Research on FBG-based CFRP structural damage identification using BP neural network. Photonic Sens. 2018, 8, 1–8. [Google Scholar] [CrossRef] [Green Version]
  20. Hadi, S.; Saptarshi, D. Structural damage identification using image-based pattern recognition on event-based binary data generated from self-powered sensor networks. Struct. Control Health Monit. 2018, 25, e2135.1–e2135.21. [Google Scholar]
  21. Yun, C.B.; Yi, J.H.; Bahng, E.Y. Joint damage assessment of framed structures using a neural networks technique. Eng. Struct. 2001, 23, 425–435. [Google Scholar] [CrossRef]
  22. Sahin, M.; Shenoi, R.A. Quantification and localisation of damage in beam-like structures by using artificial neural networks with experimental validation. Eng. Struct. 2003, 25, 1785–1802. [Google Scholar] [CrossRef]
  23. Bagchi, A.; Humar, J.; Xu, H.; Noman, A.S. Model-based damage identification in a continuous bridge using vibration data. J. Perform. Constr. Fac. 2010, 24, 148–158. [Google Scholar] [CrossRef]
  24. Nadith, P.; Li, J.; Ling, L.; Hao, H.; Liu, W.; Ni, P. Structural damage identification based on autoencoder neural networks and deep learning. Eng. Struct. 2018, 172, 13–28. [Google Scholar]
  25. Pagani, A.; Enea, M.; Carrera, E. Component-wise damage detection by neural networks and refined FEs training. J. Sound Vib. 2021, 509, 116255. [Google Scholar] [CrossRef]
  26. Daskalakis, E.; Panagiotopoulos, C.G.; Tsogka, C. Stretching method-based damage detection using neural networks. Sensors 2022, 22, 830. [Google Scholar] [CrossRef]
  27. Gillich, N.; Tufisi, C.; Sacarea, C.; Rusu, C.V.; Gillich, G.-R.; Praisach, Z.-I.; Ardeljan, M. Beam damage assessment using natural frequency shift and machine learning. Sensors 2022, 22, 1118. [Google Scholar] [CrossRef]
  28. Lee, J.J.; Lee, J.W.; Yi, J.H.; Yun, C.B.; Jung, H.Y. Neural networks-based damage detection for bridges considering errors in baseline finite element models. J. Sound Vib. 2005, 280, 555–578. [Google Scholar] [CrossRef]
  29. Lee, J.J.; Yun, C.B. Damage diagnosis of steel girder bridges using ambient vibration data. Eng. Struct. 2006, 28, 912–925. [Google Scholar] [CrossRef]
  30. Bakhary, N.; Hong, H.; Deeks, A.J. Structure damage detection using neural network with multi-stage substructuring. Adv. Struct. Eng. 2010, 13, 95–110. [Google Scholar] [CrossRef]
  31. Nick, H.; Aziminejad, A.; Hosseini, M.H.; Laknejadi, K. Damage identification in steel girder bridges using modal strain energy-based damage index method and artificial neural network. Eng. Fail. Anal. 2021, 119, 105010. [Google Scholar] [CrossRef]
  32. Tan, Z.X.; Thambiratnam, D.P.; Chan, T.H.T.; Razak, H.A. Detecting damage in steel beams using modal strain energy based damage index and Artificial Neural Network. Eng. Fail. Anal. 2017, 79, 253–262. [Google Scholar] [CrossRef] [Green Version]
  33. Ni, Y.Q.; Wang, B.S.; Ko, J.M. Constructing input vectors to neural networks for structural damage identification. Smart Mater. Struct. 2002, 11, 825–833. [Google Scholar] [CrossRef]
  34. Modi, S.; Lin, Y.; Cheng, L.; Yang, G.; Liu, L.; Zhang, W.J. A socially inspired framework for human state inference using expert opinion integration. IEEE/ASME Trans. Mechatron. 2011, 16, 874–878. [Google Scholar] [CrossRef]
  35. Wu, X.; Ghaboussi, J.; Garrett, J.H. Use of neural networks in detection of structural damage. Comput. Struct. 1992, 42, 649–659. [Google Scholar] [CrossRef]
  36. Qian, Y.Y.; Mita, A. Acceleration-based damage indicators for building structures using neural network emulators. Struct. Control Health Mont. 2008, 15, 901–920. [Google Scholar] [CrossRef]
  37. Puruncajas, B.; Vidal, Y.; Tutiven, C. Vibration-response-only structural health monitoring for offshore wind turbine jacket foundations via convolutional neural networks. Sensors 2020, 20, 3429. [Google Scholar] [CrossRef]
  38. Park, J.H.; Kim, J.T.; Hong, D.S.; Ho, D.D.; Yi, J.H. Sequential damage detection approaches for beams using time-modal features and artificial neural networks. J. Sound Vib. 2009, 323, 451–474. [Google Scholar] [CrossRef]
  39. Khodabandehlou, H.; Pekcan, G.; Fadali, M.S. Vibration-based structural condition assessment using convolution neural networks. Struct. Control Health Mont. 2019, 26, e2308.1–e2308.12. [Google Scholar] [CrossRef]
  40. Yu, Y.; Wang, C.; Gu, X.; Li, J. A novel deep learning-based method for damage identification of smart building structures. Struct. Control Health Mont. 2018, 18, 143–163. [Google Scholar] [CrossRef] [Green Version]
  41. Li, Z.X.; Yang, X.M. Damage identification for beams using ANN based on statistical property of structural responses. Comput. Struct. 2008, 86, 64–71. [Google Scholar] [CrossRef]
  42. Yang, X.M.; Chen, X.M. Test verification of damage identification method based on statistical properties of structural dynamic displacement. J. Civ. Struct. Health 2019, 9, 263–269. [Google Scholar] [CrossRef]
  43. Karsoliya, S. Approximating number of hidden layer neurons in multiple hidden layer BPNN architecture. Int. J. Eng. Trends Technol. 2012, 3, 714–717. [Google Scholar]
  44. Krauss, G.; Kindangen, J.I.; Depecker, P. Using artificial neural networks to predict interior velocity coefficients. Build. Environ. 1997, 32, 295–303. [Google Scholar] [CrossRef]
  45. Momeni, E.; Armaghani, D.J.; Hajihassani, M.; Amin, E.F.M. Prediction of uniaxial compressive strength of rock samples using hybrid particle swarm optimization-based artificial neural networks. Measurement 2015, 60, 50–63. [Google Scholar] [CrossRef]
  46. Kingma, D.P.; Ba, J.L. Adam: A Method for stochastic optimization. arXiv 2014, arXiv:1412.6980. [Google Scholar]
  47. Hansen, L.K.; Salamon, P. Neural network ensembles. IEEE T. Pattern Anal. 2002, 12, 993–1001. [Google Scholar] [CrossRef] [Green Version]
  48. Talatahari, S.; Mohajer, N. Enriched imperialist competitive algorithm for system identification of magnetorheological dampers. Mech. Syst. Signal Pr. 2015, 62–63, 506–516. [Google Scholar] [CrossRef]
  49. Alotta, G.; Paola, M.D.; Pirrotta, A. Fractional Tajimi–Kanai model for simulating earthquake ground motion. B. Earthq. Eng. 2014, 12, 2495–2506. [Google Scholar] [CrossRef]
  50. Zhang, W.J.; Lin, Y. On the principle of design of resilient systems -application to enterprise information systems. Enterp. Inf. Syst. 2010, 4, 99–110. [Google Scholar] [CrossRef]
  51. Zhang, W.J.; Yang, G.; Lin, Y.; Ji, C.; Gupta, M.M. On definition of deep learning. In Proceedings of the IEEE 2018 World Automation Congress, Stevenson, WA, USA, 3–6 June 2018; pp. 232–236. [Google Scholar]
Sensors 22 04128 g001 550

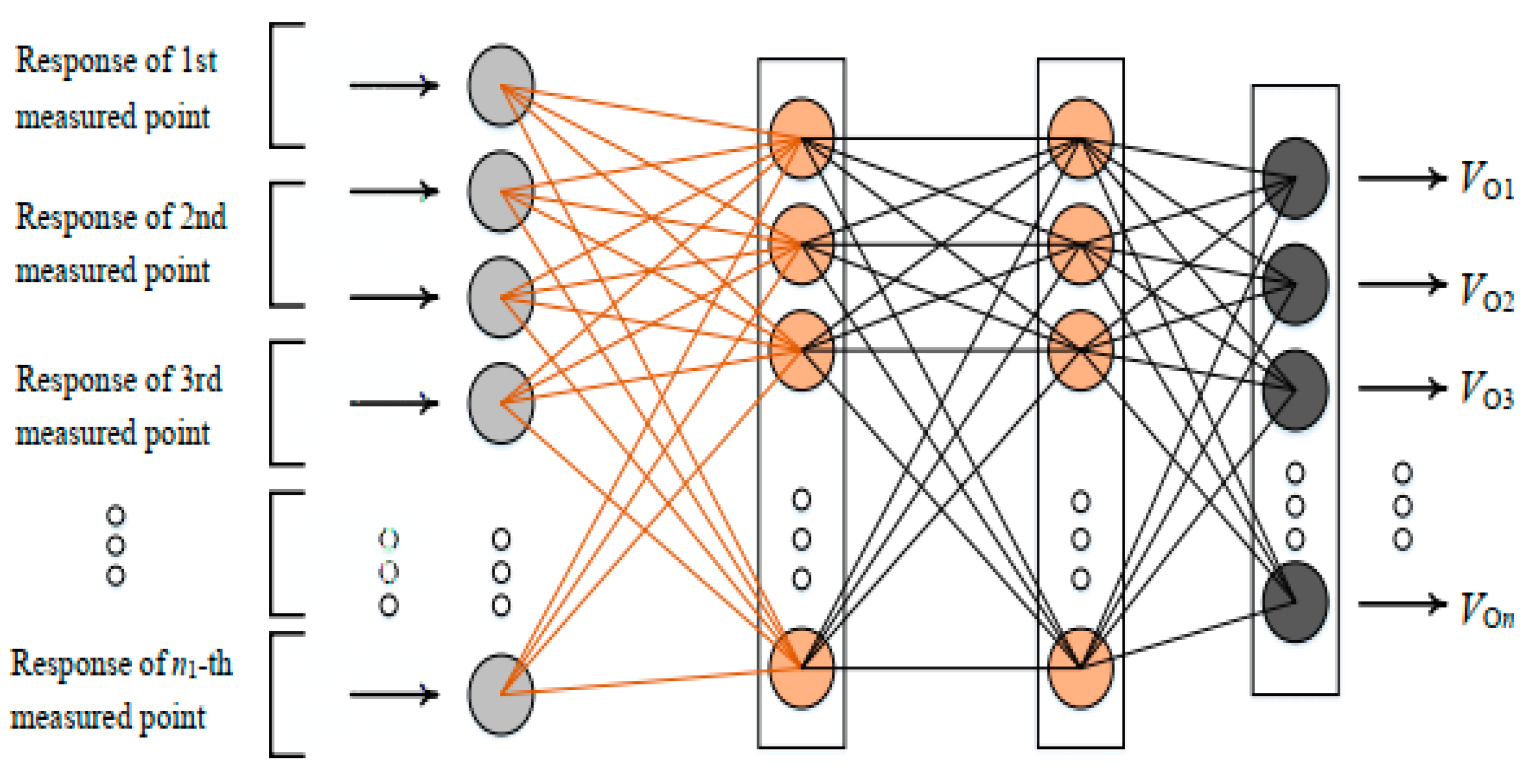

Figure 1. ANN architecture with two hidden layers.
Figure 1. ANN architecture with two hidden layers.
Sensors 22 04128 g001
Sensors 22 04128 g002 550

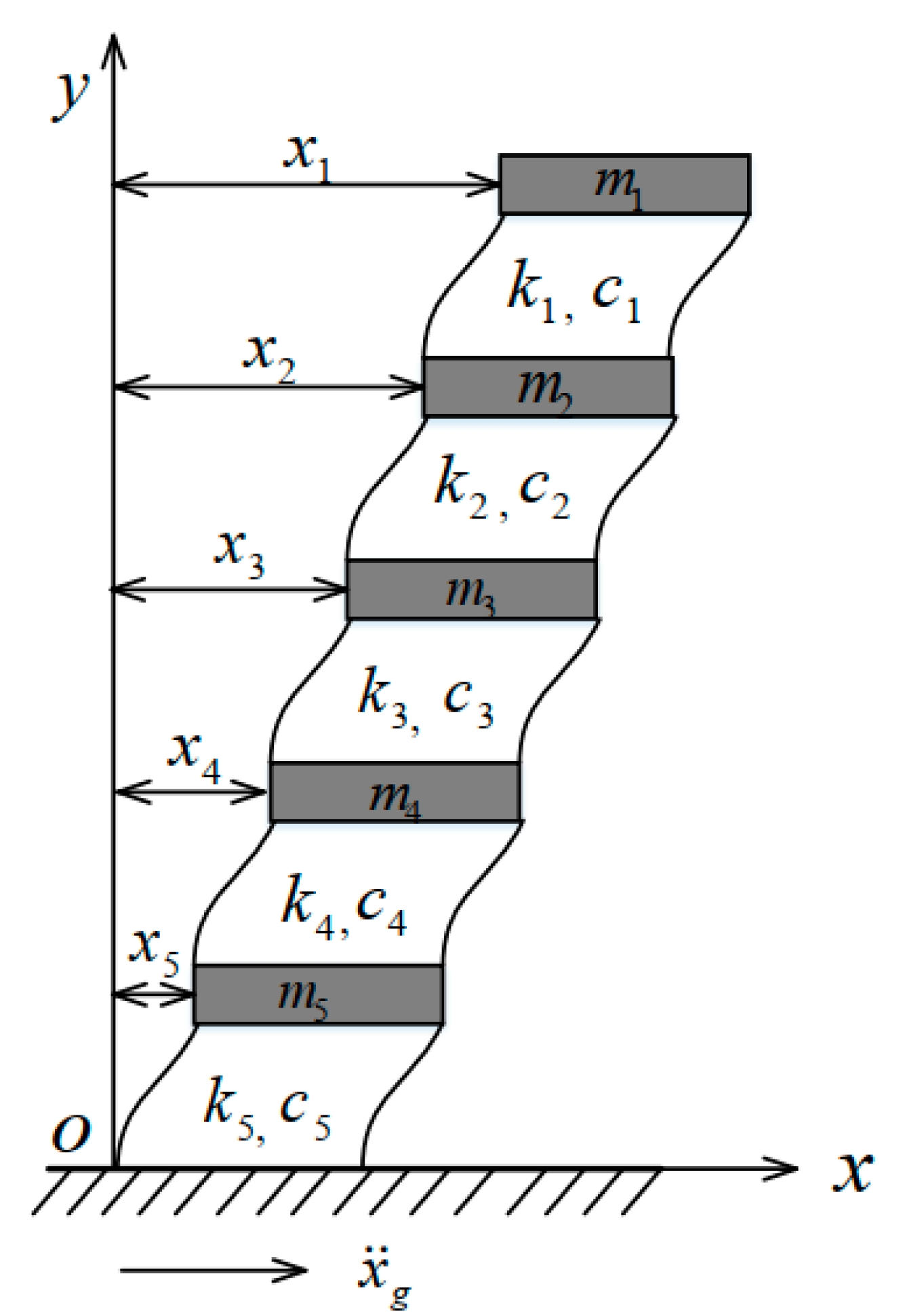

Figure 2. Five-story building model.
Figure 2. Five-story building model.
Sensors 22 04128 g002
Sensors 22 04128 g003 550

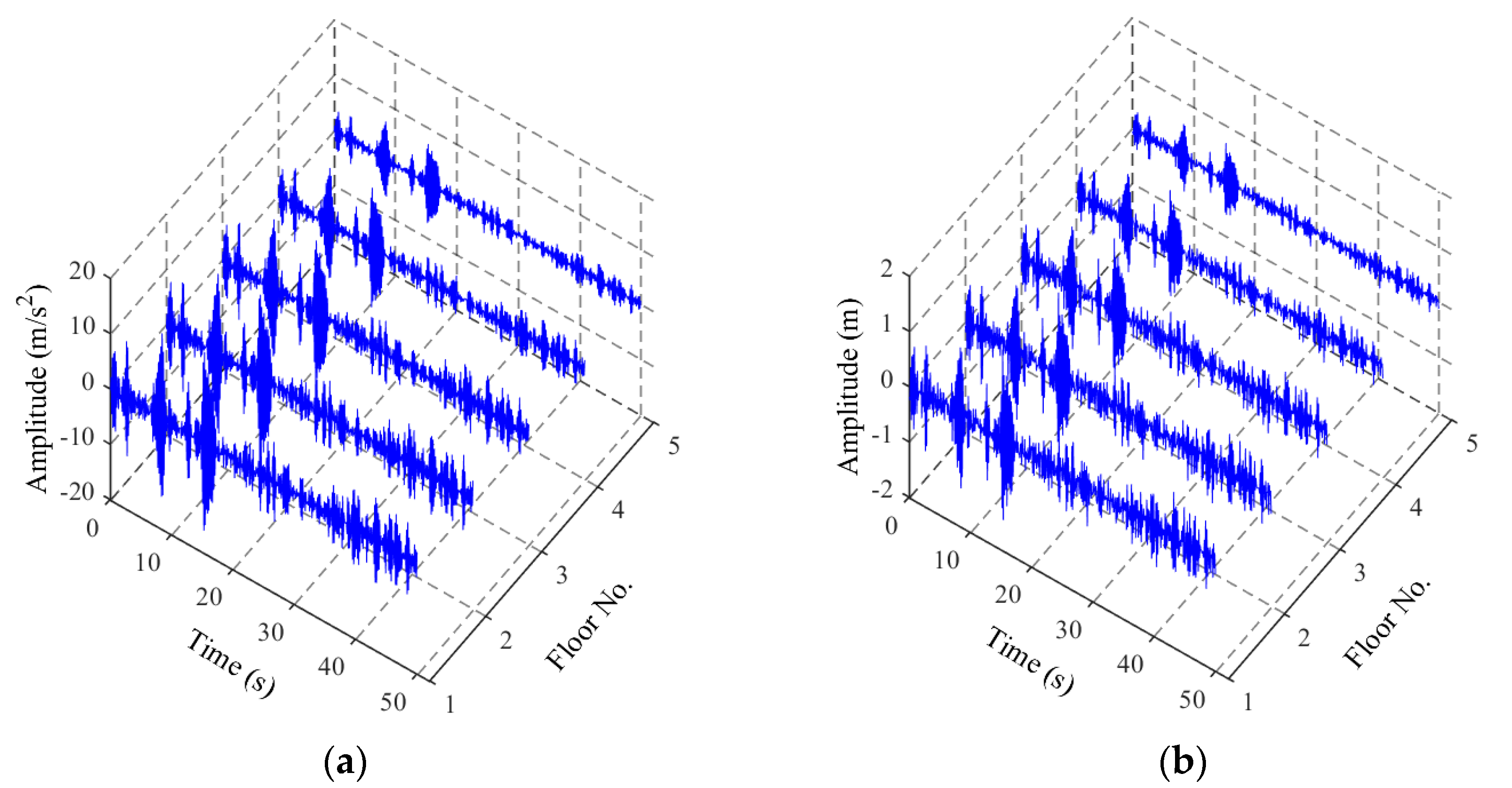

Figure 3. Raw vibration responses in time domain with 20 dB SNR: (a) acceleration responses; (b) displacement responses.
Figure 3. Raw vibration responses in time domain with 20 dB SNR: (a) acceleration responses; (b) displacement responses.
Sensors 22 04128 g003
Sensors 22 04128 g004a 550Sensors 22 04128 g004b 550Sensors 22 04128 g004c 550Sensors 22 04128 g004d 550

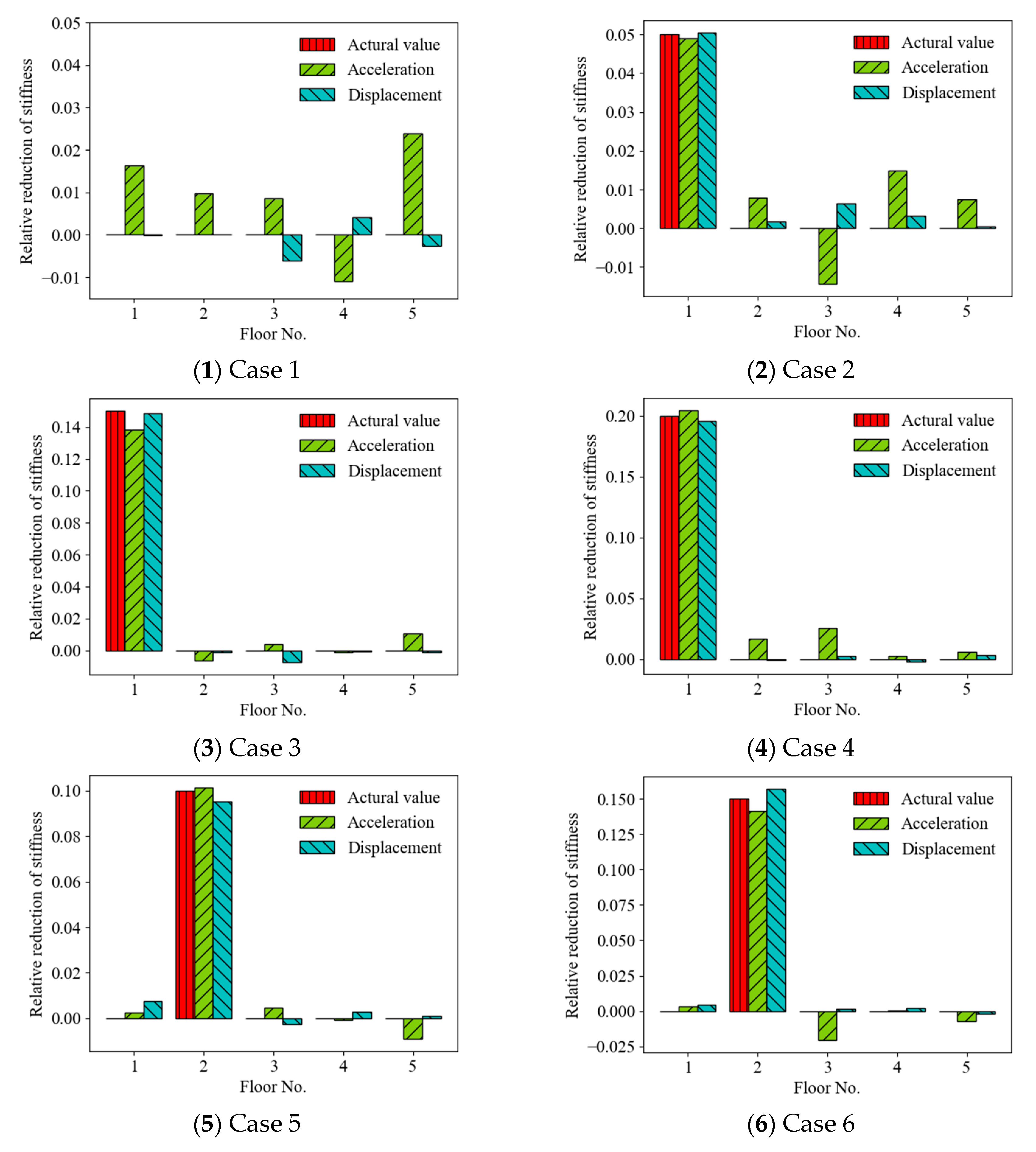

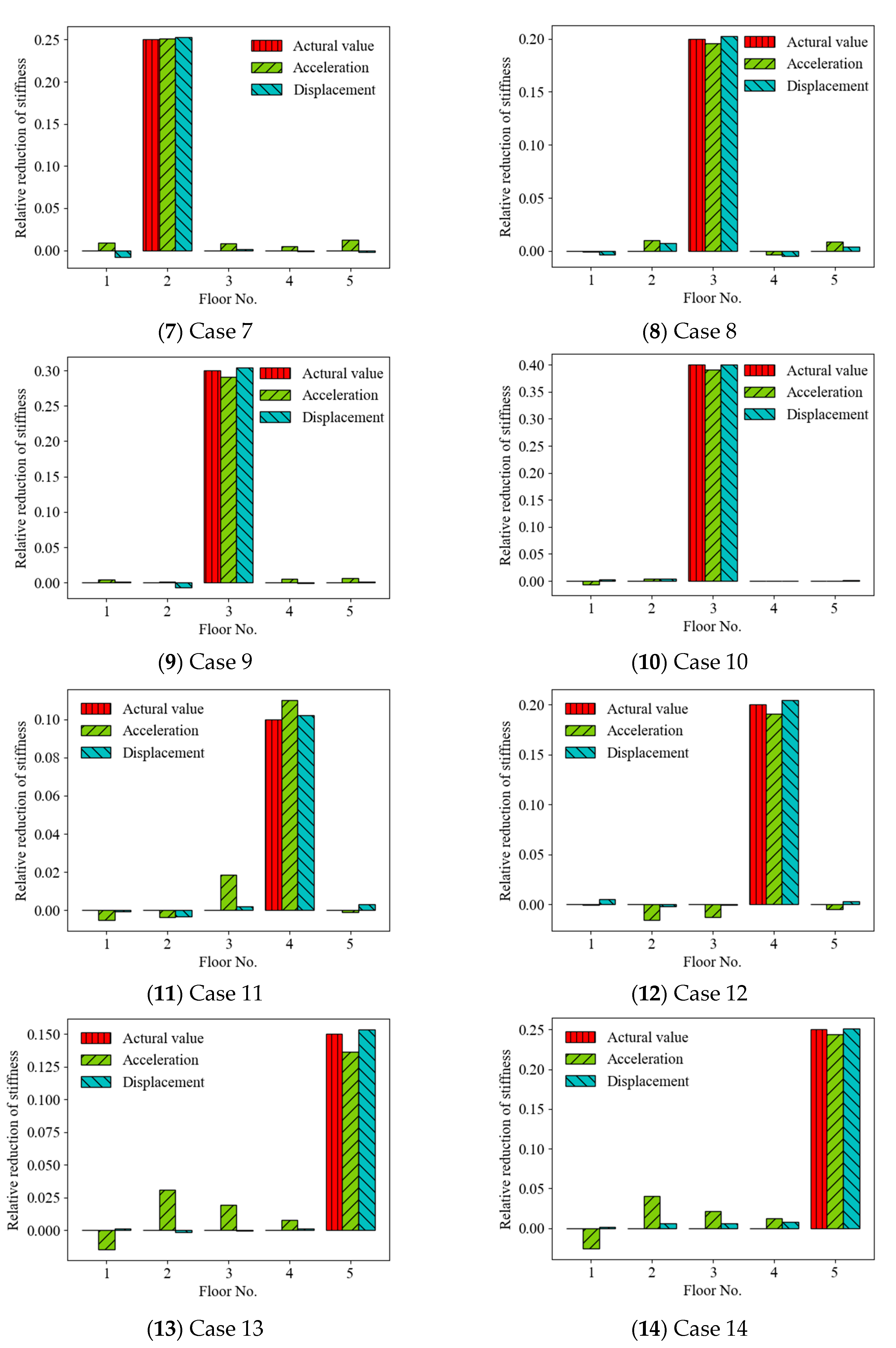

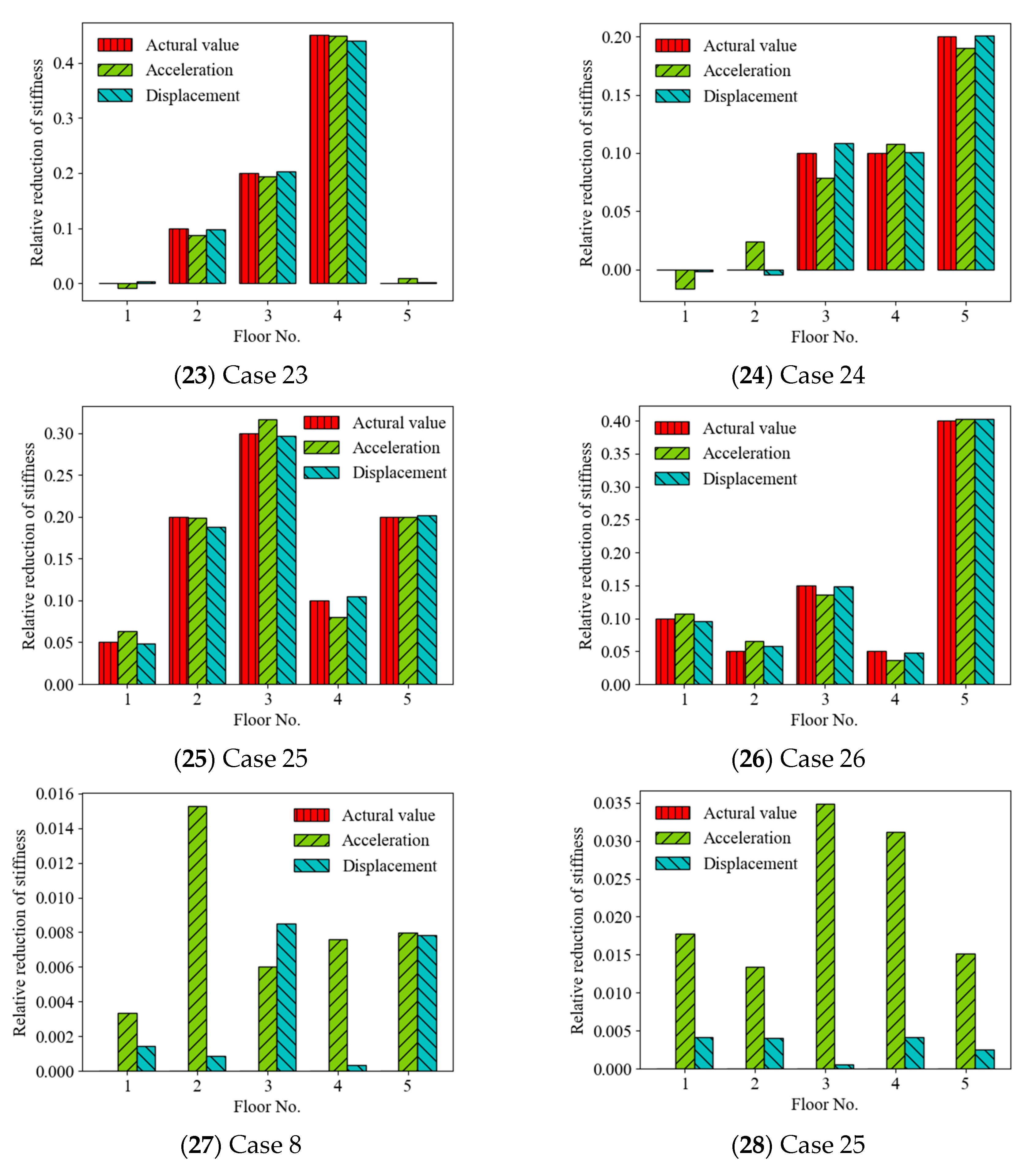

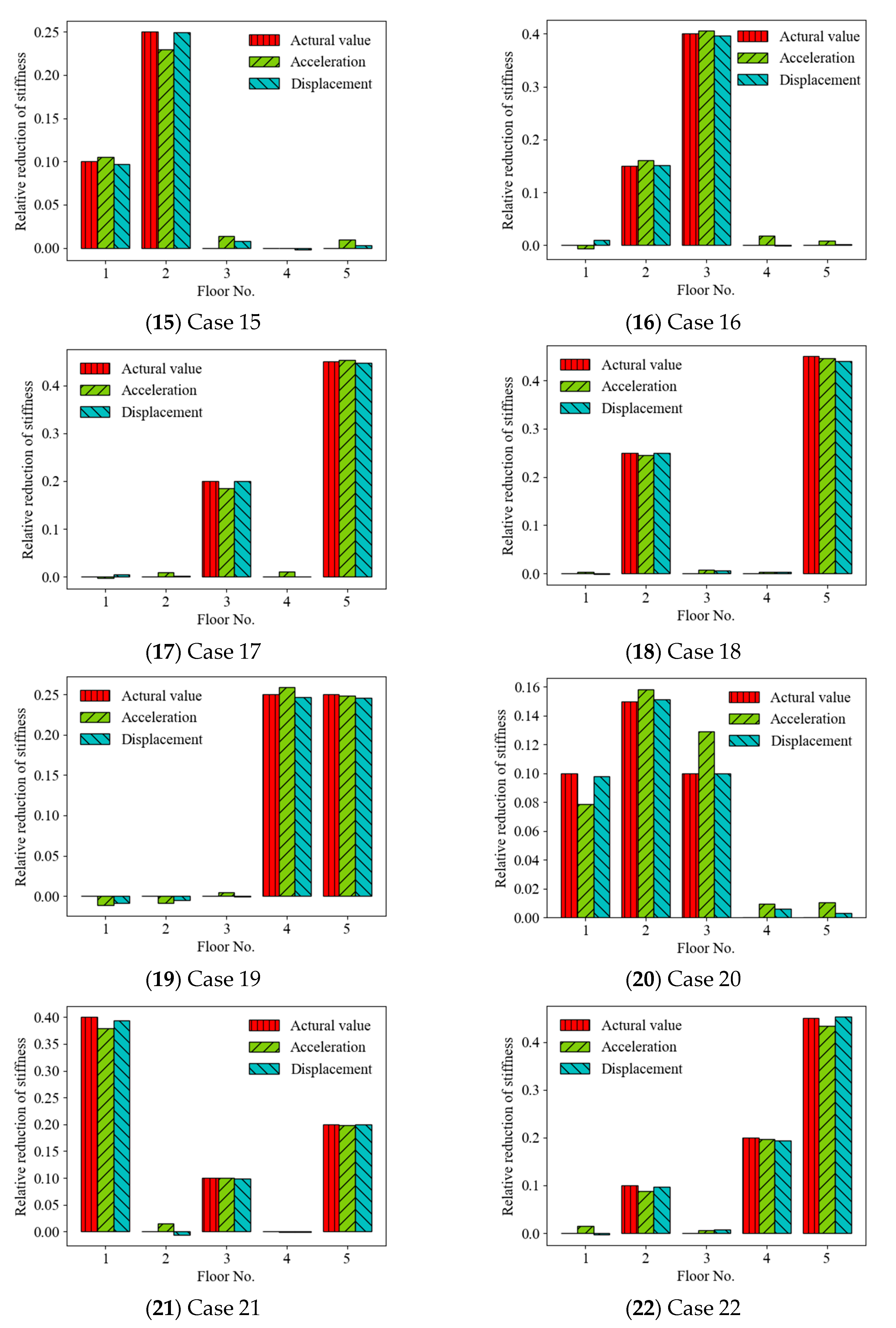

Figure 4. Prediction results of structural anomaly using displacement and acceleration responses as ANN input. ((1–26) Mean values of relative stiffness reduction; (27,28) standard deviations of relative stiffness reduction.
Figure 4. Prediction results of structural anomaly using displacement and acceleration responses as ANN input. ((1–26) Mean values of relative stiffness reduction; (27,28) standard deviations of relative stiffness reduction.
Sensors 22 04128 g004aSensors 22 04128 g004bSensors 22 04128 g004cSensors 22 04128 g004d
Sensors 22 04128 g005 550

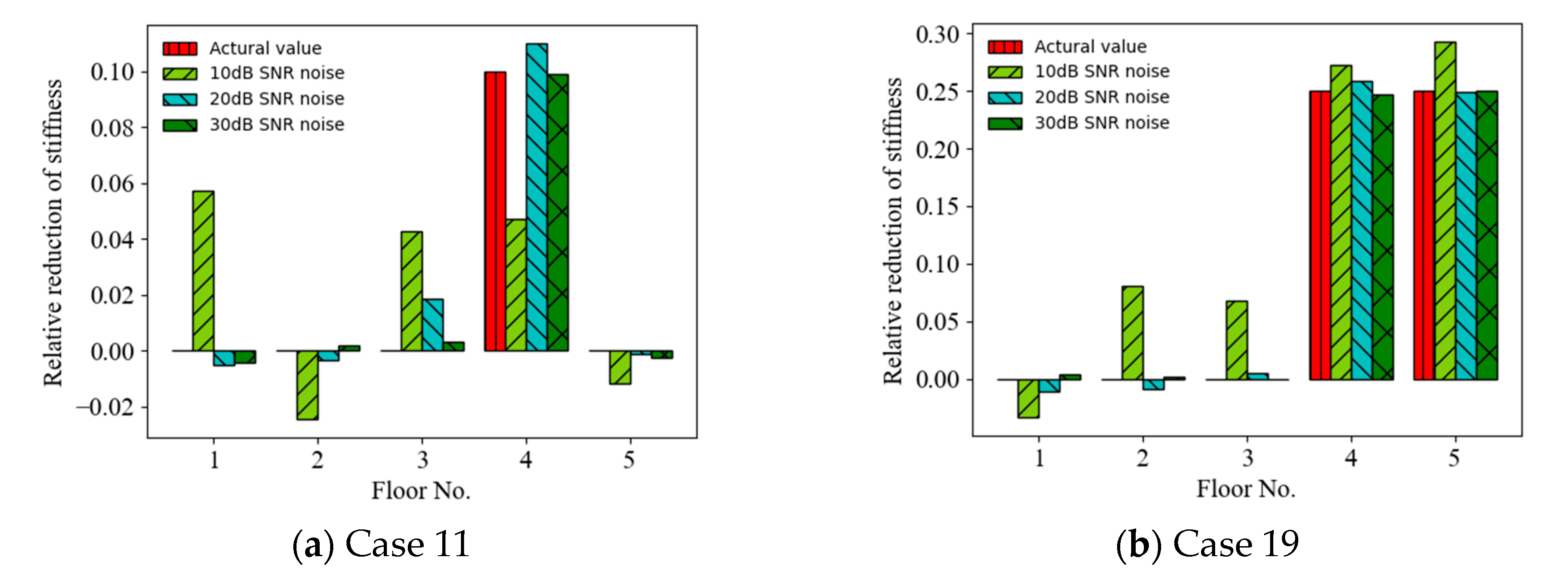

Figure 5. Mean prediction results of structural anomaly using acceleration responses as ANN input for different noise intensities.
Figure 5. Mean prediction results of structural anomaly using acceleration responses as ANN input for different noise intensities.
Sensors 22 04128 g005
Sensors 22 04128 g006 550

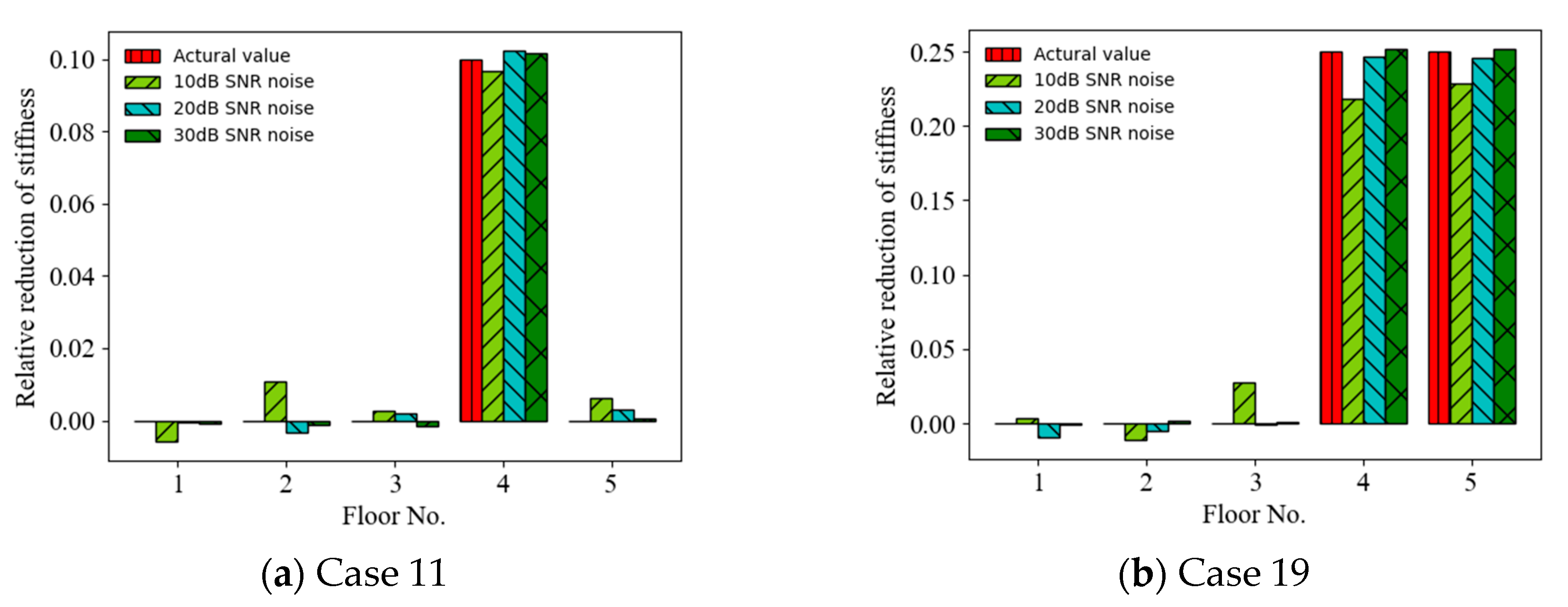

Figure 6. Mean prediction results of structural anomaly using displacement responses as ANN input for noise intensities.
Figure 6. Mean prediction results of structural anomaly using displacement responses as ANN input for noise intensities.
Sensors 22 04128 g006
Sensors 22 04128 g007 550

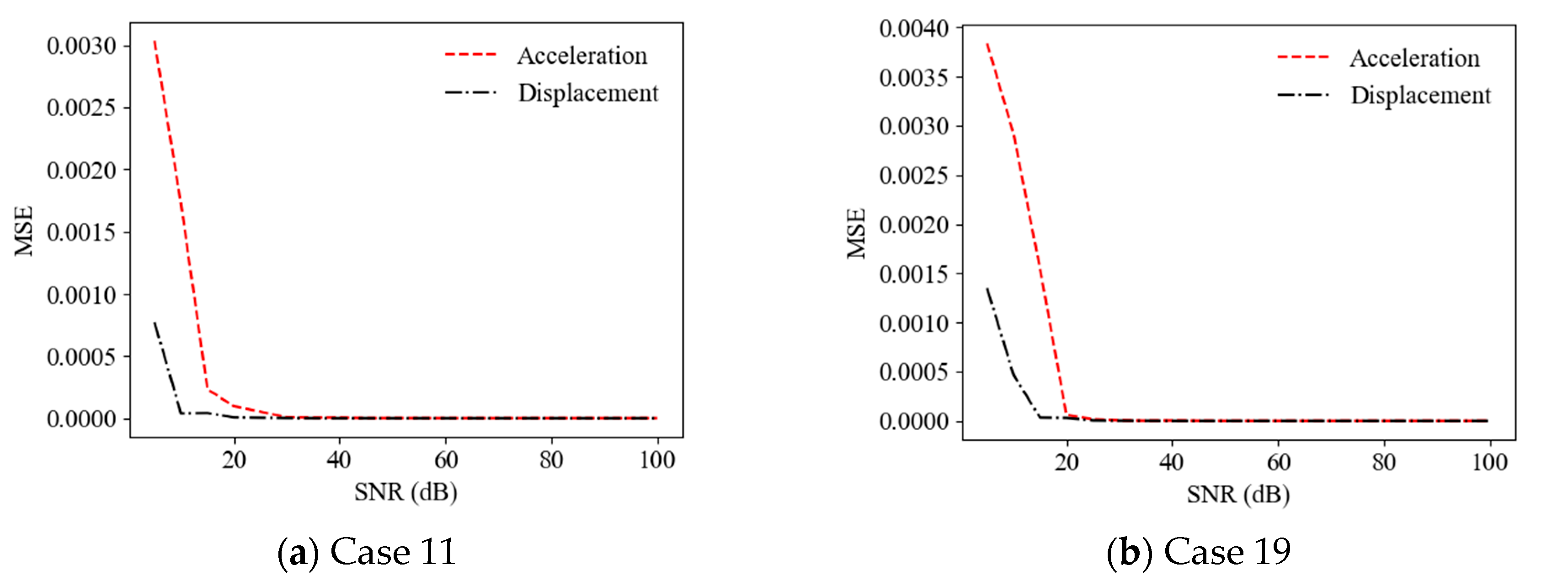

Figure 7. MSEs of prediction values versus SNRs using acceleration and displacement responses as ANN input.
Figure 7. MSEs of prediction values versus SNRs using acceleration and displacement responses as ANN input.
Sensors 22 04128 g007
Sensors 22 04128 g008 550

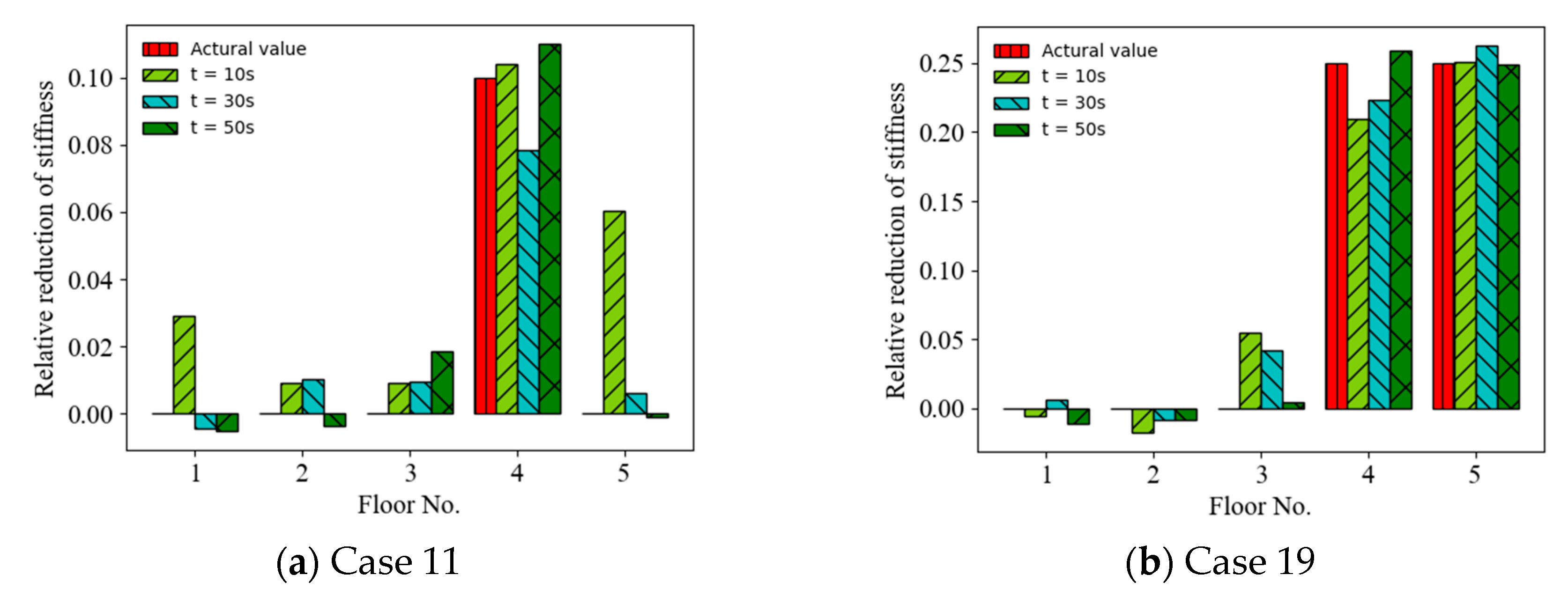

Figure 8. Mean prediction results of structural anomaly using acceleration responses with different time lengths as ANN input.
Figure 8. Mean prediction results of structural anomaly using acceleration responses with different time lengths as ANN input.
Sensors 22 04128 g008
Sensors 22 04128 g009 550

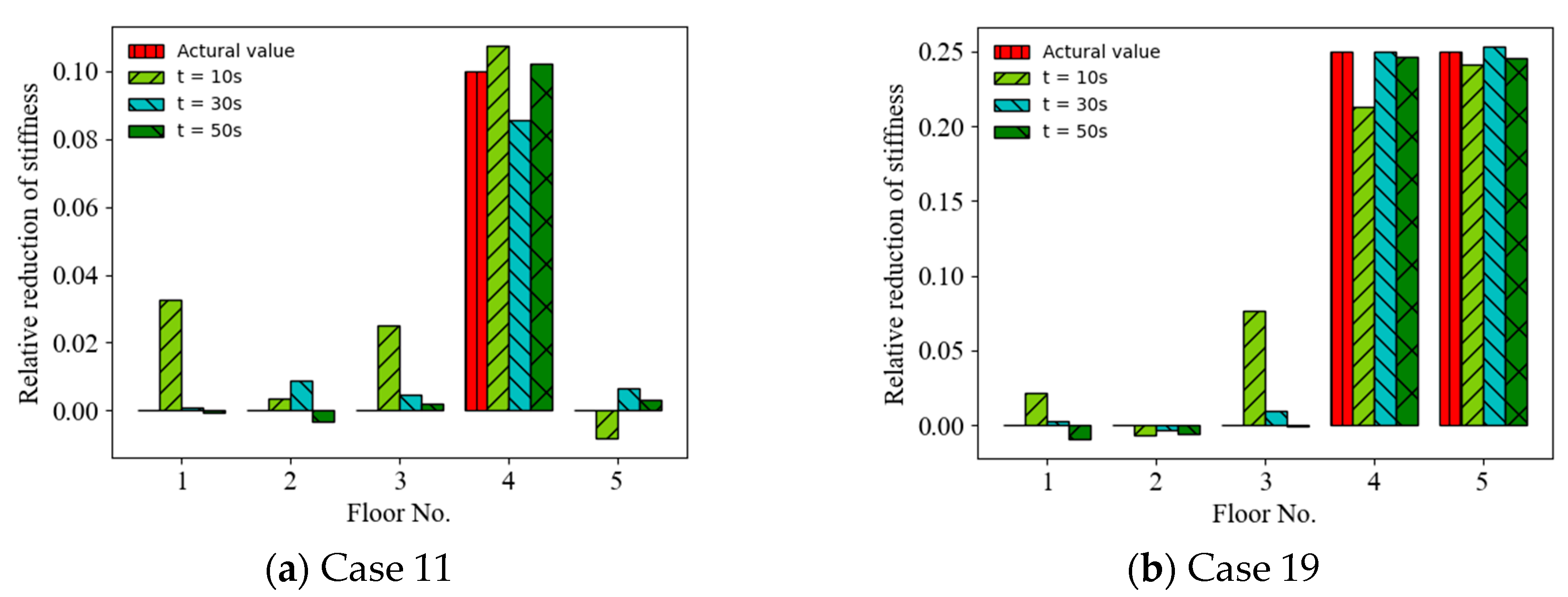

Figure 9. Mean prediction results of structural anomaly using displacement responses with different time lengths as ANN input.
Figure 9. Mean prediction results of structural anomaly using displacement responses with different time lengths as ANN input.
Sensors 22 04128 g009
Sensors 22 04128 g010 550

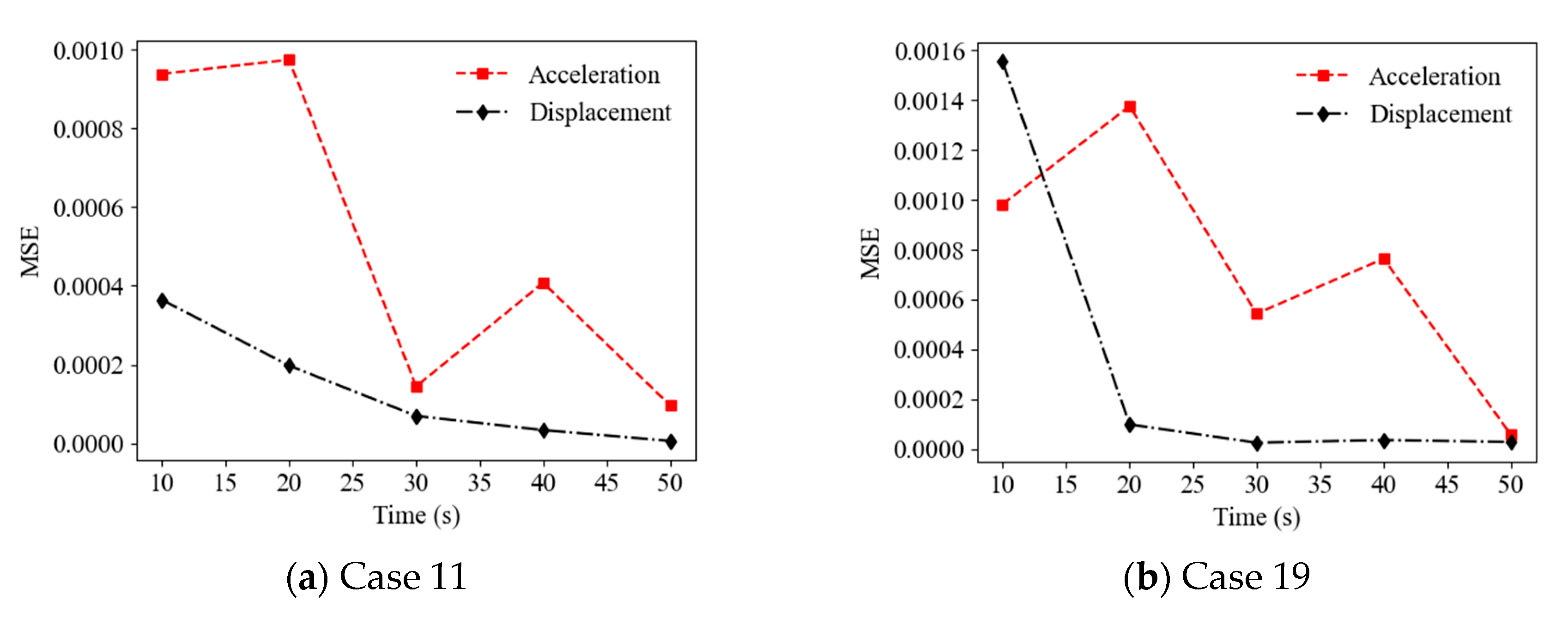

Figure 10. MSEs of prediction values versus time length using acceleration and displacement responses as ANN input.
Figure 10. MSEs of prediction values versus time length using acceleration and displacement responses as ANN input.
Sensors 22 04128 g010
Sensors 22 04128 g011 550

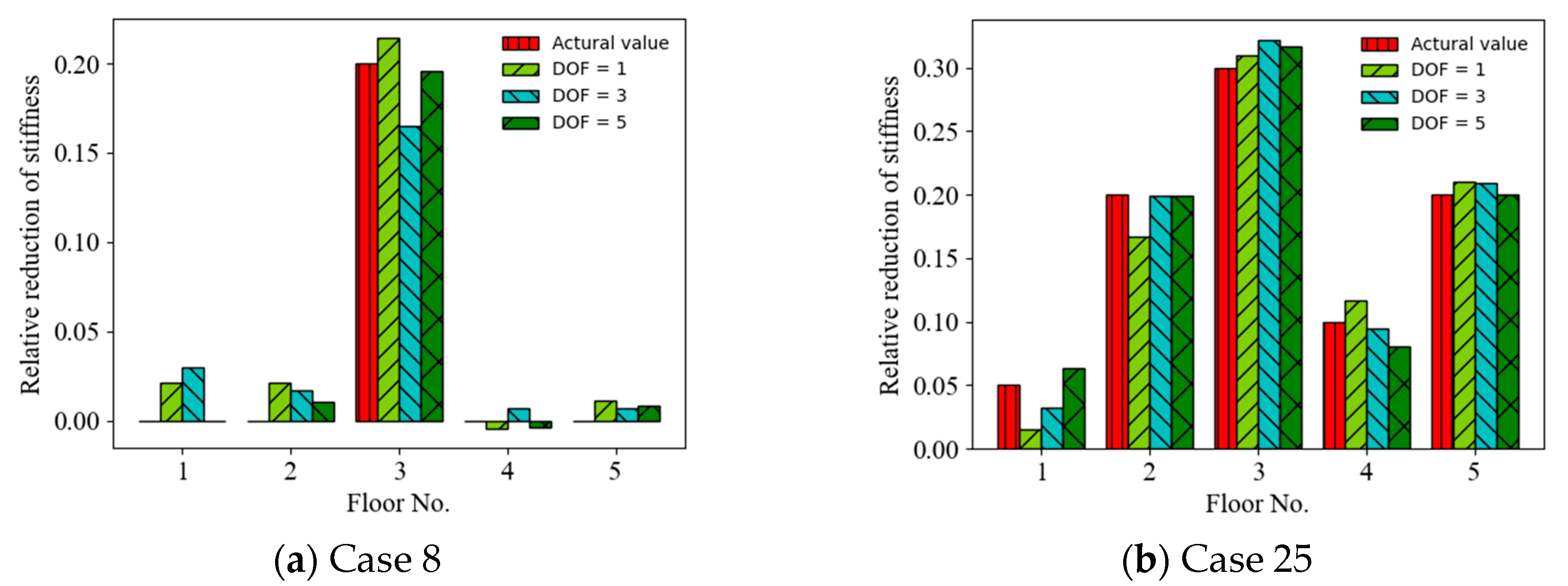

Figure 11. Prediction results of structural damage using acceleration responses from different measurement points as ANN input.
Figure 11. Prediction results of structural damage using acceleration responses from different measurement points as ANN input.
Sensors 22 04128 g011
Sensors 22 04128 g012 550

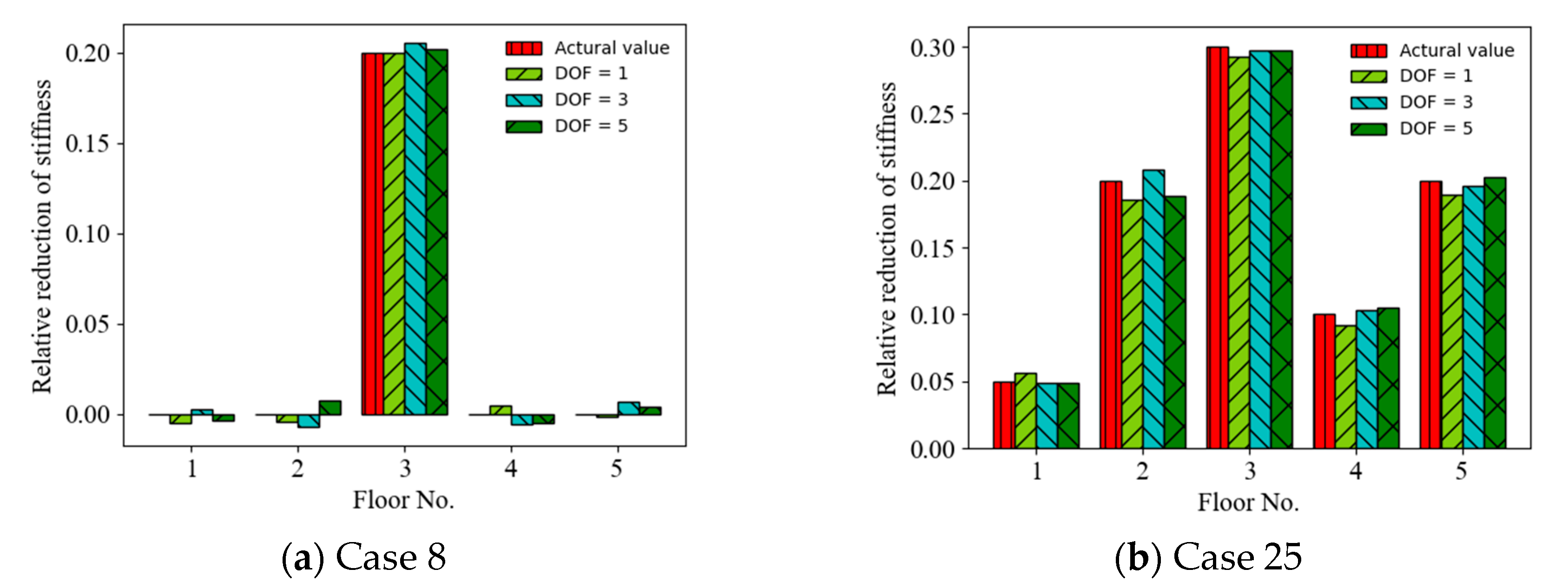

Figure 12. Prediction results of structural damage using displacement responses from different measurement points as ANN input.
Figure 12. Prediction results of structural damage using displacement responses from different measurement points as ANN input.
Sensors 22 04128 g012
Sensors 22 04128 g013 550

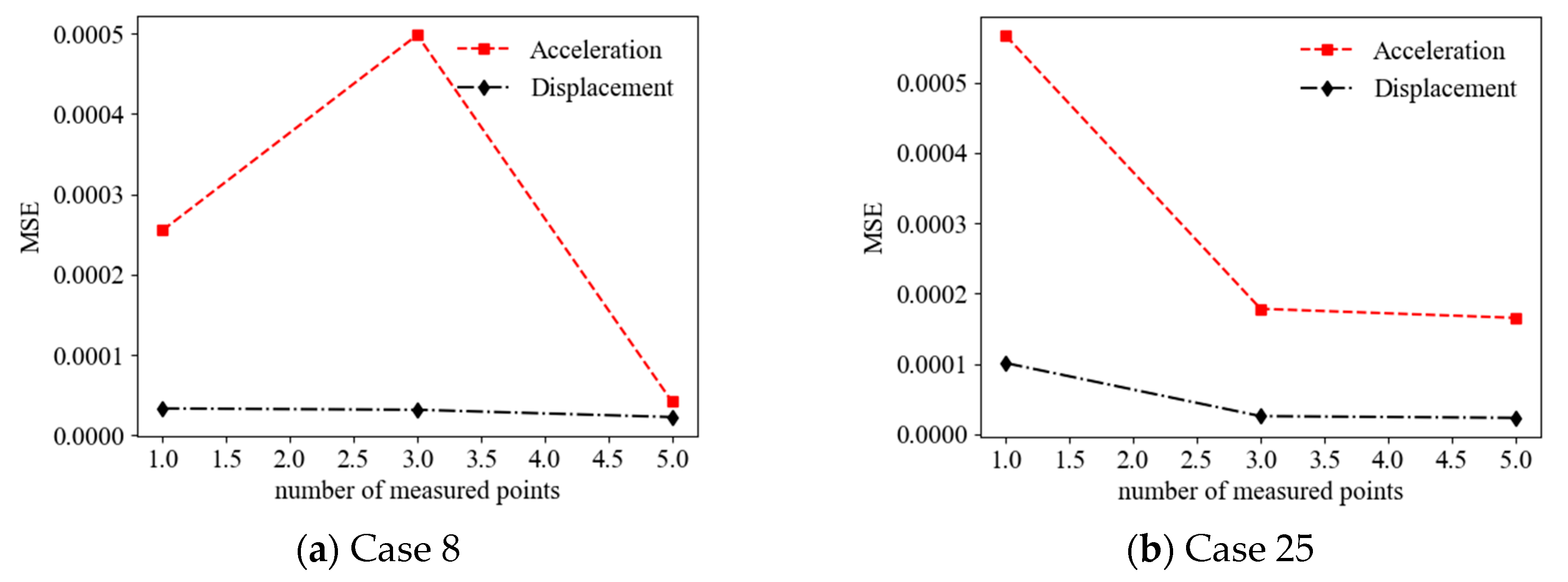

Figure 13. MSEs of prediction values versus number of measurement points using acceleration and displacement responses as ANN input.
Figure 13. MSEs of prediction values versus number of measurement points using acceleration and displacement responses as ANN input.
Sensors 22 04128 g013
Table
Table 1. Condition scenarios of building anomalies due to stiffness reduction.
Table 1. Condition scenarios of building anomalies due to stiffness reduction.
Case No.Anomaly Location
(Story No.)		Anomaly Severity (%)Case No.Anomaly Location
(Story No.)		Anomaly Severity (%)
1No014525
215151, 210, 25
3115162, 315, 40
4120173, 520, 45
5210182, 525, 45
6215194, 525, 25
7225201, 2, 310, 15, 10
8320211, 3, 540, 10, 20
9330222, 4, 510, 20, 45
10340232, 3, 410, 20, 45
11410243, 4, 510, 10, 20
12420251, 2, 3, 4, 55, 20, 30, 10, 20
13515261, 2, 3, 4, 510, 5, 15, 5, 40
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Ruan, Z.-G.; Ying, Z.-G. Comparative Study of Structural Anomaly Diagnosis Based on ANN Model Using Random Displacement and Acceleration Responses with Incomplete Measurements. Sensors 2022, 22, 4128. https://doi.org/10.3390/s22114128

AMA Style

Ruan Z-G, Ying Z-G. Comparative Study of Structural Anomaly Diagnosis Based on ANN Model Using Random Displacement and Acceleration Responses with Incomplete Measurements. Sensors. 2022; 22(11):4128. https://doi.org/10.3390/s22114128

Chicago/Turabian Style

Ruan, Zhi-Gang, and Zu-Guang Ying. 2022. "Comparative Study of Structural Anomaly Diagnosis Based on ANN Model Using Random Displacement and Acceleration Responses with Incomplete Measurements" Sensors 22, no. 11: 4128. https://doi.org/10.3390/s22114128

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
