Research on an Improved Segmentation Recognition Algorithm of Overlapping Agaricus bisporus
Abstract
:1. Introduction
- (1)
- We adopt gradient feature to reduce the influence of illumination variance.
- (2)
- Considering grouping the segmented contours as combinatorial optimization, we propose a branch definition algorithm to merge and group the dispersed outlines of the same Agaricus bisporus.
- (3)
- To solve arc segmentation with different curvatures and lengths for reconstruction of Agaricus bisporus contours, we exploit two algorithms: the least square ellipse fitting algorithm for high curvature or long length and the minimum distance circle fitting for low curvature or short length.
2. Segmentation of Overlapping Agaricus bisporus

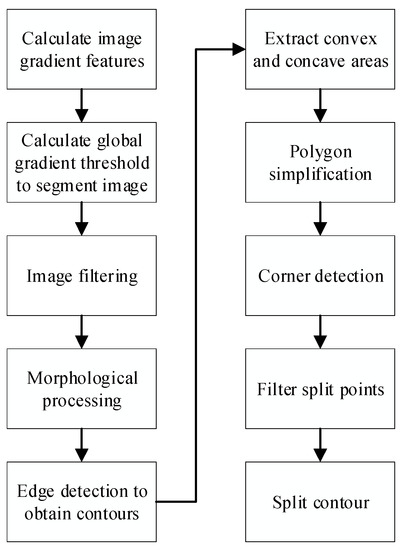

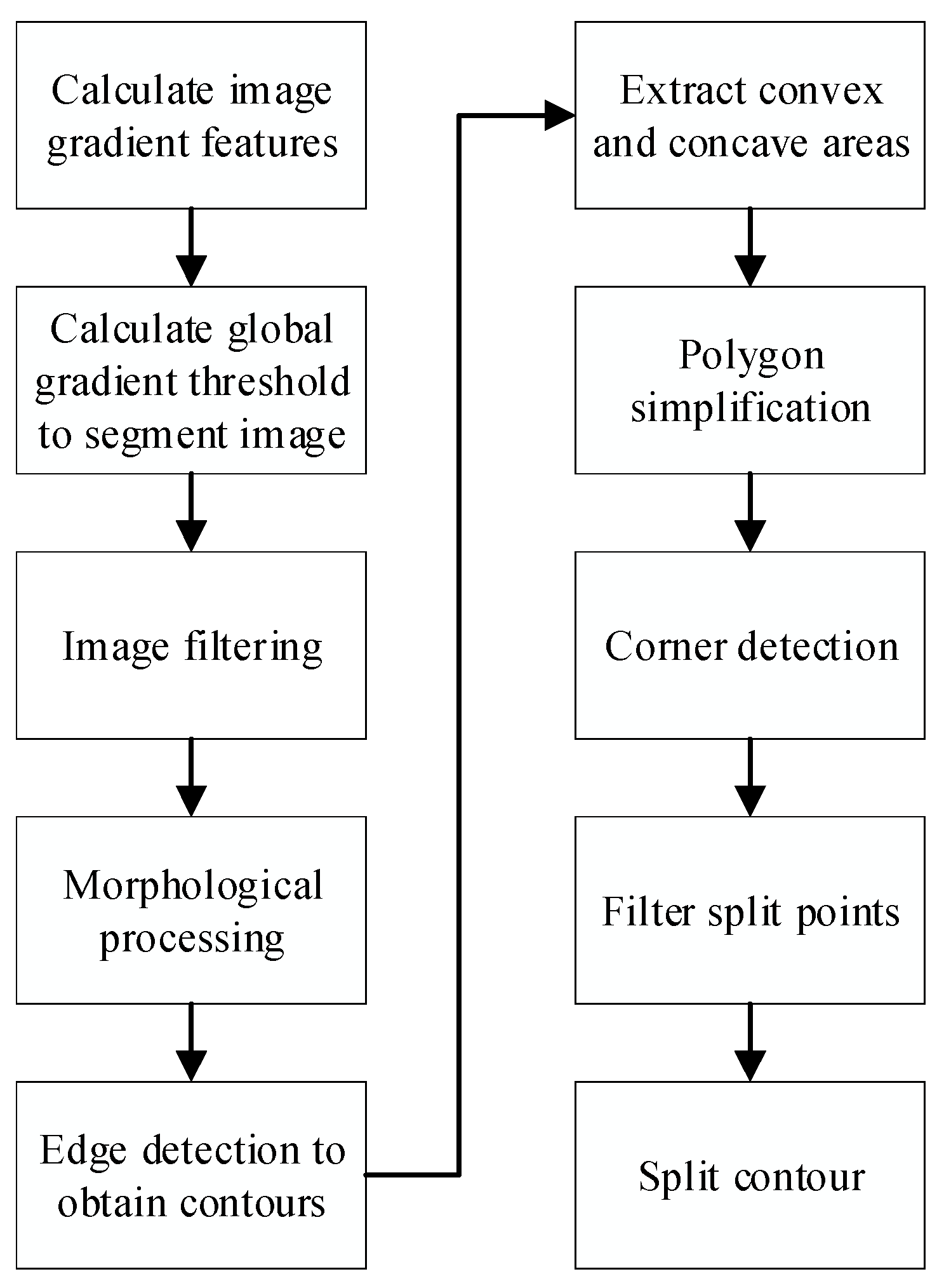

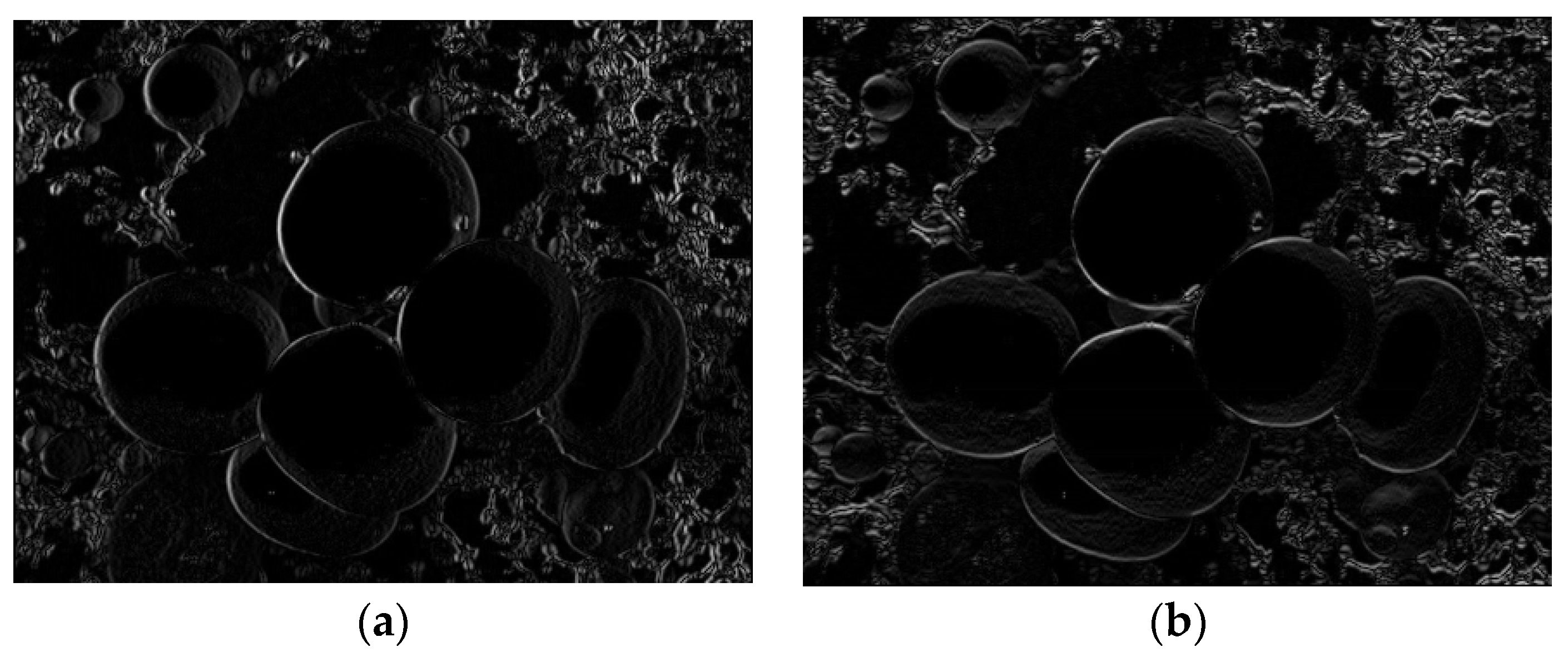

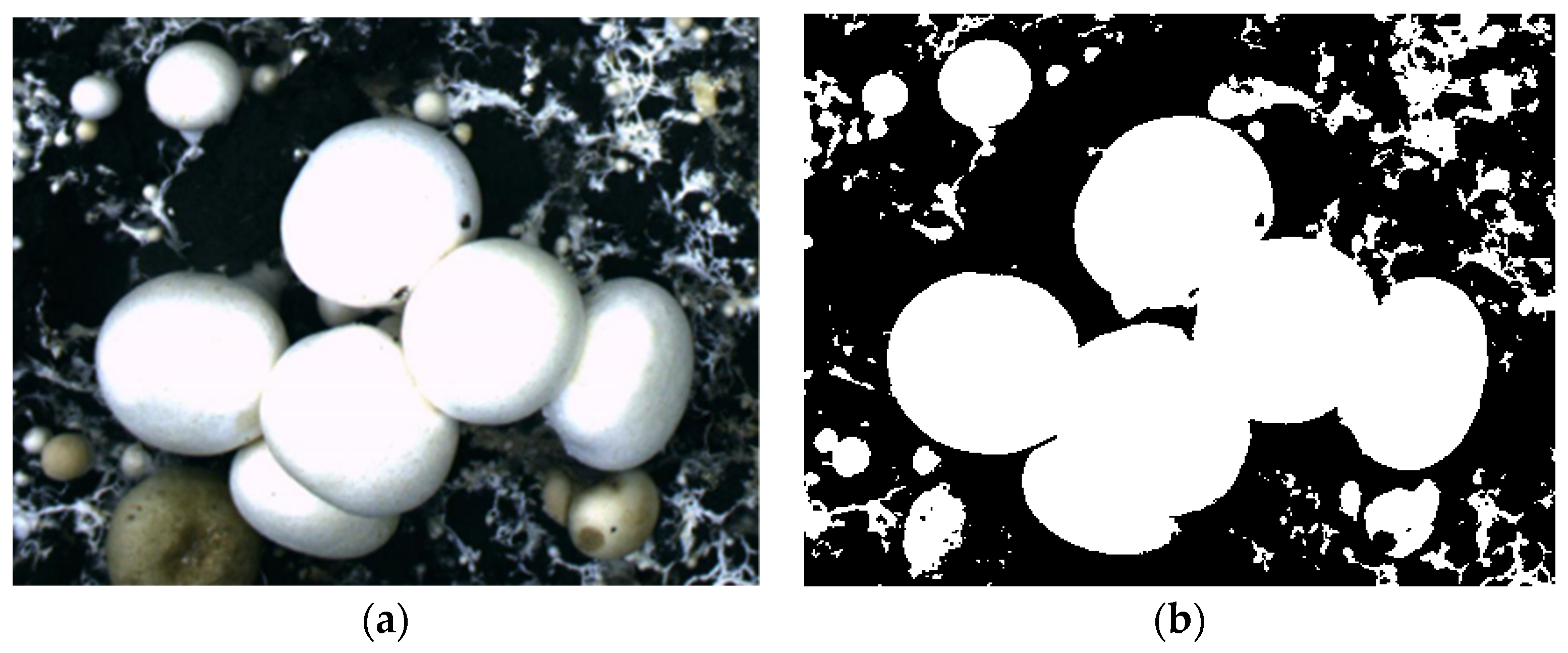

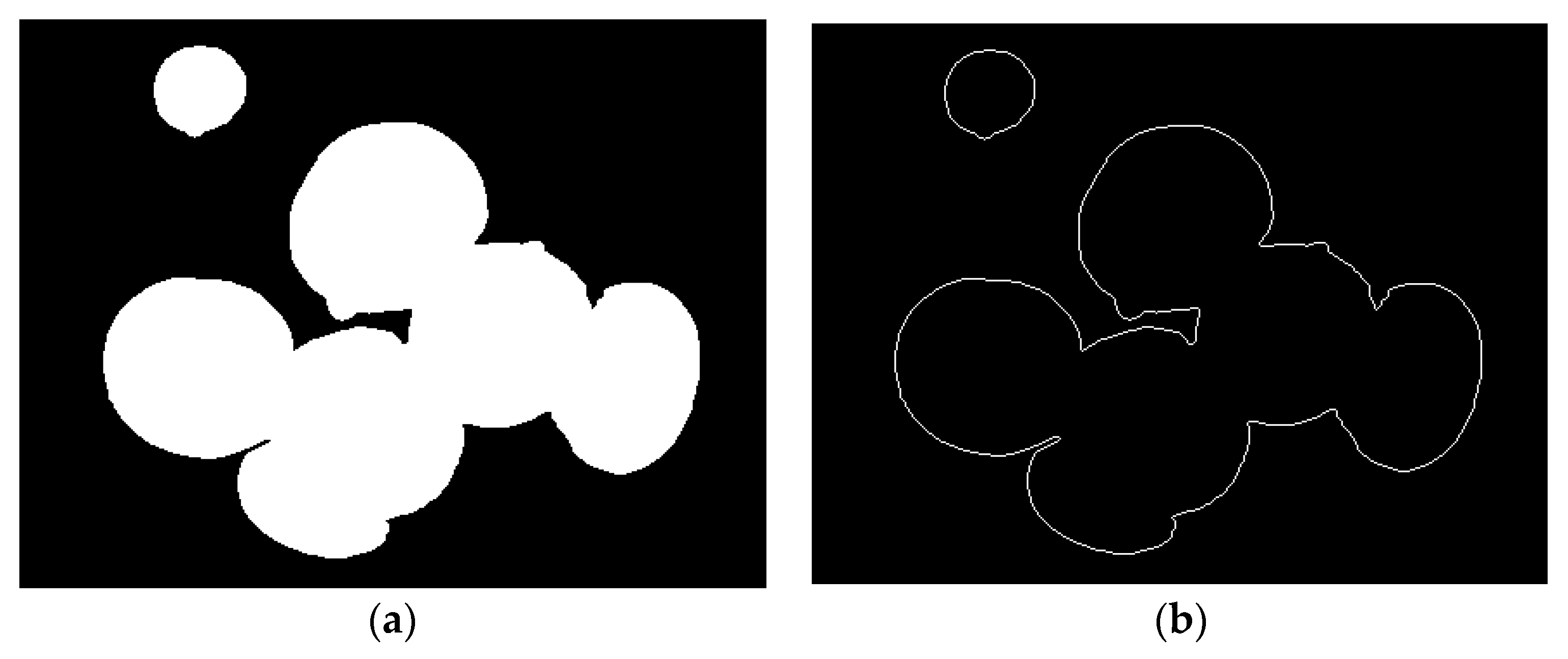

2.1. Segmentation Based on Image Edge Gradient
2.2. Extraction of Convex and Concave Areas

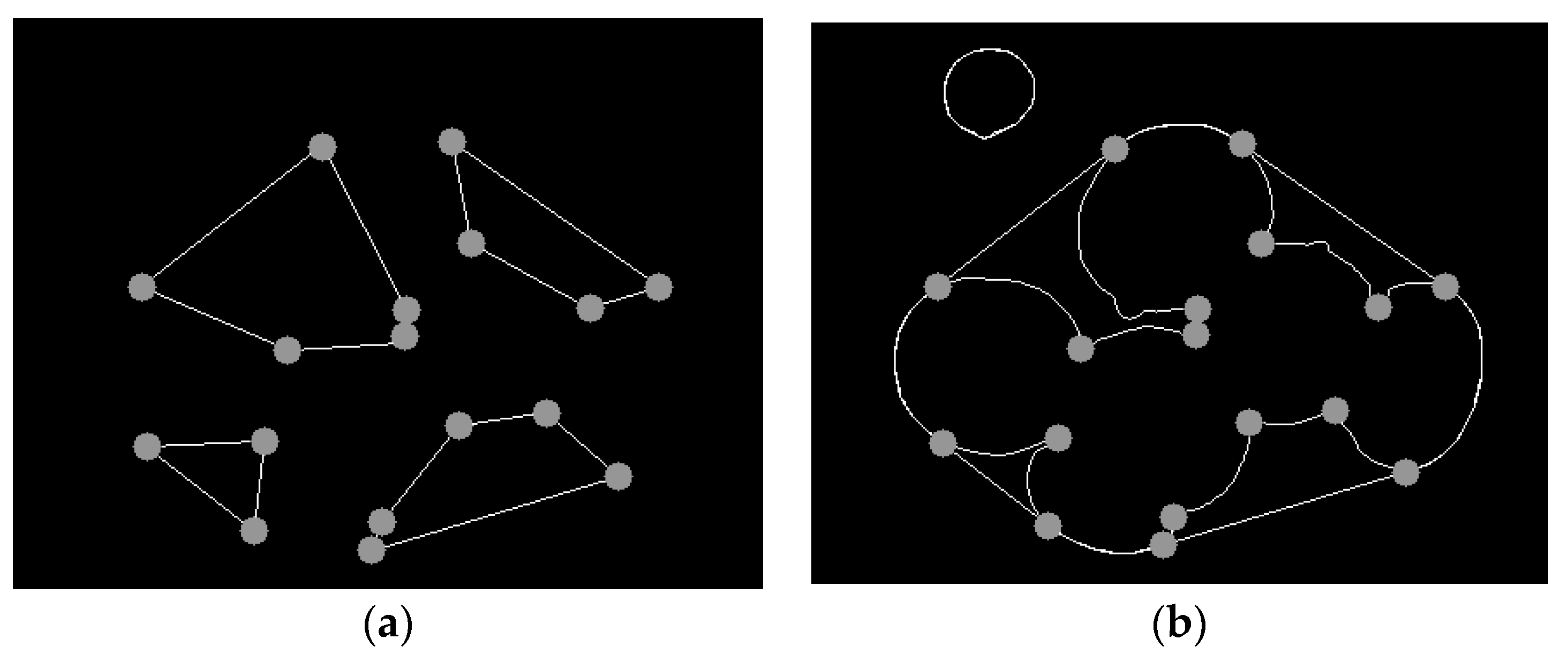

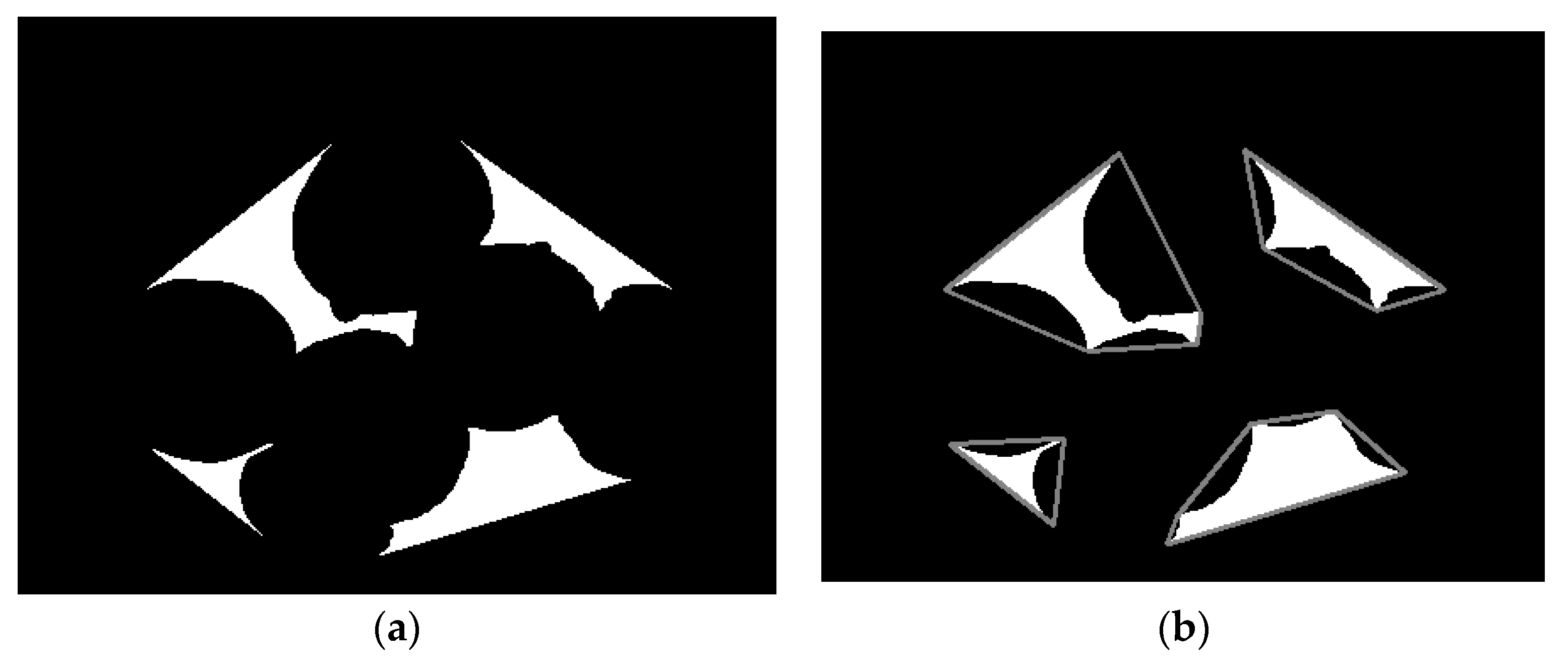

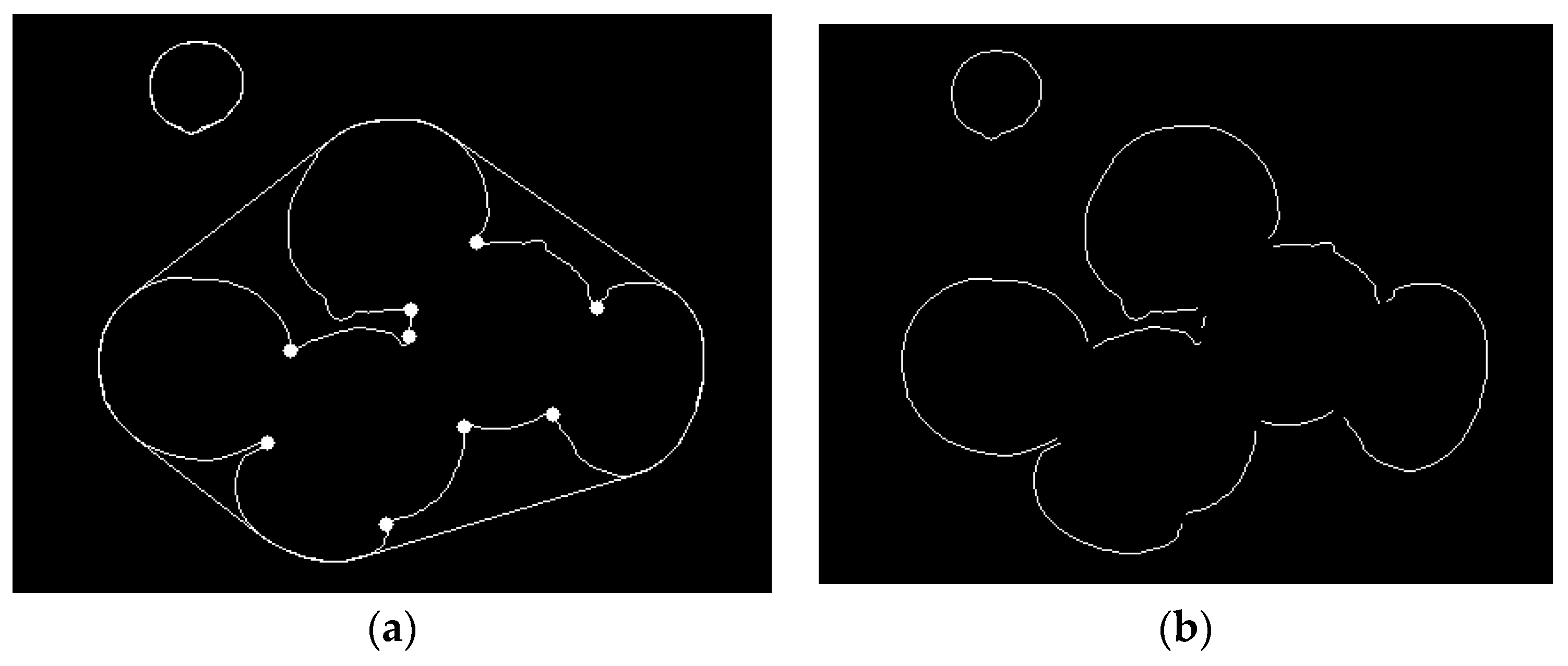

2.3. Corner Detection and Contour Segmentation
3. Overlapping Agaricus bisporus Outline Grouping
3.1. Problem Description

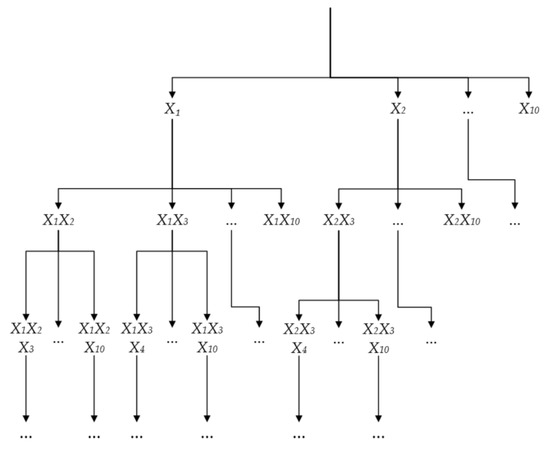

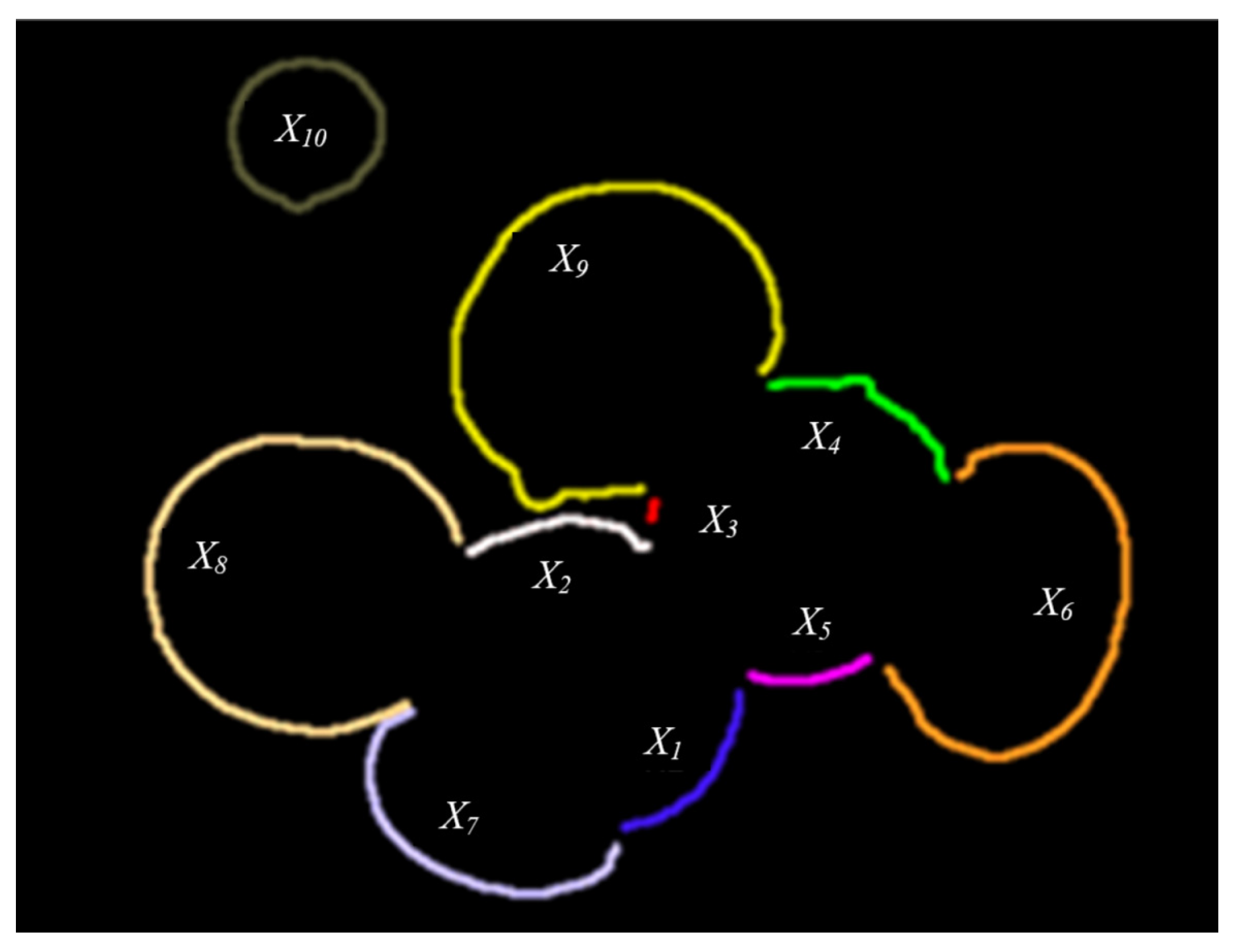

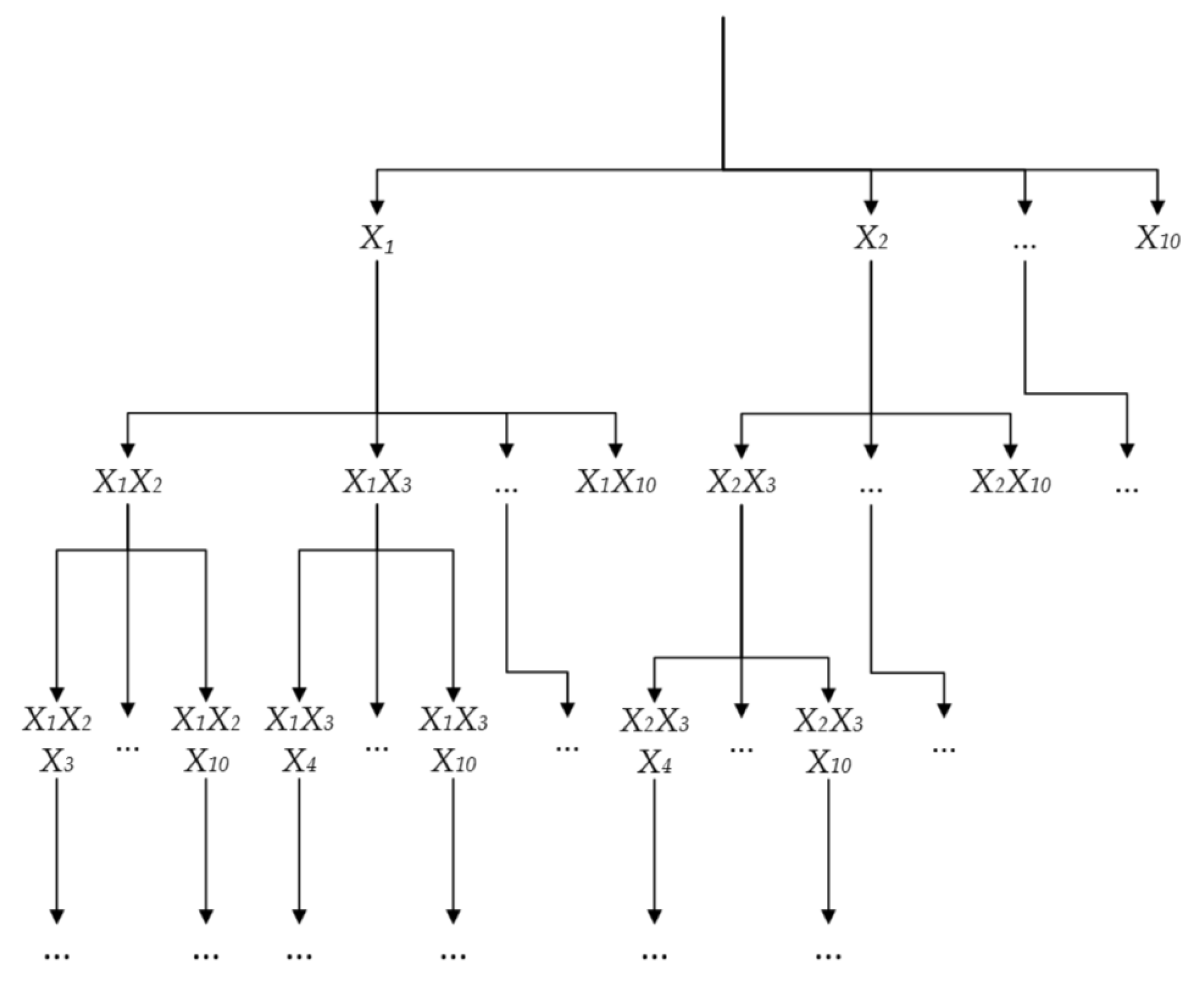

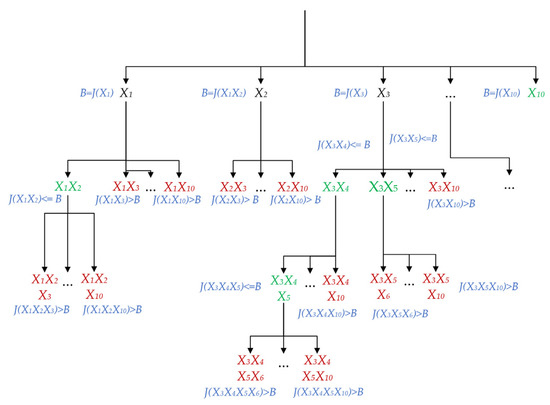

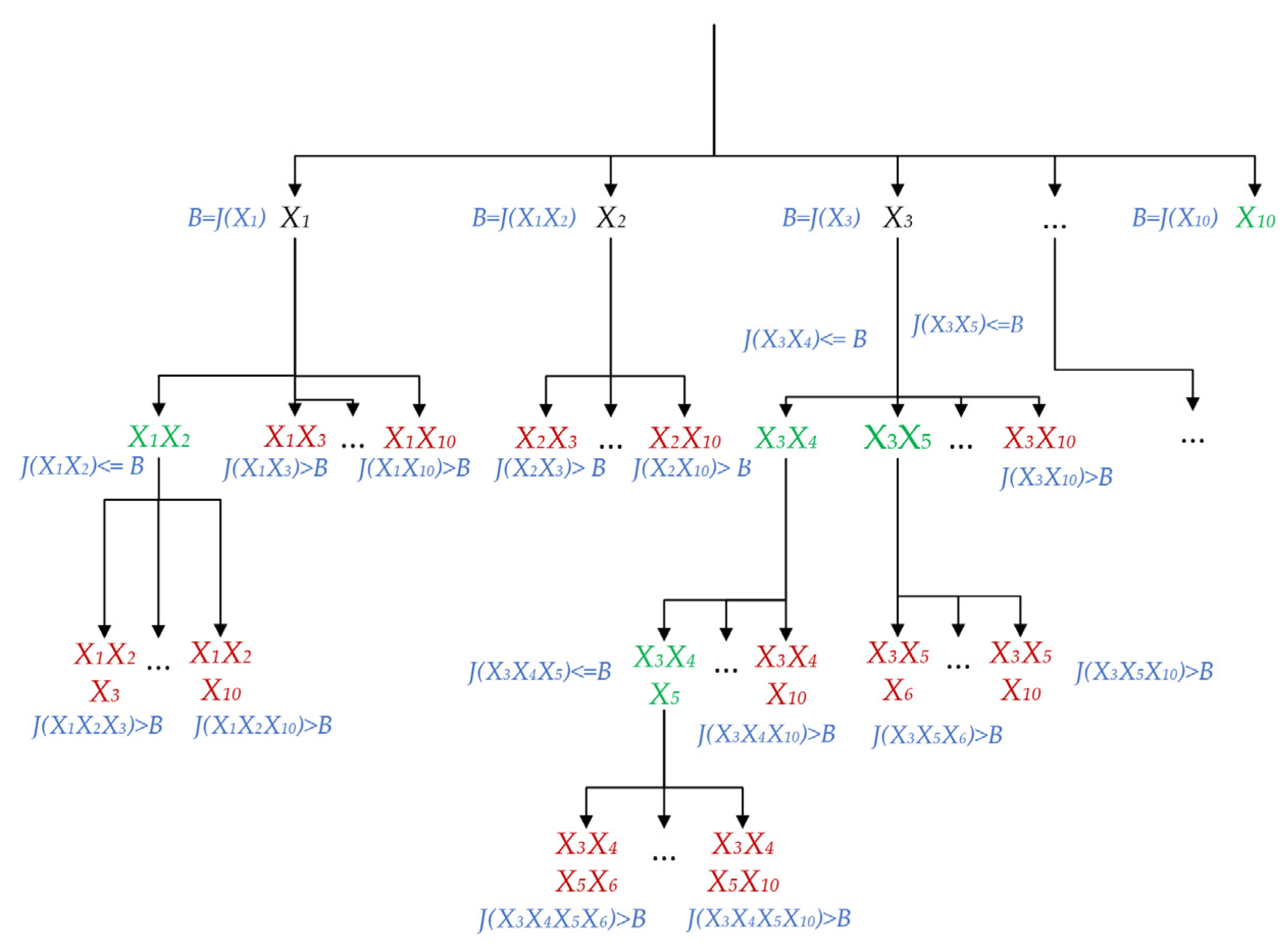

3.2. Branch Definition Algorithm Grouping

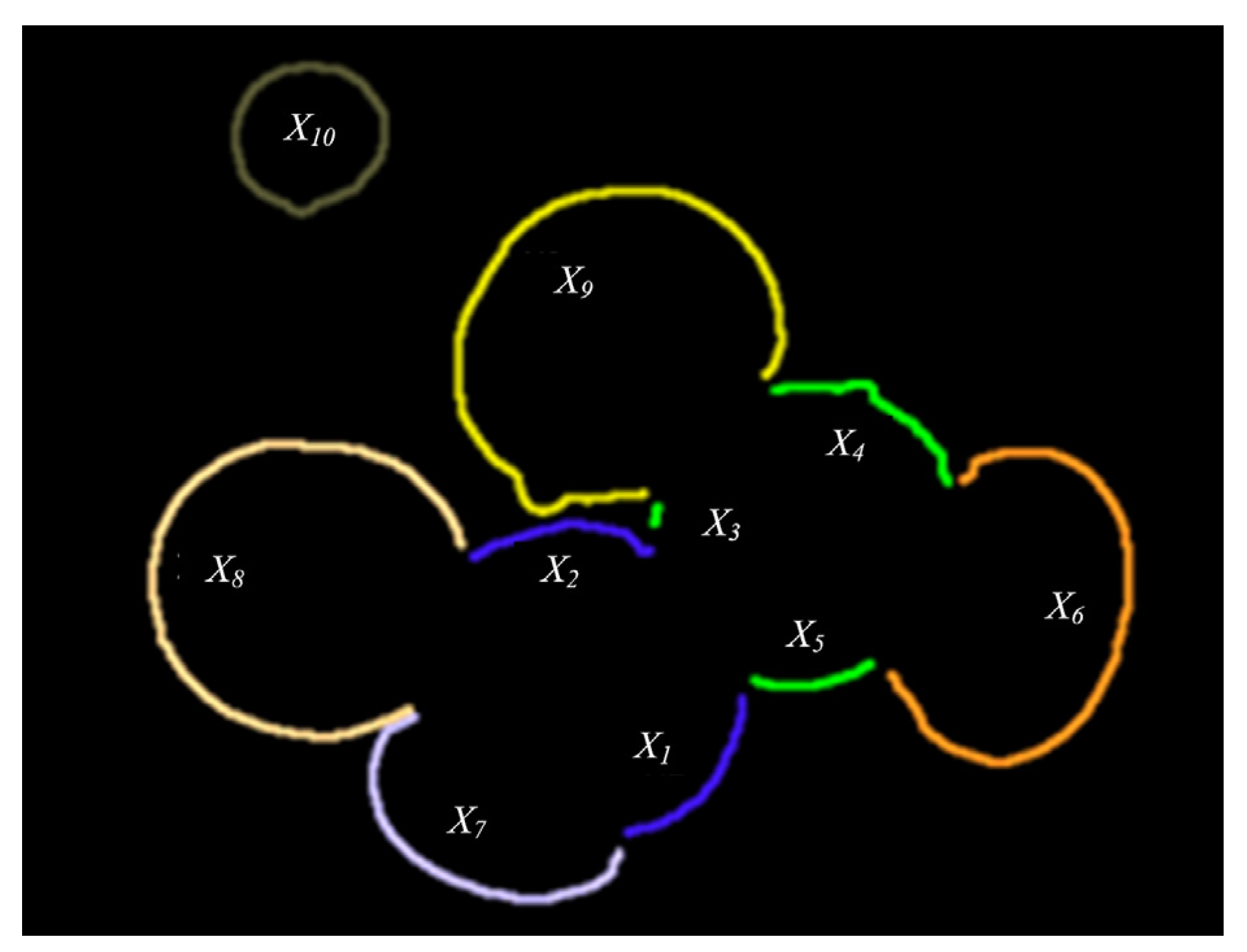

3.3. Grouping Criteria
4. Reconstruction and Recognition of Overlapping Agaricus bisporus

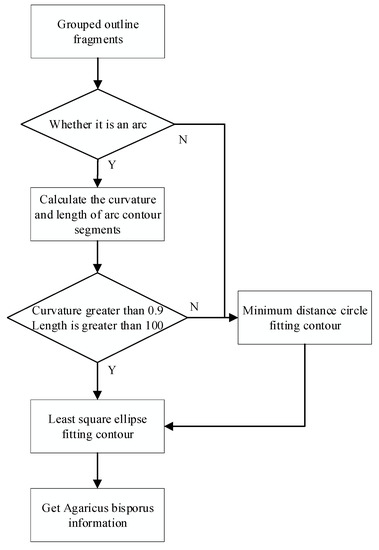

4.1. Least Square Ellipse Fitting Reconstruction Contour

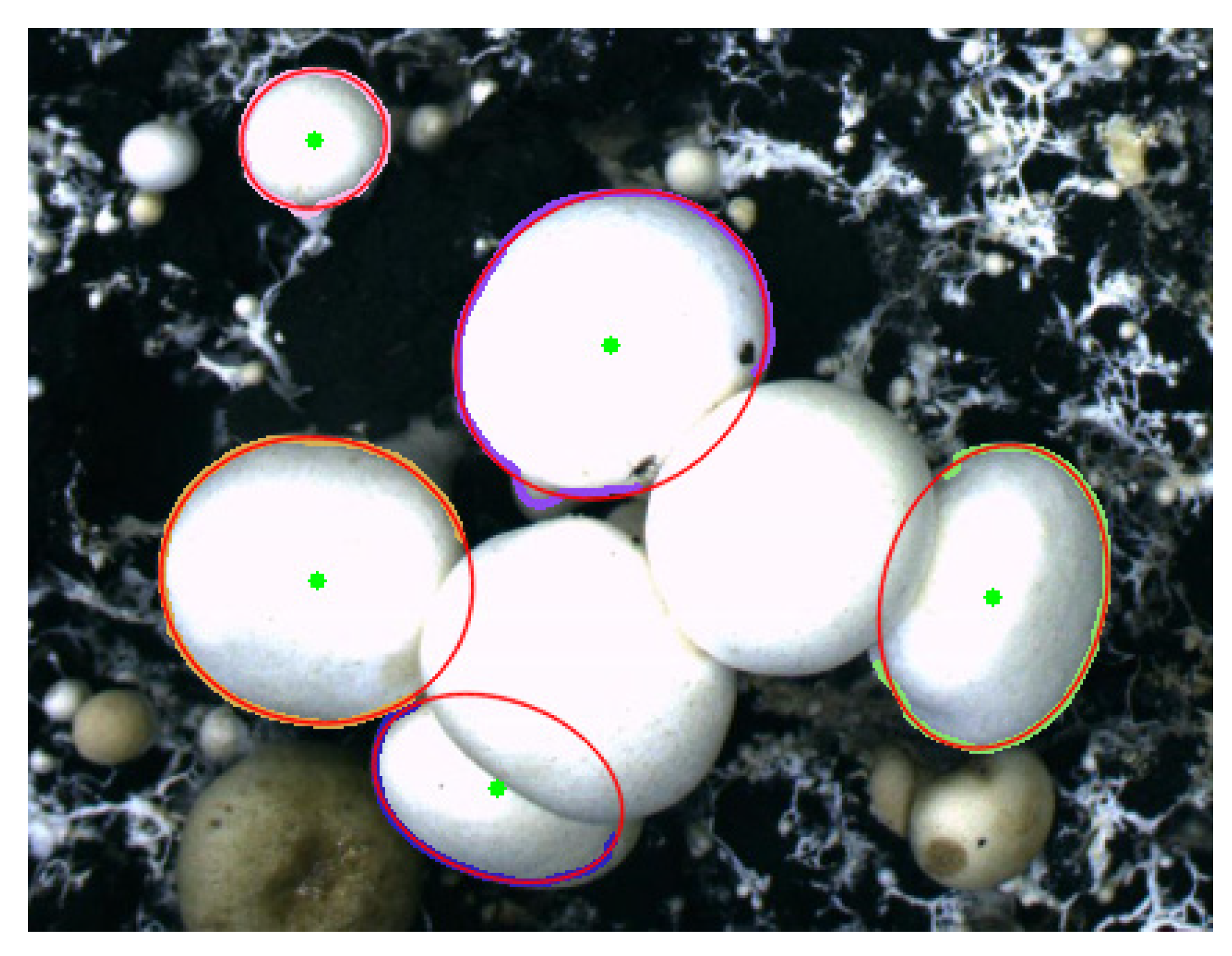

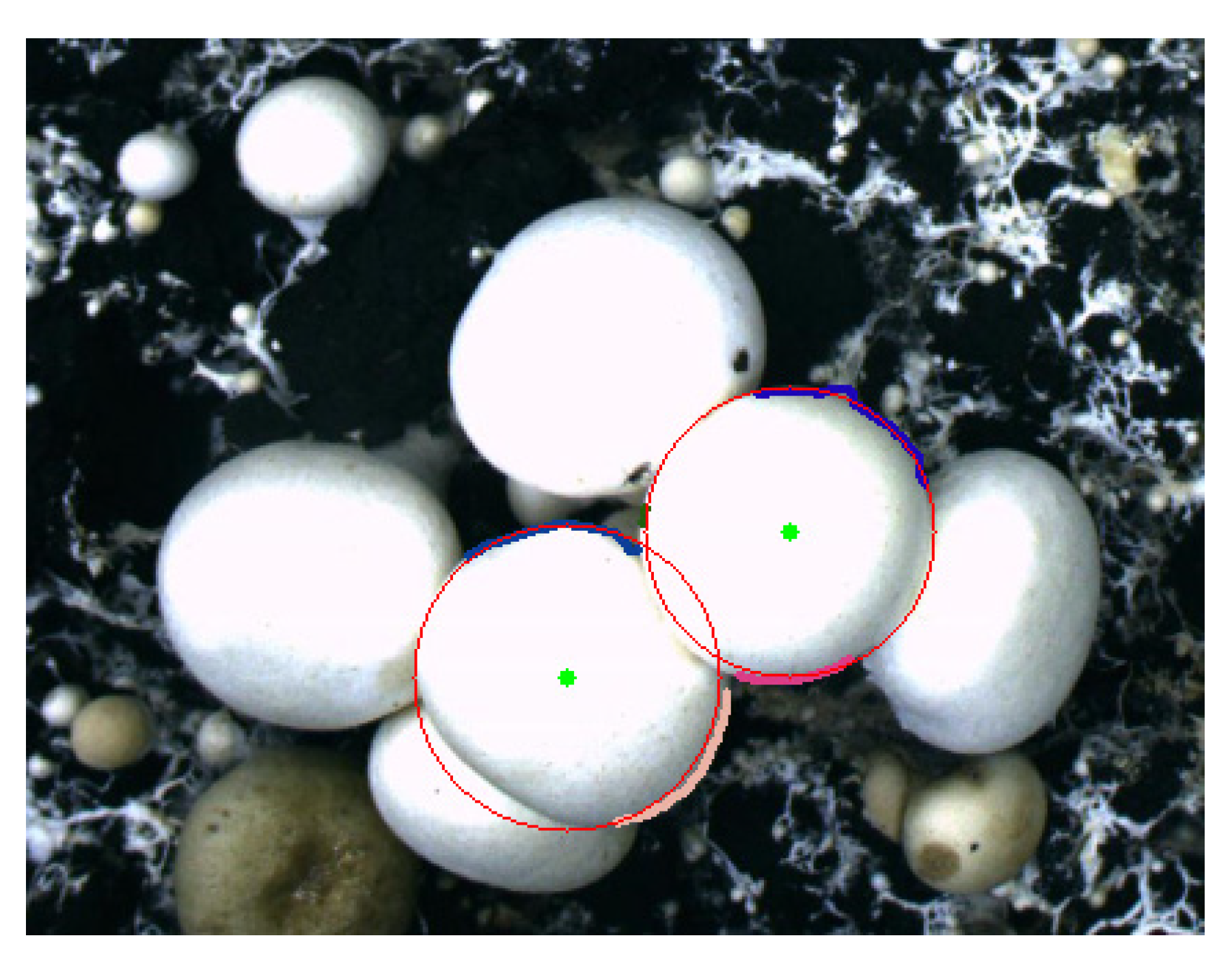

4.2. Minimum Distance Circle Fitting Contour Reconstruction

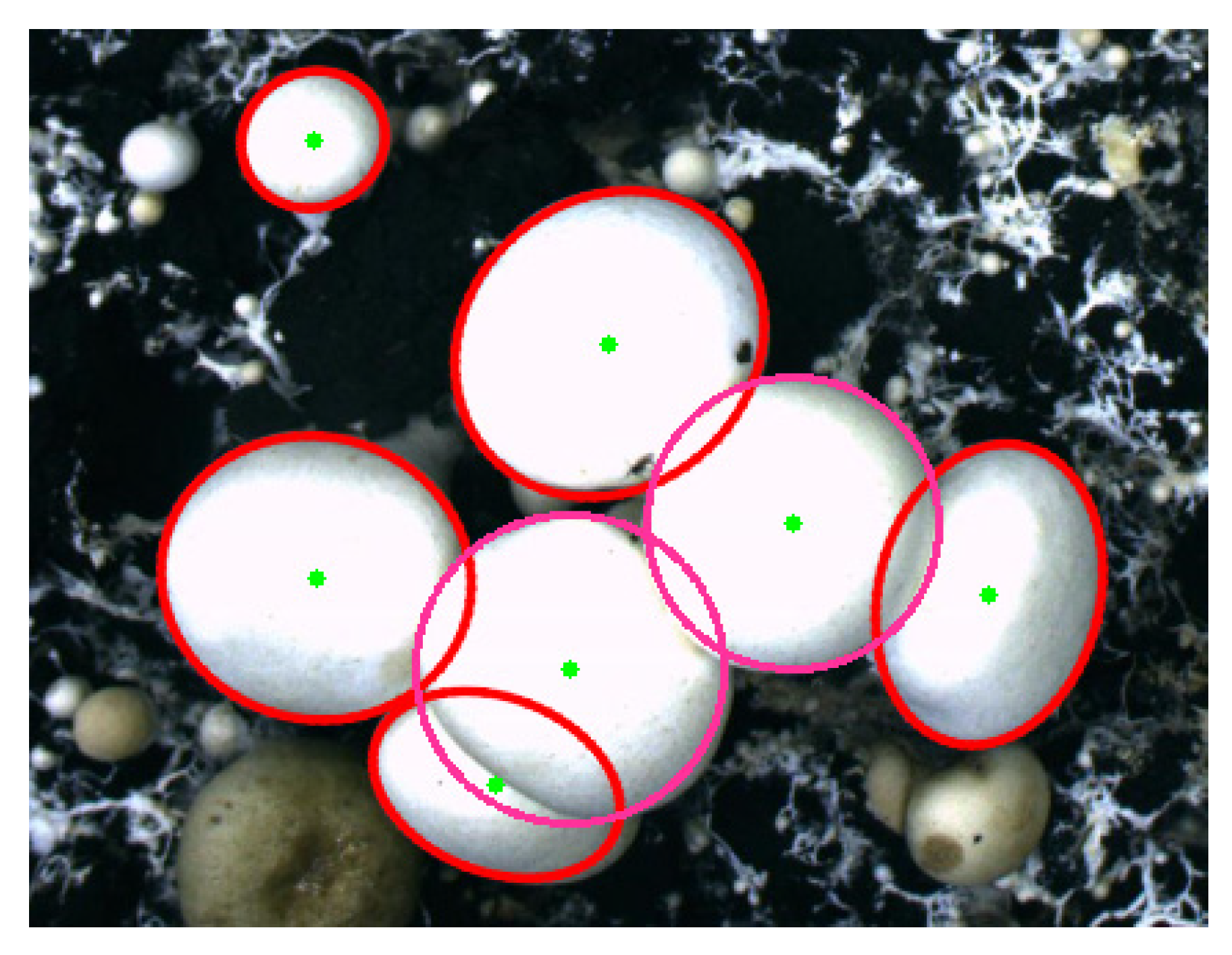

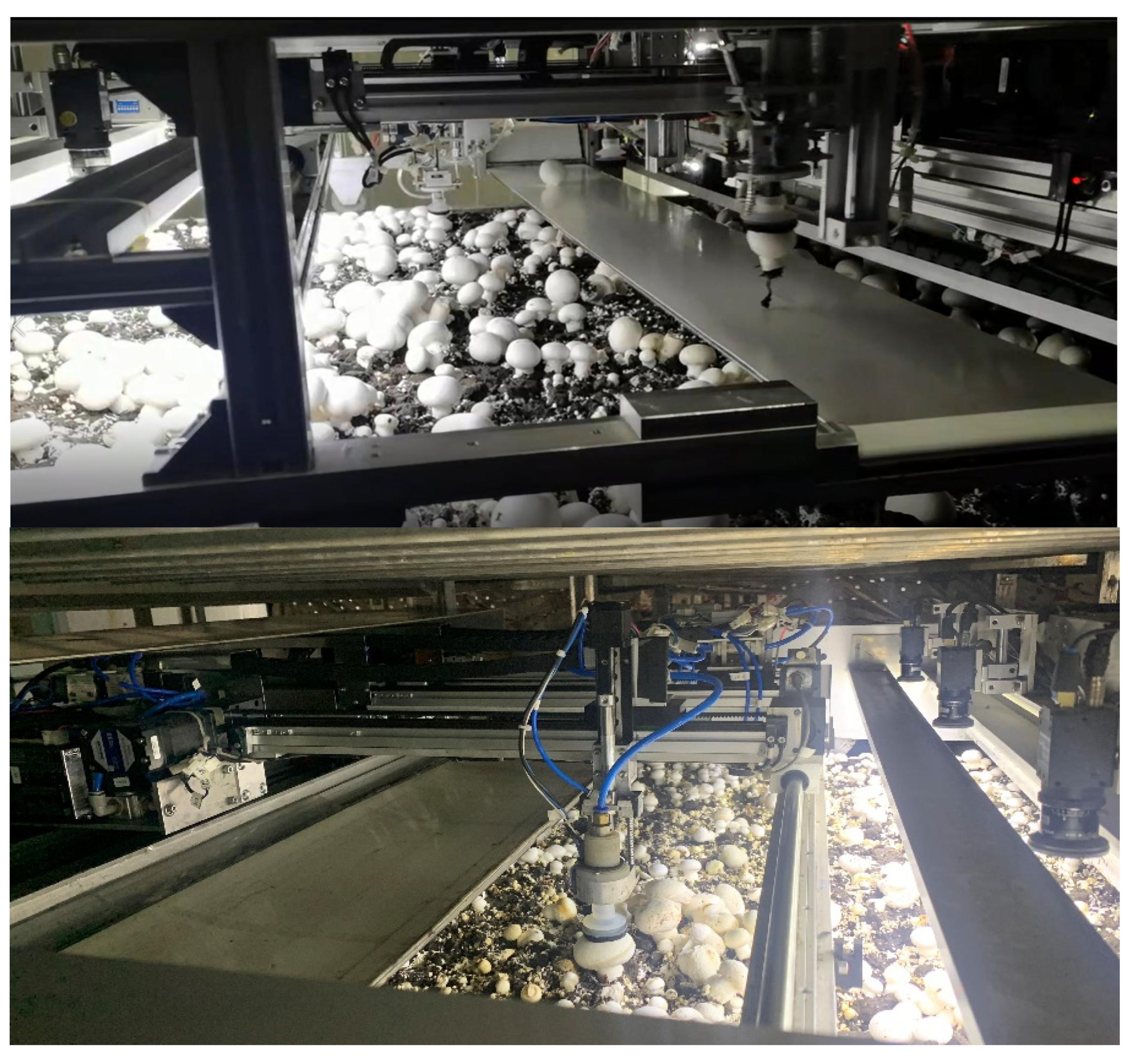

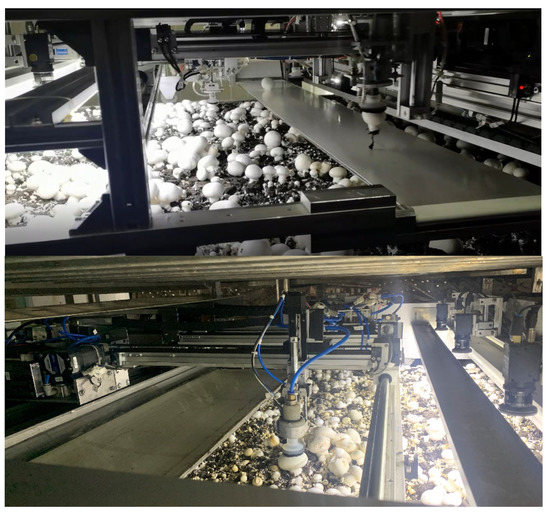

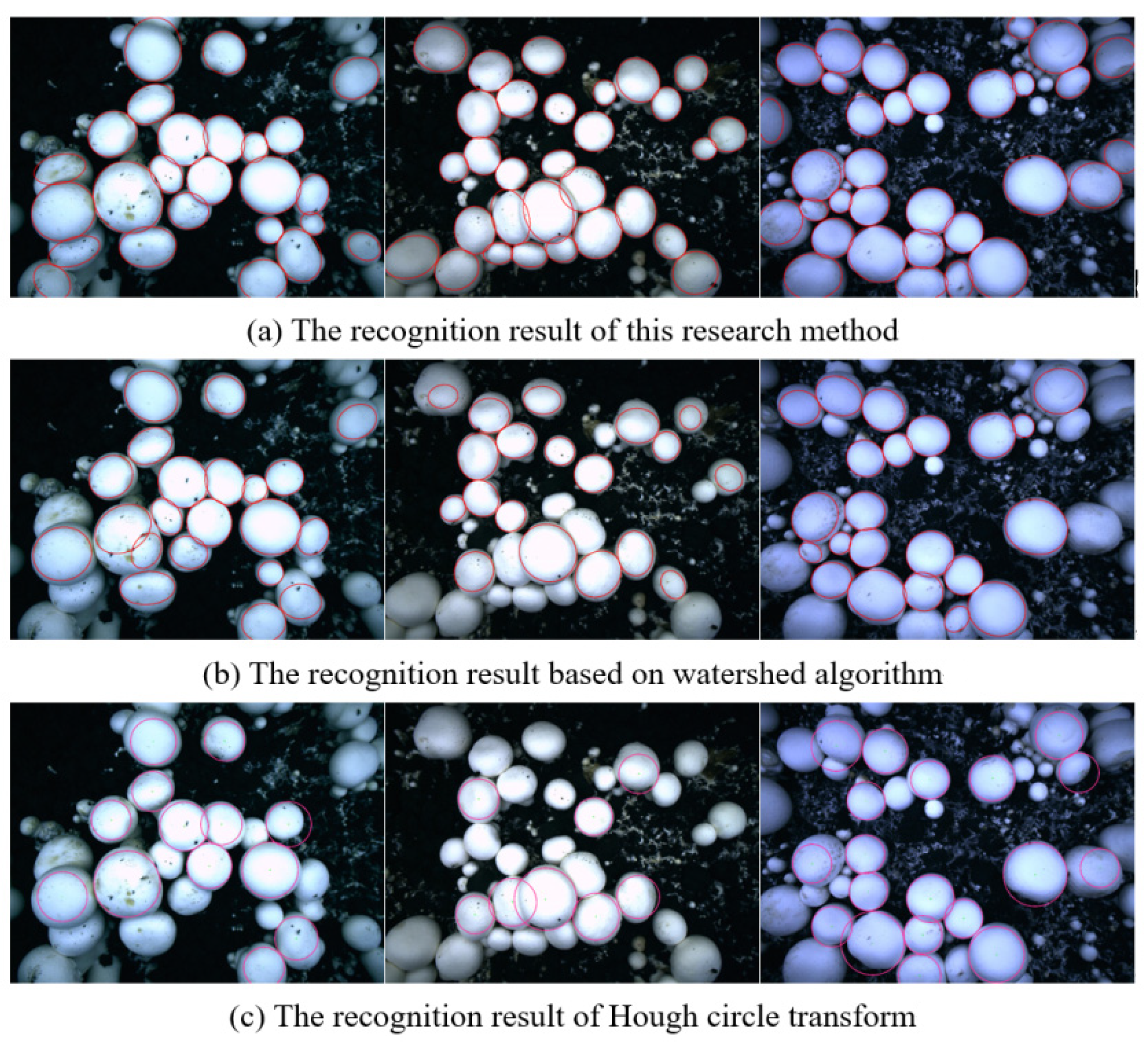

5. Experiment and Result Analysis
6. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Hu, X.M.; Wang, C.; Yu, T. Design and application of visual system in the Agaricus bisporus picking robot. JOP Conf. Ser. 2019, 1187, 032034. [Google Scholar]
- Available online: https://www.fao.org/home/en/ (accessed on 15 March 2022).
- Zhou, Y.S.; Li, Q.; Li, H.Y.; Wang, R.G.; He, W.B. Application of computer vision in mushroom picking robots. Trans. Chin. Soc. Agric. Eng. 1995, 11, 27–32. [Google Scholar]
- Liu, Y.; Yu, L.S.; Yang, C.H.; Wang, Z.; Xiong, L.Y. Segmentation and reconstruction of unobstructed overlapping citrus targets. Jiangsu Agric. J. 2019, 35, 1441–1449. [Google Scholar]
- Reed, J.N.; Miles, S.J.; Butler, J.; Baldwin, M.; Noble, R. AE-Automation and emerging technologies: Automatic mushroom harvester development. Agric. Eng. Res. 2001, 78, 15–23. [Google Scholar] [CrossRef]
- Yue, J.R.; Guo, H.; Zhang, X.J.; Yang, W.Z.; Zhou, Y.S. Discussion on the application of picking robot in agriculture. Xinjiang Agric. Mech. 2016, 1, 31–34. [Google Scholar]
- Jia, B.C.; Yang, S.Z.; Yu, T. Research on three picking arm avoidance algorithms for agaricus mushroom picking robot. In Proceedings of the 2020 IEEE International Conference on Advances in Electrical Engineering and Compute Applications, AEECA 2020, Dalian, China, 25–27 August 2020; pp. 325–328. [Google Scholar]
- Masoudian, A.; Mcisaac, K.A. Application of Support Vector Machine to Detect Microbial Spoilage of Mushrooms. In Proceedings of the 2013 International Conference on Computer and Robot Vision, CRV 2013, Regina, SK, Canada, 29–31 May 2013; pp. 281–287. [Google Scholar]
- Huang, M.S.; He, L.; Choi, D.; Pecchia, J.; Li, Y.M. Picking dynamic analysis for robotic harvesting of Agaricus bisporus mushrooms. Comput. Electron. Agric. 2021, 32, 185–256. [Google Scholar] [CrossRef]
- Stajnko, D.; Cmelik, Z. Modeling of apple fruit growth by application of image analysis. Agric. Conspec. Sci. 2005, 70, 59–64. [Google Scholar]
- Zhao, J.; Tow, J.; Katupitiya, J. On-tree fruit recognition using texture properties and color data. In Proceedings of the International Conference on Intelligent Robots and Systems, Edmonton, AB, Canada, 5 December 2005; IEEE Press: New York, NY, USA, 2005; pp. 3993–3998. [Google Scholar]
- Yu, G.H.; Luo, J.M.; Zhao, Y. Region labeling technology and mushroom image segmentation method based on sequential scanning algorithm. J. Agric. Eng. 2006, 4, 139–142. [Google Scholar]
- Yang, Y.Q.; Ye, M.; Lu, D.H.; Ren, S.G. Adhesion mushroom positioning algorithm under corner density characteristics. Comput. Syst. Appl. 2018, 27, 119–125. [Google Scholar]
- Park, C.; Huang, J.Z.; Ji, J.X.; Ding, Y. Segmentation, inference and classification of partially overlapping nanoparticles. IEEE Trans. Pattern Anal. Mach. Intell. 2013, 35, 669–681. [Google Scholar]
- Zhang, W.H.; Jiang, X.; Liu, Y.M. A method for recognizing overlapping elliptical bubbles in bubble image. Pattern Recogn. Lett. 2012, 33, 1543–1548. [Google Scholar] [CrossRef]
- Bai, X.; Sun, C.; Zhou, F. Splitting touching cells based on concave points andellipse fitting. Pattern Recogn. 2009, 42, 2434–2446. [Google Scholar] [CrossRef]
- Zafari, S.; Eerola, T.; Sampo, J.; Kalviainen, H.; Haario, H. Segmentation of partially overlapping nanoparticles using concave points. In Proceedings of the 11th International Symposium on Advances in Visual Computing, ISVC 2015, Las Vegas, NV, USA, 14–16 December 2015; pp. 187–197. [Google Scholar]
- Yeo, T.; Jin, X.; Ong, S.; Sinniah, R. Clump splitting through concavityanalysis. Pattern Recogn. Lett. 1994, 15, 1013–1018. [Google Scholar] [CrossRef]
- Wang, F.Y.; Zheng, J.Y.; Zhao, J.; Lu, D.; Liu, Y.Z.; Zhao, W.X. The grading algorithm of Agaricus bisporus based on machine vision. Jiangsu Agric. Sci. 2018, 46, 193–197. [Google Scholar]
- Wang, F.Y.; Zheng, J.Y.; Tian, X.C.; Wang, J.F.; Niu, L.Y.; Feng, W.J. An automatic sorting system for fresh white button mushrooms based on image processing. Comput. Electron. Agric. 2018, 151, 416–425. [Google Scholar] [CrossRef]
- Sun, J.W.; Zhao, K.X.; Ji, J.T.; Zhu, X.F.; Ma, H. Detection and diameter measurement method of Agaricus bisporus based on “submerged method”. J. Agric. Mech. Res. 2021, 2, 29–33. [Google Scholar]
- Chen, K.X.; Yao, L.N.; Zhang, D.L.; Wang, X.Z.; Chang, X.J.; Nie, F.P. A semisupervised recurrent convolutional attention model for human activity recognition. IEEE Trans. Neural Netw. Learn Syst. 2020, 31, 1747–1756. [Google Scholar] [CrossRef]
- Luo, M.N.; Chang, X.L.; Nie, L.Q.; Yang, L.; Hauptmann, A.G.; Zheng, Q.H. An adaptive semisupervised feature analysis forvideo semantic recognition. IEEE Trans. Cybern. 2018, 48, 648–660. [Google Scholar] [CrossRef]
- Zhang, D.L.; Yao, L.N.; Chen., K.X.; Wang., S.; Chang, X.J.; Liu, Y.H. Making sense of spatio-temporal preserving representations for EEG-based human intention recognition. IEEE Trans. Cybern 2019, 50, 3033–3044. [Google Scholar] [CrossRef]
- Zhong, C.; Li, L.S.; Ding, P. Automatic segmentation of bingtang orange image based on color difference and gradient features. Sci. Technol. 2018, 1, 26–27. [Google Scholar]
- Ma, H.; Zhang, L. Ocean SAR image segmentation and edge gradient feature extraction. J. Coast. Res. 2019, 94, 141–144. [Google Scholar] [CrossRef]
- Jiang, M.; Sun, S.S.; He, D.J.; Song, H.B. Occlusion apple target recognition and positioning method combining K-means clustering segmentation algorithm and convex hull principle. Smart Agric. 2019, 1, 45–54. [Google Scholar]
- Yang, C.H.; Hu, Y.C.; Huang, L.; Liu, S.; Liu, Y.P. Overlapped Fruit Recognition for Citrus Harvesting Robot in Natural Scenes. In Proceedings of the 2017 2nd International Conference on Robotics and Automation Engineering, ICRAE 2017, Shanghai, China, 29–31 December 2017; pp. 398–402. [Google Scholar]
- Sikka, P.; Asati, A.R.; Shekhar, C. Real time FPGA implementation of a high speed and area optimized Harris corner detection algorithm. Microprocess. Microsyst. 2021, 80, 103514. [Google Scholar] [CrossRef]
- Morrison, D.R.; Jacobson, S.H.; Sauppe, J.J. Branch-and-bound algorithms: A survey of recent advances in searching, branching, and pruning. Discret. Optim. 2016, 19, 79–102. [Google Scholar] [CrossRef]
- Lempitsky, V.S.; Blake, A.; Rother, C. Image Segmentation by Branch-and-Mincut. In Proceedings of the 10th European Conference on Computer Vision, ECCV 2008, Marseille, France, 12–18 October 2008; pp. 15–29. [Google Scholar]
- Coniglio, S.; Furini, F.; San, S.P. A new combinatorial branch-and-bound algorithm for the Knapsack Problem with Conflicts. Eur. J. Oper. Res. 2021, 289, 435–455. [Google Scholar] [CrossRef]
- Zafari, S.; Eerola, T.; Sampo, J. Segmentation of partially overlapping convex objects using branch and bound algorithm. In Proceedings of the 13th Asian Conference on Computer Vision, ACCV 2016, Taipei, Taiwan, 20–24 November 2016; pp. 76–90. [Google Scholar]
- Loy, G.; Zelinsky, A. Fast radial symmetry for detecting points of interest. IEEE Trans. Pattern Anal. Mach. Intell. 2003, 25, 959–973. [Google Scholar] [CrossRef] [Green Version]

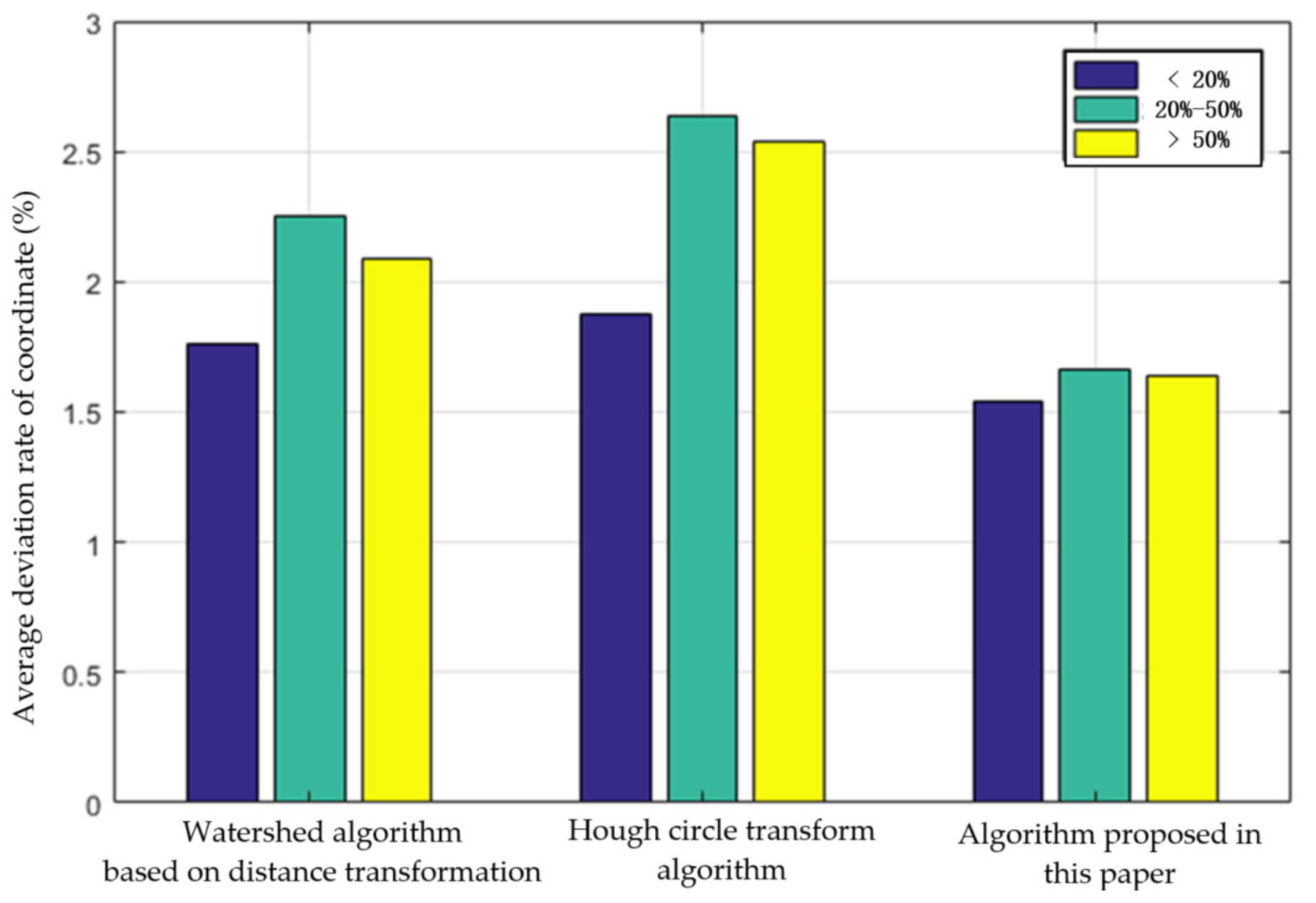

Method | Number of Samples | Effective Identification Number | Recogniton Reate |
---|---|---|---|
Hough circle transform algorithm | 6109 | 4338 | 71.01% |
Watershed algorithm based on distance transformation | 6109 | 5319 | 87.07% |
The algorithm proposed in this article | 6109 | 6036 | 98.81% |
Methods | Number of Segmentation and Recognition | Number of Successfully Recognited | Average Deviation Rate of Coordinates | Recognition Success Rate | Overall Recognition Success Rate | Average Time (ms) |
---|---|---|---|---|---|---|
Hough circle transform algorithm | 4338 | 3363 | 2.29% | 77.52% | 55.05% | 358 |
Watershed algorithm based on distance transformation | 5319 | 4570 | 1.99% | 85.92% | 74.81% | 224 |
The algorithm proposed in this article | 6036 | 5870 | 1.59% | 97.25% | 96.09% | 212 |
