State-of-the-Art Research on Chemiresistive Gas Sensors in Korea: Emphasis on the Achievements of the Research Labs of Professors Hyoun Woo Kim and Sang Sub Kim

Abstract

This review presents the results of cutting-edge research on chemiresistive gas sensors in Korea with a focus on the research activities of the laboratories of Professors Sang Sub Kim and Hyoun Woo Kim. The advances in the synthesis techniques and various strategies to enhance the gas-sensing performances of metal-oxide-, sulfide-, and polymer-based nanomaterials are described. In particular, the gas-sensing characteristics of different types of sensors reported in recent years, including core–shell, self-heated, irradiated, flexible, Si-based, glass, and metal–organic framework sensors, have been reviewed. The most crucial achievements include the optimization of shell thickness in core–shell gas sensors, decrease in applied voltage in self-heated gas sensors to less than 5 V, optimization of irradiation dose to achieve the highest response to gases, and the design of selective and highly flexible gas sensors-based WS₂ nanosheets. The underlying sensing mechanisms are discussed in detail. In summary, this review provides an overview of the chemiresistive gas-sensing research activities led by the corresponding authors of this manuscript.

1. Introduction: Overview of the Oxide-Based Gas Sensors

Atmospheric pollution typically comprises particulate matter, ozone (O₃), sulfur dioxide (SO₂), nitrogen dioxide (NO₂), and carbon monoxide (CO) [1]. Furthermore, benzene (C₆H₆), toluene (C₇H₈), and xylene (C₈H₁₀) (BTX) gases are also generally present in pollutant air. It is considered that 92% of the world’s population lives in areas with poor air quality, which can cause premature death [2]. Pollution is the most important cause of premature death and illness worldwide, and it accounts for 16% of global death [3]. As a result, air pollution is currently an active area of research. Although the human olfactory system is considered to be the least significant of the human senses, it is critical to human lives because it alerts us to the potential risks pollutant air. In addition, it is the only active sense during sleep. When a gas has an extremely low concentration or no odor, the human olfactory system cannot sense it. As a result, sensitive devices are required to detect toxic and hazardous gases in the environment [4,5]. Gas chromatography-mass spectrometry [6], flame ionization detectors [7], and Fourier-transform infrared spectrometry [8] have been traditionally used for the recognition of toxic/hazardous gases. However, most of these systems are large in size, costly, and require trained operators. As the instruments are not portable because of their large sizes, their applications in different areas are limited [9]. Additionally, these instruments cannot be incorporated into small smart electronic devices such as smartphones. Thus, sensitive and reliable sensing devices with small sizes are needed to be incorporated in portable devices.

Table 1. Milestones in history of resistive-based gas sensors.

Year	Milestone	Ref.
1953	Brattain and Bardeen reported the effects of gases on the electrical conductivity of Ge-based devices	[10]
1954	Heiland reported a change in the electrical properties of ZnO in the presence of various gases	[11]
1962	Seiyama et al. reported the first resistive-based gas sensor using ZnO	[12]
1962	Taguchi patented the first SnO2 gas sensor	[13]
1963	Taguchi investigated effect of noble metals on the gas-sensing properties of SnO2	[14]
1968	Taguchi commercialized the first resistive-based gas sensors using SnO2	[15]
2003	Salehi reported the first self-heated gas sensor based on SnO2	[16]
2007	Schedin et al. for the first time reported the gas-sensing properties of graphene	[17]

presents the historical milestones of semiconductor-based chemiresistive gas sensors [10,11,12,13,14,15,16,17]. The idea of utilizing metal oxides as gas-detecting materials dates back to 1954 when Heiland applied zinc oxide (ZnO) as a sensing material [10], extending the original idea of Brattain and Barteen describing the change in the composition of the surrounding atmosphere on the electrical conductivity of Ge-based electronic devices [11]. Motivated by the extensive gas explosions in Japan, Seiyama (1962) invented a simple resistive-based gas sensor using ZnO thin films for sensing propane, which afforded a response approximately 100 times higher than the thermal conductivity detector utilized at the time [12]. In 1968, Taguchi commercialized a simple gas sensor using semiconducting tin oxide (SnO₂) to detect low concentrations of combustible/reducing gases [13].

To date, a variety of gas sensors have been utilized to detect toxic and hazardous gases. Among these, metal–oxide semiconductor (MOS) gas sensors, whose operation is based on the change in the resistance upon exposure to target gases, have attracted significant attention owing to their low cost, low toxicity, simple fabrication route, robustness, high stability, fast response/recovery times, and sensitivity to detect a wide range of target gases [18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53,54,55,56,57,58,59,60,61,62,63]. Notably, in addition to MOS, materials based on conducting polymers and graphene have been employed for the realization of resistive-gas sensors [18]. However, their performances, particularly in the pristine form, is significantly inferior to those of the MOS-based sensors. The main characteristics of a resistive-gas sensor are its response, selectivity, response time, stability, and sensing temperature. In other words, a good gas sensor should (i) afford a high response to the target gas, (ii) show no or low response to interfering gases, (iii) show high stability over a long time, and (iv) be used at low or room temperatures to minimize energy consumption [18]. Thus, various synthesis approaches or strategies have been used to overcome the limitations of this type of gas sensors: namely, poor selectivity and high operating temperature. A comparison of the most commonly used pristine metal oxides, with different surface morphologies, as a sensing layer in chemiresistive-type of gas sensors is presented in

Table 2. A comparison of the most commonly used metal oxides, with different surface morphologies, as chemiresistive gas sensors.

Dimensions	Sensing Material	Target Gas	Gas Conc. (ppm)	T (°C)	Response (Ra/Rg) or (Rg/Ra) or [(Ra − Rg)/Ra]*100%	Res (s)/Rec (s)	LDL (ppm)	Ref.
0D	Fe2O3 NPs	CH3COCH3	100	300	11.6	4/10	0.5	[19]
	In2O3 NPs	HCHO	10	280	20	4/8	NA	[20]
	ZnO NPs	Cl2	200	200	1278%	6/64	5	[21]
	SnO2 NPs	C2H5OH	250	100	30	16/25	NA	[22]
	NiO NPs	HCHO	1	230	80	≈54/≈14	NA	[23]
	WO3 NPs	NO2	100	200	34%	24/300	5	[24]
	Co3O4 NPs	CH3COCH3	100	200	8.61	43/92	0.1	[25]
	CeO2 NPs	H2S	40	RT	5.5	64/62	NA	[26]
	TiO2 NPs	CH3COCH3	1000	270	15.24	10/9	0.5	[27]
	CuO NPs	H2S	5	40	4.9	297/54	0.2	[28]
1D	SnO2 NWs	CO	20	RT	4	NA	NA	[29]
	ZnO NRs	CH3COCH3	100	300	32	5/15	1	[30]
	In2O3 MRs	C2H5OH	100	300	18.33	15/20	1	[31]
	Co3O4 MRs	C2H5OH	100	220	9.8	≈1/≈11	NA	[32]
	WO3 NFs	CH3COCH3	50	270	55.6	13/9	0.1	[33]
	ZnO NWs	C2H5OH	500	340	10.68	6/26	NA	[34]
	Fe2O3 NRs	CH3COCH3	100	280	23.5	≈1/≈3	NA	[35]
	NiO NWs	NH3	50	RT	0.19	36/NA	NA	[36]
	WO3 NWs	NO	500	300	37	63/88	50	[37]
	TiO2 NTs	C7H8	50	500	3	110/800	NA	[38]
	WO3 NWs	C2H2	200	300	58	6/7	NA	[39]
	NiO nanochains	HCHO	50	210	NA	1/10	1	[40]
	CuO NWs	n-propanol	100	190	6.2	≈2/≈7	1	[41]
	CuO NTs	CO	100	175	1.55	24/29	0.6	[42]
	V2O5 NWs	C2H5OH	1000	330	9.03	NA	NA	[43]
2D	ZnO NSs	C2H2	100	400	101.1	11/5	1	[44]
	CuO NSs	H2S	10 ppb	RT	1.25	234/76	10	[45]
	Co3O4 NSs	CH3COCH3	1000	111	36.5	NA	20	[46]
	NiO NSs	C2H5OH	50	240	11.15	4/7	1	[47]
	α-Fe2O3 NSs	TEA	100	300	520	NA	1	[48]
	V2O5 NSs	CH3COCH3	100	300	~3.2	25/13	5	[49]
	TiO2 NSs	CH3OH	1	100	17.46%	NA	1	[50]
	WO3 NSs	NO2	10	100	460	54/63	1	[51]
	SnO2 NSs	CH3COCH3	1	280	10.4	NA	0.2	[52]
	In2O3 NSs	NOx	97	RT	89.48	16/NA	0.48	[53]
3D	Co3O4 nanocubes	CH3COCH3	500	240	4.9	2/5	10	[54]
	Fe2O3 MFs	CH3COCH3	100	220	52	8/19	NA	[55]
	ZnO NFs	C2H2	200 µL/L	375	48.2	8/11	NA	[56]
	SnO2 nanocages	C7H8	20	250	33.4	≈3/≈6	NA	[57]
	In2O3 MSs	C7H8	50	350	85%	12/25	0.5	[58]
	NiO nanotetrahedra	HCHO	50	250	11.6	NA	NA	[59]
	CuO MSs	HCHO	100	300	3.2	26/28	NA	[60]
	WO3 urchin-like structures	C2H5OH	100	350	68.56	28/12	NA	[61]
	V2O5 hollow spheres	H2	200	RT	2.8	50/10	10	[62]
	TiO2 Bowl-like structure	C8H10	100	302	1.8	12/2	NA	[63]

0D: Zero-dimensional, T: Temperature, RT: Room temperature, Res/Rec: Response time and recovery time, ppm: Parts per million, LDL: Lower detection limit, CH₃COCH₃: Acetone, NH₃: Ammonia, HCHO: Formaldehyde, Cl₂: Chlorine, CH₃OH; Methanol; C₂H₂: Acetylene, H₂S: Hydrogen sulfide, H₂: Hydrogen, NA: Not available, NPs: Nanoparticles, NWs: Nanowires, NRs: Nanorods, MRs: Microrods, NFs: Nanofibers, NTs: Nanotubes, NSs: Nanosheets, MFs: Microflowers, NFs: Nanoflowers, MSs: Microspheres.

[19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53,54,55,56,57,58,59,60,61,62,63].

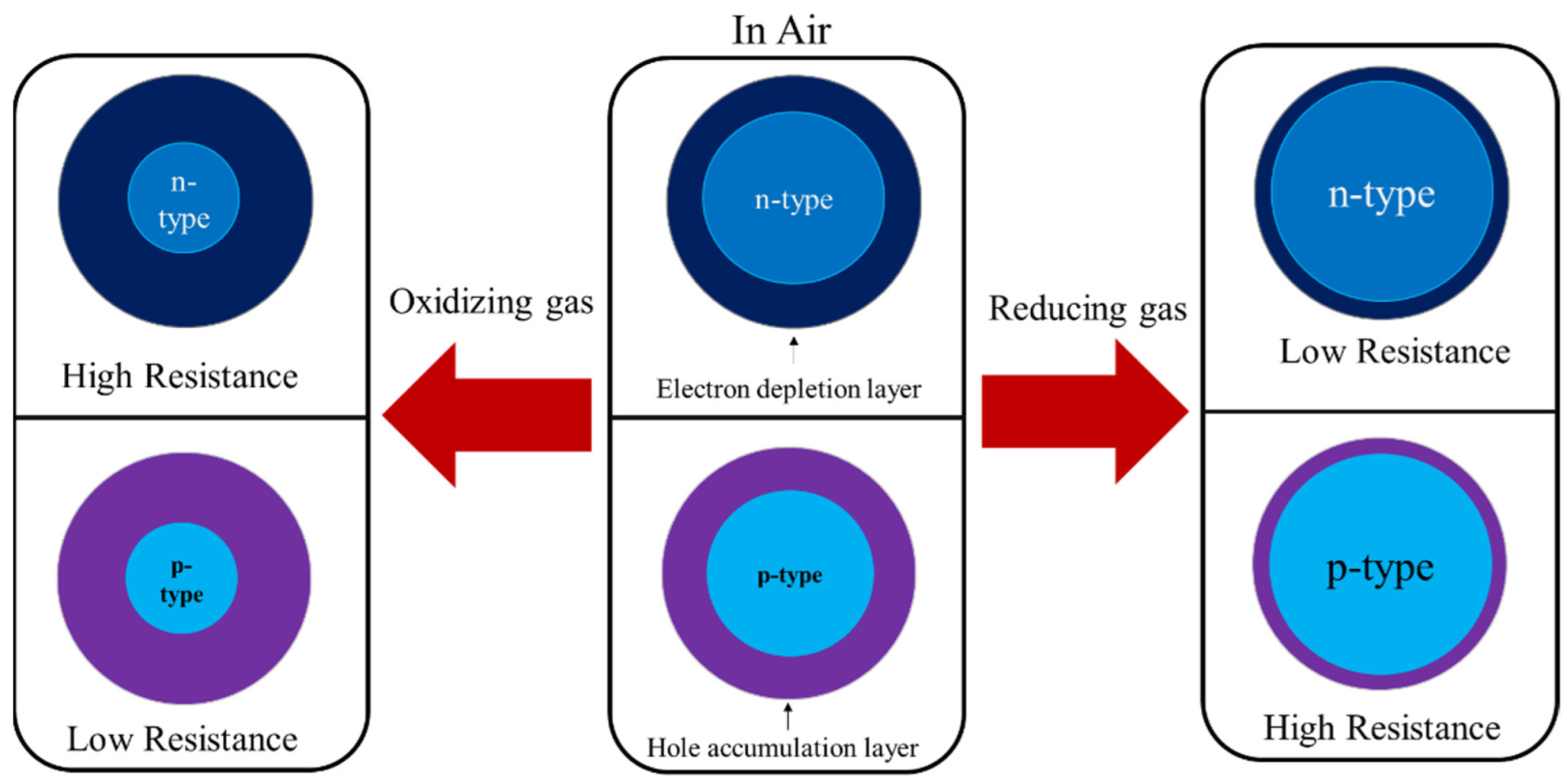

The general gas-sensing mechanism of resistive-based gas sensors is mainly based on the resistance variations of the sensing materials in the presence of target gases [19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53,54,55,56,57,58,59,60,61,62,63]. A scheme of the general detection mechanism of resistive-based n-type and p-type MOSs sensors, in the presence of oxidizing/reducing gases, is presented in Scheme 1. As shown in Scheme 1, in air, an electron depletion layer (EDL) and a hole accumulation layer (HAL) forms on the surfaces of n-type and p-type MOSs, respectively, due to the abstraction of electrons by adsorbed oxygen species on the surface of the gas sensor. Considering an n-type gas sensor, when it is exposed to reducing gases, due to the reaction between the gas and adsorbed oxygen species, the electrons will be released and come back to the sensor surface, leading to a decrease in the width of the EDL and increase in the sensor resistance. Upon exposure to oxidizing gas, the width of the EDL increases, leading to an increase in the sensor resistance. For p-type gas sensors, the width of the HAL decreases and increases upon exposure to reducing and oxidizing gases, respectively, leading to the appearance of a sensing signal. More details about the gas-sensing mechanism of resistive-based gas sensors will be discussed in the next sections.

In brief, this review focuses on the different gas-sensing approaches used to enhance the sensing performance, which can provide the researchers with specific and targeted strategies for developing high-performance gas sensors. In this review, the state-of-the-art research on semiconductor-based chemiresistive-type gas sensors in Korea is described, with a focus on the research conducted by the laboratories of Professors Hyoun Woo Kim (Hanyang University) and Sang Sub Kim (Inha University). The success of our groups in the field of gas sensors stems from following items. (i) First, there is the synthesis of new materials with the desired morphology for sensing studies. For example, extensive efforts has been devoted to the synthesis of composite nanowires and nanofibers in core–shell (C-S) structure with different compositions. (ii) Second, there are advanced, almost automatic and precise measuring systems, where very small changes in the sensing signal can be detected and recorded by the system. (iii) Third, there is the optimization of sensing materials to obtain the highest sensing response. For example, the optimization of shell thickness or irradiation dose. (iv) Fourth, we focus on the finding the possible sensing mechanism by concrete evidence and using different characterization techniques. (v) Fifth, our success is the product of a highly motivated research group always monitoring the gas sensor-related literature, participating in gas sensor-related conferences, and collaborating with research groups all around the world. The studies performed in recent years on the core–shell, self-heated, irradiated, flexible, and Si/glass-based sensors are discussed. Accordingly, this review paper presents a lot of information about different gas sensors and their sensing mechanism.

2. Gas Sensors Based on Morphology Engineering: Core–Shell (C-S) Sensing Materials

Smart C-S nanocomposites, in which a core is covered with a nanoscale shell, have been subjected to sensing studies [19]. Different types of hybrid gas detection materials based on the C-S structure, such as MOS–MOS C-S, noble metal–MOS C-S, and noble metal–void oxide shell (yolk-shell), have been reported in the literature [64]. Among the MOS–MOS C-S type materials, one-dimensional (1D) C-S nanocomposites such as C-S nanowires (NWs) are well known for gas detection because these have large surfaces with a rapid diffusion pathway for gas molecules and provide a large number of heterojunctions, which are all important characteristics for realizing a good gas sensor [65]. Although there is a large difference in the structures of the nanofiber (NF) and NW sensors, a similar detection mechanism is likely involved in both cases. The results suggest that the radial modulation of the conduction channel is a common detection mechanism inside the C-S structures together with C-S NFs/NWs. In a C-S structure, when the shell thickness is equivalent to or less than the Debye length (λ_D) of the shell layer, the whole of the shell is completely depleted from electrons due to (i) oxygen adsorption from air and (ii) flow of electrons at the C-S interface. Atomic layer deposition (ALD) is a suitable deposition method that allows the growth of smooth and high-quality films with excellent conformal on the underlying surface by controlling the thickness on the atomic scale at low temperatures [66,67]. Therefore, ALD is one of the best methods for depositing a layer of shell onto the core material. In addition, electrospinning is one of the simplest and most versatile techniques used for constructing a range of structures with different configurations, such as hollow, normal, porous, aligned, and C-S 1D nanostructures. This technique is very flexible for fabricating continuous and long NFs. It is expected that this will gradually advance from laboratory-scale to industrial-scale processes. From a marketing standpoint, electrospinning is the only preferred method for the large-scale fabrication of NFs compared to other existing techniques because of its ease of handling, low cost, minimum solution consumption, controllable NF diameter, and reproducible NF processing, in addition to technical advances compared to other techniques [68]. The following section is about the main results of the key research on the C-S nanostructure-based gas sensors published by the research groups led by Hyoun Woo Kim, Sang Sub Kim, and Yeon-Tae Yu (Jeonbuk National University, Jeonju, Korea). In most of this research, there is a detailed study about the mechanism of gas sensing in C-S-based gas sensors.

Park et al. [69] prepared TiO₂-ZnO C-S NFs for oxygen sensing, wherein the shell thickness of ZnO grew almost linearly with the number of ALD cycles. Thus, the thickness of the shell layer could be readily controlled by adjusting the number of ALD cycles. The optimal sensor showed a response of ≈19 to 5000 ppm oxygen gas at 300 °C. Thus, the oxygen-sensing data suggested that the C-S NFs afforded a better response than the bulk- or film-type gas sensors because of the numerous surface adsorption sites for gaseous molecules owing to their higher surface-to-volume ratios. Choi et al. [70] fabricated SnO₂-ZnO C-S NFs via a two-step approach, where SnO₂ NFs were initially synthesized using an electrospinning technique, and ALD was subsequently used to deposit ZnO shell layers. The fabricated sensor exhibited a good response O₂ gas at 300 °C. The response to 1000 ppm oxygen was ≈2, and it showed a detection limit of 70 ppm. The sensing enhancement relative to the pristine sensor could be attributed to a combination of homo- and heterointerfaces developed at the junctions within the C-S NF sensor. The increased response of the gas sensor was related to the resistance changes caused by the surface depletion layer of the C-S NF and potential barriers at the interfaces. Kim et al. [71] investigated the sensing properties of ZnO-SnO₂ C-S NWs, where a SnO₂ shell layer was deposited by ALD. Gas detection studies demonstrated that a sensor with an optimal shell thickness of 40 nm at 300 °C revealed good responses of 18.24, 14.94, and 16.46 to 1 ppm for CO, C₇H₈, and C₆H₆ gases, respectively. The degree of modulation of the electron-depleted shell was mostly dependent on the shell thickness (Figure 1a). When the shell thickness was almost equal to λ_D, the electrons returned to the shell layer when they were exposed to the reducing gas, leading to the development of a partially electron-depleted shell from an original completely electron-depleted shell, resulting in a high response. In an air atmosphere, the shell was not completely depleted when the shell thickness was greater than λ_D. Upon exposure to the reducing gas, the electron-depleted layer was reduced, and there was a slight change in the resistance, which resulted in a low gas response. Thus, in the case of C-S NWs, the shell thickness must be of the order of λ_D to achieve a high sensing response. In the case of a SnO₂ shell with a thickness ≤λ_D, the modulation of resistance should be nearly equivalent. However, the primary resistance values showed that the resistance increased with an increase in the shell thickness until the maximum value was obtained for a shell thickness of 40 nm.

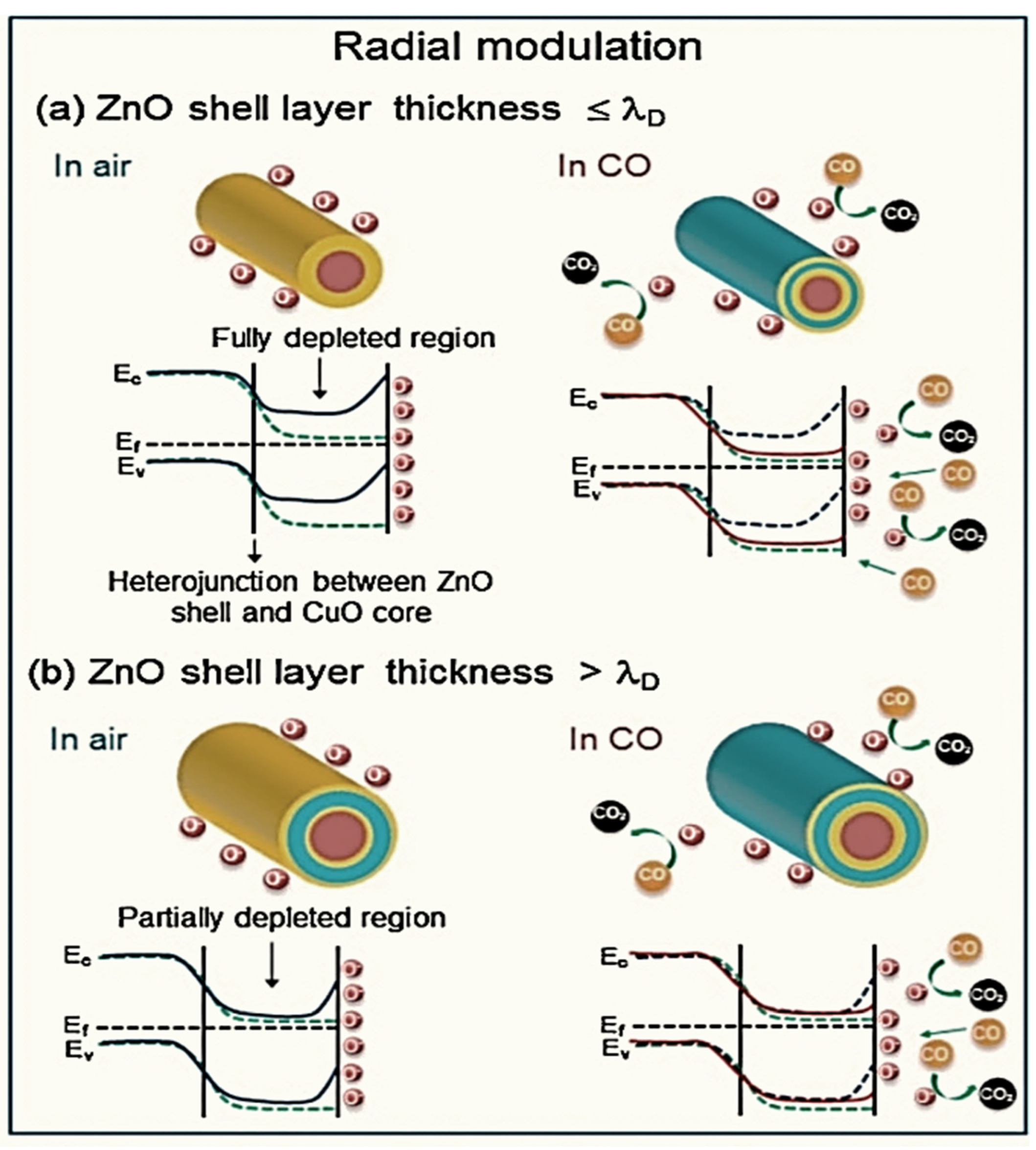

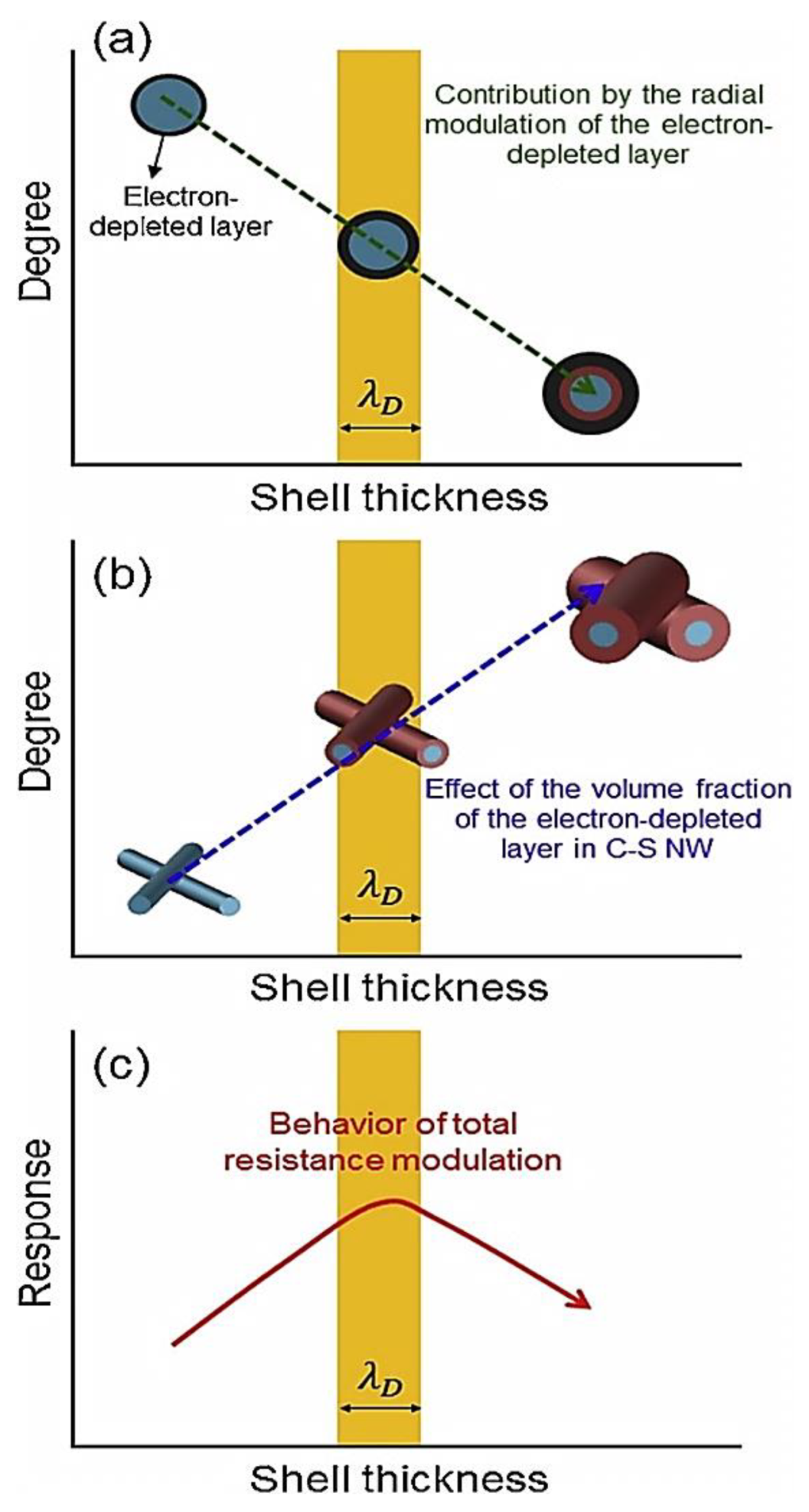

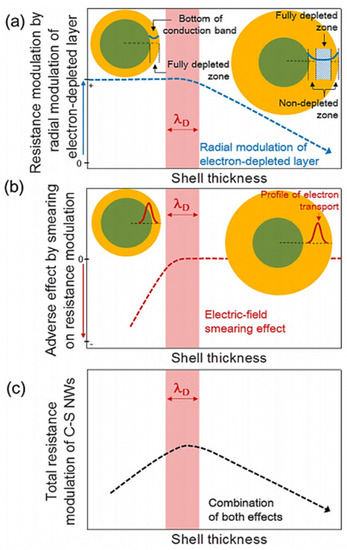

Accordingly, along with radial modulation, other factors must be considered to determine the initial resistance and detection performance. For the C-S NWs, the portion of the total volume of the C-S NWs was proportional to the shell thickness (Figure 1b). Therefore, the overall combined reducing gas response could be envisioned as a bell-shaped curve, which was correlated to the shell thickness (Figure 1c). In reality, the net effect of the contributions from the two detection mechanisms mentioned above eventually determined the gas response of the C-S NW sensor, where the highest response was observed for the shell with a thickness of 40 nm. Together with the aforementioned mechanisms, the smearing effect related to the electric field must also be considered. For shell layers with thicknesses ≤ λ_D, the electrical currents were not confined to the shell area and passed through the core and shell. In such a case, the shell was completely electron-depleted in ambient air and subjected to significant resistance modulation after exposure to the reducing gas. However, a significant proportion of the electron current also flowed through the NW core, resulting in a slight resistance change of the C-S NWs. However, for shell thicknesses ≥ λ_D, the electrical currents most likely passed through the shell, and the resistance modulation was mainly governed by the radial modulation of the resistance. Choi et al. [72] synthesized C-S NWs via a two-step process, where core SnO₂ NWs were primarily fabricated by a vapor–liquid–solid (VLS) growth process, and the ZnO shell layers were subsequently deposited using ALD. The SnO₂-ZnO C-S NW sensor with a shell thickness of 40 nm showed an excellent response to different reducing gases such as benzene (R_a/R_g = 88 to 10 ppm C₆H₆), CO (R_a/R_g = 80 to 10 ppm CO), and toluene (R_a/R_g = 75 to 10 ppm C₇H₈) at 300 °C. However, the NO₂-sensing responses of the sensors were decreased because of the formation of the shell layers.

The shells with thicknesses less than the Debye length are speculated to partially coat the core NWs, leading to a low gas response. Since the thickness of the shell is equal to or less than the Debye length of the shell layer, the modulation of resistance resulting from the release of electrons captured in the shell layer during the interaction of reducing gases must be nearly equal for all the C-S structures. However, for ZnO sensors with shell layers of thicknesses less than the Debye length, the modulation of resistance increases with increasing shell thickness up to the Debye length. This is in contrast to the interpretation based on the radial modulation mechanism of the electron-depleted shell layer. Accordingly, additional factors should be considered to account for the sensing outcomes. The degree of resistance modulation initiated by the radial modulation of the electron-depleted shell layer varies according to the shell thickness (Figure 2a). Figure 2b shows the sensing mechanism based on the electric field smearing effect. A thinner shell layer allows the development of the Debye length on the core material, and electrical transport is induced within the shell layer and around the C-S core interface because the passage is not restricted to the shell layer. This partially enhances the modulation of resistance when the C-S NWs are subjected to reducing gases because partial electrical transport is observed within the shell layer, which is an electrically depleted region. Even if the shell layer, which is completely depleted of electrons, undergoes a large modulation of the resistance, a considerable portion of electron transport is observed in the inner NW core, leading to a marginal modulation of resistance of the entire C-S NWs. In addition, for a shell layer thickness equal to or greater than the Debye length, the electrical transport is generally limited to the shell layer and not smeared to the core region. In such a case, the smearing effect becomes negligible, and the resistance modulation of the C-S NWs through reducing gases is governed by the radial modulation of the electron-depleted layer. The two above-mentioned effects cumulatively contribute to the gas response, as shown in Figure 2c.

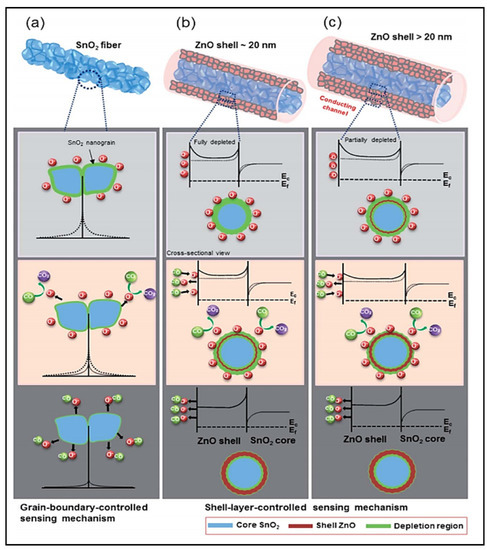

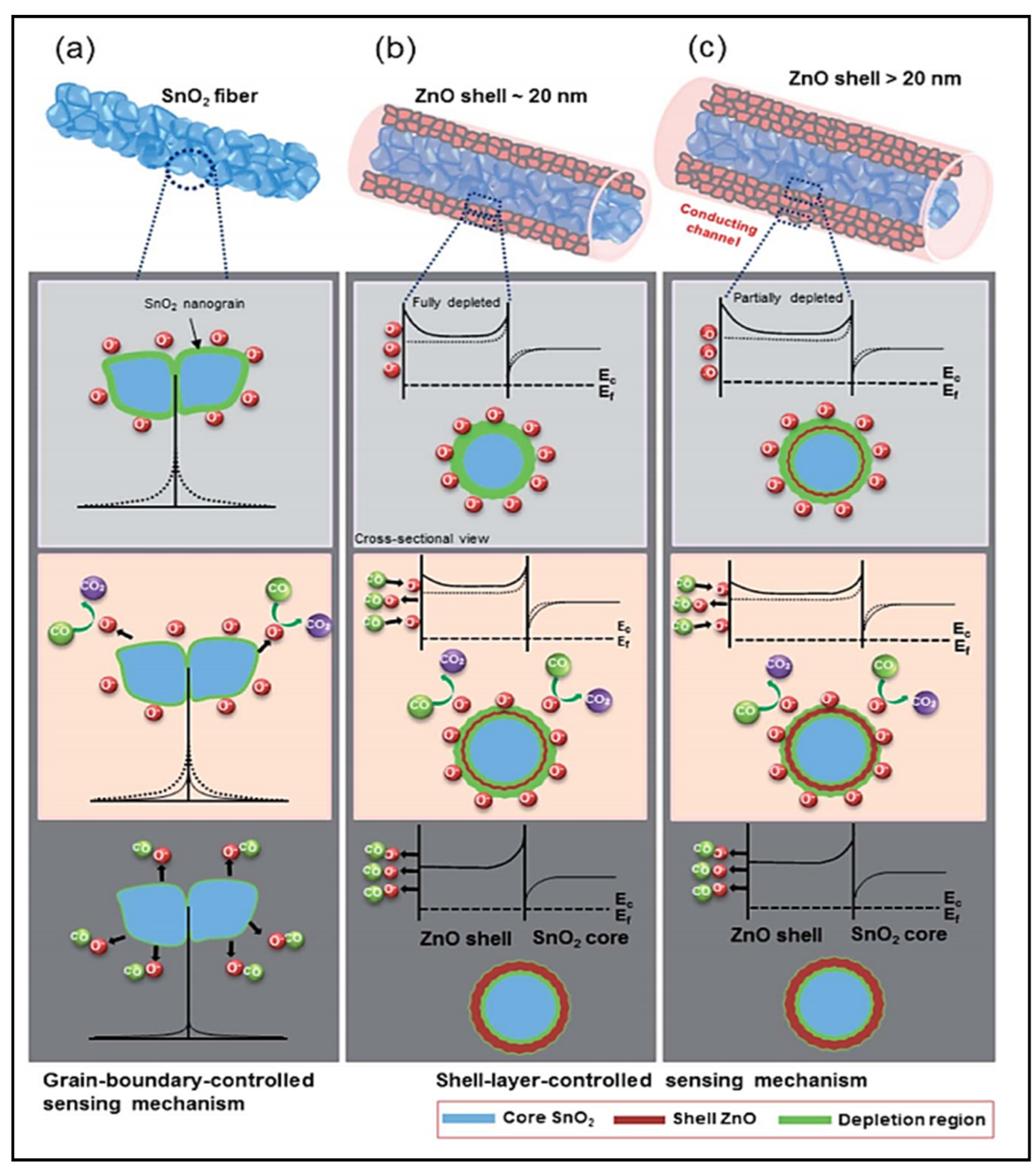

Katoch et al. [73] reported the synthesis of SnO₂-ZnO C-S NFs via a combination of electrospinning and ALD techniques for CO and NO₂ gas-sensing applications. The optimal gas sensor showed a response of 6.5 to 1 ppm CO gas at 300 °C, while the response to 1 ppm NO₂ gas was 1.5. In the SnO₂-ZnO C-S NFs, a heterojunction was formed between the core and shell, and the potential barrier of the heterojunction played an important role in enhancing the sensing capabilities of the C-S NFs. The height of the heterojunction potential barrier was modulated by reaction with the target gases. In the SnO₂-ZnO C-S NFs, the shell layer was entirely electron-depleted when the thickness of the shell was equal to that of the shell material. The resistance of the pristine SnO₂ NF sensor was significantly improved when a ZnO shell layer was created. In particular, the 20 nm-thick C-S NF sensor showed the maximum resistance, which indicated a completely depleted state of electrons in the ZnO shell. For the C-S NFs with shells of thicknesses greater than the Debye length, the resistance decreased again because of the partially depleted state of electrons. This change in resistance with varying shell thickness supported the electron transport mechanism in C-S, which was mainly controlled by the characteristics and thickness of the shell layer (Figure 3). The C-S NF sensors showed a low sensitivity to NO₂ because of the unavailability of electrons in the shell layer. In the case of the C-S NFs with shell thicknesses greater than the λ_D of ZnO, the layer partially depleted by the electrons afforded a smaller number of electrons for the adsorbed NO₂ gas molecules, which led to a larger resistance change than in the case of thick sensors [28].

Similarly, Kim et al. [74] investigated the gas-sensing characteristics of the p-n copper oxide (CuO)-ZnO C-S NWs toward the reducing gases, such as CO and C₆H₆ gases, where a sensor with a shell thickness equal to the λ_D of ZnO exhibited excellent sensing performance. The optimal gas sensor showed responses of 6 and 5.8 to 1 ppm CO and C₆H₆ gases, respectively at 300 °C with a detection limit of 1 ppm. For the shell layers with thicknesses equal to the λ_D of ZnO, the electrons from the ZnO shell were completely depleted owing to the combined effect of the p-n junction and oxygen adsorption on the shell. The sensing mechanism for the shell layer with a thickness less than λ_D is shown in Figure 4a. Notably, the shell thickness affording the highest sensing performance is almost equal to λ_D, indicating a correlation between the sensing mechanism and λ_D value. When the sensors with a completely depleted shell layer were exposed to the reducing gases, the desorption surface oxygen released electrons into the conduction band of the shell to regain its original configuration, which significantly increased the conductivity of the C–S NWs. When the shell thickness was considerably smaller than λ_D, the variation in resistance initiated mainly from the shell part was insignificant because of a small portion of the shell layer in the entire volume of the C–S NWs, even though the shell layer was fully electron-depleted and afforded a large variation in resistance. Thus, shells thinner than the critical value exhibited low a gas-sensing capability when compared to those with optimized thicker shells. In contrast, for the sensors with shell layers thicker than λ_D, a slight change in resistance was observed (Figure 4b). Consequently, a shell with a thickness comparable to λ_D is crucial to achieve excellent performance for reducing gases.

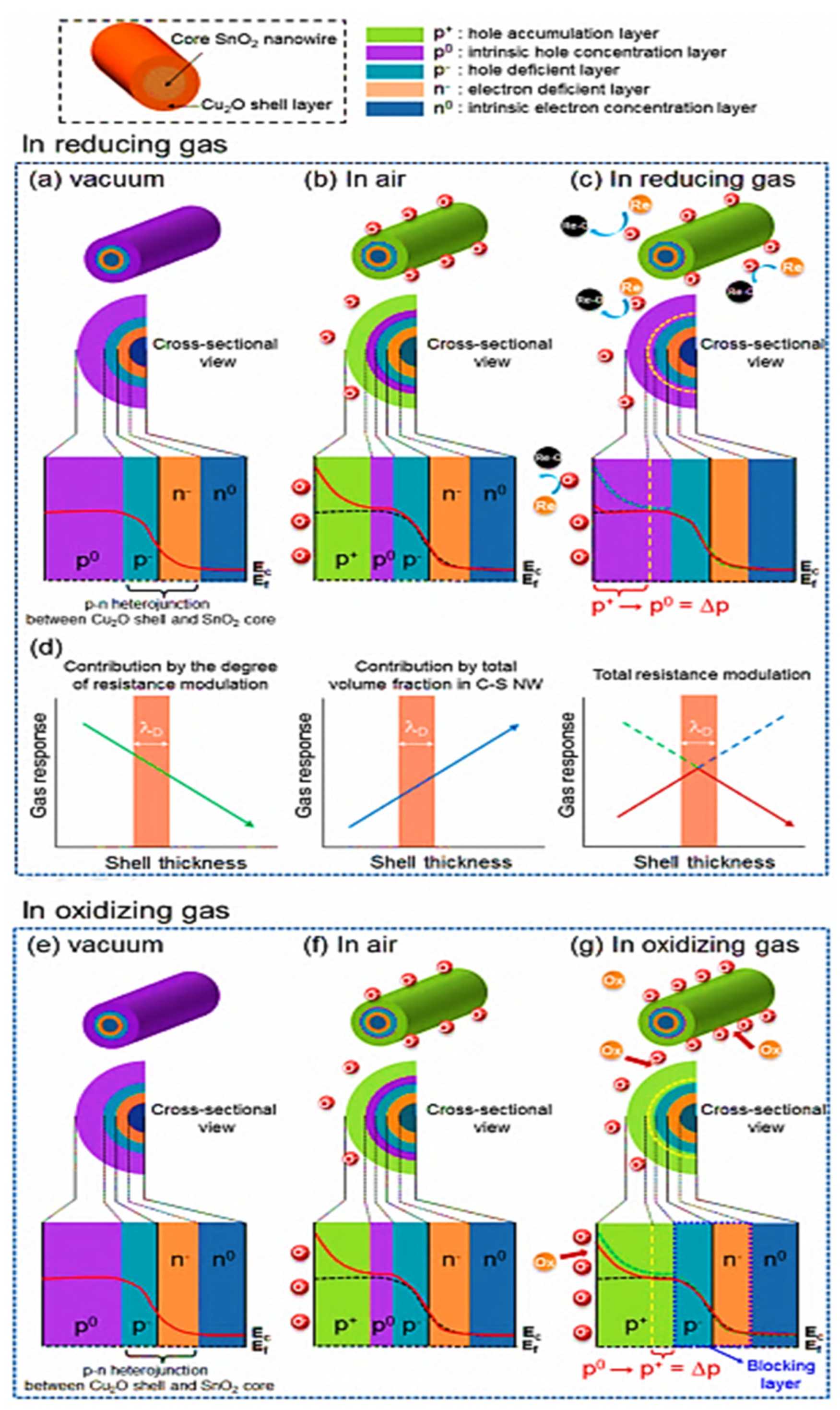

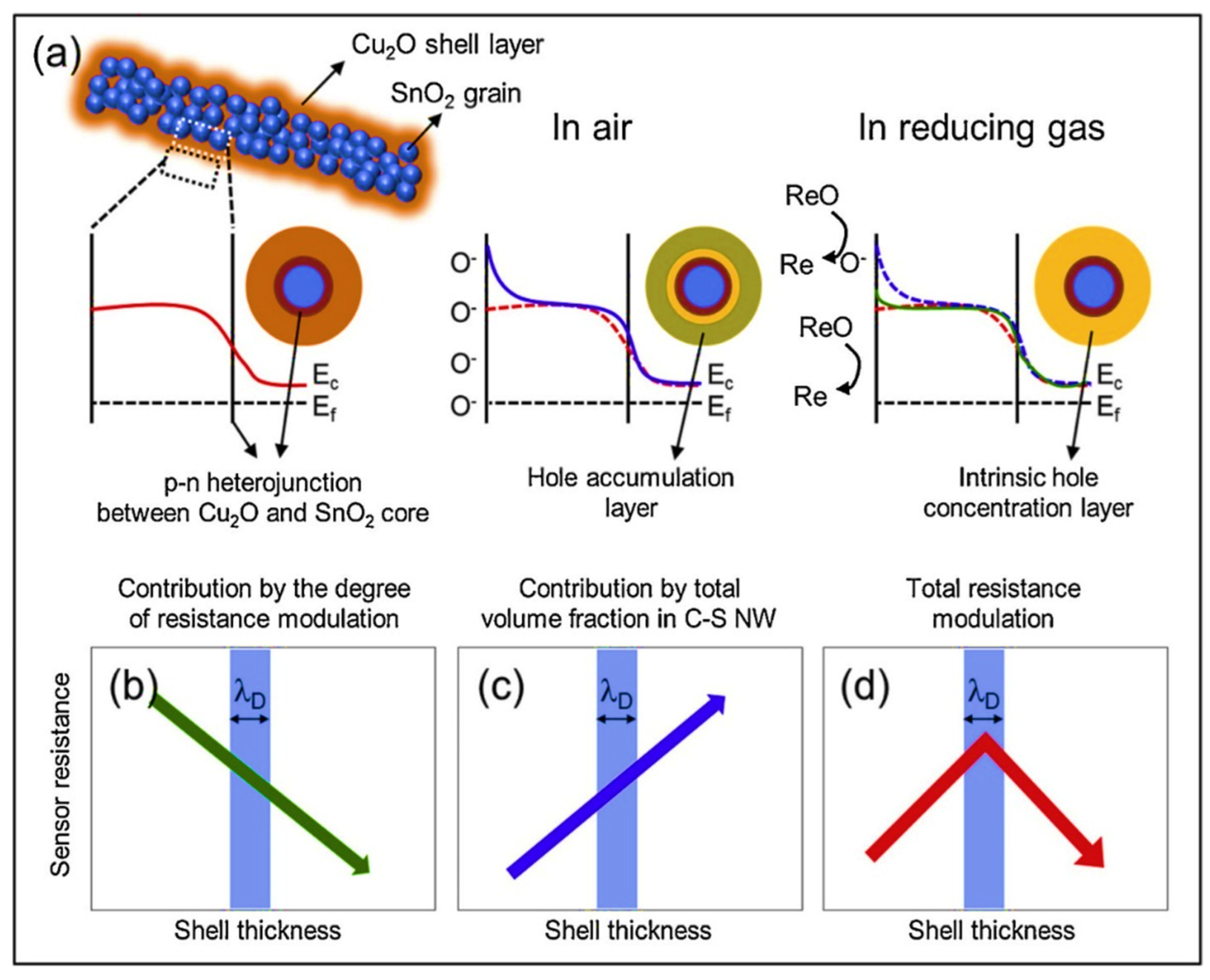

In another study, Kim et al. [75] synthesized SnO₂/Cu₂O C-S NFs by electrospinning followed by ALD of a Cu₂O layer. The pristine SnO₂ sensor showed the highest response toward NO₂ gas (R_g/R_a = 5.3 to 10 ppm NO₂ gas at 300 °C), and the C-S NF sensor with a shell thickness of 30 nm showed the maximum response to CO gas. The optimal gas sensor showed a response of 5.3 to 10 ppm CO gas at 300 °C. The sensing characteristics were not only affected by the initial concentration of holes in the shell but also by hindering the development of the hole-accumulation layers (HAL) (Figure 5a). The released electrons eradicated the holes and increased the shell layer resistance. In a shell of 15 nm thickness, the total layer was hole-accumulated, and hence, the subsequent transfer of holes from NO₂ gas was not effective. Furthermore, the injection of CO gas eliminated the holes from the entire hole-accumulated layer and increased the resistance. For a shell thickness of 30 nm, a part of the shell was hole-accumulated by the adsorbed oxygen ions. The entire thickness was hole-accumulated by the adsorption of NO₂ gas, which resulted in an enhanced sensor response. In addition, the accumulation of holes was decreased by the adsorption of CO gas, which increased the hole resistance, thereby affording a high sensor response. For an optimal shell thickness of 30 nm, it was assumed that the shell layer would be nearly hole-depleted upon CO incorporation, where the change in the hole resistance caused by the incorporation of CO gas would be maximized. Consequently, the sensor response increased for NO₂ and CO gases with an increase in shell thickness beyond 15 nm. In contrast, the expansion of the rich-HAL layer was restricted by the presence of an n-p heterojunction, which acted as a blocking layer for expansion. Therefore, a further increase in the thickness of the shell resulted in low responses to NO₂ and CO gases. For a shell thickness of 45 nm, the sensor response to CO gas was significantly decreased compared to that for a shell thickness of 30 nm. Additionally, the response to NO₂ gas decreased slightly with a decrease in the shell thickness from 45 to 30 nm. For a shell thickness of 45 nm, the HAL layer was decreased to less than half the thickness of the shell layer. Therefore, a decrease in HAL through CO injection was insufficient, while an increase in HAL by injecting NO₂ was sufficient. In addition, the sensing was not only affected by contribution from the degree of resistance modulation but also by the contribution of the overall volume fraction in the C-S NFs (Figure 5b–d). The resistance modulation caused by the radial modulation of the rich-HAL varied inversely with the shell thickness (Figure 5b). Along with this process, the degree of resistance modulation was higher in the thinner shells; however, the opposite was observed for thicker shells.

Regardless of other factors, it was expected that the thinnest shell would afford the highest gas response. However, sensing studies showed the dependency of the bell-shaped response on the shell thickness. An additional contribution was that of the fraction of the Cu₂O shell to the overall volume of the C-S NFs, which was proportional to the thickness of the shell (Figure 5c). Therefore, the modulation of the total resistance showed a maximum at an exact thickness of the shell (Figure 5d). For a pristine SnO₂ sensor, the NO₂ response was greater than that of CO, whereas the developed C-S NF sensor showed a very poor response to NO₂ in comparison to the pristine SnO₂ sensors, indicating that the SnO₂-Cu₂O C-S NFs sensors were not effective in detecting NO₂. The capability of NO₂ gas for electron transfer from the Cu₂O surface was significantly inferior to that of the SnO₂ surface.

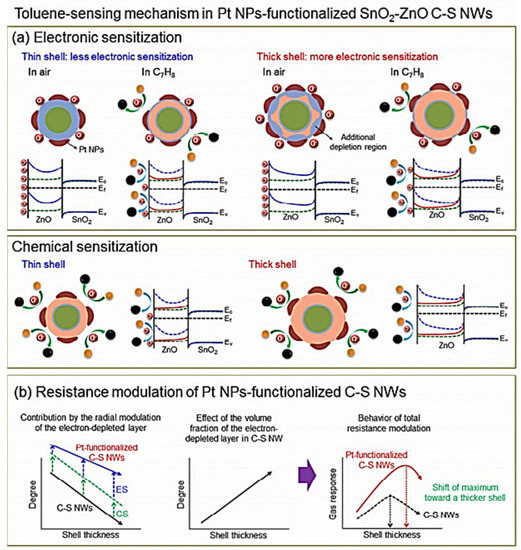

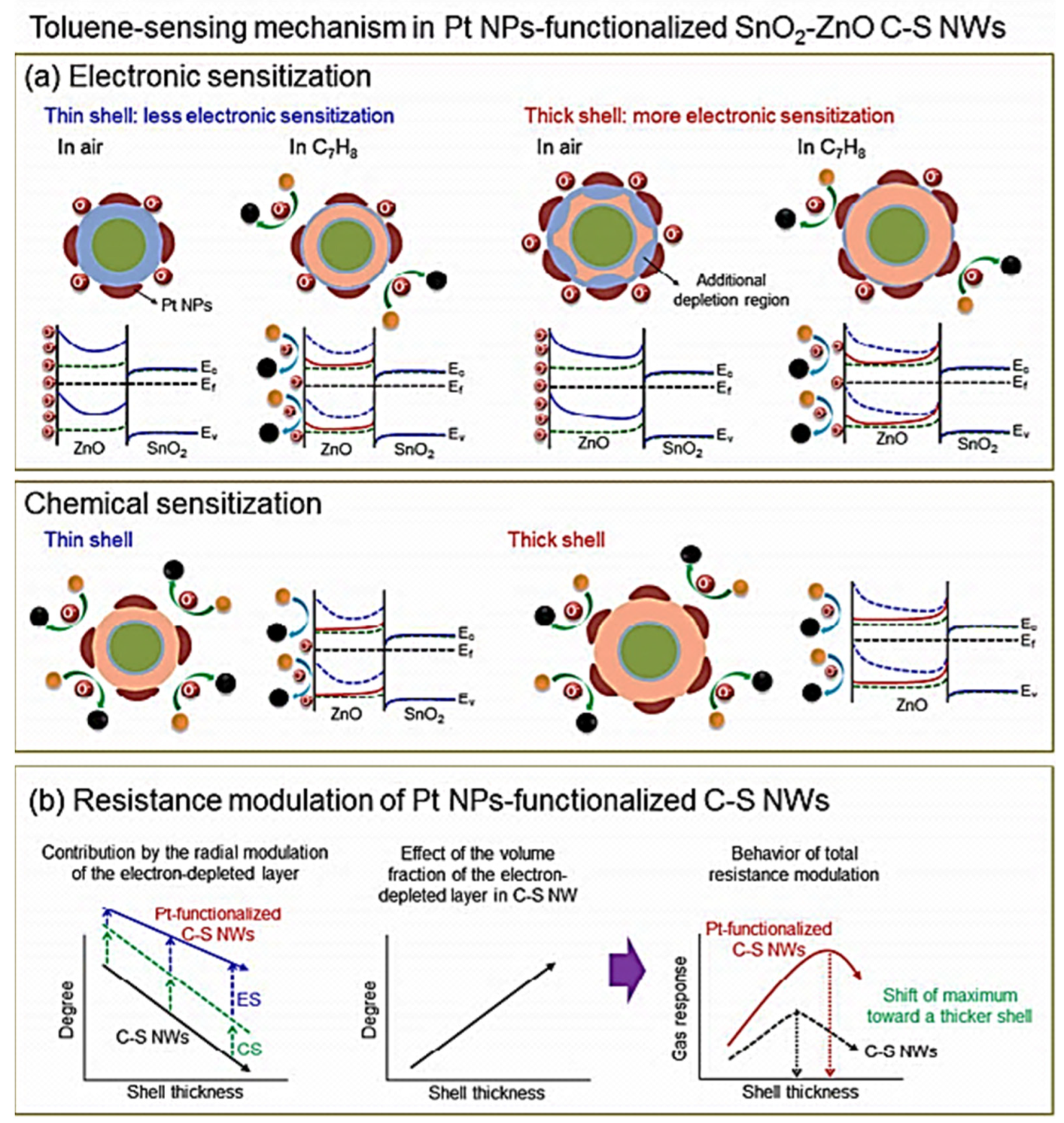

Kim et al. [76] studied the effect of Pt functionalization with an the optimal shell thicknesses on the C₇H₈-sensing characteristics of SnO₂-ZnO C-S NWs. The sensor showed a high response of 279 to 0.1 ppm C₇H₈ gas at 300 °C. Functionalization using Pt NPs resulted in two contributions to the sensing characteristics of the SnO₂-ZnO C-S NWs. The first contribution was related to the electronic sensitization (ES) that was initiated by the electron flow from the ZnO shell layer to the Pt NPs, which led to a further suppression of the conduction channels configured inside the layer of the ZnO shell (Figure 6a).

When the C₇H₈ molecules reacted with chemisorbed oxygen species, the width of the depletion layer changed, resulting in the resistance modulation of the gas sensor. The second contribution was the catalytic effect of the Pt NPs through chemical sensitization (CS), which allowed further interactions between the C₇H₈ molecules and chemisorbed oxygen species. The ES and CS effects are shown in Figure 6a. The ES contribution depended only on Pt NPs, and accordingly, the CS contribution was mainly accountable for selective sensing because of various phases of catalytic interactions between the metal NPs and a specific gas. As shown in Figure 6b, owing to the ES and CS contributions of the Pt NPs, the gas response of the sensor based on Pt-functionalized SnO₂-ZnO C-S NWs was further enhanced, and the response maxima shifted toward a thicker shell. As shown in Figure 6, the gas response of the Pt-functionalized SnO₂-ZnO C-S NWs increases linearly with an increase in the shell thickness, unlike the SnO₂-ZnO C-S NWs without Pt NPs. The Pt NPs could dissociate the C₇H₈ gas molecules more efficiently than the other gases. The adsorption of C₇H₈ gas molecules onto the Pt surface was largely affected by the electronic effects, which decreased the barrier for C₇H₈ adsorption by making it easier to donate the electrons from the πCH₃ level to the Fermi level and readily allowing back-donation from the Fermi level to the πCH₃* level.

Zirconium oxide (ZrO₂) is typically utilized for electrochemical gas sensing at high temperatures [77], and the number of reports on its resistive-based gas sensing is limited. Bang et al. [78] synthesized–SnO₂-ZrO₂ C-S NWs with different shell thicknesses (10.5–34.1 nm) and studied their NO₂ gas-sensing properties (Figure 7a).

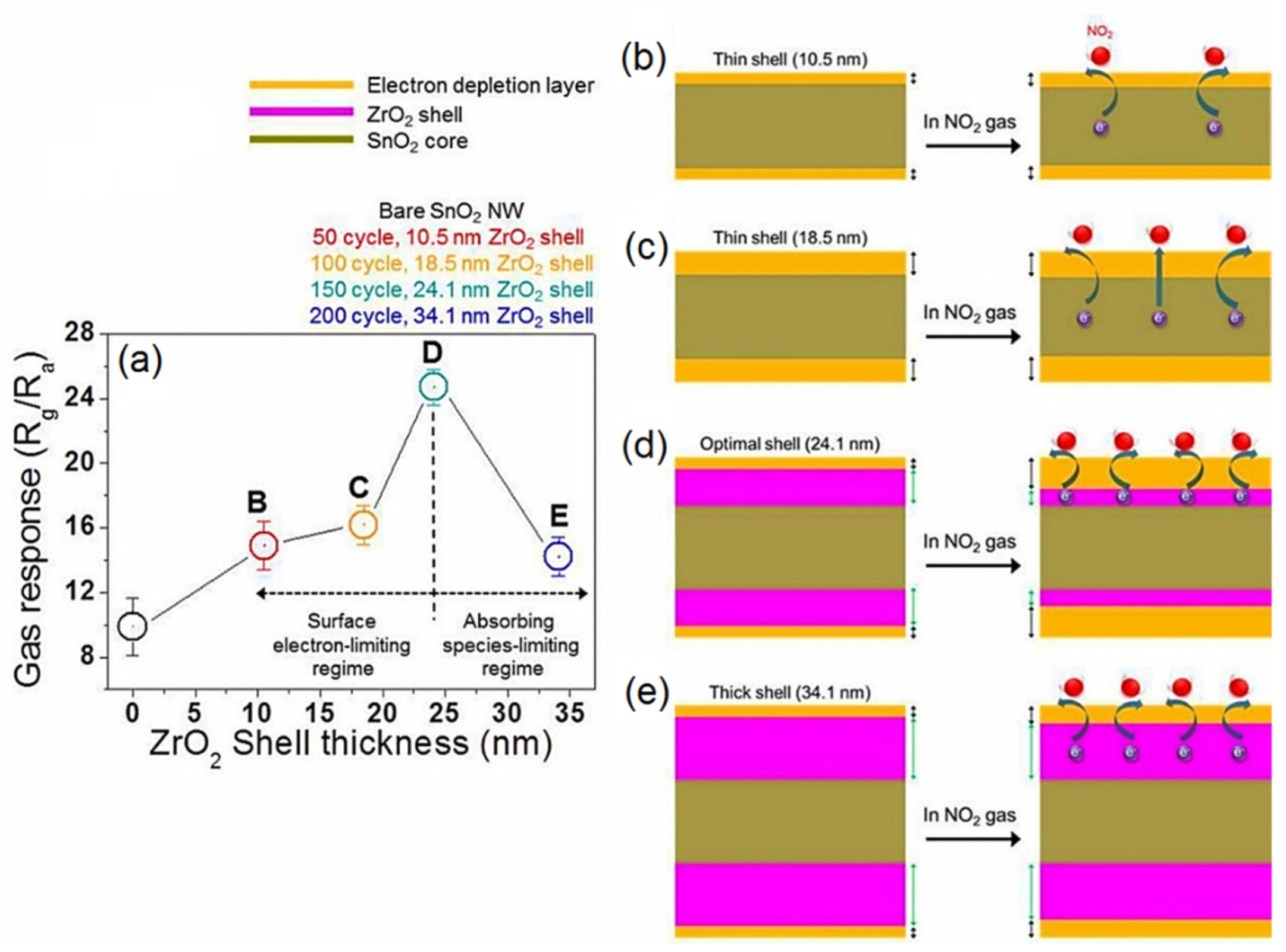

The optimal sensor showed a response of 24.7 to 10 ppm NO₂ gas at 150 °C. The schematics showing NO₂ gas sensing with various shell thicknesses are shown in Figure 7b–e. With an increase in the shell thickness of ZrO₂, the number of electrons in ZrO₂ increased in the range of 0–24.1 nm. As the r esponse of ZrO₂ increased with respect to the electron conduction volume, the developed sensor system in the range of 0–24.1 nm was in command, where the surface electron concentration of ZrO₂ was lower than that of the adsorbing gas species. In this surface-electron-limiting regime, most of the available surface electrons interact with the adsorbed gaseous species. Accordingly, an increase in the volume of electron conduction led to an increase in the sensor response. For a shell thickness less than the optimum value, almost the entire thickness was depleted. Upon NO₂ exposure, insufficient electrons were extracted from the ZrO₂ layer. Accordingly, the number of surface electrons was inadequate in the sensor with thin shells, and consequently, the response of the sensor was restricted. Consequently, the detection capability improved with an increase in the shell thickness from 0 to 24.1 nm. At an optimum shell thickness of 24.1 nm, the shell layer of ZrO₂ was significantly depleted by electrons. Upon exposure to NO₂ gas, the remaining electrons from ZrO₂ were completely depleted by the adsorption of NO₂ species. The initial concentration of electrons was extremely high for the thin shells; therefore, a large number of electrons were consumed during the reactions with NO₂ gas. The sensor response decreased with an increase in the shell thickness from 24.1 to 34.1 nm because of the presence of adequate surface electrons above 24.1 nm owing to the thick shell of ZrO₂. This modified the system to afford a regimen in which the concentration of surface electrons in ZrO₂ was greater than that of the adsorbed gaseous species. In such an adsorbing-species-limiting regimen with a high initial conduction volume, a decrease in the ZrO₂ surface electrons upon the injection of the target gas resulted in a low sensor response, which was achieved through a thick shell layer. Further increase in the shell thickness resulted in a lower sensor response. Relative to the optimized shell thickness, a large portion of the shell layer was not depleted by the electrons. Even though NO₂ adsorption led to the adsorption of some electrons, the relative change in the electron concentration within ZrO₂ was not very significant, resulting in a relatively lower sensor response.

Kim et al. [79] synthesized SnO₂-Cu₂O C-S NWs and applied these to the detection of trace amounts of gases. The resistance curves for the C-S NW sensors with different shell thicknesses were obtained upon exposure to 10 ppm C₇H₈, C₆H₆, and NO₂. The sensor based on C-S NWs with a shell thickness of 30 nm exhibited the best response to reducing gases. The response of optimal gas sensor to 10 ppm C₇H₈, C₆H₆ gases was 11.7, 12.5 at 300 °C. In addition, the response and recovery times were almost 4 s for both gases. The presence of the Cu₂O shell decreased the NO₂-sensing response of the C-S NW sensors. The sensing mechanism of the SnO₂-Cu₂O C-S NW sensor is shown in Figure 8. In ambient air, the concentration of holes can be divided into three regions (considering the vacuum case (Figure 8a) because of oxygen adsorption onto the Cu₂O shell and development of the C-S heterojunctions (shown in Figure 8b). The HAL (p⁺) is created by the extraction of electrons from the valence band of Cu₂O by chemisorbed oxygen species. At a specific temperature, the intrinsic hole concentration layer (p_o) remains at the equilibrium hole concentration in Cu₂O, and the hole-deficient layer (p⁻) results from an electrostatic response to the hole layer by the electrons in the n-p heterojunction. The red line in Figure 8b shows the profile of the hole concentration in ambient air, and the dotted black line shows the case in vacuum. An increase in the concentration of holes is observed in air. When the sensor is exposed to the reducing gas, the resistance of the p-Cu₂O shell layer increases. As shown in Figure 8c, the profile of hole concentration (blue line) in air shifts toward the red line, which supports a decrease in the concentration of holes in the “p” shell layer. Therefore, the detection capability of pure Cu₂O NWs was inferior to that of the C-S NWs because of the weaker hole-accumulation layer. The degree to which the resistance of the p⁺ layer is modulated varies inversely with the shell thickness. As a result, a thicker shell experiences less resistance modulation because it is in a state of partial hole accumulation. Considering the fraction of shell layers in the overall volume of the n-p C-S NWs (which is comparable to shell thickness), the response affords a bell-shaped curve as a function of shell thickness (Figure 8d). As shown in Figure 8e–g, the extension of the p⁺ layer is constrained owing to the existence of the p⁻|n⁻ interface, which acts as a blocking layer for the expansion of the p⁺ layer, resulting in a slight resistance modulation to oxidizing NO₂ and low response to NO₂.

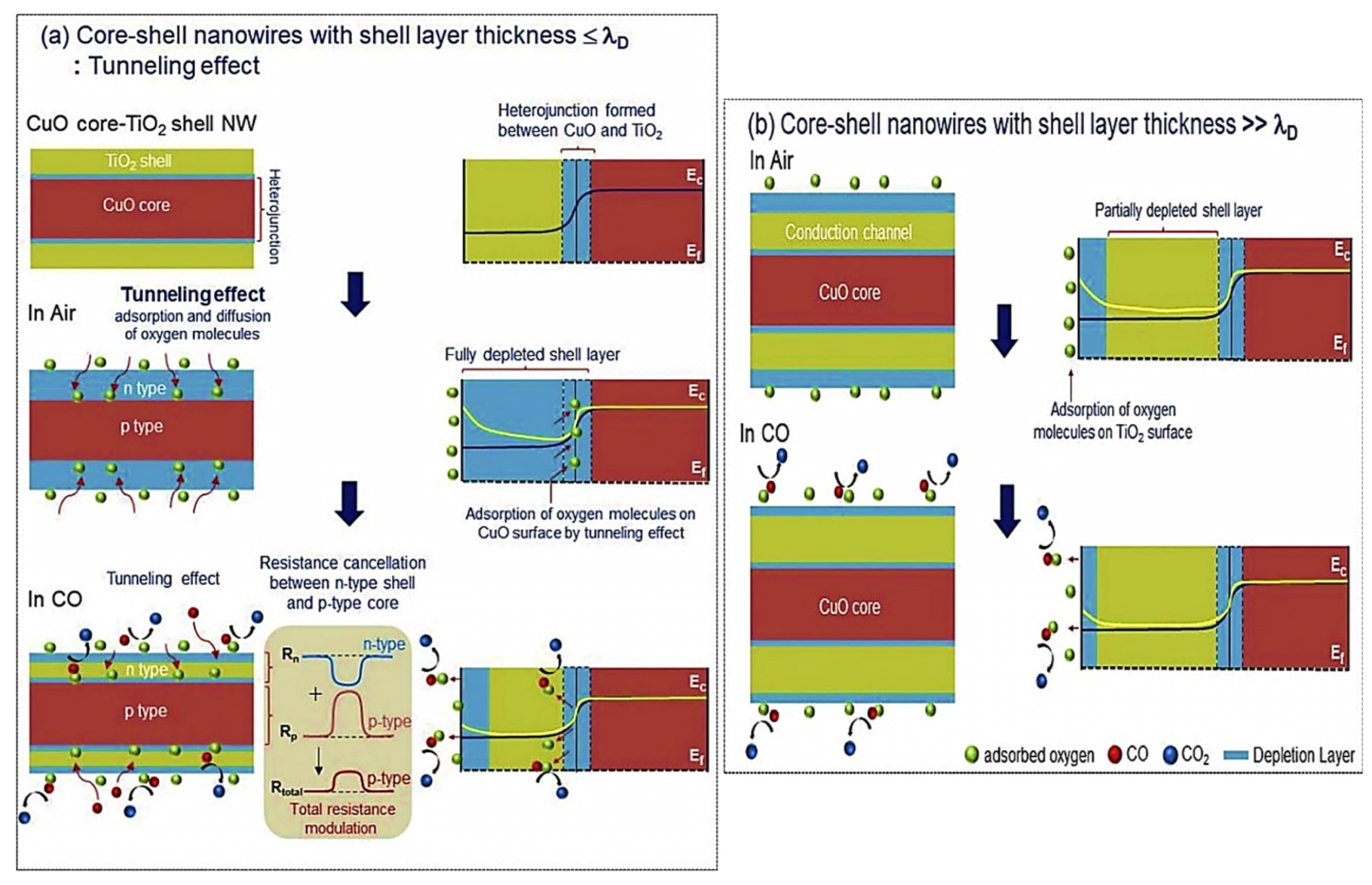

In another study, Lee et al. [80] reported the gas-sensing characteristics of p-n CuO-TiO₂ C-S NWs, where a sensor with a 40 nm shell thickness exhibited an enhanced gas response (R_a/R_g = 7.14 to 1 ppm CO at 300 °C). The TiO₂ shell layer was depleted by electrons through oxygen adsorption together with the transfer of electrons to CuO (Figure 9a). The degree of electron depletion increased when the shell thickness was below the λ_D of CuO. Specifically, a depleted state of electrons was formed in the thin-shell layer. In contrast, only partial electron depletion was observed for thick shells (Figure 9b). Therefore, the degree of resistance modulation initiated by radial modulation within the shell layer varied inversely with the shell thickness. The thinner shells underwent further resistance modulation, whereas the thicker shells showed less resistance modulation with the partial depletion of electrons in the shell. When the TiO₂ shell thickness was greater than 40 nm, the shell prevented the gas molecules from interrelating with the core CuO as it was sufficiently thick to act as a barrier layer. In this state, the sensor based on C-S NWs exhibited n-type sensing characteristics because the TiO₂ shell layer was the only sensing material subjected to gas molecules.

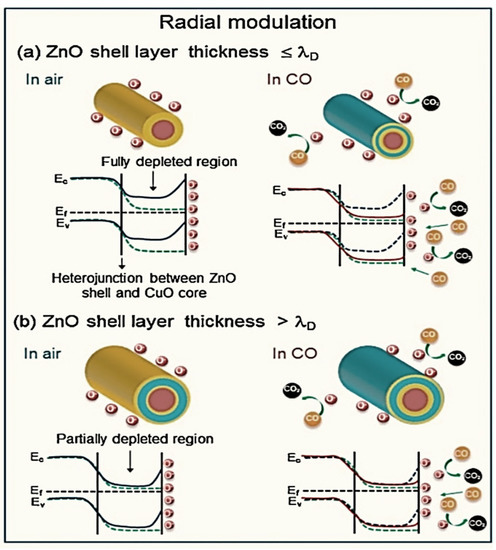

Katoch et al. [81] synthesized p-CuO/n-ZnO C-S NFs for CO gas-sensing applications. In the p-n CuO/ZnO C-S NFs, the shell layer was completely depleted by the electrons when the shell thickness was equivalent to the Debye length of the shell material. This confirmed that the C-S NF sensors showed a better response when the shell thickness was lower than that of the Debye length of the shell material. The highest sensor response to CO was observed with a 16 nm-thick shell (Response = 7 to 0.1 CO at 300 °C), suggesting that the p-n C-S NFs with 16 nm-thick shells were completely depleted. When a fully depleted p-n C-S NF shell layer was exposed to CO, the oxygen species that were eliminated from the surface released electrons into the conduction band of the shell layer and the original configuration of the band was recovered, thereby increasing the conductivity. In addition, the p-n C-S NFs with a shell layer thickness greater than the Debye length only had partially depleted shell layers. Upon exposure to CO gas, the CO molecules were adsorbed onto the partially electron-depleted shell layer. A slight change in resistance was observed because of the presence of a conduction channel below the partially electron-depleted shell layer. This indicated that the shell thickness modulated the electron-depleted layer in the shell. Therefore, preparing a shell with a thickness less than or equivalent to the Debye length is important to achieve excellent gas-sensing properties of the p-n C-S NF sensors. Notably, the p-n C-S NF sensors did not have a better capability to detect oxidizing gases than normal NFs. Generally, oxidizing gases extract many electrons from the shell surface. Considering that n-type shells contain free electrons throughout their partial volume irrespective of the type of core nanofiber, these are simply depleted. Therefore, the free electrons are depleted just before or immediately after introducing the oxidizing gas, leading to a change in the resistance and a low response. Thus, the lower response to oxidizing gas is mainly due to the inadequate accessibility of free electrons in the completely depleted shell layer for inbound oxidizing gas molecules. Similarly, Park et al. [82] introduced a model to improve the gas-sensing capacity of SnO₂-ZnO C-S NFs. The ZnO shell was completely depleted by the electrons via the combined effect of (i) band bending at the heterojunction between the ZnO shell layer and the core SnO₂ fiber and (ii) the band bending at the ZnO shell layer surface through the adsorption of oxygen molecules. Upon CO exposure, the released electrons gradually recovered to the original configuration of the band. Through this process, the resistance change along the NFs was more noticeable than the normal NFs without a fully depleted layer owing to the absence of the completely depleted shell layer.

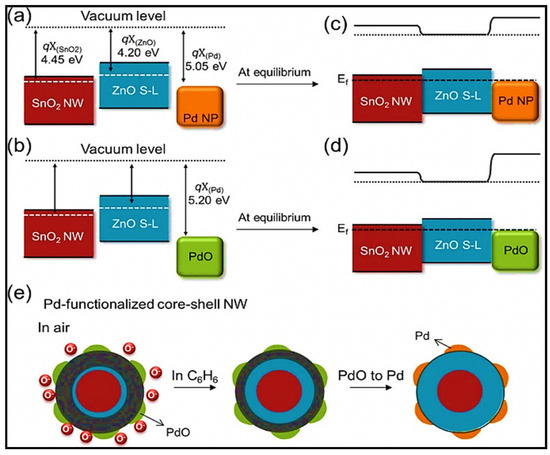

In another study, Kim et al. [83] achieved outstanding selective sensing of C₆H₆ gas using Pd NP-functionalized SnO₂-ZnO C-S NWs. The authors reported an excellent response of 71–100 ppb C₆H₆. The C-S NWs showed enhanced sensing properties toward reducing gases for the optimized shell thickness with respect to the pristine core NWs. A potential barrier was formed at the heterointerfaces (Figure 10a) because of the different work functions of different materials via charge transfer. The sensor response was attributed to the changes in the potential barriers in air and C₆H₆ gas atmosphere. An additional contribution to the detection signal was the modification of the conduction channel by Pd NPs (Figure 10b). Furthermore, specific attention should be paid to CS through the catalytic effect of the Pd NPs (Figure 10c), which facilitate C₆H₆ interactions with the chemisorbed oxygen species and enhance the resistance modulation of the SnO₂-ZnO C-S NWs. The Pd NPs are likely to more efficiently dissociate C₆H₆ gas molecules than other reducing gases. The catalytic properties of Pd allow the adsorption of C₆H₆ molecules to Pd NPs.

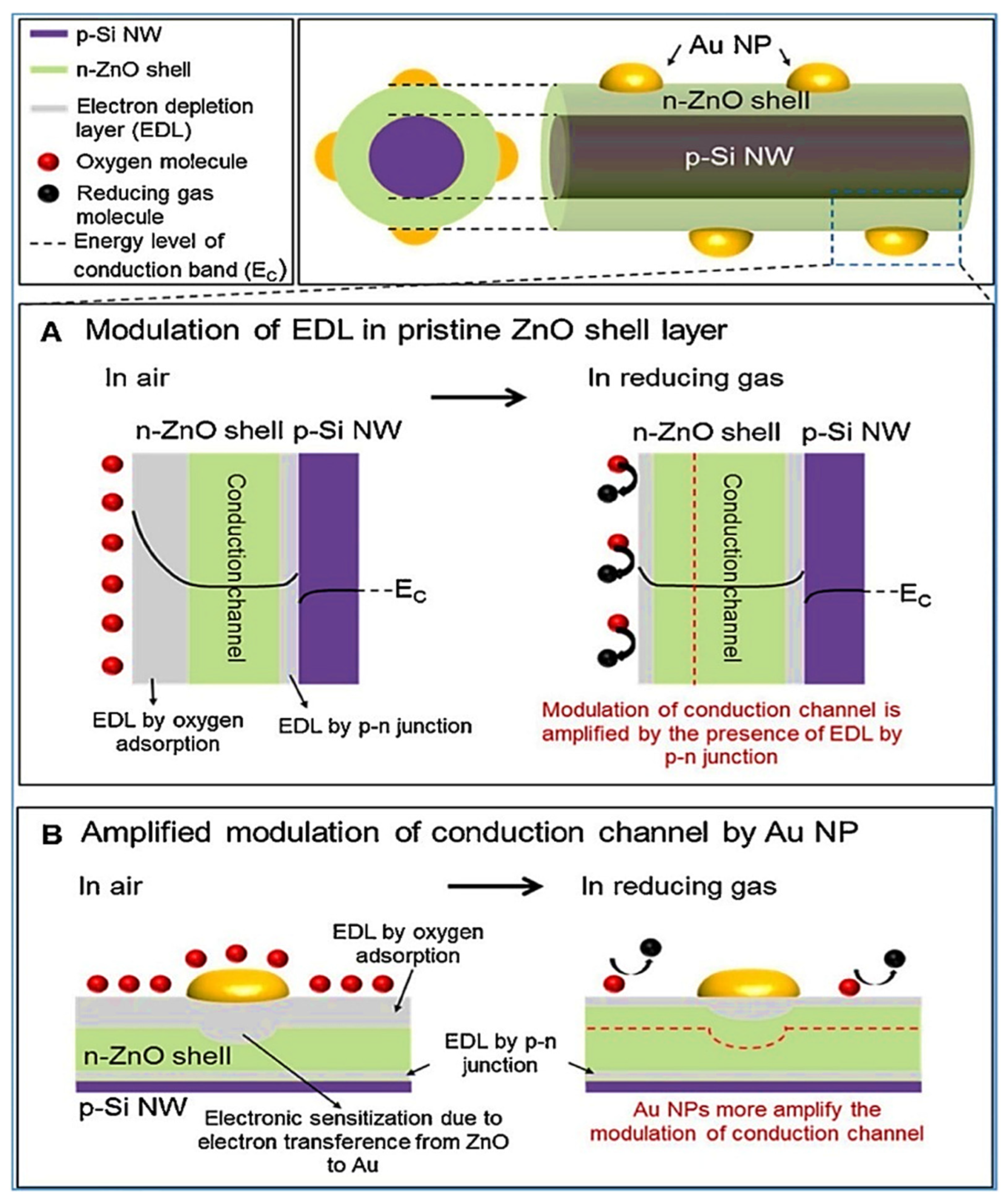

In addition, Choi et al. [84] utilized Au-decorated Si NW-ZnO C-S for H₂S gas-sensing applications. The optimal gas sensor showed a response of 11 to 50 ppm H₂S at 300 °C. The response and recovery times were 48 and 63 s, respectively. A possible sensing mechanism for the Au-decorated Si NWs-ZnO C-S is shown in Figure 11. Various factors were considered for the elucidation of the sensing mechanism, including (i) ZnO/Au heterojunctions, (ii) catalytic properties of Au, and (iii) the heterojunction between ZnO/Si. As a result of the catalytic activity of Au, gas molecules dissociated, and the spillover effect was transferred onto the ZnO shell surface. Furthermore, the increase in the sensor response by increased electron flow in ZnO-Si-ZnO occurred when the ZnO work function was higher than that of p-Si. In addition, the ZnO/Au heterojunction barriers increased the sensor performance. The sensor displayed better selectivity toward H₂S gas because of its high reactivity, and therefore, it could simply react with the chemisorbed oxygen ions on the ZnO surface. In addition, the bond energy between H and SH in H₂S is 381 KJ/mol, which is lower than those of other interfering gases. As a result, the H-SH bond may readily collapse at 300  °C during chemical adsorption. Although the bond energy of O-NO is less than that of H-SH, the interaction strength between the sensor and target gas is another significant parameter that allows the determination of the gas response. The adsorption of H₂S gas molecules onto Au NPs may potentially result in the formation of Au-S or Au-SH-type species on the Au NP surface. Consequently, a sulfide shell covered the surfaces of the Au NPs, which decreased the surface work function of the Au NPs. According to this change, the amount of electron exchange between the Au NPs and ZnO could be changed, which could improve the sensor response to H₂S gas.

Another type of C-S structure relies on noble metals and metal oxides. Pioneering research on noble metal–metal-oxide C-S based gas sensors was first developed by Prof. Yeon-Tae Yu et al. at Jeonbuk National University, Korea. This research group successfully developed a series of noble metal and metal–oxide-based C-S gas-sensing materials, such as Au-SnO₂ [85,86,87], Au-Cu₂O [88,89], Au-ZnO [90], Au-NiO [91], PdO-ZnO [92], Au-In₂O₃ [93], and AuPd_alloy-ZnO [94]. Among various C-S sensors, the first type of C-S gas sensor based on Au@SnO₂ C-S nanoparticles (NPs) was reported by Yu et al. in 2011 [85]. The authors synthesized Au-SnO₂ C-S NPs via a microwave-assisted hydrothermal reaction and investigated their CO gas-sensing properties. The response (R_a/R_g) of the Au-SnO₂ C-S NPs was ≈1 for 1000 ppm CO at 100 °C. It was speculated that the catalytic activity of Au NPs was responsible for the superior response of the Au/SnO₂ C-S NPs at temperatures below 200 °C compared to pure SnO₂ NPs [95]. To further enhance the sensing properties of C-S NPs, Majhi et al. [89], synthesized three kinds of Cu₂O NPs in 2014, namely cubic Cu₂O NPs, spherical Au NRs-Cu₂O C-S, and brick-shaped Au NRs-Cu₂O C-S NPs for CO gas-sensing applications. Figure 12a shows the CO gas-sensing performances of the three types of Cu₂O NPs at 250 °C and concentrations of 10–1000 ppm. The brick-shaped Au-Cu₂O C-S NP sensor exhibited a typical p-type semiconductor behavior with the highest response of 5.67 (R_g/R_a), which was followed by 4.38 for the spherical-shaped Au-Cu₂O C-S and 3.35 for pristine cubic Cu₂O NPs. As shown in Figure 12a, significant variations in baseline resistance are observed, which are attributed to the unique structure of the Au-Cu₂O C-S NPs, ES of the Au NRs, and arrangement of particles between the two electrodes. Figure 12b shows a schematic of the flow of electrons in the three types of sensing layers with their corresponding microscopic images. Spherical Au NRs-Cu₂O C-S NPs were well connected to each other because of their spherical geometry, which facilitates the charge flow and results in a low baseline resistance.

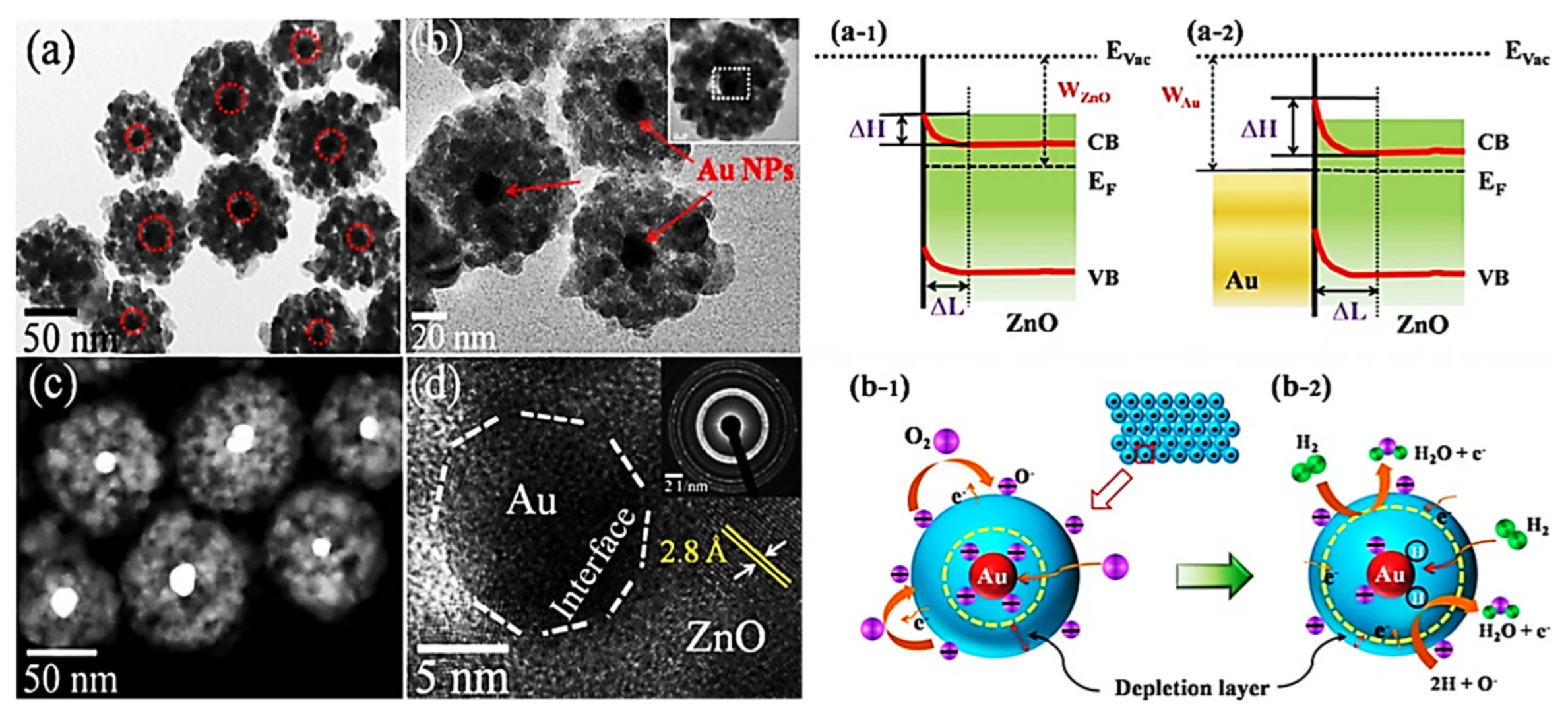

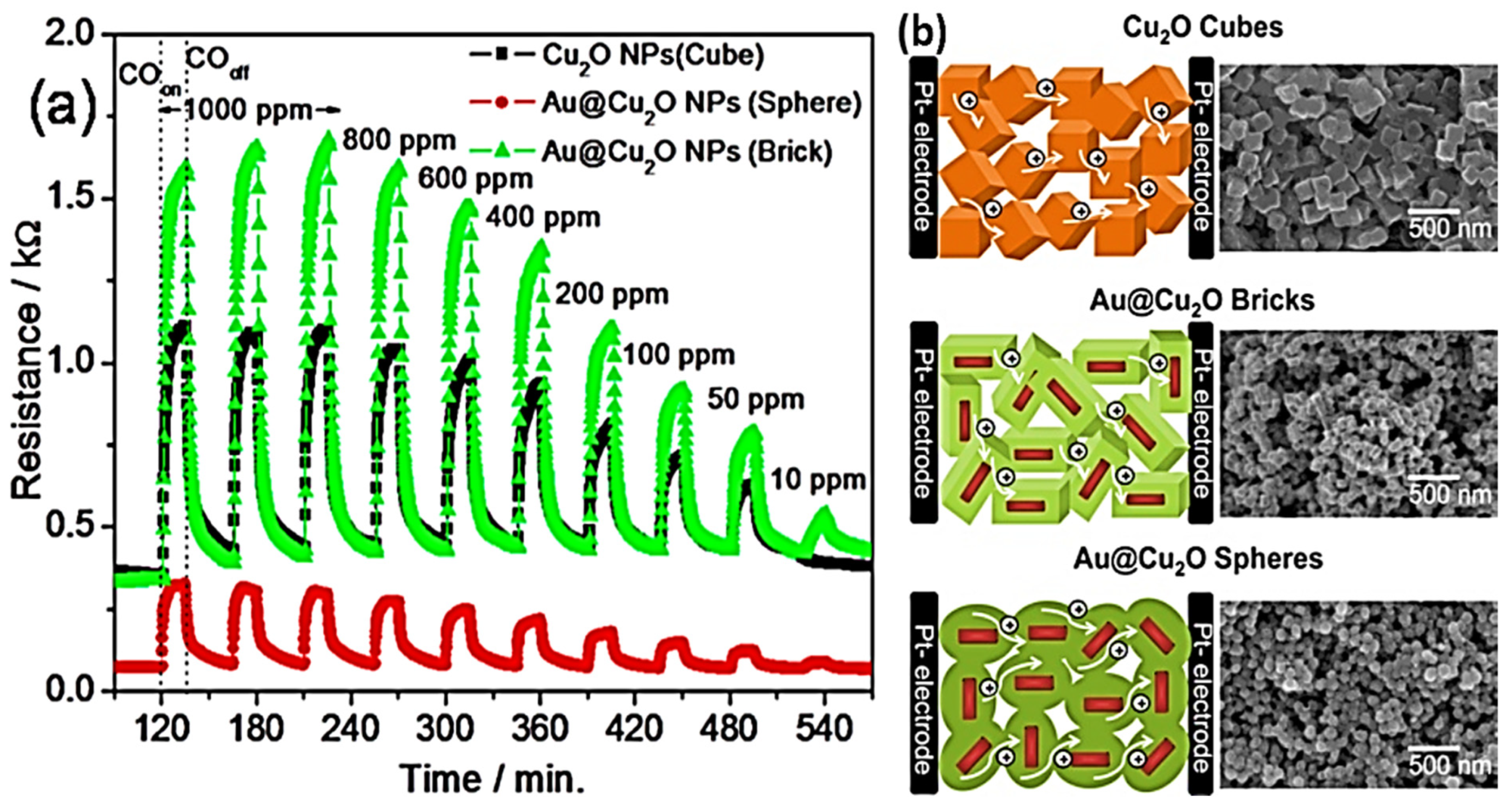

The same authors further examined the H₂ gas-sensing properties of Au-ZnO C-S NPs [90]. Au-ZnO C-S NPs were synthesized using a low-temperature hydrothermal method (Figure 13a–d). The NP size of Au-ZnO C-S was 50–70 nm, together with a size 10–15 nm of the Au NPs encapsulated inside the materials. The sensors exhibited the highest response (R_a/R_g = 103.9) in comparison to pristine ZnO NPs (12.7) with a rapid response time of 75 s and a low detection limit of 500 ppb. The sensor also showed good reproducibility and stability toward H₂ gas when tested in repeated cycles. The enhanced sensing properties were attributed to the electronic and CS effects of the Au NPs (Figure 13((a-1)–(b-2))) [96].

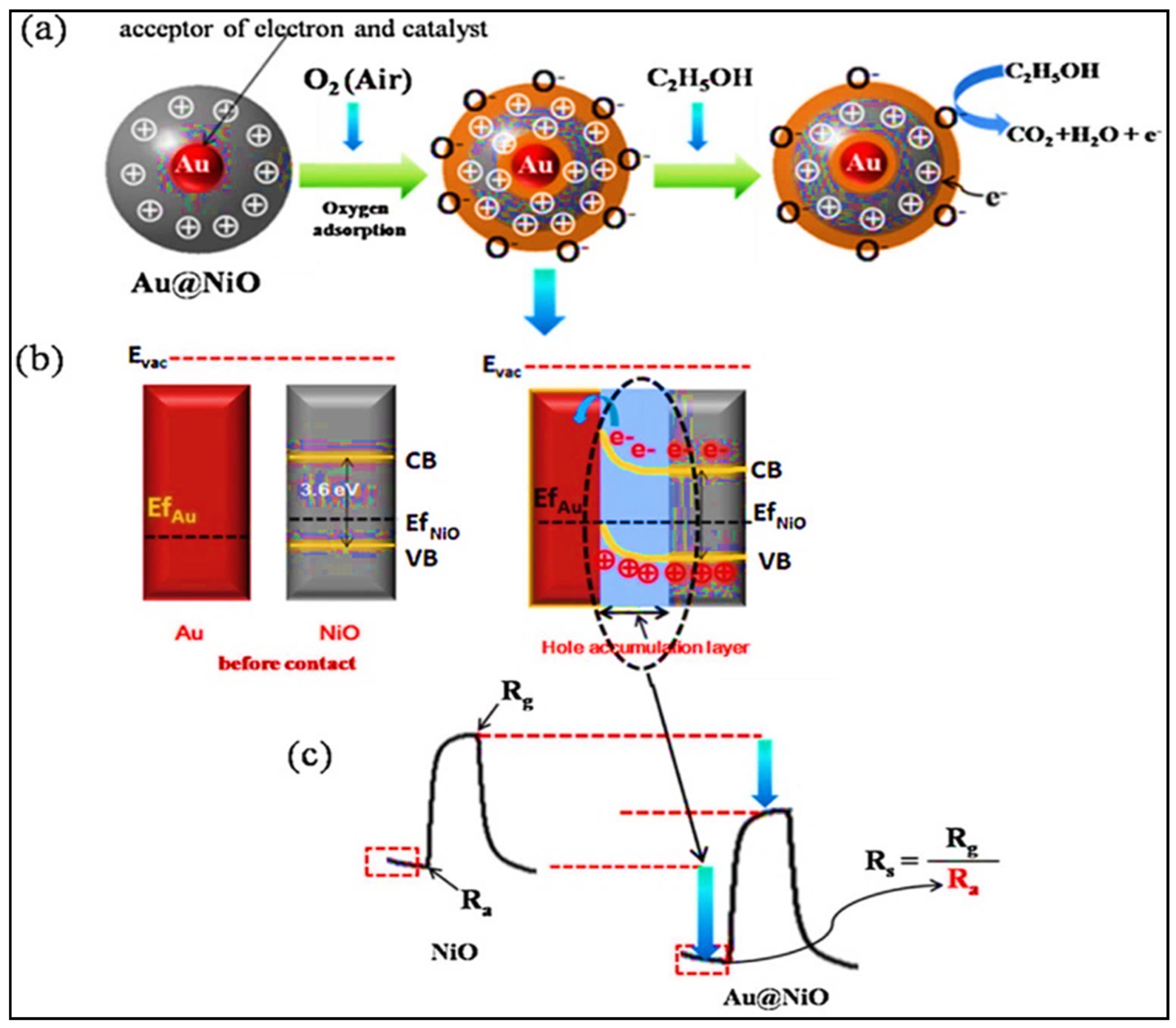

Majhi et al. [91] further synthesized p-type Au-NiO-based C-S NPs and investigated their ethanol (C₂H₅OH)-sensing properties at low temperatures. The highest response of Au-NiO C-S NPs toward 100 ppm C₂H₅OH was 2.54 in comparison to 1.88 for pristine NiO NPs. The operating temperature of Au-NiO C-S NPs was lower (200 °C) than that of the pristine NiO NPs (300 °C). The formation of Au-NiO heterojunctions was responsible for the enhanced response to C₂H₅OH gas (Figure 14c). Majhi et al. [92] also reported a p-n heterojunction based on PdO-ZnO C-S NPs for acetaldehyde gas sensing. The as-prepared PdO-ZnO p-n heterojunction C-S NPs were tested for many gases, and the highest sensing response of 76 (R_a/R_g) was observed for 100 ppm acetaldehyde gas at 350 °C in comparison to that for pristine ZnO NPs (R_a/R_g = 18). The enhanced sensitivity of PdO-ZnO C-S NPs was attributed to the formation of a p-n heterojunction structure, the catalytic effect of PdO NPs, and the high surface area of the obtained materials. Recently, Yu et al. investigated the sensing properties of noble metal alloy-based metal–oxide C-S NPs [94]. The authors synthesized AuPd_alloy@ZnO C-S NPs and examined their H₂ gas-sensing properties. Different compositions of AuPd alloys, such as Pd₂₀Au₈₀, Pd₃₅Au₆₅, and Pd₅₀Au₅₀, were individually used to prepare C-S NPs. When tested for different gases, the Pd₃₅Au₆₅-ZnO C-S NP-based sensor showed an enhanced response toward 100 ppm H₂, among other gases, with a high selectivity at 300 °C. This was attributed to the synergistic effect of the AuPd alloy and ZnO with the ES effect and the formation of the PdH_x component due to the reaction with dissociated hydrogen atoms [94].

Another research group from Korea University studied the gas-sensing applications of different C-S and yolk–shell NPs [97,98]. For example, Rai et al. reported a yolk–shell-type structure based on Pd@In₂O₃ and studied its C₂H₅OH gas-sensing properties. The highest response of 159.02 toward 5 ppm C₂H₅OH was observed at 350 °C, which was 10 times higher than that of pristine In₂O₃ NPs. Similarly, the same group reported the synthesis of an additional type of p-type Au-NiO yolk–shell NPs and studied their gas-sensing properties toward H₂S gas [99]. The response of Au-NiO yolk–shell NPs to 5 ppm H₂S was 108.92, which was almost four times higher than that of pristine NiO hollow nanospheres. The improved performance was attributed to the unique hollow structures of the Au-NiO yolk–shell NPs, which facilitated the accessibility of Au NPs. The H₂S adsorption on Au NPs resulted in the formation of a sulfide layer, which likely decreased the work function of the Au-NiO yolk–shell NPs. As a result, electron transfer occurred from Au to NiO rather than NiO to Au, which increased the resistance of the sensor and response to H₂S. Rai et al. [97] further investigated C-S NPs based on Ag-SnO₂ NPs. The Ag-SnO₂ C-S NPs were synthesized using a microwave-assisted hydrothermal method. The as-prepared sensor exhibited a high response of 16.17 (R_a/R_g) to 5 ppm p-xylene among other interfering gases, whereas the response of pristine SnO₂ NPs was only 10.79. The enhanced p-xylene-sensing performance of Ag-SnO₂ C-S NPs was correlated to the electronic and CS effects of the Ag NPs. Therefore, it is concluded that the functionalization or encapsulation of noble metal NPs has a significant role in enhancing the sensing performance.

3. Self-Heated Gas Sensors

The major feature of self-heating gas sensors is the application of an appropriate voltage. The Joule heating effect is mainly caused by small-scale heat dissipation. Any obstacle that leads to electron deviation from its pathway may result in the production of heat. Heat is generated within the sensor owing to the Joule heating process, which results in an increase in its temperature [100]. In the case of Joule heating, heat is generated owing to the kinetic energy loss of the electrons through collisions between the lattice atoms and moving electrons [101]. Operation at room temperature is one of the major advantages of self-heated gas sensors. In the following section, the results of the most relevant papers in the field of self-heated gas sensors published by the laboratories of Professors Hyoun Woo Kim and Sang Sub Kim are discussed.

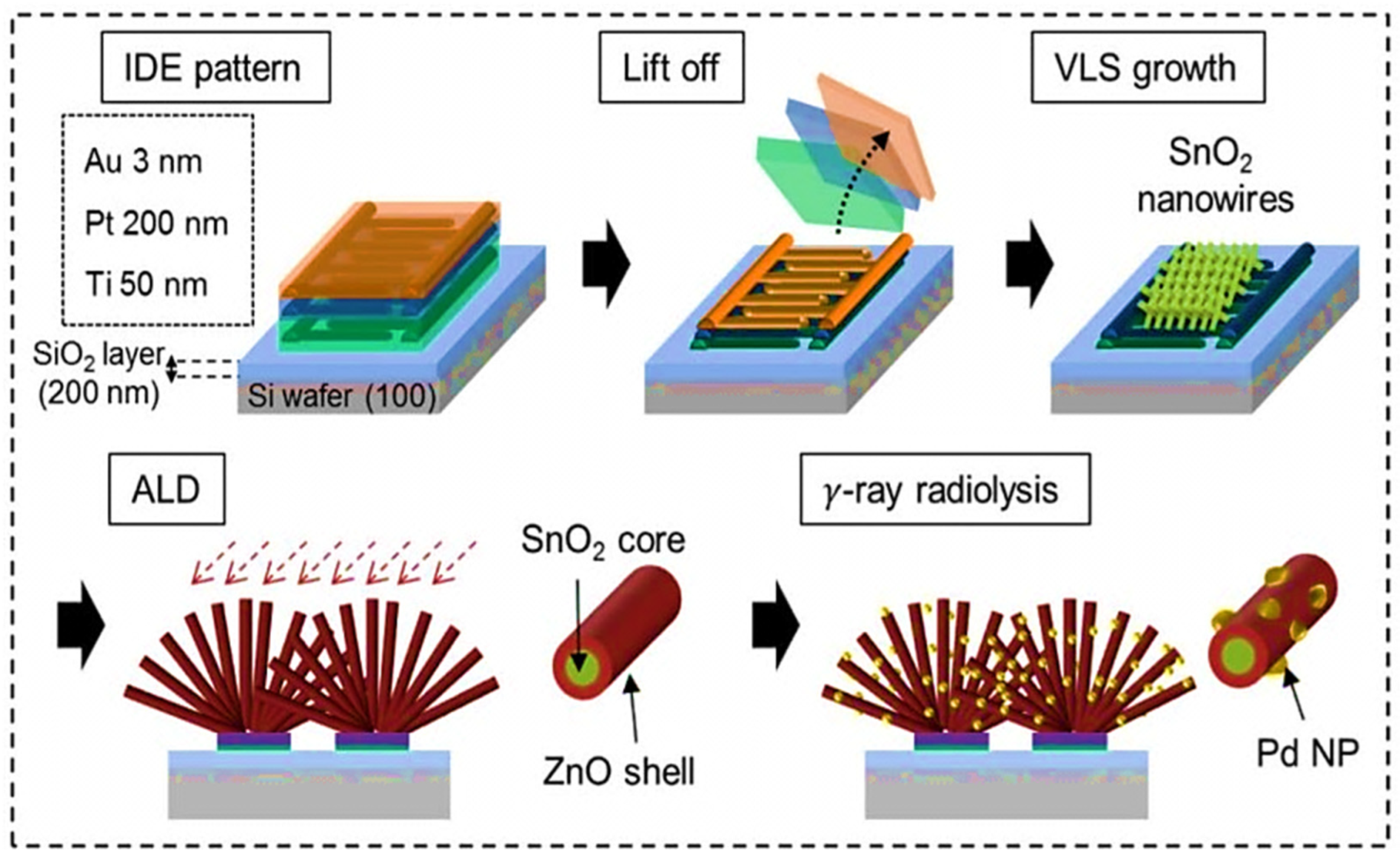

Pd is mostly utilized as a C₆H₆-sensing agent owing to its good catalytic activity [102]. In addition, NW-type one-dimensional morphologies are highly favored for self-heating studies [103]. Kim et al. [104] utilized Pd-functionalized SnO₂-ZnO C-S NWs (C-S NWs) for sensing C₆H₆ gas in the self-heating mode. A high response of 71 at 100 ppb of C₆H₆ gas was attained under 20V applied voltage. Figure 15 shows a schematic of a three-step synthesis method comprising the growth of SnO₂ NWs via the VLS mechanism, subsequent ZnO deposition by the ALD technique, followed by gamma ray irradiation for Pd deposition.

The as-fabricated sensors exhibited an improved C₆H₆ response in the self-heating mode. An enhanced response of 71–100 ppb of C₆H₆ gas was obtained at an applied voltage of 20 V. The three Joule heating sources in the sensors included the (i) electron collisions with one another and with Zn and O atoms in the ZnO grain, (ii) the collision of electrons and ZnO grain boundaries, and (iii) kinetic energy loss of electrons in ZnO–ZnO homojunctions, whose structure was dense and tangled. As a result of the different work functions of ZnO, SnO₂, Pd, and PdO, potential barriers were developed at the interfaces between these materials (Figure 16a–d), which acted as a source of the resistance within the gas sensor upon exposure to C₆H₆ gas. Furthermore, Pd NPs exhibited promotional effects on the gas detection properties of C₆H₆ gas. In CS, Pd initiated the dissociation of molecular oxygen in the atomic form. Accordingly, Pd increased the reaction rate of the C₆H₆ gas molecules. Through the spillover effect, C₆H₆ molecules were primarily adsorbed onto the Pd NP surface and then transferred to the ZnO surface to respond with the chemisorbed species. Therefore, further reactions resulted in a higher C₆H₆ response.

Tungsten disulfide (WS₂) is one of the most important members of the 2D transition metal dichalcogenides (TMDs) and has unique properties such as low cost, good thermal stability, and tunable band structure. In addition, the weak van der Waals forces attach the vertically stacked layers in WS₂, which simplifies the diffusion of target gases between the layers [105]. Nonetheless, gas sensors based on pure WS₂ exhibit poor selectivity, low sensitivity, and long recovery time, which limits their applications for realistic purposes [106]. Kim et al. [107] described the CO gas-sensing features of Au-functionalized 2D WS₂ nanoflakes in the self-heating mode (1–5 V), where Au was deposited over WS₂ using UV light for different durations of irradiation. One of the objectives was to investigate the amount of Au on the WS₂ surface for CO gas detection in the self-heating mode. The developed sensor exhibited a greater response toward CO in relation to other gases at room temperature at an applied voltage of 2 V. The response to 50 ppm CO gas was 1.48. Catalytically active Au NPs can enhance the number of chemisorbed oxygen ions when Au NPs are well-dispersed onto the WS₂ surface, leading to further reactions among the CO molecules and chemisorbed species and an increase in the detection activities in terms of spillover effects. Additionally, Schottky barriers developed at the interfaces between Au and WS₂, which acted as a probable source of resistance modulation in the presence of CO gas. An optimum amount of Au loading was necessary to achieve the maximum response to CO gas. A small amount of Au functionalization led to a deficiency in the number of Au NPs involved in the gas detection process, whereas high amounts of Au decreased the number of sites available for target gas adsorption. When the quantity of Au was less than the optimum value (irradiated for 15 s), the gas sensor resistance increased with an increase in Au quantity because of the development of further Schottky barriers between Au and WS₂, and more electrons were consequently moved from WS₂ to Au NPs. However, the Au NPs were partially interconnected when the Au quantity was greater than the optimum value, which considerably decreased the baseline sensor resistance, and the number of adsorption sites accessible for CO was also decreased, resulting in a low CO response.

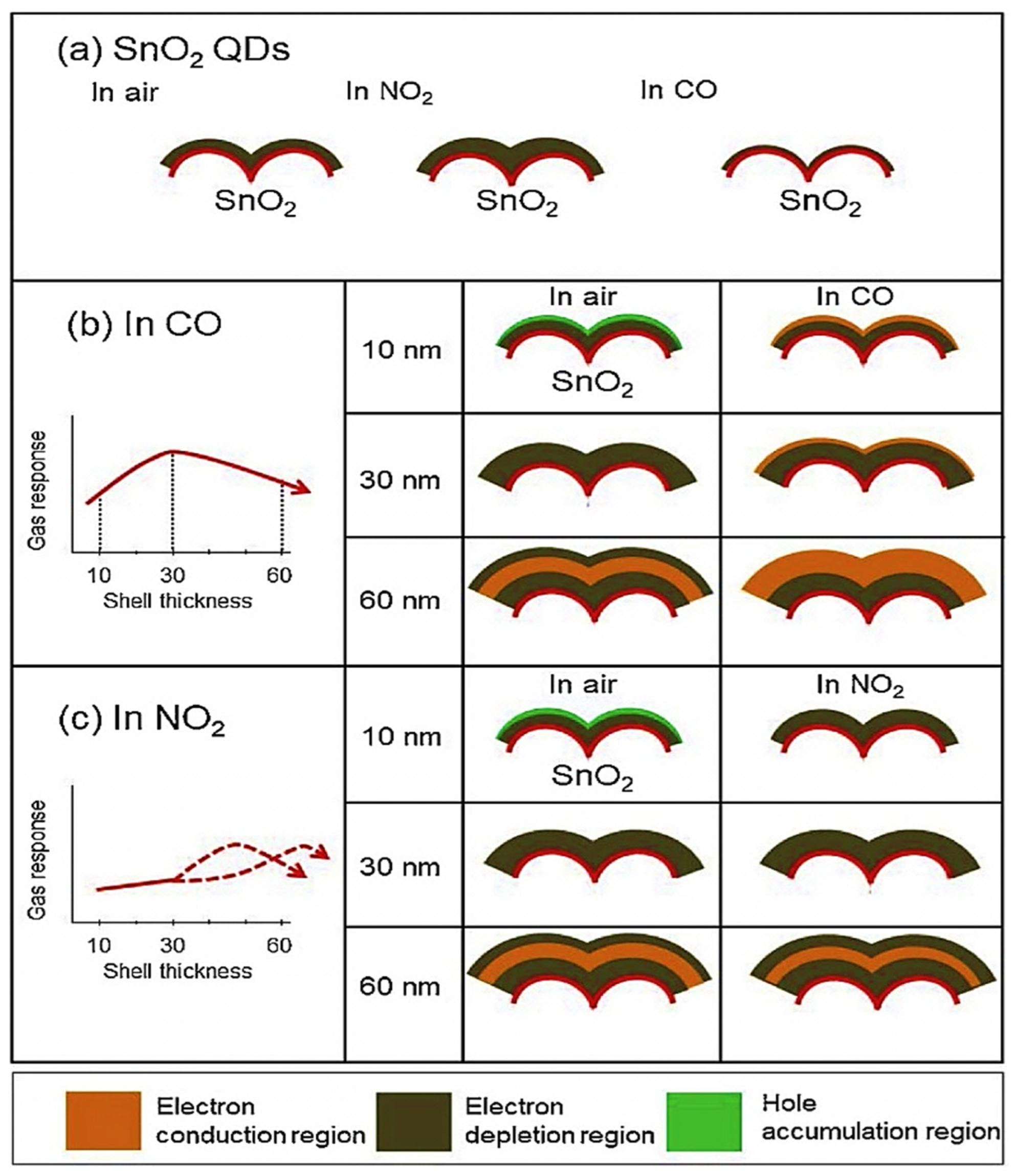

In another study, Lee et al. [108] reported the CO and NO₂ gas sensitivities of SnO₂ quantum dots (QDs) with TiO₂ layers in the self-heating mode. The TiO₂ layer was deposited via ALD by controlling the number of ALD cycles, where the TiO₂ layer thickness was set to 10, 30, and 60 nm to determine the impact of shell thickness on the gas response of the sensor. The sensor with a shell thickness of 30 nm showed the maximum response to CO gas (ΔR/R_a = 0.45 to 1 ppm CO gas at 20 V). For QD sensors with the thinnest TiO₂ (10 nm), the TiO₂ electrons were reduced not only by the flow of electrons to SnO₂ but also by the adsorbed oxygen species. As a result, the entire layer of TiO₂ became electron-depleted, and holes were also created (Figure 17a). Upon CO exposure, the electrons returned to the TiO₂ conduction band. Moreover, the holes were initially created when the oxygen molecules were adsorbed onto the TiO₂ surface, and the number of electrons delivered through the CO gas was utilized to neutralize the formed holes. The remaining electrons were used as charge carriers for resistance modulation. Consequently, only a part of the inserted electrons contributed to resistance modulation (Figure 17b). The TiO₂ layer was completely depleted in air at a thickness of 30 nm (Figure 17b). The introduction of electrons through the CO gas resulted in significant resistance modulation, and the modified QD sensors exhibited the maximum response to CO gas at a thickness of 30 nm. For a large thickness of 60 nm, the initial depletion layer in ambient air was comparatively smaller than the entire layer thickness, and CO adsorption/desorption radial modulation did not result in a significant increase in the sensor response (Figure 17c). In contrast, NO₂ sensitivity was the highest for pure SnO₂ QDs. It was assumed that the ability of NO₂ gas to extract electrons from the surface of SnO₂ was higher than that of the TiO₂ layer. Additionally, the electron transfer capability of NO₂ gas with the SnO₂ surface was higher than that of CO gas. For a thinner layer of TiO₂ (10–30 nm), for which the lowest NO₂ response was observed, the entire layer of TiO₂ was electron-depleted upon close contact between TiO₂ and SnO₂. Hence, no electrons were extracted by the NO₂ gas molecules when NO₂ gas was present. With an increase in the thickness of TiO₂ to 60 nm, it became partially electron-depleted, and electrons were present in the TiO₂ layer that had to be adsorbed by NO₂ gas molecules when NO₂ gas was present. Any further increase in thickness decreased the sensor response, as the TiO₂ layer was partially depleted by the injection of NO₂. The region/volume of the initial conduction increased, and the relative change in the electron concentration of the TiO₂ layer at the time of the introduction/removal of NO₂ species decreased, eventually decreasing the NO₂ response.

In another study, Kim et al. [109] investigated the CO gas-sensing characteristics of bare, Au, SnO₂, and Au-SnO₂-co-decorated WS₂ nanosheets (NSs) in the self-heating mode. The Au-SnO₂-co-decorated WS₂ NSs exhibited a maximum response of 3.687 to 50 ppm CO gas at 4.7 V. The WS₂ NSs possessed intrinsic resistance, leading to heat generation within the WS₂ NSs through voltage application. Joule heating may produce heat within the WS₂ NS grains and at the homojunctions of WS₂-WS₂. Furthermore, Au/SnO₂ and Au/WS₂ are considered as resistance sources at the interfaces between SnO₂ and WS₂, which are additional sources of Joule heating. For the Au-SnO₂-co-decorated WS₂ gas sensor, in addition to the catalytic activities of Au, the development of Schottky barriers among Au/WS₂ and Au/SnO₂, the heterojunctions of SnO₂-WS₂, and heterojunctions between Au/SnO₂/WS₂ afforded numerous resistance heterojunctions for the gas sensor.

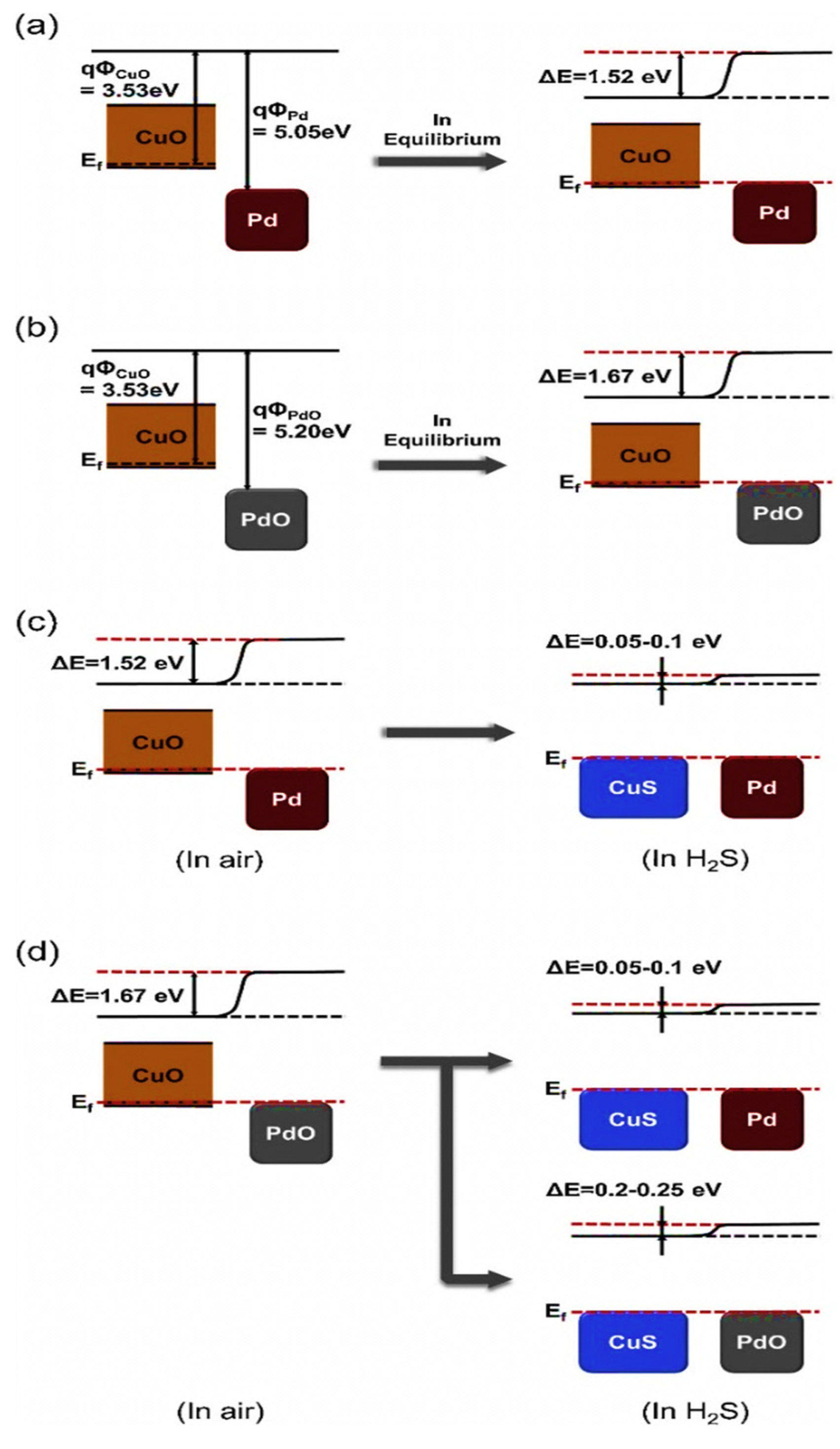

In a different study, Kim et al. [110] investigated the H₂S-sensing activities of pristine and Pd-decorated CuO NWs in the self-heating mode. In this study, a VLS method was used to synthesize CuO NWs, and subsequent Pd functionalization was performed via UV irradiation. Under the applied voltage, heat was produced due to the Joule heating effect. At 5 V, the sensor exhibited the highest response (R_g/R_a = 1.89 to 100 ppm H₂S gas) under self-heating conditions because a significant amount of heat was produced in the gas sensor. Through CS, Pd dissociated and moved the oxygen molecules and target gases via the spillover effect. Thus, more gas molecules reached the sensor surface, resulting in a greater response. Figure 18a,b show that the electrons travel from CuO to Pd/PdO because of the lower work function of CuO in comparison to those of Pd and PdO, which lead to the formation of HAL on the CuO side.

When exposed to reducing gases, the width of HAL in CuO decreased. This indicated that the number of holes on the CuO surface decreased. As the original volume of the hole area increased due to the heterojunctions, the decrease in a similar number of holes by injecting the reduction gas resulted in a low response to reducing gases. In the case of H₂S gas, in addition to the modification of the original resistance induced by the heterojunction, an alternative mechanism was speculated to impact the sensing. When exposed to H₂S, CuO was converted into CuS with a conductivity similar to that of the metal, affording a strong resistance modulation within the heterojunctions. As shown in Figure 18c,d, the potential barriers of the CuO/Pd and CuO/PdO heterojunctions are destroyed upon the transformation of CuO to CuS. Consequently, fewer electrons intersect from CuS to Pd than from CuO, which results in a higher concentration of electrons in the detection layer (CuO/CuS) than in the pure detection layer.

Kim et al. [111] described the CO and NO₂-sensing capacities of pure and Au-functionalized ZnO NWs in the self-heating mode. The electron–electron collisions, heterojunctions, grain boundaries, and homojunctions acted as different heat-generating sources. The sensor fabricated with the Au-functionalized ZnO NWs showed a maximum response of 2.87 toward 10 ppm CO gas at 7 V (applied voltage) and afforded a significantly higher response in comparison to that of pure ZnO NWs. Heat dissipation into the substrate or contacts decreased the efficiency of self-heating for voltages above 7 V. As a result, a decrease in the sensor response at higher applied voltages (>7 V) was related to the high power dissipation to the substrate and a loss of sensor response. Schottky barriers developed at the Au/ZnO interfaces because of the different work functions of Au and ZnO. In addition, Au showed excellent catalytic capability for gases and efficiently adsorbed the target gases on its surfaces and transported these to the sensing material surfaces via the spillover mechanism. Consequently, more gas was adsorbed onto the ZnO NW surface in the case of sensors based on Au-ZnO NWs, leading to a high resistance modulation. Kim et al. [112] fabricated Pt-functionalized SnO₂-ZnO C-S NWs for C₇H₈ gas sensing under self-heating conditions. The optimal gas sensor showed a response of 3 to 50 ppm C₇H₈ gas under 20 V applied voltage. The thermographs of C-S NWs are shown in Figure 19. The temperature increased with an increase in shell thickness from 10 to 85 nm. Negligible self-heating was observed for the 10 nm-thick shell sensors based on C-S NWs, whereas it was relatively apparent for a shell thickness of 85 nm. Pt NPs were more effective for C₇H₈ adsorption and dissociation than other reducing gases. Additionally, the methyl group of C₇H₈, through which it adsorbed onto the surface, contributed toward improved adsorption onto the surface. To modulate electron depletion in C-S NWs, electrical transport could occur in both the shell and regions of the core near the shell (smearing effect) when the shell thickness was less than the λ_D. For the sensors with a 10 nm-thick ZnO layer, the complete layer of the ZnO region was electron-depleted with the possibility of generating a SnO₂ depletion region near the interfaces. In addition, via the adsorption of C₇H₈ gas molecules, it was expected that the free electrons introduced by the C₇H₈ gas could drift through the ZnO-depleted region with no carriers, across the ZnO/SnO₂ heterojunction, and move into the electron depletion region of the SnO₂ core.

There were no electronic barriers between ZnO and SnO₂ (Figure 20a). As electric current passed primarily through the SnO₂ core with a diameter of <50 nm, the resistance changed accordingly. In contrast, for an 85 nm-thick ZnO layer, a substantial depth of the non-depleted region existed in the ZnO shell despite the depletion region created by chemisorbed oxygen. As a result, the free electrons introduced by the C₇H₈ gas could drift into the ZnO shell layer via the adsorption of C₇H₈ molecules, thereby decreasing the thickness or increasing the concentration of electrons. Meanwhile, the main conduction volume was expected to change from the ZnO shell to the SnO₂ core with an increase in the shell thickness. The decrease in the thickness of the ZnO shell did not decrease the initial resistance by decreasing the conduction volume and increasing the sensor response.

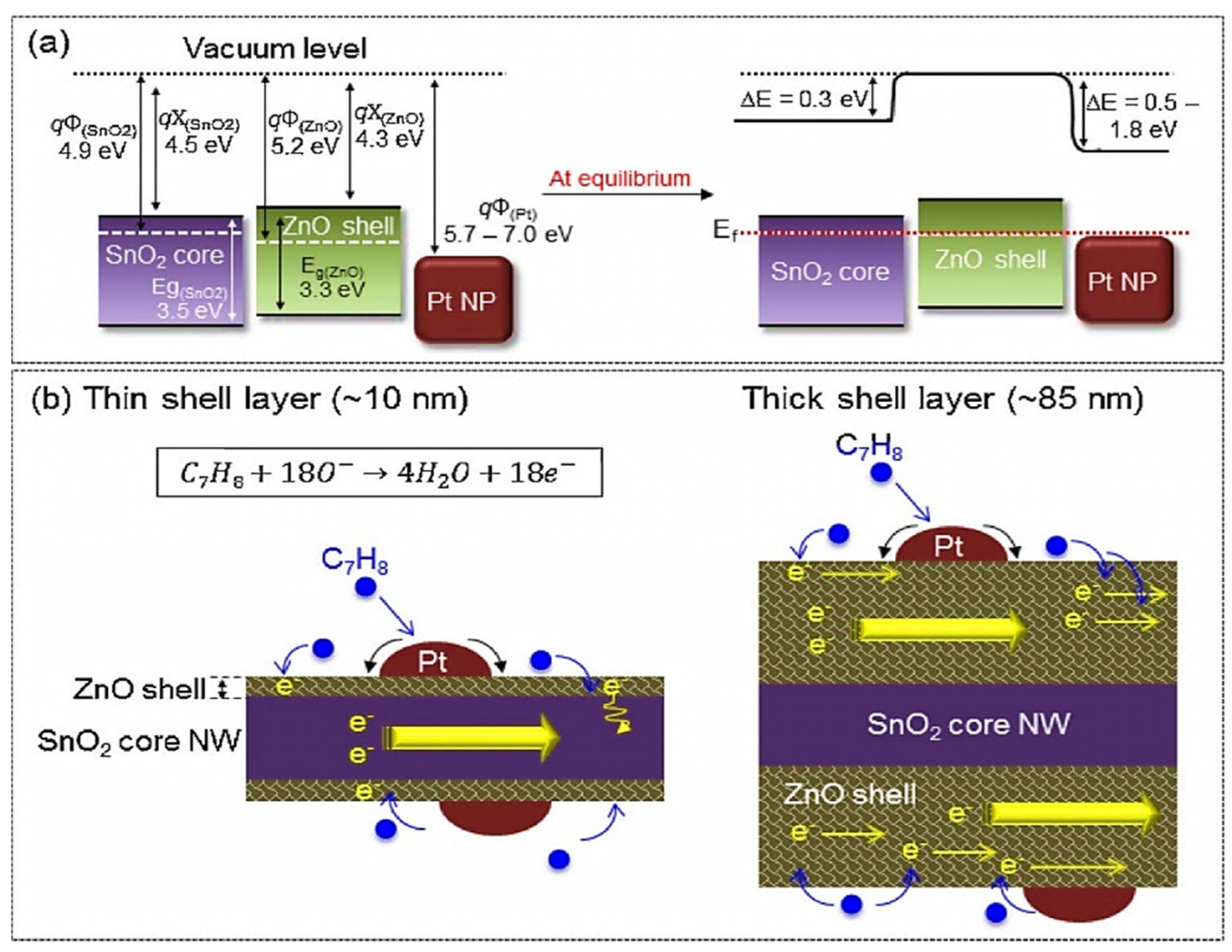

Furthermore, Pt NPs display catalytic characteristics through the spillover effect, which allow the adsorption of C₇H₈ molecules and the transfer of gas molecules to the adjacent ZnO surface (Figure 20b). For NWs with thick shells, the main current passed through the ZnO shell, which was in the vicinity of the surface and Pt NPs. Thus, Pt significantly enhanced the sensing activities. In addition, for thin-shell NWs, the main current flowed across the SnO₂ core, which was away from the surface and Pt NPs. Consequently, Pt catalysts did not significantly improve the sensing performance.

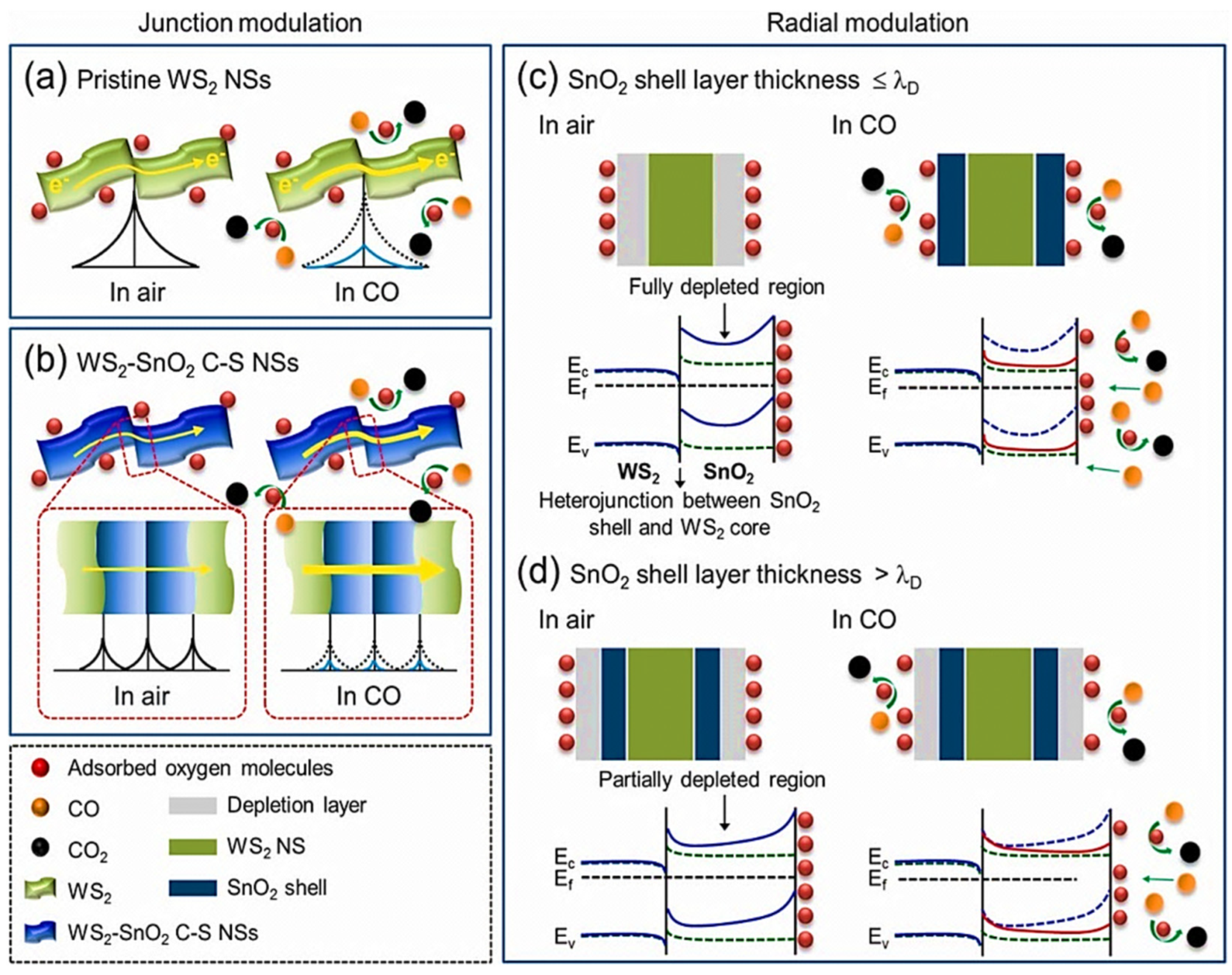

As a highly toxic gas, CO does not have odor, taste, or color [113]. Therefore, the design of sensitive CO gas sensors is important to prevent the hazardous effects of CO gas on the human body. Kim et al. [114] performed CO gas-sensing studies of WS₂-SnO₂ C-S NSs, where SnO₂ shells with various thicknesses (0–30 nm) were deposited on WS₂ by varying the number of ALD cycles. The sensor designed with a 15 nm-thick shell was capable of detecting CO gas at 3.4 V under self-heating conditions. For NO₂ gas detection, although NO₂ sensitivity increased with an increase in the shell thickness (up to 1.4), it was very low in relation to the CO sensitivity. For a 30 nm-thick shell layer, the response (R_a/R_g = 1.4 to 50 ppm CO gas) was not different from that of the pristine WS₂ (R_g/R_a = 1.3). The pristine sensor had numerous homojunctions, which were attributed to the sensing signal (Figure 21a). For C-S NSs, other mechanisms were observed in addition to the modulation of resistance at the homojunctions (Figure 21b) because of the different work functions of the WS₂ core and SnO₂ shell. As a result, both sides were electron-depleted in the case of SnO₂ shell; one side was electron-depleted because of exposure to air and the other side was depleted due to electron flow toward WS₂. Based on the shell thickness, the thickness of the electron depletion layer changed relative to the entire SnO₂ shell thickness. When the shell thickness was ≤ λ_D of SnO₂, the entire shell was depleted of electrons when exposed to air. Upon CO exposure, the electrons returned to the gas sensor surface, and considerable resistance modulation occurred, which resulted in a high CO response (Figure 21c). However, for shells thicker than 15 nm, only a fraction of the shell layer became electron-depleted (Figure 21d). When more electrons were accessible in the shell layer, a larger number of electrons were removed by the NO₂ gas. This led to a high sensing signal for NO₂ gas. As a result, only a fraction of the shell layer was electron-depleted when the shell was thicker. For a sensor with a 30 nm-thick shell, the highest response was observed to NO₂ gas.

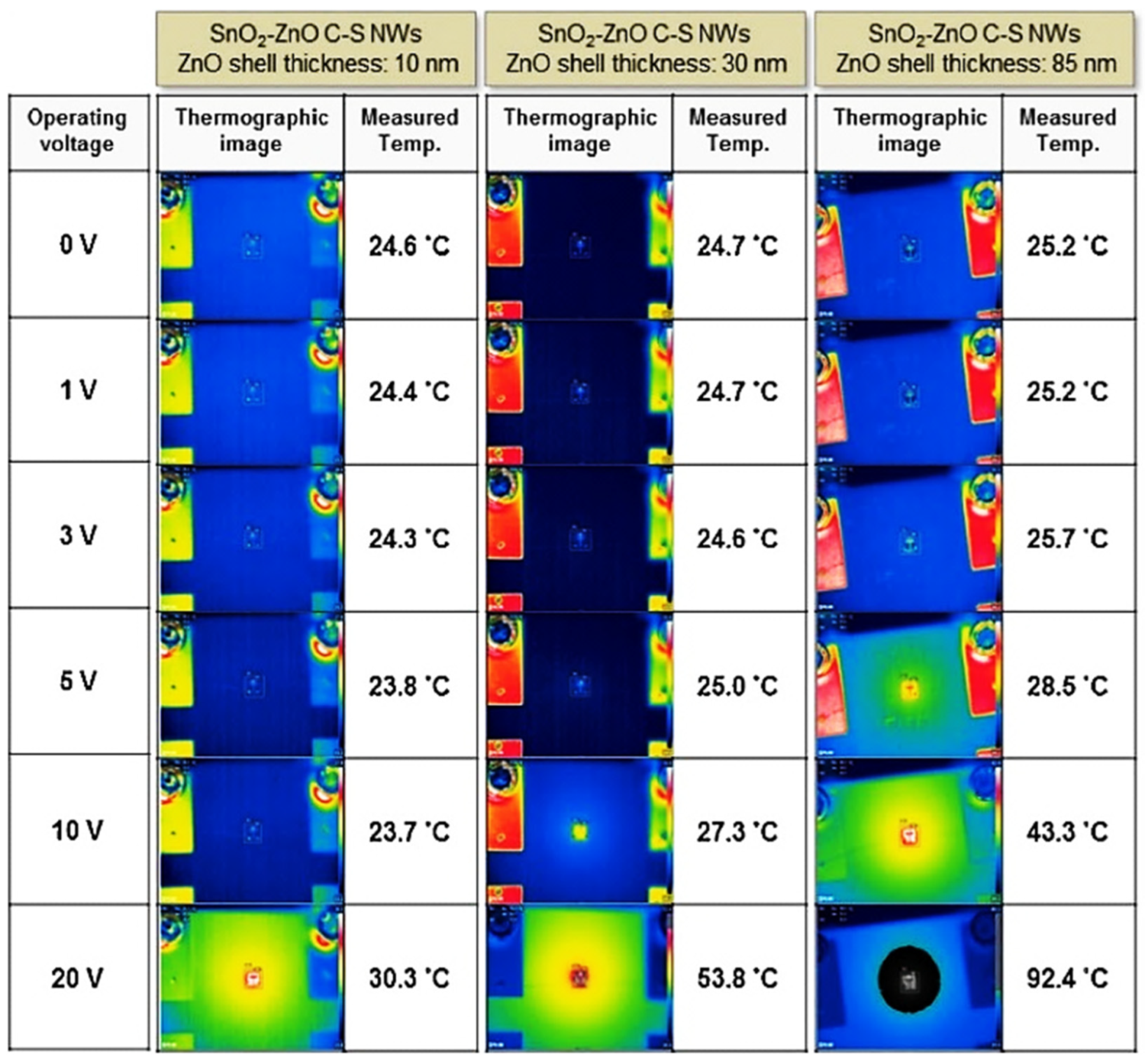

Kim et al. [115] fabricated an innovative self-heated CO gas sensor using a Au-functionalized network of SnO₂-ZnO C-S NWs. The thicknesses of the ZnO shells deposited using the ALD technique were 10, 30, and 80 nm. The sensor with a shell of 80 nm-thick showed the highest response of 1.7 to 50 ppm CO gas under 20 V applied voltage.

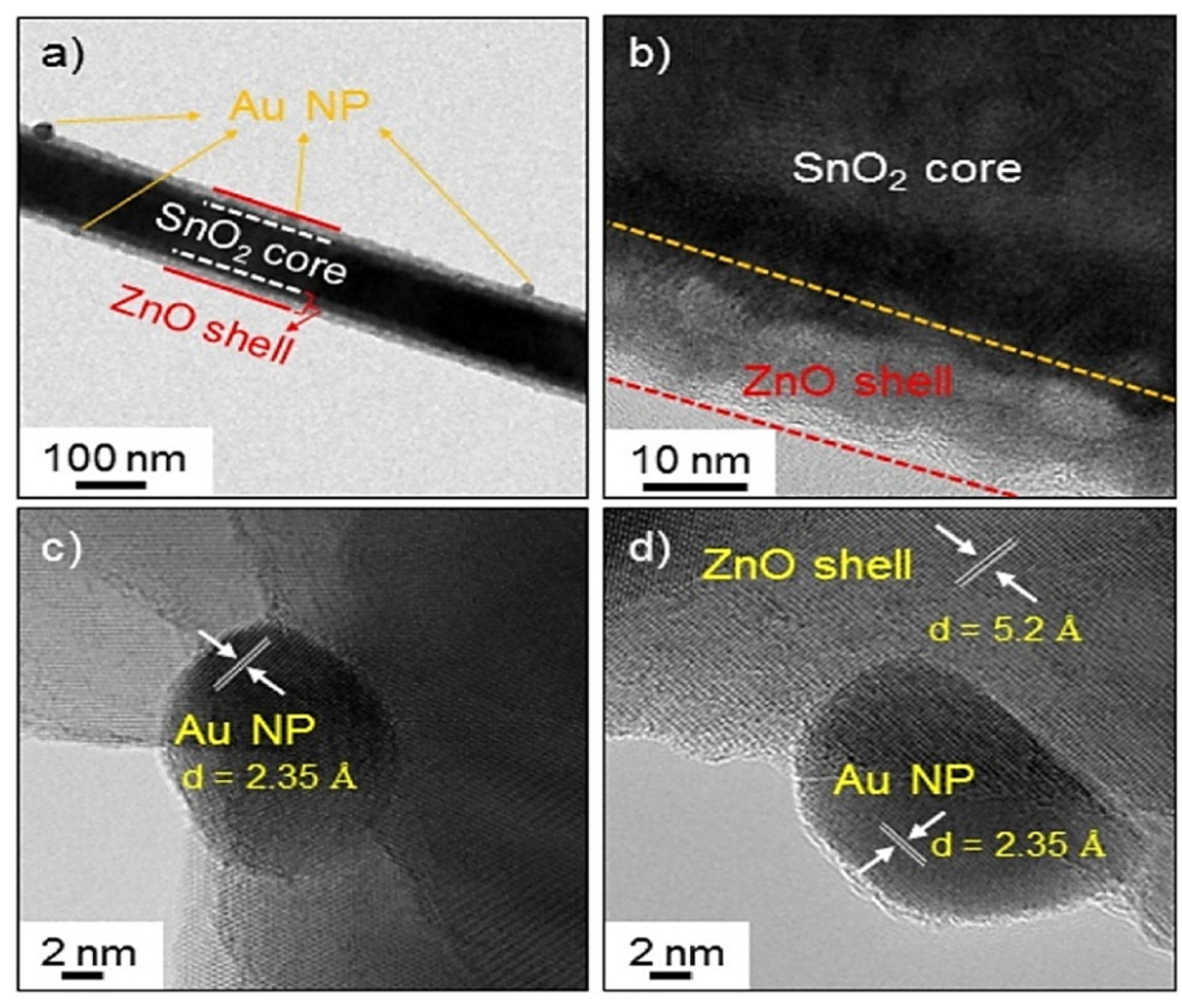

The TEM images of a Au-functionalized network of SnO₂-ZnO C-S NWs are shown in Figure 22, indicating the successful formation of the expected products. As shown in Figure 23, the temperature increases with an increase in the applied voltage. Owing to the different SnO₂ and ZnO work functions, some ZnO electrons in the vicinity of the interfaces moved toward the SnO₂ side. In addition, Au NP-functionalization introduced two features: the development of Au/ZnO nano-Schottky junctions and chemical effects of Au. In addition, the Au NPs catalytically dissociated molecular oxygen species and accordingly enhanced the reaction rate between oxygen and CO gas.

Benzene and toluene are toxic volatile organic compounds (VOCs). Benzene is a carcinogen, and its high level of exposure affects the blood, which may cause leukemia. Additionally, toluene may have an adverse effect on the nervous system, such as disrupting the brain function and impairing the ability to see, hear, and speak. It can also damage the kidneys and liver. From a medical perspective, toluene is considered a biomarker for lung cancer; unusually high toluene levels (10–100 ppb) in exhaled breath may be a sign of lung cancer. Benzene is an inert gas, and benzene rings generally exhibit low reactivity. Toluene is slightly more reactive than benzene owing to its electron-donating methyl (–CH₃) group. Consequently, the development of selective gas sensors for detecting benzene and toluene gases is important [116]. Kim et al. [117] investigated the VOC-sensing properties of Pt- and Pd-functionalized ZnO NWs in the self-heating mode. The thickness of the initial sputtered metal layer (5 and 10 nm) and annealing temperature (500–750 °C) were varied to optimize Pt NP formation, while the UV irradiation time was modulated to obtain isolated Pd NPs on the ZnO NW surface. The sensors decorated with Pd and Pt showed an enhanced response to benzene and toluene gases, respectively. The response of the Pd-decorated gas sensor to 50 ppm C₆H₆ was 2.3 under 20 V applied voltage, and the response of the Pt-decorated gas sensor to 50 ppm C₇H₈ was 2.2 under 20 V applied voltage. The sensing mechanism is shown in Figure 24. For toluene sensing with Pt/ZnO, toluene is initially chemisorbed onto the surface sites of Pt/ZnO and reacts with the chemisorbed oxygen to form benzaldehyde, which is then transformed into benzoate species. The increased decomposition of benzoate species is a major contributor to the catalytic activity of Pt during toluene oxidation. Thereafter, the benzoate species were broken down into carboxylates and carboxylic acids, which were then transformed into anhydrides and carboxylates.

Anhydrides were further converted into adsorbed H₂O and CO species, and the latter could react with adsorbed oxygen to produce CO₂. The presence of -CH₃ plays an important role in the detection of toluene, as toluene can adsorb on the surface through this group [118]. Kim et al. [119] reported the H₂S gas-sensing properties of CuO-decorated SnO₂-ZnO C-S NWs with different shell thicknesses in the self-heating mode. The sensor with an 80 nm-thick shell showed better detection capability than sensors based on thin shells. The maximum response was 1.8 to 10 ppm H₂S under 5V applied voltage. In addition to the development of various heterojunctions between SnO₂-ZnO and ZnO-CuO, together with the ZnO-ZnO homojunction, the transformation of CuO to CuS should also be considered. Upon H₂S exposure, CuO reacted with H₂S to form an intermetallic CuS compound with a conductivity similar to that of the metal. In this manner, the p-n heterojunction was destroyed, and the sensor resistance was decreased significantly. For a ZnO shell thickness of 80 nm in the C–S NWs, a substantial depth of the non-depleted region was observed in the ZnO shell even though the depletion region was formed due to oxygen chemisorption. Upon H₂S introduction, CuO was transformed into CuS by destruction of the ZnO-CuO heterojunctions, and the sensor resistance decreased significantly. A low response was observed for the sensor based on pristine SnO₂ NWs, which was attributed to the low self-heating effect of the pure SnO₂ gas sensor.

4. Irradiated Gas Sensors

There are various approaches to improve the gas detection properties of the sensing materials. One of the post-treatment (change in morphology or chemical composition after synthesis) strategies involves the use of low- to high-energy irradiation techniques such as ion-beam irradiation [120], laser irradiation [121], gamma ray irradiation [122], electron-beam (e-beam) irradiation, and UV light irradiation [123]. The research groups of Professors Hyoun Woo Kim and Sang Sub Kim applied high-energy irradiation to the sensing materials. The application of high-energy irradiation is promising as it can change the physicochemical properties of the sensing materials. When high-energy beams interact with the sensing material, they can modify the molecular and structural properties of the materials, including the ionization and development of various types of defects such as interstitial atoms and vacancies [124]. In this manner, irradiation modifies the structure of the sensing material and may therefore alter its detection capability. The degree of modification is determined by the radiation energy, radiation dose, and material properties [125]. Among various irradiation techniques, e-beam irradiation is one of the common irradiation techniques that may induce defects in the sensing materials [126]. Kim et al. [127] designed highly sensitive ZnO NFs for H₂ sensing via e-beam irradiation (1 MeV) and investigated the effect of e-beam doses (50, 100, and 150 kGy) on the sensing characteristics. Figure 25 shows the schematics of the synthesis, irradiation, and sensor fabrication processes of the ZnO NFs.

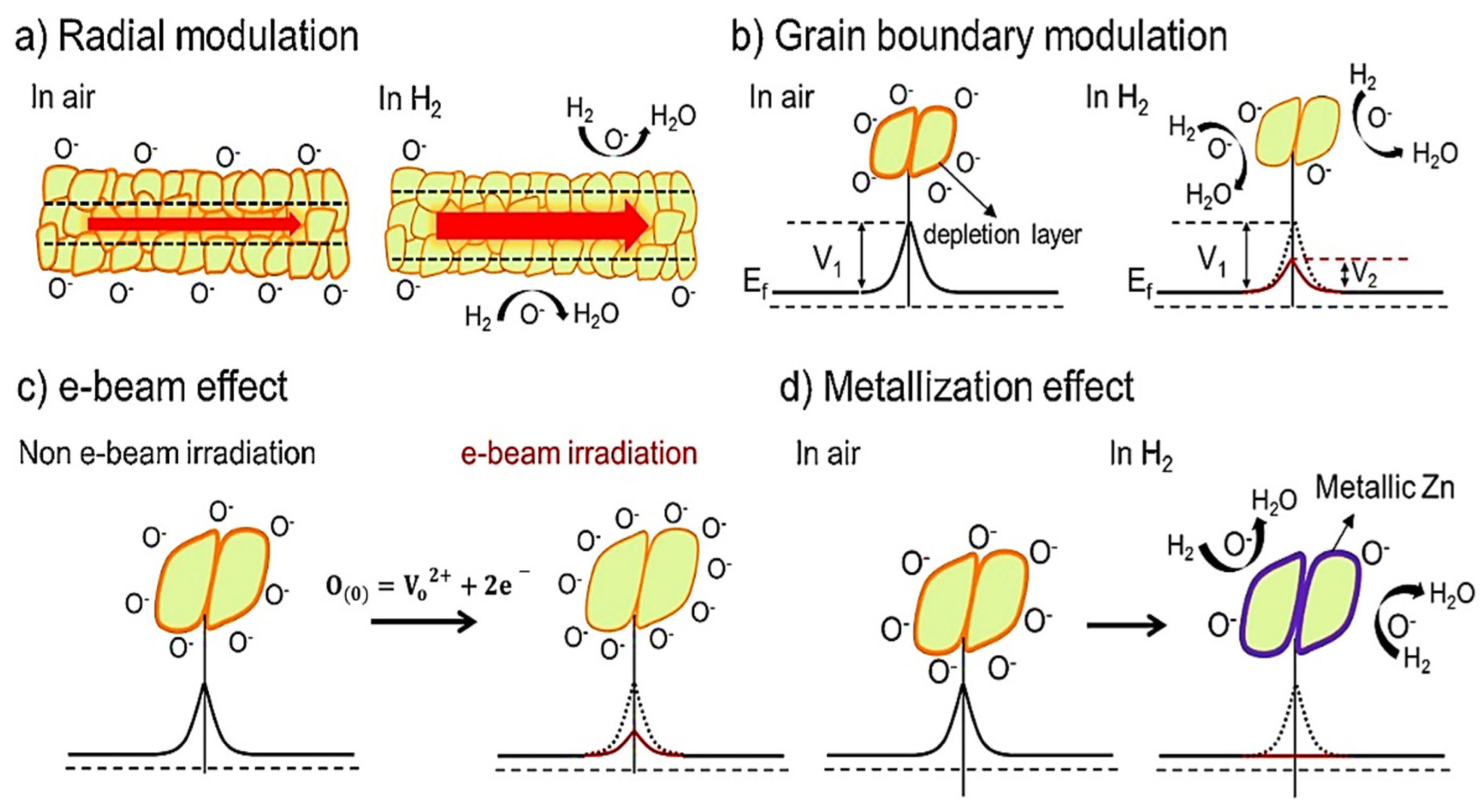

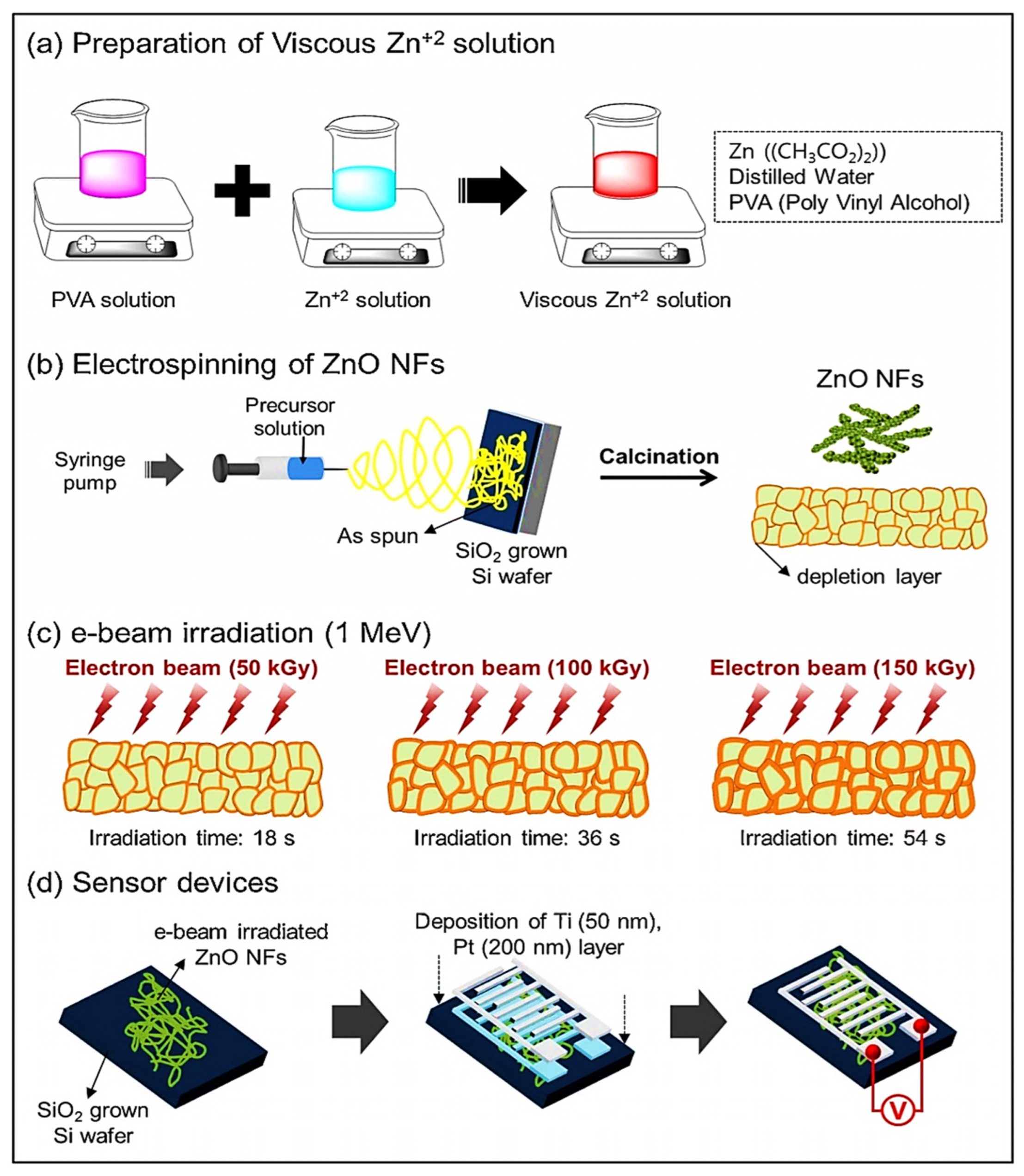

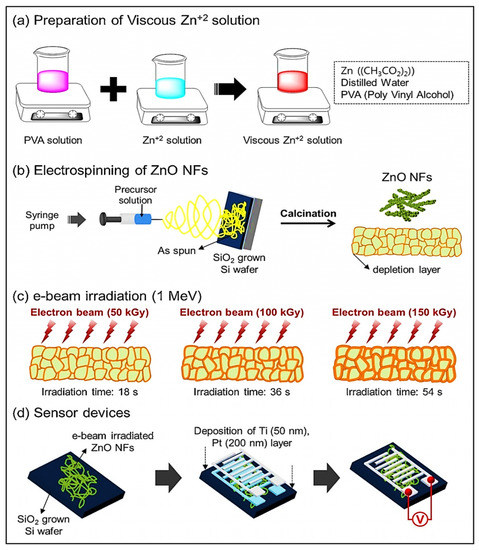

The sensor fabricated using 50 kGy irradiation exhibited sensing properties comparable to those of the unirradiated sensor, as the e-beam dose was inadequate to generate structural defects in the sensor. In contrast, the sensors irradiated at 100 and 150 kGy afforded excellent sensing properties. The highest response was observed for the 150 kGy irradiated gas sensor with a value of 150 to 10 ppm H₂ gas at 350 °C. The gas detection mechanism of ZnO NFs was associated with radial modulation, grain boundary modulation, metallization effect of ZnO (reduction of ZnO to metallic Zn), and radiation-induced oxygen defects (Figure 26a–d). In particular, the high responses to the sensors irradiated at 100 kGy and 150 kGy were attributed to the development of defects, as indicated by the photoluminescence (PL) studies. The irradiated sensor with a high e-beam dose exhibited higher levels of structural defects with oxygen vacancies. Oxygen vacancies acted as favorable adsorption sites for oxygen molecules, leading to more reactions between the adsorbed oxygen species and incoming H₂ gas molecules.

Kim et al. [128] reported the H₂-sensing characteristics of Pd-loaded ZnO NFs with respect to e-beam irradiation, where the optimized sensor irradiated at 150 kGy exhibited an excellent response of 74.7 toward 100 ppb H₂ at 350 °C. Pd acted as a strong catalyst for oxygen molecules, resulting in a rapid and greater removal of electrons from the ZnO surface through oxygen species. Additionally, hydrogen molecules were divided into hydrogen atoms and shifted toward the ZnO surface (through the “spillover” effect), where they interacted strongly with the previously adsorbed oxygen species, thereby releasing the electrons back to the sensor surface. In ambient air, oxygen interacted with the trapped electrons at the Pd/ZnO heterojunctions. In an H₂ environment, Pd NPs could absorb atomic hydrogen to form PdH_x. The work function of PdH_x may be sufficiently high to accept other ZnO electrons and decrease the original number of electrons in ZnO, thereby increasing the sensor response. In addition, Pd NPs could act as electron scattering points, and the variation in electron scattering produced by hydrogen adsorption resulted in additional changes in resistance. Thus, Pd-loaded sensors exhibited higher responses relative to the pristine ZnO NF sensor due to Pd effects.

Kwon et al. [129] enhanced the NO₂-sensing properties of reduced graphene oxide (rGO) by e-beam irradiation (100 and 500 kGy). The sensor irradiated with a higher dose showed a higher response, decreased response time, and increased recovery time due to enhanced NO₂ adsorption through defect formation and functional oxygen groups. The observed structural defects and functional oxygen groups were responsible for the beam-induced variations in the sensing performances. For an irradiation of 100 kGy, oxygen functional groups were created between the graphene nanosheets. The oxygen functional groups could provide additional surface adsorption sites to the target gases, resulting in higher modulation of the resistance of the e-beam-irradiated rGO films. Therefore, an improvement in the sensing performance through e-beam irradiation of 100 kGy was related to the production of oxygen functional groups. However, the d-spacing and oxygen content decreased with an increase in the irradiation dose from 100 to 500 kGy. As a result, at a high dose of 500 kGy, the quantity of generated oxygen functional groups was lower at 100 kGy. Thus, non-oxygenated defects played an important role in improving the sensing performance. Choi et al. [130] reported the effect of e-beam irradiation (0, 100, and 500 kGy) on the NO₂-sensing features of Pd-functionalized rGO. The response of the unirradiated sensor and the sensor irradiated at doses of 100 and 500 kGy to 10 ppm NO₂ were 1.027, 1.045, and 1.047, respectively. The response times of Pd-RGO, Pd-RGO-100 kGy, and Pd-RGO 500 kGy to 10 ppm NO₂ gas were 389, 335, and 345 s, respectively. Thus, the sensor developed with the highest irradiation dose exhibited the maximum NO₂ response. The corresponding recovery times for these sensors were 808, 766, and 816 s, respectively. For the sensor irradiated at 100 kGy, the quantity of oxygen decreased, and the amount of carbon increased with respect to the non-irradiated sensor. As a result, the improvement in the gas response was attributed to a high number of oxygen vacancies or functional oxygen groups in this sensor with additional adsorption sites for the target gas molecules. For the sensor irradiated with a higher dose, the oxygen content of rGO increased due to e-beam irradiation. These sites were capable of adsorbing large quantities of oxygenated functional groups. Moreover, non-oxygen related defects, including carbon vacancies and 5-8-5 defects, could be produced after irradiation at 500 kGy with a potential impact on the response to NO₂.

Ion implantation is a method for injecting atoms/ions into the host solids at the desired depth of the host material, which allowed the alteration of the surface properties of the solids. This process allowed the precise placement of ions at the preferred depth of the solid as a function of energy, ion mass, and implantation angle. In contrast to other techniques, the implantation of ions for doping affords several advantages, such as excellent reproducibility and the ability to embed any atom into any solid material without limitations due to diffusion, precipitation, and segregation solid solubility. The interactions between the electrons and nuclei of the host material occur via ion implantation. At low energies, the incident ions lose their energy primarily because of the elastic collisions with solid nuclei (nuclear energy loss). The properties mainly change according to the characteristics and quantity of the incident atoms, their diffusion characteristics, and the number and types of defects. At high energies, electron excitation/ionization occurs (electronic energy loss) due to inelastic collisions [131,132,133]. Kwon et al. [134] irradiated SnO₂ NWs with He ions (45 MeV) through different ionic fluences, where the NO₂ response of the sensor increased considerably with an increase in the ion fluence. The highest response was achieved under an ion fluence of 1 × 10¹⁶ ions/cm². PL studies demonstrated the generation of structural defects and/or tin interstitials upon irradiation. In addition, the ionic ratio of Sn²⁺/Sn⁴⁺ increased upon ion-beam irradiation, indicating the development of surface Sn interstitials. Accordingly, the increased NO₂ response was associated with the development of surface defects, which were made up of Sn interstitials. In another study, Kim et al. [135] described the NO₂-sensing characteristics of Sb-ion-implanted (30 keV) SnO₂ NWs at various irradiation doses (2 × 10¹³, 2 × 10¹⁴, and 2 × 10¹⁵ ions/cm²). The sensor designed with the lowest dose of 2 × 10¹³ ions/cm² exhibited an excellent sensing performance. It showed a high response of 118 to 1 ppm NO₂ gas at 300 °C. Electron paramagnetic resonance (EPR) studies supported the generation of a large number of oxygen vacancies upon Sb implantation, which not only improved oxygen adsorption but also provided a large number of electrons to the SnO₂ conduction band. Surface defects facilitated oxygen adsorption, thereby increasing the resistance following implantation. Contrarily, for high doses, the initial sensor resistance decreased because of the development of Sn interstitials, where these created a donor level within the SnO₂ conduction band. The surface defects developed not only because of the various ionic sizes of Sb⁵⁺ and Sn⁴⁺ but also because of the high energy of the ion-implantation process. In the case of high implantation doses for which low responses were observed, more defect clusters were formed, which decreased the number of gas adsorption sites on the sensor surface. Furthermore, for the sensor developed using a low irradiation dose, more oxygen vacancies were generated, which promoted NO₂ gas adsorption.

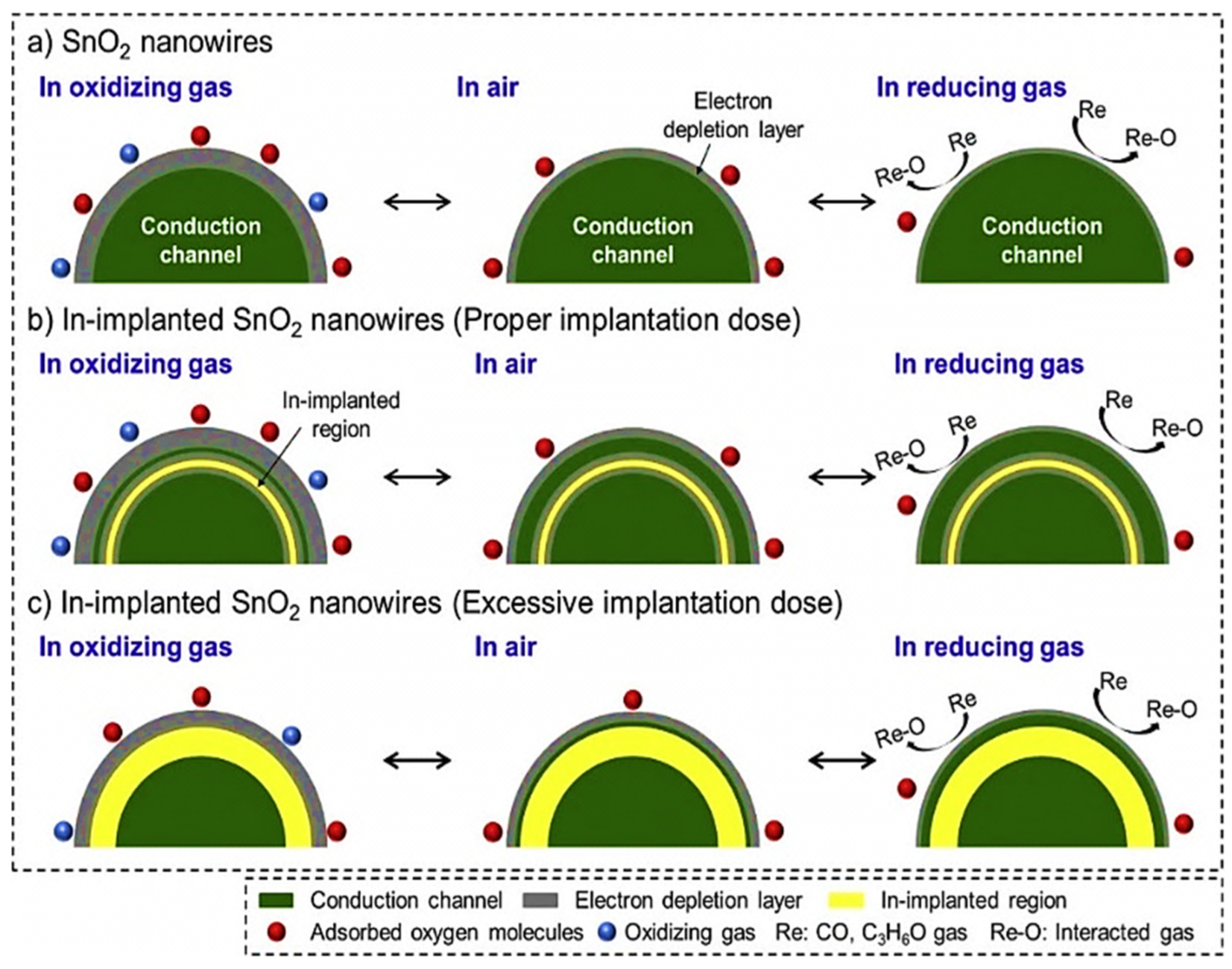

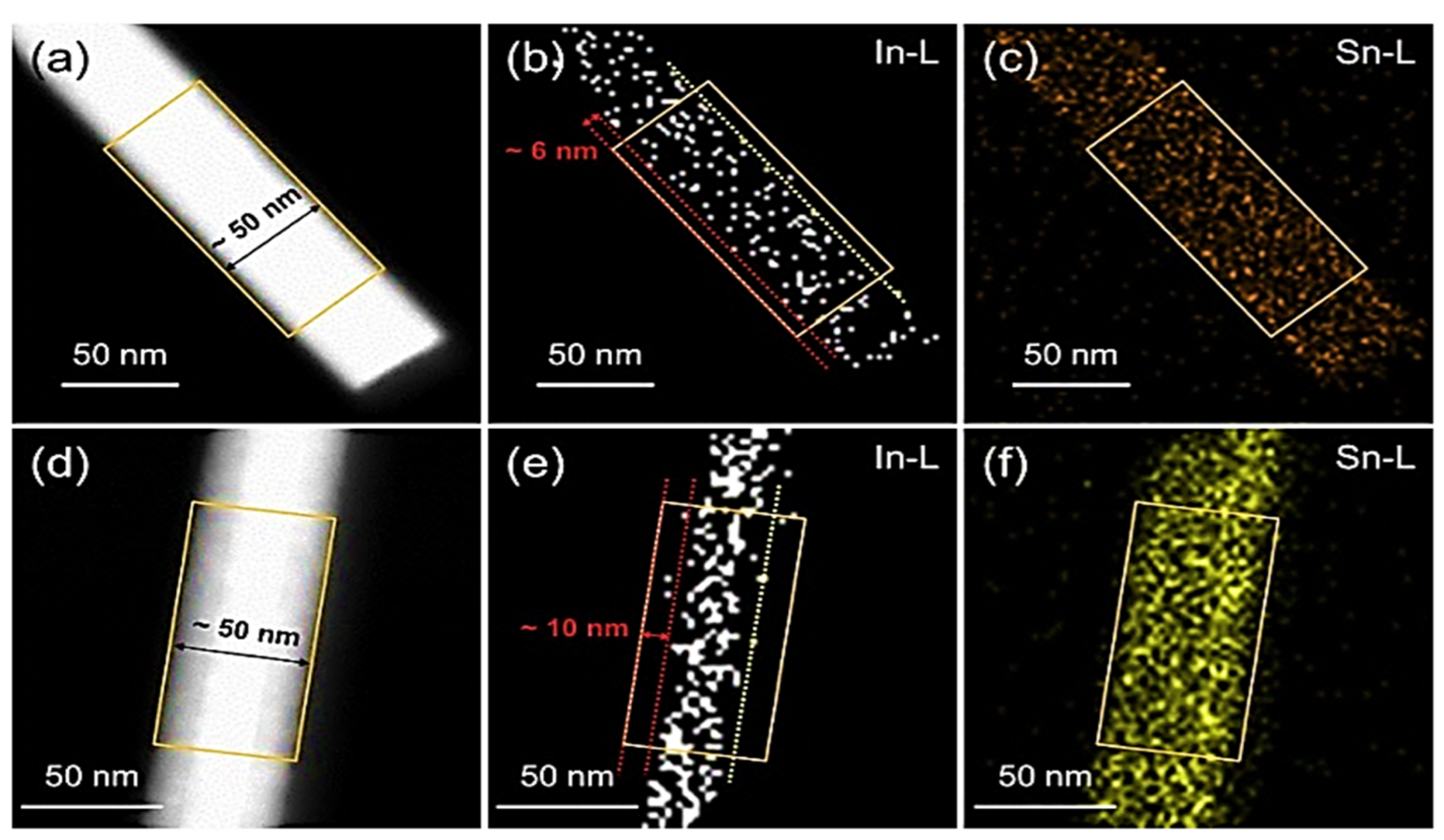

Kim et al. [136] fabricated SnO₂ NWs and implanted indium ions (30 keV) using irradiation doses of 2 × 10¹⁴ and 1.8 × 10¹⁵ ion/cm² for the sensing of reducing and oxidizing gases. The sensor irradiated with a lower dose showed a response of 19 to 1 ppm NO₂ gas at 300 °C. The TEM-EDS color mapping images of the low-dose implanted SnO₂ NW sensor are shown in Figure 27a–c. A diameter of ≈50 nm for the SnO₂ NW was observed with In ions diffused up to a depth of ≈6 nm. The TEM-EDS color mapping images of the high-dose-implanted SnO₂ NW sensor with an In-implanted depth of ≈10 nm is shown in Figure 27d–f. Notably, In diffused to certain depths in both cases. Consequently, a homo-core (the deeper region inside the SnO₂ NWs)–shell (implanted region) structure was developed due to implantation. The implanted gas sensors exhibited higher responses relative to those of the pristine sensor, and the sensor fabricated with a lower dose showed the highest response among the implanted sensors. The sensing mechanism of the SnO₂ NWs was elucidated through a homo-C-S structure (Figure 28). For sensors implanted at low doses, In³⁺ species were deeply diffused into the SnO₂ NWs, where the conduction channel of the SnO₂ NWs (highlighted in green) formed the core. In contrast, the In-implanted region (highlighted in yellow) formed the shell, which consisted of fewer electrons. Accordingly, the electrons traveled from the core region to the shell region, and two additional electron depletion layers were formed at the interface between the SnO₂ conduction channel and the implanted area. Consequently, various sources of resistance modulation were established, and a significant resistance modulation was observed when exposed to NO₂ gas. For the sensors implanted at higher doses, the electrons in the core SnO₂ region did not flow toward the shell layer as the shell region had many free electrons; accordingly, the electron depletion layers were not formed between In³⁺ and the SnO₂ conduction channel interfaces. Thus, there were few adsorbed oxygen ions at the sensor surface, which affected the sensor response.

5. Flexible Gas Sensors

Considering the types of substrates utilized in gas sensor fabrication, the gas sensors are divided into flexible and non-flexible (rigid) sensors. Non-flexible sensors are fabricated on rigid substrates. A gas sensor should be flexible in the terms of mechanical deformations and have properties that make it suitable for wear. Flexible gas sensors are fabricated on flexible substrates, and their properties should not significantly change upon titling, stretching, and bending [137]. Flexible gas sensors with low cost, low weight, high stretchability, high flexibility, and high conformability may provide a good platform for wearable gas sensors and are important for ambient atmosphere monitoring at room temperature [138,139,140]. Various flexible substrates such as polyethylene terephthalate (PET) [141], polyimide (PI) [142], and Kapton [143] can be used for the fabrication of wearable sensors. An ideal smart sensor capable of being integrated into electronics should have properties such as (i) flexibility and transparency, (ii) room temperature operation, (iii) rapid response/recovery, (iv) low detection limit, high sensitivity, low cost, and eco-friendliness [144].

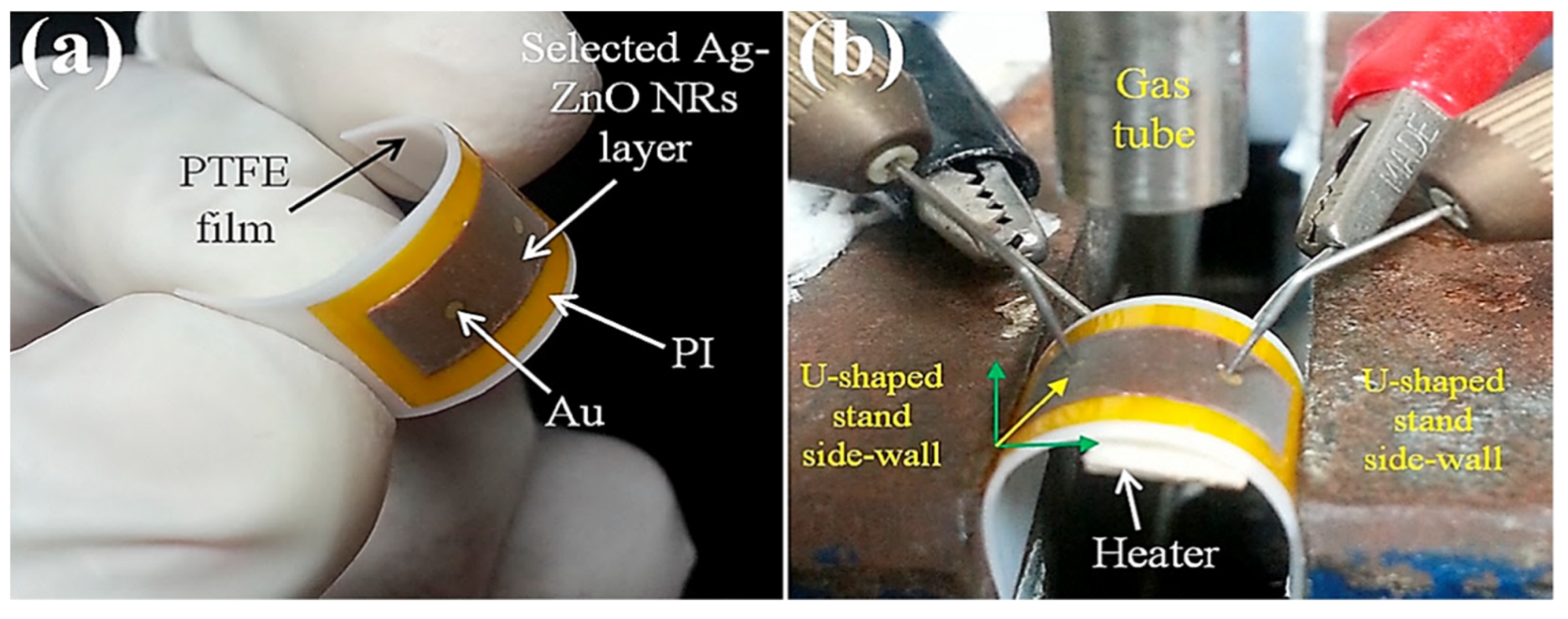

The selection of the flexible substrate and sensing material is the main challenge faced in developing a flexible gas-sensing platform. Some sensing layers may crack or separate from the substrate when strained [145]. An overview of some of the most relevant research articles based on flexible gas sensors published by various Korean research groups in recent years is included below. Two-dimensional TMDs are among the most suitable materials for the realization of flexible sensors [146]. Kim et al. [107] reported the CO gas-sensing properties of pristine and Au-functionalized (UV-irradiated for 15 s) WS₂ nanoflakes on flexible PI substrates under self-heating conditions. Au-decorated WS₂ nanoflakes demonstrated outstanding CO selectivity and excellent flexibility (Figure 29).

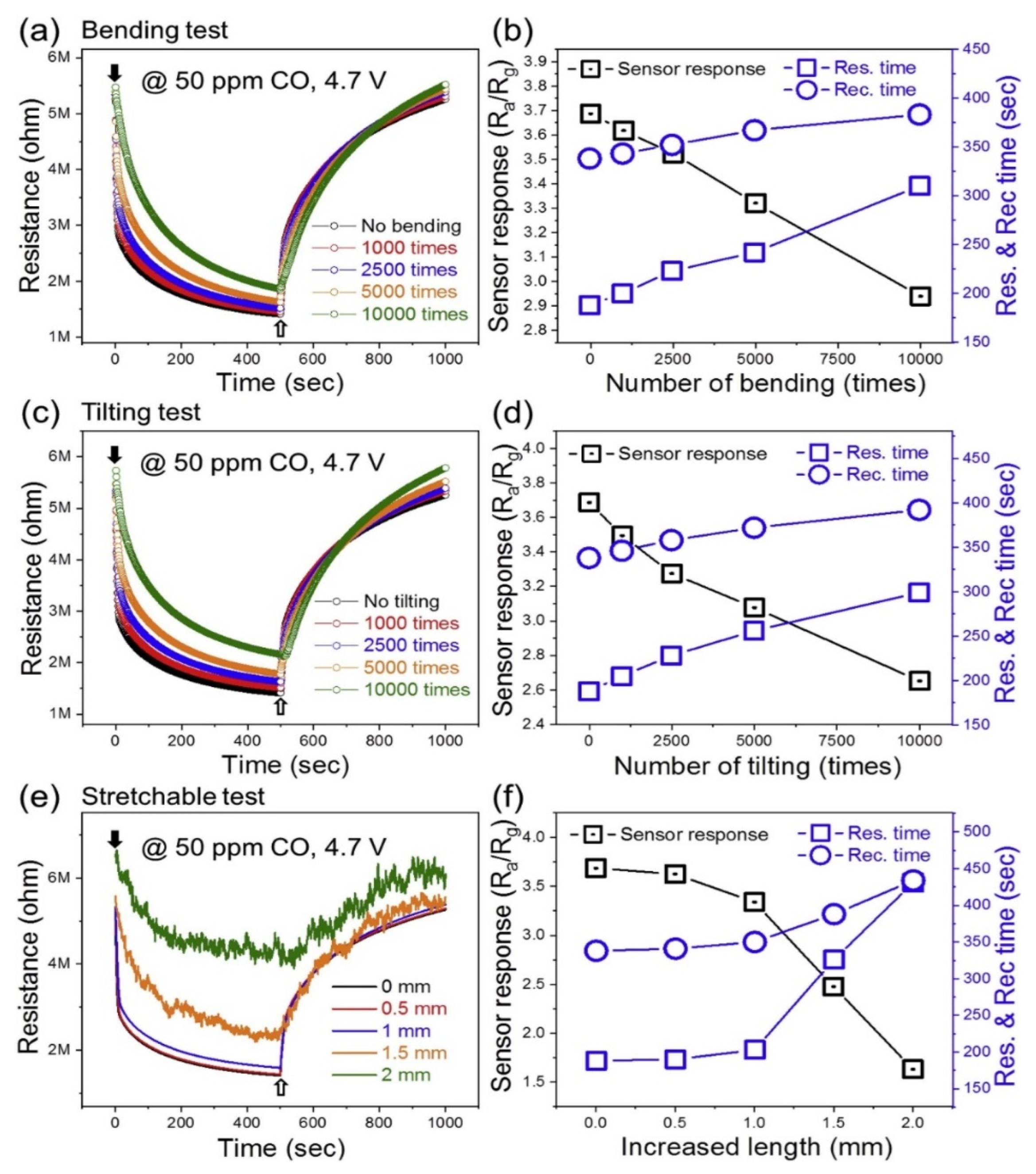

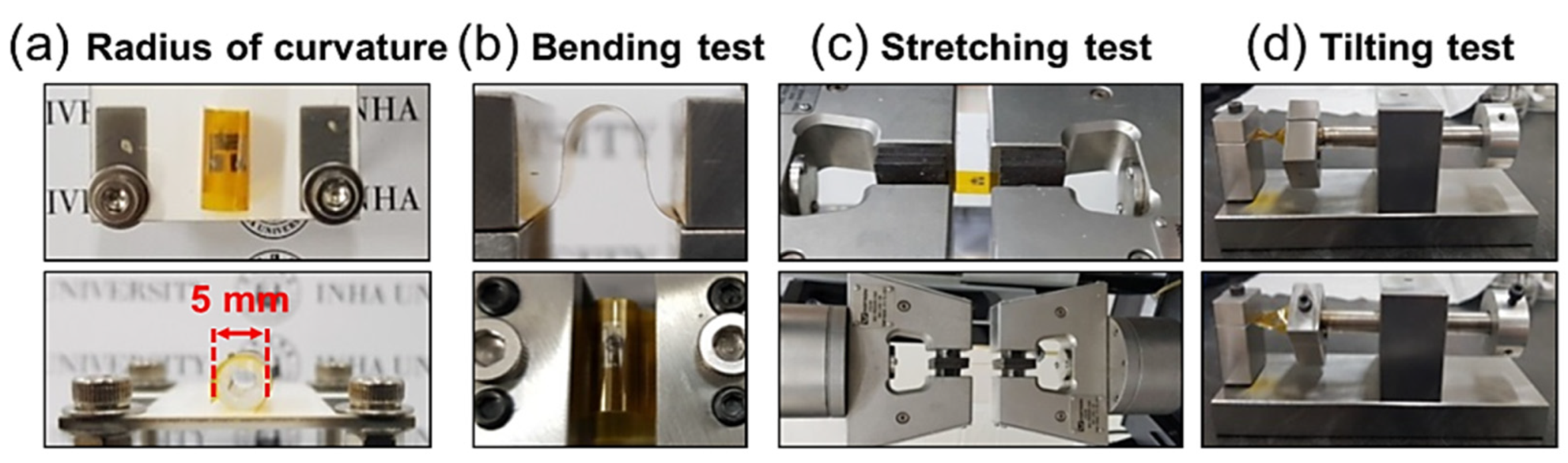

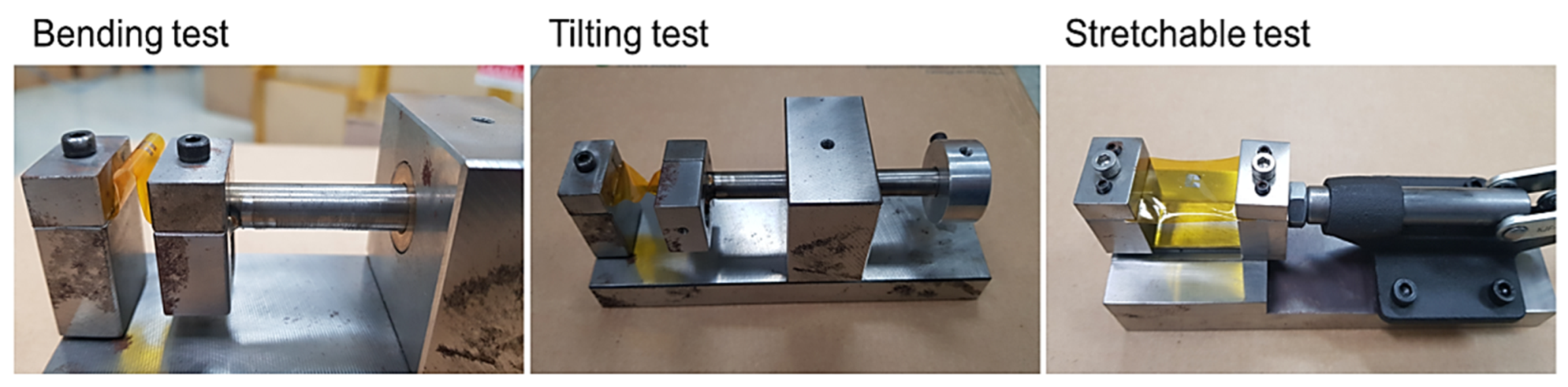

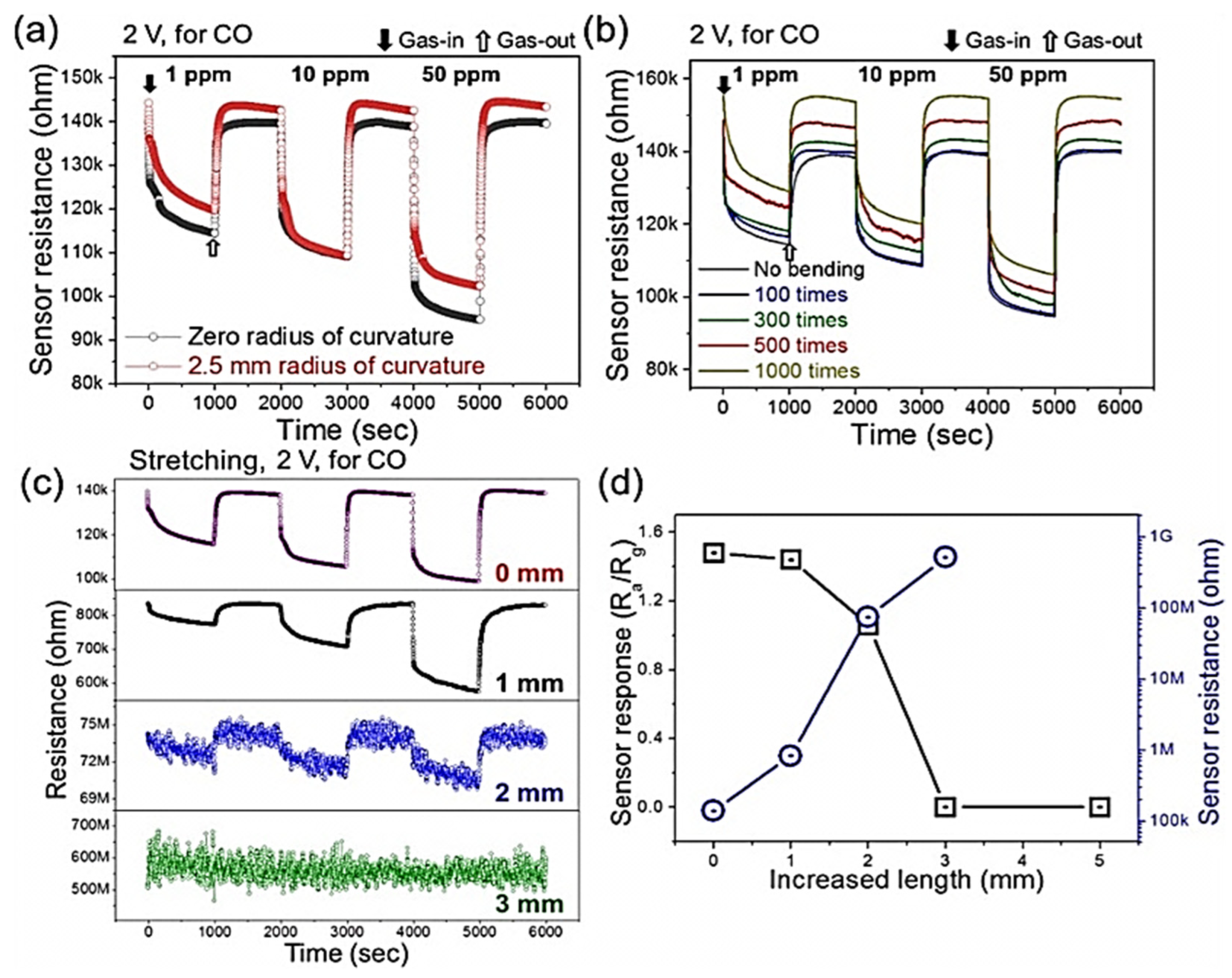

Figure 30a–d show different states such as bending and stretching, in which the sensor on the PI substrate is tested under an applied voltage of 2 V for a response toward the CO gas. The sensor response was almost unaffected even after bending 1000 times.

The gas responses at 1, 10, and 50 ppm levels of CO after bending 1000 times were 1.202, 1.290, and 1.463, respectively, indicating good flexibility, stability, and repeatability of the developed sensor. It was concluded that the sensor could be operated under bending and stretching conditions, demonstrating its high flexibility for practical applications.

In a different study, Kim et al. [109] reported the CO gas-sensing properties of Au-SnO₂-co-decorated WS₂ nanosheets, where the maximum response of 3.687 was observed for 50 ppm CO at 4.7 V. Digital photographs of Au-SnO₂-co-decorated WS₂ NS sensor under bending, tilting, and stretching conditions are shown in Figure 31. Gas detection tests were performed under various mechanical conditions to confirm the flexibility of the designed gas sensor. As shown in Figure 32a–f, the optimized gas sensor shows excellent flexibility upon tilting, bending, and stretching. Even after 10,000 bending cycles, tilting 10,000 times, and stretching up to 1 mm, the performance of the gas sensor did not change, confirming the high flexibility of the sensor owing to the use of a PI substrate and the 2D structure of the sensing layer.

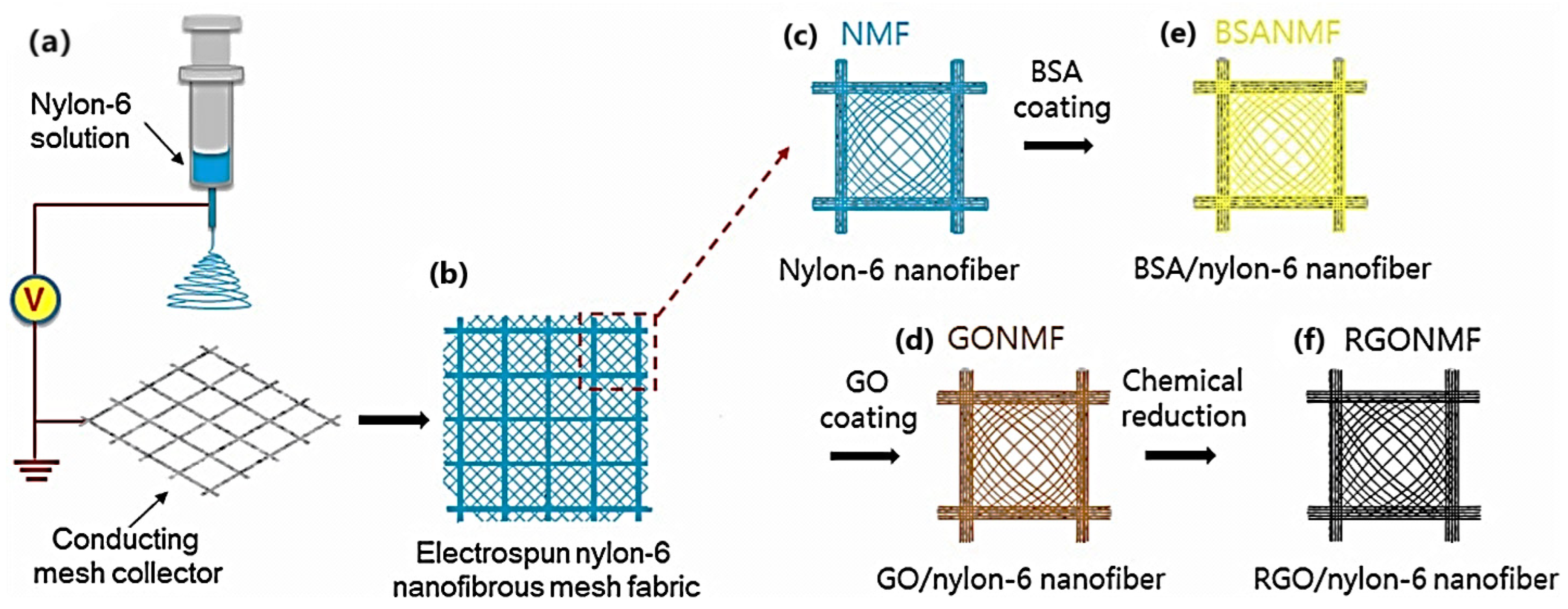

rGO affords various advantages such as excellent electrical conductivity, high mechanical flexibility, high chemical and thermal stability, and low weight. Park et al. [147] developed a flexible NO₂-gas-sensor-based rGO nanofibrous mesh fabric. Figure 33 shows a schematic illustration of the synthesis. At room temperature, the absolute response values were ≈23.9% toward 8 ppm NO₂ gas for the flat gas sensor and 26.5% for the bent RGONMF gas sensor. This result showed that the sensor performance well at an extreme radius of curvature (R = 1.0 mm).

Jang et al. [148] synthesized TiO₂ nanotubes (TNTs) directly on titanium thin films deposited on plastic substrates. The fabricated gas sensor was used for CO-sensing applications. With a minimum bending radius of 6 mm, the gas sensor showed no electrical failure or repetitive bending deformation for up to 20 cycles, demonstrating the high flexibility and stability of the gas sensor. Yi et al. [149] prepared vertically aligned ZnO nanorods and graphene hybrid architectures for the realization of flexible and highly sensitive C₂H₅OH gas sensors. Repeated bending–unbending cyclic experiments confirmed that the sensor resistance changed by ≈0.2 ± 0.01% upon bending the substrate to a radius of curvature of <0.8 cm. Furthermore, sensor resistance fully recovered to its original value when the substrate returned to its release state after 100 cycles. Uddin et al. [150] fabricated a flexible C₂H₂ sensor for the first time (Figure 34). Ag-loaded vertical ZnO NRs (6, 8, and 10 s) were synthesized by the hydrothermal RF magnetron sputtering method.

To investigate mechanical flexibility, bending tests were performed for the fabricated sensors at various curvature angles ranging from 0° to 90° using a U-shaped support stand for different C₂H₂ concentrations at 200 °C. With an increase in bending, the strain between the PI substrate and sensing layer resulted in a minor change in the surface resistance. The initial response magnitudes (unbent or θ_c = 0°) for 100 ppm C₂H₂ were 9.33, 13.8, and 9.57 for the 6, 8, and 10 s Ag-loaded sensor, respectively. The response magnitudes of all samples were retained without a significant degradation up to a bending angle of θ_c = 30° (bending radius of ≈12 mm). With an increase in the bending angle, the sensor exhibited a negligible response decrease of 1.3% for θ_c = 45°, 1.7% for θ_c = 60°, and 2.1% for θ_c = 90°, which was because of the low binding energy and low charge transfer between the strained sensing layer atoms and target gas molecules at large bending angles. Moreover, for a large bending state, the ohmic contact distance increased, resulting in a slight increase in resistance and a low drop in the response value. Kang et al. [151] developed a flexible gas sensor based on the 2D layer assembly of Pt-ZnO NPs on rGO for NO₂ gas sensing. To demonstrate its stable and reliable operation as a wearable sensor, the NO₂-sensing characteristics of the sensors were investigated upon the application of external mechanical stress. Therefore, mechanical bending tests were performed directly on the flexible sensor on the PI substrate. The dynamic resistance curves obtained during 450 bending cycles were evaluated, with each cycle having a bending angle of 90°. Interestingly, a stable baseline resistance was observed with a negligible resistance drift (1.73% increase) even after 450 bending cycles. The scattered resistances in the first 50 bending cycles were mainly owing to the stabilization of the mechanical stress and partial detachment of the drop-coated sensing layer. The synthesis of perovskite oxides such as SrTiO₃ requires long calcination at elevated temperatures, which limits their application to flexible electronics. Duy et al. [152] reported an effective laser-assisted sol–gel method to obtain SrTiO₃ NPs in selective areas on PI substrates. The violet laser power was only 1 W but was sufficient to crystallize the material in a short period (a few seconds). The authors used it together with the CNTs to detect changes in humidity at room temperature. The sensor in the resistive mode with a lower power usage (approximately 0.2 μW) was used for the long-term monitoring of humidity of ≥2% RH. The performance of the flexible sensor was maintained after 5000 bending cycles at a 1.5 cm radius.

In another study, Kim et al. [153] used micropatternable double-faced ZnO NFs for the realization of flexible gas sensors on a PI substrate with SWCNTs as the electrode. The response of the sensor to 500 ppm NO₂ at 270 °C increased from 202.2 to 297.6 after 10,000 cycles. Moreover, the characteristic times improved. The response and recovery times decreased from 36.0 to 19.2 s and 20.3 to 11.5 s, respectively. Furthermore, the recovery increased from 89.4% to 94.8%. Overall, the characteristics of the gas sensor improved with an increase in the number of bending cycles from 0 to 10,000. However, despite an increase in the numerical values during the evaluation of sensor characteristics, the resistance gradually increased under the same conditions, with significant fluctuations. This behavior indicated the deterioration of the sensor. After flexibility tests comprising 10,000 cycles, the NRs appeared bent, indicating that a constant strain was applied to the NRs during the repetitive flexibility test. Due to repetitive strain, the breakaway of the NRs from the shells occurred, and this was the first sign of device failure. In contrast, the shells appeared to maintain their structures, and cracked shells were rarely observed. In addition, Kim et al. [154] used 2D MoS₂ on a plastic substrate to realize a flexible gas sensor for the detection of NO₂ and NH₃ gases. The flexibility of the MoS₂-based gas sensor was evaluated after 2000, 4000, and 6000 bending cycles. The gas responses of the flexible gas sensors were maintained without any significant degradation and even showed some enhancement. This increased response at less than 4000 bending cycles was likely attributed to the formation of microcracks induced by the strain generated during the bending test. Microcracks and defects created more edge sites than those present in the initial 2D MoS₂, which led to increased gas adsorption.

6. Other Resistive-Based Gas Sensors (Glass/Silicon/MOF-Based Gas Sensors)

In addition to the above-mentioned strategies, other types of chemiresistive gas-sensing devices, such as glass, silicon, and MOF-based gas sensors, have been investigated by the Korean groups in the past few years. In the following section, some of the key research papers on glass-, silicon-, and MOF-based gas sensors are reviewed.

6.1. Glass Gas Sensors

Glass is a cheap material and can be modified via simple procedures. In addition, glass can be simultaneously used as a substrate and detecting layer [155]. However, there are limited studies on the use of glass as a sensing material. To employ its sensing characteristics, glass should be significantly enriched with alkalis. As the sensing response includes diffusion, the operating temperature can be decreased by the increased doping of mobile Li instead of Na. The polarization of glass is essential and should be performed prior to the sensing test. The polarization voltage can be calibrated to ensure that the accumulated charge is accurately determined prior to sensing. This allows the baseline current to be set to zero, thereby significantly increasing the resistance-based sensing response. To ensure long-term stability, it is necessary to re-polarize the glass once the basement current drifts below zero [156]. The origin of the gas-sensing mechanism is different from the mechanism used to detect metal oxides, which is attributed to the development and thickness of either an electron depletion layer or an HAL in the n- and p-type metal oxides, respectively. In the case of a soda-lime glass gas sensor, the primary detection mechanism is the development of surface impurity phases when the glass sensor is exposed to target gases [156,157]. Sophia et al. [156] reported that soda-lime glass is an active electrochemical material with significant gas detection characteristics toward various oxidizing and reducing gases such as NO₂, C₆H₆, C₆H₁₂, and CO at high temperatures (300–500 °C). A chemically inert CO₂ gas was also detected at a 1 V DC bias.

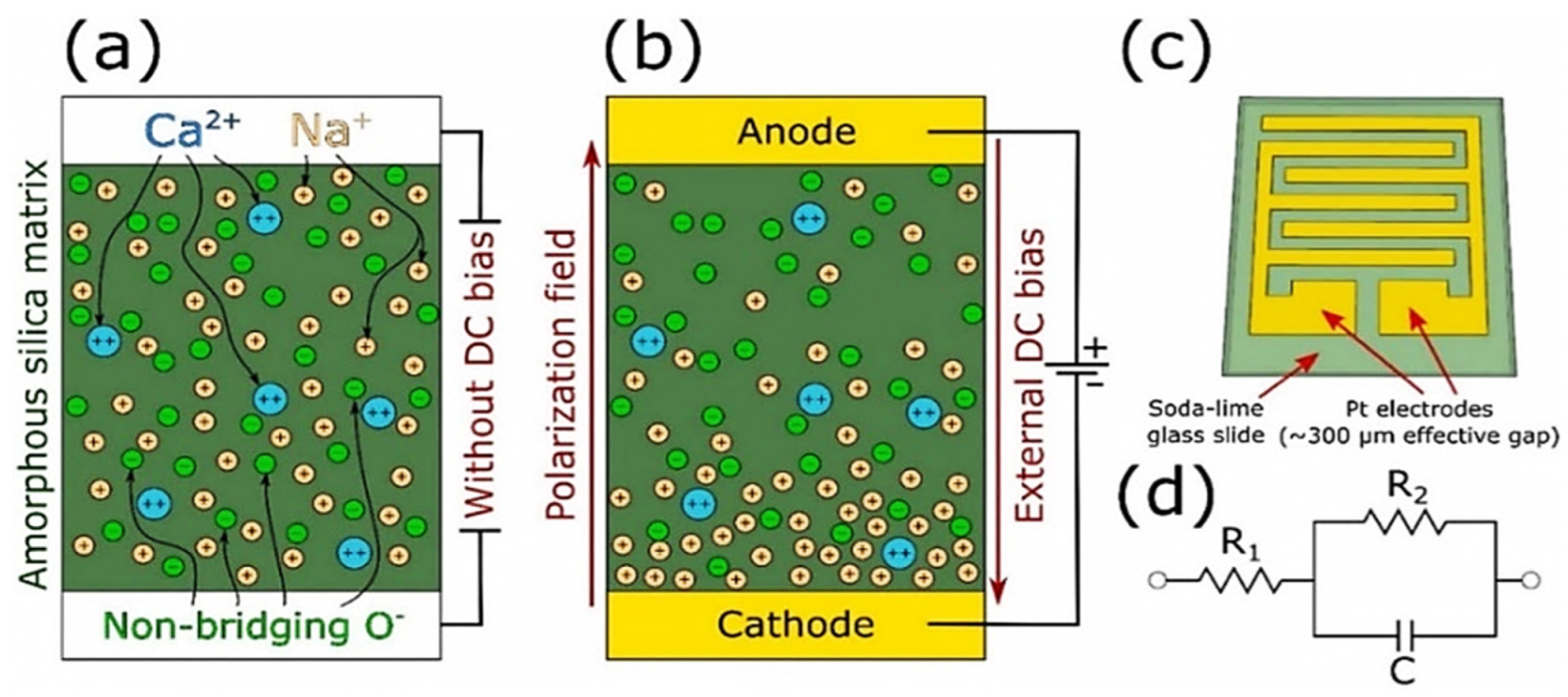

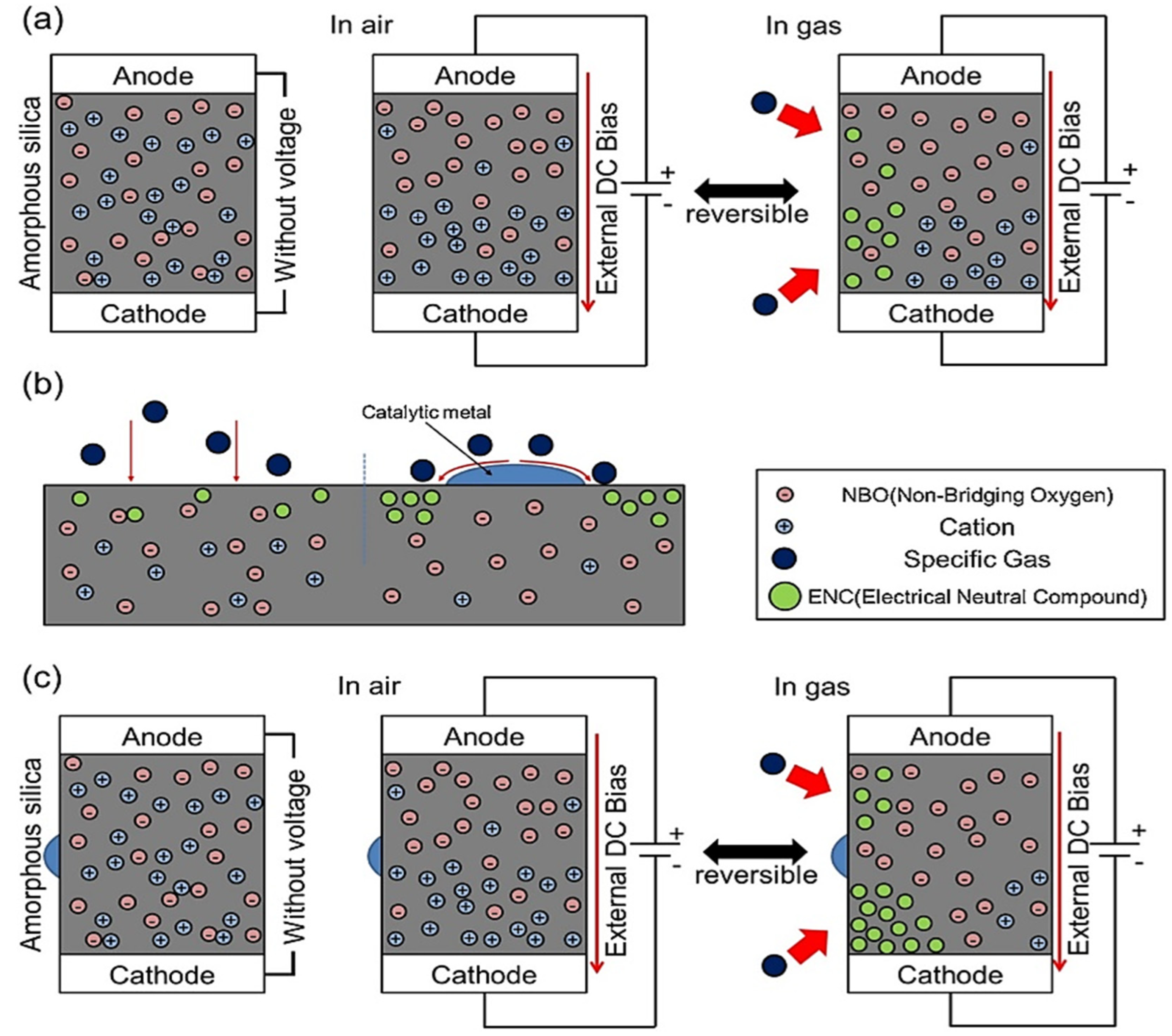

Alkali ions doped into the silica glass matrix were positively charged, and as a result, these were sensitive to the electric field. Alkali ions were compensated by the less mobile, negatively charged, and non-bridging oxygen units. By providing sufficient ionic mobility via thermal activation, the cations could be rearranged under an external electric field by setting a concentration gradient responsible for the macroscopic polarization of glass (Figure 35a). Once the interdigitated metal electrodes were deposited onto the soda-lime glass slides (Figure 35c), an electrochemical cell could be created where the glass slide acted as an electrolyte because of its high ionic conductivity. The corresponding schematic of an electrochemical cell (Randles circuit) constituted a parallel combination of a double-layer capacitor C and resistor R₂, which were connected in series to resistor R₁ (Figure 35d). When the soda-lime sample was electrically coupled to the DC voltage source, the external electric field induced the redistribution of Na⁺ (Figure 35b), thereby charging capacitor C. The electrochemical cell was completely charged, and the current attained its asymptotic minimum within an infinite time limit. As the target gas entered the air, its surface phase composition could be modified through the development of carbonates and/or hydroxides of the alkali elements, resulting in a change in the dielectric characteristics. Furthermore, Na₂CO₃ formation as a chemical reaction product between Na⁺ and atmospheric CO₂ could passivate the charged Na⁺ species, thereby decreasing the electric charge of the polarized soda-lime glass sample because of the greater content of the reactive alkali ions near the cathode. Additional phases of impurities such as NaNO₃ and NaOH could also form due to the reaction of glass with other gases (NO₂ and H₂O). Furthermore, the variation in the oxygen concentration could change the concentration of non-bridging oxygen units, which changed the concentration of compensated Na⁺ species, thereby changing the accumulated charge. Notably, both the changes in the dielectric constant and passivation of Na⁺ were attributable to the development of impurity phases, indicating the total current recorded throughout the sensing tests, which was dependent on the accumulated charge and capacitance. Similarly, the phases of impurities could also alter the conductivity of the soda-lime glass by decreasing the diffusion of Na⁺ or because of the development of free conducting electrons/holes. These effects afforded a chemiresistive gas-sensing response and the development of surface impurity phases when exposed to target gases, which was the primary reason for the gas-sensing characteristics of soda-lime glass.

In another study, Kim et al. [157] described the gas-sensing characteristics of Pd-, Pt-, and Au-functionalized glass sensors. In this study, Pd, Pt, and Au functionalization revealed high selectivity toward C₆H₆, C₇H₈, and CO gases, respectively. The response (I_g/I_a) of Pd-, Pt-, and Au-functionalized glass sensors toward C₆H₆ (10 ppm), C₇H₈ (10 ppm), and CO (500 ppm) gases was 5, 2.5, and 1.3, respectively. A schematic of a glass sensor with various ions is shown in Figure 36a. Generally, positively charged alkali ions are doped into the silica glass matrix and electrically compensated through negatively charged non-bridging oxygens with significantly low mobility. During thermal activation that was achieved via the sensing temperature, cations could show adequate mobility and reorganize themselves under the effect of a large external electric field. This resulted in a cationic concentration gradient that was responsible for the macroscopic polarization of glass. A glass gas sensor with metallic electrodes could be considered as an electrochemical cell in which the glass slide with high ionic conductivity acted as an electrolyte. Na⁺ with high mobility were redistributed via the effect of an external electric field, thereby charging the capacitor. Then, the total current attained its minimum value. By injecting the target gas into the gas chamber, the electrical properties of the glass sensor could be favorably modified owing to changes in its surface composition due to carbonate formation and mobile cation hydroxides. Since the dielectric properties of silica glasses depend on its surface composition, they could be modified with the development of surface impurity phases. Owing to the high alkaline ion concentration near the cathode, the chemical reactions between Na⁺ and target gases formed compounds that could passivate Na⁺ species, thereby decreasing the polarization of the soda-lime glass gas sensor; this phenomenon increased the overall current. Phases of impurities, such as NaCO and NaC_xH_y, could develop due to the reaction of Na⁺ with CO, C₆H₆, and C₇H₈ gases. In addition, impurities could affect the conductivity of the soda-lime glass sensor by decreasing the diffusivity of Na⁺ or hampering the development of free electrons, which could result in a resistive-gas sensing response. In noble-metal-functionalized gas sensors, noble metals may act as catalysts for the decomposition of target gases (Figure 36b). Owing to the catalytic activities of noble metals, many decomposed target gases could reach the glass sensor surfaces, resulting in a high response toward a specific target gas. As each metal preferred to attract a specific gas, the metal catalyst promoted selective sensing.

Kim et al. [158] investigated a Pd-functionalized soda-lime glass sensor using machine learning algorithms to accurately identify the VOC (C₂H₅OH, CH₃COCH₃, C₆H₆, and C₇H₈) and estimate the VOC concentrations. Pd played a catalytic role in facilitating the decomposition of target gas molecules and producing the spillover effect, leading to more surface reactions. To overcome the main limitation of this type of sensor (lack of selectivity due to the one-dimensional output signal), a new approach was applied, which merged the sensor response values at different working temperatures. The responses obtained at five different temperatures (300–500 °C) that were combined into five-dimensional points were analyzed using a support vector machine. After calibration using a training dataset, the detection system could accurately identify the gas and estimate its concentration. The results showed that the sensing system afforded accurate classification (100%) and a good estimation of the concentrations of the tested gases (average error of <19% in the 1–30 ppm range). Therefore, using this approach (different temperatures and machine learning), a single resistive sensor made of glass could achieve good selectivity and accurate quantification while retaining features such as simplicity, smaller size, and lower cost compared to those of an electronic nose.

6.2. Si-Based Gas Sensors

A large amount of Si is present on Earth. It is highly stable, non-toxic, has high carrier mobility, and allows the use of automatized manufacturing methods. The Si NWs affords a large surface area-to-volume ratio, relative ease of fabrication, the possibility of functionalization, and environmentally friendly properties, which are beneficial for gas-sensing studies [159,160,161,162]. Mirzaei et al. [163] reported a novel top electrode configuration for vertically aligned silicon NWs synthesized via metal-assisted chemical etching (MACE) using Ag as the catalyst for H₂ gas sensing. The sensor showed a response of 17.1 to 100 ppm H₂ gas at 100 °C. In MACE, which is an electrodeless chemical reaction, the shapes and pathways of the noble metal NPs determine the final morphology of silicon. If the noble metal NPs form a continuous porous nanometer-scale thin film on the Si substrate, Si NWs can be successfully obtained [164]. After immersion of the Si substrate in the HF/AgNO₃ solution, the Ag⁺ species captured electrons from Si, resulting in the Ag nucleation. As the reaction progressed, the nucleated Ag gradually grew into Ag NPs, and as Ag has a higher electronegativity than Si, Ag NPs directly captured electrons from Si and formed an accumulation of holes beneath the catalyst. Subsequently, the reduction of H₂O₂ occurred at the surfaces of the Ag NPs, and the holes were consumed by the oxidation of Si to silica, because of which HF was rapidly dissolved. The Ag NPs moved into the Si wafer with the dissolution of the silica layer; therefore, the depth of Ag NPs in the pits increased with an increase in the reaction time. Furthermore, during the MACE of Si, the reaction was highly anisotropic because the numbers of broken Si-Si bonds differed significantly in different directions [164,165]. The sensor exhibited a high response of 17.1 to 50 ppm H₂ at 100 °C. The high H₂ selectivity of the Si NW sensor was associated with the high chemical reactivity of H₂ and the lower bond energy of H-H in comparison to those of other tested gas molecules. Furthermore, H₂ easily decomposed at the sensing temperature.

Porous Si is a promising material for low-temperature gas-sensing applications [166]. Bang et al. [167] developed heterojunctions based on porous Si and SnO₂ NWs for low-temperature (100 °C) H₂S gas-sensing applications. Porous Si was obtained from p-Si wafers via electrochemical etching, and a VLS route was employed for the synthesis of SnO₂ NWs. The porous Si/SnO₂ NW sensor showed better sensing properties toward H₂S than the porous Si sensor. The porous Si/SnO₂ NW gas sensor showed a response of 3.2 to 50 ppm H₂S gas at 100 °C. For heterojunctions made of porous Si/SnO₂ NWs, the available surface area for the adsorption of H₂S gas increased owing to the presence of SnO₂ NWs, which eventually led to a higher sensing response. In addition, a potential barrier developed due to the transfer of electrons from SnO₂ to Si, as p-Si had a higher work function than n-SnO₂. Accordingly, the HAL in Si was reversed to form a hole-depletion layer (HDL), and the original sensor resistance was enhanced owing to the main sensing currents flowing through the p-type porous Si structures. Thus, the initial hole conduction volume in porous Si decreased. In the H₂S gas atmosphere, the gas molecules removed holes from porous Si, and the hole resistance increased. Additionally, for an insignificant initial hole conduction volume, the decrease in the hole concentration induced by H₂S gas led to a high response. Furthermore, crystallographic defects at the interfaces between Si and SnO₂ were formed owing to the lattice mismatch between Si and SnO₂. The dangling bonds and defects at the interfaces between Si and SnO₂ afforded an improved response owing to the provision of preferred adsorption sites. The difference in the lattice constants of Si and SnO₂ resulted in the formation of dangling bonds at the interfaces, resulting in more available adsorption sites and an improved gas response.

Lee et al. [168] investigated the H₂-sensing properties of Pd-decorated Si nanohorns (NHs). Si-NHs were synthesized using a simple chemical etching method, which was followed by Pd decoration using a UV irradiation technique. The optimized gas sensor could detect as low as 0.1 ppm H₂ gas. It showed a very high response of 2300 to 10 ppm H₂ gas at 400 °C. When the sensor was exposed to air, a greater concentration of holes was observed at the surfaces of the Si-NHs. When the Si NH sensor was exposed to H₂, it reacted with the already adsorbed oxygen ions, resulting in the release of electrons and subsequent combination with holes, decreasing the hole concentration as well as the thickness of the HAL.

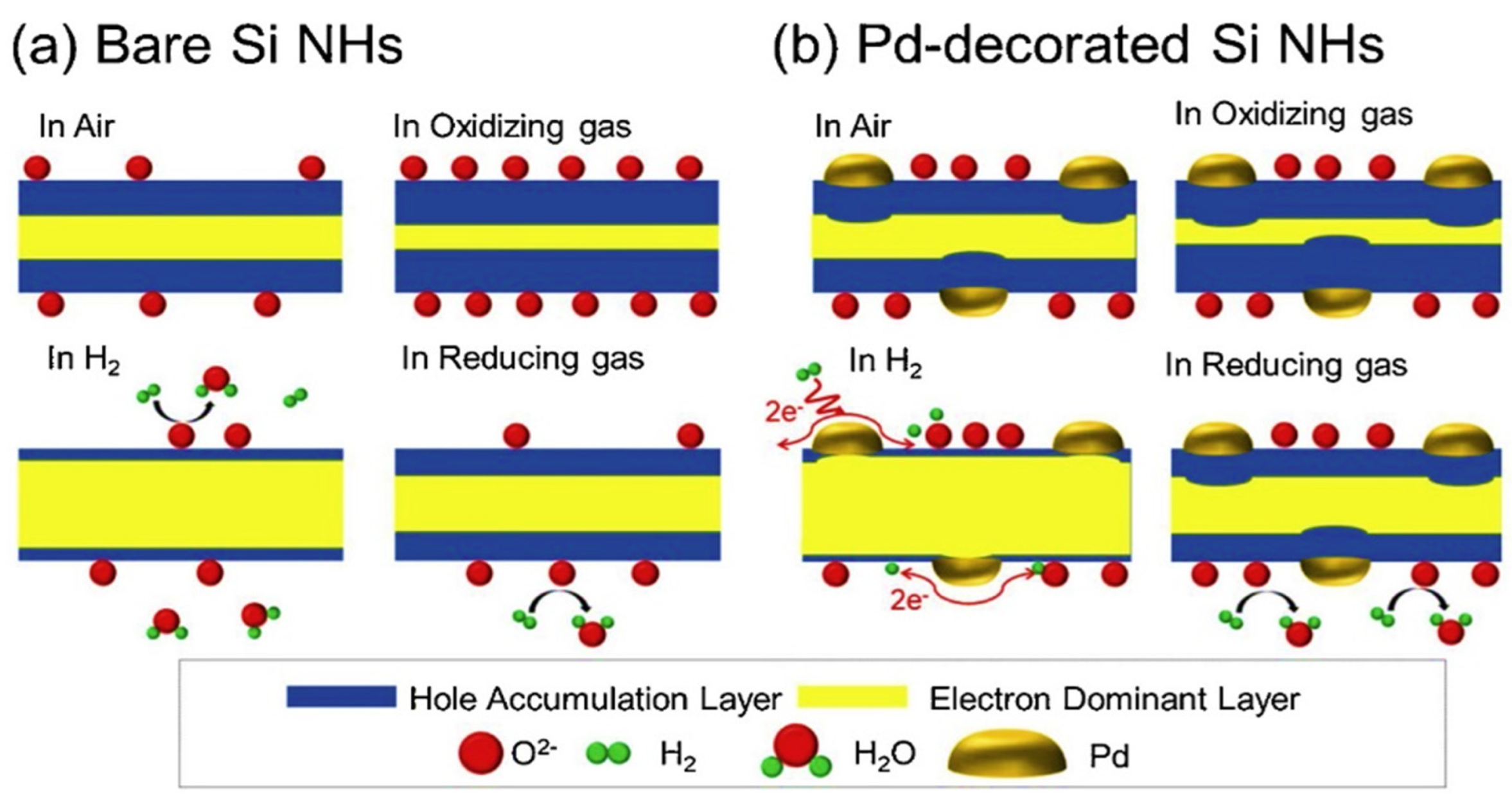

Figure 37a shows the sensing mechanism of the pristine Si NH gas sensor. For the Pd-decorated Si-NHs shown in Figure 37b, electrons flowed from Si to Pd upon intimate contact of Pd and Si in air. This led to the expansion of the HAL at the interfaces between Pd and Si. In H₂ atmosphere, the released electrons resulted in the narrowing of the HAL, thereby contributing to the sensing mechanism. Furthermore, the catalytic activity of Pd NPs increased the surface reaction rates by dissociating H₂ into active hydrogen atoms (H) and transporting atomic hydrogen to the Si NH surface. Consequently, in the presence of Pd, atomic H could easily react with chemisorbed oxygen, leading to a high response to H₂ gas. In addition, the kinetic diameter of H₂ molecules (2.9 Å) was very small, resulting in diffusion to the deep parts of the gas sensor. In the case of NO₂ gas, there were insufficient electrons for adsorption by NO₂ gas due to the formation of Pd/Si heterojunctions and the flow of electrons from Si to Pd, resulting in a low response.

6.3. Metal–Organic Framework (MOF)-Based Gas Sensors

MOFs are a distinct type of emergent materials that can be produced by connecting metal centers with organic linkers [169]. Owing to their unique properties, such as high surface area, ready chemical modification, structural flexibility, and tunable pore size, these have attracted significant attention for different applications [170,171,172]. In particular, MOFs have been used for chemical sensors because of their unique porous morphology, which allows the adsorption and diffusion of target gaseous molecules [173]. Drobek et al. [174] described a general approach to enhance the selectivity of NW gas sensors to H₂ gas based on the coverage of ZnO NWs with a thin zeolitic imidazolate framework (ZIF) and ZIF-8 molecular sieve membranes. ZIF structures are a subfamily of MOFs with ultra-high porosity, structural/chemical tunability, structural flexibility, and large core surface areas. The synthetic approach involved the ALD of ZnO thin films and their successive conversion into ZIF-8 using a 2-methylimidazole/methanol solution under solvothermal conditions. The methodology was based on the use of ZnO NWs as the only zinc source, which was then used to grow a thin layer of ZIF-8 onto the NW surfaces. This method allowed the uniform coverage of ZnO NWs with a ZIF-8 selective barrier (membrane) with ultra-high specific surface area and molecular sieving characteristics. Owing to the molecular sieving effect of the thin ZIF-8 membrane, the ZIF-8-encapsulated ZnO NW sensor afforded significantly enhanced H₂ selectivity in comparison to the sensor based on pristine ZnO NWs. The sensor showed a response of 1.44 to 50 ppm H₂ gas at 300 °C, which was higher than the response to C₇H₈ (≈1) and C₆H₆ (≈1) gases. The large porous structures of ZIFs improved species uptake (preconcentration), and the precise pore structures of MOFs allowed molecular sieving. Both these effects likely improved the sensitivity (preconcentration effect) and selectivity (size/shape exclusion effect). Drobek et al. [175] described the synthesis of a ZnO-based sensor coated with a SIM-1 (substituted imidazolate material-1) membrane layer. SIM-1 is a material that is isostructural with ZIF-8 with a cage size of ≈0.8 nm and an expected pore aperture of <0.34 nm [176,177]. The H₂ selective membrane of SIM-1 was used as an effective layer for molecular sieving. ZnO NWs with an optimized SIM-1 coating exhibited outstanding H₂ selectivity at high temperatures (300 °C) when the interfering gases were present, confirming the effectiveness of these sensors in detecting H₂. It showed a response of 2.6 to 50 ppm H₂ gas at 300 °C, with almost no response to interfering gases. As the SIM-1 membrane did not exhibit semiconducting properties and simply acted as a molecular sieve to block the transportation of interference gases, ZnO NWs were responsible for the electron transport channels.

Weber et al. [178] built upon the previous studies by fabricating H₂ gas sensors with improved sensitivity and outstanding selectivity using a combination of ZnO NWs decorated with Pd NPs and ZIF-8 as a molecular sieve. Three stages were involved in the fabrication of the desired materials: (i) growth of ZnO NWs via the VLS process, (ii) decoration of Pd by ALD, and (iii) partial solvothermal conversion of the tuned NW surface into the ZIF-8 nanomembrane. The Pd NPs improved the H₂ sensitivity, and the ZIF-8 overcoat enhanced the sensor selectivity. The sensor showed a response value of 9 to 50 ppm H₂ gas at 200 °C. Gases with higher kinetic diameters than ZIF-8 windows cannot pass through and reach the surface of the metal–oxide. Therefore, interfering gas molecules (all greater than H₂) could not pass through the ZIF-8 overcoat, and no response signal was obtained from the sensor. Owing to the presence of a molecular sieve membrane, the H₂ gas molecules reached the sensor surface. The diffusion of H₂ by the ultra-microporous ZIF-8 network involves a thermally activated transport mechanism, which is promising for the design of a sensitive and selective high-temperature (200–300 °C) H₂ sensor. Owing to the existence of Pd NPs, the depth of the depletion layer of electrons increased at the contact area between Pd and ZnO, which resulted in a higher resistance of the Pd/ZnO NW sensor in comparison to that of the sensor based on pure ZnO NWs. When exposed to H₂ gas, Pd was converted into PdH_x, and a part of the ZnO (surface) was transformed into metallic Zn. Both mechanisms afforded high conductivities, thereby contributing to the sensor response. By selecting an appropriate MOF overcoat, the pore sizes could be tailored, and this approach could also be applied to the selective sensing of other gases. ZIF-8 is a comparatively rigid but open crystalline framework with significant potential for extracting H₂ from gas mixtures [179]. Nguyn et al. [180] investigated the CO gas-sensing characteristics of two different types of MOFs, namely Ni-VNU-74-I and Ni-VNU-74-II (Figure 38a–c), with different pore sizes and surface areas. The as-synthesized Ni-VNU-74-I and Ni-VNU-74-II exhibited high crystallinity and thermal stability, together with ultra-high specific surface areas. The gas sensor fabricated using Ni-VNU-74-II with an ultra-high surface area of 2350 m²/g exhibited the maximum response (R_a/R_g = 1.7) toward 50 ppm CO gas in comparison to other gases at a working temperature of 200 °C. The excellent sensing activity of the Ni-VNU-74-II sensor in comparison to that of the Ni-VNU-74-I sensor with a surface area of 2020 m² g⁻¹ was attributed to the enhanced interactions between the open Ni sites and CO gas molecules in the unique Ni-VNU-74-II structure with smaller pores, larger surface area, and higher concentration of Ni²⁺ sites. In addition, the observed CO selectivities of both the Ni-VNU-74-I and Ni-VNU-74-II sensors were attributed to the special structures presented in Figure 38.

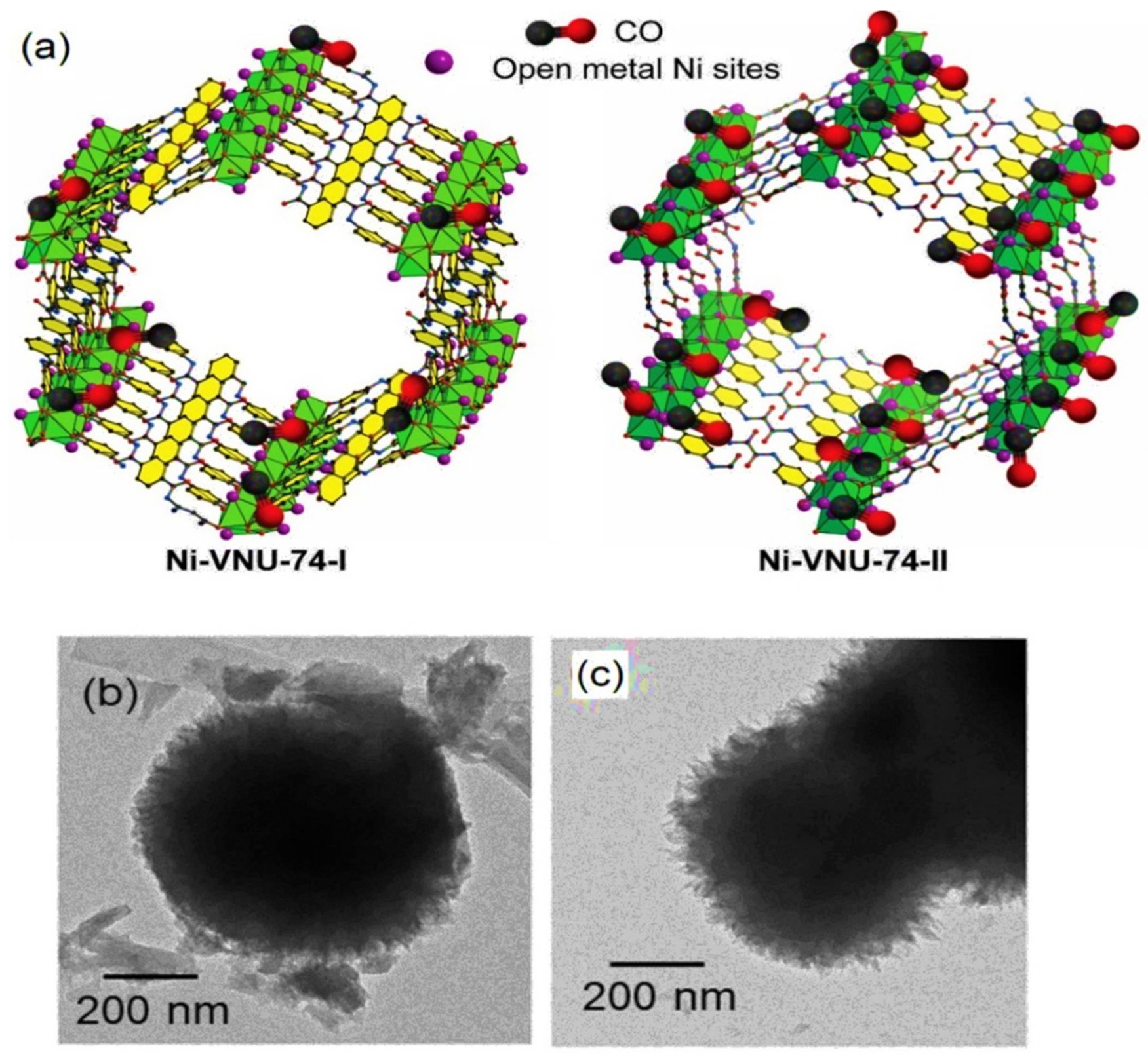

The MOFs comprised a partial charge of open metal Ni sites that could afford strong interactions with CO gas molecules. The higher density of the open metal Ni²⁺ sites resulted in a high probability of CO gas attachment. Additionally, the metal Ni²⁺ species had smaller ionic radii, and because the CO molecules were adjacent to Ni²⁺, the shorter distances of Ni²⁺₋O allowed enhanced interactions with the oxygen atoms and CO gas molecules. Consequently, the CO-Ni²⁺ interaction increased because of the highly cooperative effects between the MOF framework and CO gas molecules. Furthermore, the smaller Ni²⁺ radius facilitated the release of its electrons owing to the interaction with the target gases, particularly CO gas. An MOF structure with an adequate pore size and volume should be selected when considering the kinetic properties of sensors such as response/recovery times, mostly when the MOF material is directly utilized as a sensing material rather than as a sieve. Lee et al. [181] investigated the NO₂-sensing activities of two unique series of Mg-incorporated MOFs, which were labeled as Mg-MOF-I and Mg-MOF-II. The as-synthesized iso-reticular type of Mg-MOFs afforded excellent crystallinity, good thermal stability, and needle-shaped surface morphology with ultra-high surface area, which were advantageous for gas detection applications. The higher response (R_a/R_g = 1.4 to 50 ppm NO₂ at 200 °C) observed for the Mg-MOF-II sensor (2900 m²/g) than that for Mg-MOF-I sensor (2520 m²/g) was mainly associated with the higher surface area. A higher surface area resulted in a greater number of adsorption sites, which supported the adsorption of more target gases on the gas sensor surface, leading to a greater resistance modulation and a higher sensor response. In addition, the base resistance of the Mg-MOF-II sensor was lower because of the enhanced adsorption of oxygen gas molecules in air. Furthermore, the Mg-MOF-II sensor with a larger pore size and volume showed faster response and recovery times, indicating the importance of the porosity size on the kinetic characteristics of the sensors based on the MOFs. Furthermore, MOF-derived ZnO-CuO [182] and ZnO-Co₃O₄ [183] nanocomposites with high surface areas resulting from MOFs were reported recently for enhanced sensing of H₂S and C₂H₅OH gases, respectively.

Finally, we have compared the gas-sensing performances of different types of gas sensors described above with research papers published by other research groups from Korea [184,185,186,187,188,189,190,191,192,193,194,195,196,197,198,199,200,201,202,203,204,205,206,207,208,209,210,211,212,213,214,215,216,217,218,219,220,221,222] in

Table 3. Comparison of gas detection performances of different types of gas sensors reported by different research groups in Korea.

Sensing Material	Target Gas	Gas Conc. (ppm)	T (°C)	Response (Ra/Rg) or (Rg/Ra) or [(Ra − Rg)/Ra]*100%	Res (s)/Rec (s)	LDL (ppm)	Ref.
Core–shell (C-S) Gas Sensors
SnO2-ZnO C-S NFs	NO2	5	300	~0.45	NA	1	[70]
ZnO-SnO2 C-S NWs	CO	10	300	42	9/57	1	[71]
SnO2-ZnO C-S NWs	NO2	10	300	~155	NA	1	[72]
SnO2-ZnO C-S NFs	CO	1	300	~48	NA	1	[73]
CuO-ZnO C-S NWs	C6H6	1	300	~6	NA	1	[74]
SnO2-Cu2O C-S NFs	CO	10	300	5	14/14	1	[75]
Pt@SnO2-ZnO C-S NWs	C7H8	0.1	300	279	NA	0.1	[76]
SnO2-ZrO2 C-S NWs	NO2	10	150	24.7	NA	NA	[78]
SnO2-Cu2O C-S NWs	C6H6	10	300	12.5	4/4	1	[79]
CuO-TiO2 C-S NWs	CO	10	300	~16	NA	1	[80]
CuO-ZnO C-S NFs	CO	10	300	~8	NA	0.1	[81]
SnO2-ZnO C-S NFs	CO	150	300	~17	NA	3	[82]
Pd@SnO2-ZnO C-S NWs	C6H6	0.1	300	71	33/114	0.1	[83]
Au-decorated Si NW-ZnO C-S	H2S	50	300	11.22	48/64	10	[84]
Au/SnO2 C-S NPs	CO	1000	100	~1	NA	NA	[85]
Au/SnO2 C-S NPs	CO	1000	200	~2.2	NA	NA	[87]
Au@Cu2O C-S NPs	CO	1000	200	~5.8	NA	NA	[88]
Au@Cu2O C-S NPs	CO	1000	250	5.67	NA	10	[89]
Au@ZnO C-S NPs	H2	100	300	103.9	NA	0.5	[90]
Au@NiO C-S NPs	C2H5OH	100	200	2.54	NA	2	[91]
Au@In2O3 C-S NPs	H2	100	300	34.38	31/600	2	[92]
AuPdalloy-ZnO C-S NPs	H2	100	300	80	36/720	NA	[94]
Au@SnO2 C-S NPs	C8H10	5	300	16.17	NA	NA	[97]
Pd@In2O3 yoll-shell NPs	C2H5OH	5	350	159.02	NA	NA	[98]
Au@NiO yoll-shell NPs	H2S	5	300	108.90	NA	1.25	[99]
ZnO-SnO2 C-S NWs	C2H5OH	200	400	280	NA	0.5	[184]
SnO2-ZnO C-S NWs	NO2	5	25	6.18	NA	1	[185]
Ag-Fe2O3 C-S NPs	NO2	4	150	3.6	280	340	[186]
ZnO-Cr2O3 C-S nanocables	TMA	5	400	17.8	NA	0.05	[187]
Ga2O3-SnO2 C-S NWs	C2H5OH	1000	400	66	NA	NA	[188]
Pd@ZnO C-S NPs	H2	100	350	22	84/468	5	[189]
ZnO-TiO2 C-S NRs	NO2	50	RT	7.50	NA	NA	[190]
TeO2-CuO C-S NRs	NO2	10	150	425%	NA	0.5	[191]
Pd@ZnO–In2O3 C-S NPs	H2	100	300	42	24/240	NA	[192]
Pd@N-CeO2 C-S nanoflatforms	H2	100	350	19	60/360	0.5	[193]
Self-Heated Gas Sensors
Pd@SnO2-ZnO C-S NWs	C6H6	50	20 V (RT)	1.62	NA	0.1	[104]
Au@WS2 nanoflakes	CO	50	2 V (RT)	1.48	174/30	1	[107]
TiO2-layer-modified SnO2 QDs	NO2	1	20 V (RT)	~90%	NA	1	[108]
Au-SnO2-decorated WS2 NSs	CO	50	4.7 V (RT)	3.68	NA	0.3	[109]
Pd@CuO NWs	H2S	100	5 V (RT)	1.89	NA	1	[110]
Au@ZnO NWs	NO2	10	7 V (RT)	3.07	NA	0.1	[111]
Pt@SnO2–ZnO C-S NWs	C7H8	50	20 V (RT)	3.14	NA	0.1	[112]
WS2-SnO2 C-S NSs	CO	10	3.4 V	8	NA	NA	[114]
Au@SnO2–ZnO C-S NWs	CO	50	20 V (RT)	1.62	NA	0.1	[115]
Pt@ZnO NWs	C7H8	50	20 V (RT)	2.86	NA	NA	[117]
Pd@ZnO NWs	C6H6	50	20 V (RT)	2.20	NA	NA	[117]
CuO@SnO2-ZnO C-S NWs	H2S	10	1V (RT)	~1.9	NA	1	[119]
Pd@Si NWs	H2	0.5%	30 V (RT)	106%	24/590	NA	[194]
Pd@Si NWs	H2	1%	1.7 V (RT)	1.6%	NA	NA	[195]
Pd@C NWs	H2	1000	6 V (RT)	~95%	NA	10	[196]
Nanocolumnar WO3 thin films	NO2	1	5 V (RT)	~130	NA	1	[197]
Irradiated Gas Sensors
ZnO NFs (e-beam, 150 kGy)	H2	10	350	150	23/114	0.1	[127]
Pd@ZnO NFs (e-beam, 150 kGy)	H2	10	350	236.82	NA	0.1	[128]
RGO (e-beam, 500 kGy)	NO2	50	RT	5.280	84/1592	10	[129]
Pd@RGO (e-beam, 500 kGy	NO2	10	RT	1.047	345/816	2	[130]
SnO2 NWs (1 × 1016 ions/cm2)	NO2	2	150	~14	292/228	NA	[134]
Sb@SnO2 NWs (2 × 1013 ion/cm2)	NO2	1	300	111.58	NA	0.05	[135]
In@SnO2 NWs (2 × 1014 ion/cm2)	NO2	1	300	~4.9	NA	0.1	[136]
SnO2 NWs (e-beam, 150 kGy)	NO2	10	NA	1.03	16/230	NA	[198]
SWCNT-Sn/SnO2 composites (1KW)	C2H5OH	10	RT	~6.5	NA	1	[199]
Graphene (1000 kGy)	NO2	100	RT	40.68	86/499	5	[200]
Flexible Gas Sensors
Au@WS2 nanoflakes	CO	50	RT	1.48	174/30	1	[107]
Au-SnO2 decorated WS2 NSs	CO	50	RT	3.68	NA	0.3	[109]
RGO nanofibrous mesh fabrics	NO2	8	RT	26.5%	NA	8	[147]
Titania NTs	NH3	200	350	~80%	NA	NA	[148]
ZnO NRs	C2H5OH	50	300	~90	NA	10	[149]
Ag@ZnO NRs	C2H2	1000	200	27.2	62/39	3	[150]
Pt-ZnO@RGO	NO2	5	RT	43.28%	528/702	0.1	[151]
ZnO nanoflowers	NO2	500	270	218.1	~31/~14	NA	[153]
MoS2	NO2	500	RT	~300%	NA	25	[154]
CNTs/RGO flexible film	NO2	10	RT	20%	NA	0.5	[201]
Flexible graphene films	NO2	200	RT	23%	NA	NA	[202]
Flexible graphene	NO2	5	RT	13%	NA	1	[203]
Flexible RGO cotton yarn	NO2	1.25	RT	12%	NA	0.25	[204]
GO on cotton yarn	NO2	3	RT	65%	NA	0.15	[205]
Graphene-based electronic sheet	NO2	100	RT	~38%	NA	1	[206]
ZnO-decorated rGO fibers	H2S	20	RT	2.68%	404/275	1.5	[207]
Ti3C2Tx/Graphene fibers	NH3	50	RT	6.8%	NA	10	[208]
CeO2-CuBr	NH3	5	RT	68	NA	0.02	[209]
RGO-In2O3	NO2	0.5	150	22.3	112/175	0.5	[210]
WO3/MWCNTs	NO2	5	RT	14	600/1620	NA	[211]
Glass/Si/MOF-Based Gas Sensors
Soda-lime glass	CO2	4000	350	0.4	NA	NA	[156]
Pd@Soda-lime glass	CO2	100	350	8.160	NA	0.2	[157]
Si NWs	H2	50	100	17.1	505/150	10	[163]
Si/SnO2 NWs	H2S	50	100	3.5	NA	NA	[167]
Pd@Si nanohorns	H2	10	400	~2300	NA	0.1	[168]
Graphene/Si NWs	H2	NA	25	1280%	12/0.15	NA	[212]
Pd@p-Si	H2S	3	RT	~88%	NA	0.3	[213]
Pd@Si NWs	H2	20000	RT	~300%	NA	5	[214]
ZnO@ZIF-8 MOFs	H2	50	300	1.44	NA	NA	[174]
SIM-1 nanomembrane@ZnO NWs	H2	50	300	~2.5	NA	NA	[175]
Pd@ZnO NWs	H2	50	200	6.7	NA	NA	[178]
Ni-MOFs	CO	50	200	1.7	NA	1	[180]
Mg-MOFs	NO2	50	200	~1.35	167/92	1	[181]
MOF derived ZnO-CuO	H2S	10	350	10.99	58/273	1	[182]
n-ZnO/p-Co3O4 derived from MOFs	C2H5OH	10	300	34.9	57/235	1	[183]
Pd@Zr-MOFs	H2	100	150	1.94	NA	10	[215]
Pd NWs @ZIF-8	H2	0.1%	RT	0.7%	30/8	0.6	[216]
ZIF-67 derived WS2@carbon composites	NO2	1	RT	18%	NA	0.1	[217]
ZIF-67 derived hollow Co3O4 nanocages	p-Xylene	5	225	78.6	NA	0.25	[218]
Pd@ZIF-67 derived PdO@Co3O4	CH3COCH3	5	350	2.51	NA	0.1	[219]
MOF derived ZnO-Co3O4	CH3COCH3	5	450	29	NA	1	[220]
TiO2-SnO2/MWCNTs@Cu-BTC	NH3	10	RT	0.58	80/15	0.77	[221]
Cu3(HHTP)2/Fe2O3	NO2	5	20	89.4%	NA	0.2	[222]

.

7. Conclusions

In this review, recent research activities of the research labs of Professors Hyoun Woo Kim and Sang Sub Kim in Korea relating the synthesis and chemiresistive gas-sensing applications of oxide- and polymer-based nanomaterials are described. In particular, this review was divided into two parts. In the Introduction section, a general viewpoint on the chemiresistive gas sensors and their limitations were described. The second section provided an overview of the different strategies for optimizing the gas detection performance, including C-S, self-heated, irradiated, flexible, Si-based, glass, and MOF-based sensors. ALD is a useful technique for suitably coating the core with a shell material with an expected shell thickness, and C-S structures with optimized shell thickness can enhance the sensing performance compared to the use of conventional nanostructures. Different n-n and p-n metal oxides can be used as either core or shell materials. One of the main challenges in the development of sensing systems is the realization of low-temperature gas sensors with a low energy consumption. This implies the complete integration of these devices with conventional electronic technologies to produce low-cost sensing devices. The self-heating gas-sensing approach has been successfully employed to overcome the high power consumption of the gas sensors. Accordingly, both 1D and 2D morphologies of the C-S structures have been used for self-heating studies. In addition to the metal oxides, metal sulfides, such as WS₂, with high flexibility owing to their 2D structures are highly promising for the realization of flexible gas sensors that can operate at low working temperatures. Another effective strategy to improve the detection performance of gas sensors is the irradiation of gas sensors with high-energy beams, such as gamma rays and e-beams. However, it is important to optimize the radiation dose to achieve the best detection properties. Moreover, glass-based, Si-based, and MOF-based gas sensors have their own advantages such as good selectivity. Based on the results of the different strategies discussed in this review, it is speculated that the gas sensors with low power consumption, high response, and high selectivity can be achieved by combining different strategies and approaches with a reasonable selection of the sensing materials.

Although many approaches have been proposed, the response of chemiresistive sensors to very low gas concentrations are not sufficiently high because factors such as temperature and humidity can affect the sensing response. Accordingly, increased research efforts have been directed toward the development of more advanced sensing materials to improve the chemiresistive performance. In particular, the directional control of material morphology and selective gas detection, with long-term stability, will continue to be a key aspect of future research.
