Communication

Nitrogen Dioxide Sensing Using Multilayer Structure of Reduced Graphene Oxide and α-Fe2O3

1
Institute of Electronics, AGH University of Science and Technology, Al. Mickiewicza 30, 30-059 Kraków, Poland
2
Faculty of Chemical and Process Engineering, Warsaw University of Technology, Waryńskiego 1, 00-645 Warsaw, Poland
3
Academic Centre for Materials and Nanotechnology, AGH University of Science and Technology, Al. Mickiewicza 30, 30-059 Kraków, Poland
4
Institute of Physical Chemistry, Polish Academy of Sciences, Kasprzaka 44/52, 01-224 Warsaw, Poland
*
Author to whom correspondence should be addressed.
Academic Editor: Vittorio M. N. Passaro
Sensors 2021, 21(3), 1011; https://doi.org/10.3390/s21031011
Received: 11 December 2020 / Revised: 29 January 2021 / Accepted: 1 February 2021 / Published: 2 February 2021

Abstract

Multilayers consisting of graphene oxide (GO) and α-Fe2O3 thin layers were deposited on the ceramic substrates by the spray LbL (layer by layer) coating technique. Graphene oxide was prepared from graphite using the modified Hummers method. Obtained GO flakes reached up to 6 nanometers in thickness and 10 micrometers in lateral size. Iron oxide Fe2O3 was obtained by the wet chemical method from FeCl3 and NH4OH solution. Manufactured samples were deposited as 3 LbL (GO and Fe2O3 layers deposited sequentially) and 6 LbL structures with GO as a bottom layer. Electrical measurements show the decrease of multilayer resistance after the introduction of the oxidizing NO2 gas to the ambient air atmosphere. The concentration of NO2 was changed from 1 ppm to 20 ppm. The samples changed their resistance even at temperatures close to room temperature, however, the sensitivity increased with temperature. Fe2O3 is known as an n-type semiconductor, but the rGO/Fe2O3 hybrid structure behaved similarly to rGO, which is p-type. Both chemisorbed O2 and NO2 act as electron traps decreasing the concentration of electrons and increasing the effective multilayer conductivity. An explanation of the observed variations of multilayer structure resistance also the possibility of heterojunctions formation was taken into account.
Keywords: graphen oxide; reduced graphene oxide; α-Fe2O3/rGO multilayer; NO2 sensing graphen oxide; reduced graphene oxide; α-Fe2O3/rGO multilayer; NO2 sensing

1. Introduction

Nitrogen dioxide is a typical air pollutant, being a component of motor vehicle exhaust gas and is also generated in the house and industrial combustion processes. High-temperature combustion leads to an increase in NOx emissions. The early applications of NOx detectors for diesel engine exhausts utilized dense zirconia-based electrolytes. It is shown in more recent investigations of nitrogen oxide sensors that good results can be obtained by integrating the sensor with NOx trap materials [1] or by the use of LaSrMnO3 type perovskite electrodes [2]. However, the sensors connected with vehicles exhaust work at elevated temperatures, frequently exceeding 300 °C. Exposures to NO2 are also dangerous for the respiratory system; the presence of nitrogen dioxide in the atmosphere is a cause of photochemical smog and acid rains. Manufacturing of inexpensive NO2 sensors working at low temperatures is therefore of high importance.
One of the materials recently investigated in gas sensors technology is graphene and structures based on graphene. There are many attempts to increase the sensitivity of graphene-based sensors in view of interaction with the ambient gas atmosphere, enabling practical applications. Pure monolayer graphene with a large surface area and a high conductivity is a good candidate for high-performance gas sensors. However, its production methods as epitaxial growth or chemical vapor deposition, are known as cost-prohibitive with small-scale yield. Modified graphene materials, i.e., graphene oxide (GO) or its reduced form (rGO), can be much easier manufactured, and their specific properties caused by lattice defects connected with, e.g., oxygen functional groups enhance absorption of ambient gas molecules. Increased sensitivity of rGO can be obtained by hybridization of this material with typical in gas sensor technology metal oxides (MOX), as SnO2 [3,4,5], WO3 [6,7], TiO2 [8,9], In2O3 [10], and ZnO [11,12]. One observes also hybridization of rGO with metal disulfides, as MoS2 [13,14,15] and WS2 [16], conducting polymers (graphene/PANI [17]) or with metal nanoparticles like Cu [18], Pt [19], Pd [20], and Pd-Pt [21]. It was also discovered that the working temperature of graphene/metal oxide sensors was lower than that of MOX sensors and sometimes can even reach room temperature (RT) [22,23,24,25]. Good sensitivity of GO to acetone at room temperature was obtained recently by using a microwave-based gas sensor realized as a coupled-line section covered with a graphene oxide film [26].
Another gas-sensitive oxide, α-Fe2O3 (hematite), is recently investigated as a NO2 sensor [27] but more frequently in the form of a nanocomposite with rGO [28,29,30]. The nanocomposites of α-Fe2O3/rGO are also used in detection of acetone [31,32], ethanol [33,34], and ethylene [35]. Among all crystal phases of iron oxide, essentially α-Fe2O3 is used in gas sensors technology. This phase is the most stable, environmentally friendly, sensitive, and easy in preparation. Mesoporous α-Fe2O3 samples with a large specific surface area were obtained with the use of templates [36,37]. Comparison of sensitivities for α-Fe2O3 and γ-Fe2O3 phases and their mixture is analyzed in [38].
Sensors of NO2 based on hematite, as can be inferred from the literature (e.g., see discussion in [27]), work at rather elevated temperatures of order 200 °C. In comparison to pure hematite, improved sensing properties vs. NO2 were obtained in hybrid nanocomposites rGO/Fe2O3 obtained by a facile hydrothermal method [28]. The enhanced response of the nanocomposite at RT was 3.86, compared to 1.38 for pure rGO. In [29] graphene-encapsulated α-Fe2O3 hybrids were investigated. The samples revealed good NO2 sensing properties at RT with the response time of order a few minutes. In this case, the hybrid was obtained by the hydrolysis of Fe3+ ions in the colloidal solution of GO and following hydrothermal procedure. The hydrothermal synthesis at 120 °C was applied by the authors of [30] to manufacture α
α-Fe2O3/rGO nanocomposites. In effect, nanosphere-like α-Fe2O3 of 40–50 nm diameters and single intercalated sheets of rGO were obtained.
In the present work, α-Fe2O3 and rGO were obtained separately and deposited on the substrate in the form of a multilayer by the spray method. Such a deposition method allowed for easy formation of slits and pores between the GO sheets, making diffusion of the ambient gas easier. Good sensitivity to NO2 was also obtained at temperatures close to RT but with quite high response and recovery times.

2. Materials and Methods

2.1. Sample Preparatiom

Graphene oxide (GO) was prepared using a wet chemical method from graphite (modified Hummers method). Obtained flakes consisted of 6–7 graphene layers with a total thickness of ca. 6 nm and reached the lateral size up to a few micrometers (manufacturing procedure of GO and rGO is described in detail in [39]). Ferric oxide α-Fe2O3 was also obtained by the wet chemical method as follows: to 100 mL of 0.1 M FeCl3, 300 mL of 0.1 M NH4OH solution was added. An obtained reddish brown suspension was heated for 60 min at 100 °C. The precipitate was washed with warm water on a filter with pore size of 0.2 µm. Both GO and Fe2O3 were deposited on the substrate by spraying, as is schematically illustrated in Figure 1.
The GO/Fe2O3 multilayer structure was deposited by LbL (layer by layer) coating technique using alumina substrate with interdigitated Au electrodes manufactured in thick film technology, Separation between electrodes was 0.3 mm. The geometry of electrodes with adequate masking enabled the deposition of two different structures with, e.g., different thicknesses. For investigations, two kinds of samples were prepared: 3 LbL structure consisting of 3 layers (Fe2O3-GO-Fe2O3) and 6 LbL structure (3 Fe2O3 and 3 GO layers) with Fe2O3 layer always on top.

2.2. Electrical Measurements

Measurements of sensor resistance were performed in conditions of selected temperature, humidity, and ambient atmosphere composition. The high-quality equipment (electrometer, current and voltage sources, scanners, mass flow controllers) of Agilent (Agilent Technologies, Santa Clara, CA, USA), Keithley (Keithley Instruments Inc., Cleveland, OH, USA) and MKS (MKS Instruments, Andover, MA, USA) manufacturers was used. The measurement chamber contained the sample, Pt 100 temperature probe and digital humidity sensor. The current was measured by an electrometer working in a constant voltage mode. Measurements of resistance varying in a range over nine orders of magnitude were possible. The temperature inside the chamber was changed by applying the voltage from an additional power source. All devices were controlled from the LabView custom application of Agilent Technologies interface card. The required NO2 gas concentration was obtained by controlling the ratio of gas to airflow rates. The humidity of the gas atmosphere was always kept constant with RH = 50% (detailed description of the measurement setup is given in [40]).

3. Results and Discussion

3.1. Structural and Morphological Characteristics

TEM measurements were performed with the help of high resolution scanning electron microscope HITACHI S-5500 (HITACHI Ltd., Tokyo, Japan) in a transmission mode. An example of a TEM image for the GO sample is shown in Figure 2a. Different transparencies for attenuated electron beams were caused by the stacking nanostructure of the investigated layers. Dark areas indicate the overlap of several layers. SEM pictures were obtained with the help of FEI Versa 3D Dual Beam microscope (Thermo Fisher Scientific, Waltham, MA, USA). In Figure 2b, one can see the flakes of GO sample deposited on Si/SiO2 substrate.
In the image of GO/Fe2O3 nanostructure, Figure 3a, one can see both gray areas of GO flakes and white spots of Fe2O3 nanoparticles of average dimension ca 100 nm, covering GO flakes. The XRD patterns, Figure 3b, were obtained by using an XRD diffractometer Bruker AXS D8 Advance Cr (Kα 2.2910 Å) (Bruker AXS GmbH, Karlsruhe, Germany) with vanadium filter 0.015 mm. Observed peaks belong to the crystal planes of the hematite phase, which can be indexed to the rhombohedral structure of α-Fe2O3 and their positions are in accordance with JCPDS 86-0550 card. Analysis of the X-ray reflectivity for GO/Fe2O3 nanostructure enabled the determination of its thickness, equal 47.5 nm, and the RMS of surface roughness, 1.42 nm.

3.2. Chemical Composition

The surface chemistry of investigated samples was analyzed using X-ray photoelectron spectroscopy. A Microlab 350 (Thermo Electron, VG Scientific) spectrometer with non-monochromatic Al Kα radiation (hν = 1486.6 eV, power 300 W, voltage 15 kV) was used for this purpose. The analyzed area was 2 × 5 mm. The hemispherical analyzer was used for collecting the high-resolution (HR) XPS spectra with the following parameters: pass energy 40 eV, energy step size 0.1 eV. The collected XPS spectra were fitted using the Avantage software (version 5.9911, Thermo Fisher Scientific), where a Smart function of background subtraction was used to obtain XPS signal intensity and an asymmetric Gaussian/Lorentzian mixed-function was applied. The position of the carbon C1s peak was assumed to be at 284.4 eV and used as an internal standard to determine the binding energy of other photoelectron peaks. XPS spectra for GO/Fe2O3 structure are shown in Figure 4 and for rGO/Fe2O3 structure in Figure 5.
A significant decrease of oxygen content in the samples after reduction is seen from the comparison of Figure 4 and Figure 5. The percent concentrations of oxygen-containing bonds C-O and C=O in both kinds of samples are collected in Table 1. In particular, the decrease in C-O bonds is clearly seen after thermal reduction (decrease from 34.2% to 20.5%). Similar observations are reported by other investigators of rGO/α-Fe2O3 composites, [28,32].
The recorded XR-XPS spectra of Fe2p revealed the chemical state of iron. Two wide peaks for both structures, located at the binding energies of ca. 711.0 eV and ca. 725.0 eV for Fe2p3/2 and Fe2p1/2, respectively, are characteristic for Fe3+ species in α-Fe2O3, which is in good agreement with other reports, e.g., [29,31].

3.3. Gas Sensing Properties

Measurements of resistance for GO/Fe2O3 multilayers in response to oxidizing NO2 atmosphere indicate that the structures behave as p-type semiconductors (under oxidizing atmosphere resistance of the sample decreases). Calculated gas response defined as S = (Ra − Rg)/Ra where Ra and Rg are the sensor resistances in air and NO2, respectively, indicate that the structures are sensitive even at temperatures as low as 30 °C (Figure 6a,b). With increasing working temperature, the response also increased, as is shown for the structure GO/Fe2O3 6 LbL with an increased number of layers, Figure 6c. As can be noticed, an increase in the number of layers in the structure does not influence the response remarkably. Variation of the baseline resistance with time at a constant NO2 concentration is shown in Figure 6d, and the comparison of sensitivities for the 6LbL multilayer and the single rGO layer is shown in Figure 6e.
The selectivity of GO/Fe2O3 6LbL structure was tested by exposing the sensor to different interference gases, both oxidizing and reducing, as shown in Figure 7. Comparing the response to acetone (1.2% at 25 ppm) and hydrogen (0.9% at 50 ppm) with that to NO2, one can summarize that the influence of the tested interference gases is negligible. However, the influence of humidity on the sensor response is remarkable and is clearly seen at elevated temperatures. The example measurements of that response at 90 °C in a wide range of RH is shown in Figure 7b. The results indicate that both the increase and decrease of RH in comparison to 50% give variations of the response not higher than ±5%.
The response and recovery times of the structures are high, especially in the low operation temperature range. With increasing working temperature, these times significantly decreased, as shown in Figure 8 and Table 2.

3.4. Gas Sensing Mechanism

Fe2O3 is known as an n-type semiconductor, but the rGO/Fe2O3 hybrid structure behaves similarly to p-type rGO. Both chemisorbed O2 and NO2 act as electron traps decreasing the concentration of electrons. This is clearly seen in rGO in the decrease of resistance (hole density increases). Pure Fe2O3 is nearly insensitive to NO2, but in rGO/Fe2O3 composition, NO2 reacts with O2 adsorbed on Fe2O3 surface, forming an intermediate NO3 complex what was suggested in [30]
2NO2 (gas) + O2(ads) + e → 2 NO3(ads)
As a result, the unbalance of charge on the surface of Fe2O3 is compensated by transferring additional electrons from rGO to Fe2O3 surface, which results in additional holes in rGO, Figure 9, and then the increase in conductivity.
In Table 2, O3 on the increased sensitivity to NO2 can be understood from Figure 10. At the interface between rGO flakes and Fe2O3 grains, the p-n heterojunctions can be formed. The numerical value of work function for rGO was taken from [41], and the energy gap was evaluated from [42] for oxygen content in rGO equal O/C = 10%, as previously determined in elemental composition experiments [40]. The work function for Fe2O3 was taken from Guo et al. [31]. The difference in work functions of both materials causes the transfer of electrons from rGO to Fe2O3 and holes in the opposite direction. In effect, the hole accumulation region is formed on the p-rGO side. The concentration of holes in the accumulation layer on the p-side increases additionally after interaction with NO2, leading to the increased conductivity of GO flakes in the presence of NO2 gas, as schematically shown in Figure 11.
Potential barriers between Fe2O3 grains were not taken into account as the multilayer structure in response to NO2 behaves as a p-type semiconductor, then rGO layers play the essential role in conductivity.
As it was mentioned, the spray deposition technology allowed for easy formation of slits between the GO sheets, and additionally, Fe2O3 prevented these sheets from restacking. The slits can act as channels for gas diffusion, providing a higher number of active sites for the interaction with nitrogen dioxide, thus influencing the electrical transport.

4. Conclusions

Among air pollutants, NO2 is one of the most harmful gases, and measurements of its concentration with the help of inexpensive chemoresistive structures with very small power consumption are of great importance. In contrary to the pure Fe2O3 with small sensitivity to NO2 in the low-temperature range, rGO/Fe2O3 multilayer structures indicated good sensitivity to low concentrations of NO2 in the ambient air, going down to 1 ppm. Both materials of the structure were easily obtained by the wet chemical method and were sprayed on the substrate to form the needed composition. The sensitivity of the multilayer increased with temperature. Response time of order 1 min was possible to obtain at temperatures below 150 °C, but the recovery time was still high, of order tens of minutes. An increase in the number of layers of the structure did not influence the response remarkably. The sensing behavior of the multilayer structure was explained by both individual interactions of constituting materials with the ambient oxidizing gas and by the formation of heterojunctions at the contact regions of GO and Fe2O3.

Author Contributions

Conceptualization and methodology, T.P., L.S., and A.R.; writing original draft, T.P.; measurements, W.M., A.S.; M.P., and J.K., sample preparation, A.M.; review and editing, A.R., D.A.M., and A.M. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable

Informed Consent Statement

Not applicable

Data Availability Statement

Data Availability on request.

Acknowledgments

This work was supported by the National Science Centre, Poland NCN UMO-2016/23/B/ST7/00894 and National Science Centre, NCN Poland 2017/26/D/ST7/00355.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Geupel, A.; Schönauer, D.; Röder-Roith, U.; Kubinski, D.J.; Mulla, S.; Ballinger, T.H.; Chen, H.-Y.; Visser, J.H.; Moos, R. Inte-grating nitrogen oxide sensor: A novel concept for measuring low concentrations in the exhaust gas. Sens. Actuators B Chem. 2010, 145, 756–761. [Google Scholar] [CrossRef]
  2. Pal, N.; Murray, E. Dense LaSrMnO3 composite electrodes for NOx sensing. Sens. Actuators B Chem. 2018, 256, 351–358. [Google Scholar] [CrossRef]
  3. Liu, S.; Wang, Z.Y.; Zhang, Y.; Li, J.C.; Zhang, T. Sulfonated graphene anchored with tin oxide nanoparticles for detection of nitrogen dioxide at room temperature with enhanced sensitivity performances. Sens. Actuators B Chem. 2016, 228, 134–143. [Google Scholar] [CrossRef]
  4. Feng, Q.; Li, X.; Wang, J. Percolation effect of reduced graphene oxide (rGO) on ammonia sensing of rGO-SnO2 composite based sensor. Sens. Actuators B Chem. 2017, 243, 1115–1126. [Google Scholar] [CrossRef]
  5. Xiao, Y.; Yang, Q.; Wang, Z.; Zhang, R.; Gao, Y.; Sun, P.; Sun, Y.; Lu, G. Improvement of NO2 gas sensing performance based on discoid tin oxide modified by reduced graphene oxide. Sens. Actuators B Chem. 2016, 227, 419–426. [Google Scholar] [CrossRef]
  6. Punetha, D.; Kumar Pandey, S. Sensitivity Enhancement of Ammonia Gas Sensor Based on Hydrothermally Synthesized rGO/WO3 Nanocomposites. IEEE Sens. J. 2020, 20, 1738–1745. [Google Scholar] [CrossRef]
  7. Srivastava, S.; Jain, K.; Singh, V.N.; Singh, S.; Vijayan, N.; Dilawar, N.; Gupta, G.; Senguttuvan, T.D. Faster response of NO2 sensing in graphene–WO3 nanocomposites. Nanotechnology 2012, 23, 205501. [Google Scholar] [CrossRef]
  8. Galstyan, V.; Ponzoni, A.; Kholmanov, I.; Natile, M.M.; Comini, E.; Nematov, S.; Sberveglieri, G. Reduced Graphene Oxide–TiO2 Nanotube Composite: Comprehensive Study for Gas-Sensing Applications. ACS Appl. Nano Mater. 2018, 1, 7098–7105. [Google Scholar] [CrossRef]
  9. Lin, W.-D.; Liao, C.-T.; Chang, T.-C.; Chen, S.-H.; Wu, R.-J. Humidity sensing properties of novel graphene/TiO2 composites by sol–gel process. Sens. Actuators B Chem. 2015, 209, 555–561. [Google Scholar] [CrossRef]
  10. Gu, F.; Nie, R.; Han, D.; Wang, Z. In2O3–graphene nanocomposite based gas sensor for selective detection of NO2 at room temperature. Sens. Actuators B Chem. 2015, 219, 94–99. [Google Scholar] [CrossRef]
  11. Liu, S.; Yu, B.; Zhang, H.; Fei, T.; Zhang, T. Enhancing NO2 gas sensing performances at room temperature based on reduced graphene oxide-ZnO nanoparticles hybrids. Sens. Actuators B Chem. 2014, 202, 272–278. [Google Scholar] [CrossRef]
  12. Ugale, A.D.; Umarji, G.G.; Jung, S.H.; Deshpande, N.G.; Lee, W.; Cho, H.K.; Yoo, J. ZnO decorated flexible and strong graphene fibers for sensing NO2 and H2S at room temperature. Sens. Actuators B Chem. 2020, 308, 127690. [Google Scholar] [CrossRef]
  13. Wang, Z.; Zhang, T.; Zhao, C.; Han, T.; Fei, T.; Liu, S.; Lu, G. Rational synthesis of molybdenum disulfide nanoparticles decorated reduced graphene oxide hybrids and their application for high-performance NO2 sensing. Sens. Actuators B Chem. 2018, 260, 508–518. [Google Scholar] [CrossRef]
  14. Zhou, Y.; Liu, G.; Zhu, X.; Guo, Y. Ultrasensitive NO2 gas-sensing based on rGO/MoS2 nanocomposite film at low temper-ature. Sens. Actuators B Chem. 2017, 251, 280–290. [Google Scholar] [CrossRef]
  15. Hou, X.; Wang, Z.; Fan, G.; Ji, H.; Yi, S.; Li, T.; Wang, Y.; Zhang, Z.; Yuan, L.; Zhang, R.; et al. Hierarchical three-dimensional MoS2/GO hybrid nanostructures for trimethylamine-sensing applications with high sensitivity and selec-tivity. Sens. Actuators B Chem. 2020, 317, 128236. [Google Scholar] [CrossRef]
  16. Wang, X.; Gu, D.; Li, X.; Lin, S.; Zhao, S.; Kovalenko, V.V.; Gaskov, A.M. Reduced graphene oxide hybridized with WS2 nanoflakes based heterojunctions for selective ammonia sensors at room temperature. Sens. Actuators B Chem. 2019, 282, 290–299. [Google Scholar] [CrossRef]
  17. Wu, Z.; Chen, X.; Zhu, S.; Zhou, Z.; Yao, Y.; Quan, W.; Liu, B. Room Temperature Methane Sensor Based on Graphene Nanosheets/Polyaniline Nanocomposite Thin Film. IEEE Sens. J. 2012, 13, 777–782. [Google Scholar] [CrossRef]
  18. Gil Na, H.; Cho, H.Y.; Kwon, Y.J.; Kang, S.Y.; Lee, C.; Jung, T.K.; Lee, H.-S.; Kim, H.W. Reduced graphene oxide functionalized with Cu nanoparticles: Fabrication, structure, and sensing properties. Thin Solid Film. 2015, 588, 11–18. [Google Scholar] [CrossRef]
  19. Shafiei, M.; Spizzirri, P.G.; Arsat, R.; Yu, J.; du Plessis, J.; Dubin, S.; Ianer, R.B.; Kalantar-Zadeh, K.; Wlodarski, W. Platinum/graphene nanosheet/SiC contacts and their application for hydrogen gas sensing. J. Phys. Chem. C 2010, 114, 13796–13801. [Google Scholar] [CrossRef]
  20. Cho, B.; Yoon, J.; Hahm, M.G.; Kim, D.-H.; Kim, A.R.; Khang, Y.H.; Park, S.-W.; Lee, Y.-J.; Park, S.-G.; Kwon, J.-D.; et al. Graphene-based gas sensor: Metal decoration effect and application to a flexible device. J. Mater. Chem. C 2014, 2, 5280–5285. [Google Scholar]
  21. Kumar, R.; Varandani, D.; Mehta, B.R.; Singh, V.N.; Wen, Z.; Feng, X.; Müllen, K. Fast response and recovery of hydrogen sensing in Pd–Pt nanoparticle–graphene composite layers. Nanotechnology 2011, 22, 275719. [Google Scholar] [CrossRef] [PubMed]
  22. Drmosh, Q.A.; Hendi, A.H.; Hossain, M.K.; Yamani, Z.H.; Moqbel, R.A.; Hezam, A.; Gondal, M.A. UV-activated gold deco-rated rGO/ZnO heterostructured nanocomposite sensor for efficient room temperature H2 detection. Sens. Actuators B Chem. 2019, 290, 666–675. [Google Scholar] [CrossRef]
  23. Guo, W.; Zhou, Q.; Zhang, J.; Fu, M.; Radacsi, N.; Li, Y. Hydrothermal synthesis of Bi-doped SnO2/rGO nanocomposites and the enhanced gas sensing performance to benzene. Sens. Actuators B Chem. 2019, 299, 126959. [Google Scholar] [CrossRef]
  24. Sun, D.; Luo, Y.; Debliquy, M.; Zhang, C. Graphene-enhanced metal oxide gas sensors at room temperature: A review. Beilstein J. Nanotechnol. 2018, 9, 2832–2844. [Google Scholar] [CrossRef] [PubMed]
  25. Zhang, C.; Zhang, S.; Yang, Y.; Yu, H.; Dong, X. Highly sensitive H2S sensors based on metal-organic framework driven γ-Fe2O3 on reduced graphene oxide composites at room temperature. Sens. Actuators B Chem. 2020, 325, 128804. [Google Scholar] [CrossRef]
  26. Staszek, K.; Szkudlarek, A.; Kawa, M.; Rydosz, A. Microwave system with sensor utilizing GO-based gas-sensitive layer and its application to acetone detection. Sens. Actuators B Chem. 2019, 297, 126699. [Google Scholar] [CrossRef]
  27. Hjiri, M.; Aida, M.S.; Neri, G. NO2 Sensitive Sensor Based on α-Fe2O3 Nanoparticles Synthesized via Hydrothermal Technique. Sensors 2019, 19, 167. [Google Scholar] [CrossRef]
  28. Zhang, H.; Yu, L.; Li, Q.; Du, Y.; Ruan, S. Reduced graphene oxide/α-Fe2O3 hybrid nanocomposites for room temperature NO2 sensing. Sens. Actuators B Chem. 2017, 241, 109–115. [Google Scholar] [CrossRef]
  29. Zhang, B.; Liu, G.; Cheng, M.; Gao, Y.; Zhao, L.; Li, S.; Liu, F.; Yan, X.; Zhang, T.; Sun, P.; et al. The preparation of reduced graphene oxide-encapsulated α-Fe2O3 hybrid and its outstanding NO2 gas sensing properties at room temperature. Sens. Actuators B Chem. 2018, 261, 252–263. [Google Scholar] [CrossRef]
  30. Dong, Y.-L.; Zhang, X.-F.; Cheng, X.; Xu, Y.-M.; Gao, S.; Zhao, H.; Huo, L.-H. Highly selective NO2 sensor at room temperature based on nanocomposites of hierarchical nanosphere-like α-Fe2O3 and reduced graphene oxide. RSC Adv. 2014, 4, 57493–57500. [Google Scholar] [CrossRef]
  31. Song, H.; Xia, L.; Jia, X.; Yang, W. Polyhedral α-Fe2O3 [email protected] nanocomposites: Synthesis, characterization and ap-plication in gas sensing. J. Alloys Compd. 2018, 732, 191–200. [Google Scholar] [CrossRef]
  32. Guo, L.; Kou, X.; Ding, M.; Wang, C.; Dong, L.; Zhang, H.; Feng, C.; Sun, Y.; Gao, Y.; Sun, P.; et al. Reduced graphene oxide/α-Fe2O3 composite nanofibers for application in gas sensors. Sens. Actuators B Chem. 2017, 244, 233–242. [Google Scholar] [CrossRef]
  33. Liang, S.; Zhu, J.; Wang, C.; Yu, S.; Bi, H.; Liu, X.; Wang, X. Fabrication of α-Fe2O3@graphene nanostructures for enhanced gas-sensing property to ethanol. Appl. Surf. Sci. 2014, 292, 278–284. [Google Scholar] [CrossRef]
  34. Jia, X.; Lian, D.; Shi, B.; Dai, R.; Li, C.; Wu, X. Facile synthesis of α-Fe2O3@graphene oxide nanocomposites for enhanced gas-sensing performance to ethanol. J. Mater. Sci. Mater. Electron. 2017, 28, 12070–12079. [Google Scholar] [CrossRef]
  35. Li, B.; Li, M.; Meng, F.; Liu, J. Highly selective ethylene sensors using Pd nanoparticles and rGO modified flower-like hierarchical porous α-Fe2O3. Sens. Actuators B Chem. 2019, 290, 396–405. [Google Scholar] [CrossRef]
  36. Geng, W.; Ge, S.; He, X.; Zhang, S.; Gu, J.; Lai, X.; Wang, H.; Zhang, Q. Volatile Organic Compound Gas-Sensing Properties of Bimodal Porous α-Fe2O3 with Ultrahigh Sensitivity and Fast Response. ACS Appl. Mater. Interfaces 2018, 10, 13702–13711. [Google Scholar] [CrossRef]
  37. Sun, G.; Chen, H.; Li, Y.; Ma, G.; Zhang, S.; Jia, T.; Cao, J.; Wang, X.; Bala, H.; Zhang, Z. Synthesis and triethylamine sensing properties of mesoporous α-Fe2O3 microrods. Mater. Lett. 2016, 178, 213–216. [Google Scholar] [CrossRef]
  38. Wang, M.; Hou, T.; Shen, Z.; Zhao, X.; Ji, H. MOF-derived Fe2O3: Phase control and effects of phase composition on gas sensing performance. Sens. Actuators B Chem. 2019, 292, 171–179. [Google Scholar] [CrossRef]
  39. Stobinski, L.; Lesiak, B.; Malolepszy, A.; Mazurkiewicz, M.; Mierzwa, B.; Zemek, J.; Jiricek, P.; Bieloshapka, I. Graphene oxide and reduced graphene oxide studied by the XRD, TEM and electron spectroscopy methods. J. Electron Spectrosc. Relat. Phenom. 2014, 195, 145–154. [Google Scholar] [CrossRef]
  40. Pisarkiewicz, T.; Maziarz, W.; Małolepszy, A.; Stobiński, L.; Michoń, D.; Rydosz, A. Multilayer Structure of Reduced Graphene Oxide and Copper Oxide as a Gas Sensor. Coatings 2020, 10, 1015. [Google Scholar] [CrossRef]
  41. Yang, H.; Li, Y.; Yu, D.; Li, L. Seed/catalyst free growth and self-powered photoresponse of vertically aligned ZnO na-norods on reduced graphene oxide nanosheets. Cryst. Growth Des. 2016, 16, 4831–4838. [Google Scholar] [CrossRef]
  42. Huang, H.; Li, Z.; She, J.; Wang, W. Oxygen density dependent band gap of reduced graphene oxide. J. Appl. Phys. 2012, 111, 054317. [Google Scholar] [CrossRef]

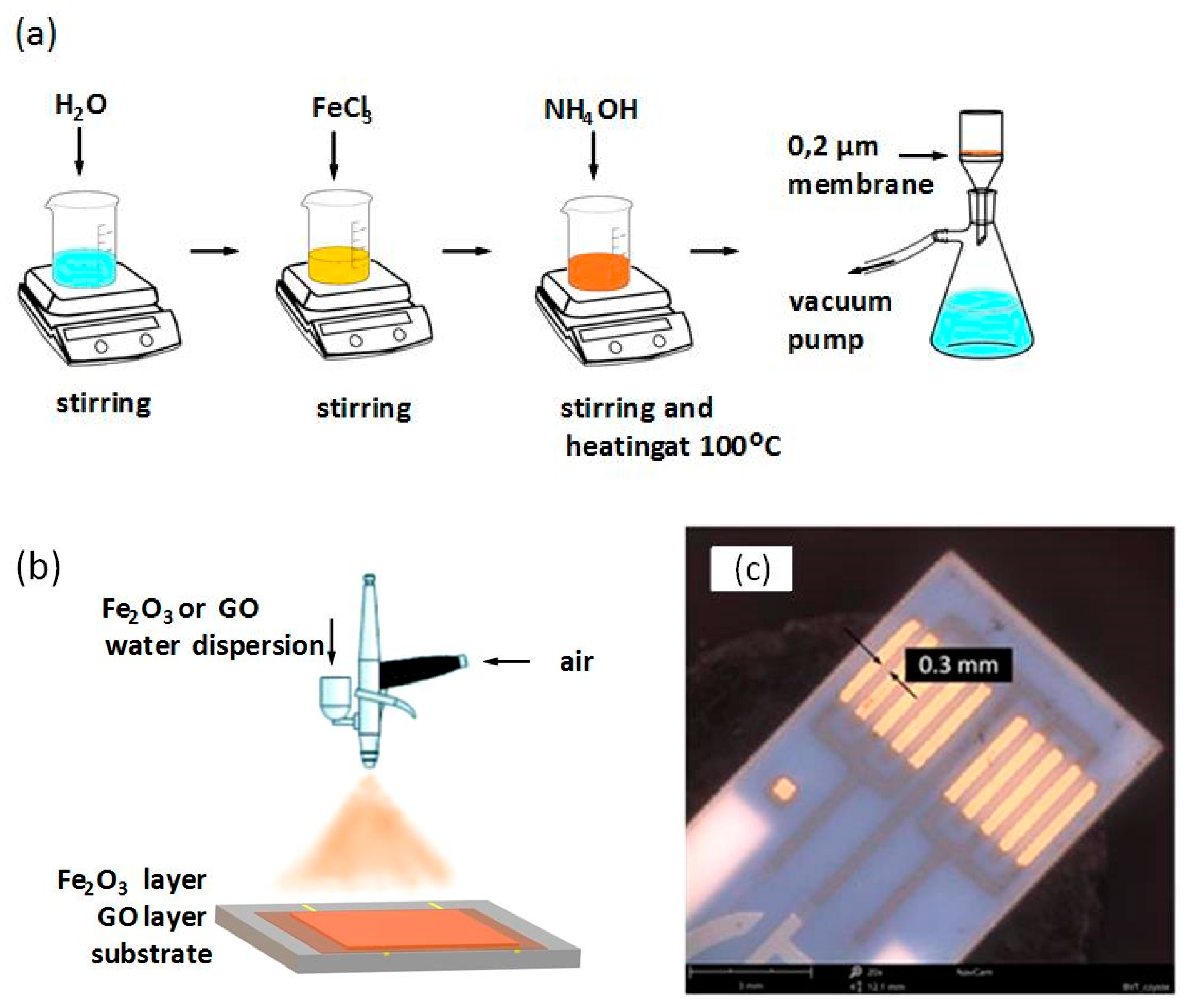

Figure 1. (a) Illustration of the manufacturing process of α-Fe2O3, (b) preparation of GO/α-Fe2O3 multilayer by the spraying method, and (c) outlook of the ceramic substrate used for deposition of the multilayer for electrical measurements.
Figure 1. (a) Illustration of the manufacturing process of α-Fe2O3, (b) preparation of GO/α-Fe2O3 multilayer by the spraying method, and (c) outlook of the ceramic substrate used for deposition of the multilayer for electrical measurements.
Sensors 21 01011 g001
Figure 2. (a) TEM and (b) SEM image of GO flakes.
Figure 2. (a) TEM and (b) SEM image of GO flakes.
Sensors 21 01011 g002

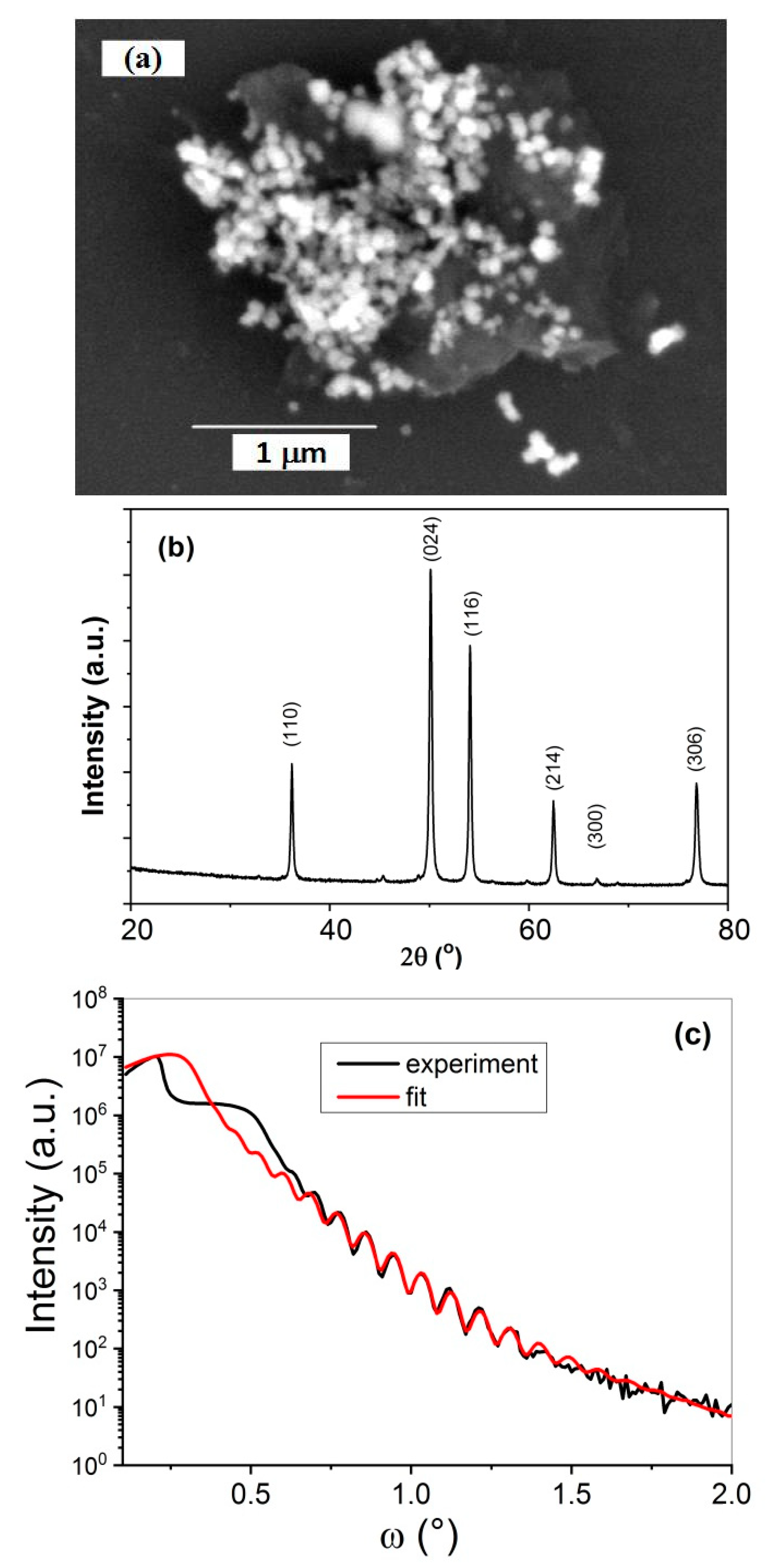

Figure 3. (a) SEM image of GO/α-Fe2O3 structure, (b) X-ray diffraction pattern for α-Fe2O3, (c) X-ray reflectivity pattern for GO/α-Fe2O3.
Figure 3. (a) SEM image of GO/α-Fe2O3 structure, (b) X-ray diffraction pattern for α-Fe2O3, (c) X-ray reflectivity pattern for GO/α-Fe2O3.
Sensors 21 01011 g003

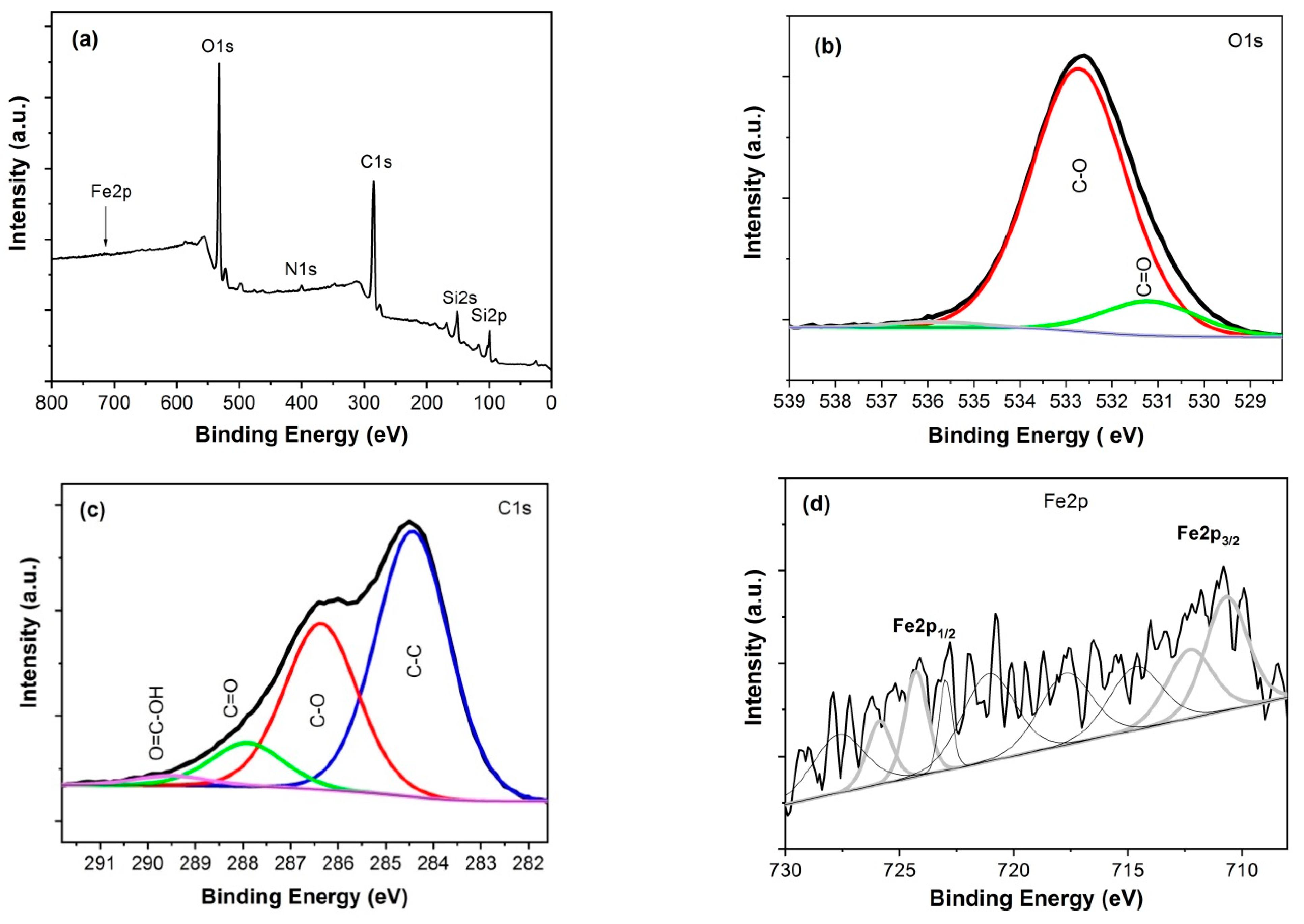

Figure 4. XPS spectra for GO/Fe2O3 multilayer: (a) wide scan, (b) HR O1s, (c) HR C1s, (d) HR Fe2p.
Figure 4. XPS spectra for GO/Fe2O3 multilayer: (a) wide scan, (b) HR O1s, (c) HR C1s, (d) HR Fe2p.
Sensors 21 01011 g004

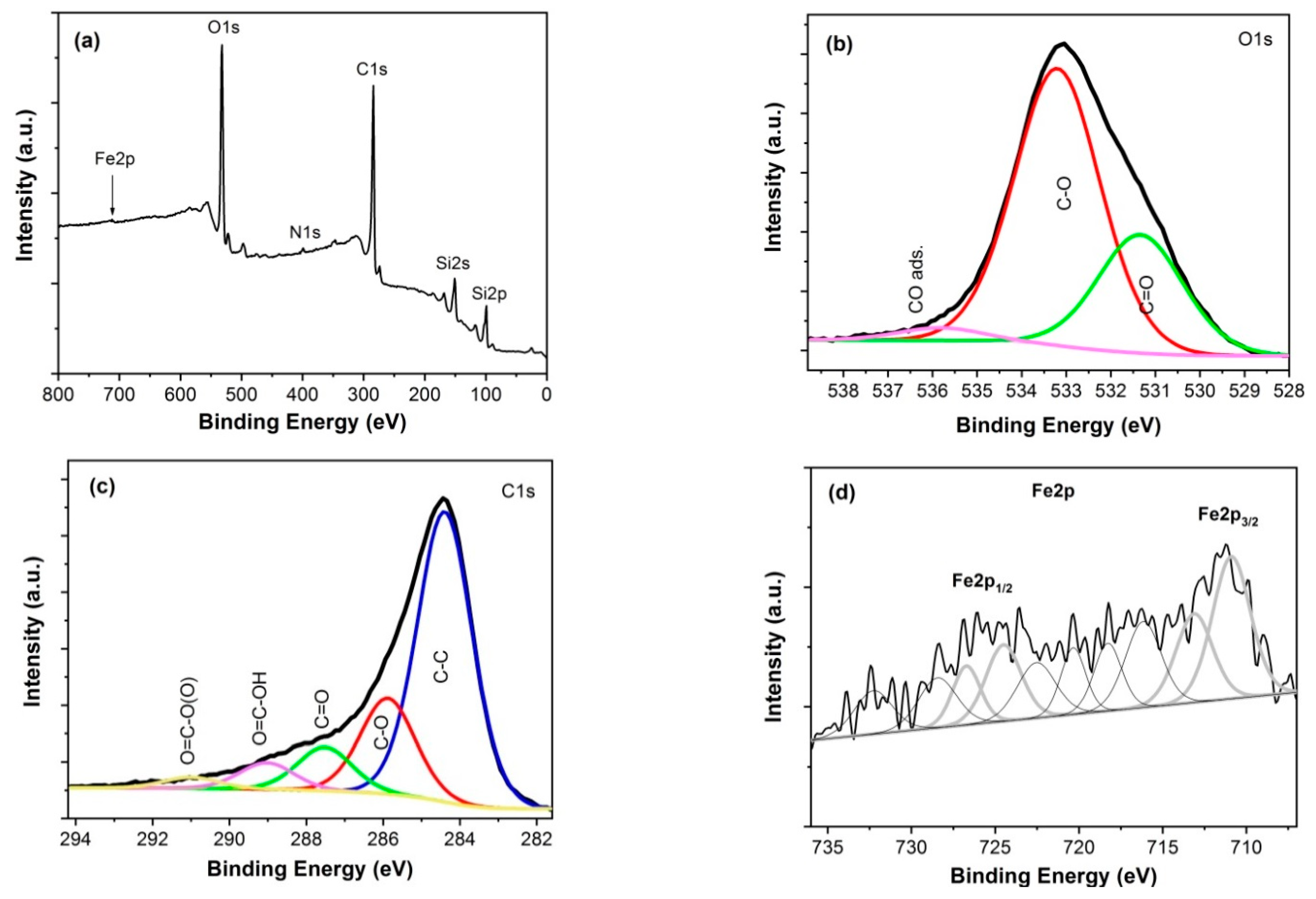

Figure 5. XPS spectra for rGO/Fe2O3 multilayer: (a) wide scan, (b) HR O1s, (c) HR C1s, (d) HR Fe2p.
Figure 5. XPS spectra for rGO/Fe2O3 multilayer: (a) wide scan, (b) HR O1s, (c) HR C1s, (d) HR Fe2p.
Sensors 21 01011 g005

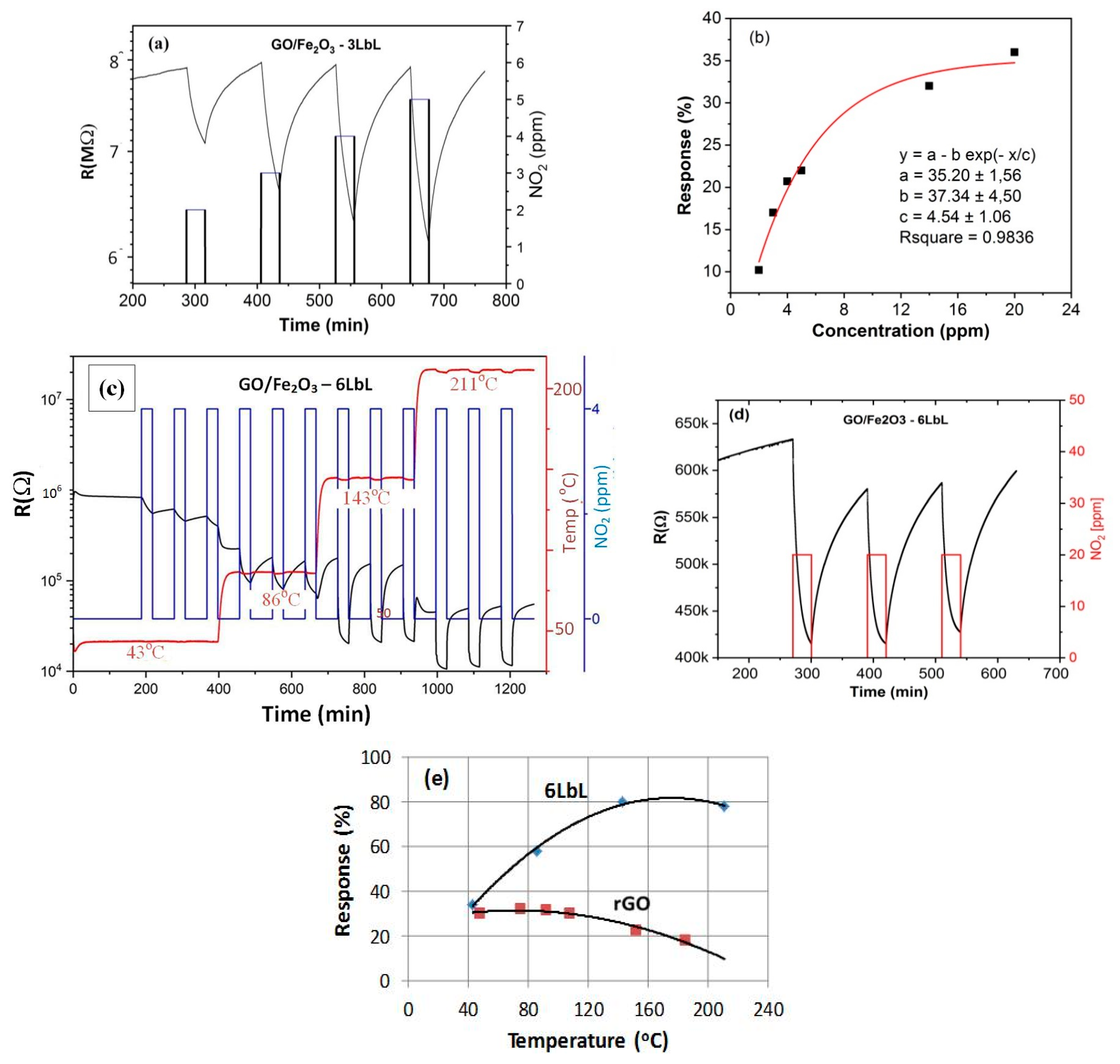

Figure 6. (a) Variation of resistance with time for GO/Fe2O3 3LbL structure with increasing NO2 concentration at the temperature of 30 °C with a calculated response of this structure for increasing NO2 concentration (b); (c) variation of resistance for GO/Fe2O3 6 LbL structure with changing sensor temperature at 4 ppm NO2 and (d) at 20 ppm NO2 at a constant temperature 30 °C; (e) comparison of responses for samples GO/Fe2O3 6 LbL and single rGO layer with increasing measurement temperature at 4 ppm NO2.
Figure 6. (a) Variation of resistance with time for GO/Fe2O3 3LbL structure with increasing NO2 concentration at the temperature of 30 °C with a calculated response of this structure for increasing NO2 concentration (b); (c) variation of resistance for GO/Fe2O3 6 LbL structure with changing sensor temperature at 4 ppm NO2 and (d) at 20 ppm NO2 at a constant temperature 30 °C; (e) comparison of responses for samples GO/Fe2O3 6 LbL and single rGO layer with increasing measurement temperature at 4 ppm NO2.
Sensors 21 01011 g006
Figure 7. (a) The response of GO/Fe2O3 6LbL structure to different gases at room temperature and (b) variation of this response with the change of relative humidity at 90 °C.
Figure 7. (a) The response of GO/Fe2O3 6LbL structure to different gases at room temperature and (b) variation of this response with the change of relative humidity at 90 °C.
Sensors 21 01011 g007

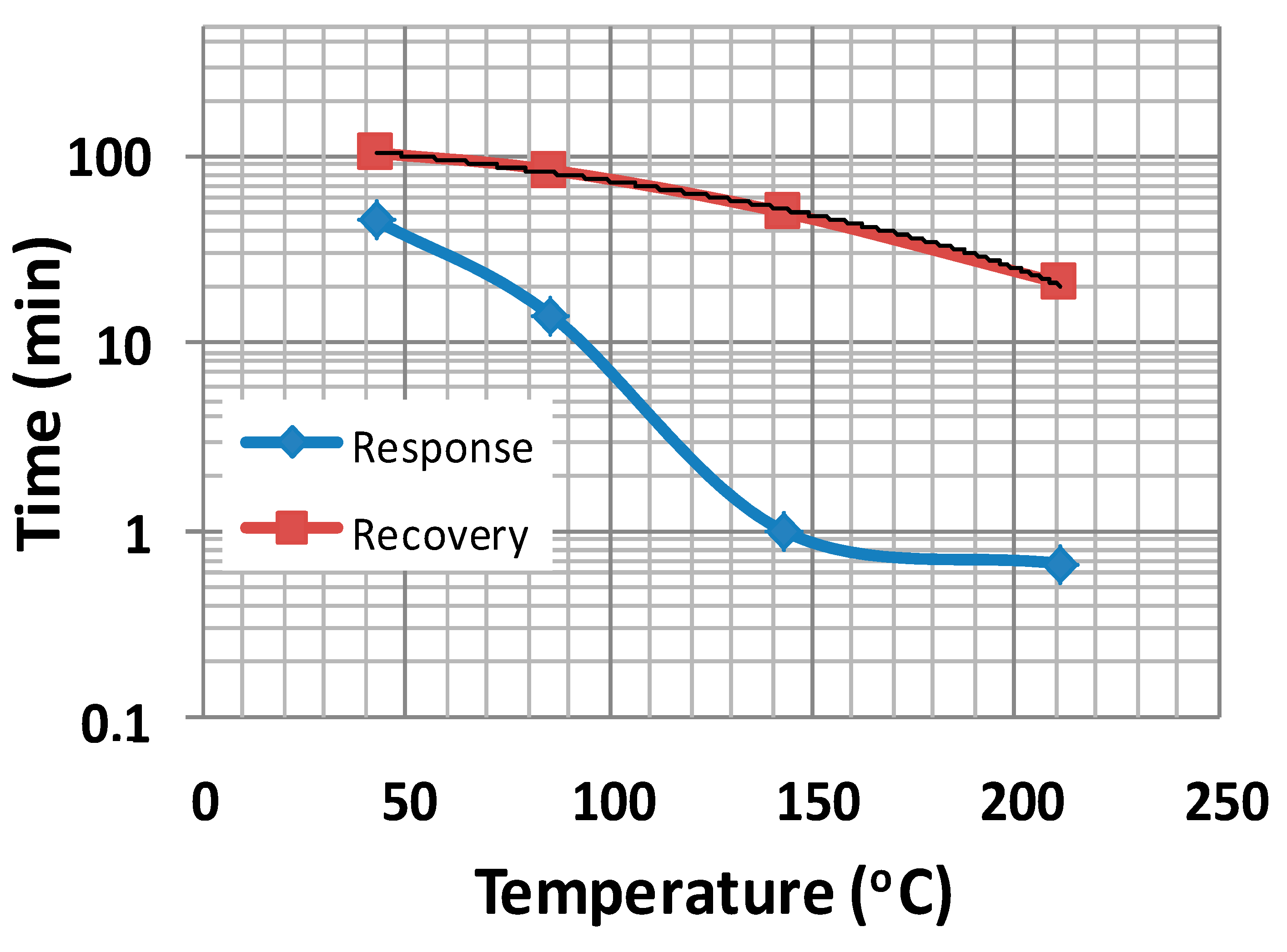

Figure 8. Response and recovery times vs. temperature for the sample shown in Figure 6c.
Figure 8. Response and recovery times vs. temperature for the sample shown in Figure 6c.
Sensors 21 01011 g008
Figure 9. Interaction of NO2 gas with oxygen adsorbed on Fe2O3 surface can effectively increase the concentration of holes in rGO.
Figure 9. Interaction of NO2 gas with oxygen adsorbed on Fe2O3 surface can effectively increase the concentration of holes in rGO.
Sensors 21 01011 g009

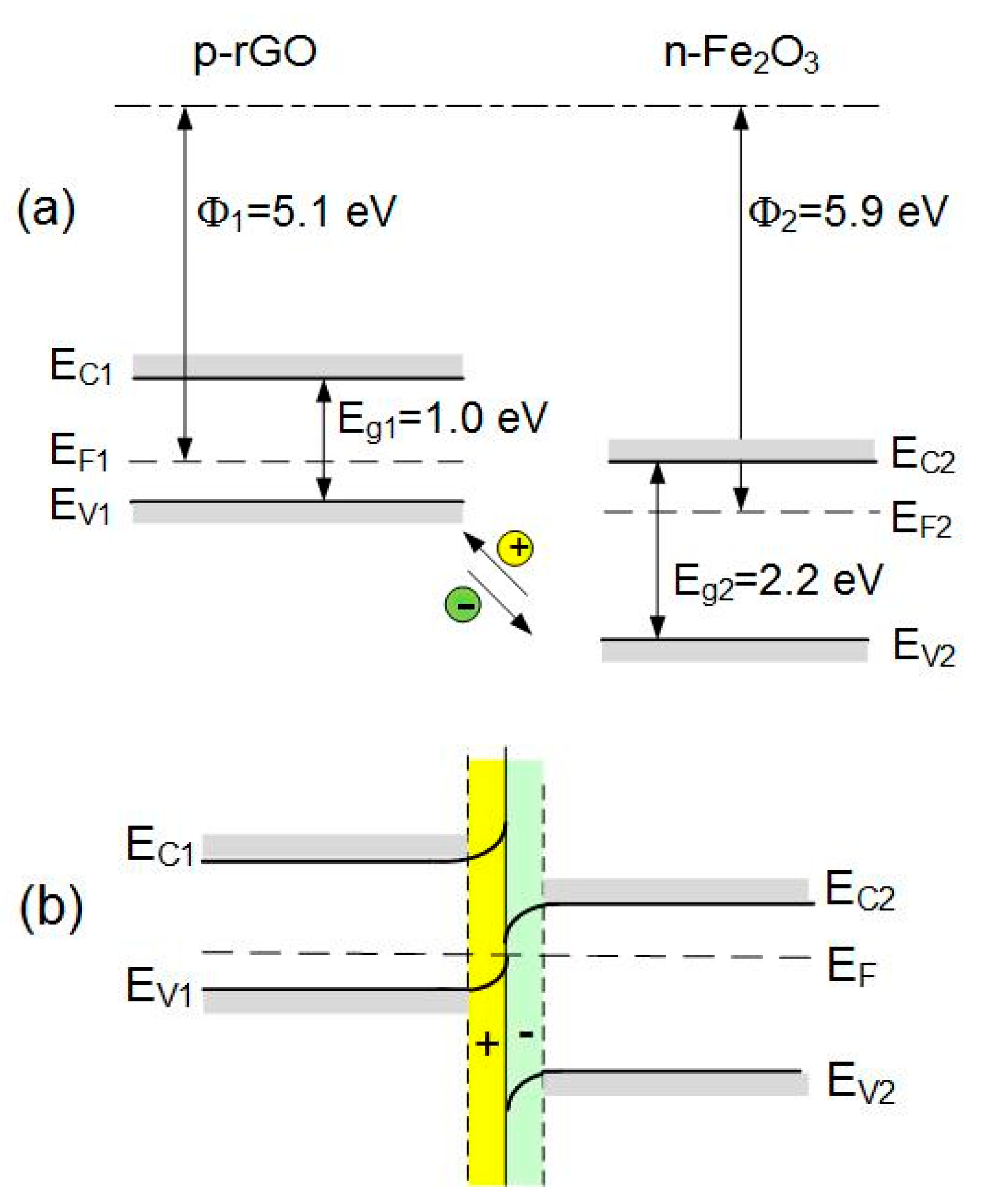

Figure 10. Diagram of energy bands of p-rGO and n-Fe2O3 before (a) and after (b) contact with the formation of a p-n heterojunction.
Figure 10. Diagram of energy bands of p-rGO and n-Fe2O3 before (a) and after (b) contact with the formation of a p-n heterojunction.
Sensors 21 01011 g010

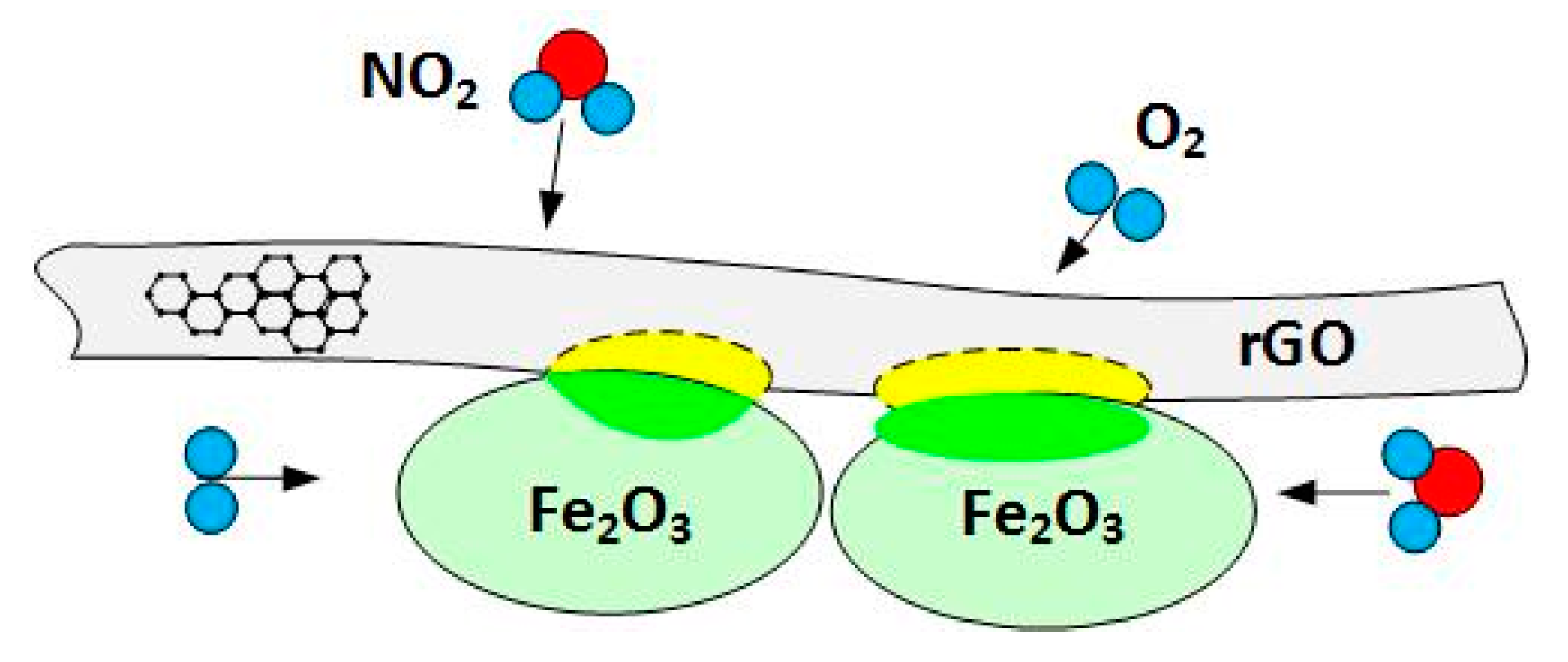

Figure 11. Interaction of Fe2O3 grains with rGO flakes leading to the formation of hole accumulation regions in rGO flakes.
Figure 11. Interaction of Fe2O3 grains with rGO flakes leading to the formation of hole accumulation regions in rGO flakes.
Sensors 21 01011 g011
Table 1. The percent contents of C1s chemical bonds in GO/F2O3 and rGO/Fe2O3 samples. The results are normalized to 100% for the C1s peak.
Table 1. The percent contents of C1s chemical bonds in GO/F2O3 and rGO/Fe2O3 samples. The results are normalized to 100% for the C1s peak.
SampleChemical Bonds
GO/Fe2O3C-C
(284.4 eV)
C-O
(286.4 eV)
C=O
(287.9 eV)
O=C-OH
(289.5 eV)
-
54.9%34.2%8.9%2.0%-
Chemical Bonds
rGO/Fe2O3C-C
(284.4 eV)
C-O
(285.9 eV)
C=O
(287.5 eV)
O=C-OH
(289.0 eV)
O=C-O(O)
(291.0 eV)
62.2%20.5%9.3%5.6%2.4%
Table 2. Variation of response and recovery times with temperature for sample GO/Fe2O3 6 LbL.
Table 2. Variation of response and recovery times with temperature for sample GO/Fe2O3 6 LbL.
Temperature
(°C)
Response Time tres (min)Recovery Time trec (min)trec/tres
43451042.31
8614846
14315050
2110.672131.3
