Design and Development of an AIoT Architecture for Introducing a Vessel ETA Cognitive Service in a Legacy Port Management Solution
Abstract
:1. Introduction
- RQ1. How to extend an IoT architecture to integrate in it cognitive services?
- RQ2. Is it possible to create and integrate in a commercial legacy system a reliable cognitive service based on ML algorithms that gives an accurate prediction of a vessel’s ETA using IoT data sources?
- RQ3. Which IoT data sources provide the greatest feature importance?
Research Contributions
2. Materials and Methods
2.1. Methodology
2.1.1. Problem Identification and Work Objectives Establishment
2.1.2. Requirements Elicitation
2.1.3. System Architecture Design
2.1.4. Development

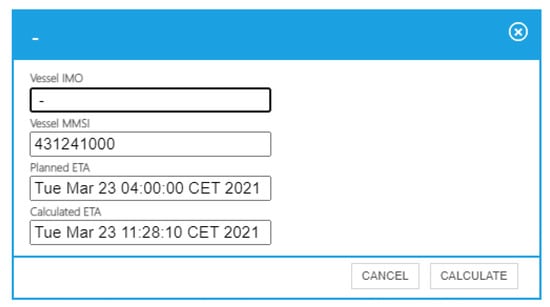

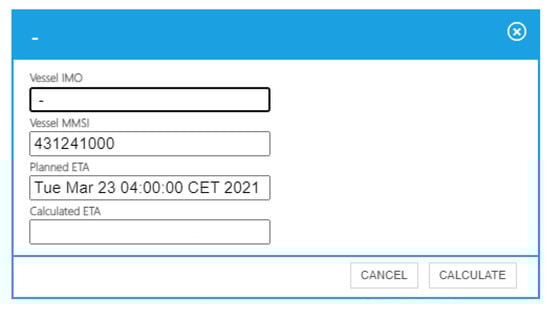

2.1.5. Integration

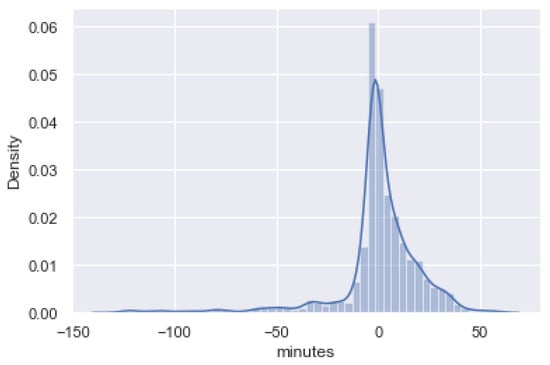

2.1.6. Validation

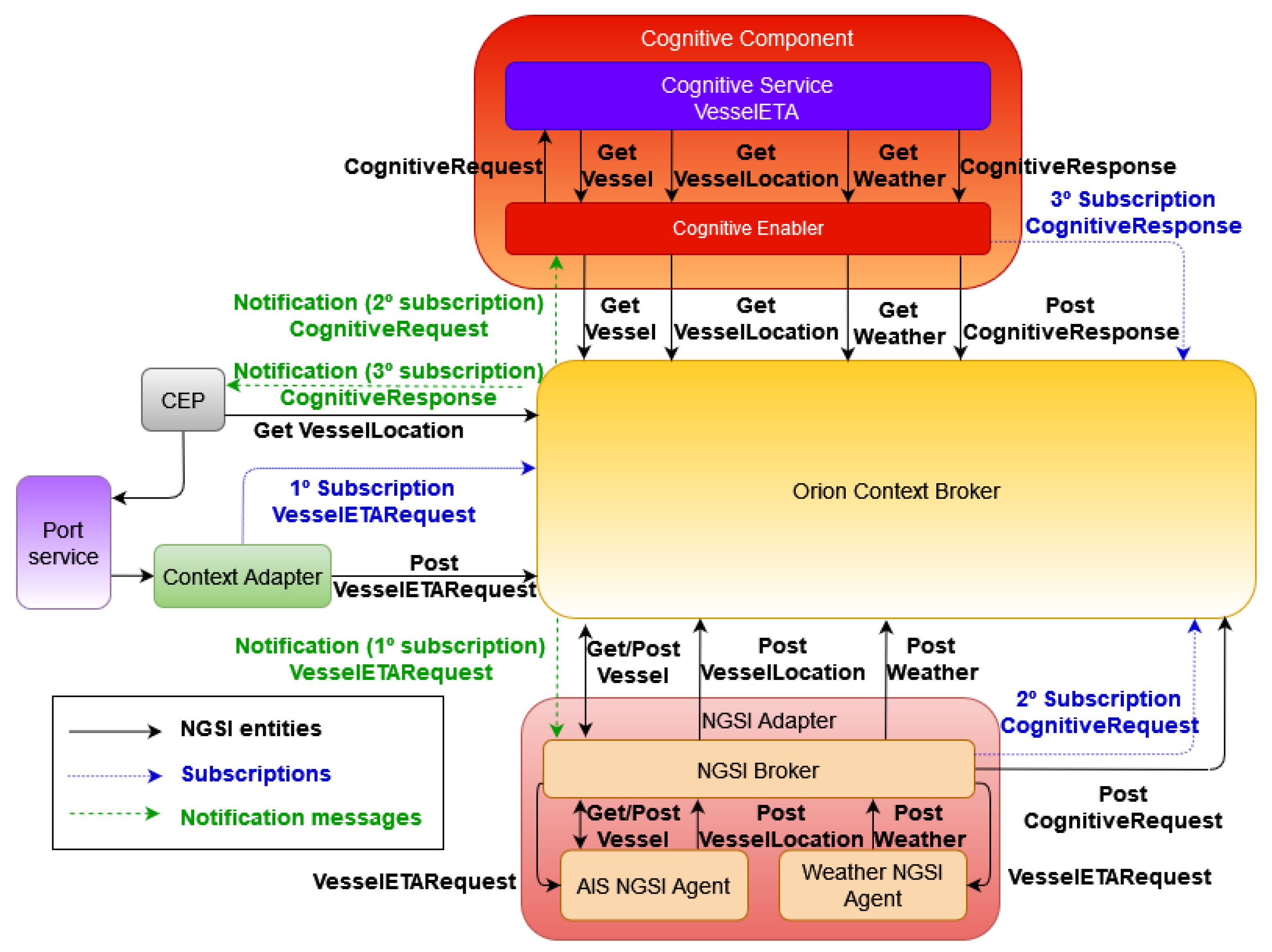

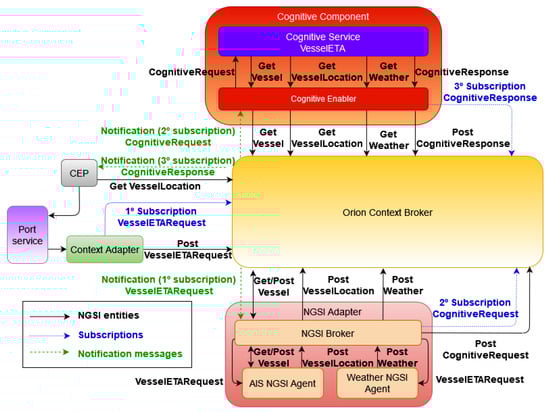

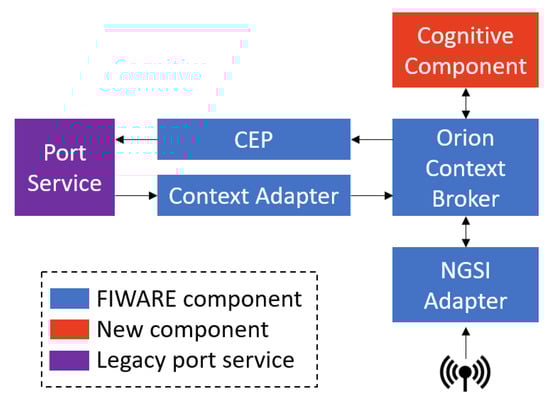

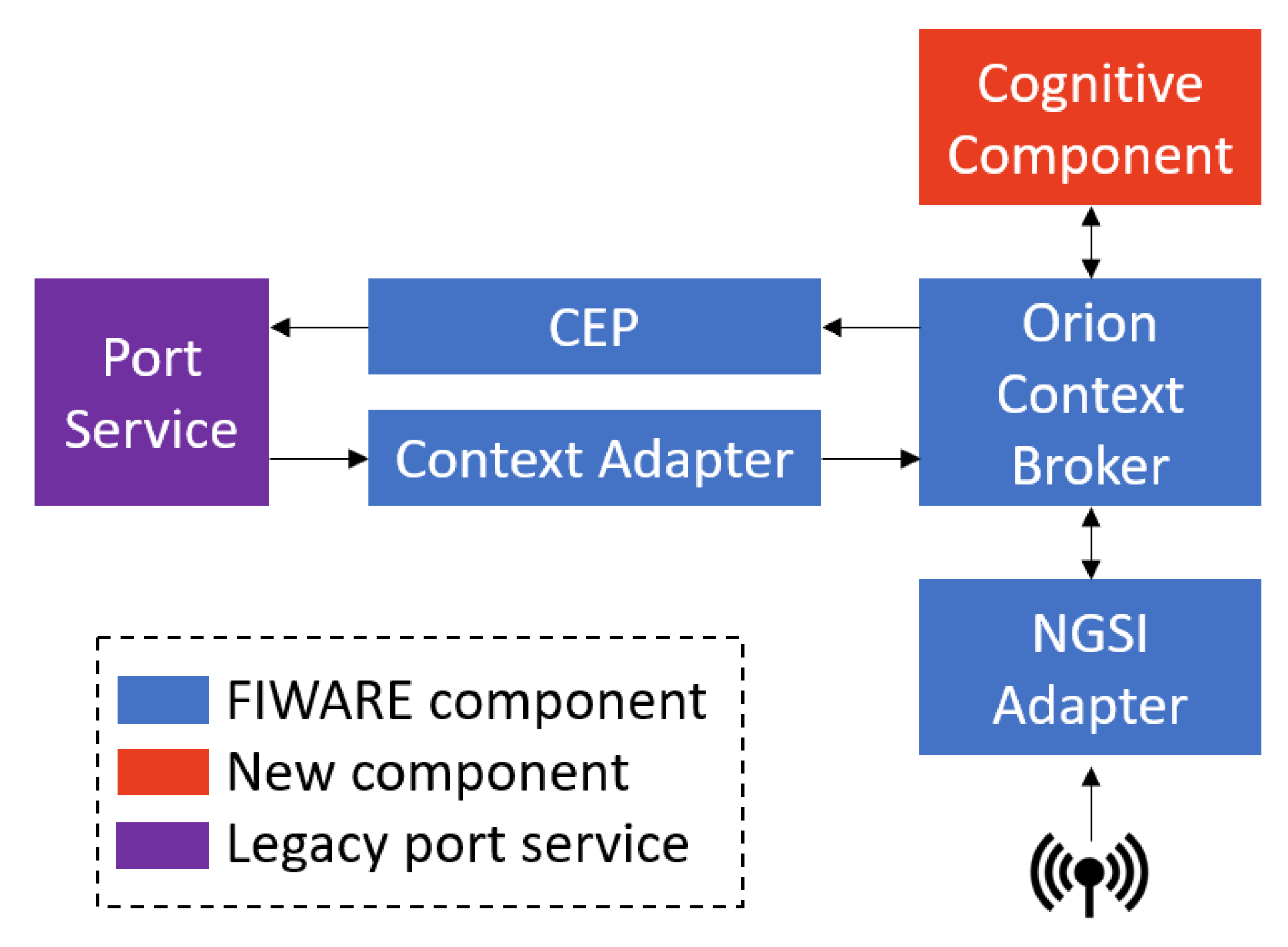

2.2. System Architecture

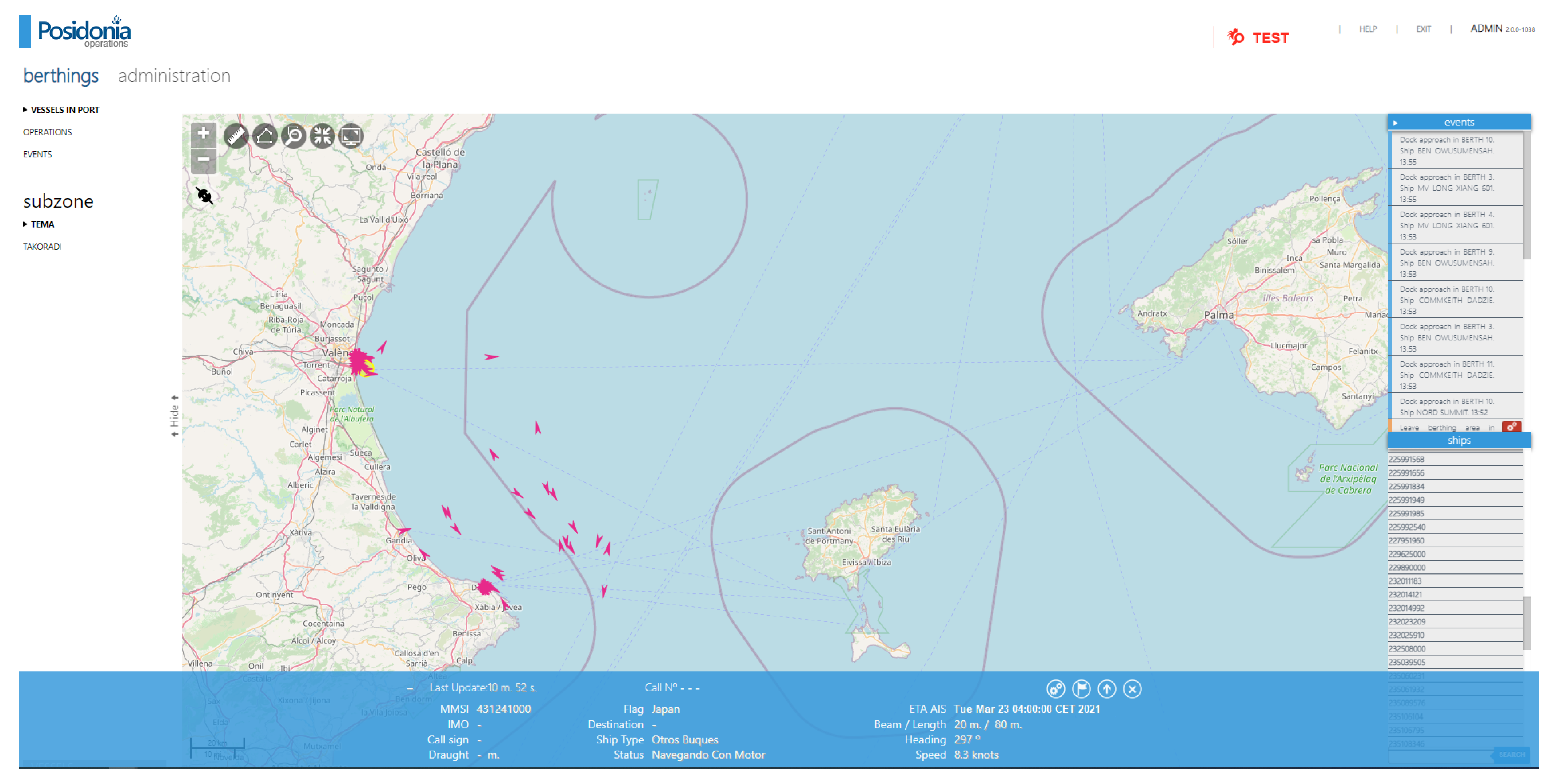

- The port service is a real-time vessel activity monitoring system that detects multiple events in the life cycle of a vessel in port and allows us to automate actions and assist a port operator in controlling the vessel’s visit to the port.
- AIS and Weather NGSI adapters have been developed to insert in the system the AIS data gathered by the antenna and the weather conditions.
- Orion Context Broker (OCB) works as an aggregator of context data and, at the same time, is an interface between the components of the architecture. Hence, the other elements of a FIWARE system can publish or consume data without having specific knowledge about the rest of the system.
- A specific context adapter has been developed for this scenario. It is responsible for ensuring that data coming from the port service are transformed to be compliant with the FIWARE NGSI standard. It handles redirected requests (updateContext) and notification requests (notify) sent by the OCB, transforming them into requests to the web interface.
- The cognitive component offers services based on the use of cognitive algorithms. This element retrieves data from a variety of sources and is able to send the results and decisions to other FIWARE components. ML algorithm-based models are embedded in this component to give rise to an AIoT system.
- A complex event processor (CEP) analyzes event data in real-time, detecting patterns in the incoming events. The CEP can receive events from different event producers of the FIWARE platform. In this case, the CEP analyzes the difference between the planned ETA and the calculated ETA. Depending on the degree of deviation between both values, it will send a notification, warning, or alarm to the port service.
2.2.1. Cognitive Component

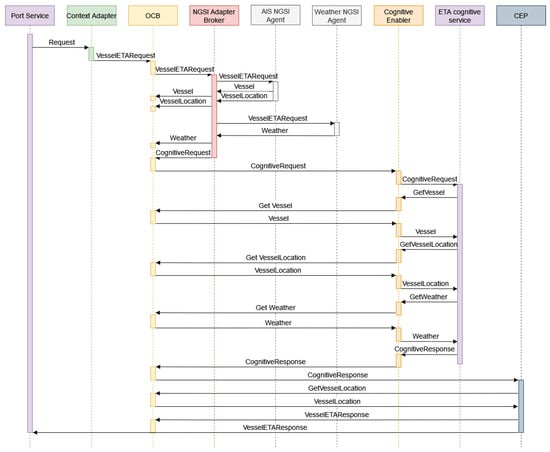

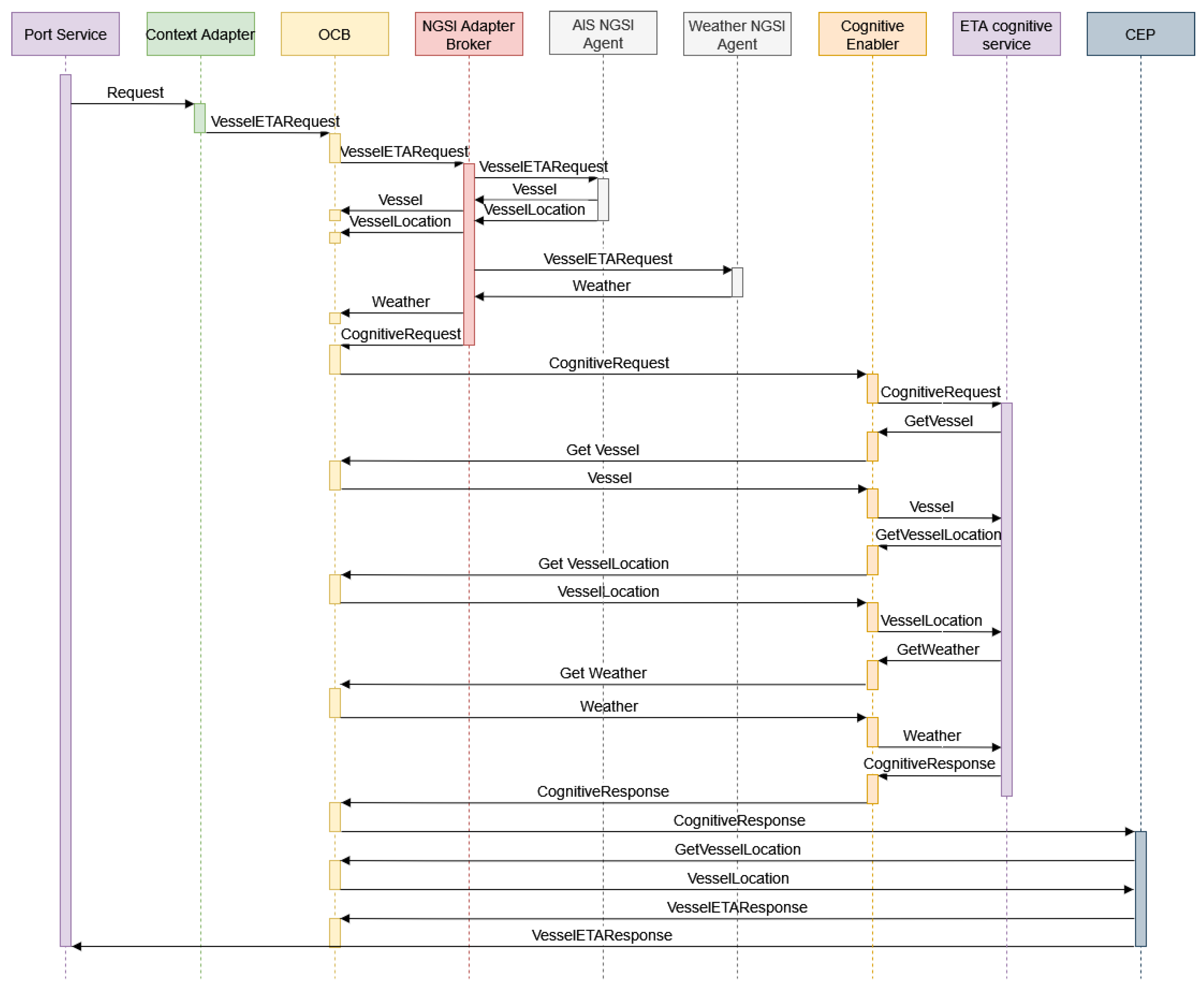

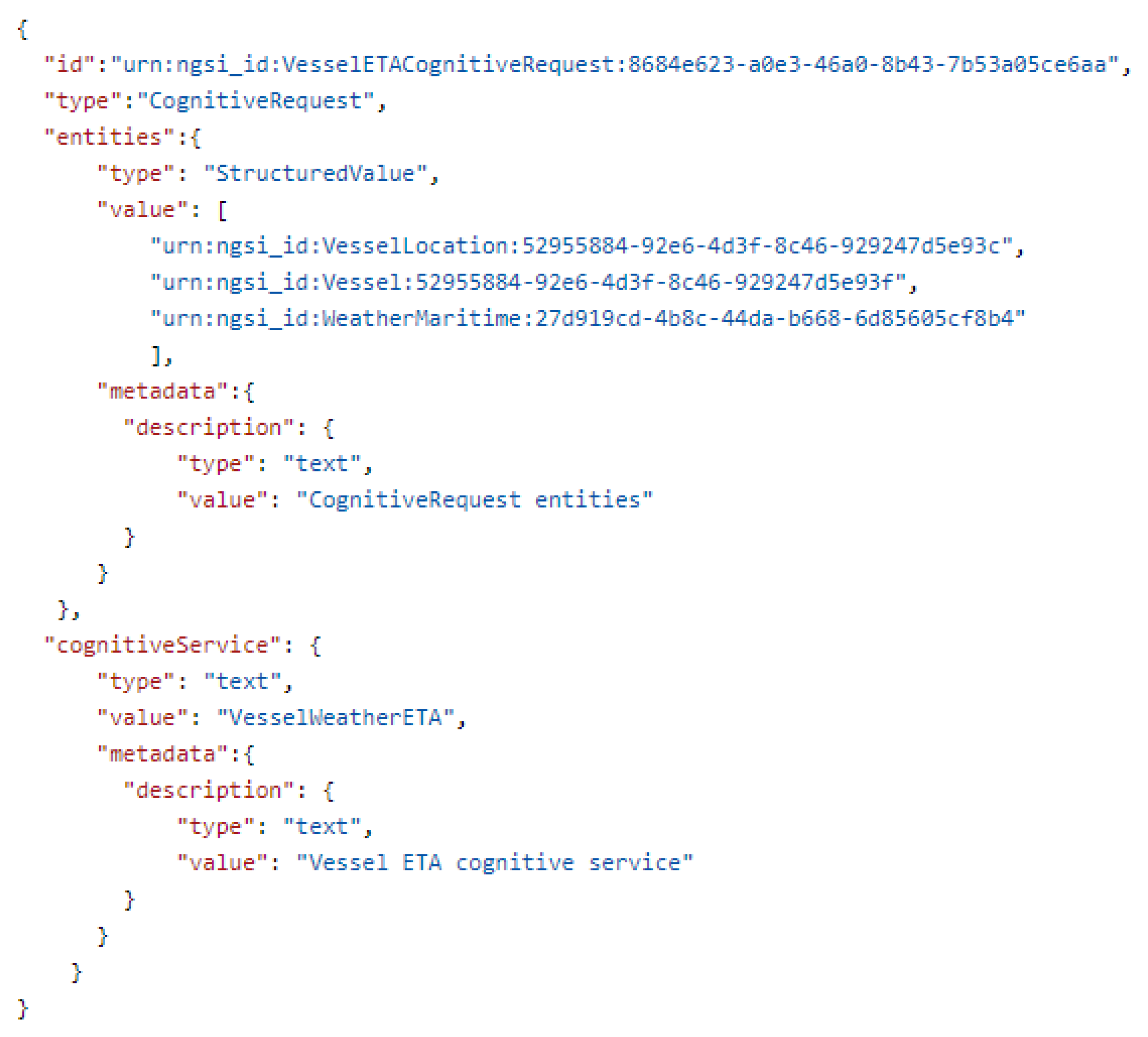

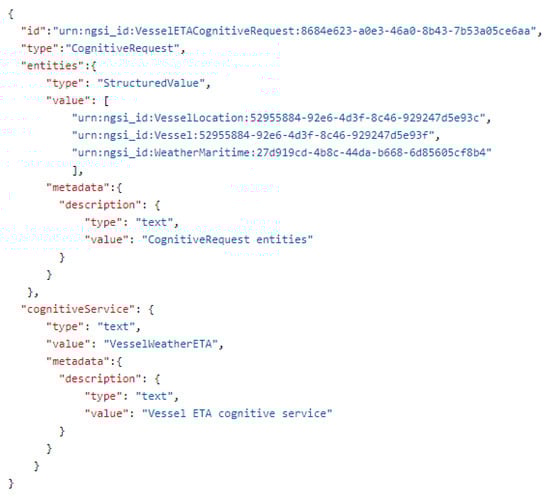

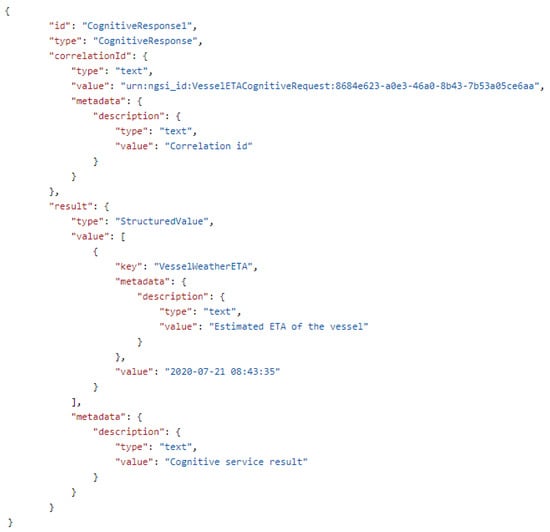

2.2.2. Message Flow
