# Highly Discriminative Physiological Parameters for Thermal Pattern Classification

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Materials and Methods

#### 2.1. Image Database

#### 2.2. Segmentation of Breast Thermograms

#### 2.3. Heat Source Model: A Mathematical Review

#### 2.3.1. Fitting Method of Lorentz Curve

#### 2.3.2. D-I-R Model

^{3}, ${h}_{0}=8.77$ W/m

^{2}· °C, and volume of cell is ${A}_{t}=1$ μm [6]. The $d-a$ and $q-a$ curves are obtained using Equations (5) and (6) and shown in Figure 5b,c, respectively.

#### 2.4. Thermal Pattern Classification Using SVM

**e**is the unity vector, C is the upper bound, ${B}_{i,j}\equiv {y}_{i},{y}_{j}P({x}_{i}\left(a\right),{x}_{j}\left(a\right))$, $P({x}_{i}\left(a\right),{x}_{j}\left(a\right))\equiv \phi {\left({x}_{i}\left(a\right)\right)}^{T}\phi \left({x}_{j}\left(a\right)\right)$, and $\phi $ is the mapping function [25].

## 3. Results

#### Extraction of the Input Heat Source Parameters

## 4. Discussion

## 5. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Fernández, C.I.; Bouzas, J.; Arnáiz, J.; Gómez, P.; Piñonosa, C.; García, M.; Sillero, M. Classification of factors influencing the use of infrared thermography in humans: A review. Infrared Phys. Technol.
**2015**, 71, 28–55. [Google Scholar] [CrossRef] - Lawson, R.; Chughtai, M.S. Breast Cancer and Body Temperature. Can. Med. Assoc. J.
**1963**, 88, 68–70. [Google Scholar] - Silva, L.F.; Saade, D.C.; Sequeiros, G.O.; Silva, A.C.; Paiva, A.C.; Bravo, R.S.; Conci, A. Database for Mastology Research with Infrared Image (DMR-IR). Available online: http://visual.ic.uff.br/dmi (accessed on 1 March 2021).
- Silva, L.F.; Saade, D.C.; Sequeiros, G.O.; Silva, A.C.; Paiva, A.C.; Bravo, R.S.; Conci, A. A new database for breast research with infrared image. J. Med. Imaging Health Inform.
**2014**, 4, 92–100. [Google Scholar] [CrossRef] - Pennes, H.H. Analysis of tissue and arterial blood temperatures in the resting human forearm. J. Appl. Physiol.
**1998**, 85, 5–34. [Google Scholar] [CrossRef] [PubMed] - Hossain, S.; Mohammadi, F.A.; Nejad, E.T. Neural network approach for the determination of heat source parameters from surface temperature image. In Proceedings of the 2011 24th Canadian Conference on Electrical and Computer Engineering (CCECE), Niagara Falls, ON, Canada, 8–11 May 2011; Volume 5, pp. 1109–1112. [Google Scholar]
- Chunfang, G.; Kaiyang, L.; Shaoping, Z. A Novel Approach of Analyzing the Relation between the Inner Heat Source and the Surface Temperature Distribution in Thermal Texture Maps. In Proceedings of the Annual International Conference of the IEEE Engineering in Medicine and Biology Society, Shanghai, China, 1–4 September 2005; pp. 623–626. [Google Scholar]
- Shi, G.; Han, F.; Wang, L.; Liang, C.; Li, K. Q-r curve of thermal tomography and its clinical application on breast tumor diagnosis. Biomed. Opt. Express
**2015**, 64, 1109–1123. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Shi, G.; Wang, L.; Han, F.; Liang, C.; Li, K. Diagnosis of breast tumor using thermal tomography q-r curve. J. Biomed. Opt.
**2015**, 20, 68001. [Google Scholar] [CrossRef] [PubMed] - Rastgar-Jazi, M.; Mohammadi, F. Parameters sensitivity assessment and heat source localization using infrared imaging techniques. BioMed. Eng. Online
**2017**, 16, 113. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Han, F.; Shi, G.; Liang, C.; Wang, L.; Li, k. A Simple and Efficient Method for Breast Cancer Diagnosis Based on Infrared Thermal Imaging. Cell Biochem. Biophys.
**2015**, 71, 491–498. [Google Scholar] [CrossRef] - Minhua, Z.; Qian, C. Study of the Surface Temperature Distribution of the Tissue Affected by the Point Heat Source. In Proceedings of the 2007 1st International Conference on Bioinformatics and Biomedical Engineering, Wuhan, China, 6–8 July 2007; pp. 474–477. [Google Scholar]
- Zermeño, L.O.; Orozco, E.; Toxqui, C.; Padilla, A.; Mejias, Y.N. Caracterización de imágenes en la región espectral del infrarrojo para la detección de lesiones en mama. Rev. Inst. TecnolóGico Cd. JuáRez Acad. J.
**2017**, 6, 75–82. [Google Scholar] - Cristianini, N.; Taylor, J.S. An Introduction to Support Vector Machines and Other Kernel-Based Learning Methods; Cambridge University Press: Cambridge, UK, 2000. [Google Scholar]
- Farooq, M.A.; Corcoran, P. Infrared Imaging for Human Thermography and Breast Tumor Classification using Thermal Images. In Proceedings of the 2020 31st Irish Signals and Systems Conference (ISSC), Letterkenny, Ireland, 11–12 June 2020; pp. 1–6. [Google Scholar]
- Silva, T.A.E.D.; Silva, L.F.D.; Muchaluat-Saade, D.C.; Conci, A. A computational method to assist the diagnosis of breast disease using dynamic thermography. Sensors
**2020**, 20, 3866. [Google Scholar] [CrossRef] [PubMed] - FLIR Systems. FLIR SC620 Infrared Camera Datasheet FLIR Systems. Available online: http://w1.sayato.com/7040/file/FLIR%20SC620.pdf (accessed on 21 March 2020).
- Castro, R.; Toxqui, C.; Padilla, A.; Solís J., F.; Orozco E., E. Zernike moment invariants for hand vein pattern description from raw biometric data. J. Electron. Imaging
**2019**, 28, 053019. [Google Scholar] - Sathish, D.; Kamath, S.; Prasad, K.; Kadavigere, R.; Roshan, J. Asymmetry analysis of breast thermograms using automated segmentation and texture features. Signal Image Video Process.
**2017**, 11, 745–752. [Google Scholar] [CrossRef] - Garduño, R.M.A.; Vega, M.S.G.; Morales, H.L.A.; Osornio, R.R.A. Supportive Noninvasive Tool for the Diagnosis of Breast Cancer Using a Thermographic Camera as Sensor. Sensors
**2017**, 17, 497. [Google Scholar] [CrossRef] [Green Version] - Alvarado, L.B.; Toxqui, C.; Hernández, J.A.; Padilla, A. Breast thermography: A non-invasive technique for the detection of lesions. In Proceedings of the Applications of Digital Image Processing XLI, San Diego, CA, USA, 20–23 August 2018; Volume 10752, p. 1075230. [Google Scholar]
- STD Plugin Computer Vision Laboratory. Available online: https://sites.google.com/view/lvc-upt/inicio (accessed on 1 October 2021).
- Cortes, C.; Vapnik, V. Support-vector networks. Mach. Learn.
**1995**, 20, 273–297. [Google Scholar] [CrossRef] - Karatzoglou, A.; Meyer, D.; Hornik, K. Support vector machines in R. J. Stat. Softw.
**2006**, 15, 1–28. [Google Scholar] [CrossRef] [Green Version] - Lin, W.; Yuan, X. Classification of in vivo autofluorescence spectra using support vector machines. J. Biomed. Opt.
**2004**, 9, 180–186. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Castro, J.; Toxqui, C.; Manriquez, F.; Orozco, E.; Padilla, A.; Sánchez, J.J. Detecting Jaundice by using digital image processing. In Proceedings of the Three-Dimensional and Multidimensional Microscopy: Image Acquisition and Processing XXI, San Francisco, CA, USA, 1–6 February 2014; Volume 8949, p. 89491U. [Google Scholar]
- Steel, R.G.; Torrie, J.H. Principles and Procedures of Statistics with Special Reference to the Biological Sciences; McGraw Hill: New York, NY, USA, 1960; pp. 187–287. [Google Scholar]
- Devi, R.R.; Anandhamala, G.S. Analysis of breast thermograms using asymmetry in infra-mammary curves. J. Med. Syst.
**2019**, 43, 146. [Google Scholar] [CrossRef] [PubMed] - Acharya, U.R.; Ng, E.Y.K.; Tan, J.H.; Sree, S.V.; Saade, D.M.; Conci, A. Thermography Based Breast Cancer Detection Using Texture Features and Support Vector Machine. J. Med. Syst.
**2012**, 36, 1503–1510. [Google Scholar] [CrossRef] [PubMed] - Vartika, M.; Rath, S.K. Detection of breast cancer tumours based on feature reduction and classification of thermograms. Quant. Infrared Thermogr. J.
**2020**, 18, 300–313. [Google Scholar] - Gogoi, U.R.; Majumdar, G.; Bhowmikl, M.K.; Ghoshl, A.K.; Bhattacharjee, D. Breast abnormality detection through statistical feature analysis using infrared thermograms. In Proceedings of the 2015 International Symposium on Advanced Computing and Communication (ISACC), Silchar, India, 14–15 September 2015; pp. 258–265. [Google Scholar]
- Suganthi, S.S.; Ramakrishnan, S. Analysis of breast thermograms using gabor wavelet anisotropy index. J. Med. Syst.
**2014**, 38, 101. [Google Scholar] [CrossRef] [PubMed] - Alvarado, L.B.; Delgadillo, M.; Toxqui, C.; Padilla, A.; Castro, R.; Arreola, M.M. Fractal analysis for classification of breast lesions. In Proceedings of the Current Developments in Lens Design and Optical Engineering XX, San Diego, CA, USA, 12 August 2019; SPIE: Bellingham, WA, USA, 2019; Volume 11104. [Google Scholar]
- Resmini, R.; Silva, L.; Araujo, A.S.; Medeiros, P.; Saade, D.M.; Conci, A. Combining Genetic Algorithms and SVM for Breast Cancer Diagnosis Using Infrared Thermography. Sensors
**2021**, 21, 4802. [Google Scholar] [CrossRef] [PubMed]

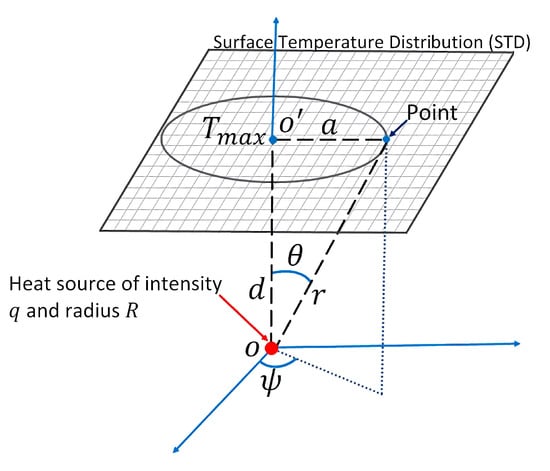

**Figure 1.**Scheme of the theoretical model of an internal heat source with depth d, intensity q, and radius R.

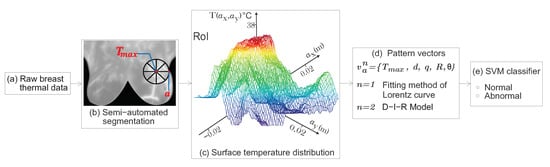

**Figure 2.**Flowchart of the proposed method. (

**a**) Thermal data were obtained from the $DMR$-$IR$. (

**b**) A well-defined RoI is delimited at an optimal radial distance a. As we can see, the RoI encircle the temperature area to be analyzed. (

**c**) Surface temperature distribution related to the hottest spot of the RoI. (

**d**) A proposed highly discriminative pattern vector is composed by the physiological parameters from the point heat source. (

**e**) Classification step using SVM.

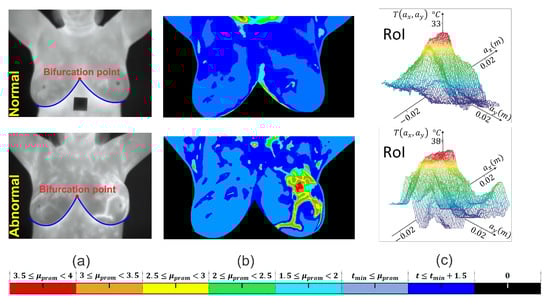

**Figure 3.**RoI delimitation process. (

**a**) Segmentation procedure based on the detection of the inframammary line by a polynomial curve fitting. (

**b**) Visualization of a clustered thermal pattern through thermal gradients. (

**c**) Centered RoI around the hottest point with radial distance a.

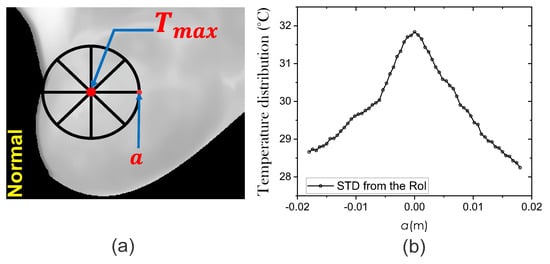

**Figure 4.**(

**a**) The extraction process of the STD using thermal input data. (

**b**) Mean temperature distribution around the hottest point with radial distance a.

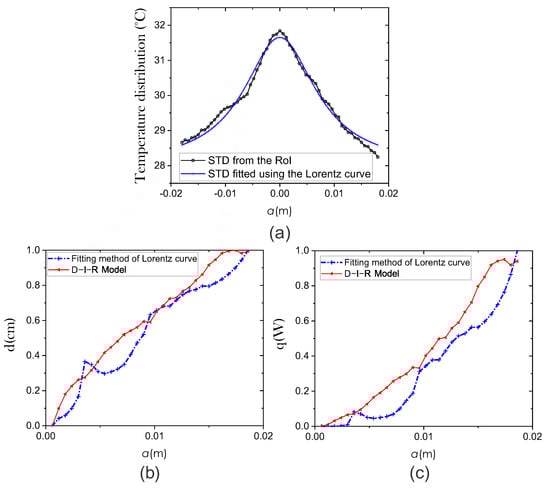

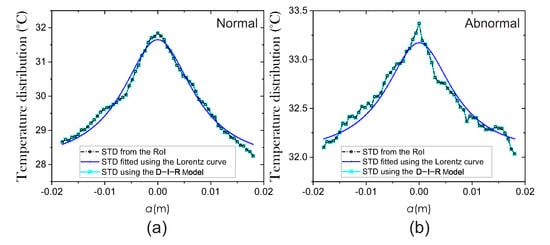

**Figure 5.**Comparison of the efficiency of two methods for extracting physiological parameters: fitting method of Lorentz curve (blue line) and the D-I-R model (red line). (

**a**) STD fitted using the Lorentz curve method. We use the coefficient of determination (R-squared) to quantify the fitting between the surface temperature curve and the Lorentz curve. Estimation of physiological parameters (

**b**) Depth d and (

**c**) Intensity q.

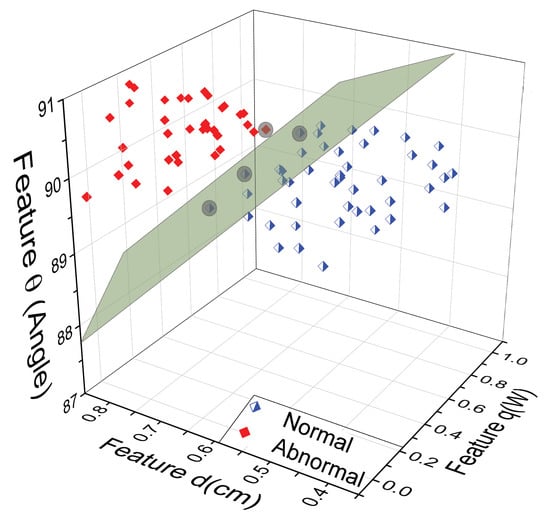

**Figure 6.**Three-dimensional space using the proposed physiological parameters ${v}_{a}^{n}\left(i\right)=\phantom{\rule{3.33333pt}{0ex}}${$\theta ,d,q$} obtained through the D-I-R model, corresponding to $n=2$ at a given position a. The support vectors define the margin’s greatest separation between the normal and abnormal classes.

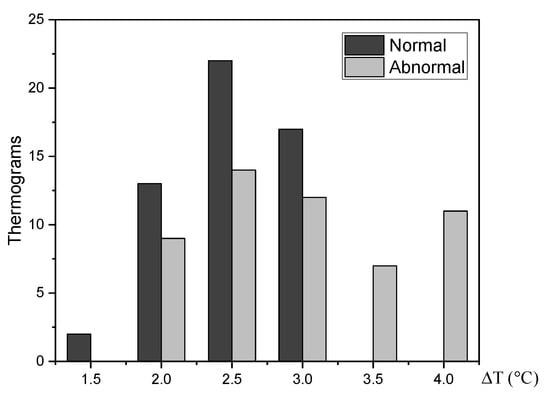

**Figure 7.**The temperature at the vicinity of affected tissue is about 2 °C higher than normal tissue.

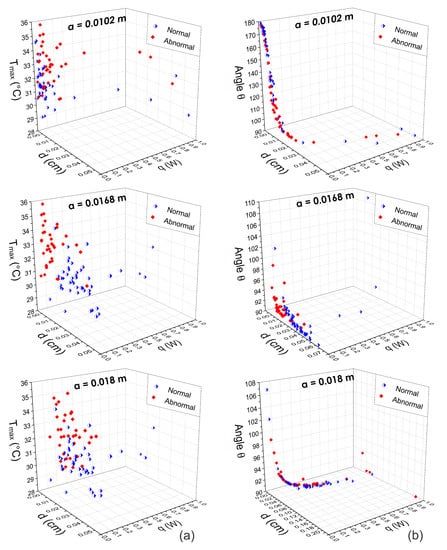

**Figure 9.**Three-dimensional scattergrams using the physiological parameters obtained by means of the fitting method of Lorentz curve at different positions $a=0.0102$ m, $a=0.0168$ m, and $a=0.018$ m. Column (

**a**) corresponds to the pattern vector ${v}_{a}^{1}\left(i\right)=${${T}_{max}$, d, q} and column (

**b**) corresponds to the pattern vector ${v}_{a}^{1}\left(i\right)=${$\theta $, d, q}. As can be seen, at the optimal position $a=0.0168$ m, the scattergrams show a correct separation between normal and abnormal thermograms. In other cases, the feature vectors are highly correlated.

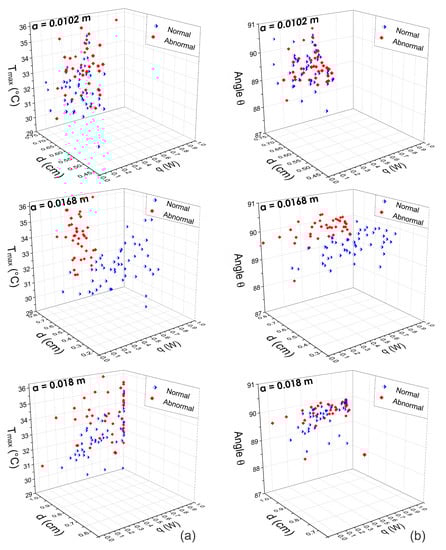

**Figure 10.**Three-dimensional scattergrams using the physiological parameters obtained by means of the D-I-R model at different positions $a=0.0102$ m, $a=0.0168$ m, and $a=0.018$ m. Column (

**a**) corresponds to the pattern vector ${v}_{a}^{2}\left(i\right)=${${T}_{max}$, d, q} and column (

**b**) corresponds to the pattern vector ${v}_{a}^{2}\left(i\right)=${$\theta $, d, q}. As can be observed, at the optimal position $a=0.0168$ m, the scattergram shows a correct separation between normal and abnormal thermograms. In other cases, the feature vectors are highly correlated.

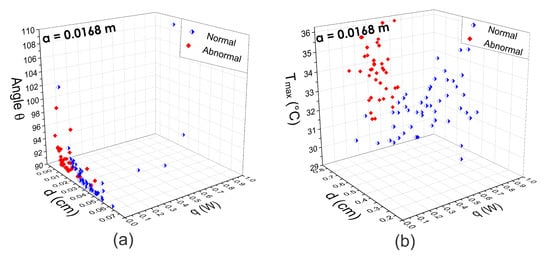

**Figure 11.**Three-dimensional scattergrams using the physiological parameters extracted from (

**a**) the fitting method of Lorentz curve and (

**b**) the D-I-R model. As can be seen, at the same optimal position $a=0.0168$ m, the scattergrams show a correct separation between normal and abnormal thermograms in both cases.

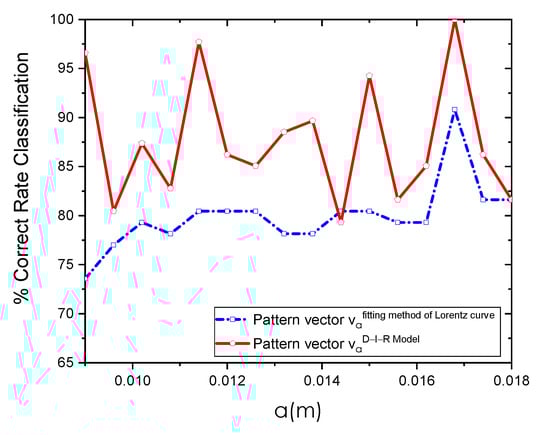

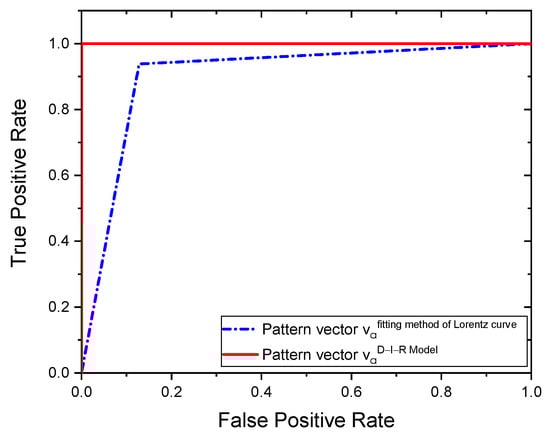

**Figure 12.**Classification results using the pattern vector ${v}_{a}^{n}\left(i\right)=${${T}_{max},d,q,R,\theta $} obtained through the fitting method of Lorentz curve and D-I-R model at different a positions using SVM as a classifier.

T (°C) | Surface temperature distribution. |

$\rho $ (Kg/m^{3}) | Biological tissue’s density. |

c (J/Kg · °C) | Thermal capacity of biological tissue. |

k (W/m/°C) | Heat conduction coefficient. |

${w}_{b}$ (Kg/m^{3} · s) | Blood perfusion rate. |

${\rho}_{b}$
(Kg/m^{3}) | Blood density. |

${c}_{b}$ (J/Kg · °C) | Blood thermal capacity. |

${T}_{a}$ (°C) | Arterial blood temperature. |

${Q}_{m}$ (W/m^{3}) | Metabolic heat rate. |

q (W) | Heat source intensity. |

d (cm) | Heat source depth. |

R (m) | Radius of spherical heat source. |

a (m) | Distance from point ${O}^{\prime}$ to an arbitrary point on the body surface. |

r (m) | Distance from point O to an arbitrary point on the body surface. |

O | Point heat source position. |

${O}^{\prime}$ | The hottest spot of the RoI. |

${T}_{max}$ (°C) | Maximum temperature. |

${h}_{0}$ (W/m^{2} · °C) | Heat exchange coefficient. |

${T}_{e}$ (°C) | Ambient temperature. |

$\theta $, $\psi $ (degrees) | Spherical coordinates. |

${\mu}_{prom}$ | Mean temperature. |

${t}_{min}$ | Minimum temperature. |

Image resolution $\mathit{M}\times \mathit{N}$ | $640\times 480$ pixels |

Pixel size | 45 μm |

Sensor size | $2.88$ cm × $2.16$ cm |

Standard temperature range | $-40$ °C to $+500$ °C |

Sensitivity | <0.04 °C |

**Table 3.**Results of CRC and Area Under Curve (AUC) using the proposed pattern vector composed of physiological parameters.

Method | Breast Thermograms | R-Squared | CRC | AUC | Optimal Position of the RoI |
---|---|---|---|---|---|

D-I-R Model | 87 | $0.9999$ | 100% | 1 | $a=0.0168$ m |

Fitting method of Lorentz curve | 87 | $0.87$ | $90.80$% | $0.9046$ | $a=0.0168$ m |

Method | Accuracy | Sensitivity | Specificity |
---|---|---|---|

D-I-R model | 100% | 100% | 100% |

Fitting method of Lorentz curve | $90.8$% | 87% | 97% |

Authors | Segmentation | Features Extracted | CRC | Thermograms Number |
---|---|---|---|---|

Sathish et al. [19] | The breast is segmented. | Histogram and Gray Level Cooccurrence Matrix (GLCM) -based texture features. | 90% | 80 |

R. Devi et al. [28] | The left and right breast are separated. | GLCM features and first-order histogram. | 95% | 60 |

V. Mishra [30] | The breast is segmented. | Gray Level Run Length Matrix (GLRLM) and GLCM. | $95.45$% | 56 |

U. R. Gogoi [31] | The breast is segmented. | First-order statistical features. | — | 60 |

S. S. Suganthi et al. [32] | The breast is segmented. | Anisotropy and orientation measures. | — | 20 |

R. Resmini et al. [34] | The breast is segmented with different approaches (with and without armpits) to compose four experiments. | GLCM, Local Ternary Pattern, Daubechies Wavelet, Higuchi, Petrosian Fractal, Dimensions, and Hurst Coefficient. | $97.18$% | 80 |

Proposed approach | The breast is segmented with a well-defined RoI using SVM. | Physiological pattern vectors ${v}_{a=0.0168m}^{1,2}\phantom{\rule{0.277778em}{0ex}}\left(i\right)$ = { ${T}_{max}$, q, d, R, $\theta $}. | 100% | 87 |
