Effect of Obesity on Knee and Ankle Biomechanics during Walking
Abstract
:1. Introduction
2. Methods

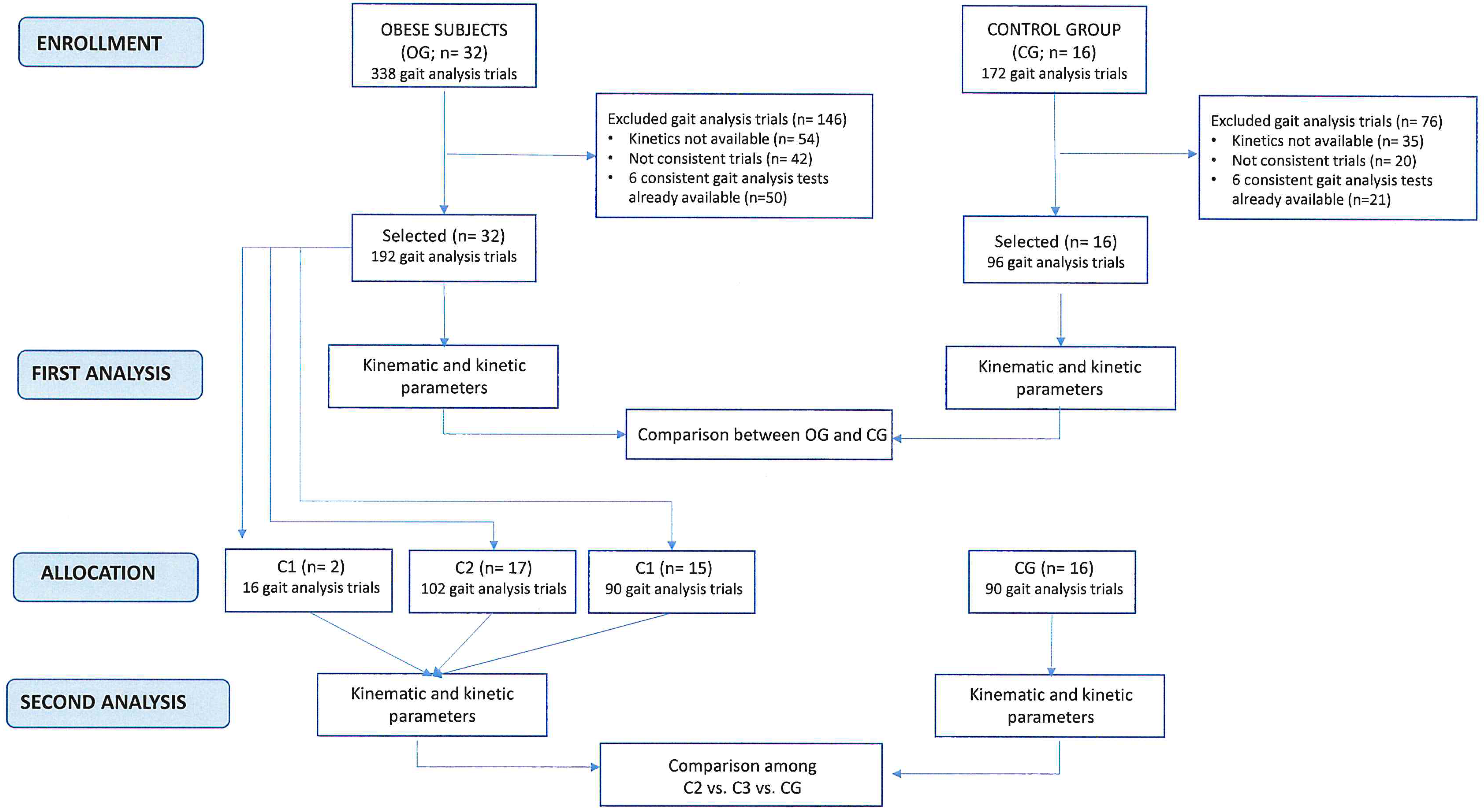

2.1. Participants
2.2. Data Collection and Processing
2.3. Kinematics
- −
- Knee flexion angle (KFE-IC index), knee rotation angle on the transverse plane (KRot-IC index) and ankle dorsiflexion angle (ADP-IC index) at Initial Contact;
- −
- Maximum knee ab-adduction in stance (MaxKAASt index) and in swing phase (MaxKAASw index);
- −
- Maximum knee rotation angle on the transverse plane (MaxKRot index) in the whole gait cycle;
- −
- Maximum ankle dorsiflexion (MaxADP index) and plantarflexion angles (minADP index) during the stance and swing phase, respectively;
- −
- Dynamic range of motion (ROM) of the knee in the sagittal plane during stance (KFE-ROMSt index) and swing (KFE-ROMSw index) phases, separately calculated as the difference between the maximum and minimum flexion-extension angle reached on the sagittal plane in each phase;
- −
- Dynamic range of motion for ankle dorsi-plantarflexion (ADP-ROM index) in the whole gait cycle.
2.4. Kinetics
- −
- Maximum value of ankle plantarflexion moment in terminal stance (MaxADPMom index, N*m/Kg), first peak of knee abduction moment (MaxKAAMom index, N*m/Kg) and maximum value of knee extension moment (MaxKFEMom index, N*m/Kg) in the whole gait cycle;
- −
- Minimum (minAP index, W/Kg) value in the first phase of stance and maximum (MaxAP index, W/Kg) ankle power during terminal stance.
2.5. Statistical Analysis
3. Results
- MaxKAAMom abs: C2: 51.3 ± 11.9 N*m (47.0; 55.6 N*m); C3: 72.5 ± 19.4 N*m (64.6; 80.3 N*m), CG: 33.2 ± 7.5 N*m (30.5; 35.9 N*m) (F2,87 = 2.59; p < 0.05).
- MaxADPMom abs: C2: 144.2 ± 29.7N*m (133.3; 155.1 N*m); C3: 172.7 ± 33.4 N*m (158.6; 186.8 N*m); CG: 89.7 ± 15.5 N*m (84.1; 95.3 N*m) (F2,86 = 69.87; p < 0.05).
- Max AP abs: C2: 309.2 ± 61.1 W (286.9; 331.6 W); C3: 367.5 ± 80.7 W (331.8; 403.2 W); CG: 202.7 ± 70.3 W (177.4; 228.1 W) (F2,84 = 38.93; p < 0.05).
4. Discussion
5. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Orpana, H.M.; Tremblay, M.S.; Finès, P. Trends in Weight Change among Canadian Adults. Health Rep. 2007, 18, 9–16. [Google Scholar]
- Vismara, L.; Romei, M.; Galli, M.; Montesano, A.; Baccalaro, G.; Crivellini, M.; Grugni, G. Clinical Implications of Gait Analysis in the Rehabilitation of Adult Patients with “Prader-Willi” Syndrome: A Cross-Sectional Comparative Study (“Prader-Willi” Syndrome vs Matched Obese Patients and Healthy Subjects). J. Neuroeng. Rehabil. 2007, 4, 14. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- de Souza, S.A.F.; Faintuch, J.; Valezi, A.C.; Sant’ Anna, A.F.; Gama-Rodrigues, J.J.; de Batista Fonseca, I.C.; Souza, R.B.; Senhorini, R.C. Gait Cinematic Analysis in Morbidly Obese Patients. Obes. Surg. 2005, 15, 1238–1242. [Google Scholar] [CrossRef]
- Anandacoomarasamy, A.; Caterson, I.; Sambrook, P.; Fransen, M.; March, L. The Impact of Obesity on the Musculoskeletal System. Int. J. Obes. 2008, 32, 211–222. [Google Scholar] [CrossRef] [Green Version]
- Gilleard, W. Functional Task Limitations in Obese Adults. Curr. Obes. Rep. 2012, 1, 174–180. [Google Scholar] [CrossRef]
- Lai, P.P.K.; Leung, A.K.L.; Li, A.N.M.; Zhang, M. Three-Dimensional Gait Analysis of Obese Adults. Clin. Biomech. 2008, 23 (Suppl. 1), S2–S6. [Google Scholar] [CrossRef]
- Runhaar, J.; Koes, B.W.; Clockaerts, S.; Bierma-Zeinstra, S.M.A. A Systematic Review on Changed Biomechanics of Lower Extremities in Obese Individuals: A Possible Role in Development of Osteoarthritis. Obes. Rev. 2011, 12, 1071–1082. [Google Scholar] [CrossRef] [PubMed]
- Gushue, D.L.; Houck, J.; Lerner, A.L. Effects of Childhood Obesity on Three-Dimensional Knee Joint Biomechanics During Walking. J. Pediatr. Orthop. 2005, 25, 763–768. [Google Scholar] [CrossRef] [PubMed]
- Benedetti, M.G.; Di Gioia, A.; Conti, L.; Berti, L.; Degli Esposti, L.; Tarrini, G.; Melchionda, N.; Giannini, S. Physical Activity Monitoring in Obese People in the Real Life Environment. J. Neuroeng. Rehabil. 2009, 6, 47. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- DeVita, P.; Hortobágyi, T. Obesity Is Not Associated with Increased Knee Joint Torque and Power during Level Walking. J. Biomech. 2003, 36, 1355–1362. [Google Scholar] [CrossRef]
- Błaszczyk, J.W.; Cieślinska-Świder, J.; Plewa, M.; Zahorska-Markiewicz, B.; Markiewicz, A. Effects of Excessive Body Weight on Postural Control. J. Biomech. 2009, 42, 1295–1300. [Google Scholar] [CrossRef] [PubMed]
- Browning, R.C.; McGowan, C.P.; Kram, R. Obesity Does Not Increase External Mechanical Work per Kilogram Body Mass during Walking. J. Biomech. 2009, 42, 2273–2278. [Google Scholar] [CrossRef] [Green Version]
- Browning, R.C.; Kram, R. Energetic Cost and Preferred Speed of Walking in Obese vs. Normal Weight Women. Obes. Res. 2005, 13, 891–899. [Google Scholar] [CrossRef] [Green Version]
- Wu, X.; Lockhart, T.E.; Yeoh, H.T. Effects of Obesity on Slip-Induced Fall Risks among Young Male Adults. J. Biomech. 2012, 45, 1042–1047. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Browning, R.C.; Kram, R. Effects of Obesity on the Biomechanics of Walking at Different Speeds. Med. Sci. Sports Exerc. 2007, 39, 1632–1641. [Google Scholar] [CrossRef] [PubMed]
- Russell, E.M.; Hamill, J. Lateral Wedges Decrease Biomechanical Risk Factors for Knee Osteoarthritis in Obese Women. J. Biomech. 2011, 44, 2286–2291. [Google Scholar] [CrossRef] [PubMed]
- MacLean, K.F.E.; Callaghan, J.P.; Maly, M.R. Effect of Obesity on Knee Joint Biomechanics during Gait in Young Adults. Cogent. Med. 2016, 3, 1173778. [Google Scholar] [CrossRef] [Green Version]
- McMillan, A.G.; Pulver, A.M.E.; Collier, D.N.; Williams, D.S.B. Sagittal and Frontal Plane Joint Mechanics throughout the Stance Phase of Walking in Adolescents Who Are Obese. Gait Posture 2010, 32, 263–268. [Google Scholar] [CrossRef]
- Davis, R.B.; Õunpuu, S.; Tyburski, D.; Gage, J.R. A Gait Analysis Data Collection and Reduction Technique. Hum. Mov. Sci. 1991, 10, 575–587. [Google Scholar] [CrossRef]
- Park, K.; Hur, P.; Rosengren, K.S.; Horn, G.P.; Hsiao-Wecksler, E.T. Effect of Load Carriage on Gait Due to Firefighting Air Bottle Configuration. Ergonomics 2010, 53, 882–891. [Google Scholar] [CrossRef] [PubMed]
- Spyropoulos, P.; Pisciotta, J.C.; Pavlou, K.N.; Cairns, M.A.; Simon, S.R. Biomechanical Gait Analysis in Obese Men. Arch. Phys. Med. Rehabil. 1991, 72, 1065–1070. [Google Scholar] [PubMed]
- Molina-Garcia, P.; Migueles, J.H.; Cadenas-Sanchez, C.; Esteban-Cornejo, I.; Mora-Gonzalez, J.; Rodriguez-Ayllon, M.; Plaza-Florido, A.; Vanrenterghem, J.; Ortega, F.B. A Systematic Review on Biomechanical Characteristics of Walking in Children and Adolescents with Overweight/Obesity: Possible Implications for the Development of Musculoskeletal Disorders. Obes. Rev. 2019, 20, 1033–1044. [Google Scholar] [CrossRef] [PubMed]
- Koushyar, H.; Nussbaum, M.A.; Davy, K.P.; Madigan, M.L. Relative Strength at the Hip, Knee, and Ankle Is Lower Among Younger and Older Females Who Are Obese. J. Geriatr. Phys. Ther. 2017, 40, 143–149. [Google Scholar] [CrossRef] [Green Version]
- Cassidy, S.; Chau, J.Y.; Catt, M.; Bauman, A.; Trenell, M.I. Low Physical Activity, High Television Viewing and Poor Sleep Duration Cluster in Overweight and Obese Adults; a Cross-Sectional Study of 398,984 Participants from the UK Biobank. Int. J. Behav. Nutr. Phys. Act. 2017, 14, 57. [Google Scholar] [CrossRef] [PubMed]
Participants (M, F) | Age (years) | BMI (kg/m2) | Height (m) | Body Mass (kg) |
---|---|---|---|---|
CG (6, 10) | 31.07 (5.45) | 21.21 (1.99) | 1.70 (0.06) | 61.59 (8.47) |
C1 (2, 0) | 35.06 (6.98) | 33.61 (1.88) | 1.73 (0.12) | 100.59 (6.42) |
C2 (6, 11) | 28.38 (6.63) | 37.56 (1.05) | 1.65 (0.09) | 102.31 (11.95) |
C3 (7, 6) | 27.52 (8.13) | 42.90 (2.11) | 1.66 (0.11) | 119.08 (18.31) |
Parameters | OG (32 Individuals) | CG (16 Individuals) |
---|---|---|
Kinematic Variables (°) | ||
KFE-IC | 3.7 ± 4.0 | 4.4 ± 3.2 |
KFE-ROMSt | 12.8 ± 4.4 * | 14.9 ± 4.4 |
KFE-ROMSw | 56.4 ± 6.9 * | 61.2 ± 4.4 |
KRot-IC | −2.2 ± 8.0 * | −1.5 ± 9.5 |
MaxKRot | 12.0 ± 7.7 | 14.5 ± 9.6 |
MaxKAASt | 10 ± 4.3 * | −6.7 ± 8.8 |
MaxKAASw | 28.0 ± 12.2 * | 10.8 ± 7.5 |
ADP-IC | 0.2 ± 3.2 | −1.4 ± 2.4 |
MaxADP | 12.8 ± 3.4 | 13.4 ± 2.8 |
minADP | −15.7 ± 5.8 | −17.6 ± 5.5 |
ADP-ROM | 28.5 ± 5.5 * | 32.7 (4.4) |
Kinetic Variables | ||
MaxKAAMom (N*m/kg) | 0.6 ± 0.1 | 0.6 ± 0.1 |
MaxKAAMom abs (N*m) | 60.9 ± 19.0 * | 33.2 ± 7.5 |
MaxKFEMom (N*m/kg) | 0.1 ± 0.1 * | 0.4 ± 0.2 |
MaxKFEMom abs (N*m) | 18.8 ± 11.9 | 21.1 ± 8.7 |
MaxADPMom (N*m/kg) | 1.4 ± 0.2 * | 1.5 ± 0.2 |
MaxADPMom abs (N*m) | 160.0 ± 35.5 * | 89.7 ± 15.5 |
minAP (W/kg) | −2.1 ± 0.3 * | −1.4 ± 1.2 |
minAP abs (W) | −110.5 ± 36.4 * | −48.2 ± 72.2 |
MaxAP (W/kg) | 3.0 ± 0.6 * | 3.4 ± 1.1 |
Max AP abs (W) | 336.0 ± 74.1 * | 202.7 ± 70.3 |
