Calibration to Mitigate Near-Field Antennas Effects for a MIMO Radar Imaging System^{ †}

^{1}

^{2}

^{*}

^{†}

## Abstract

**:**

## 1. Introduction

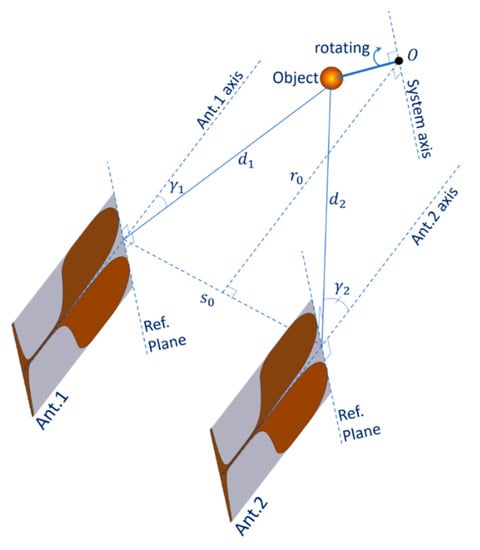

## 2. Radar Imaging System

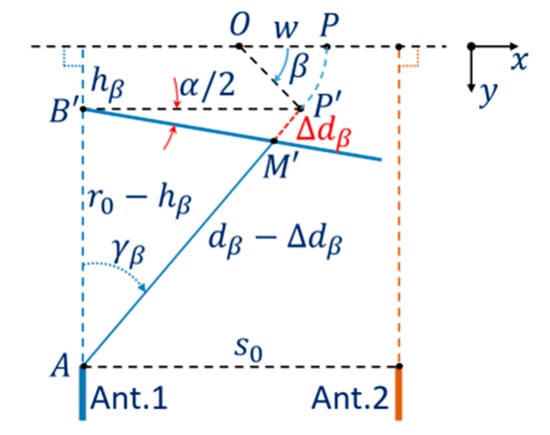

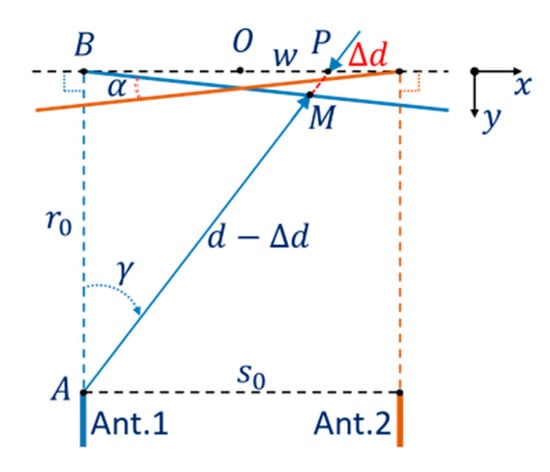

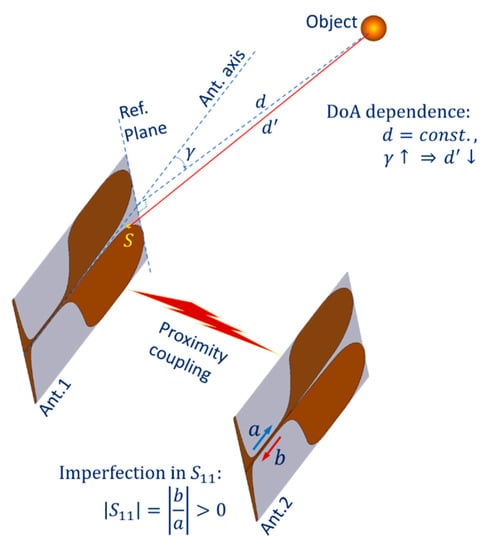

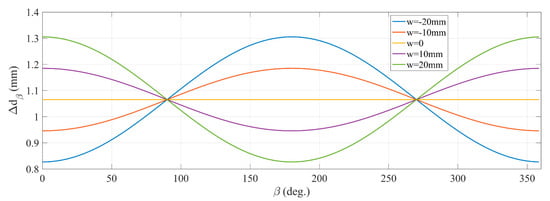

## 3. Antennas Effects and Shift Modelling

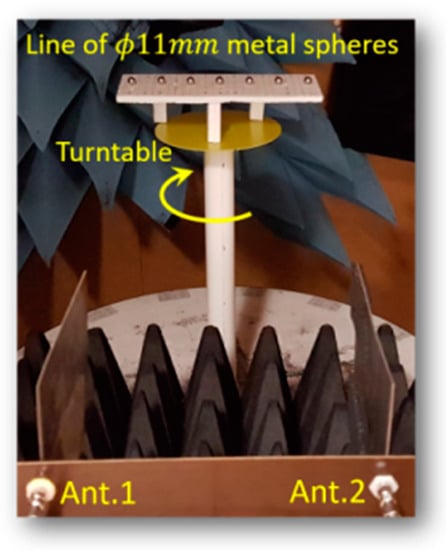

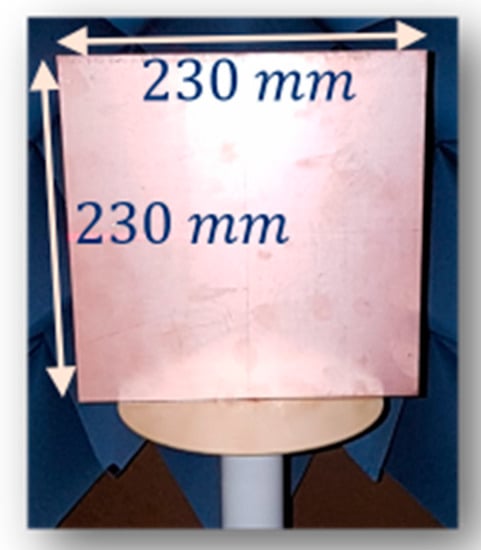

## 4. Calibration Scheme and Results

## 5. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Vaupel, T.; Eibert, T.F. Comparison and Application of Near-Field ISAR Imaging Techniques for Far-Field Radar Cross Section Determination. IEEE Trans. Antennas Propag.
**2006**, 54, 144–151. [Google Scholar] [CrossRef] - Bliss, D.W.; Forsythe, K.; Hero, A.; Yegulalp, A. Environmental issues for MIMO capacity. IEEE Trans. Signal Process.
**2002**, 50, 2128–2142. [Google Scholar] [CrossRef][Green Version] - Marzetta, T.L. Noncooperative Cellular Wireless with Unlimited Numbers of Base Station Antennas. IEEE Trans. Wirel. Commun.
**2010**, 9, 3590–3600. [Google Scholar] [CrossRef] - Rusek, F.; Persson, D.; Lau, B.K.; Larsson, E.G.; Marzetta, T.L.; Tufvesson, F. Scaling Up MIMO: Opportunities and Challenges with Very Large Arrays. IEEE Signal Process. Mag.
**2013**, 30, 40–60. [Google Scholar] [CrossRef][Green Version] - Ngo, H.Q.; Larsson, E.G.; Marzetta, T.L. Energy and Spectral Efficiency of Very Large Multiuser MIMO Systems. IEEE Trans. Commun.
**2013**, 61, 1436–1449. [Google Scholar] [CrossRef][Green Version] - Larsson, E.G.; Edfors, O.; Tufvesson, F.; Marzetta, T.L. Massive MIMO for next generation wireless systems. IEEE Commun. Mag.
**2014**, 52, 186–195. [Google Scholar] [CrossRef][Green Version] - Zeng, T.; Mao, C.; Hu, C.; Yang, X.; Tian, W. Multi-Static MIMO-SAR Three Dimensional Deformation Measurement System. In Proceedings of the 2015 IEEE 5th Asia-Pacific Conference on Synthetic Aperture Radar (APSAR), Singapore, 1–4 September 2015. [Google Scholar]
- Li, J.; Stoica, P. MIMO Radar with Colocated Antennas. IEEE Signal Process. Mag.
**2007**, 24, 106–114. [Google Scholar] [CrossRef] - Haimovich, A.M.; Blum, R.; Cimini, L. MIMO Radar with Widely Separated Antennas. IEEE Signal Process. Mag.
**2008**, 25, 116–129. [Google Scholar] [CrossRef] - Frankford, M.T.; Stewart, K.B.; Majurec, N.; Johnson, J.T. Numerical and experimental studies of target detection with MIMO radar. IEEE Trans. Aerosp. Electron. Syst.
**2014**, 50, 1569–1577. [Google Scholar] [CrossRef] - Ma, C.; Yeo, T.; Liu, Z.; Zhang, Q.; Guo, Q. Target imaging based on l_1 l_0 norms homotopy sparse signal recovery and distributed MIMO antennas. IEEE Trans. Aerosp. Electron. Syst.
**2015**, 51, 3399–3414. [Google Scholar] [CrossRef] - Hoang, H.; Ahmed, Z.; John, M.; McEvoy, P.; Ammann, M. Calibration for a Hybrid MIMO Near-field Imaging System to Mitigate Antennas Effects. In Proceedings of the 2020 International Workshop on Antenna Technology (iWAT), Bucharest, Romania, 25–28 February 2020. [Google Scholar]
- Liu, Y.; Xu, X.; Xu, G. MIMO Radar Calibration and Imagery for Near-Field Scattering Diagnosis. IEEE Trans. Aerosp. Electron. Syst.
**2018**, 54, 442–452. [Google Scholar] [CrossRef] - Korner, G.; Oppelt, D.; Adametz, J.; Vossiek, M. Novel Passive Calibration Method for Fully Polarimetric Near Field MIMO Imaging Radars. In Proceedings of the 2019 12th German Microwave Conference (GeMiC), Stuttgart, Germany, 25–27 March 2019. [Google Scholar]
- Lin, M.; Yang, L. Blind Calibration and DOA Estimation with Uniform Circular Arrays in the Presence of Mutual Coupling. IEEE Antennas Wirel. Propag. Lett.
**2006**, 5, 315–318. [Google Scholar] [CrossRef] - Wei, H.; Wang, D.; Zhu, H.; Wang, J.; Sun, S.; You, X. Mutual Coupling Calibration for Multiuser Massive MIMO Systems. IEEE Trans. Wirel. Commun.
**2016**, 15, 606–619. [Google Scholar] [CrossRef] - Gupta, I.; Baxter, J.; Ellingson, S.; Park, H.-G.; Oh, H.S.; Kyeong, M.G. An experimental study of antenna array calibration. IEEE Trans. Antennas Propag.
**2003**, 51, 664–667. [Google Scholar] [CrossRef] - Nakhkash, M.; Huang, Y.; Al-Nuaimy, W.; Fang, M.T.C. An improved calibration technique for free-space measurement of complex permittivity. IEEE Trans. Geosci. Remote. Sens.
**2001**, 39, 453–455. [Google Scholar] [CrossRef] - Mikhnev, V.A.; Vainikainen, P. Single-reference near-field calibration procedure for step-frequency ground penetrating radar. IEEE Trans. Geosci. Remote. Sens.
**2003**, 41, 75–80. [Google Scholar] [CrossRef] - Sippel, E.; Lipka, M.; Geib, J.; Hehn, M.; Vossiek, M. In-Situ Calibration of Antenna Arrays Within Wireless Locating Systems. IEEE Trans. Antennas Propag.
**2020**, 68, 2832–2841. [Google Scholar] [CrossRef] - Kong, L.; Xu, X. Calibration of a Polarimetric MIMO Array with Horn Elements for Near-Field Measurement. IEEE Trans. Antennas Propag.
**2020**, 68, 4489–4501. [Google Scholar] [CrossRef] - Hoang, M.; John, M.; McEvoy, P.; Ammann, M.J. Near-Field Propagation Analysis for Vivaldi Antenna Design: Insight into the Propagation Process for Optimizing the Directivity, Integrity of Signal Transmission, and Efficiency. IEEE Antennas Propag. Mag.
**2020**. [Google Scholar] [CrossRef] - Hoang, H.; Phan, P.; Dien, H.; Nguyen, L. Design and Experimental Study of an Ultra-Wideband Radar System. In Proceedings of the International Conference on Advanced Technologies for Communications (ATC 2014), Hanoi, Vietnam, 15–17 October 2014. [Google Scholar]
- Broquetas, A.; Palau, J.; Jofre-Roca, L.; Cardama, A. Spherical wave near-field imaging and radar cross-section measurement. IEEE Trans. Antennas Propag.
**1998**, 46, 730–735. [Google Scholar] [CrossRef][Green Version] - Tran, T.D.; Do, T.H.; Hoang, M. Development of system for detecting hidden objects based on UWB pulse radar. Sci. Technol. Dev. J.
**2015**, 18, 111–121. [Google Scholar] [CrossRef]

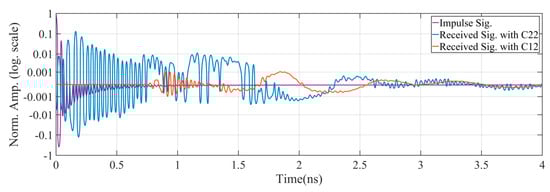

**Figure 3.**Received signals measured at the antenna port with the effects of imperfection in ${S}_{11}$ and proximity coupling.

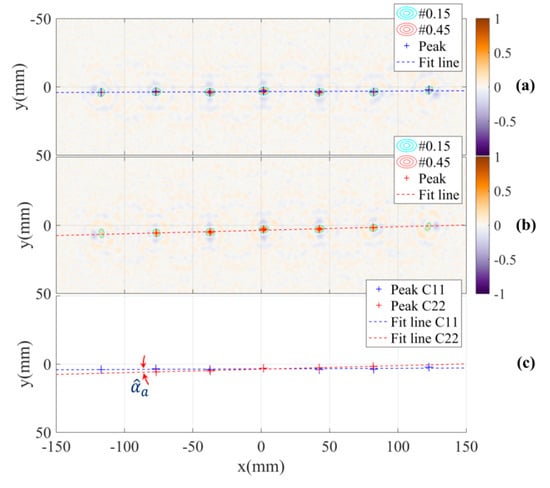

**Figure 9.**Reconstructed images with the DoA dependence effect based on measurement channels (

**a**) C11, (

**b**) C22 and (

**c**) the estimation of differential parameter of the shift.

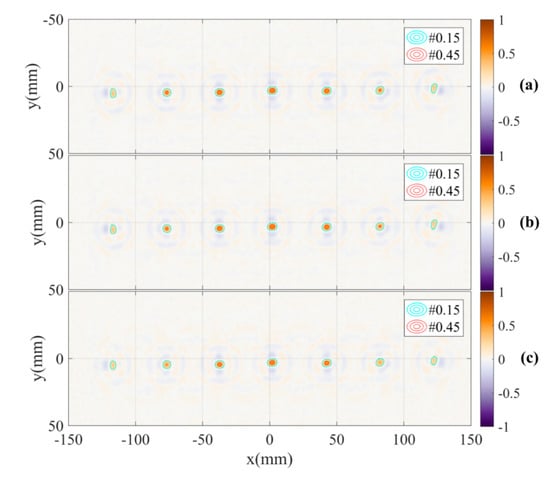

**Figure 10.**Reconstructed images with DoA dependence effect based on measurement channels (

**a**) C12, (

**b**) C21 and (

**c**) all four channels.

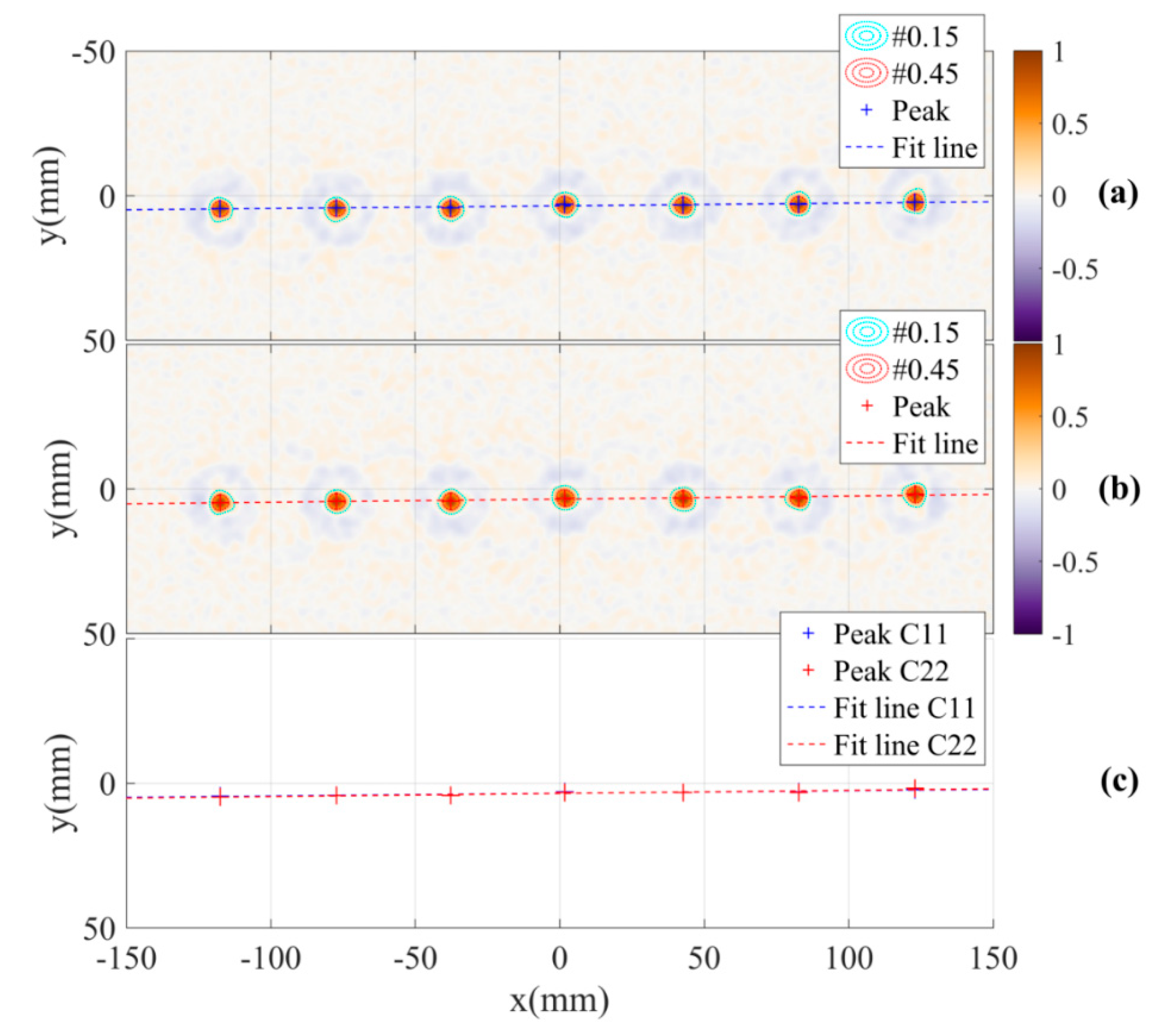

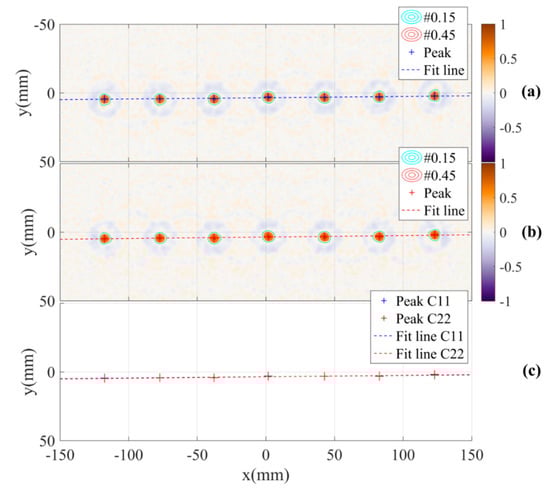

**Figure 11.**Reconstructed images with DoA dependence calibration based on measurement channels (

**a**) C11, (

**b**) C22 and (

**c**) estimation of angle between the two lines.

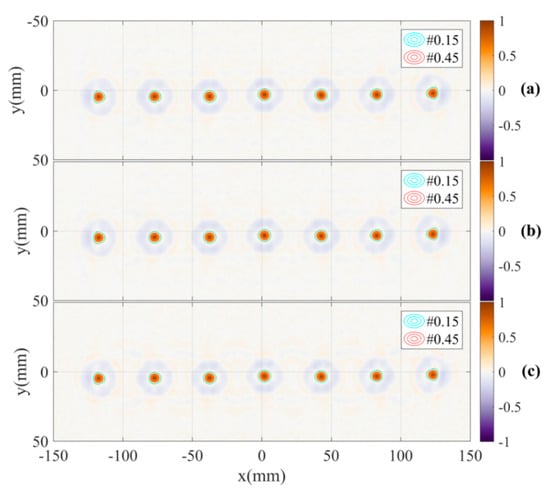

**Figure 12.**Reconstructed images with DoA dependence calibration based on measurement channels (

**a**) C12, (

**b**) C21 and (

**c**) all four channels.

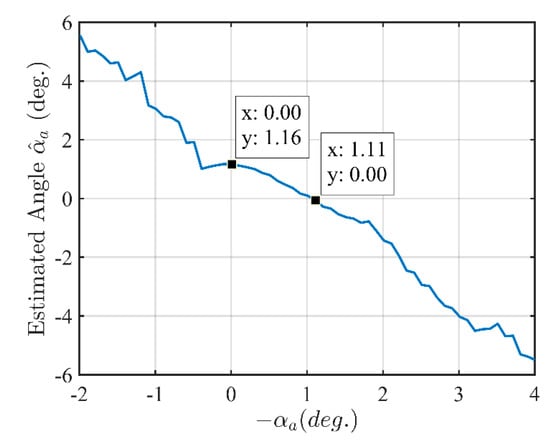

**Figure 13.**Angle between the two lines estimated from the reconstructed images vs. the angle $-{\alpha}_{a}$ used to compensate for the differential parameter ${\alpha}_{a}$ of the model.

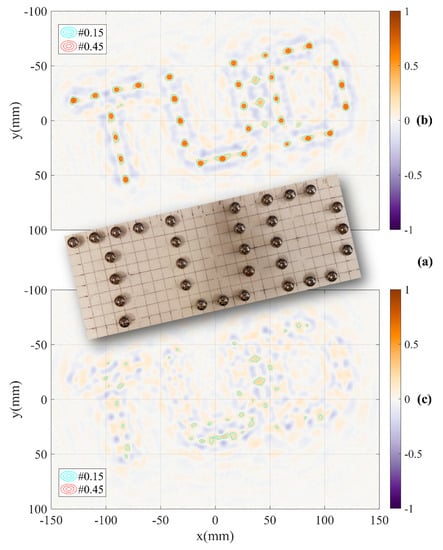

**Figure 14.**Testing the system with (

**a**) “TUD” pattern and results (

**b**) with DoA dependence calibration and (

**c**) without DoA dependence calibration based on measurement data of all of four channels.

Parameters | Values |
---|---|

Antennas space (${s}_{0}$) | $180\mathrm{mm}$ |

System distance (${r}_{0}$) | $690\mathrm{mm}$ |

Angular step size ($\Delta \beta $) | ${1.5}^{\xb0}$ |

Rotating step number | $240$ |

Turntable tolerance | $\pm {0.1}^{\xb0}$ |

Antenna size (L × W) | $130\times 120{\mathrm{mm}}^{2}$ |

System bandwidth | $10\mathrm{MHz}\u201339.9\mathrm{GHz}$ |

Frequency step | $10\mathrm{MHz}$ |

Transmitting power | $10\mathrm{dBm}$ |

Channel | Antenna Mode |
---|---|

C11 | Tx: Ant.1, Rx: Ant.1 |

C12 | Tx: Ant.1, Rx: Ant.2 |

C21 | Tx: Ant.2, Rx: Ant.1 |

C22 | Tx: Ant.2, Rx: Ant.2 |
