Nanozymes for Environmental Pollutant Monitoring and Remediation

Aperture, Ryde, NSW 2112, Australia
Author to whom correspondence should be addressed.
Sensors 2021, 21(2), 408;
Submission received: 12 December 2020 / Revised: 3 January 2021 / Accepted: 6 January 2021 / Published: 8 January 2021
(This article belongs to the Special Issue Biennial State-of-the-Art Sensors Technology in Australia 2019-2020)


Nanozymes are advanced nanomaterials which mimic natural enzymes by exhibiting enzyme-like properties. As nanozymes offer better structural stability over their respective natural enzymes, they are ideal candidates for real-time and/or remote environmental pollutant monitoring and remediation. In this review, we classify nanozymes into four types depending on their enzyme-mimicking behaviour (active metal centre mimic, functional mimic, nanocomposite or 3D structural mimic) and offer mechanistic insights into the nature of their catalytic activity. Following this, we discuss the current environmental translation of nanozymes into a powerful sensing or remediation tool through inventive nano-architectural design of nanozymes and their transduction methodologies. Here, we focus on recent developments in nanozymes for the detection of heavy metal ions, pesticides and other organic pollutants, emphasising optical methods and a few electrochemical techniques. Strategies to remediate persistent organic pollutants such as pesticides, phenols, antibiotics and textile dyes are included. We conclude with a discussion on the practical deployment of these nanozymes in terms of their effectiveness, reusability, real-time in-field application, commercial production and regulatory considerations.

1. Introduction

1.1. General Introduction to Nanozymes

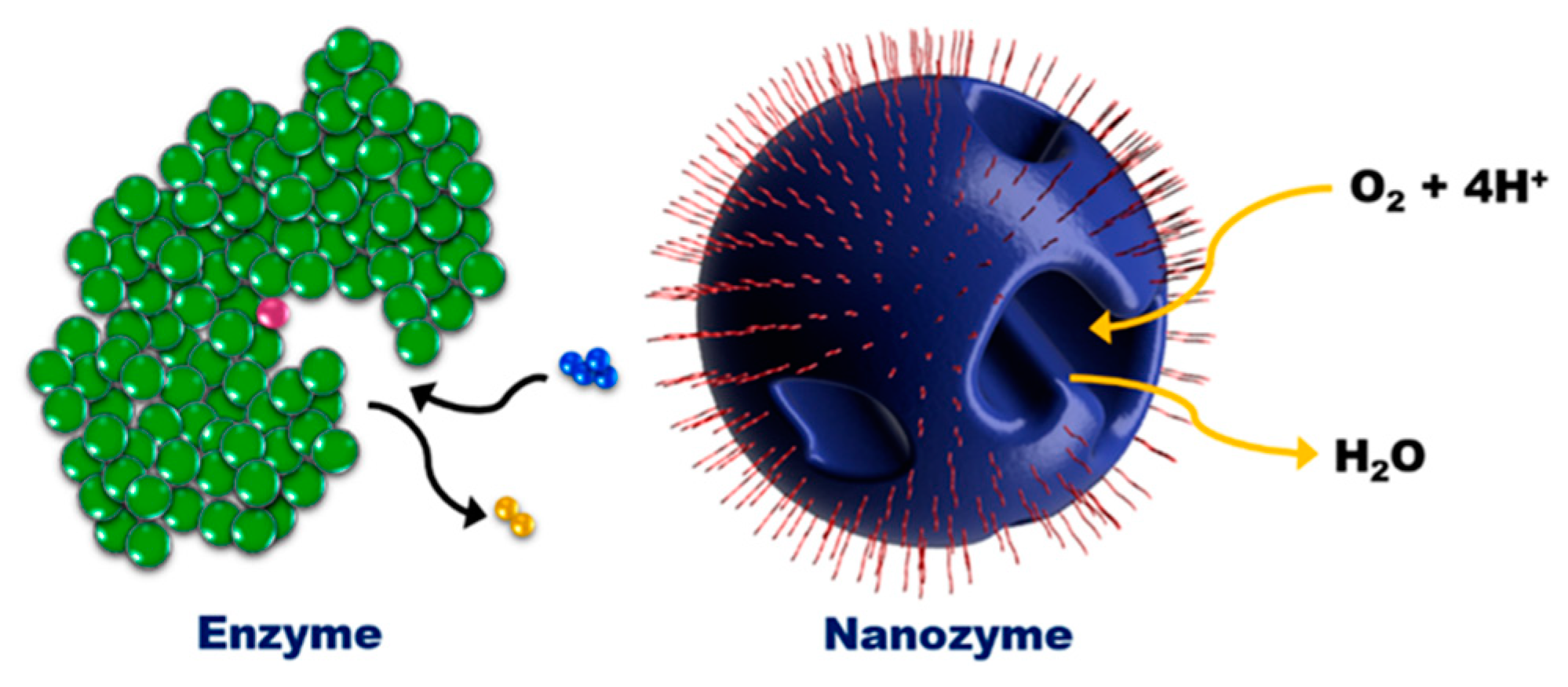

Nanozymes are advanced nanomaterials which possess unique physicochemical properties with the precise structural fabrication capability to mimic intrinsic biologically relevant reactions. Specifically, nanozymes mimic natural enzymes and exhibit enzyme-like properties. The enzymatic catalytic reactions are highly effective, with reactions occurring rapidly even under mild conditions, and more importantly, such reactions are also highly selective. The high efficiency and selectivity are immensely desirable properties for sensing and monitoring applications. However, natural enzymes including proteins suffer from limitations such as low thermostability and narrow pH window, which will denature the enzymes and greatly reduce and inhibit their enzymatic activities. Low thermostability also places stringent requirements on the storage, transportation and handling of natural enzymes, which can be labour- and infrastructure-intensive for the users. Susceptible denaturation adds complexity to the interpretation of sensing and monitoring outputs, which may yield a false positive/negative outcome. From this perspective, nanozymes address these limitations by offering high structural durability and stability, while maintaining the desirable catalytic activities.
By incorporating the unique physicochemical properties and enzyme-like activities, nanozymes exhibit promising applications in different fields such as the biomedical sector (in vivo diagnostics/and therapeutics) and the environmental sector (detection and remediation of inorganic and organic pollutants). The biomedical and clinical translation of nanozymes have been extensively reviewed [1,2,3,4], from their applications in immunoassays [5,6,7,8,9,10] to cancer diagnostics and therapeutics [11,12,13,14,15]. As nanozymes offer better structural stability over their respective natural enzymes, with wider physical (e.g., temperature) and chemical (e.g., pH) operational windows, they are ideal candidates for real-time and/or remote environmental monitoring and remediation. This is especially so given the challenging and unpredictable nature of the outdoor environment (compared to a more physiologically stable in vivo or in vitro environment which has a more defined and narrower operational window). In this review, the current environmental translation of nanozymes into a powerful sensing or remediation tool through inventive (i) nano-architectural design of nanozymes and (ii) transduction methodologies will be reviewed, as well as the practical deployment of these nanozymes in terms of their functionality and recyclability.

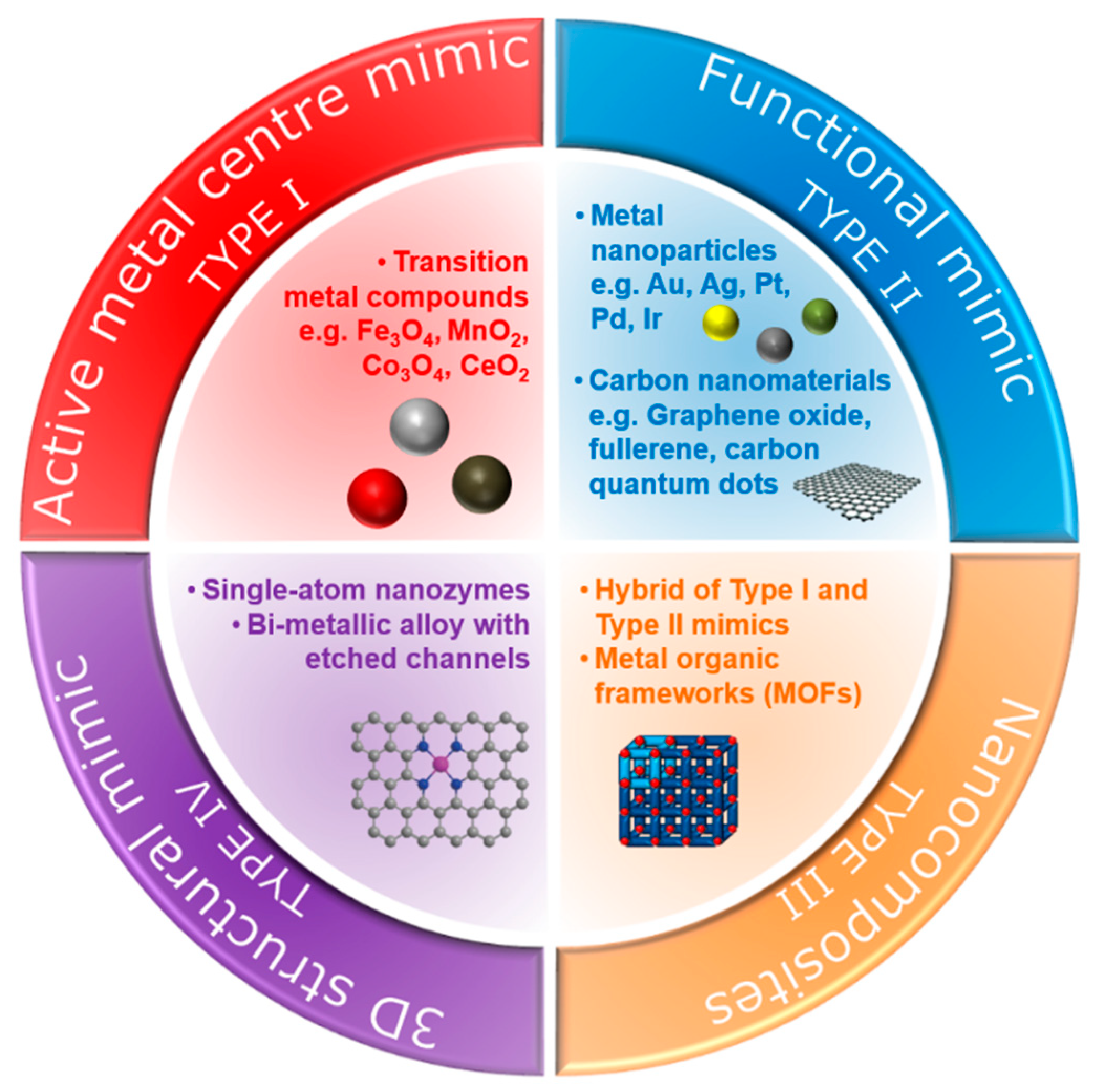

1.2. Types of Nanozymes

Over the last few decades, various types of nanomaterials have been reported to have intrinsic enzyme-like activities [16,17]. Natural enzymes exhibit intrinsic catalytic ability, usually at a single active site, to catalyse a specific chemical transformation [18,19]. Since nanozymes lack such an active site, different strategies have been devised to enhance the catalytic properties of these nanomaterials, enabling them to selectively and effectively react with target molecules. In this review, we categorise nanozymes into four types based on their mode of natural enzyme-mimicking behaviour (Figure 1).
One strategy utilises constructed metal sites (type I nanozymes), such as metal oxides or metal sulphides, to mimic the metal catalytic active site found in metalloenzymes [20]. An early example of such nanozymes is iron oxide (Fe3O4) nanoparticles, as reported by Gao et al. [6], which exhibit peroxidase-like activity similar to the natural horseradish peroxidase (HRP) enzyme. Peroxidases catalyse the oxidation of a chromogenic substrate, such as 3,3′,5,5′-tetramethylbenzidine (TMB), 2,2′-azino-bis(3-ethylbenzothiazoline-6-sulfonic acid) (ABTS), o-phenylenediamine dihydrochloride (OPD), in the presence of hydrogen peroxide, H2O2. The smallest Fe3O4 nanoparticles (out of 30, 150 and 300 nm) were found to have the highest catalytic activity, which showed that the high surface area of the Fe3O4 nanoparticles was responsible for the peroxidase-like activity. Gao et al. [6] postulated that the active surface ferrous and ferric ions in the nanoparticles were the key components that enabled this catalytic activity, mimicking the iron–heme binding site in HRP. Cerium oxide (CeO2) nanoparticles also utilise their metal as a nanozyme due to its similarity in structure and biochemistry to the iron ion, particularly in binding to proteins [21]. In fact, CeO2 nanoparticles are multifunctional catalysts whereby they exhibit catalase-like (breakdown of H2O2 into O2 and H2O) and superoxidase-like (dismutation of O2•− into O2 and H2O2) activities in addition to bearing peroxidase-like activity. The multifunctional catalytic behaviour arises from the coexistence of Ce(III) and Ce(IV) oxidation states. The switch between the III/IV valence resembles the mechanism of redox enzymes, which use metals as cofactors to catalyse a range of reversible redox reactions [16]. As such, reactions comprising redox cycles between Ce(III) and Ce(IV) oxidation states make it possible for CeO2 nanoparticles to react catalytically with oxygen radicals and hydrogen peroxide, thus mimicking the function of two key antioxidant enzymes, namely superoxide and catalase [22]. Similar to the Fe3O4 nanoparticles, the enzyme-mimicking behaviours of CeO2 are also size-dependent, whereby the smaller CeO2 (5 nm) have superior catalytic activity to that of larger (28 nm) nanoparticles [23]. This is further exemplification that the catalytic activities of the nanozymes are dependent on the amount of catalytically active atoms exposed on the surface (where the catalytic mechanism is related to changes in metal valence), which is usually inversely proportional to the diameter of the nanoparticles.
Other common metal–heme centres found in metalloenzymes include copper, cobalt and manganese ions (Table 1). As such, nanoparticles synthesised from cobalt oxide (Co3O4) [24], cobalt sulphide (Co9S8) [25], copper oxide (CuO) [26] and manganese dioxide (MnO2) [27,28] are also known to possess either peroxidase, oxidase and/or catalase-mimicking activities.
While the type I metal compound nanoparticles are those that mimic the metal–heme redox centre of metalloenzymes, other metal nanoparticles that catalyse the same reactions as natural enzymes are classified as type II nanozymes. These metal nanoparticles are synthesised from metals which are known to exhibit intrinsic catalytic behaviour for various heterogeneous reactions. Such metals include gold, silver, platinum, palladium and iridium [29,30,31]. Rossi and co-workers reported that gold nanoparticles, under controlled conditions (unprotected “naked” nanoparticles, 3.6 nm diameter, in the presence of excess glucose) could initially catalyse reactions similar to glucose oxidase and thus serve as a mimic for glucose oxidase [32]. Moreover, gold nanoparticles also showed peroxidase-mimicking activity [33,34]. Chen and co-workers [33] demonstrated that unmodified gold nanoparticles had significantly higher catalytic behaviours towards peroxidase substrates, which indicated that the superficial gold atoms were the key component to the observed peroxidase-like activity. Modified gold nanoparticles with different surface charges (positive or negative) also exhibited peroxidase-mimicking activity [34]. In fact, it was found that their enzyme-mimetic activities could be modulated by changing the pH of the environment (i.e., pH-switchable). Gao and co-workers [35] demonstrated that gold, silver, platinum and palladium nanomaterials exhibited peroxidase-like activities at acidic pH and catalase-like activities at basic pH [35]. The pH-switchable phenomenon was further investigated by Nie and co-workers using 1–2-nm platinum nanoparticles, which showed that the catalase-like activity was evident under basic conditions while the peroxidase-like activity was more dominant under acidic conditions [36]. The catalytic mechanism of the metal nanoparticles is different from the metal compound-based nanozymes and is related to the adsorption, activation and electron transfer of substrate (e.g., TMB, ABTS or OPD) on metal surfaces rather than a change in the metal valence of the nanomaterial.
Another intriguing aspect of metal-based nanozymes is that they can form alloys with different elemental compositions [37]. By combining the independent electronic characteristics of two metals, bimetallic nanoparticles can further exhibit unique properties through the synergetic effect of the two metals [38]. Thus, this makes it feasible to tailor the enzyme-mimicking activities by adjusting alloy compositions, classified here as type III nanozymes. In one example, He et al. showed that for Ag-M (M = Au, Pd, Pt) bimetallic alloy-based peroxidase nanozymes, the efficiency of the catalytic activity could be tuned by gradually changing the ratio of the two metals [39]. They suggested that the composition-dependent activity was from the electronic structure due to alloying. In another example, further enhancement of the multi-enzymatic activities was demonstrated by Yin, Wu and co-workers [40] using Au-Pt bimetallic nanoparticles by controlling the Pt and Au molar ratio to exhibit oxidase, peroxidase and catalase-like activities. An enhanced peroxidase-like activity of Ir-Pd nanocubes was obtained by depositing an Ir atomic layer on the surface of Pd nanocubes [41]. It was postulated that the adsorption energy of the Ir-Pd(100) surface was larger than that of the Pd(100), making it more energy-efficient to dissociate hydrogen peroxides into hydroxyl radicals.

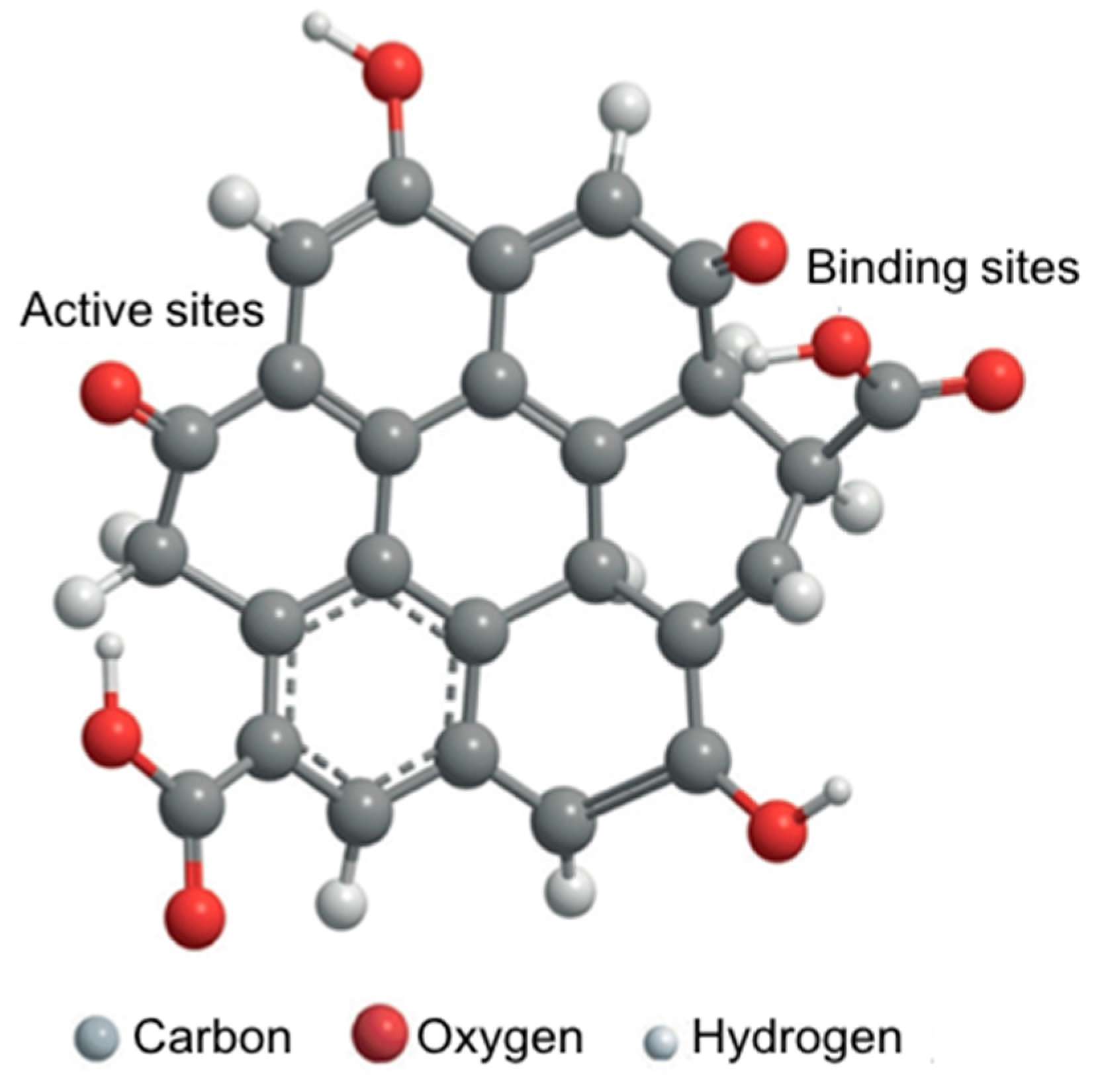

Non-metallic nanozymes such as carbon-based nanomaterials, including fullerene and their derivatives, carbon quantum dots, carbon nanotubes and graphene oxide, are showing great promise with enzyme-mimicking capability owing to their intrinsic catalytic properties. The peroxidase, catalase and oxidase-like activities have all been reported [42,43,44,45,46,47]. In one example, Shi et al. [44] reported that carbon quantum dots exhibited peroxidase-like catalytic activity. It was concluded that the catalytic mechanism came from an increase in the electron density and mobility in the carbon quantum dots acting as effective catalytically active sites. Qu and co-workers [45] also reported that carboxyl-modified graphene oxide exhibited peroxidase-like activity, with electron transfer occurring from the top of the valence band of graphene to the lowest unoccupied molecular orbital of hydrogen peroxide. To further lower this band gap and improve the peroxidase-like behaviour, Kim et al. [46] co-doped the graphene oxide with nitrogen and boron and demonstrated a much higher catalytic behaviour than undoped graphene oxide. Besides peroxidase-like behaviour, the catalase-like behaviour was reported by Ren et al. [47] using graphene oxide quantum dots.
Metal–carbon nanocomposites have also been investigated as a strategy to further improve the catalytic activities of carbon nanozymes [48,49,50,51]. An oxidase-like nanozyme, catalysing an oxidation–reduction reaction involving oxygen as an electron acceptor, was constructed using a metal–carbon nanocomposite hybrid through doping a N-rich porous carbon with Fe nanoparticles [51]. The group suggested that the N-doped porous carbon acted as the binding sites to trap and transfer O2 molecules to catalytic sites and subsequently catalysed their redox reaction with the Fe nanoparticles. In another example, Guo, Zhang and co-workers [48] integrated graphene quantum dots with Fe3O4 nanoparticles and demonstrated superior peroxidase-like activities compared to individual graphene quantum dots and Fe3O4 nanoparticles. This superiority was attained from the synergistic interactions between graphene quantum dots and the Fe3O4 nanoparticles. Compared to the native HRP, this nanocomposite showed comparable, if not better, removal efficiencies for some phenolic compounds from aqueous solution, rendering it useful for industrial wastewater treatment [48].
All metal-, metal-compound- and carbon-based nanozymes rely on the high surface area, enabled either through small particle size (of the order of tens of nanometres for metal- or metal-compound-based nanozymes) or porous structure (carbon-based nanozymes) to maximise the exposure of the catalytically active atoms. Metal–organic frameworks (MOFs) which consist of metal ions as nodes and organic ligands as linkers also have highly porous structures that can be utilised as nanozymes. In this construct, the transition metal nodes containing the MOFs themselves can act as biomimetic catalysts, while the high porosity structure created by the metal–organic linkers can serve as the binding sites for the substrates. Their tuneable pore sizes, highly specific surface areas and exposed active sites provide MOFs with high catalytic efficiency [52]. In one example, Li and co-workers [53] demonstrated the use of a nanosized MOF, Fe-MIL-88NH2, as a peroxidase mimic. The catalytic mechanism was proposed as follows: hydrogen peroxide was adsorbed onto the surface or into the mesopores of Fe-MIL-88NH2, and the hydrogen peroxide was decomposed into hydroxyl radicals by iron. Other than the Fe-MOF, Cu-MOF [54], Ni-MOF [55], Pt-MOF [56] and Co/2Fe MOF [57] are also known to exhibit peroxidase-like behaviours. The bimetallic-MOF, Co/2Fe-MOF, exhibited dual enzymatic activities, peroxidase and oxidase. Additionally, Min, Chu and co-workers showed that CeO2-MOF acted as a hydrolase mimic (breakage of a chemical bond using water) to remove a phosphate group, PO43−, from phosphopeptides [58]. Prussian Blue nanoparticles are an analogue of MOFs which can simultaneously behave as multienzyme mimics (peroxidase, superoxide dismutase and catalase-like activities) and were used effectively as a scavenger for reactive oxygen species [59].
Although the aforementioned metal-compound-, metal-, carbon-, nanocomposite- and MOF-based nanomaterials show promising enzyme-mimicking abilities, achieving the same level of binding affinity and specificity as natural enzymes remains a challenge. The limiting factors include (i) the density of the catalytically active surface ions (such as the metal ions) and functional groups (such as the carboxyl group in the carbon nanomaterials), and (ii) the efficiency of the catalytic mechanism. It has been demonstrated that nanozymes with a low density of active sites show much lower catalytic activities [60]. Additionally, the elemental composition and facet structure of these nanozymes cause the catalytic mechanism of nanozymes to be different and are usually more intricate than natural enzymes [37,61]. These limitations constrain the extensive applications of these standard nanozymes. Consequently, new strategies have emerged to mitigate these constraints through spatial or three-dimensional structural mimicking of the active sites of natural enzymes [62,63]. These structural mimics can be achieved by mimicking the geometry of pre-existing metal binding centres, the binding sites at the peripheral or the confined and empty space at the centre of natural enzymes (type IV nanozymes).

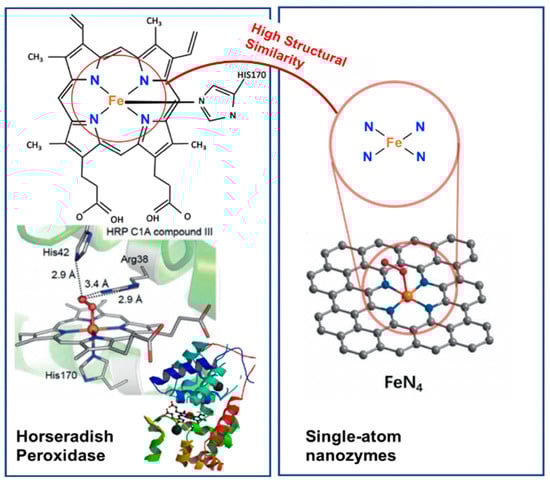

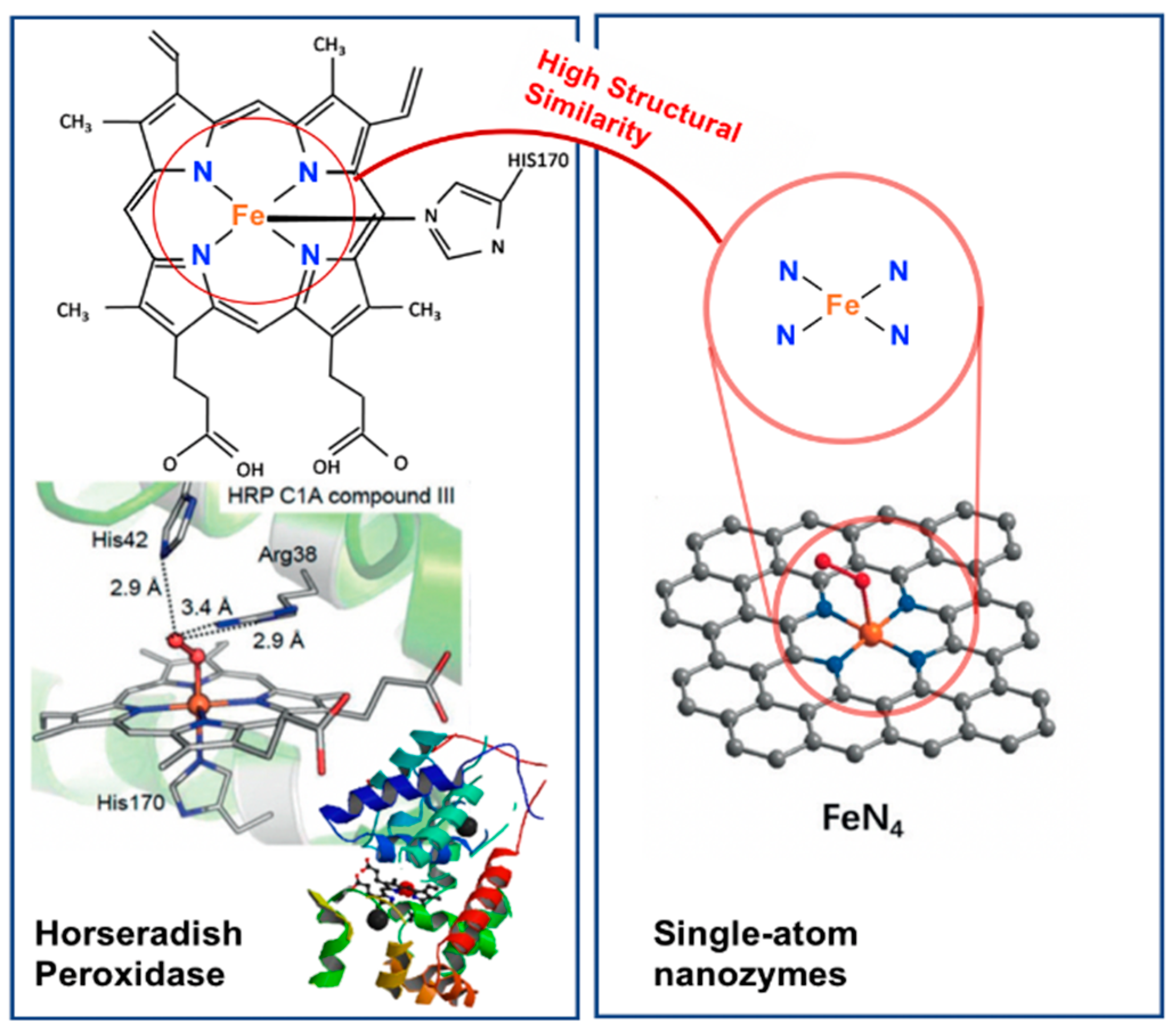

Single-atom nanozymes resemble spatial structures to mimic the electronic, geometric and chemical structure of the pre-existing metal binding centre of metalloenzymes. For example, the FeN4 in iron-based single-atom nanozymes mimic the active sites of oxymyoglobin, HRP and cytochrome P450 enzymes which contain a single heme Fe with a proximal ligand (Figure 2) [64,65]. In particular, Huang, Zhu and co-workers reported that densely isolated FeN4 single-atom nanozymes exhibited outstanding peroxidase-like activities [66]. Both their experimental and theoretical analyses showed that FeN4 led to strong adsorption of hydrogen peroxide, weakened the bonding between the single Fe atom and the two adsorbed hydroxyl groups and lowered the energy barrier for the formation of hydroxyl radicals to boost the peroxidase-like activities. Additionally, other metals such as cobalt and zinc could also be used to create CoN4, and ZnN4 single-atom nanozymes that exhibited peroxidase-like activities [66]. The addition of an axial N coordination to form FeN5 single-atom nanozymes enhanced the oxidase-like behaviour of the Fe based single-atom nanozymes [62]. The FeN5 structure had the most adsorption energy, by promoting strong oxygen adsorption that led to weakening of the O–O bond. Wang, Dong and co-workers [62] postulated that the weakening of the O–O bond was a result of the electron donor via the electron push effect of the axial-coordinated N in the FeN5 single-atom nanozyme.
Other structure-mimicking strategies have been achieved through the creation of binding sites, such as nano-channels at the nanozymes, by resembling the binding sites of natural enzymes either at the periphery or in the centre (usually a confined empty cavity); see Figure 3. In a pioneering example, Schuhmann, Tilley, Gooding and co-workers designed a nanoparticle that mimicked the 3D architecture of a natural enzyme by using surfactant-covered PtNi bimetallic nanoparticles [63,67]. In their design, the surfactant-covered PtNi particles were selectively etched to create nano-channels that were specific for catalysing the reduction reaction of oxygen. The group reported that the oxygen reduction reaction activity normalised by the electrochemically active surface area was enhanced by a factor of 3.3 for the nanozymes compared to the unetched PtNi nanoparticles.

1.3. Catalytic Mechanisms

The most important advantage of nanozymes is their size-/composition-dependent activity, which enables the architectural design of nanomaterials with a broad range of catalytic activities by varying the shape, structure and composition. These nanozymes share certain similarities, such as that they need to be within a certain range of size, shape and surface charge to enable them to mimic natural enzymes. It is useful to acquire a basic insight into how these factors affect the catalytic performance of nanozymes. Thus, a fundamental understanding of the catalytic mechanisms behind the enzymatic-like activities is critical for further creative design of nanozymes with improved catalytic performance. In this section, we summarise the general mechanisms and analyse the catalytic mechanisms according to the types of nanozymes as introduced in the previous section.

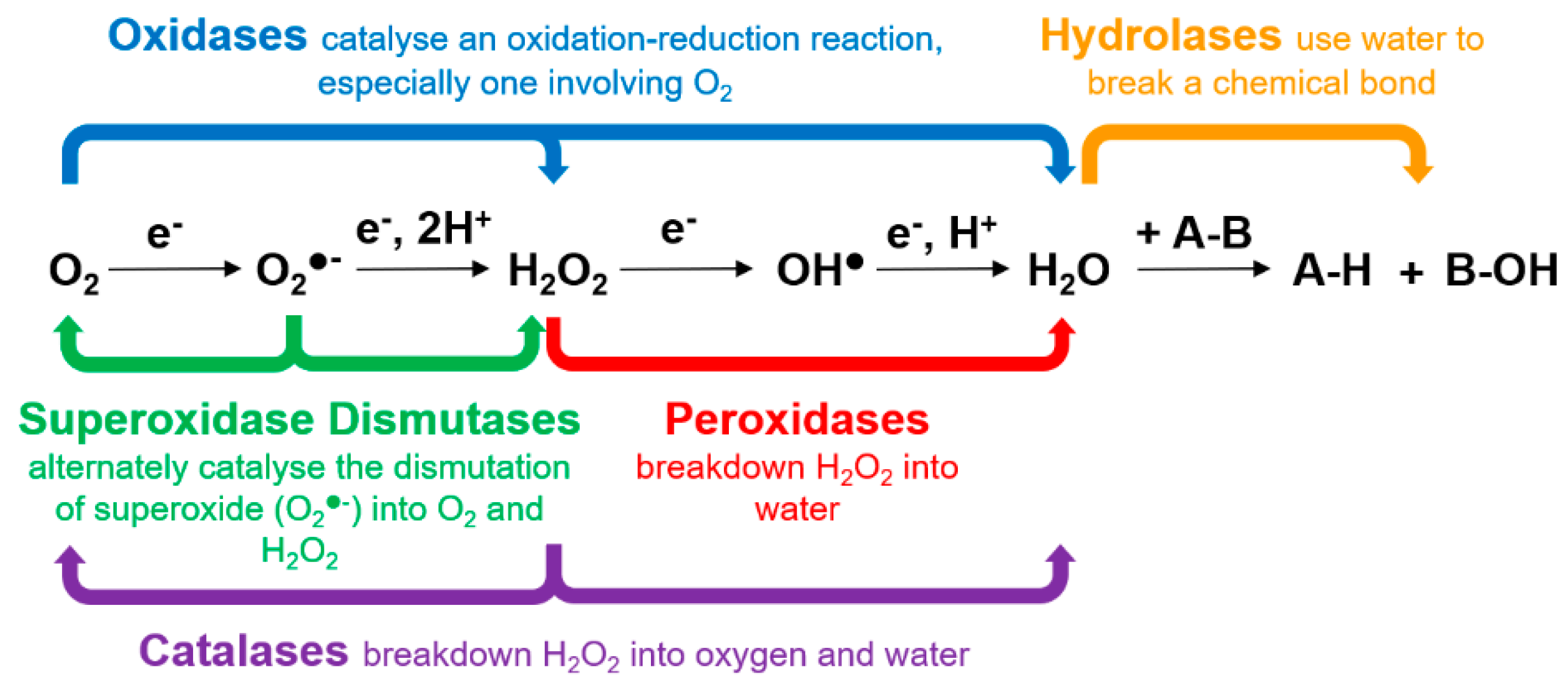

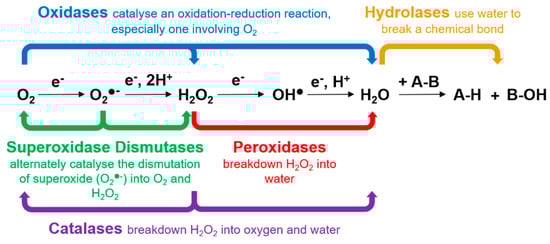

Natural enzymes are internationally classified into six classes: oxidoreductases, transferases, hydrolases, lyases, isomerases and ligases. The majority of nanozymes are known to mimic the catalytic activities of oxidoreductases and hydrolases (Figure 4). Oxidoreductases catalyse oxidations and reductions in which hydrogen or oxygen atoms or electrons are transferred between molecules. Natural enzymes such as oxidases (including laccases), superoxide dismutases, peroxidases and catalases belong to the oxidoreductase family. Hydrolases catalyse the hydrolysis of various bonds and include enzymes such as phosphatase, nuclease, protease and peptidase.
The mode of catalytic reactions of natural enzymes involves two types of mechanisms, namely chemical and binding mechanisms. Chemical mechanisms include (i) acid-base catalysis (reactions involving H+ and OH and are pH-dependent), (ii) covalent catalysis (reactions involving formation of a transient covalent bond) and (iii) metal ion catalysis (reactions involving redox changes and stabilisation of charges). Binding mechanisms involve (iv) proximity/orientation-assisted catalysis, (v) transition state stabilisation-assisted catalysis, and vi) electrostatic catalysis. Natural enzymes use one or a combination of these actions to catalyse a chemical transformation. Understandably, nanozymes also employ one or more of these mechanisms to mimic natural enzymes.
Metal compound-based nanozymes rely on changes in metal valence to catalyse the redox reaction, and this usually involves the use of transition metal elements which have variable oxidation states. These are also the metals commonly found in the metal–heme centre of metalloenzymes as well. Metal-compound-based nanozymes include Fe3O4, Co3O4, CeO2, CuO and Mn3O4, in which the metal elements can be converted between variable valence states, making them promising nanozyme candidates. Using Fe3O4 nanoparticles as an example, Smirnov and co-workers [68] reported that the peroxidase-like activity of iron oxide originated mainly from the interaction of hydrogen peroxide with the ferrous ions on the surface of the nanoparticles (rather than from the dissolution of metal ions from the nanoparticles). These may follow Fenton reactions [69], which can be written as Equations (1)–(3). Other transition metals (M) follow similar Fenton reactions comprising redox cycles between M(n) and M(n + 1) oxidation states.
Fe 3 + + H 2 O 2 FeOOH 2 + + H +
FeOOH 2 + Fe 2 + + HO 2
Fe 2 + + H 2 O 2 Fe 3 + + OH + HO

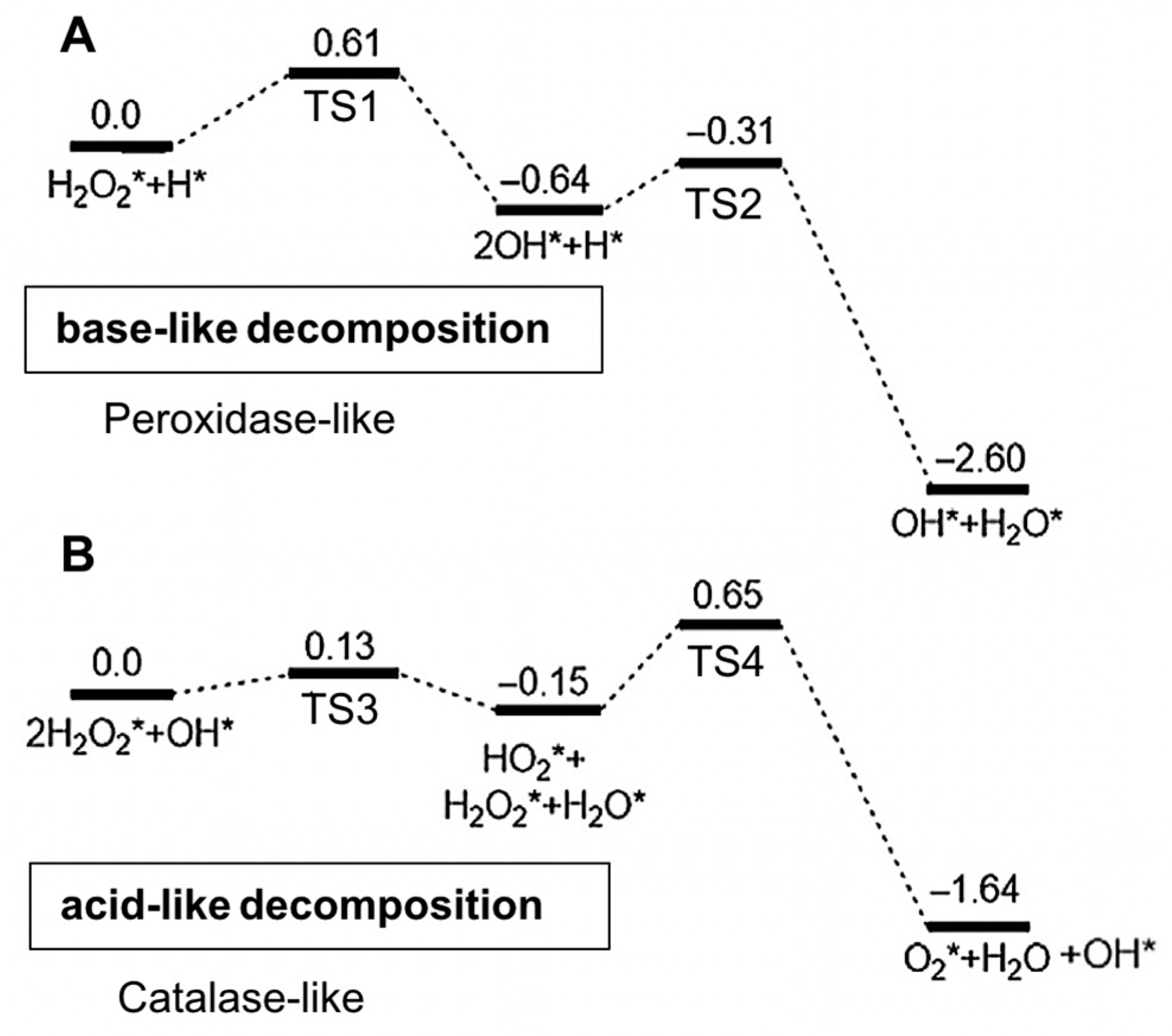

The catalytic mechanism of metal nanoparticles differs from metal-compound-based nanozymes and is related to the adsorption, activation and electron transfer of the substrate (e.g., TMB, ABTS or OPD) on metal surfaces. As mentioned in the previous section, metal-based nanozymes exhibit intrinsic pH-switchable peroxidase and catalase-like activities [35]. The pH-switchable ability arises from the acid-base type of catalysis of the metal-based nanozymes, which consists of the adsorption and decomposition of hydrogen peroxide under different pH conditions. Adsorption of hydrogen peroxide first occurs on the metal surface to initiate the catalytic reaction; then, the adsorbed hydrogen peroxide undergoes two different decomposition pathways depending on the pH of the micro-environment [35]. Under acidic conditions, hydrogen peroxide follows a base-like decomposition pathway to exhibit peroxidase-like activity, whereas under basic conditions, it follows an acid-like decomposition pathway exhibiting catalase-like activity. Figure 5 illustrates the decomposition mechanisms under acidic and basic conditions. Similar to the peroxidase and catalase-like activities, the catalytic mechanism for oxidase-like behaviour was demonstrated by Wu, Gao and co-workers [37] using density functional theory to involve the adsorption of oxygen to the metal surface, followed by the dissociation of oxygen. The proposed mechanism for the oxidase-like activity is shown in Equations (4) and (5). The same catalysis mechanisms as shown in Figure 5 and Equations (4) and (5) were also applicable to bimetallic [35,37,40,70,71] and MOF-based [72] nanozymes.
O 2 = 2 O *
O * + S H 2 O * + S ox
* is used to indicate species adsorbed on metal surfaces. S is a chromogenic substrate; Sox is the oxidised chromogenic substrate.
Unlike metal-compound- and metal-based nanozymes, the catalytic mechanism of carbon-based nanozymes is not as well documented. However, it follows a catalytic route as for the metal-based nanozymes involving the adsorption, activation and electron transfer of the substrate at carbon surfaces. Qu and co-workers [43,73] completed a comprehensive study of the mechanism of the peroxidase-like activity of graphene oxide quantum dots, which stemmed from their ability to catalyse the decomposition of hydrogen peroxide and generate highly reactive hydroxyl radicals. These catalytic reactions occur at two sites, reactive and substrate-binding sites: the functional groups –C=O act as the catalytically active sites for converting hydrogen peroxide to hydroxyl radicals, and the O=C–O– groups serve as the substrate-binding sites for hydrogen peroxide (Figure 6). In a separate study, Zhao et al. [74] also reported a similar catalytic mechanism where the hydrogen peroxide attacked the –C=O group and H2O2 decomposed to form a hydroxyl radical.
For nanozymes that rely on structural analogy with the natural enzyme as the strategy to achieve the desired enzyme-mimicking properties, the high structural similarity maximises the binding energy of the substrate and lowers the activation energy required to initiate the catalytic reaction. Single-atom dispersion (for single-atom nanozymes) also generates the most sufficient size effect and provides maximum surface-active site exposure [75] because the catalytic mechanism depends primarily on the steric configuration of active centres instead of the size or structure of the nanoparticles as seen in the metal- and metal-compound-based nanozymes [62]. Using single-atom nanozymes with carbon nanoframe-confined FeN5 active centres, Wang, Dong and co-workers [62] reported both experimental and theoretical studies of the catalytic mechanism of their oxidase-like activity. The sterically configured metal active centres (FeN5) have a strong O2 adsorption to the surface, weakening the O–O bond and giving rise to a larger extent of O–O bond elongation, thereby promoting the oxidase-like activity. Additionally, Xu et al. [76] also reported a similar catalytic mechanism for the peroxidase-like activity of single-atom nanozymes with the adsorption of hydrogen peroxide to the sterically configured active centres and the decomposition of hydrogen peroxide into reactive radicals.
Instead of using the single-atom dispersion approach to maximise the surface-active site exposure, Calle-Vallejo et al. [77] introduced the concept of “coordination–activity plots” to predict the geometric structure of the optimal active sites. This involved counting the number of neighbouring atoms to the reaction active site rather than using the more conventional Sabatier principle to predict the activity of the catalyst based on the strength of the adsorption and desorption of key intermediates. Benedetti et al. [63] utilised the “coordination–activity plot” to design their nanozymes to structurally mimic the natural enzyme using a bimetallic alloy with etched nano-channels and demonstrated an improvement in the electrocatalytic performance of such a nanozyme.
In the following sections, the environmental applications of nanozymes will be discussed in greater detail. In particular, the administration of nanozymes for pollutant detection and degradation are intricate functions of the physicochemical properties of different types of nanozymes. Therein, (i) the ability to structurally manipulate the nanoparticles with atomic precision which affords specificity towards the detection of targeted pollutants, (ii) the surface engineering, such as the coatings applied, to improve the sensitivity of the detection and efficiency of biodegradation, and (iii) the transduction methods applied to enable the detection and biodegradation of pollutants are reviewed.

2. Detection of Metal Ions

2.1. Introduction

The persistence of toxic heavy metals in the environment is an important concern that can lead to adverse effects on human health. Heavy metals occur naturally in water, food and soil but also arise from industrial activities such as mining, smelting, electroplating, wood preserving and leather tanning [78]. In comparison to organic contaminants, inorganic ions are not biodegradable and tend to accumulate in the environment and organisms and enter the food supply chain. Effects from heavy metal exposure include nausea, vomiting, diarrhoea, abdominal pain, kidney dysfunction and, in extreme cases, death [78]. Therefore, there is a critical need for highly sensitive and selective sensors for monitoring metal ions. The Australian Drinking Water Guidelines for selected metals are listed in Table 2 [78].
Analytical instrumentation such as atomic absorption spectroscopy (AAS), inductively coupled plasma–optical emission spectroscopy (ICP-OES) and inductively coupled plasma–mass spectrometry (ICP-MS) [79] can address the needs of highly accurate and sensitive metal ion detection but require sample processing and analysis back in the laboratory as well as operation by trained personnel. Due to the high cost of this instrumentation, it are not easily accessible. Even where access to analytical laboratory testing facilities is available, the cost for analysis of a single sample is of the order of AUD 50–100 (USD 35–70) with a turnaround time of 2–5 days. This inherently limits the frequency of sampling as well as the number of collection points, which, in some instances, reduces the ability to rapidly identify the pollutant and its source.
Table 2. Australian Drinking Water Guidelines for Selected Metals [78].
Table 2. Australian Drinking Water Guidelines for Selected Metals [78].
MetalGuideline Value (mg/L)Potential Source
Arsenic0.01From natural sources and mining/industrial/agricultural wastes.
Cadmium0.002Indicates industrial or agricultural contamination; from impurities in galvanised (zinc) fittings, solders and brasses.
Chromium (VI)0.05From industrial/agricultural contamination of raw water or corrosion of materials in distribution system/plumbing.
Copper2From corrosion of pipes/fittings by salt, low-pH water.
Lead0.01Occurs in water via dissolution from natural sources or household plumbing containing lead (e.g., pipes, solder)
Mercury0.001From industrial emissions/spills. Very low concentrations occur naturally.
Silver0.1Concentrations are generally very low. Silver and silver salts occasionally used for disinfection.
Ideally, sensors which are portable and amenable for in-field sensing can reduce analysis times and provide real-time information as to the health state of the environment. Solid-state sensors that rely on colorimetric or electrochemical transduction can address these challenges as they are more compact and simpler to operate than lab-based analytical instrumentation. These sensors will ultimately lead to cost savings, as timely reporting allows rectifying actions to be taken before conditions worsen. Moreover, humans, animals and aquatic life will be prolonged by reducing the risk of exposure to these toxic elements.
Most colorimetric [80,81] or electrochemical transduction techniques [82,83] rely on a chemically sensitive material to interact with the metal ion of interest via coordination, adsorption or precipitation to induce a change in output signal. Detection of metal ions using metal nanoparticles generally involves the aggregation of nanoparticles to induce a colour change [84]. The aggregation of nanoparticles is facilitated by surface ligands which bind to the metal ion of interest and crosslink the nanoparticles, resulting in a shift in the surface plasmon resonance. Ionophores and porphyrins are also ligands that have been used to coordinate metal ions with high selectivity [85] and can be tethered directly to a substrate or immobilised within a polymer matrix. Not surprisingly, oligopeptides, DNA and enzymes [82,86,87,88] have also been studied for metal chelation since, in nature, metal ions play a key role in their interaction with living organisms. Metal ions can be highly toxic to enzymes since the thiol or methylthiol groups of amino acids near the active centre of enzymes can be blocked by heavy metals and inhibit their function [89].
In the past decade, several research groups have explored the use of nanozymes for the detection of metal ions [90,91,92,93]. Similar to natural enzymes, the peroxidase, oxidase or catalase-like activity of nanozymes can be inhibited or enhanced by the presence of metal ions. Many studies exploit the intrinsic peroxidase-like activity of nanozymes and are mainly type II metal nanoparticles [94,95,96,97,98,99,100,101]. These metal nanoparticles form an amalgam upon interaction with a metal ion or agglomerate through binding of the metal ion with the surface ligands of nanoparticles, changing the enzyme-like activity. The peroxidase-like activity of type I nanozymes such as cysteine-stabilised Fe3O4 magnetic nanoparticles (MNPs) [102], chitosan-functionalised MoSe2 [103] and Co9S8 [104] can also be triggered by metal ions. Nanocomposite type III nanozymes have also been explored through the synergistic combination of metal nanoparticles, graphene-based materials or MOFs [56,105,106,107,108,109]. These nanocomposites can serve to enhance the catalytic activity or are dual-purpose nanozymes for the adsorption and detection of the metal ion of interest. Studies exploiting the oxidase [110,111] or catalase-like [112,113] activity of nanozymes for metal ion detection are limited. Whilst most peroxidase-like nanozymes exhibit high metal ion selectivity, the demonstrated examples of catalase-like nanozymes were cross-selective [112,113] with the ability to detect multiple metal ions under various conditions. The proceeding sections will review the various metal ions and their detection using nanozymes.

2.2. Mercury Detection

Mercury is a highly toxic heavy metal which naturally occurs in water, soil and even food. Due to its wide range of adverse effects on human health, including tremors, mental disturbances and gingivitis [78], many efforts have been focused on developing highly sensitive and selective Hg2+ sensors.

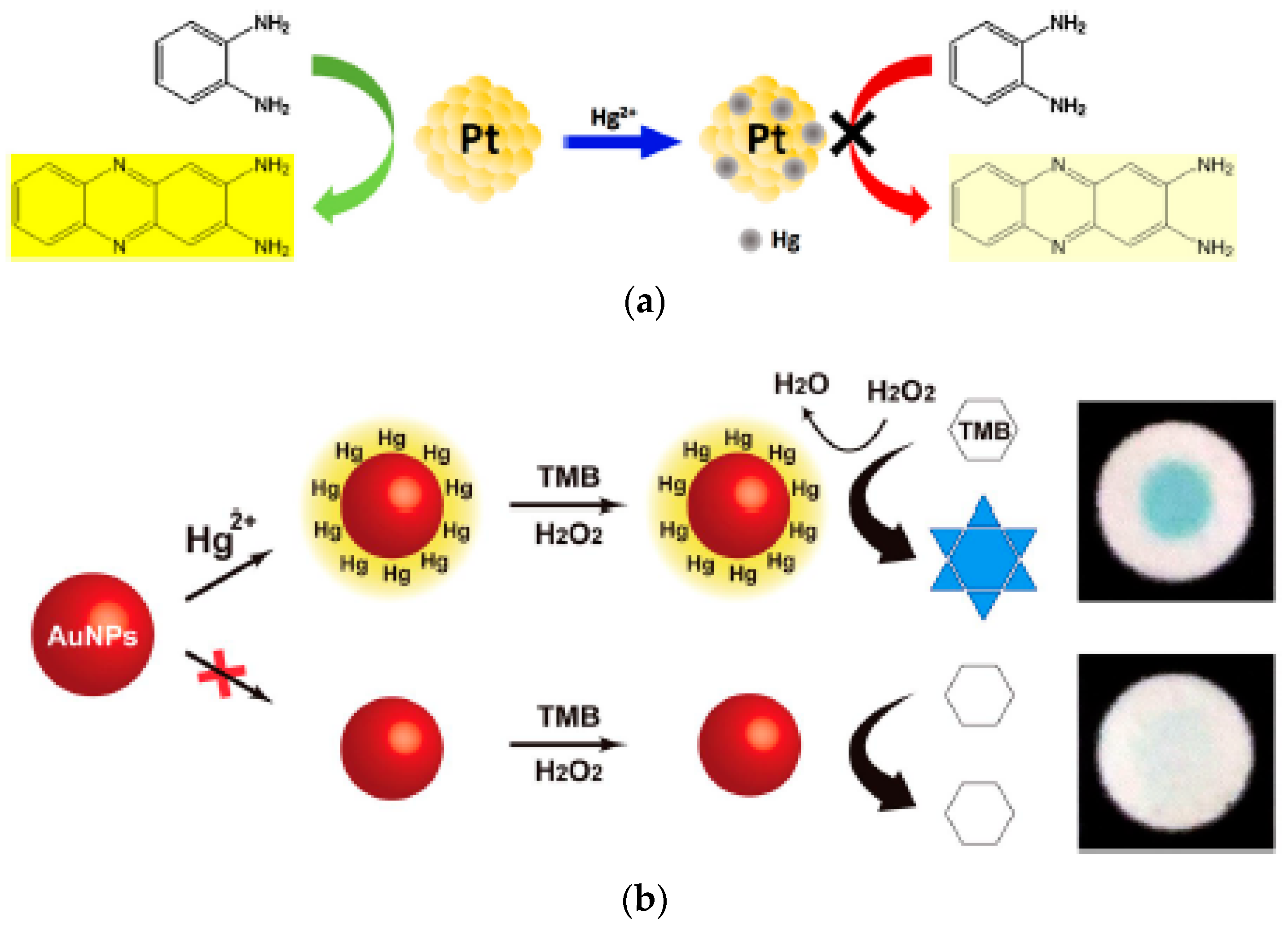

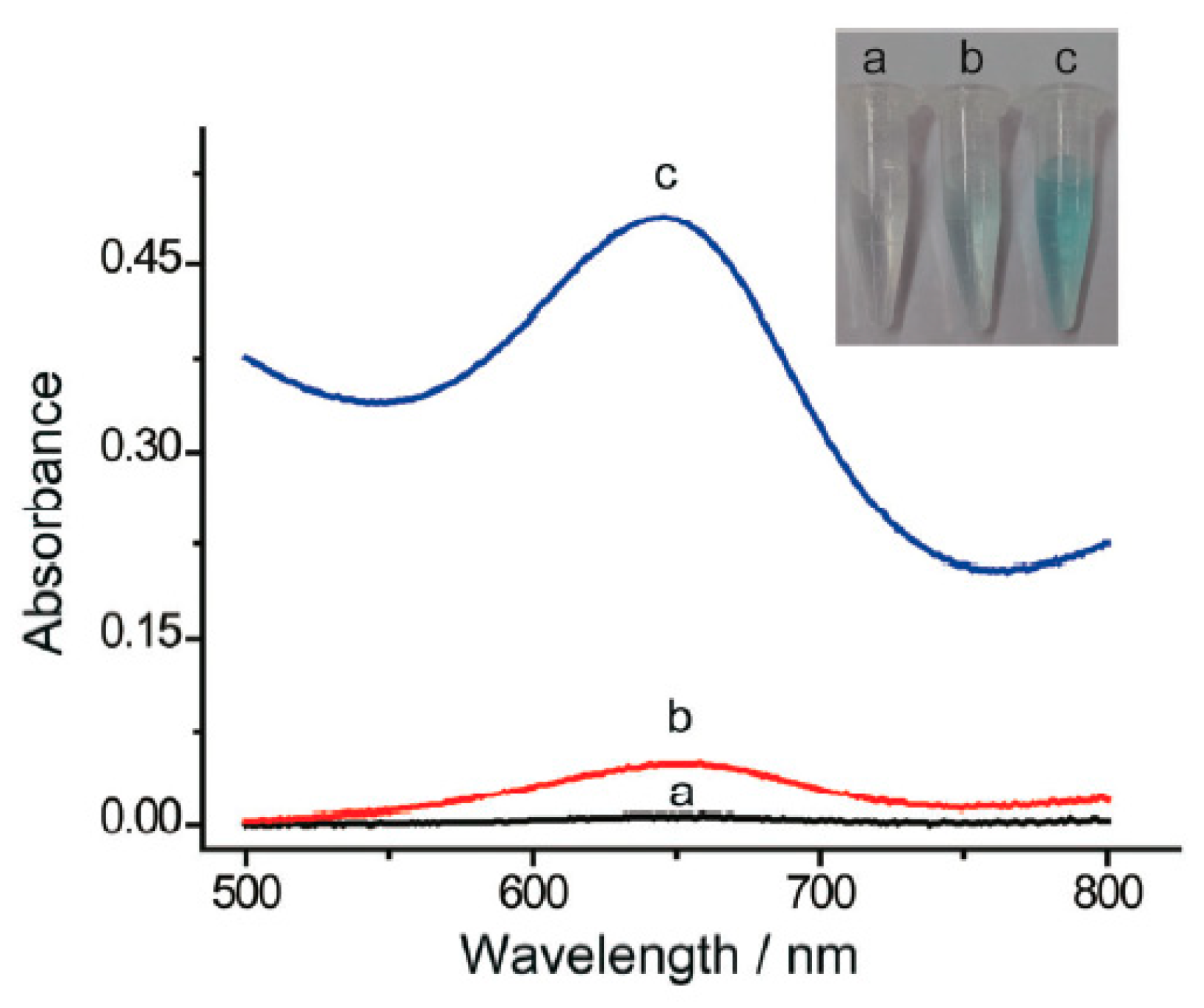

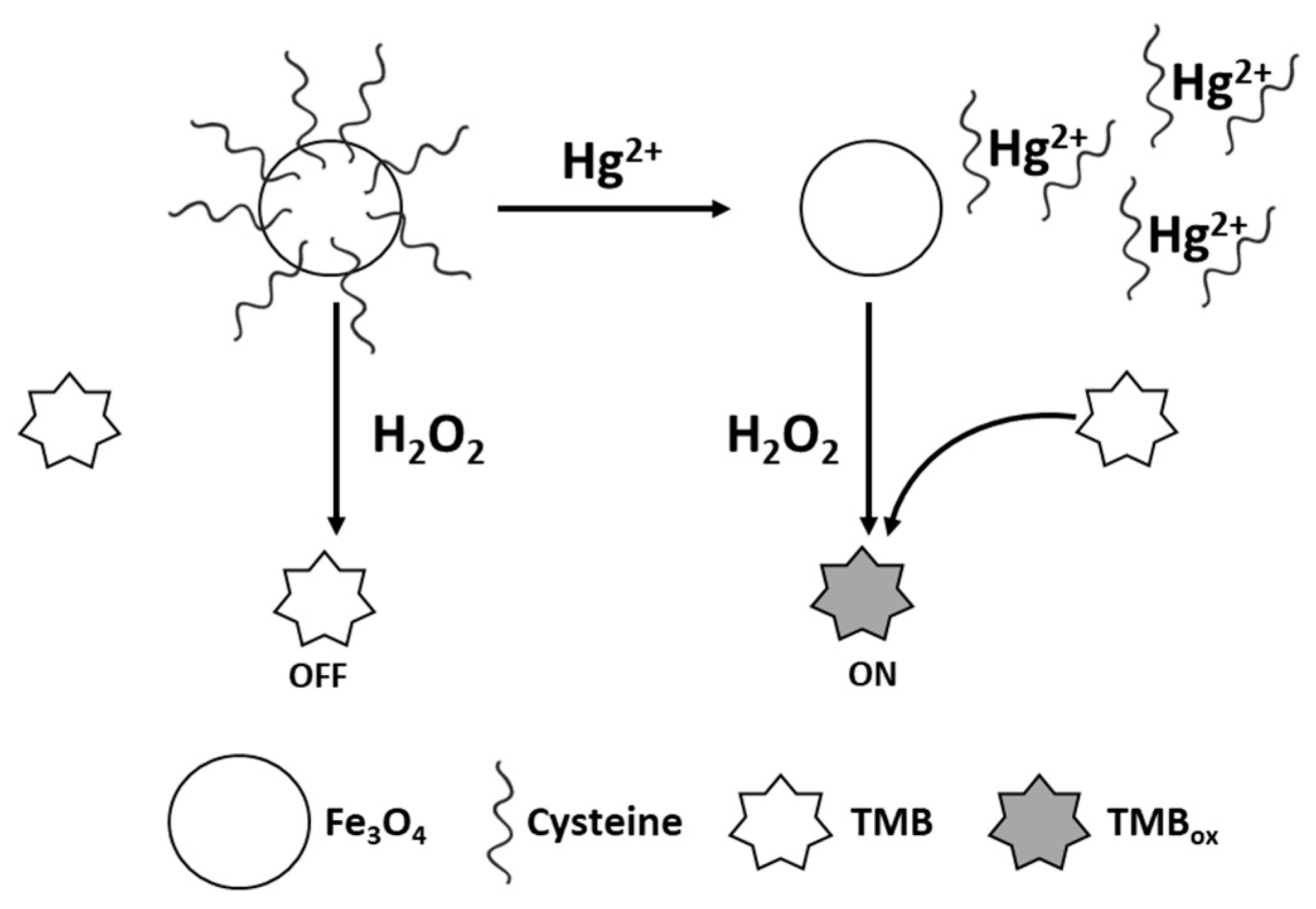

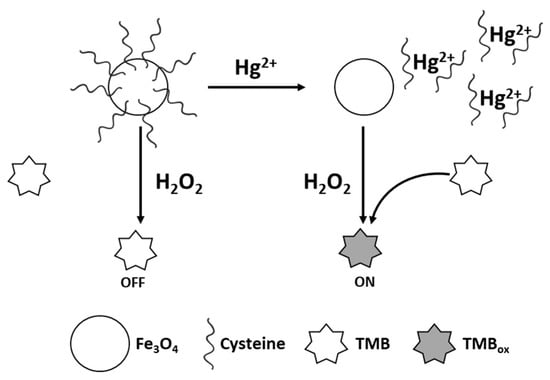

Long et al. [101] first reported a colorimetric sensor for Hg2+ based on the peroxidase-like enhancement of gold nanoparticles. TMB, a chromogenic substrate, can be oxidised by H2O2 in the presence of citrate-capped gold nanoparticles, resulting in a visual colour change from colourless to light blue. Remarkably, the addition of trace Hg2+ to the citrate-capped gold nanoparticles dramatically enhanced the oxidation of TMB, with the colour intensity proportional to the Hg2+ concentration. Compared to other metal ions at 25 times higher concentration, including K+, Na+, NH4+, Ag+, Ba2+, Mg2+, Co2+, Ni2+, Zn2+, Cu2+, Mn2+, Pb2+, Cd2+, Al3+, Cr3+ and Fe3+, the extent of oxidation of TMB was unaltered. The enhancement of peroxidase-like activity due to Hg2+ was attributed to two processes. In the first step, Hg2+ was reduced to Hg0 by sodium citrate, which also acted as a stabilising agent for the nanoparticles. Subsequently, the reduced mercury dispersed across the gold nanoparticle surface, forming a Hg-Au amalgam, and improved the peroxidase-like activity of the nanoparticles. The altered nanoparticle surface enhanced the formation of OH radicals on the surface due to bond breakage of H2O2. Similar phenomena were also observed with MoS2-Au [108], Cu@Au nanoparticles [94] and Au/Fe3O4/graphene oxide [109]. In the latter case, the catalytic activity of Au/Fe3O4/graphene oxide was improved in the presence of Hg2+, resulting in ultrasensitive detection of Hg2+ down to 0.15 nM [109]. Furthermore, mercury was able to be removed (>99% efficiency) from the surface of Au/Fe3O4/graphene oxide by the application of an external magnetic field, allowing reuse up to 15 times. In an approach towards rapid, on-site testing [114], Han et al. have developed a paper-based analytical device for Hg2+ detection based on citrate-stabilised gold nanoparticles (see Figure 7a). The device was designed so that multiple samples could be analysed simultaneously by having separate zones for reagent loading, absorbents and detection. By varying the number of drops of the test sample, colorimetric signal amplification due to the catalytic reaction of TMB and H2O2 could be realised.
Whilst the peroxidase-like activity of gold nanoparticles was stimulated by Hg2+, the application of platinum nanoparticles resulted in enzyme inhibition. Similar to gold, the mechanism for a change in catalytic activity of platinum-based nanoparticles was a result of Hg-Pt amalgam formation at the Pt surface, affecting the electronic structure and active Pt0 proportion. However, Hg2+ can interact directly with Pt0 via metallophilic interactions due to their matched d10 configuration, resulting in catalytic inhibition [91]. Li et al. [95] were the first to demonstrate in 2015 that the peroxidase-like activity of Pt nanoparticles stabilised by bovine serum albumin (BSA) could be inhibited through interactions between Hg2+ and Pt0, allowing the detection of Hg2+ down to 7.2 nM in 20 min without significant interference from other metal ions. Similarly, Zhou et al. [96] have used citrate-stabilised Pt nanoparticles for the detection of Hg2+ ions. The OPD colorimetric signal was inhibited through the reduction of Hg2+ by citrate, resulting in a Pt-Hg amalgam (see Figure 7b). To enable screening in-field in various water bodies and public drinking water distribution systems, Kora and Rastogi [115] have developed a green approach for the synthesis of platinum nanoparticles using chloroplatinic acid and a nontoxic, biodegradable plant exudate gum as a reducing and stabilising agent. These nanoparticles (with an average size of 4.4 nm) showed excellent tolerance to temperature and pH changes and exhibited peroxidase-like activity.
Although the majority of Pt-based nanomaterials exhibit peroxidase-like activity, the oxidase-like activity has also been demonstrated, which is more ideal for environmental detection since unstable H2O2 is not required. Doping of Pt nanostructures with Se showed oxidase-like activity [110] due to an acceleration of electron transport and the anchoring of Se to Pt nanoparticles. The presence of Hg2+ inhibited the catalytic activity, enabling a facile colorimetric assay for Hg2+ down to 70 nM.
The enzyme-mimicking properties of nanomaterials can also be enhanced or inhibited through surface modification. Iron oxide nanoparticles are known to exhibit peroxidase-like activity, but their activity can be inhibited through blockage of the active Fe sites [6]. Cysteine-modified Fe3O4 nanoparticles [102] exhibited almost no colour change in the presence of TMB and H2O2 under pH 4.0 conditions. However, the presence of Hg2+ triggered the peroxidase-like activity of Fe3O4 due to the formation of a cysteine–Hg2+–cysteine complex (Figure 8). Excellent sensitivity was achieved, with a detection limit of 5.9 nM. Detection of Hg2+ was also enhanced using gold nanoparticles modified with chitosan [97]. Hg2+ can react with chitosan via the NH2 groups. By using TMB as a chromogenic substrate, and with 10-min incubation at 50 °C in pH 4.2 acetate buffer, the absorption peak at 652 nm was dramatically improved due to Hg2+. Selenium nanoparticles have also been shown to catalyse the oxidation of TMB by surface modification with chitosan. Compared to BSA and sodium alginate Se nanoparticles, the chitosan Se nanoparticles had the highest activity, which was attributed to the involvement of reactive oxygen species that may react more favourably with chitosan [111]. The oxidase-like activity of chitosan-stabilised Se nanoparticles could be inhibited by Hg2+ due to the extremely high affinity of mercury for selenium. High selectivity for Hg2+ (5 μM) was afforded when evaluated under the same conditions as Cd2+, Pb2+, Cu2+, Na+, K+, Ca2+, Mg2+, Zn2+, Mn2+, Al3+ and Fe3+ (100 μM). Similarly, Huang et al. [103] have demonstrated that chitosan-functionalised molybdenum (IV) selenide exhibited peroxidase and oxidase-like activities. The chitosan surface functionality enabled the reduction of Hg2+ ions to Hg0 and further enhanced the enzyme activity. The selectivity of the nanozyme to Hg2+ (2 μM) was well-demonstrated over other ions at 10 μM.
The use of nanocomposites has also been gaining popularity as enzyme mimics. Combining metal nanoparticles with support materials such as graphene and MOFs is highly attractive as they may result in higher activities owing to synergistic interactions [56,105,108,109]. Gold nanoparticles dispersed onto a porous amino-functionalised titanium-based MOF exhibited peroxidase-like behaviour [105] that was higher than the individual gold nanoparticles and titanium-based MOF. Furthermore, kinetic analysis of the nanocomposite revealed a lower Michaelis constant value, Km (i.e., a higher affinity for the substrate), than HRP. The presence of cysteine inhibited the peroxidase-like behaviour but could be reactivated by Hg2+ due to the strong affinity of Hg2+ for the thiol group of cysteine. The detection of Hg2+ was interfered with by Cu2+ and Ag+ but could be partially masked with ethylenediaminetetraacetic acid (EDTA) and Cl. MOFs have also been decorated with Pt nanoparticles [56]. Combining the high peroxidase-like activity of Pt nanoparticles with the high porosity and surface area of MOFs provided a rapid technique for the measurement and removal of Hg2+ ions. Hg2+ ions inhibited the peroxidase-like activity, with high sensitivity and a Hg2+ detection limit of 0.35 nM, without significant interference from coexisting metal ions. Furthermore, by using 5 mg of the nanocomposite, effective removal (>99%) of Hg2+ (up to 50 mg/L) could be demonstrated after 12-h incubation. It is envisaged that advances in nanomaterials would result in the rise of more dual-purpose materials that can be used for both sensing and adsorption of metal ions.

2.3. Lead Detection

Lead is a cumulative poison that can have a major detrimental effect on the central nervous system [78]. Considering the potential health effects, the permissible Pb(II) level for Australian drinking water is set at 10 μg/L [78]. Thus, it is imperative to provide simple methods for monitoring Pb2+ in a variety of samples (environmental and food). Natural enzymes, such as DNAzymes [116], have high catalytic activity for Pb2+ and have been employed as biosensors for Pb2+. In recent years, enzyme-mimicking nanomaterials for the detection of lead ions have gained popularity, involving enhancement and inhibition strategies. Gold nanoclusters modified with glutathione exhibit weak peroxidase-like activity [98] but the presence of Pb2+ ions can induce the aggregation of the gold nanoclusters due to binding with glutathione (Figure 9). The catalytic activity of TMB could be increased ten-fold upon aggregation, with a Pb2+ detection limit of 2 μM. Other bivalent metal ions (Ca2+, Cd2+ and Zn2+) capable of forming complexes with glutathione interfered with the detection of Pb2+, but at much higher concentrations. Au@Pt nanoparticles [117] have also been used for the determination of Pb2+ ions through inhibition of the peroxidase-like activity. In the presence of sodium thiosulfate, Pb2+ ions accelerated the leaching of gold, which induced slight aggregation of the gold nanoparticles from a hydrate size of 35.5 to 75.0 nm. The aggregated nanoparticles exhibited weakened peroxide activity and could be correlated to Pb2+ concentration without interference from other metal ions. A detection limit of 3.0 nM Pb2+ was achieved. In another example, layered WS2 nanosheets [118] also showed peroxidase-like activity which could be inhibited by Pb2+ ions. The high selectivity towards Pb2+ was attributed to the layered structure of the nanomaterial, which had a stronger adsorption capacity for Pb2+ than other metal ions. The nanozyme also offered high sensitivity (detection limit of 4 μg/L), which provided an easy method to distinguish whether the permissible Pb2+ level was exceeded even with the naked eye.

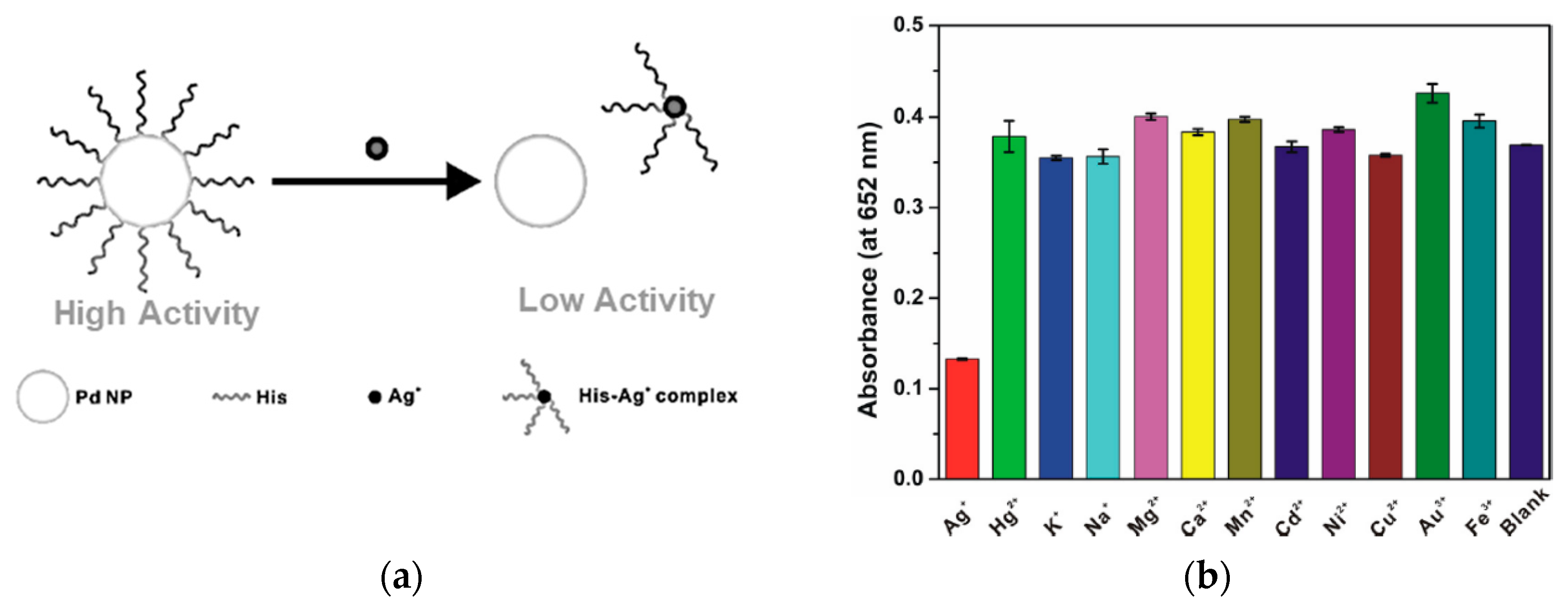

2.4. Silver Detection

Silver is widely used in the electrical, photography and pharmaceutical industries and has resulted in increased levels of silver in the environment. Bioaccumulation of silver in the human body can lead to argyria, which results in bluish-grey metallic discolouration of the skin, hair, mucous membranes, mouth and eye [78]. Thus, it is vital to monitor the presence of silver in environmental and biological samples. Nanozymes for Ag+ detection based on catalytic enhancement [106] and inhibition [99,100] have both been demonstrated. To more closely mimic natural enzymes, Zhang et al. [99] have modified Pd nanozymes with histidine. Amino acids are attractive surface modifiers for nanoparticles due to their biocompatibility and metal chelation ability. Histidine-modified Pd nanoparticles prepared by using histidine as a stabiliser and NaBH4 as a reducing agent offered enhanced TMB colour formation (peroxidase-like activity) compared to bare Pd particles, which were formed in the absence of histidine. In the presence of Ag+, specific binding to histidine resulted in the Pd nanoparticles being exposed, and the peroxidase-like activity was suppressed. A limit of detection down to 4.7 nM was achievable. No significant suppression of the TMB colour was observed in the presence of Hg2+, K+, Na+, Mg2+, Ca2+, Mn2+, Cd2+, Ni2+, Cu2+, Au3+ or Fe3+ ions at the same concentration as Ag+ (Figure 10). In another example of peroxidase-like inhibition, Au clusters stabilised by BSA were developed by Chang et al. [100]. The introduction of Ag+ as low as 0.204 μM selectively reacted with Au0 through redox reaction, which suppressed the oxidation of TMB by the BSA-stabilised gold clusters.
In order to shift away from the high cost of noble metal nanozymes, Li et al. [106] have developed zeolitic imidazolate frameworks-9/graphene oxide (ZIL-8-GO) as a peroxidase-mimicking nanozyme. The introduction of Ag+ greatly enhanced the peroxidase-like activity and there was no significant interference from other metal ions even at 250 μM. Detection of Ag+ was achieved visually by spotting filter paper with the reagents, offering the practicality of testing real samples. The Ag+ detection limit using the naked eye was 0.1 μM, compared to 1.43 nM using UV–Vis spectrophotometry in a sample cuvette.

2.5. Copper Detection

Constant monitoring of Cu2+ in environmental and drinking water is necessary since an intake of excess Cu2+ can cause liver or kidney diseases [78]. Many colorimetric assays have been developed for Cu2+ sensing [119,120] but the use of nanozymes has been limited. Recently, urchin-like Co9S8 nanomaterials [104] with needle-like nanorods were found to be intrinsically catalytic due to their ability to facilitate electron transport as a variable-valence metal sulphide between TMB and H2O2. The addition of cysteine switched the Co9S8 sensor to its “off” state due to TMB radical restoration by the thiol functionality of cysteine. However, the presence of Cu2+ reactivated the sensor back to its “on” state, with the ability to achieve excellent selectivity and a Cu2+ detection limit of 0.09 μM. Glutathione can also influence the catalytic activity of nanozymes such as Pt nanoparticles and play an important role in Cu2+ detection [121]. Pt nanoparticles exhibit oxidase-like activity as they can effectively catalyse the oxidation of TMB by O2. Glutathione inhibited the oxidase-like activity but its activity could be regained in the presence of Cu2+ due to oxidation of glutathione. Cu2+ detection was demonstrated in human serum but could also potentially be applied to environmental systems.

2.6. Chromium Detection

Elevated levels of chromium in the environment exist due to industrial activities such as the prevention of corrosion on metal surfaces [122]. Cr(VI) is highly toxic and can easily spread and bioaccumulate. Wang et al. [107] have developed an oxidase-like nanozyme that can detect Cr(VI) over a range of 0.03–5 μM with high selectivity. The presence of Cr(VI) and cerium oxide nanorod-templated MOFs boosted the oxidation of TMB substrate. The applicability of the nanozyme was demonstrated in spiked water samples, illustrating the potential for trace metal analysis in environmental waters.

2.7. Arsenic Detection

Arsenic poisoning stemming from long-term exposure to contaminated drinking water is a serious concern. In some parts of Australia [78], and in countries such as Argentina, Bangladesh, Chile, China, India, Mexico and the United States of America, concentrations of naturally occurring arsenic may exceed safe levels [123]. Despite the importance of arsenic detection, there are only a few examples of nanozymes being used for arsenic detection, all of which were published recently [124,125]. Cobalt oxyhydroxide (CoOOH) nanoflakes exhibit peroxidase-like activity [125] and can bind specifically to arsenate, As(V), via electrostatic attraction and As-O interactions. As(V) inhibited the oxidation of ABTS, resulting in a colorimetric detection limit of 3.72 ppb. By exploiting the redox conversion between ABTS and ABTSox, electrochemical detection of arsenate via chronoamperometry at a CoOOH-modified glassy carbon electrode resulted in even higher sensitivity, with a detection limit of 56.1 ng/L. Similarly, Zhong et al. [124] demonstrated an electrochemical and optical method for the determination of As(V) by using the peroxidase-like activity of iron oxyhydroxide (FeOOH) nanorods. The presence of As(V), as low as 0.1 ppb, inhibited the ability of the nanorods to catalyse the oxidation of ABTS substrate by hydrogen peroxide.

2.8. Detection of Multiple Metal Ions

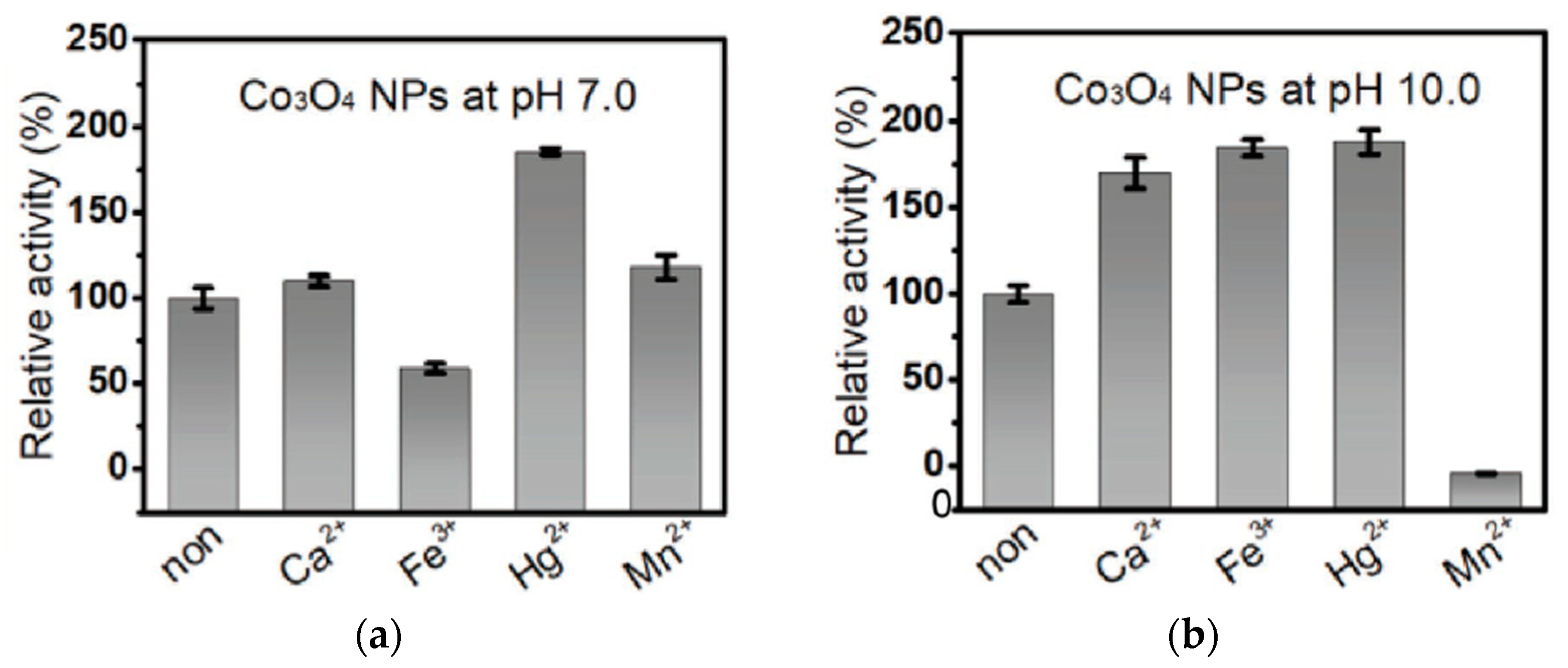

Most of the reported nanozymes exhibited high selectivity, which is ideal for monitoring a specific metal ion. However, due to the coexistence of multiple metal ions in environmental waters, a simple test that can monitor a suite of metal ions is highly desirable. Depending on the nature of the nanozyme, some were sensitive to multiple metal ions. Metallothionein-stabilised copper nanoclusters displayed catalase-like activity [113] due to their ability to decompose H2O2 and inhibit the oxidation of TMB. Interestingly, Pb2+ and Hg2+ ions were able to induce the conversion of the catalase-like activity to peroxidase-like activity (Figure 11), with detection limits down to 142 and 43.8 nM, respectively. The assay displayed potential for simultaneously monitoring toxic Pb2+ and Hg2+ in environmental water samples.

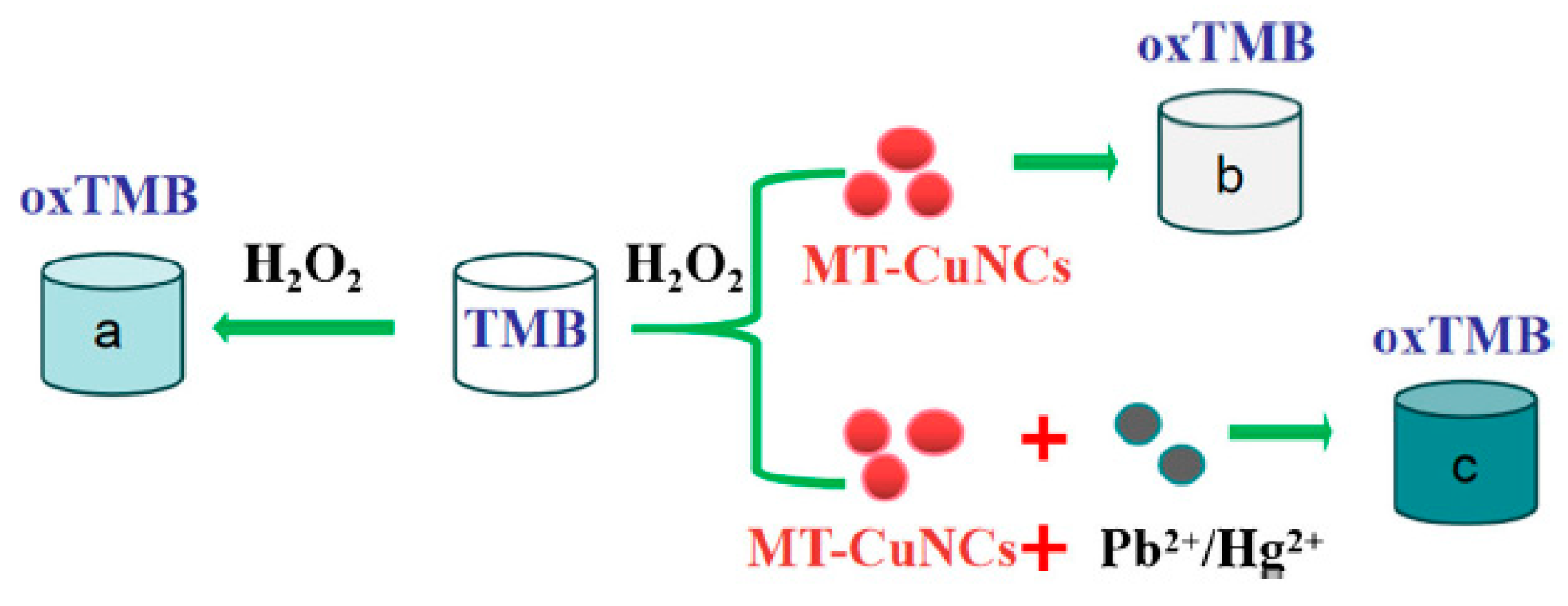

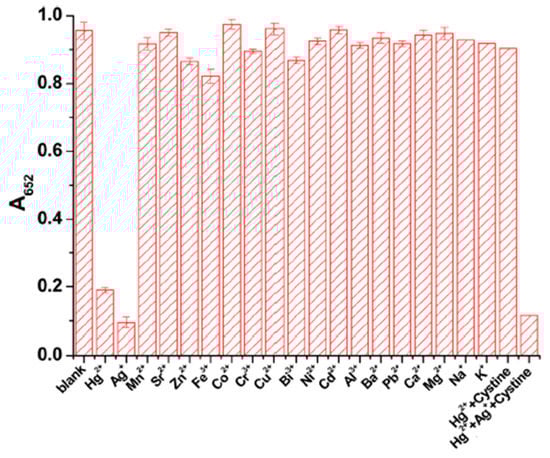

Mercury and silver usually coexist in water, and peroxidase-like nanozymes have been developed that are sensitive to both metal ions. Surface modification of Au@Pt nanoparticles with sodium dodecyl sulfate effectively shielded most metal ions via complexation, except for Hg2+ and Ag+ [126]. The detection limits for Hg2+ and Ag+ were 3.5 and 2.0 nM, respectively. To discriminate Hg2+ and Ag+, cystine was added to shield Hg2+ as a result of cystine–Hg2+ binding interaction (Figure 12). In a similar approach, Zhao et al. [127] have used EDTA to mask Hg2+, providing a sensitive and selective means to detect both Hg2+ and Ag+ using the peroxidase-mimicking ability of polyvinylpyrrolidone-coated platinum nanoparticles.
Han et al. [112] have exploited the pH-sensitive catalase-like activity of Co3O4 MNPs to discriminate metal ions. The nanoparticles were insensitive to pH in the range of 6 to 11 but highly influenced by the nature of the metal ion (Ca2+, Fe3+, Hg2+ and Mn2+). For instance, the catalase-like activity of Co3O4 MNPs was inhibited by Fe3+ at pH 7.0 but enhanced at pH 10.0. Conversely, the nanozyme was enhanced by Mn2+ at pH 7.0 but inhibited at pH 10.0. This could provide a powerful approach to discriminate metal ions (Figure 13).

2.9. Summary

Nanozymes are highly promising materials for the determination of metal ions with high sensitivity and selectivity. The vast majority of the nanozymes were reliant on the peroxidase-like activity, which could be enhanced or inhibited in the presence of metal ions through amalgam formation or surface modifiers. However, those that are based on oxidase-like activity are more desirable since they do not rely on unstable H2O2 or its addition to environmental samples.
Nanozymes have demonstrated their applicability for in-field measurements where sample processing is conducted on-site. Most of the reported nanozymes are based on peroxidase-like activity and operate optimally under mildly acidic conditions (pH 4), requiring dilution in sodium acetate/acetic acid buffer solutions, with colour development ranging from a few minutes up to half an hour. Such sample processing can limit the practicality of in-field measurements, and although neutral pH operation is possible, this could be at the sacrifice of sensitivity. Nanozymes deposited on solid supports such as paper are attractive as they offer recyclability of the nanozyme, parallel sample measurements and signal amplification. Nowadays, advances in mobile phone technology have allowed the colour signal to be easily interpreted from built-in or custom-made applications, rather than relying on a UV–Vis spectrophotometer. However, accomplishing low detection limits with mobile phone technologies can be a challenge without extending the measurement time. Furthermore, approaches to more environmentally benign nanozymes or economically non-metal-based nanozymes are emerging. In particular, nanozymes that can serve multiple purposes, such as sensing and adsorption, are highly desirable in tackling environmental pollution.

3. Detection of Pesticides

3.1. Introduction

Pesticides have been extensively used in modern agriculture to control and eliminate pests by interfering with their metabolism, life cycle or behaviour. Their widespread use poses an enormous threat to human health and the ecosystem when released into the environment, food and water supplies. Exposure to pesticides is most likely through contact with crops or household products, via the skin, breathing or ingestion. Due to their high toxicity, environmental agencies have set maximum levels for pesticides in drinking and surface water [78].
Pesticides can be classified as insecticides, herbicides, fungicides or other types depending on their purpose, and they involve different classes of chemicals such as organophosphates, pyrethroids, carbamates, arsenic and nitrophenol derivatives [128]. Organophosphate pesticides (OPPs) are synthetic pesticides whose acute toxicity is associated with their ability to inhibit acetylcholinesterase (AChE) enzyme in the central nervous system, resulting in the accumulation of the neurotransmitter acetylcholine [129]. Symptoms of organophosphate exposure include headaches, nausea, diarrhoea and respiratory arrest.
Classical techniques for detecting pesticides include liquid or gas chromatography coupled with mass spectrometry (LC-MS, GC-MS) [130,131], which offer excellent sensitivity in the nanomolar range. However, they are not amenable to rapid on-field detection of pesticide residues and require operation by a highly trained technician. Enzyme activity inhibition methods are promising alternatives due to their ease in operation and rapid response. These assays rely on a change in enzyme activity upon exposure to pesticides. For instance, acetylcholinesterase and butyrylcholinesterase are irreversibly inhibited by OPPs, providing a means for indirect pesticide detection. A range of enzyme assays have been developed including colorimetric Ellman assays, electrochemical assays, fluorescence assays and chemiluminescence [132,133,134,135].
Enzymes also form the basis of bioremediation strategies to reduce the impact of pesticides in the environment by degrading and transforming pollutants into less toxic forms [136]. There are several types of enzymes involved in the detoxification of pesticides including oxidoreductases, hydrolases and lyases [136,137]. Oxidoreductase enzymes catalyse the transfer of electrons from one molecule to another and often require additional cofactors to act as electron donors, acceptors or both. Hydrolases are commonly involved in pesticide remediation by hydrolysing esters, peptide bonds, carbon–halide bonds, etc., and generally operate in the absence of redox cofactors, making them highly attractive for remediation. For example, alkaline phosphatase is a hydrolase enzyme responsible for removing a phosphate from organophosphate pesticides. Lyases are a smaller class of enzymes than oxidoreductases and lyases. They catalyse the cleavage of carbon–carbon bonds and carbon bonds with phosphorus, oxygen, nitrogen, halides and sulfate in the absence of redox cofactors and water. As bioremediation involves the use of microorganisms and their enzymes, several environmental parameters such as temperature, moisture content and pH can affect microorganism growth, which, in turn, can affect the rate of pollutant degradation.

3.2. Nanozymes for Pesticide Detection

Recent years have seen the emergence of nanozymes for the monitoring and degradation of pesticide residues on plants, crops, soil and water samples. Some of the strategies for pesticide detection are reliant on enzyme-like inhibition assays [138,139,140] or exploit the phosphatase-like activity for pesticide degradation [141,142,143]. Those that are based on the phosphatase-like activity are type I nanozymes involving nanoceria [141,142,143], whereas those based on the peroxidase-like activity are mainly type I Fe3O4 nanoparticles [140,144,145] or type II metal particles [138,146,147,148].
There are several studies which rely on inhibition of the oxidase or peroxidase-like activity of nanomaterials by pesticides. Nara and co-workers [138] have developed a sensitive and selective colorimetric assay for malathion detection using palladium–gold nanorods. The nanorods exhibit high peroxidase-like activity in the pH 2 to 6 range and better kinetic parameters than HRP. The peroxidase-like activity was quenched by the presence of malathion, with the OPD colour output being diminished. A low detection limit of 60 μg/L could be achieved, with no cross-reactivity from other analogous organophosphates or metal salts. Xia et al. [149] developed a colorimetric assay for pyrophosphate by exploiting the peroxidase-like activity of MoS2 quantum dots. By aggregating the quantum dots via the addition of Fe3+, the peroxidase-like activity could be enhanced. However, when pyrophosphate coexisted with Fe3+, the enhancement effect diminished due to the strong coordination between pyrophosphate and Fe3+. A detection limit of 1.82 μM pyrophosphate was able to be achieved. Kushwaha et al. [150] reported the oxidase-like activity of Ag3PO4 nanoparticles for the colorimetric detection of chlorpyrifos using TMB as a substrate. Ag3PO4 was able to oxidise chlorpyrifos to chlorpyrifos oxon and sulphide ions. The sulphide ions interacted with Ag3PO4 and inhibited the catalytic activity through a negative feedback loop. As a result, chlorpyrifos as low as 9.97 mg/L could be detected. In other work, Biswas et al. [146] have shown that the peroxidase-like activity of gold nanorods can be inhibited by malathion by interacting with the surface of the nanorods. They hypothesised that the positive charge of the nanorod surface coated with cetyltrimethylammonium bromide had a high affinity for the sulfanyl group of malathion. This interaction masked the enzymatic activity and enabled detection of malathion down to 1.78 mg/L. Other organophosphates such as chlorpyrifos and parathion lack a sulfanyl group; thus, the colorimetric assay for malathion was highly selective. Furthermore, potential interference from metal salts containing Zn2+, Pb2+, Co2+ or Mg2+ as sulfates or nitrates was less than 0.01%.

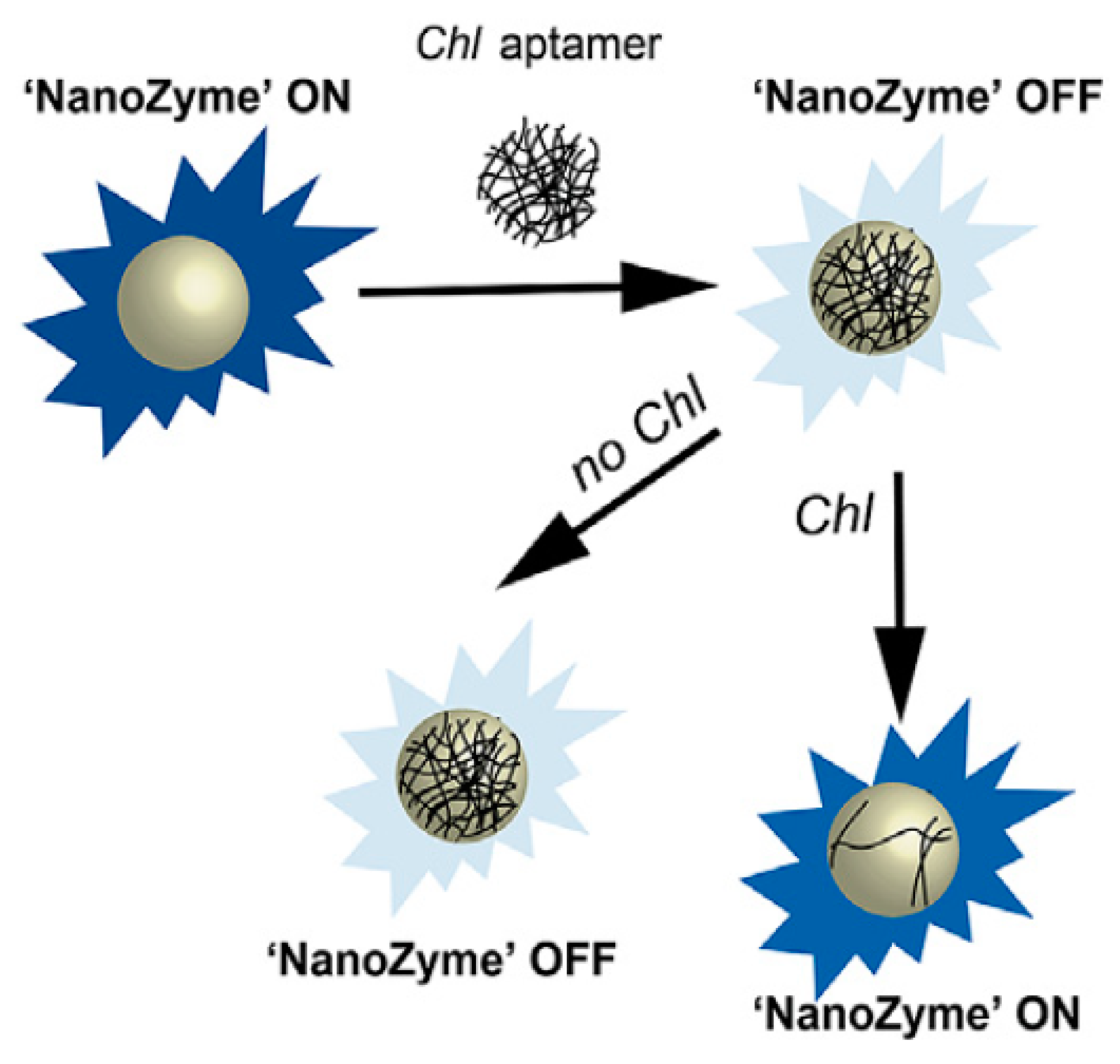

Highly specific strategies for pesticide detection using aptamers have been designed by Weerathunge et al. [147]. Firstly, they exploited the intrinsic peroxidase-like activity of tyrosine-capped silver nanoparticles. Subsequently, a chlorpyrifos-specific aptamer was incorporated onto the surface of the nanoparticles which switched the nanozyme to the “off” state. To realise sensing of chlorpyrifos, the nanozyme sensor was switched back to its “on” state due to aptamer desorption from the nanoparticle surface as a result of aptamer–chlorpyrifos binding (Figure 14). High specificity of the nanozyme sensor was afforded as the presence of other organophosphate pesticides did not lead to aptamer desorption and a detection limit as low as 11.3 mg/L was possible. Based on the same principle [148], tyrosine-capped gold nanoparticles as peroxidase-like nanozymes have also been used for the specific detection of acetamiprid. Compared to surface-enhanced Raman spectroscopy using silver dendrites [151], the detection of acetamiprid using nanozymes was five times more sensitive, with a detection limit of 0.1 mg/L.

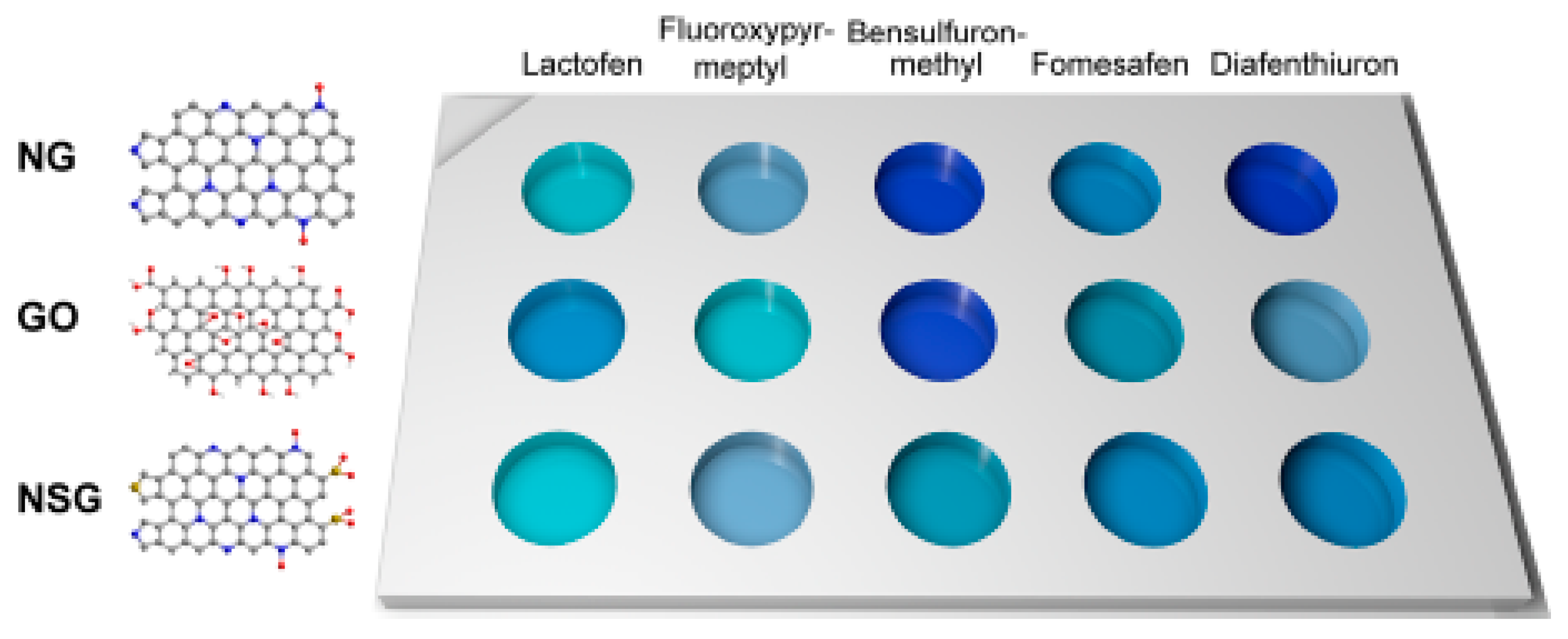

To target a suite of pesticides, nanozyme sensor arrays based on graphene oxide, nitrogen-doped graphene and sulphur-co-doped graphene with peroxidase-like activities have been developed (Figure 15) [139]. The interaction of the graphene materials with the aromatic pesticides lactofen, fluoroxypyr-meptyl, bensulfuron-methyl, fomesafen and diafenthiuron decreased their peroxidase-like activities. Molecular dynamics calculations confirmed that the enzyme-mimicking active sites (graphitic nitrogen in nitrogen-doped graphene, and carboxyl groups in graphene oxide) were blocked by the pesticides. Discrimination of the five pesticides (at 11 different concentrations) was demonstrated by using the three types of graphene prepared in a 96-well plate along with TMB and H2O2 in pH 4.0 sodium acetate buffer. By using linear discriminant analysis, the colorimetric response patterns were transformed into 2D canonical score plots which showed good clustering of the pesticides into five groups.
There have also been significant advances in using the peroxidase-like activity of Fe3O4 nanoparticles for the detection of pesticides. Guan et al. [144] have reported the chemiluminescent switching of Fe3O4 nanoparticles in the presence of pesticides. The nanoparticles catalyse the decomposition of dissolved oxygen to generate superoxide anions, enhancing the chemiluminescent intensity of luminol. The chemiluminescent signal could be quenched by the addition of ethanol as a radical scavenger; however, it was inhibited by a non-redox pesticide, ethoprophos. The strong surface coordinative reactions enabled the detection of ethoprophos down to 0.1 nM. Structurally analogous pesticides such as profenofos were also able to switch on the chemiluminescence, whereas the signal intensity from dylox and 2,4-dichlorophenoxyacetic acid was much lower. Therefore, the high specificity of the luminol-Fe3O4 system was attributed to the detection of organophosphorus esters with a P-S bond. Liang et al. [140] have also developed an assay for organophosphates based on Fe3O4 nanoparticles as a peroxidase mimic in combination with the enzymes AChE and choline oxidase (CHO). AChE and CHO catalyse the formation of H2O2 in the presence of acetylcholine, which can then be detected colorimetrically by Fe3O4 nanoparticles using TMB as a substrate. The reaction scheme is detailed in Equations (6)–(8). The presence of organophosphate compounds acephate and methyl-paraoxon as representative pesticides, and nerve agent Sarin, inhibited the activity of AChE and decreased the colour output. Compared to the traditional enzyme activity-based methods, the Fe3O4 peroxidase-like nanoparticles were more sensitive due to the catalytic activity of the nanoparticles, allowing concentrations as low as 1 nM Sarin, 10 nM methyl-paraoxon and 5 μM acephate to be detected. Boruah and Das [145] have successfully demonstrated that Fe3O4-TiO2/reduced graphene oxide nanocomposites could be used as a colorimetric assay for atrazine as well as photocatalytic degradation of atrazine. The nanocomposite was highly effective towards the oxidation of TMB at a pH of 3. However, the absorbance intensity at 652 nm was diminished by atrazine, which was attributed to hydrogen bonding between the pesticide and TMB. The detection limit for atrazine was found to be 2.98 μg/L. The degradation of atrazine was monitored by UV–Vis spectroscopy at 221 nm and it was shown that over 99% degradation was achieved within 40 min. This dual-responsive material is highly promising as it is also magnetically separable and could be recycled up to ten times.
acetylcholine + H 2 O AChE choline
choline + O 2 CHO H 2 O 2
H 2 O 2 + TMB Fe 3 O 4 oxidised   TMB

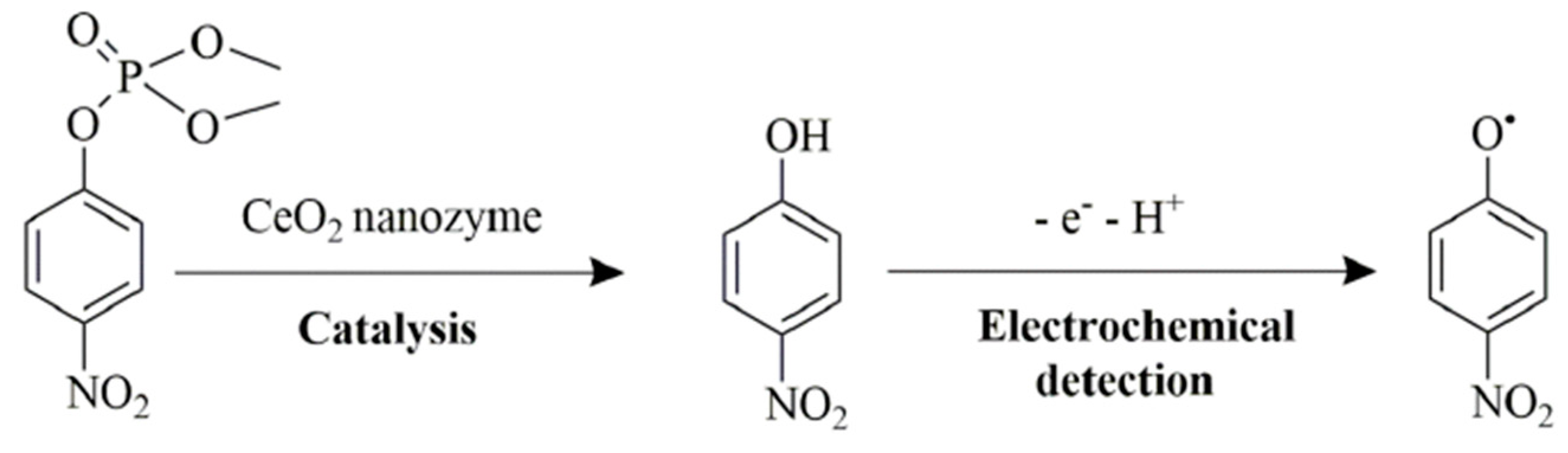

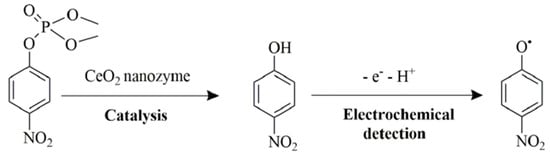

Organophosphorus hydrolase is a useful phosphatase enzyme for detecting and degrading organophosphate pesticides with high specificity. As a degradation strategy, Wei et al. [141] have used nanoceria as a phosphatase mimic for the hydrolysis of organophosphate pesticides to p-nitrophenol using methyl-paraoxon as a representative compound. The hydrolysed product exhibited a bright yellow colour, which was analysed spectroscopically and with a smartphone. Under the optimal condition of pH 10, a detection limit of 0.42 μM was achieved. Dried plant samples were analysed by extracting the pesticide residues with ethyl acetate, evaporated to dryness and reconstituted in water. Potential interferents such as Na+, K+, Mg2+, glucose, alanine, ascorbic acid, sodium acetate and tyrosine were evaluated. All substances except ascorbic acid demonstrated negligible interference. The same researchers [142] have also combined the remarkable phosphatase-mimicking activity of nanoceria with carbon dots for the fluorometric determination of pesticides. Carbon dots are attractive as fluorescent probes as they exhibit low toxicity compared to conventional semiconducting quantum dots. The hydrolysis of methyl-paraoxon to p-nitrophenol is yellow and largely overlaps with the excitation spectra of carbon dots. Thus, fluorescence quenching of the carbon dots was observed by the generated p-nitrophenol. The limit of detection for p-nitrophenol was calculated to be 0.376 μM. Electrochemical detection of the degradation product of methyl-paraoxon has also been demonstrated using nanoceria. Sun et al. [143] have exploited the bifunctionality of nanoceria as a phosphatase mimic to degrade methyl-paraoxon to p-nitrophenol, followed by electrochemical detection of p-nitrophenol at a nanoceria-modified glassy carbon electrode (Figure 16). The electrochemical method was highly sensitive, with a methyl-paraoxon detection limit of 0.06 μM.

3.3. Summary

With further development, colorimetric assays can be configured for rapid, low-cost, in-field detection of pesticides. However, the sensitivity towards trace pesticide residues remains a significant challenge as most nanozymes can only achieve sub-micromolar detection limits. Strategies to amplify the signal and improve specificity include aptamer surface modification and the use of molecularly imprinted polymers. Electrochemical and fluorometric methods have also been explored as alternate sensitive transduction strategies.
Although the detection of pesticides is important, their removal is also paramount since they can last several years in the environment before breaking down. Nanozymes have emerged with the capability to breakdown or degrade pesticides into more benign products and will be covered in more detail in Section 5. This section has covered the use of nanozymes for the detection of pesticides, the most prevalent type of persistent organic pollutant. Section 4 will discuss methods to detect other types of persistent organic pollutants.

4. Detection of Other Persistent Organic Pollutants

Persistent organic pollutants are compounds that can persist in the environment for extensive periods and be transported by wind and water or through the food chain. They include organophosphorus compounds, phenolic compounds, dyes and antibiotics. As discussed in the previous section, organophosphorus pesticides are the most widely encountered persistent organic pollutant. Phenolic compounds such as chlorophenols and bisphenols are also broadly used as pesticides, including as wood preservatives and disinfectants [152], and are commonly detected in ground water and soil. They are a major cause for health concern as they can be carcinogenic, neurotoxic, affect the reproductive system and disrupt the endocrine system. For the detection of phenol [153], Barrios-Estrada used Pt3Au1 nanoparticles decorated with few-layer MoS2 nanosheets as peroxidase mimics. The oxidative coupling of phenol with 4-aminoantipyine in the presence of H2O2 resulted in the formation of a pink colour, with an optimum pH of 8.0–9.0. Nanozymes have also been shown to be highly promising candidates for the degradation of phenols [154,155,156,157,158] and will be discussed in Section 5. The efficiency in the removal and degradation of textile dyes will be covered in Section 5. Many organic dyes are toxic and not easily degraded in wastewater treatment plants [159]. These dyes serve as chromogenic substrates for the nanozymes, with the colour diminishing over time [160,161]. Antibiotics are classified as emerging pseudo-persistent organic pollutants as they are resistant to biodegradation due to their antimicrobial nature [162]. They are used in human and veterinary medicine and are mainly released into the environment through excretion [163]. Antibiotics are also used in agriculture, resulting in their presence in animal-derived food products, and can lead to serious side effects such as allergic reactions, hearing loss and kidney damage [164]. Zhao et al. [164] have developed an aptamer-modified gold nanoparticle sensor for the colorimetric detection of streptomycin. The gold nanoparticles exhibited peroxidase-like activity, which was diminished by coverage with streptomycin-specific aptamers. The presence of streptomycin as low as 86 nM resulted in re-establishment of the colorimetric signal from ABTS due to the formation of a streptomycin–aptamer complex. The sensor was highly specific, with little interference from tetracycline, oxytetracycline, carbamazepine, penicillin, amgoxicillin and diclofenac. Despite the gold nanoparticles appearing red in colour, a greyish-green colour was well observed from the streptomycin sample (Figure 17). Sharma, Bansal and co-workers [165] have similarly exploited the high specificity of ssDNA aptamers coupled with the intrinsic peroxidase-like activity of gold nanoparticles for the detection of kanamycin. A rapid visual readout was possible within 3–8 min, with a detection limit of 1.49 nM.

5. Environmental Remediation with Nanozymes

5.1. Introduction

Human activities have resulted in significant contamination of our environment [3,166,167]. Many toxic pollutants, including heavy metals, dyes, other organic and inorganic substances, are generated during the production of items for our consumption and also during their use. These include pesticides, pharmaceuticals and clothes. Due to a lack of regulation and awareness, many toxic compounds have been discharged into the environment, particularly aquatic environments (lakes, rivers and oceans) without a second thought. These pollutants have caused significant damages to our ecological systems, including humans, plants, animals and microbes. They have been established to be the cause of toxic and carcinogenic effects on humans through contamination of drinking water and foods [167]. Significant efforts have been devoted to the remediation work to remove these pollutants and/or degrade them to less harmful products [92,166,168].
Methods for the removal of contaminants from aquatic environments include adsorption, membrane filtration, distillation, oxidation, biocatalytic and photocatalytic degradation [166,168]. Biocatalytic methods (enzymatic and microbial) have been investigated as effective means for the degradation of organic pollutants. The advantages of these biocatalytic methods are that they can be operated under mild and natural environments. Additionally, microbes and enzymes themselves could decompose into benign compounds when their mission is completed, thus eliminating unwanted environmental pollution from the treatment agent itself [136,137]. However, microbes and enzymes can only be functional and effective in narrow thermal and pH windows. The cost of producing enzymes, their lack of recyclability and the fact that biodegradation can be quite slow have hindered their large-scale, widespread application in environmental pollutant remediation [92,166].
Efforts to overcome the limitations of enzymatic methods have driven investigations into using nanozymes as remediating agents for environmental pollutants. Nanozymes have been shown to demonstrate catalytic properties, e.g., peroxidase- and oxidase-like, which are utilised in the degradation of pollutants by natural enzymes. Nanozymes could overcome enzyme limitations in terms of cost of production, recyclability, higher rate of reactions and wider operational windows (pH and temperature) [3,92,168]. The previous section has shown that nanozymes are effective for the detection of heavy metals and organic pollutants in the environment. Nanozymes could also be used to degrade environmental pollutants. In this section, applications and future prospects of nanozymes in environmental pollutant remediation will be discussed, focusing on the degradation of persistent organic pollutants.
Persistent organic pollutants include phenolic compounds, pesticides, dyes and organophosphorus compounds [169]. Phenolic compounds, particularly chlorophenols, have been widely used in pesticides, dyes and other synthetic compounds [156,168,170]. Chlorophenol pollutants can cause serious problems for the environment as they are highly toxic and resistant to chemical and biological degradation in the environment. These compounds are classified as top priority pollutants by the US EPA (Environmental Protection Agency) and other environmental regulators around the world. Current methods for phenol removal include solvent extraction, physical adsorption, pervaporation, wet air oxidation, ozonolysis, wet peroxide oxidation, electrochemical oxidation, photocatalytic oxidation, supercritical water gasification, electrical discharge degradation and bio-degradation [156]. Nanozyme-mediated degradation of phenolic compounds is a highly promising method with significant advantages over current methods [168].
There are many types of textile dyes currently in use (including phenolic dyes), and many of these are recalcitrant and toxic compounds that are not easily degraded in wastewater treatment plants [159]. On a global scale, approximately 700,000 tonnes (in 2005) of textile dyes are consumed yearly [171]. Textile manufacturing activities are currently concentrated in developing countries, where the treatment of organic dyes will need to be low-cost to be more widely applicable. Here, nanozymes could have significant advantages due to the low cost and high recyclability of certain nanozyme materials such as magnetic Fe3O4.
Organophosphorus compounds (OPPs, chemical warfare nerve agents and flame retardants), particularly OPPs, widely exist in the environment [136,172,173]. The increased use of highly toxic OPPs has made these compounds major contaminants in water, fruit and vegetables. OPPs have highly detrimental effects on human health and hence a method to remove them from the environment is invaluable [141].
Herein, the application of nanozymes in organic pollutant remediation will be discussed according to the nanozyme type classifications as proposed in the Introduction of this review.

5.2. Type I Nanozymes: Active Metal Centre (of Metalloenzyme) Mimics

Table 3 lists recent studies of type I nanozymes for the remediation of environmental pollutants. Since the report by Gao and co-workers [6] that Fe3O4 MNPs possessed enzymatic-like activity similar to naturally occurring peroxidases, they have been widely used for the oxidation of organic substrates as a detection method in the treatment of wastewater. Iron oxide nanoparticles, especially Fe3O4 MNPs, have been most widely investigated for the degradation of various environmental pollutants due to their peroxidase-like activity and the fact that Fe3O4 MNPs could be conveniently prepared from cheap and abundant precursors [168].
As can be seen in Table 3, the overwhelming enzyme-like catalytic activity marshalled by type I nanozymes in the degradation of phenol compounds and dyes is the peroxidase-like activity. Of the 17 examples listed above, only two examples where MnO2 nanoparticles and Cu complex displayed laccase-like activity are non-peroxidase-like examples [172,173]. Laccases promote the oxidation of phenolic compounds with the reduction of oxygen to water. Fe3O4 was the most common material of the metal oxides investigated for environmental pollutant degradation.
The first example of using ferromagnetic nanoparticles to facilitate the decomposition of phenols was reported in 2008 [154]. Phenols were removed from wastewater by the peroxidase activity of the Fe3O4 nanoparticles. The hydroxyl radical formed in the reaction between Fe3O4 and hydrogen peroxide catalytically degraded phenols. More than 80% of phenols were removed at 16 °C and pH 3 and the nanozyme could be reused several times. Fe3O4 MNPs (5.7 nm in size) could also effectively degrade and mineralise 2,4-dichlorophenol. Fe3O4 MNPs were effective as heterogeneous sono-Fenton catalysts for the degradation of bisphenol A (BPA) in a reasonably wide pH range of 3–9. However, the rate of the degradation was still too slow for practical application [174]. Magnetic Fe3O4 nanoparticles at 30 nm in size were demonstrated to be highly effective for the degradation of 4-chlorophenol by Cheng et al. [75]. In the presence of hydrogen peroxide and Fe3O4, 4-chlorophenol was degraded to Cl, HCOOH (formic acid), CH3COOH (acetic acid) and by-products. Adsorption of 4-chlorophenol onto the iron oxide particle surfaces was shown to be only minimal (around 10%) and an acidic pH of 5 was the optimal pH for the highest activity. These Fe3O4 nanoparticles could be reused with no decrease in reactivity. In fact, an increase in their reactivity for the degradation of 4-chlorophenol was observed. A plausible mechanism was proposed for the catalytic degradation of 4-chlorophenol (Figure 18). Fe3O4 converted H2O2 via its peroxidase-like activity, to form the highly active hydroxyl radical HO, which, when reacted with 4-chlorophenol, triggered a chain of reactions leading to the formation of chloride ion, formic acid, acetic acid and other by-products.
Table 3. Examples of type I nanozymes in environmental pollutant remediation.
Table 3. Examples of type I nanozymes in environmental pollutant remediation.
NanozymePollutantEnzyme-Like ActivityYearRef.
Fe3O4 MNPsPhenolPeroxidase2008[154]
Fe3O4 MNPsRh BPeroxidase2010[175]
Fe3O4 MNPsSulfamonomethoxinePeroxidase 2011[176]
Humic acid-Fe3O4 MNPsSulfathiazolePeroxidase2011[177]
Fe3O4 MNPsBPAPeroxidase2012[174]
Fe3O4 MNPs2,4-DichlorophenolPeroxidase2012[178]
CuO porous structuresPhenolPeroxidase2014[155]

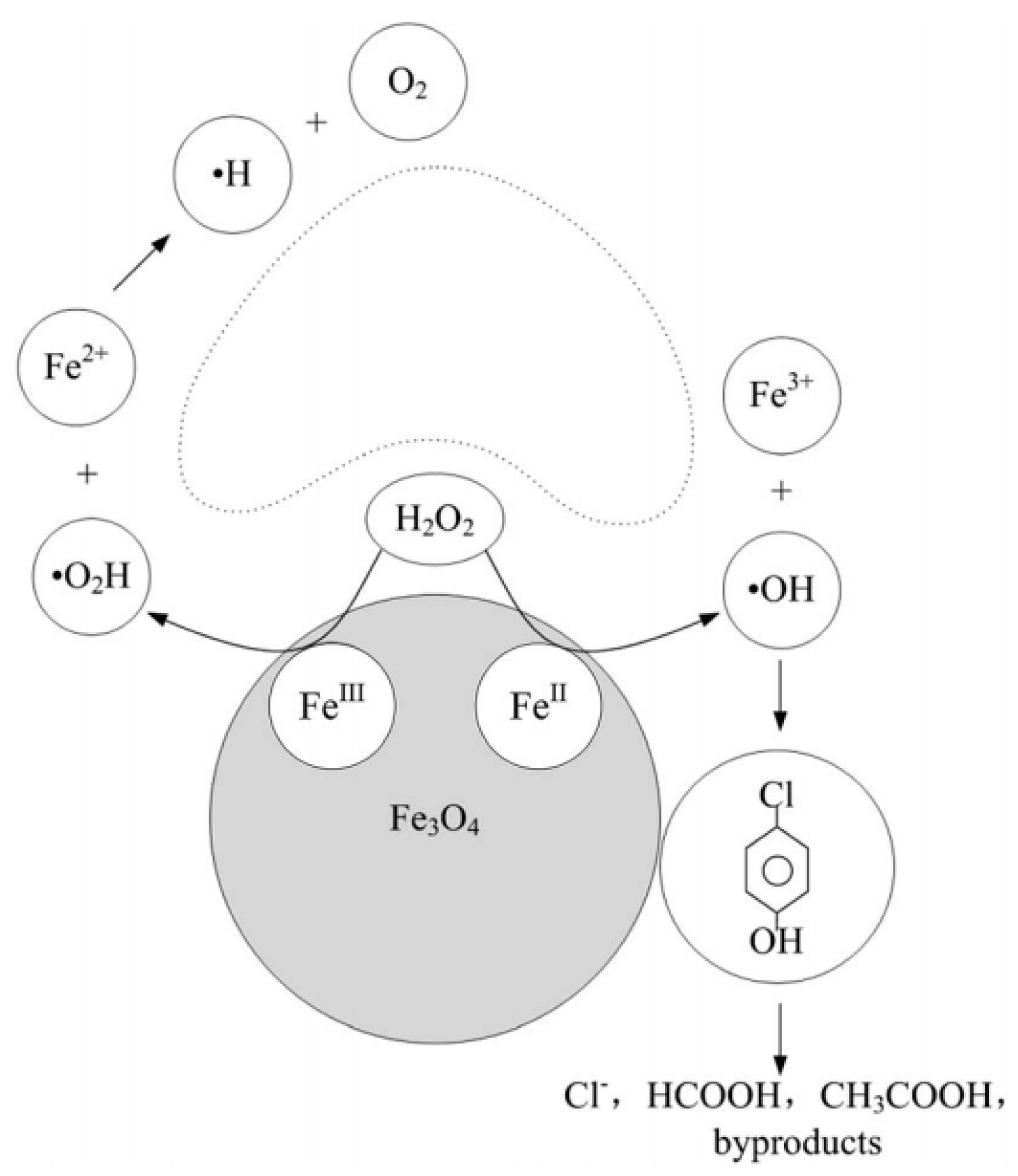

Fe3O4 MNPs4-ChlorophenolPeroxidase2015[170]
Fe3O4 nanorod bundlesCrystal violetPeroxidase2015[160]
CuO nanoparticlesPhenolPeroxidase2015[156]
Fe2O3·0.5H2O (ferrihydrite) and hematite (Fe2O3) Methylene bluePeroxidase2016[161]
VOx nanoflakesRh BPeroxidase2016[179]
MnO2 nanomaterialsABTSLaccase2017[172]
Fe3O4 nanorodsRh B, methylene blue and methyl orangePeroxidase2019[180]
Cysteine-histidine Cu2,4-Dichlorophenol and other phenolic compoundsLaccase2019[173]
CeO2 nanoparticlesRh B, fluorescein, xylene cyanol FF, Brilliant Blue G-250, and Coomassie Brilliant Blue R-250Peroxidase2020[181]
Fe3O4 MNPs tend to aggregate and hence lead to the reduction of catalytic activity. To increase the catalytic ability and stability of Fe3O4 MNPs, Jiang and co-workers [157] synthesised ferromagnetic chitosan (MNP@chitosan, an alkali polysaccharide) nanozyme with particle sizes of around 12 nm. The MNP@chitosan was shown to be effective for the decomposition of phenol. The optimum pH for this catalytic activity was pH 4. The MNP@chitosan was also found to be recyclable; however, the degradation rate slowly decreased with each reuse cycle.

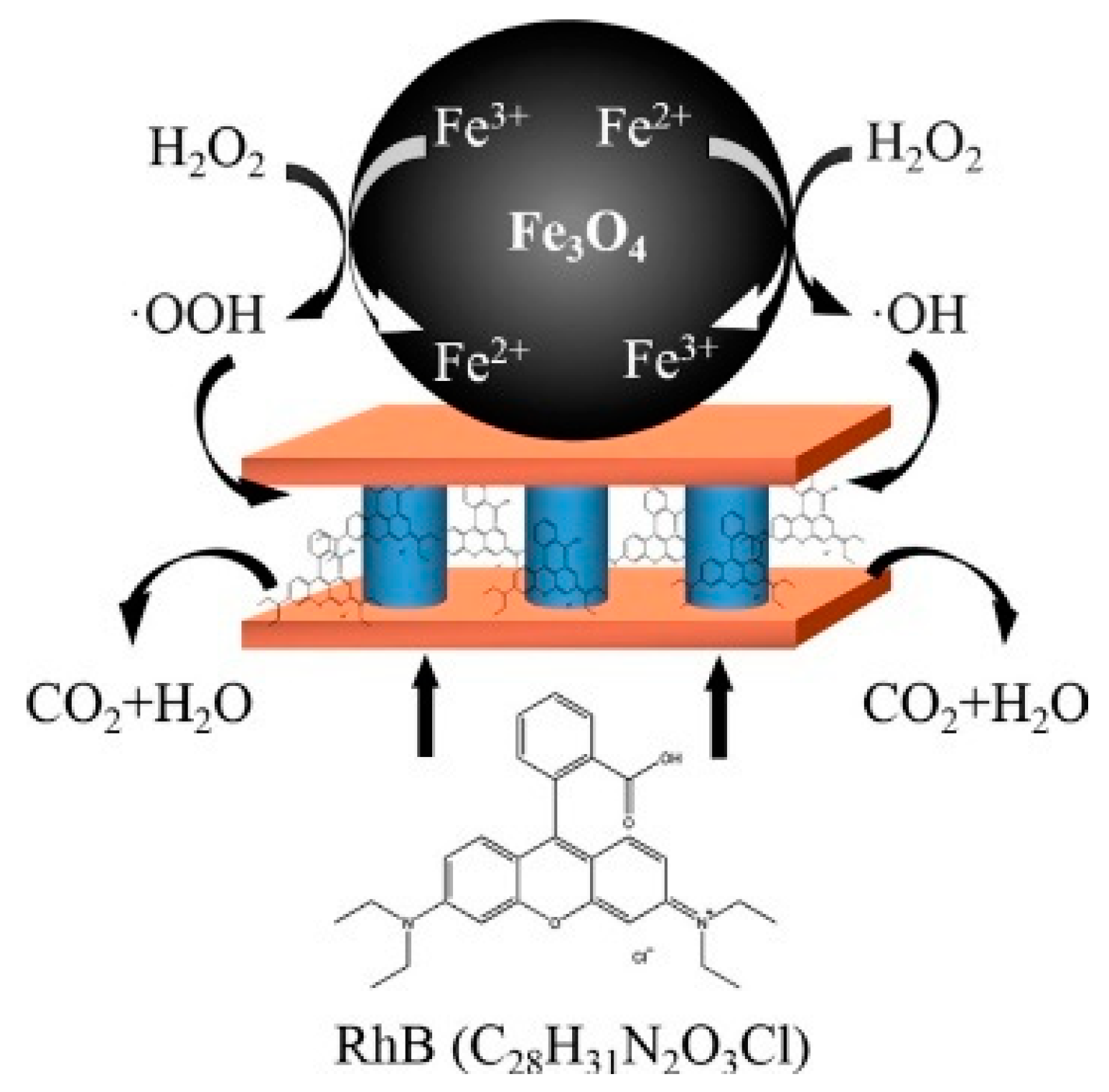

Fe3O4 MNPs or nanorods have also been successfully used in the degradation of Rhodamine B (Rh B) [175], crystal violet [160,180], methylene blue [161,180] and methyl orange [180] in the presence of hydrogen peroxide with peroxidase activity. Humic-acid-coated ferromagnetic nanoparticles (Fe3O4 10–12 nm in size) were effective for the removal of sulfathiazole from aqueous media in the presence of H2O2. The catalytic efficiency was higher at lower pH (as low as pH 3.5) and higher temperatures, up to 60 °C [177].
Fe3O4 MNPs can activate persulfate anion S2O82− to generate the powerful sulfate radical SO4, which has high potential for the degradation of organic pollutants. The method was demonstrated to degrade sulfamonomethoxine (an antibiotic) in the presence of S2O82− [176].
Ferric oxides (Fe2O3) such as 2-line ferrihydrite (2LFh, Fe2O3·0.5H2O, average size 5 nm) and hematite (Fe2O3, average size 100 nm) could also catalyse the degradation of methylene blue [161]. The more highly crystalline hematite was found to be more effective in degrading methylene blue than ferrihydrite. The author concluded that the ordered crystal planes of the hematite nanoparticles had a greater influence on the catalytic activity than the high surface area of 2LFh nanoparticles. A slightly basic pH of 8 was the optimal pH.
Other metal oxide nanoparticles have also shown peroxidase-like activity in the degradation of organic pollutants. Examples include CuO [155,156], CeO2 [181], MnO2 [172] and VOx [179].
CuO micro-/nanostructures with clean surfaces were prepared and demonstrated to have high peroxidase activity using TMB as the model substrate. These CuO structures could also degrade phenol, illustrating their promise as a reagent for wastewater treatment [155]. Feng and co-workers have shown cupric oxide nanoparticles to be highly efficient in the degradation of phenol, catechol, hydroquinone and other by-products [156]. Larger particles (30 nm) were found to be inefficient for phenol degradation. While no explanation was provided, the enhanced surface area to volume in smaller particles is likely to be a contributing factor. The optimal pH range was 3–7; above pH 7, the catalytic activity dropped off quite rapidly. In a highly acidic environment (pH 2), the phenol removal efficiency was very low as CuO particles dissolved to Cu2+ ions, which have low peroxidase activity.

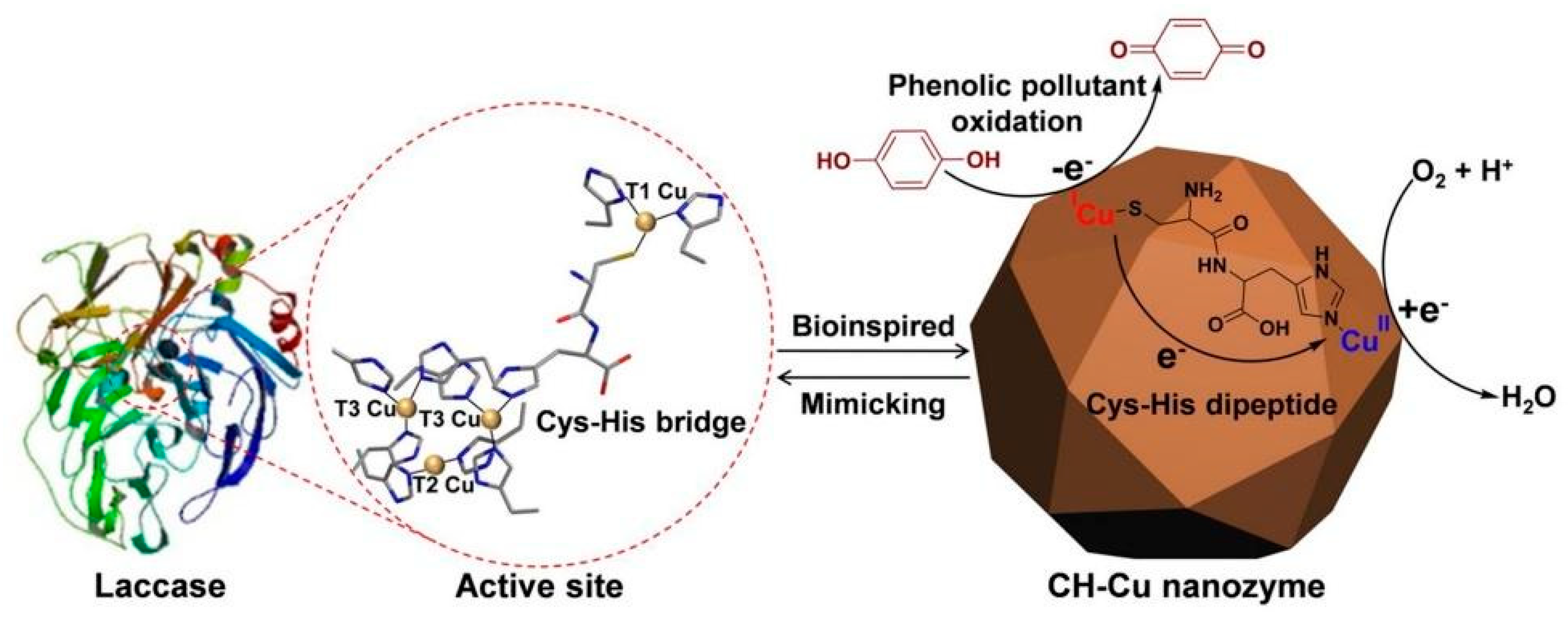

Wang et al. [173] constructed a laccase-mimicking nanozyme by coordinating Cu+/Cu2+ to cysteine-histidine dipeptide to form an inorganic polymer CH-Cu which possessed good catalytic efficiency for the degradation of chlorophenol and bisphenol in the absence of H2O2 (Figure 19). CH-Cu was also highly robust and could operate at pH 3–9, temperatures −20 to 90 °C, high salinity and could be stable for more than 3 weeks. The CH-Cu nanozyme could be reused multiple times.
Wang and co-workers showed that the degradation of various organic dyes such as Rh B, fluorescein and Brilliant Blue G-250 in the dark by CeO2 could be enhanced using fluoride ions at low-pH conditions [107].

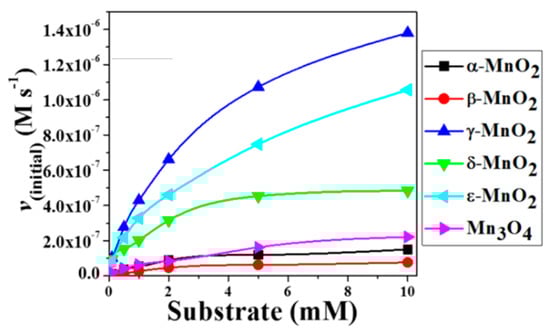

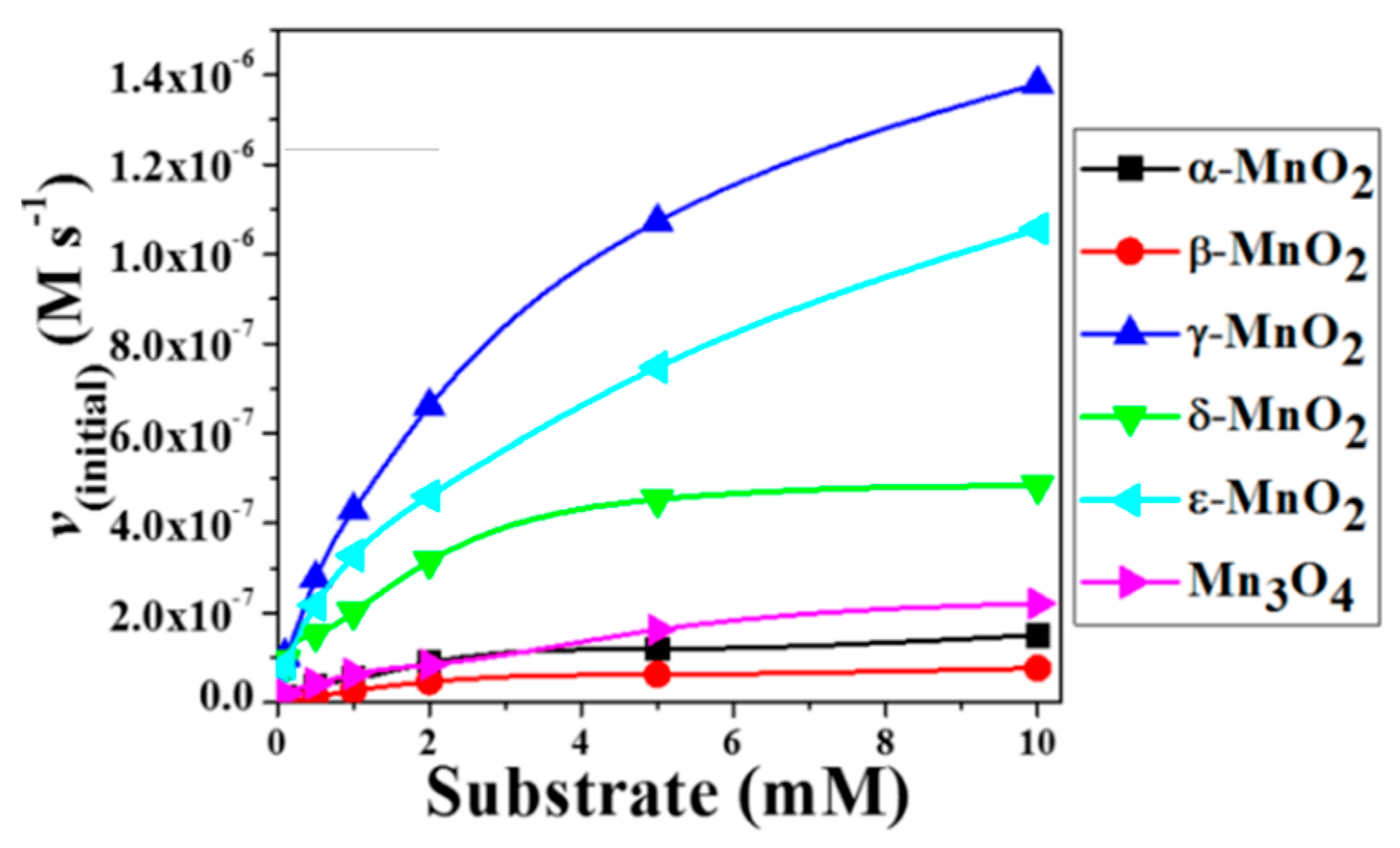

Manganese oxide, MnO2, nanomaterials were demonstrated to have laccase-like catalytic reactivity and could catalyse the oxidation of pollutants in wastewater treatment in the absence of H2O2. ɣ-MnO2 was the most efficient catalyst for the degradation of ABTS and 17-β-estradiol (E2) amongst the different manganese oxide nanomaterials tested [172] (Figure 20).

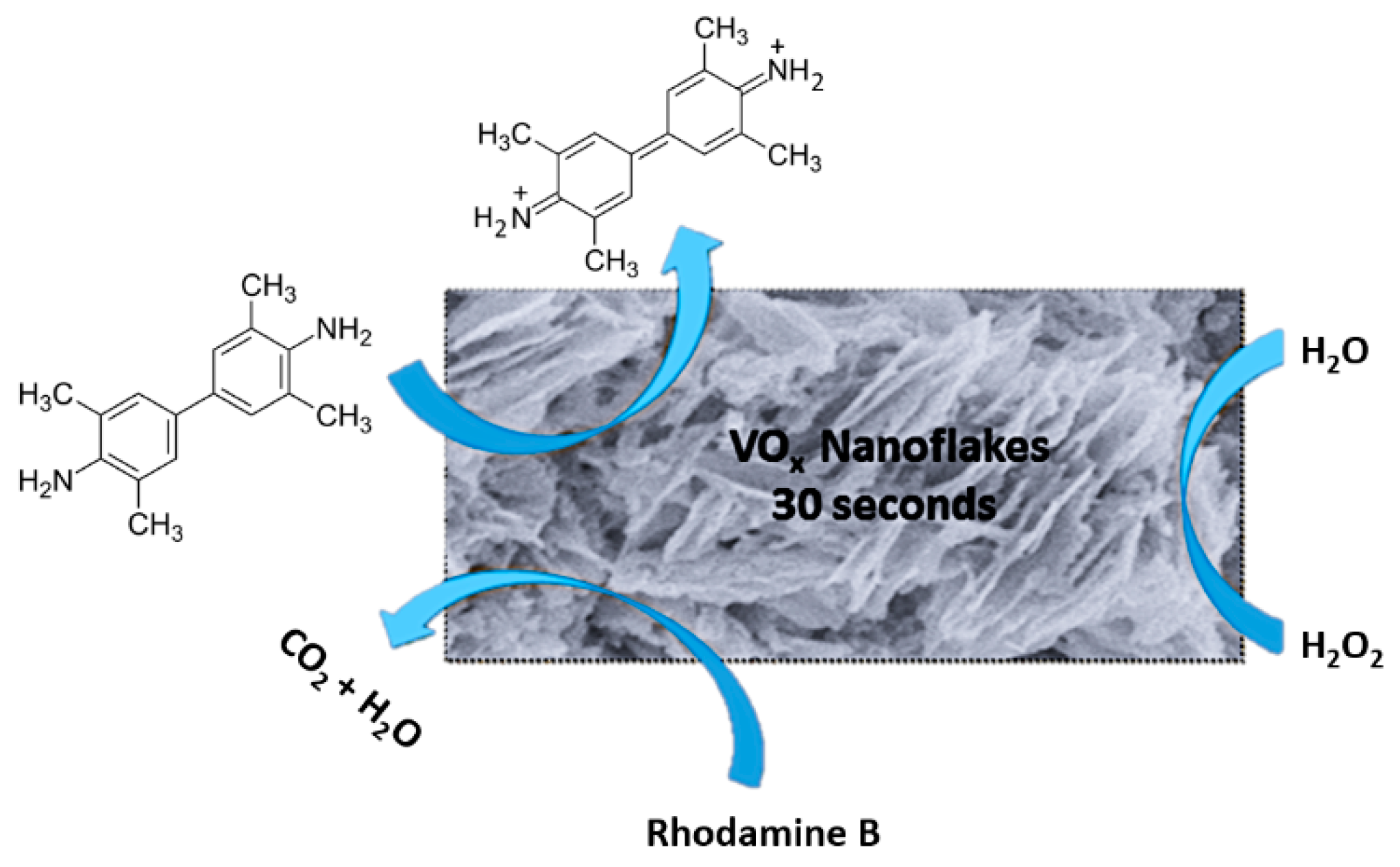

Zeb et al. [179] reported that mixed-phase VOx nanoflakes could be conveniently prepared in a single step and be a highly effective Fenton reagent, which could fully decompose Rh B within 60 s (Figure 21). The VOx nanoflake also possessed peroxidase-like activity and could oxidise TMB efficiently, with Vmax of approximately 27 times more than HRP. These results indicated that VOx nanoflakes could be used for the effective degradation of environmental pollutants.

5.3. Type II Nanozymes: Functional Mimics

There are few examples of type II nanozymes that have been shown to degrade environmental organic pollutants (Table 4). Peroxidase-like activity was the dominant activity observed [182,183,184]; however, oxidase-like activity [185] was also observed.
Xu et al. [183] investigated Fe(0) particles as heterogeneous Fenton-like catalysts for the removal of 4-chloro-3-methyl phenol. It was found that lower pH led to higher catalytic activity and the reaction was still quite efficient up to pH 6.1. A range of intermediates and products were observed by LC-MS, and the final products after 60 min of reaction included chloride ion, oxalic acid, acetic acid and formic acid. The catalytic activity decreased with time and the recyclability of the material was not demonstrated. It is worth noting that Fe(0) was oxidised to Fe(IV) (FeO2+) during the catalytic reaction; hence, the Fe(0) particles are best considered to be a pre-catalyst in this work.
In a communication, Safavi and co-workers [182] reported the preparation of carbon nanodots using a microwave-assisted method in ionic liquids. These carbon nanodots could degrade azo dyes methyl red and methyl blue via their peroxidase-like activity.
Chen et al. [184] showed that cubic boron nitride possessed peroxidase-like activity and could oxidise TMB. The cubic boron nitride could be reused multiple times. The catalytic activity was highest at acidic pH 5 and at temperatures around 40–50 °C. Cubic boron nitride also catalysed the degradation of Rh B in the presence of H2O2.
Zhang and co-workers [185] reported modified graphitic carbon nitride as a metal-free nanozyme which has dual oxidase–peroxidase functions as a cascade photocatalyst for the oxidation of TMB. Whilst the work was not directed towards applications in environmental pollutant degradation, the fact that TMB (a substrate in the colorimetric test that has a similar structure to many organic dyes) is efficiently oxidised to its blue form is a strong indication that the graphitic carbon nitride is likely to be effective in dye removal. The bifunctional oxidase–peroxidase activities of the material would be highly advantageous in large-scale applications as there would be no need for hydrogen peroxide.
Noble metal nanozymes have been shown to be applicable for the detection of environmental pollutants and in medicinal diagnosis. They have not been widely applied in the degradation of environmental pollutants. The high cost of noble metals is likely to be a prohibitive factor in the application of noble metal nanozymes for environmental pollutant remediation. Consequently, there have not been many studies on using noble metal (Au, Pt etc.)-based nanozymes for environmental pollutant remediation.

5.4. Type III Nanozymes: Nanocomposites

Recently, nanocomposite materials including metal/metal oxides on carbon materials, MOFs and bimetallic alloys (core-shell) have been investigated extensively as agents for environmental remediation. As shown in Table 5, peroxidase-like activity is the predominant catalytic activity utilised by composite nanozymes in the degradation of organic pollutants. The recalcitrant organic pollutants investigated in these studies included phenolic compounds [48,158,186,187,188,189], dyes [159,190,191,192,193,194,195,196] and organophosphorus compounds [197,198].
Magnetic Fe3O4 on carbon materials [48,186,187,188,191,192,195,199,200,201,202] are the most studied class of composite nanozymes for environmental degradation. Carbon materials by themselves have been used in wastewater treatment for a long time. Composites of Fe3O4 with carbon materials are expected to deliver significant benefits such as recyclability and dual adsorptive–catalytic activities in pollutant degradation applications. The excellent review by Ribeiro et al. [202] is an important source of information for readers who have special interest in the application of hybrid magnetic carbon nanocomposites for the degradation of organic pollutants in water treatment.
Different kinds of carbon materials have been investigated as nanocomposites with metal/metal oxide nanoparticles. Examples include carbon nanotubes, multiwalled carbon nanotubes (MWNTs), graphene, graphene quantum dots, graphene oxide, mesoporous carbon, etc. [202]. Zuo et al. [186] synthesised Fe3O4 MNP/MWNT nanocomplexes with peroxidase-like activity. In the presence of H2O2, the nanocomplex could efficiently catalyse the oxidative degradation of phenols to insoluble polyaromatic products that could be easily separated from aqueous solutions. Magnetically recoverable FexOy-MWNT was active in the degradation of Orange G dye [199]. The Fe3O4 nanoparticles (7 nm in size) that were grown on carbon nanotubes were shown to have higher catalytic reactivity as an enzyme mimic for the decomposition of the dye Orange II than Fe3O4 nanoparticles [195].
Peng [187] reported the synthesis of graphene-templated formation of ultrathin (2.1 nm) 2D lepidocrocite ɣ-FeOOH and showed that these nanostructures could catalyse the degradation of phenol in the presence of H2O2. Nanocomposites between graphene oxide quantum dots (graphene sheets with lateral sizes less than 100 nm) and Fe3O4 nanoparticles were also shown to be effective for the degradative removal of phenolic compounds via peroxidase-like reactivity [48]. The high reactivity of the nanocomposite (higher than HRP) was attributed to the unique properties of the graphene oxide quantum dots, namely high electron conjugation and better aqueous dispersion ability compared to graphene oxide sheets, and the synergistic interactions between graphene oxide quantum dots and Fe3O4 MNPs. Fe3O4/reduced graphene oxide [200] and Fe3O3/graphene oxide [201] were reported to be efficient for the degradation of methylene blue and Rhodamine B at neutral pH, respectively. In a report by Zubir and co-workers [192], graphene oxide–Fe3O4 nanocomposites were found to be efficient in the degradation of acid orange dye. In comparison with Fe3O4 MNPs, the Fe3O3/graphene oxide had similar reactivity in the first 45 min of the catalytic cycle. However, while Fe3O4 was completely deactivated after one use, the nanocomposites retained good reactivity for the entire course of the reaction.

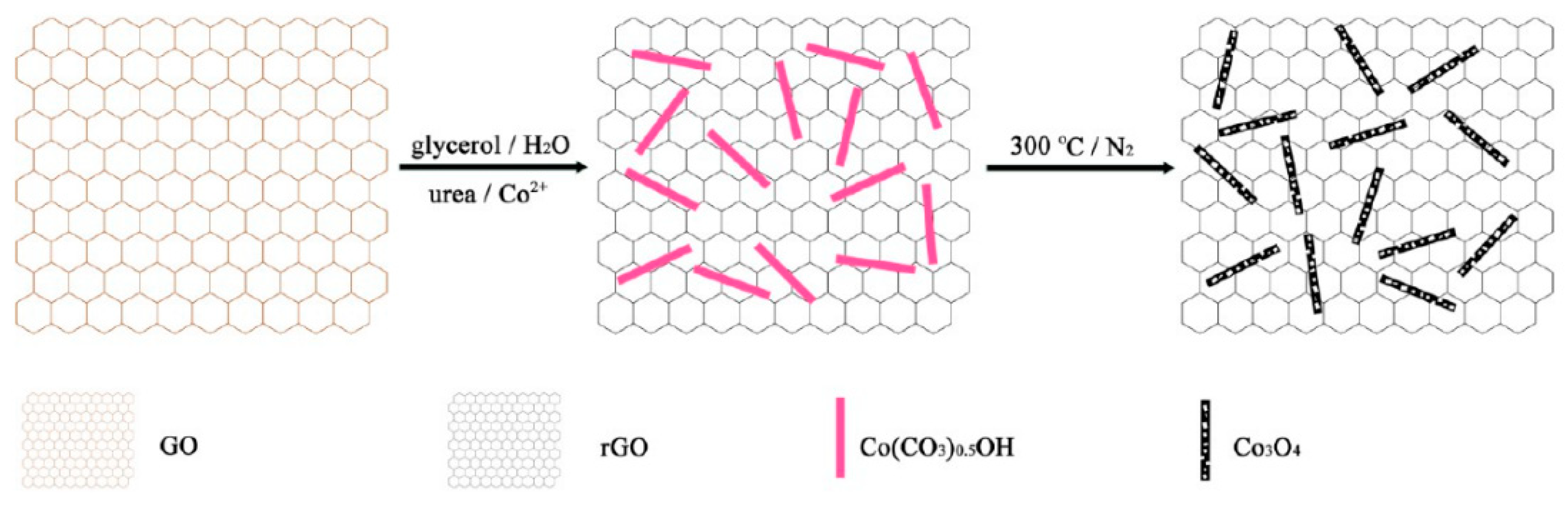

Porous Co3O4 nanorod-reduced graphene oxide (PCNG) (Figure 22) was shown to have high peroxidase activity in the degradation of methylene blue [191]. The improved catalytic activity of the nanocomposites could be the result of the synergy between the functions of porous Co3O4 nanorods and reduced graphene oxides. Here, due to the π-π stacking between methylene blue and the aromatic areas of reduced graphene oxide, methylene blue was more easily adsorbed on the surface of the PCNG. Electrons from methylene blue are donated to the PCNG, which leads to an increase in electron density and mobility in the PCNG. Electron transfer from PCNG to H2O2 is accelerated, thus increasing the reaction rate of methylene blue oxidation by H2O2. The PCNG had high thermal stability and was stable in the presence of an organic solvent, e.g., ethanol, tetrahydrofuran and N,N-dimethylformamide.

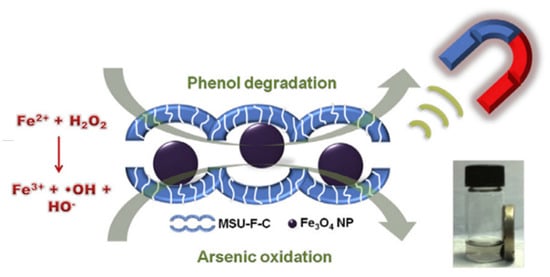

Chun et al. [188] showed that magnetite (Fe3O4)-loaded meso-cellular carbonaceous material, Fe3O4/MSU-F-C, was very efficient in the Fenton-like reaction as well as an adsorbent for the removal of phenol and arsenic (Figure 23). The material could be easily separable by applying a magnetic field due to its strong magnetic property.
In short, the increase in the performance of nanocomposites between magnetically separable iron species (and other metal species) and carbon-based materials was attributed to several synergistic effects which include: (i) the pollutant molecules are brought closer to the active sites by the increased adsorptive interactions of the carbon phase; at the active sites, strongly oxidising HO radicals are generated and react with the pollutant. The HO radical would have lower probability of partaking in the non-productive parasitic reaction with H2O2, thus increasing the efficiency of H2O2 consumption; (ii) iron–carbon nanocomposites usually have good structural stability and lower leaching of metal species due to the confinement effect imposed by the carbon phase; (iii) the regeneration of the active sites is enhanced either by electron transfer features or delocalisation of π electrons of the carbon-based materials; (iv) the active sites are highly dispersed as the result of the high specific area of the carbon phase; and (v) some carbon materials also have peroxidase-like activity on their own [202]. Several of these nanocomposites have been shown to be effective for environmental pollutant degradation at neutral pH [199,200,201,202], which is a significant advantage as the treated water (in a wastewater treatment plant) would not be required to undergo a neutralisation step.
In addition to carbon materials, other materials have also been utilised in the preparation of nanocomposites for environmental pollutant degradation. Wan et al. [194] showed that Fe3O4 nanoparticle-decorated Al-pillared bentonite (Fe3O4/Al-B) had higher ability for the adsorption and degradation of Rh B than bare Fe3O4 (Figure 24). The composite also showed high stability and could be conveniently recycled.

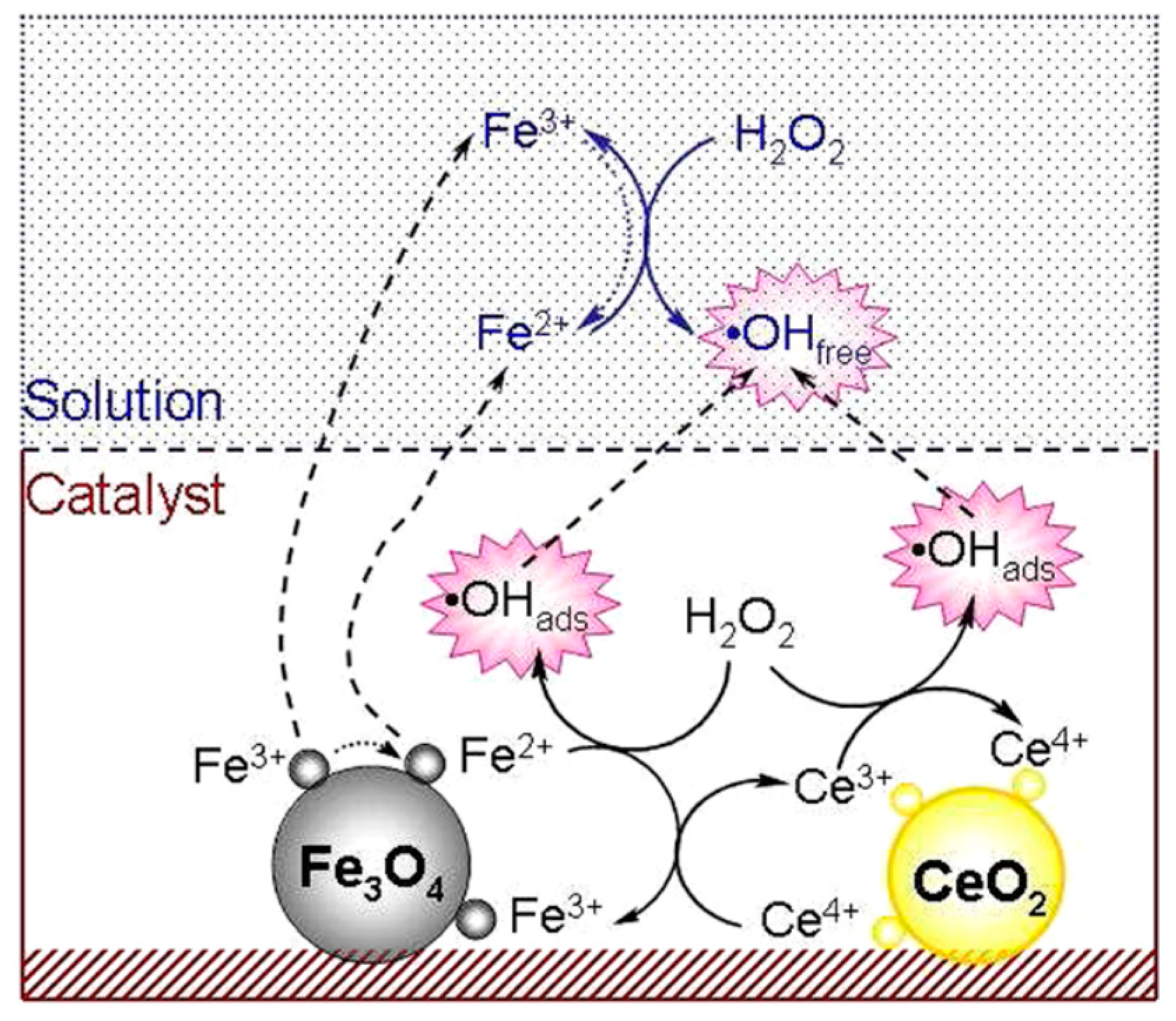

Fe3O4/CeO2 nanocomposites (5–10 nm in size) were reported by Xu and co-workers [158] to be effective for the degradation of 4-chlorophenol at acidic pH of 3 in the presence of H2O2 via the peroxidase-like activity. 4-Chlorophenol was decomposed by the HO radical including surface-bound and in-solution radicals. The material could be reused several times. The proposed mechanism for the generation of hydroxyl radical HO from H2O2 and the interactions between different oxidation states of iron and cerium ions to facilitate HO formation is given in Figure 25. Janoš et al. [198] synthesised magnetically separable composites consisting of Fe2O3 grains and CeO2 nanocrystalline surface (CeO2/c-Fe2O3) and applied them as a “reactive sorbent” for the decomposition of dangerous organophosphorus compounds including organophosphorus pesticide parathion-methyl.

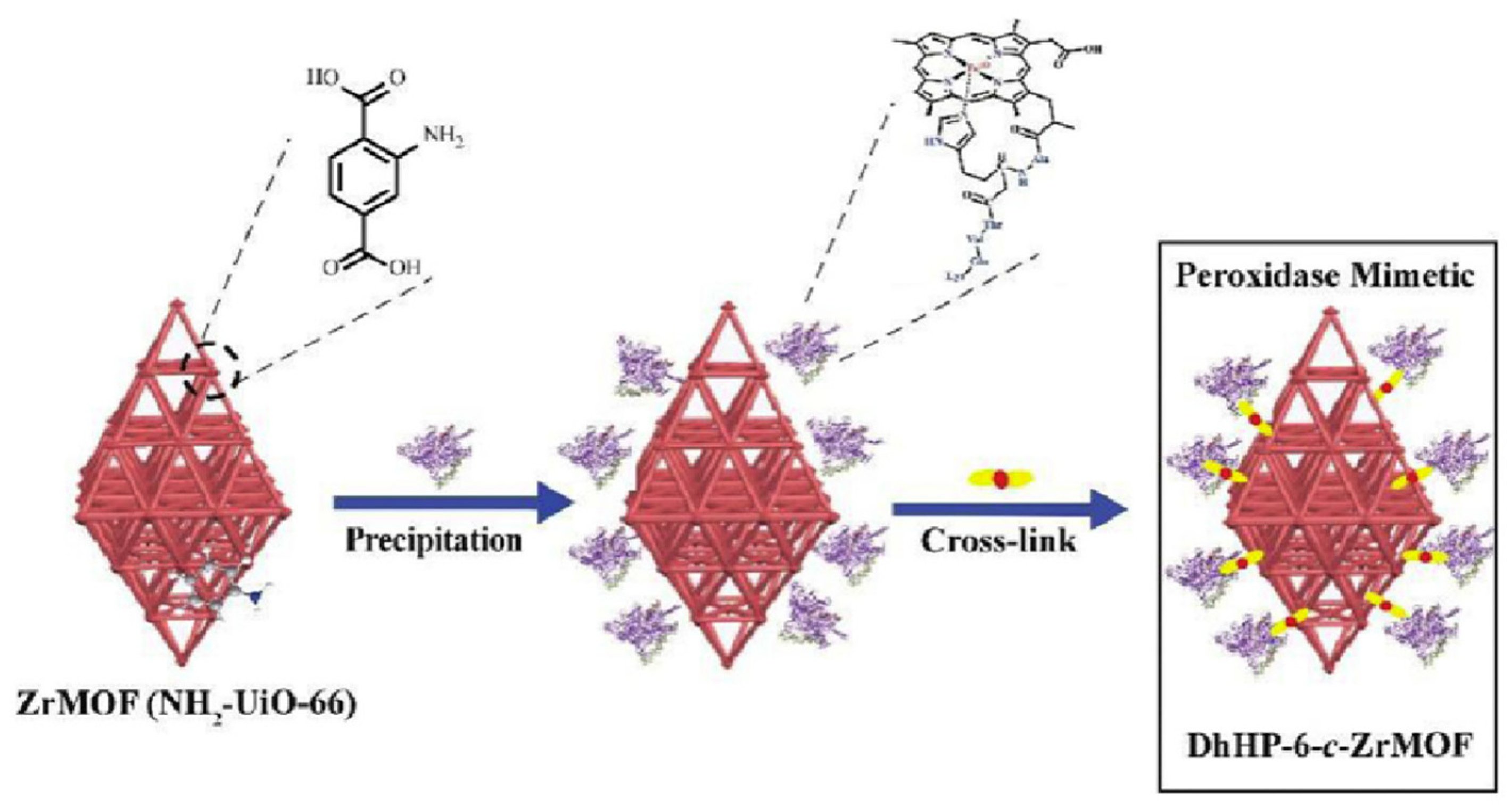

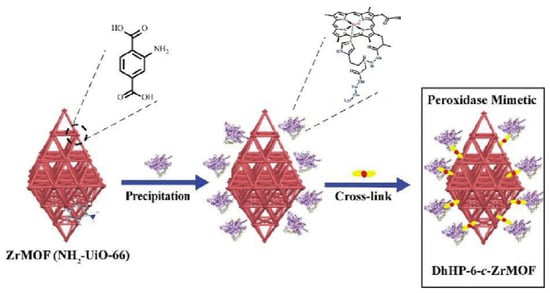

Deuterohemin-peptide conjugated onto metal–organic framework, DhHP-c-ZrMOF, acted as a peroxidase mimetic catalyst for the degradation of phenol [189]. The schematic summary of the synthetic process is outlined in Figure 26. It was found that the hemin attached onto the MOF was significantly more active for the degradation of phenol and could operate in a wider pH range.

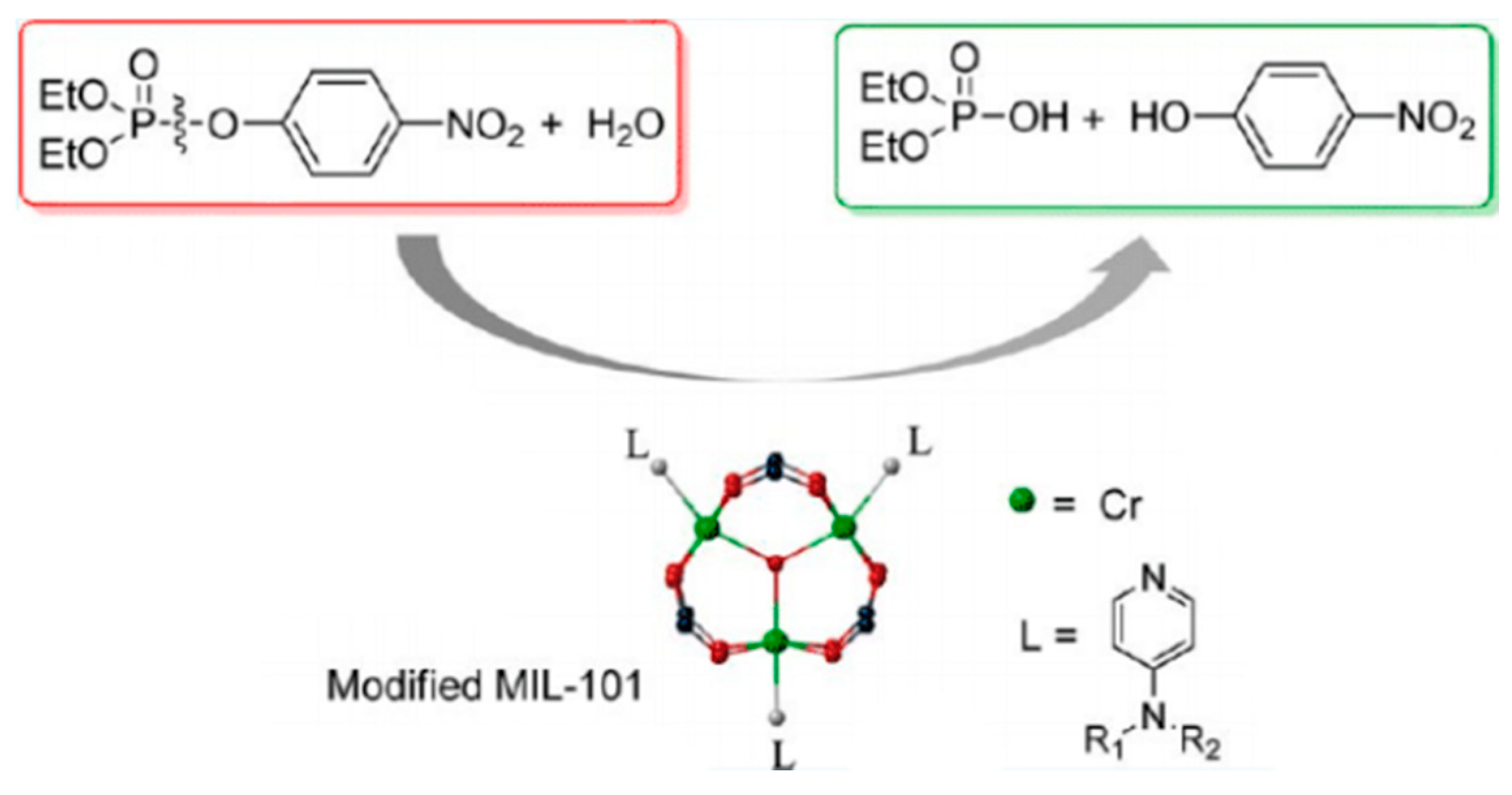

Chromium(III) terephthalate metal organic framework (MIL-101) was demonstrated to be effective in facilitating organophosphorus ester degradation using paraoxon as the model substrate [197]. The MIL-101 had an optimal activity at a basic pH of 10. The degradation of paraoxon (Figure 27) generates two acidic products which are likely to be removed in basic pH by the reaction with hydroxyl functional group.
Li and co-workers [196] showed that the active sites in MOF-derived homobimetallic hollow nanocages are highly efficient as multifunctional nanozyme catalysts for biosensing and organic pollutant degradation. They fabricated Co-based homobimetallic hollow nanocages (HNCs)(C−CoM−HNC, M = Ni, Mn, Cu and Zn) and showed that the material acted as an efficient nanozyme for biosensing based on the excellent oxidase-like activity and for the degradation of an organic pollutant (Rh B).
Examples of other types of composite nanozymes were also reported. Polypyrrole/hemin nanocomposites were prepared and shown to have biosensing, dye removal ability and photothermal therapy [193]. The dye removal ability is not related to the catalytic activity of the nanocomposite and was established by the author to be an adsorbent effect. Cellulose-incorporated iron oxide magnetic nano-biocomposites as a peroxidase mimic have the potential to be a low-cost, recyclable option for the remediation of textile dyes, using the azo dye methyl orange as well as a textile effluent [159]. Niu et al. [203] prepared alginate/Fe@Fe3O4 core/shell structured nanoparticles (Fe3O4@ALG/Fe MNPs) for the defluorination and removal of norfloxacin (a fluoroquinolone antibiotic). The Fe3O4@ALG/Fe MNPs have higher efficiency for norfloxacin degradation compared with the Fe3O4 nanoparticle–H2O2 system, with 100% of the norfloxacin removed within 60 min. Mixed metal oxide, iron molybdate (Fe2(MoO4)3), was prepared and shown to act as a heterogeneous Fenton-like catalyst for the degradation of the dye Acid Orange II. The heterogeneous catalyst worked efficiently in a relatively wide pH range of 3 to 9. Good mineralisation of Acid Orange II was achieved [190].

5.5. Type IV Nanozymes: 3D Structural Mimics

There are only a limited number of studies using type IV nanozymes for the degradation of environmental pollutants (Table 6). The technical challenge in the construction of these 3D nanostructures is likely to be a contributing factor to this limitation.

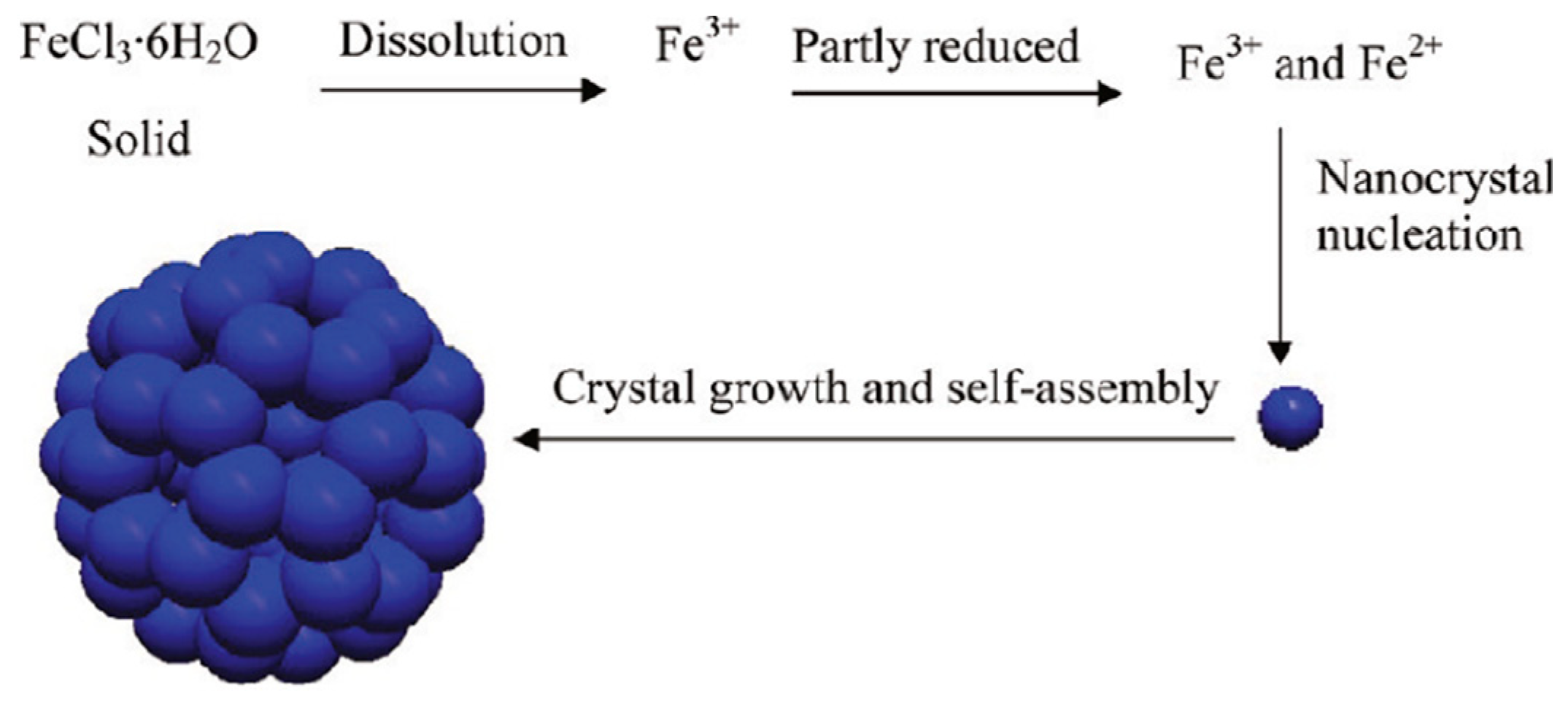

Zhu and Dao [204] prepared porous Fe3O4 nanospheres (Figure 28) and showed that they were highly effective as catalysts for the degradation of xylenol orange with H2O2 as the oxidant in aqueous solution. The porous Fe3O4 could be recycled multiple (7) times, with only a slight drop in activity after each cycle.

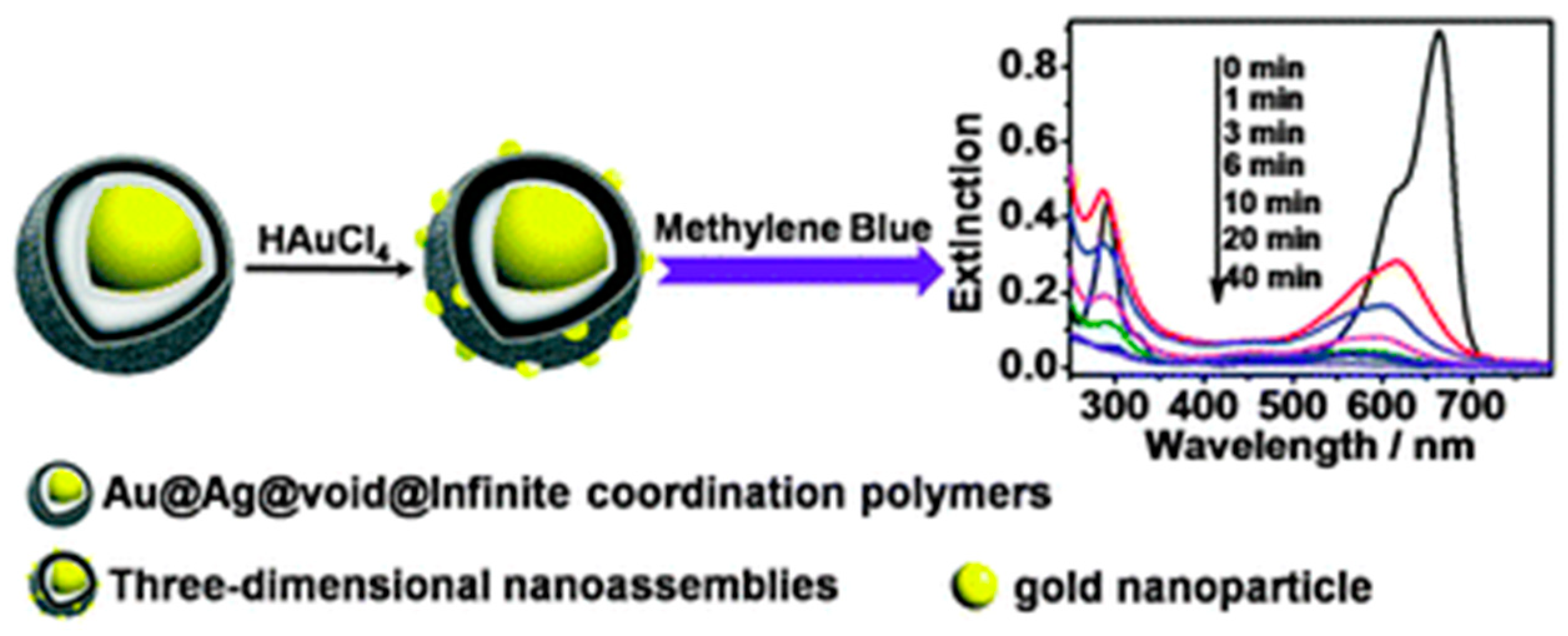

Wang et al. [205] fabricated three-dimensional nano-assemblies of noble metal nanoparticle (NP)–infinite coordination polymers (ICPs) through the infiltration of HAuCl4 into hollow Au@Ag@ICPs core-shell nanostructures and its replacement reaction with Au@Ag nanoparticles (Figure 29). These 3D nano-assemblies possess specific oxidase-like activity. TMB was oxidised to generate its blue product using surface-adsorbed O2 on the surface without using H2O2. Methylene blue was also degraded using the oxidase-like activity of the 3D assemblies.

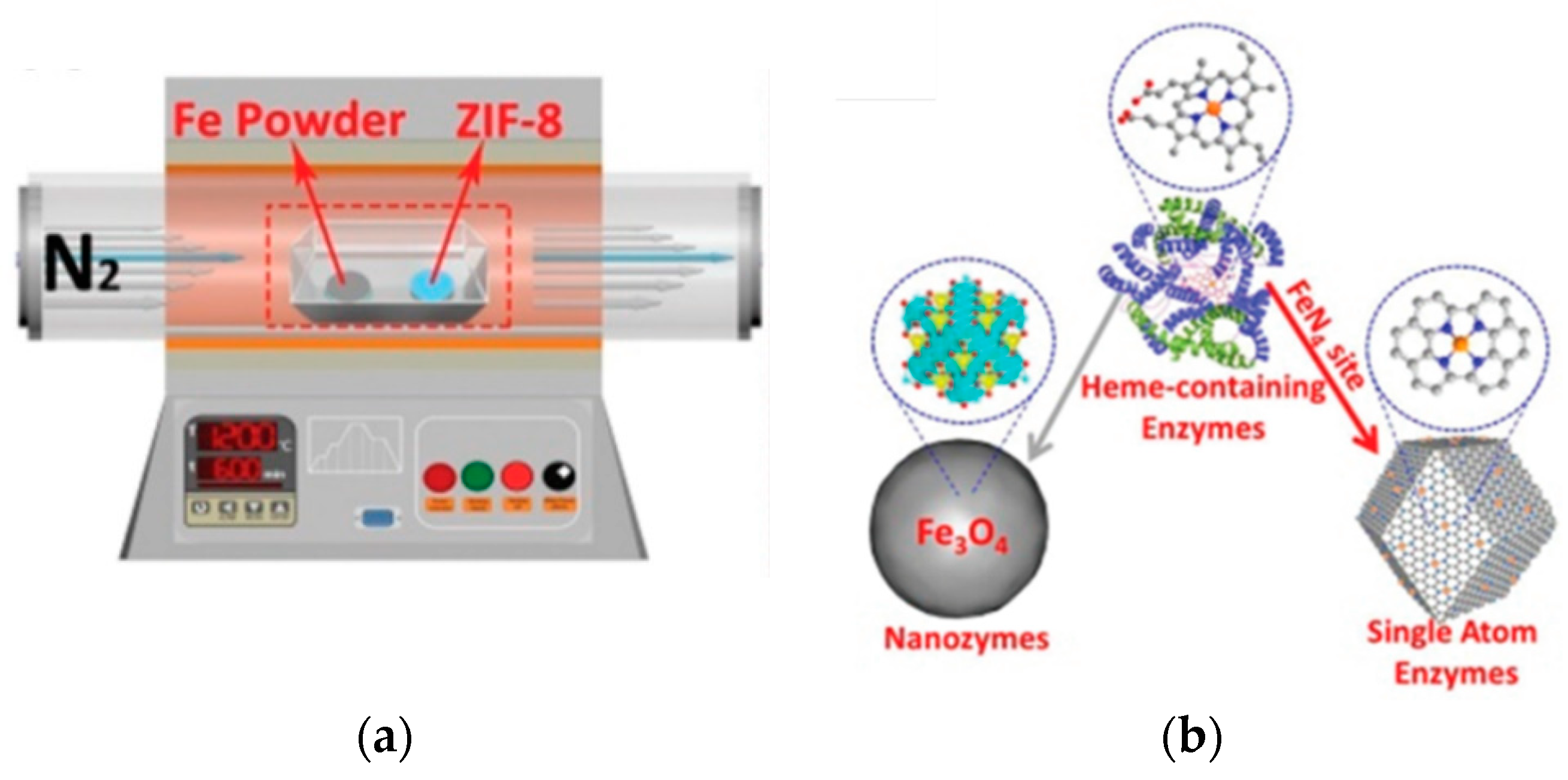

Porphyrin-like single Fe sites on N-doped carbon nanomaterials (iron single-atom nanozymes, FeN4) were constructed by Zhao and co-workers [206] using highly specialised high-temperature techniques (Figure 30). These iron single-atom nanozymes exhibited excellent peroxidase-, oxidase- and catalase-like activities. The catalytic activities could be up 40 times higher than those of Fe3O4. The enhanced reactivity could be attributed to the FeN4 sites, which are similar to the natural heme-containing enzymes, the high surface area of the MOF (ZIF-8) structure and the large pore diameter (0.45 nm). These last two factors are beneficial for the mass transfer of reactant and product. TMB and OPD were the two substrates used for their colorimetric investigation, which showed promising results. The material was effective in the degradation of phenol in aqueous solution.

5.6. Potential Applications of Nanozymes in the Treatment of PFAS (Per- and Polyfluoroalkyl Substances) as Emerging Pollutants

Per- and polyfluoroalkyl substances, PFAS, are a large group of chemicals which have been used extensively in many commercial products including fire-fighting foams, lubricants, coatings, etc. These chemicals can travel great distances in the environment and have been known to be bioaccumulative. Although the toxicity of these compounds has not been fully understood, they are suspected to be the cause of carcinogenesis, mutagenesis and reproductive problems. They are now considered as emerging pollutants [207,208]. A number of technologies have emerged for the remediation of PFAS pollutants; however, the high stability of C-F bonds presents a great challenge in devising an effective method for the degradation of PFAS under mild conditions [207,208,209]. Recent works have shown that microbial and enzymes could affect the degradation of certain PFAS compounds. HRP successfully catalysed the degradation of perfluorooctanoic acid [210] and laccases could also catalyse the degradation of perfluorooctanoic acid [211]. Given the fact that many nanozymes have been demonstrated to have peroxidase and laccase activities as well have significant advantages over natural enzymes, nanozymes could play an important role in PFAS pollutant remediation efforts.

5.7. Summary

The peroxidase-like catalytic activity has been the activity most explored for the degradation of environmental pollutants such as phenols, Rh B, dyes (methylene blue, acid orange), etc. Nanozymes have several advantages including low cost, ease of preparation, high stability and recyclability. Zero valent metal-based nanozymes have been least utilised as catalysts for environmental pollutant remediation. Noble metals are expensive for large-scale applications and zero valent non-noble metals tend to be highly prone to oxidation and degradation. Moreover, 3D-structured materials that possess high specificity (moulded in active sites) have great potential in disease diagnosis. However, in pollutant degradation, high selectivity and specificity is often not required. Additionally, the manufacturing of 3D structures still requires significant technical efforts.
Composite nanozymes, particularly those with Fe3O4 MNPs nanoparticles on carbon materials or MOFs, have been shown to exhibit higher catalytic efficiency than metal-/metal-oxide-based nanozymes. One of the attractive features of these nanocomposites is that they have dual adsorption and degradation activities. The adsorptive ability of the base material, i.e., carbon or MOF, could bring the pollutant to the proximity of the active sites and increase the degradation efficiency of the composite nanozyme.
Most nanozymes were only efficient in the degradation of environmental pollutants under acidic pH conditions. This means that in wastewater treatment application, the treated wastewater will need to undergo an additional and potentially costly neutralisation step. Finding nanozymes that can degrade pollutants under neutral conditions would remarkably boost the application of nanozymes in this area.

6. Conclusions and Future Perspectives

Nanozymes have gathered increasing research interest since their first discovery less than 15 years ago [6] because they exhibit catalytic properties and offer improved tolerance to harsh conditions compared to natural enzymes. They have demonstrated applications in the biomedical and environmental fields, including diagnostics and therapeutics, sensing, environmental monitoring and remediation of environmental pollutants. In this review, we detailed the classification of nanozymes, their general catalytic mechanisms, as well as their recent progress in environmental applications through discriminating their diverse detection and remediation platforms.
Public concerns about environmental safety call for innovative and informative analytical techniques to meet the (i) detection requirements of high sensitivity and specificity, and (ii) remediation requirements of degradation efficiency to transform pollutants into another form less toxic to the environment. Nanozymes have emerged as an excellent tool to address both environmental detection and remediation requirements. Recent works have shown that nanozymes have fascinating catalytic properties, with added advantages over natural enzymes for environmental applications. Not only do they have wider operational windows (resistance to harsh environments), higher stability (long shelf life) and better recyclability, but they also offer tuneable surface functionality. The highly dynamic and active research has given rise to great opportunities in this field. It is believed that in certain applications, the combination of nanozymes with natural enzymes may lead to positive synergistic effects. However, an in-depth understanding of the fundamental principles of nanozymes for environmental quality and safety detection and remediation remains limited, which makes their applications largely empirical. To support sustainable growth and to realise the implementation of nanozymes in the environmental field, there is still scope for improvement.
  • Selectivity: Natural enzymes often have a defined size and morphology and catalyse a specific substrate or a class of analogues. However, nanozymes do not possess as high a substrate (target) selectivity as natural enzymes and their catalytic behaviours can be influenced by ions in the microenvironment, particularly anions. Consequently, more work in innovative surface engineering of nanozymes is still required to create target-tuneable catalysis which can perform selective recognition of the target.
  • Real-time in-field application: To meet the goal of real-time in-field detection of environmental pollutants, further studies are required to minimise sample pre-treatment (such as sample filtration, pH adjustment, solvent extraction, etc.). The vast majority of nanozymes for environmental pollutant monitoring and remediation are based on peroxidase-like activity, which has two drawbacks: (i) they require the addition of unstable hydrogen peroxide, and (ii) acidic pH adjustment to enhance signal. Ideally, nanozymes that can operate under neutral pH conditions without cumbersome sample modification can make the test more user-friendly. Furthermore, implementation of new and/or existing nanozymes into portable devices such as lateral flow assays and microfluidic chambers, coupled with the ability to capture data using portable optical readers such as smartphone cameras (for colorimetric detection), and combined with the fast data processing capability of a smartphone, will help to realise this goal.
  • Effectiveness and reusability of nanozymes: Nanocomposites between MNPs and carbon materials or MOFs have been shown to be remarkably more effective in the degradation of organic pollutants. The improved efficiencies are a result of the combined adsorption and catalytic abilities of the base materials and the MNPs and synergistic interactions between the two materials. Furthermore, while most nanozymes have optimal catalytic activity at acidic pH, examples of composite nanozymes which are highly active at neutral pH are also known. Accordingly, further studies into the development of nanozymes that are highly active at neutral pH will be beneficial for both the detection and the remediation of pollutants as this will reduce sample pre- and post-treatments, e.g., no acidification or post-neutralisation steps are required. Additionally, nanozymes that can be regenerated are also helpful, particularly in the remediation of environmental pollutants (such that they can continue to degrade more pollutants). Thus, reusability and ecological compatibility are also valuable considerations when designing new remediation strategies.
  • Commercial production: Currently, most nanoparticles used in research studies are synthesised in small batches using methods which are usually labour-intensive and time-consuming. Since nanoparticles have a large surface area to volume (and mass) ratio with greater reactivity and mobility, they have the tendency to agglomerate into larger microparticles, losing their distinctive nano characteristics. Small synthetic batches are also prone to batch-to-batch variability and a wide particle size distribution, which can significantly affect the yield of production. While small batches are adequate for early studies, this limits the translation of promising nanozymes for commercial deployment in environmental applications, where orders of magnitude more material are required. Development of methodologies such as flow chemistry techniques that can produce gram quantities per hour of highly reproducible nanozymes, combined with coating strategies to reduce agglomeration at the commercial scale, is important to support scale-up production.
  • Industrial standards and regulation: There is no doubt that nanozymes provide industries with many advantages. However, there are concerns related to the impact of nanoparticles on the ecological system, especially when deployed at large scale for remediation. Current regulations establish metal content limits without consideration of particle size. While implementing nanozymes as an environmental remediation tool, the development should be coupled with appropriate measurement techniques that can quantify both concentrations and particle sizes with appropriate quality assurance and quality control. As well as size and composition, it is evident that the surface properties of nanoparticles will be fundamental in determining the fate and toxicity in the environment and that these properties will need to be considered in any hazard ranking. Consequently, it is necessary to develop computational models to correlate the physicochemical properties of such nanozymes with their potential nanotoxicity. These models can also support public needs and industrial regulations for future remediation designs.

Author Contributions

Writing—original draft preparation, E.L.S.W., K.Q.V., E.C.; writing—review and editing, E.L.S., K.Q.V., E.C. All authors have read and agreed to the published version of the manuscript.


This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data sharing not applicable.

Conflicts of Interest

The authors declare no conflict of interest.


AASatomic absorption spectroscopy
BPAbisphenol A
CHOcholine oxidase
EDTAethylenediaminetetraacetic acid
GC-MSgas chromatography–mass spectrometry
HRPhorseradish peroxidase
ICP-MSinductively coupled plasma–mass spectrometry
ICP-OESinductively coupled plasma–optical emission spectroscopy
LC-MSliquid chromatography–mass spectrometry
MNPmagnetic nanoparticles
MOFmetal–organic framework
MWNTmultiwalled carbon nanotube
PFASper- and polyfluoroalkyl substances
Rh BRhodamine B


  1. Jiang, D.W.; Ni, D.L.; Rosenkrans, Z.T.; Huang, P.; Yan, X.Y.; Cai, W.B. Nanozyme: New horizons for responsive biomedical applications. Chem. Soc. Rev. 2019, 48, 3683–3704. [Google Scholar] [CrossRef]
  2. Wang, Q.Q.; Wei, H.; Zhang, Z.Q.; Wang, E.K.; Dong, S.J. Nanozyme: An emerging alternative to natural enzyme for biosensing and immunoassay. Trends Anal. Chem. 2018, 105, 218–224. [Google Scholar] [CrossRef]
  3. Huang, Y.; Ren, J.; Qu, X. Nanozymes: Classification, catalytic mechanisms, activity regulation, and applications. Chem. Rev. 2019, 119, 4357–4412. [Google Scholar] [CrossRef]
  4. Wang, X.Y.; Hu, Y.H.; Wei, H. Nanozymes in bionanotechnology: From sensing to therapeutics and beyond. Inorg. Chem. Front. 2016, 3, 41–60. [Google Scholar] [CrossRef]
  5. Gao, Y.; Zhou, Y.Z.; Chandrawati, R. Metal and metal oxide nanoparticles to enhance the performance of enzyme-linked immunosorbent assay (ELISA). ACS Appl. Nano Mater. 2020, 3, 1–21. [Google Scholar] [CrossRef]
  6. Gao, L.; Zhuang, J.; Nie, L.; Zhang, J.; Zhang, Y.; Gu, N.; Wang, T.; Feng, J.; Yang, D.; Perrett, S. Intrinsic peroxidase-like activity of ferromagnetic nanoparticles. Nat. Nanotechnol. 2007, 2, 577–583. [Google Scholar] [CrossRef]
  7. Gao, Z.Q.; Xu, M.D.; Hou, L.; Chen, G.N.; Tang, D.P. Magnetic bead-based reverse colorimetric immunoassay strategy for sensing biomolecules. Anal. Chem. 2013, 85, 6945–6952. [Google Scholar] [CrossRef]
  8. Wang, Z.F.; Zheng, S.; Cai, J.; Wang, P.; Feng, J.; Yang, X.; Zhang, L.M.; Ji, M.; Wu, F.G.; He, N.Y.; et al. Fluorescent artificial enzyme-linked immunoassay system based on Pd/C nanocatalyst and fluorescent chemodosimeter. Anal. Chem. 2013, 85, 11602–11609. [Google Scholar] [CrossRef]
  9. Dong, J.L.; Song, L.N.; Yin, J.J.; He, W.W.; Wu, Y.H.; Gu, N.; Zhang, Y. Co3O4 nanoparticles with multi-enzyme activities and their application in immunohistochemical assay. ACS Appl. Mater. Interfaces 2014, 6, 1959–1970. [Google Scholar] [CrossRef]
  10. Gao, Z.Q.; Xu, M.D.; Lu, M.H.; Chen, G.N.; Tang, D.P. Urchin-like (gold core)@(platinum shell) nanohybrids: A highly efficient peroxidase-mimetic system for in situ amplified colorimetric immunoassay. Biosens. Bioelectron. 2015, 70, 194–201. [Google Scholar] [CrossRef]
  11. Huo, M.F.; Wang, L.Y.; Chen, Y.; Shi, J.L. Tumor-selective catalytic nanomedicine by nanocatalyst delivery. Nat. Commun. 2017, 8, 357. [Google Scholar] [CrossRef] [PubMed]
  12. Wang, G.L.; Xu, X.F.; Qiu, L.; Dong, Y.M.; Li, Z.J.; Zhang, C. Dual responsive enzyme mimicking activity of AgX (X = Cl, Br, I) nanoparticles and its application for cancer cell detection. ACS Appl. Mater. Interfaces 2014, 6, 6434–6442. [Google Scholar] [CrossRef] [PubMed]
  13. Maji, S.K.; Mandal, A.K.; Nguyen, K.T.; Borah, P.; Zhao, Y.L. Cancer cell detection and therapeutics using peroxidase-active nanohybrid of gold nanoparticle-loaded mesoporous silica-coated graphene. ACS Appl. Mater. Interfaces 2015, 7, 9807–9816. [Google Scholar] [CrossRef] [PubMed]
  14. Tian, Z.M.; Li, J.; Zhang, Z.Y.; Gao, W.; Zhou, X.M.; Qu, Y.Q. Highly sensitive and robust peroxidase-like activity of porous nanorods of ceria and their application for breast cancer detection. Biomaterials 2015, 59, 116–124. [Google Scholar] [CrossRef] [PubMed]
  15. Asati, A.; Kaittanis, C.; Santra, S.; Perez, J.M. pH-tunable oxidase-like activity of cerium oxide nanoparticles achieving sensitive fluorigenic detection of cancer biomarkers at neutral pH. Anal. Chem. 2011, 83, 2547–2553. [Google Scholar] [CrossRef] [Green Version]
  16. Wei, H.; Wang, E.K. Nanomaterials with enzyme-like characteristics (nanozymes): Next-generation artificial enzymes. Chem. Soc. Rev. 2013, 42, 6060–6093. [Google Scholar] [CrossRef]
  17. Wu, J.J.X.; Wang, X.Y.; Wang, Q.; Lou, Z.P.; Li, S.R.; Zhu, Y.Y.; Qin, L.; Wei, H. Nanomaterials with enzyme-like characteristics (nanozymes): Next-generation artificial enzymes (II). Chem. Soc. Rev. 2019, 48, 1004–1076. [Google Scholar] [CrossRef]
  18. Kazlauskas, R.J. Enhancing catalytic promiscuity for biocatalysis. Curr. Opin. Chem. Biol. 2005, 9, 195–201. [Google Scholar] [CrossRef]
  19. Khersonsky, O.; Roodveldt, C.; Tawfik, D.S. Enzyme promiscuity: Evolutionary and mechanistic aspects. Curr. Opin. Chem. Biol. 2006, 10, 498–508. [Google Scholar] [CrossRef]
  20. Holm, R.H.; Kennepohl, P.; Solomon, E.I. Structural and functional aspects of metal sites in biology. Chem. Rev. 1996, 96, 2239–2314. [Google Scholar] [CrossRef]
  21. Palizban, A.A.; Sadeghi-Aliabadi, H.; Abdollahpour, F. Effect of cerium lanthanide on Hela and MCF-7 cancer cell growth in the presence of transferrin. Res. Pharm. Sci. 2010, 5, 119–125. [Google Scholar] [PubMed]
  22. Celardo, I.; Pedersen, J.Z.; Traversa, E.; Ghibelli, L. Pharmacological potential of cerium oxide nanoparticles. Nanoscale 2011, 3, 1411–1420. [Google Scholar] [CrossRef] [PubMed]
  23. Baldim, V.; Bedioui, F.; Mignet, N.; Margaill, I.; Berret, J.F. The enzyme-like catalytic activity of cerium oxide nanoparticles and its dependency on Ce3+ surface area concentration. Nanoscale 2018, 10, 6971–6980. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Mu, J.S.; Wang, Y.; Zhao, M.; Zhang, L. Intrinsic peroxidase-like activity and catalase-like activity of Co3O4 nanoparticles. Chem. Commun. 2012, 48, 2540–2542. [Google Scholar] [CrossRef] [PubMed]
  25. Lin, S.B.; Wang, Y.Y.; Chen, Z.Z.; Li, L.B.; Zeng, J.F.; Dong, Q.R.; Wang, Y.; Chai, Z.F. Biomineralized enzyme-like cobalt sulfide nanodots for synergetic phototherapy with tumor multimodal imaging navigation. ACS Sustain. Chem. Eng. 2018, 6, 12061–12069. [Google Scholar] [CrossRef]
  26. Chen, W.; Chen, J.; Liu, A.L.; Wang, L.M.; Li, G.W.; Lin, X.H. Peroxidase-like activity of cupric oxide nanoparticle. ChemCatChem. 2011, 3, 1151–1154. [Google Scholar] [CrossRef]
  27. Wan, Y.; Qi, P.; Zhang, D.; Wu, J.J.; Wang, Y. Manganese oxide nanowire-mediated enzyme-linked immunosorbent assay. Biosens. Bioelectron. 2012, 33, 69–74. [Google Scholar] [CrossRef]
  28. Pijpers, I.A.B.; Cao, S.; Llopis-Lorente, A.; Zhu, J.; Song, S.; Joosten, R.R.M.; Meng, F.; Friedrich, H.; Williams, D.S.; Sánchez, S.; et al. Hybrid biodegradable nanomotors through compartmentalized synthesis. Nano Lett. 2020, 20, 4472–4480. [Google Scholar] [CrossRef]
  29. He, W.W.; Zhou, Y.T.; Warner, W.G.; Hu, X.N.; Wu, X.C.; Zheng, Z.; Boudreau, M.D.; Yin, J.J. Intrinsic catalytic activity of Au nanoparticles with respect to hydrogen peroxide decomposition and superoxide scavenging. Biomaterials 2013, 34, 765–773. [Google Scholar] [CrossRef]
  30. Liu, C.P.; Wu, T.H.; Lin, Y.L.; Liu, C.Y.; Wang, S.; Lin, S.Y. Tailoring enzyme-like activities of gold nanoclusters by polymeric tertiary amines for protecting neurons against oxidative stress. Small 2016, 12, 4127–4135. [Google Scholar] [CrossRef]
  31. Long, R.; Huang, H.; Li, Y.P.; Song, L.; Xiong, Y.J. Palladium-based nanomaterials: A platform to produce reactive oxygen species for catalyzing oxidation reactions. Adv. Mater. 2015, 27, 7025–7042. [Google Scholar] [CrossRef] [PubMed]
  32. Comotti, M.; Della Pina, C.; Matarrese, R.; Rossi, M. The catalytic activity of “naked” gold particles. Angew. Chem. Int. Ed. 2004, 43, 5812–5815. [Google Scholar] [CrossRef] [PubMed]
  33. Wang, S.; Chen, W.; Liu, A.L.; Hong, L.; Deng, H.H.; Lin, X.H. Comparison of the peroxidase-like activity of unmodified, amino-modified, and citrate-capped gold nanoparticles. ChemPhysChem 2012, 13, 1199–1204. [Google Scholar] [CrossRef] [PubMed]
  34. Jv, Y.; Li, B.X.; Cao, R. Positively-charged gold nanoparticles as peroxidiase mimic and their application in hydrogen peroxide and glucose detection. Chem. Commun. 2010, 46, 8017–8019. [Google Scholar] [CrossRef] [PubMed]
  35. Li, J.N.; Liu, W.Q.; Wu, X.C.; Gao, X.F. Mechanism of pH-switchable peroxidase and catalase-like activities of gold, silver, platinum and palladium. Biomaterials 2015, 48, 37–44. [Google Scholar] [CrossRef] [PubMed]
  36. Fan, J.; Yin, J.J.; Ning, B.; Wu, X.C.; Hu, Y.; Ferrari, M.; Anderson, G.J.; Wei, J.Y.; Zhao, Y.L.; Nie, G.J. Direct evidence for catalase and peroxidase activities of ferritin-platinum nanoparticles. Biomaterials 2011, 32, 1611–1618. [Google Scholar] [CrossRef]
  37. Shen, X.M.; Liu, W.Q.; Gao, X.J.; Lu, Z.H.; Wu, X.C.; Gao, X.F. Mechanisms of oxidase and superoxide dismutation-like activities of gold, silver, platinum, and palladium, and their alloys: A general way to the activation of molecular oxygen. J. Am. Chem. Soc. 2015, 137, 15882–15891. [Google Scholar] [CrossRef]
  38. Xu, Y.; Chen, L.; Wang, X.C.; Yao, W.T.; Zhang, Q. Recent advances in noble metal based composite nanocatalysts: Colloidal synthesis, properties, and catalytic applications. Nanoscale 2015, 7, 10559–10583. [Google Scholar] [CrossRef]
  39. He, W.W.; Wu, X.C.; Liu, J.B.; Hu, X.N.; Zhang, K.; Hou, S.A.; Zhou, W.Y.; Xie, S.S. Design of AgM bimetallic alloy nanostructures (M = Au, Pd, Pt) with tunable morphology and peroxidase-like activity. Chem. Mater. 2010, 22, 2988–2994. [Google Scholar] [CrossRef]
  40. He, W.W.; Liu, Y.; Yuan, J.S.; Yin, J.J.; Wu, X.C.; Hu, X.N.; Zhang, K.; Liu, J.B.; Chen, C.Y.; Ji, Y.L.; et al. Au@Pt nanostructures as oxidase and peroxidase mimetics for use in immunoassays. Biomaterials 2011, 32, 1139–1147. [Google Scholar] [CrossRef]
  41. Xia, X.H.; Zhang, J.T.; Lu, N.; Kim, M.J.; Ghale, K.; Xu, Y.; McKenzie, E.; Liu, J.B.; Yet, H.H. Pd-Ir core-shell nanocubes: A type of highly efficient and versatile peroxidase mimic. ACS Nano 2015, 9, 9994–10004. [Google Scholar] [CrossRef] [PubMed]
  42. Garg, B.; Bisht, T. Carbon nanodots as peroxidase nanozymes for biosensing. Molecules 2016, 21, 1653. [Google Scholar] [CrossRef] [PubMed]
  43. Sun, H.; Zhou, Y.; Ren, J.; Qu, X. Carbon nanozymes: Enzymatic properties, catalytic mechanism, and applications. Angew. Chem. Int. Ed. 2018, 57, 9224–9237. [Google Scholar] [CrossRef] [PubMed]
  44. Shi, W.; Wang, Q.; Long, Y.; Cheng, Z.; Chen, S.; Zheng, H.; Huang, Y. Carbon nanodots as peroxidase mimetics and their applications to glucose detection. Chem. Commun. 2011, 47, 6695–6697. [Google Scholar] [CrossRef]
  45. Song, Y.J.; Qu, K.G.; Zhao, C.; Ren, J.S.; Qu, X.G. Graphene oxide: Intrinsic peroxidase catalytic activity and its application to glucose detection. Adv. Mater. 2010, 22, 2206–2210. [Google Scholar] [CrossRef]
  46. Kim, M.S.; Cho, S.; Joo, S.H.; Lee, J.; Kwak, S.K.; Kim, M.I. N- and B-codoped graphene: A strong candidate to replace natural peroxidase in sensitive and selective bioassays. ACS Nano 2019, 13, 4312–4321. [Google Scholar] [CrossRef]
  47. Ren, C.X.; Hu, X.G.; Zhou, Q.X. Graphene oxide quantum dots reduce oxidative stress and inhibit neurotoxicity in vitro and in vivo through catalase-like activity and metabolic regulation. Adv. Sci. 2018, 5, 1700595. [Google Scholar] [CrossRef]
  48. Wu, X.C.; Zhang, Y.; Han, T.; Wu, H.X.; Guo, S.W.; Zhang, J.Y. Composite of graphene quantum dots and Fe3O4 nanoparticles: Peroxidase activity and application in phenolic compound removal. RSC Adv. 2014, 4, 3299–3305. [Google Scholar] [CrossRef]
  49. Dong, Y.M.; Zhang, J.J.; Jiang, P.P.; Wang, G.L.; Wu, X.M.; Zhao, H.; Zhang, C. Superior peroxidase mimetic activity of carbon dots-Pt nanocomposites relies on synergistic effects. New J. Chem. 2015, 39, 4141–4146. [Google Scholar] [CrossRef]
  50. Zheng, C.; Ke, W.J.; Yin, T.X.; An, X.Q. Intrinsic peroxidase-like activity and the catalytic mechanism of gold@carbon dots nanocomposites. RSC Adv. 2016, 6, 35280–35286. [Google Scholar] [CrossRef]
  51. Chen, Q.M.; Liang, C.H.; Zhang, X.D.; Huang, Y.M. High oxidase-mimic activity of Fe nanoparticles embedded in an N-rich porous carbon and their application for sensing of dopamine. Talanta 2018, 182, 476–483. [Google Scholar] [CrossRef] [PubMed]
  52. Farha, O.K.; Shultz, A.M.; Sarjeant, A.A.; Nguyen, S.T.; Hupp, J.T. Active-site-accessible, porphyrinic metal-organic framework materials. J. Am. Chem. Soc. 2011, 133, 5652–5655. [Google Scholar] [CrossRef] [PubMed]
  53. Liu, Y.L.; Zhao, X.J.; Yang, X.X.; Li, Y.F. A nanosized metal-organic framework of Fe-MIL-88NH2 as a novel peroxidase mimic used for colorimetric detection of glucose. Analyst 2013, 138, 4526–4531. [Google Scholar] [CrossRef] [PubMed]
  54. Wang, C.H.; Gao, J.; Cao, Y.L.; Tan, H.L. Colorimetric logic gate for alkaline phosphatase based on copper (II)-based metal-organic frameworks with peroxidase-like activity. Anal. Chim. Acta 2018, 1004, 74–81. [Google Scholar] [CrossRef] [PubMed]
  55. Chen, J.Y.; Shu, Y.; Li, H.L.; Xu, Q.; Hu, X.Y. Nickel metal-organic framework 2D nanosheets with enhanced peroxidase nanozyme activity for colorimetric detection of H2O2. Talanta 2018, 189, 254–261. [Google Scholar] [CrossRef] [PubMed]
  56. Li, H.P.; Liu, H.F.; Zhang, J.D.; Cheng, Y.X.; Zhang, C.L.; Fei, X.Y.; Xian, Y.Z. Platinum nanoparticle encapsulated metal-organic frameworks for colorimetric measurement and facile removal of mercury(II). ACS Appl. Mater. Interfaces 2017, 9, 40716–40725. [Google Scholar] [CrossRef] [PubMed]
  57. Yang, H.G.; Yang, R.T.; Zhang, P.; Qin, Y.M.; Chen, T.; Ye, F.G. A bimetallic (Co/2Fe) metal-organic framework with oxidase and peroxidase mimicking activity for colorimetric detection of hydrogen peroxide. Microchim. Acta 2017, 184, 4629–4635. [Google Scholar] [CrossRef]
  58. Xu, H.M.; Liu, M.; Huang, X.D.; Min, Q.H.; Zhu, J.J. Multiplexed quantitative MALDI MS approach for assessing activity and inhibition of protein kinases based on postenrichment dephosphorylation of phosphopeptides by metal-organic framework-templated porous CeO2. Anal. Chem. 2018, 90, 9859–9867. [Google Scholar] [CrossRef]
  59. Zhang, W.; Hu, S.L.; Yin, J.J.; He, W.W.; Lu, W.; Ma, M.; Gu, N.; Zhang, Y. Prussian blue nanoparticles as multienzyme mimetics and reactive oxygen species scavengers. J. Am. Chem. Soc. 2016, 138, 5860–5865. [Google Scholar] [CrossRef]
  60. Lin, Y.H.; Ren, J.S.; Qu, X.G. Catalytically active nanomaterials: A promising candidate for artificial enzymes. Acc. Chem. Res. 2014, 47, 1097–1105. [Google Scholar] [CrossRef]
  61. Ghosh, S.; Roy, P.; Karmodak, N.; Jemmis, E.D.; Mugesh, G. Nanoisozymes: Crystal-facet-dependent enzyme-mimetic activity of V2O5 nanomaterials. Angew. Chem. Int. Ed. 2018, 57, 4510–4515. [Google Scholar] [CrossRef]
  62. Huang, L.; Chen, J.X.; Gan, L.F.; Wang, J.; Dong, S.J. Single-atom nanozymes. Sci. Adv. 2019, 5, eaav5490. [Google Scholar] [CrossRef] [Green Version]
  63. Benedetti, T.M.; Andronescu, C.; Cheong, S.; Wilde, P.; Wordsworth, J.; Kientz, M.; Tilley, R.D.; Schuhmann, W.; Gooding, J.J. Electrocatalytic nanoparticles that mimic the three-dimensional geometric architecture of enzymes: Nanozymes. J. Am. Chem. Soc. 2018, 140, 13449–13455. [Google Scholar] [CrossRef] [PubMed]
  64. Chen, Y.J.; Ji, S.F.; Wang, Y.G.; Dong, J.C.; Chen, W.X.; Li, Z.; Shen, R.A.; Zheng, L.R.; Zhuang, Z.B.; Wang, D.S.; et al. Isolated single iron atoms anchored on N-doped porous carbon as an efficient electrocatalyst for the oxygen reduction reaction. Angew. Chem. Int. Ed. 2017, 56, 6937–6941. [Google Scholar] [CrossRef] [PubMed]
  65. Huang, X.Y.; Groves, J.T. Oxygen activation and radical transformations in heme proteins and metalloporphyrins. Chem. Rev. 2018, 118, 2491–2553. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  66. Jiao, L.; Wu, J.B.; Zhong, H.; Zhang, Y.; Xu, W.Q.; Wu, Y.; Chen, Y.F.; Yan, H.Y.; Zhang, Q.H.; Gu, W.L.; et al. Densely isolated FeN4 sites for peroxidase mimicking. ACS Catal. 2020, 10, 6422–6429. [Google Scholar] [CrossRef]
  67. Wordsworth, J.; Benedetti, T.M.; Alinezhad, A.; Tilley, R.D.; Edwards, M.A.; Schuhmann, W.; Gooding, J.J. The importance of nanoscale confinement to electrocatalytic performance. Chem. Sci. 2020, 11, 1233–1240. [Google Scholar] [CrossRef] [Green Version]
  68. Voinov, M.A.; Pagan, J.O.S.; Morrison, E.; Smirnova, T.I.; Smirnov, A.I. Surface-mediated production of hydroxyl radicals as a mechanism of iron oxide nanoparticle biotoxicity. J. Am. Chem. Soc. 2011, 133, 35–41. [Google Scholar] [CrossRef]
  69. Fenton, H. LXXIII.—Oxidation of tartaric acid in presence of iron. J. Chem. Soc. Trans. 1894, 65, 899–910. [Google Scholar] [CrossRef] [Green Version]
  70. Hu, X.N.; Saran, A.; Hou, S.; Wen, T.; Ji, Y.L.; Liu, W.Q.; Zhang, H.; He, W.W.; Yin, J.J.; Wu, X.C. Au@PtAg core/shell nanorods: Tailoring enzyme-like activities via alloying. RSC Adv. 2013, 3, 6095–6105. [Google Scholar] [CrossRef]
  71. Zhang, H.J.; Okuni, J.; Toshima, N. One-pot synthesis of Ag-Au bimetallic nanoparticles with Au shell and their high catalytic activity for aerobic glucose oxidation. J. Colloid. Interface Sci. 2011, 354, 131–138. [Google Scholar] [CrossRef] [PubMed]
  72. Nath, I.; Chakraborty, J.; Verpoort, F. Metal organic frameworks mimicking natural enzymes: A structural and functional analogy. Chem. Soc. Rev. 2016, 45, 4127–4170. [Google Scholar] [CrossRef]
  73. Sun, H.J.; Zhao, A.D.; Gao, N.; Li, K.; Ren, J.S.; Qu, X.G. Deciphering a nanocarbon-based artificial peroxidase: Chemical identification of the catalytically active and substrate-binding sites on graphene quantum dots. Angew. Chem. Int. Ed. 2015, 54, 7176–7180. [Google Scholar] [CrossRef]
  74. Zhao, R.S.; Zhao, X.; Gao, X.F. Molecular-level insights into intrinsic peroxidase-like activity of nanocarbon oxides. Chem. Eur. J. 2015, 21, 960–964. [Google Scholar] [CrossRef]
  75. Cheng, N.; Li, J.C.; Liu, D.; Lin, Y.H.; Du, D. Single-atom nanozyme based on nanoengineered Fe-N-C catalyst with superior peroxidase-like activity for ultrasensitive bioassays. Small 2019, 15, 1901485. [Google Scholar] [CrossRef] [PubMed]
  76. Xu, B.L.; Wang, H.; Wang, W.W.; Gao, L.Z.; Li, S.S.; Pan, X.T.; Wang, H.Y.; Yang, H.L.; Meng, X.Q.; Wu, Q.W.; et al. A single-atom nanozyme for wound disinfection applications. Angew. Chem. Int. Ed. 2019, 58, 4911–4916. [Google Scholar] [CrossRef] [PubMed]
  77. Calle-Vallejo, F.; Tymoczko, J.; Colic, V.; Vu, Q.H.; Pohl, M.D.; Morgenstern, K.; Loffreda, D.; Sautet, P.; Schuhmann, W.; Bandarenka, A.S. Finding optimal surface sites on heterogeneous catalysts by counting nearest neighbors. Science 2015, 350, 185–189. [Google Scholar] [CrossRef]
  78. Australian Drinking Water Guidelines Paper 6 National Water Quality Management Strategy; National Health and Medical Research Council, National Resource Management Ministerial Council: Canberra, Australia, 2011.
  79. Olesik, J.W. Elemental analysis using ICP-OES and ICP/MS. Anal. Chem. 1991, 63, 12A–21A. [Google Scholar] [CrossRef]
  80. Kaur, B.; Kaur, N.; Kumar, S. Colorimetric metal ion sensors—A comprehensive review of the years 2011–2016. Coord. Chem. Rev. 2018, 358, 13–69. [Google Scholar] [CrossRef]
  81. Liu, B.; Zhuang, J.; Wei, G. Recent advances in the design of colorimetric sensors for environmental monitoring. Environ. Sci.: Nano 2020, 7, 2195–2213. [Google Scholar] [CrossRef]
  82. Chow, E.; Gooding, J.J. Peptide modified electrodes as electrochemical metal ion sensors. Electroanalysis 2006, 18, 1437–1448. [Google Scholar] [CrossRef]
  83. Bansod, B.; Kumar, T.; Thakur, R.; Rana, S.; Singh, I. A review on various electrochemical techniques for heavy metal ions detection with different sensing platforms. Biosens. Bioelectron. 2017, 94, 443–455. [Google Scholar] [CrossRef] [PubMed]
  84. Priyadarshini, E.; Pradhan, N. Gold nanoparticles as efficient sensors in colorimetric detection of toxic metal ions: A review. Sens. Actuators B Chem. 2017, 238, 888–902. [Google Scholar] [CrossRef]
  85. Johnson, R.D.; Bachas, L.G. Ionophore-based ion-selective potentiometric and optical sensors. Anal. Bioanal. Chem. 2003, 376, 328–341. [Google Scholar] [CrossRef] [PubMed]
  86. Slocik, J.M.; Zabinski Jr, J.S.; Phillips, D.M.; Naik, R.R. Colorimetric response of peptide-functionalized gold nanoparticles to metal ions. Small 2008, 4, 548–551. [Google Scholar] [CrossRef]
  87. Zhou, W.; Saran, R.; Liu, J. Metal sensing by DNA. Chem. Rev. 2017, 117, 8272–8325. [Google Scholar] [CrossRef] [Green Version]
  88. Kukla, A.L.; Kanjuk, N.I.; Starodub, N.F.; Shirshov, Y.M. Multienzyme electrochemical sensor array for determination of heavy metal ions. Sens. Actuators B Chem. 1999, 57, 213–218. [Google Scholar] [CrossRef]
  89. Krawczyński vel Krawczyk, T.; Moszczyńska, M.; Trojanowicz, M. Inhibitive determination of mercury and other metal ions by potentiometric urea biosensor. Biosens. Bioelectron. 2000, 15, 681–691. [Google Scholar] [CrossRef]
  90. Unnikrishnan, B.; Lien, C.-W.; Chu, H.-W.; Huang, C.-C. A review on metal nanozyme-based sensing of heavy metal ions: Challenges and future perspectives. J. Hazard. Mater. 2021, 401, 123397. [Google Scholar] [CrossRef]
  91. Li, X.; Wang, L.; Du, D.; Ni, L.; Pan, J.; Niu, X. Emerging applications of nanozymes in environmental analysis: Opportunities and trends. Trends Anal. Chem. 2019, 120, 115653. [Google Scholar] [CrossRef]
  92. Meng, Y.; Li, W.; Pan, X.; Gadd, G.M. Applications of nanozymes in the environment. Environ. Sci. Nano 2020, 7, 135–1318. [Google Scholar] [CrossRef]
  93. Yan, Z.; Yuan, H.; Zhao, Q.; Xing, L.; Zheng, X.; Wang, W.; Zhao, Y.; Yu, Y.; Hu, L.; Yao, W. Recent developments of nanoenzyme-based colorimetric sensors for heavy metal detection and the interaction mechanism. Analyst 2020, 145, 3173–3187. [Google Scholar] [CrossRef] [PubMed]
  94. Zhao, Y.; Qiang, H.; Chen, Z.B. Colorimetric determination of Hg(II) based on a visually detectable signal amplification induced by a Cu@Au-Hg trimetallic amalgam with peroxidase-like activity. Microchim. Acta 2017, 184, 107–115. [Google Scholar] [CrossRef]
  95. Li, W.; Bin, C.; Zhang, H.X.; Sun, Y.H.; Wang, J.; Zhang, J.L.; Fu, Y. BSA-stabilized Pt nanozyme for peroxidase mimetics and its application on colorimetric detection of mercury(II) ions. Biosens. Bioelectron. 2015, 66, 251–258. [Google Scholar] [CrossRef] [PubMed]
  96. Zhou, Y.; Ma, Z.F. Fluorescent and colorimetric dual detection of mercury (II) by H2O2 oxidation of o-phenylenediamine using Pt nanoparticles as the catalyst. Sens. Actuators B Chem. 2017, 249, 53–58. [Google Scholar] [CrossRef]
  97. Jiang, C.F.; Li, Z.J.; Wu, Y.X.; Guo, W.; Wang, J.S.; Jiang, Q. Colorimetric detection of Hg2+ based on enhancement of peroxidase-like activity of chitosan-gold nanoparticles. Bull. Korean Chem. Soc. 2018, 39, 625–630. [Google Scholar] [CrossRef]
  98. Liao, H.; Liu, G.J.; Liu, Y.; Li, R.; Fu, W.S.; Hu, L.Z. Aggregation-induced accelerating peroxidase-like activity of gold nanoclusters and their applications for colorimetric Pb2+ detection. Chem. Commun. 2017, 53, 10160–10163. [Google Scholar] [CrossRef]
  99. Zhang, W.C.; Niu, X.H.; Meng, S.C.; Li, X.; He, Y.F.; Pan, J.M.; Qiu, F.X.; Zhao, H.L.; Lan, M.B. Histidine-mediated tunable peroxidase-like activity of nanosized Pd for photometric sensing of Ag+. Sens. Actuators B Chem. 2018, 273, 400–407. [Google Scholar] [CrossRef]
  100. Chang, Y.; Zhang, Z.; Hao, J.; Yang, W.; Tang, J. BSA-stabilized Au clusters as peroxidase mimetic for colorimetric detection of Ag+. Sens. Actuators B Chem. 2016, 232, 692–697. [Google Scholar] [CrossRef]
  101. Long, Y.J.; Li, Y.F.; Liu, Y.; Zheng, J.J.; Tang, J.; Huang, C.Z. Visual observation of the mercury-stimulated peroxidase mimetic activity of gold nanoparticles. Chem. Commun. 2011, 47, 11939–11941. [Google Scholar] [CrossRef]
  102. Niu, X.H.; He, Y.F.; Li, X.; Zhao, H.L.; Pan, J.M.; Qiu, F.X.; Lan, M.B. A peroxidase-mimicking nanosensor with Hg2+-triggered enzymatic activity of cysteine-decorated ferromagnetic particles for ultrasensitive Hg2+ detection in environmental and biological fluids. Sens. Actuators B Chem. 2019, 281, 445–452. [Google Scholar] [CrossRef]
  103. Huang, L.J.; Zhu, Q.R.; Zhu, J.; Luo, L.P.; Pu, S.H.; Zhang, W.T.; Zhu, W.X.; Sun, J.; Wang, J.L. Portable colorimetric detection of mercury(II) based on a non-noble metal nanozyme with tunable activity. Inorg. Chem. 2019, 58, 1638–1646. [Google Scholar] [CrossRef] [PubMed]
  104. Mu, J.S.; Li, J.; Zhao, X.; Yang, E.C.; Zhao, X.J. Novel urchin-like Co9S8 nanomaterials with efficient intrinsic peroxidase-like activity for colorimetric sensing of copper (II) ion. Sens. Actuators B Chem. 2018, 258, 32–41. [Google Scholar] [CrossRef]
  105. Zhang, Y.M.; Song, J.; Pan, Q.L.; Zhang, X.; Shao, W.H.; Zhang, X.; Quan, C.S.; Li, J. An Au@NH2-MIL-125(Ti)-based multifunctional platform for colorimetric detections of biomolecules and Hg2+. J. Mater. Chem. B 2020, 8, 114–124. [Google Scholar] [CrossRef] [PubMed]
  106. Li, C.R.; Hai, J.; Fan, L.; Li, S.L.; Wang, B.D.; Yang, Z.Y. Amplified colorimetric detection of Ag+ based on Ag+-triggered peroxidase-like catalytic activity of ZIF-8/GO nanosheets. Sens. Actuators B Chem. 2019, 284, 213–219. [Google Scholar] [CrossRef]
  107. Wang, Y.; Liang, R.P.; Qiu, J.D. Nanoceria-templated metal organic frameworks with oxidase-mimicking activity boosted by hexavalent chromium. Anal. Chem. 2020, 92, 2339–2346. [Google Scholar] [CrossRef]
  108. Ma, C.; Ma, Y.; Sun, Y.; Lu, Y.; Tian, E.; Lan, J.; Li, J.; Ye, W.; Zhang, H. Colorimetric determination of Hg2+ in environmental water based on the Hg2+-stimulated peroxidase mimetic activity of MoS2-Au composites. J. Colloid. Interfaces Sci. 2019, 537, 554–561. [Google Scholar] [CrossRef]
  109. Zhang, S.; Li, H.; Wang, Z.; Liu, J.; Zhang, H.; Wang, B.; Yang, Z. A strongly coupled Au/Fe3O4/GO hybrid material with enhanced nanozyme activity for highly sensitive colorimetric detection, and rapid and efficient removal of Hg2+ in aqueous solutions. Nanoscale 2015, 7, 8495–8502. [Google Scholar] [CrossRef]
  110. Guo, L.; Mao, L.; Huang, K.; Liu, H. Pt–Se nanostructures with oxidase-like activity and their application in a selective colorimetric assay for mercury(II). J. Mater. Sci. 2017, 52, 10738–10750. [Google Scholar] [CrossRef]
  111. Cao, H.; Xiao, J.Y.; Liu, H.M. Enhanced oxidase-like activity of selenium nanoparticles stabilized by chitosan and application in a facile colorimetric assay for mercury (II). Biochem. Eng. J. 2019, 152, 107384. [Google Scholar] [CrossRef]
  112. Han, L.; Zhang, H.J.; Li, F. Bioinspired nanozymes with pH-independent and metal ions-controllable activity: Field-programmable logic conversion of sole logic gate system. Part. Part. Syst. Charact. 2018, 35, 1800207. [Google Scholar] [CrossRef]
  113. Liu, R.; Zuo, L.; Huang, X.R.; Liu, S.M.; Yang, G.Y.; Li, S.Y.; Lv, C.Y. Colorimetric determination of lead(II) or mercury(II) based on target induced switching of the enzyme-like activity of metallothionein-stabilized copper nanoclusters. Microchim. Acta 2019, 186, 250. [Google Scholar] [CrossRef] [PubMed]
  114. Han, K.N.; Choi, J.S.; Kwon, J. Gold nanozyme-based paper chip for colorimetric detection of mercury ions. Sci. Rep. 2017, 7, 2806. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  115. Kora, A.J.; Rastogi, L. Peroxidase activity of biogenic platinum nanoparticles: A colorimetric probe towards selective detection of mercuric ions in water samples. Sens. Actuators B Chem. 2018, 254, 690–700. [Google Scholar] [CrossRef]
  116. Wang, Y.; Irudayaraj, J. A SERS DNAzyme biosensor for lead ion detection. Chem. Commun. 2011, 47, 4394–4396. [Google Scholar] [CrossRef]
  117. Xie, Z.J.; Shi, M.R.; Wang, L.Y.; Peng, C.F.; Wei, X.L. Colorimetric determination of Pb2+ ions based on surface leaching of Au@Pt nanoparticles as peroxidase mimic. Microchim. Acta 2020, 187, 255. [Google Scholar] [CrossRef]
  118. Tang, Y.; Hu, Y.; Yang, Y.X.; Liu, B.Y.; Wu, Y.G. A facile colorimetric sensor for ultrasensitive and selective detection of lead(II) in environmental and biological samples based on intrinsic peroxidase-mimic activity of WS2 nanosheets. Anal. Chim. Acta 2020, 1106, 115–125. [Google Scholar] [CrossRef]
  119. Li, M.; Huang, X.; Yu, H. A colorimetric assay for ultrasensitive detection of copper (II) ions based on pH-dependent formation of heavily doped molybdenum oxide nanosheets. Mater. Sci. Eng. C 2019, 101, 614–618. [Google Scholar] [CrossRef]
  120. Shen, Q.; Li, W.; Tang, S.; Hu, Y.; Nie, Z.; Huang, Y.; Yao, S. A simple “clickable” biosensor for colorimetric detection of copper(II) ions based on unmodified gold nanoparticles. Biosens. Bioelectron. 2013, 41, 663–668. [Google Scholar] [CrossRef]
  121. Gao, M.; An, P.L.; Rao, H.H.; Niu, Z.R.; Xue, X.; Luo, M.Y.; Liu, X.H.; Xue, Z.H.; Lu, X.Q. Molecule-gated surface chemistry of Pt nanoparticles for constructing activity-controllable nanozymes and a three-in-one sensor. Analyst 2020, 145, 1279–1287. [Google Scholar] [CrossRef]
  122. White, P.A.; Collis, G.E.; Skidmore, M.; Breedon, M.; Ganther, W.D.; Venkatesan, K. Towards materials discovery: Assays for screening and study of chemical interactions of novel corrosion inhibitors in solution and coatings. New J. Chem. 2020, 44, 7647–7658. [Google Scholar] [CrossRef]
  123. World Health Organization—Arsenic Fact Sheet. Available online: (accessed on 6 December 2020).
  124. Zhong, X.-L.; Wen, S.-H.; Wang, Y.; Luo, Y.-X.; Li, Z.-M.; Liang, R.-P.; Zhang, L.; Qiu, J.-D. Colorimetric and electrochemical arsenate assays by exploiting the peroxidase-like activity of FeOOH nanorods. Microchim. Acta 2019, 186, 732. [Google Scholar] [CrossRef] [PubMed]
  125. Wen, S.-H.; Zhong, X.-L.; Wu, Y.-D.; Liang, R.-P.; Zhang, L.; Qiu, J.-D. Colorimetric assay conversion to highly sensitive electrochemical assay for bimodal detection of arsenate based on cobalt oxyhydroxide nanozyme via arsenate absorption. Anal. Chem. 2019, 91, 6487–6497. [Google Scholar] [CrossRef] [PubMed]
  126. Peng, C.F.; Zhang, Y.Y.; Wang, L.Y.; Jin, Z.Y.; Shao, G. Colorimetric assay for the simultaneous detection of Hg2+ and Ag+ based on inhibiting the peroxidase-like activity of core-shell Au@Pt nanoparticles. Anal. Methods 2017, 9, 4363–4370. [Google Scholar] [CrossRef]
  127. Zhao, Y.; Yang, X.; Cui, L.Y.; Sun, Y.L.; Song, Q.J. PVP-capped Pt NPs-depended catalytic nanoprobe for the simultaneous detection of Hg2+ and Ag+. Dyes Pigment. 2018, 150, 21–26. [Google Scholar] [CrossRef]
  128. Aragay, G.; Pino, F.; Merkoci, A. Nanomaterials for sensing and destroying pesticides. Chem. Rev. 2012, 112, 5317–5338. [Google Scholar] [CrossRef]
  129. Pope, C.N. Organophosphorus pesticides: Do they all have the same mechanism of toxicity? J. Toxicol. Environ. Health B 1999, 2, 161–181. [Google Scholar] [CrossRef]
  130. Hernandez, F.; Sancho, J.V.; Pozo, O.J. Critical review of the application of liquid chromatography/mass spectrometry to the determination of pesticide residues in biological samples. Anal. Bioanal. Chem. 2005, 382, 934–946. [Google Scholar] [CrossRef]
  131. Blesa, J.; Soriano, J.M.; Molto, J.C.; Marin, R.; Manes, J. Determination of aflatoxins in peanuts by matrix solid-phase dispersion and liquid chromatography. J. Chromatogr. A 2003, 1011, 49–54. [Google Scholar] [CrossRef]
  132. Ellman, G.L.; Courtney, K.D.; Andres, V., Jr.; Feather-Stone, R.M. A new and rapid colorimetric determination of acetylcholinesterase activity. Biochem. Pharmacol. 1961, 7, 88–95. [Google Scholar] [CrossRef]
  133. Maeda, H.; Matsuno, H.; Ushida, M.; Katayama, K.; Saeki, K.; Itoh, N. 2,4-Dinitrobenzenesulfonyl fluoresceins as fluorescent alternatives to Ellman’s reagent in thiol-quantification enzyme assays. Angew. Chem. Int. Ed. 2005, 44, 2922–2925. [Google Scholar] [CrossRef] [PubMed]
  134. Sabelle, S.; Renard, P.Y.; Pecorella, K.; de Suzzoni-Dezard, S.; Creminon, C.; Grassi, J.; Mioskowski, C. Design and synthesis of chemiluminescent probes for the detection of cholinesterase activity. J. Am. Chem. Soc. 2002, 124, 4874–4880. [Google Scholar] [CrossRef] [PubMed]
  135. Wang, J.; Timchalk, C.; Lin, Y. Carbon nanotube-based electrochemical sensor for assay of salivary cholinesterase enzyme activity: An exposure biomarker of organophosphate pesticides and nerve agents. Environ. Sci. Technol. 2008, 42, 2688–2693. [Google Scholar] [CrossRef] [PubMed]
  136. Scott, C.; Pandey, G.; Hartley, C.J.; Jackson, C.J.; Cheesman, M.J.; Taylor, M.C.; Pandey, R.; Khurana, J.L.; Teese, M.; Coppin, C.W.; et al. The enzymatic basis for pesticide bioremediation. Indian J. Microbiol. 2008, 48, 65–79. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  137. Sharma, B.; Dangi, A.K.; Shukla, P. Contemporary enzyme based technologies for bioremediation: A review. J. Environ. Manag. 2018, 210, 10–22. [Google Scholar] [CrossRef] [PubMed]
  138. Singh, S.; Tripathi, P.; Kumar, N.; Nara, S. Colorimetric sensing of malathion using palladium-gold bimetallic nanozyme. Biosens. Bioelectron. 2017, 92, 280–286. [Google Scholar] [CrossRef] [PubMed]
  139. Zhu, Y.Y.; Wu, J.J.X.; Han, L.J.; Wang, X.Y.; Li, W.; Guo, H.C.; Wei, H. Nanozyme sensor arrays based on heteroatom-doped graphene for detecting pesticides. Anal. Chem. 2020, 92, 7444–7452. [Google Scholar] [CrossRef]
  140. Liang, M.; Fan, K.; Pan, Y.; Jiang, H.; Wang, F.; Yang, D.; Lu, D.; Feng, J.; Zhao, J.; Yang, L.; et al. Fe3O4 magnetic nanoparticle peroxidase mimetic-based colorimetric assay for the rapid detection of organophosphorus pesticide and nerve agent. Anal. Chem. 2013, 85, 308–312. [Google Scholar] [CrossRef]
  141. Wei, J.C.; Yang, L.L.; Luo, M.; Wang, Y.T.; Li, P. Nanozyme-assisted technique for dual mode detection of organophosphorus pesticide. Ecotoxicol. Environ. Saf. 2019, 179, 17–23. [Google Scholar] [CrossRef]
  142. Wei, J.; Yang, Y.; Dong, J.; Wang, S.; Li, P. Fluorometric determination of pesticides and organophosphates using nanoceria as a phosphatase mimic and an inner filter effect on carbon nanodots. Microchim. Acta 2019, 186, 66. [Google Scholar] [CrossRef]
  143. Sun, Y.; Wei, J.; Zou, J.; Cheng, Z.; Huang, Z.; Gu, L.; Zhong, Z.; Li, S.; Wang, Y.; Li, P. Electrochemical detection of methyl-paraoxon based on bifunctional nanozyme with catalytic activity and signal amplification effect. J. Pharm. Anal. 2020. [Google Scholar] [CrossRef]
  144. Guan, G.; Yang, L.; Mei, Q.; Zhang, K.; Zhang, Z.; Han, M.Y. Chemiluminescence switching on peroxidase-like Fe3O4 nanoparticles for selective detection and simultaneous determination of various pesticides. Anal. Chem. 2012, 84, 9492–9497. [Google Scholar] [CrossRef] [PubMed]
  145. Boruah, P.K.; Das, M.R. Dual responsive magnetic Fe3O4-TiO2/graphene nanocomposite as an artificial nanozyme for the colorimetric detection and photodegradation of pesticide in an aqueous medium. J. Hazard. Mater. 2020, 385, 121516. [Google Scholar] [CrossRef] [PubMed]
  146. Biswas, S.; Tripathi, P.; Kumar, N.; Nara, S. Gold nanorods as peroxidase mimetics and its application for colorimetric biosensing of malathion. Sens. Actuators B Chem. 2016, 231, 584–592. [Google Scholar] [CrossRef]
  147. Weerathunge, P.; Behera, B.K.; Zihara, S.; Singh, M.; Prasad, S.N.; Hashmi, S.; Mariathomas, P.R.D.; Bansal, V.; Ramanathan, R. Dynamic interactions between peroxidase-mimic silver NanoZymes and chlorpyrifos-specific aptamers enable highly-specific pesticide sensing in river water. Anal. Chim. Acta 2019, 1083, 157–165. [Google Scholar] [CrossRef]
  148. Weerathunge, P.; Ramanathan, R.; Shukla, R.; Sharma, T.K.; Bansal, V. Aptamer-controlled reversible inhibition of gold nanozyme activity for pesticide sensing. Anal. Chem. 2014, 86, 11937–11941. [Google Scholar] [CrossRef]
  149. Xia, W.Q.; Zhang, P.; Fu, W.S.; Hu, L.Z.; Wang, Y. Aggregation/dispersion-mediated peroxidase-like activity of MoS2 quantum dots for colorimetric pyrophosphate detection. Chem. Commun. 2019, 55, 2039–2042. [Google Scholar] [CrossRef]
  150. Kushwaha, A.; Singh, G.; Sharma, M. Colorimetric sensing of chlorpyrifos through negative feedback inhibition of the catalytic activity of silver phosphate oxygenase nanozymes. RSC Adv. 2020, 10, 13050–13065. [Google Scholar] [CrossRef] [Green Version]
  151. Wijaya, W.; Pang, S.; Labuza, T.P.; He, L. Rapid detection of acetamiprid in foods using surface-enhanced Raman spectroscopy (SERS). J. Food Sci. 2014, 79, T743–T747. [Google Scholar] [CrossRef]
  152. Barrios-Estrada, C.; de Jesus Rostro-Alanis, M.; Munoz-Gutierrez, B.D.; Iqbal, H.M.N.; Kannan, S.; Parra-Saldivar, R. Emergent contaminants: Endocrine disruptors and their laccase-assisted degradation—A review. Sci. Total Environ. 2018, 612, 1516–1531. [Google Scholar] [CrossRef] [PubMed]
  153. Cai, S.; Han, Q.; Qi, C.; Wang, X.; Wang, T.; Jia, X.; Yang, R.; Wang, C. MoS2-Pt3Au1 nanocomposites with enhanced peroxidase-like activities for selective colorimetric detection of phenol. Chin. J. Chem. 2017, 35, 605–612. [Google Scholar] [CrossRef]
  154. Zhang, J.; Zhuang, J.; Gao, L.; Zhang, Y.; Gu, N.; Feng, J.; Yang, D.; Zhu, J.; Yan, X. Decomposing phenol by the hidden talent of ferromagnetic nanoparticles. Chemosphere 2008, 73, 1524–1528. [Google Scholar] [CrossRef] [PubMed]
  155. Liu, Y.; Zhu, G.; Bao, C.; Yuan, A.; Shen, X. Intrinsic peroxidase-like activity of porous CuO micro-/nanostructures with clean surface. Chin. J. Chem. 2014, 32, 151–156. [Google Scholar] [CrossRef]
  156. Feng, Y.B.; Hong, L.; Liu, A.L.; Chen, W.D.; Li, G.W.; Chen, W.; Xia, X.H. High-efficiency catalytic degradation of phenol based on the peroxidase-like activity of cupric oxide nanoparticles. Int. J. Environ. Sci. Technol. 2015, 12, 653–660. [Google Scholar] [CrossRef] [Green Version]
  157. Jiang, J.; He, C.; Wang, S.; Jiang, H.; Li, J.; Li, L. Recyclable ferromagnetic chitosan nanozyme for decomposing phenol. Carbohyd. Polym. 2018, 198, 348–353. [Google Scholar] [CrossRef]
  158. Xu, L.; Wang, J. Magnetic nanoscaled Fe3O4/CeO2 composite as an efficient Fenton-like heterogeneous catalyst for degradation of 4-chlorophenol. Environ. Sci. Technol. 2012, 46, 10145–10153. [Google Scholar] [CrossRef]
  159. Sadaf, A.; Ahmad, R.; Ghorbal, A.; Elfalleh, W.; Khare, S.K. Synthesis of cost-effective magnetic nano-biocomposites mimicking peroxidase activity for remediation of dyes. Environ. Sci. Pollut. Res. Int. 2019, 27, 27211–27220. [Google Scholar] [CrossRef]
  160. Bhuyan, D.; Arbuj, S.S.; Saikia, L. Template-free synthesis of Fe3O4 nanorod bundles and their highly efficient peroxidase mimetic activity for the degradation of organic dye pollutants with H2O2. New J. Chem. 2015, 39, 7759–7762. [Google Scholar] [CrossRef]
  161. Pariona, N.; Herrera-Trejo, M.; Oliva, J.; Martinez, A.I. Peroxidase-like activity of ferrihydrite and hematite nanoparticles for the degradation of methylene blue. J. Nanomater. 2016, 2016, 1–8. [Google Scholar] [CrossRef] [Green Version]
  162. Ma, J.; Zhai, G. Antibiotic contamination: A global environment issue. J. Bioremed. Biodegrad. 2014, 5, e157. [Google Scholar] [CrossRef] [Green Version]
  163. Shen, Y.; Zhao, W.; Zhang, C.; Shan, Y.; Shi, J. Degradation of streptomycin in aquatic environment: Kinetics, pathway, and antibacterial activity analysis. Environ. Sci. Pollut. Res. Int. 2017, 24, 14337–14345. [Google Scholar] [CrossRef] [PubMed]
  164. Zhao, J.; Wu, Y.; Tao, H.; Chen, H.; Yang, W.; Qiu, S. Colorimetric detection of streptomycin in milk based on peroxidase-mimicking catalytic activity of gold nanoparticles. RSC Adv. 2017, 7, 38471–38478. [Google Scholar] [CrossRef] [Green Version]
  165. Sharma, T.K.; Ramanathan, R.; Weerathunge, P.; Mohammadtaheri, M.; Daima, H.K.; Shukla, R.; Bansal, V. Aptamer-mediated ‘turn-off/turn-on’ nanozyme activity of gold nanoparticles for kanamycin detection. Chem. Commun. 2014, 50, 15856–15859. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  166. Hussain, C.M. The Handbook of Environmental Remediation: Classic and Modern Techniques; Royal Society of Chemistry: Cambridge, UK, 2020. [Google Scholar]
  167. Wang, S.; Fang, H.; Yi, X.; Xu, Z.; Xie, X.; Tang, Q.; Ou, M.; Xu, X. Oxidative removal of phenol by HRP-immobilized beads and its environmental toxicology assessment. Ecotoxicol. Environ. Saf. 2016, 130, 234–239. [Google Scholar] [CrossRef]
  168. He, J.; Liang, M. Nanozymes for environmental monitoring and treatment. In Nanozymology; Yan, X., Ed.; Springer: Berlin, Germany, 2020; pp. 527–543. [Google Scholar]
  169. Harrad, S. Persistent Organic Pollutants; Wiley: Chichester, UK, 2010. [Google Scholar]
  170. Cheng, R.; Li, G.-q.; Cheng, C.; Shi, L.; Zheng, X.; Ma, Z. Catalytic oxidation of 4-chlorophenol with magnetic Fe3O4 nanoparticles: Mechanisms and particle transformation. RSC Adv. 2015, 5, 66927–66933. [Google Scholar] [CrossRef]
  171. Ulson de Souza, S.M.A.G.; Forgiarini, E.; Ulson de Souza, A.A. Toxicity of textile dyes and their degradation by the enzyme horseradish peroxidase (HRP). J. Hazard. Mater. 2007, 147, 1073–1078. [Google Scholar] [CrossRef]
  172. Janoš, P.; Kuráň, P.; Pilařová, V.; Trögl, J.; Šťastný, M.; Pelant, O.; Henych, J.; Bakardjieva, S.; Životský, O.; Kormunda, M.; et al. Magnetically separable reactive sorbent based on the CeO2/γ-Fe2O3 composite and its utilization for rapid degradation of the organophosphate pesticide parathion methyl and certain nerve agents. Chem. Eng. J. 2015, 262, 747–755. [Google Scholar] [CrossRef]
  173. Wang, S.; Bromberg, L.; Schreuder-Gibson, H.; Hatton, T.A. Organophophorous ester degradation by chromium(III) terephthalate metal–organic framework (MIL-101) chelated to N,N-dimethylaminopyridine and related aminopyridines. ACS Appl. Mater. Interfaces 2013, 5, 1269–1278. [Google Scholar] [CrossRef]
  174. Wang, X.; Liu, J.; Qu, R.; Wang, Z.; Huang, Q. The laccase-like reactivity of manganese oxide nanomaterials for pollutant conversion: Rate analysis and cyclic voltammetry. Sci. Rep. 2017, 7, 7756. [Google Scholar] [CrossRef] [Green Version]
  175. Wang, J.; Huang, R.; Qi, W.; Su, R.; Binks, B.P.; He, Z. Construction of a bioinspired laccase-mimicking nanozyme for the degradation and detection of phenolic pollutants. Appl. Catal. B Environ. 2019, 254, 452–462. [Google Scholar] [CrossRef]
  176. Huang, R.; Fang, Z.; Yan, X.; Cheng, W. Heterogeneous sono-Fenton catalytic degradation of bisphenol A by Fe3O4 magnetic nanoparticles under neutral condition. Chem. Eng. J. 2012, 197, 242–249. [Google Scholar] [CrossRef]
  177. Wang, N.; Zhu, L.; Wang, D.; Wang, M.; Lin, Z.; Tang, H. Sono-assisted preparation of highly-efficient peroxidase-like Fe3O4 magnetic nanoparticles for catalytic removal of organic pollutants with H2O2. Ultrason. Sonochem. 2010, 17, 526–533. [Google Scholar] [CrossRef] [PubMed]
  178. Yan, J.; Lei, M.; Zhu, L.; Anjum, M.N.; Zou, J.; Tang, H. Degradation of sulfamonomethoxine with Fe3O4 magnetic nanoparticles as heterogeneous activator of persulfate. J. Hazard. Mater. 2011, 186, 1398–1404. [Google Scholar] [CrossRef] [PubMed]
  179. Niu, H.; Zhang, D.; Zhang, S.; Zhang, X.; Meng, Z.; Cai, Y. Humic acid coated Fe3O4 magnetic nanoparticles as highly efficient Fenton-like catalyst for complete mineralization of sulfathiazole. J. Hazard. Mater. 2011, 190, 559–565. [Google Scholar] [CrossRef] [PubMed]
  180. Xu, L.; Wang, J. Fenton-like degradation of 2,4-dichlorophenol using Fe3O4 magnetic nanoparticles. Appl. Catal. B Environ. 2012, 123–124, 117–126. [Google Scholar] [CrossRef]
  181. Zeb, A.; Xie, X.; Yousaf, A.B.; Imran, M.; Wen, T.; Wang, Z.; Guo, H.-L.; Jiang, Y.-F.; Qazi, I.A.; Xu, A.-W. Highly efficient Fenton and enzyme-mimetic activities of mixed-phase VOx nanoflakes. ACS Appl. Mater. Interfaces 2016, 8, 30126–30132. [Google Scholar] [CrossRef] [PubMed]
  182. Jain, S.; Panigrahi, A.; Sarma, T.K. Counter anion-directed growth of iron oxide nanorods in a polyol medium with efficient peroxidase-mimicking activity for degradation of dyes in contaminated water. ACS Omega 2019, 4, 13153–13164. [Google Scholar] [CrossRef] [Green Version]
  183. Wang, Y.; Liu, T.; Liu, J. Synergistically boosted degradation of organic dyes by CeO2 nanoparticles with fluoride at low pH. ACS Appl. Nano Mater. 2020, 3, 842–849. [Google Scholar] [CrossRef] [Green Version]
  184. Safavi, A.; Sedaghati, F.; Shahbaazi, H.; Farjami, E. Facile approach to the synthesis of carbon nanodots and their peroxidase mimetic function in azo dyes degradation. RSC Adv. 2012, 2, 7367–7370. [Google Scholar] [CrossRef]
  185. Xu, L.; Wang, J. A heterogeneous Fenton-like system with nanoparticulate zero-valent iron for removal of 4-chloro-3-methyl phenol. J. Hazard. Mater. 2011, 186, 256–264. [Google Scholar] [CrossRef]
  186. Chen, T.M.; Xiao, J.; Wang, G.W. Cubic boron nitride with an intrinsic peroxidase-like activity. RSC Adv. 2016, 6, 70124–70132. [Google Scholar] [CrossRef]
  187. Zhang, P.; Sun, D.; Cho, A.; Weon, S.; Lee, S.; Lee, J.; Han, J.W.; Kim, D.-P.; Choi, W. Modified carbon nitride nanozyme as bifunctional glucose oxidase-peroxidase for metal-free bioinspired cascade photocatalysis. Nat. Commun. 2019, 10, 940. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  188. Zuo, X.; Peng, C.; Huang, Q.; Song, S.; Wang, L.; Li, D.; Fan, C. Design of a carbon nanotube/magnetic nanoparticle-based peroxidase-like nanocomplex and its application for highly efficient catalytic oxidation of phenols. Nano Res. 2009, 2, 617–623. [Google Scholar] [CrossRef] [Green Version]
  189. Peng, C.; Jiang, B.; Liu, Q.; Guo, Z.; Xu, Z.; Huang, Q.; Xu, H.; Tai, R.; Fan, C. Graphene-templated formation of two-dimensional lepidocrocite nanostructures for high-efficiency catalytic degradation of phenols. Energy Environ. Sci. 2011, 4, 2035–2040. [Google Scholar] [CrossRef]
  190. Chun, J.; Lee, H.; Lee, S.-H.; Hong, S.-W.; Lee, J.; Lee, C.; Lee, J. Magnetite/mesocellular carbon foam as a magnetically recoverable fenton catalyst for removal of phenol and arsenic. Chemosphere 2012, 89, 1230–1237. [Google Scholar] [CrossRef]
  191. Ding, Y.; Li, Z.; Jiang, W.; Yuan, B.; Huang, T.; Wang, L.; Tang, J. Degradation of phenol using a peroxidase mimetic catalyst through conjugating deuterohemin-peptide onto metal-organic framework with enhanced catalytic activity. Catal. Commun. 2020, 134, 105859. [Google Scholar] [CrossRef]
  192. Tian, S.H.; Tu, Y.T.; Chen, D.S.; Chen, X.; Xiong, Y. Degradation of acid Orange II at neutral pH using Fe2(MoO4)3 as a heterogeneous Fenton-like catalyst. Chem. Eng. J. 2011, 169, 31–37. [Google Scholar] [CrossRef]
  193. Zhang, Z.; Hao, J.; Yang, W.; Lu, B.; Ke, X.; Zhang, B.; Tang, J. Porous Co3O4 nanorods–reduced graphene oxide with intrinsic peroxidase-like activity and catalysis in the degradation of methylene blue. ACS Appl. Mater. Interfaces 2013, 5, 3809–3815. [Google Scholar] [CrossRef]
  194. Zubir, N.A.; Yacou, C.; Motuzas, J.; Zhang, X.; Diniz da Costa, J.C. Structural and functional investigation of graphene oxide–Fe3O4 nanocomposites for the heterogeneous Fenton-like reaction. Sci. Rep. 2014, 4, 4594. [Google Scholar] [CrossRef] [Green Version]
  195. Hu, P.; Han, L.; Dong, S. A facile one-pot method to synthesize a polypyrrole/hemin nanocomposite and its application in biosensor, dye removal, and photothermal therapy. ACS Appl. Mater. Interfaces 2014, 6, 500–506. [Google Scholar] [CrossRef]
  196. Wan, D.; Li, W.; Wang, G.; Chen, K.; Lu, L.; Hu, Q. Adsorption and heterogeneous degradation of rhodamine B on the surface of magnetic bentonite material. Appl. Surf. Sci. 2015, 349, 988–996. [Google Scholar] [CrossRef]
  197. Deng, J.; Wen, X.; Li, J. Fabrication highly dispersed Fe3O4 nanoparticles on carbon nanotubes and its application as a mimetic enzyme to degrade Orange II. Environ. Technol. 2016, 37, 2214–2221. [Google Scholar] [CrossRef] [PubMed]
  198. Li, S.; Hou, Y.; Chen, Q.; Zhang, X.; Cao, H.; Huang, Y. Promoting active sites in MOF-derived homobimetallic hollow nanocages as a high-performance multifunctional nanozyme catalyst for biosensing and organic pollutant degradation. ACS Appl. Mater. Interfaces 2019, 12, 2581–2590. [Google Scholar] [CrossRef] [PubMed]
  199. Variava, M.F.; Church, T.L.; Harris, A.T. Magnetically recoverable FexOy–MWNT Fenton’s catalysts that show enhanced activity at neutral pH. Appl. Catal. B Environ. 2012, 123, 200–207. [Google Scholar] [CrossRef]
  200. Liu, W.; Qian, J.; Wang, K.; Xu, H.; Jiang, D.; Liu, Q.; Yang, X.; Li, H. Magnetically separable Fe3O4 nanoparticles-decorated reduced graphene oxide nanocomposite for catalytic wet hydrogen peroxide oxidation. J. Inorg. Organomet. Polym. Mater. 2013, 23, 907–916. [Google Scholar] [CrossRef]
  201. Chang, Y.H.; Yao, Y.F.; Luo, H.; Cui, L.; Zhi, L.J. Magnetic Fe3O4-GO nanocomposites as highly efficient Fenton-like catalyst for the degradation of dyes. Int. J. Nanomanuf. 2014, 10, 132–141. [Google Scholar] [CrossRef]
  202. Ribeiro, R.S.; Silva, A.M.T.; Figueiredo, J.L.; Faria, J.L.; Gomes, H.T. Catalytic wet peroxide oxidation: A route towards the application of hybrid magnetic carbon nanocomposites for the degradation of organic pollutants. A review. Appl. Catal. B Environ. 2016, 187, 428–460. [Google Scholar] [CrossRef]
  203. Niu, H.; Meng, Z.; Cai, Y. Fast defluorination and removal of norfloxacin by alginate/Fe@Fe3O4 core/shell structured nanoparticles. J. Hazard. Mater. 2012, 227-228, 195–203. [Google Scholar] [CrossRef]
  204. Zhu, M.; Diao, G. Synthesis of porous Fe3O4 nanospheres and its application for the catalytic degradation of xylenol orange. J. Phys. Chem. C 2011, 115, 18923–18934. [Google Scholar] [CrossRef]
  205. Wang, L.; Zeng, Y.; Shen, A.; Zhou, X.; Hu, J. Three dimensional nano-assemblies of noble metal nanoparticle-infinite coordination polymers as specific oxidase mimetics for degradation of methylene blue without adding any cosubstrate. Chem. Commun. 2015, 51, 2052–2055. [Google Scholar] [CrossRef] [PubMed]
  206. Zhao, C.; Xiong, C.; Liu, X.; Qiao, M.; Li, Z.; Yuan, T.; Wang, J.; Qu, Y.; Wang, X.; Zhou, F.; et al. Unraveling the enzyme-like activity of heterogeneous single atom catalyst. Chem. Commun. 2019, 55, 2285–2288. [Google Scholar] [CrossRef]
  207. Kucharzyk, K.H.; Darlington, R.; Benotti, M.; Deeb, R.; Hawley, E. Novel treatment technologies for PFAS compounds: A critical review. J. Environ. Manag. 2017, 204, 757–764. [Google Scholar] [CrossRef]
  208. Ross, I.; McDonough, J.; Miles, J.; Storch, P.; Thelakkat Kochunarayanan, P.; Kalve, E.; Hurst, J.; Dasgupta, S.S.; Burdick, J. A review of emerging technologies for remediation of PFASs. Remediation 2018, 28, 101–126. [Google Scholar] [CrossRef]
  209. Liu, J.; Avendaño, S.M. Microbial degradation of polyfluoroalkyl chemicals in the environment: A review. Environ. Int. 2013, 61, 98–114. [Google Scholar] [CrossRef]
  210. Colosi, L.M.; Pinto, R.A.; Huang, Q.; Weber, W.J., Jr. Peroxidase-mediated degradation of perfluorooctanoic acid. Environ. Toxicol. Chem. 2009, 28, 264–271. [Google Scholar] [CrossRef]
  211. Luo, Q.; Lu, J.; Zhang, H.; Wang, Z.; Feng, M.; Chiang, S.-Y.D.; Woodward, D.; Huang, Q. Laccase-catalyzed degradation of perfluorooctanoic acid. Environ. Sci. Technol. Lett. 2015, 2, 198–203. [Google Scholar] [CrossRef]
Figure 1. Types of nanozymes based on their mode of natural enzyme-mimicking behaviour.
Figure 1. Types of nanozymes based on their mode of natural enzyme-mimicking behaviour.
Sensors 21 00408 g001
Figure 2. A comparison of the HRP enzyme and FeN4 single-atom nanozyme showing the high structural similarity of the single-atom nanozyme to the active centre (iron-heme group) of HRP. (Adapted with permission from [64]. Copyright © 2017 Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim, Germany).
Figure 2. A comparison of the HRP enzyme and FeN4 single-atom nanozyme showing the high structural similarity of the single-atom nanozyme to the active centre (iron-heme group) of HRP. (Adapted with permission from [64]. Copyright © 2017 Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim, Germany).
Sensors 21 00408 g002
Figure 3. Illustration of a nanozyme as a 3D geometric architectural mimic of an enzyme. (Reprinted with permission from [63]. Copyright © 2018, American Chemical Society).
Figure 3. Illustration of a nanozyme as a 3D geometric architectural mimic of an enzyme. (Reprinted with permission from [63]. Copyright © 2018, American Chemical Society).
Sensors 21 00408 g003
Figure 4. Schematic of the major reactions catalysed by oxidoreductases (oxidases, superoxide dismutases, peroxidases and catalases) and hydrolases.
Figure 4. Schematic of the major reactions catalysed by oxidoreductases (oxidases, superoxide dismutases, peroxidases and catalases) and hydrolases.
Sensors 21 00408 g004
Figure 5. Calculated reaction energy profiles (unit: eV) for hydrogen peroxide decomposition on an Au(111) surface in (A) acidic and (B) basic conditions. Asterisk (*) is used to indicate species adsorbed on the metal surface. TS stands for transition state. (Adapted with permission from [35]. Copyright © 2015, Elsevier Ltd. All rights reserved).
Figure 5. Calculated reaction energy profiles (unit: eV) for hydrogen peroxide decomposition on an Au(111) surface in (A) acidic and (B) basic conditions. Asterisk (*) is used to indicate species adsorbed on the metal surface. TS stands for transition state. (Adapted with permission from [35]. Copyright © 2015, Elsevier Ltd. All rights reserved).
Sensors 21 00408 g005
Figure 6. The catalytically active sites (for hydrogen peroxide) and binding sites (for the chromogenic substrate) of graphene oxide quantum dots which exhibit peroxidase-like activity. (Adapted with permission from [73]. Copyright © 2015 WILEY-VCH Verlag GmbH & Co. KGaA, Weinheim, Germany).
Figure 6. The catalytically active sites (for hydrogen peroxide) and binding sites (for the chromogenic substrate) of graphene oxide quantum dots which exhibit peroxidase-like activity. (Adapted with permission from [73]. Copyright © 2015 WILEY-VCH Verlag GmbH & Co. KGaA, Weinheim, Germany).
Sensors 21 00408 g006
Figure 7. (a) Detection of Hg2+ ions by inhibition of OPD activity by formation of a Pt-Hg amalgam. (Reprinted with permission from [96]. Copyright © 2017, Elsevier B.V. All rights reserved.) (b) Detection of Hg2+ by enhancement of TMB activity by formation of an Au-Hg amalgam. (Reprinted from [114]. Copyright © The Authors. Distributed under a Creative Commons BY (CC BY) license).
Figure 7. (a) Detection of Hg2+ ions by inhibition of OPD activity by formation of a Pt-Hg amalgam. (Reprinted with permission from [96]. Copyright © 2017, Elsevier B.V. All rights reserved.) (b) Detection of Hg2+ by enhancement of TMB activity by formation of an Au-Hg amalgam. (Reprinted from [114]. Copyright © The Authors. Distributed under a Creative Commons BY (CC BY) license).
Sensors 21 00408 g007
Figure 8. Principle for sensing of Hg2+ based on Hg2+-triggered peroxidase-mimicking activity of Cys-Fe3O4 nanoparticles. (Adapted with permission from [102]. Copyright © 2018, Elsevier B.V. All rights reserved.).
Figure 8. Principle for sensing of Hg2+ based on Hg2+-triggered peroxidase-mimicking activity of Cys-Fe3O4 nanoparticles. (Adapted with permission from [102]. Copyright © 2018, Elsevier B.V. All rights reserved.).
Sensors 21 00408 g008
Figure 9. Absorption spectra and image (inset) of 500 μM TMB in the presence of (a) 10 mM H2O2, (b) 10 mM H2O2 and 5 μg/mL−1 Au nanoclusters, and (c) 10 mM H2O2, 5 μg/mL−1 Au nanoclusters and 250 μM Pb2+. (Reprinted with permission from [98]. Copyright © 2017, Royal Society of Chemistry.).
Figure 9. Absorption spectra and image (inset) of 500 μM TMB in the presence of (a) 10 mM H2O2, (b) 10 mM H2O2 and 5 μg/mL−1 Au nanoclusters, and (c) 10 mM H2O2, 5 μg/mL−1 Au nanoclusters and 250 μM Pb2+. (Reprinted with permission from [98]. Copyright © 2017, Royal Society of Chemistry.).
Sensors 21 00408 g009
Figure 10. (a) Mechanism for the peroxidase-like activity of histidine-modified Pd nanoparticles and its effect in the presence of Ag+. (b) Selectivity of the Pd nanoparticles for Ag+ compared to other metal ions as demonstrated by a decrease in oxidised TMB colour formation. (Reprinted with permission from [99]. Copyright © 2018, Elsevier B.V. All rights reserved).
Figure 10. (a) Mechanism for the peroxidase-like activity of histidine-modified Pd nanoparticles and its effect in the presence of Ag+. (b) Selectivity of the Pd nanoparticles for Ag+ compared to other metal ions as demonstrated by a decrease in oxidised TMB colour formation. (Reprinted with permission from [99]. Copyright © 2018, Elsevier B.V. All rights reserved).
Sensors 21 00408 g010
Figure 11. Oxidation of TMB by H2O2 (product a), catalase-like activity of metallothionein-stabilised copper nanoclusters (product b) and peroxidase-like activity of metallothionein-stabilised copper nanoclusters in the presence of Pb2+/Hg2+ (product c). (Reprinted with permission from [113]. Copyright © 2019, Springer-Verlag GmbH Austria, part of Springer Nature).
Figure 11. Oxidation of TMB by H2O2 (product a), catalase-like activity of metallothionein-stabilised copper nanoclusters (product b) and peroxidase-like activity of metallothionein-stabilised copper nanoclusters in the presence of Pb2+/Hg2+ (product c). (Reprinted with permission from [113]. Copyright © 2019, Springer-Verlag GmbH Austria, part of Springer Nature).
Sensors 21 00408 g011
Figure 12. Selectivity of Au@Pt nanoparticles towards various metal ions in the presence of sodium dodecyl sulfate. (Reprinted with permission from [126]. Copyright © 2017, Royal Society of Chemistry).
Figure 12. Selectivity of Au@Pt nanoparticles towards various metal ions in the presence of sodium dodecyl sulfate. (Reprinted with permission from [126]. Copyright © 2017, Royal Society of Chemistry).
Sensors 21 00408 g012
Figure 13. Influence of metal ions on the catalase-like activity of Co3O4 nanoparticles at (a) pH 7.0 and (b) pH 10.0. (Reprinted with permission from [112]. Copyright © 2018, John Wiley and Sons).
Figure 13. Influence of metal ions on the catalase-like activity of Co3O4 nanoparticles at (a) pH 7.0 and (b) pH 10.0. (Reprinted with permission from [112]. Copyright © 2018, John Wiley and Sons).
Sensors 21 00408 g013
Figure 14. Working principle of tyrosine-capped silver nanoparticles used for the detection of chlorpyrifos (Chl). (Reprinted with permission from [147]. Copyright © 2019, Elsevier B.V. All rights reserved).
Figure 14. Working principle of tyrosine-capped silver nanoparticles used for the detection of chlorpyrifos (Chl). (Reprinted with permission from [147]. Copyright © 2019, Elsevier B.V. All rights reserved).
Sensors 21 00408 g014
Figure 15. An array of peroxidase-mimicking graphene materials (graphene oxide (GO), nitrogen-doped graphene (NG) and sulphur-co-doped graphene (NSG)) used for the detection of five types of aromatic pesticides in the presence of TMB and H2O2. (Reprinted with permission from [139]. Copyright © 2020, American Chemical Society).
Figure 15. An array of peroxidase-mimicking graphene materials (graphene oxide (GO), nitrogen-doped graphene (NG) and sulphur-co-doped graphene (NSG)) used for the detection of five types of aromatic pesticides in the presence of TMB and H2O2. (Reprinted with permission from [139]. Copyright © 2020, American Chemical Society).
Sensors 21 00408 g015
Figure 16. Schematic of nanoceria as a bifunctional material for catalysis and electrochemical detection of methyl-paraoxon. (Reprinted with permission from [143]. Copyright © The Authors. Distributed under a Creative Commons (CC BY-NC-ND 4.0) license).
Figure 16. Schematic of nanoceria as a bifunctional material for catalysis and electrochemical detection of methyl-paraoxon. (Reprinted with permission from [143]. Copyright © The Authors. Distributed under a Creative Commons (CC BY-NC-ND 4.0) license).
Sensors 21 00408 g016
Figure 17. Selectivity of aptamer-modified gold nanoparticles for streptomycin. From left to right: streptomycin, amoxicillin, tetracycline, oxytetracycline, carbamazepine, diclofenac and penicillin added to aptamer-modified gold nanoparticles, ABTS and H2O2. (Reprinted with permission from [164]. Copyright © The Authors. Distributed under a Creative Commons (CC BY-NC) license).
Figure 17. Selectivity of aptamer-modified gold nanoparticles for streptomycin. From left to right: streptomycin, amoxicillin, tetracycline, oxytetracycline, carbamazepine, diclofenac and penicillin added to aptamer-modified gold nanoparticles, ABTS and H2O2. (Reprinted with permission from [164]. Copyright © The Authors. Distributed under a Creative Commons (CC BY-NC) license).
Sensors 21 00408 g017
Figure 18. Illustration of the mechanism of catalytic oxidation of 4-chlorophenol by Fe3O4 nanoparticles. (Reprinted with permission from [75]. Copyright © 2019 WILEY-VCH Verlag GmbH & Co. KGaA, Weinheim, Germany).
Figure 18. Illustration of the mechanism of catalytic oxidation of 4-chlorophenol by Fe3O4 nanoparticles. (Reprinted with permission from [75]. Copyright © 2019 WILEY-VCH Verlag GmbH & Co. KGaA, Weinheim, Germany).
Sensors 21 00408 g018
Figure 19. Cysteine-histidine Cu nanozyme for the oxidation of phenolic pollutant. (Reprinted with permission from [173]. Copyright © 2019, Elsevier B.V. All rights reserved).
Figure 19. Cysteine-histidine Cu nanozyme for the oxidation of phenolic pollutant. (Reprinted with permission from [173]. Copyright © 2019, Elsevier B.V. All rights reserved).
Sensors 21 00408 g019
Figure 20. Degradation of ABTS with different manganese oxide materials. (Reprinted with permission from [172]. Copyright © The Authors. Distributed under a Creative Commons (CC BY) license).
Figure 20. Degradation of ABTS with different manganese oxide materials. (Reprinted with permission from [172]. Copyright © The Authors. Distributed under a Creative Commons (CC BY) license).
Sensors 21 00408 g020
Figure 21. VOx nanoflakes as efficient catalysts for the oxidation of TMB and decomposition of Rh B. (Adapted with permission from [179]. Copyright © 2016, American Chemical Society).
Figure 21. VOx nanoflakes as efficient catalysts for the oxidation of TMB and decomposition of Rh B. (Adapted with permission from [179]. Copyright © 2016, American Chemical Society).
Sensors 21 00408 g021
Figure 22. Procedure used in the preparation of porous Co3O4 nanorod-reduced graphene oxide, PCNG. (Reprinted with permission from [191]. Copyright © 2013, American Chemical Society).
Figure 22. Procedure used in the preparation of porous Co3O4 nanorod-reduced graphene oxide, PCNG. (Reprinted with permission from [191]. Copyright © 2013, American Chemical Society).
Sensors 21 00408 g022
Figure 23. Removal of arsenic and phenol using Fe3O4/MSU-F-C as a catalytic adsorbent. (Reprinted with permission from [188]. Copyright © 2012 Elsevier Ltd. All rights reserved).
Figure 23. Removal of arsenic and phenol using Fe3O4/MSU-F-C as a catalytic adsorbent. (Reprinted with permission from [188]. Copyright © 2012 Elsevier Ltd. All rights reserved).
Sensors 21 00408 g023
Figure 24. Fe3O4-decorated Al-pillared bentonite (Fe3O4/Al-B) as a peroxidase-like nanozyme for the degradation of Rh B. (Reprinted with permission from [194]. Copyright © 2015 Elsevier B.V. All rights reserved).
Figure 24. Fe3O4-decorated Al-pillared bentonite (Fe3O4/Al-B) as a peroxidase-like nanozyme for the degradation of Rh B. (Reprinted with permission from [194]. Copyright © 2015 Elsevier B.V. All rights reserved).
Sensors 21 00408 g024
Figure 25. Proposed reaction mechanism of the H2O2 activation by Fe3O4/CeO2 catalyst under acidic pH. (Reprinted with permission from [158]. Copyright © 2012, American Chemical Society).
Figure 25. Proposed reaction mechanism of the H2O2 activation by Fe3O4/CeO2 catalyst under acidic pH. (Reprinted with permission from [158]. Copyright © 2012, American Chemical Society).
Sensors 21 00408 g025
Figure 26. Schematic illustration of the synthesis of DhHP-c-ZrMOF. (Reprinted with permission from [189]. Copyright © 2019 Elsevier B.V. All rights reserved).
Figure 26. Schematic illustration of the synthesis of DhHP-c-ZrMOF. (Reprinted with permission from [189]. Copyright © 2019 Elsevier B.V. All rights reserved).
Sensors 21 00408 g026
Figure 27. MIL-101 with chelated aminopyridines as a catalyst for organophosphorus ester degradation. (Reprinted with permission from [197]. Copyright © 2013, American Chemical Society).
Figure 27. MIL-101 with chelated aminopyridines as a catalyst for organophosphorus ester degradation. (Reprinted with permission from [197]. Copyright © 2013, American Chemical Society).
Sensors 21 00408 g027
Figure 28. Preparation of porous Fe3O4 nanospheres. (Reprinted with permission from [204]. Copyright © 2011, American Chemical Society).
Figure 28. Preparation of porous Fe3O4 nanospheres. (Reprinted with permission from [204]. Copyright © 2011, American Chemical Society).
Sensors 21 00408 g028
Figure 29. Three-dimensional assembly of gold nanoparticles on Au@Ag@void@infinite coordination polymers with oxidase-like activity for the degradation of methylene blue. (Reprinted with permission from [205]. Copyright © 2014, Royal Society of Chemistry).
Figure 29. Three-dimensional assembly of gold nanoparticles on Au@Ag@void@infinite coordination polymers with oxidase-like activity for the degradation of methylene blue. (Reprinted with permission from [205]. Copyright © 2014, Royal Society of Chemistry).
Sensors 21 00408 g029
Figure 30. (a) Schematic illustration of the synthesis of iron single-atom nanozymes and (b) macrostructures and active sites of natural enzymes, nanozymes and iron single-atom nanozymes. (Reprinted with permission from [206]. Copyright © 2019, Royal Society of Chemistry).
Figure 30. (a) Schematic illustration of the synthesis of iron single-atom nanozymes and (b) macrostructures and active sites of natural enzymes, nanozymes and iron single-atom nanozymes. (Reprinted with permission from [206]. Copyright © 2019, Royal Society of Chemistry).
Sensors 21 00408 g030
Table 1. Examples of metalloenzymes.
Table 1. Examples of metalloenzymes.
Metal CentreEnzymes
ZincCarbonic anhydrase, alcohol dehydrogenase, organophosphate hydrolase
IronCatalase, peroxidase, cytochrome oxidase
ManganeseEnolase, hexokinase
CopperTyrosinase, lysyl oxidase, laccase
Table 4. Examples of type II nanozymes in environmental pollutant remediation.
Table 4. Examples of type II nanozymes in environmental pollutant remediation.
NanozymePollutantEnzyme-Like ActivityYearRef.
Fe(0) nanoparticles4-Chloro-3-methyl phenolPeroxidase2011[183]
Carbon nanodotsAzo dyes (methyl red and methyl orange)Peroxidase2012[182]
Cubic boron nitrideRh BPeroxidase2016[184]
Graphitic carbon nitride TMBDual oxidase-peroxidase2019[185]
Table 5. Examples of type III nanozymes in environmental pollutant remediation.
Table 5. Examples of type III nanozymes in environmental pollutant remediation.
NanozymePollutantEnzyme-Like ActivityYearRef.
Fe3O4 MNP/MWNT composites PhenolPeroxidase2009[186]
Fe2(MoO4)3Acid Orange IIPeroxidase2011[190]
ɣ-FeOOH/(reduced graphene oxide)PhenolPeroxidase2011[187]
Fe3O4/CeO2 nanocomposites4-ChlorophenolPeroxidase2012[158]
(magnetite-loaded mesocellular carbonaceous material)
Arsenic, phenolPeroxidase2012[188]
FexOy-MWNTOrange GPeroxidase2012[199]
MIL-101 (chromium(III) terephthalate metal organic framework) (chelated to N,N-dimethylamino pyridine)ParaoxonHydrolase2013[197]
Porous Co3O4 nanorods–reduced graphene oxideMethylene bluePeroxidase2013[191]
Fe3O4/reduced graphene oxide nanocompositesMethylene bluePeroxidase2013[200]
graphene oxide quantum dots/Fe3O4 compositesPhenolic compoundsPeroxidase2014[48]
graphene oxide/Fe3O4 nanocompositesAcid Orange 7Peroxidase2014[192]
Polyprrole/hemin (PPy/hemin) nanocompositeMethyl orange and Rh BPollutant adsorbent (not enzymatic activity)2014[193]
Fe3O3/graphene oxideRh BPeroxidase2014[201]
CeO2/ɣ-Fe2O3Parathion-methyl, nerve agents soman and VXPeroxidase2015[198]
(Fe3O4 MNPs decorated Al pillared bentonite)
Rh BPeroxidase + adsorption2015[194]
Fe3O4/CNTsOrange IIPeroxidase2016[195]
C-CoM-HNCs (HNC = homobimetallic hollow cages), (C-CoM-HNC M = Ni, Mn, Cu and Zn)Rh BOxidase2019[196]
DhH6-c-ZrMOF (deterohemin-peptide on Zr metal organic framework)PhenolPeroxidase2020[189]
Cellulose incorporated magnetic nano-biocomposites, Fe3O4 on celluloseMethyl orange, textile effluentPeroxidase2020[159]
Table 6. Examples of type IV nanozymes in environmental pollutant remediation.
Table 6. Examples of type IV nanozymes in environmental pollutant remediation.
NanozymePollutantEnzyme-Like ActivityYearRef.
Porous Fe3O4 nanospheresXylenol OrangePeroxidase2011[204]
3D nano-assembly of Au nanoparticles on Au@Ag@ICPsTMB and methylene blueOxidase2015[205]
Iron single-atom nanozyme, FeN4TMB and OPDPeroxidase, oxidase and catalase2019[206]
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Wong, E.L.S.; Vuong, K.Q.; Chow, E. Nanozymes for Environmental Pollutant Monitoring and Remediation. Sensors 2021, 21, 408.

AMA Style

Wong ELS, Vuong KQ, Chow E. Nanozymes for Environmental Pollutant Monitoring and Remediation. Sensors. 2021; 21(2):408.

Chicago/Turabian Style

Wong, Elicia L. S., Khuong Q. Vuong, and Edith Chow. 2021. "Nanozymes for Environmental Pollutant Monitoring and Remediation" Sensors 21, no. 2: 408.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
