# Magnetic Nanowires for Nanobarcoding and Beyond

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Why Magnetic Nanowires for Nanobarcodes?

#### 2.1. Encoding and Sensing of Magnetic Nanowire (MNW)-Based Nanobarcodes

#### 2.1.1. DC Measurements

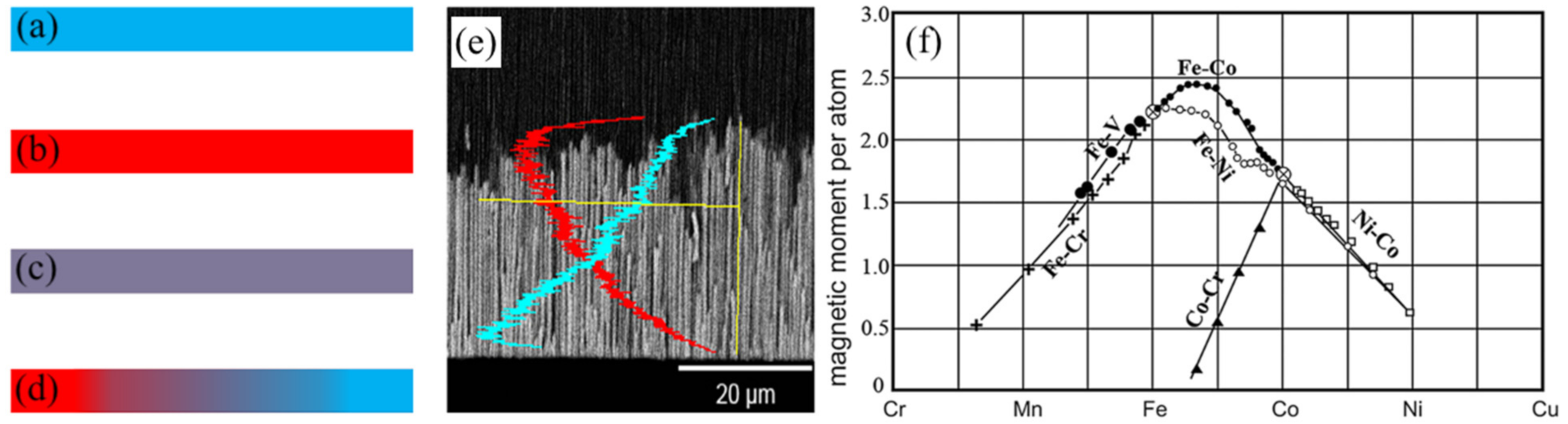

**Figure 3.**Demonstrating different approaches for tailoring the magnetization saturation and the coercivity of MNWs for encoding. (

**a**,

**b**) Single component MNWs; (

**c**) multi-component or alloyed MNWs; (

**d**) MNWs with modulated composition; (

**e**) SEM image of modulated composition MNWs, adapted from [74]; and (

**f**) represents a Slater–Pauling curve illustrating the dependency of the magnetic moment on the composition, adapted from [58].

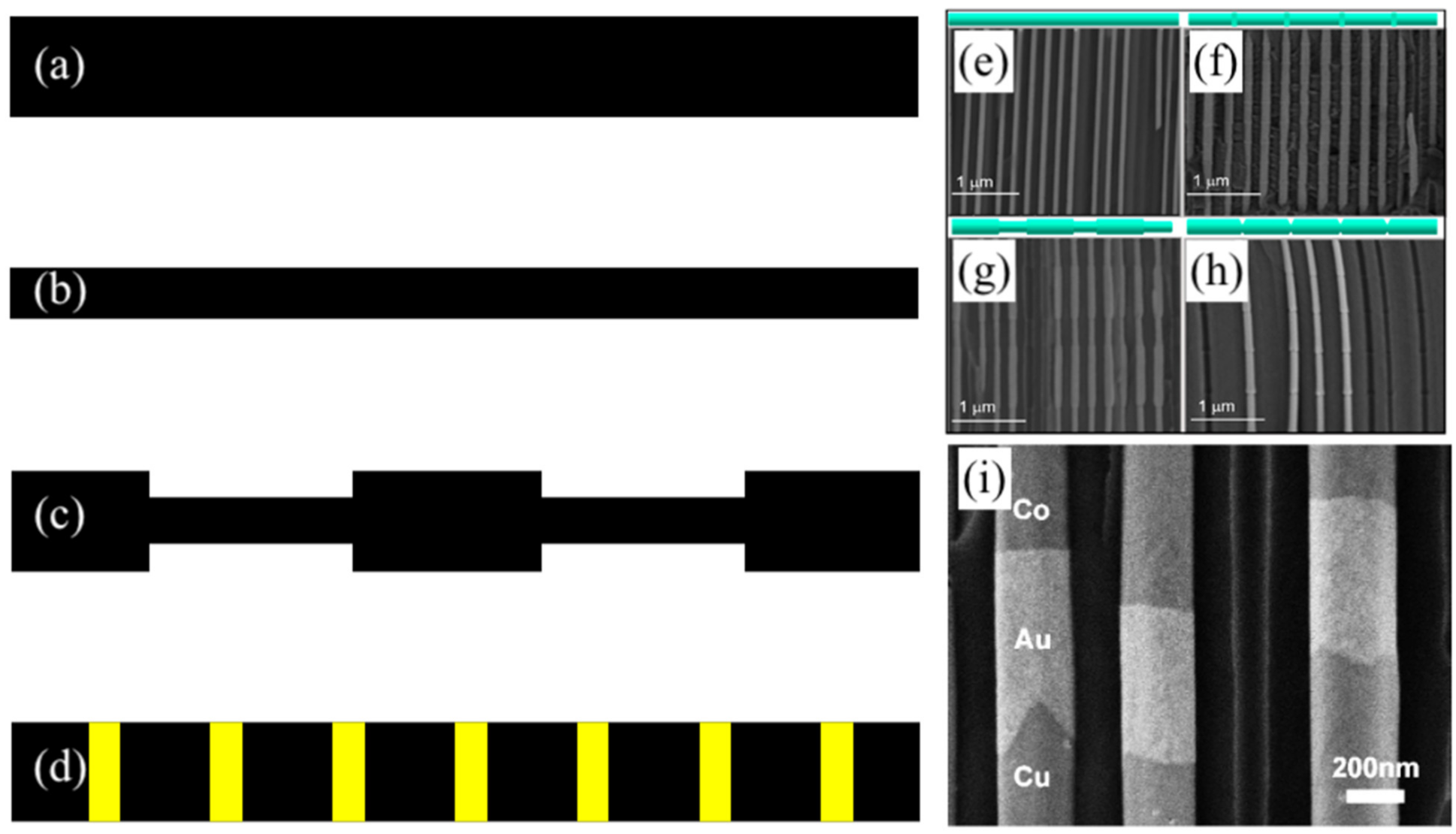

**Figure 4.**Illustrating the different techniques for tailoring the coercivity of the MNWs, where (

**a**,

**b**) changing the diameter (or aspect ratio) of single diameter MNWs; (

**c**) modulated diameter MNWs; (

**d**) multi-segmented MNWs; (

**e**–

**h**) SEM images of varying and modulating the MNWs diameter, adapted from [95]; and (

**i**) a SEM image of multi-segmented MNWs, adapted from [96].

#### 2.1.2. AC Measurements

#### 2.2. Decoding of Magnetic Nanobarcodes

^{1}, where superscript one indicates N = 1. Next, N is increased to 2 and the new optimum RMS error, RMS

^{2}, is calculated. Then, RMS

^{2}is compared with RMS

^{1}to determine how much the RMS error decreased, by increasing N from 1 to 2. If the reduction meets the cutoff, then there are at least two nanobarcodes at the readout (N ≥ 2), as shown in Figure 7b. Then, it is necessary to increase N to 3 and repeat the same procedure, to determine whether or not there are more nanobarcodes present. Note, at this step, RMS

^{3}and RMS

^{2}must be considered, and their ratio must be compared with the cutoff value, as in Figure 6c. If the reduction in RMS

^{3}compared to RMS

^{2}was not sufficient, the decoding process can be terminated, because it would appear that only two nanobarcodes were present at the readout (N = 2). This process must be continued until the ratio of RMS

^{N}-to-RMS

^{N-1}is no longer smaller than the cutoff value. The main drawback of this technique for reliable decoding is finding the correct value for the cutoff. For example, as the number of nanobarcodes at the readout increases, the magnetic signatures start overlapping, which makes the decoding difficult. It should be emphasized that this drawback is not limited only to magnetic nanobarcodes, as the reliable decoding of any nanobarcodes suffers from this problem. To resolve this problem, we proposed two alternatives. The first alternative is to use a floating cutoff value, which is a function of the predicted number of nanobarcodes. The second alternative, which could be a more effective approach, is to eliminate the need for a cutoff, which could be accomplished by using the artificial intelligent (AI) or the machine learning (ML) approaches. To accelerate the transition of MNW-based nanobarcodes to real-life applications, the reliable decoding of multiple nanobarcodes demands a huge amount of attention, with many research opportunities in computer science and signal processing domains, which are expected to flourish soon.

## 3. Summary and Outlook

## Author Contributions

## Funding

## Institutional Review Board Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Soon, J.M.; Manning, L. Developing anti-counterfeiting measures: The role of smart packaging. Food Res. Int.
**2019**, 123, 135–143. [Google Scholar] [CrossRef] [PubMed] - Lai, H.; Liao, H. A multi-criteria decision making method based on DNMA and CRITIC with linguistic D numbers for blockchain platform evaluation. Eng. Appl. Artif. Intell.
**2021**, 101, 104200. [Google Scholar] [CrossRef] - Liu, A.; Liu, T.; Mou, J.; Wang, R. A supplier evaluation model based on customer demand in blockchain tracing anti-counterfeiting platform project management. J. Manag. Sci. Eng.
**2020**, 5, 172–194. [Google Scholar] [CrossRef] - Büyüközkan, G.; Tüfekçi, G. A decision-making framework for evaluating appropriate business blockchain platforms using multiple preference formats and VIKOR. Inf. Sci.
**2021**, 571, 337–357. [Google Scholar] [CrossRef] - Zamani Kouhpanji, M.R.; Stadler, B. Magnetic Nanowires toward Authentication. Part. Part. Syst. Charact.
**2021**, 38, 2000227. [Google Scholar] [CrossRef] - Zamani Kouhpanji, M.R.; Stadler, B.J.H. Unlocking the decoding of unknown magnetic nanobarcode signatures. Nanoscale Adv.
**2021**, 3, 584–592. [Google Scholar] [CrossRef] - Zamani Kouhpanji, M.R.; Stadler, B.J.H. Magnetic nanowires for quantitative detection of biopolymers. AIP Adv.
**2020**, 10, 125231. [Google Scholar] [CrossRef] - Zamani Kouhpanji, M.R.; Stadler, B.J.H. Projection method as a probe for multiplexing/demultiplexing of magnetically enriched biological tissues. RSC Adv.
**2020**, 10, 13286–13292. [Google Scholar] [CrossRef] [Green Version] - Zamani Kouhpanji, M.R.; Um, J.; Stadler, B.J.H. Demultiplexing of Magnetic Nanowires with Overlapping Signatures for Tagged Biological Species. ACS Appl. Nano Mater.
**2020**, 3, 3080–3087. [Google Scholar] [CrossRef] - Miller, F.; Wintzheimer, S.; Prieschl, J.; Strauss, V.; Mandel, K. A Supraparticle-Based Five-Level-Identification Tag That Switches Information Upon Readout. Adv. Opt. Mater.
**2021**, 9, 2001972. [Google Scholar] [CrossRef] - Miller, F.; Wintzheimer, S.; Reuter, T.; Groppe, P.; Prieschl, J.; Retter, M.; Mandel, K. Luminescent Supraparticles Based on CaF 2–Nanoparticle Building Blocks as Code Objects with Unique IDs. ACS Appl. Nano Mater.
**2020**, 3, 734–741. [Google Scholar] [CrossRef] [Green Version] - Lin, J.; Lu, Y.; Li, X.; Huang, F.; Yang, C.; Liu, M.; Jiang, N.; Chen, D. Perovskite Quantum Dots Glasses Based Backlit Displays. ACS Energy Lett.
**2021**, 6, 519–528. [Google Scholar] [CrossRef] - Li, F.; Huang, S.; Liu, X.; Bai, Z.; Wang, Z.; Xie, H.; Bai, X.; Zhong, H. Highly Stable and Spectrally Tunable Gamma Phase Rb x Cs 1–x PbI 3 Gradient-Alloyed Quantum Dots in PMMA Matrix through A Sites Engineering. Adv. Funct. Mater.
**2021**, 31, 2008211. [Google Scholar] [CrossRef] - Galstyan, V. Quantum dots: Perspectives in next-generation chemical gas sensors—A review. Anal. Chim. Acta
**2021**, 1152, 238192. [Google Scholar] [CrossRef] - Kwizera, E.A.; O’Connor, R.; Vinduska, V.; Williams, M.; Butch, E.R.; Snyder, S.E.; Chen, X.; Huang, X. Molecular detection and analysis of exosomes using surface-enhanced Raman scattering gold nanorods and a miniaturized device. Theranostics
**2018**, 8, 2722–2738. [Google Scholar] [CrossRef] - van den Boorn, J.G.; Schlee, M.; Coch, C.; Hartmann, G. SiRNA delivery with exosome nanoparticles. Nat. Biotechnol.
**2011**, 29, 325–326. [Google Scholar] [CrossRef] - Yong, T.; Zhang, X.; Bie, N.; Zhang, H.; Zhang, X.; Li, F.; Hakeem, A.; Hu, J.; Gan, L.; Santos, H.A.; et al. Tumor exosome-based nanoparticles are efficient drug carriers for chemotherapy. Nat. Commun.
**2019**, 10, 3838. [Google Scholar] [CrossRef] [Green Version] - Khongkow, M.; Yata, T.; Boonrungsiman, S.; Ruktanonchai, U.R.; Graham, D.; Namdee, K. Surface modification of gold nanoparticles with neuron-targeted exosome for enhanced blood–brain barrier penetration. Sci. Rep.
**2019**, 9, 8278. [Google Scholar] [CrossRef] - Pregibon, D.C.; Toner, M.; Doyle, P.S. Multifunctional Encoded Particles for High-Throughput Biomolecule Analysis. Science
**2007**, 315, 1393–1396. [Google Scholar] [CrossRef] [Green Version] - Nolan, J.P.; Sklar, L.A. Suspension array technology: Evolution of the flat-array paradigm. Trends Biotechnol.
**2002**, 20, 9–12. [Google Scholar] [CrossRef] - Gunderson, K.L. Decoding Randomly Ordered DNA Arrays. Genome Res.
**2004**, 14, 870–877. [Google Scholar] [CrossRef] [Green Version] - Shikha, S.; Salafi, T.; Cheng, J.; Zhang, Y. Versatile design and synthesis of nano-barcodes. Chem. Soc. Rev.
**2017**, 46, 7054–7093. [Google Scholar] [CrossRef] [Green Version] - Zamani Kouhpanji, M.R.; Stadler, B.J.H. A Guideline for Effectively Synthesizing and Characterizing Magnetic Nanoparticles for Advancing Nanobiotechnology: A Review. Sensors
**2020**, 20, 2554. [Google Scholar] [CrossRef] - Lavorato, G.C.; Das, R.; Alonso Masa, J.; Phan, M.-H.; Srikanth, H. Hybrid magnetic nanoparticles as efficient nanoheaters in biomedical applications. Nanoscale Adv.
**2021**, 3, 867–888. [Google Scholar] [CrossRef] - Melnikov, G.Y.; Lepalovskij, V.N.; Svalov, A.V.; Safronov, A.P.; Kurlyandskaya, G.V. Magnetoimpedance Thin Film Sensor for Detecting of Stray Fields of Magnetic Particles in Blood Vessel. Sensors
**2021**, 21, 3621. [Google Scholar] [CrossRef] - Mollarasouli, F.; Zor, E.; Ozcelikay, G.; Ozkan, S.A. Magnetic nanoparticles in developing electrochemical sensors for pharmaceutical and biomedical applications. Talanta
**2021**, 226, 122108. [Google Scholar] [CrossRef] - Zamani Kouhpanji, M.R.; Nemati, Z.; Mahmoodi, M.M.; Um, J.; Modiano, J.; Franklin, R.; Stadler, B. Selective Detection of Cancer Cells Using Magnetic Nanowires. ACS Appl. Mater. Interfaces
**2021**, 13, 21060–21066. [Google Scholar] [CrossRef] [PubMed] - Zamani Kouhapanji, M.R.; Nemati, Z.; Modiano, J.F.; Franklin, R.R.; Stadler, B.J.H. Realizing the principles for remote and selective detection of cancer cells using magnetic nanowires. J. Phys. Chem. B
**2021**. [Google Scholar] - Burks, E.C.; Gilbert, D.A.; Murray, P.D.; Flores, C.; Felter, T.E.; Charnvanichborikarn, S.; Kucheyev, S.O.; Colvin, J.D.; Yin, G.; Liu, K. 3D Nanomagnetism in Low Density Interconnected Nanowire Networks. Nano Lett.
**2020**, 21, 716–722. [Google Scholar] [CrossRef] [PubMed] - Sousa, C.T.; Leitao, D.C.; Proenca, M.P.; Ventura, J.; Pereira, A.M.; Araujo, J.P. Nanoporous alumina as templates for multifunctional applications. Appl. Phys. Rev.
**2014**, 1, 031102. [Google Scholar] [CrossRef] - Um, J.; Zamani Kouhpanji, M.R.; Liu, S.; Nemati Porshokouh, Z.; Sung, S.Y.; Kosel, J.; Stadler, B. Fabrication of Long-Range Ordered Aluminum Oxide and Fe/Au Multilayered Nanowires for 3-D Magnetic Memory. IEEE Trans. Magn.
**2020**, 56, 1–6. [Google Scholar] [CrossRef] - Yin, A.J.; Li, J.; Jian, W.; Bennett, A.J.; Xu, J.M. Fabrication of highly ordered metallic nanowire arrays by electrodeposition. Appl. Phys. Lett.
**2001**, 79, 1039–1041. [Google Scholar] [CrossRef] [Green Version] - Walter, E.C.; Zach, M.P.; Favier, F.; Murray, B.J.; Inazu, K.; Hemminger, J.C.; Penner, R.M. Metal Nanowire Arrays by Electrodeposition. ChemPhysChem
**2003**, 4, 131–138. [Google Scholar] [CrossRef] - Zamani Kouhpanji, M.R.; Ghoreyshi, A.; Visscher, P.B.; Stadler, B.J.H. Facile decoding of quantitative signatures from magnetic nanowire arrays. Sci. Rep.
**2020**, 10, 15482. [Google Scholar] [CrossRef] - Zamani Kouhpanji, M.R.; Stadler, B.J.H. Beyond the qualitative description of complex magnetic nanoparticle arrays using FORC measurement. Nano Express
**2020**, 1, 010017. [Google Scholar] [CrossRef] - Schotter, J.; Kamp, P.; Becker, A.; Pühler, A.; Reiss, G.; Brückl, H. Comparison of a prototype magnetoresistive biosensor to standard fluorescent DNA detection. Biosens. Bioelectron.
**2004**, 19, 1149–1156. [Google Scholar] [CrossRef] - Gaster, R.S.; Hall, D.A.; Nielsen, C.H.; Osterfeld, S.J.; Yu, H.; Mach, K.E.; Wilson, R.J.; Murmann, B.; Liao, J.C.; Gambhir, S.S.; et al. Matrix-insensitive protein assays push the limits of biosensors in medicine. Nat. Med.
**2009**, 15, 1327–1332. [Google Scholar] [CrossRef] - Gijs, M.A.M.; Lacharme, F.; Lehmann, U. Microfluidic Applications of Magnetic Particles for Biological Analysis and Catalysis. Chem. Rev.
**2010**, 110, 1518–1563. [Google Scholar] [CrossRef] - Wang, S.X.; Li, G. Advances in Giant Magnetoresistance Biosensors With Magnetic Nanoparticle Tags: Review and Outlook. IEEE Trans. Magn.
**2008**, 44, 1687–1702. [Google Scholar] [CrossRef] - Dobrotă, C.-I.; Stancu, A. Tracking the individual magnetic wires’ switchings in ferromagnetic nanowire arrays using the first-order reversal curves (FORC) diagram method. Phys. B Condens. Matter
**2015**, 457, 280–286. [Google Scholar] [CrossRef] - Kouhpanji, M.R.Z.; Stadler, B. Exploring Effects of Magnetic Nanowire Arrangements and Imperfections on First-Order Reversal Curve Diagrams. IEEE Trans. Magn.
**2021**, 1. [Google Scholar] [CrossRef] - Pike, R. First-order reversal-curve diagrams and reversible magnetization. Phys. Rev. B Condens. Matter Mater. Phys.
**2003**, 68, 1–5. [Google Scholar] [CrossRef] [Green Version] - Mayergoyz, I.D. Hysteresis models from the mathematical and control theory points of view. J. Appl. Phys.
**1985**, 57, 3803–3805. [Google Scholar] [CrossRef] - Mayergoyz, I.D. Mathematical models of hysteresis (Invited). IEEE Trans. Magn.
**1986**, 22, 603–608. [Google Scholar] [CrossRef] [Green Version] - Velázquez, Y.G.; Guerrero, A.L.; Martínez, J.M.; Araujo, E.; Tabasum, M.R.; Nysten, B.; Piraux, L.; Encinas, A. Relation of the average interaction field with the coercive and interaction field distributions in First order reversal curve diagrams of nanowire arrays. Sci. Rep.
**2020**, 10, 21396. [Google Scholar] [CrossRef] - Hillion, A.; Tamion, A.; Tournus, F.; Gaier, O.; Bonet, E.; Albin, C.; Dupuis, V. Advanced magnetic anisotropy determination through isothermal remanent magnetization of nanoparticles. Phys. Rev. B Condens. Matter Mater. Phys.
**2013**, 88, 094419. [Google Scholar] [CrossRef] - Zamani Kouhpanji, M.R.; Visscher, P.B.; Stadler, B.J.H. Fast and universal approach for quantitative measurements of bistable hysteretic systems. J. Magn. Magn. Mater.
**2021**, 537, 168170. [Google Scholar] [CrossRef] - Mourdikoudis, S.; Pallares, R.M.; Thanh, N.T.K. Characterization techniques for nanoparticles: Comparison and complementarity upon studying nanoparticle properties. Nanoscale
**2018**, 10, 12871–12934. [Google Scholar] [CrossRef] [Green Version] - Faraji, M.; Yamini, Y.; Rezaee, M. Magnetic nanoparticles: Synthesis, stabilization, functionalization, characterization, and applications. J. Iran. Chem. Soc.
**2010**, 7, 1–37. [Google Scholar] [CrossRef] - Cullity, B.D.; Graham, C.D. Introduction to Magnetic Materials; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2009; ISBN 9780471477419. [Google Scholar]
- Lucatero, S.; Podlaha, E.J. Influence of Citric and Ascorbic Acids on Electrodeposited Au/FeAu Multilayer Nanowires. J. Electrochem. Soc.
**2010**, 157, D370. [Google Scholar] [CrossRef] - Khan, S.; Ahmad, N.; Safeer, A.; Iqbal, J. Compositional dependent morphology, structural and magnetic properties of Fe100−XCuX alloy nanowires via electrodeposition in AAO templates. Appl. Phys. A
**2018**, 124, 678. [Google Scholar] [CrossRef] - Nana, A.B.A.; Marimuthu, T.; Kondiah, P.P.D.; Choonara, Y.E.; Toit, L.C.D.; Pillay, V. Multifunctional magnetic nanowires: Design, fabrication, and future prospects as cancer therapeutics. Cancers
**2019**, 11, 1956. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Palmero, E.M.; Bran, C.; del Real, R.P.; Magén, C.; Vázquez, M. Magnetic behavior of NiCu nanowire arrays: Compositional, geometry and temperature dependence. J. Appl. Phys.
**2014**, 116, 033908. [Google Scholar] [CrossRef] [Green Version] - Matei, E.; Enculescu, I.; Toimil-Molares, M.E.; Leca, A.; Ghica, C.; Kuncser, V. Magnetic configurations of Ni–Cu alloy nanowires obtained by the template method. J. Nanopart. Res.
**2013**, 15, 1863. [Google Scholar] [CrossRef] - Esmaeili, A.; Almasi Kashi, M.; Ramazani, A.; Montazer, A.H. Tailoring magnetic properties in arrays of pulse-electrodeposited Co nanowires: The role of Cu additive. J. Magn. Magn. Mater.
**2016**, 397, 64–72. [Google Scholar] [CrossRef] - Balke, B.; Wurmehl, S.; Fecher, G.H.; Felser, C.; Kübler, J. Rational design of new materials for spintronics: Co 2 Fe Z (Z =Al, Ga, Si, Ge). Sci. Technol. Adv. Mater.
**2008**, 9, 014102. [Google Scholar] [CrossRef] [Green Version] - Dupuis, V.; Khadra, G.; Hillion, A.; Tamion, A.; Tuaillon-Combes, J.; Bardotti, L.; Tournus, F. Intrinsic magnetic properties of bimetallic nanoparticles elaborated by cluster beam deposition. Phys. Chem. Chem. Phys.
**2015**, 17, 27996–28004. [Google Scholar] [CrossRef] - Wijn, H.P.J. Magnetic Properties of Metals; Springer: Berlin, Germany, 1991. [Google Scholar]
- Zhang, X.; Zhang, H.; Wu, T.; Li, Z.; Zhang, Z.; Sun, H. Comparative study in fabrication and magnetic properties of FeNi alloy nanowires and nanotubes. J. Magn. Magn. Mater.
**2013**, 331, 162–167. [Google Scholar] [CrossRef] - Doludenko, I.M.; Zagorskii, D.L.; Frolov, K.V.; Perunov, I.V.; Chuev, M.A.; Kanevskii, V.M.; Erokhina, N.S.; Bedin, S.A. Nanowires Made of FeNi and FeCo Alloys: Synthesis, Structure, and Mössbauer Measurements. Phys. Solid State
**2020**, 62, 1639–1646. [Google Scholar] [CrossRef] - Huang, C.; Wang, P.; Guan, W.; Yang, S.; Gao, L.; Wang, L.; Song, X.; Murakami, R. Improved microstructure and magnetic properties of iron–cobalt nanowire via an ac electrodeposition with a multistep voltage. Mater. Lett.
**2010**, 64, 2465–2467. [Google Scholar] [CrossRef] - Ghemes, A.; Dragos-pinzaru, O.; Chiriac, H.; Lupu, N.; Grigoras, M.; Shore, D.; Stadler, B.; Tabakovic, I. Controlled Electrodeposition and Magnetic Properties of Co 35 Fe 65 Nanowires with High Saturation Magnetization. J. Electrochem. Soc.
**2017**, 164, 13–22. [Google Scholar] [CrossRef] - Vilana, J.; Gómez, E.; Vallés, E. Electrochemical control of composition and crystalline structure of CoNi nanowires and films prepared potentiostatically from a single bath. J. Electroanal. Chem.
**2013**, 703, 88–96. [Google Scholar] [CrossRef] - Elkins, J.; Mohapatra, J.; Xing, M.; Beatty, J.; Liu, J.P. Structural, morphological and magnetic properties of compositionally modulated CoNi nanowires. J. Alloys Compd.
**2021**, 864, 158123. [Google Scholar] [CrossRef] - Bai, A.; Hu, C.-C. Iron–cobalt and iron–cobalt–nickel nanowires deposited by means of cyclic voltammetry and pulse-reverse electroplating. Electrochem. commun.
**2003**, 5, 78–82. [Google Scholar] [CrossRef] - Mansouri, N.; Benbrahim-Cherief, N.; Chainet, E.; Charlot, F.; Encinas, T.; Boudinar, S.; Benfedda, B.; Hamadou, L.; Kadri, A. Electrodeposition of equiatomic FeNi and FeCo nanowires: Structural and magnetic properties. J. Magn. Magn. Mater.
**2020**, 493, 165746. [Google Scholar] [CrossRef] - Pfeifer, F.; Radeloff, C. Soft magnetic Ni-Fe and Co-Fe alloys—Some physical and metallurgical aspects. J. Magn. Magn. Mater.
**1980**, 19, 190–207. [Google Scholar] [CrossRef] - Tabakovic, I.; Venkatasamy, V. Preparation of metastable CoFeNi alloys with ultra-high magnetic saturation (Bs = 2.4–2.59 T) by reverse pulse electrodeposition. J. Magn. Magn. Mater.
**2018**, 452, 306–314. [Google Scholar] [CrossRef] - Thiem, L.V.; Tu, L.T.; Phan, M. Magnetization Reversal and Magnetic Anisotropy in Ordered CoNiP Nanowire Arrays: Effects of Wire Diameter. Sensors
**2015**, 15, 5687–5696. [Google Scholar] [CrossRef] [Green Version] - Xu, J.; Hong, B.; Peng, X.; Wang, X.; Ge, H.; Hu, J. Preparation and magnetic properties of gradient diameter FeCoNi alloys nanowires arrays. Chem. Phys. Lett.
**2021**, 767, 138368. [Google Scholar] [CrossRef] - Salem, M.S.; Tejo, F.; Zierold, R.; Sergelius, P.; Moreno, J.M.M.; Goerlitz, D.; Nielsch, K.; Escrig, J. Composition and diameter modulation of magnetic nanowire arrays fabricated by a novel approach. Nanotechnology
**2018**, 29, 065602. [Google Scholar] [CrossRef] - Yang, H.; Li, Y.; Zeng, M.; Cao, W.; Bailey, W.E.; Yu, R. Static and Dynamic Magnetization of Gradient FeNi Alloy Nanowire. Sci. Rep.
**2016**, 6, 1–9. [Google Scholar] [CrossRef] - Zeng, M.; Yang, H.; Liu, J.; Yu, R. Gradient magnetic binary alloy nanowire. J. Appl. Phys.
**2014**, 115, 17B514. [Google Scholar] [CrossRef] - Abdellahi, M.; Tajally, M.; Mirzaee, O. The effect of the particle size on the heating and drug release potential of the magnetic nanoparticles in a novel point of view. J. Magn. Magn. Mater.
**2021**, 530, 167938. [Google Scholar] [CrossRef] - Ghazkoob, N.; Zargar Shoushtari, M.; Kazeminezhad, I.; Lari Baghal, S.M. Structural, magnetic and optical investigation of AC pulse electrodeposited zinc ferrite nanowires with different diameters and lengths. J. Magn. Magn. Mater.
**2021**, 537, 168113. [Google Scholar] [CrossRef] - Karim, S.; Maaz, K. Magnetic behavior of arrays of nickel nanowires: Effect of microstructure and aspect ratio. Mater. Chem. Phys.
**2011**, 130, 1103–1108. [Google Scholar] [CrossRef] - Aharoni, A. Angular dependence of nucleation by curling in a prolate spheroid. J. Appl. Phys.
**1997**, 82, 1281–1287. [Google Scholar] [CrossRef] - Bran, C.; Espejo, A.P.; Palmero, E.M.; Escrig, J.; Vázquez, M. Angular dependence of coercivity with temperature in Co-based nanowires. J. Magn. Magn. Mater.
**2015**, 396, 327–332. [Google Scholar] [CrossRef] - Escrig, J.; Lavín, R.; Palma, J.L.; Denardin, J.C.; Altbir, D.; Cortés, A.; Gómez, H. Geometry dependence of coercivity in Ni nanowire arrays. Nanotechnology
**2008**, 19, 075713. [Google Scholar] [CrossRef] - Elmekawy, A.H.A.; Iashina, E.; Dubitskiy, I.; Sotnichuk, S.; Bozhev, I.; Kozlov, D.; Napolskii, K.; Menzel, D.; Mistonov, A. Magnetic properties of ordered arrays of iron nanowires: The impact of the length. J. Magn. Magn. Mater.
**2021**, 532, 167951. [Google Scholar] [CrossRef] - Sun, L.; Hao, Y.; Chien, C.-L.; Searson, P.C. Tuning the properties of magnetic nanowires. IBM J. Res. Dev.
**2005**, 49, 79–102. [Google Scholar] [CrossRef] - Vivas, L.G.; Vazquez, M.; Escrig, J.; Allende, S.; Altbir, D.; Leitao, D.C.; Araujo, J.P. Magnetic anisotropy in CoNi nanowire arrays: Analytical calculations and experiments. Phys. Rev. B Condens. Matter Mater. Phys.
**2012**, 85, 1–8. [Google Scholar] [CrossRef] - Aslam, S.; Khanna, M.; Kuanr, B.K.; Celinski, Z. One dimensional FexCo1-x nanowires; ferromagnetic resonance and magnetization dynamics. AIP Adv.
**2017**, 7, 056027. [Google Scholar] [CrossRef] [Green Version] - Zafar, N.; Shamaila, S.; Sharif, R.; Wali, H.; Naseem, S.; Riaz, S.; Khaleeq-Ur-Rahman, M. Effects of pH on the crystallographic structure and magnetic properties of electrodeposited cobalt nanowires. J. Magn. Magn. Mater.
**2015**, 377, 215–219. [Google Scholar] [CrossRef] - Aslam, S.; Das, A.; Khanna, M.; Kuanr, B.K. Concentration gradient Co–Fe nanowire arrays: Microstructure to magnetic characterizations. J. Alloys Compd.
**2020**, 838, 155566. [Google Scholar] [CrossRef] - Agarwal, S.; Khatri, M.S. Effect of pH and Boric Acid on Magnetic Properties of Electrodeposited Co Nanowires. Proc. Natl. Acad. Sci. India Sect. A Phys. Sci.
**2020**, 14, 1–6. [Google Scholar] [CrossRef] - Iglesias-Freire, Ó.; Bran, C.; Berganza, E.; Mínguez-Bacho, I.; Magén, C.; Vázquez, M.; Asenjo, A. Spin configuration in isolated FeCoCu nanowires modulated in diameter. Nanotechnology
**2015**, 26, 395702. [Google Scholar] [CrossRef] - Fernandez-Roldan, J.A.; De Riz, A.; Trapp, B.; Thirion, C.; Vazquez, M.; Toussaint, J.-C.; Fruchart, O.; Gusakova, D. Modeling magnetic-field-induced domain wall propagation in modulated-diameter cylindrical nanowires. Sci. Rep.
**2019**, 9, 5130. [Google Scholar] [CrossRef] [Green Version] - Rial, J.; Proenca, M.P. A Novel Design of a 3D Racetrack Memory Based on Functional Segments in Cylindrical Nanowire Arrays. Nanomaterials
**2020**, 10, 2403. [Google Scholar] [CrossRef] - Wang; Mukhtar; Wu; Gu; Cao Multi-Segmented Nanowires: A High Tech Bright Future. Materials
**2019**, 12, 3908. [CrossRef] [Green Version] - Berganza, E.; Bran, C.; Jaafar, M.; Vázquez, M.; Asenjo, A. Domain wall pinning in FeCoCu bamboo-like nanowires. Sci. Rep.
**2016**, 6, 29702. [Google Scholar] [CrossRef] - Fischer, P.; Sanz-Hernández, D.; Streubel, R.; Fernández-Pacheco, A. Launching a new dimension with 3D magnetic nanostructures. APL Mater.
**2020**, 8, 010701. [Google Scholar] [CrossRef] [Green Version] - Ruiz-Clavijo, A.; Ruiz-Gomez, S.; Caballero-Calero, O.; Perez, L.; Martin-Gonzalez, M. Tailoring Magnetic Anisotropy at Will in 3D Interconnected Nanowire Networks. Phys. Status Solidi Rapid Res. Lett.
**2019**, 13, 1900263. [Google Scholar] [CrossRef] - Bran, C.; Fernandez-Roldan, J.A.; del Real, R.P.; Asenjo, A.; Chubykalo-Fesenko, O.; Vazquez, M. Magnetic Configurations in Modulated Cylindrical Nanowires. Nanomaterials
**2021**, 11, 600. [Google Scholar] [CrossRef] - Jang, B.; Pellicer, E.; Guerrero, M.; Chen, X.; Choi, H.; Nelson, B.J.; Sort, J.; Pané, S. Fabrication of Segmented Au/Co/Au Nanowires: Insights in the Quality of Co/Au Junctions. ACS Appl. Mater. Interfaces
**2014**, 6, 14583–14589. [Google Scholar] [CrossRef] - Arzuza, L.C.C.; Béron, F.; Pirota, K.R. High-frequency GMI hysteresis effect analysis by first-order reversal curve (FORC) method. J. Magn. Magn. Mater.
**2021**, 534, 168008. [Google Scholar] [CrossRef] - Samanifar, S.; Kashi, M.A.; Ramazani, A. Study of reversible magnetization in FeCoNi alloy nanowires with different diameters by first order reversal curve (FORC) diagrams. Phys. C Supercond. Appl.
**2018**, 548, 72–74. [Google Scholar] [CrossRef] - Samardak, A.S.; Ognev, A.V.; Samardak, A.Y.; Stebliy, E.V.; Modin, E.B.; Chebotkevich, L.A.; Komogortsev, S.V.; Stancu, A.; Panahi-Danaei, E.; Fardi-Ilkhichy, A.; et al. Variation of magnetic anisotropy and temperature-dependent FORC probing of compositionally tuned Co-Ni alloy nanowires. J. Alloys Compd.
**2018**, 732, 683–693. [Google Scholar] [CrossRef] - Mayergoyz, I.D. The classical Preisach model of hysteresis and reversibility. J. Appl. Phys.
**1991**, 69, 4602–4604. [Google Scholar] [CrossRef] [Green Version] - Pike, C.R.; Roberts, A.P.; Verosub, K.L. Characterizing interactions in fine magnetic particle systems using first order reversal curves. J. Appl. Phys.
**1999**, 85, 6660–6667. [Google Scholar] [CrossRef] [Green Version] - Preisach, F. Uber die magnetische nachwirkung. Mitteilung aus dem Zentrallaboratorium des Wernerwerkes der Siemens Halske. Z. Phys.
**1935**, 277, 277–302. [Google Scholar] [CrossRef] - Pierrot, A.; Béron, F.; Blon, T. FORC signatures and switching-field distributions of dipolar coupled nanowire-based hysterons. J. Appl. Phys.
**2020**, 128, 093903. [Google Scholar] [CrossRef] - Shojaie Mehr, S.; Ramazani, A.; Almasi Kashi, M. Study on magnetic properties of NiFe/Cu multisegmented nanowire arrays with different Cu thicknesses via FORC analysis: Coercivity, interaction, magnetic reversibility. J. Mater. Sci. Mater. Electron.
**2018**, 29, 18771–18780. [Google Scholar] [CrossRef] - Gilbert, D.A.; Murray, P.D.; De Rojas, J.; Dumas, R.K.; Davies, J.E.; Liu, K. Reconstructing phase-resolved hysteresis loops from first-order reversal curves. Sci. Rep.
**2021**, 11, 4018. [Google Scholar] [CrossRef] - Gilbert, D.A.; Zimanyi, G.T.; Dumas, R.K.; Winklhofer, M.; Gomez, A.; Eigagi, N.; Vicent, J.L.; Liu, K. Quantitative Decoding of Interactions in Tunable Nanomagnet Arrays Using First Order Reversal Curves. Sci. Rep.
**2014**, 4, 1–5. [Google Scholar] [CrossRef] - De Biasi, E.; Curiale, J.; Zysler, R.D. Quantitative study of FORC diagrams in thermally corrected Stoner–Wohlfarth nanoparticles systems. J. Magn. Magn. Mater.
**2016**, 419, 580–587. [Google Scholar] [CrossRef] - Dobrotă, C.-I.; Stancu, A. What does a first-order reversal curve diagram really mean? A study case: Array of ferromagnetic nanowires. J. Appl. Phys.
**2013**, 113, 043928. [Google Scholar] [CrossRef] [Green Version] - De Biasi, E. Faster modified protocol for first order reversal curve measurements. J. Magn. Magn. Mater.
**2017**, 439, 259–268. [Google Scholar] [CrossRef] - Berndt, T.A.; Chang, L. Waiting for Forcot: Accelerating FORC Processing 100× Using a Fast-Fourier-Transform Algorithm. Geochem. Geophys. Geosyst.
**2019**, 20, 6223–6233. [Google Scholar] [CrossRef] - Groß, F.; Martínez-García, J.C.; Ilse, S.E.; Schütz, G.; Goering, E.; Rivas, M.; Gräfe, J. gFORC: A graphics processing unit accelerated first-order reversal-curve calculator. J. Appl. Phys.
**2019**, 126, 163901. [Google Scholar] [CrossRef] [Green Version] - Zamani Kouhpanji, M.R.; Stadler, B.J.H. Assessing the reliability and validity ranges of magnetic characterization methods. arXiv
**2020**, arXiv:2003.06911. [Google Scholar] - Zamani Kouhpanji, M.R.; Visscher, P.B.; Stadler, B.J.H. Underlying magnetization responses of magnetic nanoparticles in assemblies. arXiv
**2020**, arXiv:2002.07742. [Google Scholar] - Stockhausen, H. Some new aspects for the modelling of isothermal remanent magnetization acquisition curves by cumulative log Gaussian functions. Geophys. Res. Lett.
**1998**, 25, 2217–2220. [Google Scholar] [CrossRef] - De Toro, J.A.; Vasilakaki, M.; Lee, S.S.; Andersson, M.S.; Normile, P.S.; Yaacoub, N.; Murray, P.; Sánchez, E.H.; Muñiz, P.; Peddis, D.; et al. Remanence Plots as a Probe of Spin Disorder in Magnetic Nanoparticles. Chem. Mater.
**2017**, 29, 8258–8268. [Google Scholar] [CrossRef] [Green Version] - Geshev, J.; Mikhov, M. Remanence curves for a disordered system of three- and four-axial fine particles. Henkel-type plots. J. Magn. Magn. Mater.
**1992**, 104–107, 1569–1570. [Google Scholar] [CrossRef] - Harres, A.; Cichelero, R.; Pereira, L.G.; Schmidt, J.E.; Geshev, J. Remanence plots technique extended to exchange bias systems. J. Appl. Phys.
**2013**, 114, 043902. [Google Scholar] [CrossRef] [Green Version] - Reeves, D.B.; Weaver, J.B. Magnetic nanoparticle sensing: Decoupling the magnetization from the excitation field. J. Phys. D Appl. Phys.
**2014**, 47, 045002. [Google Scholar] [CrossRef] [Green Version] - Wawrzik, T.; Ludwig, F.; Schilling, M.; Häfeli, U.; Schütt, W.; Zborowski, M. Multivariate Magnetic Particle Spectroscopy for Magnetic Nanoparticle Characterization. AIP Conf. Proc.
**2010**, 1311, 267. [Google Scholar] - Paysen, H.; Wells, J.; Kosch, O.; Steinhoff, U.; Trahms, L.; Schaeffter, T.; Wiekhorst, F. Towards quantitative magnetic particle imaging: A comparison with magnetic particle spectroscopy. AIP Adv.
**2018**, 8, 056712. [Google Scholar] [CrossRef] [Green Version] - Encinas-Oropesa, A.; Demand, M.; Piraux, L.; Ebels, U.; Huynen, I. Effect of dipolar interactions on the ferromagnetic resonance properties in arrays of magnetic nanowires. J. Appl. Phys.
**2001**, 89, 6704–6706. [Google Scholar] [CrossRef] - Raposo, V.; Zazo, M.; Flores, A.G.; Garcia, J.; Vega, V.; Iñiguez, J.; Prida, V.M. Ferromagnetic resonance in low interacting permalloy nanowire arrays. J. Appl. Phys.
**2016**, 119, 143903. [Google Scholar] [CrossRef] - Um, J.; Zhang, Y.; Zhou, W.; Zamani Kouhpanji, M.R.; Radu, C.; Franklin, R.R.; Stadler, B.J.H. Magnetic Nanowire Biolabels Using Ferromagnetic Resonance Identification. ACS Appl. Nano Mater.
**2021**, 4, 3557–3564. [Google Scholar] [CrossRef] - Nikitin, P.I.; Vetoshko, P.M.; Ksenevich, T.I. New type of biosensor based on magnetic nanoparticle detection. J. Magn. Magn. Mater.
**2007**, 311, 445–449. [Google Scholar] [CrossRef] - Krause, H.-J.; Wolters, N.; Zhang, Y.; Offenhäusser, A.; Miethe, P.; Meyer, M.H.F.; Hartmann, M.; Keusgen, M. Magnetic particle detection by frequency mixing for immunoassay applications. J. Magn. Magn. Mater.
**2007**, 311, 436–444. [Google Scholar] [CrossRef] - Paysen, H.; Loewa, N.; Weber, K.; Kosch, O.; Wells, J.; Schaeffter, T.; Wiekhorst, F. Imaging and quantification of magnetic nanoparticles: Comparison of magnetic resonance imaging and magnetic particle imaging. J. Magn. Magn. Mater.
**2019**, 475, 382–388. [Google Scholar] [CrossRef] - Biederer, S.; Knopp, T.; Sattel, T.F.; Lüdtke-Buzug, K.; Gleich, B.; Weizenecker, J.; Borgert, J.; Buzug, T.M. Magnetization response spectroscopy of superparamagnetic nanoparticles for magnetic particle imaging. J. Phys. D Appl. Phys.
**2009**, 42, 205007. [Google Scholar] [CrossRef] - Hernando, A.; Lopez-Dominguez, V.; Ricciardi, E.; Osiak, K.; Marin, P. Tuned scattering of Electromagnetic Waves by a Finite Length Ferromagnetic Microwire. IEEE Trans. Antennas Propag.
**2016**, 64, 1112–1115. [Google Scholar] [CrossRef] - Parsa, N.; Toonen, R.C. Ferromagnetic Nanowires for Nonreciprocal Millimeter-Wave Applications: Investigations of Artificial Ferrites for Realizing High-Frequency Communication Components. IEEE Nanotechnol. Mag.
**2018**, 12, 28–35. [Google Scholar] [CrossRef] - Heslop, D.; Dillon, M. Unmixing magnetic remanence curves without a priori knowledge. Geophys. J. Int.
**2007**, 170, 556–566. [Google Scholar] [CrossRef] [Green Version] - Dempster, A.P.; Laird, N.M.; Rubin, D.B. Maximum Likelihood from Incomplete Data Via the EM Algorithm. J. R. Stat. Soc. Ser. B
**1977**, 39, 1–22. [Google Scholar] [CrossRef] - Robertson, D.J.; France, D.E. Discrimination of remanence-carrying minerals in mixtures, using isothermal remanent magnetisation acquisition curves. Phys. Earth Planet. Inter.
**1994**, 82, 223–234. [Google Scholar] [CrossRef]

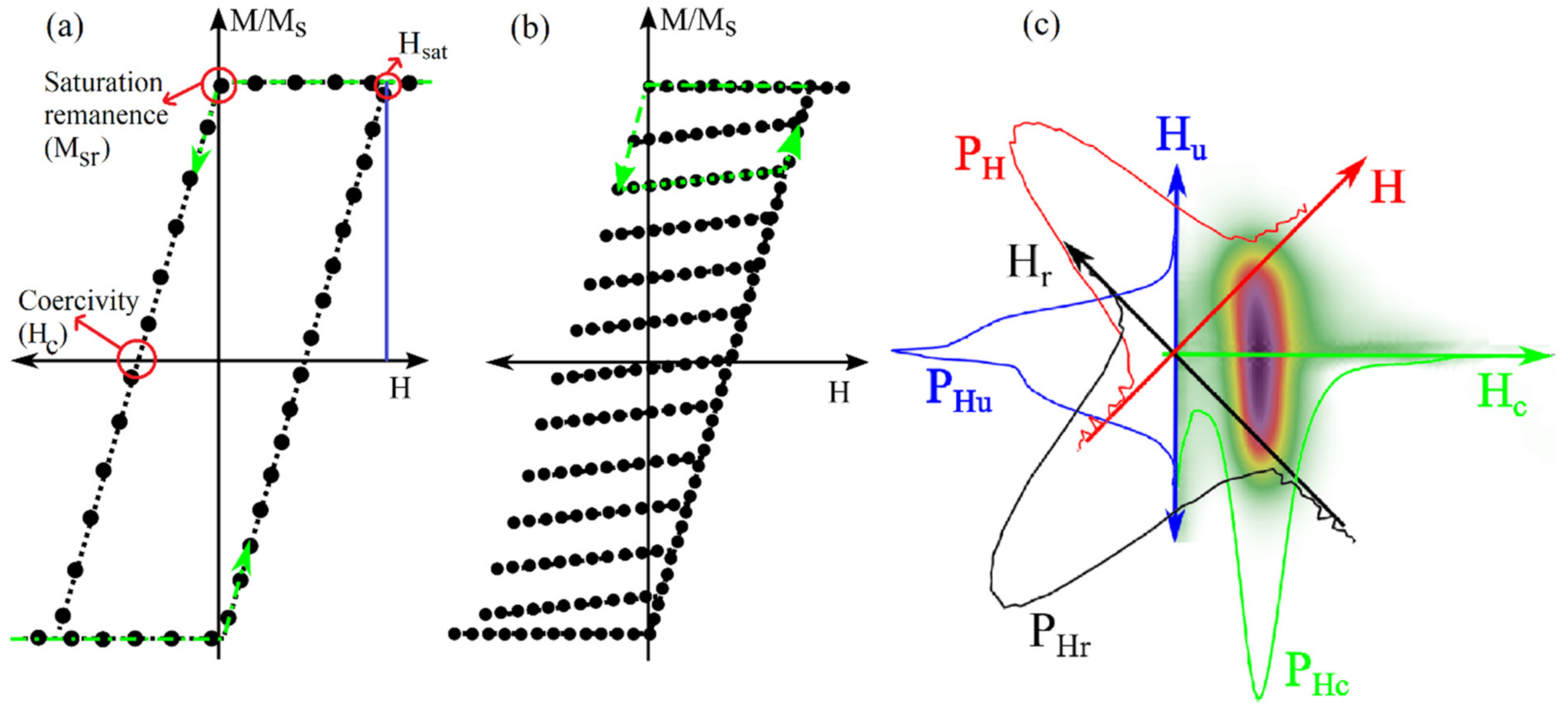

**Figure 2.**Schematically depicting the hysteresis loop method (

**a**) and the FORC method (

**b**,

**c**), where (

**b**) is the FORC data collection and (

**c**) is a FORC heat-map. In subfigures (

**a**,

**b**), the green arrows show the data acquisition direction. In subfigure (

**c**), the red distribution is the projection of the FORC heat-map on the applied field (H), the blue distribution is the projection of the FORC heat-map on the interaction field axis (interaction field distribution), the black distribution is the projection of the FORC heat-map on the reversal field (Hr), and the green distribution is the projection of the FORC heat-map on the coercivity axis (coercivity distribution). Figure adapted from [34,35].

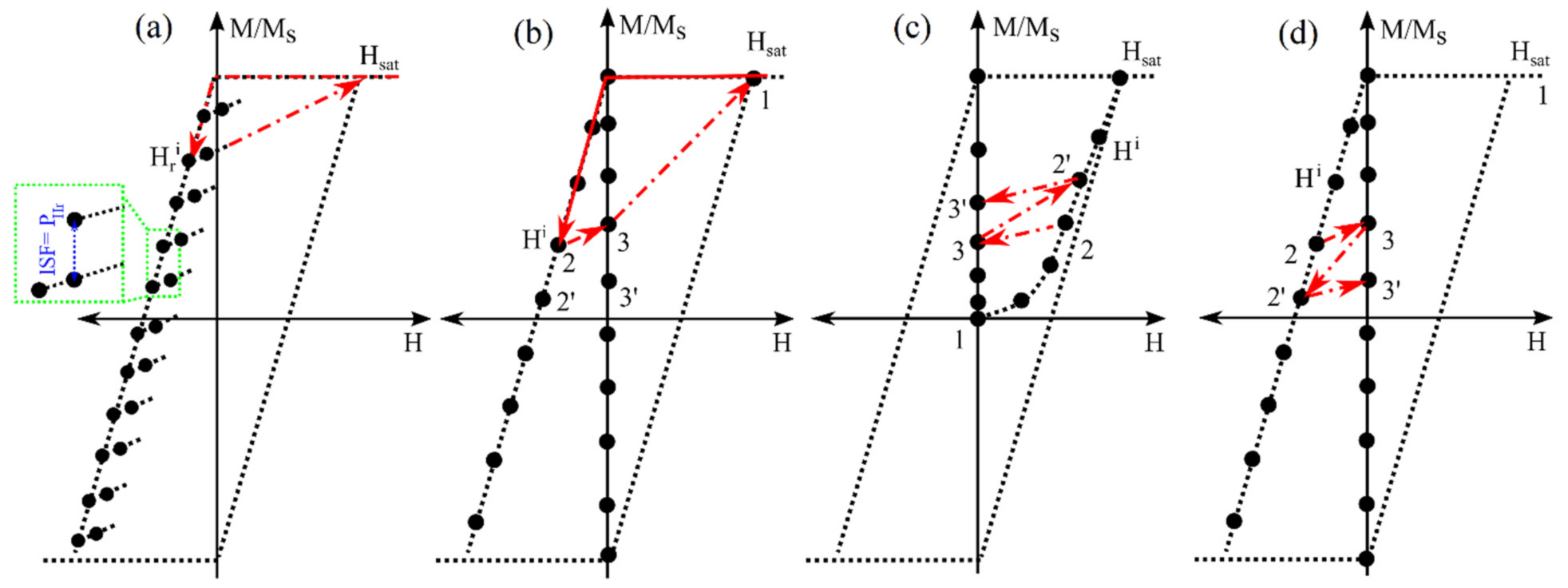

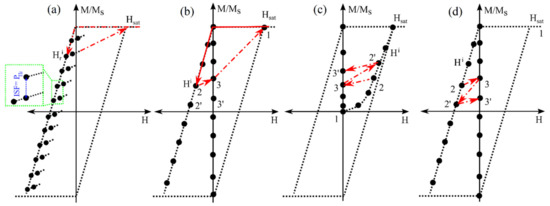

**Figure 5.**Schematically demonstrating the data collection protocols for (

**a**) the projection method, (

**b**) backward remanence method, (

**c**) isothermal remanence method, and (

**d**) DC demagnetization method. The projection method (

**a**) provides the irreversible switching (equivalent to the residual magnetization) at the reversal field, Hr. While, the remanence methods (

**b**–

**d**) provide the residual magnetization at the zero applied field, H, such as points 3 and 3’. The key feature that separates the backward remanence (

**b**) from the isothermal remanence (

**c**) and the DC demagnetization remanence (

**d**) is the saturating the whole system before applying the Hr and removing it.

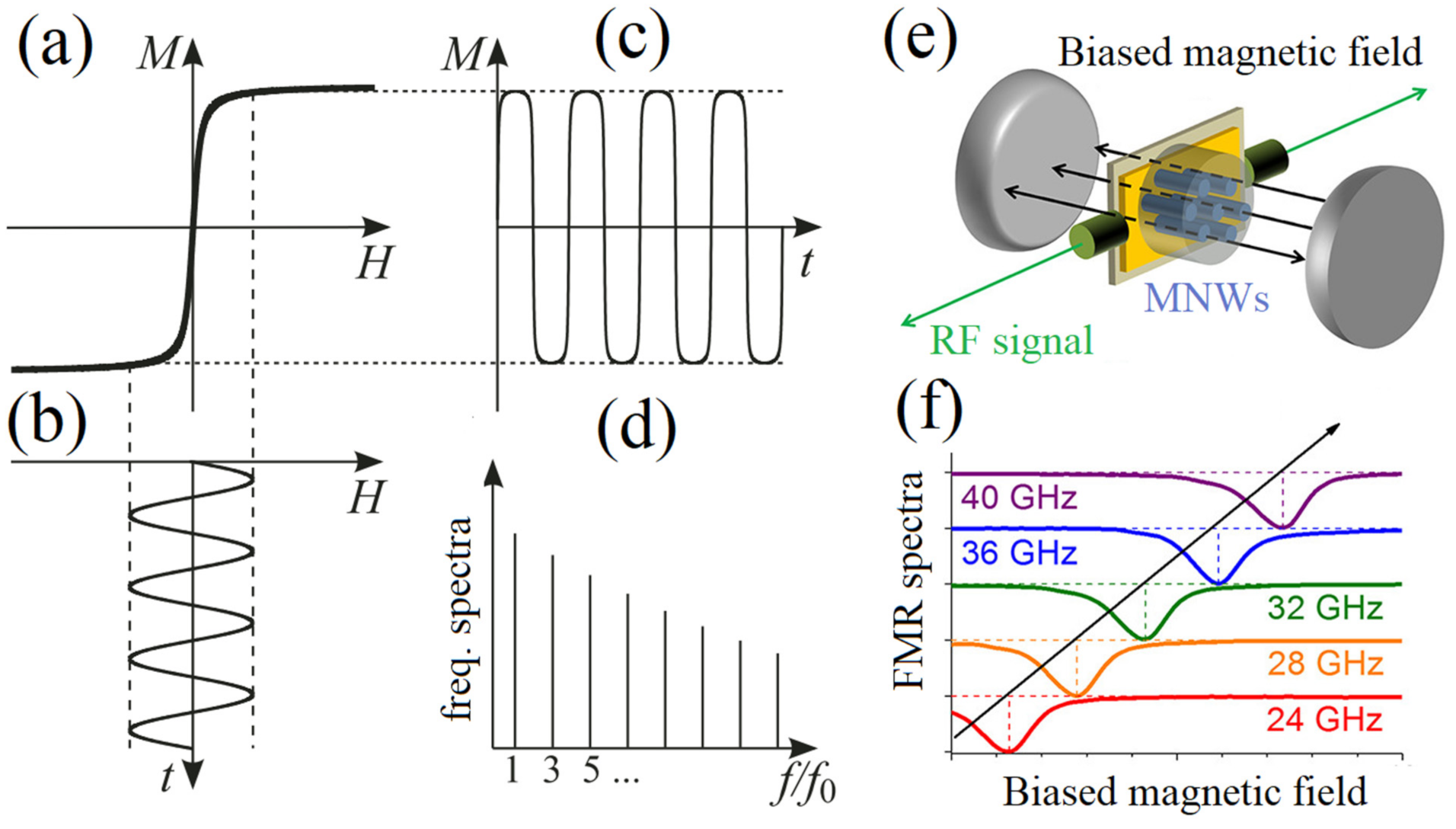

**Figure 6.**Schematically demonstrating (

**a**–

**d**) magnetic particle spectroscopy data, adapted from [127], and (

**e**,

**f**) ferromagnetic resonance spectroscopy data, adapted from [123]. In magnetic particle spectroscopy, superparamagnetic nanoparticles are exposed to an alternating magnetic field (

**b**), which forces them to oscillate (

**c**). By linearizing their response in frequency domain, multiple peaks appear at odd higher frequencies (

**d**) that are being used for sensing them. In magnetic resonance spectroscopy, the MNWs are exposed to an RF signal while a biased magnetic field is applied. By sweeping the RF signal frequency or the biased magnetic field magnitude, the RF absorption of the MNWs varies due to their spins’ precession, where the absorption signal is being used for sensing the MNWs.

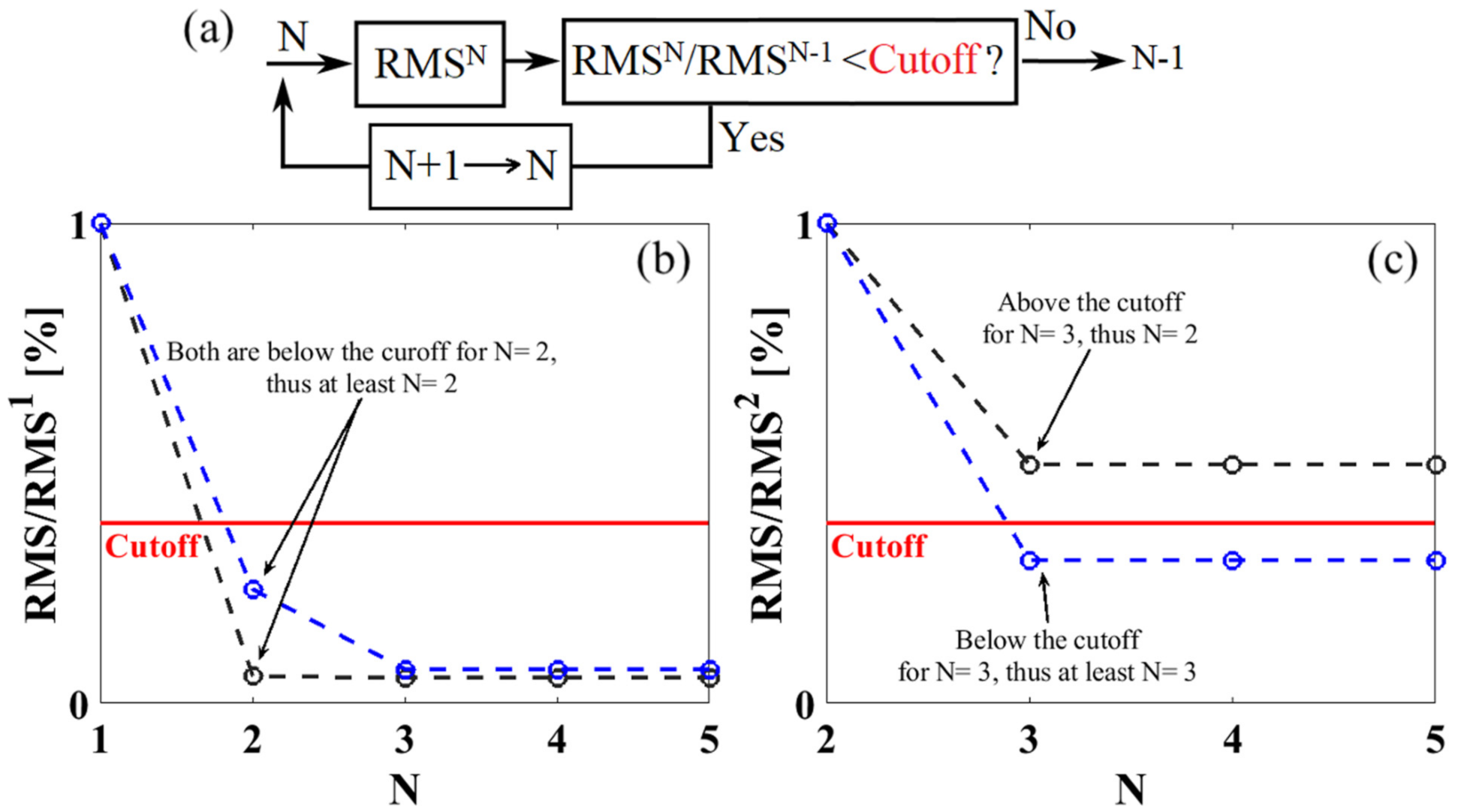

**Figure 7.**Depicting a decoding method based on using the fitting quality (RMS) as an indicator for determining the number of nanobarcodes at the readout, (

**a**) a flowchart for decoding and (

**b**,

**c**) data analysis for finding the number of the nanobarcodes were produced. The algorithm assumes that one (N = 1) nanobarcode exists, thus, it fits the data with one Gaussian function and calculates the RMS1. Then, it increases N to two, and it calculates RMS2. If the RMS2/RMS1 (

**b**) is larger than the cutoff value, there was only one nanobarcode at the readout. Otherwise, there are at least two nanobarcodes and the procedure must be repeated for N=3, which means RMS3/RMS2 must be evaluated (

**c**).

Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |

© 2021 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Zamani Kouhpanji, M.R.; Stadler, B.J.H.
Magnetic Nanowires for Nanobarcoding and Beyond. *Sensors* **2021**, *21*, 4573.
https://doi.org/10.3390/s21134573

**AMA Style**

Zamani Kouhpanji MR, Stadler BJH.
Magnetic Nanowires for Nanobarcoding and Beyond. *Sensors*. 2021; 21(13):4573.
https://doi.org/10.3390/s21134573

**Chicago/Turabian Style**

Zamani Kouhpanji, Mohammad Reza, and Bethanie J. H. Stadler.
2021. "Magnetic Nanowires for Nanobarcoding and Beyond" *Sensors* 21, no. 13: 4573.
https://doi.org/10.3390/s21134573
