Article

Learning Explainable Time-Morphology Patterns for Automatic Arrhythmia Classification from Short Single-Lead ECGs

Bio-Intelligence & Data Mining Laboratory, School of Electronic and Electrical Engineering, Kyungpook National University, Daegu 41566, Korea
*
Author to whom correspondence should be addressed.
Academic Editors: Zongyuan Ge, Yingying Zhu and Xiaofeng Zhu
Sensors 2021, 21(13), 4331; https://doi.org/10.3390/s21134331
Received: 16 April 2021 / Revised: 17 June 2021 / Accepted: 21 June 2021 / Published: 24 June 2021
(This article belongs to the Special Issue Healthcare Monitoring and Management with Artificial Intelligence)

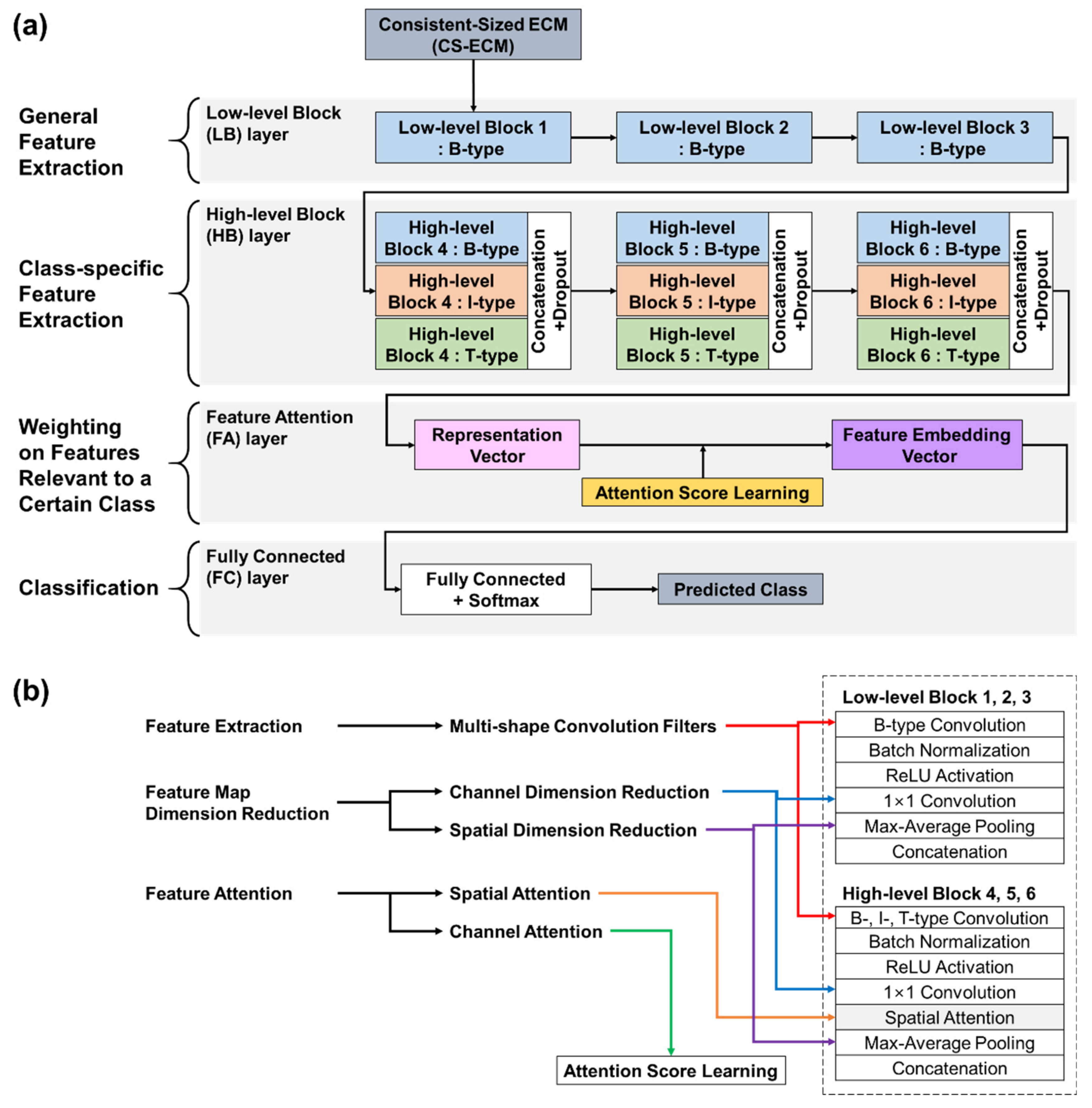

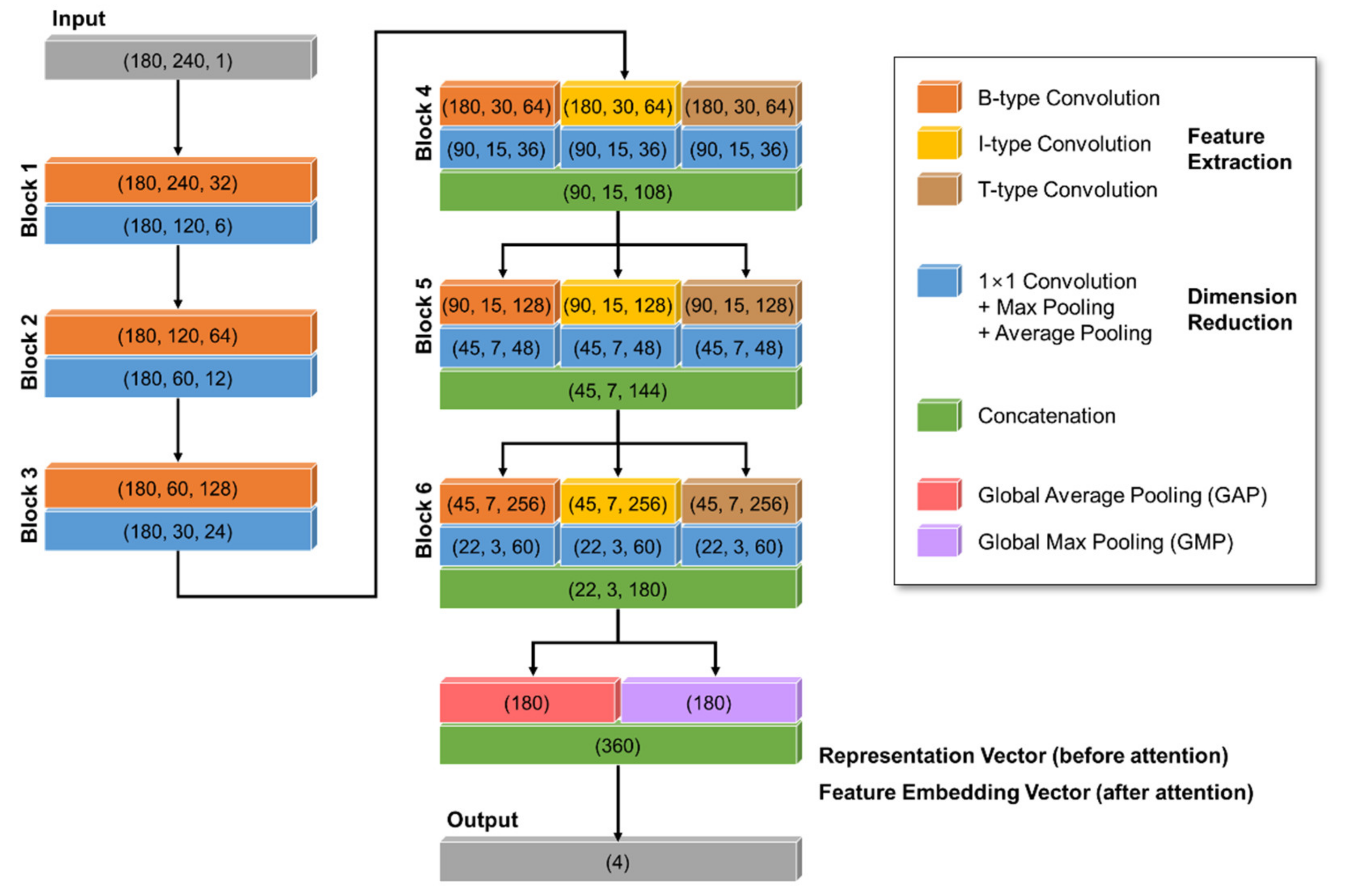

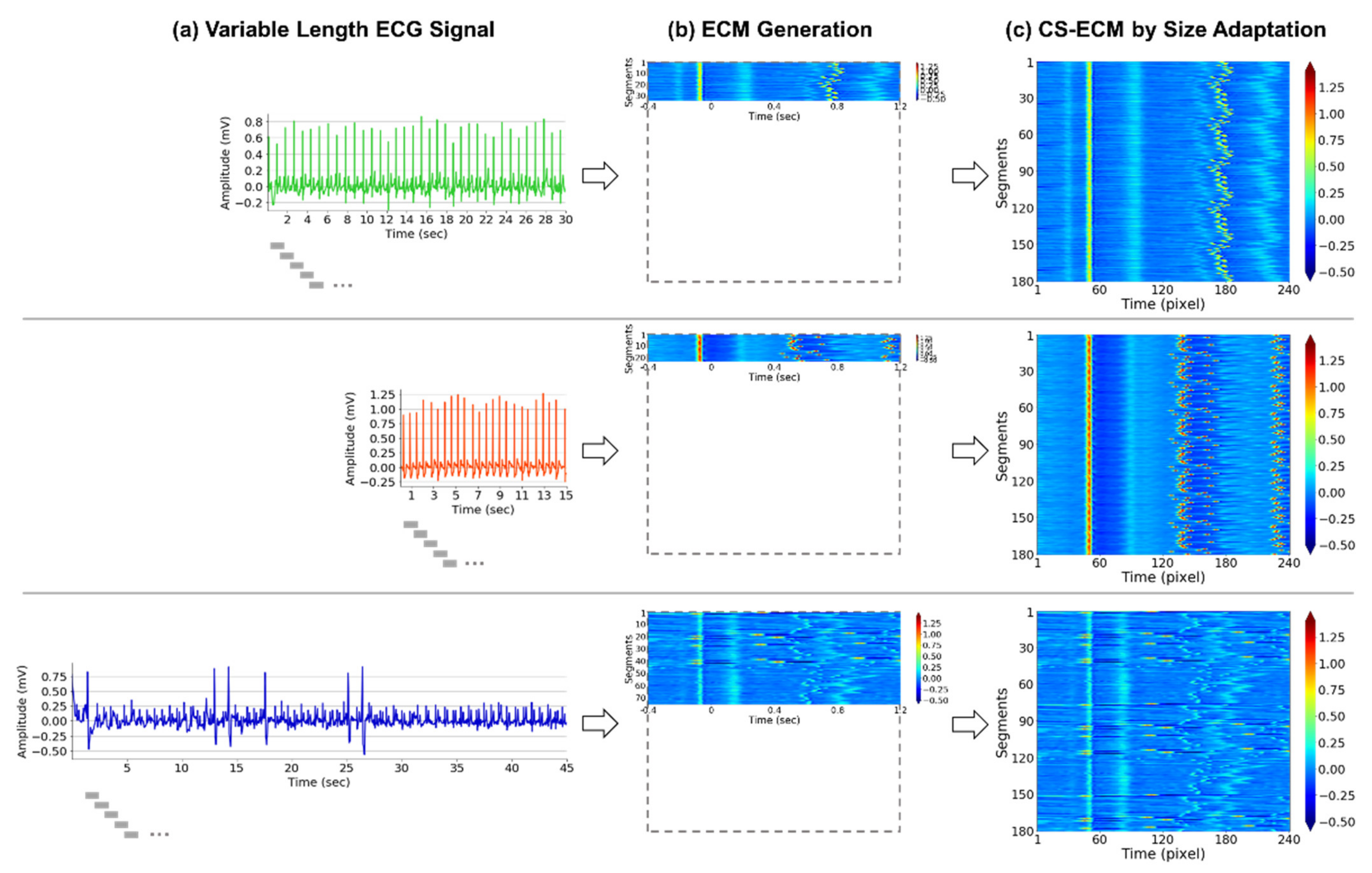

Automatic detection of abnormal heart rhythms, including atrial fibrillation (AF), using signals obtained from a single-lead wearable electrocardiogram (ECG) device, is useful for daily cardiac health monitoring. In this study, we propose a novel image-based deep learning framework to classify single-lead ECG recordings of short variable length into several different rhythms associated with arrhythmias. By transforming variable-length 1D ECG signals into fixed-size 2D time-morphology representations and feeding them to the beat–interval–texture convolutional neural network (BIT-CNN) model, we aimed to learn the comprehensible characteristics of beat shape and inter-beat patterns over time for arrhythmia classification. The proposed approach allows feature embedding vectors to provide interpretable time-morphology patterns focused at each step of the learning process. In addition, this method reduces the number of model parameters needed to be trained and aids visual interpretation, while maintaining similar performance to other CNN-based approaches to arrhythmia classification. For experiments, we used the PhysioNet/CinC Challenge 2017 dataset and achieved an overall F1_NAO of 81.75% and F1_NAOP of 76.87%, which are comparable to those of the state-of-the-art methods for variable-length ECGs. View Full-Text
Keywords: arrhythmia classification; atrial fibrillation (AF); electrocardiogram (ECG); convolutional neural network (CNN); deep learning arrhythmia classification; atrial fibrillation (AF); electrocardiogram (ECG); convolutional neural network (CNN); deep learning
Show Figures

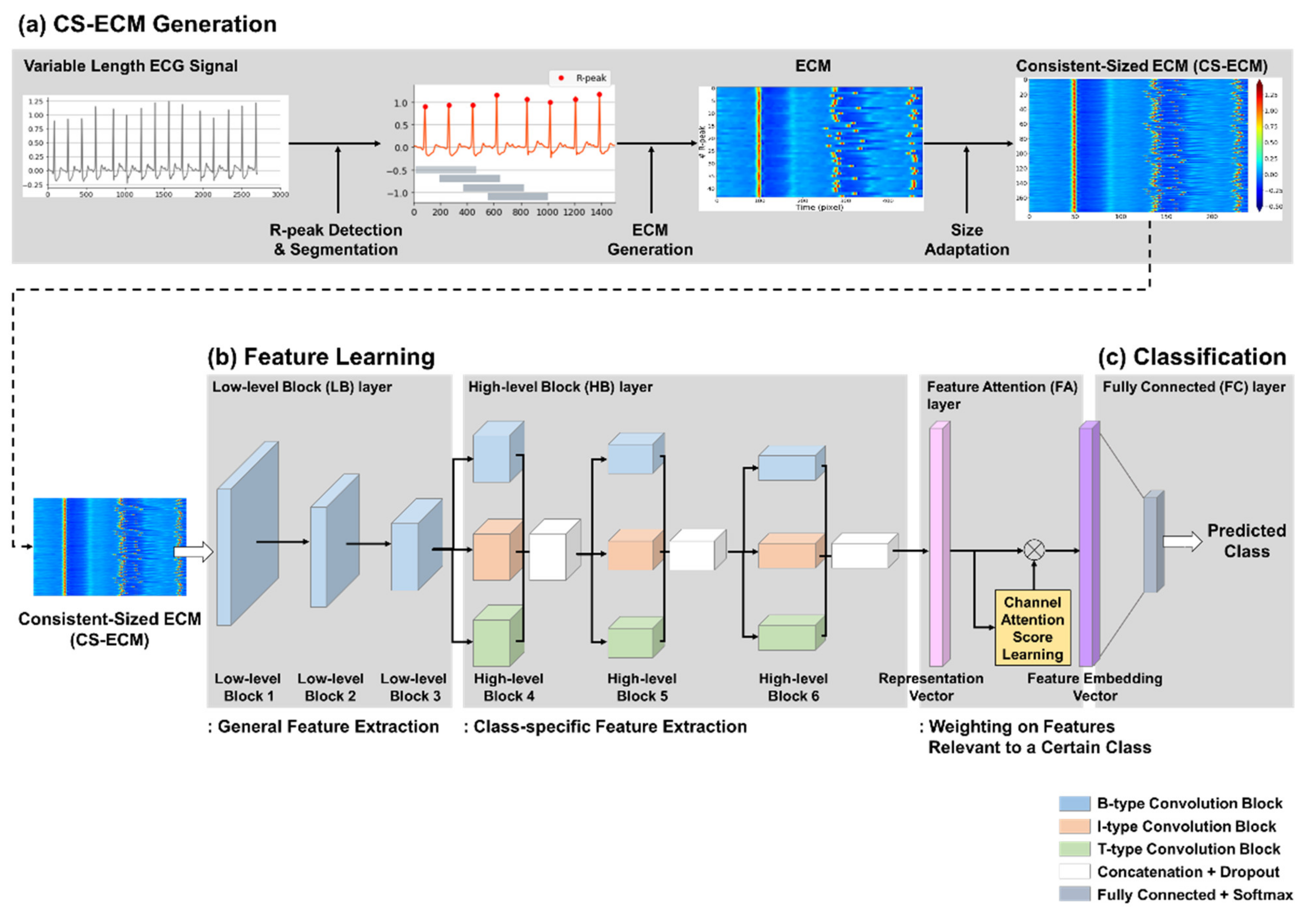

Figure 1
