An Autoencoder-Based Deep Learning Approach for Load Identification in Structural Dynamics
Abstract
:1. Introduction
2. Autoencoders for Input (Load) Identification

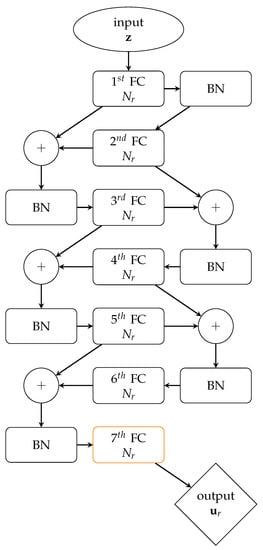

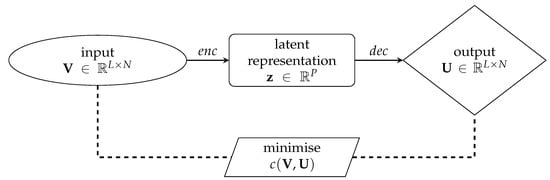

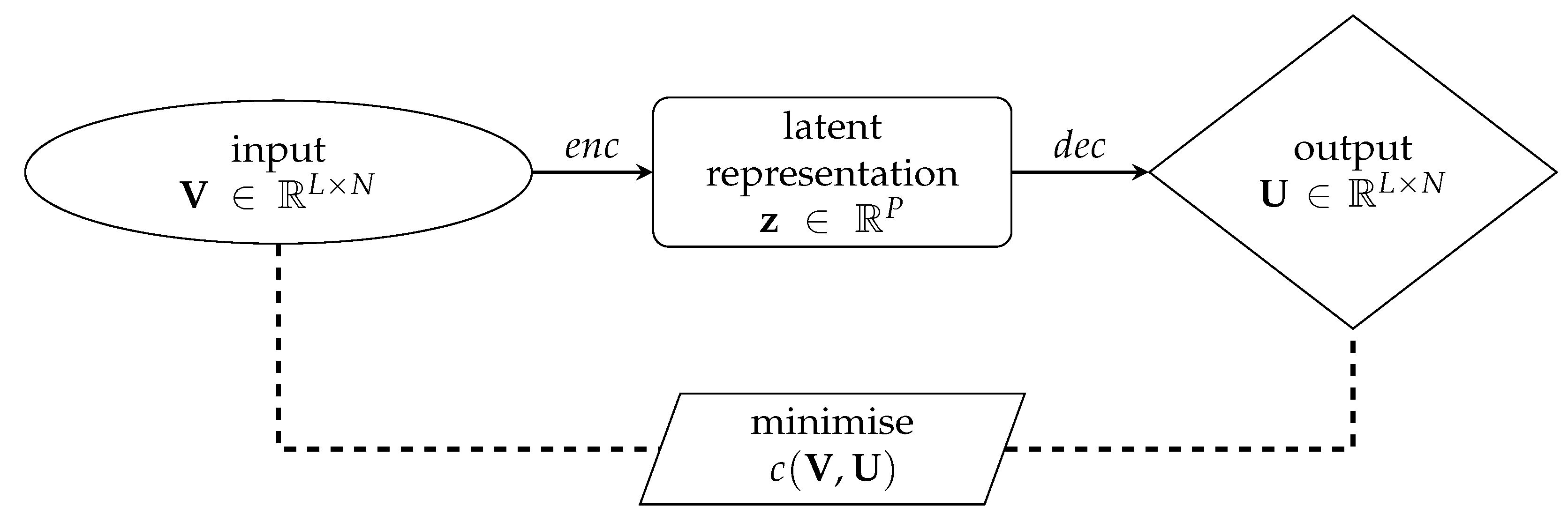

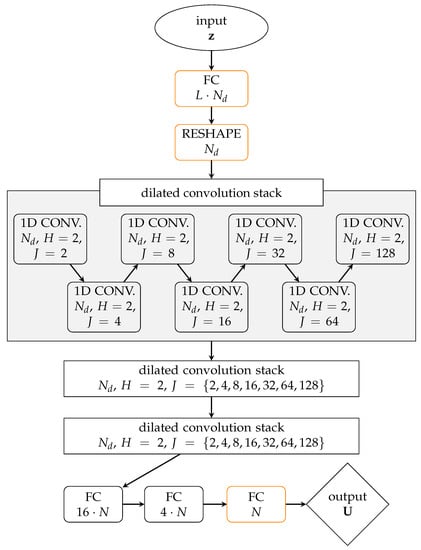

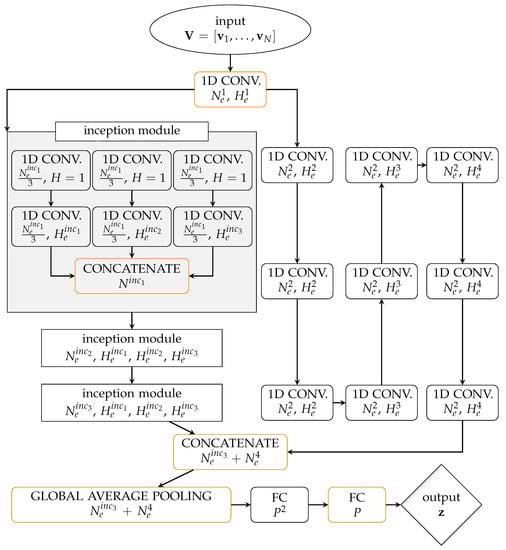

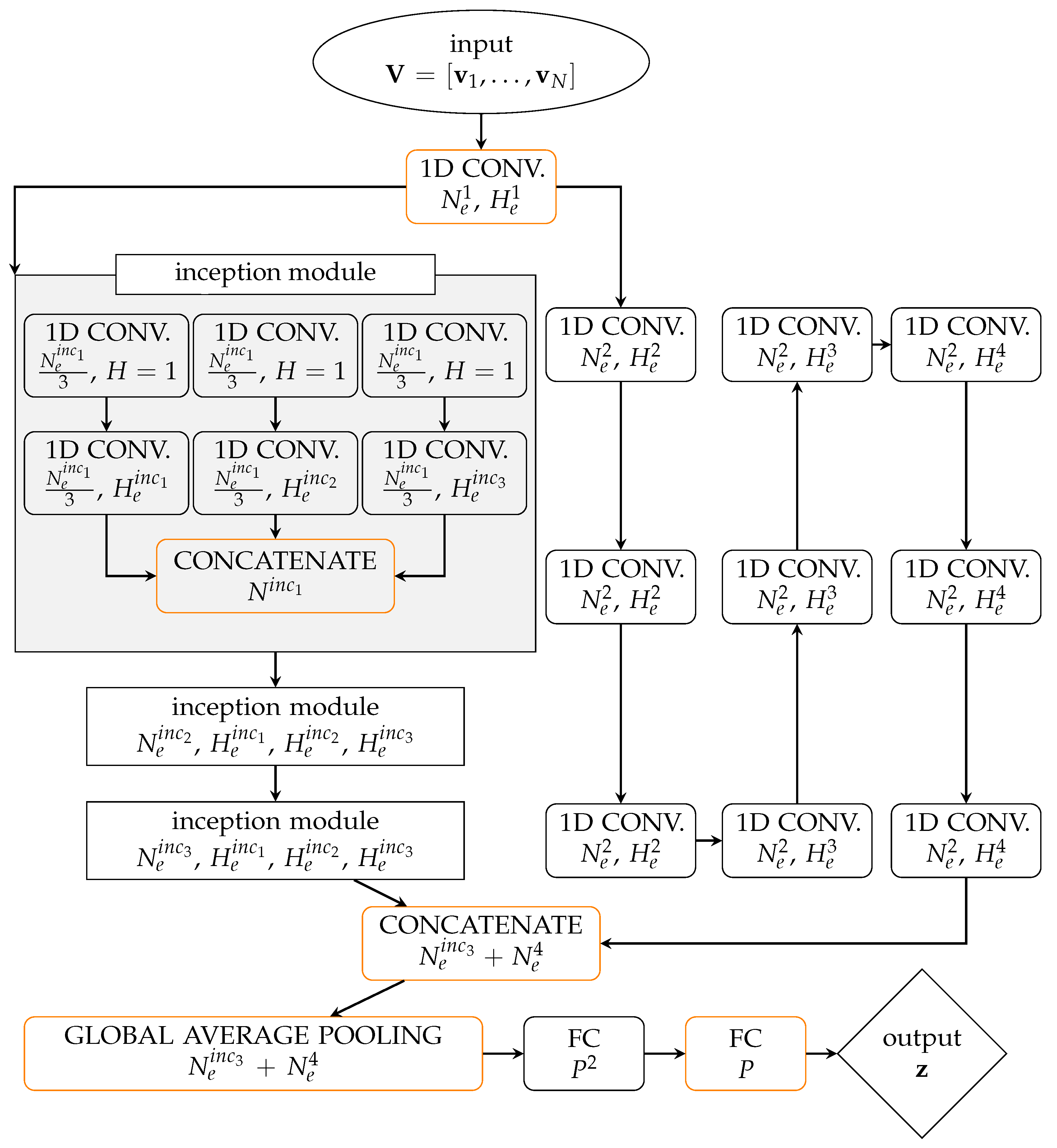

2.1. Autoencoder Paradigm

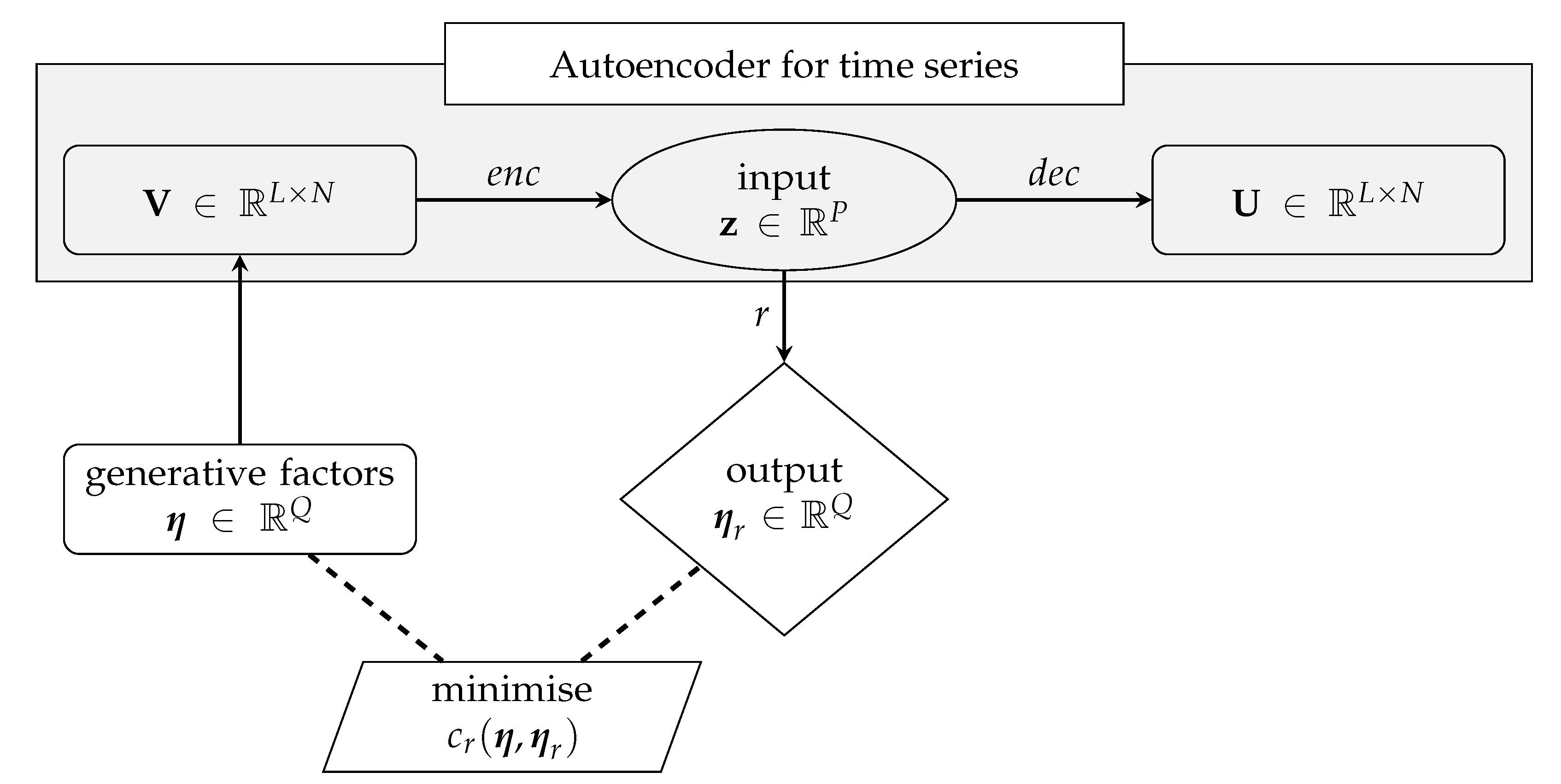

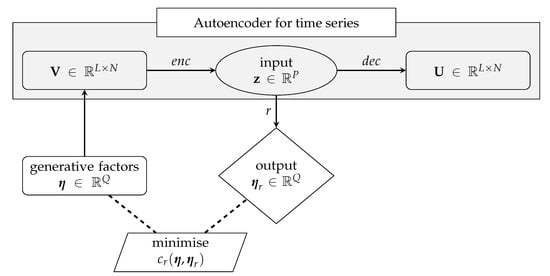

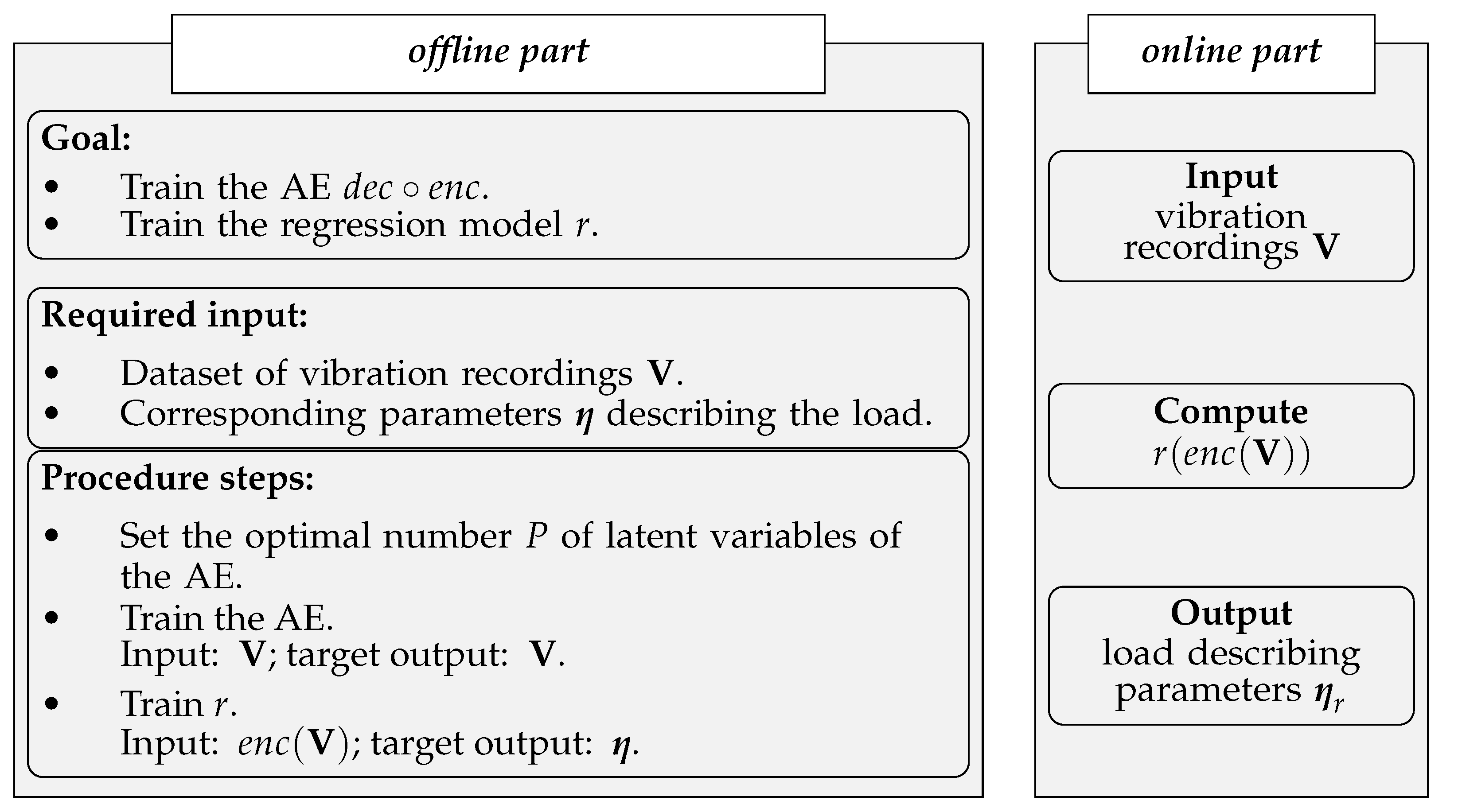

2.2. Solving Regression Problems
3. Choice of the Latent Dimension
3.1. Generative Factors
3.2. False Nearest Neighbour Heuristics
4. Numerical Results
4.1. Two-Storey Shear Building

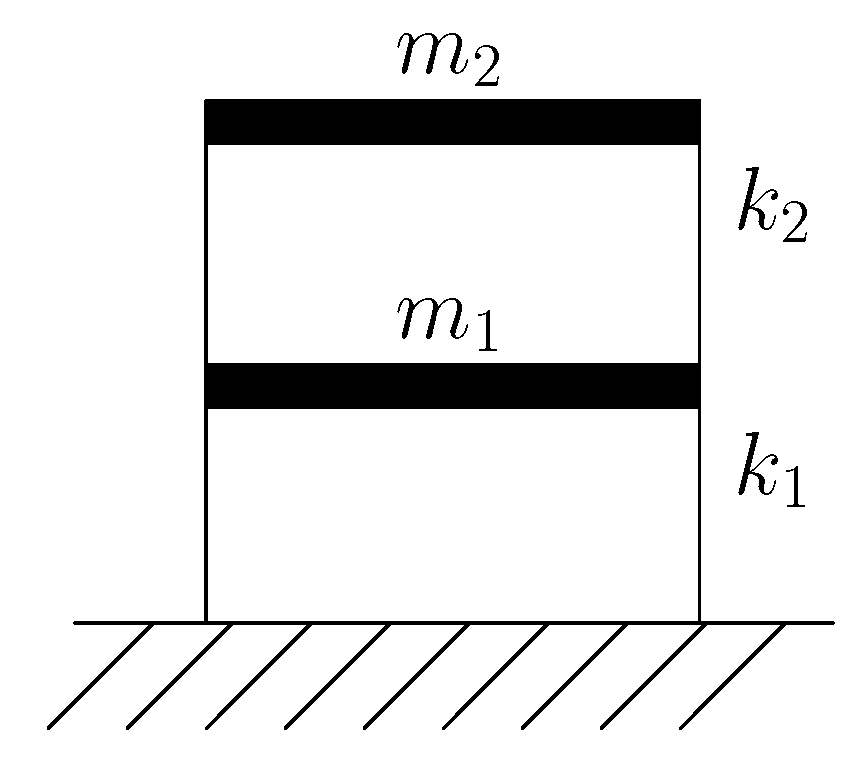

4.1.1. Shear Building Model

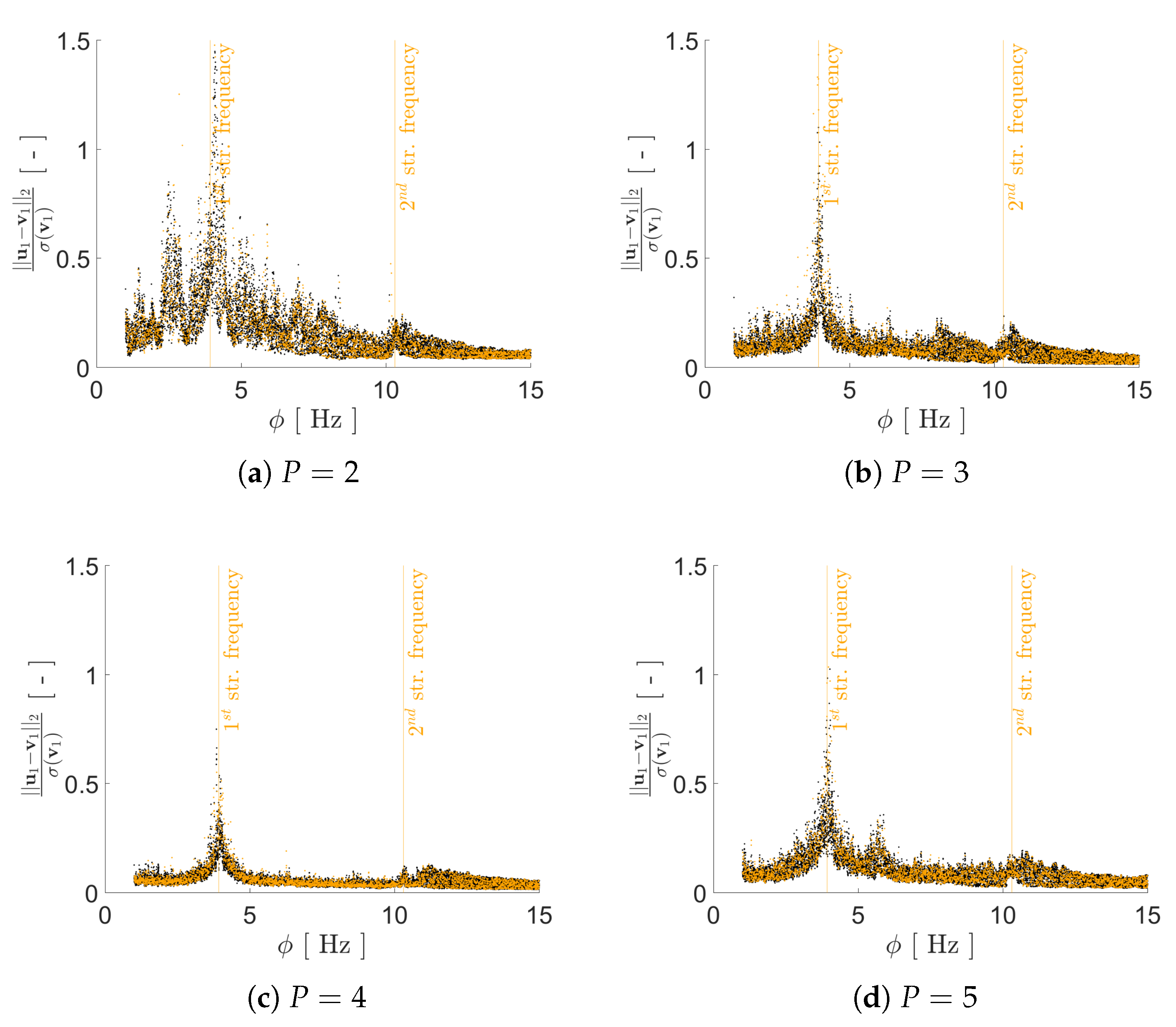

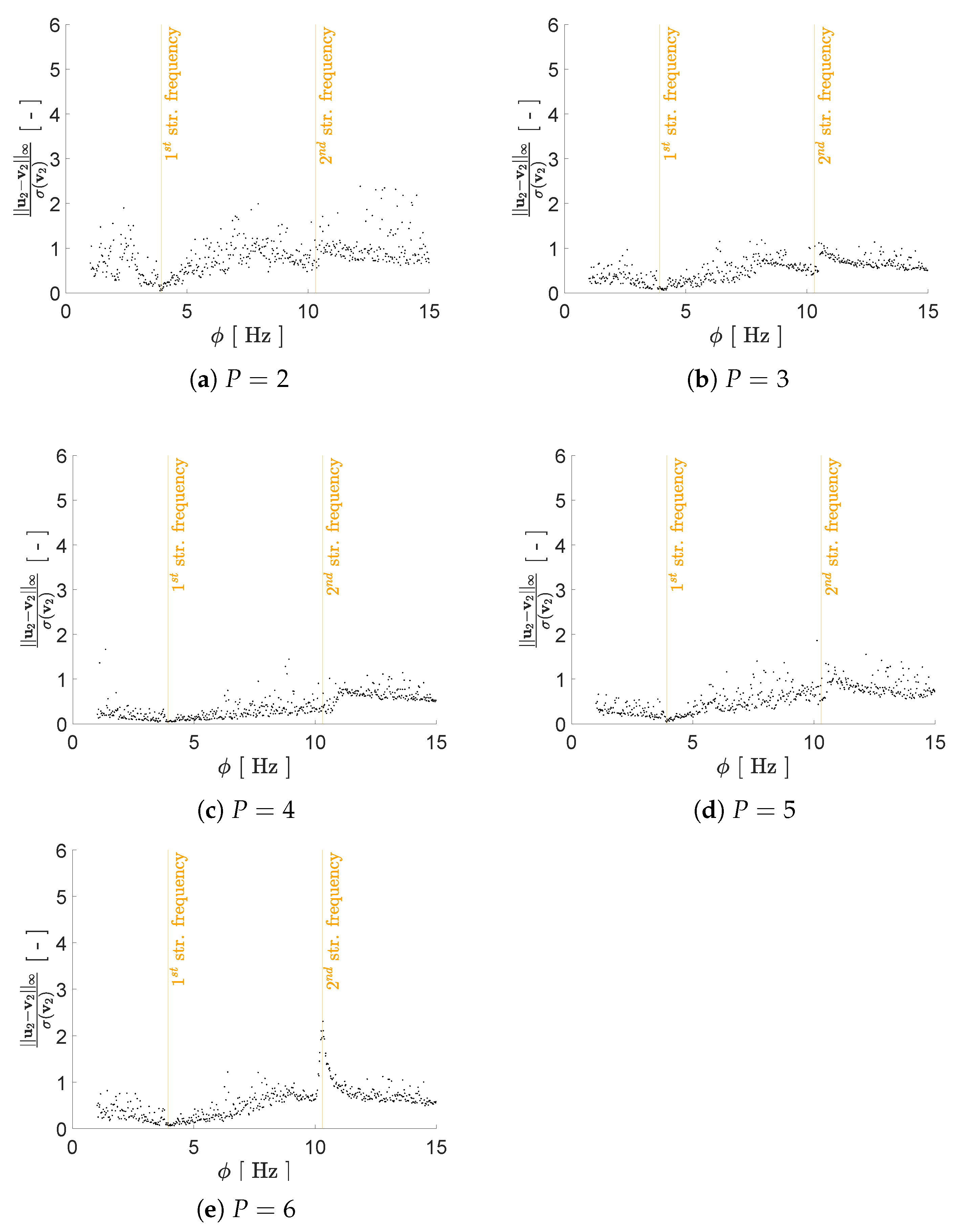

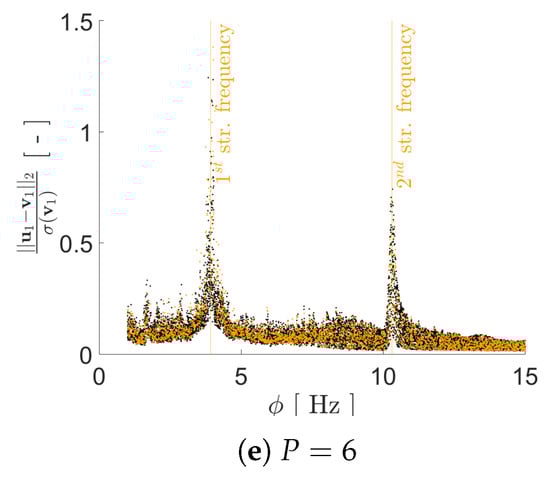

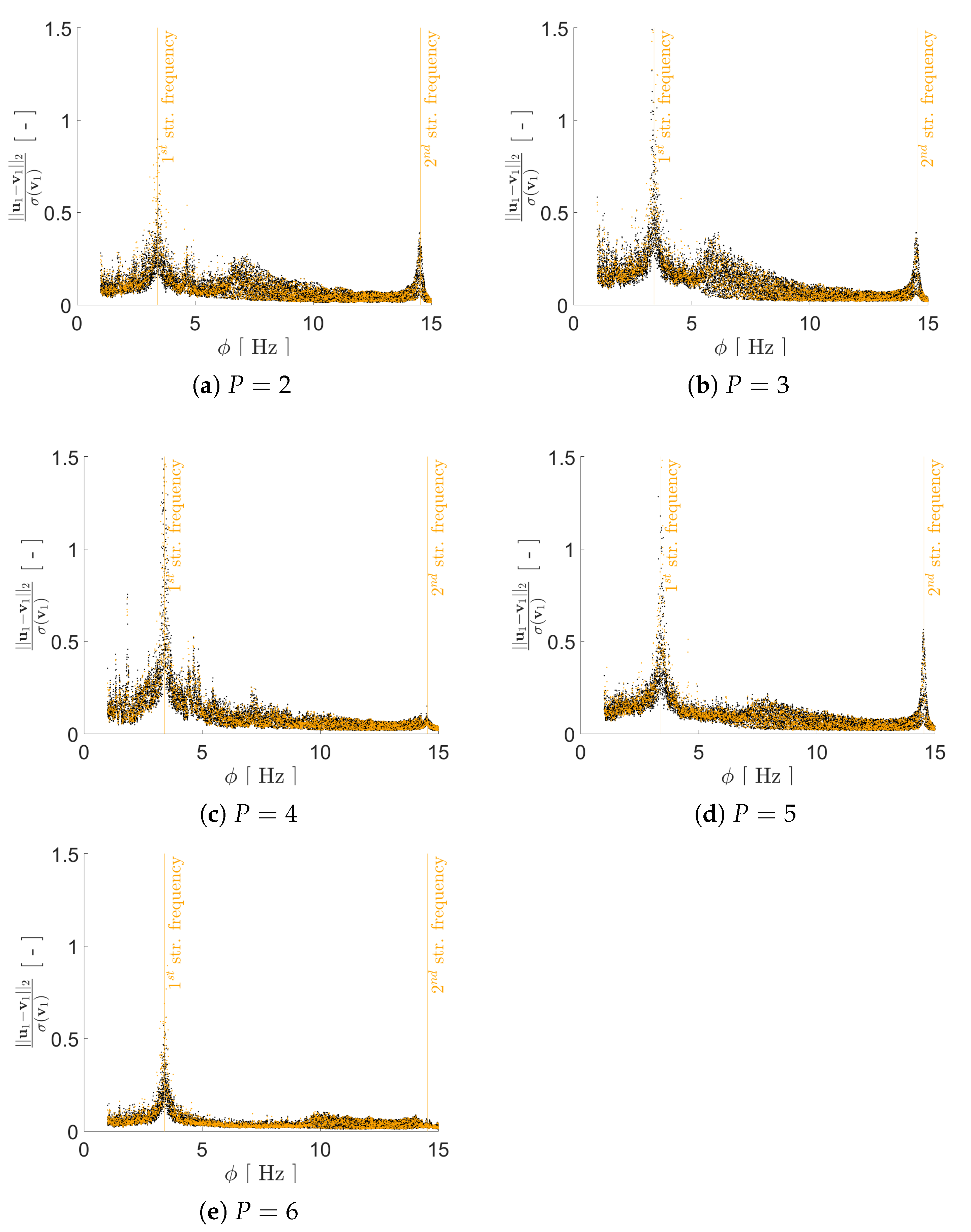

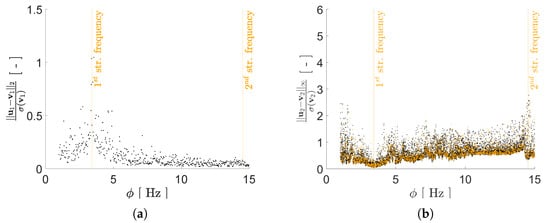

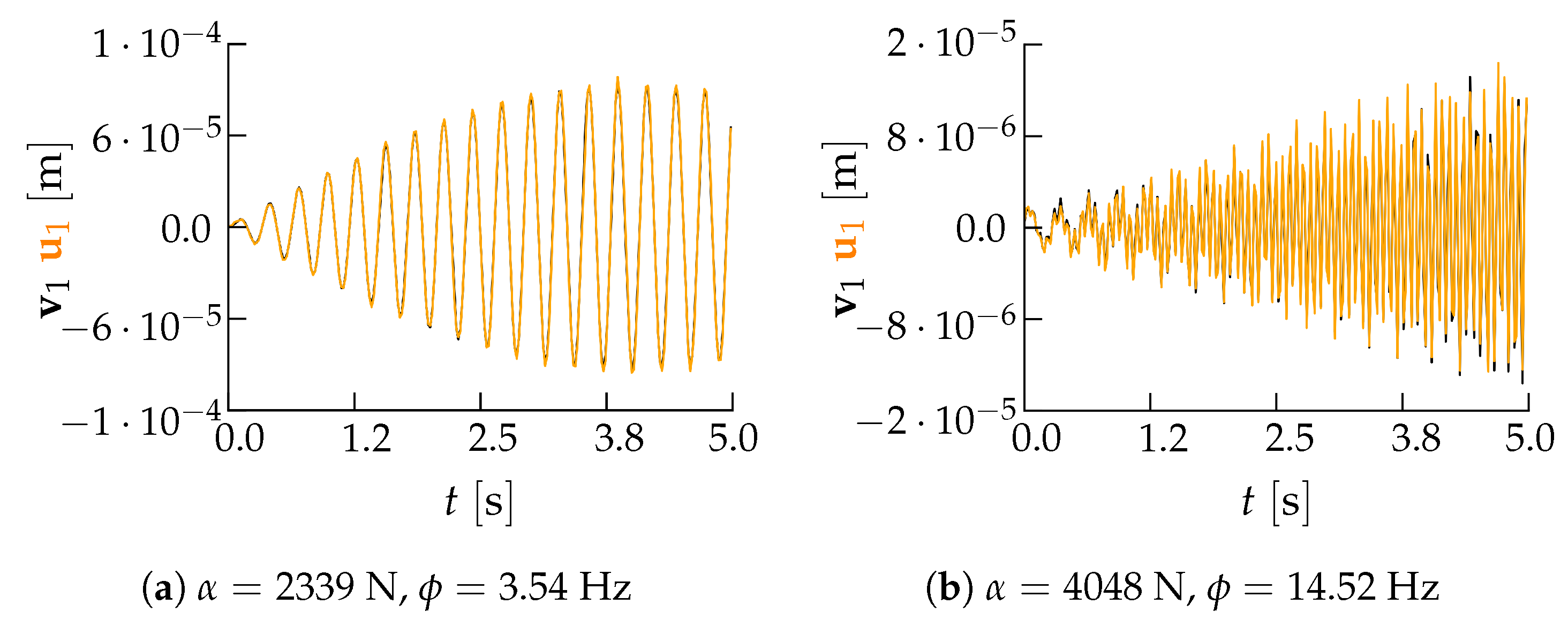

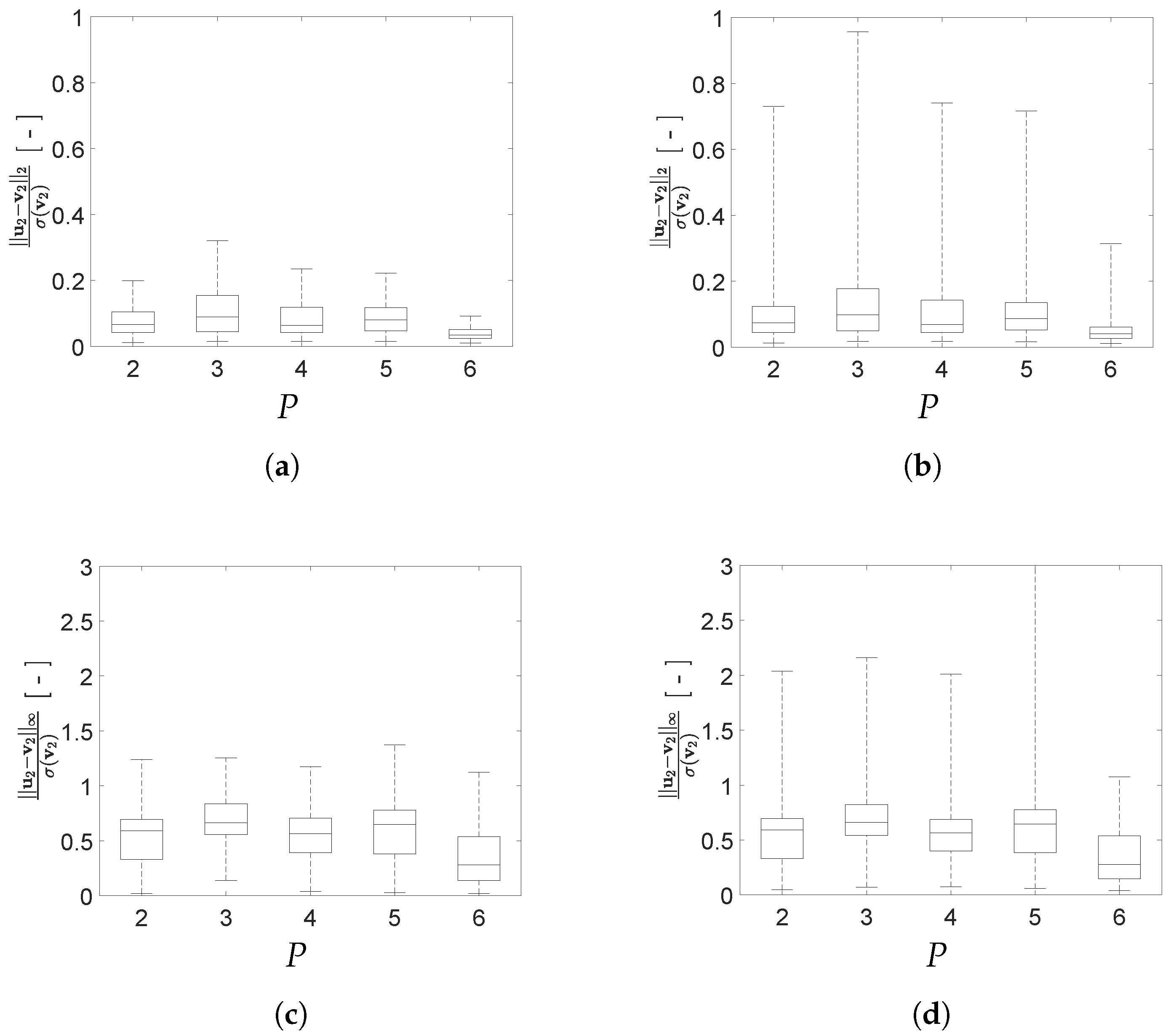

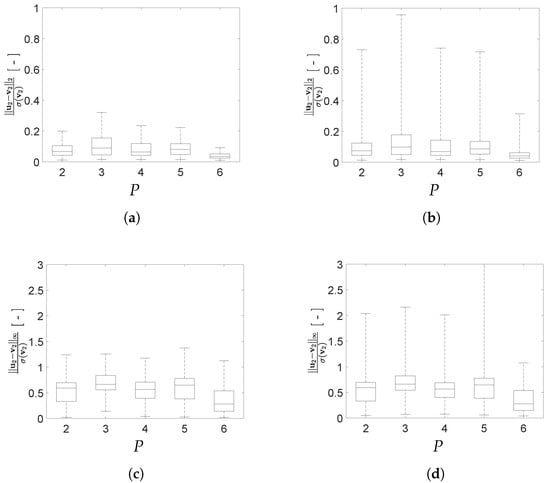

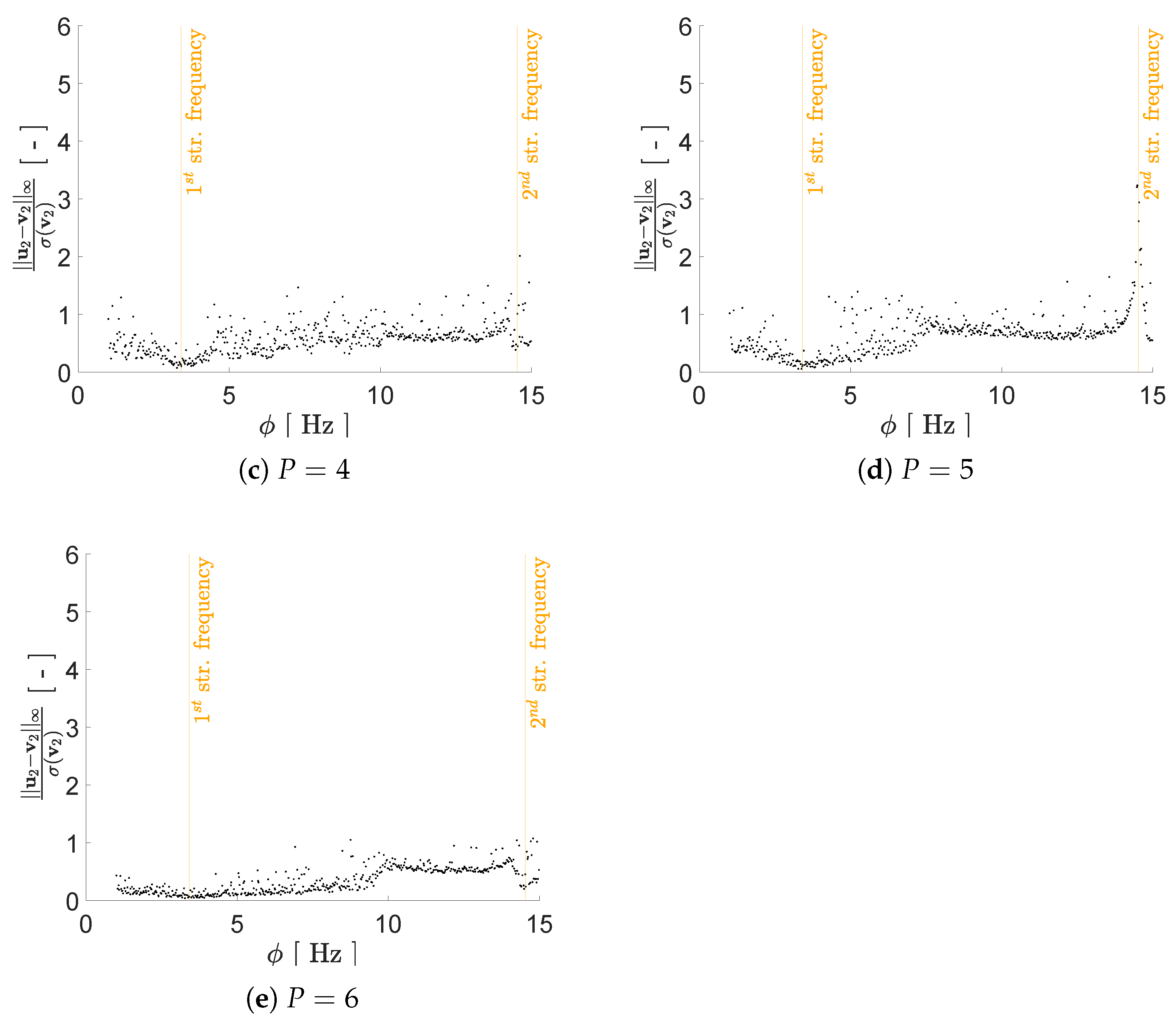

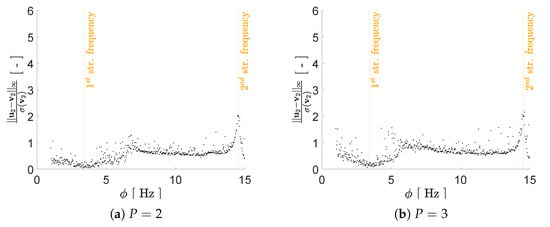

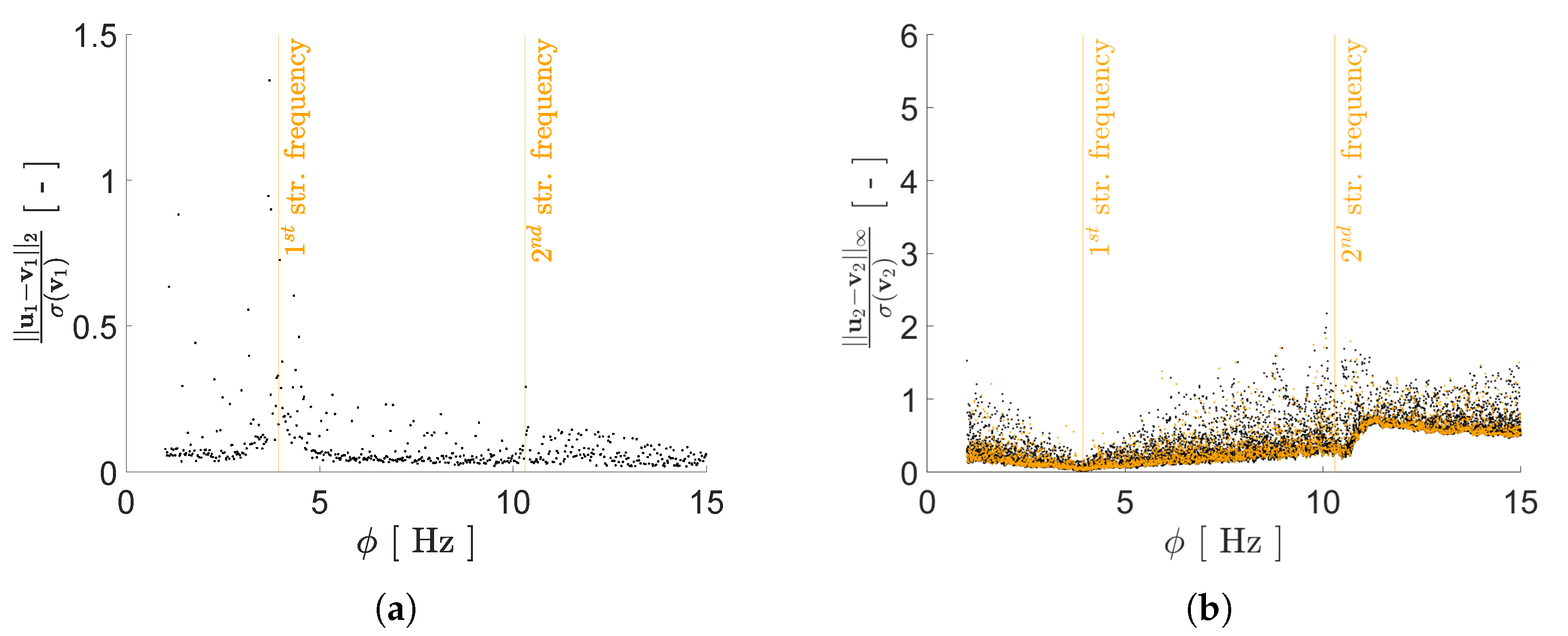

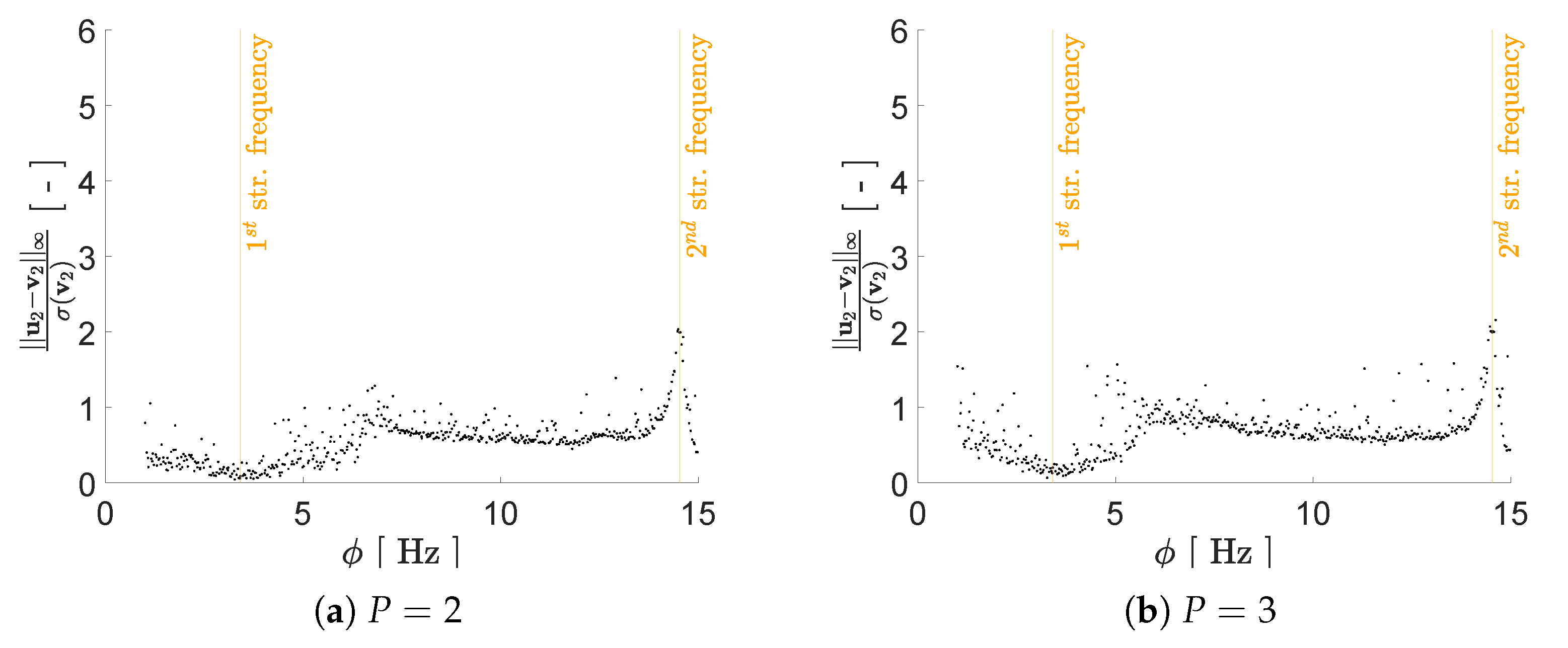

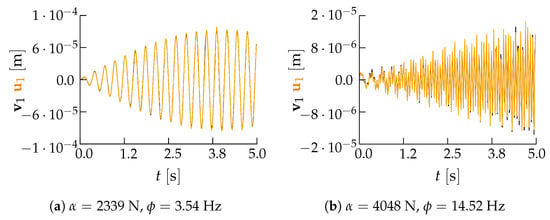

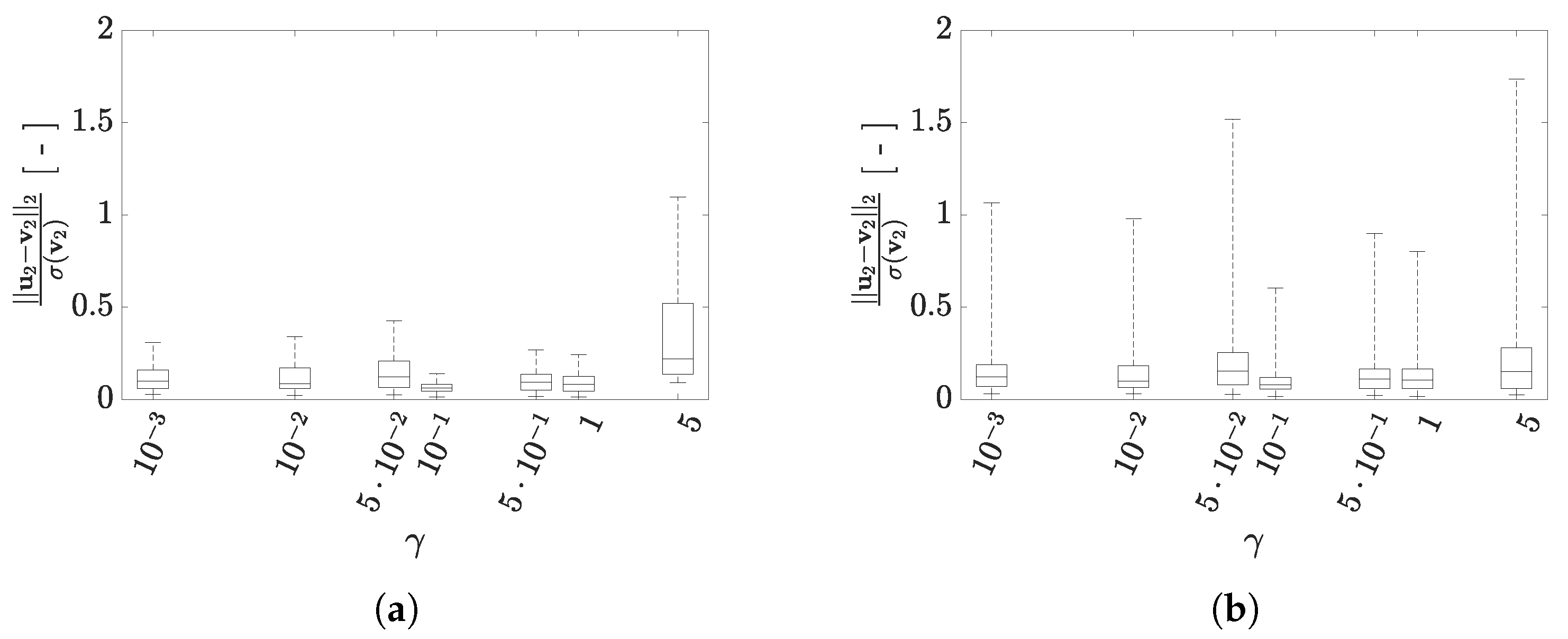

4.1.2. Signal Reconstruction

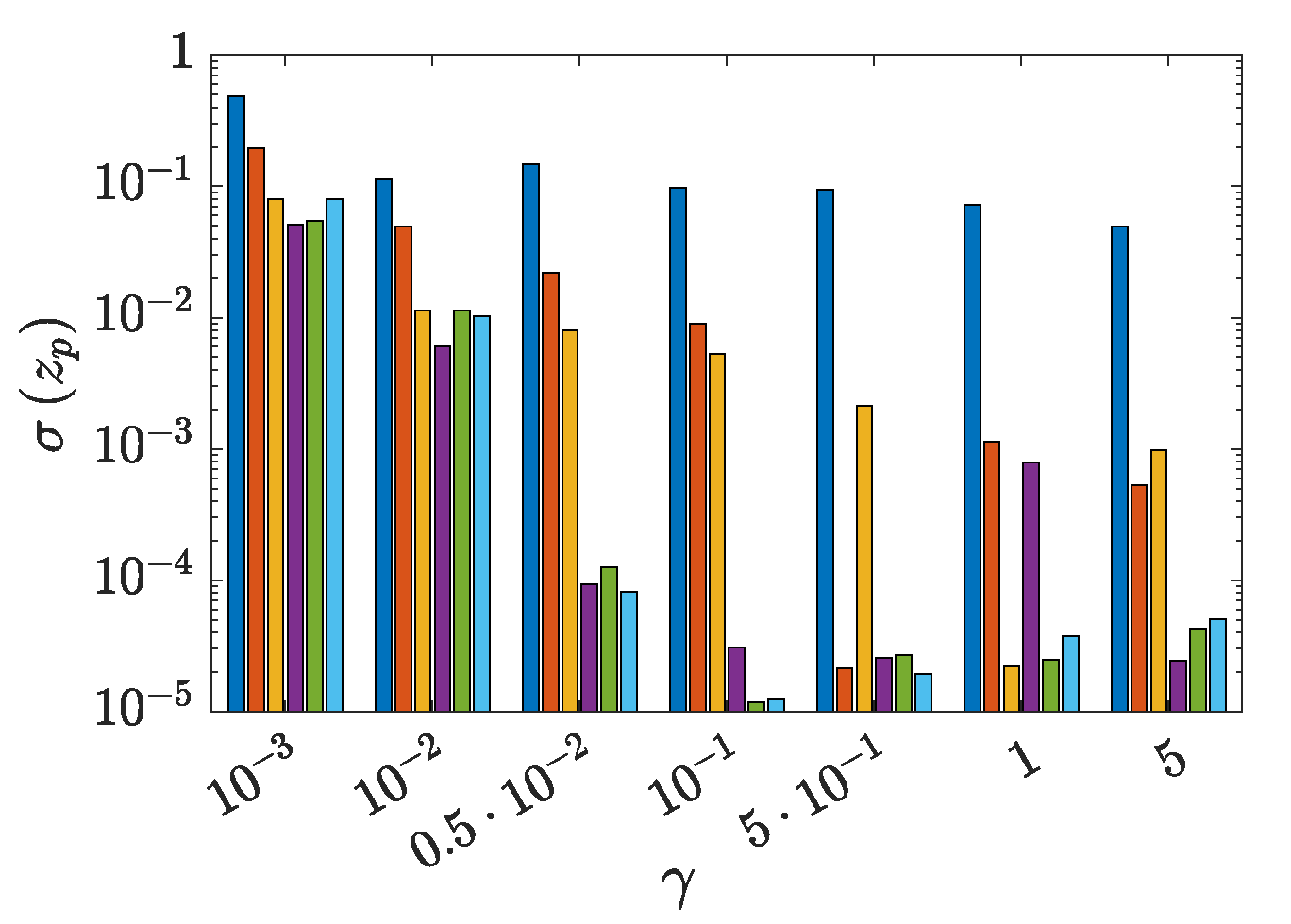

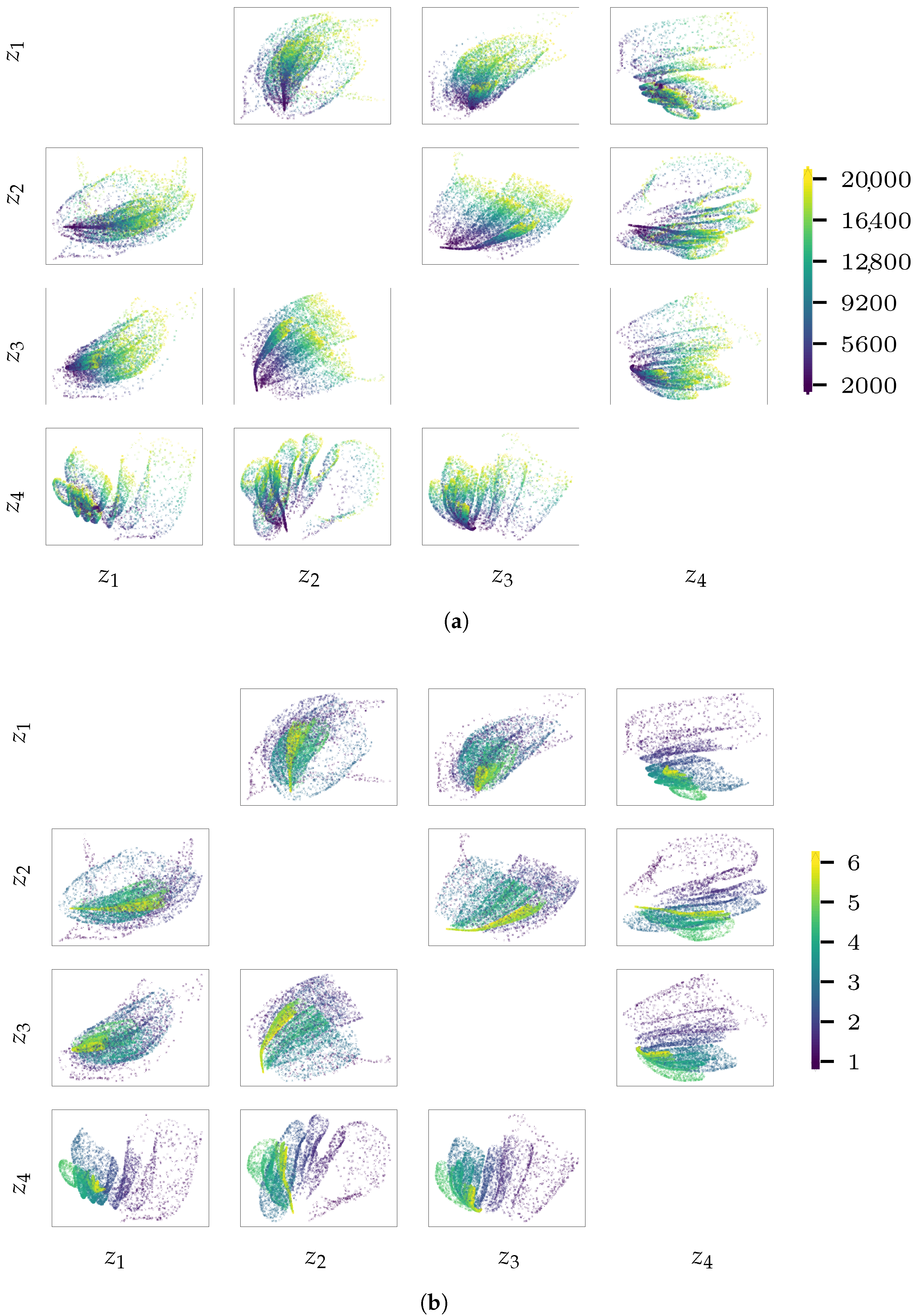

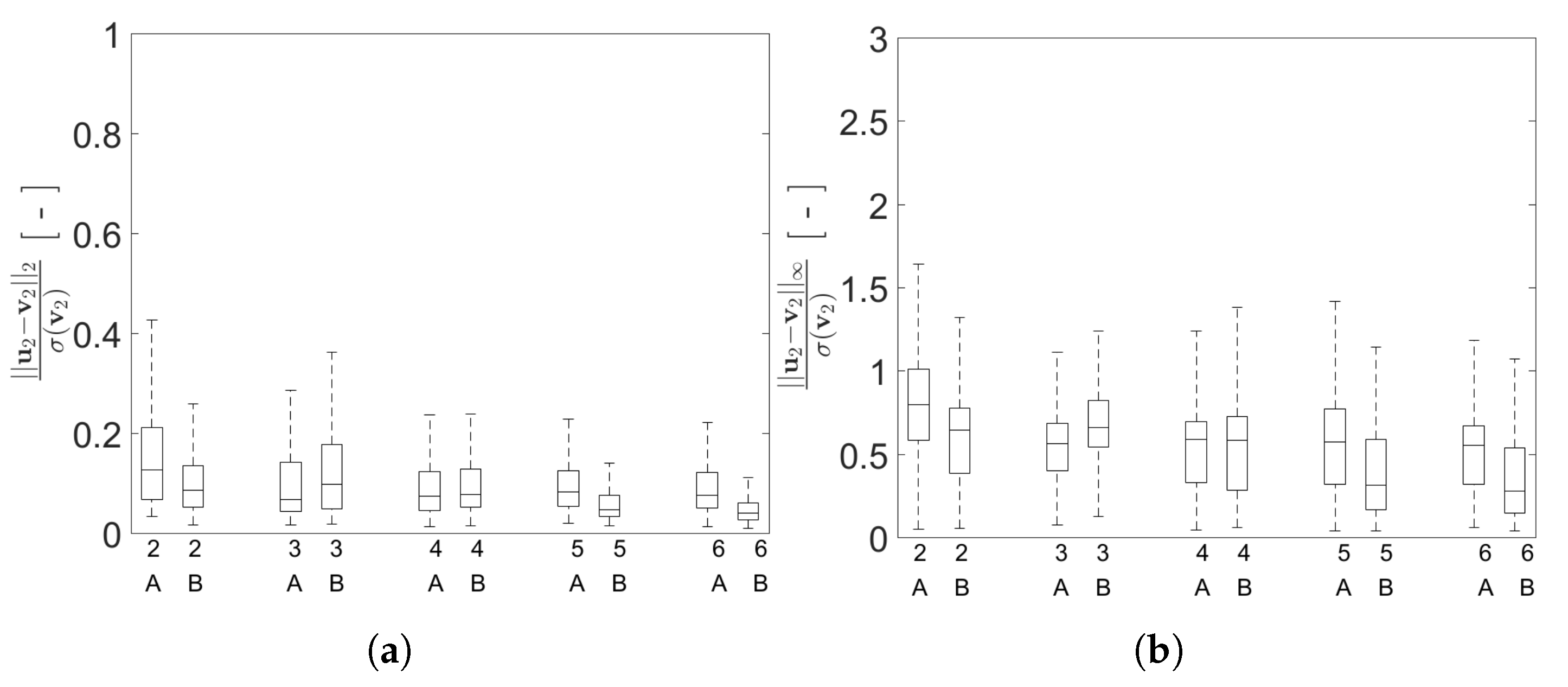

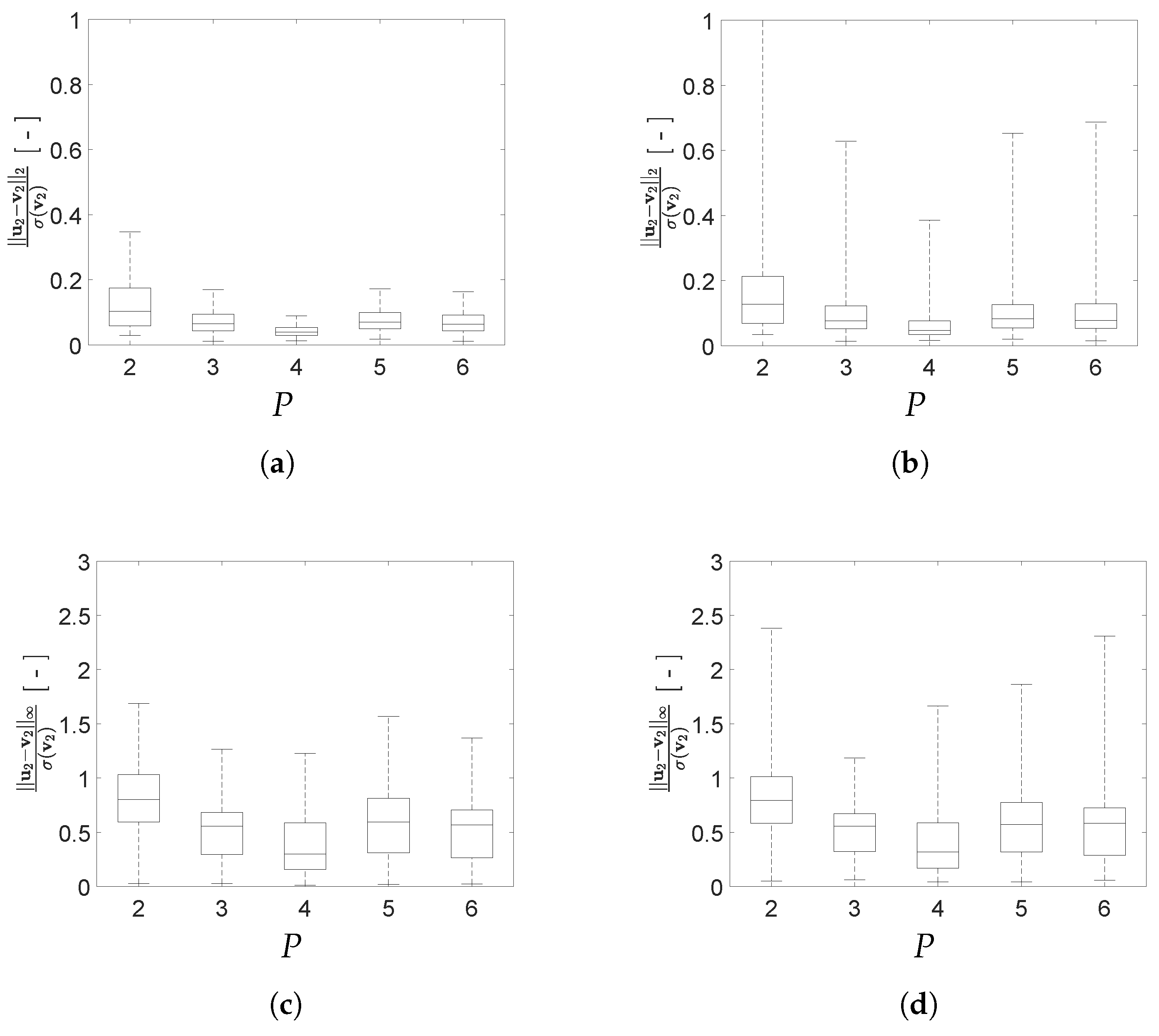

4.1.3. False Nearest Neighbour Heuristics

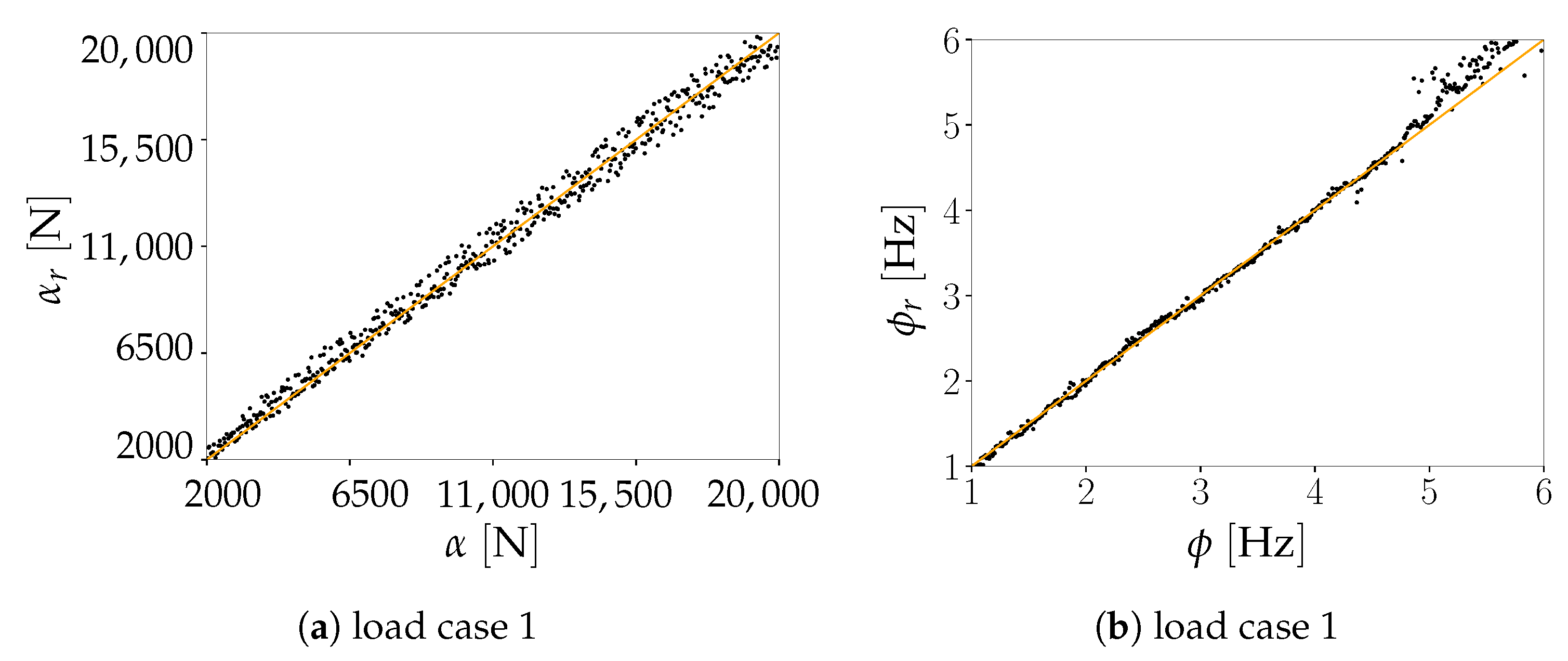

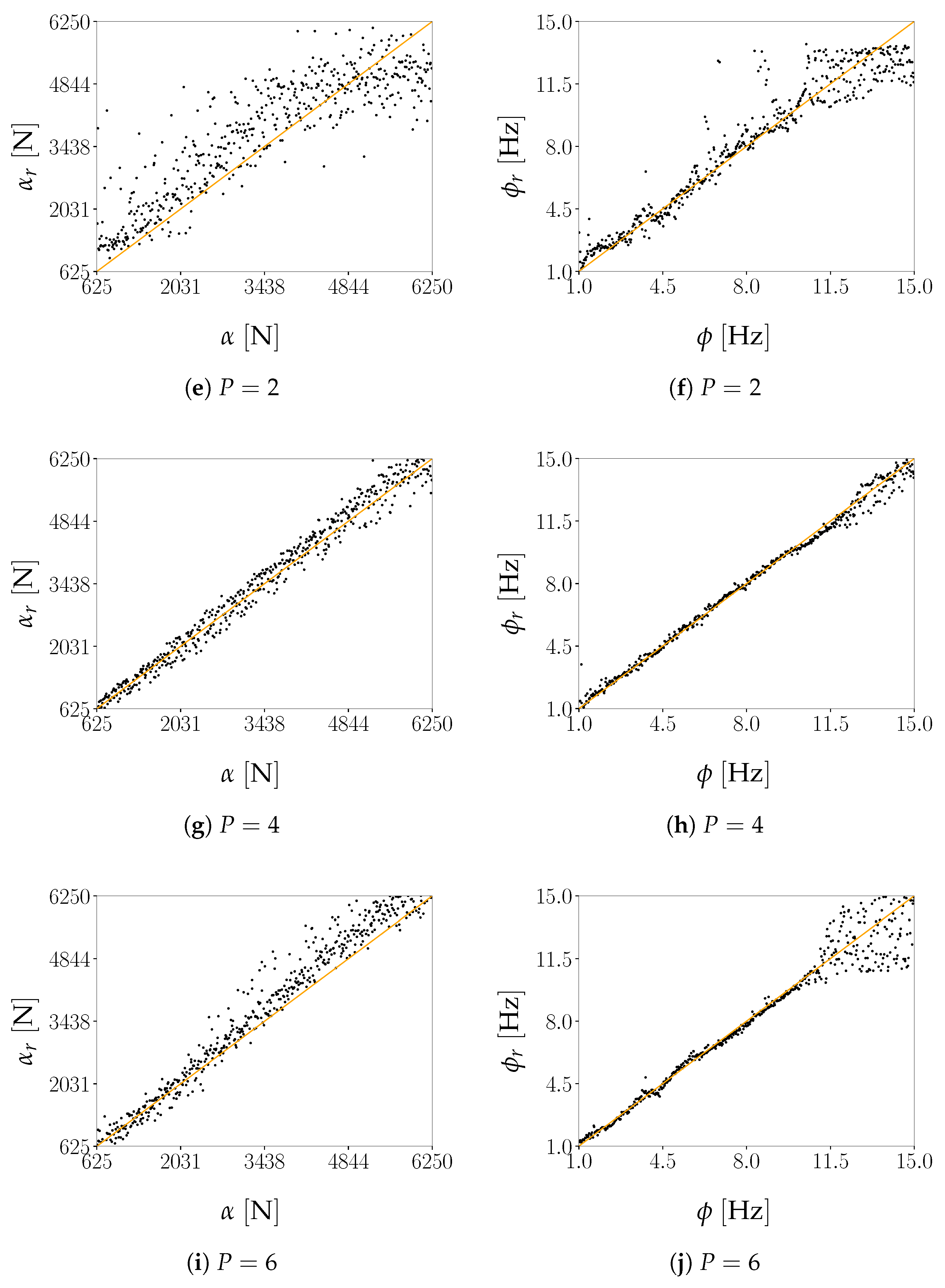

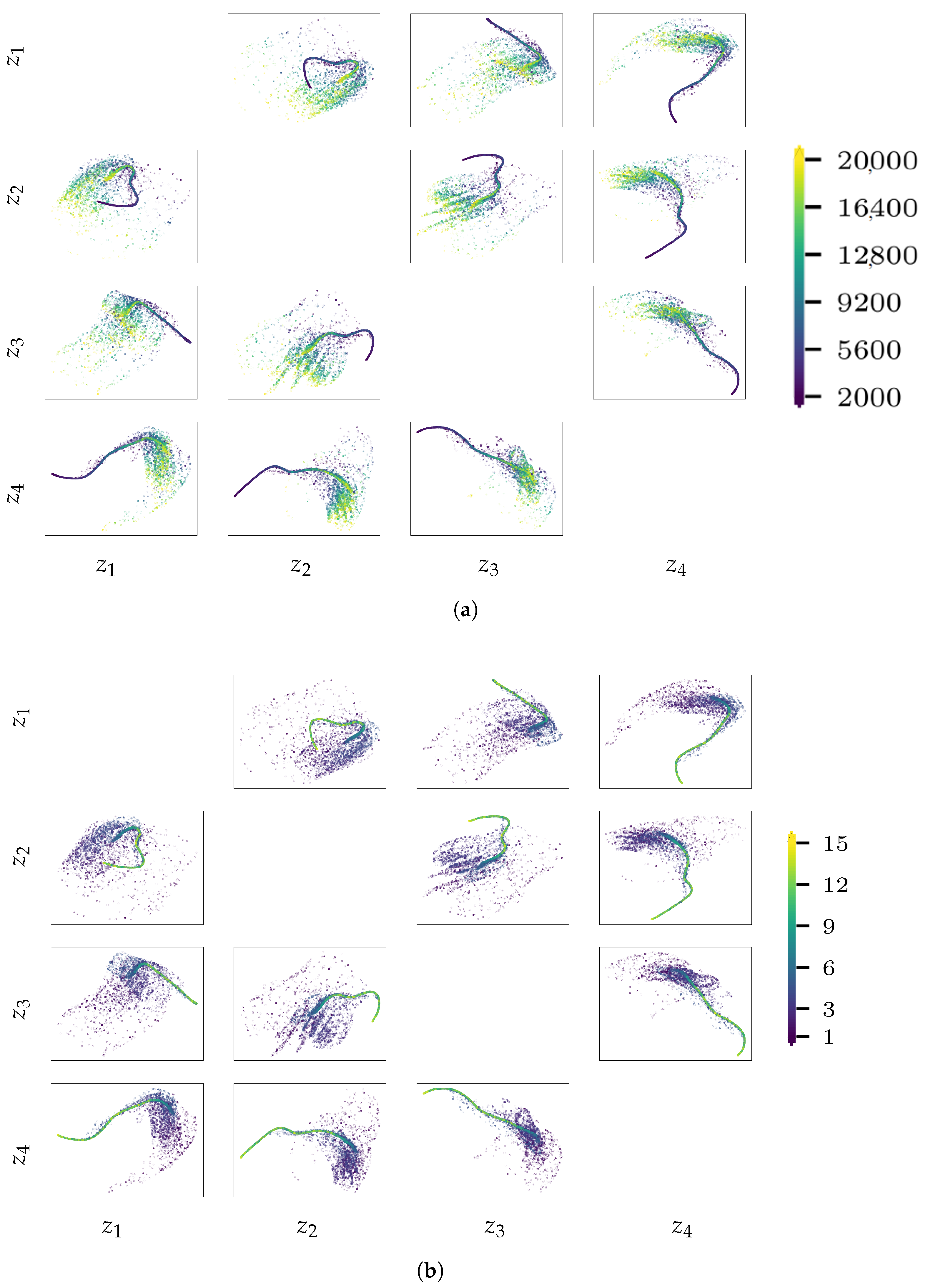

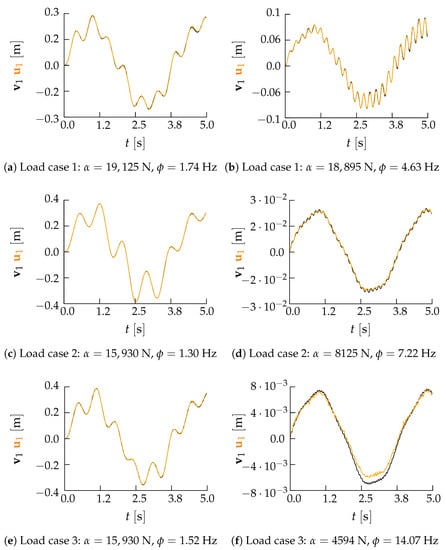

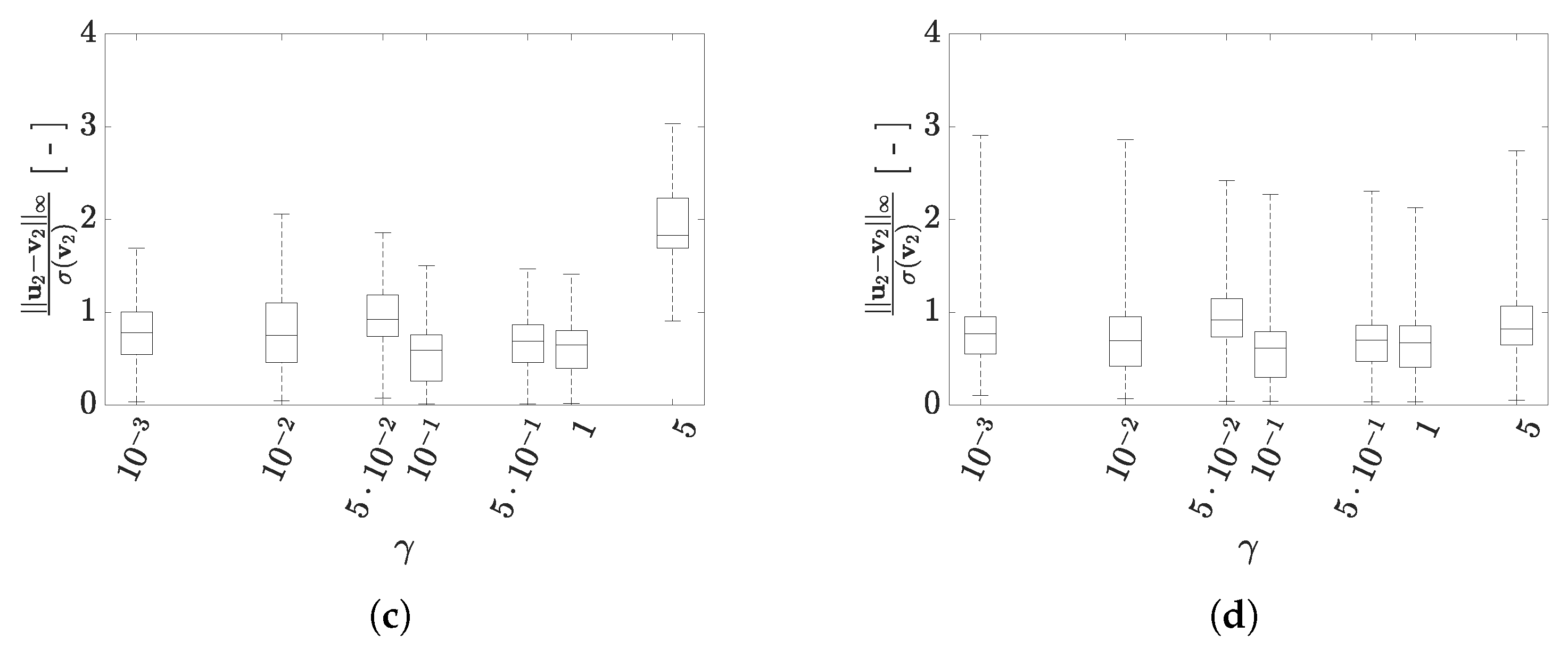

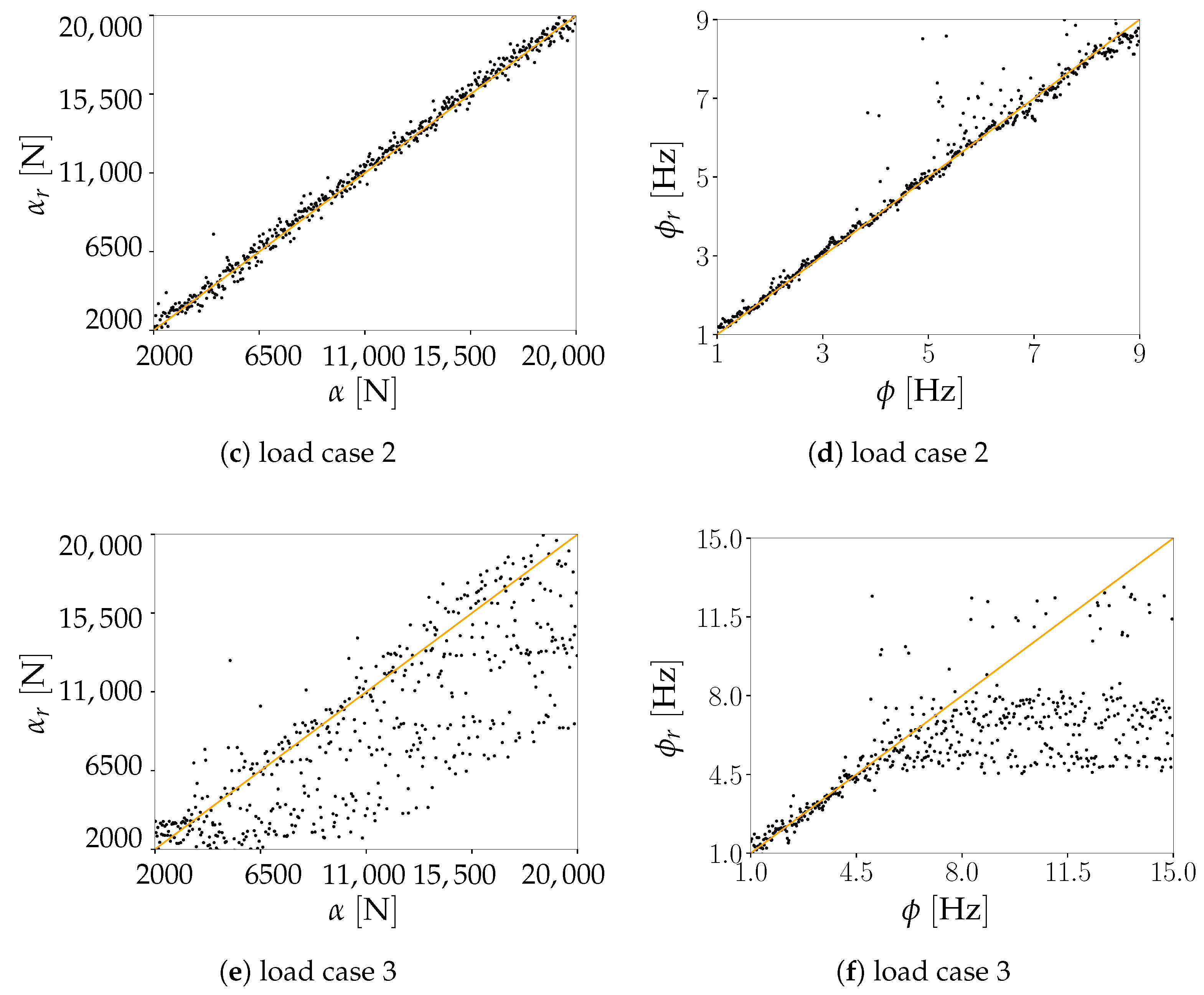

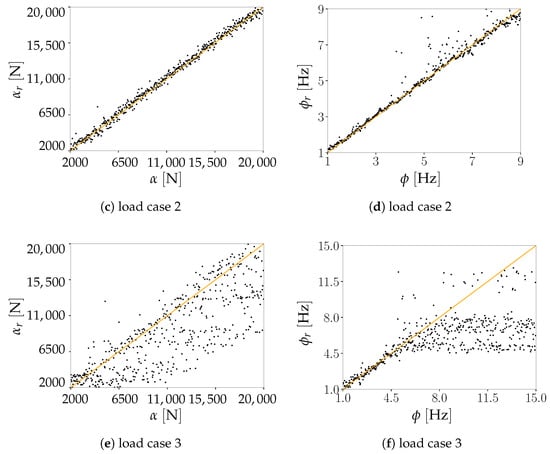

4.1.4. Load Identification

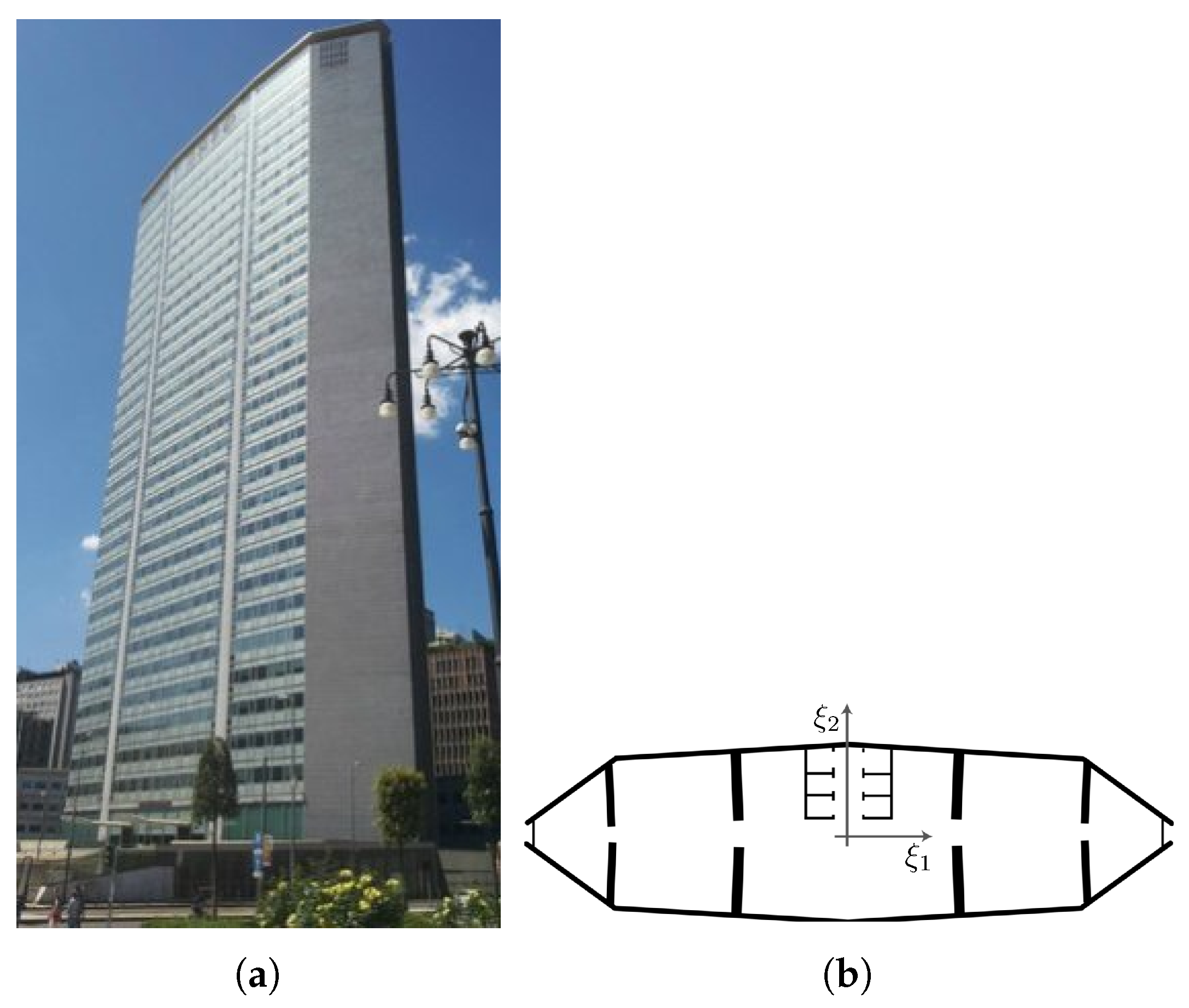

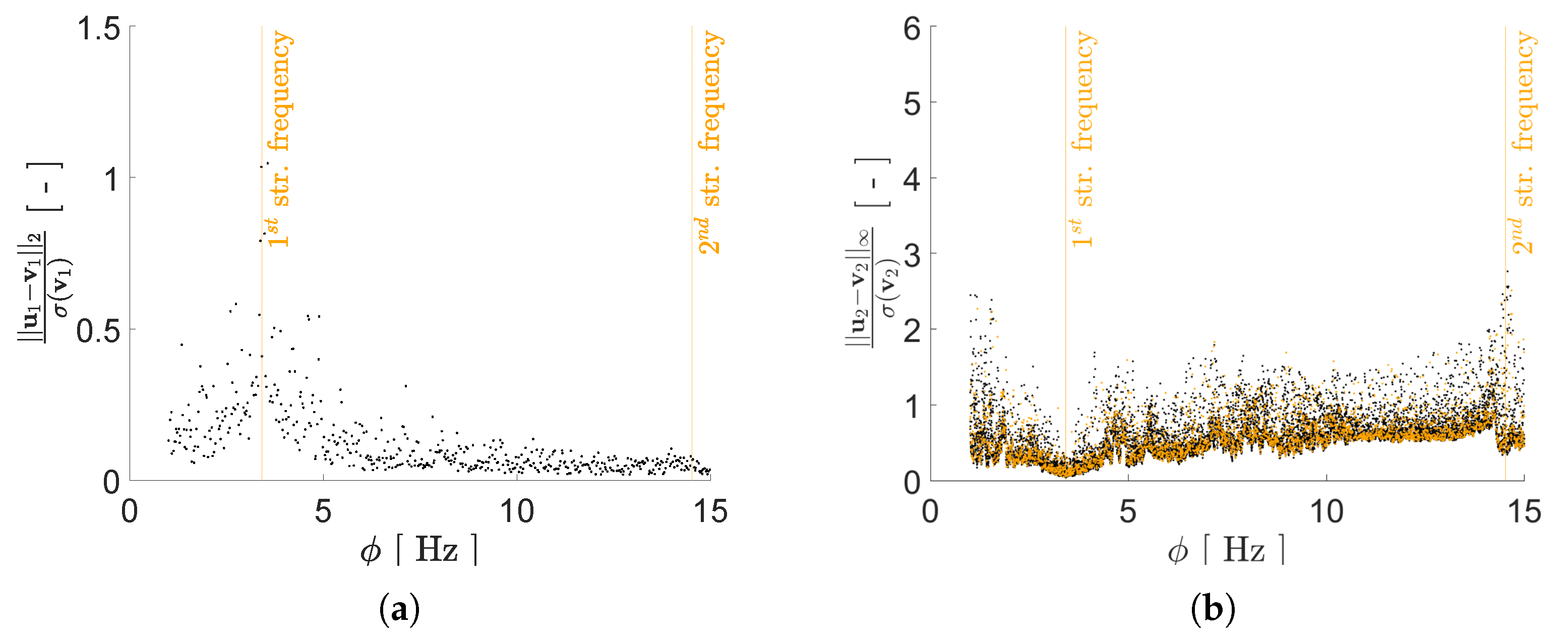

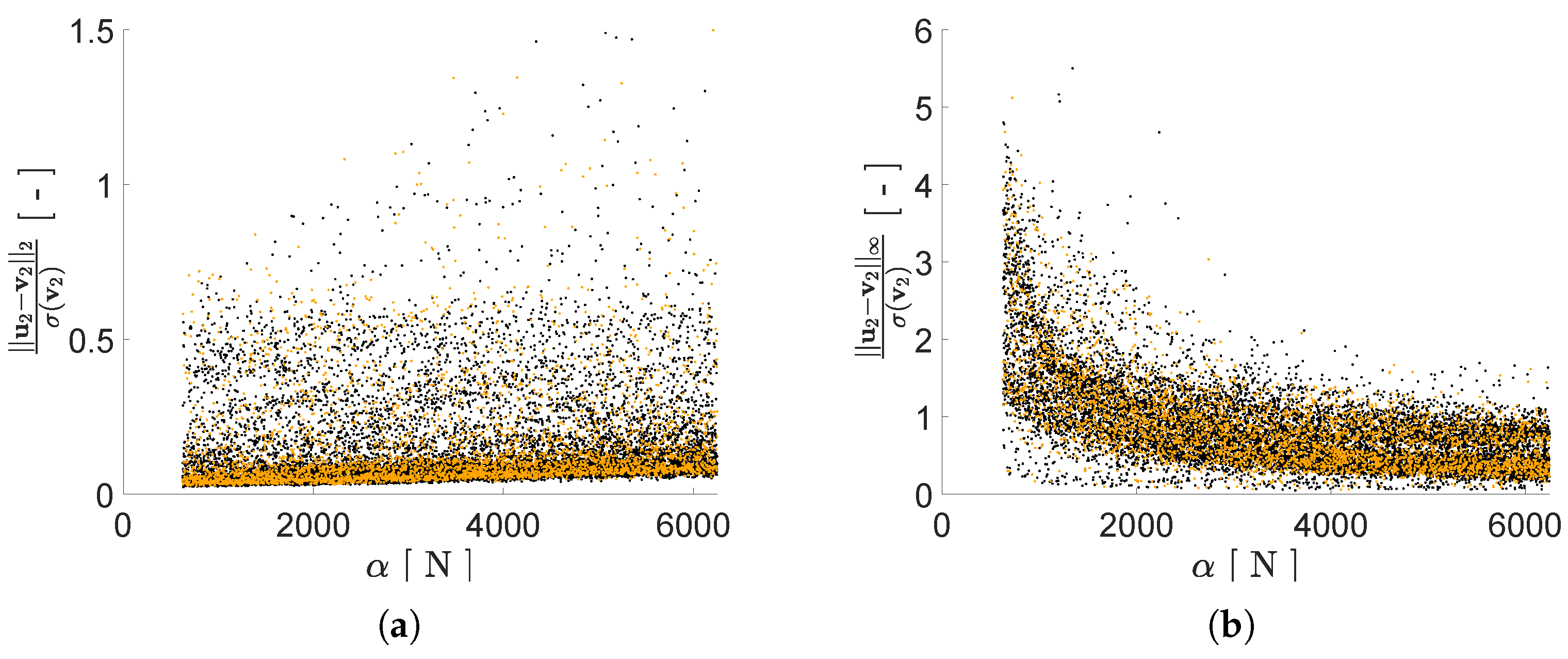

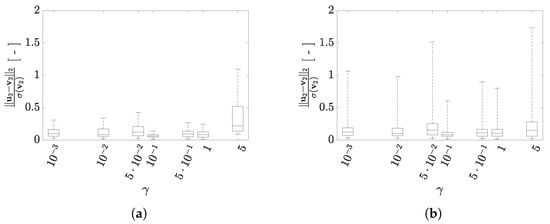

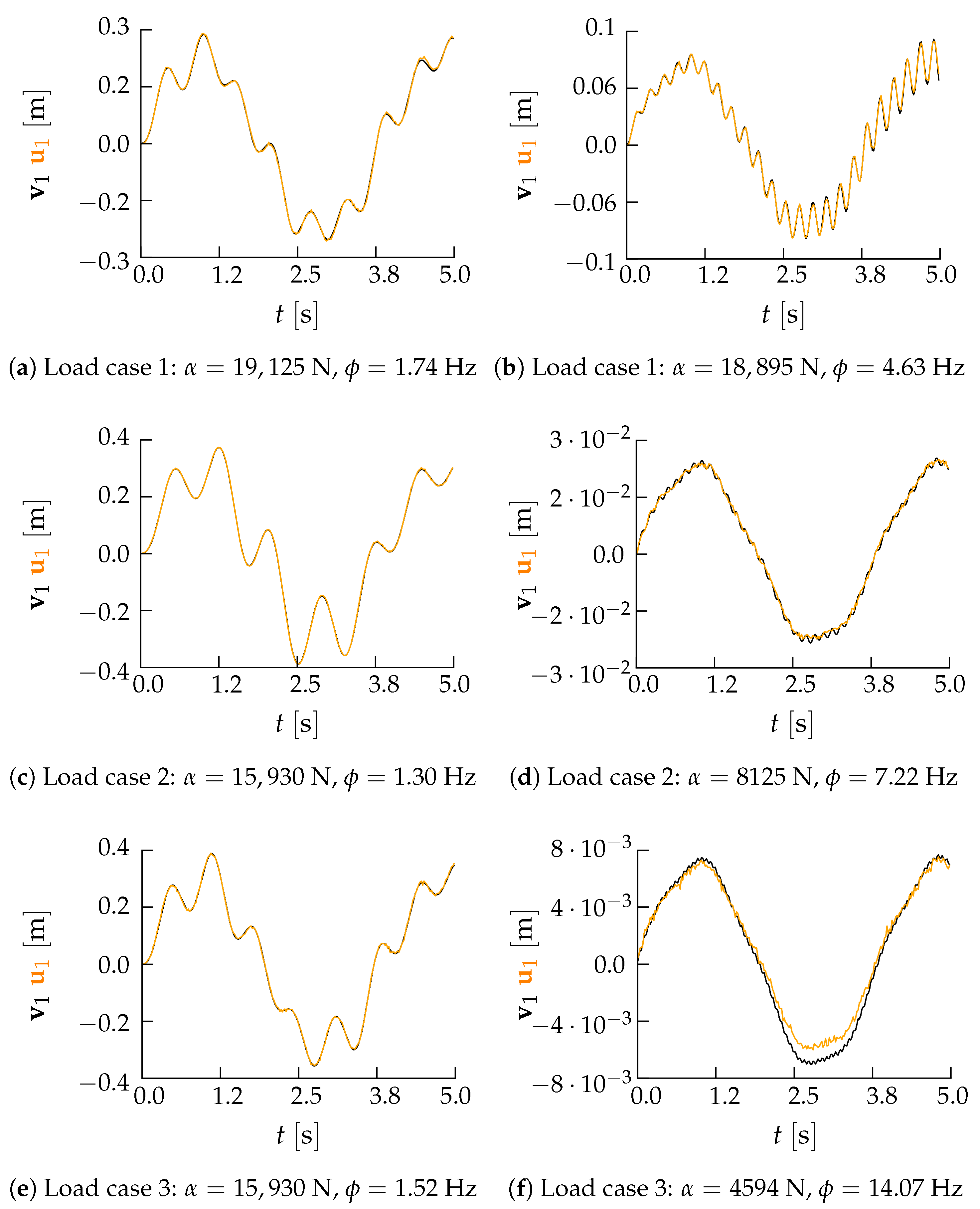

4.2. Pirelli Tower
5. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
