# OctoPath: An OcTree-Based Self-Supervised Learning Approach to Local Trajectory Planning for Mobile Robots

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

- based on the octree environment model, we provide a solution for estimating local driving trajectories by reformulating the estimation task as a classification problem with a configurable resolution;
- we define an encoder-decoder deep neural network topology for predicting desired future trajectories, which are obtained in a self-supervised fashion;
- we leverage the innate property of the state vector between the encoder and the decoder to represent a learned sequence of trajectory points constrained by road topology.

## 2. Related Work

## 3. Method

#### 3.1. Problem Definition: Local Trajectory Prediction

- the longitudinal velocity ${v}^{<t,t+{\tau}_{0}>}$ is maximal and is contained within the bounds $[{v}_{min},{v}_{max}]$;
- the total distance between consecutive trajectory points is minimal: $\left|\right|({p}_{0}^{<t>}-{\mathbf{y}}_{dest}^{t})+{\displaystyle \sum _{i=0}^{{\tau}_{0}}}({\mathbf{y}}_{dest}^{t+i}-{\mathbf{y}}_{dest}^{t+i+1})\left|\right|$;
- the lateral velocity ${v}_{\delta}^{<t,t+{\tau}_{0}>}$ is minimal. It is is determined by the rate of change of the steering angle ${v}_{\delta}\in \left(\right)open="["\; close="]">{\dot{\delta}}_{min},{\dot{\delta}}_{max}$.

#### 3.2. Octree Environment Model

#### 3.3. Kinematics of RovisLab’s AMTU as a SSWMR (Skid-Steer Wheeled Mobile Robot)

- The robot’s mass center is at the geometric center of the body frame;
- Each side’s two wheels rotate at the same speed;
- The robot is operating on a firm ground floor with all four wheels in contact with it at all times.

## 4. OctoPath: Architecture, Training and Deployment

#### 4.1. RNN Encoder-Decoder Architecture

#### 4.2. Training Setup

## 5. Results

#### 5.1. Experimental Setup Overview

- collect training data from driving recordings;
- generate octrees and format training data as sequences;
- train the OctoPath deep network from Figure 1;
- evaluate on simulated and real-world driving scenarios.

#### 5.2. Experiment I: GridSim Simulation Environment

#### 5.3. Experiment II: Indoor and Outdoor Navigation

#### 5.4. Ablation Study

#### 5.5. Deployment of OctoPath on the Nvidia AGX Xavier

#### 5.6. Discussion

## 6. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Xu, H.; Gao, Y.; Yu, F.; Darrell, T. End-to-end learning of driving models from large-scale video datasets. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, Honolulu, HI, USA, 21–26 July 2017; pp. 2174–2182. [Google Scholar]
- Jaritz, M.; Charette, R.; Toromanoff, M.; Perot, E.; Nashashibi, F. End-to-End Race Driving with Deep Reinforcement Learning. In Proceedings of the 2018 IEEE International Conference on Robotics and Automation (ICRA), Brisbane, Australia, 21–25 May 2018. [Google Scholar]
- Pendleton, S.D.; Andersen, H.; Du, X.; Shen, X.; Meghjani, M.; Eng, Y.H.; Rus, D.; Ang, M.H. Perception, planning, control, and coordination for autonomous vehicles. Machines
**2017**, 5, 6. [Google Scholar] [CrossRef] - Grigorescu, S.M.; Trasnea, B.; Marina, L.; Vasilcoi, A.; Cocias, T. NeuroTrajectory: A Neuroevolutionary Approach to Local State Trajectory Learning for Autonomous Vehicles. IEEE Robot. Autom. Lett.
**2019**, 4, 3441–3448. [Google Scholar] [CrossRef] [Green Version] - Bengio, Y.; Courville, A.; Vincent, P. Representation learning: A review and new perspectives. IEEE Trans. Pattern Anal. Mach. Intell.
**2013**, 35, 1798–1828. [Google Scholar] [CrossRef] - Hessel, M.; Modayil, J.; Van Hasselt, H.; Schaul, T.; Ostrovski, G.; Dabney, W.; Horgan, D.; Piot, B.; Azar, M.; Silver, D. Rainbow: Combining improvements in deep reinforcement learning. In Proceedings of the Thirty-Second AAAI Conference on Artificial Intelligence, New Orleans, LA, USA, 2–7 February 2018. [Google Scholar]
- Cho, K.; Van Merriënboer, B.; Gulcehre, C.; Bahdanau, D.; Bougares, F.; Schwenk, H.; Bengio, Y. Learning phrase representations using RNN encoder-decoder for statistical machine translation. arXiv
**2014**, arXiv:1406.1078. [Google Scholar] - González, D.; Pérez, J.; Milanés, V.; Nashashibi, F. A review of motion planning techniques for automated vehicles. IEEE Trans. Intell. Transp. Syst.
**2015**, 17, 1135–1145. [Google Scholar] [CrossRef] - Grigorescu, S.; Trasnea, B.; Cocias, T.; Macesanu, G. A survey of deep learning techniques for autonomous driving. J. Field Robot.
**2020**, 37, 362–386. [Google Scholar] [CrossRef] - Amini, A.; Gilitschenski, I.; Phillips, J.; Moseyko, J.; Banerjee, R.; Karaman, S.; Rus, D. Learning robust control policies for end-to-end autonomous driving from data-driven simulation. IEEE Robot. Autom. Lett.
**2020**, 5, 1143–1150. [Google Scholar] [CrossRef] - Pan, Y.; Cheng, C.A.; Saigol, K.; Lee, K.; Yan, X.; Theodorou, E.A.; Boots, B. Imitation learning for agile autonomous driving. Int. J. Robot. Res.
**2020**, 39, 286–302. [Google Scholar] [CrossRef] - Bojarski, M.; Del Testa, D.; Dworakowski, D.; Firner, B.; Flepp, B.; Goyal, P.; Jackel, L.D.; Monfort, M.; Muller, U.; Zhang, J.; et al. End to End Learning for Self-Driving Cars. arXiv
**2016**, arXiv:1604.07316. [Google Scholar] - Kahn, G.; Abbeel, P.; Levine, S. BADGR: An autonomous self-supervised learning-based navigation system. arXiv
**2020**, arXiv:2002.05700. [Google Scholar] - Mnih, V.; Kavukcuoglu, K.; Silver, D.; Rusu, A.A.; Veness, J.; Bellemare, M.G.; Graves, A.; Riedmiller, M.; Fidjeland, A.K.; Ostrovski, G.; et al. Human-level control through deep reinforcement learning. Nature
**2015**, 518, 529. [Google Scholar] [CrossRef] - Panov, A.I.; Yakovlev, K.S.; Suvorov, R. Grid path planning with deep reinforcement learning: Preliminary results. Procedia Comput. Sci.
**2018**, 123, 347–353. [Google Scholar] [CrossRef] - Wang, B.; Liu, Z.; Li, Q.; Prorok, A. Mobile Robot Path Planning in Dynamic Environments through Globally Guided Reinforcement Learning. arXiv
**2020**, arXiv:2005.05420. [Google Scholar] [CrossRef] - Salay, R.; Queiroz, R.; Czarnecki, K. An Analysis of ISO 26262: Machine Learning and Safety in Automotive Software; Technical Report, SAE Technical Paper; SAE: Pittsburgh, PA, USA, 2018. [Google Scholar]
- Steffi, D.D.; Mehta, S.; Venkatesh, K.; Dasari, S.K. Robot Path Planning—Prediction: A Multidisciplinary Platform: A Survey. In Data Science and Security; Springer: Singapore, 2021; pp. 211–219. [Google Scholar]
- Cai, K.; Wang, C.; Cheng, J.; De Silva, C.W.; Meng, M.Q.H. Mobile Robot Path Planning in Dynamic Environments: A Survey. arXiv
**2020**, arXiv:2006.14195. [Google Scholar] - Li, J.; Yang, S.X.; Xu, Z. A Survey on Robot Path Planning using Bio-inspired Algorithms. In Proceedings of the 2019 IEEE International Conference on Robotics and Biomimetics (ROBIO), Dali, China, 6–8 December 2019; pp. 2111–2116. [Google Scholar]
- Wang, J.; Chi, W.; Li, C.; Wang, C.; Meng, M.Q.H. Neural RRT*: Learning-based optimal path planning. IEEE Trans. Autom. Sci. Eng.
**2020**, 17, 1748–1758. [Google Scholar] [CrossRef] - Wu, H.; Chen, Z.; Sun, W.; Zheng, B.; Wang, W. Modeling trajectories with recurrent neural networks. In Proceedings of the 26th International Joint Conference on Artificial Intelligence IJCAI-17, Melbourne, Australia, 19–25 August 2017. [Google Scholar]
- Park, S.H.; Kim, B.; Kang, C.M.; Chung, C.C.; Choi, J.W. Sequence-to-sequence prediction of vehicle trajectory via LSTM encoder-decoder architecture. In Proceedings of the 2018 IEEE Intelligent Vehicles Symposium (IV), Changshu, China, 26–30 June 2018; pp. 1672–1678. [Google Scholar]
- Ma, Y.; Zhu, X.; Zhang, S.; Yang, R.; Wang, W.; Manocha, D. Trafficpredict: Trajectory prediction for heterogeneous traffic-agents. In Proceedings of the AAAI Conference on Artificial Intelligence 2019, Honolulu, HI, USA, 27 January–1 February 2019; Volume 33, pp. 6120–6127. [Google Scholar]
- Altché, F.; de La Fortelle, A. An LSTM network for highway trajectory prediction. In Proceedings of the 2017 IEEE 20th International Conference on Intelligent Transportation Systems (ITSC), Yokohama, Japan, 16–19 October 2017; pp. 353–359. [Google Scholar]
- Deo, N.; Trivedi, M.M. Multi-modal trajectory prediction of surrounding vehicles with maneuver based lstms. In Proceedings of the 2018 IEEE Intelligent Vehicles Symposium (IV), Changshu, China, 26–30 June 2018; pp. 1179–1184. [Google Scholar]
- Kim, B.; Kang, C.M.; Kim, J.; Lee, S.H.; Chung, C.C.; Choi, J.W. Probabilistic vehicle trajectory prediction over occupancy grid map via recurrent neural network. In Proceedings of the 2017 IEEE 20th International Conference on Intelligent Transportation Systems (ITSC), Yokohama, Japan, 16–19 October 2017; pp. 399–404. [Google Scholar]
- Hornung, A.; Wurm, K.M.; Bennewitz, M.; Stachniss, C.; Burgard, W. OctoMap: An efficient probabilistic 3D mapping framework based on octrees. Auton. Robot.
**2013**, 34, 189–206. [Google Scholar] [CrossRef] [Green Version] - Han, S. Towards efficient implementation of an octree for a large 3D point cloud. Sensors
**2018**, 18, 4398. [Google Scholar] [CrossRef] [Green Version] - Vanneste, S.; Bellekens, B.; Weyn, M. 3DVFH+: Real-time three-dimensional obstacle avoidance using an Octomap. In Proceedings of the MORSE 2014—Model-Driven Robot Software Engineering, York, UK, 21 July 2014; Volume 1319, pp. 91–102. [Google Scholar]
- Zhang, G.; Wu, B.; Xu, Y.L.; Ye, Y.D. Multi-granularity environment perception based on octree occupancy grid. Multimed. Tools Appl.
**2020**, 79, 26765–26785. [Google Scholar] [CrossRef] - Wang, T.; Wu, Y.; Liang, J.; Han, C.; Chen, J.; Zhao, Q. Analysis and experimental kinematics of a skid-steering wheeled robot based on a laser scanner sensor. Sensors
**2015**, 15, 9681–9702. [Google Scholar] [CrossRef] [Green Version] - Wong, J.; Chiang, C. A general theory for skid steering of tracked vehicles on firm ground. Proc. Inst. Mech. Eng. Part D J. Automob. Eng.
**2001**, 215, 343–355. [Google Scholar] [CrossRef] - Kingma, D.P.; Ba, J. Adam: A method for stochastic optimization. arXiv
**2014**, arXiv:1412.6980. [Google Scholar] - Dolgov, D.; Thrun, S.; Montemerlo, M.; Diebel, J. Practical search techniques in path planning for autonomous driving. Ann Arbor
**2008**, 1001, 18–80. [Google Scholar] - Trasnea, B.; Marina, L.; Vasilcoi, A.; Pozna, C.; Grigorescu, S. GridSim: A Simulated Vehicle Kinematics Engine for Deep Neuroevolutionary Control in Autonomous Driving. In Proceedings of the 2019 Third IEEE International Conference on Robotic Computing (IRC), Naples, Italy, 25–27 February 2019. [Google Scholar]

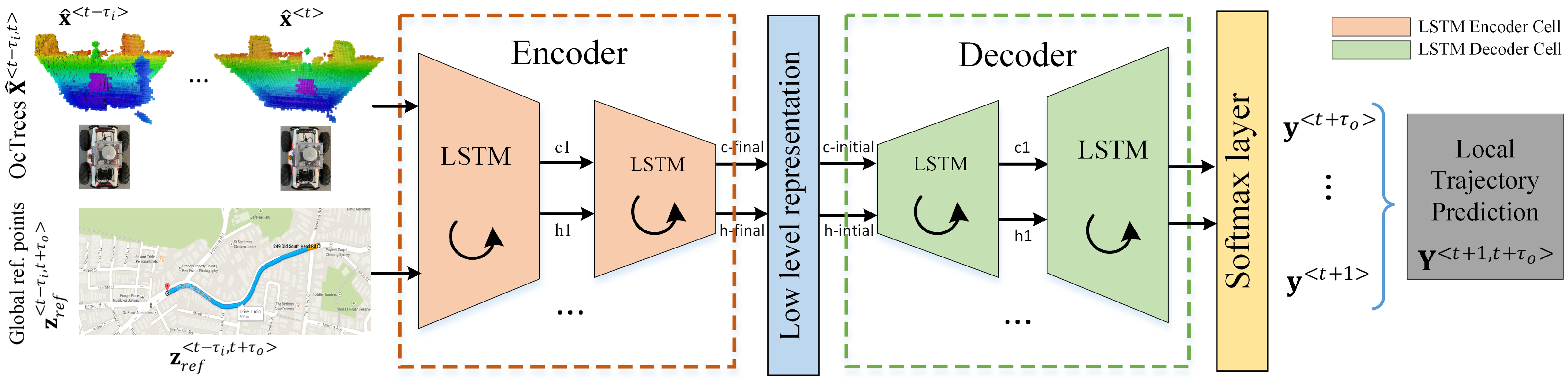

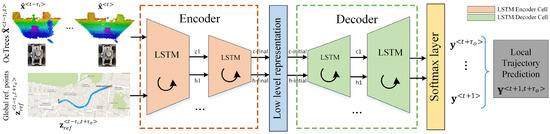

**Figure 1.**Local trajectory prediction using a neural network encoder-decoder architecture. The training data consists of sequences of OcTrees $({\mathbf{X}}^{<t-{\tau}_{i},t>})$ and points from the reference path $({\mathbf{Z}}_{ref}^{<t-{\tau}_{i},t+{\tau}_{0}>})$. Future trajectory points $({\mathbf{Y}}^{<t+1,t+{\tau}_{0}>})$ are used to calculate the labels in a self-supervised manner. The encoder-decoder network architecture is designed to take advantage of the neural network’s ability to learn effective temporal representations. The input sequences are passed through an encoder network, which maps raw inputs to a hidden feature representation known as a thought vector, and a decoder network, which takes this feature representation as input, processes it, and outputs a trajectory prediction.

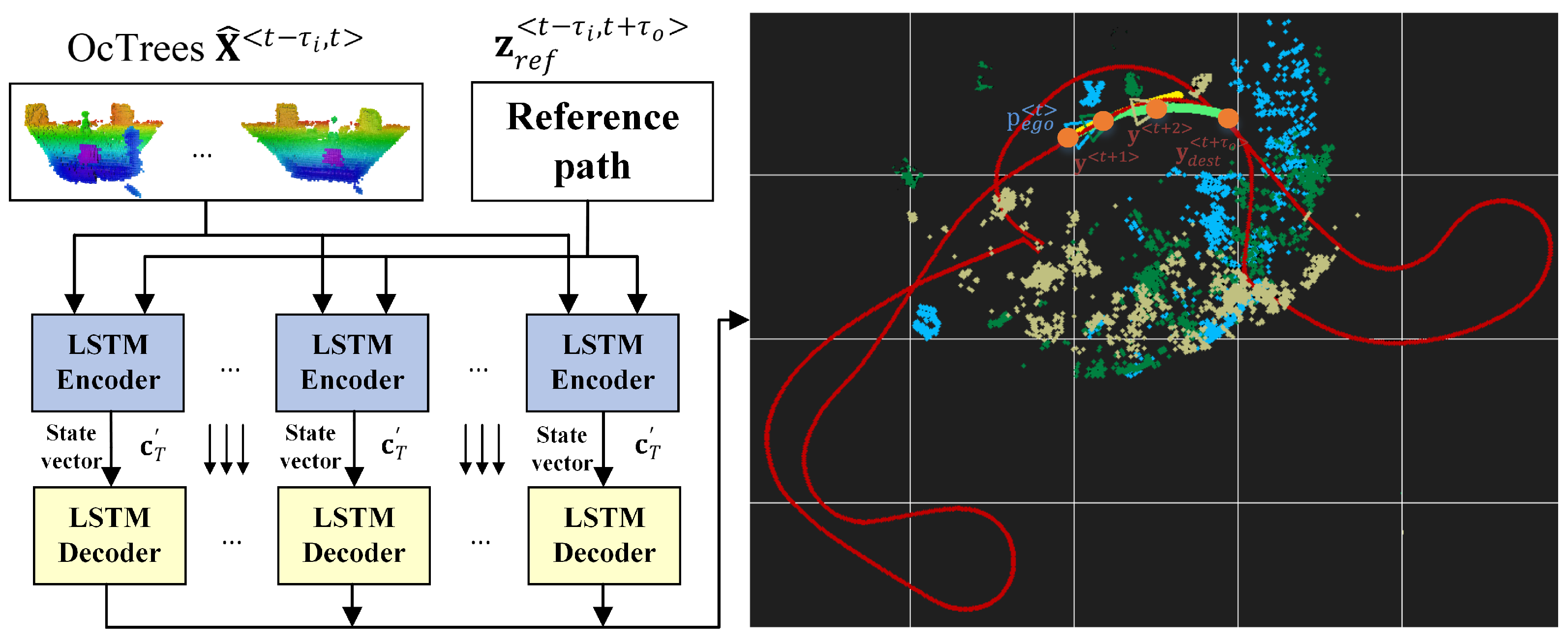

**Figure 2.**Estimating local trajectories for autonomous robots and vehicles using encoder-decoder recurrent neural networks. Considering the current ego vehicle’s position ${\mathbf{p}}_{ego}^{<t>}$, an input sequence of octrees ${\mathbf{X}}^{<t-{\tau}_{i},t>}=[{\mathbf{x}}^{t-{\tau}_{i}},\dots ,{\mathbf{x}}^{t}]$, the current sequence from the reference route ${\mathbf{z}}_{ref}^{<t-{\tau}_{i},t+{\tau}_{0}>}$ and a desired destination from the reference path ${\mathbf{y}}_{dest}^{<t+{\tau}_{0}>}$, the aim is to estimate a driving trajectory ${\mathbf{Y}}^{<t+1,t+{\tau}_{0}>}=[{\mathbf{y}}^{t+1},\dots ,{\mathbf{y}}_{dest}^{t+{\tau}_{0}}]$.

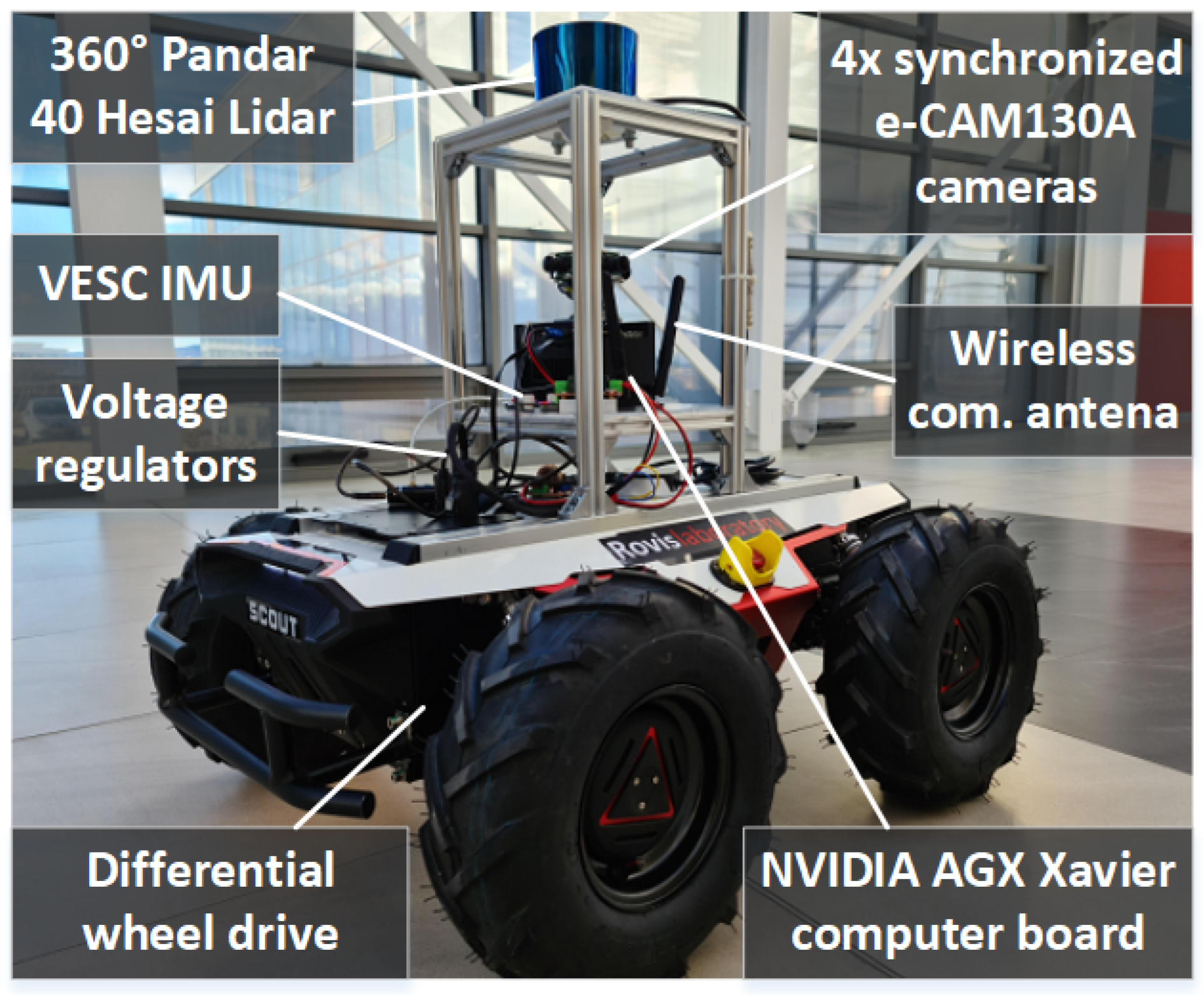

**Figure 3.**RovisLab AMTU (Autonomous Mobile Test Unit). The robot is a SSWMR (skid-steer wheeled mobile robot) platform equipped with a 360 degree, 40-Channel Hesai Pandar Lidar, 4× e-CAM130A cameras, a Tinkerforge inertial measurement unit (IMU), and an NVIDIA AGX Xavier computer board for real-time data processing and control.

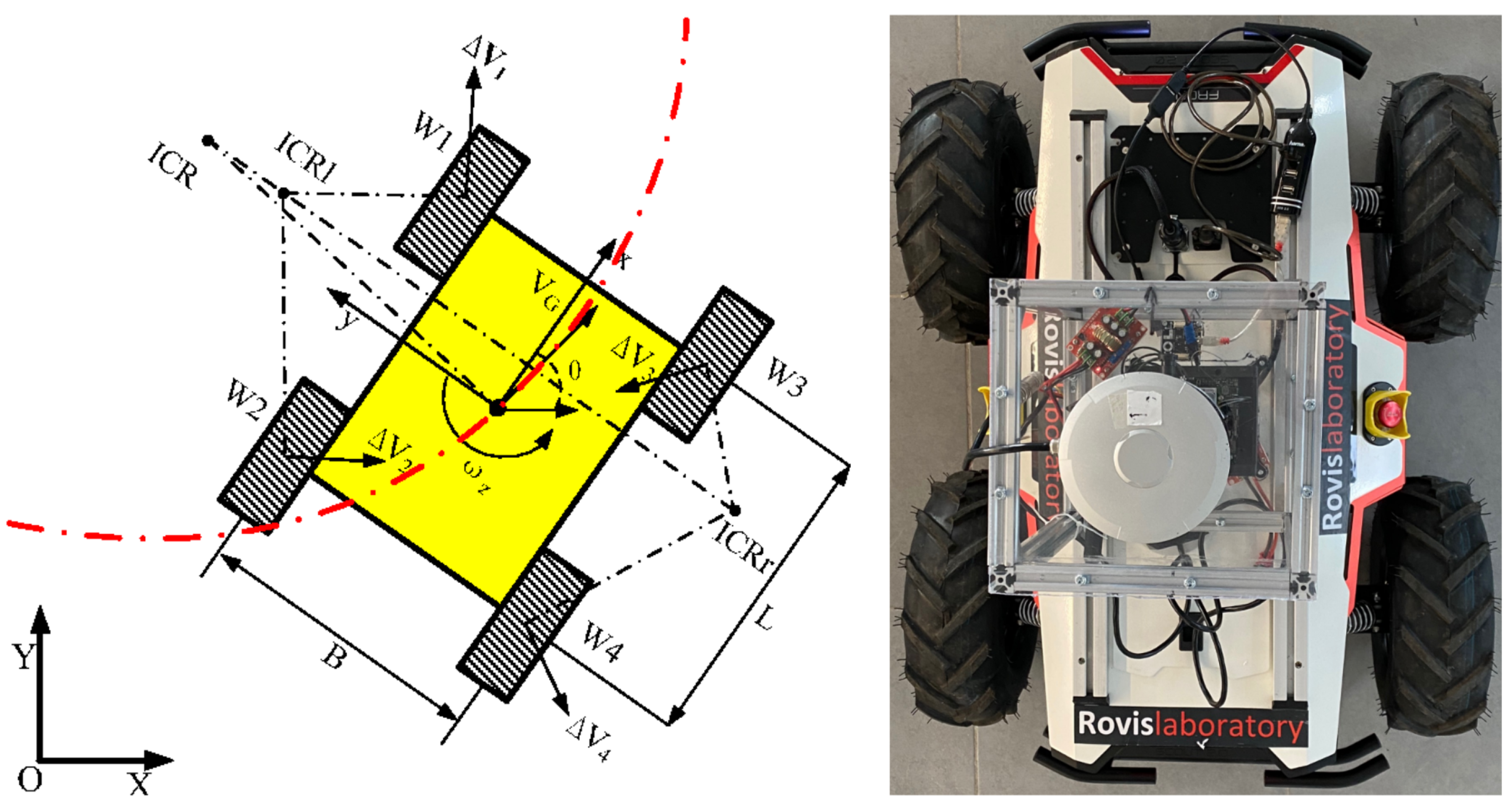

**Figure 4.**A skid-steering mobile robot’s kinematics diagram and the top view of RovisLab Autonomous Mobile Test Unit.

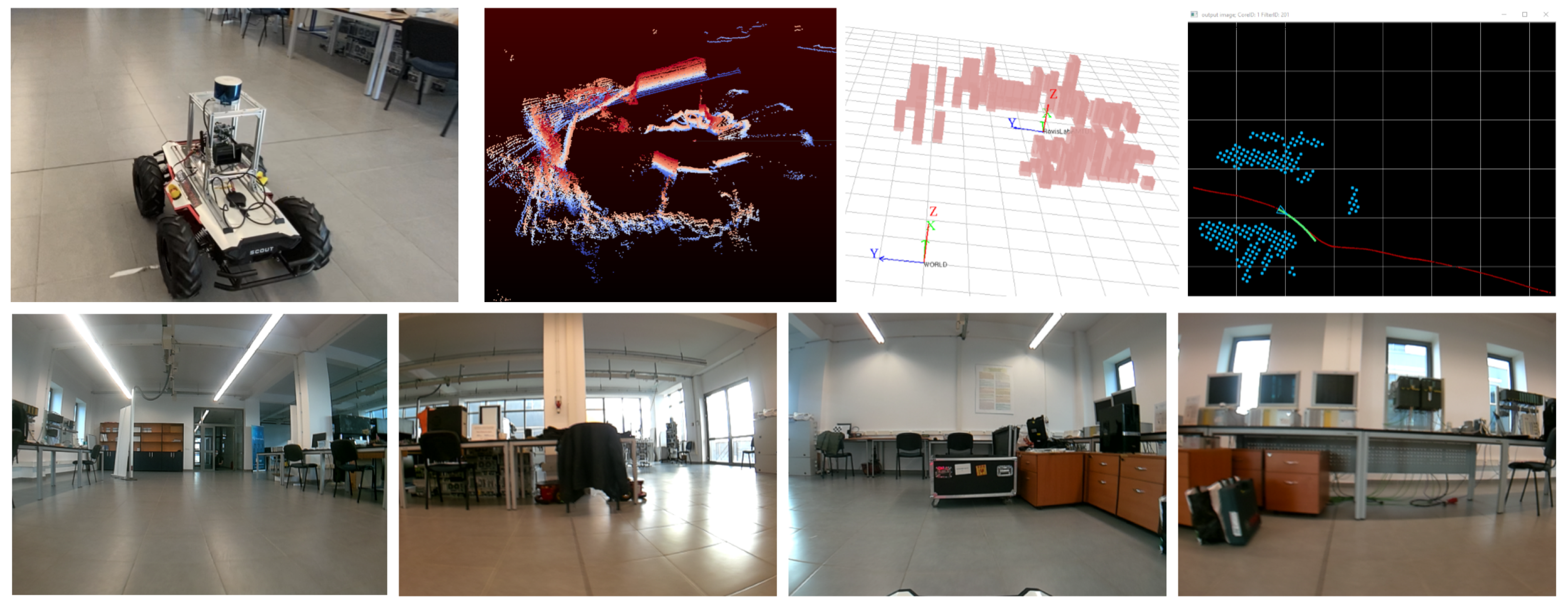

**Figure 5.**Indoor testing setup. (top) RovisLab AMTU on the reference trajectory, with raw LiDAR data acquired from the top-mounted sensor and the generated 3D and projected 2D octree environment model. (bottom) The 4 images were acquired with the e-CAM130A quad camera. The order of the images is, given the camera mounting position, front-right-back-left.

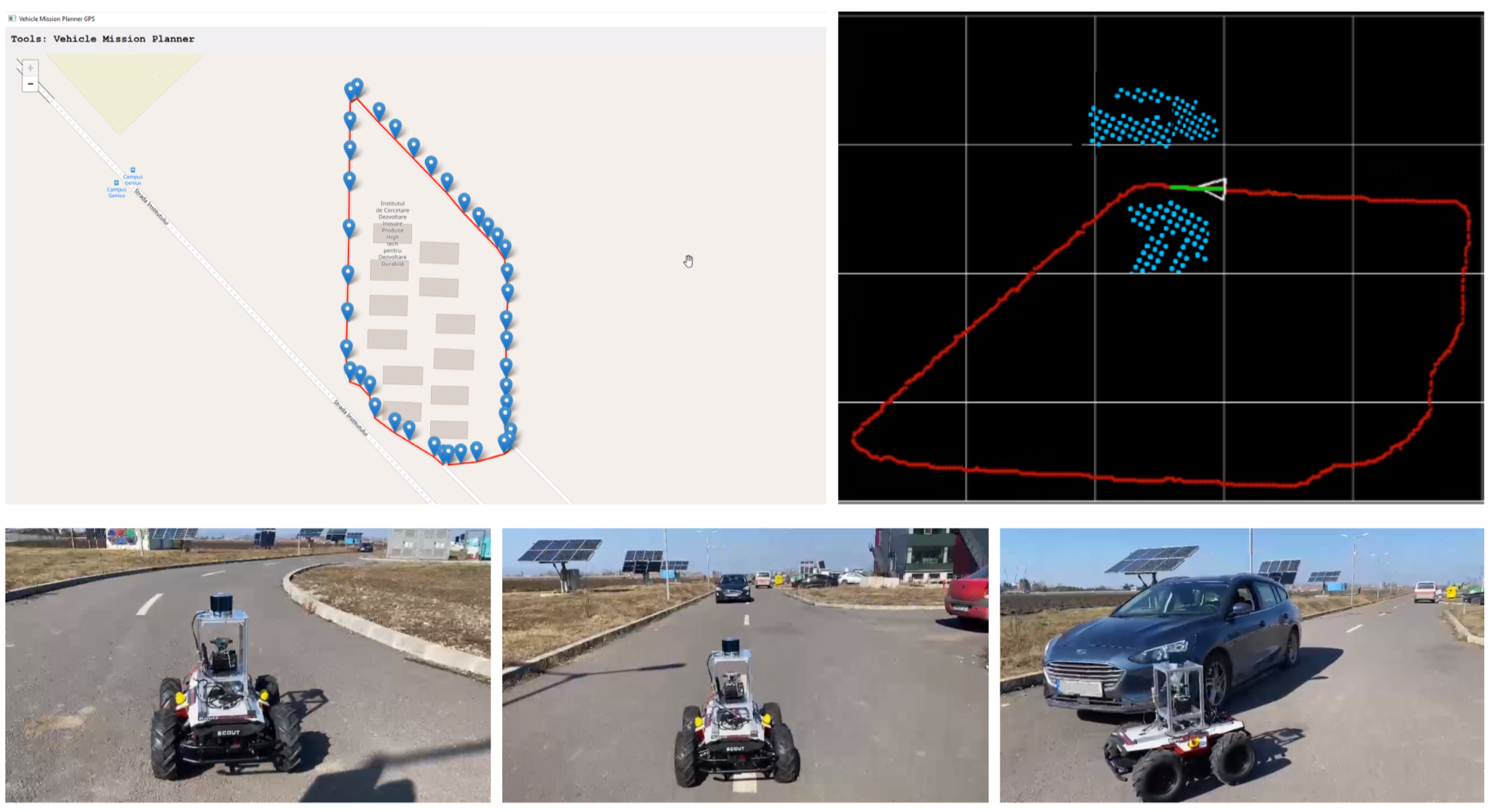

**Figure 6.**Outdoor testing setup. (top-left) Our vehicle mission planner tool generating the GPS reference route. (top-right) RovisLab AMTU on the reference trajectory with the projected 2D octree environment model. (bottom) On-route behavior with dynamic obstacle avoidance.

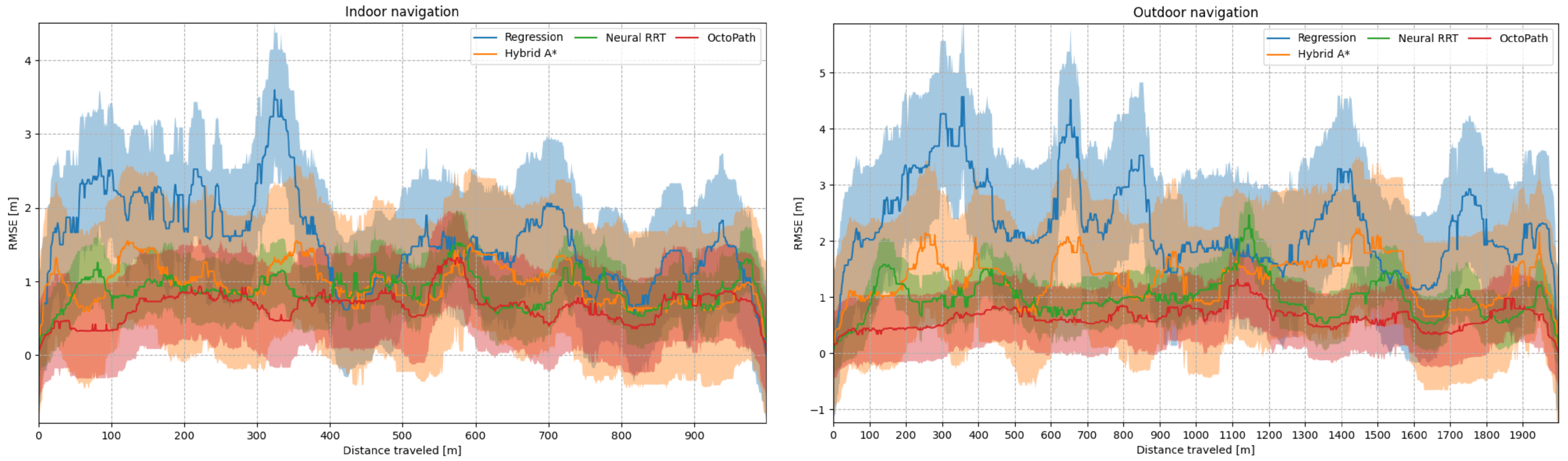

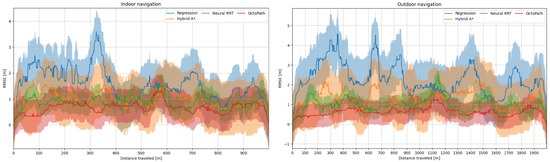

**Figure 7.**Mean (solid line) and standard deviation (shaded region) of the position error, computed as the RMSE from Equation (24) during indoor and outdoor testing scenarios.

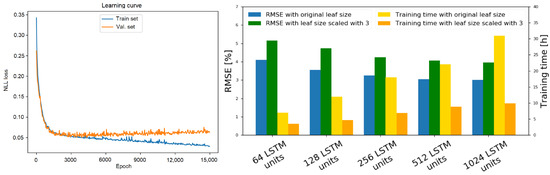

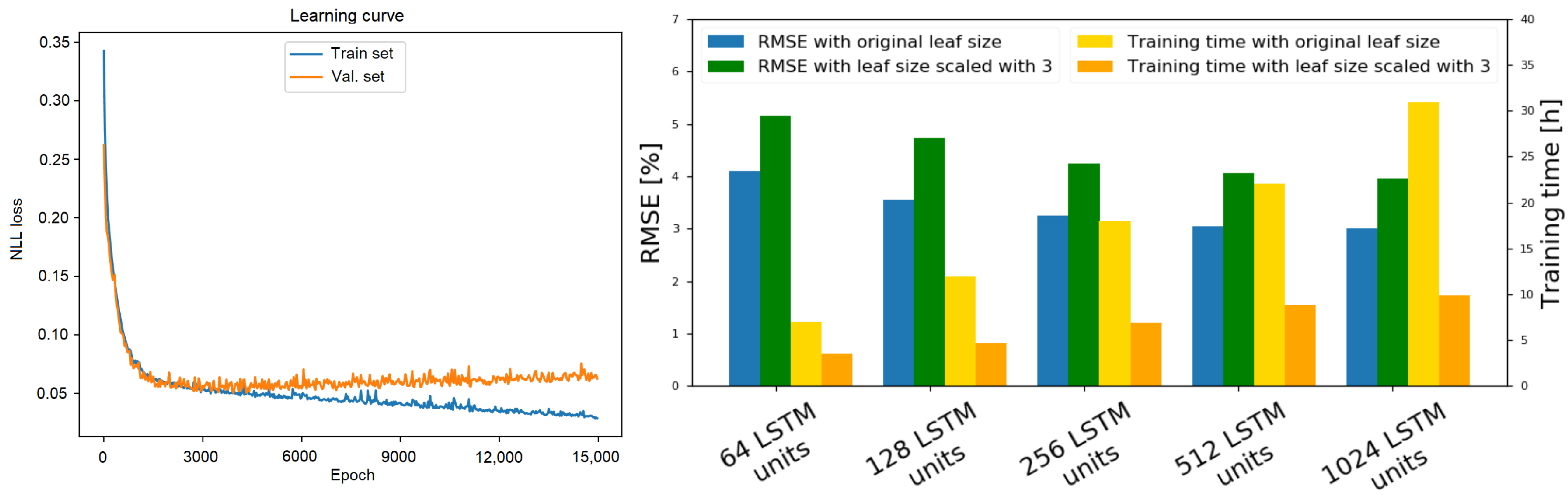

**Figure 8.**Learning curve and ablation of octree resolution and encoder-decoder model parameters. (left side) The evolution of the NLL loss on the training and validation set. (right side) Performance when training with different numbers of LSTM layers inside both the encoder and the decoder. We see that the RMSE percentages between the estimated and the ground truth driven trajectory decreases with respect to the added number of layers but gets capped after a certain threshold. Decreasing the resolution causes a small increase in RMSE but decreases the necessary training time in a significant manner.

**Table 1.**Errors between estimated and ground truth trajectories in simulation and real-world navigation testing scenarios.

Scenario | Method | ${\overline{\mathit{e}}}_{\mathit{x}}\left[\mathit{m}\right]$ | $max\left({\mathit{e}}_{\mathit{x}}\right)\left[\mathit{m}\right]$ | ${\overline{\mathit{e}}}_{\mathit{y}}\left[\mathit{m}\right]$ | $max\left({\mathit{e}}_{\mathit{y}}\right)\left[\mathit{m}\right]$ | $\mathit{RMSE}\left[\mathit{m}\right]$ |
---|---|---|---|---|---|---|

GridSim | Hybrid A* | 1.43 | 3.21 | 2.71 | 4.01 | 2.71 |

simulation | Regression | 3.51 | 7.20 | 4.71 | 8.53 | 5.10 |

Neural RRT | 1.27 | 3.01 | 2.35 | 2.98 | 2.48 | |

Octopath | 1.16 | 2.31 | 1.72 | 2.75 | 2.07 | |

Indoor | Hybrid A* | 1.21 | 4.33 | 1.33 | 3.88 | 1.74 |

navigation | Regression | 1.90 | 5.73 | 2.31 | 4.98 | 2.75 |

Neural RRT | 1.01 | 3.29 | 0.98 | 2.16 | 1.44 | |

Octopath | 0.55 | 1.08 | 0.44 | 0.87 | 0.69 | |

Outdoor | Hybrid A* | 1.35 | 4.67 | 1.44 | 4.44 | 1.98 |

navigation | Regression | 2.41 | 8.42 | 2.77 | 8.98 | 3.01 |

Neural RRT | 1.05 | 2.52 | 1.06 | 3.24 | 1.17 | |

Octopath | 0.71 | 1.46 | 0.57 | 1.17 | 0.88 |

**Table 2.**Inference time measured on the NVIDIA AGX Xavier with different power mode (nvpmodel) and optimization level settings.

Nvidia AGX Xavier Power Mode | Number of Online Cores | CPU Maximal Frequency (MHz) | TensorRT (ms) | Native Tensorflow (ms) |
---|---|---|---|---|

MODE_10W | 2 | 1200 | 41.24 | 314.66 |

MODE_15W | 4 | 1200 | 29.89 | 207.12 |

MODE_30W_4CORE | 4 | 1780 | 21.37 | 153.86 |

MODE_30W_6CORE | 6 | 2100 | 17.85 | 121.38 |

MODE_MAXN | 8 | 2265 | 14.23 | 89.61 |

Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |

© 2021 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Trăsnea, B.; Ginerică, C.; Zaha, M.; Măceşanu, G.; Pozna, C.; Grigorescu, S.
OctoPath: An OcTree-Based Self-Supervised Learning Approach to Local Trajectory Planning for Mobile Robots. *Sensors* **2021**, *21*, 3606.
https://doi.org/10.3390/s21113606

**AMA Style**

Trăsnea B, Ginerică C, Zaha M, Măceşanu G, Pozna C, Grigorescu S.
OctoPath: An OcTree-Based Self-Supervised Learning Approach to Local Trajectory Planning for Mobile Robots. *Sensors*. 2021; 21(11):3606.
https://doi.org/10.3390/s21113606

**Chicago/Turabian Style**

Trăsnea, Bogdan, Cosmin Ginerică, Mihai Zaha, Gigel Măceşanu, Claudiu Pozna, and Sorin Grigorescu.
2021. "OctoPath: An OcTree-Based Self-Supervised Learning Approach to Local Trajectory Planning for Mobile Robots" *Sensors* 21, no. 11: 3606.
