Article

Influence of Humidity on the Acoustic Properties of Mushroom Mycelium Films Used as Sensitive Layers for Acoustic Humidity Sensors

1
Kotelnikov Institute of Radio Engineering and Electronics of RAS, Moscow 125009, Russia
2
Kotelnikov Institute of Radio Engineering and Electronics of RAS, Saratov Branch, Saratov 410019, Russia
3
Gause Institute of New Antibiotics, Moscow 119435, Russia
4
Centre for Strategic Planning of Federal Medico-Biological Agency of Russia, Moscow 119121, Russia
*
Author to whom correspondence should be addressed.
Sensors 2020, 20(9), 2711; https://doi.org/10.3390/s20092711
Received: 21 April 2020 / Revised: 5 May 2020 / Accepted: 7 May 2020 / Published: 9 May 2020
(This article belongs to the Special Issue Acoustic Wave Sensors for Gaseous and Liquid Environments)

Abstract

:
The influence of humidity on the density, shear elastic module, viscosity, and thickness of the mushroom Pleurotus eryngii and Ganoderma lucidum mycelium films was studied. These data were obtained by comparing the theoretical and experimental frequency dependencies of the complex electrical impedance of bulk acoustic wave (BAW) resonator loaded by mycelium film using the least-squares method. This procedure was performed for the BAW resonator with pointed films for the relative humidity range of 17%–56% at the room temperature. As a result, the changes of the density, shear elastic module, viscosity, and thickness of the films under study, due to the water vapor adsorption, were determined. It has been established that the properties of mycelium films are restored after removing from the water vapor. So, these results show the possibility of using investigated mycelium films as sensitive layers for acoustic humidity sensors.

1. Introduction

Humidity is a very important parameter that must be controlled in many areas of our life. The humidity sensors are used in museums, cars, “smart” houses, plants, etc. There are a lot of humidity sensors based on various physical principles (resistive [1,2], conductive [3], acoustic [4,5], capacitive [6,7], etc.). As for acoustic humidity sensors, there exists a large amount of papers, suggesting the use of film bulk acoustic resonators (FBARs) [8,9], various types of surface acoustic waves [4,5,8,9,10,11], quartz crystal microbalances (QCM) [8,12], and plate acoustic waves [13]. Most of the acoustic humidity sensors are based on the use of specific films deposited on the surface of acoustic waveguides [14]. The physical properties of such films are affected by exposure to water vapor. These, in turn, affect the acoustic wave phase velocity and/or attenuation or resonant frequency. Both organic and inorganic materials have been used as sensitive films [4,5,7,8,9,10,11,12,13,14,15]. One of the opportunities that is poorly studied is the use of films of the mycelia from higher fungi. Earlier it was experimentally stated that several mushroom mycelium extracts exhibited the high sorption sensitivity to the phenol, ammonia, formaldehyde and ethylacetate [16,17]. In this paper, we study the possibility of using other types of mushrooms as a sensitive coating for acoustoelectronic humidity sensors.

2. Experimental Methods

2.1. Preparation of Mycelium Films

2.1.1. Mushroom Pleurotus eryngii Mycelium Film

One of the objects of this work was the culture of king oyster mushroom Pleurotus eryngii (D.C.) Quél. (family Pleurotaceae, class Agaricomycetes, phylum Basidiomycota). This is an edible and medicinal basidiomycete capable of synthesizing biologically active compounds [18,19]. P. eryngii strain 2 from the collection of the laboratory of biologically active compounds’ biosynthesis of the Gause Institute of New Antibiotics was also used. Storage and cultivation of the P. eryngii were carried out by the methods described previously [20]. We used the mycelium film formed by P. eryngii in Petri dishes (9 cm in diameter) on a potato-glucose medium. The culture was grown until complete overgrowth of Petri dishes in the dark at 25 °C. The duration of the cultivation process was 7 days.
The micromorphology of the mycelium film was studied by means of electron scanning microscopy CamScan-S2. The test material was treated with 2.5% glutaraldehyde. Then, the mycelium was washed with phosphate buffer and dehydrated by passing through ethanol solutions with increasing concentration: 30%, 50%, 70%, and 96%. Ethanol was removed and the material was treated two times with acetone. Upon completion of drying, palladium and gold were sprayed onto the material.
Colonies (mycelium film) of P. eryngii were formed by well-developed aerial mycelium consisting of radially growing branching hyphae. Colonies were white and had a felt texture; agar was not pigmented (Figure 1a). Studies of the micromorphological features of aerial mycelium showed the presence of hyphal septa and clamps on fungal hyphae (Figure 1b). Clamps are a micromorphological feature that confirms the belonging of cultures to the phylum Basidiomycota, since the formation of clamps is associated with the division of dicaryotic cells of basidiomycetes.

2.1.2. Mushroom Ganoderma lucidum Mycelium Film

The other object of this work was the culture Ganoderma lucidum (Curt.) P. Karst. (phylum Basidiomycota). It is a well-known xylotrophic hymenomycete, used for medicinal purposes for over two thousand years.
Intensive studies of metabolites from G. lucidum fruit bodies and vegetative mycelium allowed isolate and study biologically active metabolites, especially polysaccharides and triterpenes. These compounds have immunostimulating, antitumor, hypolipidemic, antidiabetic, hepatoprotective, antiviral, anti-inflammatory, antioxidant properties.
To increase the robustness and facilitate the interpretation of our results, we used the strain of G. lucidum, whose morphological features, trophic needs and ability to synthesize biologically active compounds were extensively studied in our previous research [21,22,23]. The studied strain belongs to the species G. lucidum. This was confirmed by phylogenetic studies [24].
The G. lucidum strain was grown on potato-glucose agar with foliferous wood sawdust for 5 days at 26 °C and then stored at 2 °C. The cultures were replanted on a fresh medium once a year. Figure 2a presents the colonies of G. lucidum.
The micromorphology of the intact and dried mycelium film was studied by means of the electron scanning microscopy. It has been shown that the G. lucidum mycelial film consists of numerous parts of the coral-shaped mycelium and an individual straight, thick and thin rarely branching hyphae bearing terminal and intercalary chlamydospores (Figure 2b).
Figure 3 shows the high branched coral-shaped mycelium and clamp connection.

2.2. BAW Resonator Loaded by Film under Study

The experiments were performed using a standard AT-quartz resonator with the shear acoustic wave and longitudinal exciting electric field with the resonant frequency of ~4 MHz (Figure 4). The diameter of the electrodes and the thickness of the quartz plate were equal to 6 and 0.394 mm, respectively. The sample of the mycelium film with diameter of 6 mm was cut out from the original grown film in Petri dish. After that, the nutrient medium contacting with the underside of the mycelium film was mechanically removed. Then, the film was put on the electrode of the quartz resonator and glued by a wet side by uniform pressure and smoothing. After that the resonator with film was kept in air for 24 h. This method allowed for obtaining the mycelium films with a thickness of about 20 μm. Such films of mycelium possessed sufficient mechanical strength and were used in our experiments.

2.3. Test Chamber

The special glass chamber used for investigation of the mycelium film properties at different values of humidity is presented in Figure 4. The volumes of chamber and container for water were equal to ~100 ml and ~2 ml, respectively. The chamber was equipped by the humidity and temperature resistive sensors of the meter MAX-MIN Thermo Hygro (Shenzhen Shining Electric Technolodgy Co., Shenzhen, China). The AT-quartz resonator was placed inside the chamber and connected with the contact rods hermetically fixed to the bottom of the chamber. The chamber was hermetically closed by the cover with a Teflon sealing. This system allowed for smooth increasing the relative humidity from 17% to ~60% for 1 h. The measurements were carried out at the room temperature (24 °C) and a normal atmosphere pressure of 760 mm of mercury. A special attention was paid to the electrical quality of the contacts between the resonator and the measuring set up. This chamber was used for investigation of the influence of the water vapors on the mechanical properties of the mycelium films under study.

2.4. Method of the Measurement of the Physical Characteristics of the Films under Study

At first, we measured the frequency dependencies of the real (Re) and imaginary (Im) parts of the complex electrical impedance for the quartz resonator without film by means of a precision LCR meter (4285A, Agilent Technologies, Santa Clara, CA, USA). The Mason’s equivalent circuit of a resonator that has been exploited to calculate the theoretical frequency dependencies of the resonator electrical impedance is shown in Figure 5a [17,25]. This circuit considers the parameters of the quartz plate and electrodes because their thickness is commensurable with the thickness of the films under study.
The mechanical impedances z1, z2, z1m, and z2m in the equivalent scheme presented in Figure 5a were presented in the following form [17,25]:
z1 = iZS tg(kd/2); z2 = −iZS/sin(kd/2);
z1m = iZ m S tg(kmdm/2); z2m = −iZm S/sin(kmdm/2)
where Z = (C66ρ)1/2 and Zm = (C66mρm)1/2 are the specific acoustic impedances of the resonator and electrode’s materials, respectively. С66, C66m, ρ, and ρm are their shear elastic constants and densities, respectively. k = ω/v and km = ω/vm are the corresponding wave numbers. ω, v, and vm are the angular frequency and phase velocities of the wave in the AT-quartz and electrodes. S, d, and dm are the electrode area and the thicknesses of resonator and electrode, respectively. i is the imaginary unit. Index m is related to the electrodes.
The equivalent circuit consists of an electromechanical transformer responsible for the mutual transformation of electrical and mechanical oscillations [25]. A primary electrical winding is in contact with elements C0 and −C0, and the secondary mechanical one is in contact with resistors z1 and z2. The transformer ratio N is given by N = hC0, where h = e25/ε11 and e25, ε11 are the piezoelectric constant and permittivity of the quartz, respectively. C0 = ε11S/d is the electric capacity. The effective viscosity η66 of the resonator material was considered as the main source of losses, including the mechanical and electrical ones. In this case, the velocities and the specific acoustic impedances of the resonator and electrodes may be written as follows [25]:
v = {(C66 + e252/ε11 + iωη66)/ρ}1/2, Z = {(C66 + e252/ε11 + iωη66)ρ}1/2,
vm = {C66m/ρm}1/2, Zm = {C66mρm}1/2.
The Kirchhoff’s equations were applied with the circuit shown in Figure 5a to calculate the frequency dependencies of the real and imaginary parts of the resonator electrical impedance for its particular material constants (C66, C66m, e25, ε11, η66, dm) [26]. We varied these material constants in the given limits and exploited the least-squares method to find a set of abovementioned material constants that offered the closer agreement of theoretical and experimental frequency dependencies of the complex electrical impedance.
Then, the resonator electrode was covered by the mycelium film. Through 24 h, the loaded resonator was set in the gas chamber (Figure 4), and, by means of the LCR meter, (4285A, Agilent Technologies, Santa Clara, CA, USA) the frequency dependencies of the real and imaginary parts of the complex electrical impedance of the loaded resonator were measured. By using the equivalent circuit presented in Figure 5b and the Kirchhoff’s equations, the theoretical dependencies of the real and imaginary parts of electrical impedance of the loaded resonator were calculated. The acoustical impedances z1f and z2f of the mycelium film were computed as:
z1f = iZ f S tg(kfdf/2); z2f = −iZf S/sin(kfdf/2),
where Zf = (C66fρf)1/2 is the specific acoustic impedance of the film under study. C66f and ρf are shear elastic constant and density of the film, respectively. kf = ω/vf is the wave number. vf is the phase velocity of the acoustic wave in the film. df is the thickness of the film. Index f is related to the mycelium investigated film. The phase velocity of wave and the specific mechanical impedance of the film were determined in accordance with the following expressions:
vf = {(C66f + iωη66f)/ρf}1/2, Zf = {(C66f + iωη66f)ρf}1/2.
In analysis, we used the values of the material constants of quartz (C66, e25, ε11, η66) and the parameters of electrodes (C66m, ρm, dm) that were determined on a previous step. The material constants C66f, ρf, η66f and thickness df of mycelium film also were considered in calculations. By changing the values of material constants and the thickness of mycelium film in the given ranges, we found set of the film parameters C66f, ρf, η66f, and df with the help of the least-squares method. Curves presented by solid lines in Figure 6 and Figure 7 correspond to the calculated frequency dependencies of the real (a) and imaginary (b) parts of the electrical impedance for the resonator loaded by electrodes and mycelium films under study, which are most adjusted to the experiment (points in Figure 6 and Figure 7).
Figure 6 and Figure 7 show that, with an increase in humidity, the values of the real and imaginary parts of the electrical impedance and the resonant frequency decrease.
The mass mf of the studied films was also determined after “fitting” by using known film area S and obtained values of density ρf and thickness df:
mf = S × df × ρf.
Then, the chamber was filled with water vapors, and a bulk acoustic wave (BAW) resonator with mycelium film was kept inside the chamber for 10 min. After this, the frequency dependencies of the real and imaginary parts of the electrical impedance were measured and the parameters of the film were calculated again. This procedure was also repeated at 20, 30 and 60 min. Then, the cover was opened and the water container was removed from the chamber. After this, the aforementioned dependencies were measured in air at 10, 20, 30 and 60 min. Correspondingly, each time we calculated the thickness and material constants of the film without fail. The change in the parameters of mycelium films in the presence of the water vapor allowed us to make conclusion about the sorption properties of the films under study.
The humidity meter MAX-MIN Thermo Hygro (Shenzhen Shining Electric Technolodgy Co., Shenzhen, China) allowed us to construct the time dependence of the humidity (RH%), which is presented in Table 1.
Frequency step of the measurement of frequency dependencies of the impedance was equal to 200 Hz and the accuracy of the impedance measurement was 1%.

3. Results and Discussion

As the result of the performed experiments and corresponding calculations, the values of the density (ρf), shear elastic module (Cf66), effective viscosity (η66f), thickness (df), and mass (mf) of the mushroom P. eryngii and G. lucidum mycelium films at different values of humidity were obtained. These data are presented in Table 2 and Table 3, respectively.
The analysis of the obtained results has shown that the increase in humidity leads to decreasing the resonant frequency and the values of the real and imaginary parts of electrical impedance. This trend is the same as presented earlier in [17]. Additionally, it has been found that the thickness, viscosity, density and mass of the films under study increase with an increase in humidity and return to the initial values after 60 min in air. The shear elasticity module shows the opposite behavior. It reduces due to the humidity increase and fully recovers when humidity takes the initial value (17%). This may be explained by the penetration of the water molecules inside the film that leads to the film swelling and decreases its elasticity. After removing from the water vapor, the film dried out during some time and its physical properties returned to the initial values.
It should also be noted that the electrical impedance of a resonator loaded with a G. lucidum mycelial film is almost an order of magnitude smaller than for the P. eryngii film (Figure 6 and Figure 7). This may be connected with the structural features of various types of the mycelium, although the growth environment was the same for them. An analysis of the results also shows that the water vapor has a much stronger effect on the thickness, elastic modulus, viscosity and mass of the G. lucidum film in comparison with the P. eryngii film. For example, the relative changes in thickness, shear elastic modulus, the coefficient of viscosity, and mass for G. lucidum film were 9.8%, 38%, 21.6% and 15.7%, respectively. At that for P. eryngii film, these values were equal to 3.6%, 19%, 37.5%, and 9%. One can also see that the density of the G. lucidum films is higher than one of the P. eryngii films. The noted differences between the properties of the mycelial films of two species of the basidiomycetes are consistent with the results of mycological studies. It is known that after the colonization of a dense nutrient medium with the fungal hyphae, the properties of P. eryngii aerial mycelium (color, height) remain constant. At the end of the mycelium radial growth, colonies of G. lucidum undergo significant changes. They become denser, the height of the aerial mycelium decreases, the yellow or brown pigment appears and the viscosity of fruit body increases. As a result, a morphostructure is formed, which performs the protective functions [27]. The results obtained allow to us suggest that an important stage in the formation of the protective mycelium film of G. lucidum is a significant loss of water by the mycelial cells. Apparently, this process is not passive, but active, since the nutrient medium at this time is saturated with water.
We have compared our data with the analogous data presented in [15]. The authors studied the influence of RH on the mechanical properties of the acetate chitosan film. It was shown that the increase in the RH from 20% to 60% practically did not change the elastic constants C11 and C44 of the chitosan film and led to the increase in the viscosity factor by 26.6%. In the present work, the growth of the relative humidity in the range 17%–56% changed the elasticity and viscosity coefficients by 38% and 21.6% for the G. lucidum film and by 19% and 37.5% for the P. eryngii film, respectively. Such combinations led to a stronger effect of the humidity on the parameters of the resonator on quartz compared with the piezoceramic (Ba0.24Pb0.75Sr0.01(Ti0.47Zr0.53)O3) resonator described in [15].

4. Conclusions

The influence of water humidity on the density, shear elastic module, viscosity coefficient, and thickness of mushroom P. eryngii and G. lucidum mycelium films was studied. The P. eryngii and G. lucidum strains used in the work were taken from the collection of the laboratory of biologically active compounds’ biosynthesis of the Gause Institute of New Antibiotics. The pointed data were obtained by the comparison of the theoretical and experimental frequency dependencies of the complex electrical impedance of the bulk acoustic wave resonator loaded by mycelium film using the least-squares method. It has been found that the values of the density and shear elastic module of the investigated films are equal 1100 kg/m3 and 0.69 GPa for P. eryngii and 1300 kg/m3 and 0.28 GPa for G. lucidum in air. The measurements and calculations were carried out in the relative humidity range of 17%−56% at the room temperature. We determined the changes in the density, shear elastic module, viscosity, and thickness of the film under study due to the water vapor adsorption. The obtained results have shown that, with an increase in humidity, the thickness, viscosity, and density of the films under study increase, whereas the shear elastic module decreases. It has also been found that the properties of the mycelium films fully recover after being removed from the water vapor. Overall, the results obtained show the potential of using the investigated mycelium film for the development of acoustic humidity sensors.

Author Contributions

Investigation, B.Z., L.K., A.S. and A.A.; Methodology, V.K.; Software, A.T.; Supervision, I.K.; Validation, M.Z.; Visualization, A.S. All authors have read and agreed to the published version of the manuscript.

Funding

The work is financially supported by the grant of Russian Scientific Foundation # 19-79-00173.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Cho, N.-B.; Lim, T.-H.; Jeon, Y.-M.; Gong, M.-S. Inkjet printing of polymeric resistance humidity sensor using UV-curable electrolyte inks. Macromol. Res. 2008, 16, 149–154. [Google Scholar] [CrossRef]
  2. Pustelny, T.; Setkiewicz, M.; Drewniak, S.; Maciak, E.; Stolarczyk, A.; Procek, M.; Urbanczyk, M.; Gut, K.; Opilski, Z.; Pasternak, I.; et al. The influence of humidity on the resistance structures with graphene sensor layer. Acta Phys. Polon. A 2012, 122, 870–873. [Google Scholar] [CrossRef]
  3. Barkauskas, J. Investigation of conductometric humidity sensors. Talanta 1997, 44, 1107–1112. [Google Scholar] [CrossRef]
  4. Caliendo, C.; Verona, E.; Anisimkin, V.I. Surface acoustic wave humidity sensors: A comparison between different types of sensitive membrane. Smart Mater. Struct. 1997, 6, 707–715. [Google Scholar] [CrossRef][Green Version]
  5. Penza, M.; Anisimkin, V.I. Surface acoustic wave humidity sensor using polyvinyl-alcohol film. Sens. Actuators A 1999, 76, 162–166. [Google Scholar] [CrossRef]
  6. Narimani, K.; Nayeri, F.D.; Kolahdouz, M.; Ebrahimi, P. Fabrication, modeling and simulation of high sensitivity capacitive humidity sensors based on ZnO nanorods. Sens. Act. B Chem. 2016, 224, 338–343. [Google Scholar] [CrossRef]
  7. Bi, H.; Yin, K.; Ji, J.; Wan, S.; Sun, L.; Terrones, M.; Dresselhaus, M.S. Ultrahigh humidity sensitivity of graphene oxide. Sci. Rep. 2013, 3, 3714. [Google Scholar] [CrossRef][Green Version]
  8. Mujahid, A.; Afzal, A.; Dickert, F.L. An Overview of High Frequency Acoustic Sensors-QCMs, SAWs and FBARs-Chemical and Biochemical Applications. Sensors 2019, 19, 4395. [Google Scholar] [CrossRef] [PubMed][Green Version]
  9. Liu, J.; Zhao, Z.; Fang, Z.; Liu, Z.; Zhu, Y.; Du, L. High-performance FBAR humidity sensor based on the PI film as the multifunctional layer. Sens. Act. B Chem. 2020, 308, 127694. [Google Scholar] [CrossRef]
  10. Su, Y.; Li, C.; Li, M.; Li, H.; Xu, S.; Qian, L.; Yang, B. Surface acoustic wave humidity sensor based on three-dimensional architecture graphene/PVA/SiO2 and its application for respiration monitoring. Sens. Act. B Chem. 2020, 308, 127693. [Google Scholar] [CrossRef]
  11. Kuznetsova, I.E.; Anisimkin, V.I.; Kolesov, V.V.; Kashin, V.V.; Osipenko, V.A.; Gubin, S.P.; Tkachev, S.V.; Verona, E.; Sun, S.; Kuznetsova, A.S. Sezawa wave acoustic humidity sensor based on graphene oxide sensitive film with enhanced sensitivity. Sens. Act. B Chem. 2018, 272, 236–242. [Google Scholar] [CrossRef]
  12. Zheng, X.; Fan, R.; Li, C.; Yang, X.; Li, H.; Lin, J.; Zhou, X.; Lv, R. A fast-response and highly linear humidity sensor based on quartz crystal microbalance. Sens. Act. B Chem. 2019, 283, 659–665. [Google Scholar] [CrossRef]
  13. Kuznetsova, I.E.; Anisimkin, V.I.; Gubin, S.P.; Tkachev, S.V.; Kolesov, V.V.; Kashin, V.V.; Zaitsev, B.D.; Shikhabudinov, A.M.; Verona, E.; Sun, S. Super high sensitive plate acoustic wave humidity sensor based on graphene oxide film. Ultrasonics 2017, 81, 135–139. [Google Scholar] [CrossRef] [PubMed]
  14. Balantine, D.S.; White, R.M.; Martin, S.J.; Ricco, A.J.; Frye, G.C.; Zellers, E.T.; Wohltjen, H. Acoustic Wave Sensors: Theory, Design and Physico-Chemical Applications; John Willey & Sons: New York, NY, USA, 1997. [Google Scholar]
  15. Zaitsev, B.D.; Teplykh, A.A.; Fedorov, F.S.; Grebenko, A.K.; Nasibulin, A.G.; Semyonov, A.P.; Borodina, I.A. Evaluation of elastic properties and conductivity of chitosan acetate films in ammonia and water vapors using acoustic resonators. Sensors 2020, 20, 2236. [Google Scholar] [CrossRef] [PubMed][Green Version]
  16. Silina, Y.E.; Kuchmenko, T.A.; Korenman, Y.I.; Tsivileva, O.M.; Nikitina, V.E. Use of a complete factorial experiment for designing a gas sensor based on extracts of Pleurotus ostreatus mycelium mushroom. J. Analyt. Chem. 2005, 60, 678–683. [Google Scholar] [CrossRef]
  17. Kuznetsova, I.E.; Zaitsev, B.D.; Shikhabudinov, A.M.; Tsivileva, O.M.; Pankratov, A.N.; Verona, E. Acousto-electronic gas sensor based on mushroom mycelium extracts. Sens. Act. B Chem. 2017, 243, 525–531. [Google Scholar] [CrossRef]
  18. Wasser, S.P. Medicinal mushroom science: Current perspectives, advances, evidences, and challenges. Biomed. J. 2014, 37, 345–356. [Google Scholar] [CrossRef]
  19. Trenin, A.S.; Bychkova, O.P.; Tsvigun, E.A.; Dzhavakhyan, B.R.; Tyurin, A.P.; Krasnopolskaya, L.M. Obtaining sterol biosynthesis’ inhibitors in the culture of basidiomycete Pleurotus Eryngii. Uspekhi Med. Mikol. 2015, 14, 476–479. [Google Scholar]
  20. Krasnopolskaya, L.M.; Leontieva, M.I.; Avtonomova, A.V.; Isakova, E.B.; Belitskii, I.V.; Bukhman, V.M.; Usov, A.I. Antitumor properties of submerged cultivated biomass and extracts of medicinal mushrooms of genus HYPSIZYGUS Singer (AGARICOMYCETIDEAE). Intern. J. Med. Mushrooms 2008, 10, 25–35. [Google Scholar] [CrossRef]
  21. Avtonomova, A.V.; Krasnopol’skaia, L.M.; Maksimov, V.N. Optimization of nutrient medium for submerged cultivation of Ganoderma lucidum (Curt.: Fr.) P. Karst. Microbiology 2006, 75, 148–153. [Google Scholar] [CrossRef]
  22. Evsenko, M.S.; Shashkov, A.S.; Avtonomova, A.V.; Krasnopolskaya, L.M.; Usov, A.I. Polysaccharides of basidiomycetes. alkali-soluble polysaccharides from the mycelium of white rot fungus Ganoderma lucidum (Curt.: Fr.) P. Karst. Biochemistry (Mosc.) 2009, 74, 533–542. [Google Scholar] [CrossRef] [PubMed]
  23. Krasnopol’skaya, L.M.; Yarina, M.S.; Avtonomova, A.V.; Usov, A.I.; Isakova, E.B.; Bukchman, V.M. Antitumor Activity of Polysaccharides from Ganoderma lucidum Mycelium: In vivo Comparative Study. Antibiot. Chemoterapy (Mosc.) 2015, 60, 29–34. [Google Scholar]
  24. Yarina, M. ; Krasnopolskaya , L.; Usov , A.; Marakhonov, A. Ganoderma lucidum and Ganoderma resinaceum strains producing antitumor alkali-solublepolysaccharide xylomannan. In Proceedings of the XXXVII Annual Meeting of the European Culture Collections Organization, Moscow, Russia, 13–15 September 2018; pp. 128–129. [Google Scholar]
  25. Dieulesaint, E.; Royer, D. Elastic Waves in Solids: Applications to Signal Processing; John Wiley & Sons: New York, NY, USA, 1980. [Google Scholar]
  26. Kuznetsova, I.E.; Zaitsev, B.D.; Shikhabudinov, A.M. Elastic and viscosity properties of Nanocomposite Films Based on Low-Density Polyethylene. IEEE Trans. Ultras. Ferroel. Freq. Contr. 2010, 57, 2099–2102. [Google Scholar] [CrossRef] [PubMed]
  27. Vetchinkina, E.P.; Nikitina, V.E. Effect of the cold stress on the fruiting body production by the medicinal basidiomycetes in submerged and solid-phase culture. J. Stress Physiol. Biochem. 2017, 13, 26–34. [Google Scholar]
Figure 1. Colonies of P. eryngii (a) and an SEM image of P. eryngii mycelium (b): 1—branching hyphae; 2—clamp connection.
Figure 1. Colonies of P. eryngii (a) and an SEM image of P. eryngii mycelium (b): 1—branching hyphae; 2—clamp connection.
Sensors 20 02711 g001
Figure 2. Colonies of G. lucidum (a) and SEM image of G. lucidum mycelium (b): 1—hypha; 2—coral-shaped mycelium; 3—chlamydospores.
Figure 2. Colonies of G. lucidum (a) and SEM image of G. lucidum mycelium (b): 1—hypha; 2—coral-shaped mycelium; 3—chlamydospores.
Sensors 20 02711 g002
Figure 3. SEM images of G. lucidum mycelium. The coral-shaped mycelium (a) and clamp connection (b).
Figure 3. SEM images of G. lucidum mycelium. The coral-shaped mycelium (a) and clamp connection (b).
Sensors 20 02711 g003
Figure 4. Test chamber with resonator loaded with mycelium film under study.
Figure 4. Test chamber with resonator loaded with mycelium film under study.
Sensors 20 02711 g004

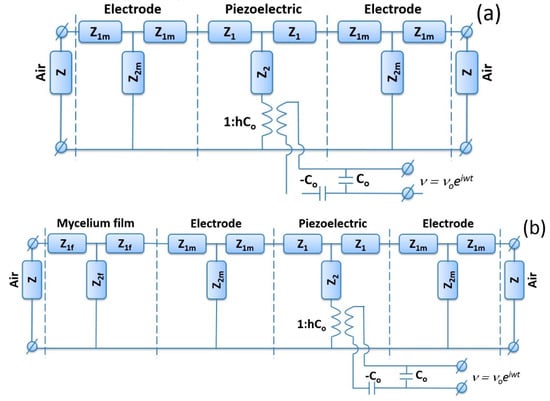

Figure 5. Mason’s equivalent circuits for the resonator with electrodes (a) without and (b) with the mycelium film under study.
Figure 5. Mason’s equivalent circuits for the resonator with electrodes (a) without and (b) with the mycelium film under study.
Sensors 20 02711 g005

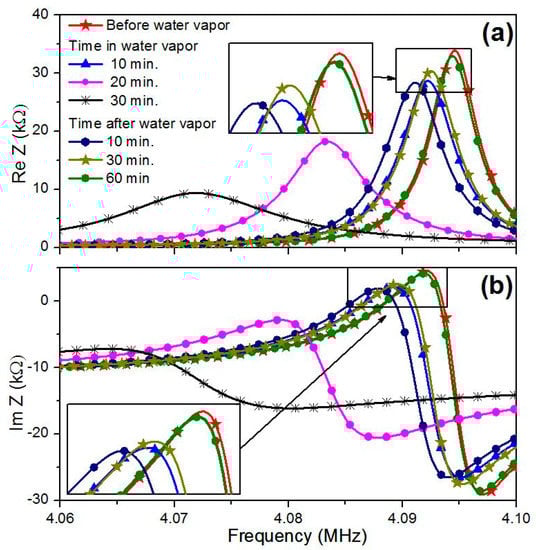

Figure 6. Frequency dependencies of (a) the real and (b) imaginary parts of the complex electrical impedance of the AT-quartz resonator loaded by the mushroom P. eryngii mycelium film.
Figure 6. Frequency dependencies of (a) the real and (b) imaginary parts of the complex electrical impedance of the AT-quartz resonator loaded by the mushroom P. eryngii mycelium film.
Sensors 20 02711 g006

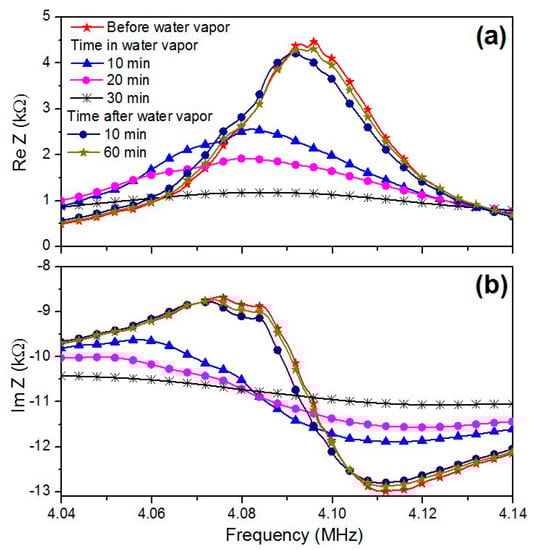

Figure 7. Frequency dependencies of (a) the real and (b) imaginary parts of the complex electrical impedance of the AT-quartz resonator loaded by the mushroom G. lucidum mycelium film.
Figure 7. Frequency dependencies of (a) the real and (b) imaginary parts of the complex electrical impedance of the AT-quartz resonator loaded by the mushroom G. lucidum mycelium film.
Sensors 20 02711 g007
Table 1. Time dependence of the humidity (RH%) obtained in experiment.
Table 1. Time dependence of the humidity (RH%) obtained in experiment.
Moment of Measurement Time0 min in air10 min in vapor20 min in vapor30 min in vapor10 min out of vapor20 min out of vapor30 min out of vapor60 min out of vapor
RH%1740485640282017
Table 2. Parameters of the mushroom P. eryngii mycelium film at different values of humidity.
Table 2. Parameters of the mushroom P. eryngii mycelium film at different values of humidity.
TimeRH%df, μmCf66, GPaη66f, Pa × sρf, kg/m3mf, μg
0 min in air1722.88 ± 0.010.69 ± 0.012.5 ± 0.11100 ± 100.711
10 min in vapor4022.86 ± 0.010.67 ± 0.012.6 ± 0.11110 ± 100.717
20 min in vapor4822.86 ± 0.010.60 ± 0.012.7 ± 0.11150 ± 100.743
30 min in vapor5623.32 ± 0.010.56 ± 0.014.0 ± 0.11190 ± 100.784
10 min after vapor4022.76 ± 0.010.60 ± 0.012.1 ± 0.11100 ± 100.707
20 min after vapor2822.68 ± 0.010.66 ± 0.012.5 ± 0.11120 ± 100.717
30 min after vapor2022.91 ± 0.010.68 ± 0.012.6 ± 0.11110 ± 100.718
60 min after vapor1722.9 ± 0.010.69 ± 0.012.6 ± 0.11100 ± 100.718
Table 3. Parameters of the mushroom G. lucidum mycelium film at different values of humidity.
Table 3. Parameters of the mushroom G. lucidum mycelium film at different values of humidity.
TimeRH%df, μmCf66, GPaη66f, Pa × sρf, kg/m3mf, μg
0 min in air1717.5 ± 0.10.28 ± 0.014.0 ± 0.11300 ± 100.642
10 min in vapor4017.6 ± 0.10.24 ± 0.014.7 ± 0.11370 ± 100.681
20 min in vapor4817.8 ± 0.10.19 ± 0.014.7 ± 0.11400 ± 100.704
30 min in vapor5619.4 ± 0.10.17 ± 0.015.1 ± 0.11390 ± 100.762
10 min after vapor4017.3 ± 0.10.26 ± 0.013.4 ± 0.11300 ± 100.635
60 min after vapor1717.3 ± 0.10.27 ± 0.013.8 ± 0.11300 ± 100.635
