Article

High Sensitive Biosensors Based on the Coupling Between Surface Plasmon Polaritons on Titanium Nitride and a Planar Waveguide Mode

1
Facultad de Ciencias, Universidad Nacional de Ingeniería, Lima 15333, Peru
2
Tianjin International Center for Nano Particles and Nano Systems, Tianjin University, Tianjin 300072, China
*
Author to whom correspondence should be addressed.
Sensors 2020, 20(6), 1784; https://doi.org/10.3390/s20061784
Submission received: 16 February 2020 / Revised: 20 March 2020 / Accepted: 20 March 2020 / Published: 23 March 2020

Abstract

:
High sensitivity biosensors based on the coupling of surface plasmon polaritons on titanium nitride (TiN) and a planar waveguide mode were built; they were proved by sensing three different media: air, water and dried egg white; sensors described here could be useful for sensing materials with a refractive index between 1.0 and 1.6; in particular, materials of biological interest with a refractive index in the range 1.3–1.6, like those containing biotin and/or streptavidin. They were built by depositing Nb2O5/SiO2/TiN multilayer structures on the flat surface of D-shaped sapphire prisms by using the dc magnetron sputtering technique. Attenuated total reflection (ATR) experiments in the Kretschmann configuration were accomplished for the air/TiN/Prism and S/Nb2O5/SiO2/TiN/Prism structures, S being the sample or sensing medium. ATR spectra for plasmons at the TiN/air interface showed a broad absorption band for angles of incidence between 36 and 85°, with full width at half maximum (FWHM) of approximately 40°. For the S/Nb2O5/SiO2/TiN/Prism structures, ATR spectra showed a sharp reflectivity peak, within the broad plasmonic absorption band, which was associated with Fano resonances. The angular position and FWHM of the Fano resonances strongly depend on the refractive index of the sensing medium. ATR spectra were fitted by using the transfer-matrix method. Additionally, we found that angular sensitivity and figure of merit increase with increasing the refractive index of the sensing medium.

1. Introduction

Surface plasmon polaritons (SPPs) are electromagnetic waves, in the infrared or visible frequency-range, simultaneously propagating in the two adjacent media of a dielectric–metal interface, producing collective oscillations of the electronic plasma on the metal surface and consequently dissipation of electromagnetic energy. A very detailed discussion of electromagnetic modes propagating at the boundaries of a thin metallic film with two semi-infinite dielectric media at both sides of the film is given by J.J. Burke et al. [1]; book by S.A. Maier [2] is also an excellent reference to review dispersion relations and conditions which have to be satisfied by the refractive indices of the media, as well as, to review experimental techniques of excitation and detection of SPPs.
A very common experimental set up for producing and detecting SPPs was first suggested by Kretschmann [3] in 1971. In this technique, the very well known experiment of total reflection is slightly modified by placing a thin film of a noble metal (gold or silver) on the flat surface of a D-shaped prism; SPPs are excited by evanescent waves traveling at the interface when angles of incidence are greater than the critical angle. The technique is also called attenuated total reflectance (ATR). SPPs are detected as a dip in the ATR spectrum (reflectivity vs. angle-of-incidence data). SPPs in the Kretschmann configuration started to be used experimentally as gas and biomolecular sensors since the early eighties; in the 90s, these sensors became commercial [4,5,6]. Other techniques (Otto configuration [7], grating coupling [8] and end fire excitation [9]) are also available for exciting and detecting SPPs. Typical ATR spectra [10,11] for plasmon absorption in noble metals show an absorption dip, with full width at half maximum (FWHM) of approximately 2°. On the other hand, it is very well known in the electromagnetic theory that an L/H/L structure of dielectric layers, where L and H, respectively, mean low and high refractive index, constitute a planar waveguide (PWG) structure. When a PWG structure over coats the noble-metal film of a plasmonic device, important variations in the ATR spectra occur [12,13,14,15,16,17], specifically, it results in a very sharp reflectance peak within a broad absorption dip. This effect is called plasmon induced transparency (PIT) and it has been named after the well-known phenomenon of electromagnetically induced transparency (EIT) [18,19,20], in which a narrow transparent window appears within a broad absorption band. Both effects, EIT and PIT are explained due to the interaction between a discrete level and a continuum of quantum states. Typically this interaction produces also an asymmetry in the resonance line shape; this was first explained by U Fano [21] and the phenomenon is also known as Fano resonance.
The state of the art for SPR coupled PWG sensors is that there are several publications [22,23,24,25,26,27] proposing theoretical designs, but there are only some few reports of experimental results; experimental studies published at the present are based on plasmonic metals like Ag, Al, Au and one based on Ge-doped SiO2 [15,28,29,30]. In this paper we report, firstly, the experimental observation of SPPs in the Kretschmann configuration produced at a TiN/air interface. For that, a thin film of titanium nitride was deposited on the flat surface of a D-shaped sapphire prism by dc magnetron sputtering; titanium nitride films have an optical appearance very similar to that of gold films; in addition, titanium nitride shows some properties such as: high hardness, high resistance to scratches and the ease of being produced by PVD techniques, which could be important for some specific applications. Our results were compared with those of pioneer studies of the plasmonic properties of titanium nitride [31,32,33,34,35,36,37]. Secondly, we report the construction of high sensitivity biosensors consisting of a layer of titanium nitride deposited on the flat surface of a D-shaped sapphire prism and over coated with two oxide layers: first a silicon dioxide layer or L-layer with nL = 1.5 and then a niobium pentoxide layer or H-layer with nH = 2.2. Then we got the H/L/TiN/Prism structure. Finally, we report and discuss the ATR angular responses in the Kretschmann configuration when the H-layer comes into contact with a sensing medium with refractive index nS (nS < nH), that is, an S/H/L/TiN/Prism structure. A narrow peak of the reflection intensity was observed within a broad absorption band and it was attributed to the plasmon induced transparency, or Fano resonance, due to the coupling between the continuum of quantum states of the surface plasmon polaritons at the TiN/SiO2 interface with the discrete level of a propagation mode of the plane waveguide structure constituted by: the silicon dioxide layer, niobium pentoxide layer and the sample or sensing medium (S). Sample media investigated were three: air, water and dried egg white. Each experimental spectrum was fitted to a theoretical one, by using the transfer-matrix method. From the fitted spectra we calculated the angular sensitivity and the figure of merit (FOM) for some reported sensors.

2. Materials and Methods

Titanium nitride thin films were produced by dc magnetron sputtering onto the flat surface of D-shaped prisms made of sapphire. The target was a 3 inches diameter and 4 mm-thick disk of metallic titanium, 99.99% pure. The process was achieved in an atmosphere of 92% argon + 8% nitrogen. The plasma current was 400 mA and the deposition rate 20 nm per minute. The substrate temperature during the deposition process was 400 °C. Samples so produced were ready for ATR investigation in the Kretschmann configuration. A second type of samples were prepared by over coating the titanium nitride film with a layer of silicon dioxide and one of niobium pentoxide. For SiO2 sputter deposition, the target was a silicon disk, 3 inches diameter, 99.99% purity and 4 mm thick; the deposition atmosphere was 6% O2 + 94% Ar and the deposition rate was one micron per hour. Deposition conditions for Nb2O5 films were similar to those of silicon dioxide but a metallic target of niobium 99.99% pure was used.
X-ray diffraction was used for the verification of the crystalline structure of materials and scanning electron microscopy for verification of the multilayer structure and thicknesses measurements. The instruments were Bruker D8 and Hitachi 8230, respectively. X-ray diffraction was achieved in the theta-2theta configuration with cooper radiation of wavelength 0.154 nm.
Figure 1 shows the diffraction pattern of an Nb2O5/SiO2/TiN/sapphire structure. Typical diffraction peak at 36.70° was observed, which verified the structure of titanium nitride; rock salt structure with lattice parameter a = 0.42 nm. No diffraction peaks for oxide layers told us that they were amorphous; Figure 2 shows a SEM micrography where it can be seen the thickness of the titanium nitride thin film, as well as, that of silicon dioxide and niobium pentoxide layers.
The experimental set up for measurements of reflectance vs. angle of incidence in the Kretschmann configuration is schematically shown in Figure 3. The source was a helium-neon laser of 632.8 nm, 1 mW. A polarizer and a thin slit were placed between the laser and the prism in such a way that p-polarized light hits on the prism; the rectangular light spot on the cylindrical surface of the prism was approximately 0.1 × 1 mm2. The intensity of the reflected beam was measured by using a photo detector constituted by a silicon photo diode and an amplifier. The device (TiN/sapphire prism or L/H/TiN/sapphire prism) and the detector were placed on two coaxial rotary tables in a theta-2theta system, in such a way that reflectance could be measured from 20 to 85° every 0.01°. Data were automatically recorded by using a Leybold Mobile-Cassy 2 computer interface.
In Figure 4, we schematically show the two types of devices, which were built and studied in this paper, the diameter of the D-prism was 25 mm; the glass cell was used, in this work, only for liquid media, i.e., water; fresh egg white was manually smeared on the Nb2O5 layer and waited 24 hours for drying at atmospheric conditions; measurements with air as sensing medium were accomplished with and without cell, the results were the same.
From a theoretical point of view, the problem of calculating the reflectance vs. angle-of-incidence response in terms of the refractive indices (nj) and thickness of the different layers (tj) is completely solved by the electromagnetic theory [38,39]. In the transfer-matrix method, one 2 × 2 matrix is constructed, which relates the incident and reflected waves in medium 1 (the prism) with the outgoing ray in the last medium (or sensing medium); this matrix is expressed in terms of the incident angle, the refractive indices of all the involved media and the thickness of all the layers. Following these ideas, we made a program in JavaScript language, which simulates an ATR angle-spectrum for each set of nj and tj parameters. This program also works inversely: when we have an experimental ATR spectrum we can obtain the optical parameters (complex refractive index, in general, ñj = nj+ikj) and thicknesses tj of the media, which better fit the experimental data. The fitting ideas have been proposed before for Zdzislaw et al. [6], as well as, Hibbins et al. [23] as methods to obtain spectral dependence of optical constants of the conducting layer and/or of a dielectric layer on top of it. In addition, several authors [12,13,14,15,16,17] have used simulation programs for the theoretical analysis of proposed new plasmonic structures. In this work, we used the program in both senses: simulation before manufacturing (designing) the plasmonic structures and fitting after the measurements of reflectance vs. angle of incidence.
The parameters angular sensitivity, intensity sensitivity and figure of merit are defined [12,40], respectively, as:
S θ = Δ θ Δ n
S I = Δ R Δ n
F O M = Δ R max Δ n
We have used angular sensitivity and figure of merit to characterize some of our sensors.

3. Results and Discussion

In Section 3 we firstly reported and discussed the experimental and fitted ATR spectra of SPPs at a TiN/air interface by using the Kretschmann configuration; from the fitted data we obtained the optical constants and complex electrical permittivity of titanium nitride at wavelength 633 nm. We also reported and discussed the experimental and fitted ATR spectra of the S/H/L/TiN/Prism multilayer structures, which were proposed here as prototypes of high sensitivity biosensors; from the data of fitted spectra, we obtained the angular sensitivity and the figure of merit for some sensors.
In Figure 5 we show an ATR spectrum for a basic device constituted by a thin film of titanium nitride deposited onto the flat surface of a sapphire D-shaped prism; this basic device is schematically shown in Figure 4a. Red line represents experimental data and the blue curve shows the respective fitting. The main feature of this angular spectrum was a very wide absorption band going from 36° (the sapphire–air critical angle) to 85°. The minimum reflectance was around 55°, the FWHM was approximately 40°. These features of our data agreed very well with those reported by N.C. Chen et al. [36]. Our experimental data were fitted by using the transfer-matrix method; the optical constants and thicknesses that better fit the data are shown in Table 1. From n and k data for TiN, the real and imaginary parts of relative dielectric permittivity were calculated and we obtained the value:
ε r = ε 1 + i ε 2 = 3.39 + 6.22 i
Several authors [6,33,34,37] have reported theoretical and experimental data on relative dielectric permittivity and refractive index of titanium nitride prepared at different conditions; the real part of dielectric permittivity for TiN at wavelength 633 nm was in the range between −2 and −7 and the imaginary part was in the range between 1 and 7. In summary, we could say that optical constants and dielectric permittivity for sputtered titanium nitride films depended strongly on the sputter deposition conditions, there exists in the literature a range of values compatible with excitation of surface plasmon on TiN films and our results were inside this range.
It is also important to compare basic plasmonic devices based on a TiN film with conventional sensors based on a gold thin film; in ATR experiments and simulations reported by other authors [5,6,10,11], the absorption dip for SPPs at a gold/air interface has typically a FWHM around 2°; the big difference respect to SPPs at a TiN/air interface (40°) can be understood if we explore what happens with the simulated spectra when all parameters are fixed, except the k parameter. What actually happens is the broadening of the absorption dip when k decreases. For gold, the parameter k value is between 3.1 and 3.5 [11,12,16], whereas for titanium nitride produced in this work the k parameter values was 2.29 as shown in Table 1. Other interesting explanation of the differences in the ATR spectra at gold/air and TiN/air interfaces is given by Chen et al. [27]; they attribute the broadening of the band to the low mobility of electrons in titanium nitride associated to the larger damping of carriers. Both explanations, ours here and that of Chen et al., are connected through the basic relations between complex refractive index ñ, complex relative dielectric–permittivity ε r and complex electrical conductivity σ , described by Equations (5) and (6). Low mobility of carriers in titanium nitride was evident since carrier concentrations for gold and TiN were very similar (6 × 1022 cm−3), whereas, electrical conductivity of gold was 38 times larger than that of TiN. From the point of view of applications to sensors or biosensors, monolayer devices based on noble metals were more convenient because they presented much more resolution than those based on titanium nitride, because of the sharpness of the absorption dips. However, the situation was different with multilayer sensors based on titanium nitride and PWG structures, as we will describe next here.
ñ = n + i k = ε r
ε r = ε r + i ε r = 1 σ τ ε 0 ( 1 + ω 2 τ 2 ) i σ ε 0 ω ( 1 + ω 2 τ 2 )
In Figure 6 we present nine ATR spectra for three sensors with the structure: S/Nb2O5/SiO2/TiN/Prism, S being the sensing medium: air, water or dried egg white. A scheme of this kind of device is in Figure 4b. The devices were constituted by a 33 nm thick titanium nitride film, the L-layer of SiO2 was 399 nm thick and the H-layer of niobium pentoxide was 102, 127 or 139 nm thick. Sensors were identified by the thickness of the layer with higher refractive index, i.e., the H-layer. The fitting parameters are giving in Table 2.
A first common feature of the nine ATR spectra in Figure 6 was the presence of a broad absorption band starting at an angle of incidence of approximately 56° and extending until 85°; this absorption band was explained as due to the surface plasmon polaritons set at the TiN/SiO2 interface. The second and most important feature of these spectra was the presence of a relatively narrow reflectance maximum within this broad absorption band; the physics explanation of this reflectance peak was the interaction between SPPs at TiN surface with the planar waveguide in the L/H/L structure, phenomenon known as plasmon induced transparency or Fano resonance. The angular position, the intensity and the width of the reflectance peaks varied with the thickness of the Nb2O5 layer, as well as, with the refractive index of the sensing media; increasing of the thickness of the H-layer shifts the angular position to higher values; greater values of the refractive index produce Fano resonances at larger angles of incidence. The matching between the fitting and the experimental curves was excellent, except at Fano resonances, in the cases of water and dried egg white; the reason was that the theoretical reflectance peak was extremely sharp (FWHM = 0.1°), and it was difficult to reach it experimentally with a laser spot of finite width (0.1 mm or 0.23°); nonetheless, the angular position of the reflectance maxima in the experimental and the fitted ATR spectra agreed very well, as shown in Figure 7; then experimental and theoretical angular sensitivities agreed very well, too. In Figure 8, we show a simulation of four spectra with refractive index very close to those of water and dried egg white; in Figure 8a for refractive indices 1.30 and 1.31; in Figure 8b for refractive index 1.550 and 1.551; these spectra were made with the fitting parameters for spectra shown in Figure 6c. From spectra in Figure 8 we obtained the angular sensitivity for samples with refractive index close to water
s θ = 30 deg R I U 1
and for samples with refractive index close to egg white
s θ = 100 deg R I U 1
These values were in good agreement with those obtained by Hayashi [12]; from Figure 8 we also got the figures of merit resulting FOM = 40 RIU−1 for samples with a refractive index close to water and FOM = 500 RIU−1 for samples with a refractive index close to dried egg white. It is clear that sensitivity parameters were better for samples with refractive index near dried egg white than water; we have to say, however, that changing the thickness of the H-layer to tH = 150 nm would improve the sensitivity parameters:
s θ = 36 deg R I U 1
F O M = 50 R I U 1
On the other hand, it is possible to improve much more the figure of merit for samples with refractive index near water by using a material with a lower refractive index as the L-layer; for example, in Figure 9 we show a theoretical ATR spectra for nL= 1.35 and the other parameters the same as in Figure 6c. The result is
s θ = 30 deg R I U 1
F O M = 450 R I U 1

4. Conclusions

Three prototypes of high sensitive biosensors were built by sputtering H/L/TiN multilayer structures on the flat surface of sapphire D-shaped prisms; the titanium nitride layer was approximately 33 nm thick, the L-layer was a 399 nm thick SiO2 film and the H-layer was a Nb2O5 film with thickness 102, 127 or 139 nm; the sensors were proved with three sensing media: air (n = 1), water (n = 1.33) and dried egg white (n = 1.55). For a specific sensor, the refractive index value of each sensing medium was identified with the angle of incidence value at which a Fano resonance occurred. The angular position of the Fano resonance increased for a larger thickness of the H-layer of the sensor and also for higher values of the refractive index of the sensing medium. Fano resonances were sharper (FWHM was lower) when they occurred at a greater angle of incidence, consequently, the angular sensitivity as well as the figure of merit were higher for Fano resonances happening between 70 and 80°. For sensors built and described in this paper, sensitivity parameters were better for samples with refractive index near egg white (n = 1.55) than near water (n = 1.33); however, based on theoretical calculations we have shown that it was possible to improve sensitivity parameters for samples with refractive index near water by increasing the thickness of the Nb2O5 layer and/or decreasing the refractive index of the L-layer. The great broadness of the plasmonic absorption-band (55–85°) allowed the Fano resonances to occur also in a great interval of angles of incidence, consequently, these sensors can be used for sensing materials in a wide interval of refractive index values, i.e., between 1.0 and 1.6; in particular, we hope these sensors could be useful for the study of molecular interactions involving streptavidin and biotin.

Author Contributions

J.A., realization of the main experimental part; R.M., development of fitting program; C.L., characterization of materials by XRD and SEM; A.T., direction of the research and manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Acknowledgments

One of us, J.A., is very grateful to Concytec for scholarship financing doctoral studies. A.T. is also very grateful to Universidad Nacional de Ingeniería and MINEDU Perú for special grants. as a researcher professor.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Burke, J.J.; Stegeman, G.I.; Tamir, T. Surface-polariton-like waves guided by thin, lossy metal films. Phys. Rev. B 1986, 33, 5186–5201. [Google Scholar] [CrossRef] [PubMed]
  2. Maier, S.A. Plasmonics: Fundamentals and Applications; Springer Science + Business Media LLC: New York, NY, USA, 2007. [Google Scholar]
  3. Kretschmann, E. The determination of the optical constants of metals by excitation of surface plasmons. Z. Phys. 1971, 241, 313–324. [Google Scholar] [CrossRef]
  4. Nylander, C.; Liedberg, B.; Lind, T. Gas detection by means of surface plasmon resonance. Sens. Actuators 1982, 3, 79–88. [Google Scholar] [CrossRef]
  5. Liedberg, B.; Nylander, C.; Lundström, I. Biosensing with surface plasmon resonance- how it all started. Biosens. Bioelectron. 1995, 10, 1–9. [Google Scholar] [CrossRef]
  6. Salamon, Z.; Macleod, A.H.; Tollin, G. Coupled plasmon-waveguide resonators: A new spectroscopy tool for probing proteolipid film structure and properties. Biophys. J. 1997, 73, 2791–2797. [Google Scholar] [CrossRef] [Green Version]
  7. Otto, A. Excitation of nonradiative surface plasmon waves in silver by the method of frustrated total reflectance. Z. Für Phys. 1968, 216, 398–410. [Google Scholar] [CrossRef]
  8. Devaux, E.; Ebessen, T.W.; Weeber, J.-C.; Dereux, A. Launching and decoupling surface plasmons via micro-gratings. Appl. Phys. Lett. 2003, 83, 4936–4938. [Google Scholar] [CrossRef]
  9. Stegeman, G.I.; Wallis, R.F.; Maradudin, A.A. Excitation of surface polaritons by end-fire coupling. Opt. Lett. 1983, 8, 386–388. [Google Scholar] [CrossRef]
  10. Pluchery, O.; Vayron, R.; Van, K.-H. Laboratory experiments for exploring the surface plasmon resonance. Eur. J. Phys. 2011, 32, 585–599. [Google Scholar] [CrossRef]
  11. Gwon, H.R.; Lee, S.H. Spectral and angular responses of surface plasmon resonance based on the Kretschmann prism configuration. Mater. Trans. 2010, 51, 1150–1155. [Google Scholar] [CrossRef] [Green Version]
  12. Hayashi, S.; Nesterenko, D.V.; Sekkat, Z. Waveguide-coupled surface plasmon resonance sensor structures: Fano lineshape engineering for ultrahigh-resonance sensing. J. Phys. D 2015, 48, 1–11. [Google Scholar] [CrossRef]
  13. Hayashi, S.; Nesterenko, D.V.; Sekkat, Z. Fano resonance and plasmon-induced transparency in waveguide-coupled surface plasmon resonance sensors. Appl. Phys. Express 2015, 8, 022201. [Google Scholar] [CrossRef] [Green Version]
  14. Nesterenko, D.V.; Hayashi, S.; Sekkat, Z. Extremely narrow resonances, giant sensitivity and field enhancement in low-loss waveguide sensors. J. Opt. 2016, 18, 1–12. [Google Scholar] [CrossRef]
  15. Hayashi, S.; Nesterenko, D.V.; Rahmouni, A.; Sekkat, Z. Observation of Fano line shapes arising from coupling between surface plasmon polariton and waveguide modes. Appl. Phys. Lett. 2016, 108, 051101. [Google Scholar] [CrossRef] [Green Version]
  16. Sekkat, Z.; Hayashi, S.; Nesterenko, D.V.; Rahmouni, A.; Refki, S.; Ishitobi, H.; Ynouye, Y.; Kawata, S. Plasmonic coupled modes in metal-dielectric multilayer structures: Fano resonance and field enhancement. Opt. Express 2016, 24, 20080. [Google Scholar] [CrossRef] [PubMed]
  17. Bera, M.; Ray, M. Coupled plasmonic assisted progressive multiple resonance for material dielectric characterization. Opt. Eng. 2011, 50, 103801. [Google Scholar] [CrossRef]
  18. Boller, K.-J.; Imamoglu, A.; Harris, E.S. Observation of electromagnetically induced transparency. Phys. Rev. Lett. 1991, 66, 2593–2596. [Google Scholar] [CrossRef] [Green Version]
  19. Harris, S.E. Electromagnetically induced transpartency. Phys. Today 1997, 50, 36–42. [Google Scholar] [CrossRef]
  20. Fleischhauer, M.; Imamoglu, A.; Marangos, J.P. Electromagnetic induced transparency: Optics in coherent madia. Rev. Mod. Phys. 2005, 77, 633–673. [Google Scholar] [CrossRef] [Green Version]
  21. Fano, U. Effects of configuration interaction on intensities and phase shifts. Phys. Rev. 1961, 124, 1866–1878. [Google Scholar] [CrossRef]
  22. Li, Y.; Yuan, Y.; Peng, X.; Song, J.; Liu, J.; Qu, J. An ultrasensitive Fano resonance biosensor using two dimensional hexagonal boron nitride nanosheets: Theoretical analysis. RSC Adv. 2019, 9, 29805–29812. [Google Scholar] [CrossRef] [Green Version]
  23. Zheng, G.; Zou, X.; Chen, Y.; Xu, L.; Rao, W. Fano resonance in graphene-MoS2 heterostruture-based surface plasmon resonance biosensor and its potential applications. Opt. Mater. 2017, 66, 171–178. [Google Scholar] [CrossRef]
  24. Grotewohl, H.; Deutsch, M. Tunable geometric fano reosnances based in a metal/insulator stack. J. Opt. 2015, 17, 085003. [Google Scholar] [CrossRef] [Green Version]
  25. Ruan, B.; Guo, J.; Wu, L.; Zhu, J.; You, Q.; Dai, X.; Xiang, Y. Ultrasenssitive terahertz biosensors based on Fano resonance of a graphene/waveguide hybrid structure. Sensors 2017, 1924. [Google Scholar] [CrossRef] [PubMed]
  26. Nesterenko, D.V.; Hayashi, S.; Sekkat, Z. Assymetric surface plasma resonance revisited as Fano resonance. Phys. Rev. B. 2018, 97, 235437. [Google Scholar] [CrossRef]
  27. Ruan, B.; You, Q.; Zhu, J.; Wu, L.; Guo, J.; Dai, X.; Xiang, Y. Fano resonance in double waveguides with grapheme and ultrasensitive biosensor. Opt. Express 2018, 26, 16884. [Google Scholar] [CrossRef]
  28. Hayashi, S.; Fujiwara, Y.; Kang, B.; Fujii, M.; Nesterenko, D.V.; Sekkat, Z. Line shape engineering of sharp Fano resonance in Al-based metal-dielectric multilayer structure. J. Appl. Phys. 2017, 122, 163103. [Google Scholar] [CrossRef]
  29. Zheng, G.; Cong, J.; Xu, L.; Wang, J. High-resolution surface plasmon resonance sensor with Fano resonance in waveguide-coupled multilayer structures. Appl. Phys. Express 2017, 10, 042202. [Google Scholar] [CrossRef]
  30. Kang, B.; Fujii, M.; Nesterenko, D.V.; Sekkat, Z.; Hayashi, S. Fano resonances in near-field absorption in all dielectric multilayer structures. J. Opt. 2018, 20, 125003. [Google Scholar] [CrossRef]
  31. Hertzing, A.A.; Guler, U.; Zhou, X.; Boltasseva, A.; Shalaev, V.; Norris, T.B. Electron energy loss spectroscopy of plasmon resonances in titanium nitride thin films. Appl. Phys. Lett. 2016, 108, 171107. [Google Scholar] [CrossRef]
  32. Hibbins, A.P.; Sambles, J.R.; Lawrence, C.R. Surface plasmon-polariton study of the optical dielectric function of titanium nitride. J. Mod. Opt. 1998, 2051–2062. [Google Scholar] [CrossRef]
  33. Naik, G.V.; Schroeder, J.L.; Ni, X.; Kildishev, A.V.; Sands, T.D.; Boltasseva, A. Titanium nitride as a plasmonic material for visible and near-infrared wavelenghts. Opt. Mater. Express 2012, 2, 478–489. [Google Scholar] [CrossRef] [Green Version]
  34. Kinsey, N.; Ferrera, M.; Naik, G.V.; Babicheva, V.E.; Shalaev, V.M.; Boltasseva, A. Experimental demonstration of titanium nitride plasmonic interconnects. Opt. Express 2014, 22, 12238. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Patsalas, P.; Kalfagiannis, N.; Kassavetis, S. Optical properties and plasmonic performance of titanium nitride. Materials 2015, 8, 3128–3154. [Google Scholar] [CrossRef] [Green Version]
  36. Chen, N.C.; Lien, W.C.; Liu, C.R.; Huang, Y.L.; Chou, C.; Chang, S.Y.; Ho, C.W. Excitation of surface plasma wave at TiN/air interface in the Kretschmann geometry. J. Appl. Phys. 2011, 109, 043104. [Google Scholar] [CrossRef]
  37. Jeyachandran, Y.L.; Narayandas, S.K.; Karunagaran, B.; Mangalaraj, D. Properties of titanium nitride films prepared by dc magnetron sputtering. Mater. Sci. Eng. A 2007, 445, 223–236. [Google Scholar] [CrossRef]
  38. Macleod, H.A. Thin-Film Optical Filters, 4th ed.; CRC Press: Boca Raton, FL, USA, 2010; pp. 42–46. [Google Scholar]
  39. José, M.C.; Fernando, A.L.; Fernando, J.L. Electromagnetic Optics Vol. II Materials and Applications; Addison Wesley/Universidad Autónoma de Madrid: Madrid, Spain, 2000; pp. 209–259. [Google Scholar]
  40. Homola, J.; Yee, S.S.; Gauglitz, G. Surface Plasmon resonance sensors: Review. Sens. Actuators B 1999, 54, 3–15. [Google Scholar] [CrossRef]

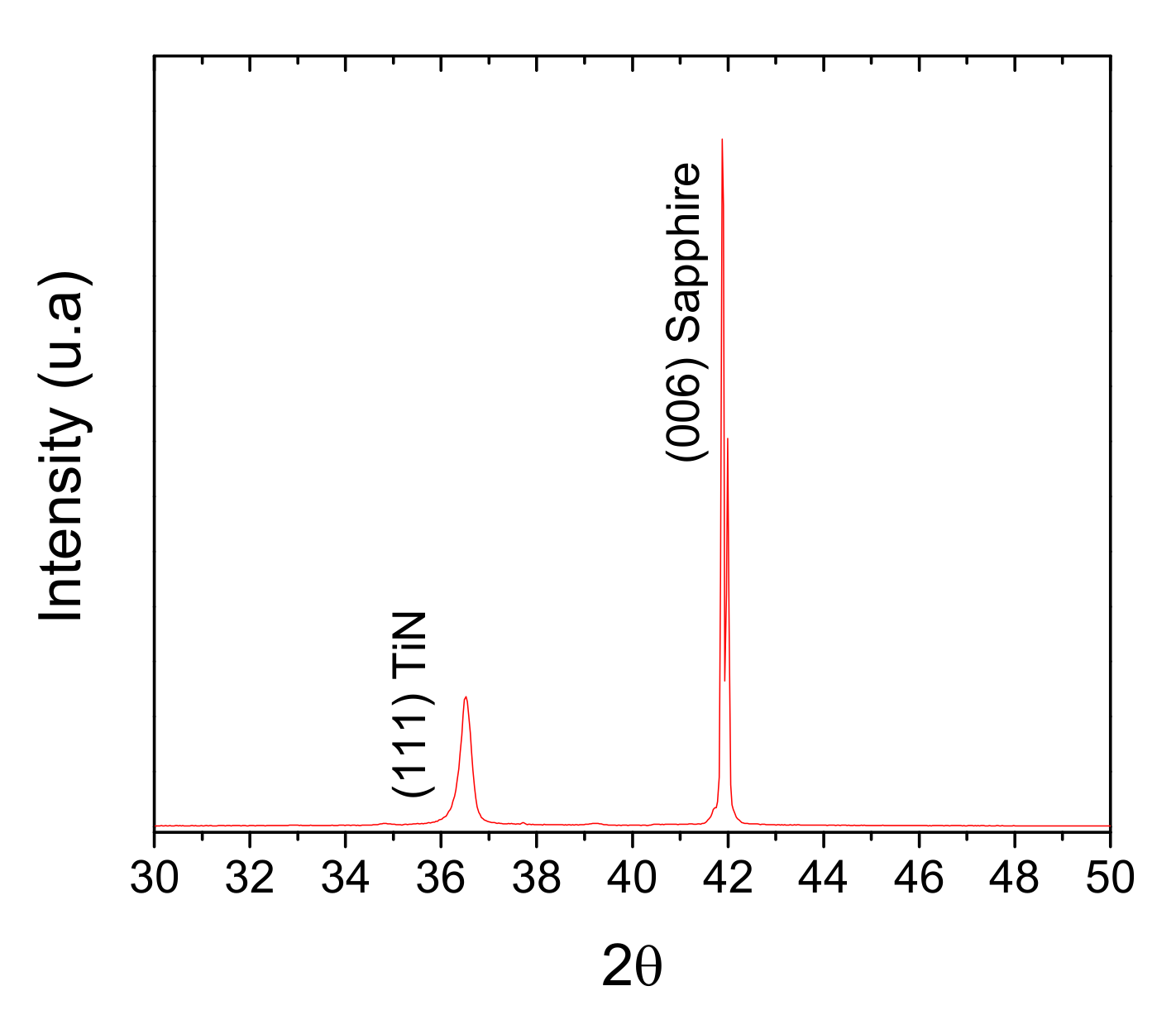

Figure 1. X-ray diffractogram of an Nb2O5/SiO2/TiN structure deposited on a sapphire plate.
Figure 1. X-ray diffractogram of an Nb2O5/SiO2/TiN structure deposited on a sapphire plate.
Sensors 20 01784 g001
Figure 2. SEM micrography showing the cross-section of an Nb2O5/SiO2/TiN structure; the thicknesses were 33 nm for the TiN film, 400 nm for the SiO2 layer and 100 nm for the Nb2O5 layer.
Figure 2. SEM micrography showing the cross-section of an Nb2O5/SiO2/TiN structure; the thicknesses were 33 nm for the TiN film, 400 nm for the SiO2 layer and 100 nm for the Nb2O5 layer.
Sensors 20 01784 g002
Figure 3. Schematic of the experimental setup for Reflectance vs. Angle-of-incidence measurements in the Kretschmann configuration; sensor and detector are mounted on two coaxial rotatory tables rotating in the plane of the figure, keeping the configuration theta-2theta; the incident ray is fixed respect to the laboratory.
Figure 3. Schematic of the experimental setup for Reflectance vs. Angle-of-incidence measurements in the Kretschmann configuration; sensor and detector are mounted on two coaxial rotatory tables rotating in the plane of the figure, keeping the configuration theta-2theta; the incident ray is fixed respect to the laboratory.
Sensors 20 01784 g003
Figure 4. Schematics of (a) D-shaped sapphire prism coated with a thin film of titanium nitride and (b) prototype of a high sensitivity sensor.
Figure 4. Schematics of (a) D-shaped sapphire prism coated with a thin film of titanium nitride and (b) prototype of a high sensitivity sensor.
Sensors 20 01784 g004

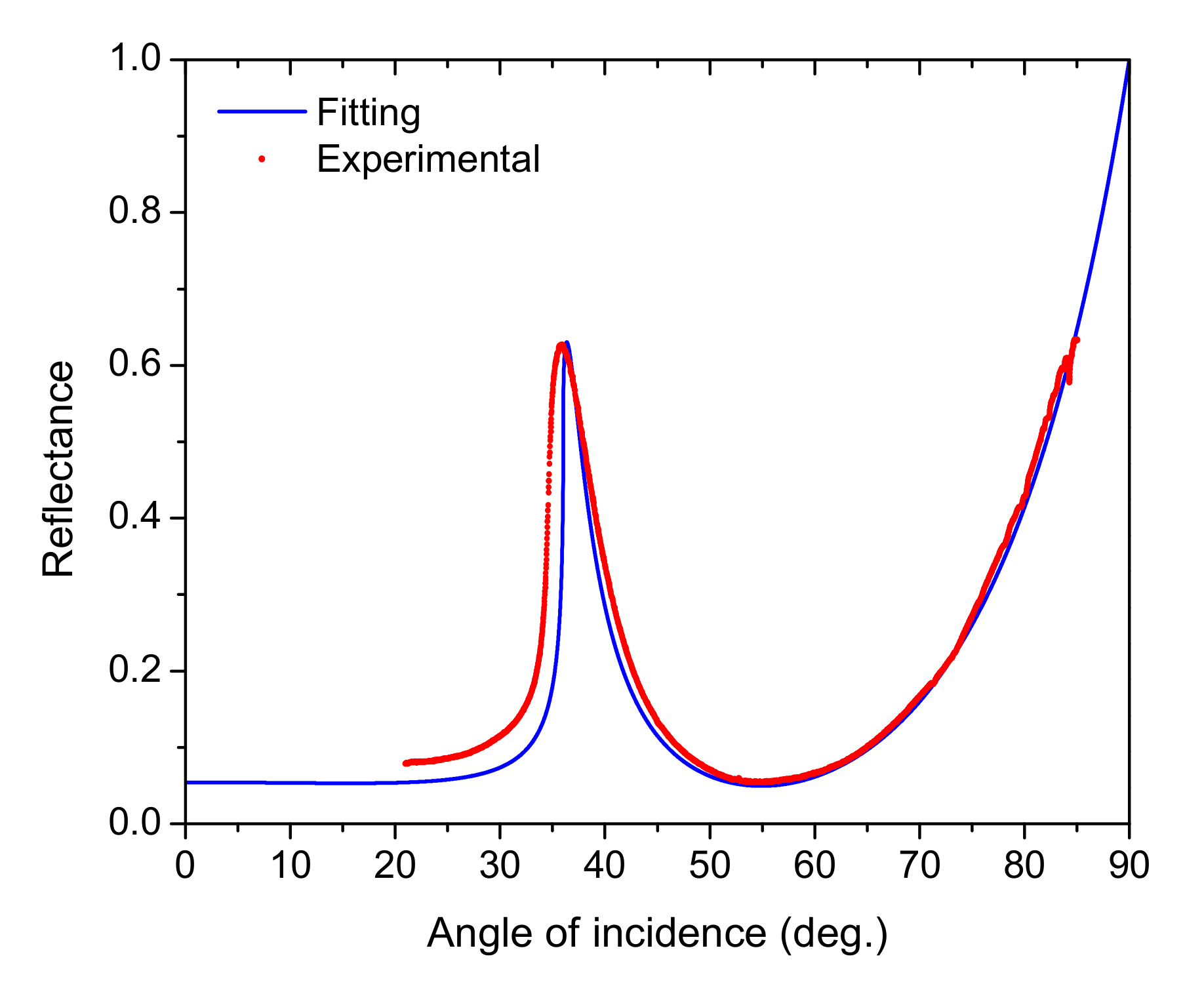

Figure 5. Experimental and fitted spectra for surface plasmon polaritons (SPPs) at an air/TiN interface, by using a sapphire D-shaped prism as substrate.
Figure 5. Experimental and fitted spectra for surface plasmon polaritons (SPPs) at an air/TiN interface, by using a sapphire D-shaped prism as substrate.
Sensors 20 01784 g005
Figure 6. ATR spectra of three multilayer sensors for three sensing media: air, water and dried egg white. Sensors are identified by the thickness of the H-layer: (a) 102 nm, (b) 127 nm and (c) 139 nm. Red curves represent experimental data and the blue are the respective fittings.
Figure 6. ATR spectra of three multilayer sensors for three sensing media: air, water and dried egg white. Sensors are identified by the thickness of the H-layer: (a) 102 nm, (b) 127 nm and (c) 139 nm. Red curves represent experimental data and the blue are the respective fittings.
Sensors 20 01784 g006
Figure 7. Partial sections of experimental and fitted ATR spectra shown in Figure 6c for water (a) and dried egg white (b). Data in these figures is the same as that in Figure 6c, except that the experimental data was multiplied by a constant factor. The purpose is the comparison of the angular position of theoretical and experimental reflectance peaks.
Figure 7. Partial sections of experimental and fitted ATR spectra shown in Figure 6c for water (a) and dried egg white (b). Data in these figures is the same as that in Figure 6c, except that the experimental data was multiplied by a constant factor. The purpose is the comparison of the angular position of theoretical and experimental reflectance peaks.
Sensors 20 01784 g007
Figure 8. Fitted ATR spectrum 6c (tH = 139 nm) near Fano resonances for samples with refractive index (a) near water and (b) near egg white, which allows one to estimate the angular sensitivity and the figure of merit for this sensor. For water: Sθ = 30 deg RIU−1 and FOM = 40 RIU−1. For dried egg white: Sθ = 100 deg RIU−1 and FOM = 500 RIU−1.
Figure 8. Fitted ATR spectrum 6c (tH = 139 nm) near Fano resonances for samples with refractive index (a) near water and (b) near egg white, which allows one to estimate the angular sensitivity and the figure of merit for this sensor. For water: Sθ = 30 deg RIU−1 and FOM = 40 RIU−1. For dried egg white: Sθ = 100 deg RIU−1 and FOM = 500 RIU−1.
Sensors 20 01784 g008

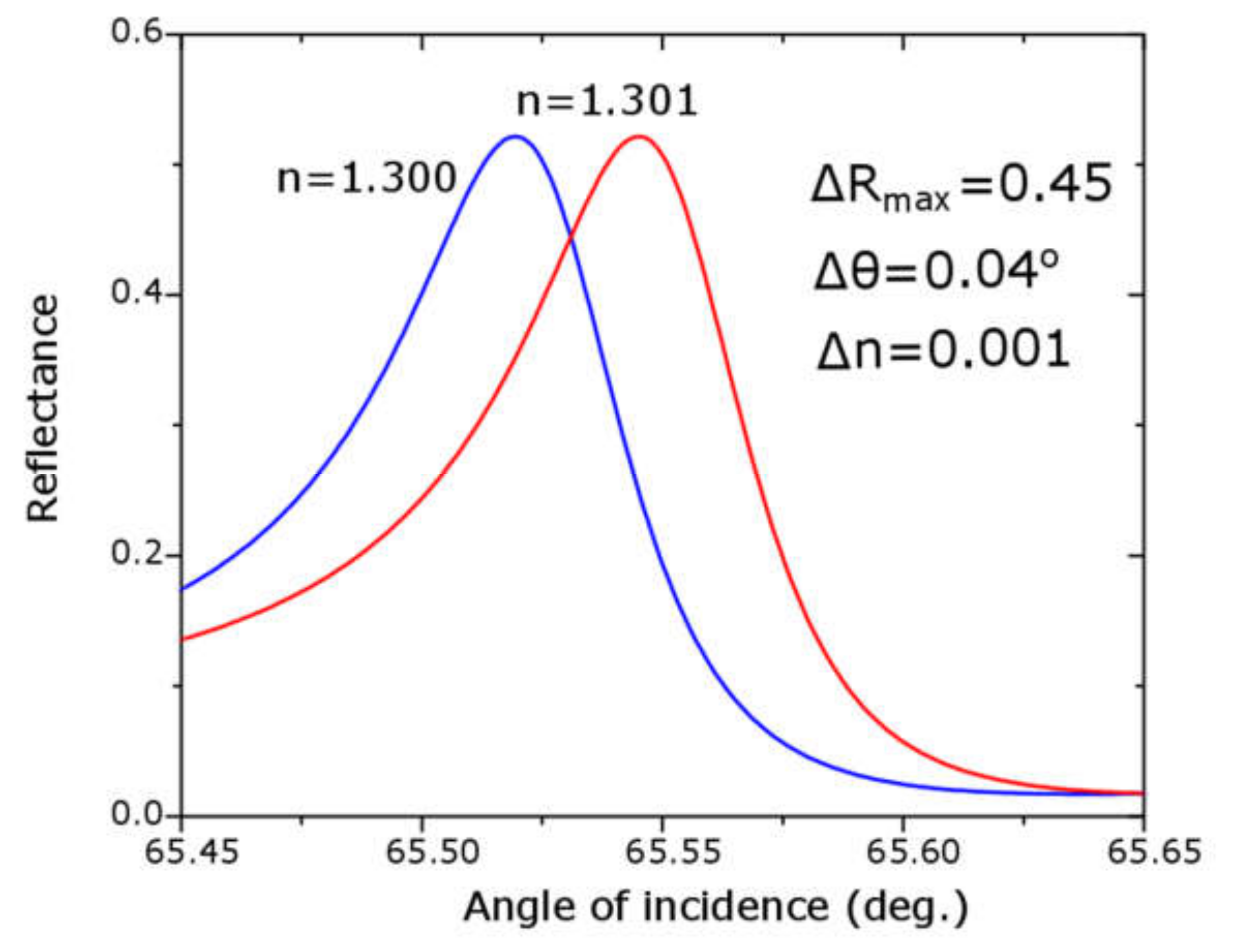

Figure 9. Theoretical ATR spectrum (tH = 139 nm) near Fano resonances for samples with refractive index near water, which shows the possibility to improve sensitivity parameters by changing the refractive index of the L-layer. By using nL = 1.35 and the other parameters equal to those of spectra in Figure 6c, it is possible to obtain for sensing media with a refractive index near water: Sθ = 30 deg RIU−1 and FOM = 450 RIU−1.
Figure 9. Theoretical ATR spectrum (tH = 139 nm) near Fano resonances for samples with refractive index near water, which shows the possibility to improve sensitivity parameters by changing the refractive index of the L-layer. By using nL = 1.35 and the other parameters equal to those of spectra in Figure 6c, it is possible to obtain for sensing media with a refractive index near water: Sθ = 30 deg RIU−1 and FOM = 450 RIU−1.
Sensors 20 01784 g009
Table 1. Thickness and optical parameters of the TiN thin film, which better fit the attenuated total reflectance (ATR) spectrum of Figure 5.
Table 1. Thickness and optical parameters of the TiN thin film, which better fit the attenuated total reflectance (ATR) spectrum of Figure 5.
MaterialThicknessnk
AirSemi infinite1.00
Titanium nitride24 nm1.362.29
SapphireSemi infinite1.770
Table 2. Optical parameters, which better fix the ATR spectra of Figure 6.
Table 2. Optical parameters, which better fix the ATR spectra of Figure 6.
SensorMaterialThickness (nm)nk
ATiN331.222.67
ASiO23991.490
ANb2051022.20
AAirsemi infinite10
AWatersemi infinite1.330
Adried egg whitesemi infinite1.550
BMaterial thicknessnk
BTiN331.222.67
BSiO23991.490
BNb2051272.20
BAirsemi infinite10
BWatersemi infinite1.330
Bdried egg whitesemi infinite1.550
CMaterial thicknessnk
CTiN331.222.67
CSiO23991.490
CNb2051392.20
CAirsemi infinite10
CWatersemi infinite1.33170
Cdried egg whitesemi infinite1.550
