Precise Amplitude and Phase Determination Using Resampling Algorithms for Calibrating Sampled Value Instruments
Abstract
:1. Introduction
2. Designs and Methods
2.1. Resampling Process and Simulated Algorithms

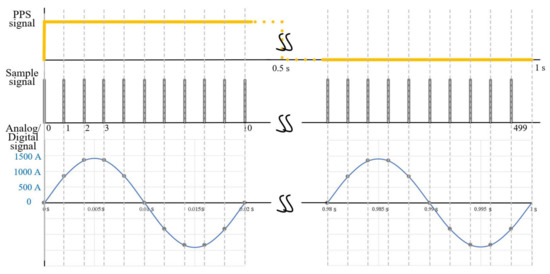

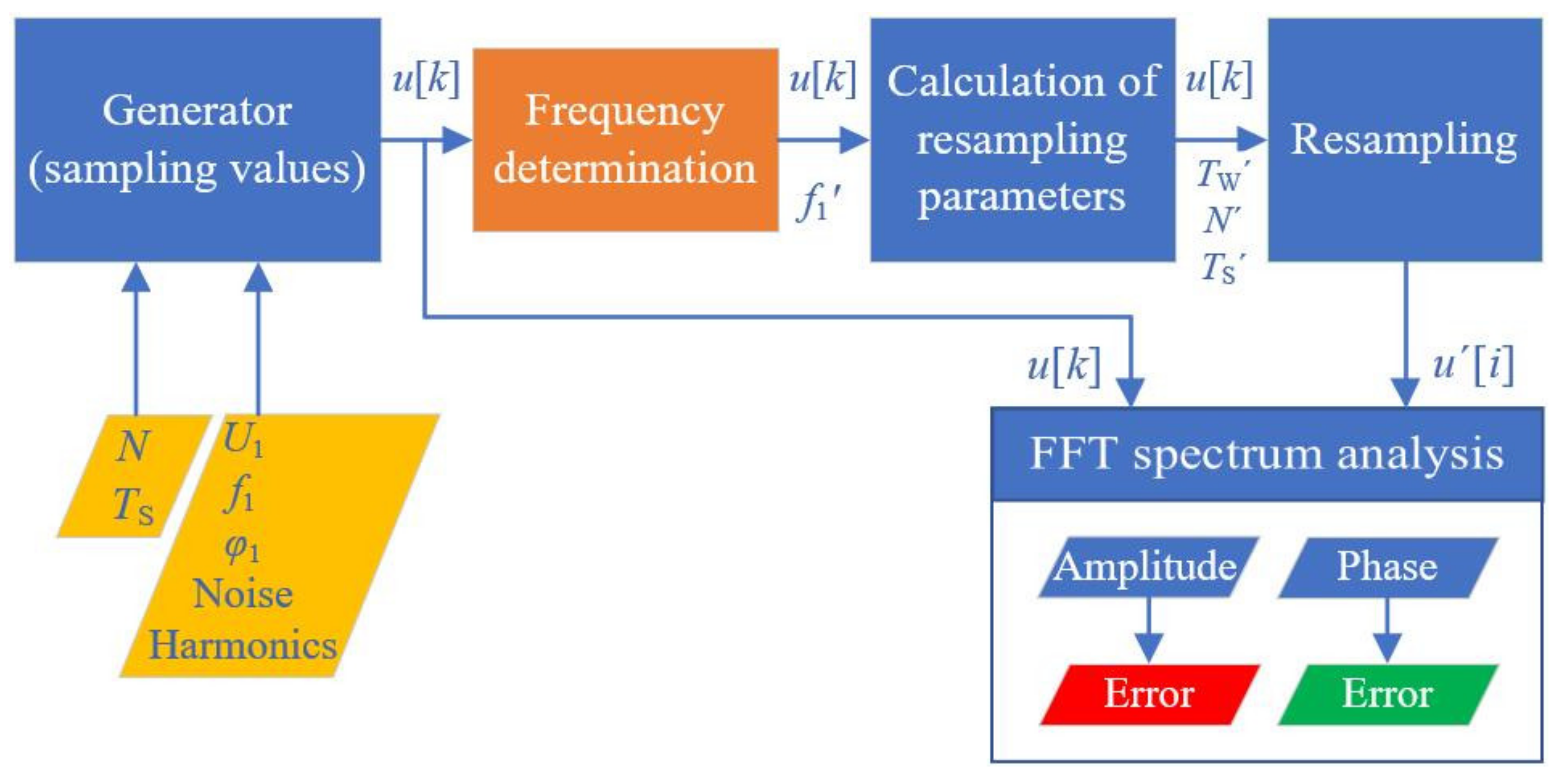

2.1.1. Program structure of the Resampling Process
2.1.2. Interpolations Based on a Quadratic and a Cubic Function

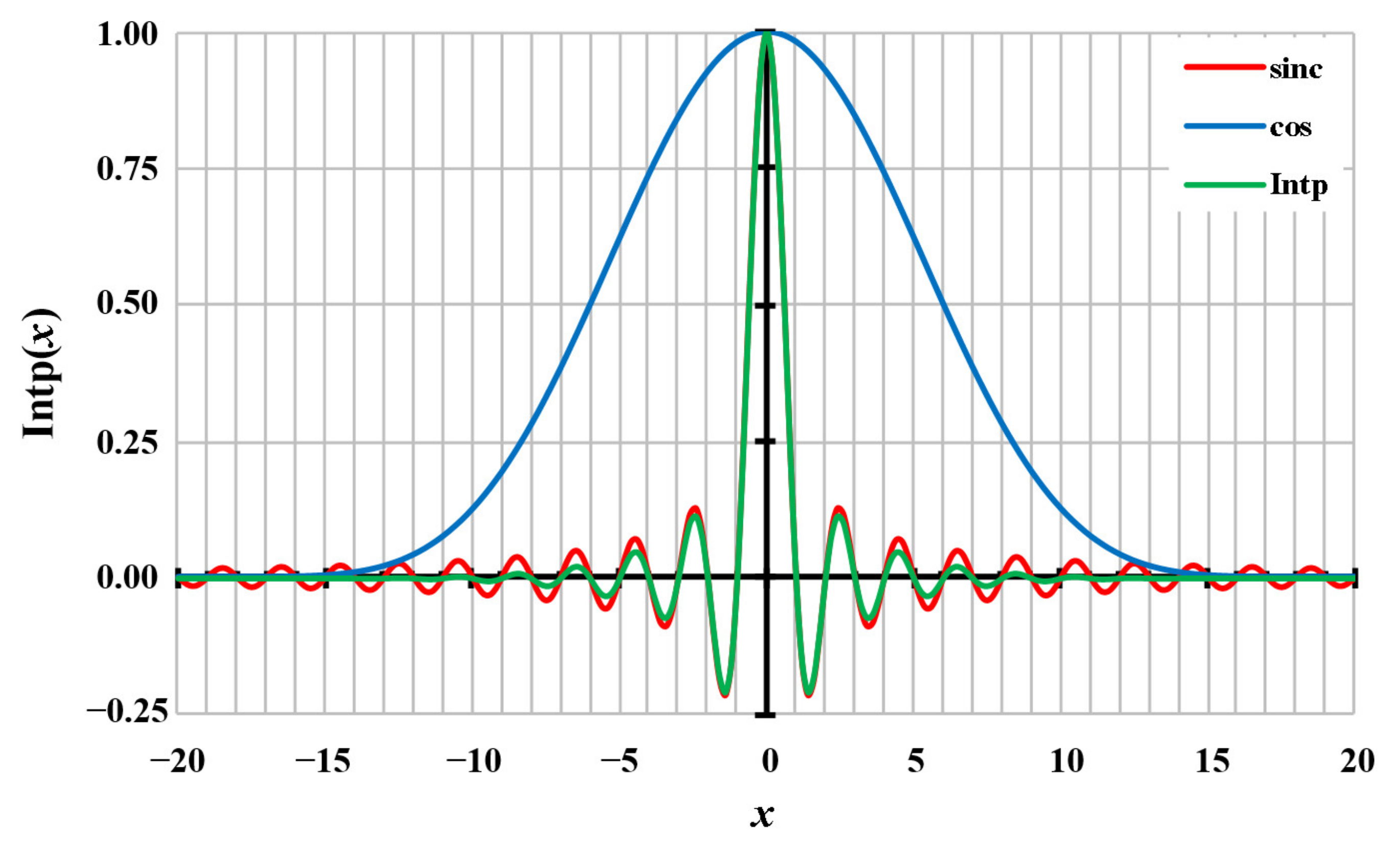

2.1.3. Interpolation Based on a Modified Sinc Function
2.1.4. Phase Synchronisation

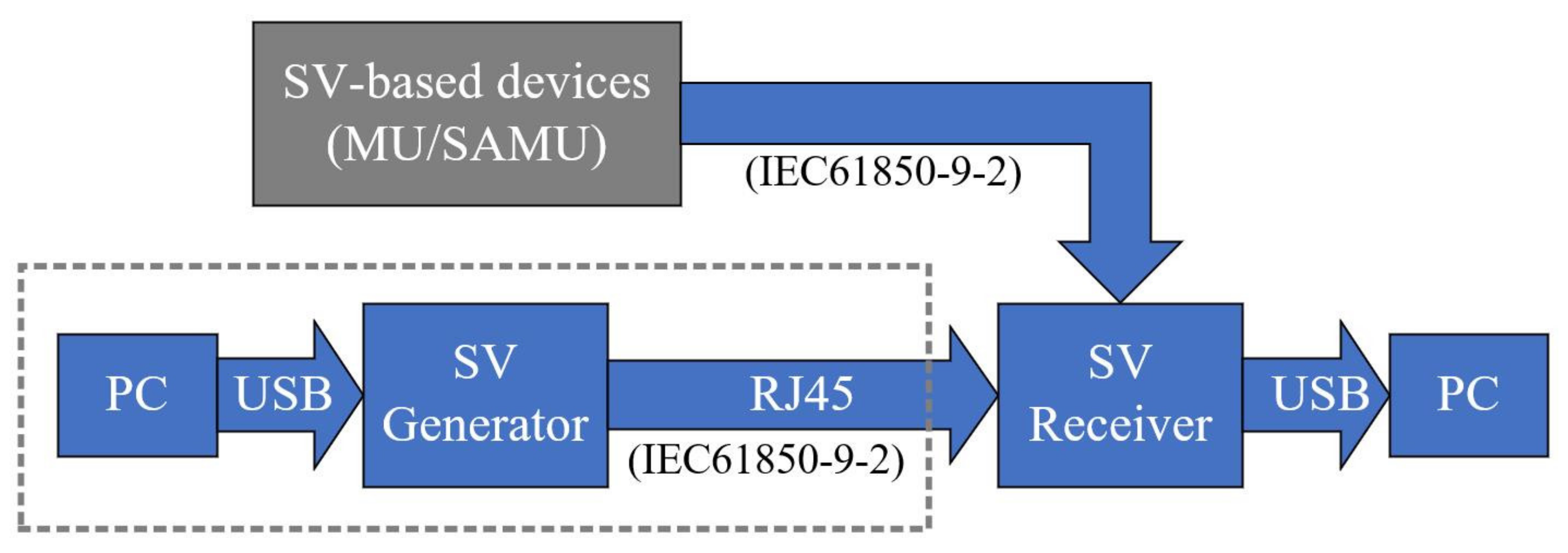

2.2. Emulation Scheme of the SV-Based Communication
3. Results and Validation of the Resampling Process
3.1. Simulation Results

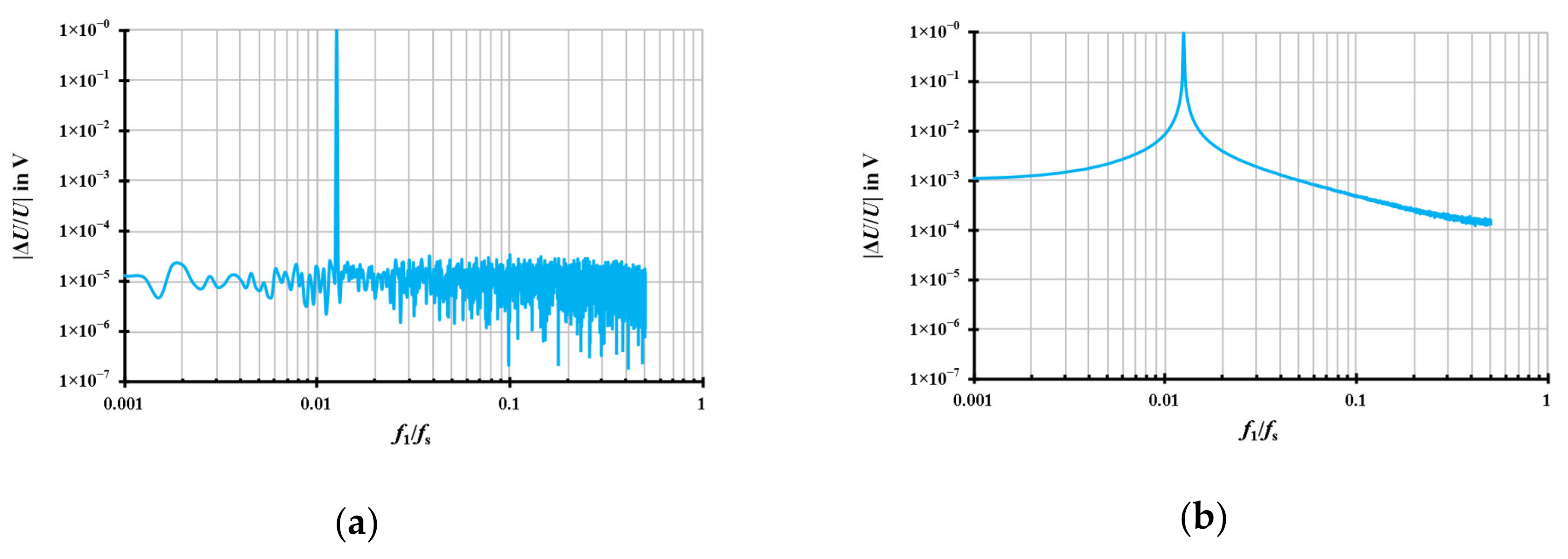

3.1.1. General Investigation Simulations

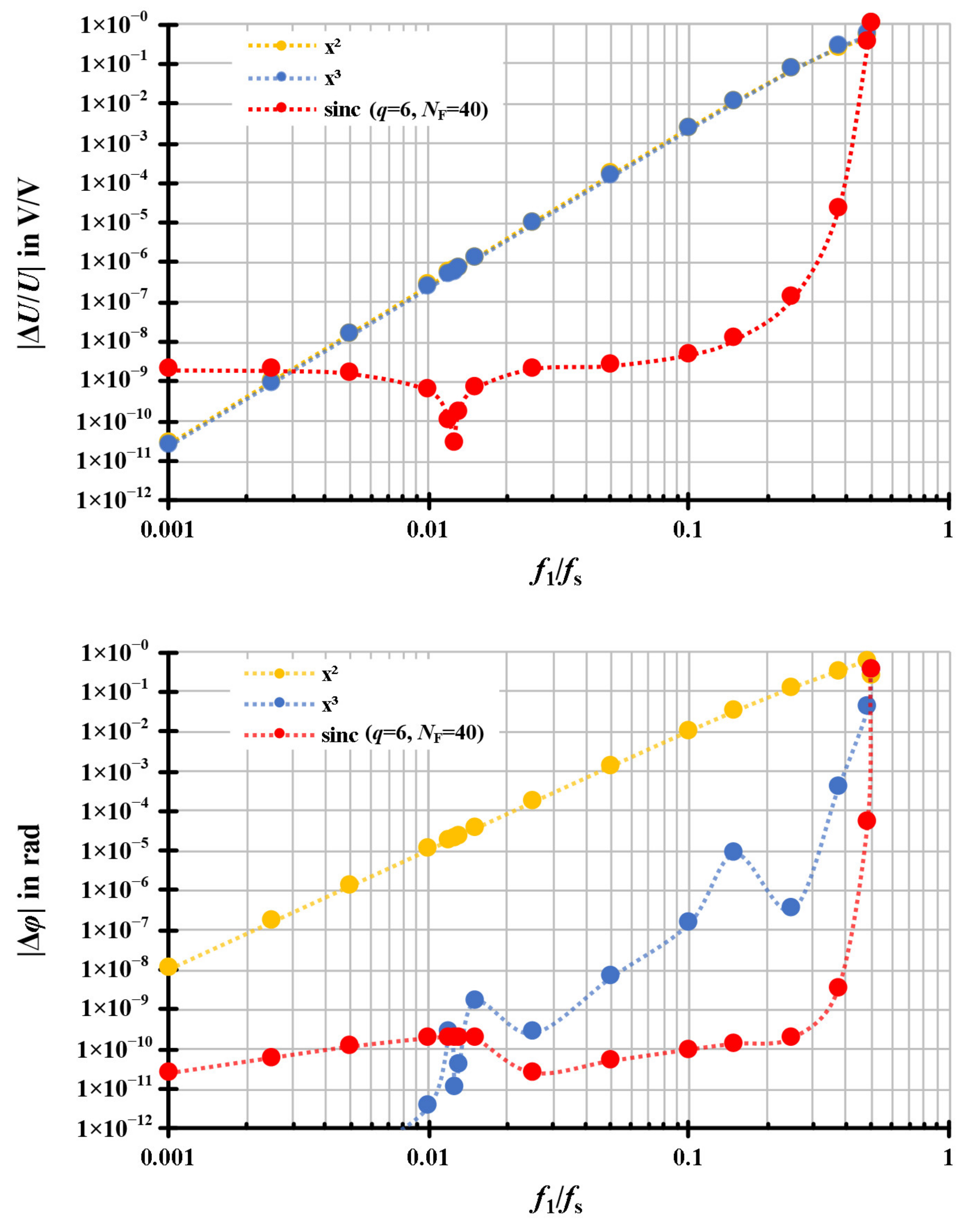

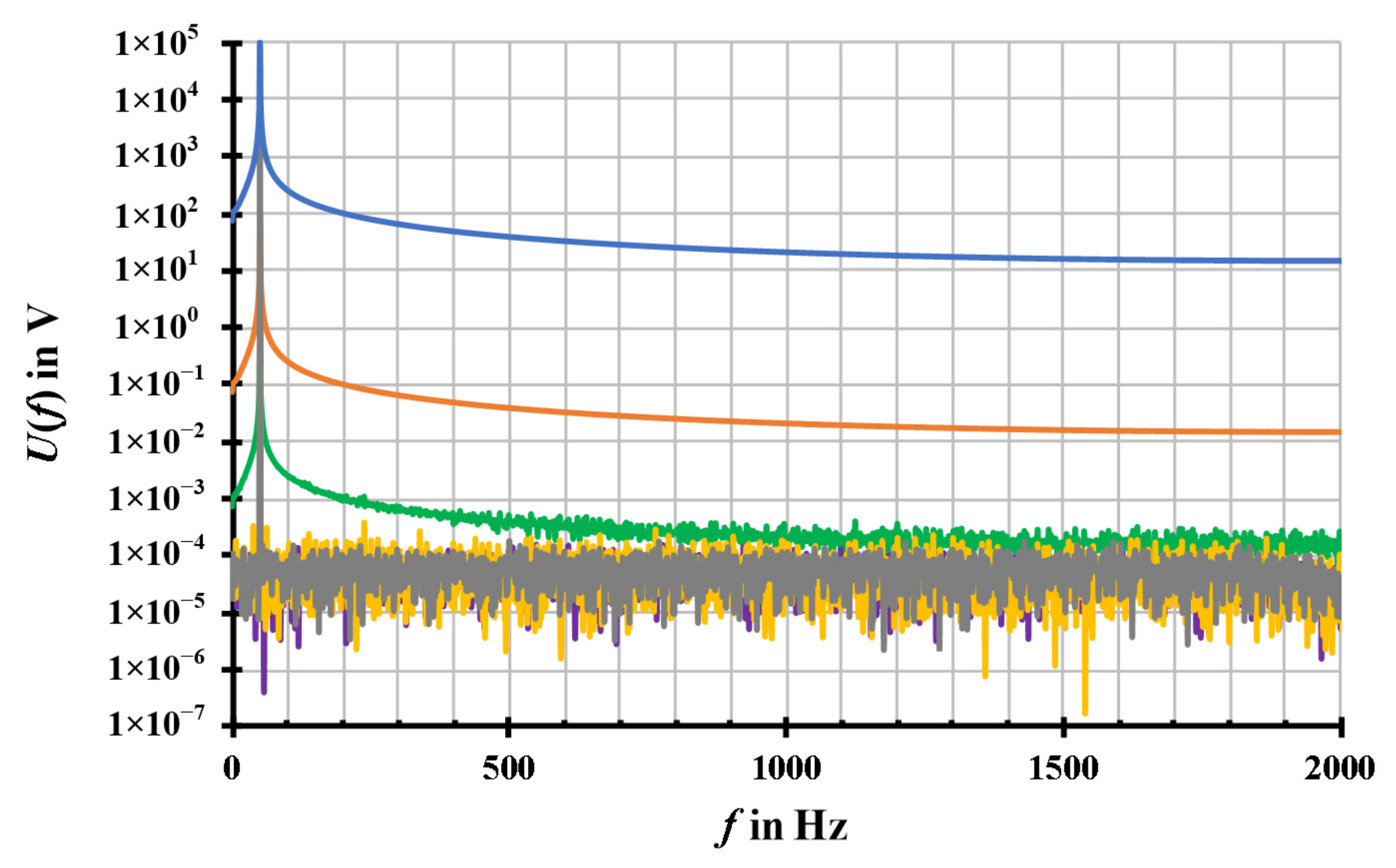

3.1.2. Frequency Response

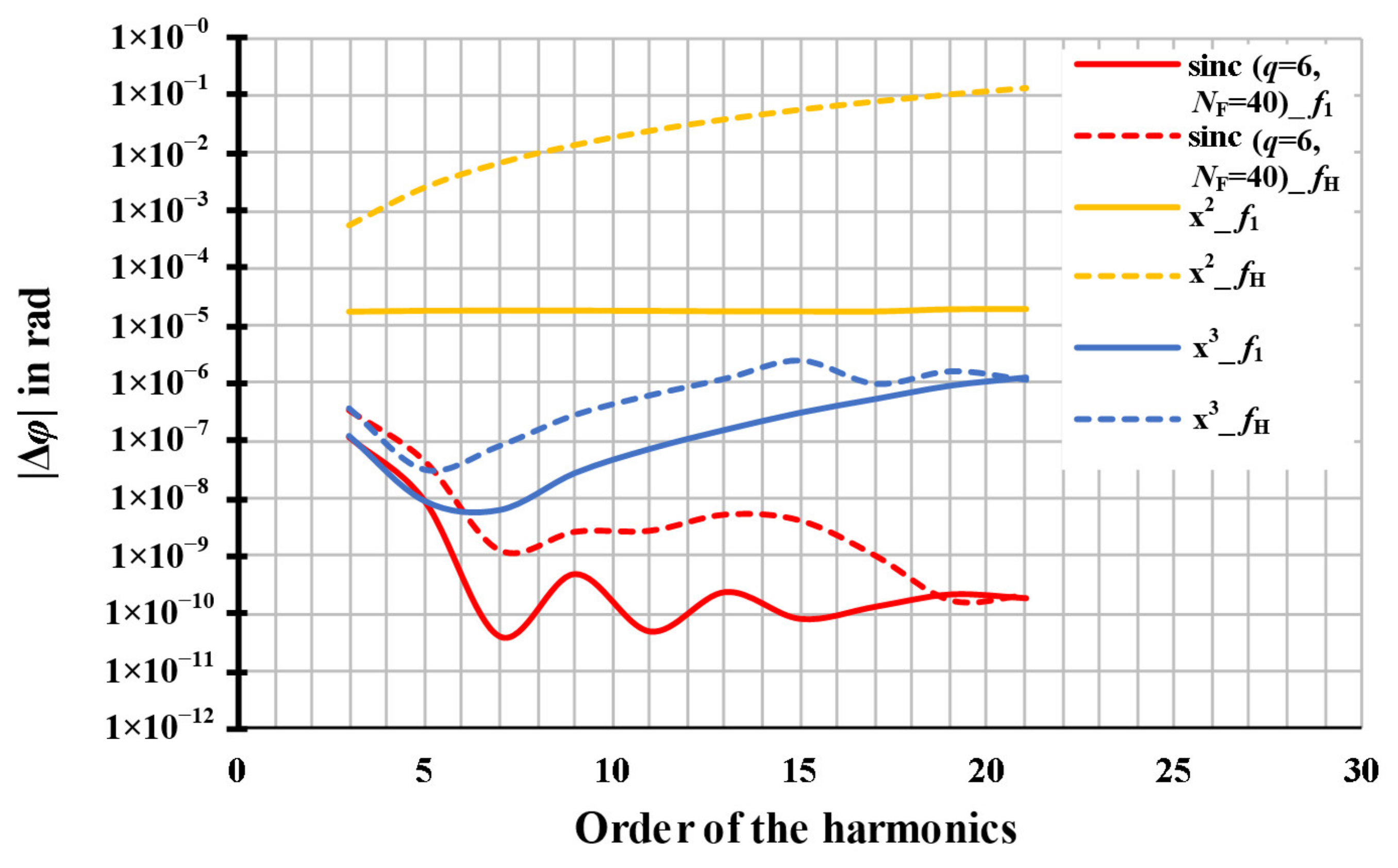

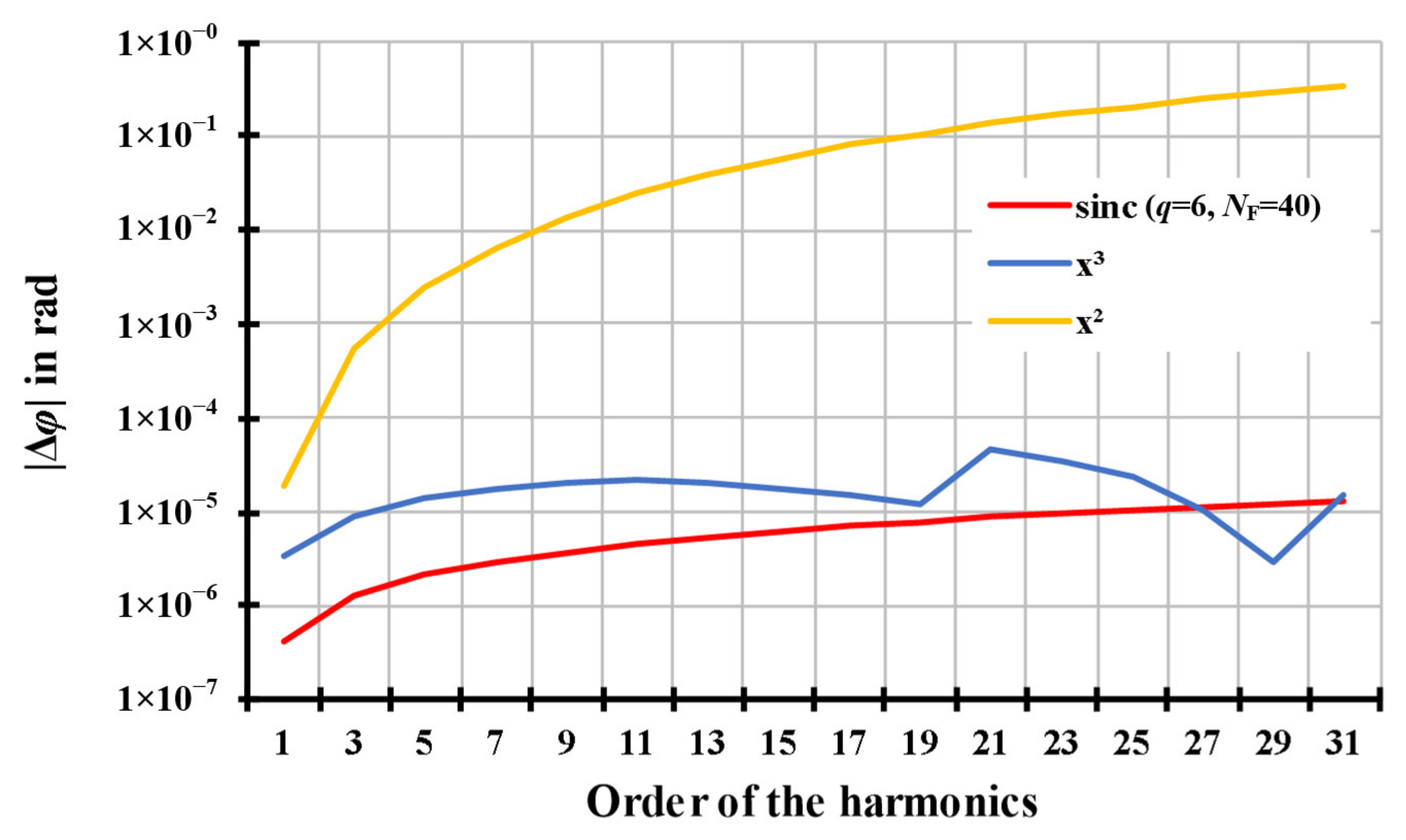

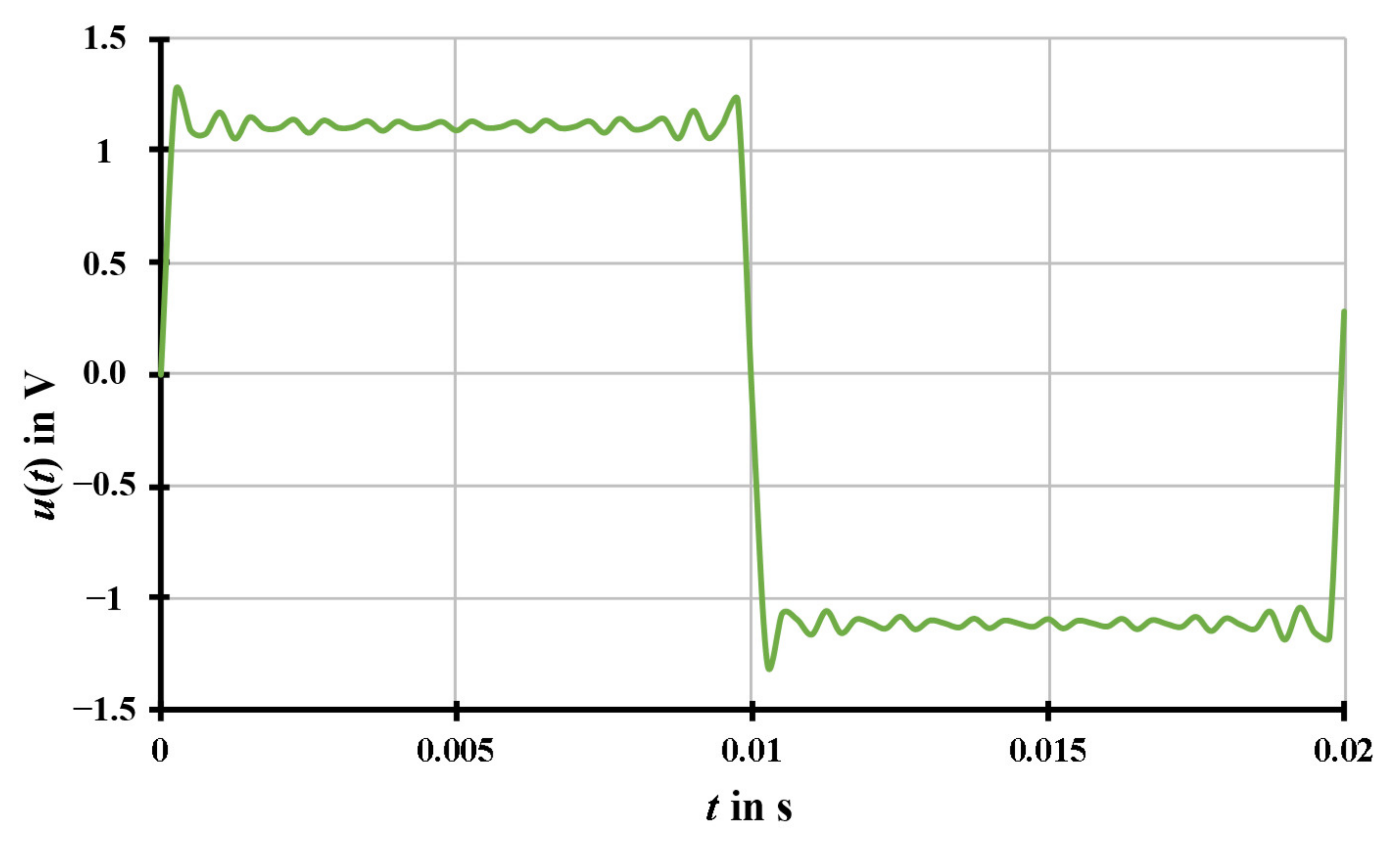

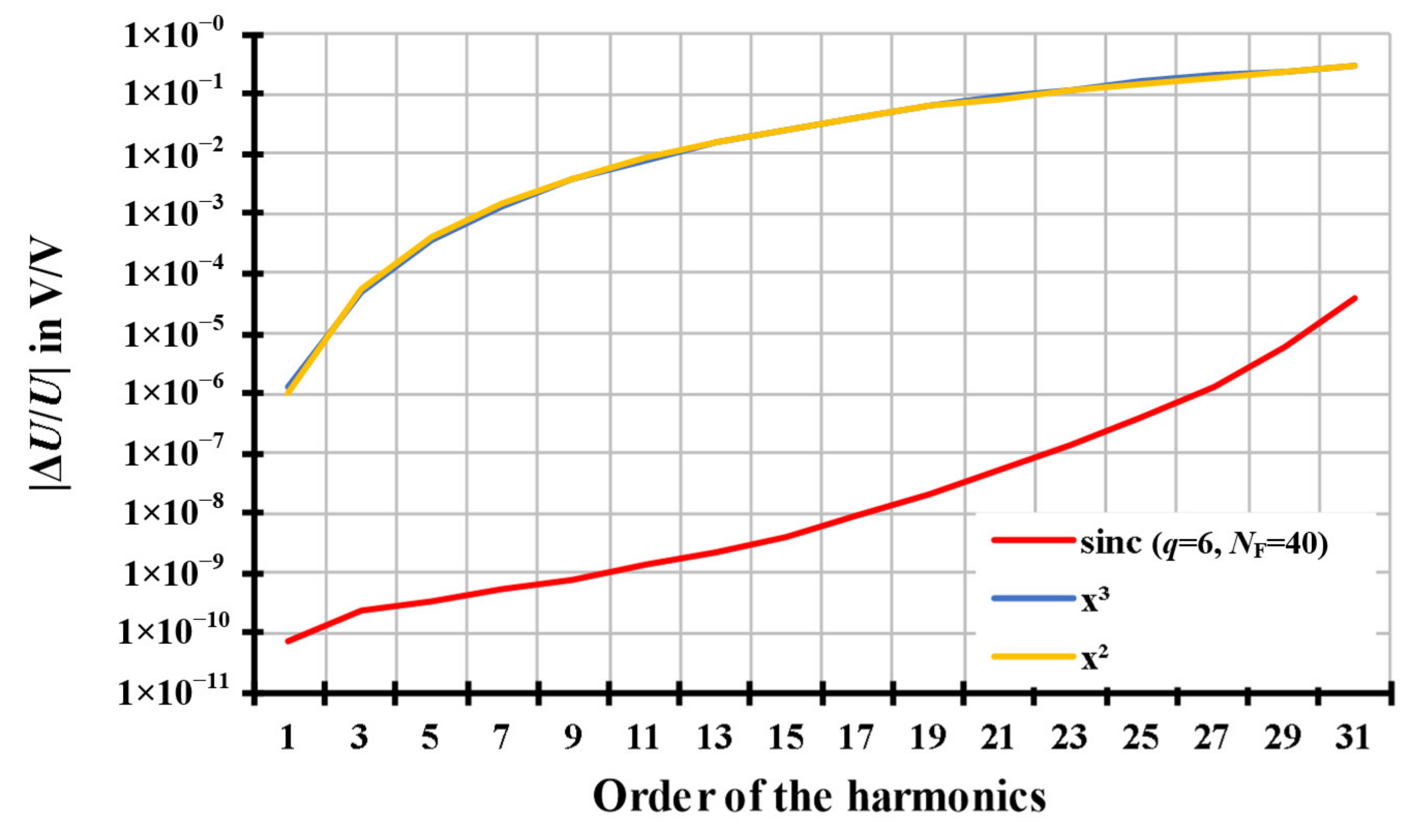

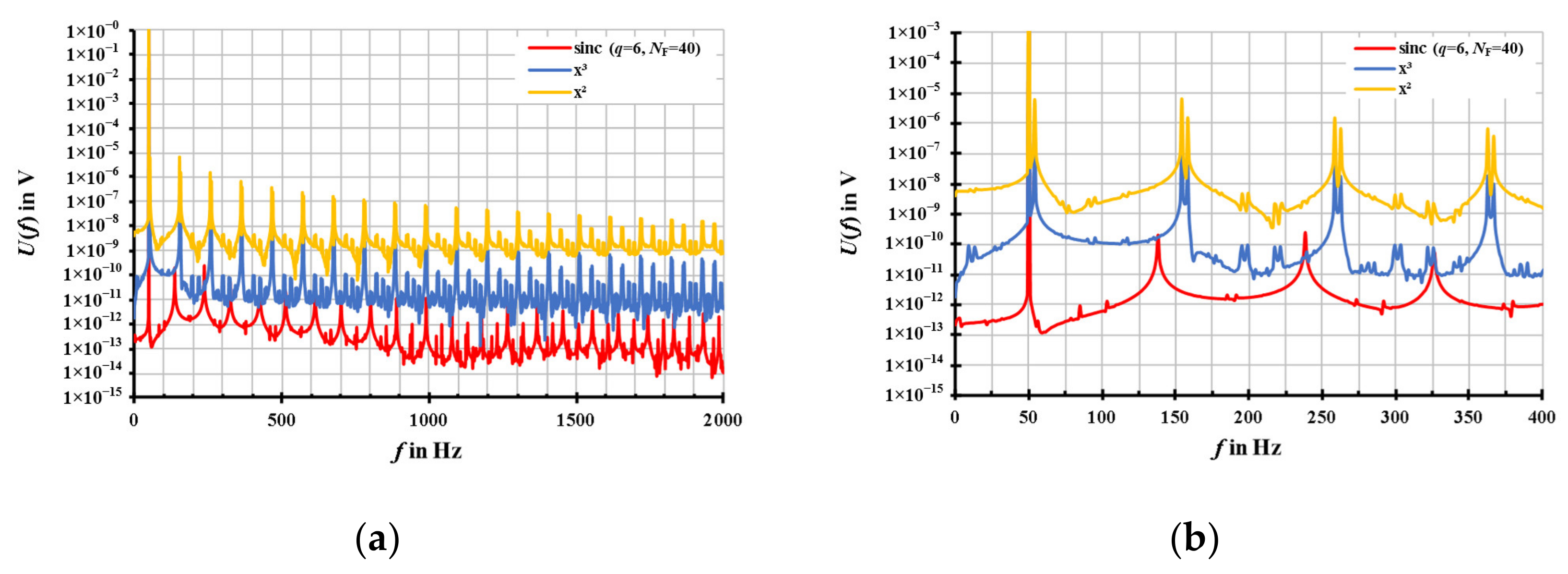

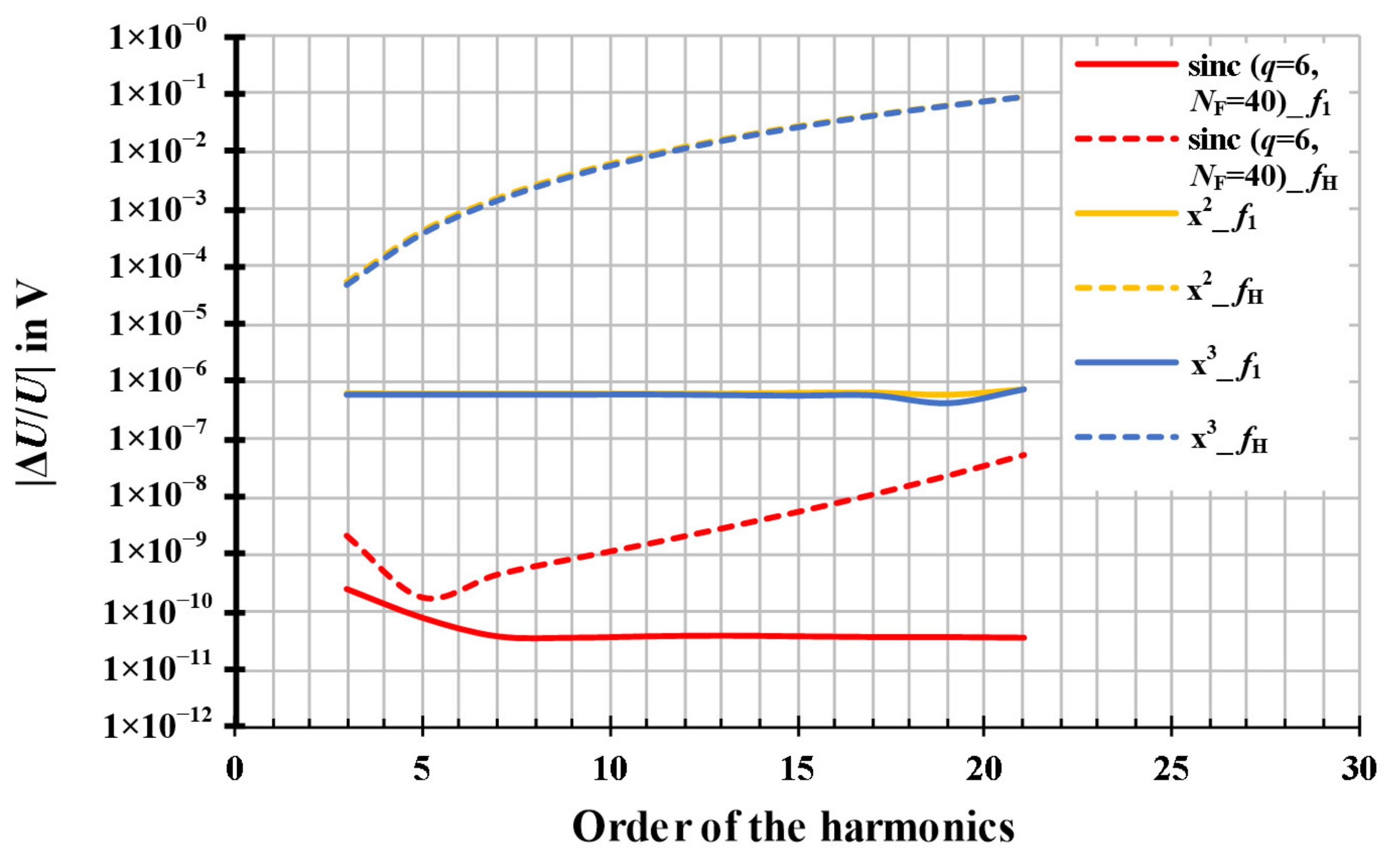

3.1.3. Harmonics Interactions

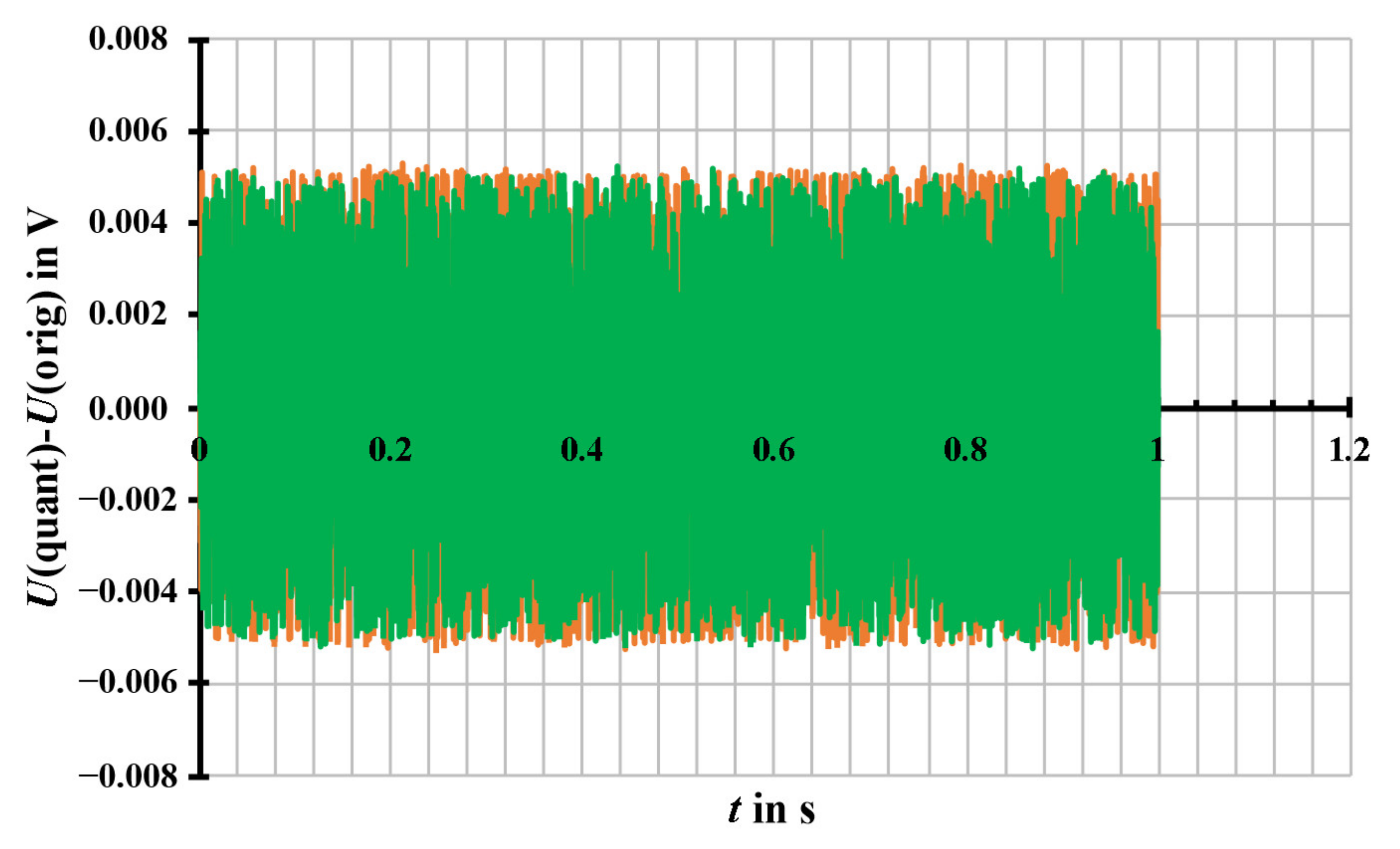

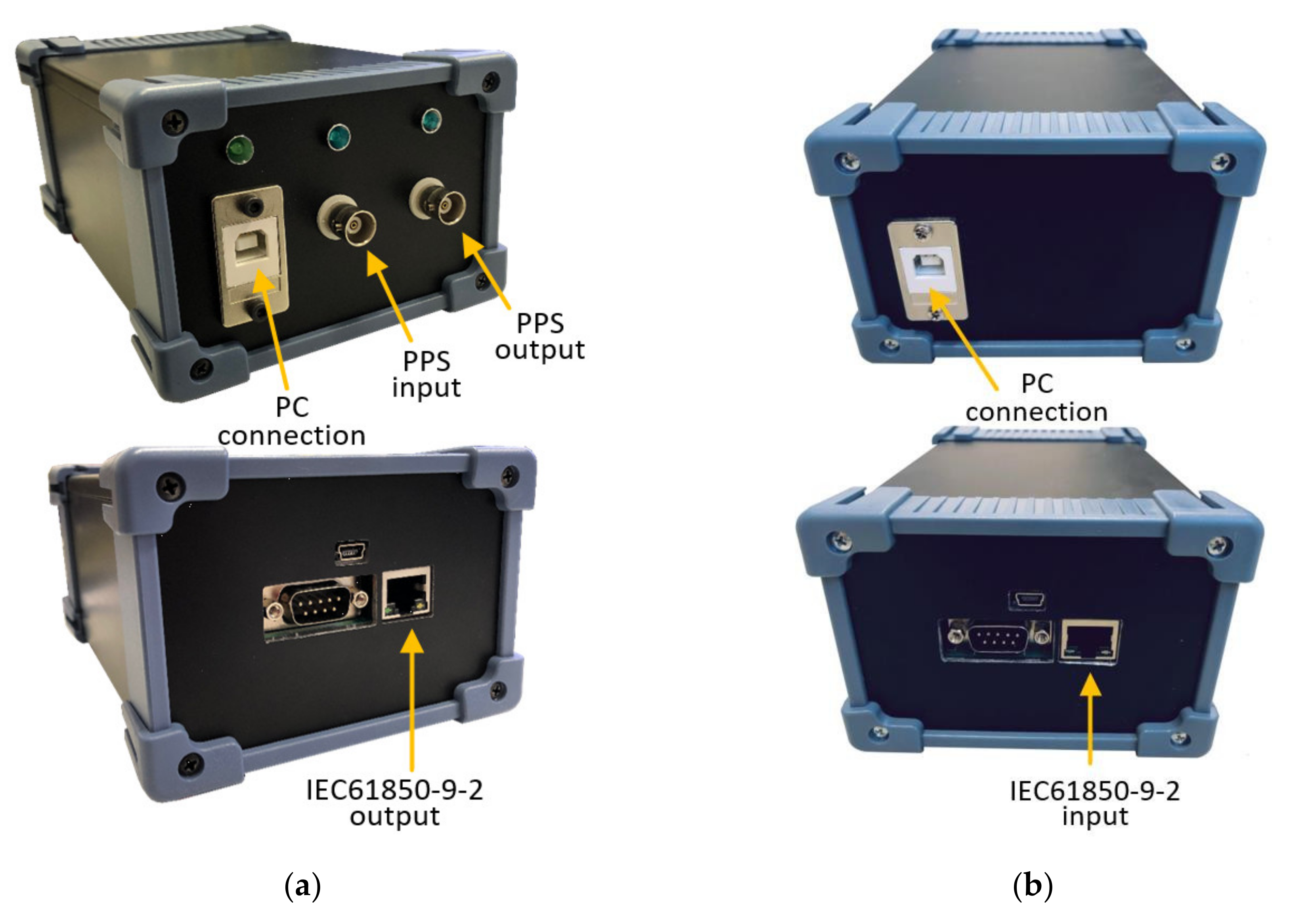

3.2. Experimental Results Based on the Microcontroller-Based SV Devices
4. Conclusions
Author Contributions
Funding
Conflicts of Interest
Appendix A

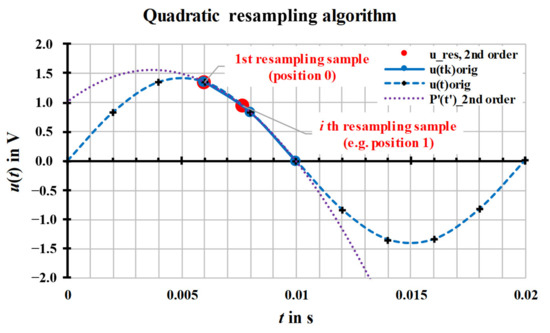

Appendix A.1. Quadratic Interpolation

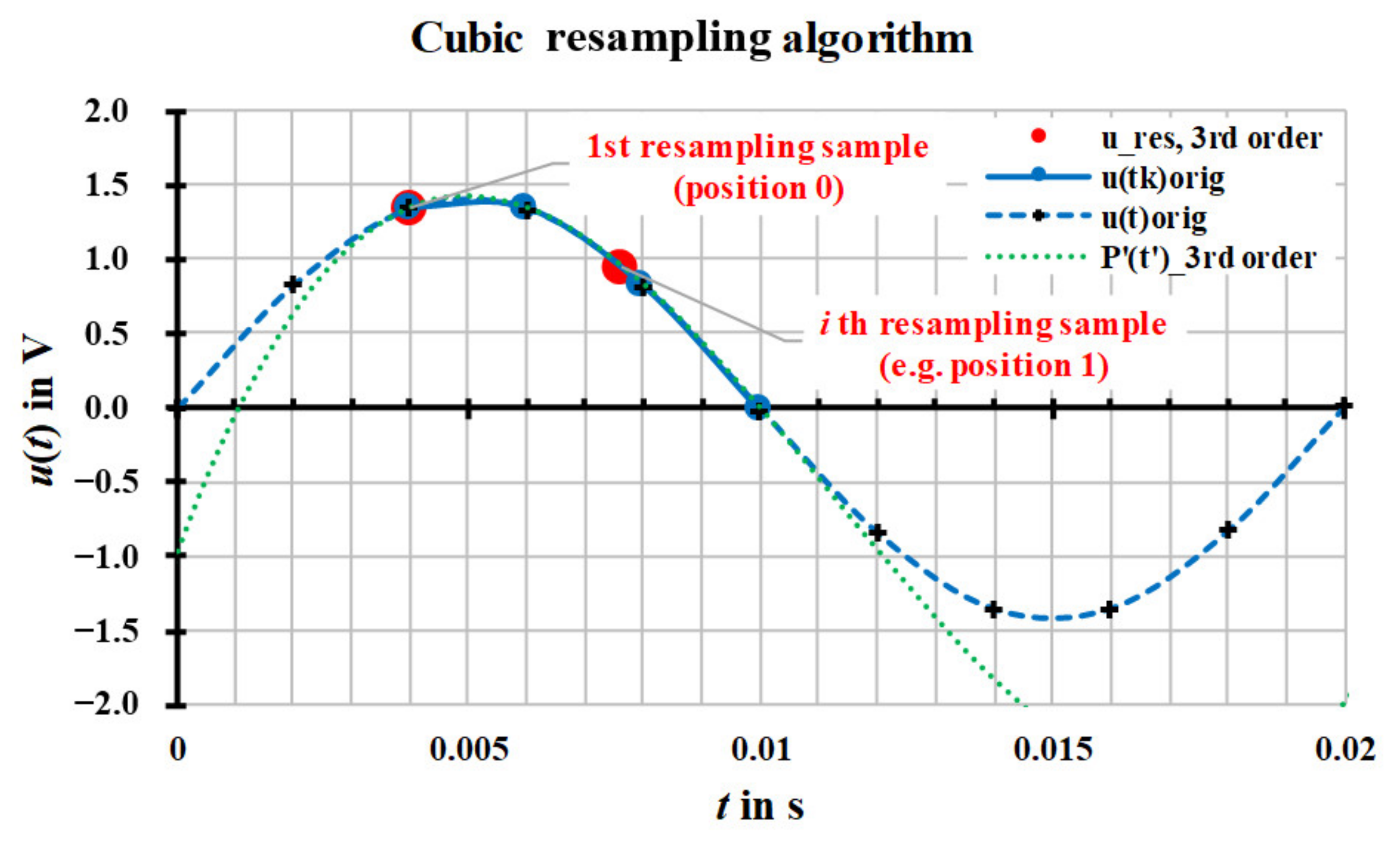

Appendix A.2. Cubic Interpolation
References
