# A Fuzzy Cooperative Localisation Framework for Underwater Robotic Swarms

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

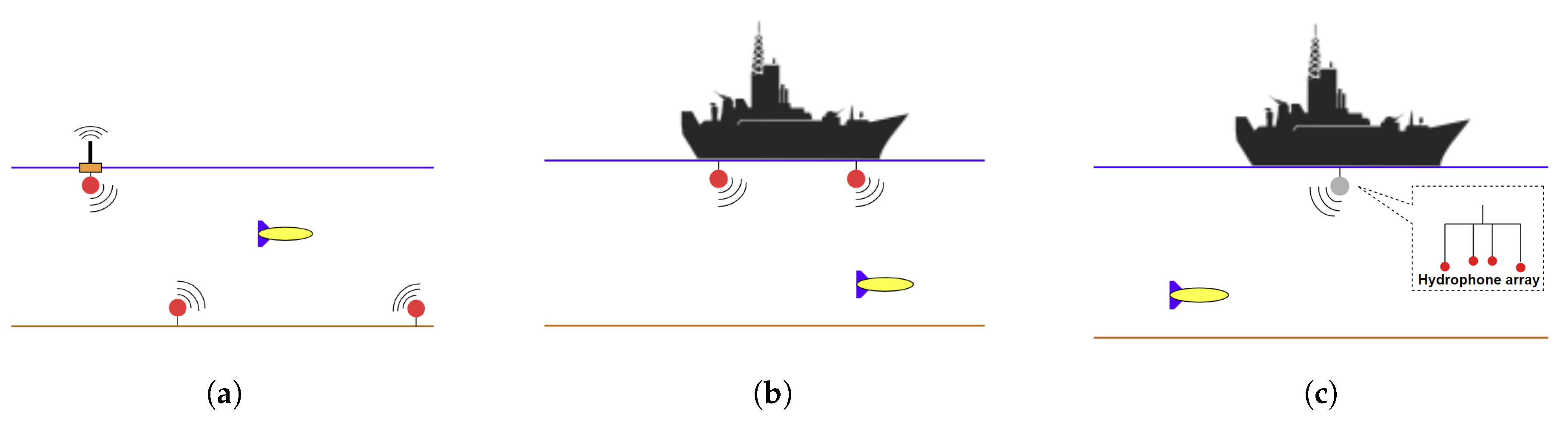

## 2. Underwater Localisation Methods

#### 2.1. Time of Flight (ToF) Acoustic Navigation

#### 2.2. Inertial Navigation System

#### 2.3. Least-Squares Trilateration

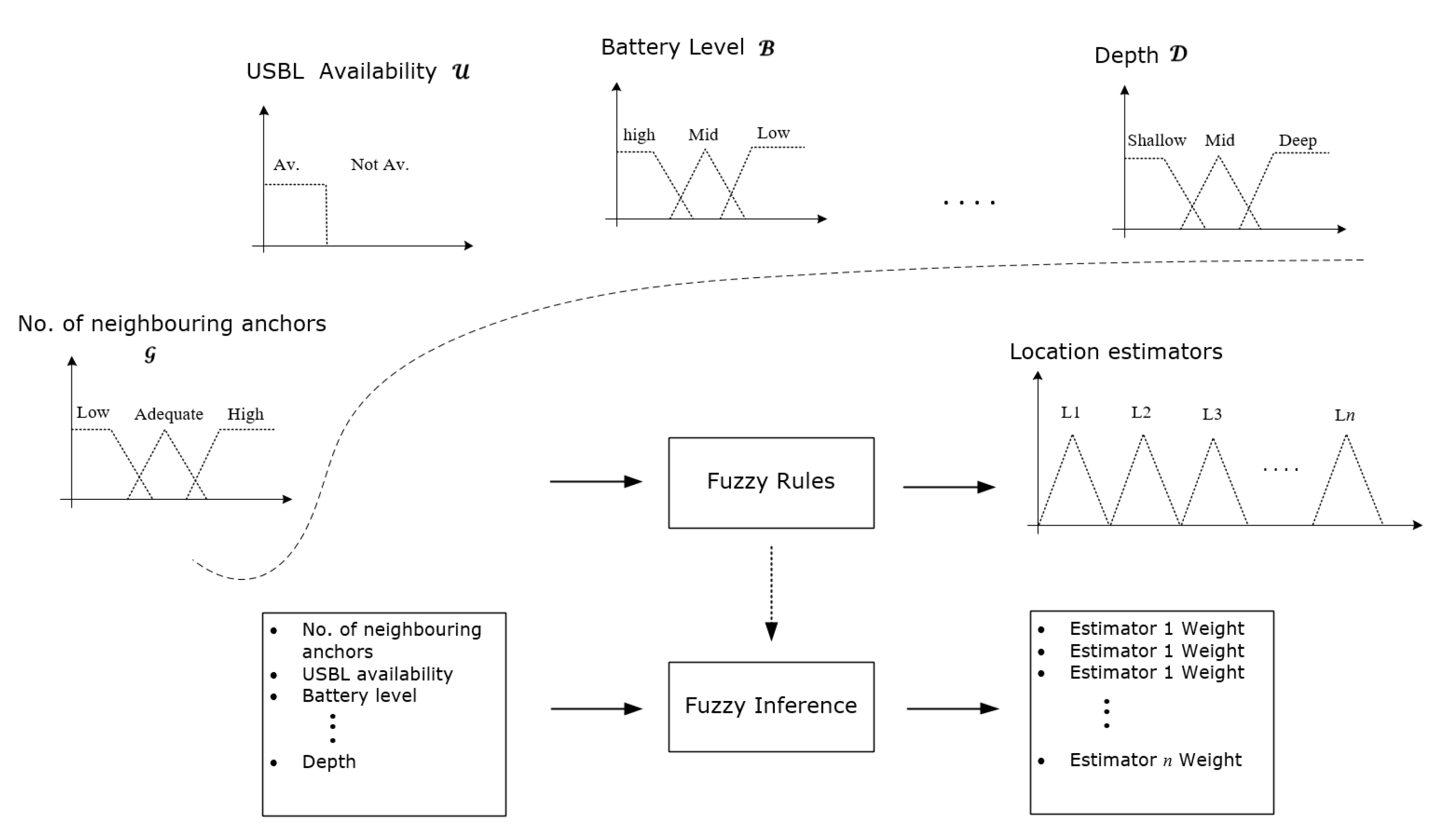

## 3. Fuzzy-Based Localisation

`IF Operational Depth is Shallow AND Battery Level is High THEN Localisation Method is L.`

## 4. Simulation

#### 4.1. Simulation Platform

**dB**re $\mathsf{\mu}$Pa

**@**1 m would be ${\mathbf{S}}_{\mathbf{L}}-{\mathbf{T}}_{\mathbf{L}}-{\mathbf{N}}_{\mathbf{L}}$.

#### 4.2. Implementation

#### 4.3. Simulation Scenario and Settings

#### 4.4. Results and Analysis

## 5. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## Appendix A

#### Appendix A.1.

- IF $\mathcal{D}$ is Shallow AND $\mathcal{R}$ is Short THEN $\mathcal{Y}$ is ${L}_{1}$.
- IF $\mathcal{U}$ is Not Available AND $\mathcal{G}$ is Not Enough THEN $\mathcal{Y}$ is ${L}_{1}$.
- IF $\mathcal{B}$ is Low AND $\mathcal{U}$ is Available AND $\mathcal{G}$ is Not Enough AND $\mathcal{R}$ is Long THEN $\mathcal{Y}$ is ${L}_{2}$.
- IF $\mathcal{B}$ is Low AND $\mathcal{U}$ is Not Available AND $\mathcal{G}$ is Enough AND $\mathcal{R}$ is Long THEN $\mathcal{Y}$ is ${L}_{3}$.
- IF $\mathcal{U}$ is Available AND $\mathcal{R}$ is Long THEN $\mathcal{Y}$ is ${L}_{2}$.
- IF $\mathcal{B}$ is High AND $\mathcal{U}$ is Available AND $\mathcal{G}$ is Not Enough AND $\mathcal{R}$ is Mid THEN $\mathcal{Y}$ is ${L}_{2}$.
- IF $\mathcal{B}$ is High AND $\mathcal{U}$ is Not Available AND $\mathcal{G}$ is Enough AND $\mathcal{R}$ is Long THEN $\mathcal{Y}$ is ${L}_{3}$.
- IF $\mathcal{D}$ is Shallow AND $\mathcal{B}$ is High AND $\mathcal{U}$ is Not Available AND $\mathcal{G}$ is Enough AND $\mathcal{R}$ is Mid THEN $\mathcal{Y}$ is ${L}_{3}$.
- IF $\mathcal{D}$ is Shallow AND $\mathcal{B}$ is High AND $\mathcal{U}$ is Available AND $\mathcal{G}$ is Enough AND $\mathcal{R}$ is Mid THEN $\mathcal{Y}$ is ${L}_{2}$.
- IF $\mathcal{U}$ is Available AND $\mathcal{R}$ is Mid THEN $\mathcal{Y}$ is ${L}_{2}$.
- IF $\mathcal{B}$ is Low AND $\mathcal{U}$ is Available AND $\mathcal{G}$ is Enough AND $\mathcal{R}$ is Long THEN $\mathcal{Y}$ is ${L}_{3}$.
- IF $\mathcal{D}$ is Deep AND $\mathcal{B}$ is High AND $\mathcal{U}$ is Available AND $\mathcal{R}$ is Mid THEN $\mathcal{Y}$ is ${L}_{2}$.
- IF $\mathcal{D}$ is Deep AND $\mathcal{B}$ is High AND $\mathcal{U}$ is Available AND $\mathcal{R}$ is Long THEN $\mathcal{Y}$ is ${L}_{2}$.
- IF $\mathcal{D}$ is Shallow AND $\mathcal{B}$ is High AND $\mathcal{U}$ is Available AND $\mathcal{R}$ is Long THEN $\mathcal{Y}$ is ${L}_{2}$.
- IF $\mathcal{B}$ is High AND $\mathcal{U}$ is Not Available AND $\mathcal{G}$ is Enough AND $\mathcal{R}$ is Long THEN $\mathcal{Y}$ is ${L}_{3}$.
- IF $\mathcal{D}$ is Deep AND $\mathcal{B}$ is High AND $\mathcal{U}$ is Not Available AND $\mathcal{G}$ is Enough AND $\mathcal{R}$ is Mid THEN $\mathcal{Y}$ is ${L}_{1}$.
- IF $\mathcal{B}$ is High AND $\mathcal{U}$ is Available AND $\mathcal{R}$ is Long THEN $\mathcal{Y}$ is ${L}_{2}$.
- IF $\mathcal{B}$ is High AND $\mathcal{U}$ is Available AND $\mathcal{R}$ is Mid THEN $\mathcal{Y}$ is ${L}_{2}$.
- IF $\mathcal{B}$ is High AND $\mathcal{U}$ is Not Available AND $\mathcal{G}$ is Enough AND $\mathcal{R}$ is Long THEN $\mathcal{Y}$ is ${L}_{3}$.
- IF $\mathcal{U}$ is Not Available AND $\mathcal{G}$ is Enough AND $\mathcal{R}$ is Mid THEN $\mathcal{Y}$ is ${L}_{3}$.
- IF $\mathcal{D}$ is Deep AND $\mathcal{U}$ is Available THEN $\mathcal{Y}$ is ${L}_{2}$.
- IF $\mathcal{D}$ is Deep AND $\mathcal{U}$ is Available THEN $\mathcal{Y}$ is ${L}_{2}$.
- IF $\mathcal{D}$ is Deep AND $\mathcal{U}$ is Not Available AND $\mathcal{G}$ is Enough AND $\mathcal{R}$ is Short THEN $\mathcal{Y}$ is ${L}_{1}$.

#### Appendix A.2.

**Hypothesis**

**A1 (HA1).**

**Hypothesis**

**A2 (HA2).**

Swarm Size | H0 REJECTED | p-Value | Degree of Freedom | t-Statistics | Critical Value |
---|---|---|---|---|---|

50 | No | 1.0000 | 75.45 | −4.35 | 1.6653 |

100 | Yes | 0.0252 | 194.48 | 1.96 | 1.6527 |

150 | Yes | 0.0324 | 255.45 | 1.85 | 1.6508 |

## References

- Şahin, E. Swarm robotics: From sources of inspiration to domains of application. In Proceedings of the International Workshop on Swarm Robotics, Santa Monica, CA, USA, 17 July 2004; pp. 10–20. [Google Scholar]
- Chen, J.; Gauci, M.; Li, W.; Kolling, A.; Groß, R. Occlusion-based cooperative transport with a swarm of miniature mobile robots. IEEE Trans. Robot.
**2015**, 31, 307–321. [Google Scholar] [CrossRef] - Arafat, M.Y.; Moh, S. Localization and Clustering Based on Swarm Intelligence in UAV Networks for Emergency Communications. IEEE Internet Things J.
**2019**, 6, 8958–8976. [Google Scholar] [CrossRef] - Wang, X.; Feng, W.; Chen, Y.; Ge, N. UAV Swarm-Enabled Aerial CoMP: A Physical Layer Security Perspective. IEEE Access
**2019**, 7, 120901–120916. [Google Scholar] [CrossRef] - Chung, S.; Paranjape, A.A.; Dames, P.; Shen, S.; Kumar, V. A Survey on Aerial Swarm Robotics. IEEE Trans. Robot.
**2018**, 34, 837–855. [Google Scholar] [CrossRef] [Green Version] - Giuggioli, L.; Potts, J.R.; Rubenstein, D.I.; Levin, S.A. Stigmergy, collective actions, and animal social spacing. Proc. Natl. Acad. Sci. USA
**2013**, 110, 16904–16909. [Google Scholar] [CrossRef] [Green Version] - Ferri, G.; Munafò, A.; Tesei, A.; Braca, P.; Meyer, F.; Pelekanakis, K.; Petroccia, R.; Alves, J.; Strode, C.; LePage, K. Cooperative robotic networks for underwater surveillance: an overview. IET Radar Sonar Navig.
**2017**, 11, 1740–1761. [Google Scholar] [CrossRef] - Petillot, Y.R.; Antonelli, G.; Casalino, G.; Ferreira, F. Underwater Robots: From Remotely Operated Vehicles to Intervention-Autonomous Underwater Vehicles. IEEE Robot. Autom. Mag.
**2019**, 26, 94–101. [Google Scholar] [CrossRef] - Tal, A.; Klein, I.; Katz, R. Inertial navigation system/Doppler velocity log (INS/DVL) fusion with partial DVL measurements. Sensors
**2017**, 17, 415. [Google Scholar] [CrossRef] - Snyder, J. Doppler Velocity Log (DVL) navigation for observation-class ROVs. In Proceedings of the OCEANS 2010 MTS/IEEE SEATTLE, Seattle, WA, USA, 20–23 September 2010; pp. 1–9. [Google Scholar]
- Stojanovic, M.; Preisig, J. Underwater acoustic communication channels: Propagation models and statistical characterization. IEEE Commun. Mag.
**2009**, 47, 84–89. [Google Scholar] [CrossRef] - Napolitano, F.; Chapelon, A.; Urgell, A.; Paturel, Y. PHINS: The autonomous navigation solution. Sea Technol.
**2004**, 45, 55–58. [Google Scholar] - Medagoda, L.; Kinsey, J.C.; Eilders, M. Autonomous Underwater Vehicle localization in a spatiotemporally varying water current field. In Proceedings of the 2015 IEEE International Conference on Robotics and Automation (ICRA), Seattle, WA, USA, 26–30 May 2015; pp. 565–572. [Google Scholar] [CrossRef]
- Caiti, A.; Munafò, A.; Viviani, R. Adaptive on-line planning of environmental sampling missions with a team of cooperating autonomous underwater vehicles. Int. J. Control
**2007**, 80, 1151–1168. [Google Scholar] [CrossRef] - Leonard, N.E.; Paley, D.A.; Davis, R.E.; Fratantoni, D.M.; Lekien, F.; Zhang, F. Coordinated control of an underwater glider fleet in an adaptive ocean sampling field experiment in Monterey Bay. J. Field Robot.
**2010**, 27, 718–740. [Google Scholar] [CrossRef] - Alvarez, A.; Mourre, B. Oceanographic Field Estimates from Remote Sensing and Glider Fleets. J. Atmos. Ocean. Technol.
**2012**, 29, 1657–1662. [Google Scholar] [CrossRef] [Green Version] - Ferri, G.; Cococcioni, M.; Alvarez, A. Mission planning and decision support for underwater glider networks: A sampling on-demand approach. Sensors
**2016**, 16, 28. [Google Scholar] [CrossRef] [PubMed] - Caiti, A.; Calabrò, V.; Dini, G.; Lo Duca, A.; Munafò, A. Secure Cooperation of Autonomous Mobile Sensors Using an Underwater Acoustic Network. Sensors
**2012**, 12, 1967–1989. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Webster, S.E.; Eustice, R.M.; Singh, H.; Whitcomb, L.L. Advances in single-beacon one-way-travel-time acoustic navigation for underwater vehicles. Int. J. Robot. Res.
**2012**, 31, 935–950. [Google Scholar] [CrossRef] - Webster, S.E.; Walls, J.M.; Whitcomb, L.L.; Eustice, R.M. Decentralized extended information filter for single-beacon cooperative acoustic navigation: Theory and experiments. IEEE Trans. Robot.
**2013**, 29, 957–974. [Google Scholar] [CrossRef] - Caiti, A.; Calabrò, V.; Fabbri, T.; Fenucci, D.; Munafò, A. Underwater communication and distributed localization of AUV teams. In Proceedings of the 2013 MTS/IEEE OCEANS—Bergen, Bergen, Norway, 10–14 June 2013; pp. 1–8. [Google Scholar]
- Bahr, A.; Leonard, J.J.; Fallon, M.F. Cooperative localization for autonomous underwater vehicles. Int. J. Robot. Res.
**2009**, 28, 714–728. [Google Scholar] [CrossRef] - Fenucci, D.; Munafò, A.; Phillips, A.B.; Neasham, J.; Gold, N.; Sitbon, J.; Vincent, I.; Sloane, T. Development of smart networks for navigation in dynamic underwater environments. In Proceedings of the 2018 IEEE/OES Autonomous Underwater Vehicle Workshop (AUV), Porto, Portugal, 6–9 November 2018; pp. 1–6. [Google Scholar]
- Phillips, A.B.; Gold, N.; Linton, N.; Harris, C.A.; Richards, E.; Templeton, R.; Thuné, S.; Sitbon, J.; Muller, M.; Vincent, I.; et al. Agile design of low-cost autonomous underwater vehicles. In Proceedings of the OCEANS 2017—Aberdeen, Aberdeen, UK, 19–22 June 2017; pp. 1–7. [Google Scholar]
- Munafò, A.; Śliwka, J.; Petroccia, R. Localisation Using Undersea Wireless Networks. In Proceedings of the 2018 OCEANS—MTS/IEEE Kobe Techno-Oceans (OTO), Kobe, Japan, 28–31 May 2018; pp. 1–7. [Google Scholar]
- Sabra, A.; Fung, W.; Radhakrishna, P. Confidence-based Underwater Localization Scheme for Large-Scale Mobile Sensor Networks. In Proceedings of the OCEANS 2018 MTS/IEEE Charleston, Charleston, SC, USA, 22–25 October 2018; pp. 1–6. [Google Scholar] [CrossRef]
- Sabra, A.; Fung, W.K.; Churn, P. Multi-objective Optimization of Confidence-Based Localization in Large-Scale Underwater Robotic Swarms. In Distributed Autonomous Robotic Systems; Correll, N., Schwager, M., Otte, M., Eds.; Springer International Publishing: Cham, Switzerland, 2019; pp. 109–123. [Google Scholar]
- Sabra, A.; Fung, W. Dynamic localization plan for underwater mobile sensor nodes using fuzzy decision support system. In Proceedings of the OCEANS 2017—Anchorage, Anchorage, AK, USA, 18–21 September 2017; pp. 1–8. [Google Scholar]
- Fang, B.T. Trilateration and extension to global positioning system navigation. J. Guid. Control. Dyn.
**1986**, 9, 715–717. [Google Scholar] [CrossRef] - Webots. Commercial Mobile Robot Simulation Software. Available online: http://www.cyberbotics.com (accessed on 20 July 2020).
- UnetStack. The Underwater Networks Project. Available online: https://unetstack.net (accessed on 20 July 2020).
- Dubois, D.J. Fuzzy Sets and Systems: Theory and Applications; Academic Press: New York, USA, 1980; Volume 144. [Google Scholar]
- Eichfeld, H.; Kunemund, T.; Menke, M. A 12b general-purpose fuzzy logic controller chip. IEEE Trans. Fuzzy Syst.
**1996**, 4, 460–475. [Google Scholar] [CrossRef] - Morgado, M.; Oliveira, P.; Silvestre, C.; Vasconcelos, J.F. USBL/INS tightly-coupled integration technique for underwater vehicles. In Proceedings of the 2006 9th International Conference on Information Fusion, Florence, Italy, 10–13 July 2006; pp. 1–8. [Google Scholar]
- Arpaci-Dusseau, R.H.; Arpaci-Dusseau, A.C. Scheduling Introduction. In Operating Systems: Three Easy Pieces; Arpaci-Dusseau Books: Madison, WI, USA, 2014; Chapter Scheduling; pp. 63–74. [Google Scholar]
- Kinsey, J.C.; Eustice, R.M.; Whitcomb, L.L. A survey of underwater vehicle navigation: Recent advances and new challenges. In Proceedings of the IFAC Conference of Manoeuvering and Control of Marine Craft. Lisbon, Lisbon, Portugal, 20–22 September 2006; Volume 88, pp. 1–12. [Google Scholar]
- Sonardyne International Limited. Ranger USBL Acoustic Positioning System for DP Reference and Survey Positioning Ranger USBL DP Reference and Survey Positioning. Ranger Usbl Datasheet. 2009, pp. 1–6. Available online: https://www.sonardyne.com/product/ranger-2-subsea-positioning-usbl (accessed on 20 July 2020).
- Tan, H.P.; Diamant, R.; Seah, W.K.; Waldmeyer, M. A survey of techniques and challenges in underwater localization. Ocean. Eng.
**2011**, 38, 1663–1676. [Google Scholar] [CrossRef] [Green Version] - Arkhipov, M. Utilizing Johnson Solids for Designing Multielement USBL Systems. IEEE J. Ocean. Eng.
**2016**, 41, 783–793. [Google Scholar] [CrossRef] - Bingham, B.; Seering, W. Hypothesis grids: improving long baseline navigation for autonomous underwater vehicles. IEEE J. Ocean. Eng.
**2006**, 31, 209–218. [Google Scholar] [CrossRef] - SBG Systems. Ellipse 2 Micro Series. Ellipse 2 Micro Series Datasheet. 2018, pp. 1–4. Available online: https://www.sbg-systems.com/products/ellipse-micro-series (accessed on 20 July 2020).
- NOAA. Geomagnetism. National Centers for Environmental Information. Available online: https://www.ngdc.noaa.gov/geomag/geomag.shtml (accessed on 20 July 2020).
- Kok, M.; Hol, J.D.; Schön, T.B. Using Inertial Sensors for Position and Orientation Estimation. Found. Trends Signal Process.
**2017**, 11, 1–153. [Google Scholar] [CrossRef] [Green Version] - Teymorian, A.Y.; Cheng, W.; Ma, L.; Cheng, X.; Lu, X.; Lu, Z. 3D Underwater Sensor Network Localization. IEEE Trans. Mob. Comput.
**2009**, 8, 1610–1621. [Google Scholar] [CrossRef] - Thomas, F.; Ros, L. Revisiting trilateration for robot localization. IEEE Trans. Robot.
**2005**, 21, 93–101. [Google Scholar] [CrossRef] [Green Version] - Sommerville, D.M.L.Y. An Introduction to the Geometry of n Dimensions; Dover: New York, USA, 1958. [Google Scholar]
- Coope, I. Reliable computation of the points of intersection of n spheres in R
^{n}. ANZIAM J.**2000**, 42, 461–477. [Google Scholar] [CrossRef] [Green Version] - Foy, W.H. Position-Location Solutions by Taylor-Series Estimation. IEEE Trans. Aerosp. Electron. Syst.
**1976**, AES-12, 187–194. [Google Scholar] [CrossRef] - Navidi, W.; Murphy, W.S.; Hereman, W. Statistical methods in surveying by trilateration. Comput. Stat. Data Anal.
**1998**, 27, 209–227. [Google Scholar] [CrossRef] - Sand, S.; Dammann, A.; Mensing, C. Position Estimation. In Positioning in Wireless Communications Systems; John Wiley & Sons, Ltd: Hoboken, NJ, USA, 2013; pp. 69–99. [Google Scholar] [CrossRef]
- Kennedy, J.; Eberhart, R. Particle swarm optimization. In Proceedings of the ICNN’95—International Conference on Neural Networks, Perth, Australia, 27 November–1 December 1995; Volume 4, pp. 1942–1948. [Google Scholar] [CrossRef]
- Pedersen, M.E.H. Good Parameters for Particle Swarm Optimization; Tech. Rep. HL1001; Hvass Lab.: Copenhagen, Denmark, 2010; pp. 1551–3203. [Google Scholar]
- Zhou, Y. An efficient least-squares trilateration algorithm for mobile robot localization. In Proceedings of the 2009 IEEE/RSJ International Conference on Intelligent Robots and Systems, St. Louis, MO, USA, 10–15 October 2009; pp. 3474–3479. [Google Scholar] [CrossRef]
- Zadeh, L.A. The concept of a linguistic variable and its application to approximate reasoning. In Learning Systems and Intelligent Robots; Springer: New York, NY, USA, 1974; pp. 1–10. [Google Scholar]
- Grewal, M.S.; Andrews, A.P. Kalman Filtering: Theory and Practice with MATLAB, 2nd ed.; John Wiley & Sons, Ltd.: Hoboken, NJ, USA, 2001. [Google Scholar]
- Petritoli, E.; Cagnetti, M.; Leccese, F. Simulation of Autonomous Underwater Vehicles (AUVs) Swarm Diffusion. Sensors
**2020**, 20, 4950. [Google Scholar] [CrossRef] - Zadeh, L.A. Knowledge Representation in Fuzzy Logic. In An Introduction to Fuzzy Logic Applications in Intelligent Systems; Yager, R.R., Zadeh, L.A., Eds.; Springer: Boston, MA, USA, 1992; pp. 1–25. [Google Scholar] [CrossRef]
- Mamdani, E.H. Application of fuzzy logic to approximate reasoning using linguistic synthesis. IEEE Trans. Comput.
**1977**, 1182–1191. [Google Scholar] [CrossRef] - Osrf. Why Gazebo? Available online: http://gazebosim.org/ (accessed on 3 August 2020).
- Coppelia. Coppelia Robotics: Create Compose Simulate Any Robot. Available online: https://www.coppeliarobotics.com/ (accessed on 3 August 2020).
- Issariyakul, T.; Hossain, E. Introduction to Network Simulator 2 (NS2). In Introduction to Network Simulator NS2; Springer: Boston, MA, USA, 2012; pp. 21–40. [Google Scholar] [CrossRef]
- Baldo, N.; Miozzo, M.; Guerra, F.; Rossi, M.; Zorzi, M. Miracle: the multi-interface cross-layer extension of ns2. EURASIP J. Wirel. Commun. Netw.
**2010**, 2010, 26. [Google Scholar] [CrossRef] [Green Version] - Masiero, R.; Azad, S.; Favaro, F.; Petrani, M.; Toso, G.; Guerra, F.; Casari, P.; Zorzi, M. DESERT Underwater: an NS-Miracle-based framework to DEsign, Simulate, Emulate and Realize Test-beds for Underwater network protocols. In Proceedings of the 2012 Oceans-Yeosu, Yeosu, South Korea, 21–24 May 2012; pp. 1–10. [Google Scholar]
- Petrioli, C.; Petroccia, R.; Spaccini, D. SUNSET version 2.0: Enhanced framework for simulation, emulation and real-life testing of underwater wireless sensor networks. In Proceedings of the Eighth ACM International Conference on Underwater Networks and Systems, Kaohsiung, Taiwan, 11–13 November 2013; p. 43. [Google Scholar]
- EvoLogicsHS Devices. communication and positioning devices. Available online: https://evologics.de/acoustic-modem/hs (accessed on 3 August 2020).
- Urick, R.J. Principles of Underwater Sound, 3rd ed.; Peninsula Publising: Los Atlos, CA, USA, 1983. [Google Scholar]
- Melodia, T.; Kulhandjian, H.; Kuo, L.C.; Demirors, E. Advances in Underwater Acoustic Networking. In Mobile Ad Hoc Networking; John Wiley & Sons, Ltd.: Hoboken, NJ, USA, 2013; Chapter 23; pp. 804–852. [Google Scholar]
- Mackenzie, K.V. Nine-term equation for sound speed in the oceans. J. Acoust. Soc. Am.
**1981**, 70, 807–812. [Google Scholar] [CrossRef] - Chitre, M.; Bhatnagar, R.; Soh, W.S. UnetStack: An agent-based software stack and simulator for underwater networks. In Proceedings of the 2014 Oceans-St. John’s, St. John’s, NL, Canada, 14–19 September 2014; pp. 1–10. [Google Scholar]
- Jiang, C.; Chen, S.; Chen, Y.; Bo, Y. Research on a chip scale atomic clock aided vector tracking loop. IET Radar Sonar Navig.
**2019**, 13, 1101–1106. [Google Scholar] [CrossRef] - Kepper, J.H.; Claus, B.C.; Kinsey, J.C. A Navigation Solution Using a MEMS IMU, Model-Based Dead-Reckoning, and One-Way-Travel-Time Acoustic Range Measurements for Autonomous Underwater Vehicles. IEEE J. Ocean. Eng.
**2019**, 44, 664–682. [Google Scholar] [CrossRef] - Mourya, R.; Saafin, W.; Dragone, M.; Petillot, Y. Ocean monitoring framework based on compressive sensing using acoustic sensor networks. In Proceedings of the OCEANS 2018 MTS/IEEE Charleston, Charleston, SC, USA, 22–25 October 2018; pp. 1–10. [Google Scholar]
- Stuckmann, P. The GSM Evolution: Mobile Packet Data Services; John Wiley & Sons: Hoboken, NJ, USA, 2002. [Google Scholar]
- Pompili, D.; Melodia, T.; Akyildiz, I.F. A CDMA-based medium access control for underwater acoustic sensor networks. IEEE Trans. Wirel. Commun.
**2009**, 8, 1899–1909. [Google Scholar] [CrossRef] - Rahn, C.D.; Wang, C.Y. Battery Systems Engineering; John Wiley & Sons: Hoboken, NJ, USA, 2013. [Google Scholar]

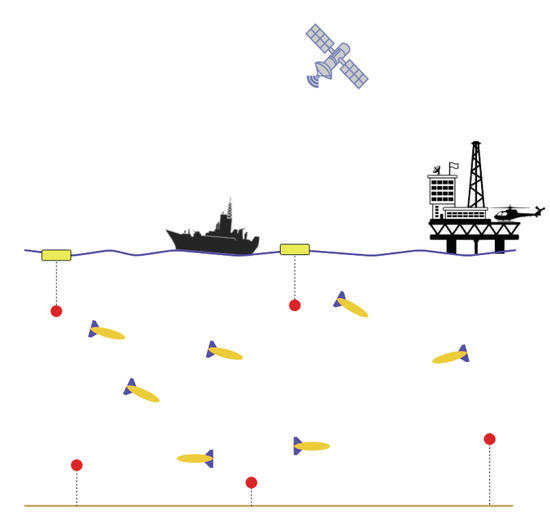

**Figure 1.**Underwater wireless network of Autonomous Underwater Vehicles (yellow vessels with blue fins) and anchored sensors (red).

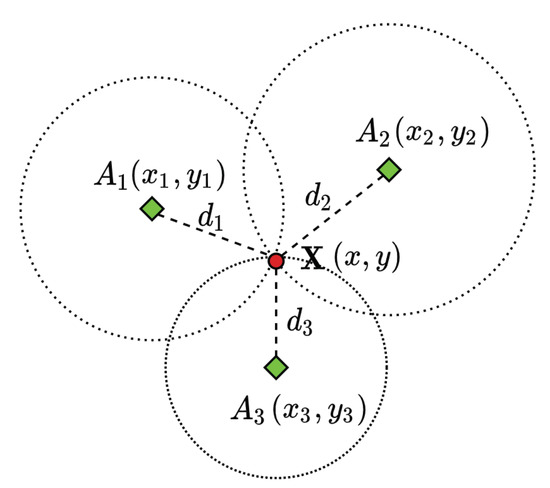

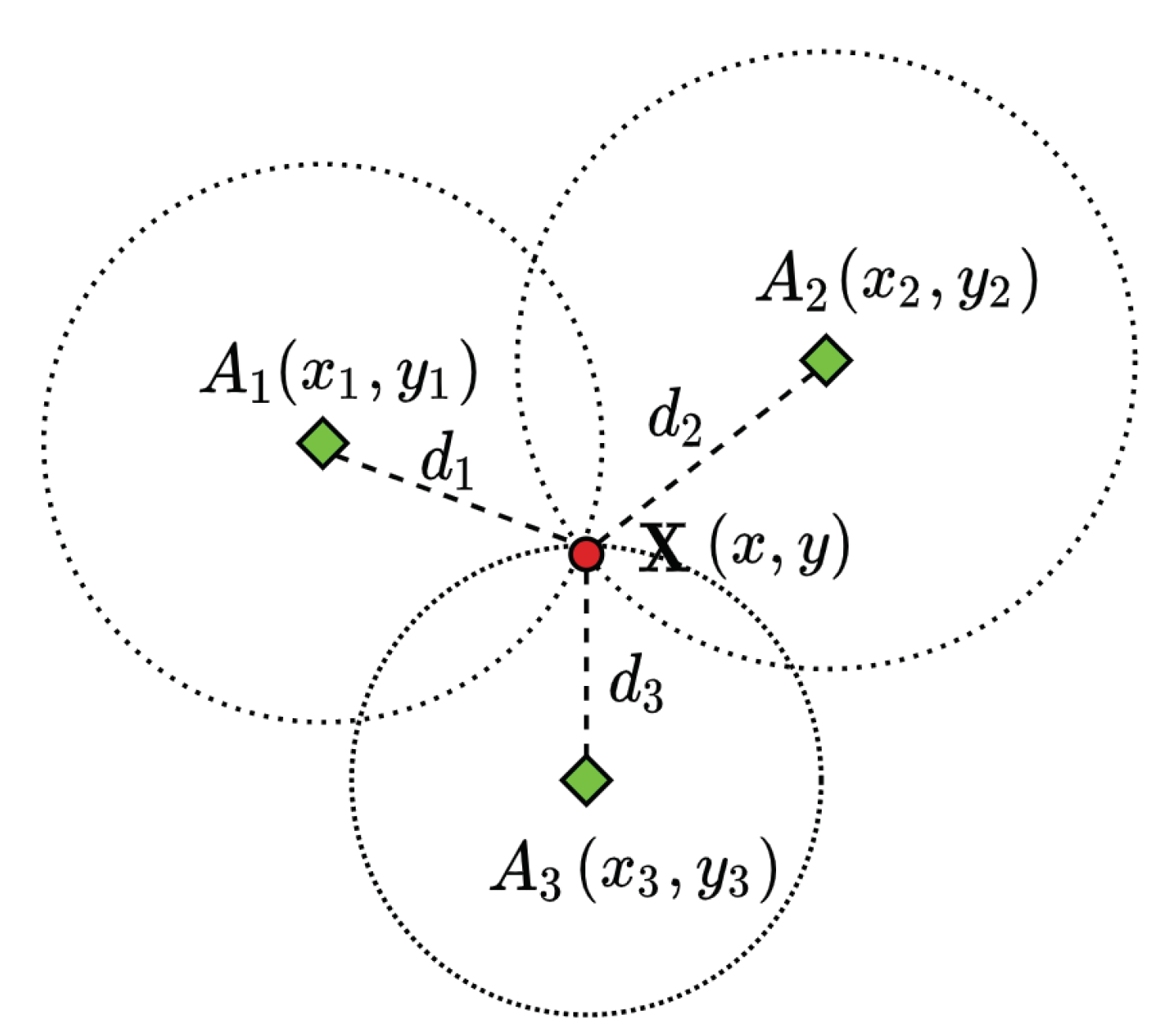

**Figure 3.**Two-dimensional trilateration problem of determining an object (red solid circle) location $\mathbf{X}$ given the location of three stations (green diamonds) ${A}_{i}$ and the range measurements/distances ${d}_{i}$ ($i=1,2,3$).

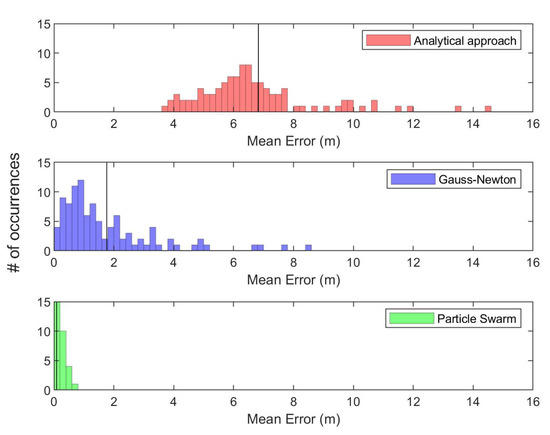

**Figure 4.**Histograms of mean multilateration error of around 15,000 multilateration process carried out in 100 walkers (nodes); the vertical line in each histogram represents the mean error of the entire simulation.

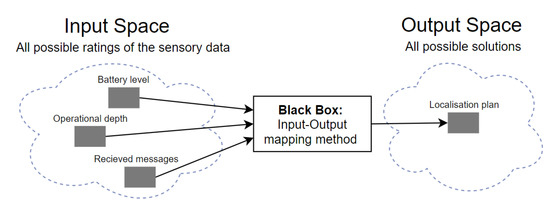

**Figure 5.**An example of input-output mapping for the localisation problem: “Given three variable inputs what the localisation plan should be?”

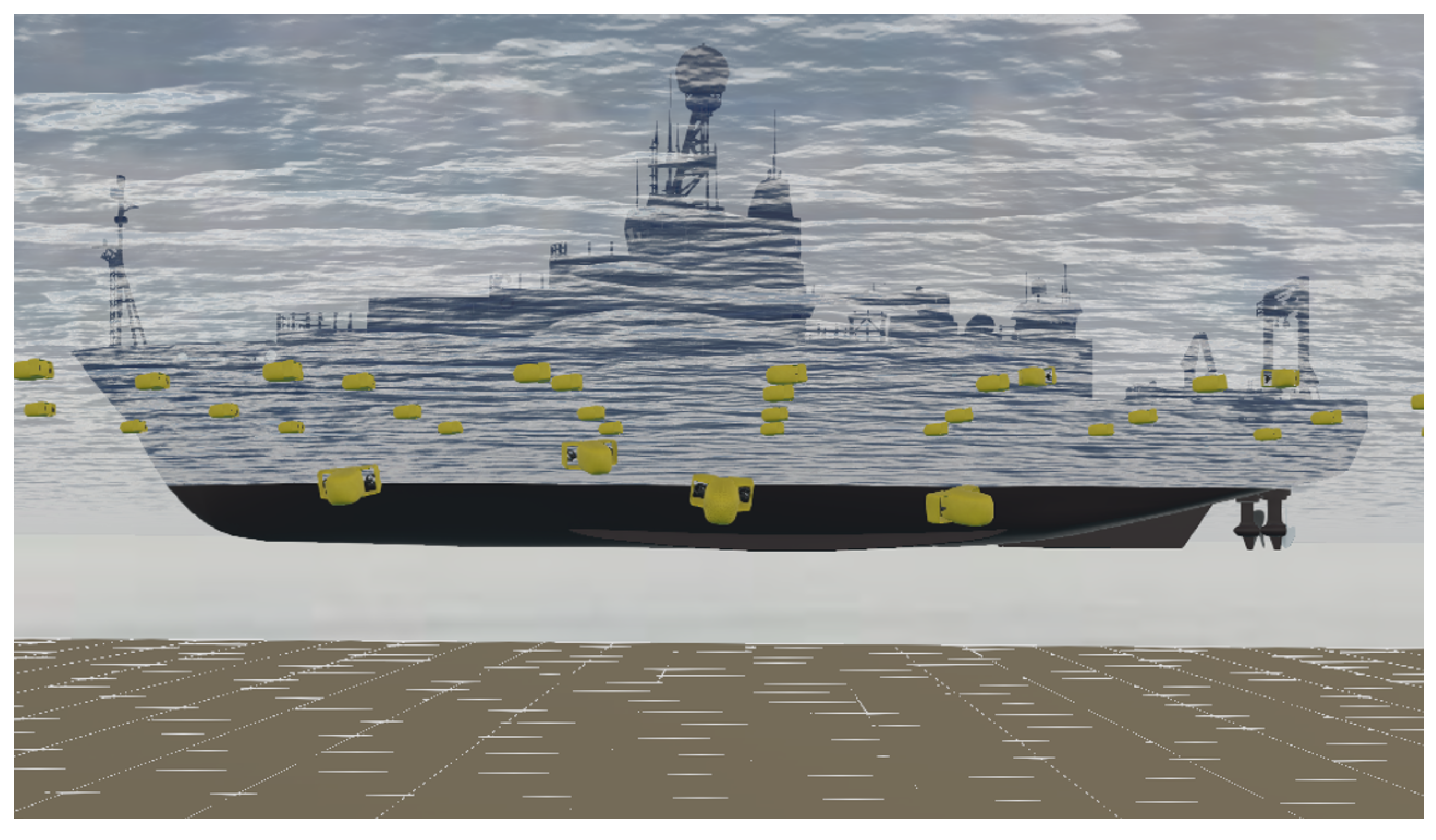

**Figure 7.**Underwater Webots simulation scene of 50 AUVs deployment, the USBL transceiver is hull-mounted on the deployment vessel.

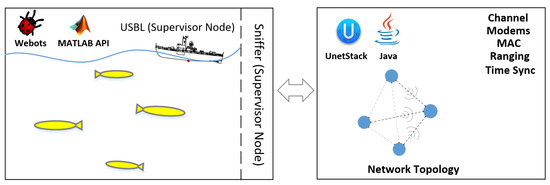

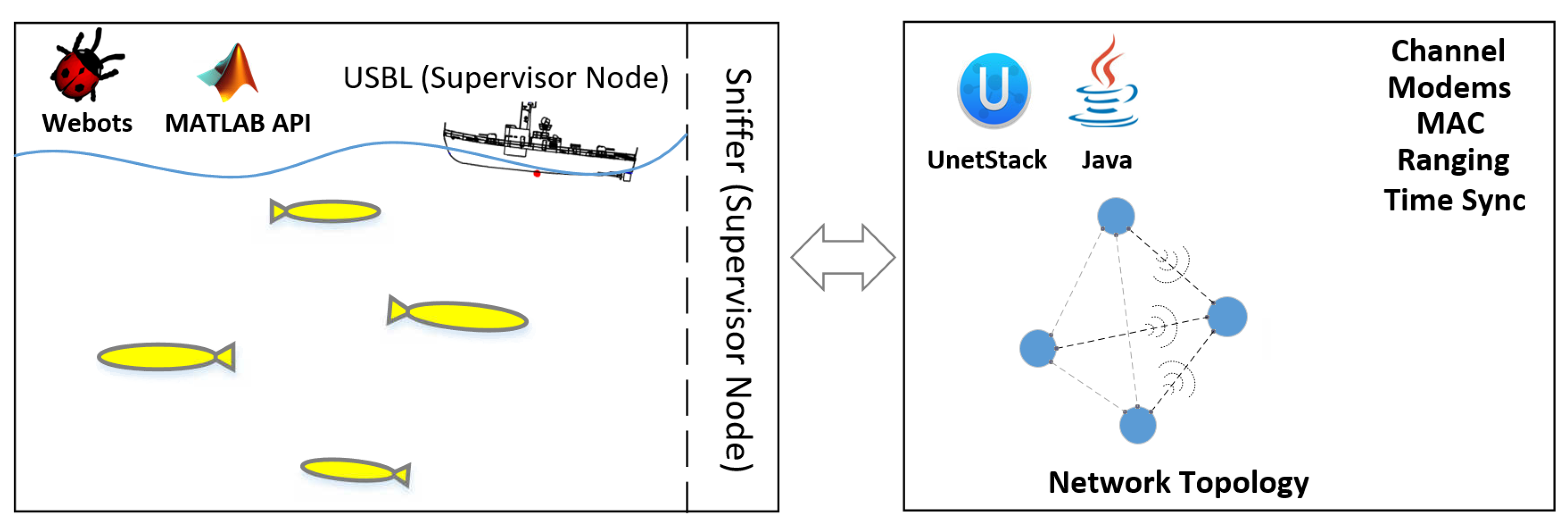

**Figure 8.**The implemented simulation platform used to validate the proposed navigation algorithm. Webots robotic simulator is employed for physics simulation and UnetStack is employed for simulating the underwater acoustic communication properties.

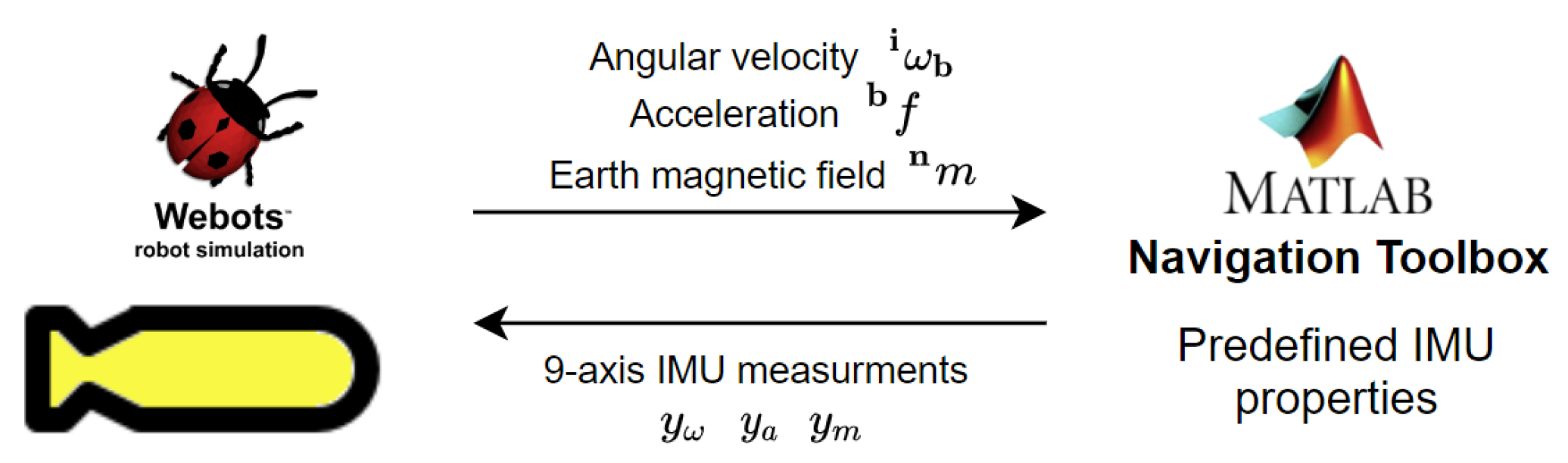

**Figure 9.**Angular velocity, acceleration, and local magnetic field of the earth are generated as ground truth readings at each time instant of each IMU that is modelled in an underwater environment in Webots simulator. Given the ground truth readings and the IMU properties, a realistic nine-axis IMU is modelled on MATLAB Navigation toolbox.

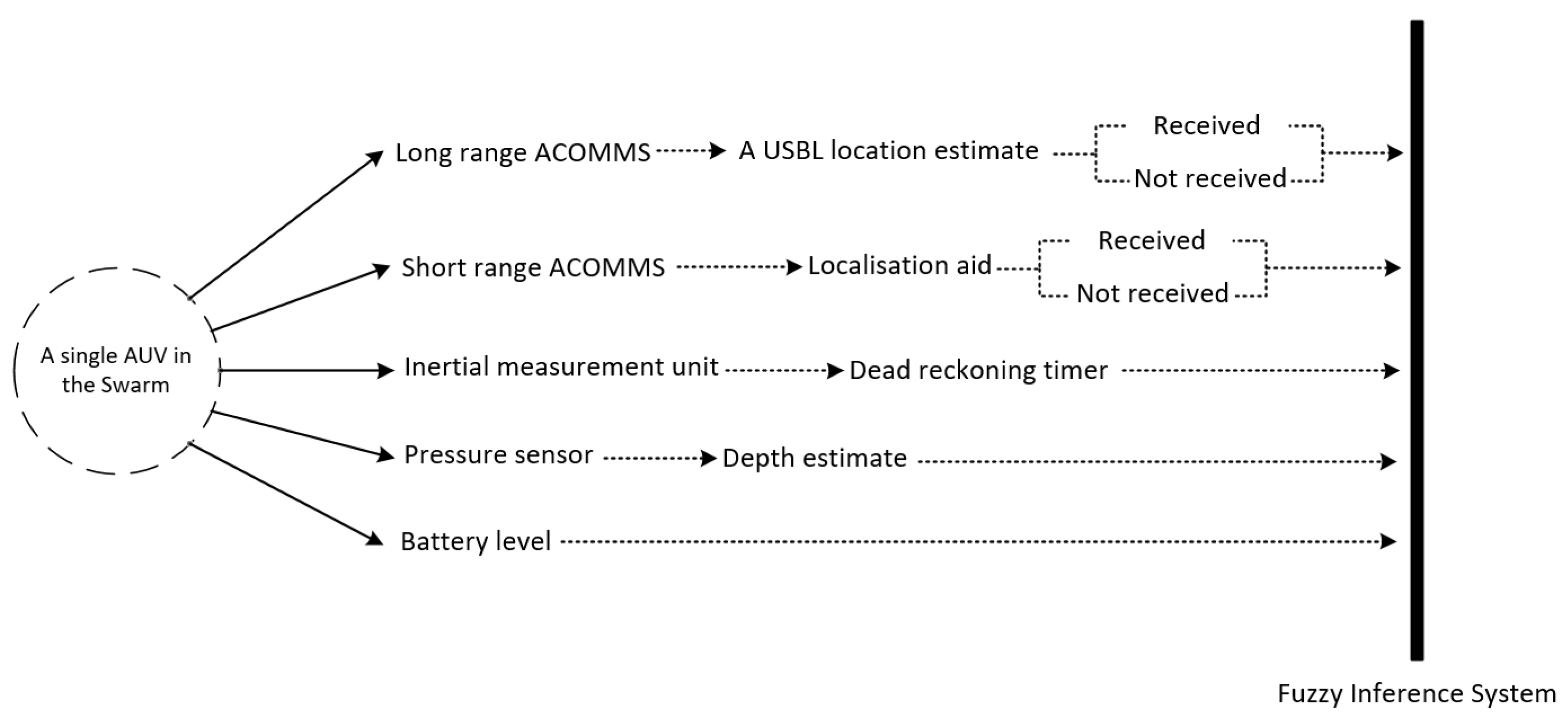

**Figure 10.**Fuzzy inference variable inputs of each AUV in a swarm of AUVs based on its on-board acoustic communication modems and sensors.

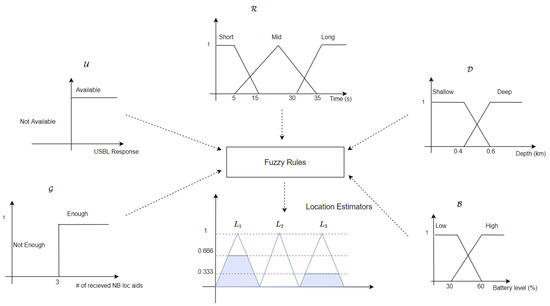

**Figure 11.**Fuzzy-based underwater localisation approach (Decision-making) with five variable inputs & their fuzzy/crisp sets and three underwater location estimators. The aggregated fuzzy output shows an example of a final localisation plan of $(\frac{2}{3}{L}_{1}+\frac{1}{3}{L}_{3})$.

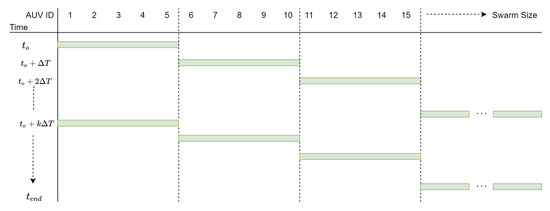

**Figure 12.**An Example of round-robin scheduling for USBL navigation aid (represented by the green bar) in a swarm of AUVs. The USBL, in this example, can only navigationally aid five AUVs in a single TDMA frame of $\Delta T$.

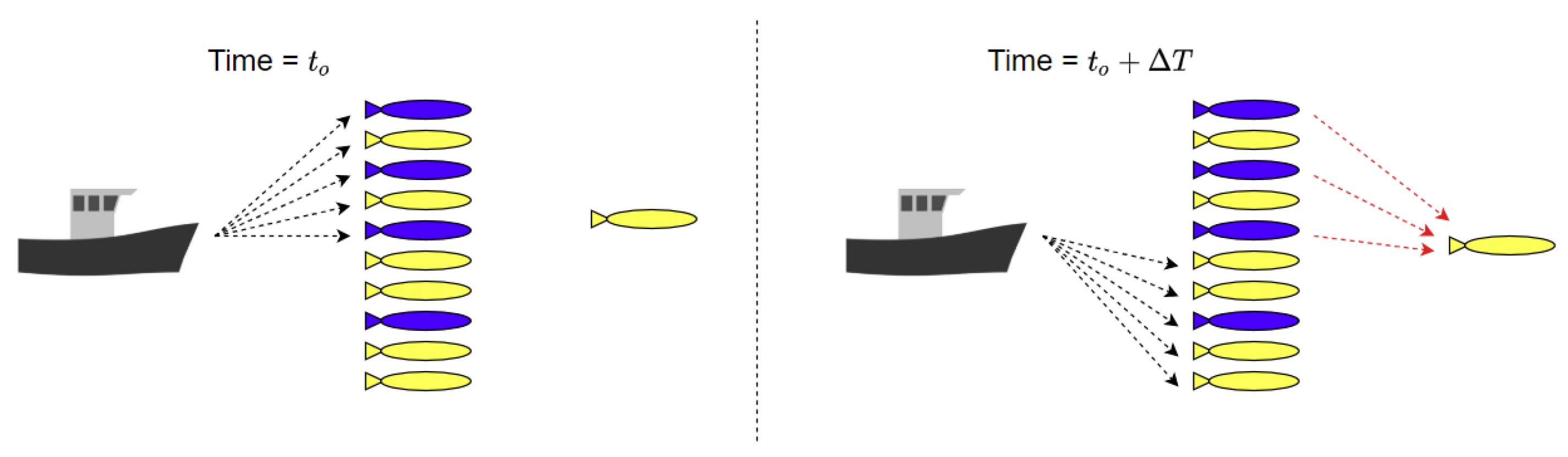

**Figure 13.**The proposed fuzzy-based localisation framework harnesses round-robin scheduling for USBL navigation aid assuming that all AUVs requested USBL navigation aid. The USBL can only navigatioanlly aid five AUVs in a single TDMA frame of $\Delta T$ utilising low-frequency ACOMMS (in black arrows). NBs (in blue) broadcast localisation aid to their neighbouring AUV utilising high-frequency ACOMMS (in red arrows).

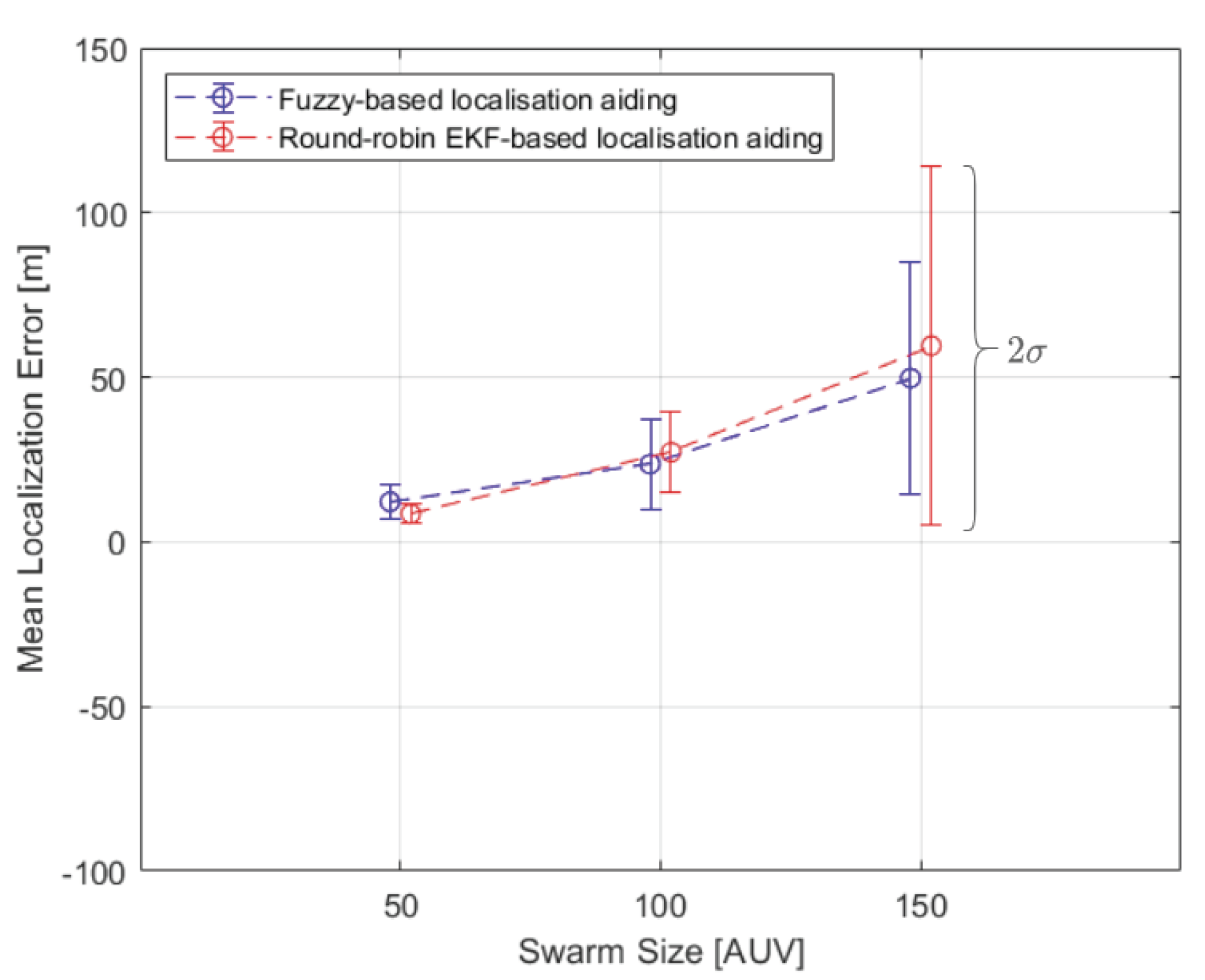

**Figure 14.**The entire swarm mean and standard deviation localisation error in both the proposed Fuzzy-based USBL/trilateration aided DR navigation (in blue) and round-robin EKF-based USBL/trilateration aided DR navigation (in red). The error bar around the mean point represents $2\sigma $ standard deviation.

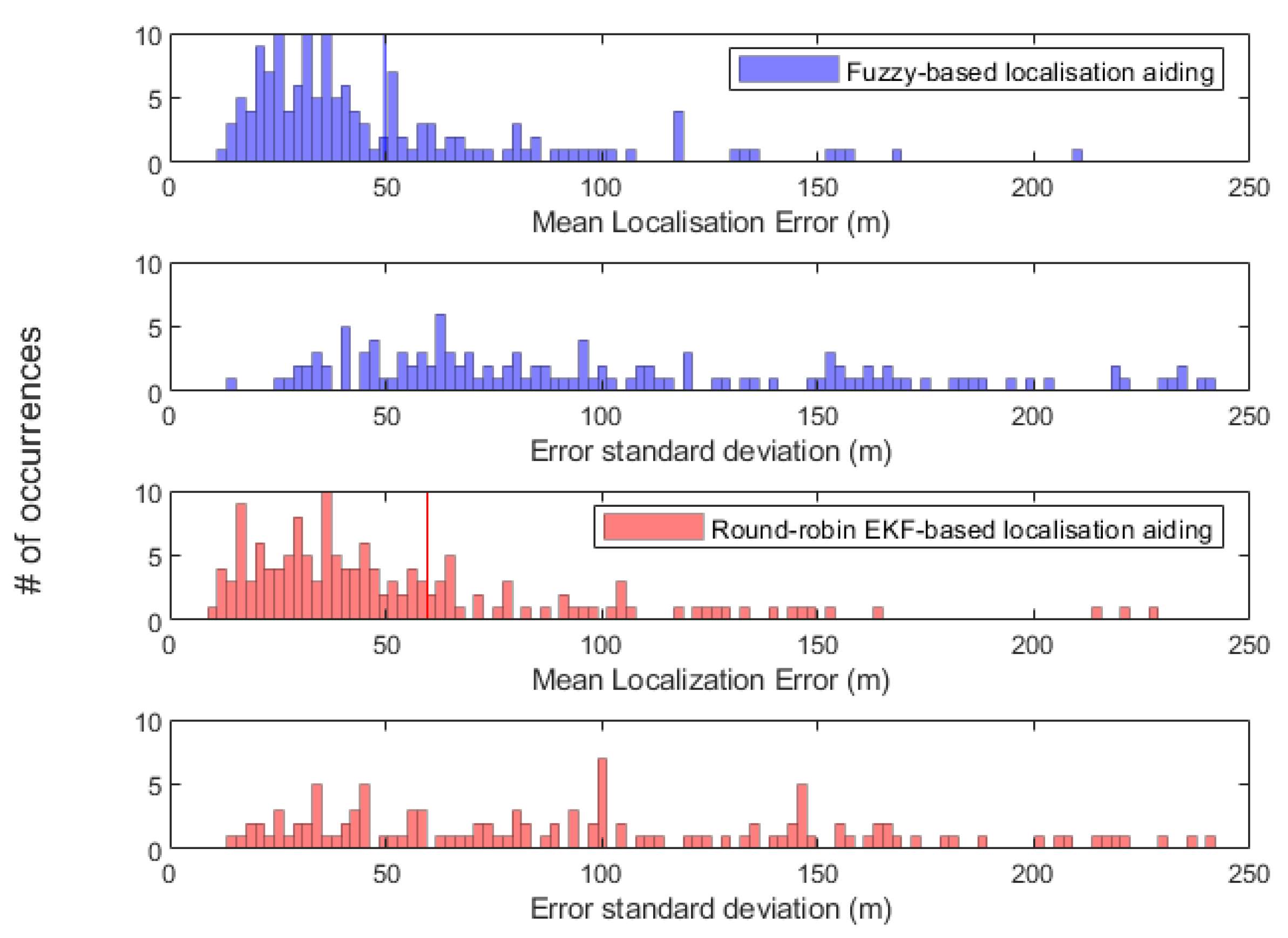

**Figure 15.**Histogram of the mean localisation error and standard deviation of each AUV of the entire swarm of 150 AUVs. The vertical lines represent the entire swarm mean localisation error, which is 49.76 m and 59.62 m in fuzzy-based and round-robin EKF-based localisation, respectively.

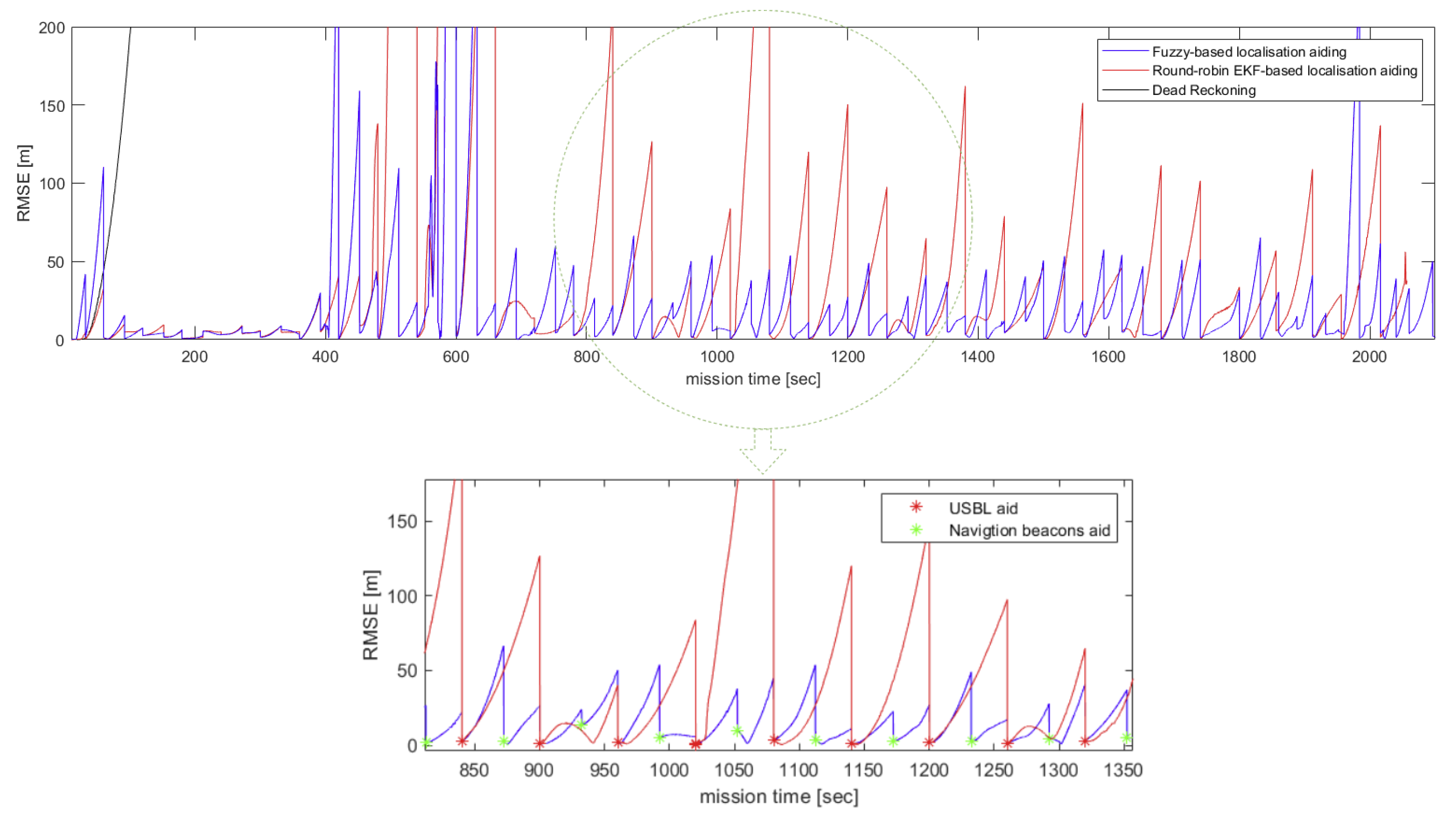

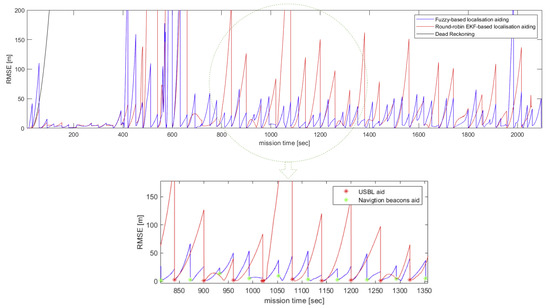

**Figure 16.**Instantaneous localisation performance of an AUV in a swarm of 150 when the proposed fuzzy-based, round-robin EKF-based and DR-only methods are adopted. A time window of 500 s shows the fused external navigation aid.

Parameter | Value |
---|---|

Accelerometer Resolution | 60.958 $\mathsf{\mu}$g |

Accelerometer Constant Bias | 14 $\mathsf{\mu}$g |

Accelerometer Noise Density | 57 $\mathsf{\mu}$g/$\sqrt{Hz}$ |

Gyroscope Resolution | 0.0625${}^{\circ}$ |

Gyroscope Constant Bias | 7${}^{\circ}$/hour |

Gyroscope Noise Density | 0.15${}^{\circ}$/$\sqrt{\mathrm{hour}}$ |

Magnetometer Resolution | 1 mGauss |

Magnetometer Constant Bias | 1.5 mGauss |

Magnetometer Noise Density | 3 mGauss |

Parameter | Value |
---|---|

Swarm Size | 50; 100; 150 AUVs |

Simulation Time Step | 100 ms |

Clock-synchronisation error | 1.2 ms 1-$\sigma $ |

Seabed Depth | 1000 m |

Depth Sensor | 2 Hz, 0.1 m 1-$\sigma $ error |

USBL Transponder Communication Range | 6000 m |

USBL Localisation Accuracy in 1000 m | 2.7 m 1-$\sigma $ error |

Number of AUVs positioned by the USBL in a single TDMA frame | 10 AUVs |

USBL TDMA Frame length | 1 s |

USBL update rate | 4 s |

Number of NBs | 10 AUVs |

NBs broadcasting period | 1 s |

Parameter | Value |
---|---|

Communication modem Frequency band | 160 kHz |

Communication data rate | 50 kbit/s |

Navigation aid length and duration | 20 bytes; 3.2 ms |

Navigation aid allocated TDMA time-slot length | 20 ms |

Noise level | 60 dB |

Water salinity | 35 ppt |

Water temperature | 10 ${}^{\circ}$C |

Rician fading parameter | 10 |

Fast fading | enabled |
