A Capacitively-Fed Inverted-F Antenna for Displacement Detection in Structural Health Monitoring
Abstract
:1. Introduction
2. Design and Theory
2.1. Design of the Capacitively Fed Inverted-F Antenna
2.2. Theory of the Capacitively-Fed Inverted-F Antenna
3. Simulation

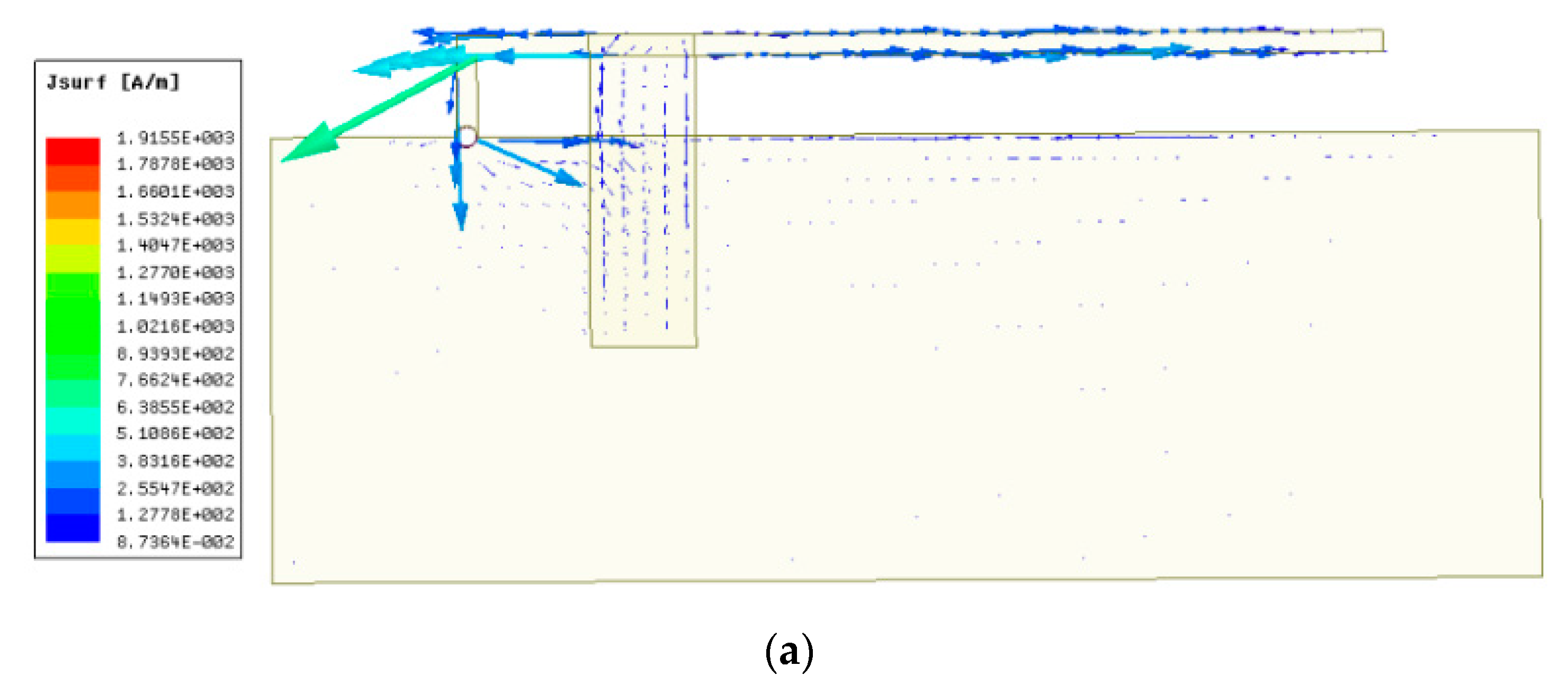

3.1. Verification of the Assumption in Section 2

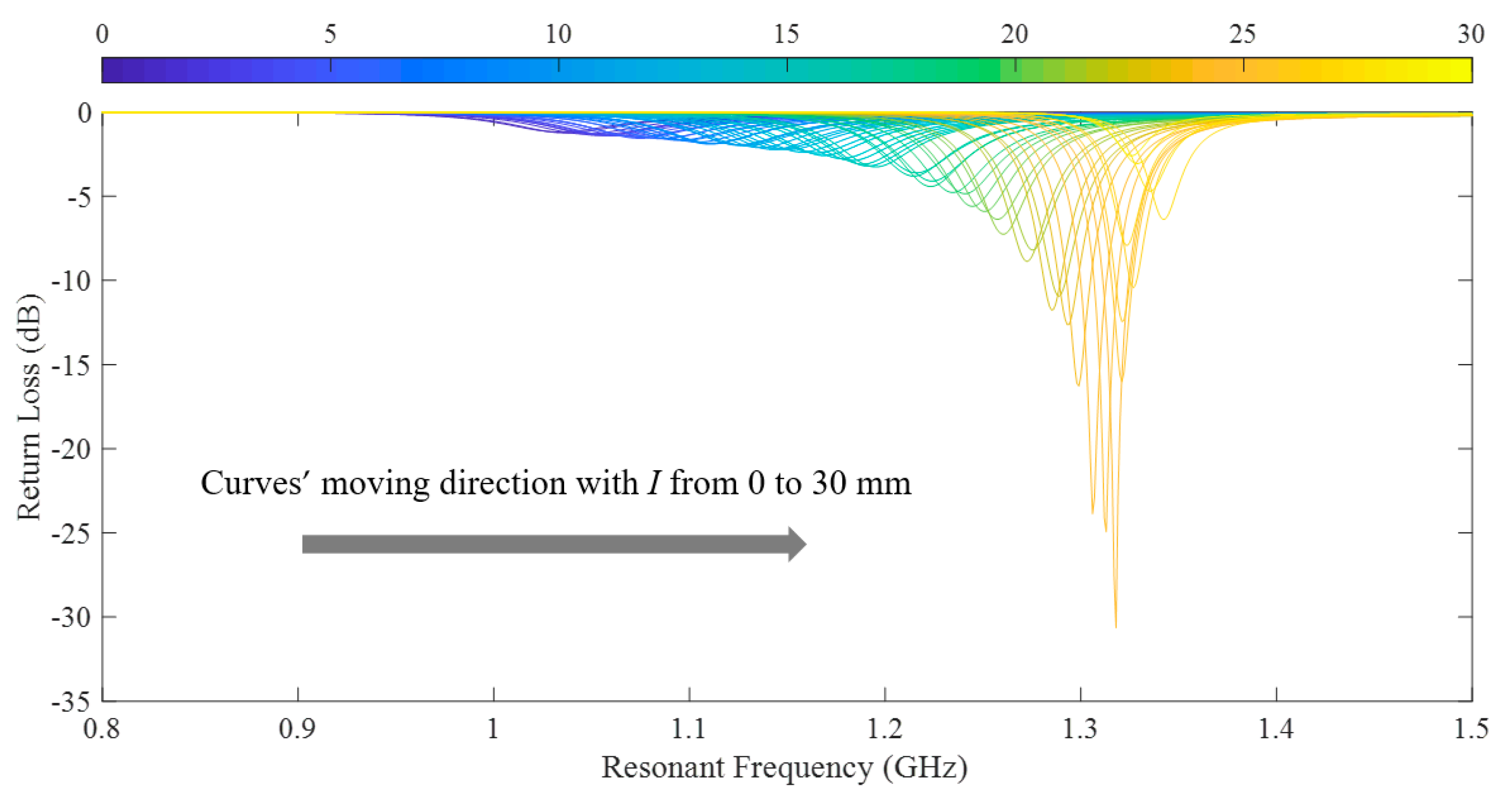

3.2. Performance Simulation
4. Experiment
4.1. Instrumentation Setup
4.2. Experimental Results
5. Results and Discussion
