Article

A Fully-Printed CRLH Dual-Band Dipole Antenna Fed by a Compact CRLH Dual-Band Balun

Department of Information & Telecommunication Engineering, Incheon National University, Incheon 22012, Korea
*
Author to whom correspondence should be addressed.
Sensors 2020, 20(17), 4991; https://doi.org/10.3390/s20174991
Received: 13 July 2020 / Revised: 14 August 2020 / Accepted: 31 August 2020 / Published: 3 September 2020
(This article belongs to the Special Issue Antennas and Propagation)
In this paper, a new design method is proposed for a planar and compact dual-band dipole antenna. The dipole antenna has arms as a hybrid CRLH (Composite right- and left-handed) transmission-line comprising distributed and lumped elements for the dual-band function. The two arms are fed by the outputs of a compact and printed CRLH dual-band balun which consists of a CRLH hybrid coupler and an additional CRLH phase-shifter. Its operational frequencies are 2.4 and 5.2 GHz as popular mobile applications. Verifying the method, the circuit approach, EM (Electromagnetics) simulation and measurement are conducted and their results turn out to agree well with each other. Additionally, the CRLH property is shown with the dispersion diagram and the effective size-reduction is mentioned. View Full-Text
Keywords: dual-band dipole; CRLH antenna; dual-band balun; CRLH balun; wireless communication dual-band dipole; CRLH antenna; dual-band balun; CRLH balun; wireless communication

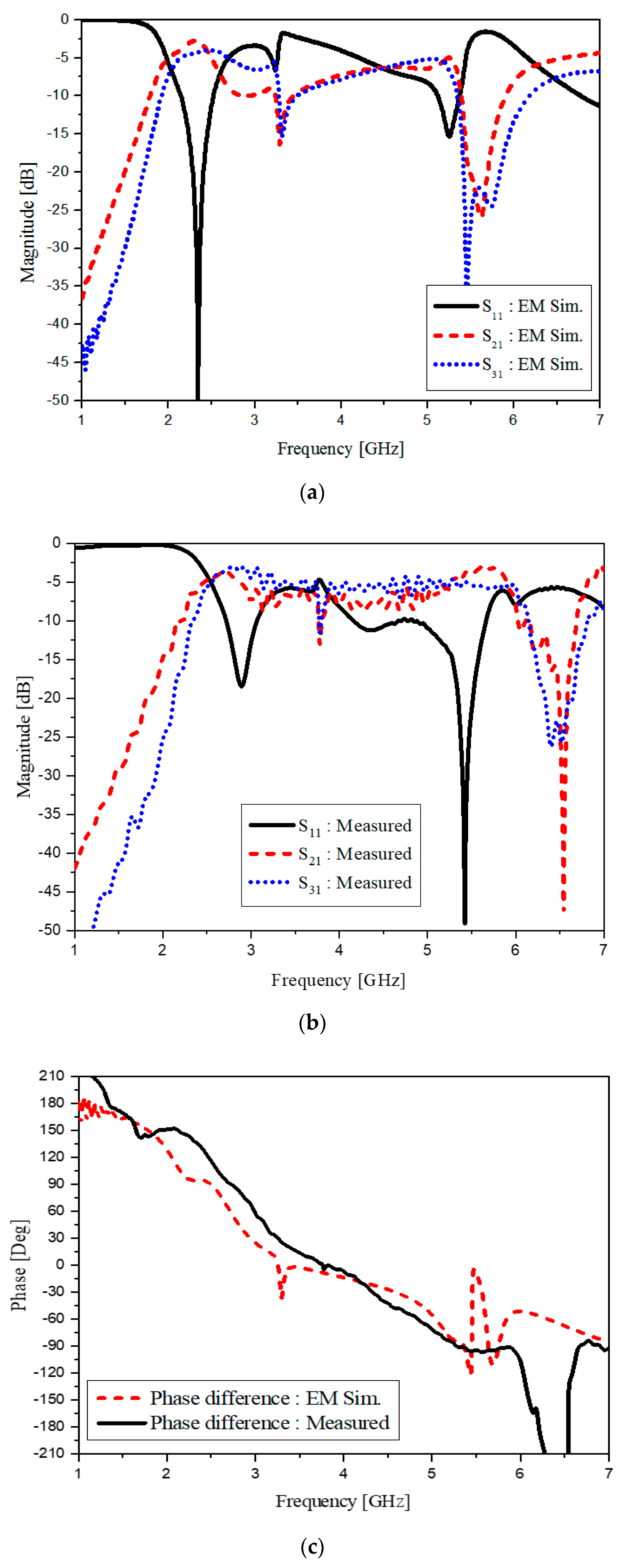

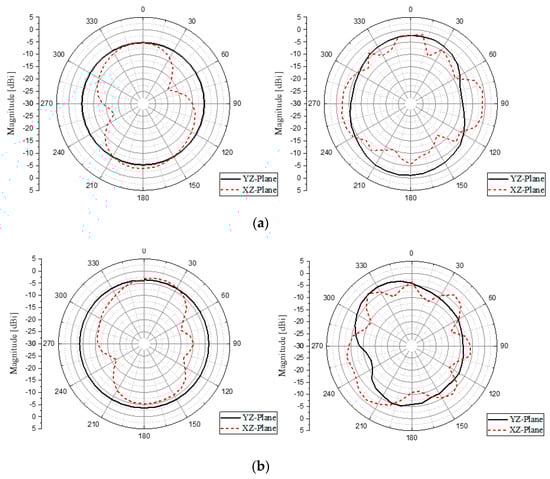

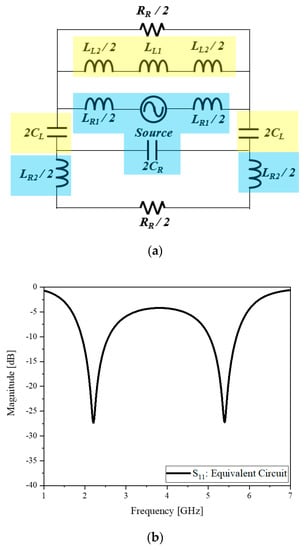

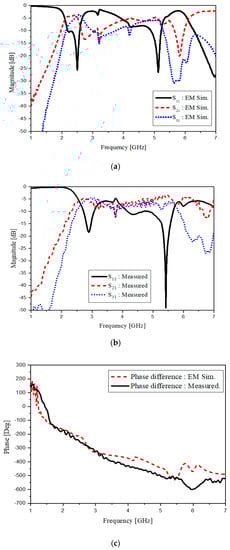

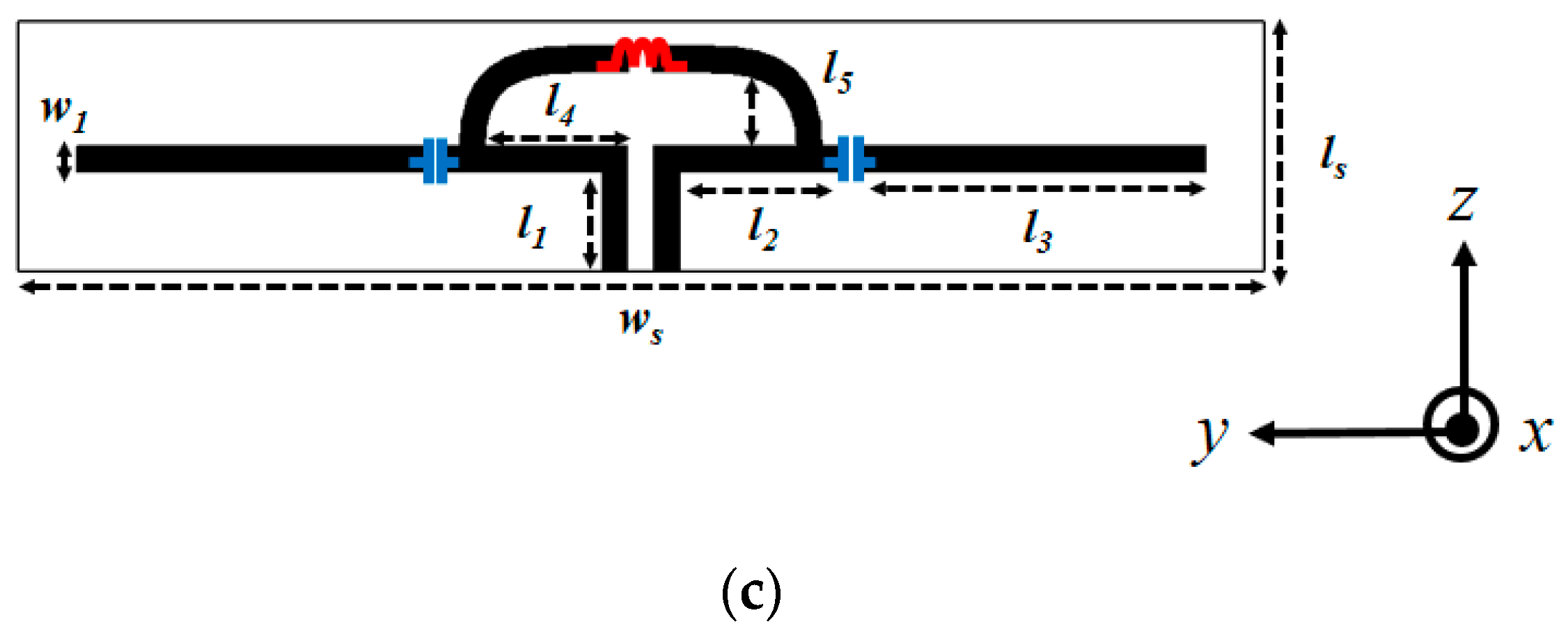

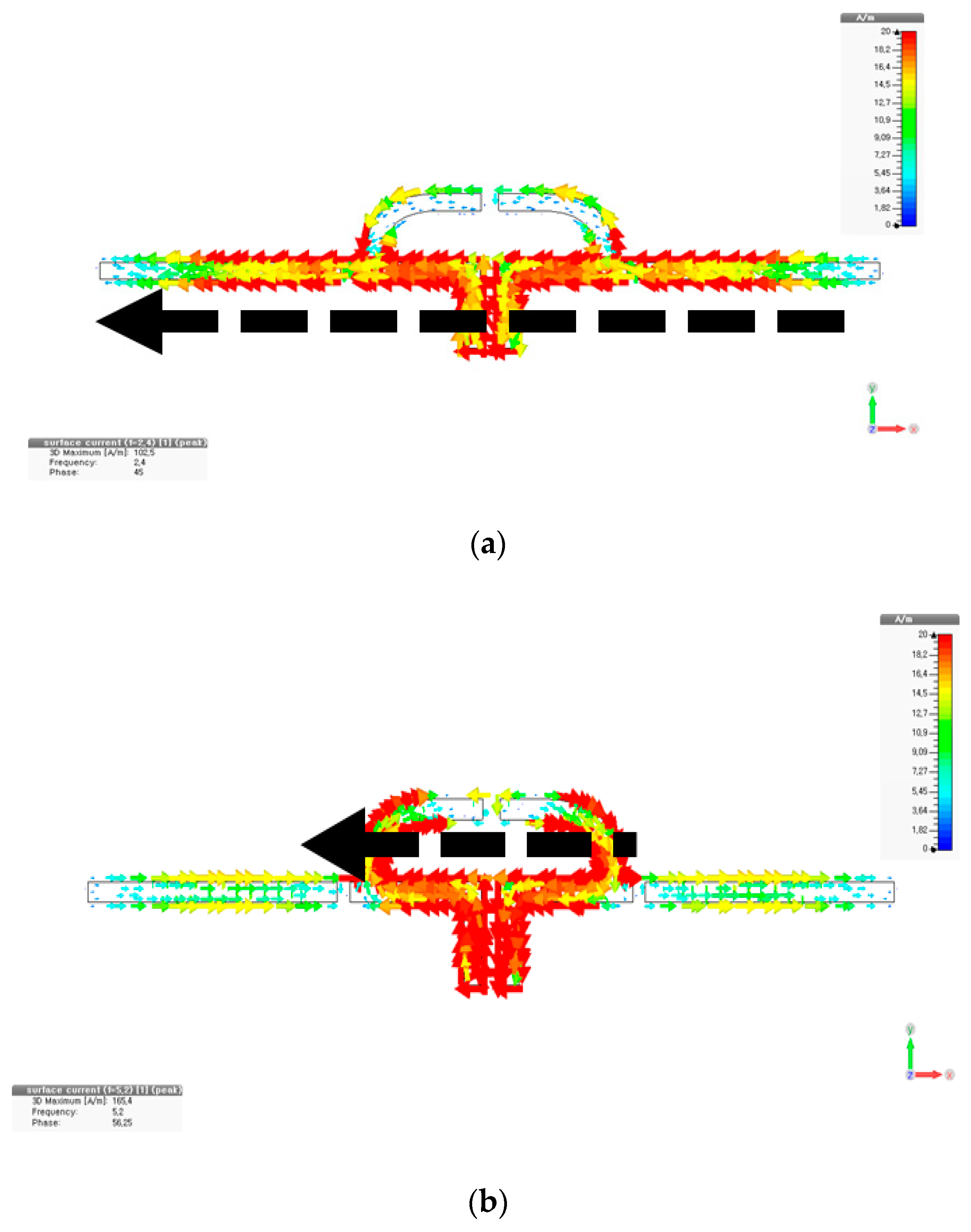

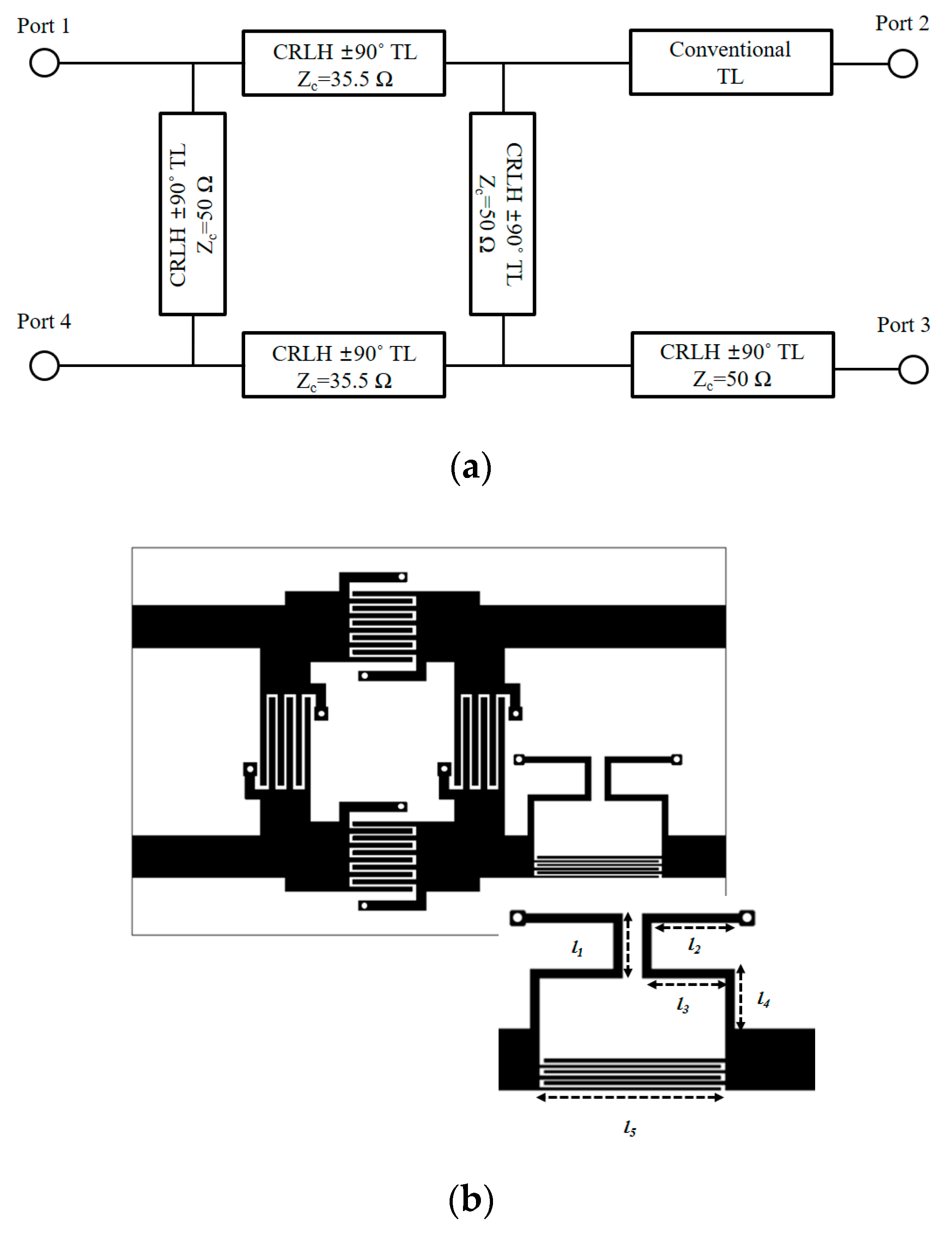

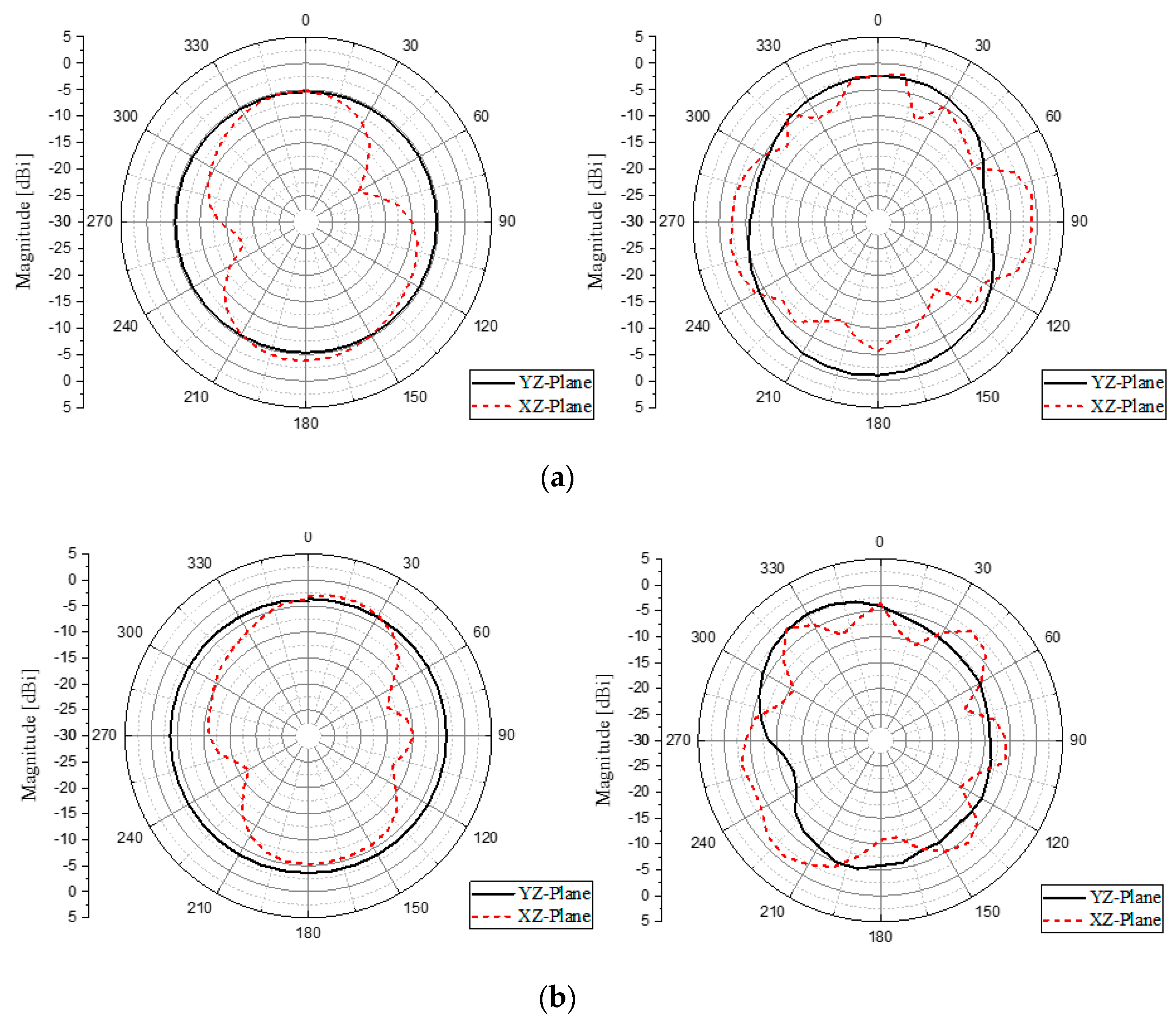

Show Figures

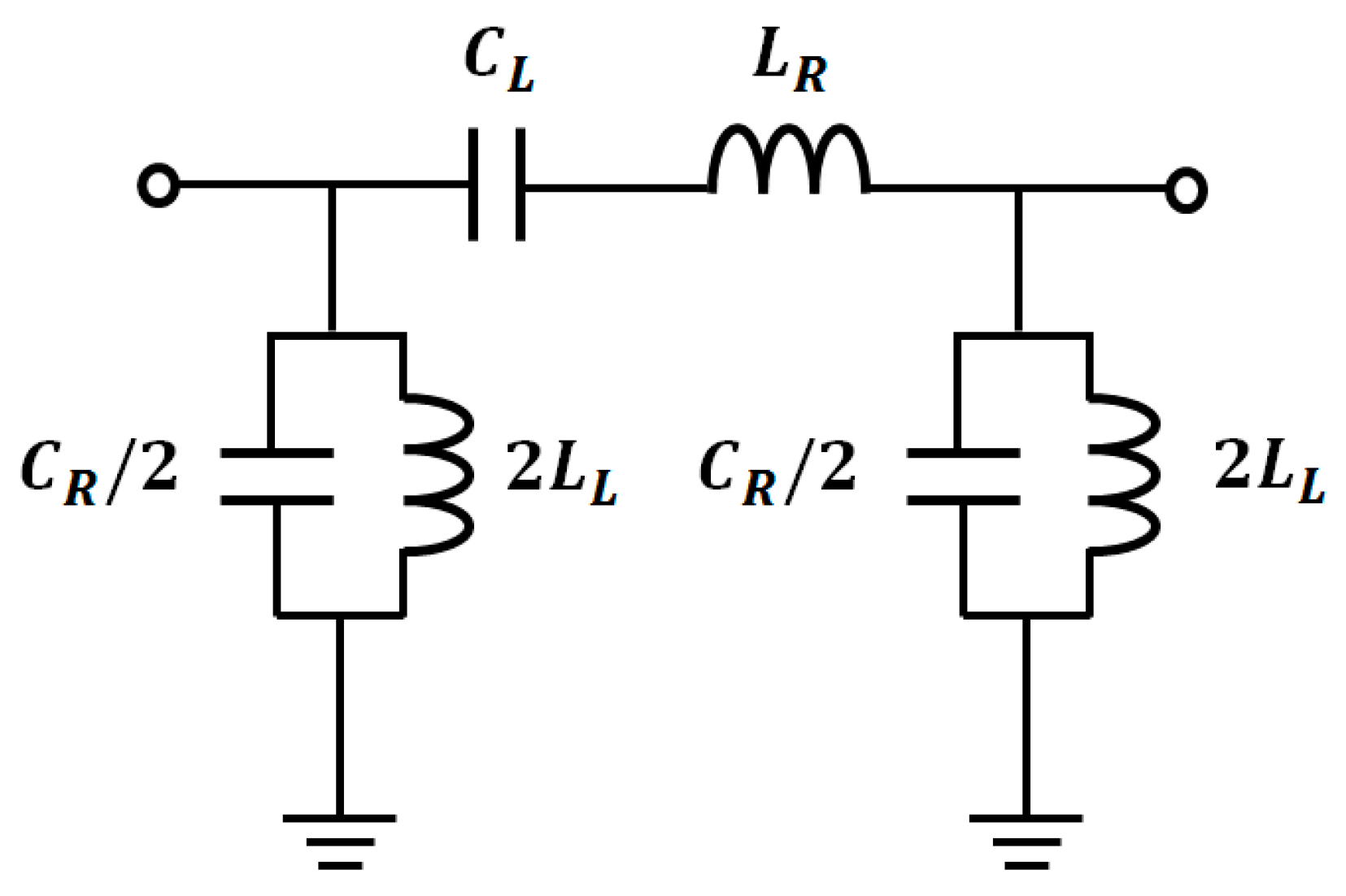

Figure 1
