An INS and UWB Fusion-Based Gyroscope Drift Correction Approach for Indoor Pedestrian Tracking
Abstract
:1. Introduction
- A novel gyroscope drift estimation algorithm is proposed by only utilizing heading orientations and location estimations from sensor fusion system, which can be readily applied to and integrated with other systems using different sensing hardware and algorithms (further discussed in Section 2);
- The number of required UWB anchors in the fusion system can be significantly reduced by fusing only distance measurements from arbitrary number of available anchors. Conventional use of UWB in other published approaches requires that every possible location in the deployment area is covered by at least four UWB anchors. The total number of UWB anchors subsequently increases significantly for larger deployment area. When only fusing distance measurements, large area can be easily covered by significantly fewer anchors.
- Practical pedestrian tracking is designed and conducted to verify the proposed approach. The results demonstrate that the FIPS is able to achieve better tracking performance with gyroscope drift corrected.
2. Preliminaries and Related Works
3. Proposed Approach
3.1. Distance Measurements Based INS and UWB Fusion
Algorithm 1 Inertial navigation system (INS) and ultra-wideband (UWB) fusion algorithm. |
1. Initialization: 2. initialize position estimate and the particle set { = [, , ]T, (m = 1…M)} with known position Sinit = [x0, y0, zc]T 3. K UWB anchors are installed at {Ak = [, , ], k = 1…K} 4. Update: 5. at step index t 6. obtain step length Lt and orientation θt from INS subsystem 7. if no UWB measurement is available, i.e., It = 0 8. update to according to Equation (1), i.e., no additive noise 9. update particle set {, (m = 1…M)} to {, (m = 1…M)} according to Equation (1), i.e., no additive noise 10. else 11. obtain UWB distance measurements {, i = 1…It} and corresponding anchor locations {Ai, i = 1…It}, which are available for the current step (It ≤ K) 12. update particle set {, (m = 1…M)} to {, (m = 1…M)} according to Equation (4) 13. for each with anchor position Ai (i = 1…It) 14. for each particle (m = 1…M) 15. assign particle weight according to Equation (3), (5) and (6) 16. end for 17. normalize {, (m = 1…M)} such that 18. end for 19. weight of each particle 20. normalize {, (m = 1…M)} such that 21. generate position estimate 22. Resample {, (m = 1…M)}, using Systematic resampling given {, (m = 1…M)} 23. go to Update when a new step is detected at index t+1 24. end if |

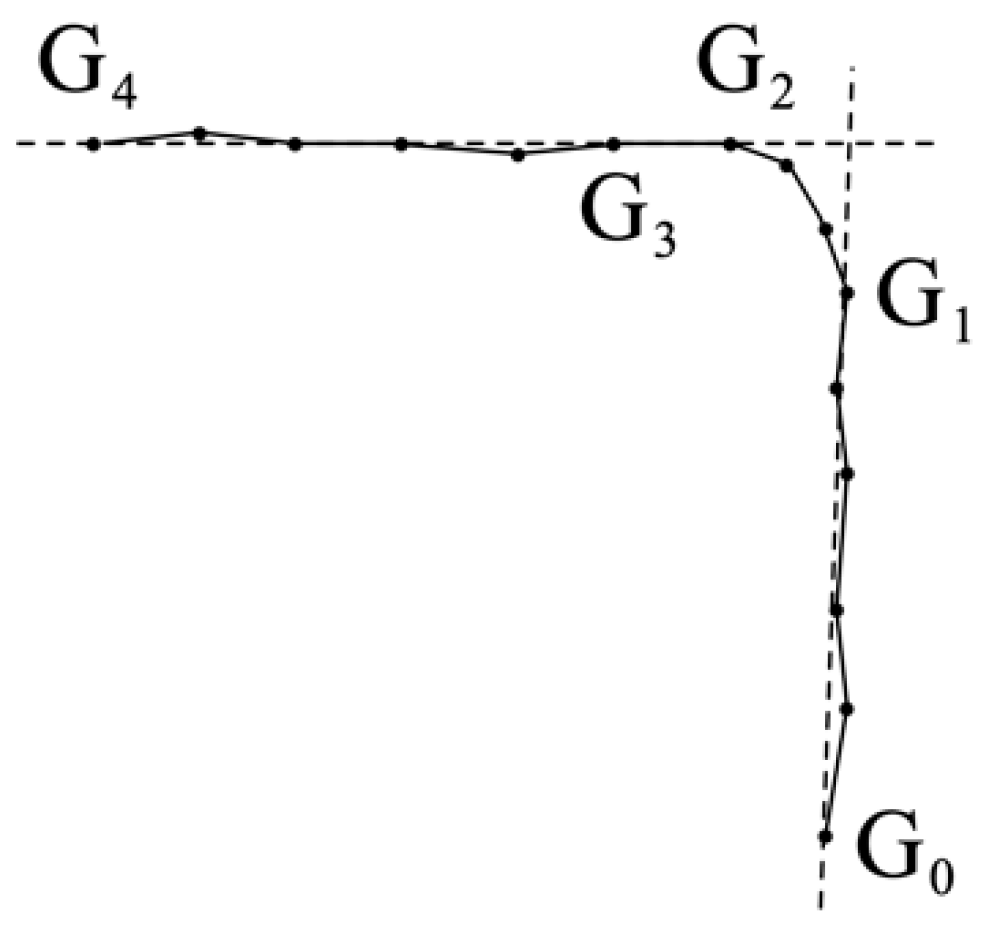

3.2. Turn Detection
Algorithm 2 Turn detection algorithm |
1. Given a window of P consecutive step orientations, {Op, p = 1...P} 2. Obtain a sub-window of the first Q samples, {OFq Op, q = 1...Q} 3. Obtain a sub-window of the last Q samples, {OLq Op, q = 1...Q} 4. Calculate the heading angle range and average heading angle of {OFq, q = 1...Q} as RA1 and AA1 5. Calculate the heading angle range and average heading angle of {OLq, q = 1...Q} as RA2 and AA2 6. Calculate the heading angle difference of {AA1, AA2} as RA 7. if RA1 < THS and RA2 < THS and RA > THT 8. turn detected 9. else 10. turn not detected 11. end if |

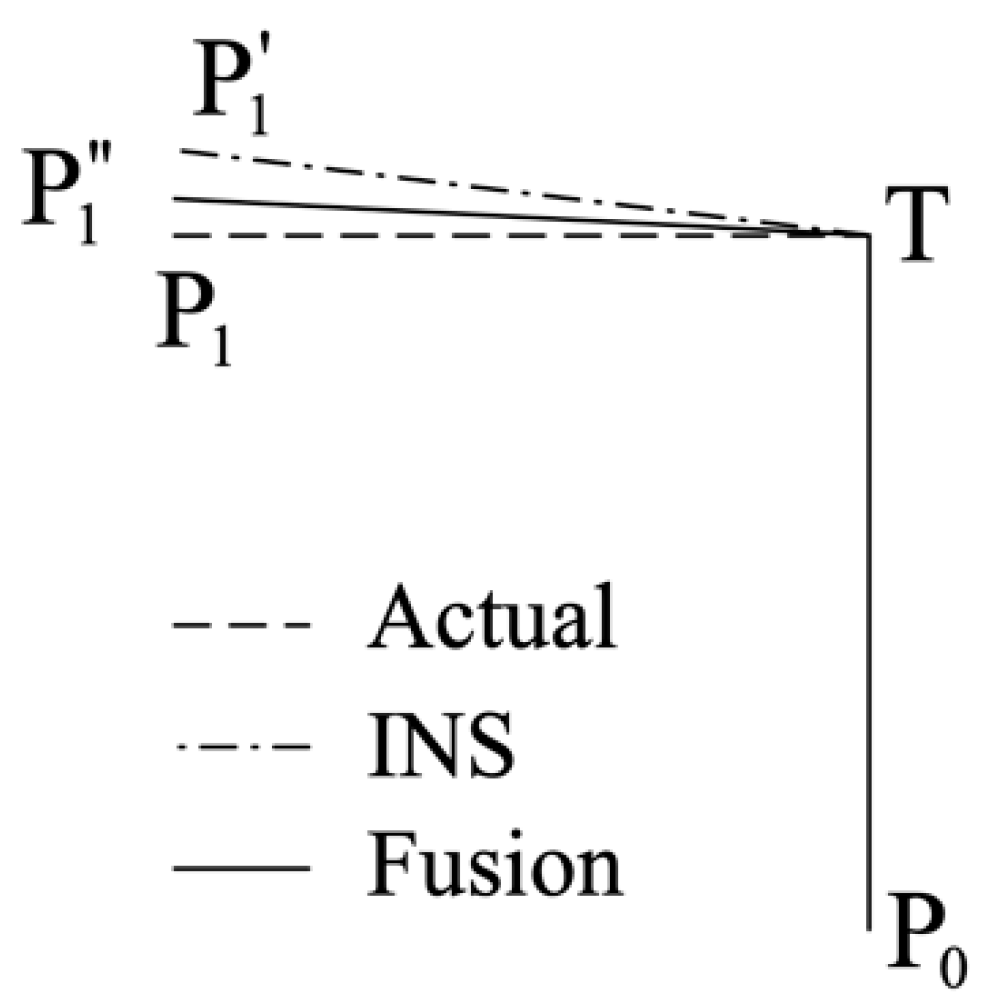

3.3. Gyroscope Drift Estimation

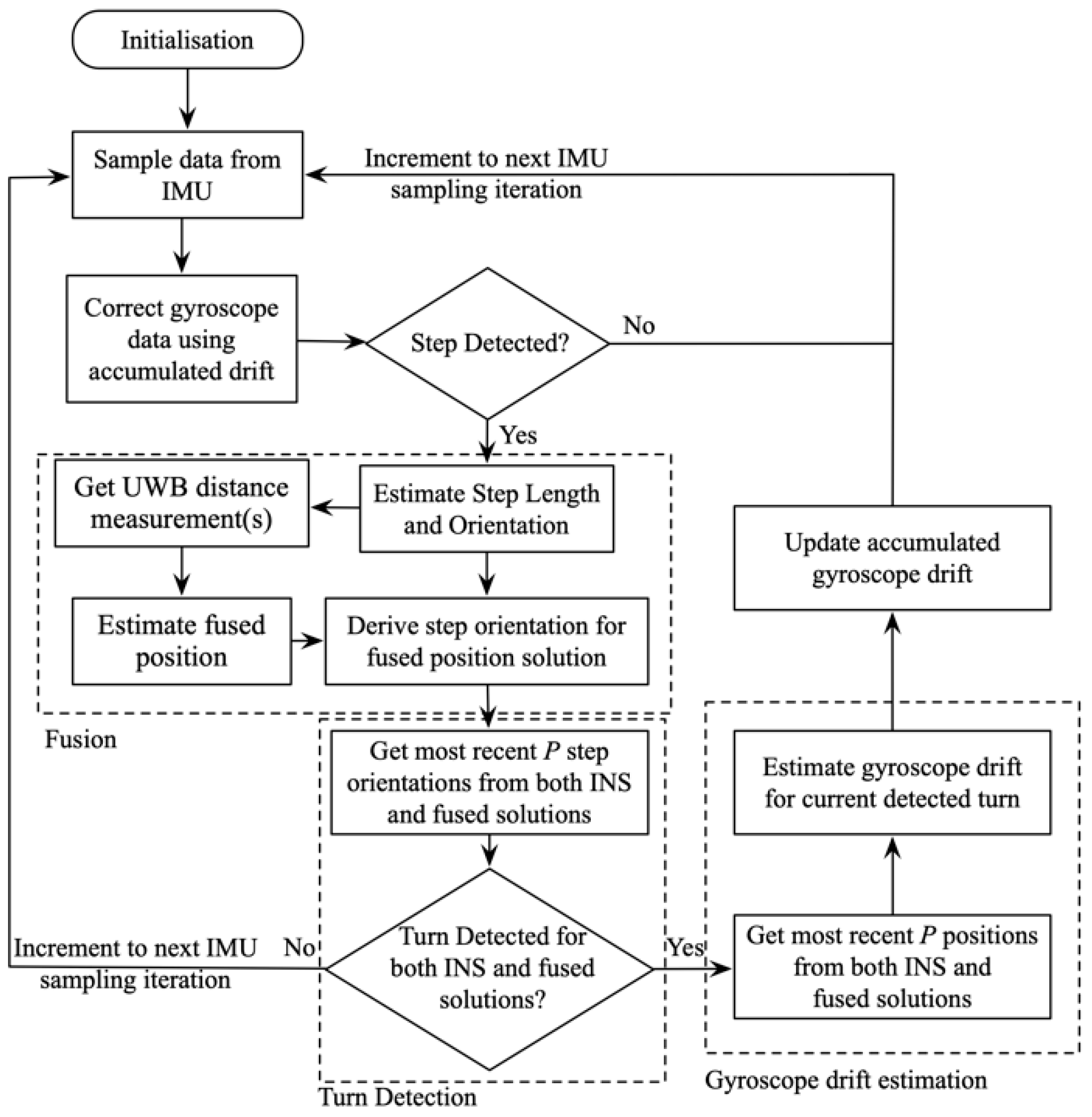

3.4. Proposed FIPS with Gyroscope Drift Correction
4. Experimental Evaluations

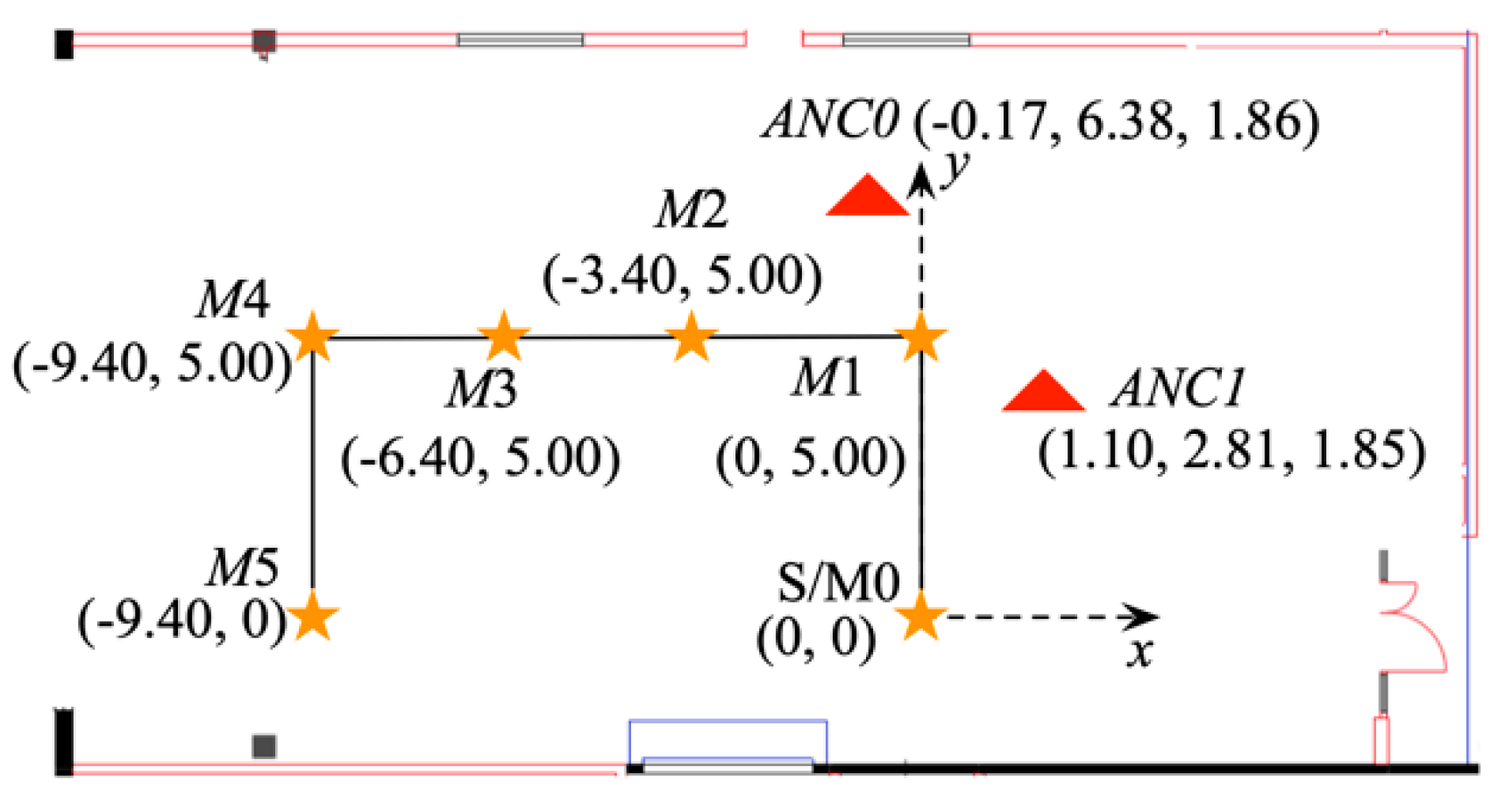

4.1. Proposed FIPS with Gyroscope Drift Correction

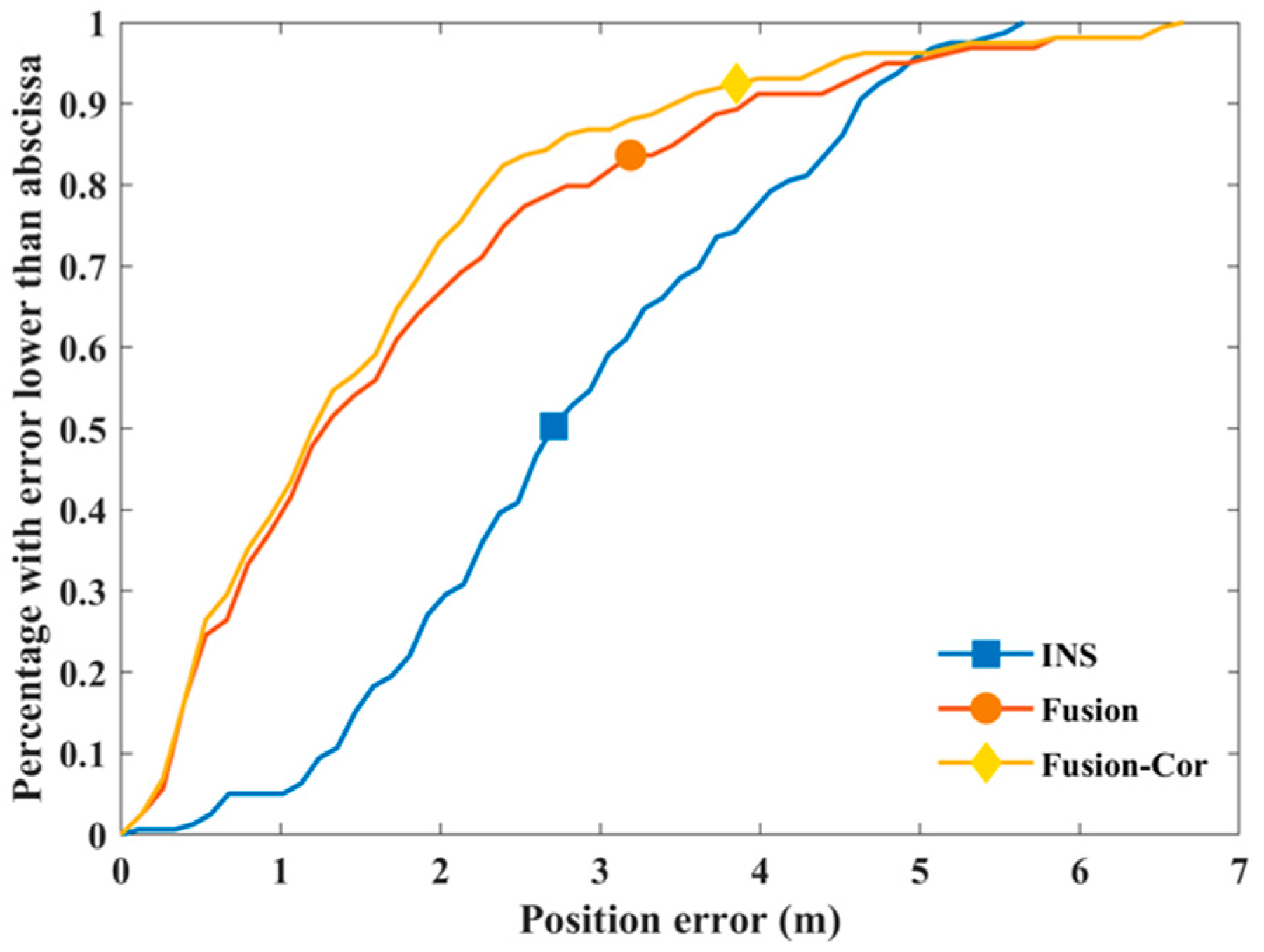

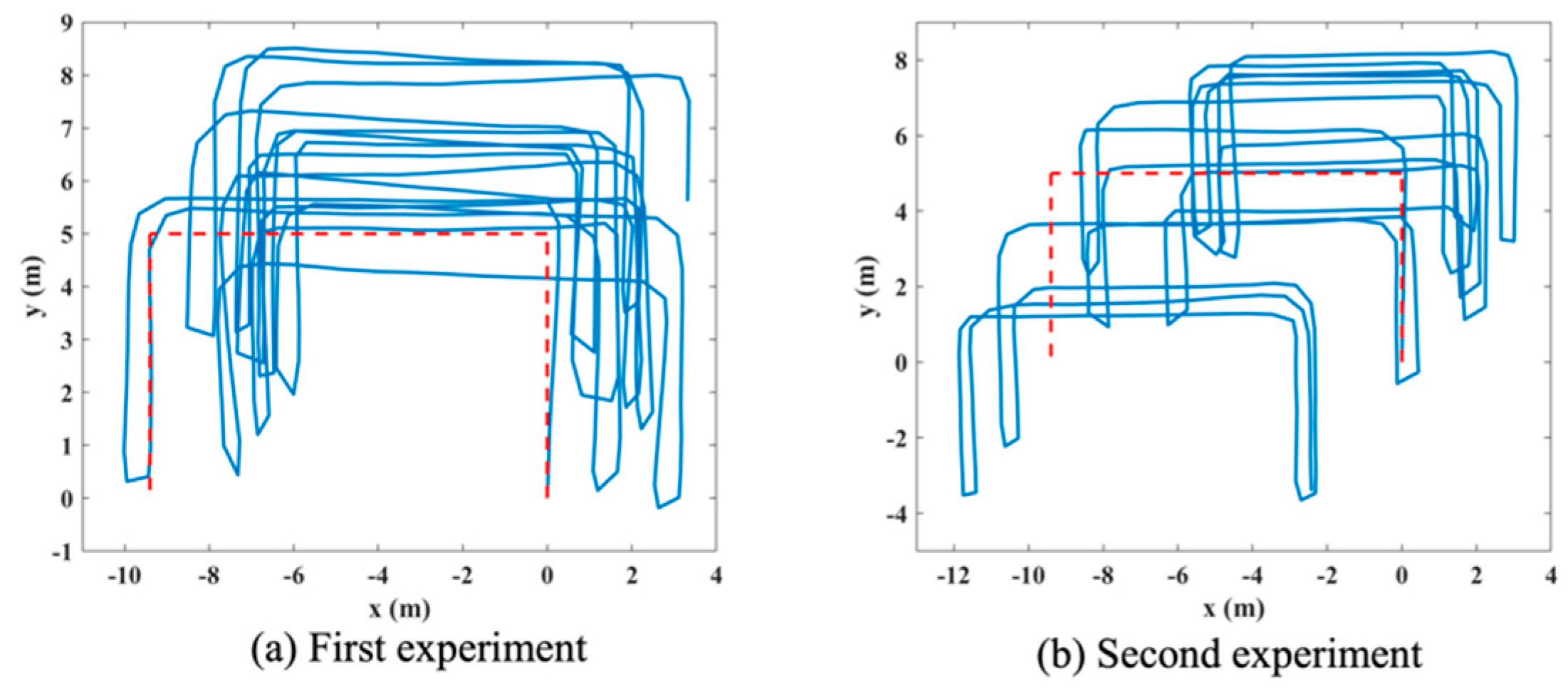

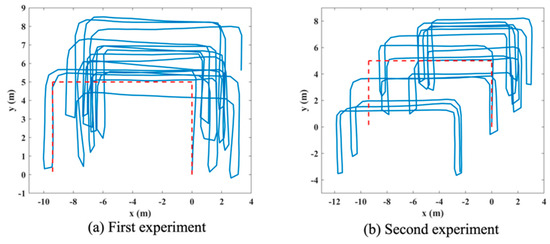

4.2. Results and Discussion
5. Conclusions
Author Contributions
Funding
Conflicts of Interest
References
- Lin, C.-C.; Chiu, M.-J.; Hsiao, C.-C.; Lee, R.-G.; Tsai, Y.-S. Wireless health care service system for elderly with dementia. IEEE Trans. Inf. Technol. Biomed. 2006, 10, 696–704. [Google Scholar] [CrossRef] [PubMed]
- Barberis, C.; Andrea, B.; Giovanni, M.; Paolo, M. Experiencing Indoor Navigation on Mobile Devices. It Prof. 2014, 16, 50–57. [Google Scholar] [CrossRef]
- Paterna, V.C.; Auge, A.C.; Aspas, J.P.; Bullones, M.A.P. ABluetooth Low Energy Indoor Positioning System with Channel Diversity, Weighted Trilateration and Kalman Filtering. Sensors 2017, 17, 2927. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Yang, C.; Shao, H. WiFi-based indoor positioning. IEEE Commun. Mag. 2015, 53, 150–157. [Google Scholar] [CrossRef]
- Suski, W.; Banerjee, S.; Hoover, A. Using a map of measurement noise to improve UWB indoor position tracking. IEEE Trans. Instrum. Meas. 2013, 62, 2228–2236. [Google Scholar] [CrossRef]
- Ruiz, A.R.J.; Granja, F.S.; Honorato, J.C.P.; Rosas, J.I.G. Accurate Pedestrian Indoor Navigation by Tightly Coupling Foot-Mounted IMU and RFID Measurements. IEEE Trans. Instrum. Meas. 2012, 61, 178–189. [Google Scholar] [CrossRef] [Green Version]
- Tian, Q.; Salcic, Z.; Wang, K.I.-K.; Pan, Y. An enhanced pedestrian dead reckoning approach for pedestrian tracking using smartphones. In Proceedings of the IEEE Tenth International Conference on Intelligent Sensors, Sensor Networks and Information Processing (ISSNIP), Singapore, 7–9 April 2015; pp. 1–6. [Google Scholar]
- Li, Y.; Ning, F. Low-Cost Indoor Positioning Application Based on Map Assistance and Mobile Phone Sensors. Sensors 2018, 18, 4285. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Tian, Z.; Zhang, Y.; Zhou, M.; Liu, Y. Pedestrian dead reckoning for MARG navigation using a smartphone. EURASIP J. Adv. Signal Process. 2014, 14, 65–73. [Google Scholar] [CrossRef] [Green Version]
- Tian, Q.; Salcic, Z.; Wang, K.I.-K.; Pan, Y. A multi-mode dead reckoning system for pedestrian tracking using smartphones. IEEE Sens. J. 2016, 16, 2079–2093. [Google Scholar] [CrossRef]
- Akeila, E.; Salcic, Z.; Swain, A. Reducing low-cost INS error accumulation in distance estimation using self-resetting. IEEE Trans. Instrum. Meas. 2014, 63, 177–184. [Google Scholar] [CrossRef]
- ADIS 16490 Data Sheet, Analog Devices. Available online: https://www.analog.com/media/en/technical-documentation/data-sheets/adis16490.pdf (accessed on 24 June 2019).
- Canedo-Rodríguez, A.; Alvarez-Santos, V.; Regueiro, C.V.; Iglesias, R.; Barro, S.; Presedo, J. Particle filter robot localisation through robust fusion of laser, WiFi, compass and a network of external cameras. Inf. Fusion 2016, 27, 170–188. [Google Scholar] [CrossRef]
- Ruiz, A.R.J.; Granja, F.S. Comparing Ubisense, BeSpoon, and DecaWave UWB Location Systems: Indoor Performance Analysis. IEEE Trans. Instrum. Meas. 2017, 66, 2106–2117. [Google Scholar] [CrossRef]
- TREK1000 User Manual, DecaWave. Available online: https://www.decawave.com/wp-content/uploads/2018/09/trek1000_user_manual.pdf (accessed on 24 June 2019).
- Xu, Y.; Ahn, C.K.; Shmaliy, Y.S.; Chen, X.; Li, Y. Adaptive robust INS/UWB-integrated human tracking using UFIR filter bank. Measurement 2018, 123, 1–7. [Google Scholar] [CrossRef]
- Fan, Q.; Sun, B.; Sun, Y.; Zhuang, X. Performance enhancement of MEMS-based INS/UWB integration for indoor navigation applications. IEEE Sens. J. 2017, 17, 3116–3130. [Google Scholar] [CrossRef]
- Youssef, J.; Denis, B.; Godin, C.; Lesecq, S. Loosely-coupled IR-UWB handset and ankle-mounted inertial unit for indoor navigation. In Proceedings of the IEEE International Conference on Ultra-Wideband (ICUWB), Bologna, Italy, 14–16 September 2011; pp. 1–5. [Google Scholar]
- Tian, Q.; Wang, K.I.-K.; Salcic, Z. Human body shadowing effect on UWB-based ranging system for pedestrian tracking. IEEE Trans. Instrum. Meas. 2018, 68, 4028–4037. [Google Scholar] [CrossRef]
- Djaja-Josko, V.; Kolakowski, M. A new map based method for NLOS mitigation in the UWB indoor localization system. In Proceedings of the 25th Telecommunication Forum (TELFOR), Belgrade, Serbia, 21–22 November 2017; pp. 1–4. [Google Scholar]
- Ferreira, A.G.; Fernandes, D.; Catarino, A.P.; Monteiro, J.L. Performance Analysis of ToA-Based Positioning Algorithm for Static and Dynamic Target in Low Ranging Measurements. Sensors 2017, 17, 1915. [Google Scholar] [CrossRef] [PubMed]
- Garcia, E.; Poudereux, P.; Hernandez, A.; Urena, J.; Gualda, D. A robust UWB indoor positioning system for highly complex environments. In Proceedings of the IEEE International Conference on Industrial Technology (ICIT), Seville, Spain, 17–19 March 2015; pp. 3386–3391. [Google Scholar]
- Nurminen, H.; Ardeshiri, T.; Piche, R.; Gustafsson, F. A NLOS-robust TOA positioning filter based on a skew-t measurement noise model. In Proceedings of the International Conference on Indoor Positioning and Indoor Navigation (IPIN), Banff, AB, Canada, 13–16 October 2015; pp. 1–7. [Google Scholar]
- Moder, T.; Hafner, P.; Wisiol, K.; Wieser, M. 3D indoor positioning with pedestrian dead reckoning and activity recognition based on Bayes filtering. In Proceedings of the 2014 International Conference on Indoor Positioning and Indoor Navigation (IPIN), Busan, Korea, 27–30 October 2014; pp. 1–4. [Google Scholar]
- Georgy, J.; Noureldin, A.; Korenberg, M.J.; Bayoumi, M.M. Modeling the stochastic drift of a MEMS-based gyroscope in gyro/odometer/GPS integrated navigation. IEEE Trans. Intell. Transp. Syst. 2010, 11, 856–872. [Google Scholar] [CrossRef]
- Hartmann, F.; Rifat, D.; Stork, W. Hybrid indoor pedestrian navigation combing an INS and a spatial non-uniform UWB-network. In Proceedings of the 19th International Conference on Information Fusion, Heidelberg, Germany, 5–8 July 2016; pp. 1–8. [Google Scholar]
- Muhammad, M.N.; Salcic, Z.; Wang, K.I.-K. Detecting turns and correcting headings using low-cost INS. J. Navig. 2018, 71, 189–207. [Google Scholar] [CrossRef]
- Carpenter, J.; Clifford, P.; Fearnhead, P. Improved particle filter for nonlinear problems. IEE Proc.-Radar Sonar Navig. 1999, 146, 2–7. [Google Scholar] [CrossRef]
- Parallax SF11 Laser Altimeter Product Manual. Available online: https://www.parallax.com/sites/default/files/downloads/28054-SF11-Laser-Altimeter-Manual-Rev-1.pdf (accessed on 24 June 2019).
- Tian, Q.; Salcic, Z.; Wang, K.I.-K.; Pan, Y. A Hybrid Indoor Localization and Navigation System with Map Matching for Pedestrians Using Smartphones. Sensors 2015, 15, 30759–30783. [Google Scholar] [CrossRef] [PubMed] [Green Version]
K | P | Q | THS | THT | M | |||||
---|---|---|---|---|---|---|---|---|---|---|
~(0, 0.052) | ~(0, 0.22) | 0.1 | 0.055 | 3.5 | 2 | 15 | 6 | 5° | 55° | 2000 |
Experiment 1 | Experiment 2 | |
---|---|---|
Detected steps/actual steps | 474/502 | 453/497 |
Percentage | 94.42% | 91.15% |
Estimated distance/Actual distance (m) | 290.45/310.4 | 285.22/310.4 |
Percentage | 93.57% | 91.89% |

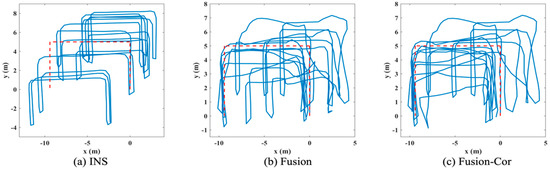

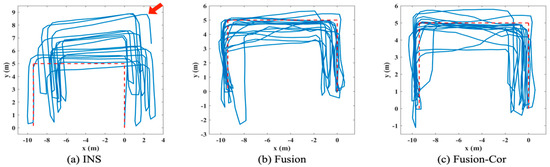

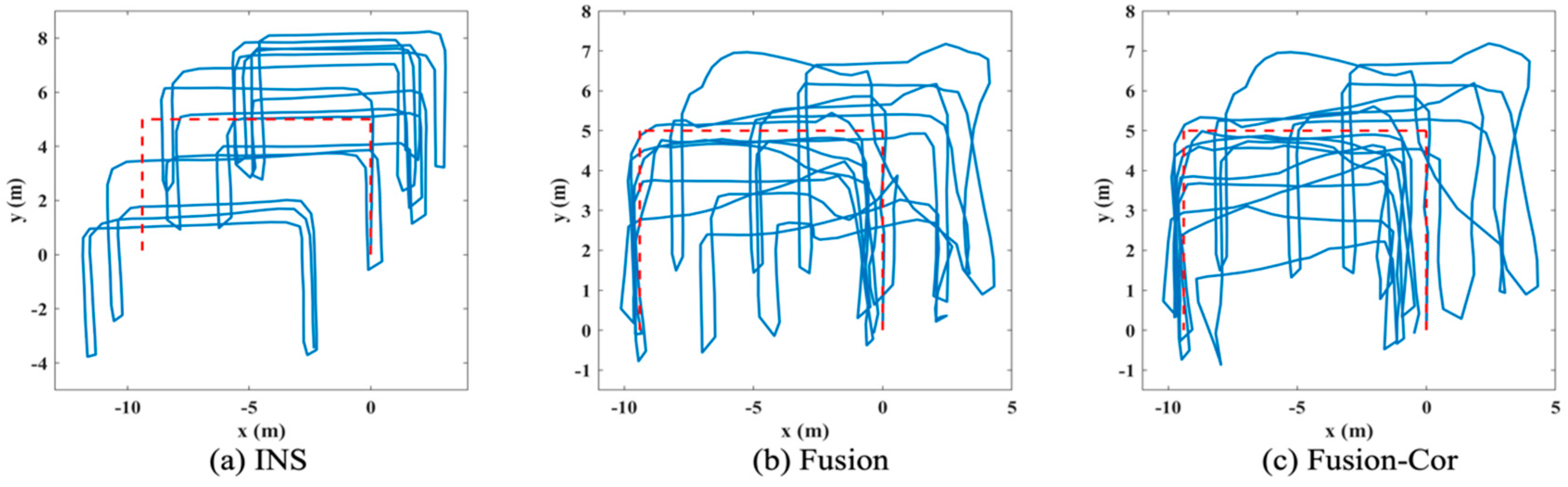

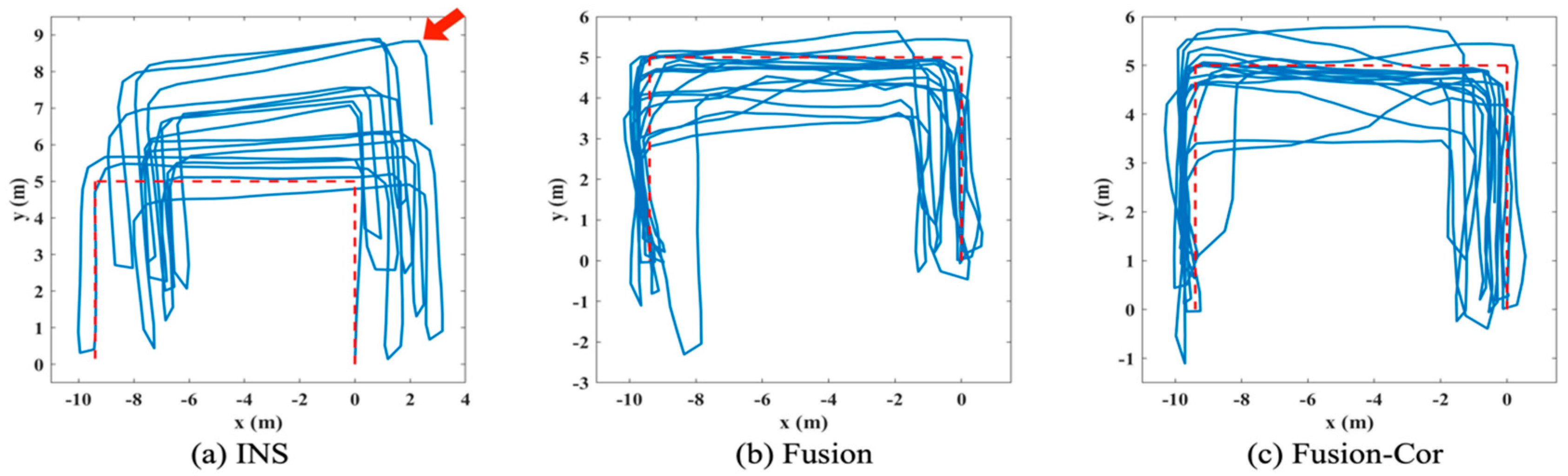

INS | Fusion | Fusion-Cor | |
---|---|---|---|
Experiment 1 | 2.48 m | 0.99 m | 0.88 m |
Experiment 2 | 3.27 m | 2.54 m | 2.18 m |
[16] | [18] | [26] | Proposed | |
---|---|---|---|---|
Mean position error (m) | 0.30 | 0.33 | 1.05 | 0.81/2.18 |
Total traveled distance (m) | ~30 | 100 | 1140 | 310.4 |
Number of UWB anchors | 5 | 4 | 15 | 2 |
No. of turns made | 3 | 31 | 78 | 48 |
No. of left turns | 3 | 14 | 0 | 16 |
No. of right turns | 0 | 15 | 78 | 16 |
No. of U-turns | 0 | 2 | 0 | 16 |
INS | INS | INS-Cor | |
---|---|---|---|
Experiment 1 | Mean | 3.94° | 1.75° |
SD | 2.39° | 1.29° | |
Experiment 2 | Mean | 1.56° | 1.25° |
SD | 1.00° | 0.85° |
