Simulation and Test of a Contactless Voltage Measurement Method for Overhead Lines Based on Reconstruction of Integral Node Parameters
Abstract
:1. Introduction
2. Measurement System and Algorithm Model

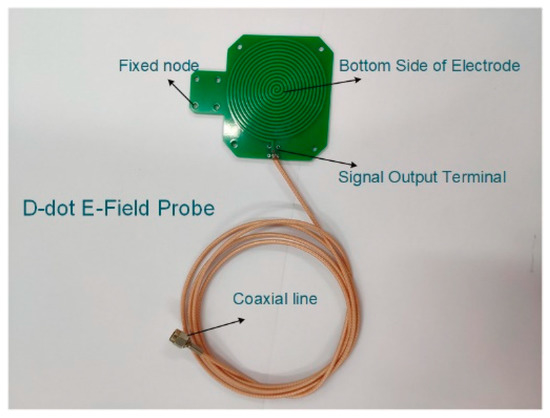

2.1. Detection Terminal

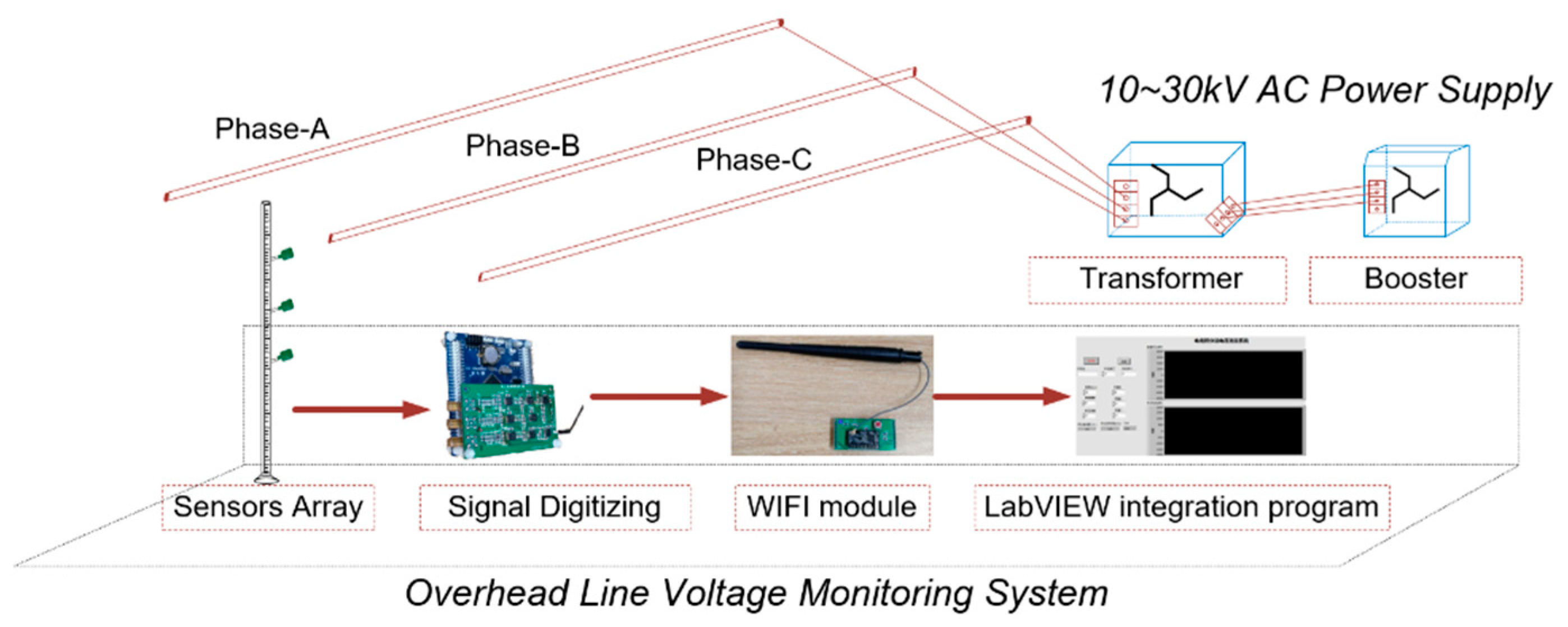

2.2. Construction of the Voltage Measurement System

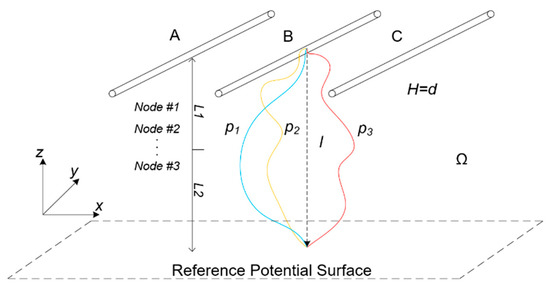

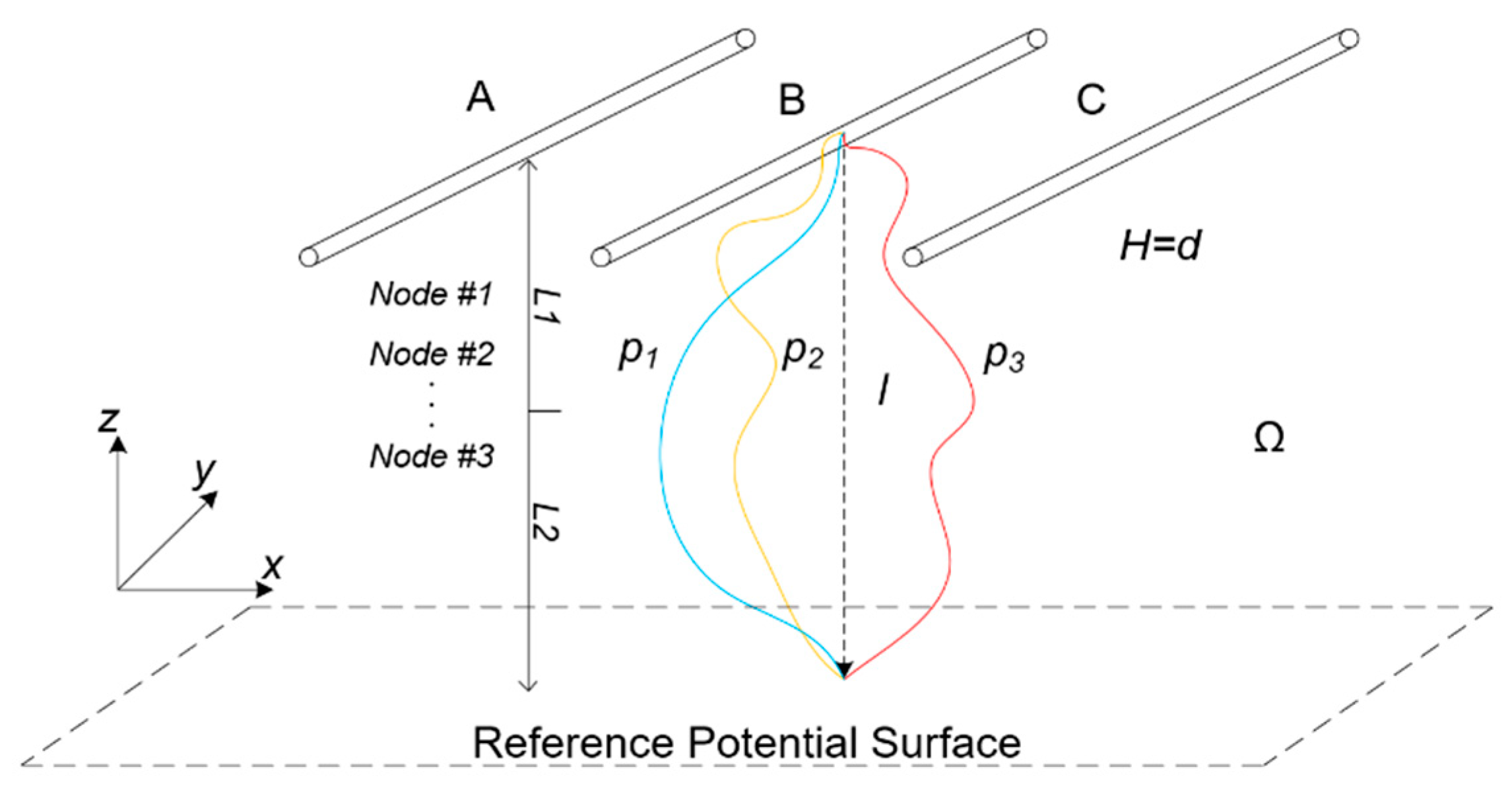

2.3. Node Parameters Reconstruction Algorithm Model
2.3.1. Gauss–Chebyshev Algorithm
2.3.2. Algorithm Model of Node Parameters Reconstruction
3. Simulation Calculation and Test

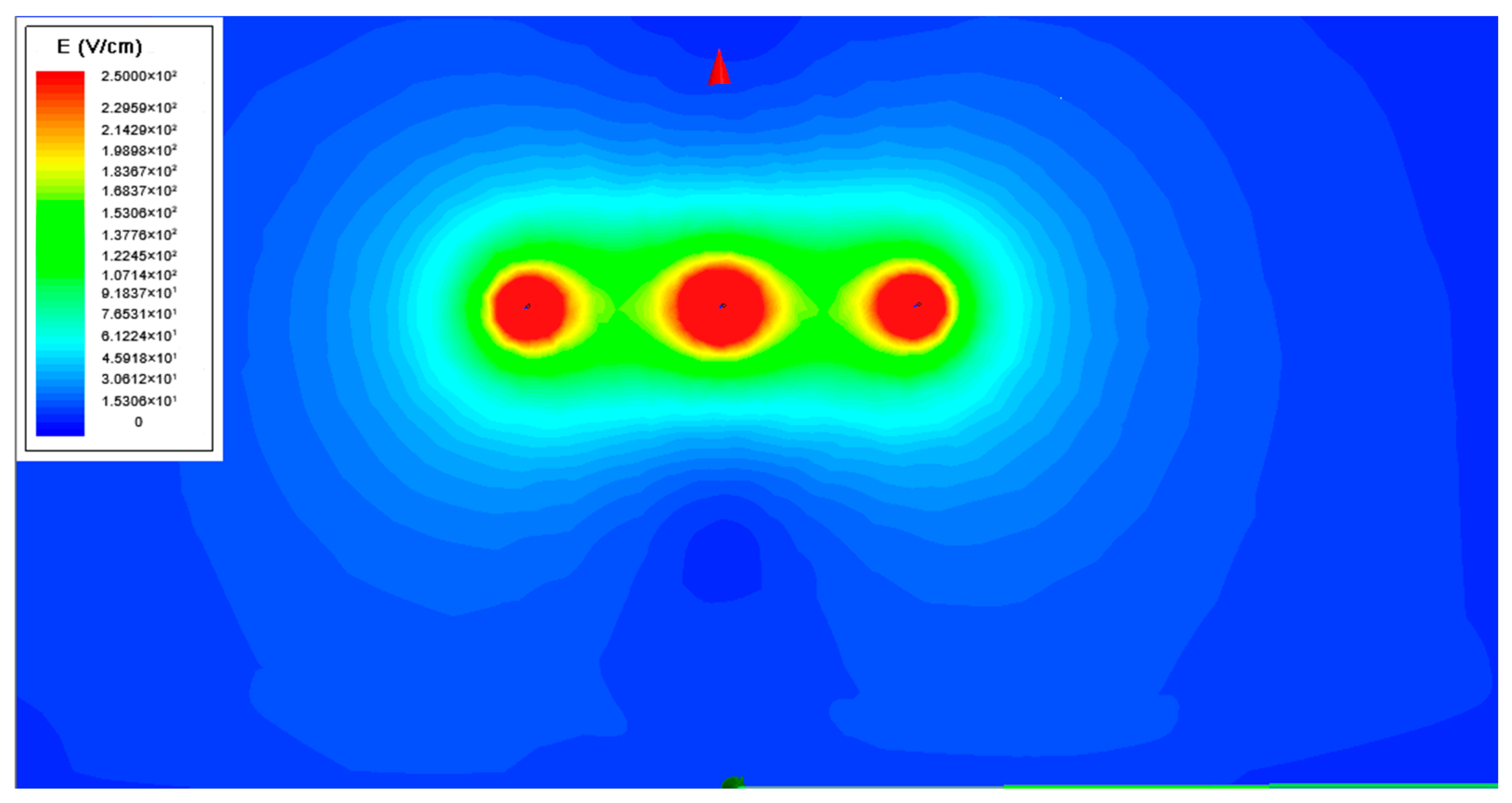

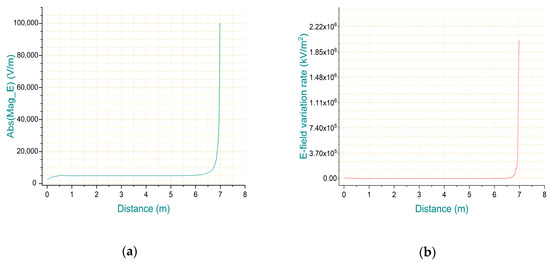

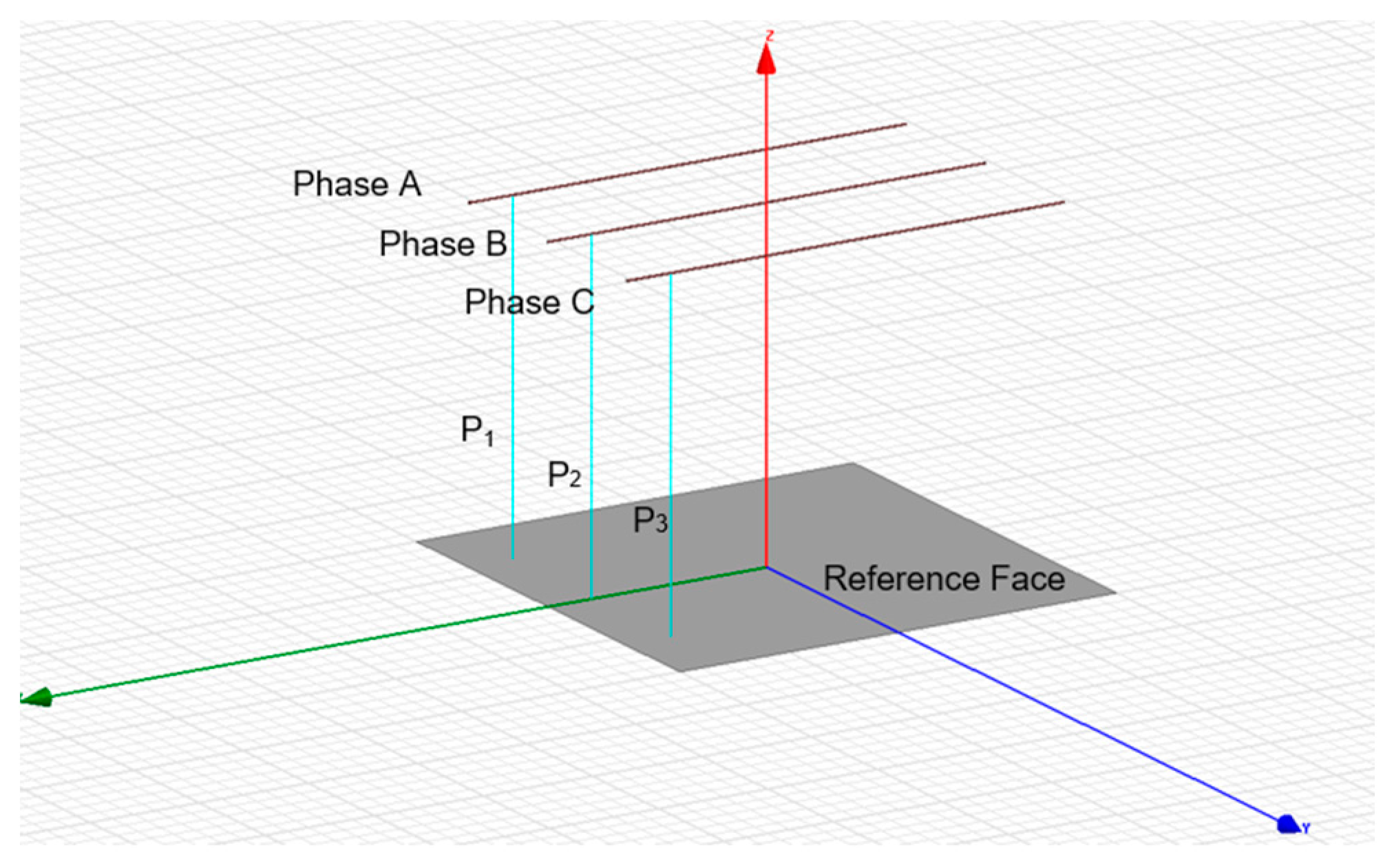

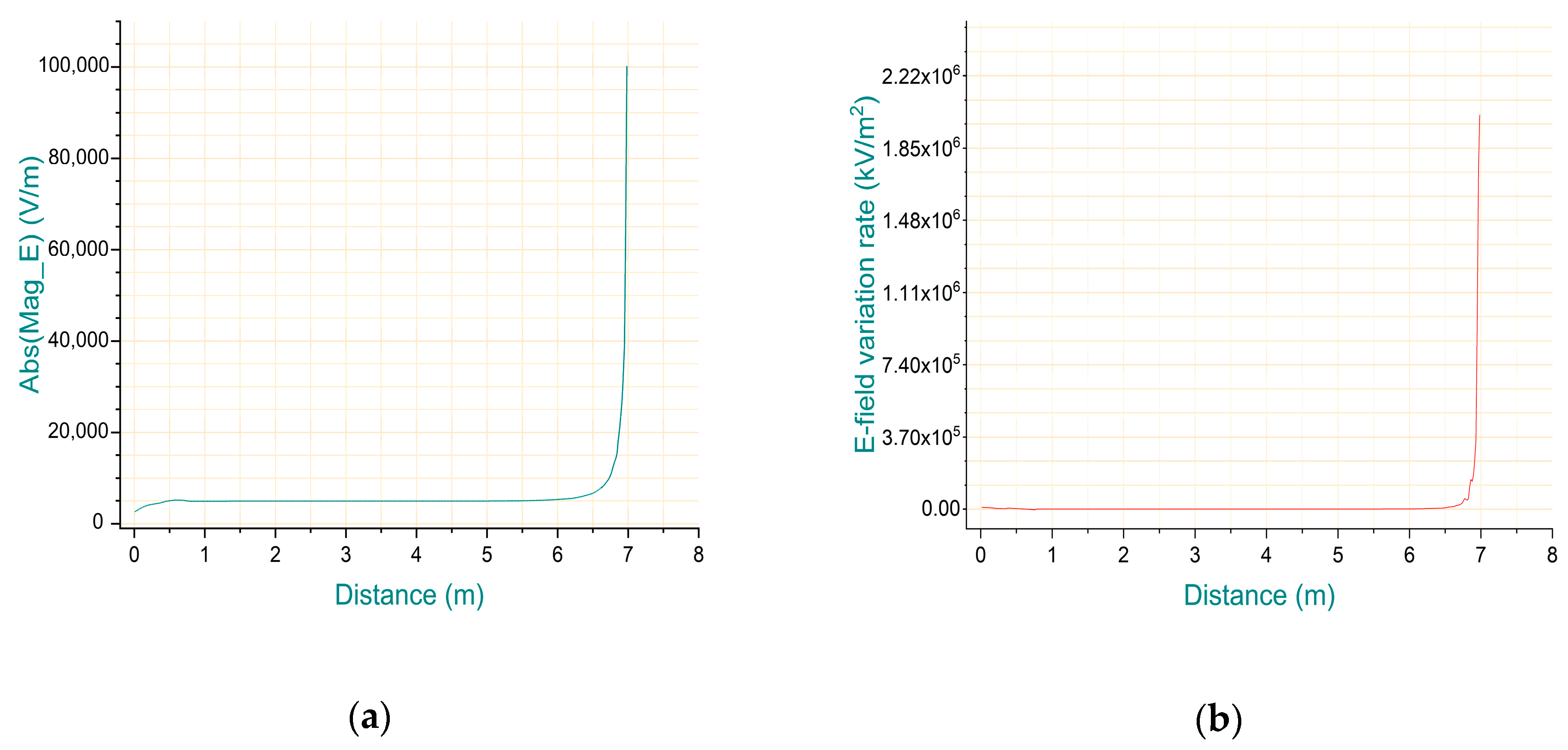

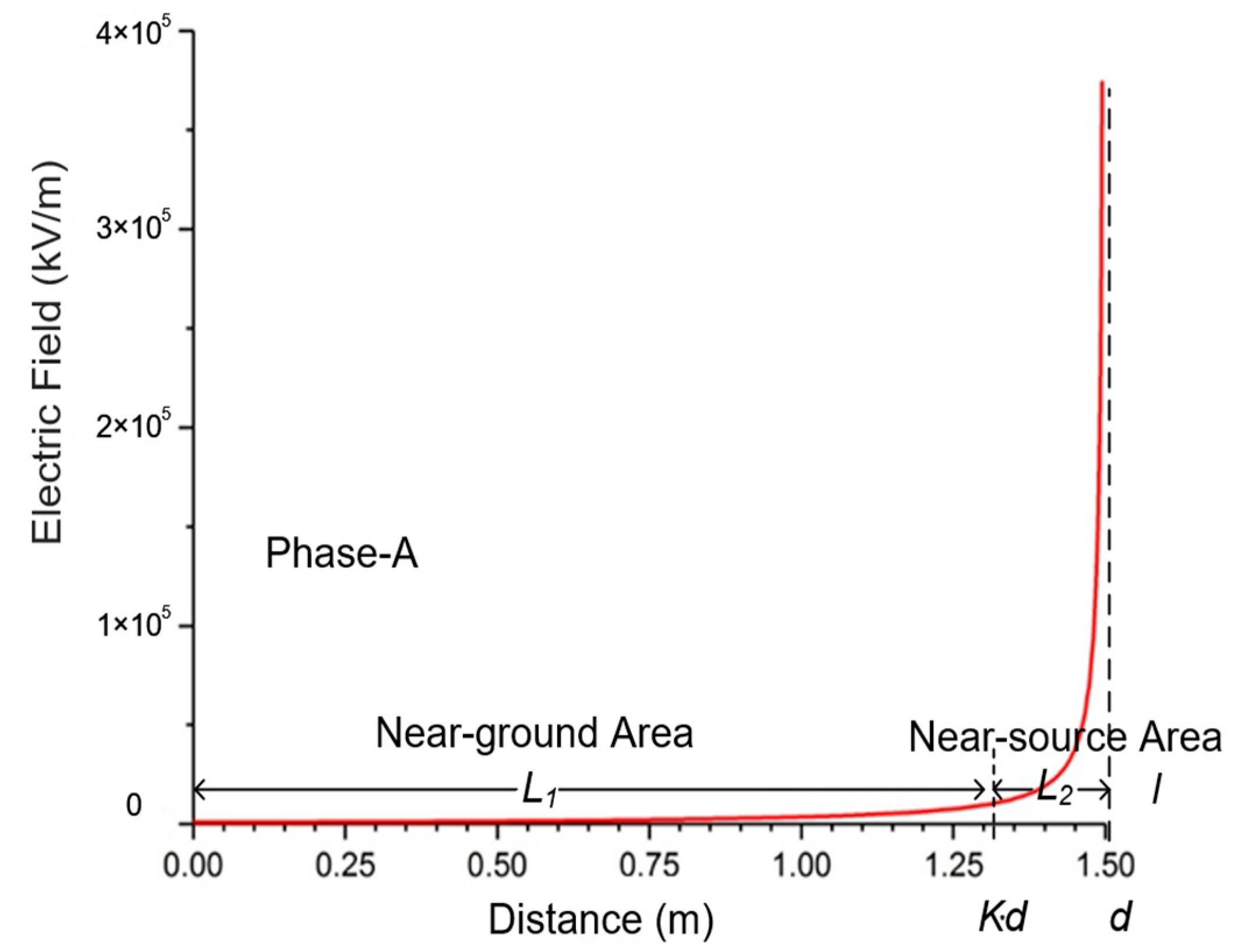

3.1. Judgment of Reconstruction Factors

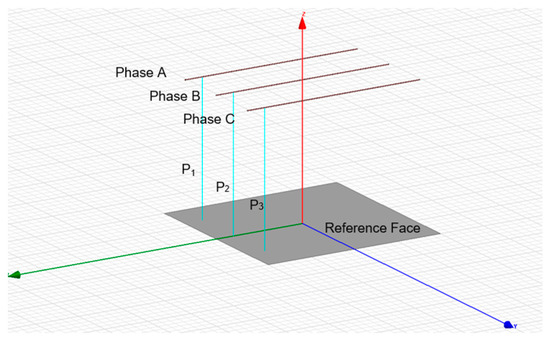

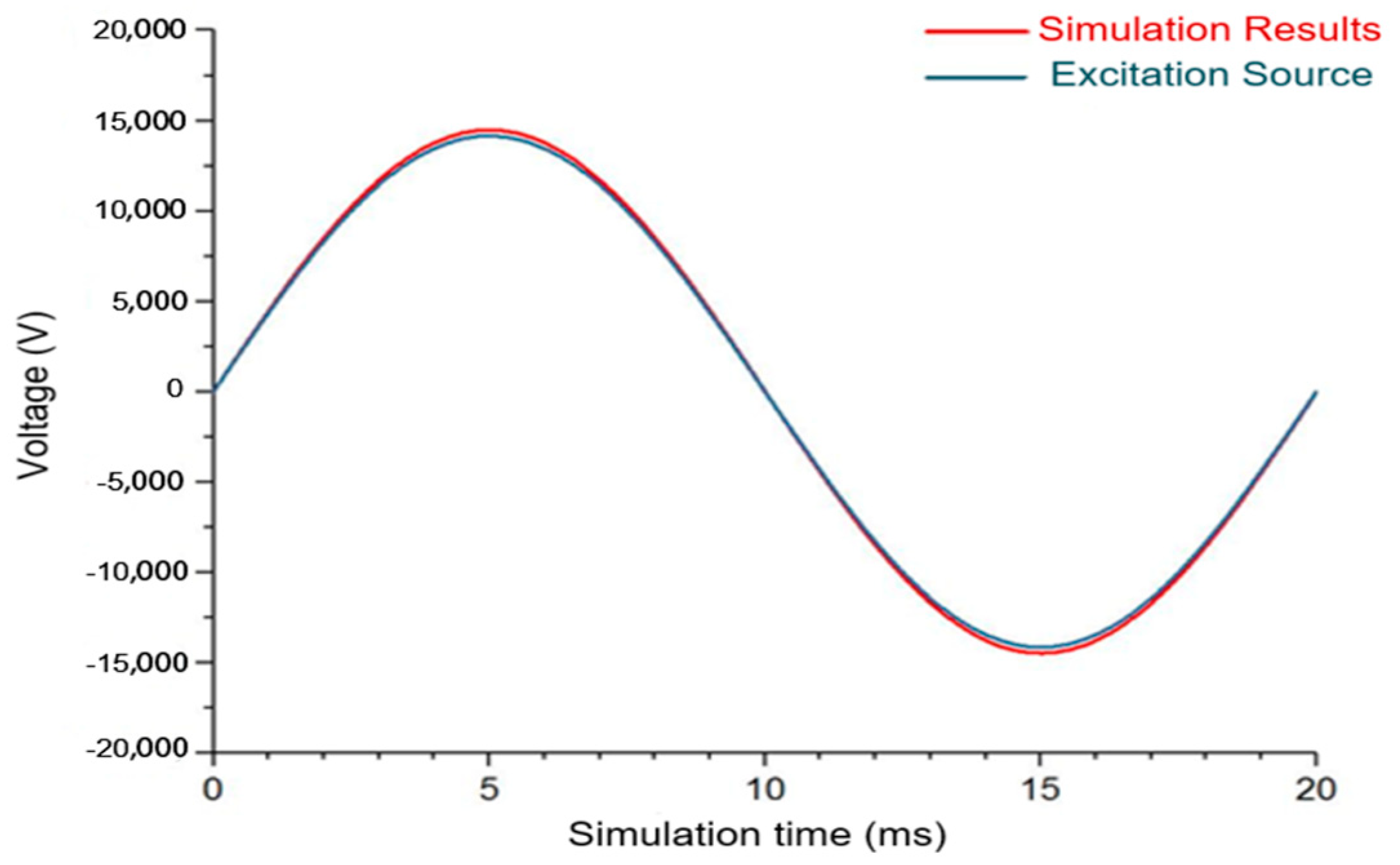

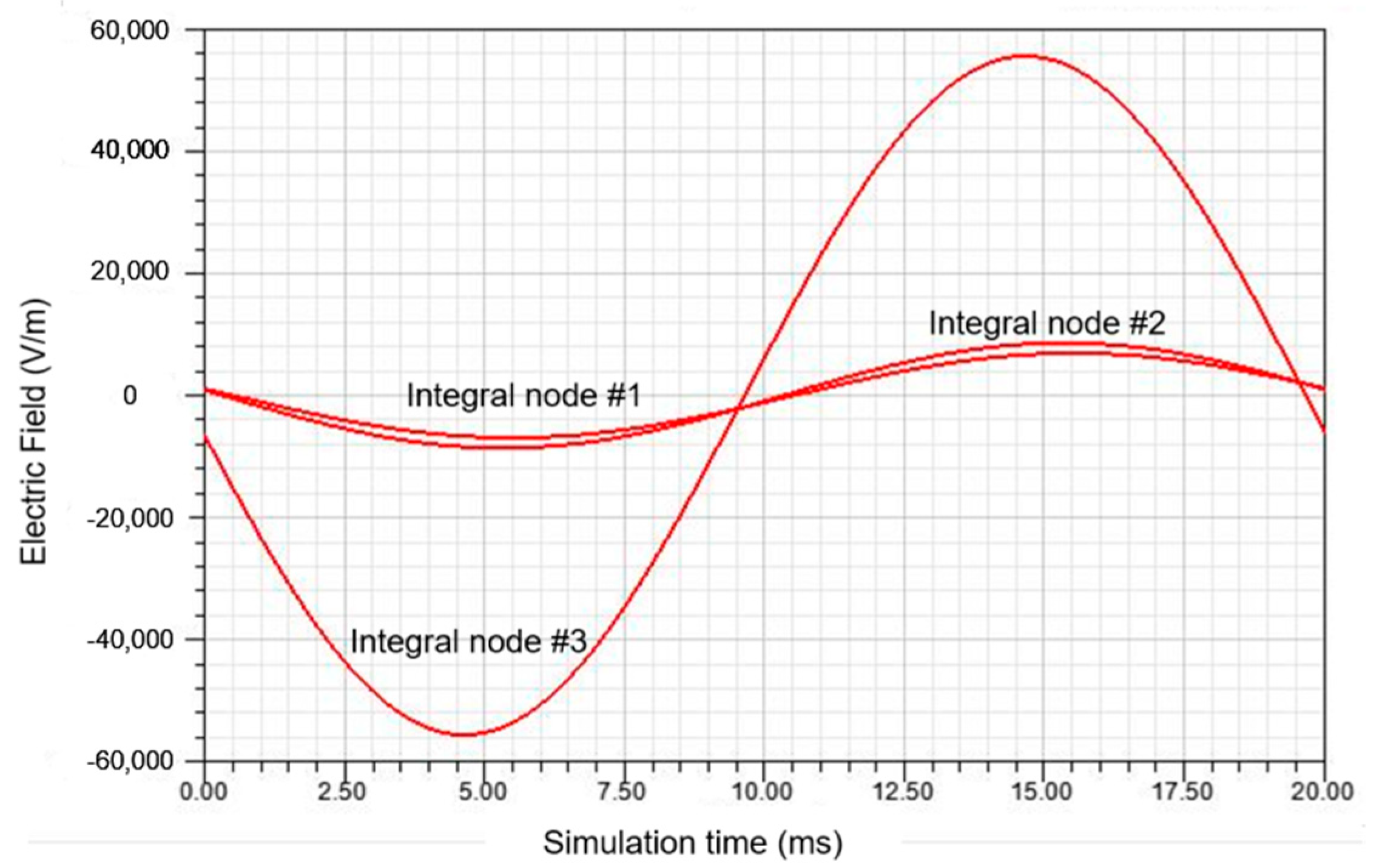

3.2. Simulation Test

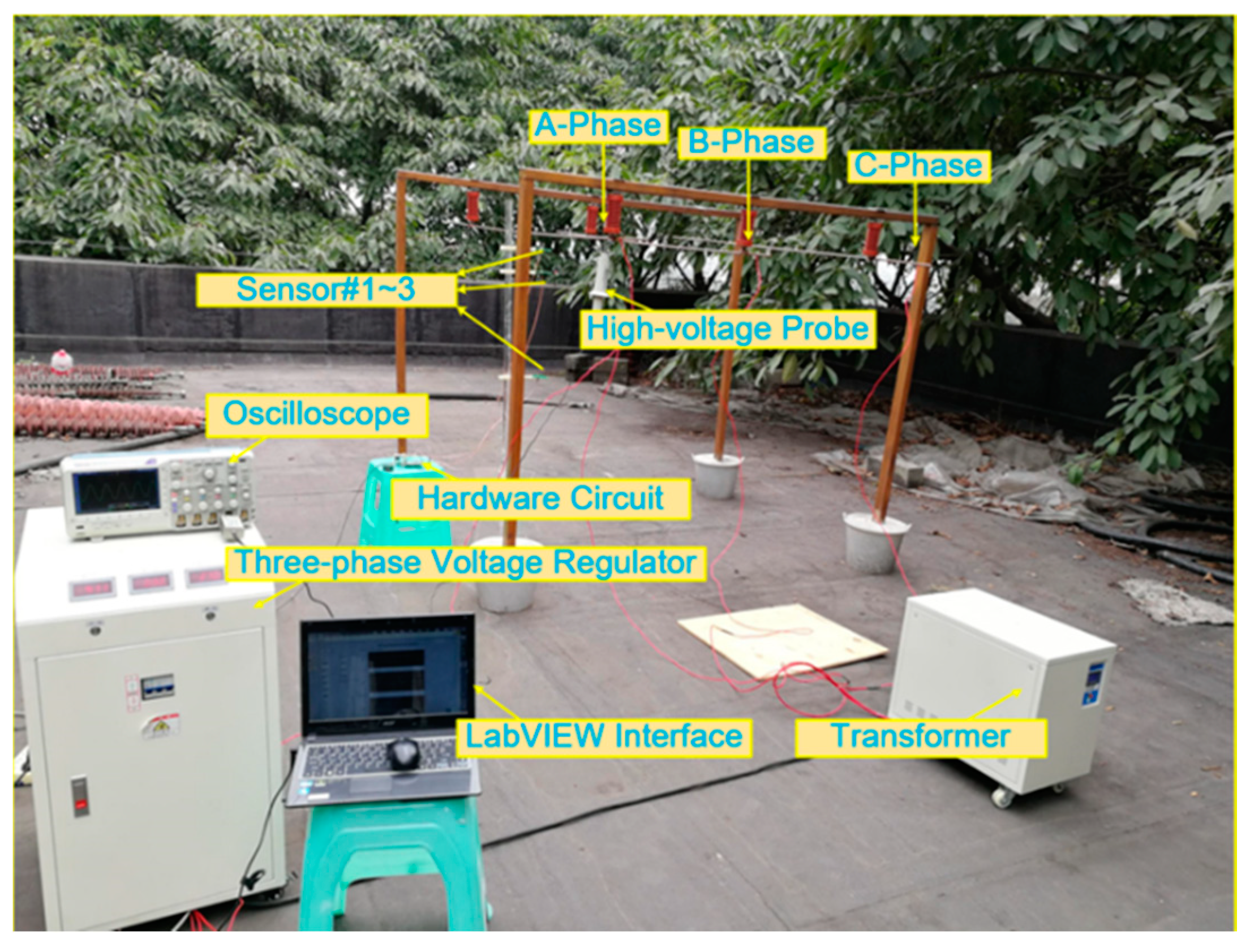

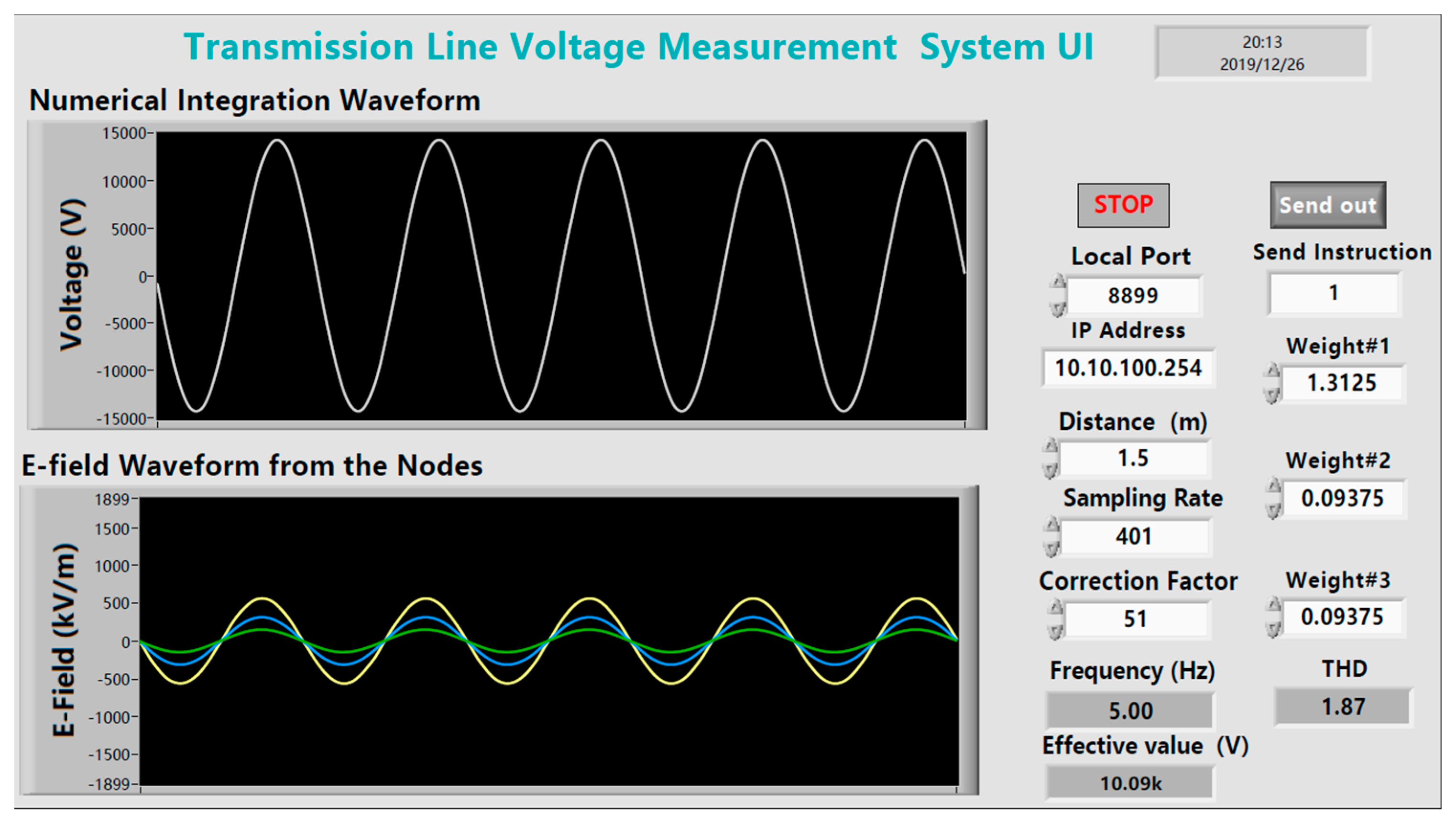

4. Experiment and Discussion
- (1)
- The parallel distributed D-dot E-field sensor has good output characteristics, and the phase deviation of the E-field signal of each node is less than 1.8°, which ensures the reliability of the E-field parameters at the position of the reconstructed node.
- (2)
- In the node parameter reconstruction simulation calculation model, the weights and the position parameters of the integral nodes are determined by the voltage and height of overhead lines, so the integral algorithm model can match with the overhead line parameters well.
- (3)
- Similar to the simulation test results, the deviation of the voltage measurement system after reconstruction is less than 0.4% in the voltage range of 10–20 kV, which is nearly 10 times smaller than the deviation of the system before the node reconstruction.
- (4)

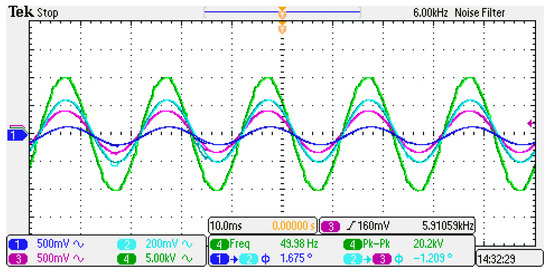

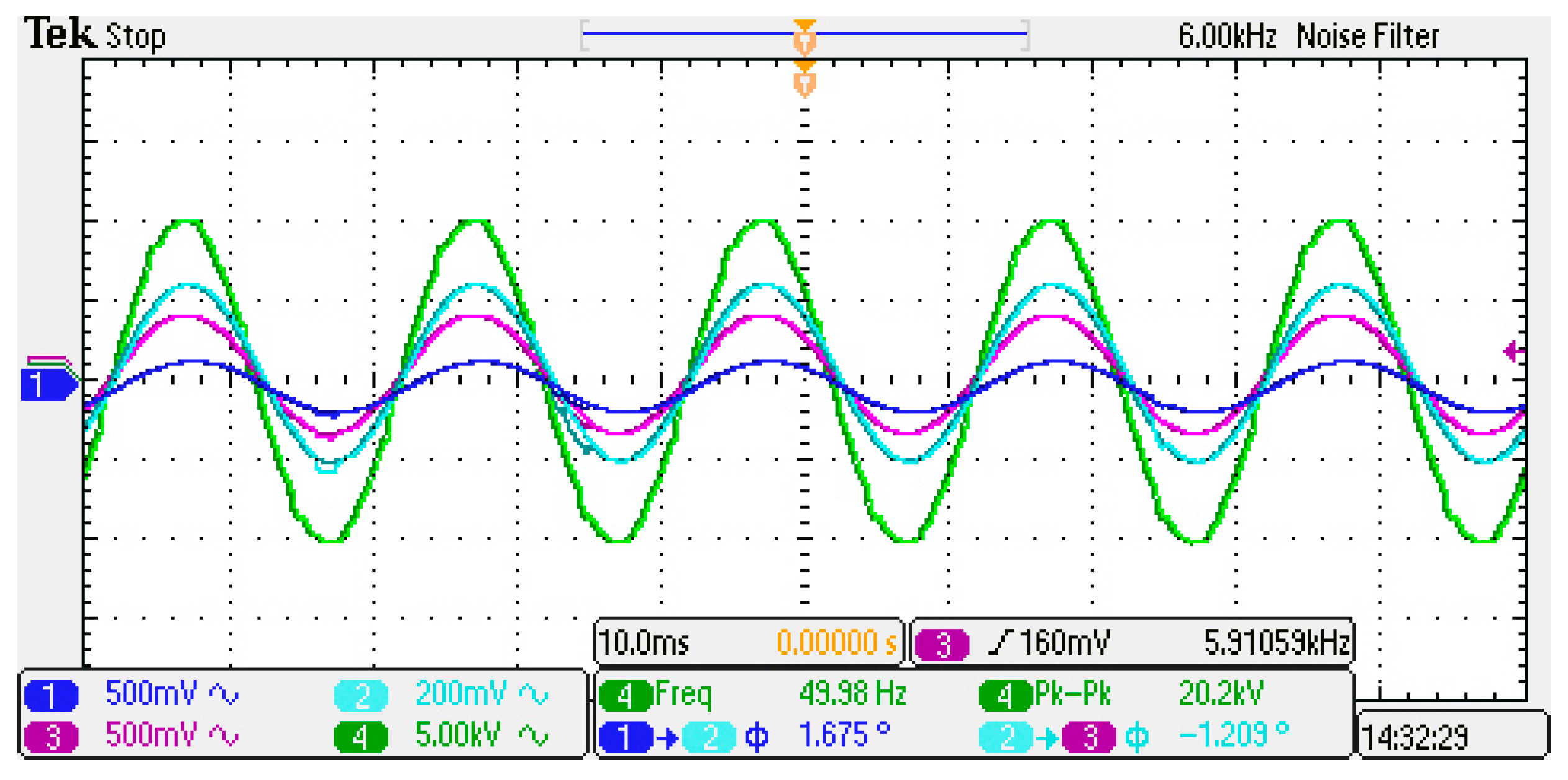

- The E-field waveform, the simulated calculation waveform, and the platform measurement waveform have good consistency, which proves that the reconstructed measurement system is featured by good anti-interference performance.
5. Conclusions
Author Contributions
Funding
Conflicts of Interest
References
