A Comparison Study of Fatigue Behavior of Hard and Soft Piezoelectric Single Crystal Macro-Fiber Composites for Vibration Energy Harvesting

by
Mahesh Peddigari
1,
Ga-Yeon Kim
1,
Chan Hee Park
1,
Yuho Min
1,
Jong-Woo Kim
1,
Cheol-Woo Ahn
1,
Jong-Jin Choi
1,
Byung-Dong Hahn
1,
Joon-Hwan Choi
1,
Dong-Soo Park
1,
Jae-Keun Hong
1,
Jong-Taek Yeom
1,
Kwi-Il Park
2,
Dae-Yong Jeong
3,
Woon-Ha Yoon
1,
Jungho Ryu
4,* and
Geon-Tae Hwang
1,*
1
Korea Institute of Materials Science (KIMS), Changwon 51508, Korea
2
School of Materials Science and Engineering, Kyungpook National University, Daegu 41566, Korea
3
Department of Materials Science and Engineering, Inha University, Incheon 22212, Korea
4
School of Materials Science and Engineering, Yeungnam University, Gyeongsan 38541, Korea
*
Authors to whom correspondence should be addressed.
Sensors 2019, 19(9), 2196; https://doi.org/10.3390/s19092196
Submission received: 25 March 2019 / Revised: 3 May 2019 / Accepted: 9 May 2019 / Published: 13 May 2019
(This article belongs to the Special Issue Flexible and Stretchable Piezoelectric Devices for Mechanical Sensing and Energy Harvesting)
Browse Figures
Versions Notes

Abstract

:
Designing a piezoelectric energy harvester (PEH) with high power density and high fatigue resistance is essential for the successful replacement of the currently using batteries in structural health monitoring (SHM) systems. Among the various designs, the PEH comprising of a cantilever structure as a passive layer and piezoelectric single crystal-based fiber composites (SFC) as an active layer showed excellent performance due to its high electromechanical properties and dynamic flexibilities that are suitable for low frequency vibrations. In the present study, an effort was made to investigate the reliable performance of hard and soft SFC based PEHs. The base acceleration of both PEHs is held at 7 m/s2 and the frequency of excitation is tuned to their resonant frequency (fr) and then the output power (Prms) is monitored for 107 fatigue cycles. The effect of fatigue cycles on the output voltage, vibration displacement, dielectric, and ferroelectric properties of PEHs was analyzed. It was noticed that fatigue-induced performance degradation is more prominent in soft SFC-based PEH (SS-PEH) than in hard SFC-based PEH (HS-PEH). The HS-PEH showed a slight degradation in the output power due to a shift in fr, however, no degradation in the maximum power was noticed, in fact, dielectric and ferroelectric properties were improved even after 107 vibration cycles. In this context, the present study provides a pathway to consider the fatigue life of piezoelectric material for the designing of PEH to be used at resonant conditions for long-term operation.

1. Introduction

Over the past few years, research on vibration-based energy harvesting has increased tremendously by various groups across the globe. The main purpose of this research is to reduce the battery usage (or chemical waste) and to power the self-powered electronics by converting the ambient vibrations into electrical energy. Among the various vibration-based energy harvesting methods, including electromagnetic, electrostatic, piezoelectric, and triboelectric, the piezoelectric energy harvesting (PEH) is promising due to their ease of fabrication, structural integrity, high output power density and high conversion efficiency [1,2,3,4]. Among the various PEH configurations that have been examined for the efficient low frequency vibration energy scavenging, the cantilever based PEH is exceptional due to its simple structure and high root strain levels, which usually operates in bending mode to induce the in-plane strain in the cantilever structure according to the Euler-Bernoulli equation [1,4]. In general, the cantilever based PEH comprises of three essential parts including the elastic cantilever beam, piezoelectric layer, and proof mass. Numerous efforts have been made to improve the energy harvesting performance by optimizing the PEH configuration utilizing the materials with various strengths, dimensions, and strain levels [5,6,7,8,9,10,11,12,13,14,15,16,17,18,19]. In most cases, the maximum power is achieved under higher excitation levels due to the larger stress induced strains at the root of the cantilever. However, the application of such higher excitation forces often leads to performance degradation in the cantilever based PEHs. Therefore, a prior knowledge of behavior of the integral components under various excitation conditions is essential for designing high performance devices and for selecting the suitable materials to be used in specific applications.
Regarding the materials selection, depending on the excitation stimuli (frequency and acceleration), two kinds of piezoelectric materials—soft- and hard-type materials—have been widely utilized in harvesting applications [20,21,22]. In general, soft type piezoelectric materials exhibit higher piezoelectric coefficients and elastic compliances, which are more suitable for off-resonance excitations, whereas the hard type piezoelectric materials generate larger output power under resonant excitations owing to their larger mechanical quality factor. In order to improve the output performance in off-resonance conditions, a number of efforts such as non-linear dynamics and frequency-up conversion techniques were employed [23,24,25,26,27]. Thus far, piezoelectric materials have been used as active materials in cantilever based PEHs in various forms including thin/thick ceramic patches (or wafers), polymers, active fiber composites (AFC), macro-fiber composites (MFC), or single crystal macro-fiber composites (SFC) [3,28], in which the MFC/SFC configuration offers high mechanical flexibility, stress-strain performance, endurance, and electromechanical properties. Although many reports are available on the energy harvesting performance of PEHs based on MFC/SFCs [29,30,31,32,33,34,35,36,37,38], the investigation on the reliability (fatigue behavior) of SFCs under continuous electromechanical cyclic loading over a long time is rare [39,40,41,42].
Henslee et al. investigated the life-time performance of soft-type MFC (M-2807-P1, PZT 5A1, Smart Material Co., Dresden, Germany) based PEH up to 2.5 × 108 cycles by measuring the strain and tip displacements under the application of a particular voltage at different temperatures ranging between 15–145 °C [40]. They reported that the performance of MFC was decreased continuously above 50 °C. In another study, Deepesh et al. performed the fatigue test for soft-type MFC (M-2807-P2, PZT 5A1, Smart Material Co.) based PEH at different excitation conditions and noticed the severe degradation in the output voltage with a significant shift in the resonant frequency even below 0.5 × 106 cycles [41]. They proposed that the 600 με is the safe strain amplitude for the reliable operation over longer times. In another study, Panduranga et al. [42] investigated the damage propagation and different stages of fatigue failures in the soft type MFC (PZT 5A) based PEHs under various excitation levels in terms of change in the voltage and impedance values. Similarly, many reports are available on the fatigue behavior of soft-type piezoelectric materials and have discussed the fatigue life time, crack nucleation, and propagations. However, there are no reports available on the comparative studies on the fatigue behavior of soft- and hard-type SFC/MFCs under cyclic mechanical loads. Therefore, the present study intended to investigate the reliability performance of soft and hard SFCs at resonance condition under a constant excitation force (below the elastic limit) up to 107 vibration cycles.

2. Experimental details

In the present study, two unimorph cantilever structured PEHs with two different Pb(Mg1/3Nb2/3)O3-Pb(Zr,Ti)O3 (PMN-PZT) based flexible SFCs fabricated by solid state grown method and electroded polyimide sheets lamination (Ceracomp. Co. Ltd., Korea) [35,36,37,38,43] were used as the active piezoelectric layers and a Ti alloy plate (elastic modulus of 55 GPa) was used as the passive elastic layer. Two NdFeB magnets (3 g) were used as a proof mass and attached at the free end of the cantilever. The Mn-doped PMN-PZT and W-doped PMN-PZT SFCs having the dimensions of 28 (L) × 14 (W) × 0.2 (T) mm3 were used as hard and soft piezoelectric materials, respectively (Figure 1a). The detailed manufacturing process of SFCs was reported in our previous study [32,33]. The SFCs were glued to a Ti alloy plate [60 (L) × 20 (W) × 0.25 (T) mm3] using an epoxy resin (3MTM Scotch-Weld Epoxy Adhesive DP-460 EG) and then cured at 70 °C for 3 h. Further, the PEH was clamped with a rigid Bakelite holder and mounted on electromagnetic shaker for base excitation, as shown in Figure 1b.
In order to investigate the reliable performance of hard and soft SFC-based PEHs, the specimens were tested up to 107 fatigue cycles at a constant base acceleration of 7 m/s2 (~0.7 G) with 20~40 Hz, i.e., vicinity of resonance frequency of the PEHs using an electromagnetic shaker. A vibration controller system (Logtech Co., Korea) used to control the shaker, which is connected with a feedback acceleration sensor (PV-41, RION, Japan) and a Laser Doppler vibrometry (LDV; OFV-5000, Polytec, Germany). The vibration displacement of PEHs in time domain is measured using the LDV. For given excitation conditions, the harvested (root mean square, RMS) voltage (Vrms) is measured across various load resistances (RL) embedded in a resistance decay box using a multi-channel multimeter (2700, Keithley, USA). Subsequently, the data were collected using National Instruments data acquisition systems and plotted the RMS power Prms (= (Vrms)2/RL) versus number vibration cycles using a home-made software. The time-dependent output voltage waveforms were captured using an oscilloscope (Wave surfer 44Xs-A, Lecroy, USA). The dielectric properties of SFCs were measured using an impedance analyzer (4294A, Agilent Technologies). The polarization-electric field hysteresis loops of SFCs were measured at 1 kHz using a ferroelectric tester (Precision LC-II, Radiant Technologies).

3. Results and Discussion

In order to know the resonant frequency (fr) and optimum load resistance (Ropt) of both hard and soft SFC-based PEHs prior to test the fatigue behavior, the energy harvesting has been performed at an optimized base acceleration (7 m/s2) condition (Figure S1) under different excitation conditions by varying the frequency (20 Hz–40 Hz) and load resistances (1 kΩ–1000 kΩ). The Vrms response of both PEHs to the various load resistances (RL) for different excitation frequencies is depicted in Figure 2a,b) and the corresponding Prms (= (Vrms)2/RL) curves are shown in Figure 2c,d). Despite having identical geometry and acceleration excitation level, the PEHs exhibited different fr and Prms values due to the varied elastic compliance and electromechanical properties of SFCs (Table 1). The fr values of the PEHs are identified from the maximum Prms (or Pmax) values, which are found to be 35.2 Hz and 33.5 Hz for HS-PEH and SS-PEH, respectively. The HS-PEH exhibited a relatively larger Pmax of 3.18 mW at 47 kΩ as compared to SS-PEH sample (2.53 mW at 20 kΩ) at the resonant condition.
By using the optimized conditions fr (35.2 Hz for HS-PEH and 33.5 Hz for SS-PEH) and Ropt (47 kΩ for HS-PEH and 20 kΩ for SS-PEH), the fatigue measurement has been performed at an acceleration of 7 m/s2 without interruption between the cycles. During the measurement, the harvested power Prms was collected after every 1 h and plotted using software and the process was continued until the 107-oscillation period was reached. The output response of PEHs to the number of vibration cycles is shown in Figure 3. It is observed that the output Prms of HS-PEH is increased slightly with the vibration cycles up to 5 × 106 cycles (Figure 3a), and decreased (~6.9%) further with increasing fatigue cycles, which might be due to the change in the fr. In the SS-PEH case, the output response deteriorated (~23.6 %) continuously with increasing the vibration cycles, as shown in Figure 3b.
In general, the output response of the PEH under a cyclic mechanical load over a period of time can be related to various parameters such as polarization change due to re-orientation of defect dipoles, migration of charge carriers at domain wall, microstructural changes (crack propagation), and resonant frequency shift due to change in the stiffness of PEH. In order to understand the damage caused by the fatigue in both PEHs, we have compared some directly observable parameters such as fr, Vrms, dielectric properties, polarization-electric field (P-E) loops, damping ratio, and vibration displacement (dv) before and after fatigue test in Figure 4 and Figure 5 and Table 2.
The power frequency response curves for both PEHs before and after the fatigue test are presented in Figure 4a,b. It is noticed that the fr for the HS-PEH decreased by 0.5 Hz in the span of 107 vibration cycles, while the Pmax and mechanical quality factor (Qm) were enhanced by about 0.20 mW and 0.06 mW, respectively. It can be understood that the abrupt drop in the power after 5 × 106 cycles (Figure 3a) is a result from the shift of fr rather than the hard SFC performance degradation. From Figure 4b, the SS-PEH displayed a significant frequency shift in fr (0.8 Hz), reduction in Pmax (0.74 mW) and Qm (3.52), along with a change in Ropt from 20 kΩ to 25 kΩ after 107 vibration cycles. In spite of a maximum fr shift towards the low-frequency side, the SS-PEH exhibited reduced output power and Qm, indicating the performance deterioration is merely due to SFC material degradation.
As shown in Figure 5a,e, the output voltages of both PEHs measured at optimized conditions (fr and Ropt) show clear sinusoidal waves, which indicates that no cracks/damages were developed during the fatigue test (for post-test microstructural observation, see Figure S2). The HS-PEH show no significant reduction in the output voltage (Figure 5a) and vibration displacement (dv) (Figure 5b) even after 107 fatigue cycles, while the SS-PEH show a substantial drop in the V and dv (Figure 5e,f) after fatigue test. In general, the maximum extractable power from a PEH depends on the base acceleration (A), resonance frequency (fr), and active (piezoelectric) layer volume (Vpiezo). In this context, the normalized volume power density (NVPD = Pmax/(Vpiezo. fr. A2)) was estimated for both PEHs [4]. The HS-PEH exhibited a relatively larger NVPD of 2.35 mW/cm3·Hz·g2 as compared to SS-PEH (1.97 mW/cm3·Hz·g2). Similar to the Pmax, the NVPD also improved for HS-PEH by 7.9% and decreased by 27.5% for SS-PEH after fatigue measurement (Table 2).
Similarly, Deepesh et al. observed that a severe reduction in the output voltage (with a 55% drop of initial voltage) of soft-type MFC within 2 × 106 fatigue cycles at an acceleration of 6 m/s2 when the induced strain amplitudes slightly higher than 1000 με [41]. Further, they suggested that the strain amplitude of 600 με is an upper limit for reliable performance of soft-type MFC. In another study, Panduranga et al. also performed the fatigue measurement for soft-type MFC at different acceleration levels (4–6 m/s2) and stated that the MFC showed severe performance degradation at all the acceleration conditions and completely failed after 4.2 × 106 fatigue cycles when MFC operated at 6 m/s2 with a maximum induced strain around 700 με [42]. In the present study, the maximum induced strains for the soft and hard SFCs used are slightly less than 300 με (Figure S3). Even though both SFCs showed crack-free behavior, the SS-PEH displayed severe performance degradation similar to the earlier reports, but the HS-PEH showed fatigue-free behavior with improved output power and mechanical quality factor.
Measuring the variation in piezoelectric properties of SFCs is a straightforward way to evaluate their fatigue ability, but since it is difficult, the dielectric and polarization properties were provided to supplement the piezoelectric properties. Figure 5c,g shows the dielectric properties such as capacitance (C) and loss tangent (tanδ) of PEHs measured in the frequency range of 100–800 Hz. The C of the HS-PEH is enhanced by around 0.7% (at 100 Hz) and reduced by 2.1% for SS-PEH, while the tanδ is reduced for HS-PEH and is increased for SS-PEH after 107 fatigue cycles. From Figure 5d,h, the ferroelectric properties (measured at 1 kHz) follow a similar trend to the dielectric properties. The saturation polarization (PS) is slightly increased whereas the remanent polarization (Pr) and coercive field (EC) remain constant for HS-PEH, while hysteresis loss is increased noticeably for SS-PEH after 107 fatigue cycles.
As seen in Figure 3, a slight reduction in the output power of HS-PEH is noticed during the fatigue measurement (due to a shift in fr), although the final output power at resonance condition is improved. The improved Pmax and Qm after fatigue measurement might be related to the stabilization (or change) of domain wall configuration [44]. In general, the acceptor based defect dipoles prefer to occupy the energetically favored sites in the lattice and form anisotropic centers locally or within the domain [45]. Though there are no (few) grain boundaries in single crystal fibers, it may be possible to increase the diffusion of acceptor-based defect dipoles into domain walls and orientate defect dipoles in the direction of spontaneous polarization with the fatigue cycles, which increases the domain wall pinning and the intensity of internal dipolar field. Thus, the stabilization of domain walls in HS-PEH leads to improved dielectric, ferroelectric, and piezoelectric properties along with Qm. In the case of SS-PEH, it is assumed that the reduction in the output power with increasing the fatigue cycles is related to the increased domain wall mobility, which is facilitated by the donor dopant defect dipoles under the cyclic mechanical force. As the domain wall mobility increases, more mechanical energy dissipates, which eventually increases the piezoelectric losses and lowers the fr and Qm values [46]. This phenomenon is evidenced from the increased dielectric and ferroelectric losses and reduced Qm and output power.
The lack of significant performance degradation in the output power and mechanical quality factor with fatigue cycles indicates that hard-type SFCs exhibit good fatigue endurance and are reliable for long-term piezoelectric energy harvesting at resonant conditions.

4. Conclusions

In this study, we have investigated the fatigue reliability performance of hard and soft SFC-based PEHs at constant base acceleration for the use in long-term energy harvesting applications. After 107 fatigue cycles, the degradation in the output power and shift in the resonant frequency of soft SFC-based PEH are higher than that of hard SFC-based PEH. Indeed, the HS-PEH showed significant improvements in the output power, capacitance, and saturation polarization even after long cyclic vibration life, whereas the SS-PEH underwent continuous deterioration. Therefore, this study can be helpful for researchers to consider the fatigue effect and to select the appropriate piezoelectric material for long-term operation in piezoelectric energy harvesting applications.

Supplementary Materials

The following are available online at https://www.mdpi.com/1424-8220/19/9/2196/s1, Figure S1: The acceleration dependent rms power measured for hard-type and soft-type SFCs. Figure S2: Surface micrographs of the (a) hard-type and (b) soft-type SFCs after 107 vibration cycles. Figure S3: Simulation results for SS-PEH, performed using COMSOL Multiphysics. The induced (a) stress and (b) strain distributions in the soft SFC under the resonance excitation condition.

Author Contributions

Conceptualization: C.-W.A., D.-S.P., J.R. and G.-T.H.; Data curation: M.P., G.-Y.K., C.H.P., W.-H.Y. and G.-T.H.; Formal analysis: M.P., G.-Y.K., C.H.P., J.-W.K., J.-J.C., J.-T.Y., J.R. and G.-T.H.; Funding acquisition: W.-H.Y.; Investigation: J.-H.C. and G.-T.H.; Methodology: D.-S.P., J.-K.H. and J.-T.Y.; Project administration: W.-H.Y. and G.-T.H.; Resources: J.-H.C. and W.-H.Y.; Supervision, J.R. and G.-T.H.; Validation: J.-W.K. and J.-K.H., K.-I.P.; Writing—original draft: M.P., J.R. and G.-T.H.; Writing—review & editing: M.P., Y.M., B.-D.H., K.-I.P., D.-Y.J., J.R. and G.-T.H.

Funding

Work at KIMS was supported by the National Research Council of Science & Technology (NST) grant by the Korea government (MSIP) (No. CAP-17-04-KRISS), National Research Foundation of Korea (NRF) grant funded by the Korea government (MSIT) (No. 2019R1C1C1003765). Work at YU was supported by the Global Frontier R&D Program on Center for Hybrid Interface Materials (HIM) funded by the Ministry of Science, ICT & Future Planning Korea (Grant No. NRF-2016M3A6B1925390).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Alper, E.; Inman, D.J. Piezoelectric Energy Harvesting; Wiley: Chichester, UK, 2011. [Google Scholar]
  2. Romero, E.; Warrington, R.O.; Neuman, M.R. Energy scavenging sources for biomedical sensors. Physiol. Meas. 2009, 30, R35. [Google Scholar] [CrossRef]
  3. Steven, R.A.; Henry, A.S. A review of power harvesting using piezoelectric materials (2003–2006). Smart Mater. Struct. 2007, 16, R1. [Google Scholar]
  4. Priya, S.; Song, H.-C.; Zhou, Y.; Varghese, R.; Chopra, A.; Kim, S.-G.; Kanno, I.; Wu, L.; Ha Dong, S.; Ryu, J.; et al. A Review on Piezoelectric Energy Harvesting: Materials, Methods, and Circuits. Energy Harvest. Syst. 2017, 4, 3–39. [Google Scholar] [CrossRef]
  5. Michael, W.S.; Matthew, B.; Ephrahim, G. Designing maximum power output into piezoelectric energy harvesters. Smart Mater. Struct. 2012, 21, 085008. [Google Scholar]
  6. Miso, K.; John, D.; Brian, L.W. Efficiency of piezoelectric mechanical vibration energy harvesting. Smart Mater. Struct. 2015, 24, 055006. [Google Scholar]
  7. Dhakar, L.; Liu, H.; Tay, F.E.H.; Lee, C. A new energy harvester design for high power output at low frequencies. Sens. Actuators A Phys. 2013, 199, 344–352. [Google Scholar] [CrossRef]
  8. Aboulfotoh, N.; Twiefel, J. On developing an optimal design procedure for a bimorph piezoelectric cantilever energy harvester under a predefined volume. Mech. Syst. Signal Process. 2018, 106, 1–12. [Google Scholar] [CrossRef]
  9. Wu, M.; Ou, Y.; Mao, H.; Li, Z.; Liu, R.; Ming, A.; Ou, W. Multi-resonant wideband energy harvester based on a folded asymmetric M-shaped cantilever. AIP Adv. 2015, 5, 077149. [Google Scholar] [CrossRef] [Green Version]
  10. Song, H.-C.; Kumar, P.; Sriramdas, R.; Lee, H.; Sharpes, N.; Kang, M.-G.; Maurya, D.; Sanghadasa, M.; Kang, H.-W.; Ryu, J.; et al. Broadband dual phase energy harvester: Vibration and magnetic field. Appl. Energy 2018, 225, 1132–1142. [Google Scholar] [CrossRef]
  11. Zhang, X.; Gao, S.; Li, D.; Jin, L.; Wu, Q.; Liu, F. Frequency up-converted piezoelectric energy harvester for ultralow-frequency and ultrawide-frequency-range operation. Appl. Phys. Lett. 2018, 112, 163902. [Google Scholar] [CrossRef]
  12. Li, W.G.; He, S.; Yu, S. Improving Power Density of a Cantilever Piezoelectric Power Harvester Through a Curved L-Shaped Proof Mass. IEEE Trans. Ind. Electron. 2010, 57, 868–876. [Google Scholar] [CrossRef]
  13. Yeo, H.G.; Trolier-McKinstry, S. Effect of piezoelectric layer thickness and poling conditions on the performance of cantilever piezoelectric energy harvesters on Ni foils. Sens. Actuators A Phys. 2018, 273, 90–97. [Google Scholar] [CrossRef]
  14. Lee, M.-S.; Kim, C.-I.; Yun, J.-S.; Park, W.-I.; Hong, Y.-W.; Paik, J.-H.; Cho, J.-H.; Park, Y.-H.; Jeong, Y.-H. Comparison of Energy Harvesting Characteristics in Trapezoidal Piezoelectric Cantilever Generator with PZT Laminate Film by Longitudinal (3-3) Mode and Transverse (3-1) Mode. J. Korean Inst. Electr. Electron. Mater. Eng. 2017, 30, 768–775. [Google Scholar]
  15. Yeo, H.G.; Ma, X.; Rahn, C.; Trolier-McKinstry, S. Efficient Piezoelectric Energy Harvesters Utilizing (001) Textured Bimorph PZT Films on Flexible Metal Foils. Adv. Funct. Mater. 2016, 26, 5940–5946. [Google Scholar] [CrossRef]
  16. Lee, L.T.; Mohamed, M.A.; Yahya, I.; Kulothungan, J.; Muruganathan, M.; Mizuta, H. Comparison of piezoelectric energy harvesting performance using silicon and graphene cantilever beam. Microsyst. Technol. 2018, 24, 3783–3789. [Google Scholar] [CrossRef]
  17. Palosaari, J.; Leinonen, M.; Juuti, J.; Jantunen, H. The effects of substrate layer thickness on piezoelectric vibration energy harvesting with a bimorph type cantilever. Mech. Syst. Signal Process. 2018, 106, 114–118. [Google Scholar] [CrossRef]
  18. Du, S.; Jia, Y.; Chen, S.-T.; Zhao, C.; Sun, B.; Arroyo, E.; Seshia, A.A. A new electrode design method in piezoelectric vibration energy harvesters to maximize output power. Sens. Actuators A Phys. 2017, 263, 693–701. [Google Scholar] [CrossRef]
  19. Fu, H.; Chen, G.; Bai, N. Electrode Coverage Optimization for Piezoelectric Energy Harvesting from Tip Excitation. Sensors 2018, 18, 804. [Google Scholar] [CrossRef]
  20. Erturk, A.; Lee, H.-Y.; Inman, D.J. Investigation of Soft and Hard Ceramics and Single Crystals for Resonant and Off-Resonant Piezoelectric Energy Harvesting. In Proceedings of the ASME 2010 Conference on Smart Materials, Adaptive Structures and Intelligent Systems SMASIS2010, Philadelphia, PA, USA, 28 September–1 October 2010; The American Society of Mechanical Engineers: Philadelphia, PA, USA, 2010; pp. 589–596. [Google Scholar]
  21. Zhao, S.; Erturk, A. Deterministic and band-limited stochastic energy harvesting from uniaxial excitation of a multilayer piezoelectric stack. Sens. Actuators A Phys. 2014, 214, 58–65. [Google Scholar] [CrossRef]
  22. Shahab, S.; Zhao, S.; Erturk, A. Soft and Hard Piezoelectric Ceramics and Single Crystals for Random Vibration Energy Harvesting. Energy Technol. 2018, 6, 935–942. [Google Scholar] [CrossRef]
  23. Harne, R.L.; Wang, K.W. A review of the recent research on vibration energy harvesting via bistable systems. Smart Mater. Struct. 2013, 22, 023001. [Google Scholar] [CrossRef]
  24. Stanton, S.C.; McGehee, C.C.; Mann, B.P. Nonlinear dynamics for broadband energy harvesting: Investigation of a bistable piezoelectric inertial generator. Physica D 2010, 239, 640–653. [Google Scholar] [CrossRef]
  25. Kathpalia, B.; Tan, D.; Stern, I.; Erturk, A. An experimentally validated model for geometrically nonlinear plucking-based frequency up-conversion in energy harvesting. Smart Mater. Struct. 2017, 27, 015024. [Google Scholar] [CrossRef] [Green Version]
  26. Gu, L.; Livermore, C. Impact-driven, frequency up-converting coupled vibration energy harvesting device for low frequency operation. Smart Mater. Struct. 2011, 20, 045004. [Google Scholar] [CrossRef]
  27. Dauksevicius, R.; Gaidys, R.; Ostasevicius, V.; Lockhart, R.; Vásquez Quintero, A.; de Rooij, N.; Briand, D. Nonlinear piezoelectric vibration energy harvester with frequency-tuned impacting resonators for improving broadband performance at low frequencies. Smart Mater. Struct. 2019, 28, 025025. [Google Scholar] [CrossRef]
  28. Kim, H.S.; Kim, J.-H.; Kim, J. A review of piezoelectric energy harvesting based on vibration. Int. J. Precis. Eng. Manuf. 2011, 12, 1129–1141. [Google Scholar] [CrossRef]
  29. Yaowen, Y.; Lihua, T.; Hongyun, L. Vibration energy harvesting using macro-fiber composites. Smart Mater. Struct. 2009, 18, 115025. [Google Scholar]
  30. Hyun Jeong, S.; Choi, Y.-T.; Wereley, N.M.; Purekar, A.S. Energy Harvesting Devices Using Macro-fiber Composite Materials. J. Intell. Mater. Syst. Struct. 2010, 21, 647–658. [Google Scholar] [CrossRef]
  31. Zhang, S.; Yan, B.; Luo, Y.; Miao, W.; Xu, M. An Enhanced Piezoelectric Vibration Energy Harvesting System with Macro Fiber Composite. Shock Vib. 2015, 2015, 7. [Google Scholar] [CrossRef]
  32. Peddigari, M.; Lim, K.-W.; Kim, M.; Park, C.H.; Yoon, W.-H.; Hwang, G.-T.; Ryu, J. Effect of elastic modulus of cantilever beam on the performance of unimorph type piezoelectric energy harvester. APL Mater. 2018, 6, 121107. [Google Scholar] [CrossRef]
  33. Kim, G.-Y.; Peddigari, M.; Lim, K.-W.; Hwang, G.-T.; Yoon, W.-H.; Choi, H.; Lee, J.W.; Ryu, J. Effect of Thickness Ratio in Piezoelectric/Elastic Cantilever Structure on the Piezoelectric Energy Harvesting Performance. Electron. Mater. Lett. 2019, 15, 61–69. [Google Scholar] [CrossRef]
  34. Tan, D.; Yavarow, P.; Erturk, A. Resonant nonlinearities of piezoelectric macro-fiber composite cantilevers with interdigitated electrodes in energy harvesting. Nonlinear Dyn. 2018, 92, 1935–1945. [Google Scholar] [CrossRef]
  35. Annapureddy, V.; Na, S.-M.; Hwang, G.-T.; Kang, M.G.; Sriramdas, R.; Palneedi, H.; Yoon, W.-H.; Hahn, B.-D.; Kim, J.-W.; Ahn, C.-W.; et al. Exceeding milli-watt powering magneto-mechano-electric generator for standalone-powered electronics. Energy Environ. Sci. 2018, 11, 818–829. [Google Scholar] [CrossRef]
  36. Annapureddy, V.; Palneedi, H.; Yoon, W.-H.; Park, D.-S.; Choi, J.-J.; Hahn, B.-D.; Ahn, C.-W.; Kim, J.-W.; Jeong, D.-Y.; Ryu, J. A pT/√Hz sensitivity ac magnetic field sensor based on magnetoelectric composites using low-loss piezoelectric single crystals. Sens. Actuators A Phys. 2017, 260, 206–211. [Google Scholar] [CrossRef]
  37. Annapureddy, V.; Kim, M.; Palneedi, H.; Lee, H.-Y.; Choi, S.-Y.; Yoon, W.-H.; Park, D.-S.; Choi, J.-J.; Hahn, B.-D.; Ahn, C.-W.; et al. Low-Loss Piezoelectric Single-Crystal Fibers for Enhanced Magnetic Energy Harvesting with Magnetoelectric Composite. Adv. Energy Mater. 2016, 6, 1601244. [Google Scholar] [CrossRef]
  38. Annapureddy, V.; Lee, H.Y.; Yoon, W.-H.; Woo, H.-J.; Lee, J.-H.; Palneedi, H.; Kim, H.-J.; Choi, J.-J.; Jeong, D.-Y.; Yi, S.N.; et al. Enhanced magnetic energy harvesting properties of magneto-mechano-electric generator by tailored geometry. Appl. Phys. Lett. 2016, 109, 093901. [Google Scholar] [CrossRef]
  39. Wilkie, W.; High, J.; Bockman, J. Reliability Testing of NASA Piezocomposite Actuators. In Proceedings of the 8th international Conference on New Actuators, Bremen, Germany, 10–12 June 2002; NASA Langley Research Center: Hampton, VA, USA, 2002. [Google Scholar]
  40. Henslee, I.A.; Miller, D.A.; Tempero, T. Fatigue life characterization for piezoelectric macrofiber composites. Smart Mater. Struct. 2012, 21, 105037. [Google Scholar] [CrossRef]
  41. Upadrashta, D.; Yang, Y. Experimental investigation of performance reliability of macro fiber composite for piezoelectric energy harvesting applications. Sens. Actuators A Phys. 2016, 244, 223–232. [Google Scholar] [CrossRef] [Green Version]
  42. Avvari, P.V.; Yang, Y.; Soh, C.K. Long-term fatigue behavior of a cantilever piezoelectric energy harvester. J. Intell. Mater. Syst. Struct. 2016, 28, 1188–1210. [Google Scholar] [CrossRef]
  43. Lee, H.-Y.; Ceracomp Co., Ltd. Available online: https://ceracomp.com (accessed on 4 February 2019).
  44. Zhao, J.; Zhang, Q.M. Effect of mechanical stress on the electromechanical performance of PZT and PMN-PT ceramics. In Proceedings of the ISAF ’96. Proceedings of the Tenth IEEE International Symposium on Applications of Ferroelectrics, East Brunswick, NJ, USA, 18–21 June 1996; Volume 2, pp. 971–974. [Google Scholar]
  45. Zhang, S.; Lee, S.-M.; Kim, D.-H.; Lee, H.-Y.; Shrout, T.R. Characterization of Mn-modified Pb(Mg1/3Nb2/3)O3–PbZrO3–PbTiO3 single crystals for high power broad bandwidth transducers. Appl. Phys. Lett. 2008, 93, 122908. [Google Scholar] [CrossRef]
  46. Uchino, K. Chapter 17-High-Power Piezoelectrics and Loss Mechanisms. In Advanced Piezoelectric Materials, 2nd ed.; Uchino, K., Ed.; Woodhead Publishing: Sawston, UK, 2017; pp. 647–754. [Google Scholar]
Sensors 19 02196 g001 550

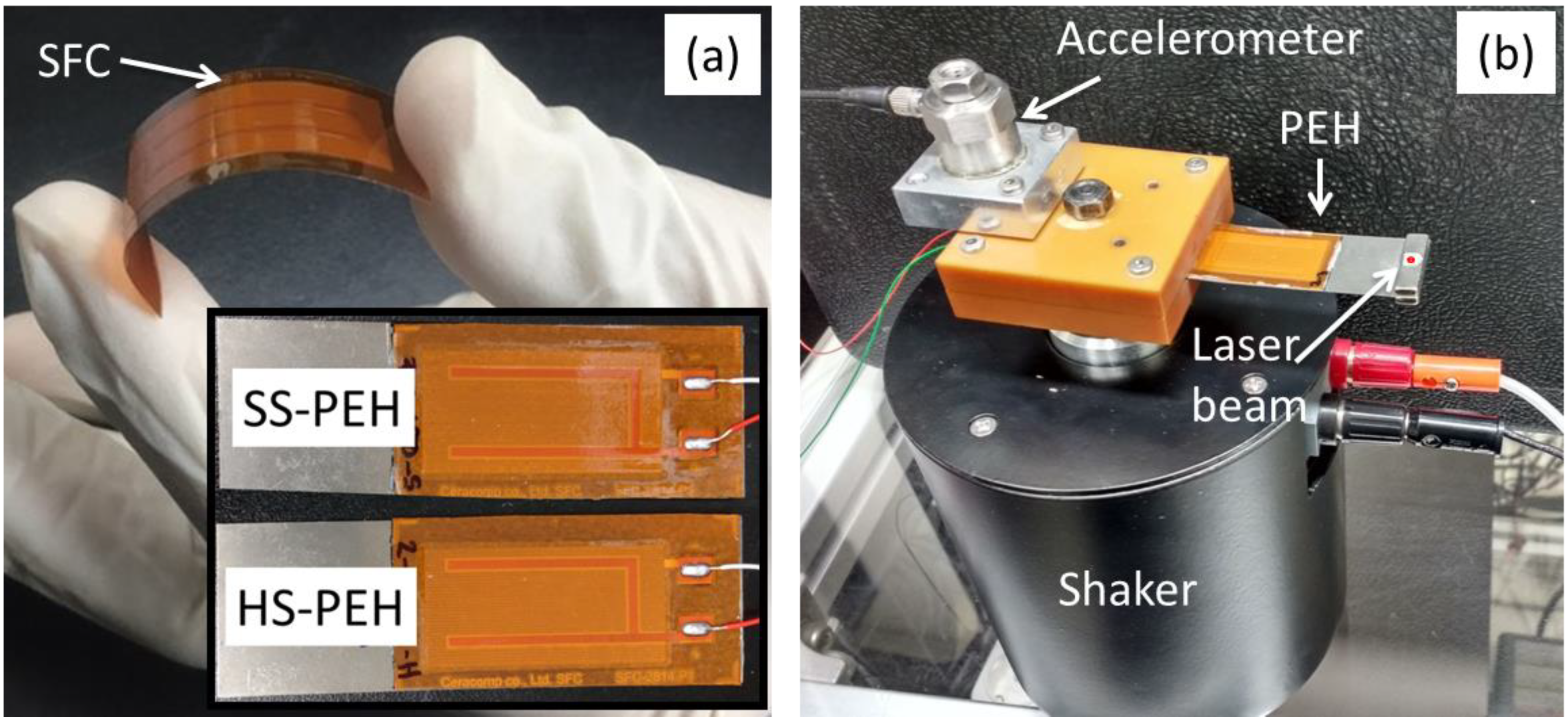

Figure 1. Photographs of (a) flexible single crystal-based fiber composites (SFC) and (b) experimental setup used for investigating the fatigue behavior of hard and soft SFC-based PEHs. The inset shows an image of soft and hard SFCs after attaching to the Ti-alloy elastic layer.
Figure 1. Photographs of (a) flexible single crystal-based fiber composites (SFC) and (b) experimental setup used for investigating the fatigue behavior of hard and soft SFC-based PEHs. The inset shows an image of soft and hard SFCs after attaching to the Ti-alloy elastic layer.
Sensors 19 02196 g001
Sensors 19 02196 g002 550

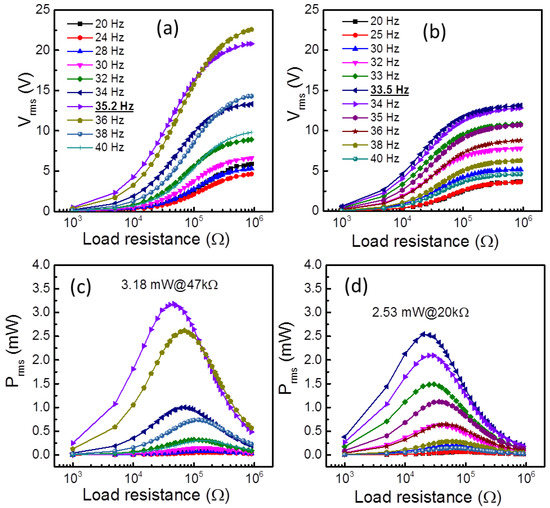

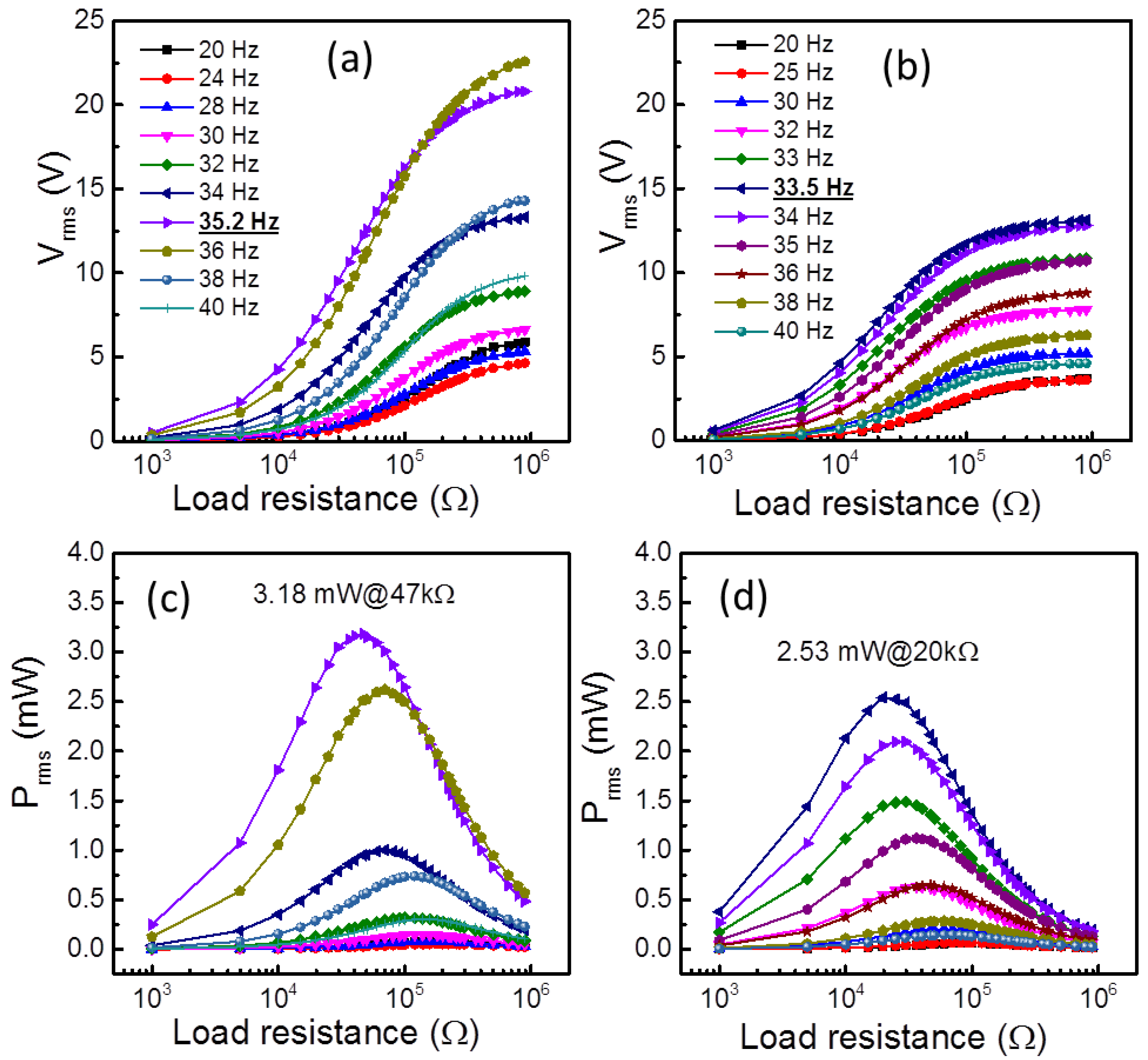

Figure 2. (a) and (c), (b) and (d) are the RMS voltage and RMS power curves for hard and soft SFC based piezoelectric energy harvesters (PEHs) measured as a function of load resistances at different excitation frequencies.
Figure 2. (a) and (c), (b) and (d) are the RMS voltage and RMS power curves for hard and soft SFC based piezoelectric energy harvesters (PEHs) measured as a function of load resistances at different excitation frequencies.
Sensors 19 02196 g002
Sensors 19 02196 g003 550

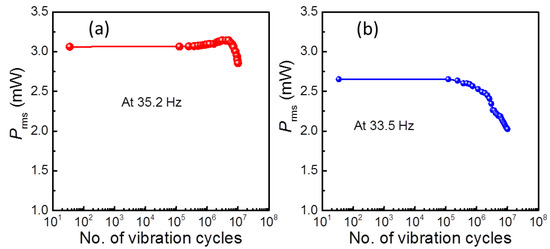

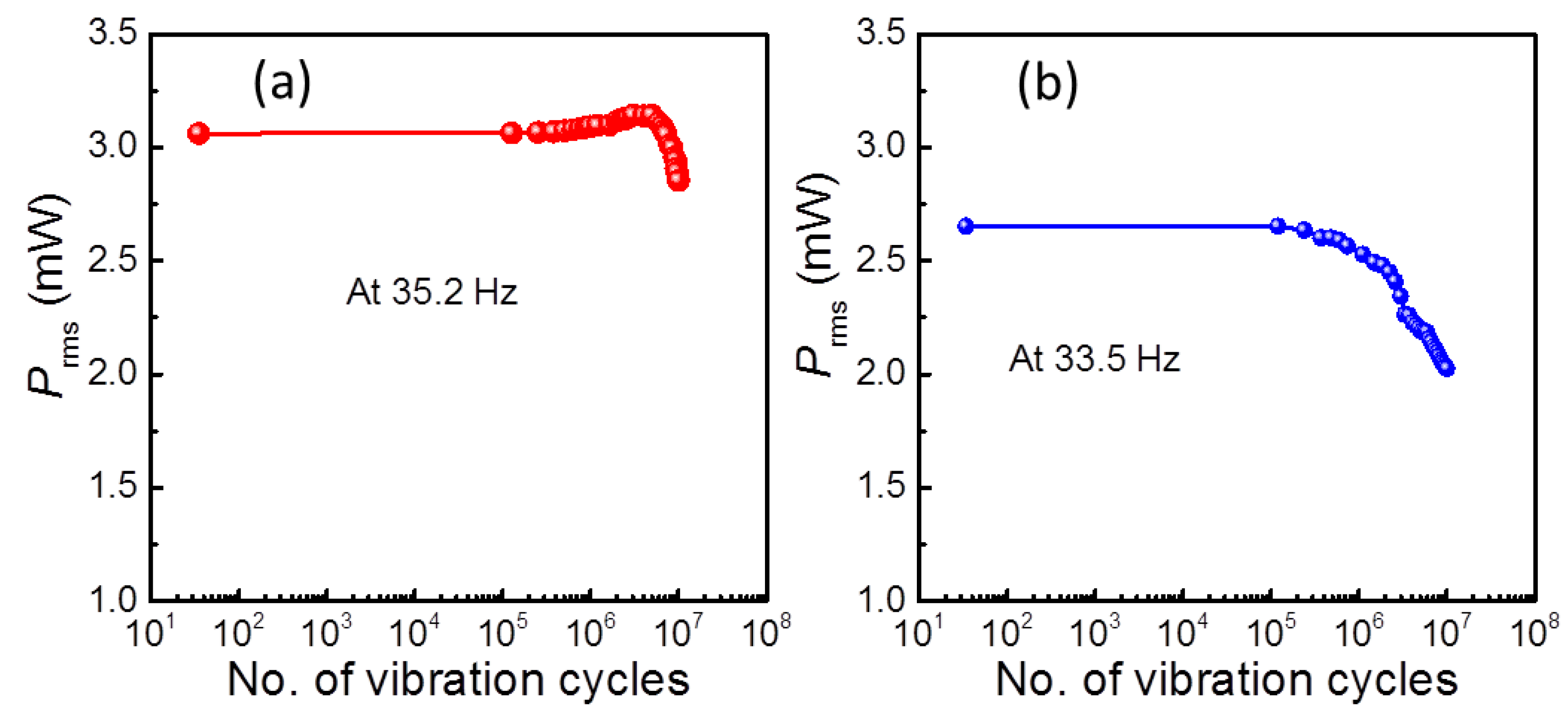

Figure 3. Variation in the Prms response of (a) hard SFC-based PEH (HS-PEH) and (b) soft SFC-based PEH (SS-PEH) as a function of vibration cycles measured at 7 m/s2.
Figure 3. Variation in the Prms response of (a) hard SFC-based PEH (HS-PEH) and (b) soft SFC-based PEH (SS-PEH) as a function of vibration cycles measured at 7 m/s2.
Sensors 19 02196 g003
Sensors 19 02196 g004 550

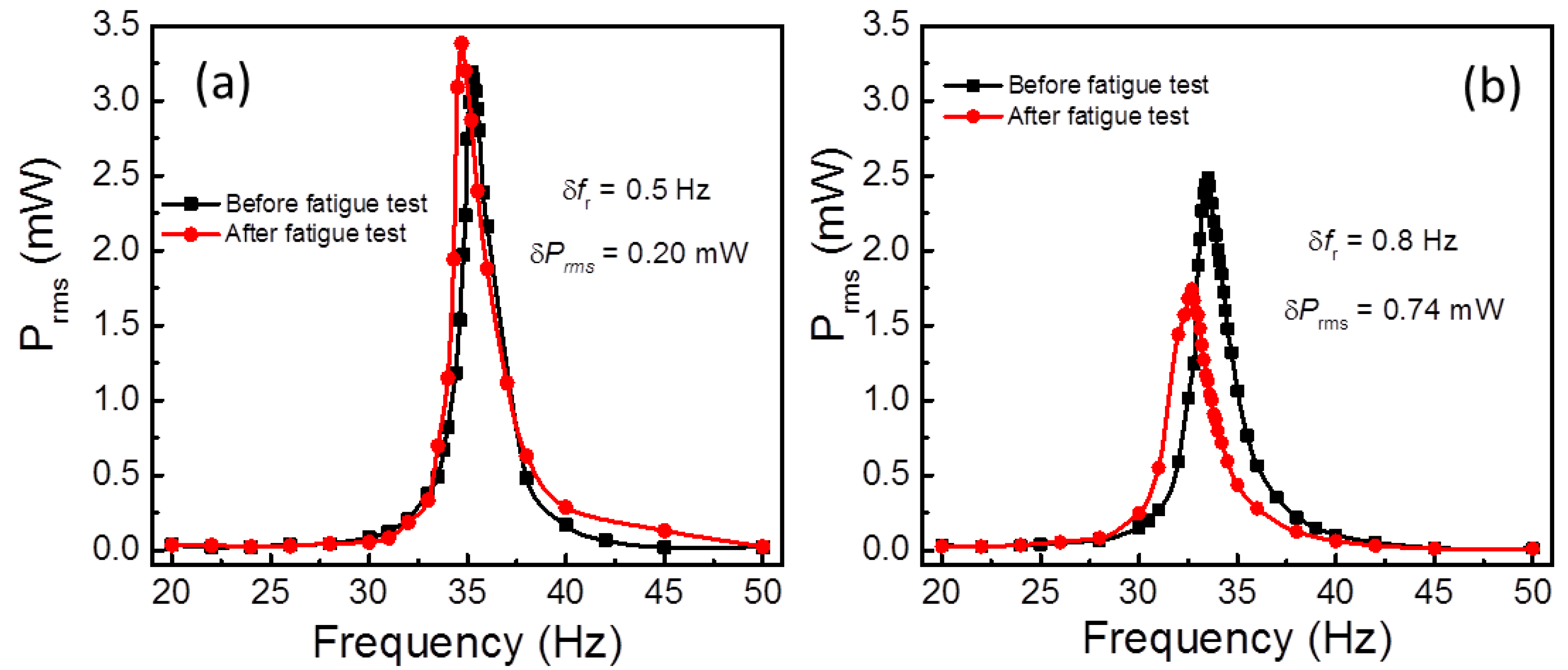

Figure 4. Comparison of power frequency response curves for (a) HS-PEH and (b) SS-PEHs measured at base acceleration of 7 m/s2.
Figure 4. Comparison of power frequency response curves for (a) HS-PEH and (b) SS-PEHs measured at base acceleration of 7 m/s2.
Sensors 19 02196 g004
Sensors 19 02196 g005 550

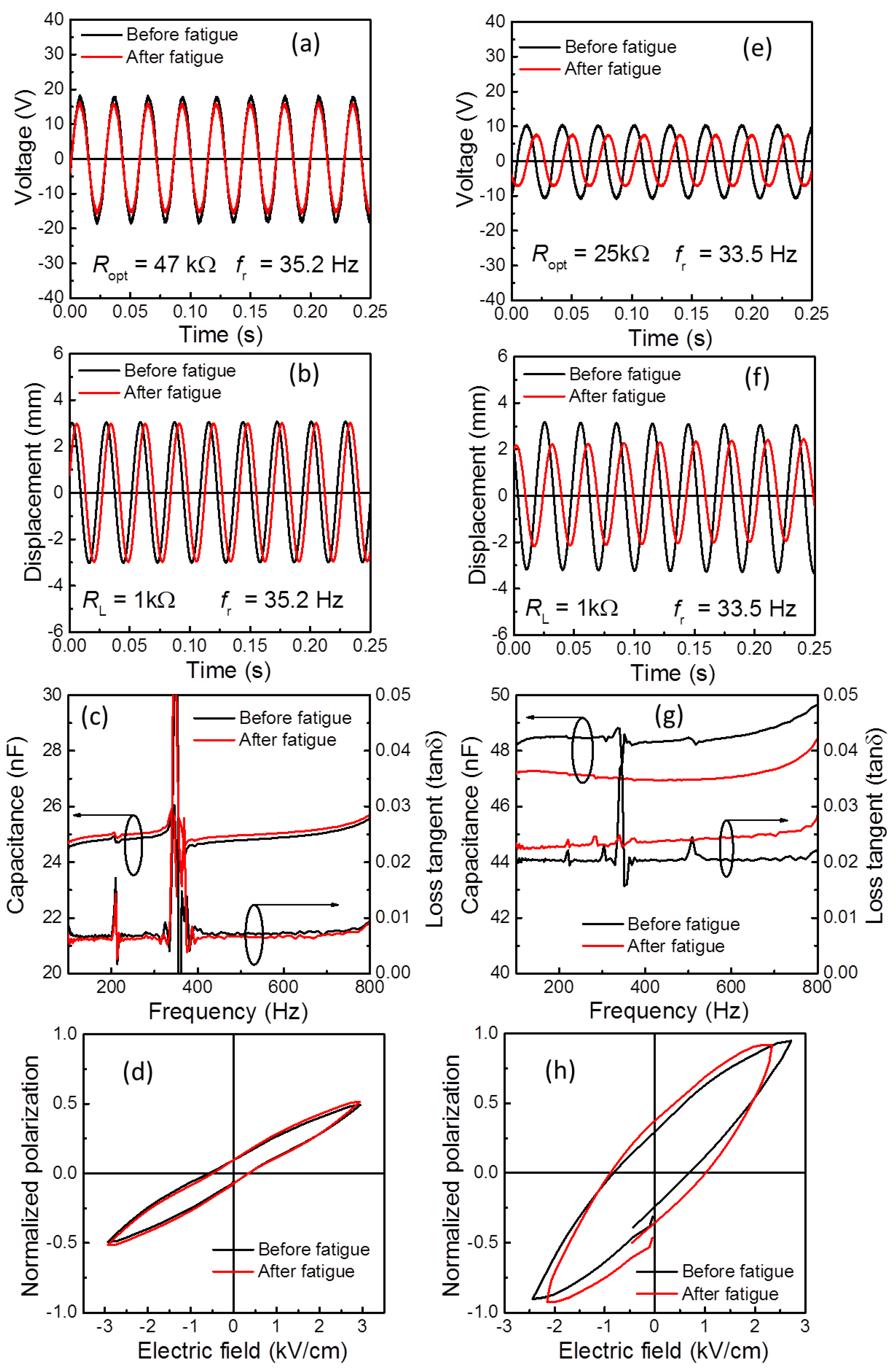

Figure 5. The comparison graphs of output voltage, vibration displacement, capacitance, and polarization changes for (a–d) HS-PEH and (e–h) SS-PEHs measured before and after fatigue test at 7 m/s2.
Figure 5. The comparison graphs of output voltage, vibration displacement, capacitance, and polarization changes for (a–d) HS-PEH and (e–h) SS-PEHs measured before and after fatigue test at 7 m/s2.
Sensors 19 02196 g005
Table
Table 1. Various material properties of soft- and hard-type SFCs.
Table 1. Various material properties of soft- and hard-type SFCs.
ParameterSymbolHard-Type SFC (Mn-doped PMN-PZT)Soft-Type SFC (W-doped PMN-PZT)Units
Densityρ78007900kg/m3
Volume(l × b × h)28 × 14 × 0.228 × 14 × 0.2mm3
Dielectric constantε3322503962
Dielectric losstanδ0.00180.005
Mechanical losstanθ0.0030.010
Electromechanical coupling factork320.6970.726
Piezoelectric charge constantd32−850−185010−12 C/N
Elastic compliances22E45.9110.0410−12 m2/N
Table
Table 2. Changes in the energy harvesting characteristic parameters of PEHs after fatigue measurement.
Table 2. Changes in the energy harvesting characteristic parameters of PEHs after fatigue measurement.
ParameterPEH Type
HS-PEHSS-PEH
ΔPrms (mW) (at initial fr)−6.9%−23.6%
ΔPmax (mW) (at final fr)+0.20−0.74
Δfr (Hz)−0.5−0.8
NVPD (mW/cm3·Hz·g2)+7.9%−27.5%
Δdv (mm) (at initial fr)−0.04−1.20
ΔC (nF) (at 100 Hz)+0.7%−2.1%
PS (μC/cm2)+4.7%−3.4%
Dielectric loss−16.2%+11.2%
Hysteresis loss+4.6%+20.6%
Mechanical loss (damping ratio)−0.3%+27.5%
