Sensors 2019, 19(9), 2104; https://doi.org/10.3390/s19092104

Article
The Effects of Dimensions on the Deformation Sensing Performance of Ionic Polymer-Metal Composites
1
School of Mechanical and Electrical Engineering, Hohai University, Changzhou Campus, Changzhou 213022, China
2
Jiangsu Key Laboratory of Special Robot Technology, Hohai University, Changzhou 213022, China
3
School of Mechanical Engineering, Xi’an Jiaotong University, Xi’an 710049, China
4
Jiangsu Provincial Key Laboratory of Bionic Functional Materials, Nanjing University of Aeronautics & Astronautics, Nanjing 210016, China
*
Authors to whom correspondence should be addressed.
Received: 21 March 2019 / Accepted: 30 April 2019 / Published: 7 May 2019

Abstract

:
As an excellent transducer, ionic polymer-metal composites (IPMCs) can act as both an actuator and a sensor. During its sensing process, many factors, such as the water content, the cation type, the surface electrode, and the dimensions of the IPMC sample, have a considerable impact on the IPMC sensing performance. In this paper, the effect of dimensions focused on the Pd-Au typed IPMC samples with various thicknesses, widths, and lengths that were fabricated and their deformation sensing performances were tested and estimated using a self-made electromechanical sensing platform. In our experiments, we employed a two-sensing mode (both current and voltage) to record the signals generated by the IPMC bending. By comparison, it was found that the response trend was closer to the applied deformation curve using the voltage-sensing mode. The following conclusions were obtained. As the thickness increased, IPMC exhibited a better deformation-sensing performance. The thickness of the sample changed from 50 μm to 500 μm and corresponded to a voltage response signal from 0.3 to 1.6 mV. On the contrary, as the length increased, the sensing performance of IPMC decreased when subjected to equal bending. The width displayed a weaker effect on the sensing response. In order to obtain a stronger sensing response, a thickness increase, together with a length reduction, of the IPMC sample is a feasible way. Also, a simplified static model was proposed to successfully explain the sensing properties of IPMC with various sizes.
Keywords:
IPMC; sensor; dimension; deformation

1. Introduction

As one kind of representative ionic electroactive polymer (iEAP), ionic polymer-metal composites (IPMCs) are known as actuators with light weight, noiseless operation, and larger displacements under low-driving voltage [1,2,3]. Not only can it produce large deformations at low voltage, but IPMC will also generate a corresponding electrical response when subjected to mechanical bending [4,5,6,7]. These characteristics of IPMC have enormous application potential in the fields of biomimetic machine biomedicine, flexible sensing, and micro-electro-mechanical system (MEMS) [8,9,10,11,12].
As shown in Figure 1, a typical IPMC has a sandwich structure, composed of a ionomer membrane and two metallic electrode layers [13]. The polymer membrane contains mobile hydrated cations, water as solvents, and fixed anions. Generally, when an IPMC is subjected to mechanical bending, the hydrated cations move towards the expanded region [14,15]. This means that the potential of the electrode layer on the expanded side will be higher than the other side, as shown in Figure 1.
In generally, IPMC is capable of sensing and operating in harsh conditions. IPMC materials have a lot of excellent properties, such as insensitivity to magnetic fields and simple fabrication processes, one order of magnitude more sensitive than traditional piezoelectric transducers. IPMC still has drawbacks, and the voltage generated by IPMC (0.01–10 mV) is still much lower than polyvinylidene fluoride (PVDF) film, which is a typical flexible sensor [16].
As early as the 1990s, the sensing abilities of IPMC have been reported to gradually cause widespread concern, and many researchers have conducted in-depth research on this. Shahinpoor et al. [17] confirmed the linear relationship between bending displacement and output voltage of strip-typed IPMC [18]. Konyo et al. investigated the voltage-response dependence of the frequency and revealed that a velocity of applied bending was in proportion to the output voltage of IPMC [19]. Takagi et al. showed that the voltage response of IPMC increased with frequency in the low-frequency range [20]. Regarding the influence of the ambient humidity on IPMC, Zhu et al. proposed a comprehensive physical interpretation of the dependence of water content [21]. By changing the composition of IPMC, Liu et al. tried to replace the electrode and ionic solvent inside IPMC with graphene and ionic liquid, respectively, and obtained an output electrical signal of 4.5 millivolts [22]. In fact, in addition to the water content, the bending displacement, the velocity of deformation, the type of cation, and the surface electrode, the dimensions have a considerable influence on the sensing performance of IPMC. However, due to the complexity of IPMC structure, it is difficult to fully explain its sensing mechanism and further build an explicit physical model.
In this paper, we employed impregnation-reduction plating (IRP), together with electroplating (EP), to fabricate IPMC samples with various dimensions, and then measured their sensing performances under dynamic bending load. Our paper was organized as follows: firstly, we fabricated IPMC samples with specific sized series, and then compared this to the voltage response and the current response to evaluate the deformation sensing performance of IPMC by voltage and current amplifier, respectively. Finally, the effects of the dimensions on IPMC were investigated, including thickness, length, and width. The increase in the thickness and length of IPMC had obvious improvements on the sensing performance, while the width had little effect on the sensing signal.

2. Experimental Methods

2.1. Fabrication of IPMC

In this experiment, ionomers (Nafion from Dupont, DE, USA and GEFC from golden energy fuel cell (GEFC) corporation, Beijing, China) were used as the interlayer of IPMC, which had the same microstructure as that generated by the copolymerization of a perfluorinated vinyl ether comonomer with tetrafluoroethylene (TFE). As shown in Figure 2, the preparation process developed by our lab was as follows [23].
Pre-treatment step: after being ultrasonic cleaning in deionized (DI) water (30 min, 60 °C), as shown in Figure 2a, the membrane was successively immersed in 2 mol/L HCL (99 °C) and DI water (99 °C) for 30 min (Figure 2b,c). The aim of this process was to purify the base ionomer membrane.
Impregnation-reduction plating (IRP) step: as shown in Figure 2d, the pretreated membrane was placed in an ammonia solution of Pd(NH3)4Cl2 (0.01 mol/L, 50 °C) for 60 minutes within a water bath thermostat oscillator (50 °C, 80–90 r/min). After being rinsed in deionized (DI) water, the membrane was immersed in NaBH4 solution (0.02 mol/L, pH > 13) for 30 min with a stirring speed of 80–90 r/min. The membrane was rinsed once again and repeated the IR step twice. This process was done to incorporate the palladium complex cations into the polymer, which were reduced into the palladium particles in or near the inner surface of the base membrane (Figure 2e).
Electroplating (EP) step: we built an electroplating set-up, which consisted of a titanium anode, DC power supply, and an array of cathodes with conductive spring pins, as shown in Figure 2g. To prevent short circuiting on both sides of the IPMC, the sample needed to be trimmed before the electroplating (Figure 2f). The source of Au+ was provided by a gold electroplating solution with the mass concentration of 1.2 g/L. In order to ensure the uniformity of the surface resistance, the electroplating was carried out under 5 V at a current intensity of 0.05–0.15 A for 20–30 s on each side, and repeated 5–10 times. In order to avoid the effect of the surface resistance of the IPMC on the sensing response, the electroplating time of each sample was controlled to keep the surface resistances of the IPMC equal. This process was used to further decrease the surface resistivity.
Post-processing step: after the IR step, the sample was trimmed again and then the samples were immersed in an NaOH solution (0.2 mol/L) within a water bath thermostat oscillator (50 °C, 80–90 r/min) for 120 min. Finally, they were preserved in deionized (DI) water.
After the preparation steps were finished, the IPMC was cut into the needed sizes and numbered, as shown in Figure 3 and Table 1 (T, L, W represent thickness, length and width, respectively). The cross-section of the samples were observed by scanning electron microscopy (SEM, sigma 500), and the SEM cross-section of the sample (L2) is shown in Figure 4.

2.2. Electromechanical Sensing Test Platform

The sensing behavior of IPMC was realized using a self-made measuring system, which consisted of an excitation, record, and signal amplifier module. When the IPMC sample was applied with an ideal stimulus signal, generated by the excitation module, the signal amplifier module perceived the weak electrical signal, amplified it over 100 times, and the record module was responsible for transferring and recording data. The total device flow chart is shown in the Figure 5a.
As shown in Figure 5b, the deformation generated by the stepping motor was transformed into a reciprocating displacement signal through the lead screw, which was applied to one end of IPMC sample. Due to leaving a small gap, the clamp was not fixed to the IPMC sample. The straight line slide module moved at a speed of 2 mm/s, with a period of 2 s. The other end of the IPMC sample was clamped with a clip fixed on the laboratory bench, and formed a cantilever structure. The part of the clip that was in contact with the IPMC was divided into two sections. The left half was affixed with copper foil, which can send the signal generated by IPMC to the amplification module. The right half of the fixed acrylic sheet could be used to further fix the IPMC to prevent the thicker (greater stiffness coefficient) IPMC from prying up the clip during the bending process, resulting in the capacitance to interfere with the experimental results. The free length between the retaining clip and the point of application for displacement was set to 10 mm.
The signal generated by the IPMC sample was transmitted to the custom-made circuit through the copper electrodes inside the clip and then sent to the acquisition board. There were two kinds of amplification circuits, which amplified the voltage and the current signals, respectively. The signal generated by the displacement output module was measured by a Keyence IL-065 laser displacement sensor. All data were recorded using a National Instruments USB-6001 data acquisition board at a sampling rate of 1000/s.

3. Results and Discussion

In general, we tested the IPMC sample in an open environment. During the test, the water molecules inside the IPMC will gradually evaporate and the water content of the IPMC decreases, which will affect the sensing signal. In order to eliminate this effect, we measured the sample after it was taken from DI water for 10 min.

3.1. Comparison of the Current Amplification and the Voltage Amplification

Figure 6 shows the signal generated by the L3 sample under free oscillation through the current and voltage amplification circuits, respectively. It can be seen that the sensing signal curve in Figure 6b is significantly closer to the displacement curve. Compared with the current response, the voltage response more intuitively reflects the distribution of the hydrated cations, which helps to reveal the sensing physics. In the following tests, we selected the voltage amplification circuit to amplify the IPMC sensing signal.
The free oscillations in Figure 6 were replaced with the displacement output module, and the voltage signal generated by the L3 sample as shown in Figure 7. When the dynamic deformation of 2 mm/s and 0.5 Hz was applied, the maximum voltage generated by the L3 sample increased to 0.9 mV.

3.2. Thickness Effect on the Deformation Sensing of IPMC

Figure 8 demonstrates the relationship between the maximum response voltage and the thickness of the IPMC. The results revealed that the voltage response increased with an increase in the thickness of the sample. The 50 μm sample (T1) produced the smallest voltage signal at 0.32 mV and the 500 μm sample (T4) produced the largest voltage signal at 1.61 mV. In addition to the stress distribution, we also tried to use the distribution of cations on the inner surface to explain the increase response voltage in response to thickness.
As mentioned in Figure 1, when applying a bending deformation, an elastic stress gradient is generated along the thickness, thus the mobile cations and water molecules migrate towards the outside electrode. After ionic charges redistribute along the thickness, cations were also redistributed near the two inner surfaces of the electrode. As shown in Figure 9, after deformation, the two lengths of the IPMC surface are l1 and l2, respectively. The sizes (w, l, and t) and the difference (δ) of cation numbers on the two internal surfaces of the IPMC inevitably presented a proportional relationship, which could be qualitatively depicted by the following Equation (1):
δ = N 2 N 1 = ( S 2 S 1 ) ρ = w t θ ρ ,
where N1 and N2 are the number of cations on the internal surface of IPMC, respectively, S1 and S2 are the surface areas of IPMC, r is the bending radius of IPMC, w, t, and l are the width, thickness, and length of IPMC sample, respectively, and ρ is the density of cations on the inner surface. As can be seen in (1), the difference (δ) is positively correlated with the thickness (t) of IPMC.
Aureli et al. found that the capacitance of IPMC was largely dictated by the effective electrode surface area rather than the thickness, when the Debye screening length was considerably smaller than the polymer thickness [24]. When the surface electrode morphology of IPMC samples are similar, the capacitance (C) is positively correlated with the surface areas(S) of IPMC, as shown in Equation (2):
C S = w l .
Then the voltage response of IPMC and the dimensions present a proportional relationship, which could be qualitatively depicted by the following Equation (3):
U = δ C t l θ ρ .
As can be seen in (3), the voltage response of the IPMC (U) is positively correlated with the thickness (t) of IPMC and negatively correlated with length.

3.3. The Effect of Length on Deformation Sensing of IPMC

Figure 10 shows the relationship between the maximum voltage and the length of the IPMC. The length between the retaining clip and the point of application for displacement was set to 10 mm. As the length increased, the voltage signal decreased, and the voltage generated by the L4 sample was only 0.56 mV. This trend was consistent with Equation (3). With a length increase in the IPMC, the capacitance increased accordingly. When the same bending displacement was applied and the generated charges were equal, the electrical response was dominated by the length of the IPMC sample.

3.4. The Effect of Width on Deformation Sensing of IPMC

The relationship between the maximum voltage and the width of the IPMC is displayed in Figure 11. The results showed that the voltage does not change significantly as the width increased. The voltage of the four samples of W1–W4 was basically distributed around 1 mV. According to Equation (2), an increase in the IPMC width resulted in the increase of the capacitance. Meanwhile, as shown in Equation (1), the wider IPMC had a larger deformation area when the same displacement was applied, and then the difference (δ) of cation numbers near the two internal surfaces of the IPMC increased correspondingly. Taking the two factors into consideration (see Equation (3)), the effect of IPMC width was offset, and the response trend of the IPMC in width was not so obvious. From the experimental results, the signal response of IPMC with various dimensions could be depicted by the Equation (3). Table 2 summarizes the results of the maximum response signals of the IPMC samples.

4. Conclusions

In this study, the Pd-Au typed IPMCs with various thicknesses, widths, and lengths were fabricated and their sensing performances were tested using a self-made electromechanical sensing test platform. Current amplification and voltage amplification were performed on the signals generated during the IPMC bending. By comparison, it was found that the response signal was closer to the displacement curve after passing through the voltage amplification module. The minimum voltage signal (0.32 mV) was generated by the sample of T1 and the maximum voltage signal (1.61 mV) was generated by the sample of T4. A thicker IPMC achieved better sensor performance and, in contrast, a longer IPMC, when subjected to equal bending, the response voltage decreased. The change in width has a weaker effect on the sensing signal. A simplified static model was employed to explain the sensing properties of IPMC with various sizes. In order to obtain stronger sensing signals under the same bending, the thickness of the Nafion membrane can be appropriately increased or its length can be shortened.

Author Contributions

Conceptualization, M.L.; Data curation, J.W. (Jiale Wang) and J.W. (Jiahui Wang); Formal analysis, J.W. (Jiahui Wang); Investigation, Y.W., Z.Z. and Q.H.; Methodology, Q.H.; Project administration, Y.W.; Writing–original draft, J.W. ( Jiale Wang); Writing–review & editing, Y.W.

Funding

This research was supported by the Fundamental Research Funds for the Central Universities (2019B21514), the National Natural Science Foundation of China (91748124), the Foundation (2017B21114) of Jiangsu Key Laboratory of Special Robot Technology, the Foundation (BFM1707) of Jiangsu Provincial Key Laboratory of Bionic Functional Materials, P.R. China. The authors gratefully acknowledge the supports.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Bhandari, B.; Lee, G.Y.; Ahn, S.H. A review on IPMC material as actuators and sensors: Fabrications, characteristics and applications. Int. J. Precis. Eng. Manuf. 2012, 13, 141–163. [Google Scholar] [CrossRef]
  2. Shahinpoor, M.; Bar-Cohen, Y.; Simpson, J.O.; Smith, J. Ionic polymer-metal composites (IPMCs) as biomimetic sensors, actuators and artificial muscles-a review. Smart Mater. Struct. 1998, 7, R15. [Google Scholar] [CrossRef]
  3. Jo, C.; Pugal, D.; Oh, I.K.; Kim, K.J.; Asaka, K. Recent advances in ionic polymer–metal composite actuators and their modeling and applications. Prog. Polym. Sci. 2013, 38, 1037–1066. [Google Scholar] [CrossRef]
  4. Bian, C.; Ru, J.; Zhu, Z.; Luo, B.; Chen, H. A three-electrode structured ionic polymer carbon-composite actuator with improved electromechanical performance. Smart Mater. Struct. 2018, 27, 085017. [Google Scholar] [CrossRef][Green Version]
  5. Chang, L.; Yu, L.; Li, C.; Niu, Q.; Hu, Y.; Lu, P.; Zhu, Z.; Wu, Y. Ionic polymer with single-layered electrodes: a novel strategy for ionic actuator design. Smart Mater. Struct. 2018, 27, 105046. [Google Scholar] [CrossRef]
  6. Tiwari, R.; Kim, K.J. IPMC as a mechanoelectric energy harvester: tailored properties. Smart Mater. Struct. 2012, 22, 015017. [Google Scholar] [CrossRef]
  7. Shahinpoor, M.; Kim, K.J. Ionic polymer–metal composites: III. Modeling and simulation as biomimetic sensors, actuators, transducers, and artificial muscles. Smart Mater. Struct. 2004, 13, 1362. [Google Scholar] [CrossRef]
  8. Akle, B.; Najem, J.; Leo, D.; Blottman, J. Design and development of bio-inspired underwater jellyfish like robot using ionic polymer metal composite (IPMC) actuators. In Proceedings of the SPIE Smart Structures and Materials + Nondestructive Evaluation and Health Monitoring, San Diego, CA, USA, 6–10 March 2011. [Google Scholar]
  9. Cheong, H.R.; Nguyen, N.T.; Khaw, M.K.; Teoh, B.Y.; Chee, P.S. Wirelessly activated device with an integrated ionic polymer metal composite (IPMC) cantilever valve for targeted drug delivery. Lab Chip 2018, 18, 3207–3215. [Google Scholar] [CrossRef] [PubMed]
  10. Feng, G.H.; Tsai, J.W. Micromachined optical fiber enclosed 4-electrode IPMC actuator with multidirectional control ability for biomedical application. Biomed. Microdevices 2011, 13, 169–177. [Google Scholar] [CrossRef] [PubMed]
  11. Zhu, Z.; Wang, Y.; Hu, X.; Sun, X.; Chang, L.; Lu, P. An easily fabricated high performance ionic polymer based sensor network. Appl. Phys. Lett. 2016, 109, 073504. [Google Scholar] [CrossRef]
  12. Santos, J.; Lopes, B.; Branco, P.J.C. Ionic polymer–metal composite material as a diaphragm for micropump devices. Sens. Actuators A 2010, 161, 225–233. [Google Scholar] [CrossRef]
  13. Pugal, D.; Jung, K.; Aabloo, A.; Kim, K.J. Ionic polymer–metal composite mechanoelectrical transduction: Review and perspectives. Polym. Int. 2010, 59, 279–289. [Google Scholar] [CrossRef]
  14. Bonomo, C.; Fortuna, L.; Giannone, P.; Graziani, S. A method to characterize the deformation of an IPMC sensing membrane. Sens. Actuators A 2005, 123, 146–154. [Google Scholar] [CrossRef]
  15. Bahramzadeh, Y.; Shahinpoor, M. Dynamic curvature sensing employing ionic-polymer–metal composite sensors. Smart Mater. Struct. 2011, 20, 094011. [Google Scholar] [CrossRef]
  16. Newbury, K.M.; Leo, D.J. Electromechanical modeling and characterization of ionic polymer benders. J. Intell. Mater. Syst. Struct. 2002, 13, 51–60. [Google Scholar] [CrossRef]
  17. Sadeghipour, K.; Salomon, R.; Neogi, S. Development of a novel electrochemically active membrane and’smart’material based vibration sensor/damper. Smart Mater. Struct. 1992, 1, 172. [Google Scholar] [CrossRef]
  18. Shahinpoor, M.; Bar-Cohen, Y.; Xue, T.; Harrison, J.S.; Smith, J.G. Some experimental results on ionic polymer-metal composites (IPMC) as biomimetic sensors and actuators. In Proceedings of the 5th Annual International Symposium on Smart Structures and Materials, San Diego, CA, USA, 1–5 March 1998; pp. 251–268. [Google Scholar]
  19. Konyo, M.; Konishi, Y.; Tadokoro, S.; Kishima, T. Development of velocity sensor using ionic polymer-metal composites. In Proceedings of the Smart Structures and Materials, San Diego, CA, USA, 14–18 March 2004; pp. 307–319. [Google Scholar]
  20. Takagi, K.; Nakabo, Y.; Luo, Z.W.; Asaka, K. On a distributed parameter model for electrical impedance of ionic polymer. In Proceedings of the SPIE Smart Structures and Materials + Nondestructive Evaluation and Health Monitoring, San Diego, CA, USA, 18–22 March 2007. [Google Scholar]
  21. Zhu, Z.; Horiuchi, T.; Kruusamae, K.; Chang, L.; Asaka, K. Influence of Ambient Humidity on the Voltage Response of Ionic Polymer–Metal Composite Sensor. J. Phys. Chem. B 2016, 120, 3215–3225. [Google Scholar] [CrossRef] [PubMed]
  22. Liu, Y.; Hu, Y.; Zhao, J.; Wu, G.; Tao, X.; Chen, W. Self-powered piezoionic strain sensor toward the monitoring of human activities. Small 2016, 12, 5074–5080. [Google Scholar] [CrossRef] [PubMed]
  23. Wang, Y.; Liu, J.; Zhu, Y.; Zhu, D.; Chen, H. Formation and characterization of dendritic interfacial electrodes inside an ionomer. ACS Appl. Mater. Interfaces 2017, 9, 30258–30262. [Google Scholar] [CrossRef] [PubMed]
  24. Aureli, M.; Lin, W.; Porfiri, M. On the capacitance-boost of ionic polymer metal composites due to electroless plating: Theory and experiments. J. Appl. Phys. 2009, 105, 104911. [Google Scholar] [CrossRef]

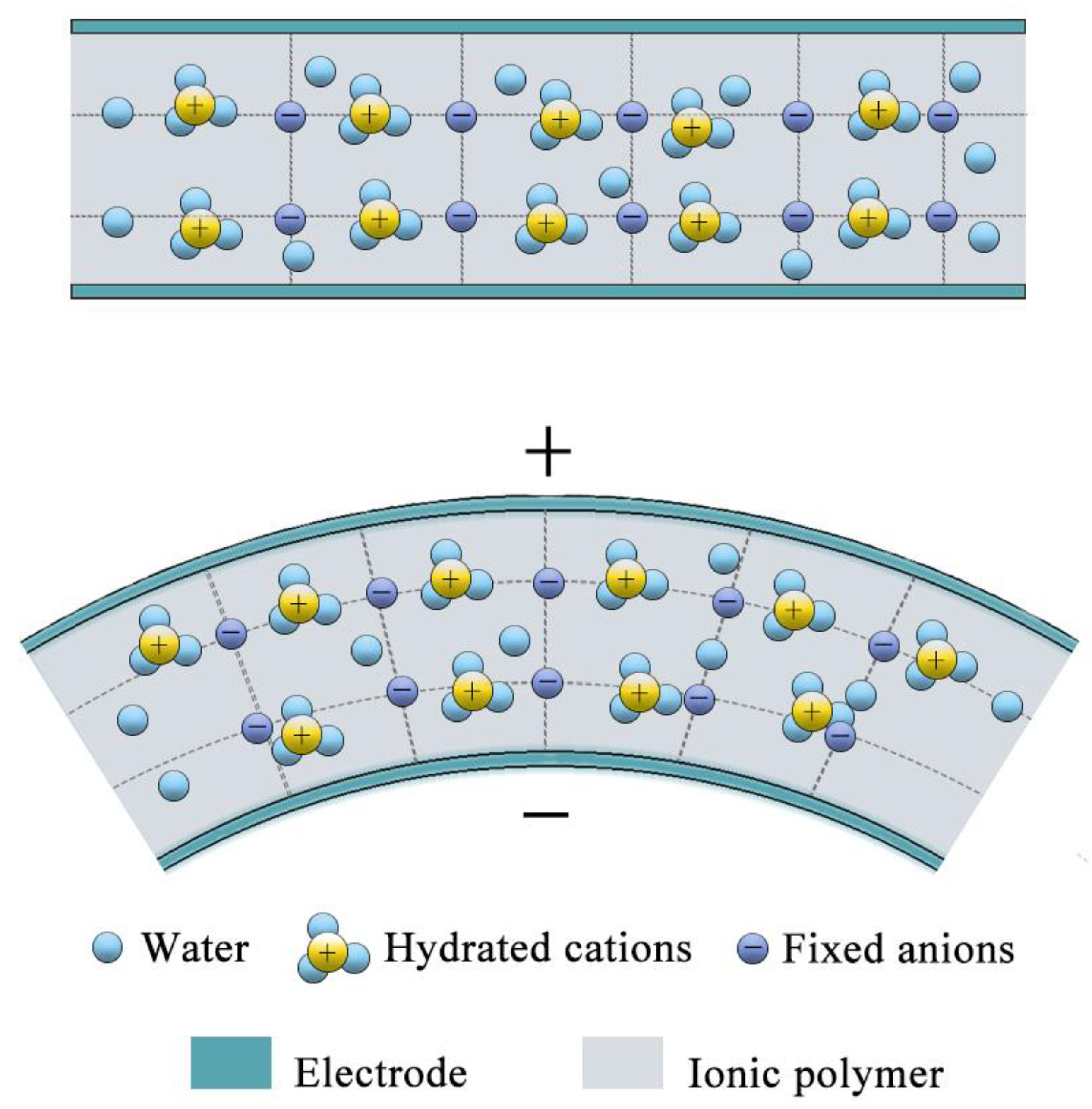

Figure 1. Ionic polymer-metal composite (IPMC) sensing under a bending deformation.
Figure 1. Ionic polymer-metal composite (IPMC) sensing under a bending deformation.
Sensors 19 02104 g001
Figure 2. The detailed fabrication process of IPMC.
Figure 2. The detailed fabrication process of IPMC.
Sensors 19 02104 g002

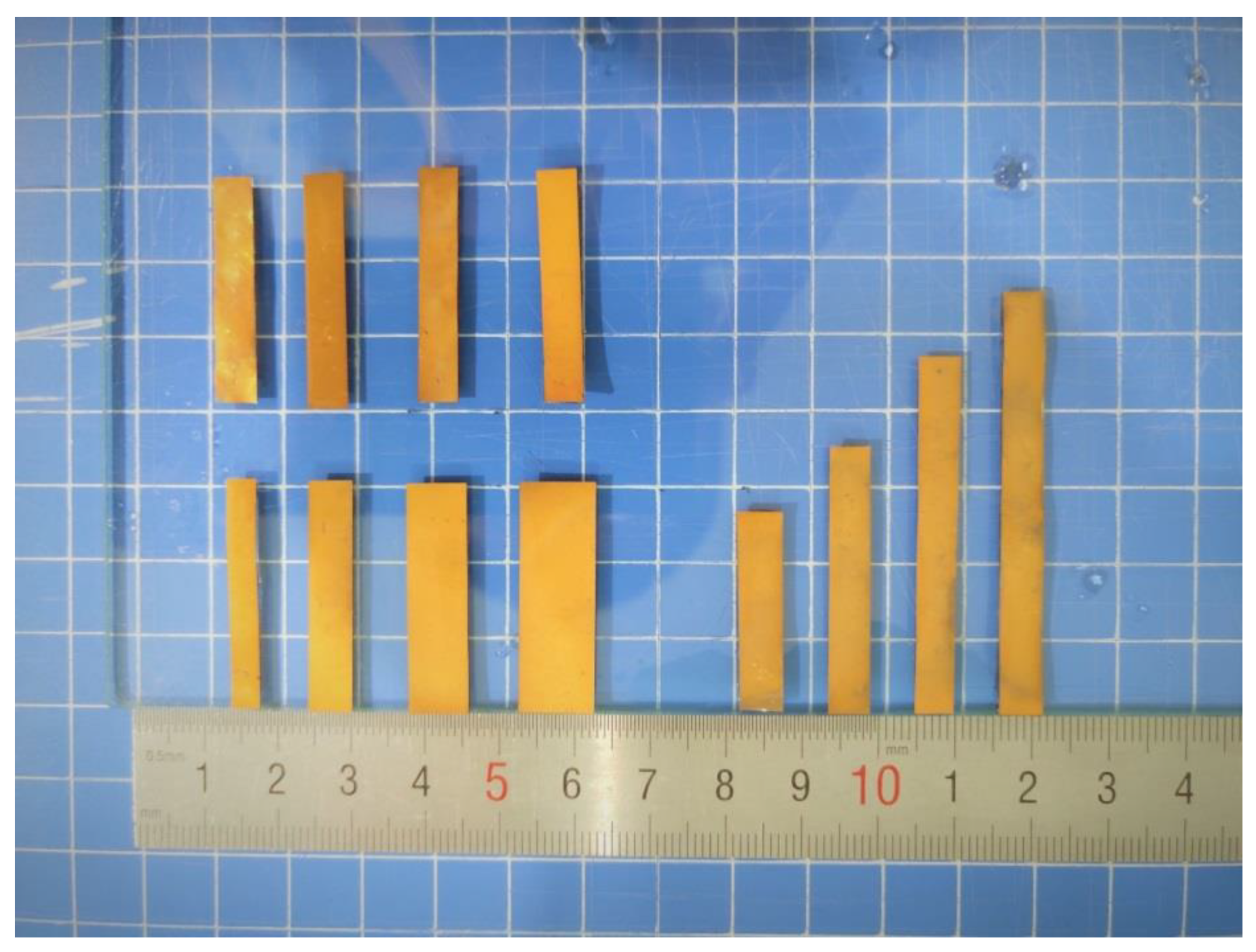

Figure 3. IPMC samples with dimension difference.
Figure 3. IPMC samples with dimension difference.
Sensors 19 02104 g003
Figure 4. SEM cross-section of the samples (L2).
Figure 4. SEM cross-section of the samples (L2).
Sensors 19 02104 g004

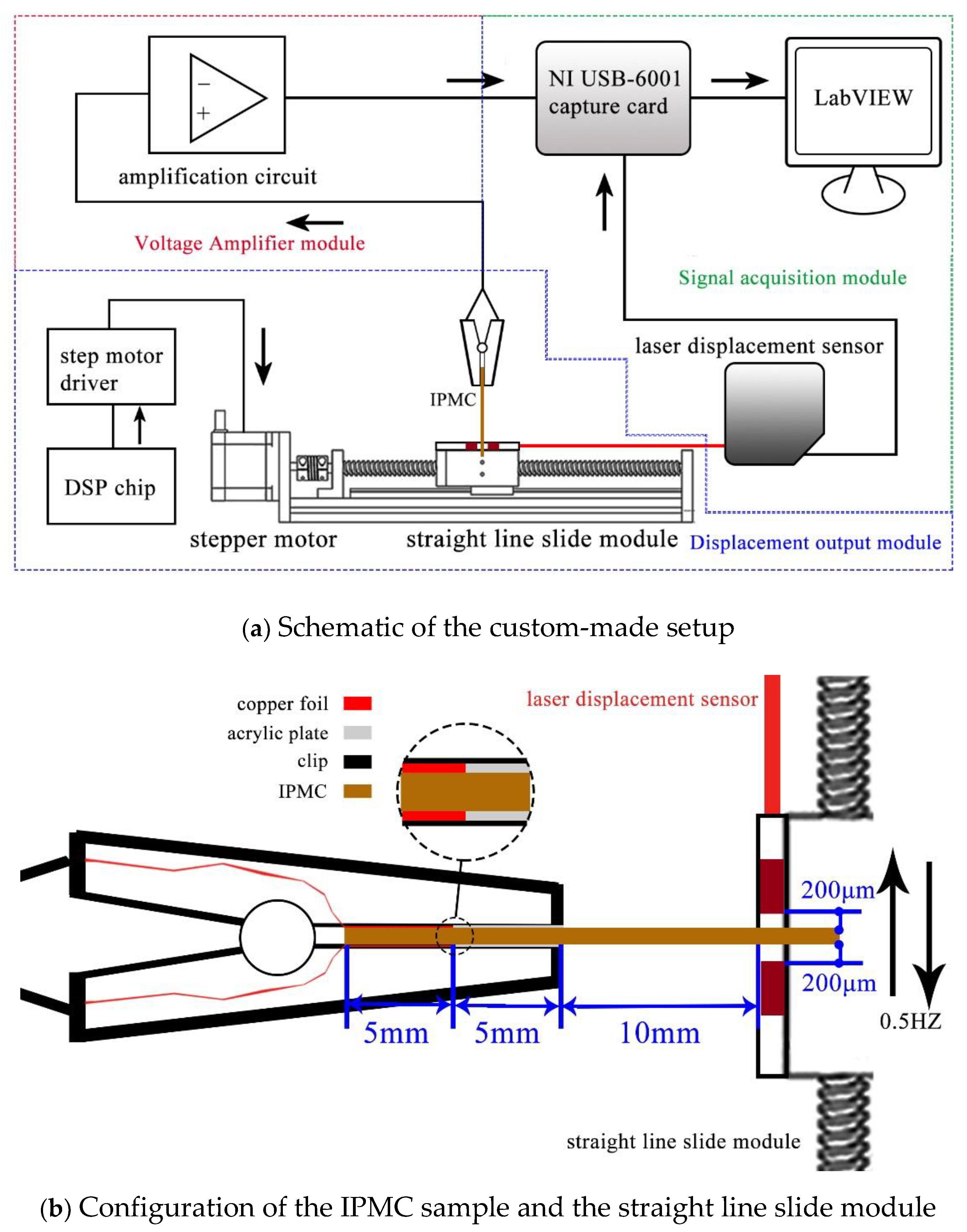

Figure 5. Sensing test platform for the IPMC sample.
Figure 5. Sensing test platform for the IPMC sample.
Sensors 19 02104 g005

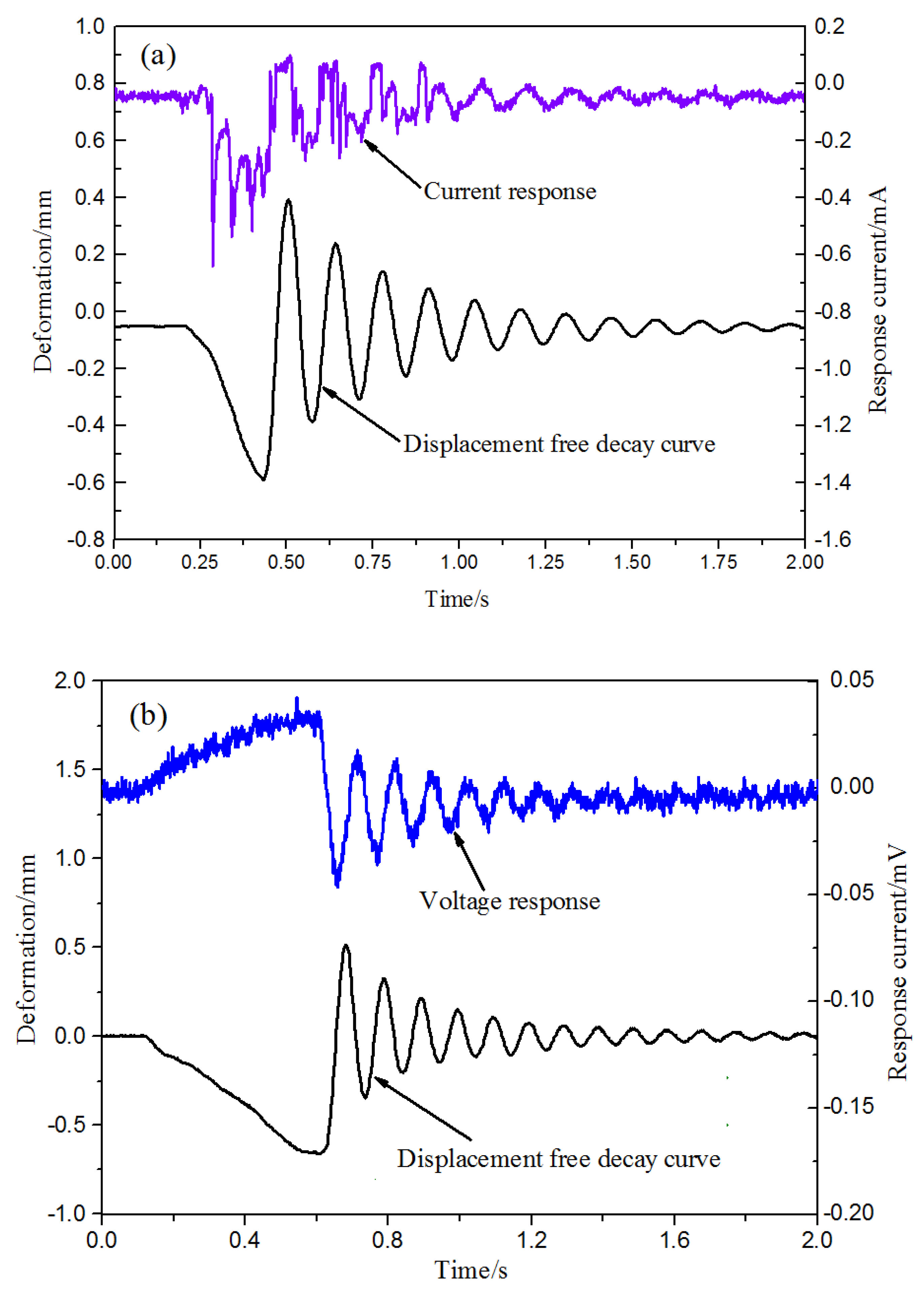

Figure 6. Comparison of the current amplification and the voltage amplification: (a) amplify the current of the IPMC sensor signal and (b) Amplify the voltage of the IPMC sensor signal.
Figure 6. Comparison of the current amplification and the voltage amplification: (a) amplify the current of the IPMC sensor signal and (b) Amplify the voltage of the IPMC sensor signal.
Sensors 19 02104 g006

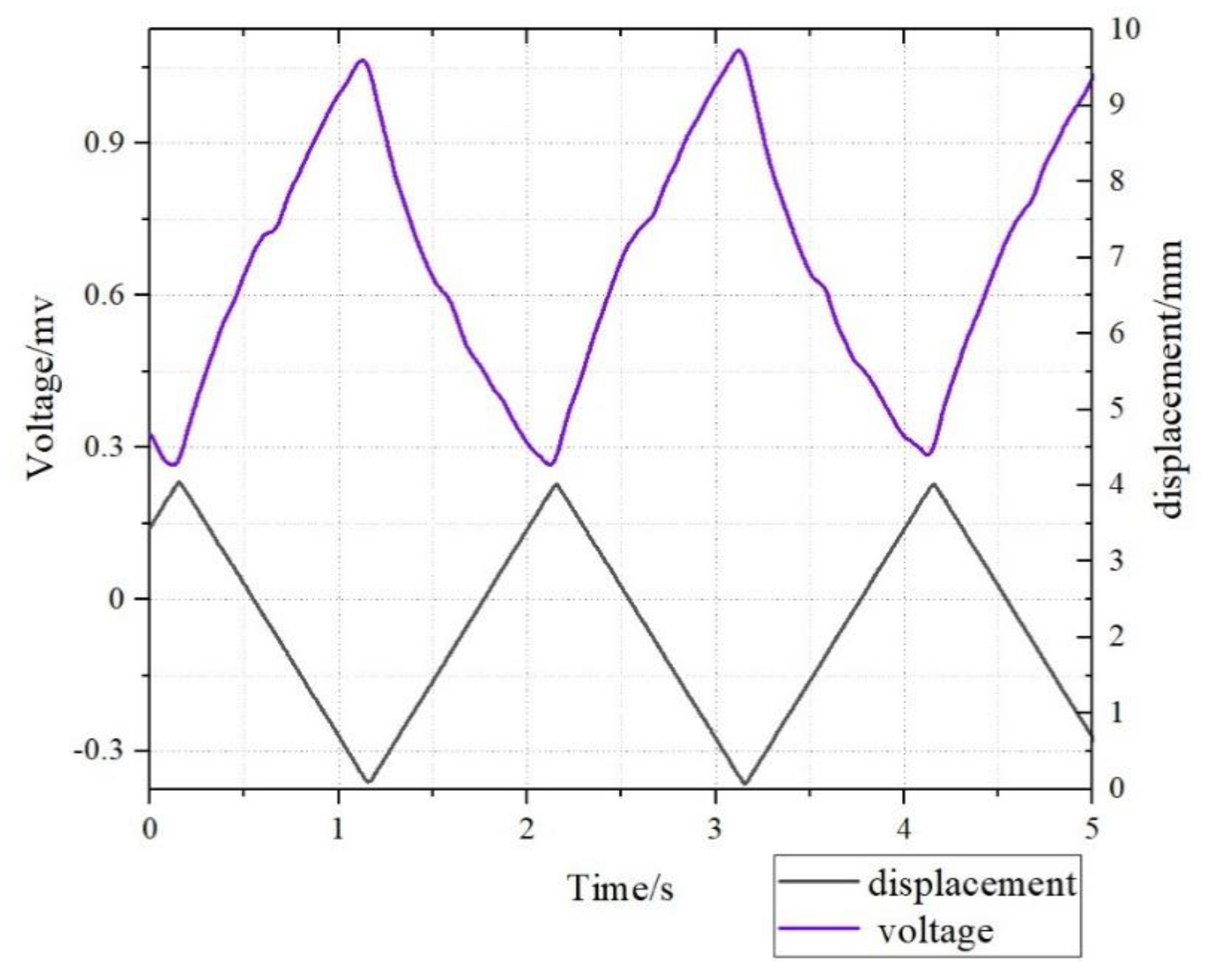

Figure 7. The deformation sensing of the L3 sample with triangular wave signal.
Figure 7. The deformation sensing of the L3 sample with triangular wave signal.
Sensors 19 02104 g007

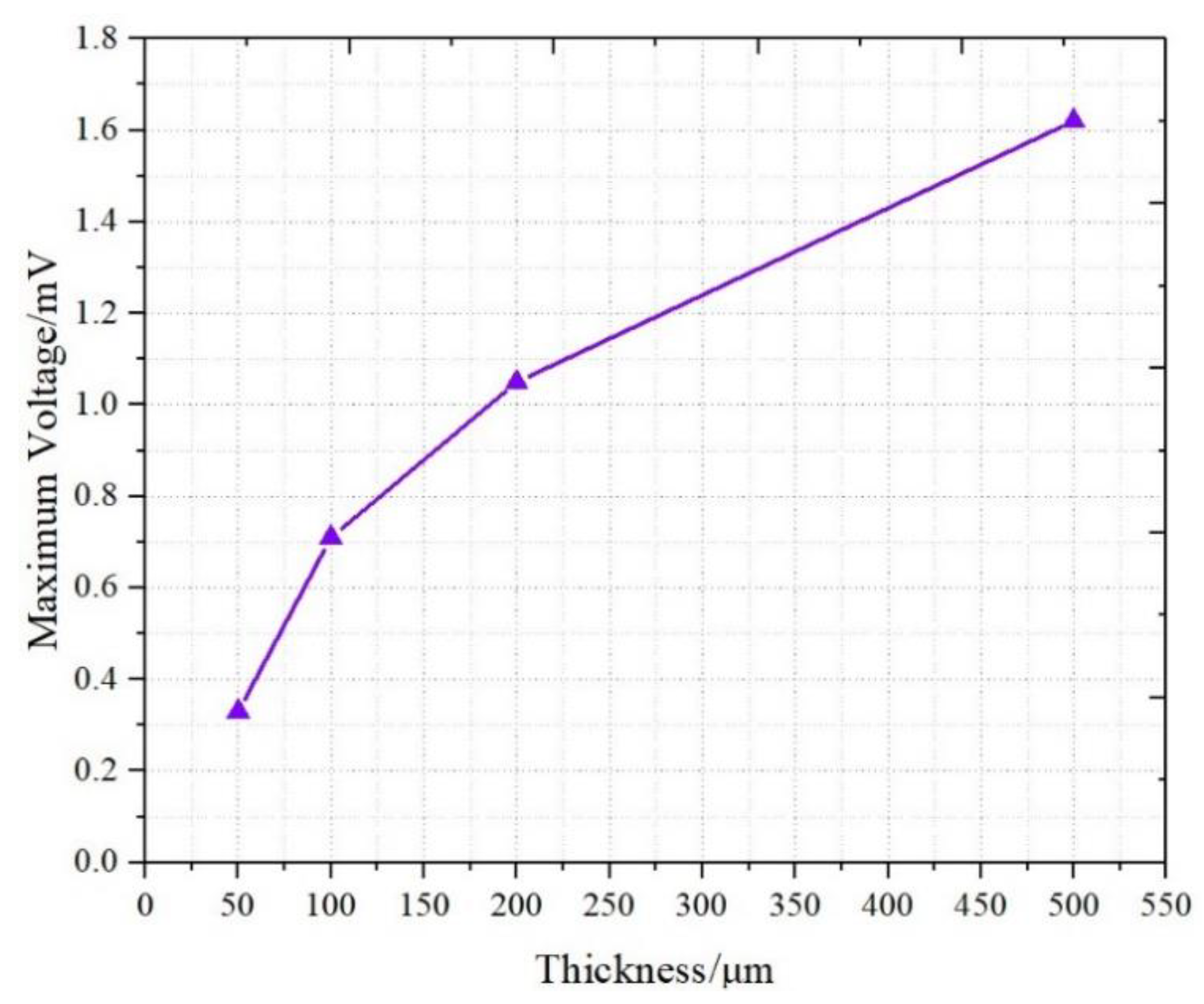

Figure 8. Signals of different thicknesses.
Figure 8. Signals of different thicknesses.
Sensors 19 02104 g008

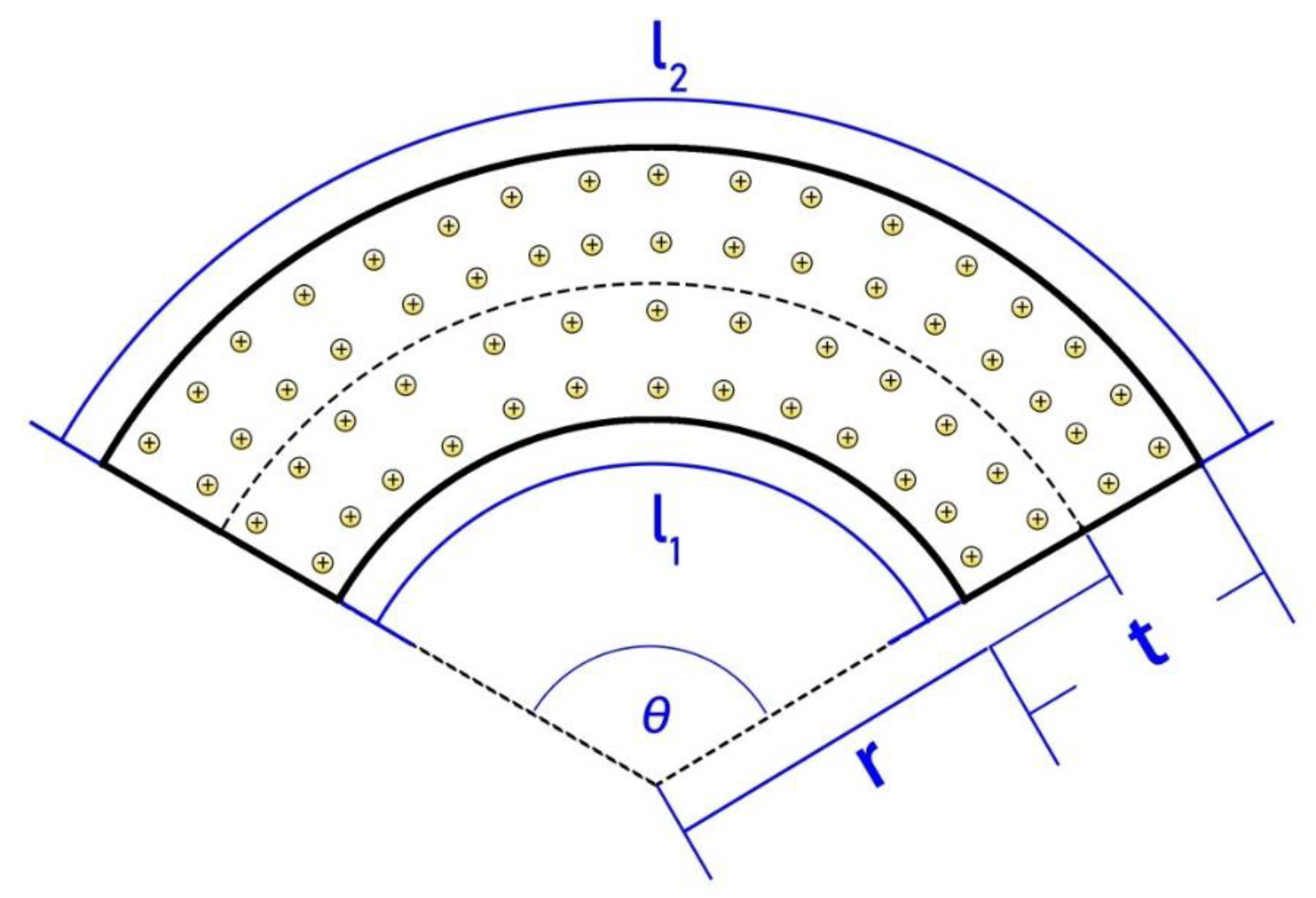

Figure 9. IPMC in the bending state.
Figure 9. IPMC in the bending state.
Sensors 19 02104 g009

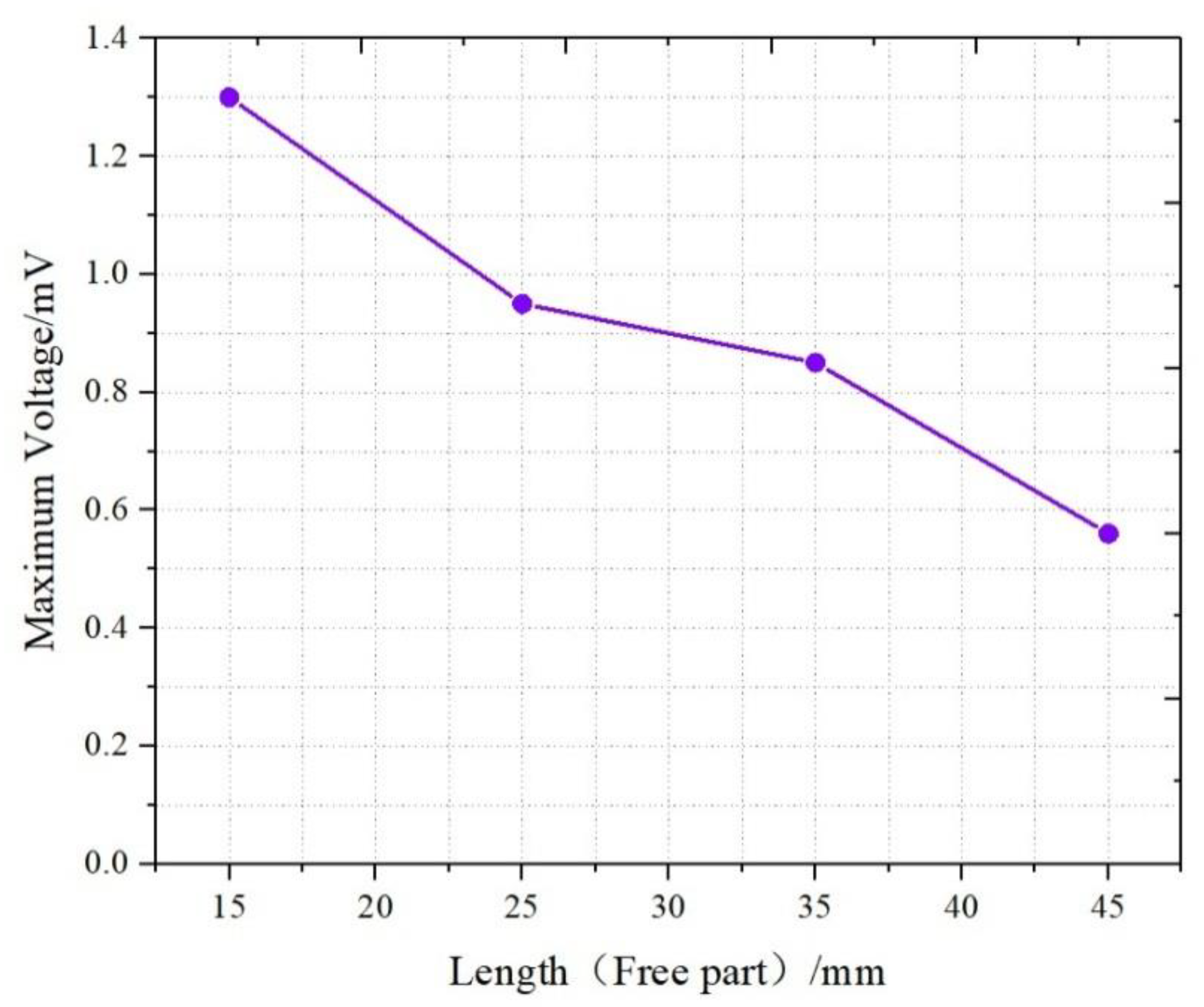

Figure 10. Signals of different lengths (Free part).
Figure 10. Signals of different lengths (Free part).
Sensors 19 02104 g010

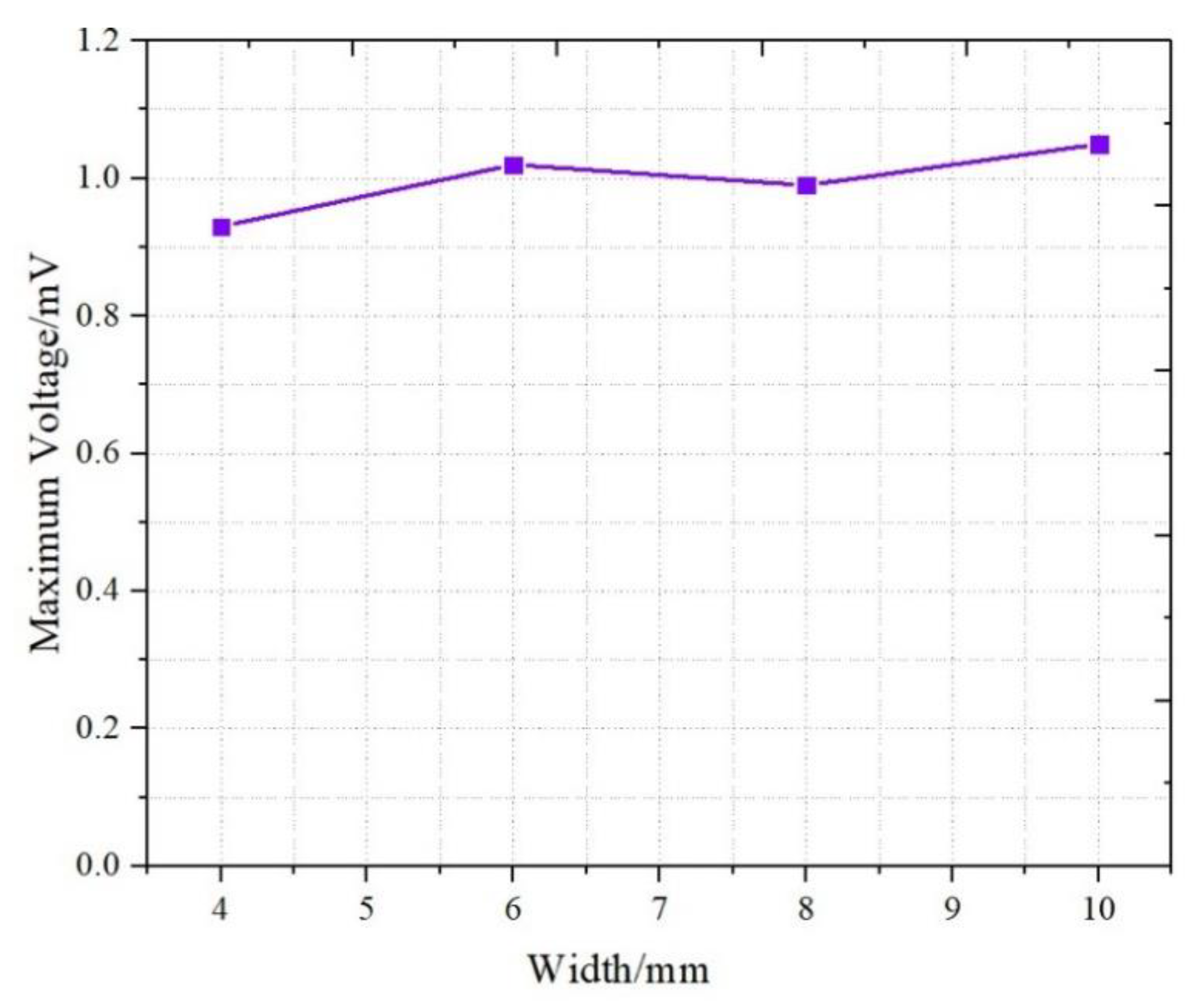

Figure 11. Signals of different widths.
Figure 11. Signals of different widths.
Sensors 19 02104 g011
Table 1. The size parameters of the ionic polymer-metal composite (IPMC).
Table 1. The size parameters of the ionic polymer-metal composite (IPMC).
No.Thickness (μm)Length (mm)Clamped Part (mm)Free Part (mm)Width (mm)
T1503010205
T21003010205
T32003010205
T45003010205
L12002510155
L22003510255
L32004510355
L42005510455
W12003010204
W22003010206
W32003010208
W420030102010
Table 2. Response signals of the IPMC samples.
Table 2. Response signals of the IPMC samples.
SamplesT1T2T3T4L1L2L3L4W1W2W3W4
Response Signals (mV)0.330.711.051.621.30.950.850.560.931.020.991.05
