Open AccessArticle
Sensors 2019, 19(8), 1770; https://doi.org/10.3390/s19081770

Multi-Ray Modeling of Ultrasonic Sensors and Application for Micro-UAV Localization in Indoor Environments

School of Automation Science and Electrical Engineering, Beihang University, Beijing 100191, China
*
Author to whom correspondence should be addressed.
Received: 26 February 2019 / Revised: 26 March 2019 / Accepted: 10 April 2019 / Published: 13 April 2019
(This article belongs to the Collection Positioning and Navigation)
  |
PDF [2523 KB, uploaded 13 April 2019]
  |

Abstract

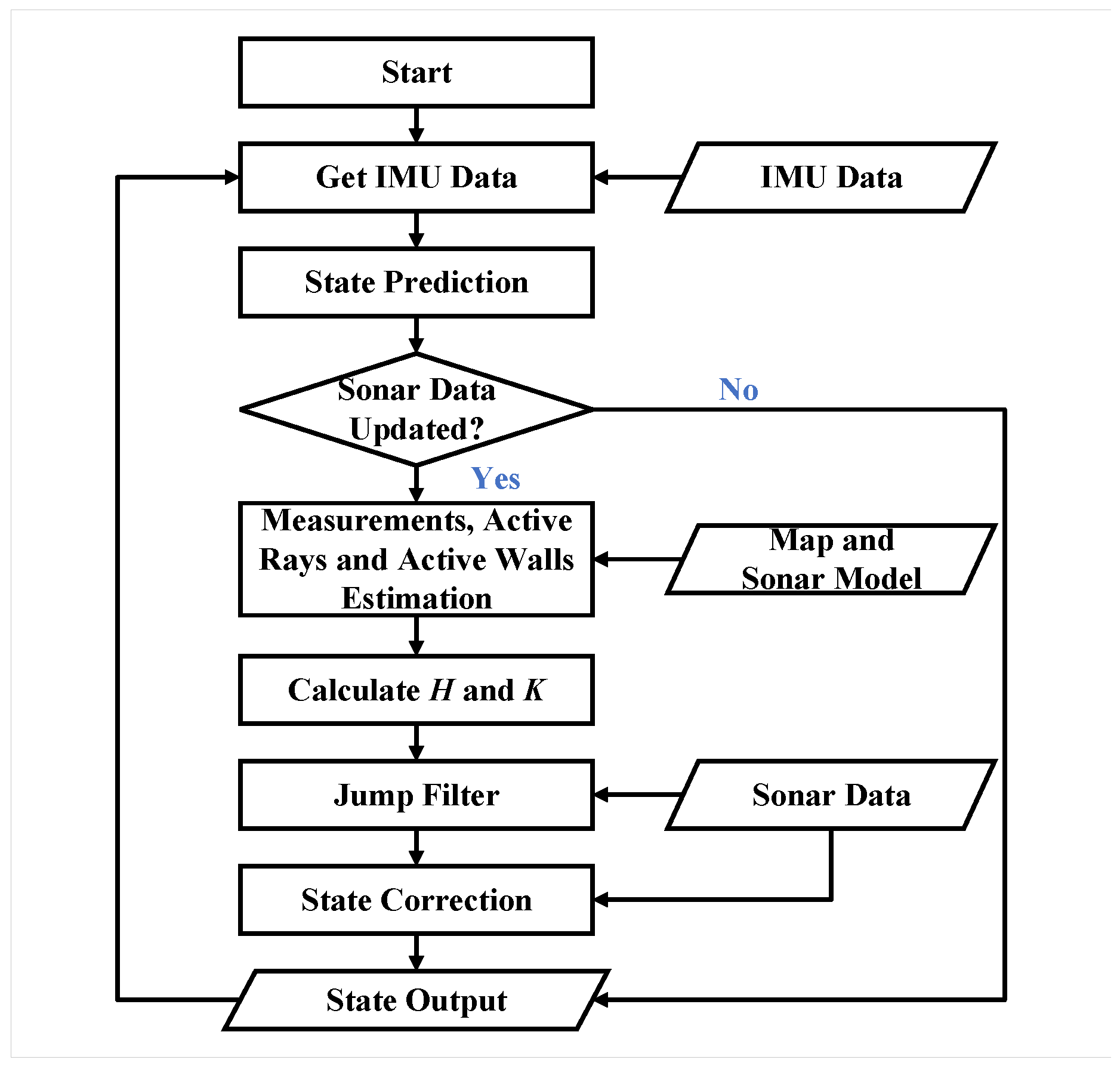

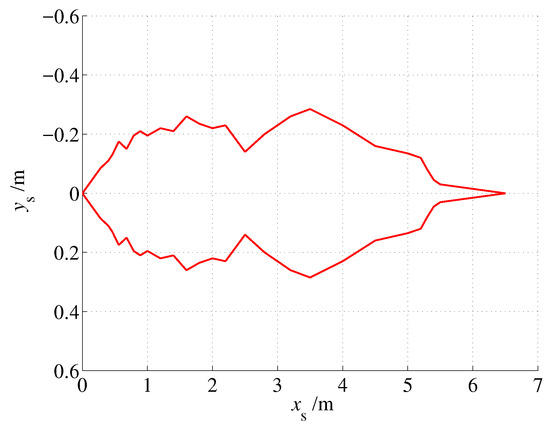

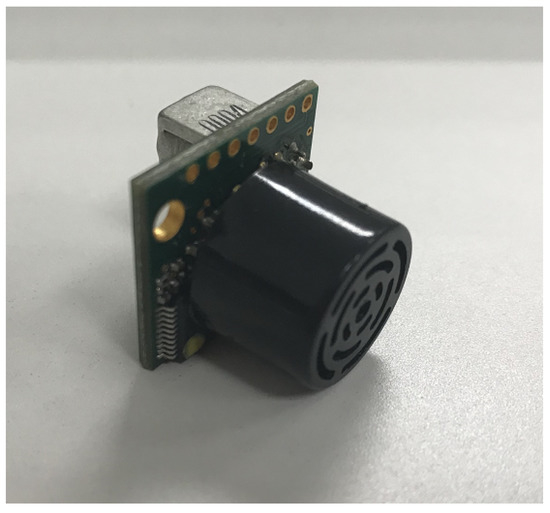

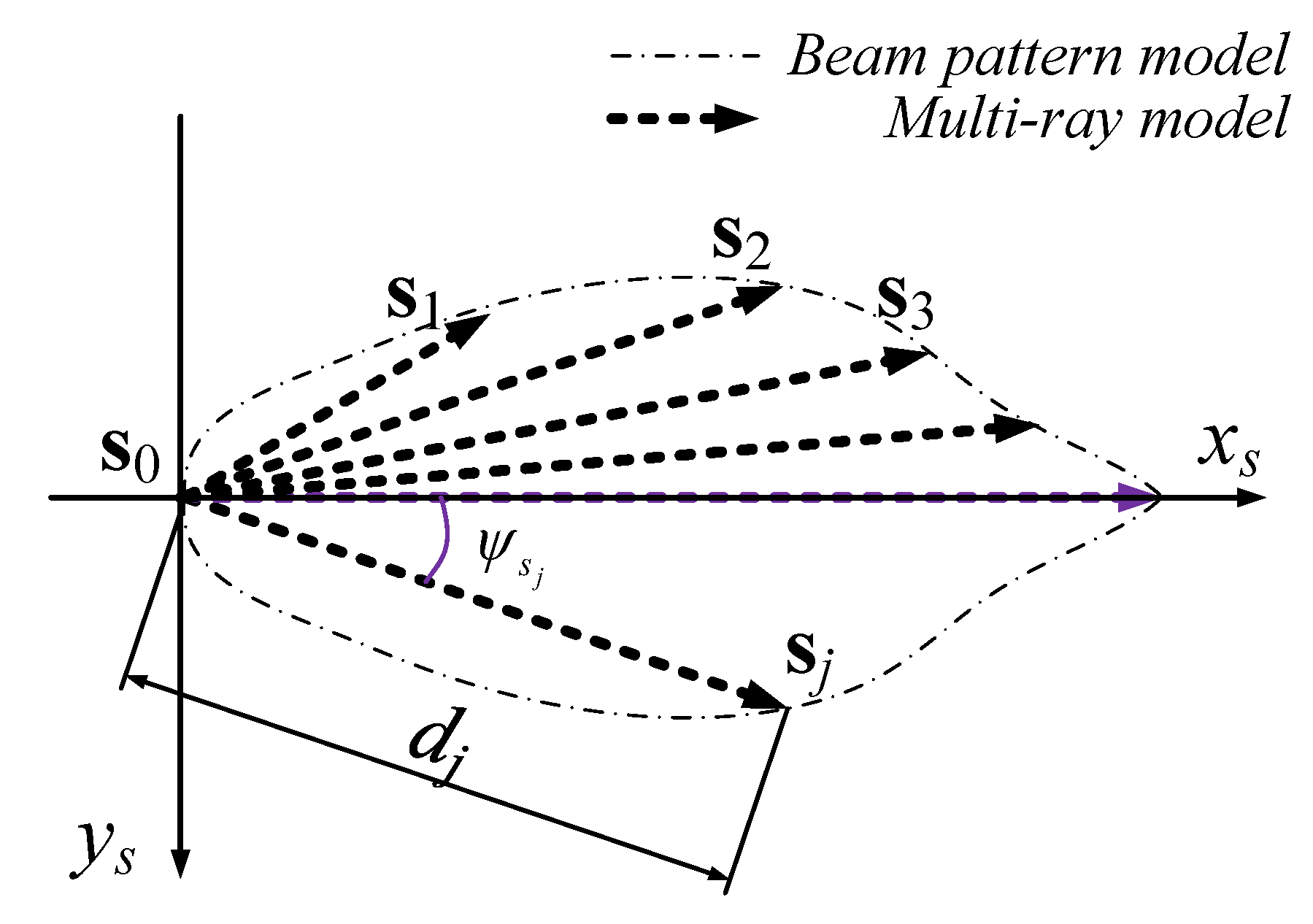

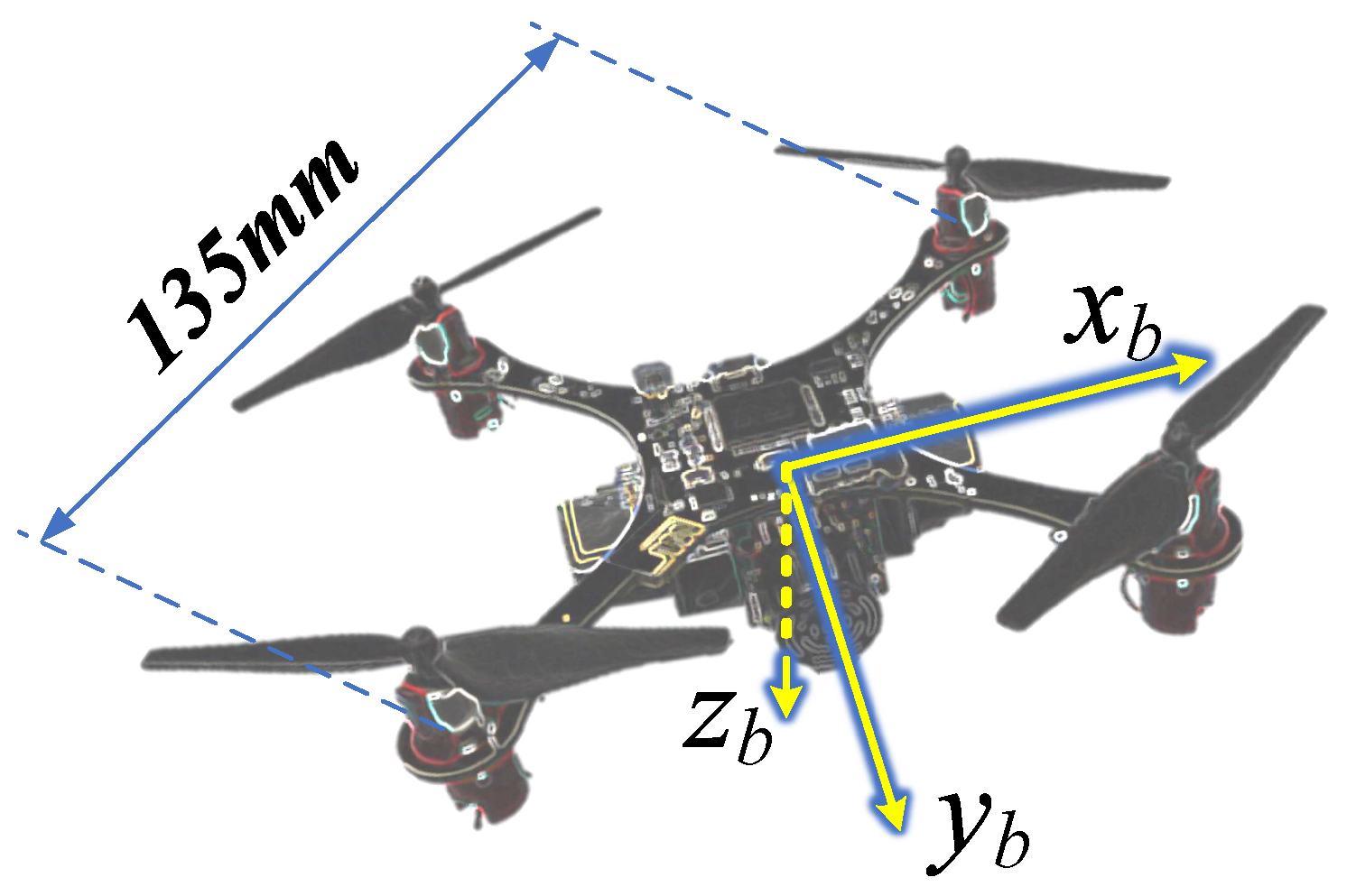

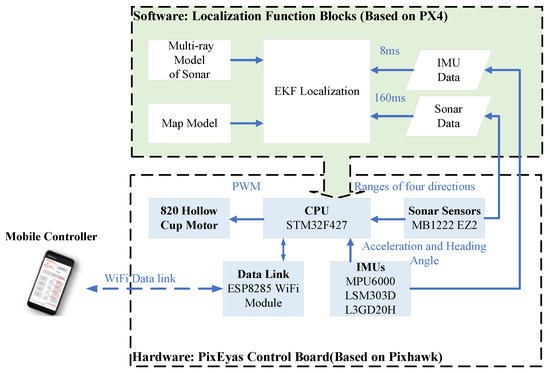

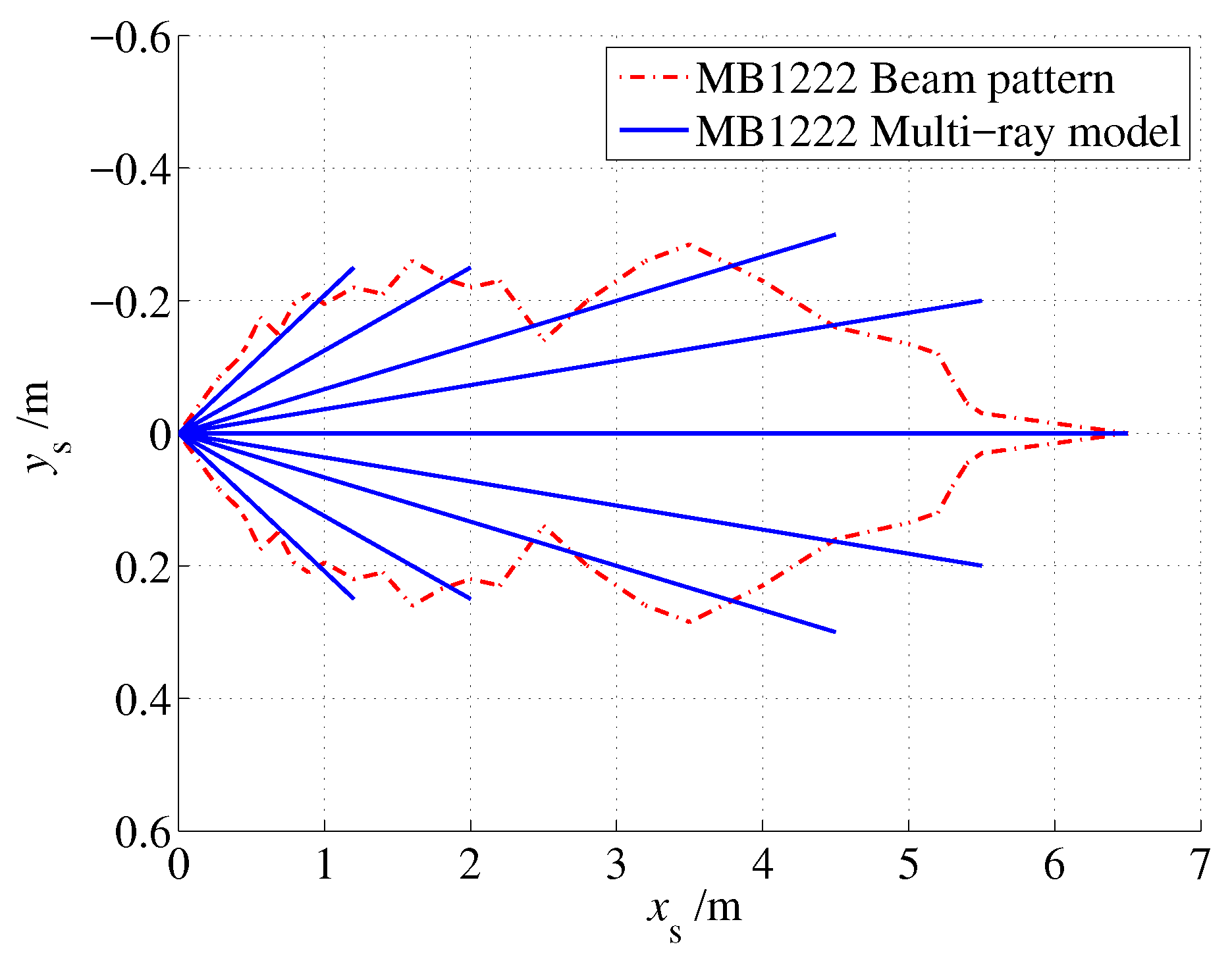

Due to its payload, size and computational limits, localizing a micro air vehicle (MAV) using only its onboard sensors in an indoor environment is a challenging problem in practice. This paper introduces an indoor localization approach that relies on only the inertial measurement unit (IMU) and four ultrasonic sensors. Specifically, a novel multi-ray ultrasonic sensor model is proposed to provide a rapid and accurate approximation of the complex beam pattern of the ultrasonic sensors. A fast algorithm for calculating the Jacobian matrix of the measurement function is presented, and then an extended Kalman filter (EKF) is used to fuse the information from the ultrasonic sensors and the IMU. A test based on a MaxSonar MB1222 sensor demonstrates the accuracy of the model, and a simulation and experiment based on the T h a l e s I I MAV platform are conducted. The results indicate good localization performance and robustness against measurement noises. View Full-Text
Keywords: indoor location; multi-ray model of ultrasonic sensors; micro-UAV; extended Kalman filter indoor location; multi-ray model of ultrasonic sensors; micro-UAV; extended Kalman filter
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Yang, L.; Feng, X.; Zhang, J.; Shu, X. Multi-Ray Modeling of Ultrasonic Sensors and Application for Micro-UAV Localization in Indoor Environments. Sensors 2019, 19, 1770.
