CNT-Based Inkjet-Printed RF Gas Sensor: Modification of Substrate Properties during the Fabrication Process

1
University of Limoges, CNRS, XLIM UMR 7252, F-87060 Limoges, France
2
University of Bordeaux, Bordeaux INP/CNRS, IMS UMR 5218, F-33400 Talence, France
*
Author to whom correspondence should be addressed.
Received: 25 February 2019 / Revised: 31 March 2019 / Accepted: 10 April 2019 / Published: 13 April 2019
(This article belongs to the Special Issue Passive Electromagnetic Sensors for Autonomous Wireless Networks)
  |
PDF [4088 KB, uploaded 13 April 2019]
  |

Abstract

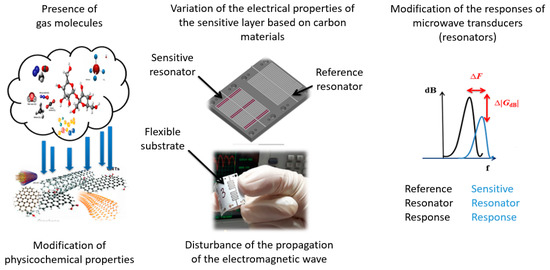

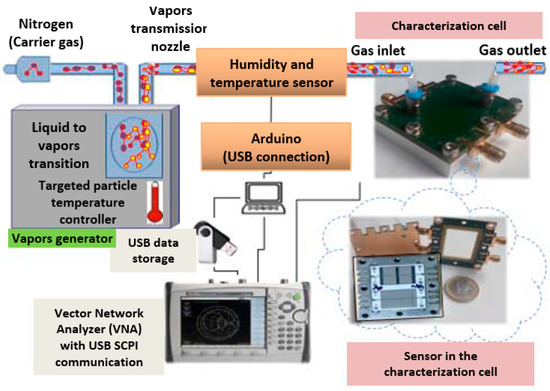

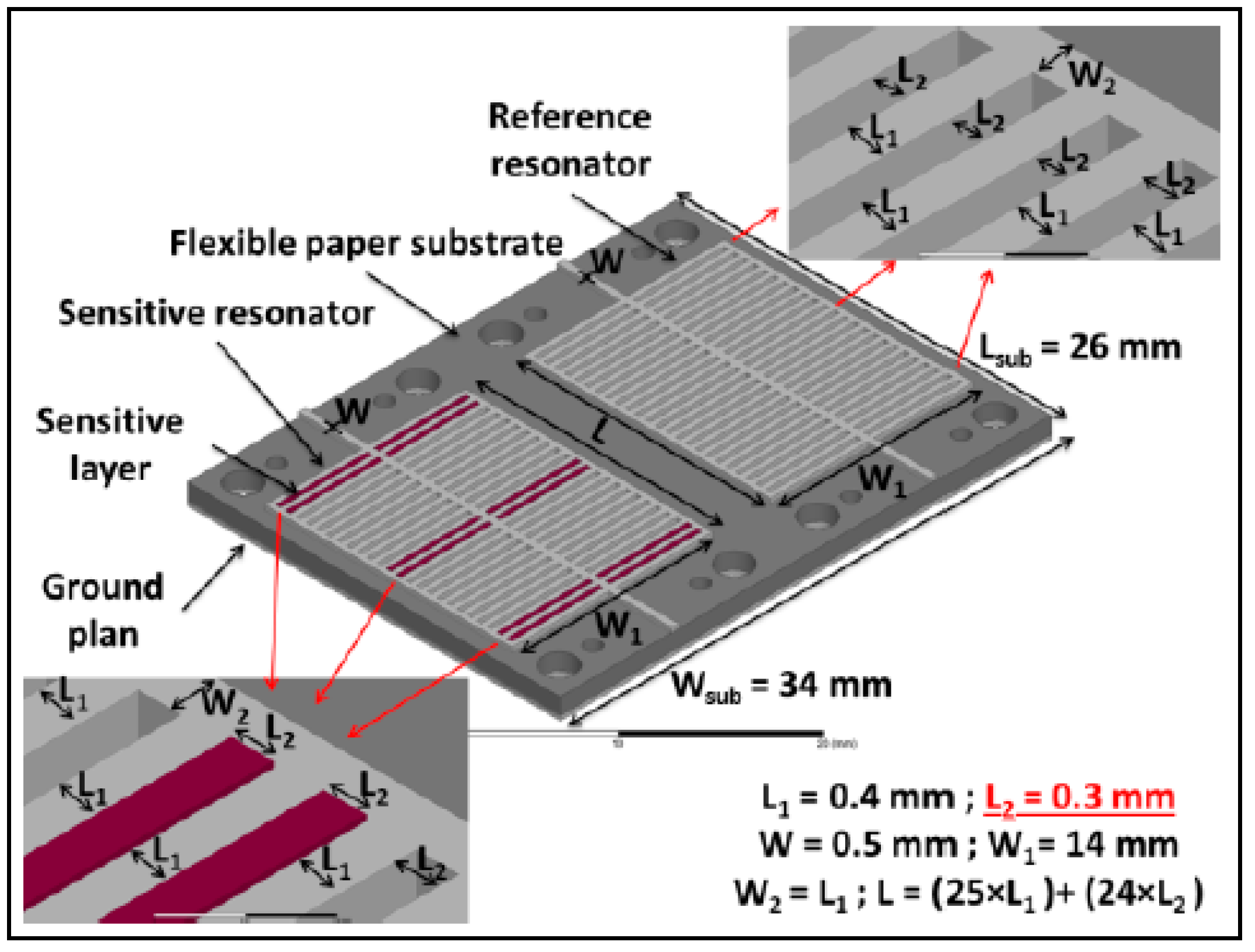

This paper presents the feasibility of a fully inkjet-printed, microwave flexible gas sensor based on a resonant electromagnetic transducer in microstrip technology and the impact of the printing process that affects the characteristics of the gas sensor. The sensor is fabricated using silver ink and multi-wall carbon nanotubes (MWCNTs) embedded in poly (3,4-ethylenedioxythiophene) polystyrene (PEDOT: PSS-MWCNTs) as sensitive material for Volatile Organic Compounds (VOCs) detection. Particular attention is paid to the characterization of the printed materials and the paper substrate. The manufacturing process results in a change in relative permittivity of the paper substrate by nearly 20%. Electrical characterization, made in the presence of gas, validates our theoretical approach and the radiofrequency (RF) gas sensor proof of concept. View Full-Text
Keywords: dielectric characterization; inkjet printing; heating influence; gas sensor; RF structure; PEDOT: PSS-MWCNT; Flexible substrate dielectric characterization; inkjet printing; heating influence; gas sensor; RF structure; PEDOT: PSS-MWCNT; Flexible substrate
