Vibration Monitoring of the Mechanical Harvesting of Citrus to Improve Fruit Detachment Efficiency
Previous Article in Journal
Intelligent Beetle Antennae Search for UAV Sensing and Avoidance of Obstacles
Article Menu

Export Article

Open AccessArticle
Sensors 2019, 19(8), 1759; https://doi.org/10.3390/s19081759

Signal Analysis, Signal Demodulation and Numerical Simulation of a Quasi-Distributed Optical Fiber Sensor Based on FDM/WDM Techniques and Fabry-Pérot Interferometers

1
Departamento de Electrónica, Centro Universitario de Ciencias Exactas e Ingenierías (C.U.C.E.I.), Universidad de Guadalajara, Blvd. M. García Barragán 1421, C. P. 44430, Guadalajara, Jalisco 44430, Mexico
2
Departamento de Matemáticas, Centro Universitario de Ciencias Exactas e Ingenierías (C.U.C.E.I.), Universidad de Guadalajara, Blvd. M. García Barragán 1421, C.P. 44430, Guadalajara, Jalisco 44430, Mexico
3
Departamento de Ingeniería de Proyectos, Centro Universitario de Ciencias Exactas e Ingenierías (C.U.C.E.I.), Universidad de Guadalajara, Blvd. M. García Barragán 1421, C. P. 44430, Guadalajara, Jalisco 44430, Mexico
4
Departamento de Química, Centro Universitario de Ciencias Exactas e Ingenierías (C.U.C.E.I.), Universidad de Guadalajara, Blvd. M. García Barragán 1421, C. P. 44430, Guadalajara, Jalisco 44430, Mexico
5
Departamento de Ciencias Tecnológicas, Centro Universitario de la Ciénega, Universidad de Guadalajara, Av. Universidad No. 1115, Lindavista, C. P. 47810, Ocotlán, Jalisco 47810, Mexico
6
Departamento de Física, Centro Universitario de Ciencias Exactas e Ingenierías (C.U.C.E.I.), Universidad de Guadalajara, Blvd. M. García Barragán 1421, C.P. 44430, Guadalajara, Jalisco 44430, Mexico
7
Departamento de Ciencias Computacionales, Centro Universitario de los Valles (CUValles), Universidad de Guadalajara, Ameca Km. 45.5, C.P., Ameca, Jalisco 46600, Mexico
*
Author to whom correspondence should be addressed.
Received: 28 February 2019 / Revised: 2 April 2019 / Accepted: 5 April 2019 / Published: 12 April 2019
(This article belongs to the Section Physical Sensors)
  |
PDF [1771 KB, uploaded 20 April 2019]
  |     |

Abstract

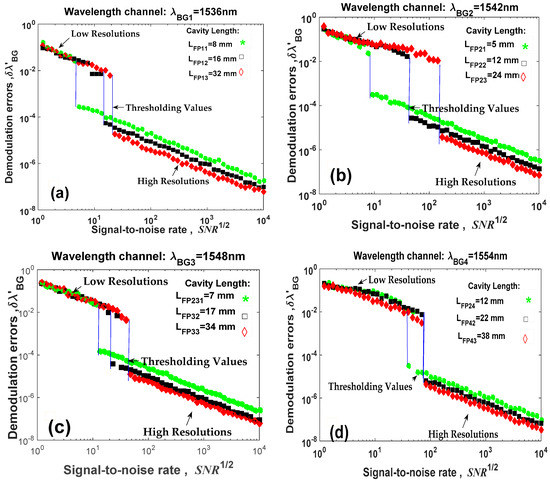

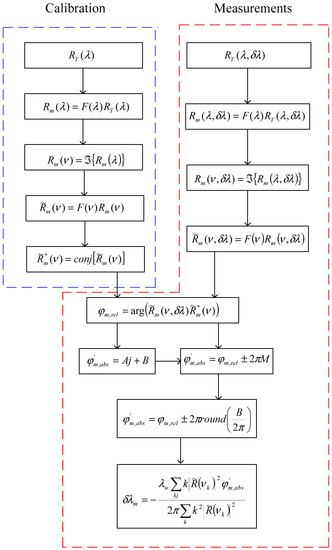

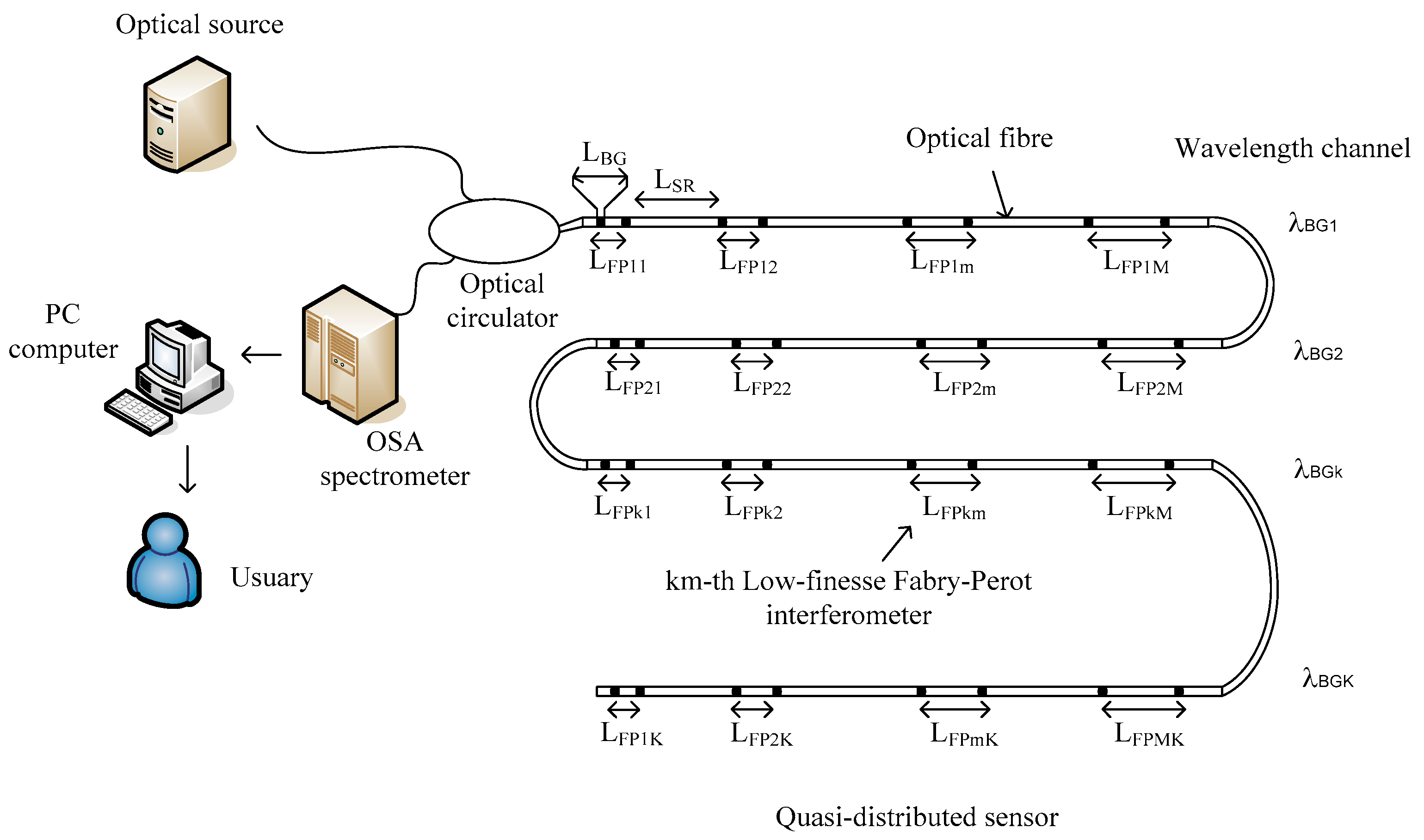

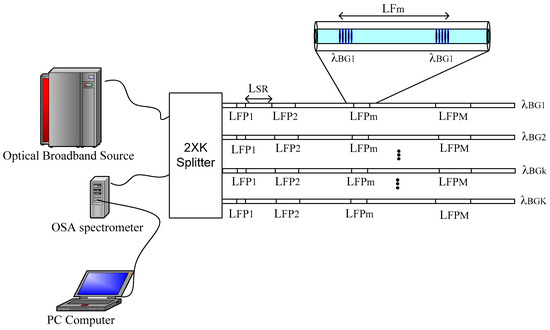

In civil engineering quasi-distributed optical fiber sensors are used for reinforced concrete monitoring, precast concrete monitoring, temperature monitoring, strain monitoring and temperature/strain monitoring. These quasi-distributed sensors necessarily apply some multiplexing technique. However, on many occasions, two or more multiplexing techniques are combined to increase the number of local sensors and then the cost of each sensing point is reduced. In this work, a signal analysis and a new signal demodulation algorithm are reported for a quasi-distributed optic fiber sensor system based on Frequency Division Multiplexing/Wavelength Division Multiplexing (FDM/WDM) and low-precision Fabry-Pérot interferometers. The mathematical analysis and the new algorithm optimize its design, its implementation, improve its functionality and reduce the cost per sensing point. The analysis was corroborated by simulating a quasi-distributed sensor in operation. Theoretical analysis and numerical simulation are in concordance. The optimization considers multiplexing techniques, signal demodulation, physical parameters, system noise, instrumentation, and detection technique. Based on our analysis and previous results reported, the optical sensing system can have more than 4000 local sensors and it has practical applications in civil engineering. View Full-Text
Keywords: quasi-distributed optical fiber sensor; wavelength/frequency division multiplexing; Fabry-Pérot sensors; theoretical analysis; sensor simulation quasi-distributed optical fiber sensor; wavelength/frequency division multiplexing; Fabry-Pérot sensors; theoretical analysis; sensor simulation

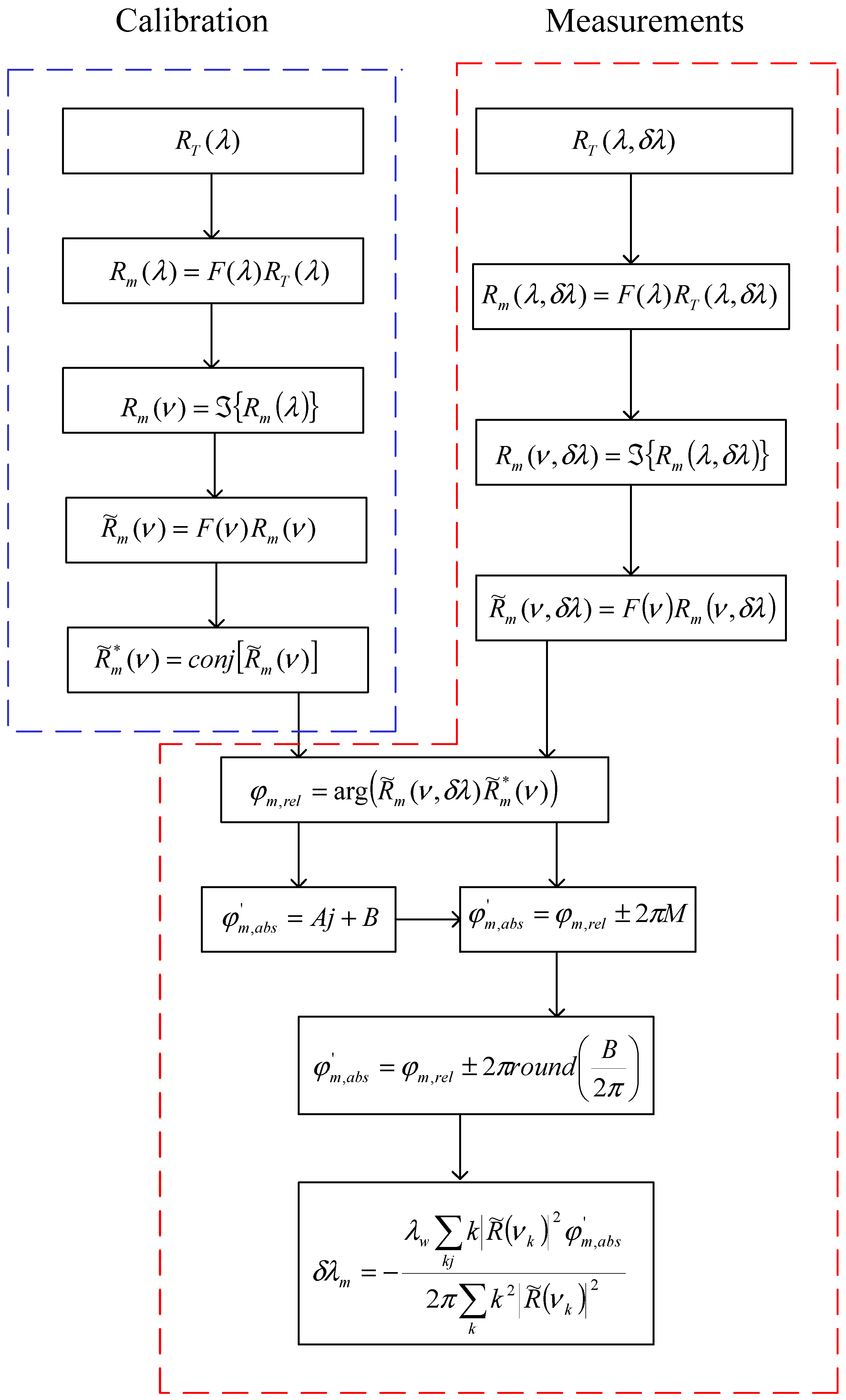

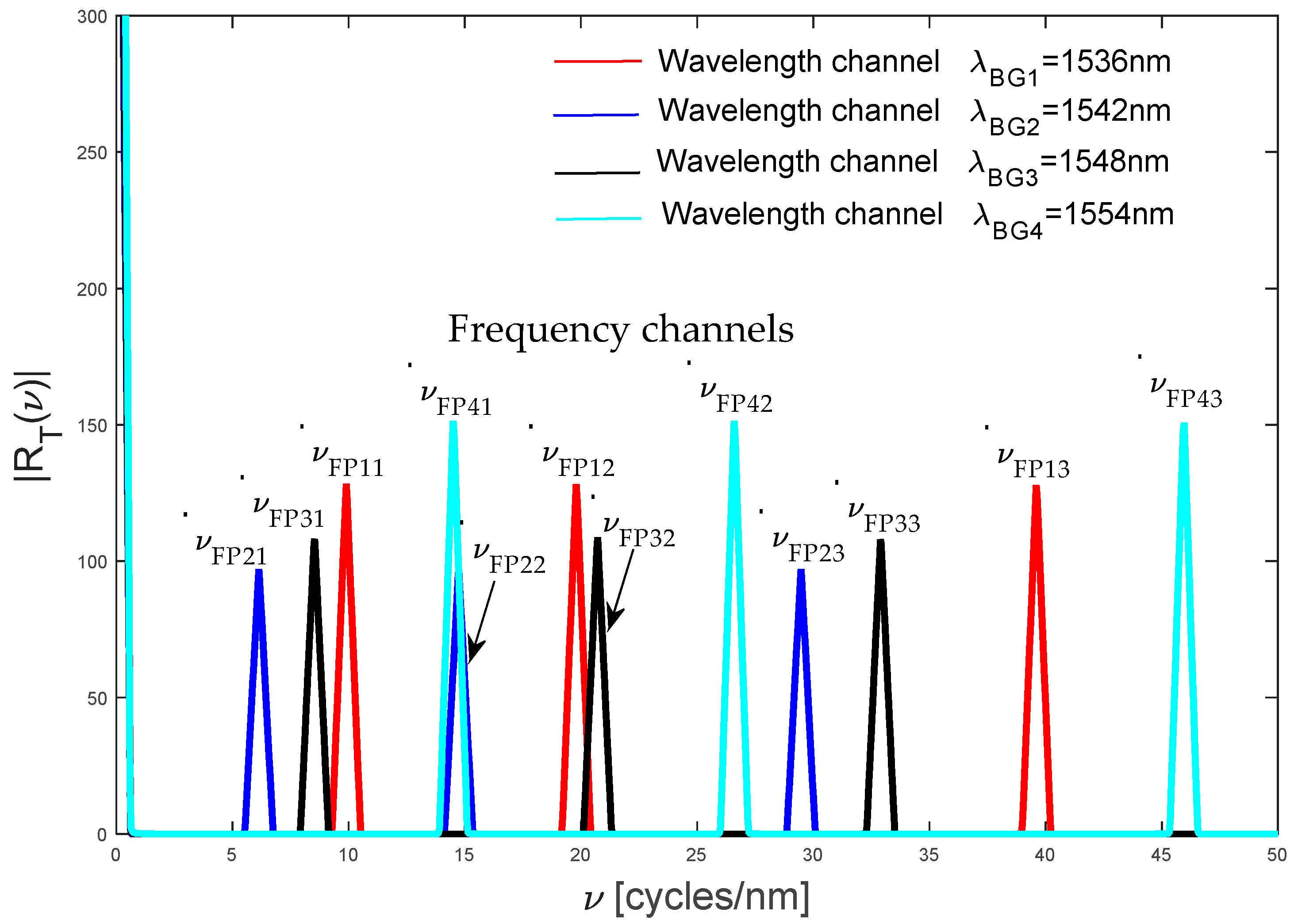

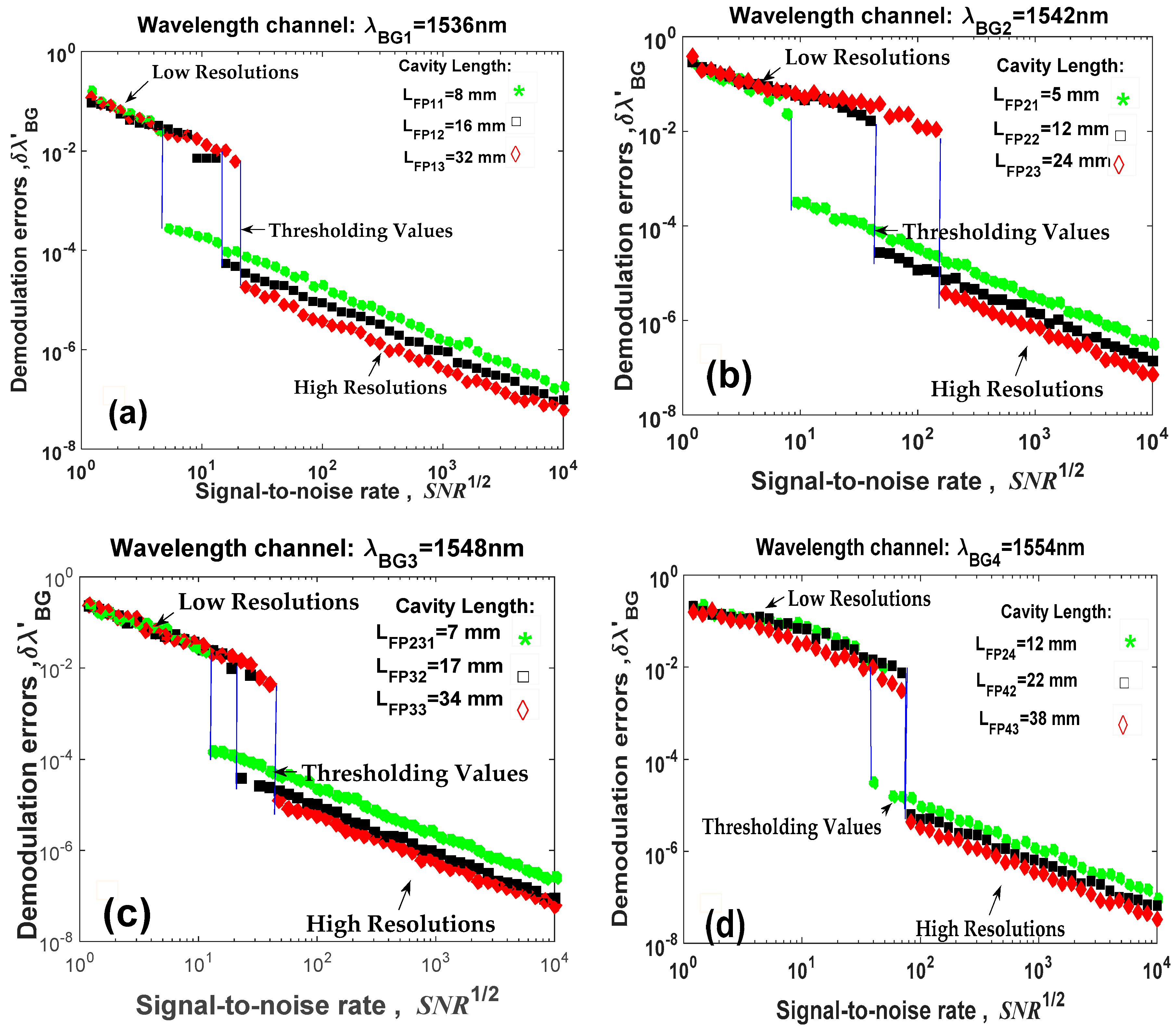

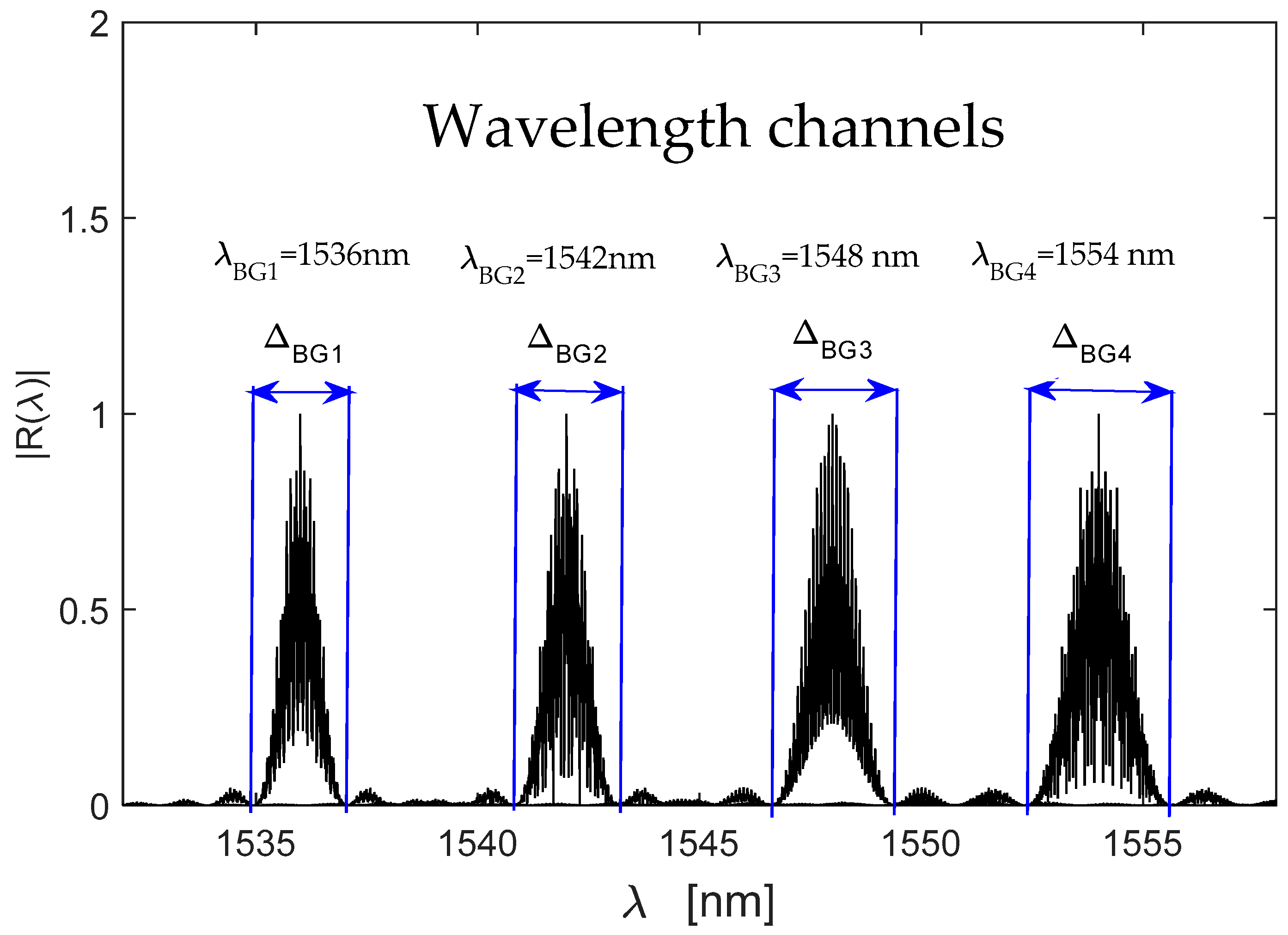

Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
